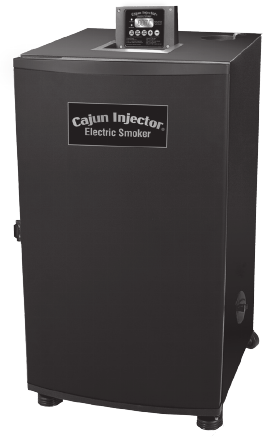

Cajun Injector®
Electric Smoker
Owner’s Manual
Assembly, Care, and Safety Instructions
Tool needed for assembly: Phillips Head Screwdriver
WARNING:
CARBON MONOXIDE HAZARD
BURNING WOOD GIVES OFF CARBON MONOXIDE. THIS
CAN CAUSE DEATH.
Warnings & Safety Concerns:
Read and follow the warnings and instructions in this
manual carefully before and during the use of the smok-
IMPORTANT SAFETY INSTRUCTIONS AND WARNINGS
READ ALL INSTRUCTIONS THOROUGHLY
BEFORE USE:
This manual contains important information that is necessary for safe and proper
use of this appliance.
Read and follow the warnings and instructions carefully before and during the use
of the smoker.
For future reference, keep this manual.
Burning wood gives off carbon monoxide. This can cause death.
Never burn wood chips or pellets inside your home, vehicle, tent, garage, or any
other enclosed areas.
This appliance is for outdoor use only. Never operate in an enclosed area.
The unit must be on the ground. Never place unit on tables or counters.
Do not plug in the Cajun Injector Electric Smoker until it is completely assembled
and ready to use.
Only use an approved, grounded electrical outlet.
Never use during an electrical storm.
Never expose the Cajun Injector Electric Smoker to rain or water.
Do not immerse cord, plug or control panel in water or any liquid. This could
cause electric shock.
Always keep children and pets away from electric smoker. Never allow children
to operate the electric smoker. When children and pets are in the area of an elec
tric smoker, close supervision is an absolute necessity.
Never operate this appliance after it has malfunctioned or damage has occurred
to the unit. Contact Bruce Foods Corporation’s customer service department for
assistance at 1-800-229-9082.
Never allow any other activities in the vicinity of the electric smoker during or after
use. Make sure the unit has cooled before storing or cleaning.
Always keep a fire extinguisher handy when operating the electric smoker.
Use caution when using an extension cord as this increases the risk of entangle
ment and tripping. A faulty or weak extension cord may cause loss of heating ef
ficiency or electric shock.
Do not allow the electrical cord to hang carelessly or touch hot surfaces.
Never put this appliance on or near a gas, or electric burner, or in a heated oven.
Never operate any electrical appliance with a damaged plug or cord.
Never use this electric smoker as a heater. (Refer to Carbon Monoxide Warning)
Electric Smoker should only be used on a level, stable surface. This will prevent
tipping over causing potential personal injury or property damage.
The electric smoker is hot while in use and for a period of time afterwards. Always
use caution near hot surfaces.
Use of alcohol, prescription or non-prescription drugs may impair one’s ability to
assemble or operate electric smoker properly.
IMPORTANT SAFETY INSTRUCTIONS
AND WARNINGS
(Continued)
Do not bump or impact electric smoker.
Do not move the appliance when in use. Always allow the electric smoker to
cool completely before storing or moving.
Carefully remove food from electric smoker. All of the surfaces are hot and
could cause burns. Always use protective gloves along with long, sturdy-
cooking tools.
Extreme caution must be used when moving an appliance containing hot oil
or other hot liquids.
Never cover cooking racks with metal foil. The foil will trap heat, causing se
vere damage to the electric smoker.
The drip tray is only for the bottom of the electric smoker. Never put drip tray
on cooking racks. This could cause damage to the electric smoker.
Always use caution when adding wood pellets or chips once the smoker is in
operation. The tray is always hot when electric smoker is in use.
To disconnect the electric smoker, turn control panel off then remove plug
from outlet.
Unplug from outlet when not in use and prior to cleaning. Allow unit to cool
completely before adding or removing grates, tray or water bowl.
Dispose of cold ashes by placing them in aluminum foil.
Do not store electric smoker with hot ashes inside unit. Store only when all
surfaces are cold, cleaned and ashes have been removed.
Accessory attachments not supplied by Cajun Injector are not recommended
and may cause injury.
Never use electric smoker for anything other than its intended purpose. This
unit is not for commercial use.
Always use the electric smoker in accordance with all applicable local, state
and federal fire codes.
SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCES.
Combustion of by-product produced when using this product contains chemicals
known to the State of California to cause birth defects and other reproductive
harm or cancer.
FOR MISSING PARTS, CALL BRUCE FOODS CORPORATION’S
CUSTOMER SERVICE DEPARTMENT AT 1-800-229-9082
ES1 - FRONT LEGS (2)
ES2 - WHEELS (2)
ES8 - LARGE COOKING
RACKS (4)
ES4 - HANDLE (1)
ES5 - HANDLE
SCREWS (2)
ES3 - WHEEL
SCREWS (8)
ES9 - SMALL COOKING
RACK (1)
ES10 - WATER PAN
ES6 - WOOD PELLET
TRAY
ES7 - DRIP PAN
ES11 - SIDE ACCESS WOOD
PELLET CHUTE CAP (1)
PARTS LIST
ES1 - Front Legs (2)•
ES2 - Wheels (2)•
ES3 - Wheel Screws (8)•
ES4 - Handle (1)•
ES5 - Handle Screws (2)•
ES6 - Wood Pellet Tray (1)•
ES7 - Drip Pan (1)•
ES8 - Large Cooking Racks (4)•
ES9 - Small Cooking Rack (1)•
ES10 - Water Pan (1)•
ES11 - Side Access Wood •
Pellet Chute Cap (1)

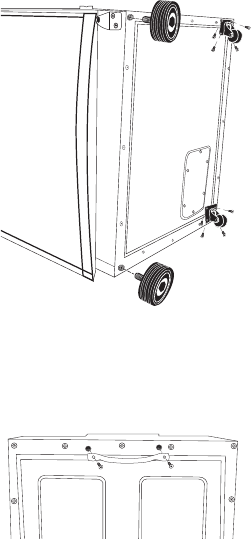

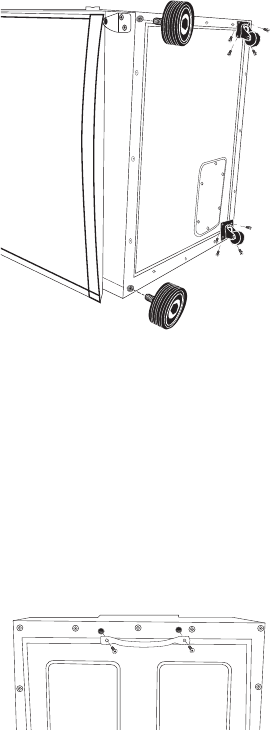

Step 1 – Secure Base
Gently lay smoker on its side, revealing the bot-•
tom of the appliance for easy assembly.
Align the four holes of a wheel to the four holes• on
the back corner of the bottom of the smoker. Us-
ing four of the provided screws, install the wheel
to the base by fastening each screw into a hole.
(Repeat this step to secure the second wheel to
the opposite back corner of the smoker).
Insert each of the legs into one of the holes• on
the front corners of the appliance and rotate
clockwise to secure the legs. The height may be
adjusted by loosening and tightening the legs.
WARNING: Check for proper balance to prevent
movement while in use.
Return smoker to upright position to continue•
with assembly.
Step 2 – Install Handle
Remove handle and two screws from the back of •
the appliance.
Align handle with the two screw holes on the•
front of the smokers’ door. Install the handle by
fastening a screw into each hole.
ASSEMBLY INSTRUCTIONS
Tools needed: Phillips Head Screwdriver
ASSEMBLY INSTRUCTIONS
Tools needed: Phillips Head Screwdriver
Step 3 – Install Wood Pellet Tray
Slide the wood pellet tray into the corresponding •
supports, insuring that the tray is placed to com-
pletely enclose the heating element with the two
surfaces of the tray.
Step 4 – Drip Pan Placement
Set Drip Pan on the floor of the inside of smoker, •
below the wood pellet tray. The raised edges of
the pan should be face up in order to catch any
juices that may drip from meat.
Be sure that the pan does not obstruct the smok-•
er door from closing.
Step 5 – Rack Placement
Set metal racks on rack support shafts located •
on the sidewalls inside the smoker. It is not nec-
essary to use all 5 metal racks when smoking;
racks can be set at various height levels accord-
ing to the size of meats being smoked.
Note: The small rack always
rests on the lowest support shaft
adjacent to the wood pellet tray.
PELLET TRAY
DRIP PAN
WATER PAN
METAL RACK
ASSEMBLY INSTRUCTIONS
Tools needed: Phillips Head Screwdriver
Step 6 – Install Water Pan
Slide Water Pan onto the supports directly •
above the wood pellet chute and below the
supports for the fourth rack.
Step 7 – Securing Wood Pellet Chute Cap
Prior to powering on the unit, ensure the •
wood pellet chute cap (located on the exte-
rior side of the smoker) is securely screwed
in place.
Please see curing instructions prior to use.
DRIP PAN
PELLET TRAY
WATER PAN
Smoker Curing Procedures
Remove all the racks from the protective wrapping and wash in warm soapy 1.
water and rinse well. Dry and put aside.
With a wet towel, wipe the inside of your smoker to remove any residue.2.
Once the inside is dry, use some vegetable spray or olive oil spray on a dry 3.
towel and wipe the inside walls liberally.
Heat the smoker to 225˚F. 4. Place 1/4 cup Wood Pellets into the wood pellet
chute, and ensure that no pellets remain in chute after loading. Smoke for two
hours.
Congratulations. Your smoker is ready for use.5.
Cajun Injector® Wood Pellet Choices
Wood
Flavor Poultry Fish Ham Beef Pork Lamb
Hickory
Strong, pun-
gent, smoky-
sweet bacon
like flavor • • •
Apple
Light fruity
smoke, gives a
slightly sweet
taste • •
Oak
Clean, asser-
tive smoke
flavor • • •
Mesquite
Bold, hearty,
smoker flavor,
slightly sweet
unique flavor • •
Pecan
Subtle yet rich
flavor • •
How to use wood pellet chute
When smoker reaches desired temperature, pour 1/2 bottle (1.5oz.) of Cajun •
Injector Flavored Wood Pellets, or 1/4 cup of your favorite wood chips, into chute.
Replace cap securely over wood pellet chute.
If using wood chips, follow instructions on wood chip packaging prior to placing •
chips into the smoker.
Never use more than 1.5 oz. of wood pellets, or 1/4 cup of wood chips, at a time.•
Add more pellets or chips as needed.•
Adding wood pellets during smoking process
Caution: Keep smoker door closed when adding wood pellets or chips.
Note: Wood pellet chute will be hot even if handle is not.
Add wood pellets or chips to the smoker by repeating the process mentioned •
above.
Temperature may spike briefly after wood is added. It will stabilize after a short •
time. Do not adjust.
WHEN DOOR IS OPENED A FLARE UP MAY OCCUR. SHOULD WOOD PEL-
LETS FLARE UP, IMMEDIATELY CLOSE DOOR, WAIT FOR WOOD CHIPS TO
BURN DOWN THEN OPEN THE DOOR AGAIN. DO NOT SPRAY WITH WATER.
Control panel operating instructions
It is not necessary to pre-heat this unit.
Setting the Temperature:
Push ON button.•
Push TEMP button; LED display •
will blink.
Set temperature using •
Push TEMP to hold preferred temperature.•
Note: Heating will not begin until timer is set.
Setting the Timer:
Push TIME button; LED display for hours •
will blink.
Set the hours by using•
Push TIME button again to lock in hours. The minutes LED will start blinking. •
Set the minutes by using •
Push TIME for timer to begin. •
HEAT WILL TURN OFF WHEN TIME HAS EXPIRED.
Resetting control panel
If control panel shows an error message, turn electric smoker off, unplug unit from
outlet, wait ten seconds, plug unit back into outlet, then turn electric smoker on.
This will reset control panel.
24-Hour Pop-Up Digital Display
The display panel can be exposed by firmly
pressing the button located in front of display
panel. Display panel will open and rotate up-
wards.
Using Your Smoker
Temperature cannot be set above 275˚F (135˚C). This smoker is designed for •
low temperature (200˚F – 225˚F) slow cooking. It is not intended to be used
as an oven.
Wood pellet feeder must be completely sealed on the outside of the smoker, •
and wood pellet tray must be in place while cooking. Improper loading may
cause wood pellets to catch fire.
Wood pellets are essential to generate smoke and give the meat a pleasant •
smoky flavor. Moderation in the use of wood pellets is advised. Too much
smoke will give meats smoked an unpleasant creosote flavor. While learning
to smoke, it is better to underestimate the amount of smoke required.
Your smoker will produce an abundance of smoke. This is normal. •
Over time, discoloration on the interior surface of the smoker will occur. •
This is normal.
Periodically check grease trap, and empty when necessary. •
Smoker door should stay closed throughout the cooking process. Open the •
door only when truly required. Once open, close your smoker door as soon
as possible. Leaving the door open for an extended period of time will result in
the rapid loss of heat and may cause smoking wood pellets to catch fire.
Cleaning Your Smoker
Always unplug smoker and allow ample time to cool before cleaning and •
storing.
For cooking racks, water pan, and drip pan, use a mild dish soap. Rinse •
soapy residue off well and dry thoroughly.
Clean wood pellet tray and wood pellet feeder before every use to remove •
residual ash buildup.
For exterior and interior of smoker, wipe down with a damp cloth (soap or •
chemicals should not be used). Be sure to clean the door seal and inside
seam. Dry thoroughly prior to storage.
Do not use any type of steam dishwashing detergent for cleaning smoker and •
smoker parts.
An Introduction to Your New Smoker
and The Smoking Process
This pamphlet will assist anyone with limited knowledge of how to smoke foods.
Also, to obtain excellent results while enjoying your new smoker, and while learn-
ing the basics of smoking, the traditional form of slow cook barbecue. We present
the basics to assist you in getting started, while achieving great results the very
first time as you gain experience cooking with your new smoker.
Over time, experience will allow you to adapt the smoking process to your prefer-
ences, and how to use your digital electric smoker. You will learn the “how to” with
terrific results. Ultimately, practice and patience are necessary as smoking is more
an “art” than a science; and nothing beats your own expertise and experience in
personalizing the smoking process using your new electric smoker.
Barbecue: The Basics
There are three variables that occur in all forms of barbecue – Heat, Smoke, and
Time. The interaction of these three elements determines the barbecuing process
one will utilize. Many grill masters will tell you that true barbecue must be “low”
and “slow” (heat and time) so that smoke has time to enhance the flavor naturally
while tenderizing the meat. Grilling, on the other hand, is a hot and fast cooking
technique that occurs directly over the heat source. Indirect heat is similar to roast-
ing, and is recommended when grilling larger pieces of meat with the grill cover
down and the meat placed so as to avoid the direct heat source. When you grill
steaks and hamburgers with direct heat, the cook time is often too short to infuse
the meat with any smoky flavor.
Meat Smoking:
The process of meat smoking is done at a lower temperature than grilling. Yet, the
goal remains to cook the meat to its normal “safe temperature” but over a longer
period of time, and at a lower temperature so that the meat has limited opportunity
to become damaged or “overdone” when smoking at the lower temperature.
Although curing and smoking meats is an ancient form of food preservation. Today
smoking is primarily utilized to enhance flavor and tenderize cuts of meat that often
cook best with the low heat, slow cook method. The ability to control both time and
temperature digitally with your new electric smoker takes all of the tedious steps
out of the smoking process. Moreover, you will learn that the amount of “smoke”
required during the process is far less than one might expect. Often, the best part
of the process is to keep the door to the smoker latched and do nothing. Continu-
ally opening the smoker is completely unnecessary. Once every hour or two over
a long smoker process should be more than enough. Smoke emanating from your
smoker for hours and hours will probably produce a creosote flavor so strong as to
be inedible.
Preparation of Your Smoker
1. Once your food has been brined, marinated, and seasoned, you need to prepare
your electric smoker for operation. To avoid the bitter flavor of creosote on your
meats, be sure that your smoker has been completely cleaned prior to commencing
the smoking process. One simple idea, if you don’t need the racks during the smok-
ing process, take them out prior to starting the smoking process.
2. Your choice of wood flavor will depend on your experience with smoked wood
flavors. We recommend our natural wood pellets for their convenience (no soaking
required) as well as their consistent slow smoked flavor and cleanliness. We strongly
recommend you research woods for smoking prior to experimenting with various
wood flavors, or buy commercial wood flavors whether chips, chunks, or the pellets
we prefer.
3. Be sure to fill the water pan with water or liquid (some people use apple juice,
wine, or herbal concoctions) so that the smoker will maintain moisture and steam
during the slow cook. If, and when necessary, add more liquid as required.
4. Once the electric smoker has reached temperature, add your wood choice to
commence the smoking process. Addition of the smoke source is the last step in the
preparation process before timing the process.
5. When hot smoking, the ideal smoking temperature is around 215˚F with a range of
from 200˚F – 225˚F. The goal remains to get the internal temperature of the meat up
to its safe for consumption temperature as determined by using a meat thermometer
in the meat. When the meat reaches temperature, it is important to remove the meat
from the smoker to avoid drying it out. For long smoke times, baste the meat during
those occasions when you open the smoker to check meat temperature and the need
for more liquid in the water pan.
6. Successful smoking also requires practicing good temperature control. Maintain-
ing proper temperature is critical
(1) Too low temperature can increase cook time dramatically, and could allow bacte-
rial buildup to reach unhealthy levels.
(2) Too high temperature, and your meat cooks so quickly that the benefits of smok-
ing, flavor enhancement, and tenderization of tough cuts will not occur.
Fortunately, your digital smoker controls will control temperature, especially if you do
not open the smoker too often. This will cause a loss of heat. Slow cooking gives the
natural fibers in the meat time to breakdown and become tender. When utilizing an
electric smoker digital heat controls, the learning curve is less difficult. Always keep
the door closed; only opening when absolutely necessary.
7. Too much smoke, or inadequate airflow, can cause a bitter flavor in the products
being smoked. As can inadequate knowledge of the wood chosen for smoking. If
meat receives too much smoke, it will impart a very bitter creosote taste that also
may numb your tongue. Inadequate airflow, or too strong a wood flavor for what is
being smoked, can also create bitter flavors. With smoke, as with spices, it is better
to use too little than too much. While there is still debate among some grill masters,
most cooks believe that smoky flavor obtained after the first two hours is enough.
Also, that further smoke is a waste of good wood, and may result in a creosote flavor.
Preparation of Meats for Smoking
The USDA recommends following normal sanitary procedures when preparing raw
products for smoking.
 •CleanWash hands and surfaces often.
 •Keep Ingredients Separate – Don’t cross contaminate ingredients or uten
sils.
 •Cook to Proper Temperatures using two thermometers, one for the food,
one for the smoker.
 •Smoke food to a safe internal temperature and doneness.
Poultry breast 170˚ F•
Whole Poultry 180˚ F•
Beef, Veal, Lamb Roast 145˚ F - 170˚ F•
Pork 160˚ F - 170˚ F•
 •Chill – Refrigerate meat and poultry within 2 hours of removing it from a
smoker.
* Source: USDA Pamphlet on Smoked Foods
Before You Smoke, Brine: Curing, brining, or marinating of meats to be smoked with
a salt brine was a necessary step when smoking was primarily a form of food preser-
vation. Today, although hot smoking does not require curing in order to preserve the
food, there are other reasons for brining foods, including flavor infusion (brines can be
flavored to individual taste with sugars, wines, herbs and spices). Additionally, we no
longer have to soak the product covered in brine. We, as well as others, offer flavor
injectors which will allow you to inject brines or marinades directly deep inside the
meat to be smoked.
These brines not only impart their own flavor, but moisturize and complement smoke
flavors while also inhibiting bacterial spoilage. You can also utilize marinades to flavor
and tenderize large cuts of meat from both the inside and outside, and through addi-
tion of the marinade prior to injection deep inside the meat. Use tenderizers as a rub,
then bag and marinate overnight in the refrigerator. You can also, place a little mari-
nade in the bag so that the meat is marinated and tenderized from both the inside and
the outside.
Using Rubs for Additional Flavor: After the brining or marinating process is com-
pleted, certainly with ribs, you may wish to use a rub such as our Cajun Injector®
Quick Shake® Cajun Shake® seasoning to add additional flavor. During smoking, the
rubs lose some of their flavor in the presence of heat. You can apply liberally when
working into the surface of the meat. Be sure to utilize vegetable oil, or a basting
spray, some folks even recommend prepared mustard, to provide a sticky surface for
the rub to adhere to.
Add the Smoke Source Last: First, be sure the smoker is clean. Then place your
“ready to be smoked meat” in your electric smoker. Add liquid of choice to the drip
pan. Close door, and set time and temperature digitally. Then add the wood source.
Do not waste the smoke. Never wait to see the smoke before placing your meat in
the smoker. Do not open the smoker during the first hour of the smoking process. Let
the smoke do its work, and do not worry if there is no smoke later in the process. Too
much smoke is bad, not good.
Types of Smoking
Dry Smoking: Dry smoking uses indirect heating with a low smoldering heat
source to slowly cook foods while infusing a smoke flavor.
Wet Smoking: Wet smoking or water smoking is more often employed when
smoking. A pan of water, fruit juices, wine, or other liquids are used to maintain
moisture and tenderness throughout the smoking process.
Cold Smoking: Cold Smoking is the process of smoking food usually at tempera-
tures below 100˚ F, or below a temperature that burns or liquefies fat. Foods for
cold smoking would usually be cured first – smoked bacon, hams, and smoked
fish.
Hot Smoking: Hot Smoking is the process of smoking food at the same time as it
is cooked. It is the form of cooking this booklet references. Foods for hot smoking
would normally be eaten soon after they are prepared. Hot smoked foods may be
cured (brined) or marinated, or basted. Additionally, rubs may be used to tender-
ize or enhance flavor as well as to moisturize and complement smoky flavors.
True Barbecue Starts with the Smoke: Modern Smoking has evolved from
ancient processes of preserving food. Today smoking is truly about flavoring and
tenderizing some of the tougher cuts of meat that don’t cook well using other cook-
ing methods into wonderfully flavored meals. What you smoke is mostly a matter
of taste; but the most popular smoked items include ribs, brisket, and pork shoul-
der. Most forms of wild game as well as poultry and fowl produce excellent results
when slow smoked. Dried jerky also benefits immensely from the Hot Smoking
process.
Injectable Marinade Concepts and Utilization Techniques
Injectable marinades and brines possess the same characteristics as their counterparts except that
they do not require product soaking in order to impart flavor; moisturize, and tenderize. Unlike mari-
nade soaking methodologies that only penetrate about a 1/4 inch into meat surfaces, require long
soak times, and contaminate expensive marinades, flavor injection infuses blended flavors deep
inside the meat. Conceptually the flavor injection concept makes good sense: instant flavor, yet no
waiting, no waste as marinade is injected, and no fats are required in the marinades to protect the
meat surface during soaking time. Rubs, seasonings, and sauces are used to flavor the surface of
the meat.
As with many culinary skills, proper technique when “flavor injecting” will result in superior results.
The flavoring should be spread uniformly throughout the meat with as few punctures of the meat as
possible. The flavor injector is a syringe with a needle attached to a plunger which allows the user to
inject the flavoring deep into the meat.
Injecting Tips for poultry start with limiting the puncture holes and when possible separating the skin
from the meat and puncturing directly into the geometric center of the meat. Carefully and slowly
inject along the grain of the meat aiming the injector into the middle of the meat and reduce plunger
pressure on liquid as the needle comes nearer the surface of the meat (so meat can close up behind
the needle.) Do not pull the needle completely out of the puncture hole unless to reload with liquid.
Use the same hole to angle into the other areas of the meat, slowing infusing flavor as the needle
moves back toward the meat surface. Remember the object is to spread your injection pattern so
as to get small amounts of flavor in as many places as possible. Occasionally, some of the liquid is
likely to spurt out on the meat surface. Rub the flavoring over the surface of the meat and then rub
and season the surface of the meat as desired.
1B
1A
2
1. Attach injector needle by turning clock-wise until snug. Do not over
tighten. Hint: Be sure rubber plunger is lightly coated with oil prior to
using. Determine amount of marinade required (1.5 to 2 ounces per
pound of meat) and measure out contents into a clean container to
prevent contamination of unused marinade.
2. Pull plunger to draw marinade into injector. Hint: Both slots in
needle should be immersed in liquid to prevent air from entering
injector chamber.
3. For best results, a geometrically centered injection point
should include one deep and straight needle track as well as
two additional tracks at approximately 45 degree angles branch-
ing out from the original injection point. (See illustration 1A)
4. Once inserted deep into meat, press plunger down while slowly
pulling injector needle out of meat to ensure even distribution of
marinade. Follow same procedure with each needle track at each
insertion point.
5.See illustration 1B for suggested insertion points for turkey.
6.See illustration 2 for suggested insertion points for roast.
Injecting Techniques
Smoked Turkey
Prep. Time: 20 minutes
Cook Time: 30 – 40 Minutes Per lb. at 225˚F;
longer if lower temperature is utilized.
Selection: We find whether frying or smoking your turkey, smaller birds work best
as this avoids under cooking deep inside and overcooking the outside. We recom-
mend a 12-14 lb. turkey.
Ingredients:
1 (12 lb. – 14 lb. ) Turkey, thawed (We don’t recommend larger)
1.5 oz. Per lb. Cajun Injector® Brining Solution or Cajun Injector® Creole
Butter Recipe Marinade
1/4 cup Vegetable oil
Cajun Injector® Quick Shake® Cajun Shake® seasoning (to taste)
1 cup Apple Juice
1/4 cup Oak or Pecan Smoker Pellets
Method:
Allow turkey to thaw in refrigerator according to manufacturer’s directions. Once
thawed, remove from packaging, remove the neck, giblets, etc. from the cavity and
rinse the turkey with water and pat dry. Inject the turkey with 1.5 ounces of Cajun
Injector Creole Butter Recipe Marinade or Brining Solution per pound of bird. Tie
turkey legs together and brush with vegetable oil. Sprinkle liberally with Cajun
Injector Quick Shake Cajun Shake seasoning. Set the Cajun Injector smoker tem-
perature to 225˚F and allow for 35-40 minutes per pound of smoking time or until a
minimum internal cooking temperature of 175˚F registers on a thermometer in the
turkey’s thigh (don’t let thermometer touch the bone.). Note that dark meat takes
longer to cook than White Meat. Pour the apple juice into the pan and place the
turkey in the smoker. Place 1/4 cup Oak or Pecan Wood Pellets into the wood pel-
let chute, and ensure that no pellets remain in chute after loading. Once the pellets
start to smoke, commence timing the smoking process. After the first hour, check
the wings and leg segments. If any parts are browning too quickly, cover them with
aluminum foil.
Smoked turkey has a different color than baked turkey (it often looks pinker.) This
is normal, and is caused by the turkey meat’s reaction to the smoke. As long as
the turkey registers an internal temperature of 165˚F in the breast and 175˚F in the
thigh your turkey is done and completely safe to eat.
Smoked Shrimp Kabobs
Prep Time: 15 minutes
Cook Time: 15-20 minutes
Yield: 4-6 servings
Ingredients:
2 lbs. Fresh large shrimp
Cajun Injector® Teriyaki and Honey Recipe Marinade
2 Red sweet peppers
2 Yellow sweet peppers
1 - 8 oz. Package of fresh mushrooms
1 Large onion
Metal or bamboo skewers
1/2 cup Water
1/4 cup Oak or Pecan Wood Pellets
Method:
Set the smoker temperature to 185˚F. Peel and devein shrimp, leaving the tails
on. Inject shrimp with 1/4 ounce marinade per shrimp. Cut peppers and onion into
1 inch pieces. On metal or soaked bamboo skewers, alternate shrimp and veg-
etables, beginning with peppers and alternating shrimp, mushroom, and onion.
Place kabobs on rack in the Cajun Injector Electric Smoker. Pour 1/2 cup of water
into drip pan in smoker. Place 1/4 cup Oak or Pecan Wood Pellets into wood pellet
chute, and ensure that no pellets remain in chute after loading. Smoke for about
15-20 minutes or until shrimp are opaque.
Basil - Wrapped Smoked Corn on the Cob
Prep Time: 10 minutes
Cook Time: 1-1/2 - 2 hours
Yield: 4 servings
Ingredients:
4 Ears of corn, husked
Aluminum foil
4 tbsps. Butter, melted
Cajun Injector® Quick Shake® Cajun Shake® Seasoning
24 Fresh basil leaves
1/2 cup Water
1/4 cup Oak or Pecan Wood Pellets
Method:
Set the smoker temperature to 225˚F. Place corn on foil and brush generously with
melted butter. Sprinkle with Cajun Injector Quick Shake Cajun Shake seasoning.
Place basil leaves evenly around corn. Carefully close foil around cobs. Place corn
on rack in the Cajun Injector Electric Smoker. Pour 1/2 cup of water into drip pan
in smoker. Place 1/4 cup Oak or Pecan Wood Pellets into wood pellet chute, and
ensure that no pellets remain in chute after loading. Smoke for 1-1/2 - 2 hours.
Smoked Oyster Dressing
Prep time: 10 minutes
Cook time: 25 minutes
Yields: 1 (1/2 cup) servings
Ingredients:
16 oz. Shucked Oysters
4 oz. Ground Pork
2 tbsps. Extra Virgin Olive oil
1 Medium Onion, Diced
1 Small Green Bell Pepper, Diced
3 Cloves Garlic, Minced
Method:
Drain oysters and pat dry with paper towels. Place 1/4 cup Wood Pellets into wood
pellet chute, and ensure that no pellets remain in chute after loading. Place oysters
on a small baking rack and smoke at 185˚F for 40 minutes. Once oysters are finished
smoking, set them aside and allow them to cool. When cool, rough chop the oysters
and set them aside. In a heavy saucepan, gently cook the onion, bell pepper, and
garlic until translucent. Add the chopped oysters and water and bring to a boil. Add
rice, return to a boil, lower heat to a simmer, cover and cook over low heat for 20
minutes.
Cajun Injector® Smoked Venison Roast
Prep Time: 10 minutes
Cook Time: 4-5 hours
Yield: 4-6 servings
Ingredients:
1 Cajun Injector® Smoker Kit containing:
1 (16) ounce jar Cajun Injector Smoking Brine
1 (16) ounce jar Cajun Injector Basting Spray
1 (16) ounce jar Cajun Injector BBQ Finishing Sauce
1 (3) ounce pecan smoker pellets
1 (3) ounce oak smoker pellets
1 - 4 lb. Venison Roast
3 tbsps. Cajun Injector® Quick Shake® Cajun Shake® seasoning
1 cup Apple Juice
Method:
Set the smoker temperature to 225° F. Once smoker is ready, inject 2 ounces per
pound of the smoking brine throughout the roast. Next, season the outside liberally
with the Cajun Injector Quick Shake Cajun Shake seasoning. Place the roast on a
rack in the Cajun Injector Electric Smoker. Spray with basting spray and pour apple
juice into drip pan in smoker. Place 1/4 cup Oak or Pecan Wood Pellets into wood
pellet chute, and ensure that no pellets remain in chute after loading. Let the roast
smoke for about 4-5 hours at 225° F. Use the basting spray again about 2 hours
into the smoking process. After four hours check internal temperature of the roast,
it should be near 165° F. When internal temperature is 165° F pull the roast off
the smoker and apply the BBQ finishing sauce. Allow to rest for 15 minutes before
carving.
Cajun Injector® Smoked Caribou Roast
Prep Time: 10 minutes
Cook Time: 4-5 hours
Yield: 4-6 servings
Ingredients:
1 Cajun Injector® Smoker Kit containing:
1 (16) ounce jar Cajun Injector Smoking Brine
1 (16) ounce jar Cajun Injector Basting Spray
1 (16) ounce jar Cajun Injector BBQ Finishing Sauce
1 (3) ounce pecan smoker pellets
1 (3) ounce oak smoker pellets
1 4-6 lb. Caribou Roast
3 tbsps. Cajun Injector® Quick Shake® Cajun Shake® seasoning
1 cup Apple Juice
Method:
Set the smoker temperature to 225° F. Once smoker is ready, inject 2 ounces per
pound of the smoking brine throughout the roast. Next season the outside liberally
with the Cajun Injector Quick Shake Cajun Shake seasoning. Place the roast on a
rack in the Cajun Injector Electric Smoker. Spray with basting spray and pour apple
juice into drip pan in smoker. Place 1/4 cup Oak or Pecan Wood Pellets into wood
pellet chute, and ensure that no pellets remain in chute after loading. Let the roast
smoke for about 4-5 hours at 225° F. Use the basting spray again about 2 hours
into the smoking process. After four hours check internal temperature of the roast,
it should be near 165° F. When internal temperature is 165° F pull the roast off
the smoker and apply the BBQ finishing sauce. Allow to rest for 15 minutes before
carving.
Smoked Tuna
Prep Time: 10 minutes
Cook Time: 7 hours
Yield: 4 servings
Ingredients:
4 1 inch thick Tuna Steaks
4 tbsps. Cajun Injector® Quick Shake® Lemon Pepper Shake®
2 tbsps. Extra Virgin Olive Oil
1 cup Apple Juice
1/4 cup Apple or Pecan Wood Pellets
Method:
Set the smoker temperature to 140° F. Season the tuna steaks with Cajun Injec-
tor Quick Shake Lemon Pepper seasoning on both sides and drizzle with olive
oil. Pour apple juice into the drip pan in smoker. Arrange the tuna steaks in the
smoker, and close the smoker door. Set the digital timer, and place 1/4 cup Apple
or Pecan Wood Pellets into wood pellet chute, and ensure that no pellets remain in
chute after loading.
Cajun Injector® Smoked Pork Tenderloin
Prep Time: 10 minutes
Cook Time: 2-3 hours
Yield: 4-6 servings
Ingredients:
1 - 2 lb. Pork Tenderloin
1 16 oz. Jar Cajun Injector® Creole Butter Recipe Marinade,
Jalapeno Butter Recipe Marinade, or Hot n Spicy Butter Recipe
Marinade
3 tbsps. Cajun Injector® Quick Shake® Cajun Shake® seasoning
1 cup Apple Juice
1/4 cup Oak or Pecan Wood Pellets
Method:
Set the smoker temperature to 225° F. Once smoker is ready, inject 2 ounces per
pound of the Cajun Injector marinade throughout the pork. Next, season the out-
side liberally with the Cajun Injector Quick Shake Cajun Shake seasoning. Place
the pork on a rack in the Cajun Injector Electric Smoker. Pour apple juice into drip
pan in smoker. Place 1/4 cup Oak or Pecan Wood Pellets into wood pellet chute,
and ensure that no pellets remain in chute after loading. Let the pork smoke for
about 2-3 hours at 225° F. After 2 hours check internal temperature of the pork, it
should be near 165° F. When internal temperature is 165° F pull the pork off the
smoker. Allow to rest for 15 minutes before carving.
Cajun Injector® Honey Bacon BBQ Smoked
Pork Ribs
Prep time: 10 minutes
Cook time: 6 hours
Yields: 2-3 servings
Ingredients:
1 Rack of Pork Ribs
2 cups Apple Juice
2 tbsps. Cajun Injector® Quick Shake® Cajun Shake®
2 tbsps. Original Louisiana Chipotle Hot Sauce
8 oz. Cajun Injector® Honey Bacon BBQ Recipe Marinade
1/4 cup Oak or Pecan Wood Pellets
Method:
Remove the ribs from their package, and allow to breath for 5 minutes. Pat with
paper towels, and generously apply Cajun Injector Quick Shake Cajun Shake
seasoning and hot sauce to both sides of the ribs. Set the temperature to 215°F
and the timer to 6 hours, or until internal temperature is near 165˚F. Put the apple
juice in the drip pan located above the heating element. Place ribs on rack and
place 1/4 cup Oak or Pecan Wood Pellets into wood pellet chute, and ensure that
no pellets remain in chute after loading. The last hour of cooking, baste with Honey
Bacon BBQ Recipe Marinade.
Cajun Injector® Smoked Pork Butt
Prep Time: 10 minutes
Cook Time: 4-5 hours
Yield: 4-6 servings
Ingredients:
1 7-8 lb. Fresh Pork Butt
1 16 oz. Jar Cajun Injector® Hot n Spicy Butter Recipe Marinade, Creole
Butter Recipe
Marinade, or Jalapeno Butter Recipe Marinade
6 tbsps. Cajun Injector® Quick Shake® Cajun Shake® seasoning
1 cup Apple Juice
1/4 cup Oak or Pecan Wood Pellets
Method:
Set the smoker temperature to 225° F. Once smoker is ready, inject 2 ounces per
pound of the Cajun Injector marinade throughout the pork butt. Next, season the
outside liberally with the Cajun Injector Quick Shake Cajun Shake seasoning.
Place the pork butt on a rack in the Cajun Injector Electric Smoker. Pour apple
juice into drip pan in smoker. Place 1/4 cup Oak or Pecan Wood Pellets into wood
pellet chute, and ensure that no pellets remain in chute after loading. Let the pork
butt smoke for about 4-5 hours at 225° F. After four hours, check internal tempera-
ture of the pork butt. It should be near 165° F. When internal temperature is at 165°
F pull the pork butt off the smoker. Allow to rest for 15 minutes before carving.
Cajun Injector® Butter Flavored Smoked Chicken
Prep Time: 15 minutes
Cook Time: 4-5 hours
Yield: 4-6 servings
Ingredients:
1 Chicken (3-4 lb. average)
Cajun Injector® Jalapeno Butter Recipe Marinade, Hot n Spicy
Butter Recipe Marinade, or Creole Butter Recipe Marinade
(2 oz. per lb.)
Cajun Injector® Quick Shake® Cajun Shake® seasoning
1/4 cup Oak or Pecan Wood Pellets
Method:
Preheat smoker to 225˚F and set timer for 4 hours. Remove chicken from packaging
and discard the neck and giblets from the cavity. Pat chicken dry with paper towels.
Measure out 2 oz. of Cajun Injector marinade per pound of chicken (For example:
4 lb. x 2 oz. = 8 oz. of Cajun Injector marinade). Inject into the breasts, wings, legs,
and thighs, pulling the skin away from the flesh and injecting underneath the skin.
This keeps the marinade in the chicken. Rub the Cajun Injector Quick Shake Cajun
Shake seasoning over the outside and inside of the chicken according to your taste.
Place 1/4 cup Oak or Pecan Wood Pellets into wood pellet chute, and ensure that no
pellets remain in chute after loading. Smoke for 4 hours or until the internal tempera-
ture reaches 165˚F.
Cajun Injector® Smoked Pork Loin
Prep Time: 10 minutes
Cook Time: 3-4 hours
Yield: 4-6 servings
Ingredients:
1 3 - 4 lb. Pork Loin
1 16 oz. Jar Cajun Injector® Hot n Spicy Butter Recipe Marinade, Creole
Butter Recipe
Marinade, or Jalapeno Butter Recipe Marinade
6 tbsps. Cajun Injector® Quick Shake® Cajun Shake® seasoning
1 cup Apple Juice
1/4 cup Oak or Pecan Wood Pellets
Method:
Set the smoker temperature to 225° F. Once smoker is ready, inject 2 ounces per
pound of the Cajun Injector marinade throughout the pork. Next season the out-
side liberally with the Cajun Injector Quick Shake Cajun Shake seasoning. Place
the pork on a rack in the Cajun Injector Electric Smoker. Pour apple juice into drip
pan in smoker. Place 1/4 cup Oak or Pecan Wood Pellets into wood pellet chute,
and ensure that no pellets remain in chute after loading. Let the pork smoke for
about 3- 4 hours at 225° F. After 3 hours check internal temperature of the pork,
it should be near 165° F. When internal temperature is 165° F pull the pork off the
smoker. Allow to rest for 15 minutes before carving.
Cajun Injector® Hickory Smoked Brisket
Prep time: 20 minutes
Cook time: 7 hours
Yield: 24 (6oz.) servings
Ingredients:
1 (12 lb.) Brisket, Trimmed
12 oz. Cajun injector® Hickory BBQ Recipe Marinade
Cajun Injector® Quick Shake® Cajun Shake® seasoning (to taste)
1/4 cup Oak or Pecan Wood Pellets
Method:
Trim any excess fat from the brisket, but taking care not to remove all of it. Inject
the brisket with the Cajun Injector Hickory BBQ Recipe Marinade using 2 ounces
per pound. Generously season the brisket with Cajun Injector Quick Shake Cajun
Shake seasoning, and rub to insure even distribution. Pour remaining marinade
over brisket. Set the temperature setting to 225°F and the timer for 7 hours. Place
meat on the rack in the Cajun Injector Smoker. Place 1/4 cup Oak or Pecan Wood
Pellets into wood pellet chute, and ensure that no pellets remain in chute after
loading.
Experiment with different techniques such as dry smoking and using our basting
sauce to “mop” the brisket during the last hour of cooking, or wet smoking with
apple juice in the pan.
Cajun Injector®
Fumeur Électrique
Manuel d’utilisation
Assemblage, soin, instructions et directives de sécurité
Outil nécéssaire pour l’assemblage : Tournevis cruciforme
AVERTISSEMENT :
RISQUE D’OXYDE DE CARBONE
LE BOIS BRÛLANT DÉGAGE DE L’OXYDE DE
CARBONE POUVANT CAUSER LA MORT.
Avertissements et directives de sécurité :
Lire et suivre attentivement les avertissements et
les instructions dans ce manuel avant et pendant
l’utilisation du fumeur.
AVERTISSEMENTS ET DIRECTIVES IMPORTANTES
DE SECURITE
LIRE ATTENTIVEMENT TOUTES LES INSTRUCTIONS
AVANT L'UTILIZATION DE L'APPAREIL :
Ce manuel contient d’ importantes informations qui sont nécessaires pour
l’usage sans danger et approprié de cet appareil.
Lire et suivre attentivement tous les avertissements et les instructions avant et
pendant l’utilisation du fumeur.
Pour futures références, conserver ce manuel après l’avoir lu.
Le bois brûlant dégage de l’oxyde de carbone ce qui peut causer la mort.
Ne jamais brûler les morceaux ou granulés de bois à l’intérieur de votre mai
son, dans votre véhicule, dans votre tente, garage, ou tout aure endroit fermé.
Cet appareil est pour l’usage extérieur seulement. Ne jamais faire fonctionner
dans un local fermé.
L’unité doit être au sol. Ne jamais placer l’unité sur une table ou comptoir.
Ne pas brancher le fumeur électrique Cajun Injector® avant qu’il soit complète
ment assemblé et prêt à l’emploie.
Employer seulement une prise électrique approuvée et avec prise de terre.
Ne jamais employer pendant un orage électrique.
Ne jamais exposer le fumeur électrique Cajun Injector® à la pluie et à l’eau.
N’immerger pas le fil, la prise ou le panneau de commande dans l’eau ou dans
aucun liquide. Ceci pourrait causer un court circuit.
Garder toujours les enfants et les animaux familiers hors de portée du fumeur
électrique. Ne jamais permettre aux enfants d’actionner le fumeur électrique.
Quand les enfants et les animaux familiers sont dans le secteur du fumeur
électrique, la surveillance étroite est une nécessité absolue.
Ne jamais utilisé cet appareil après qu’il ait mal fonctionné ou qu’il ait été en
dommagé. Entrer en contact avec le service clientèle de Bruce Foods Corpora
tion et pour recevoir de l’aide appeler le 1-800-229-9082.
Ne jamais permettre aucune autre activité à proximité du fumeur pendant ou
après son utilisation. S’assurer que l'appareil est bien refroidit avant le stockage
ou le nettoyage.
Maintenir toujours un extincteur à portée de main lorsque vous utilisez le fu
meur électrique.
Faire attention quand vous utlisez une rallonge électrique au risque de prendre
le pieds dans le fil ce qui pourrait entraîner une chute. Une rallonge électrique
défectueuse peut causer la perte d’éfficacité de chauffage ou un court circuit.
Ne pas laisser le fil électrique pendre négligemment ou toucher des surfaces
chaudes.
Ne jamais mettre cet appareil sur le dessus ou proche d’une plaque électrique
ou brûleur à gaz ou gazinière.
Ne jamais utiliser tout appareil électrique avec une prise ou fil endommagé.
Ne jamais employer ce fumeur électrique comme réchauffeur. (Se référer à
l’avertissement au sujet de l'oxyde de carbone)
Le fumeur électrique doit seulement être employé sur une surface à niveau et
stable afin d’éviter tous risques corporels et tous dégats matériels potentiels.
Le fumeur électrique est chaud et le restera pendant un moment après son
utilisation. Faire toujours attention près ou en contact avec des surfaces chau
des.
La consommation d’alcool, de médicaments ou de drogues avec ou sans ordon
nance peut altérer votre capacité d’assembler ou d’utiliser le fumeur électrique
correctement.
INSTRUCTIONS, AVERTISSEMENTS ET DIRECTIVES
DE SECURITE IMPORTANTES
(Suite)
Ne pas cogner ou frapper le fumeur électrique.
Ne pas déplacer l’appareil lorsqu'il est en service. Permettez toujours au
fumeur électrique de se refroidir complètement avant le rangement ou le
déplacement.
Enlever soigneusement la nourriture du fumeur électrique. Toutes les sur
faces sont chaudes et pourraient causer des brûlures. Employer toujours
des gants protecteurs et des outils de cuisine solides et avec un long man
che.
Extrême précautions doivent être employées lorsque vous bouger un appa
reil contenant de l'huile chaude ou tous autres liquides chauds.
Ne jamais couvrir les grilles de cuisson avec du papier alluminium. Le pa
pier alluminium retient la chaleur, pouvant endommager sérieusement le
fumeur électri-que.
Le plateau d’égouttement est seulement pour le fond du fumeur électrique.
Ne jamais mettre le plateau d’égouttement sur les grilles de cuisson. Ceci
peut en-dommager le fumeur électrique.
Faire toujours attention quand vous ajoutez les granulés ou morceaux de
bois une fois que le fumeur est en marche. Le plateau est tou jours chaud
quand le fumeur électrique est en service.
Pour déconnecter le fumeur électrique, fermer le paneau de contrôle et
enlever la prise de courant.
Déconnecter le fil du fumeur électrique quand vous ne l’utilisez pas ou
avant de le nettoyer. Assurez-vous que le fumeur soit complètement refroidit
avant que vous ajoutiez ou retiriez les grilles, plateaux ou le bol d’eau.
Se débarrasser des cendres froides en les plaçant dans du papier d’alumi
nium.
Ne pas ranger le fumeur électrique avec les cendres chaudes à l’intérieur
de l’appareil. Ranger seulement quand toutes les surfaces sont froides,
nettoyées et que toutes les cendres ont été enlevées.
L'utilisation d'attachements et accessoires non fournis par Cajun Injector®
ne sont pas recommandés et peuvent causer des dommages.
Ne jamais utiliser le fumeur électrique pour un but qui n’est pas prévu pour
son utilisation. Cet appareil n’est pas conçu pour l’usage commercial.
La Combustion de sous-produits manufacturés pendant l'utilisation de ce
produit contient des produits chimiques connus par l'état de la Californie
pour causer des malformations à la naissance et autres effets négatifs
sur la reproduction ou cancer.
ES1 - Pieds Avant (2)•
ES2 - Roues (2)•
ES3 - Vis de Roue (8)•
ES4 - Poignée (1)•
ES5 - Vis de Poignée (2)•
ES6 - Plateau de Granule de • bois (1)
ES7 - Plateau d’égouttement (1)•
ES8 - Grandes grilles de supports à • cuire (4)
ES9 - Petites grilles de supports à cuire • (1)
ES10 - Récipient à eau (1)•
ES11 - Bouchon de l’accés latéral de-•
scendeur de granule (1)
POUR TOUTES PIECES MANQUANTES, APPELER LE SERVICE
APRÈS-VENTE DE BRUCE FOODS CORPORATION AU 1-800-229-9082
LISTE DE PIÈCES
ES1 - PIEDS AVANT (2)
ES2 - ROUE (2)
ES8 - GRANDES
GRILLES DE
SUPPORTS À CUIRE (4)
ES4 - POIGNÉE (1)
ES5 - VIS DE
POIGNÉE (2)
ES3 - VIS DE
ROUE (8)
ES9 - PETITES GRILLES
DE SUPPORTS À CUIRE (1)
ES10 - RÉCIPIENT
À EAU
ES6 - PLATEAU DE
GRANULE DE
BOIS
ES7 - PLATEAU D’ÉGOUTTEMENT
ES11 - BOUCHON DE L’ACCÉS
LATÉRAL DE SCENDEUR DE
GRANULE (1)
Étape 1 - Fixer la base
Coucher doucement le fumeur sur le côté,
montrant le fond de l'appareil pour assurer
un montage facile.
Aligner les quatre trous du support de roue
avec les quatre trous sur le coin arrière
du fond du fumeur. En utilisant quatre des
vis fournies, installer la roue sur la base
en vissant chaque vis dans les trous
respectifs. (Répéter cette étape pour fixer la
deuxième roue dans le coin arrière opposé
du fumeur).
Insérer chacun des pieds dans un des trous
sur les coins du devant de l'appareil et tour
ner le boulon dans le sens des aiguilles
d'une montre pour sécuriser les pieds. La
hauteur peut être ajustée en vissant
ou dévissant le boulon du pieds du fume
AVERTISSEMENT: Vérifier l'équilibre
approprié pour empêcher que l’appareil ne
balance pendant sa mise en marche.
Remettre le fumeur en position droite pour
continuer le montage.
Étape 2 - Installer la poignée
Enlever les deux visses du haut du derrière
de l'appareil.
Aligner la poignée avec les deux trous de
visses. Insérez chaque visse dans cha
que trou et visser jusqu’à ce que la poignée
soit bien en position et bien attachée au
paneau arrière du fumeur.
INSTRUCTIONS POUR LE MONTAGE
Outils nécessaire: Tournevis cruciforme
PLATEAU À GRANULES
PLATEAU POUR ÉGOUTTEMENT
PLATEAU D’EAU
GRILLE
INSTRUCTIONS POUR LE MONTAGE
Outils requis: Tournevis cruciforme
Étape 3 – Installer le plateau de granulés de
bois
Glisser le plateau de granulés de bois dans les
supports d’appuis correspondants, s’assurant
que le plateau soit correctement positionné pour
fermer complètement l'élément de chauffe avec
les deux surfaces du plateau.
Étape 4 – Placement du plateau d'égouttement
Placer le plateau d'égouttement sur le fond de
l'intérieur du fumeur en dessous du plateau de
granulés de bois. Les bords du plateau doivent
pointé vers le haut afin d'attraper le jus qui
peut s'égoutter de la viande.
Assurez-vous que le plateau soit suffisemment
inséré profondément afin qu’il n’empêche la
fermeture de la porte du fumeur.
Étape 5 – Placement des grilles
Placer les grilles de cuisson en métal sur les
guides de soutien en métal situés sur les parois
de l’intérieur du fumeur. Il n'est pas nécessaire
d'utiliser toutes les 5 grilles en métal lorsque
l’on fume de la viande. Les grilles peuvents être
positionnées à des niveaux différents suivant la
taille de la viande que l’on veut fumer.
A Noter : la petite grille
doit toujours être placée
sur le guide de soutien en
métal situé à côté du plateau
de granulés de bois.
PLATEAU À GRANULES
PLATEAU POUR ÉGOUTTEMENT
PLATEAU D’EAU
GRILLE
Étape 6 - Installer le récipient à eau
Glisser le récipient à eau sur les guides de
soutien en métal directement au-dessus du
descendeur de granulés de bois et au des
sous des guides de soutien de la quatrième
grille.
Étape 7 - Fixation du bouchon du descen-
deur de granulés de bois
Avant de mettre en fonction l’appareil, assu
rer que le bouchon du descendeur de granu
lés de bois (situé sur le côté droit extérieur
du fumeur) est en place et solidement vissé.
Veuillez s’il vous plait vous référer aux instructions sur
la salaison de la viande avant l'utilisation.
INSTRUCTIONS POUR LE MONTAGE
Outils requis: Tournevis cruciforme
PLATEAU POUR ÉGOUTTEMENT
PLATEAU À GRANULES
PLATEAU D’EAU
Procédures d’utilisation du fumeur
Enlever toutes les grilles de l'emballage protecteur et laver avec de l’eau savon-1.
neuse et rincer. Mettre de côté et sécher.
Avec une serviette humide, essuyer l'intérieur de votre fumeur pour enlever tous 2.
résidus.
Une fois l'intérieur sec, utiliser un vaporisateur d’huile végétale ou d’huile d’olive 3.
et vaporiser sur un torchon ou serviette en papier et nettoyer généreusement les
parois intérieures.
Chauffer le fumeur à une température de 225˚F (108˚C). Insérer l’équivalent de 4.
1/4 tasse de granulés de bois dans le descendeur de granulés de bois et s'assurer
qu’aucun granulés ne demeurent dans le descendeur après chargement. Fumer
pendant deux heures.
Félicitations. Votre fumeur est opérationnel.5.
Cajun Injector® Wood Pellet Choices
Bois
aromatisé Volaille Poissons Jambon Boeuf Porc Agneau
Hickory
fort
Fort, piquant et
à l'arôme doux
et fumé comme
le bacon
• • •
Pomme
Légère saveur
fumée et fruitée
donnant un
léger goût
sucré • •
Chêne
Saveur, asser-
tive et fraîche,
avec un gôut
fumé • • •
Mesquite
saveur avec
un charactère,
robuste, unique
et légèrement
sucré
• •
Noix
Saveur subtile
et riche en
arômes • •
Comment utiliser le descendeur de granulés de bois
Quand le fumeur atteint la température désirée, verser 1/2 bouteille de 1.5oz. •
(42 g) de granulés de bois aromatisés Cajun Injector® ou 1/4 tasse de vos
granulés de bois préférés dans le descendeur. Placer le bouchon fermement
au-dessus du descendeur granulés de bois.
Si vous utilisez des morceaux de bois, suivre les instructions sur le paquet •
d’emballage avant de placer les morceaux de bois dans le fumeur.
Ne jamais employer plus de 1.5oz. (42 g) de granulés de bois, ou de 1/4 tasse •
de morceaux de bois à la fois.
Ajouter plus de granulés ou de morceaux de bois suivant le besoin.•
Ajouter les granulés de bois pendant le fumage
Attention : Maintenir la porte du fumeur fermée lorsque vous ajoutez les granulés
ou les morceaux de bois.
A Noter : Le descendeur de granulés de bois sera chaud même si au touché la
poignée ne l’est pas.
Ajouter les granulés ou les morceaux de bois au fumeur en répétant le proces-•
sus mentionné ci-dessus.
La température peut monter rapidement juste après avoir ajouter le bois. La •
tempérarture se stabilisera après un court moment. Ne tenter pas de l’ ajuster.
QUAND LA PORTE EST OUVERTE UN EMBRASEMENT PEUT SE PRODUIRE.
SI LES GRANULES DE BOIS S’EMBRASENT, FERMER LA PORTE IMMÉDI-
ATEMENT. ATTENDRE QUE LES MORCEAUX DE BOIS SE SOIENT CONSUM-
MER AVANT DE RE-OUVRIR LA PORTE. NE PAS ASPERGER AVEC DE L'EAU.
Affichage numerique Automatique de 24 heures
Le panneau d’affichage numérique peut être
ouvert en appuyant fermement sur le bouton
situé devant le panneau d’affichage. Le
panneau d’affichage s’ouvrira et se
mettra en position verticale.
Consignes d’utilisation du
panneau de commande
Il n’est pas nécessaire de préchauffer cet appareil.
Réglage de la température :
Pousser le bouton « ON » (Marche).
Pousser le bouton « TEMP » (Température);
Affichage par LED clignotera.
Régler la température en
Appuyant sur « TEMP » (Température)
pour maintenir la température désirée
A Noter : Le chauffage ne commencera pas
avant que la minuterie soit réglée.
Réglage de la minuterie :
Pousser le bouton « TIME « (Temps); Affichage par LED
afficant les heures clignotera.
Régler les heures en
Poussant le bouton « TIME » (Temps) de nouveau pour verrouiller les heu
res. Les minutes LED commenceront à clignoter.
Régler les minutes en
Poussant « TIME » (temps) pour commencer.
LA CHALEUR S’ARRÊTERA QUAND LE TEMPS A EXPIRÉ
Reréglage du panneau de contrôle
Si le panneau de contrôle montre un message d’erreur, arrêter le fumeur électri-
que, débrancher la prise de courant, attendre dix secondes, rebrancher l’appareil
en rebranchant la prise de courant, ensuite mettre en marche le fumeur électrique.
Félicitations vous avez accompli la réinitialisation de votre appareil
Utilisation de votre fumeur
La température ne peut pas être réglée au-dessus de 275˚F (135˚C). Ce
fumeur est conçu pour chauffer à basse température de 200˚F - 225˚F
(93˚C – 107˚C) à cuisson lente. Il n’est pas conçu pour être utilisé
comme four.
Le descendeur de granulés de bois doit être complètement scellé à l’exté
rieur du fumeur et le plateau de granulés de bois doit être bien en place
pendant la cuisson. Le chargement incorrect peut entraîner l’embrasage
des granulés de bois.
Les granulés de bois sont essentiels pour produire de la fumée et pour
donner à la viande un plaisant goût de fumé. Il est conseillé d’utiliser
avec modération les granulés de bois. Trop de fumée peut donner à des
viandes fumées une saveur désagréable de créosote. Tout en apprenant
à fumer, il vaut mieux au départ sous-estimer la quantité de fumée
demandée.
Il est tout à fait normal que votre fumeur produise une quantité importante
de fumée.
Il est également normal qu’avec le temps une discoloration des parois de
votre fumeur de produise.
Vérifier périodiquement la trappe de graisse de votre fumeur et vider la si
nécéssaire.
La porte du fumeur doit rester fermée durant tout le procédé de cuisson.
Ouvrez la porte seulement si c’est absolument nécéssaire. Une fois ouvert,
fermer la porte du fumeur dès que possible. Laisser la porte ouverte pen
dant une période prolongée peut entraîner la perte rapide de chaleur et
peut causer l’embrasement des granulés de bois.
Nettoyage de votre fumeur
Toujours débrancher le fumeur et prévoir suffisemment de temps pour re
froidir l’appareil avant de le nettoyer et de le ranger.
Pour nettoyer les grilles, le récipient d’eau et le plateau d’égouttement, utili
ser un savon doux pour la vaisselle. Rincer le restant des résidus savon
neux et sécher entièrement.
Avant chaque utilisation nettoyer le plateau de granulés de bois et le
descendeur de granulés en enlevant tous résidus de cendre.
Pour nettoyer l’extérieur et l’intérieur du fumeur, essuyer avec un chiffon
humide (ne pas utiliser du savon ou des produits chimiques). Ne pas oublier
de nettoyer le joint intérieur et le joint de la porte. Sécher complètement
avant de ranger.
N'utilisez aucun types de détergents pour nettoyage à la vapeur lorsque
vous nettoyez le fumeur et ses accessoires.

Navigation menu
