Cal Comp Electronics and Communications IT80X CDMA Cellular Phone User Manual iT80X
Cal-Comp Electronics & Communications Company Limited CDMA Cellular Phone iT80X
Users Manual
1

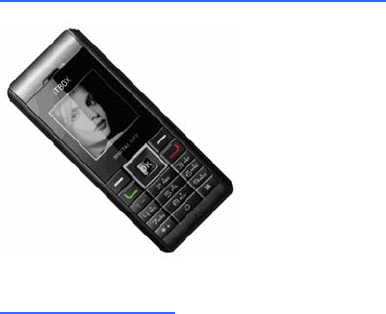

iT80X CDMA Cellular Phone
User Manual
2
I Introduction························8
II Important information················8
（1） Phone Components················10
（2） Using the Battery Pack···········15
（3） Installing the Battery···············15
（4） Removing the Battery············16
（5） Battery Charge Level··············16
（6） Accessories···················20
III Basic Functions···················21
（1）Alphanumeric, Symbol key·········21
（2）Turning the Phone On and Off········23
（3）Making a call···················24
3
（4）Receiving Calls·················26
（5）Speed Dialing·················27
VI Phone Menu Reference·············27
（1）Chapter 1 Contacts·············27
① To List Contacts··········28
② Add New·············31
③ Find Name············33
④ Multicopy·············34
⑤ Groups·············35
⑥ Erase All Contacts ·············37
⑦ Speed Dial List··············39
⑧ Memory State··············43
⑨ My Number···············43
4
（2）Chapter 2 Messages·············44
① New Message·············44
② Inbox················46
③ Outbox················48
④ Quick-text················49
⑤ Erase Messages············50
⑥ Voice Mail················52
⑦ MSG Settings·············53
⑧ Memory State·············53
（3）Chapter 3 Recent Calls············57
① Incoming················58
② Missed···············58
③ Outgoing··············58
5
④ Erase Lists················58
⑤ Call Timers················58
（4）Chapter 4 Amusement············60
① Kong Ming chess ···········60
（5）Chapter 5 Setting Up Your Phone······62
① Display················62
② Security················68
③ Network Service··············70
④ Call Setup··············71
⑤ Phone Info·············71
（6）Chapter 6 Working with Profile·······72
① Normal··············73
② Outdoor···············76
6
③ Car················76
④ Meeting················76
⑤ Silent················76
（7）Chapter 7 Using the Tools·········77
① Schedule················78
② To Do List··············82
③ Alarm Clock················84
④ Voice Memo················88
⑤ Calculator··············89
⑥ World Clock··············91
⑦ Stop Watch·············92

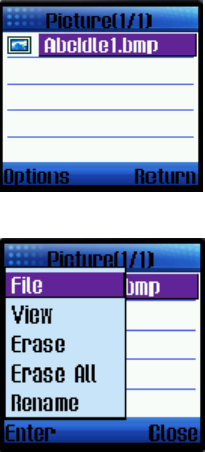

（8）Chapter 8 My Media·············194
① Picture················94
7
② Music··············94
③ Other··············94
④ Memory Status···········96
⑤ Sort Setting············96
（9）Chapter 9 UIM Tools················97
（10）Chapter 10 FM Radio·············98
(11) FCC Regulations············105
(12) RF Exposure Information (SAR) ···107
8
I Introduction
Congratulations on your purchase of the advanced and
compact phone, designed to operate with the latest
digital mobile communication technology, Code
Division Multiple Access (CDMA). Along with the many
advanced features of the CDMA system such as
greatly enhanced voice clarity this phone offers:
● Large, easy-to-read color LCD.
● messaging, voice mail, and caller ID.
● 21-key keypad.
● Menu-driven interface with prompts for easy
operation and configuration. Any key answer, auto
answer, auto retry, one-touch and speed dialing
9
with 200 memory locations.
● Support multiple languages.
II Important information
This user’s manual provides important information on
the use and operation of your phone. Please read all
10
the information carefully prior to using the phone for the
best performance and to prevent any damage to or
misuse of the phone. Any unapproved changes or
modifications void your warranty.
Phone Components
The following shows key components of your mobile
phone.
11
1.Earpiece Connection
3.Left Soft Key
4.Send key
2.LCD Screen
5.Microphone:
6. 4 Navigation Key
8.Right Soft Key
7.OK Key
9.END/PWR
10.Al
p
hanumeric Ke
yp
ad:
11.Bottom Connector:
12
1.Earpiece connection: Connect earpiece
2.LCD Screen: Displays messages and indicator
functions.
3.Left Soft Key: Use to select an action within a menu.
4.SEND Key: Use to place or answer calls.
5.Microphone:Collect voice
6. 4 Navigation Key: Use for quick access to phone
functions
●Up Key: Change the idle screen wallpaper
●Down Key: Enter the contact menu
●Left Key: Set the profiles
●Right Key: Enter the messages menu
7. OK Key: Confirm or enter selected menu.
8. Right Soft Key: Use to exit from the current menu
or as a CLR key to erase text input.
9. END/PWR: Use to turn the power on/off and to end
13
a call. Pressing “PWR” key, you can return to the
main menu display screen.
10.Alphanumeric Keypad: Use to enter numbers and
characters and choose menu items.
11.Bottom Connector: To connect to charger,
hands-free headset or data cable.
Using the Battery Pack
Note: It is important to charge the battery fully
before the initial use of the phone.
The phone comes with a rechargeable battery. Keep
the battery charged while not in use in order to
maximize talk and standby time when using the phone.
This phone will only operate with the battery provided
with the phone, or from an authorized retailer.
14
Installing the Battery
To install the battery, insert the bottom of the battery
into the opening on the back of the phone. Then push
the battery down until the latch clicks.
Removing the Battery
Turn the power off. Lift the release latch to detach the
battery
Battery Charge Level
The battery charge level is shown at the top right of the
LCD screen.
15
When the battery charge level becomes low, the low
battery sensor alerts you in three ways: sounding an
audible tone, blinking the battery icon, and displaying
LOW BATTERY WARNING! If the battery charge level
becomes exceedingly low, the phone automatically
switches off and any function in progress is not saved.
Battery Information and Care
1. Never use an unapproved battery since this could
damage the phone and / or battery and could
cause the battery to explode.
2. The battery does not need to be fully discharged
before recharging.
3. Use only approved chargers specific to your
phone model since they are designed to maximize
battery life.
4. Do not disassemble or short-circuit the battery.
5. Keep the battery’s metal contacts clean.
16
6. Replace the battery when it no longer provides
acceptable performance. The battery can be
recharged several hundred times before
replacement.
7. Recharge the battery after long periods of nonuse
to maximize battery life.
8. Do not expose the battery charger to direct
sunlight or use it in areas of high humidity such as
a bathroom.
9. Battery life will decrease if exposed to extreme hot
or cold temperatures.
10. Battery life will vary due to usage patterns and
environmental conditions.
11. The use of extended backlighting, MiniBrowser, and
data connectivity kits affect battery life and talk/standby
times.
17
Accessories
There are a variety of accessories available for your
mobile phone. You can select these options according
to your personal communication requirements. Consult
your local dealer for availability.
Your phone will come with one Travel Charger and one
battery.
Optional Accessories: Hands-free headset, data cable.
III Basic Function
18
Alphanumeric, Symbol key
0 1.Press it to show 0
2.Press it to show 0 when in edit mode.
1 1.Press it to show 1 when dialing
2.Press it to show 1 when in edit mode.
2 1.Press it to show 2 when dialing
2.Press it to show 2, A, B, C, a, b, c when in edit
mode.
3 1.Press it to show 3 when dialing
2.Press it to show 3, D, E, F, d, e, f when in edit
mode.
4 1.Press it to show 4 when dialing
2.Press it to show 4, G, H, I, g, h, i when in edit
mode.
5 1.Press it to show 5 when dialing
2.Press it to show 5, J, K, L, j, k, l when in edit
mode.
6 1.Press it to show 6 when dialing
19
2.Press it to show 6, M, N, O, m, n, o when in edit
mode.
7 1.Press it to show 7 when dialing
2.Press it to show 7, P, Q, R,S, p, q, r, s when in edit
mode.
8 1.Press it to show 8 when dialing
2.Press it to show 8, T, U, V, t, u, v when in edit
mode.
9 1.Press it to show 9 when dialing
2.Press it to show 9, W, X, Y,Z, w, x, y, z when in edit
mode.
* 1.Press it to show * ,+,P,T when dialing
2.Press it to show punctuation when in edit mode.
# 1.Press it to show # .
2.Press to change the input mode when in edit mode.
20
Turning the Phone On and Off
Turning the Phone On
1. Install a charged battery pack or connect the phone
to an external power source such as charger.
2. Press and hold “POWER” key for a few seconds until
the display turns on.
NOTE: Like any other radio device, avoid any
unnecessary contact with the antenna while your
phone is on.
Turning the Phone Off
Press and hold “POWER” key until the display turns off.
Note: Turning the phone off while the charger is
connected will put the phone into charging mode.
21
Making a call
You can make a phone call by the following ways:
1. Key in the phone number and press “SEND” key.
2. Find the record in phone book and press “SEND”
key.
3. Press “SEND” key in idle mode and select from
the call logs and press “SEND” key again to make a
call.
4. Select received SMS, and return the call to the
sending party by press “SEND” key.
5. Speed dialing by key in the list number and
“SEND” key.
22
Receiving Calls
1. When there is an incoming call, press “send key”
to answer.
2. Press “END” key to end the call.
Receiving call method can be set in the “Answer Call”
menu item. You can choose from “Flip Open”, “Any
Key” or “SEND Only” mode. The phone will be set to
“SEND Only” by default.
Speed Dialing
Speed dialing is a convenient feature that allows you to
make phone calls quickly and easily. Your mobile
phone can store as many as 98 items in its memory.
When “Speed Dial List” is populated with numbers, you can
23
key in the item number and press “SEND” key to make a
call the number in the Speed Dial List.
VI Phone Menu Reference
Chapter 1 Contacts
The phone book can store 200 records. Each contact
can contain five phone numbers, two address, two
emails, two URLs, and one note. .
To List Contact
1. Press “Contact” in idle screen (The right Soft Key).
2. Select “List Contacts”
Note:
24
(1) When one contact is selected, the phone
number will show up in the highlighted bar at the
bottom of the window. If the contact has more than
one number, an arrow will show up at both end of
the highlighted bar. You can press left/right key to
view the other phone numbers. If you want to call
the selected number, you can press “SEND” key to
make the call.
(2) To quickly find a name, you can key in the first
character of the name. The first name start with the
character will be selected. For example: press ”m”,
it locate the first name that start with “m”.
3. More operations are available by pressing “Options”
soft key
4. Select “Details” in “Option” menu
5. Press “Options” soft key, you can choose from the
25
listed 4 more operations.
5.1 “Send Message”: Send SMS to selected number.
5.2 “Change”: Edit and change the selected contact.
5.3 Select “Add” in the options menu add new item to
contact.
5.4 “Erase”: Erase the record.
To add new a contact
1. In idle screen, select “Contact”.
2. Select “Add New”.
3. select “Add number” or “Add Email” or “Add
Street etc”.
4. Key in the contact number or other, press “Enter”
5. When input name edit box is empty, the left soft key
becomes “Find”. You can find a name, save the
26
number or email or street to this existent contact.
6. Input name to edit box, if the name already exists in
the contact, it will save the number or email or street
to this existing contact.
New contact contain number, Select number type
menu will display.
To find name
1. Select “Contact” in idle screen.
2. Select “Find Name”
Note: It is not case sensitive.
To multicopy contacts
1. Select “Contact” in idle screen
27
2. Select “Multicopy”
3. Select “All Copy” to copy all contacts from UIM
to phone or from phone to UIM.
4. Select “Choice Copy” to choice contacts in total
list from UIM to phone or from phone to UIM.
Managing Groups
1. Select “Group” in “contacts” menu.
2. Select “Options” in the groups.
2.1 Select “Change Group” in “Options”, you can only
change group1 and group2 name, the rest group
names cannot be changed.
2.2 Select ”Group Ring” to Change group ring.
3. Select “view Group” in “Options”.
28
Note: There must be record in phone book to allow the
following operation:
4. The group “Family” is empty, it will prompt “No
Members, add new member?”, press “Enter” to add
new member, press ”Options” in “Family” group.
5. Select “Add” in “Options” to add member to this
group.
6. Select “Erase member” to erase the selected
member.
Select “Erase all member” to erase all members in
this group.
To erase a contact
1. Select one contact in the contact list.
29
2. Press “Options” soft key.
3. Select “Erase” in “Option” menu
4. Press “Enter” soft key to confirm or “Return” soft
key to cancel.
To erase all contacts
1. Select “Contact” in idle screen.
2. Select “Erase All Contacts” in “Contacts” menu
3. Select “UIM Contacts” to erase all the contacts
stored in UIM:
4. Select “Phone Contacts” to erase all the contacts in
phone
Press “Enter” soft key to confirm and “Return” soft key
to cancel.
30
Creating and Using the Speed Dial
List
1. You can assign number 02 to 99 to some contacts
in “Speed Dial List”. In idle screen, after key in the
Speed List number (02 to 99), you can press
“SEND” to dial immediately, or you can key in “#” to
view the number and then “SEND” to dial.
To add/edit a phone number to speed
dial list
1. Select “contact” in idle screen.
31
2. Select “Speed Dial List”
if no contact is assigned to the Speed Dial Number
in this item, <empty> will be displayed, or else the
contact’s name will be displayed instead, and
displayed number in the status bar.
3. Select one Speed Dial Number (the index is the
short number). Press “Options” soft key.
3.1 Select “Set Number” in “Options” menu
3.2 Select one contact, if the contact has more than
one number, you can press left/right key to select
the phone number you want. Press soft key “Enter”
to save it to speed list.
3.3 Select “Remove” to erase selected Speed Dial
Number.
32
3.4 Select “Remove All” to erase all Speed Dial
Numbers.
To list memory state
1. Select “Memory state” in “contacts” menu
To show my number
1. Select “My Number” in “contacts” menu to show
my own phone number.
Chapter 2 Messages
This chapter introduces the usage of Short Message.
33
To check for received text messages
1. When a new message comes, you will be noticed
and “You have 1 new message!” will be displayed
on screen.
2. Press left soft key to view.
Compose and send new message
3. Select “Messages” from main menu
4. Select “New Message” to edit the text message.
5. Select “Options->Send” to enter the umber you
want to send. Or you can search the number that
you want to send message to in contact list, select
“search” in the left soft key bar to search the
number.
34
6. Select “OK” to send the message.
Inbox
1. Select “Messages” in main menu
2. Select “Inbox”
3. Select one message to read a text message.
4. Select “Options->Reply” to reply to the people who
send this message to you.
5. Select “Options->Forward” to forward this message
to other people.
6. Select “Options->Call Him/Her” to call up him/her.
35
7. Select “Options->Save Address” to save the phone
number of the people who send this message to
you.
8. Select “Options->Erase” to erase a text message.
Outbox
1.Select “Messages” in main menu
2.Select “Outbox”
3.Select one message to read a text message.
4.Select “Options->Forward” to forward this message
to other people.
36
5.Select “Options->Save Address” to save the phone
number of the people who you want to send this
message.
6.Select “Options->Erase” to erase a text message.
Quick-Text
1.Select “Messages” in main menu.
2. Select “Quick-Text”, you can see messages in
common use.
3.Select “Options->Add New” to add a new message or
“Options->Send” to send this message to somebody.
37
Erase Messages
1.Select “ Messages” in main menu.
2.Select “Erase Messages”.
3.Choose which message you want to delete by “UP”
and ”DOWN” keys. For example, you want to delete
all messages, you can select “Erase All” to delete all
messages, there will be a prompt message to
indicate you.
4.Select “Enter” to erase all messages and select
“Cancel” to cancel delete.
38
Voice Mail
1. Select menu “Messages” in main menu.
2. Select menu “Voice Mail”.
3. Select one voice mail message.
4. Select “Options->Call Him/Her” to call him/her
back.
5. Select “Options->Erase” to erase this voice
message. There will be prompt information to
indicate you whether you are sure to delete this
message, select “Enter” to delete and select
“Cancel” to cancel delete.
39
MSG Settings
1. Select menu “Messages” in main menu.
2. Select menu “MSG Settings”
Enable/disable auto save outgoing message
Select “Auto Save/Do Not Save” to enable/disable auto
save outgoing message.
Set Call Back Number
If you enable Callback number, every message you
sent would postfix the number you set here and the
receiver will know which number to callback when he
read the message.
40
Set Priority
You can set priority of sent message, and the receiver
will know which priority the message is when he read it.
Select menu “Priority”.
Enable/disable auto delete incoming message
Select “On/Off” to enable/disable auto delete incoming
message.
Choose storage device of incoming message
Select “UIM/Phone/Both” to choose the incoming
message storage device.
Chapter 3 Recent Calls
1. The call history supports 3 different categories of
41
call logs. Incoming Calls, Outgoing Calls, and
Missed Calls.
2. This information can be contained in 3 separate
call lists, each of which is capable of storing the last
10 entries
3. The call history support saving the number into the
phone book (if it is not in the phone book).
4. Numbers dialed, regardless of whether the call is
successfully connected, must be recorded in the
outgoing call history.
5. If there is a record in the phonebook, the display
will match the caller’s phone number and display
the name accordingly.
To List Missed call
List all the Missed Call.
42
To List Incoming call
List all the Incoming Call.
To List Outgoing call
List all the Outgoing Call.
To erase lists
Erase the Call history.
Check Call Timer
3. Show The Call Time.
43
Chapter 4 Amusement
kong Ming chess
1. If you don’t know how to play, you can read
instructions by selecting [Instructions].
2. The game rule is as follows:
Use [Up]/[2], [Down]/[8], [Left]/[4] and [Right]/[6] to
control the cursor. Use [OK]/[5] to select a chessman.
When Chessman X moves over Chessman Y next to it,
Y will be removed from the chessboard. Only one
chessman can be removed at one time. Player wins if
there is only one chessman left in the center of the
chessboard
44
Chapter5: Setting Up Your Phone
To personalize your phone, you can set and view many
properties for display, security, network service, call
setup, phone info.
Select [Menu] from the idle screen and press “Up/Down”
key until you reach the “Setting” screen. Press [Enter] to
enter the “Settings” menu.
Setting up the Display
Customizing your display by creating a banner,
adjusting the backlight, selecting the language, etc.
45
Creating a display banner
Edit a banner you like.
Setting backlight Timer
1.Select [Display] menu item.
2.Select [Backlight] menu item.
3. Select [Timer] menu item.
4. Select an option.
5. Select [Enter] to save or [Return] to cancel.
Setting backlight Brightness
1.Select [Display] -> [Backlight]
2. Select [Brightness] menu item.
3. Select an option.
Select [Enter] to save or [Return] to cancel.
46
Setting the display Screens Wallpaper
1.Select [Display] -> [Screens]
2. Select [Wallpaper] menu item.
3. Select an option.
Press ‘Left’ or ‘Right’ key to change image.
Select “Enter” to save.
Note: in idle screen, press “Up” key can also change
the wallpaper.
Setting the Menu Style
Setting the menu style
1.Select [Display] -> [Menu Style] menu item.
2. Select an option.
Select [Enter] to save or [Return] to cancel.
Setting the Theme Colors
1.Select [Display] -> [Theme Colors] menu item.
47
2. Select an option.
Select [Enter] to save or [Return] to cancel.
Setting the display language
1. Select [Display] -> [Language] menu item.
2. Select an option.
Select [Enter] to save or [Return] to cancel.
Setting the display Contrast
1. Select [Display] -> [Contrast] menu item
2. Select an option.
Select [Enter] to save or [Return] to cancel.
Security
Provide password protection for Lock Phone, Change
Code, and Reset to Default
Login Security
1. Select [Security] menu item.
48
2. Enter the password, and the default password is
“0000”.
Lock Phone
1.Select [Lock Phone] menu item.
2.Select an option. Selecting [On Power Up] will lock
the phone next time phone is powered up.
Changing lock code
1.Select [Change Code] menu item.
2. Input new password.
3. Confirm password
Reset Security settings to default values
1 Select [Reset To Default] menu item
2. Select [OK] to reset, [Cancel] to return.
Network Service
4. Select [Network Service] menu item.
49
Disable/Enable “Call Forwarding” or “Call Waiting”
Network Service.
Call Setup
Voice privacy: is used to encrypt the voice to protect
privacy.
Call Guard: Confirm calls on roaming network.
When the phone is on a roaming network, if Call Guard
is turned on, it will ask user to confirm making the call.
Viewing Phone Information
To view the version of software installed on your phone
Will display the related information for the phone
50
Chapter 6 Working with Profile
A Profile is a group of user defined settings. By
switching to a different profile, user can switch all the
settings at one time. Currently, the phone will support 5
different profiles.
There are profiles for Normal, Outdoor, Car, Meeting
and Silent. Every profile can be manually changed for
your special purpose.
Normal
¾ The selected one is marked by a [√], here the
Normal Profile is the selected one.
You can select one of them for setting; “Normal” will be
used to demonstrate how to work with profiles.
51
If you chose [Normal], you may see:
1. Select [Return] to turn back;
2. Select [Select Profile] to activating current profile;
3. Select [Edit Profile] for edit;
Edit Profile
When select [Edit Profile], you will see the following
menu items:
Call Prompt Mode: Select the way of alerting when
there is an incoming call.
Call Ringer: Select the ringer.
Message Prompt Mode: Select how phone should
alert when received a message.
SMS Ringer: Select the ringer for SMS
Volume: Set volume for ringer, speaker, key beef and
alerts.
52
Key Tone: Select between short and long key tones
Alerts: Setting for different alerts.
Answer Call: Select how a call is answered.
Outdoor/Car/Meeting/Silent
Each of the profiles can be set the same way as the
“Normal” profile.
Chapter 7 Using the Tools
The tools menu has many useful tools to convenience
your everyday life, including Schedule, To Do List,
Alarm Clock, Voice Memo, Calculator, World Clock,
53
and Stopwatch.
Note: Your phone must be turned on to use these tools.
Do not turn on the phone when wireless phone use is
prohibited or when it may cause interference or danger.
1. Select “Menu” in the idle screen.
2. Select “Tools” in main menu by pressing up/down
key or by pressing “6” in the alphanumeric key pad.
Now you can use the tools in the Tools menu.
Using the Schedule
You can use schedule to associate an alert with an
event.
Note: The alert within the Schedule cannot work when
the phone is off or there is not enough power in the
54
battery.
To add a schedule
1. Select “Tools” in main menu.
2. Select “Schedule”.
3. Select the day by pressing the up/down key and
select the month by pressing the left/right key. The
current date is highlighted by a black frame.
4. Select “Options”.
5. Select “Add New”.
6. Edit the description, and then press “Ok”.
7. Edit the Alarm by pressing the alphanumeric keys
and select the Ringer by pressing the up/down key,
then press “OK” to save. You can use the left/right
55
key to exchange the focused field between Alarm
and Ringer.
Using the To-Do List
You can keep track of your tasks with the to-do list tool.
With this tool you can make a new note, delete an
existing note, and set or change the note’s status.
To add new item
1. Select “Tools” in main menu.
2. Select “To Do List”.
3. Select “Add New”.
4. Edit the description.
56
5. Select “Priority” to set the note’s priority among
high, normal and low.
6. Select “Deadline” to select the date. You can use
the up/down key to select the day and the left/right
key to select the month.
7. Select “save”.
Using the Alarm Clock
Alarm Clock sounds an alert at the time you specified.
Note: The Alarm Clock can work only under the
condition of the system clock has been set. The Alarm
Clock can not work when the phone is off or there is not
enough power in the battery. When the Alarm Clock is
triggered, the Alarm Clock sounds an alert or turns for
30 seconds. If you do not press a key, the alarm stops
for 1 minute, and then sounds again. The Alarm Clock
57
stays on until the alarm is turned off or a key is
pressed.
Up to 3 alarms can be set at the same time.
To set the alarm time
1. Select “Tools” in main menu.
2. Select “Alarm Clock”.
3. Select alarm among “Alarm1, Alarm2, and Alarm3”.
4. Use “Up/Down” key to move between the fields and
use “Left/Right” to select from the available options.
Turn alarm on/off in “Switch” field by “Left/Right” key.
You can set alarm time by pressing the digit keys once
the “Alarm” time is highlighted.
58
Use “Left/Right” key to select among “Every Day, Work
Day, Once”.
Press “Up/Down” key to highlight the “Ringer” field and
use “Left/Right” key to select desired ringer.
5. Select “Ok”.
To turn off the alarm
1. Select “Tools” in main menu.
2. Select “Alarm Clock”.
3. Select alarm among “Alarm1, Alarm2, Alarm3,”.
4. Select “Alarm OFF” in condition field.
5. Select “Ok”
59
Using Voice Memo
Note: it is easy to view Voice Memo.
Using the Calculator
Note: This calculator has limited accuracy and is
designed for simple calculations.
To use the calculator
1. Select “Tools” in main menu.
2. Select “Calculator”.
3. Enter the number by pressing the alphanumeric
key.
4. Enter an operator by pressing the up/down key or
left/right key.
60
5. Enter another number.
6、Select “Result” to get the result.
Using the World Clock
World Clock provides a useful tool when you want to
make a call to people in a different time zone.
1. Select “Tools” in main menu.
2. Select “World Clock”.
3. Select the city by pressing the up/down key.
4. Select “Enter”
Using the Stop Watch
Note: The stopwatch has limited accuracy.
61
1. Select “Tools” in main menu.
2. Select “Stop Watch”.
3. Enter the stopwatch.
4. Select “Start”, the stopwatch works.
5. Select “Pause”.
6. Select “Resume”, the stopwatch continues
working.
7. Select “Split”, the stopwatch can record different
duration.
8. Select “Reset” to restart stopwatch.
9. Select “Quit” to exit stopwatch.
62
Chapter 8 My Media
This chapter describes how to manage the resources
stored in phone.
Select [My Media] in main menu
Manage Picture/Music/Others
Select “Picture”/“Music”/“Others” in menu
63
Select “Options”, easy to manage some resources
64
Memory Status
Select “Memory Status” to show the memory status
Sort setting
Select “Sort setting” to set sort rule
Chapter 9 R-UIM Tools
This chapter describes how to access extra tools
provided by network operator.
Select [R-UIM Tools] in main menu
Enjoy your R-UIM service
Note: The services depend on your R-UIM.
65
Chapter 10 FM Radio
This chapter describes how to use FM radio
Note: Users can listen to a high performance fm radio
by this function. The fm radio work only when users
plug the headset in the phone, because the headset is
regarded as an antenna. Users can adjust the radio
band, frequency, volume etc. to their needed. Also,
they can leave the radio seek channel automatically.
The fm radio supports background playing; users can
listen to the radio and edit SMS simultaneously and so
on except make a call.
66
To listen to the radio
1. Plug the headset, and select the [FM RADIO] in
main menu
To change the volume
2. Press the “UP” key to increase the volume and
“DOWN” key to decrease the volume.
To seek the channel
3. Press the “LEFT” key to seek the channel
backward and “RIGHT” key to seek the channel
forward.
67
To mute and unmute the radio
4. Press the “OK” key to mute the radio and press
“OK” key again to unmute the radio.
To save and open channels
5. Press the “Options” key to open the option menu,
and select [Save as] menu item, then select one
channel and input channel’s name.
6. Press the “Options” key to open the option menu,
and select [Open] menu item, then select one
favorite channel.
68
To select fm band
7. Press the “Options” key to open the option menu,
select [Band Option] menu item, and then select an
appropriate band.
To input radio frequency
8. Press the “Options” key to open the option menu,
select [Frequency] menu item, and then input an
appropriate frequency. Note that not exceed the
band’s frequency range.
69
To listen to the radio in background
9. In play interface, press the “END” key and return to
idle, users can do other things. If users make a call
with someone, the fm radio function is closed
automatically.
To exit
In play interface, press the “Exit” key to exit the fm
radio function.
70
FCC Regulations
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee
that interference will not occur in a particular
installation if this equipment does cause harmful
71
interference to radio or television reception, which can
be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by
one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV
technician for help.
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user＇s authority to operate the equipment.
72
RF Exposure Information (SAR)
This device meets the government＇s requirements for
exposure to radio waves. This device is designed and
manufactured not to exceed the emission limits for
exposure to radio frequency (RF) energy set by the
Federal Communications Commission of the U.S.
Government.
The exposure standard for wireless devices employs a
unit of measurement known as the Specific Absorption
Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.
*Tests for SAR are conducted using standard
operating positions accepted by the FCC with the
device transmitting at its highest certified power level in
all tested frequency bands. Although the SAR is
determined at the highest certified power level, the
73
actual SAR level of the device while operating can be
well below the maximum value. This is because the
device is designed to operate at multiple power levels
so as to use only the poser required to reach the
network. In general, the closer you are to a wireless
base station antenna, the lower the power output.
The highest SAR value for the device as reported to
the FCC when tested for use at the ear is 1.270 W/kg
for PCS Head SAR and when worn on the body, as
described in this user guide, is 1.210 W/kg for PCS
Body SAR. (Body-worn measurements differ among
device models, depending upon available
enhancements and FCC requirements.)
While there may be differences between the SAR
levels of various devices and at various positions, they
74
all meet the government requirement.
The FCC has granted an Equipment Authorization for
this device with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines.
SAR information on this device is on file with the FCC
and can be found under the Display Grant section of
http://www.fcc.gov/oet/fccid after searching on FCC ID:
US7-IT80X.
For body worn operation, this device has been tested
and meets the FCC RF exposure guidelines for use
with an accessory that contains no metal and the
positions the handset a minimum of 1.5 cm from the
body. Use of other enhancements may not ensure
compliance with FCC RF exposure guidelines. If you
do no t use a body-worn accessory and are not holding
75
the device at the ear, position the handset a minimum
of 1.5 cm from your body when the device is switched
on.
