User Manual
Quick Start Guide
motorola T325
1
congratulations
The Motorola T325 Portable Bluetooth® Handsfree Car
Kit Speaker gives you the freedom to make and receive
phone calls in your vehicle while safely keeping your
hands on the steering wheel using:
•
caller name identification
•
automatic power on and off when you enter or leave
your vehicle
•
direct access to the favorite contacts you use most
frequently while in your vehicle.
Caution:
Please read the important
Legal & Safety
information at the back of this guide.
Note:
Using a mobile device while driving may cause
distraction. End a call if you can’t concentrate on driving.
Also, using a mobile device or accessory may be
prohibited or restricted in certain areas. Always obey the
laws and regulations on the use of these products.
your speaker
2
your spe aker
Take a moment to familiarize yourself with your new
T325 speaker.
Call
Button Indicator
Light Power
Switch
Mute/
Phonebook
Button
Volume Down
Button
Volume Up
Button
Speaker
Charging
Port
Microphone

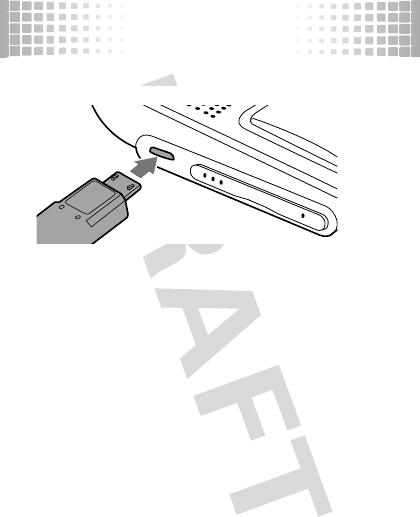

charge it
3
charge i t
You’ll need to charge your speaker before using it.
The indicator light is red while the battery is charging.
When the battery is fully charged, the indicator light turns
blue.
Note:
Speaker is functional while charging.
Note:
Your battery is designed to last the life of your
product. It should only be removed by a recycling facility.
Any attempt to remove or replace your battery will
damage your speaker.
connect wirelessly
4
connect wirelessl y
pair & connect
Let’s get your speaker paired and connected to your
Bluetooth-enabled phone.
1
Turn off any Bluetooth devices previously paired
(linked) with your speaker.
2
Turn on the Bluetooth feature on your phone.
3
Turn on your speaker (see page 8).
The indicator light becomes steadily lit in blue.
4
Set your phone to search for Bluetooth devices.
5
Select
Motorola T325
from the search results on
your phone.
6
Select
Ok
or
Ye s
to pair your speaker with your
phone.
Note:
When prompted for the passkey, enter
0000
.
When your speaker successfully pairs and connects with
your phone, you hear “connected to <phone name>”
and you see the indicator light rapidly flash in blue and
purple.
connect wirelessly
5
download phone contacts
Once paired, your speaker automatically downloads
contact names and numbers from your phone so that it
can announce the name of your incoming caller.
Your phone may first request permission to accept
information access. Go ahead and accept so
downloading can begin. Once downloading begins, you
hear “downloading caller ID information”.
The indicator light flashes in purple while downloading.
When your downloading is complete (less than 2
minutes), you hear “download complete”.
If the download is interrupted, for example by an
incoming call, it resumes on the next phone connection.
Note:
Your phone must support Bluetooth Phone Book
Access Profile (PBAP) for this feature to work.
reconnect
After initially pairing and connecting your phone and
speaker, you don’t need to do it again.
connect wirelessly
6
For daily use, make sure your speaker is turned on, and
your phone’s Bluetooth feature is on. Your speaker and
phone will connect automatically!
test your connection
1
Slide the speaker onto your visor (see page 7).
2
On the phone, dial the number and press the
Call/
Send
key.
If your phone and speaker are successfully connected,
you hear ringing on the speaker.
install in car
7
install in car

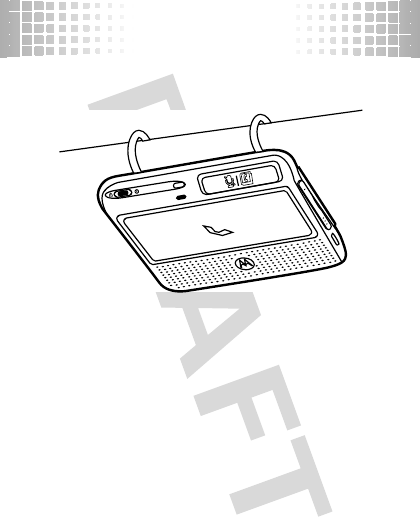

Slide the visor clip onto your sun visor as shown
turn it on & off
8
turn it on & off
You can manually turn your speaker on and off or use the
automatic on/off option. The speaker may take up to 4
seconds to power on.
manual on/off
Slide and hold the Power switch to
ë
until your hear a
tone, then release.
To turn off your speaker, slide the Power switch to
ê
. You
hear an audio tone when turned off.
Power Off
Position
Power On
Position
turn it on & off
9
automatic on/off
This feature automatically disconnects the speaker and
turns it off when your phone is more than 20 feet away
for more than 20 seconds (actual distance is network/
phone dependent). When you return, the speaker turns
on and connects.
Note:
Pressing a button or moving the speaker also turns
it on.
To
enable automatic on/off
, just turn your speaker on
and leave the Power switch in the center position.
When your speaker turns on or off, you hear an audio
tone.
Automatic On/Off
(Center) Position
calls
10
calls
To...
answer call Press the Call button.
reject call Press the Volume Down button.
make a voice
dial call
Press the Call button and you hear an
audio tone.
make a
favorite
contact call
Press the Mute/Phonebook button,
then press Volume buttons to scroll
through your favorite contact list.
When you hear the name to call,
press the Call button.
Note:
While your speaker stores up to
1,500 phone contacts, direct access
is provided to your top 10 (or 25)
favorite contacts.
redial last call Press and hold the Call button until
you hear an audio tone.
mute or
unmute a call
Press the Mute/Phonebook button.
end a call Press the Call button.
calls
11
Note:
Your speaker supports both Handsfree and
Headset Profiles. Accessing call functions depends upon
which profile your phone supports. See the instructions
that came with your phone.
Note:
Some call features are phone/network dependent.
transfer call
between
phone and
speaker
Press and hold Mute/Phonebook
button until you hear an audio tone.
To...
status indicator light
12
stat us indicat or lig ht
with charger plugged in
with charger not plugged in
speaker
indicator
speaker status
red charging
blue charging complete
speaker
indicator
speaker status
off power off
three blue
flashes
powering on/off
steady blue pairing/connect mode
rapid blue/
purple flashes
connection successful
quick blue flash incoming/outgoing call
slow blue pulse connected (on a call)
slow blue flash standby (connected to phone)
status indicator light
13
Note:
After 15 minutes of inactivity, the light stops
flashing to conserve power, but the speaker remains on.
red flash idle (not connected to a phone)
slow purple
pulse
connected call muted
slow purple
flash
downloading contacts from
phone
steady red low battery (up to 1.5 hours)
speaker
indicator
speaker status
download contacts
14
download c ontacts
phonebook download
You can manually download up to 1,500 phonebook
contacts from your phone to your speaker so it can
announce the name of your incoming caller.
To do this, press both Call and Mute/Phonebook buttons
at the same time until you hear “downloading caller ID
information” or see your phone requesting for
permission to accept information access from your
phone.
When download is complete, you hear “download
complete”.
Note:
Your phone must support Bluetooth Phone Book
Access Profile (PBAP) for this feature to work.
v-card download
If your phone does not support the Bluetooth PBAP
profile, you can manually send up to 50 phonebook
contacts from your phone to your speaker.
1
Press and hold the Mute/Phonebook button until you
hear a tone or “connection to <phone name> has
been dropped, ready to receive V-card”.
download contacts
15
2
Select your phonebook contacts on your phone and
send it to your speaker via Bluetooth (see your
phone’s user guide for detailed instructions). The
indicator light flashes in purple during this step.
When the download is complete, you hear
“connected to <phone name>” as speaker
connects back to the phone. If you have reached the
maximum allowable downloaded contacts, you hear
“maximum v-card entries has been reached,
connected to <phone name>”.
Note:
Your speaker automatically exits phonebook mode
after 30 seconds of inactivity (no button presses).
battery check
16
batter y check
Press and hold both Volume buttons while not on a call.
voice prompt available talk time
“battery level is very
low. Please recharge
now”
up to 1.5 hours
“battery level is low” up to 6 hours
“battery level is
medium”
up to 13 hours
“battery level is high” over 16 hours
personalize
17
persona lize
You can change settings on your speaker. To do this, turn
off your speaker, then press and hold the Call button and
move the Power switch to the
ë
position until you hear
“welcome to setup”.
Follow the voice prompts to change settings for:
•
Language
•
Enable/disable voice prompts
•
Enable/disable Name/Number Caller ID feature
•
Size of favorite contact list (10 or 25)
tips & tricks
18
tips & tricks
restore to factory settings
Caution:
This action erases all pairing information stored
in your speaker.
To restore your speaker to original factory settings:
1
Turn off your speaker.
2
Press and hold both the Mute/Phonebook and one
of the volume buttons.
3
Slide and hold the Power switch in the
ë
position.
When complete, you hear a tone or “restored to default
settings”.
battery saving
To conserve battery power, your speaker turns off when
not connected to your phone for more than 30 minutes.
problems?
19
probl ems?
My speaker will not enter pairing mode.
Make sure that any devices previously paired with the
speaker are turned off. If the indicator light is not steadily
blue, turn off the other device. Press and hold the Mute/
Phonebook and Volume Up buttons until you hear
“pairing mode“. The indicator light changes to steady blue
indicating the speaker is now in pairing mode.
My phone does not find my speaker.
Make sure the indicator light on your speaker is on (lit in
blue) and steady when your phone is searching for
devices (see “pair & connect” on page 4).
My speaker worked with my phone before but now
they are not working.
Make sure your phone is on and the Bluetooth feature is
turned on in your phone. If the Bluetooth feature was
turned off or was turned on only temporarily, you may
need to repeat steps on page 4 to start the Bluetooth
feature and pair your phone and speaker again.
After downloading my phonebook contacts, I am
unable to access all the phonebook contacts in my
speaker in phonebook mode.
For your convenience, your speaker supports accessing
and dialing your favorite contacts (with your choice of 10
21
European Union Directives Conformance
Statement
EU Conformance
Hereby, Motorola declares that this product is in compliance with:
•
The essential requirements and other relevant provisions of Directive 1999/5/EC
•
All other relevant EU Directives
The above gives an example of a typical Product Approval Number.
You can view your product’s Declaration of Conformity (DoC) to Directive 1999/5/EC (to
R&TTE Directive) at
www.motorola.com/rtte
. To find your DoC, enter the Product
Approval Number from your product’s label in the “Search” bar on the Web site.
Product
Approval
Number
22
Software Copyright Notice
Motorola products may include copyrighted Motorola and third-party software stored in
semiconductor memories or other media. Laws in the United States and other countries
preserve for Motorola and third-party software providers certain exclusive rights for
copyrighted software, such as the exclusive rights to distribute or reproduce the
copyrighted software. Accordingly, any copyrighted software contained in Motorola
products may not be modified, reverse-engineered, distributed, or reproduced in any
manner to the extent allowed by law. Furthermore, the purchase of Motorola products
shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any
license under the copyrights, patents, or patent applications of Motorola or any
third-party software provider, except for the normal, non-exclusive, royalty-free license to
use that arises by operation of law in the sale of a product.
23
Safety & General Information
Safety Information
IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS
INFORMATION BEFORE USING YOUR DEVICE.
Approved Accessories
Use of accessories not approved by Motorola, including but not limited to batteries,
antennas, and convertible covers, may cause your mobile device to exceed RF energy
exposure guidelines and may void your mobile device’s warranty. For a list of approved
Motorola accessories, visit our Web site at:
www.motorola.com
Batteries & Chargers
Your battery, charger, or mobile device may contain symbols, defined as follows:
Use & Safety for Battery-Powered Accessories
•
Do not store or use your battery-powered accessory (such as a Bluetooth®
headset or other device) in temperatures below -10°C (14°F) or above 60°C
(140°F).
•
Do not recharge your accessory in temperatures below 0°C (32°F) or above 45°C
(113°F).
•
Conditions inside a parked car can exceed this range. Do not store your accessory
in a parked car.
•
Do not store your accessory in direct sunlight.
•
Storing your fully charged accessory in high-temperature conditions may
permanently reduce the life of the internal battery.
•
Battery life may temporarily shorten in low-temperature conditions.
Symbol Definition
Important safety information follows.
Do not let your battery, charger, or mobile device get wet.
032374o
24
Caution About High Volume Usage
Warning:
Exposure to loud noise from any source for extended periods of time may
temporarily or permanently affect your hearing. The louder the volume sound level, the
less time is required before your hearing could be affected. Hearing damage from loud
noise is sometimes undetectable at first and can have a cumulative effect. To protect your
hearing:
•
Start your volume control at a low setting and use as low a volume as possible.
•
Limit the amount of time you use headsets or headphones at high volume.
•
Where possible, use your headset in a quiet environment with low background
noise.
•
Avoid turning up the volume to block out noisy surroundings.
•
Turn the volume down if you can’t hear people speaking near you.
If you experience hearing discomfort, including the sensation of pressure or fullness in
your ears, ringing in your ears, or muffled speech, you should stop listening to the device
through your headset or headphones and have your hearing checked by your doctor.
Smart Practices While Driving
Using a mobile device while driving may cause distraction. End a call if you can’t
concentrate on driving. Also, using a mobile device or accessory may be prohibited or
restricted in certain areas. Always obey the laws and regulations on the use of these
products.
Responsible driving practices can be found at
www.motorola.com/callsmart
(in English only).
Industry Canada Notice to Users
Industry Canada Notice
Operation is subject to the following two conditions: (1) This device may not cause
interference and (2) This device must accept any interference, including interference that
may cause undesired operation of the device. See RSS-GEN 7.1.5.
25
FCC Notice to Users
FCC Notice
The following statement applies to all products that have received FCC
approval. Applicable products bear the FCC logo, and/or an FCC ID in the format
FCC-ID:xxxxxx on the product label.
Motorola has not approved any changes or modifications to this device by the user. Any
changes or modifications could void the user’s authority to operate the equipment. See 47
CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation. See 47 CFR Sec. 15.19(3).
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the receiver.
•
Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
26
Motorola Limited Warranty for the
United States and Canada
Wa rr a n t y
What Does This Warranty Cover?
Subject to the exclusions contained below, Motorola, Inc. warrants its telephones,
pagers, messaging devices, and consumer and professional two-way radios (excluding
commercial, government or industrial radios) that operate via Family Radio Service or
General Mobile Radio Service, Motorola-branded or certified accessories sold for use
with these Products (“Accessories”) and Motorola software contained on CD-ROMs or
other tangible media and sold for use with these Products (“Software”) to be free from
defects in materials and workmanship under normal consumer usage for the period(s)
outlined below. This limited warranty is a consumer's exclusive remedy, and applies as
follows to new Motorola Products, Accessories and Software purchased by consumers in
the United States or Canada, which are accompanied by this written warranty:
Products and Accessories
Products Covered Length of Coverage
Products and Accessories
as
defined above, unless otherwise
provided for below.
One (1) year
from the date of purchase by the
first consumer purchaser of the product unless
otherwise provided for below.
Decorative Accessories and
Cases.
Decorative covers, bezels,
PhoneWrap™ covers and cases.
Limited lifetime warranty
for the lifetime of
ownership by the first consumer purchaser of
the product.
Monaural Headsets.
Ear buds
and boom headsets that transmit
mono sound through a wired
connection.
Limited lifetime warranty
for the lifetime of
ownership by the first consumer purchaser of
the product.
Consumer and Professional
Two-way Radio Accessories.
Ninety (90) days
from the date of purchase
by the first consumer purchaser of the product.
27
Exclusions (Products and Accessories)
Normal Wear and Tear.
Periodic maintenance, repair and replacement of parts due to
normal wear and tear are excluded from coverage.
Batteries.
Only batteries whose fully charged capacity falls below 80% of their rated
capacity and batteries that leak are covered by this limited warranty.
Abuse & Misuse.
Defects or damage that result from: (a) improper operation, storage,
misuse or abuse, accident or neglect, such as physical damage (cracks, scratches, etc.) to
the surface of the product resulting from misuse; (b) contact with liquid, water, rain,
extreme humidity or heavy perspiration, sand, dirt or the like, extreme heat, or food;
(c) use of the Products or Accessories for commercial purposes or subjecting the Product
or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of
Motorola, are excluded from coverage.
Use of Non-Motorola Products and Accessories.
Defects or damage that result from
the use of Non-Motorola branded or certified Products, Accessories, Software or other
peripheral equipment are excluded from coverage.
Unauthorized Service or Modification.
Defects or damages resulting from service,
testing, adjustment, installation, maintenance, alteration, or modification in any way by
someone other than Motorola, or its authorized service centers, are excluded from
coverage.
Altered Products.
Products or Accessories with (a) serial numbers or date tags that have
been removed, altered or obliterated; (b) broken seals or that show evidence of
tampering; (c) mismatched board serial numbers; or (d) nonconforming or non-Motorola
housings, or parts, are excluded from coverage.
Communication Services.
Defects, damages, or the failure of Products, Accessories or
Software due to any communication service or signal you may subscribe to or use with
the Products Accessories or Software is excluded from coverage.
Products and Accessories that
are Repaired or Replaced.
The balance of the original warranty or
for ninety (90) days
from the date returned to
the consumer, whichever is longer.
Products Covered Length of Coverage
28
Software
Exclusions (Software)
Software Embodied in Physical Media.
No warranty is made that the software will
meet your requirements or will work in combination with any hardware or software
applications provided by third parties, that the operation of the software products will be
uninterrupted or error free, or that all defects in the software products will be corrected.
Software NOT Embodied in Physical Media.
Software that is not embodied in
physical media (e.g. software that is downloaded from the Internet), is provided “as is”
and without warranty.
Who is Covered?
This warranty extends only to the first consumer purchaser, and is not transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund the purchase price of
any Products, Accessories or Software that does not conform to this warranty. We may
use functionally equivalent reconditioned/refurbished/pre-owned or new Products,
Accessories or parts. No data, software or applications added to your Product, Accessory
or Software, including but not limited to personal contacts, games and ringer tones, will
be reinstalled. To avoid losing such data, software and applications please create a back
up prior to requesting service.
How to Obtain Warranty Service or Other Information
Products Covered Length of Coverage
Software.
Applies only to physical defects in the
media that embodies the copy of the software (e.g.
CD-ROM, or floppy disk).
Ninety (90) days
from the
date of purchase.
USA Phones:
1-800-331-6456
Pagers:
1-800-548-9954
Two-Way Radios and Messaging Devices:
1-800-353-2729
29
You will receive instructions on how to ship the Products, Accessories or Software, at
your expense, to a Motorola Authorized Repair Center. To obtain service, you must
include: (a) a copy of your receipt, bill of sale or other comparable proof of purchase; (b) a
written description of the problem; (c) the name of your service provider, if applicable;
(d) the name and location of the installation facility (if applicable) and, most importantly;
(e) your address and telephone number.
What Other Limitations Are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
SHALL BE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, OTHERWISE THE
REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS EXPRESS LIMITED
WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU
OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA BE
LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN
EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE, OR
FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY
KIND, OR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION
OR DATA, SOFTWARE OR APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF
OR IN CONNECTION WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS,
ACCESSORIES OR SOFTWARE TO THE FULL EXTENT THESE DAMAGES MAY BE
DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation or exclusion of
incidental or consequential damages, or limitation on the length of an implied
warranty, so the above limitations or exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights that
vary from state to state or from one jurisdiction to another.
Canada All Products:
1-800-461-4575
TTY
1-888-390-6456
For
Accessories
and
Software
, please call the telephone number designated above
for the product with which they are used.
30
Product Registration
Registration
Online Product Registration:
www.motorola.com/us/productregistration
Product registration is an important step toward enjoying your new Motorola product.
Registering permits us to contact you for product or software updates and allows you to
subscribe to updates on new products or special promotions. Registration is not required
for warranty coverage.
Please retain your original dated sales receipt for your records. For warranty service of
your Motorola Personal Communications Product you will need to provide a copy of your
dated sales receipt to confirm warranty status.
Thank you for choosing a Motorola product.
Export Law Assurances
Export Law
This product is controlled under the export regulations of the United States of America
and Canada. The Governments of the United States of America and Canada may restrict
the exportation or re-exportation of this product to certain destinations. For further
information contact the U.S. Department of Commerce or the Canadian Department of
Foreign Affairs and International Trade.
Caring for the Environment by
Recycling
Recycli ng Inform ation
This symbol on a Motorola product means the product should not be disposed
of with household waste.
Disposal of your Mobile Device & Accessories
Please do not dispose of mobile devices or electrical accessories (such as
chargers, headsets, or batteries) with your household waste. Do not dispose
of your battery or mobile device in a fire. These items should be disposed of
in accordance with the national collection and recycling schemes operated by
your local or regional authority. Alternatively, you may return unwanted mobile devices
and electrical accessories to any Motorola Approved Service Center in your region.
032376o
31
Details of Motorola approved national recycling schemes, and further information on
Motorola recycling activities can be found at:
www.motorola.com/recycling
Disposal of your Mobile Device Packaging & Product
Guide
Product packaging and product guides should only be disposed of in accordance with
national collection and recycling requirements. Please contact your regional authorities
for more details.
32
Motorola, Inc.
Consumer Advocacy Office
600 N. US Hwy 45
Libertyville, IL 60048
www.motorola.com
Note:
Do not ship your accessory product to the above address. If you need to return your
product for repairs, replacement, or warranty service, please contact the Motorola
Customer Support Center at:
1-877-MOTOBLU (Motorola Bluetooth Support)
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office.
The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under
license. All other product and service names are the property of their respective owners.
© 2009 Motorola, Inc. All rights reserved.
Bluetooth QD ID: B015177
Manual Number: 68000201109-A
www.motorola.com
