MOBILE ANTENNASMAX Base AntennasMolded Base AntennasThese antennas feature a rugged molded polymer base, plated spring-loaded contact pin and .100” diameter stainless steel whip for long-lasting, trouble-free operation. Models are available with open or closed coil rod, and can be ordered in all black fi nish. This series offers models for many types of wireless applications, including WiFi and WiMAX mobility, VHF and UHF land mobile radio, 700 Public Safety, 800 MHz and 900 MHz digital radio and AMPS/PCS voice/data support.Features• Molded polymer base provides ruggedness and durability in harsh mobile environments. • Wideband performance (Wi-Fi and WiMAX models) provide coverage of 2.2 GHz to 2.9 GHz frequencies without tuning. WiMAX model covers 2.3-3.8 GHz frequencies.• 3 dB or 5 dB models available for most frequency ranges• Most models available in bright chrome or black fi nish• Antenna is ready to install; no rod cutting is required (unless otherwise noted)• Designed to mate with all 1-1/8”-18 thread mounts, including 3/4” mounts• Spring-loaded gold plated contact pinTechnical Data Maximum Power:200 watts(VHF models)150 watts (UHF models)100 watts (all other models)Polarization: VerticalNominal Impedance: 50 ohmsVSWR at Resonance: < 1.5:1 (Most models, except as noted below)< 1.9:1 (MAX7635S only)< 2.0:1 [(B)MAX150/450(S) and (B)MAX140/440(S)]Radiator Material:.100” OD stainless steel; bright (MAXC) or black fi nish (BMAXC).062” diameter black stainless steelSpring: Stainless steel; bright or black fi nish (not all options available with every model)Base Coil Housing: Molded polymer with a plated insert ring and a spring-loaded contact pinPhasing Coil Housing:Molded polymer jacket with copper, nickel and chrome plated bushingRod Ferrule: 5/16” -24 thread; bright or black chrome plated fi nishMount Method: Mates with all 1-1/8”-18 thread mounts, including 3/4” mounts BMAXC Antennas BMAX824/1850 (B) MAX150/450 (B) MAX455 BMAX8155S (B) MAXSCAN1000 (B) MAXMFT BMAXC233805PCTEL, Inc. WEB: www.antenna.com

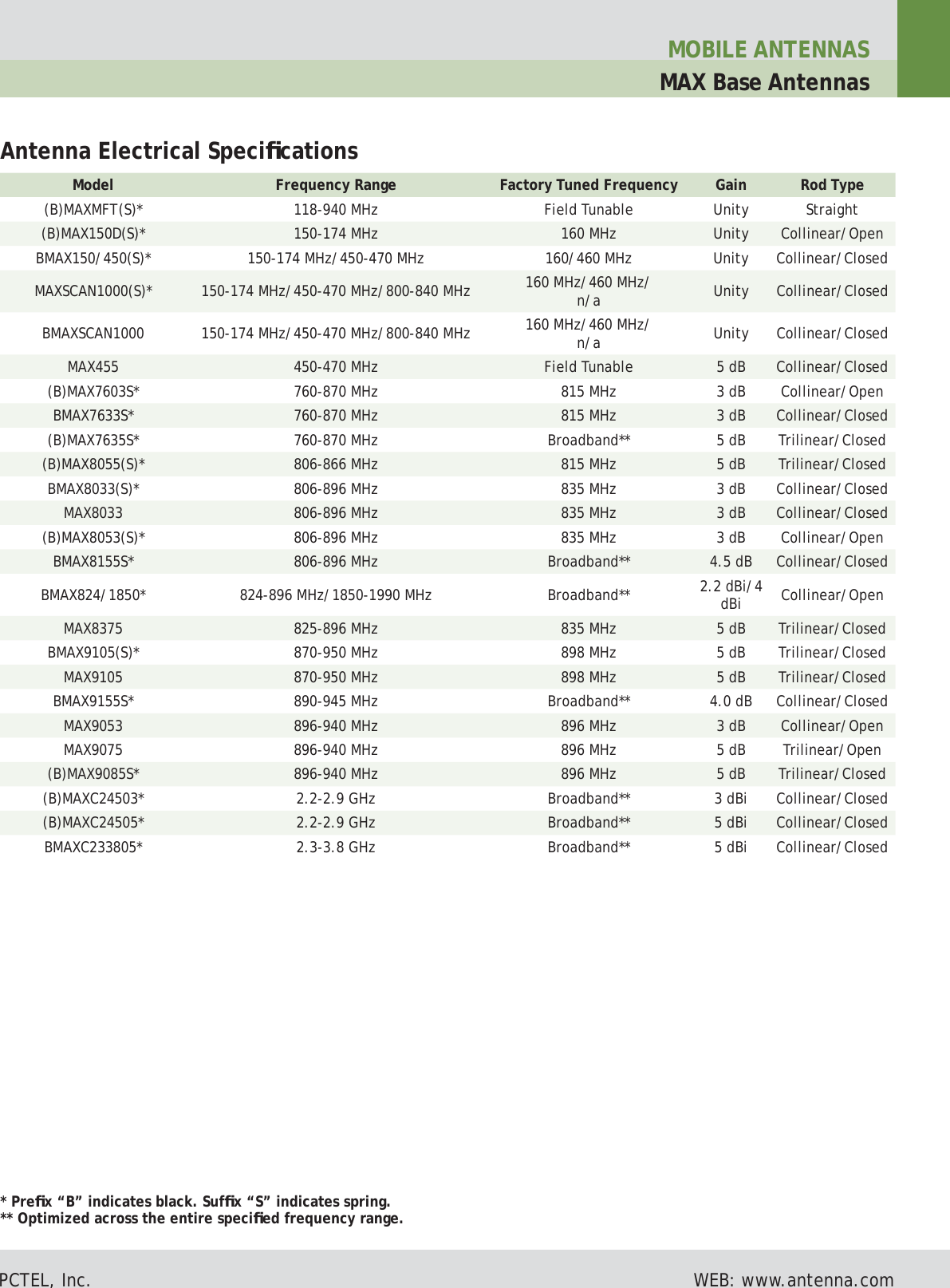

Antenna Electrical Specifi cations * Prefi x “B” indicates black. Suffi x “S” indicates spring. ** Optimized across the entire specifi ed frequency range.Model Frequency Range Factory Tuned Frequency Gain Rod Type (B) MAXMFT(S)* 118-940 MHz Field Tunable Unity Straight (B) MAX150D(S)* 150-174 MHz 160 MHz Unity Collinear/Open BMAX150/450(S)* 150-174 MHz/450-470 MHz 160/460 MHz Unity Collinear/Closed MAXSCAN1000(S)* 150-174 MHz/450-470 MHz/800-840 MHz 160 MHz/460 MHz/n/a Unity Collinear/Closed B MAXSCAN1000 150-174 MHz/450-470 MHz/800-840 MHz 160 MHz/460 MHz/n/a Unity Collinear/Closed MAX455 450-470 MHz Field Tunable 5 dB Collinear/Closed (B) MAX7603S* 760-870 MHz 815 MHz 3 dB Collinear/Open BMAX7633S* 760-870 MHz 815 MHz 3 dB Collinear/Closed (B) MAX7635S* 760-870 MHz Broadband** 5 dB Trilinear/Closed (B) MAX8055(S)* 806-866 MHz 815 MHz 5 dB Trilinear/Closed B MAX8033(S)* 806-896 MHz 835 MHz 3 dB Collinear/ClosedMAX8033 806-896 MHz 835 MHz 3 dB Collinear/Closed (B) MAX8053(S)* 806-896 MHz 835 MHz 3 dB Collinear/Open BMAX8155S* 806-896 MHz Broadband** 4.5 dB Collinear/Closed BMAX824/1850* 824-896 MHz/1850-1990 MHz Broadband** 2.2 dBi/4 dBi Collinear/Open MAX8375 825-896 MHz 835 MHz 5 dB Trilinear/Closed BMAX9105(S)* 870-950 MHz 898 MHz 5 dB Trilinear/Closed MAX9105 870-950 MHz 898 MHz 5 dB Trilinear/Closed BMAX9155S* 890-945 MHz Broadband** 4.0 dB Collinear/Closed MAX9053 896-940 MHz 896 MHz 3 dB Collinear/Open MAX9075 896-940 MHz 896 MHz 5 dB Trilinear/Open (B)MAX9085S* 896-940 MHz 896 MHz 5 dB Trilinear/Closed (B) MAXC24503* 2.2-2.9 GHz Broadband** 3 dBi Collinear/Closed (B) MAXC24505* 2.2-2.9 GHz Broadband** 5 dBi Collinear/Closed BMAXC233805* 2.3-3.8 GHz Broadband** 5 dBi Collinear/ClosedMOBILE ANTENNASMAX Base AntennasPCTEL, Inc. WEB: www.antenna.com

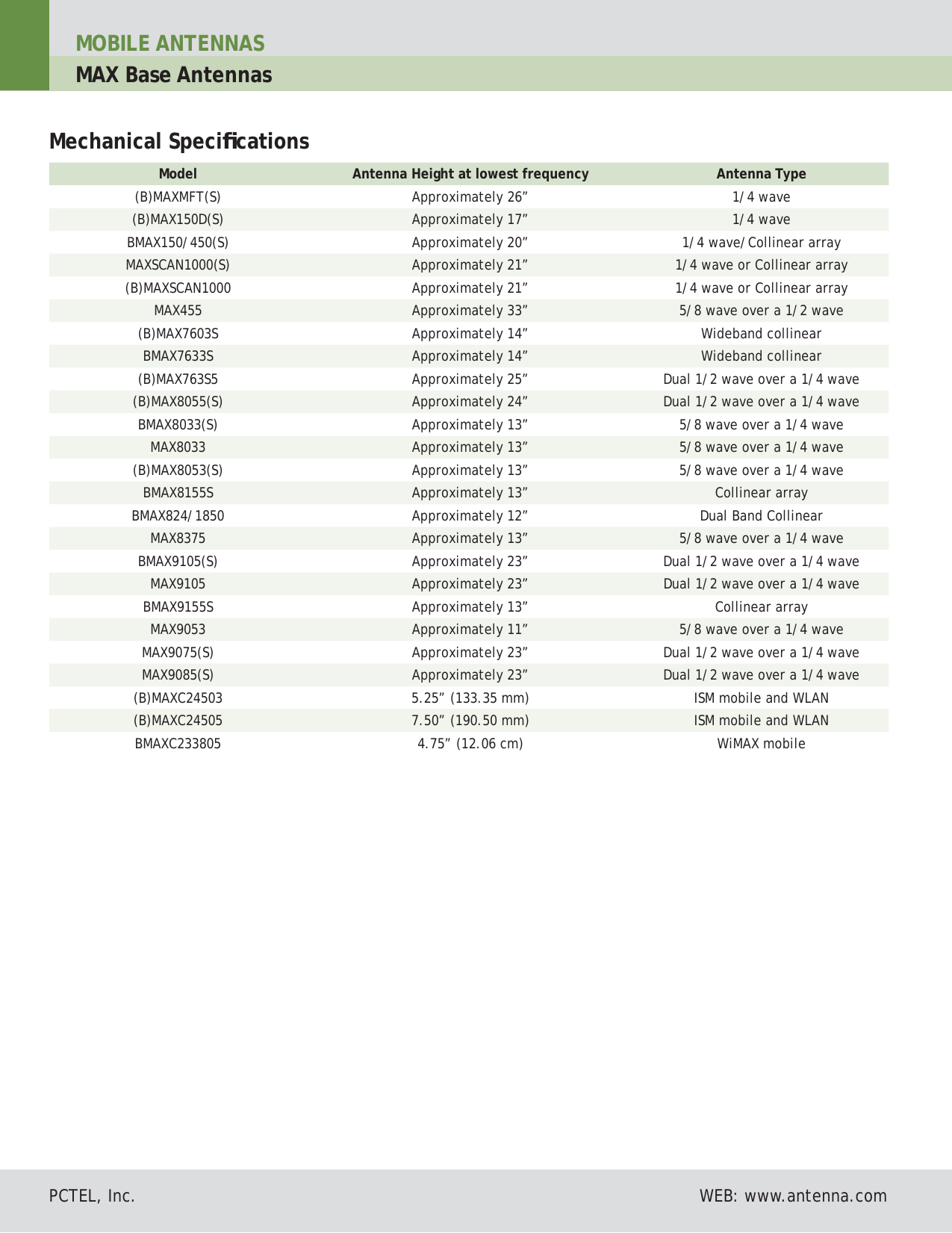

MOBILE ANTENNASMAX Base AntennasMechanical Specifi cationsModel Antenna Height at lowest frequency Antenna Type (B) MAXMFT(S) Approximately 26” 1/4 wave (B) MAX150D(S) Approximately 17” 1/4 wave BMAX150/450(S) Approximately 20” 1/4 wave/Collinear array MAXSCAN1000(S) Approximately 21” 1/4 wave or Collinear array (B)MAXSCAN1000 Approximately 21” 1/4 wave or Collinear array MAX455 Approximately 33” 5/8 wave over a 1/2 wave (B) MAX7603S Approximately 14” Wideband collinear BMAX7633S Approximately 14” Wideband collinear (B) MAX763S5 Approximately 25” Dual 1/2 wave over a 1/4 wave (B) MAX8055(S) Approximately 24” Dual 1/2 wave over a 1/4 wave B MAX8033(S) Approximately 13” 5/8 wave over a 1/4 waveMAX8033 Approximately 13” 5/8 wave over a 1/4 wave (B) MAX8053(S) Approximately 13” 5/8 wave over a 1/4 wave BMAX8155S Approximately 13” Collinear array BMAX824/1850 Approximately 12” Dual Band Collinear MAX8375 Approximately 13” 5/8 wave over a 1/4 wave B MAX9105(S) Approximately 23” Dual 1/2 wave over a 1/4 waveMAX9105 Approximately 23” Dual 1/2 wave over a 1/4 wave BMAX9155S Approximately 13” Collinear array MAX9053 Approximately 11” 5/8 wave over a 1/4 wave MAX9075(S) Approximately 23” Dual 1/2 wave over a 1/4 wave MAX9085(S) Approximately 23” Dual 1/2 wave over a 1/4 wave (B) MAXC24503 5.25” (133.35 mm) ISM mobile and WLAN (B) MAXC24505 7.50” (190.50 mm) ISM mobile and WLAN BMAXC233805 4.75” (12.06 cm) WiMAX mobileMOBILE ANTENNASMAX Base AntennasPCTEL, Inc. WEB: www.antenna.com
