Wireless Access Point
X2 and XD2 Series
Quick Installation Guide
XD4 Series
August 8, 2015
is a registered trademark of Xirrus, Inc. All other trademarks and brand names are marks of their respective
holders.
Please see Legal Notices, Warnings, Compliance Statements, and Warranty and License Agreements in the Xirrus
Wireless AP User’s Guide.
All rights reserved. This document may not be reproduced or disclosed in whole or in part by any means without
the written consent of Xirrus, Inc.
Part Number: 812-0085-012 Rev A August 8, 2015
X2 and XD2 Two-Radio Access Points
1
Quick Installation Guide
For X2 and XD2 Series Models
X2 and XD2 Series Access Points (APs) are new classes of APs within the Xirrus wireless
portfolio. With two omnidirectional 802.11ac radios, a powerful integrated controller,
application-level intelligence, and optional cloud management, the APs deliver robust
wireless connectivity in areas of medium to high user density. The XD2-240 AP has two
802.11ac Wave 2 radios, while the X2-120 has two Wave 1 radios.
The X2 Series includes the X2-120 (Model X2120). The XD2 Series includes the XD2-240 (Model XD2240).
This Guide covers the steps required to install and start these APs. For detailed configuration information, see the
Xirrus Wireless AP User's Guide.
You Need the Following Items
Power and Ethernet connection(s) to your wired network using Cat 5e or Cat 6 cables:
GIG1/POE—This Gigabit port powers the AP via Power over Ethernet (PoE) using a Cat 5e or Cat 6 cable
that also carries data traffic. See below for Power details.
GIG2—This second, data-only Gigabit port is only available on the XD2, and provides additional
bandwidth. Its use is optional. Connect with Cat 5E or Cat 6 cable.
AP must be connected to PoE networks without routing cabling to the outside plant. This ensures that cabling is
not exposed to lightning strikes or possible crossover from high voltage lines. AP, PoE Injectors, and Switches
must be installed and used indoors. The total Cat 5e or Cat 6 cable length from the switch to the AP must be no
more than 100 m, including all cable segments.
Power— See the matrix below to select a compatible PoE switch or Xirrus-supplied injector for your AP.
X2 models are IEEE802.3af-compatible, while XD2 models require 802.3at. If using an injector, you must
provide a data connection from the switch to the injector as well as another cable from the injector's OUT port
to the AP’s GIG1/POE port.
Apply power to GIG1/POE port only—other AP Gigabit ports will not draw power if connected to a
powered switch port, and AP LEDs will not light.
If you are using a POE switch, it is imperative that you know that the switch has sufficient power budget
to power all connected devices.
AP Type
Generic PoE
Injector or Switch
(802.3af)
Generic PoE+
Injector or Switch
(802.3at)
Xirrus
PoE+ Switch
(802.3at)
XP1-MSI-20
XP1-MSI-30
XP1-MSI-75M
XP1-MSI-75
(POE-75U-1UP-X)
XP8-MSI-70M
XP2-MSI-95M
X2
XD2
1
X2 and XD2 Two-Radio Access Points
2
All Xirrus XD2 APs are Type 2, Class 4 POE-802.3at devices. If your switch vendor provides a setting for
the type of powered-device detection with options such as Legacy, 4-Point, or BOTH, set the port to BOTH
or 4-Point. Do not use settings intended for legacy devices.
Access to a Web browser to configure the AP via the Xirrus Management System or directly via the AP’s
Windows Management Interface (WMI).
For a suspended ceiling mount, you need a 7/16” nut driver to attach the mounting plate to the T-Bar clips.
(See “Install Mounting Hardware and AP” on page 3.) Do not use old T-bar clips or studs from XN or XS APs
with the X2 and XD2 Series—they will damage the AP case.
For a locked installation, supply a zip-tie, small lock, or other locking hardware.
NOTE: Leave protective plastic film on the AP until installation is complete, to avoid leaving marks on the AP.
Mounting Options
Direct Ceiling Mount—for the ability to lock the AP in place or detect tampering, use the furnished mounting
plate with at least two user-supplied screws.
Suspended Ceiling Grid Mount—See photos above and on page 3. Use the mounting plate with the two
supplied T-Bar clips (for 15/16” ceiling grid). For a slotted ceiling grid, T-slot bolts are available for attaching
the mounting plate to slots in the grid.
Wall Mount—use a Wall Mount Kit (XE-500-WALL), which contains a mounting plate, wall mount bracket,
and three screws (1/4” Plastite).
Choose a Suitable Location
Choose an indoor location that is central to your users, that is away from heat sources. To ensure good air flow,
it is essential that the AP’s vents are not blocked.
The AP should be installed parallel to the ground (i.e., in a horizontal position, not tilted on its side). The AP
should not be more than 30 feet above the ground (or the level at which receiving devices will be used). For
atypical installations, please verify the resulting signal coverage.
The location must be capable of supporting the weight of the AP and the mounting bracket (about 2 lb total).
For optimal placement, we recommend that a predictive survey be performed by a qualified Xirrus partner.
Maintain a distance of at least 50 feet between additional APs.
Keep the unit away from electrical devices or appliances that generate RF noise-at least 3 to 6 ft (1m - 2m).
AP Mounting Plate (back) AP Mounting Plate (front, mounted)
Locking
Tab
Locking
Plate
Recessed mounting
holes (circled in red,
only 2 ceiling clips
needed)
Tabs for
attaching AP
2
X2 and XD2 Two-Radio Access Points
3
Install Mounting Hardware and AP
3A—Ceiling Mount with Mounting Plate
The following steps use a mounting plate, which offers a more secure mount, ease of dismount, and a locking
option for the AP.
3B—Ceiling Grid Mount with Mounting Plate
1. For T-Bar clips, use two of the four holes on the AP
mounting plate to mark the placement of two T-bar clips
on the metal ceiling support grid.
Twist the two supplied T-bar clips onto the metal ceiling
grid at the marked locations and tighten the screw posts
to 10-12 lbf.ft (1.38-1.66 kgf.m). Do not over- tighten the
screw posts.
2. Cut an access hole in the ceiling tile and draw the cable(s) through.
3. Align the AP mounting plate over the screw posts of the T-Bar bracket or
clips and secure it to the two posts using the nuts provided. Tighten the
nuts to 10-12 lbf.ft (1.38-1.66 kgf.m), but do not over tighten.
4. Proceed to “Connect Cables and Install AP” on page 4.
3A—Ceiling Mount with Mounting Plate
3B—Ceiling Grid Mount with Mounting Plate
3C—Wall Mount with Bracket
1. Use the holes on the AP mounting plate to mark the placement of at least two
user-supplied screws to install in the ceiling.
2. Drill and prepare holes for the screws as appropriate.
3. Cut an access hole for the cable(s) in the ceiling and draw enough cable through
to attach to the AP after it is installed.
4. Align the AP mounting plate over the prepared holes, with the metal locking
plate against the ceiling. Secure the plate with the screws. Do not over-tighten.
5. Proceed to “Connect Cables and Install AP” on page 4.
3
T-Bar Clips
(4 shown; only
2 needed)
X2 and XD2 Two-Radio Access Points
4
3C—Wall Mount with Bracket
NOTE: The mounting location must be able to support the weight of the AP and the mounting bracket (about 2 lb. total).
Connect Cables and Install AP
1. If the AP mounting plate has a metal locking plate, remove it. Align the three
holes in the wall bracket over the corresponding mounting plate holes. The
wall bracket’s small locking tab should point down toward the mounting plate.
NOTE: Use only the screws provided in the accessory kit. Other screws that seem
equivalent in size may damage the mounting plate.
2. Use the three screws provided in the accessory kit to attach the wall mount
bracket to the AP mounting plate as shown here.
3. Use the Wall Mounting Bracket as a template and mark the locations on the
wall for the mounting holes. The bracket must be secured to the wall in 3
places. When marking the holes, make sure the mounting plate is level.
4. Attach the mounting plate to the wall with three user-supplied screws
appropriate to the wall construction type.
NOTE: The mounting location must be capable of supporting the weight of the AP and the
mounting bracket (about 2 pounds total).
5. Cut an access hole for the cable(s) in the wall and draw enough cable through
to attach to the AP after it is installed.
6. Proceed to “Connect Cables and Install AP” on page 4.
1. Connect the cable that carries power and data to GIG1/POE (shown in red). If
you use a Xirrus-supplied injector, its CONNECT LED should light (for 70W and
higher injectors, it is OK if it blinks). If power is being properly supplied, the
AP’s LEDs will light and then commence blinking in their rotating boot pattern.
A second data connection may be plugged into GIG2 (optional, XD2 only).
4
X2 and XD2 Two-Radio Access Points
5
6. You may remove the AP by pushing it up against the mounting plate and rotating to the left.
Zero-Touch Provisioning and Ongoing Management
Most customers employ the Xirrus Management System (XMS) for the initial setup and continuing management of
Xirrus devices. XMS users can readily set up their new devices for provisioning and ongoing maintenance via the
following platforms. Newly discovered APs are automatically assigned to the XMS “default” profile, and will
receive the configuration defined for that profile.
XMS-Cloud—performs zero-touch provisioning as shown in this quick video guide: http://www.xirrus.com/
TV/Training/XMS-cloud-Next-Generation. Your new APs appear in XMS even before you receive your
equipment. When the email arrives with your login information, use XMS-Cloud to specify the initial settings
for your APs. A Guided Tour will walk you through the basic steps of creating a profile containing
configuration settings, including creating SSIDs and firewall/application control rules. Once the installed AP
has Internet connectivity, it will automatically contact Xirrus for cloud-based zero-touch provisioning per your
settings, install the latest applicable license, and upgrade the AP to the latest software version as appropriate.
XMS-Enterprise—automatically detects and provisions new Xirrus devices deployed in your network via a
similar provisioning approach. Set up discovery for your APs’ subnetwork, and create and configure a default
profile for newly added APs. After discovery, these new devices automatically receive the configuration
defined in your default profile.
If you are not using XMS, please see the Xirrus Wireless AP User's Guide to configure your AP manually (XD2 only)
via the Express Setup menu option. The User Guide is available from http://support.xirrus.com (login required).
Select the Libraries tab and click the ArrayOS - XR Platform Latest Release link.
2. Align the two slots on the back of the AP chassis (circled in red) with the
corresponding tabs on the AP mounting plate. To assist you in positioning the
AP, make sure that the AP’s locking slug (red arrow) lines up with the matching
locking tab on the wall bracket or mounting plate (see photos in “AP Mounting
Plate (back)” on page 2).
3. Push the AP chassis up on the mounting plate tabs and rotate the AP to the right
until it snaps in place.
4. To secure the AP to the mounting plate for tamper evidence or to deter removal,
feed a customer-provided zip tie or other locking hardware through the hole in
the top of the locking slug (red arrow, photo above) and the matching locking
tab on the mounting plate or wall bracket.
5. Remove the protective plastic film from the unit.
5
X2 and XD2 Two-Radio Access Points
6
Using the Reset Button
The reset button returns the AP to factory default settings while rebooting. It is
located on the bottom of the unit. Use the reset button as follows:
Unplug the cable from the GIG1/POE port.
Press the reset button all the way (there should be a faint click) and hold it.
Plug the cable back in and continue to keep the button pressed for 10 seconds.
This triggers the factory default reset during the boot process.
Specifications and Drawings
Physical/Environmental Specifications
Dimensions (WxDxH, including mounting plate): 8 x 8 x 2.25 in / 20.3 x 20.3 x 5.7 cm
Weight: 2 lb / 0.9 kg
Operating Temperature: 0-50°C / 32-122°F, 5-95% humidity, non-condensing.
Mounting Plate
6
7
X2 and XD2 Two-Radio Access Points
7

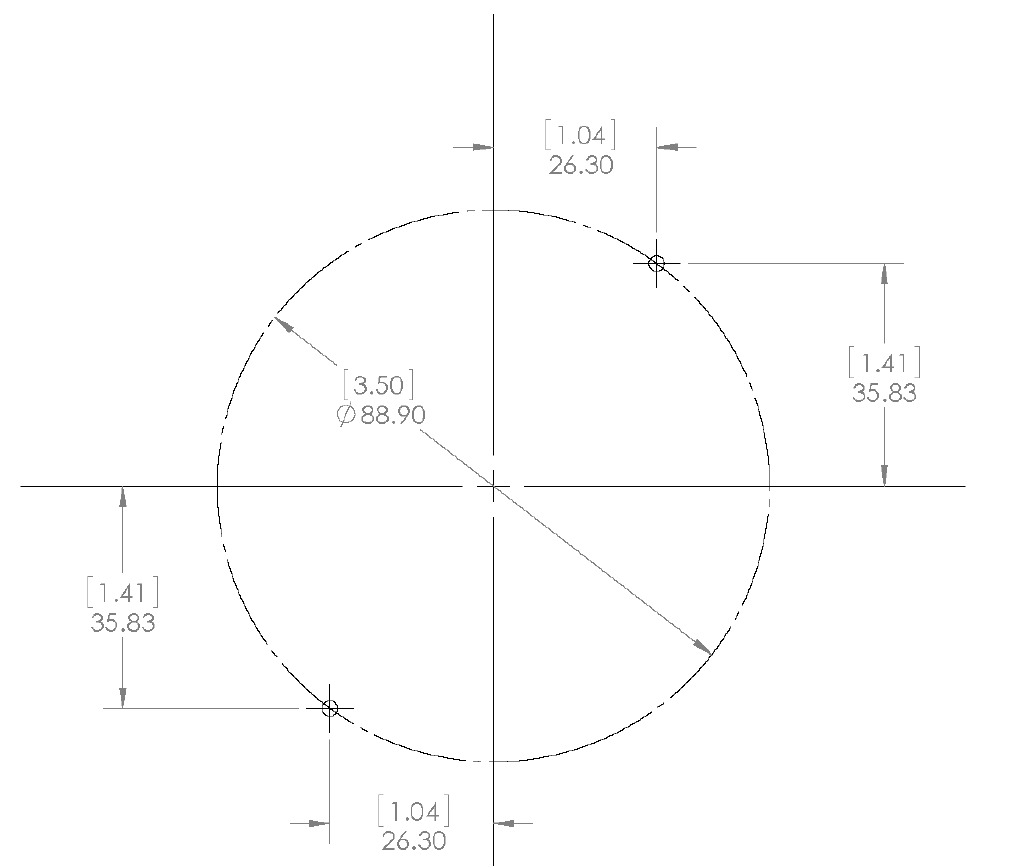

Direct Mounting Template
1.800.947.7871 Toll Free in the US
+1.805.262.1600 Sales
+1.805.262.1601 Fax
2101 Corporate Center Drive
Thousand Oaks, CA 91320, USA
To learn more visit:
xirrus.com or
email info@xirrus.com
© 201 Xirrus, Inc. All Rights Reserved. The Xirrus logo is a registered trademark of Xirrus, Inc.
All other trademarks are the property of their respective owners. Content subject to change without notice.
812-0085-012 Rev A
Wireless Access Point
539
Appendix C: Notices (XD and XR500/600
Series Only)
This appendix contains the following information:
“Notices” on page 539
“EU Directive 1999/5/EC Compliance Information” on page 546
“Compliance Information (Non-EU)” on page 553
“Safety Warnings” on page 555
“Translated Safety Warnings” on page 556
“Software License and Product Warranty Agreement” on page 557
“Hardware Warranty Agreement” on page 563
Notices
Wi-Fi Alliance Certification
www.wi-fi.org
FCC Notice
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate RF energy and, if not
This Appendix contains Notices, Warnings, and Compliance information for
the XD and XR500/600 Series only.
For Notices, Warnings, and Compliance information for outdoor products,
please see the Quick Installation Guide for that product.
For Notices, Warnings, and Compliance information for all other APs,
please see “Notices (XR-1000 to XR-6000 Indoor Models)” on page 563.
Wireless Access Point
540
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following safety measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced wireless technician for help.
This device complies with Part 15 of the FCC Rules, with operation subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause unwanted operation.
For XD2 models available in the USA/Canada market, only channels 1~11 can be
operated. Selection of other channels is not possible.
This device and its antenna(s) must not be co-located or operating in conjunction
with any other antenna or transmitter except in accordance with FCC multi-
transmitter product procedures.
This device is restricted for indoor use.
Use of a shielded twisted pair (STP) cable must be used for all Ethernet
connections in order to comply with EMC requirements.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
IMPORTANT NOTE: FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. To ensure compliance with FCC and Industry Canada
!FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this
equipment.
Wireless Access Point
541
RF exposure requirements, this device must be installed in a location where the
antennas of the device will have a minimum distance of at least 30 cm (12 inches)
from all persons, except that XD2 models must have a minimum distance of at
least 20 cm (8 inches) from all persons. Using higher gain antennas and types of
antennas not certified for use with this product is not allowed. The device shall
not be co-located with another transmitter.
High Power Radars
High power radars are allocated as primary users (meaning they have priority) in
the 5250MHz to 5350MHz and 5650MHz to 5850MHz bands. These radars could
cause interference and/or damage to LE-LAN devices.
Non-Modification Statement
Unauthorized changes or modifications to the device are not permitted. Use only
the supplied internal antenna, or external antennas supplied by the manufacturer.
Modifications to the device will void the warranty and may violate FCC
regulations.
Cable Runs for Power over Ethernet (PoE)
If using PoE, the AP must be connected to PoE networks without routing cabling
to the outside plant — this ensures that cabling is not exposed to lightning strikes
or possible cross over from high voltage.
Battery Warning
UL Statement
Use only with listed ITE product.
!Caution! The AP contains a battery which is not to be replaced by the customer.
Danger of Explosion exists if the battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the manufacturer. Dispose of used
batteries according to the manufacturer's instructions.
Wireless Access Point
542
Industry Canada Statement (XD2)
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
For product available in the USA/Canada market, only channel 1~11 can be
operated. Selection of other channels is not possible.
Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à 11
peuvent être exploités. Sélection d'autres canaux n'est pas possible.
This device and its antenna(s) must not be co-located or operating in conjunction
with any other antenna or transmitter except in accordance with IC multi-
transmitter product procedures.
Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnement en
association avec une autre antenne ou transmetteur.
Dynamic Frequency Selection (DFS) for devices operating in the bands 5250- 5350
MHz, 5470-5600 MHz and 5650-5725 MHz
Sélection dynamique de fréquences (DFS) pour les dispositifs fonctionnant dans les
bandes 5250-5350 MHz, 5470-5600 MHz et 5650-5725 MHz
The device for operation in the band 5150-5250 MHz is only for indoor use to
reduce the potential for harmful interference to co-channel mobile satellite
systems.
Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement
pour une utilisation à l'intérieur afin de réduire les risques de brouillage préjudiciable aux
systèmes de satellites mobiles utilisant les mêmes canaux.
Wireless Access Point
543
Users should also be advised that high-power radars are allocated as primary
users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and
that these radars could cause interference and/or damage to LE-LAN devices.
De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute
puissance sont désignés utilisateurs principaux (c.-à-d., qu'ils ont la priorité) pour les
bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer du
brouillage et/ou des dommages aux dispositifs LAN-EL.
For indoor use only.
Pour une utilisation en intérieur uniquement.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC RSS-102 radiation exposure limits set forth for
an uncontrolled environment. This equipment should be installed and operated
with minimum distance 20 cm between the radiator and your body.
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour
un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un
minimum de 20 cm de distance entre la source de rayonnement et votre corps.
Wireless Access Point
544
Industry Canada Statement (non-XD2)
This device complies with RSS-210 of the Industry Canada Rules. Operation is
subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux
appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions
suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce
dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de
provoquer un fonctionnement indésirable.
Caution:
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to
reduce the potential for harmful interference to co-channel mobile satellite
systems;
(ii) high-power radars are allocated as primary users (i.e. priority users) of the
bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause
interference and/or damage to LE-LAN devices.
When operating the XR-600 Series in the band 5250-5350 MHz with a maximum
e.i.r.p. greater than 200 mW in Canada, please adjust antenna/EUT to comply
with the following e.i.r.p. elevation mask, where θ is the angle above the local
horizontal plane (of the Earth) as shown below:
(i) -13 dB(W/MHz) for 0° ≤ θ < 8°
(ii) -13 - 0.716 (θ-8) dB(W/MHz) for 8° ≤ θ < 40°
(iii) -35.9 - 1.22 (θ-40) dB(W/MHz) for 40° ≤ θ ≤ 45°
(iv) -42 dB(W/MHz) for θ > 45°
Avertissement:
(i) les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés uniquement
pour une utilisation à l'intérieur afin de réduire les risques de brouillage préjudiciable aux
systèmes de satellites mobiles utilisant les mêmes canaux;
(ii) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de
haute puissance sont désignés utilisateurs principaux (c.-à-d., qu'ils ont la priorité) pour
Wireless Access Point
545
les bandes 5 250-5 350 MHz et 5 650-5 850 MHz et que ces radars pourraient causer du
brouillage et/ou des dommages aux dispositifs LAN-EL.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
To ensure compliance with Industry Canada RF exposure requirements, this
device must be installed in a location where the antennas of the device will have a
minimum distance of at least 30 cm (12 inches) from all persons. Using higher
gain antennas and types of antennas not certified for use with this product is not
allowed. The device shall not be co-located with another transmitter.
Installez l'appareil en veillant à conserver une distance d'au moins 30 cm entre les
éléments rayonnants et les personnes. Cet avertissement de sécurité est conforme aux
limites d'exposition définies par la norme CNR-102 at relative aux fréquences radio.
Wireless Access Point
546
EU Directive 1999/5/EC Compliance Information
This section contains compliance information for the Xirrus Wireless AP family of
products. The compliance information contained in this section is relevant to the
European Union and other countries that have implemented the EU Directive
1999/5/EC.
Declaration of Conformity
This Appendix contains Notices, Warnings, and Compliance information for
the XD and XR500/600 Series only. For other models, see the notes under
“Notices (XR-1000 to XR-6000 Indoor Models)” on page 563.
Cesky [Czech] Toto zahzeni je v souladu se základnimi požadavky a
ostatnimi odpovidajcimi ustano veni mi Směrnice
1999/5/EC.
Dansk [Danish] Dette udstyr er i overensstemmelse med de
væsentlige krav og andre relevante bestemmelser i
Direktiv 1999/5/EF.
Deutsch [German] Dieses Gerat entspricht den grundlegenden
Anforderungen und den weiteren entsprechenden
Vorgaben der Richtinie 1999/5/EU.
Eesti [Estonian] See seande vastab direktiivi 1999/5/EU olulistele
nöuetele ja teistele as jakohastele sätetele.
English This equipment is in compliance with the essential
requirements and other relevant provisions of
Directive 1999/5/EC.
Español [Spain] Este equipo cump le con los requisitos esenciales asi
como con otras disposiciones de la Directiva 1999/5/
CE.
Ελληνυκη [Greek] Αυτόζ ο εξοπλτσμόζ είναι σε συμμόρφωση με τιζ
ουσιώδειζ απαιτήσειζ και ύλλεζ σχετικέζ διατάξειζ τηζ
Οδηγιαζ 1999/5/EC.
Wireless Access Point
547
Français [French] Cet appareil est conforme aux exigences essentielles
et aux autres dispositions pertinentes de la Directive
1999/5/EC.
ĺslenska [Icelandic] Þetta tæki er samkvæmt grunnkröfum og öðrum
viðeigandi ákvæðum Tilskipunar 1999/5/EC.
Italiano [Italian] Questo apparato é conforme ai requisiti essenziali ed
agli altri principi sanciti dalla Direttiva 1999/5/CE.
Latviski [Latvian] Šī iekārta atbilst Direktīvas 1999/5/EK būtiskajā
prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių [Lithuanian] Šis įrenginys tenkina 1995/5/EB Direktyvos
esminius reikalavimus ir kitas šios direktyvos
nuostatas.
Nederlands [Dutch] Dit apparant voldoet aan de essentiele eisen en
andere van toepassing zijnde bepalingen van de
Richtlijn 1995/5/EC.
Malti [Maltese] Dan l-apparant huwa konformi mal-htigiet essenzjali
u l-provedimenti l-ohra rilevanti tad-Direttiva 1999/
5/EC.
Margyar [Hungarian] Ez a készülék teljesiti az alapvetö követelményeket
és más 1999/5/EK irányelvben meghatározott
vonatkozó rendelkezéseket.
Norsk [Norwegian] Dette utstyret er i samsvar med de grunnleggende
krav og andre relevante bestemmelser i EU-direktiv
1999/5/EF.
Polski [Polish] Urządzenie jest zgodne z ogólnymi wymaganiami
oraz sczególnymi mi warunkami określony mi
Dyrektywą. UE:1999/5/EC.
Portuguès [Portuguese] Este equipamento está em conformidade com os
requisitos essenciais e outras provisões relevantes da
Directiva 1999/5/EC.
Wireless Access Point
548
Assessment Criteria
The following standards were applied during the assessment of the product
against the requirements of the Directive 1999/5/EC:
Radio: EN 301 893 and EN 300 328 (if applicable)
EMC: EN 301 489-1 and EN 301 489-17
Safety: EN 50371 to EN 50385 and EN 60601
CE Marking
For the Xirrus Wireless AP, the CE mark and Class-2 identifier opposite are
affixed to the equipment and its packaging:
Russian Certification Marking
For the Xirrus XR-500, XR-520H, XR-2000, and XR-4000 Series Wireless APs, the
approval mark is affixed to the equipment:
Slovensko [Slovenian] Ta naprava je skladna z bistvenimi zahtevami in
ostalimi relevantnimi popoji Direktive 1999/5/EC.
Slovensky [Slovak] Toto zariadenie je v zhode so základnými
požadavkami a inými prislušnými nariadeniami
direktiv: 1999/5/EC.
Suomi [Finnish] Tämä laite täyttää direktiivin 1999/5//EY olennaiset
vaatimukset ja on siinä asetettujen muiden laitetta
koskevien määräysten mukainen.
Svenska [Swedish] Denna utrustning är i överensstämmelse med de
väsentliga kraven och andra relevanta bestämmelser
i Direktiv 1999/5/EC.
Wireless Access Point
549
WEEE Compliance
Natural resources were used in the production of
this equipment.
This equipment may contain hazardous
substances that could impact the health of the
environment.
In order to avoid harm to the environment and
consumption of natural resources, we encourage
you to use appropriate take-back systems when
disposing of this equipment.
The appropriate take-back systems will reuse or
recycle most of the materials of this equipment in
a way that will not harm the environment.
The crossed-out wheeled bin symbol (in
accordance with European Standard EN 50419)
invites you to use those take-back systems and
advises you not to combine the material with
refuse destined for a land fill.
If you need more information on collection, re-
use and recycling systems, please contact your
local or regional waste administration.
Please contact Xirrus for specific information on
the environmental performance of our products.
Wireless Access Point
550
National Restrictions
In the majority of the EU and other European countries, the 2.4 GHz and 5 GHz
bands have been made available for the use of Wireless LANs. The following table
provides an overview of the regulatory requirements in general that are
applicable for the 2.4 GHz and 5 GHz bands.
*Dynamic frequency selection and Transmit Power Control is required in these
frequency bands.
**France is indoor use only in the upper end of the band.
The requirements for any country may change at any time. Xirrus recommends
that you check with local authorities for the current status of their national
regulations for both 2.4 GHz and 5 GHz wireless LANs.
The following countries have additional requirements or restrictions than those
listed in the above table:
Belgium
The Belgian Institute for Postal Services and Telecommunications (BIPT) must
be notified of any outdoor wireless link having a range exceeding 300 meters.
Xirrus recommends checking at www.bipt.be for more details.
Draadloze verbindingen voor buitengebruik en met een reikwijdte van meer dan 300
meter dienen aangemeld te worden bij het Belgisch Instituut voor postdiensten en
telecommunicatie (BIPT). Zie www.bipt.be voor meer gegevens.
Frequency
Band (MHz) Max Power Level
(EIRP) (mW) Indoor Outdoor
2400–2483.5 100 X X **
5250–5350 *200 X N/A
5470–5725* 1000 X X
Wireless Access Point
551
Les liasons sans fil pour une utilisation en extérieur d’une distance supérieure à 300
mèters doivent être notifiées à l’Institut Belge des services Postaux et des
Télécommunications (IBPT). Visitez www.bipt.be pour de plus amples détails.
Greece
A license from EETT is required for the outdoor operation in the 5470 MHz to
5725 MHz band. Xirrus recommends checking www.eett.gr for more details.
Η δη ιουργβάικτ ωνεξωτερικο ρουστη ζ νησυ νοτ των 5470–5725 ΜΗz ε ιτρ ετάιωνο
ετάά όάδειά της ΕΕΤΤ, ου ορηγεβτάι στερά ά ό σ φωνη γν η του ΓΕΕΘΑ. ερισσότερες
λε τομ ρειεωστο www.eett.gr
Italy
This product meets the National Radio Interface and the requirements
specified in the National Frequency Allocation Table for Italy. Unless this
wireless LAN product is operating within the boundaries of the owner’s
property, its use requires a “general authorization.” Please check with
www.communicazioni.it/it/ for more details.
Questo prodotto é conforme alla specifiche di Interfaccia Radio Nazionali e rispetta il
Piano Nazionale di ripartizione delle frequenze in Italia. Se non viene installato
all’interno del proprio fondo, l’utilizzo di prodotti wireless LAN richiede una
“autorizzazione Generale.” Consultare www.communicazioni.it/it/ per maggiori
dettagli.
Norway, Switzerland and Liechtenstein
Although Norway, Switzerland and Liechtenstein are not EU member states,
the EU Directive 1999/5/EC has also been implemented in those countries.
Calculating the Maximum Output Power
The regulatory limits for maximum output power are specified in EIRP (radiated
power). The EIRP level of a device can be calculated by adding the gain of the
antenna used (specified in dBi) to the output power available at the connector
(specified in dBm).
Wireless Access Point
552
Antennas
The Xirrus Wireless AP employs integrated antennas that cannot be removed and
which are not user accessible. Nevertheless, as regulatory limits are not the same
throughout the EU, users may need to adjust the conducted power setting for the
radio to meet the EIRP limits applicable in their country or region. Adjustments
can be made from the product’s management interface — either Web Management
Interface (WMI) or Command Line Interface (CLI).
Operating Frequency
The operating frequency in a wireless LAN is determined by the access point. As
such, it is important that the access point is correctly configured to meet the local
regulations. See National Restrictions in this section for more information.
If you still have questions regarding the compliance of Xirrus products or you
cannot find the information you are looking for, please contact us at:
Xirrus, Inc.
2101 Corporate Center Drive
Thousand Oaks, CA 91320
USA
Tel: 1.805.262.1600
1.800.947.7871 Toll Free in the US
Fax: 1.866.462.3980
www.xirrus.com
Wireless Access Point
553
Compliance Information (Non-EU)
This section contains compliance information for the Xirrus Wireless AP family of
products. The compliance information contained in this section is relevant to the
listed countries (outside of the European Union and other countries that have
implemented the EU Directive 1999/5/EC).
Declaration of Conformity—Brazil
This Appendix contains Notices, Warnings, and Compliance information for
the XD and XR500/600 Series only. For other models, see the notes under
“Notices (XR-1000 to XR-6000 Indoor Models)” on page 563.
XR-500
Wireless Access Point
554
Declaration of Conformity
Mexico XR-520: Dictamen #: 1402D00742
XR-600: Dictamen #: 1402CE08098
XR-520: Cofetel Cert #: RCPXIXR13-1003
Thailand This telecommunication equipment conforms to
NTC technical requirement.
Wireless Access Point
555
Safety Warnings
Translated safety warnings appear on the following page.
This Appendix contains Notices, Warnings, and Compliance information for
the XD and XR500/600 Series only. For other models, see the notes under
“Notices (XR-1000 to XR-6000 Indoor Models)” on page 563.
!Safety Warnings
Read all user documentation before powering this device. All Xirrus
interconnected equipment should be contained indoors. This product is
not suitable for outdoor operation. Please verify the integrity of the
system ground prior to installing Xirrus equipment. Additionally,
verify that the ambient operating temperature does not exceed 50°C
(40°C for the XR500/600 Series).
!Explosive Device Proximity Warning
Do not operate the XR Series Wireless AP near unshielded blasting caps
or in an explosive environment unless the device has been modified to
be especially qualified for such use.
!Lightning Activity Warning
Do not work on the XR Series Wireless AP or connect or disconnect
cables during periods of lightning activity.
!Circuit Breaker Warning
The XR Series Wireless AP relies on the building’s installation for over
current protection. Ensure that a fuse or circuit breaker no larger than
120 VAC, 15A (U.S.) or 240 VAC, 10A (International) is used on all
current-carrying conductors.
Wireless Access Point
556
Translated Safety Warnings
Avertissements de Sécurité
This Appendix contains Notices, Warnings, and Compliance information for
the XD and XR500/600 Series only. For other models, see the notes under
“Notices (XR-1000 to XR-6000 Indoor Models)” on page 563.
!Sécurité
Lisez l'ensemble de la documentation utilisateur avant de mettre cet
appareil sous tension. Tous les équipements Xirrus interconnectés
doivent être installés en intérieur. Ce produit n'est pas conçu pour être
utilisé en extérieur. Veuillez vérifier l'intégrité de la terre du système
avant d'installer des équipements Xirrus. Vérifiez également que la
température de fonctionnement ambiante n'excède pas 50°C (40°C pour
XR-520).
!Proximité d'appareils explosifs
N'utilisez pas l'unité XR Wireless AP à proximité d'amorces non
blindées ou dans un environnement explosif, à moins que l'appareil
n'ait été spécifiquement modifié pour un tel usage.
!Foudre
N'utilisez pas l'unité XR Wireless AP et ne branchez pas ou ne
débranchez pas de câbles en cas de foudre.
!Disjoncteur
L'unité XR Wireless AP dépend de l'installation du bâtiment pour ce
qui est de la protection contre les surintensités. Assurez-vous qu'un
fusible ou qu'un disjoncteur de 120 Vca, 15 A (États-Unis) ou de 240
Vca, 10 A (International) maximum est utilisé sur tous les conducteurs
de courant.
Wireless Access Point
557
Software License and Product Warranty Agreement
THIS SOFTWARE LICENSE AGREEMENT (THE “AGREEMENT”) IS A LEGAL
AGREEMENT BETWEEN YOU (“CUSTOMER”) AND LICENSOR (AS DEFINED
BELOW) AND GOVERNS THE USE OF THE SOFTWARE INSTALLED ON THE
PRODUCT (AS DEFINED BELOW). IF YOU ARE AN EMPLOYEE OR AGENT
OF CUSTOMER, YOU HEREBY REPRESENT AND WARRANT TO LICENSOR
THAT YOU HAVE THE POWER AND AUTHORITY TO ACCEPT AND TO
BIND CUSTOMER TO THE TERMS AND CONDITIONS OF THIS AGREEMENT
(INCLUDING ANY THIRD PARTY TERMS SET FORTH HEREIN). IF YOU DO
NOT AGREE TO ALL OF THE TERMS OF THIS AGREEMENT RETURN THE
PRODUCT AND ALL ACCOMPANYING MATERIALS (INCLUDING ALL
DOCUMENTATION) TO THE RELEVANT VENDOR FOR A FULL REFUND OF
THE PURCHASE PRICE THEREFORE.
CUSTOMER UNDERSTANDS AND AGREES THAT USE OF THE PRODUCT
AND SOFTWARE SHALL BE DEEMED AN AGREEMENT TO THE TERMS
AND CONDITIONS GOVERNING SUCH SOFTWARE AND THAT CUSTOMER
IS BOUND BY AND BECOMES A PARTY TO THIS AGREEMENT.
1.0 DEFINITIONS
1.1 “Documentation” means the user manuals and all other all documentation,
instructions or other similar materials accompanying the Software covering
the installation, application, and use thereof.
1.2 “Licensor” means Xirrus and its suppliers.
1.3 “Product” means a multi-radio access point containing four or more distinct
radios capable of simultaneous operation on four or more non-overlapping
channels.
1.4 “Software” means, collectively, each of the application and embedded
software programs delivered to Customer in connection with this Agreement.
For purposes of this Agreement, the term Software shall be deemed to include
any and all Documentation and Updates provided with or for the Software.
1.5 “Updates” means any bug-fix, maintenance or version release to the Software
that may be provided to Customer from Licensor pursuant to this Agreement
or pursuant to any separate maintenance and support agreement entered into
by and between Licensor and Customer.
2.0 GRANT OF RIGHTS
2.1 Software. Subject to the terms and conditions of this Agreement, Licensor
hereby grants to Customer a perpetual, non-exclusive, non-sublicenseable,
non-transferable right and license to use the Software solely as installed on
Wireless Access Point
558
the Product in accordance with the accompanying Documentation and for no
other purpose.
2.2 Ownership. The license granted under Sections 2.1 above with respect to the
Software does not constitute a transfer or sale of Licensor's or its suppliers'
ownership interest in or to the Software, which is solely licensed to Customer.
The Software is protected by both national and international intellectual
property laws and treaties. Except for the express licenses granted to the
Software, Licensor and its suppliers retain all rights, title and interest in and
to the Software, including (i) any and all trade secrets, copyrights, patents and
other proprietary rights therein or thereto or (ii) any Marks (as defined in
Section 2.3 below) used in connection therewith. In no event shall Customer
remove, efface or otherwise obscure any Marks contained on or in the
Software. All rights not expressly granted herein are reserved by Licensor.
2.3 Copies. Customer shall not make any copies of the Software but shall be
permitted to make a reasonable number of copies of the related
Documentation. Whenever Customer copies or reproduces all or any part of
the Documentation, Customer shall reproduce all and not efface any titles,
trademark symbols, copyright symbols and legends, and other proprietary
markings or similar indicia of origin (“Marks”) on or in the Documentation.
2.4 Restrictions. Customer shall not itself, or through any parent, subsidiary,
affiliate, agent or other third party (i) sell, rent, lease, license or sublicense,
assign or otherwise transfer the Software, or any of Customer's rights and
obligations under this Agreement except as expressly permitted herein; (ii)
decompile, disassemble, or reverse engineer the Software, in whole or in part,
provided that in those jurisdictions in which a total prohibition on any
reverse engineering is prohibited as a matter of law and such prohibition is
not cured by the fact that this Agreement is subject to the laws of the State of
California, Licensor agrees to grant Customer, upon Customer's written
request to Licensor, a limited reverse engineering license to permit
interoperability of the Software with other software or code used by
Customer; (iii) allow access to the Software by any user other than by
Customer's employees and contractors who are bound in writing to
confidentiality and non-use restrictions at least as protective as those set forth
herein; (iv) except as expressly set forth herein, write or develop any
derivative software or any other software program based upon the Software;
(v) use any computer software or hardware which is designated to defeat any
copy protection or other use limiting device, including any device intended to
limit the number of users or devices accessing the Product; (vi) disclose
information about the performance or operation of the Product or Software to
any third party without the prior written consent of Licensor; or (vii) engage a
third party to perform benchmark or functionality testing of the Product or
Software.
Wireless Access Point
559
3.0 LIMITED WARRANTY AND LIMITATION OF LIABILITY
3.1 Limited Warranty & Exclusions. Licensor warrants that the Software will
perform in substantial accordance with the specifications therefore set forth in
the Documentation for a period of ninety [90] days after Customer's
acceptance of the terms of this Agreement with respect to the Software
(“Warranty Period”). If during the Warranty Period the Software or Product
does not perform as warranted, Licensor shall, at its option, correct the
relevant Product and/or Software giving rise to such breach of performance
or replace such Product and/or Software free of charge. THE FOREGOING
ARE CUSTOMER'S SOLE AND EXCLUSIVE REMEDIES FOR BREACH OF
THE FOREGOING WARRANTY. THE WARRANTY SET FORTH ABOVE IS
MADE TO AND FOR THE BENEFIT OF CUSTOMER ONLY. The warranty
will apply only if (i) the Software has been used at all times and in accordance
with the instructions for use set forth in the Documentation and this
Agreement; (ii) no modification, alteration or addition has been made to the
Software by persons other than Licensor or Licensor's authorized
representative; and (iii) the Software or Product on which the Software is
installed has not been subject to any unusual electrical charge.
3.2 DISCLAIMER. EXCEPT AS EXPRESSLY STATED IN THIS SECTION 3, ALL
ADDITIONAL CONDITIONS, REPRESENTATIONS, AND WARRANTIES,
WHETHER IMPLIED, STATUTORY OR OTHERWISE, INCLUDING,
WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OR CONDITIONS
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE,
SATISFACTORY QUALITY, ACCURACY, AGAINST INFRINGEMENT OR
ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE
PRACTICE, ARE HEREBY DISCLAIMED BY LICENSOR AND ITS
SUPPLIERS. THIS DISCLAIMER SHALL APPLY EVEN IF ANY EXPRESS
WARRANTY AND LIMITED REMEDY OFFERED BY LICENSOR FAILS OF
ITS ESSENTIAL PURPOSE. ALL WARRANTIES PROVIDED BY LICENSOR
ARE SUBJECT TO THE LIMITATIONS OF LIABILITY SET FORTH IN THIS
AGREEMENT.
3.3 HAZARDOUS APPLICATIONS. THE SOFTWARE IS NOT DESIGNED OR
INTENDED FOR USE IN HAZARDOUS ENVIRONMENTS REQUIRING
FAIL SAFE PERFORMANCE, SUCH AS IN THE OPERATION OF A
NUCLEAR FACILITY, AIRCRAFT NAVIGATION OR COMMUNICATIONS
SYSTEMS, AIR TRAFFIC CONTROLS OR OTHER DEVICES OR SYSTEMS
IN WHICH A MALFUNCTION OF THE SOFTWARE WOULD RESULT IN
FORSEEABLE RISK OF INJURY OR DEATH TO THE OPERATOR OF THE
DEVICE OR SYSTEM OR TO OTHERS (“HAZARDOUS APPLICATIONS”).
CUSTOMER ASSUMES ANY AND ALL RISKS, INJURIES, LOSSES, CLAIMS
AND ANY OTHER LIABILITIES ARISING OUT OF THE USE OF THE
SOFTWARE IN ANY HAZARDOUS APPLICATIONS.
Wireless Access Point
560
3.4 Limitation of Liability.
(a) TOTAL LIABILITY. NOTWITHSTANDING ANYTHING ELSE HEREIN,
ALL LIABILITY OF LICENSOR AND ITS SUPPLIERS UNDER THIS
AGREEMENT SHALL BE LIMITED TO THE AMOUNT PAID BY
CUSTOMER FOR THE RELEVANT SOFTWARE, OR PORTION
THEREOF, THAT GAVE RISE TO SUCH LIABILITY OR ONE
HUNDRED UNITED STATES DOLLARS (US$100), WHICHEVER IS
GREATER. THE LIABILITY OF LICENSOR AND ITS SUPPLIERS
UNDER THIS SECTION SHALL BE CUMULATIVE AND NOT PER
INCIDENT.
(b) DAMAGES. IN NO EVENT SHALL LICENSOR, ITS SUPPLIERS OR
THEIR RELEVANT SUBCONTRACTORS BE LIABLE FOR (A) ANY
INCIDENTAL, SPECIAL, PUNITIVE OR CONSEQUENTIAL
DAMAGES, LOST PROFITS OR LOST OR DAMAGED DATA, OR ANY
INDIRECT DAMAGES, WHETHER ARISING IN CONTRACT, TORT
(INCLUDING NEGLIGENCE AND STRICT LIABILITY) OR
OTHERWISE OR (B) ANY COSTS OR EXPENSES FOR THE
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES IN EACH
CASE, EVEN IF LICENSOR OR ITS SUPPLIERS HAVE BEEN
INFORMED OF THE POSSIBILITY OF SUCH DAMAGES.
3.5 Exclusions. SOME JURISDICTIONS DO NOT PERMIT THE LIMITATIONS
OF LIABILITY AND LIMITED WARRANTIES SET FORTH UNDER THIS
AGREEMENT. IN THE EVENT YOU ARE LOCATED IN ANY SUCH
JURISDICTION, THE FOREGOING LIMITATIONS SHALL APPLY ONLY
TO THE MAXIMUM EXTENT PERMITTED IN SUCH JURISDICTIONS. IN
NO EVENT SHALL THE FOREGOING EXCLUSIONS AND LIMITATIONS
ON DAMAGES BE DEEMED TO APPLY TO ANY LIABILITY BASED ON
FRAUD, WILLFUL MISCONDUCT, GROSS NEGLIGENCE OR PERSONAL
INJURY OR DEATH.
4.0 CONFIDENTIAL INFORMATION
4.1 Generally. The Software (and its accompanying Documentation) constitutes
Licensor's and its suppliers' proprietary and confidential information and
contains valuable trade secrets of Licensor and its suppliers (“Confidential
Information”). Customer shall protect the secrecy of the Confidential
Information to the same extent it protects its other valuable, proprietary and
confidential information of a similar nature but in no event shall Customer
use less than reasonable care to maintain the secrecy of the Confidential
Information. Customer shall not use the Confidential Information except to
exercise its rights or perform its obligations as set forth under this Agreement.
Customer shall not disclose such Confidential Information to any third party
other than subject to non-use and non-disclosure obligations at least as
Wireless Access Point
561
protective of a party's right in such Confidential Information as those set forth
herein.
4.2 Return of Materials. Customer agrees to (i) destroy all Confidential
Information (including deleting any and all copies contained on any of
Customer's Designated Hardware or the Product) within fifteen (15) days of
the date of termination of this Agreement or (ii) if requested by Licensor,
return, any Confidential Information to Licensor within thirty (30) days of
Licensor's written request.
5.0 TERM AND TERMINATION
5.1 Term. Subject to Section 5.2 below, this Agreement will take effect on the
Effective Date and will remain in force until terminated in accordance with
this Agreement.
5.2 Termination Events. This Agreement may be terminated immediately upon
written notice by either party under any of the following conditions:
(a) If the other party has failed to cure a breach of any material term or
condition under the Agreement within thirty (30) days after receipt of
notice from the other party; or
(b) Either party ceases to carry on business as a going concern, either party
becomes the object of the institution of voluntary or involuntary
proceedings in bankruptcy or liquidation, which proceeding is not
dismissed within ninety (90) days, or a receiver is appointed with respect
to a substantial part of its assets.
5.3 Effect of Termination.
(a) Upon termination of this Agreement, in whole or in part, Customer shall
pay Licensor for all amounts owed up to the effective date of termination.
Termination of this Agreement shall not constitute a waiver for any
amounts due.
(b) The following Sections shall survive the termination of this Agreement
for any reason: Sections 1, 2.2, 2.4, 3, 4, 5.3, and 6.
(c) No later than thirty (30) days after the date of termination of this
Agreement by Licensor, Customer shall upon Licensor's instructions
either return the Software and all copies thereof; all Documentation
relating thereto in its possession that is in tangible form or destroy the
same (including any copies thereof contained on Customer's Designated
Hardware). Customer shall furnish Licensor with a certificate signed by
an executive officer of Customer verifying that the same has been done.
Wireless Access Point
562
6. MISCELLANEOUS
If Customer is a corporation, partnership or similar entity, then the license to the
Software and Documentation that is granted under this Agreement is expressly
conditioned upon and Customer represents and warrants to Licensor that the
person accepting the terms of this Agreement is authorized to bind such entity to
the terms and conditions herein. If any provision of this Agreement is held to be
invalid or unenforceable, it will be enforced to the extent permissible and the
remainder of this Agreement will remain in full force and effect. During the
course of use of the Software, Licensor may collect information on your use
thereof; you hereby authorize Licensor to use such information to improve its
products and services, and to disclose the same to third parties provided it does
not contain any personally identifiable information. The express waiver by either
party of any provision, condition or requirement of this Agreement does not
constitute a waiver of any future obligation to comply with such provision,
condition or requirement. Customer and Licensor are independent parties.
Customer may not export or re-export the Software or Documentation (or other
materials) without appropriate United States, European Union and foreign
government licenses or in violation of the United State's Export Administration
Act or foreign equivalents and Customer shall comply with all national and
international laws governing the Software. This Agreement will be governed by
and construed under the laws of the State of California and the United States as
applied to agreements entered into and to be performed entirely within
California, without regard to conflicts of laws provisions thereof and the parties
expressly exclude the application of the United Nations Convention on Contracts
for the International Sales of Goods and the Uniform Computer Information
Transactions Act (as promulgated by any State) to this Agreement. Suits or
enforcement actions must be brought within, and each party irrevocably commits
to the exclusive jurisdiction of, the state and federal courts located in Ventura
County, California. Customer may not assign this Agreement by operation of law
or otherwise, without the prior written consent of Licensor and any attempted
assignment in violation of the foregoing shall be null and void. This Agreement
cancels and supersedes all prior agreements between the parties. This Agreement
may not be varied except through a document agreed to and signed by both
parties. Any printed terms and conditions contained in any Customer purchase
order or in any Licensor acknowledgment, invoice or other documentation
relating to the Software shall be deemed deleted and of no force or effect and any
additional typed and/or written terms and conditions contained shall be for
administrative purposes only, i.e. to identify the types and quantities of Software
to be supplied, line item prices and total price, delivery schedule, and other
similar ordering data, all in accordance with the provisions of this Agreement.
Wireless Access Point
563
Hardware Warranty Agreement
PLEASE READ THIS AGREEMENT CAREFULLY BEFORE USING THIS
PRODUCT
BY USING THIS PRODUCT, YOU ACKNOWLEDGE THAT YOU HAVE READ
AND UNDERSTOOD ALL THE TERMS AND CONDITIONS OF THIS
AGREEMENT AND THAT YOU ARE CONSENTING TO BE BOUND BY THIS
AGREEMENT. IF YOU DO NOT AGREE TO ALL OF THE TERMS OF THIS
AGREEMENT, RETURN THE UNUSED PRODUCT TO THE PLACE OF
PURCHASE FOR A FULL REFUND.
LIMITED WARRANTY. Xirrus warrants that for a period of five years from the
date of purchase by the original purchaser (“Customer”): (i) the Xirrus Equipment
(“Equipment”) will be free of defects in materials and workmanship under
normal use; and (ii) the Equipment substantially conforms to its published
specifications. Except for the foregoing, the Equipment is provided AS IS. This
limited warranty extends only to Customer as the original purchaser. Customer's
exclusive remedy and the entire liability of Xirrus and its suppliers under this
limited warranty will be, at Xirrus' option, repair, replacement, or refund of the
Equipment if reported (or, upon request, returned) to the party supplying the
Equipment to Customer. In no event does Xirrus warrant that the Equipment is
error free or that Customer will be able to operate the Equipment without
problems or interruptions.
This warranty does not apply if the Equipment (a) has been altered, except by
Xirrus, (b) has not been installed, operated, repaired, or maintained in accordance
with instructions supplied by Xirrus, (c) has been subjected to abnormal physical
or electrical stress, misuse, negligence, or accident, or (d) is used in ultra-
hazardous activities.
DISCLAIMER. EXCEPT AS SPECIFIED IN THIS WARRANTY, ALL EXPRESS OR
IMPLIED CONDITIONS, REPRESENTATIONS, AND WARRANTIES
INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE,
NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE,
OR TRADE PRACTICE, ARE HEREBY EXCLUDED TO THE EXTENT
ALLOWED BY APPLICABLE LAW.
IN NO EVENT WILL Xirrus OR ITS SUPPLIERS BE LIABLE FOR ANY LOST
REVENUE, PROFIT, OR DATA, OR FOR SPECIAL, INDIRECT,
CONSEQUENTIAL, INCIDENTAL, OR PUNITIVE DAMAGES HOWEVER
CAUSED AND REGARDLESS OF THE THEORY OF LIABILITY ARISING OUT
OF THE USE OF OR INABILITY TO USE THE EQUIPMENT EVEN IF Xirrus OR
ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. In no event shall Xirrus' or its suppliers' liability to Customer,
Wireless Access Point
564
whether in contract, tort (including negligence), or otherwise, exceed the price
paid by Customer.
The foregoing limitations shall apply even if the above-stated warranty fails of its
essential purpose. SOME STATES DO NOT ALLOW LIMITATION OR
EXCLUSION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES.
The above warranty DOES NOT apply to any evaluation Equipment made
available for testing or demonstration purposes. All such Equipment is provided
AS IS without any warranty whatsoever.
Customer agrees the Equipment and related documentation shall not be used in
life support systems, human implantation, nuclear facilities or systems or any
other application where failure could lead to a loss of life or catastrophic property
damage, or cause or permit any third party to do any of the foregoing.
All information or feedback provided by Customer to Xirrus with respect to the
Product shall be Xirrus' property and deemed confidential information of Xirrus.
Equipment including technical data, is subject to U.S. export control laws,
including the U.S. Export Administration Act and its associated regulations, and
may be subject to export or import regulations in other countries. Customer
agrees to comply strictly with all such regulations and acknowledges that it has
the responsibility to obtain licenses to export, re-export, or import Equipment.
This Agreement shall be governed by and construed in accordance with the laws
of the State of California, United States of America, as if performed wholly within
the state and without giving effect to the principles of conflict of law. If any
portion hereof is found to be void or unenforceable, the remaining provisions of
this Warranty shall remain in full force and effect. This Warranty constitutes the
entire agreement between the parties with respect to the use of the Equipment.
Manufacturer is Xirrus, Inc. 2101 Corporate Center Drive Thousand Oaks, CA
91320
