Xirrus, Inc. Wireless Access Point Radio module XA4wasXD4 QIG
Users Manual
XA4 Series High Density Access Points
1
Quick Installation Guide
For XA4 Models

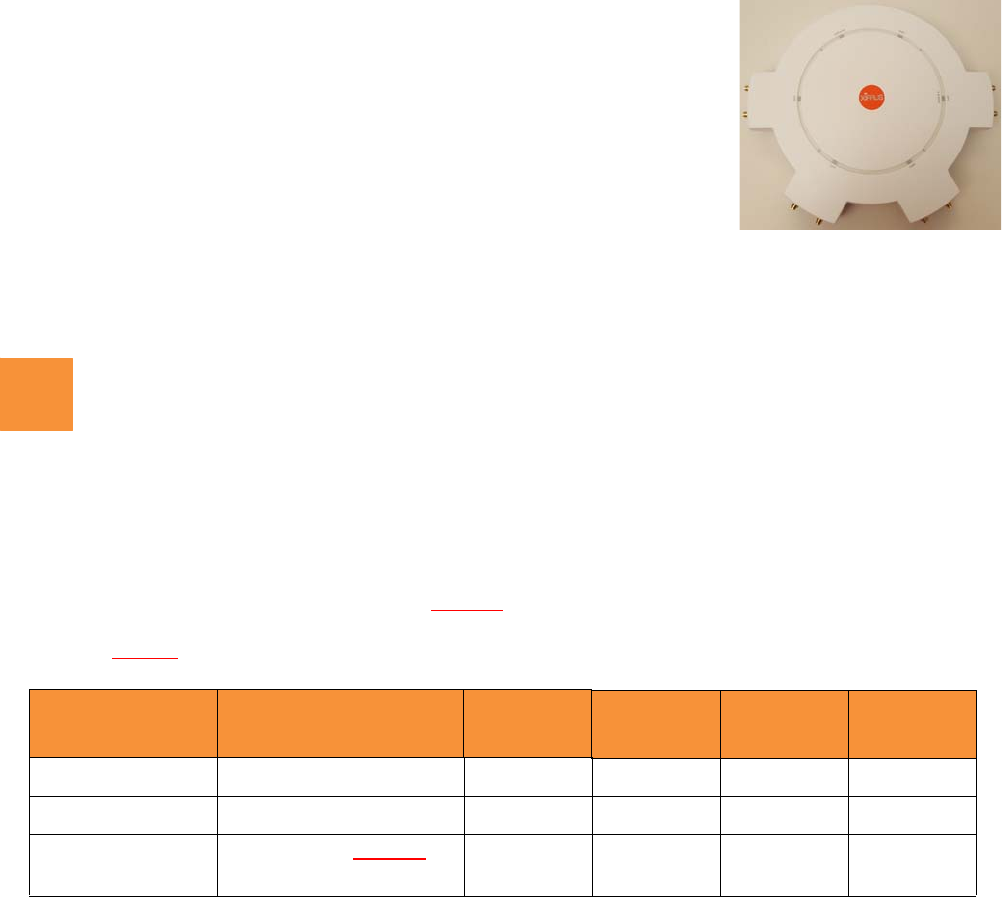

XA4 Series High Density Convention Center Access Points (CCAPs) are plenum-
rated indoor APs using external antennas. With four 802.11ac Wave 2 radios, a
powerful integrated controller, application-level intelligence, automated
provisioning, and optional cloud management, the APs deliver robust wireless
connectivity in areas of medium to high user density. The XA4-240 has four 4x4
Wave 2 802.11ac radios: Radio IAP1 is a dual-band 2.4GHz/5GHz radio, and
IAP2 through IAP4 are single-band 5GHz radios.
This Guide covers the steps required to install and start the AP. For detailed configuration information, see the
Xirrus Wireless Access Point User's Guide.
You Need the Following Items
Accessory Kit (included in each AP carton) includes Mounting bracket
Xirrus-recommended antennas (and cables if needed) for up to four radios. Network designers should specify
how many antennas to install for each radio. See the table below and “Install Antennas” on page 3 to see what
connectors to use, based on the number of antennas allocated to a radio. Cables (if needed) are low-loss coaxial
cables terminated with RP-SMA connectors. ??OK?? If you are not using recommended antennas, the XA4’s
output power setting must be reduced by 1 dB for every dB above 6dBi gain the selected antenna may
produce. ??OK??
DFS*: Zero-wait DFS (dynamic frequency selection) uses a dedicated antenna to provide fast frequency
selection. This enables better use of 5GHz Wi-Fi channels.
Power and Ethernet connection(s) to your wired network using Cat 5e/6 cables. The AP has 2 Ethernet ports:
GIG1/PoE—This 2.5 Gigabit port powers the AP via Power over Ethernet (PoE) using a Cat 5e or Cat 6
cable that also carries data traffic. See below for Power details. Note that the port’s rate is set by auto-
negotiation with the switch.
(Optional) GIG2—Connection to this second, data-only one-gigabit port provides additional bandwidth.
Use Cat 5E or Cat 6 cable.
AP must be connected to PoE networks without routing cabling to the outside plant. This ensures that cabling is
not exposed to lightning strikes or possible crossover from high voltage lines. AP, PoE Injectors, or Switches must
be installed and used indoors. The total Cat 5e or Cat 6 cable length from the switch to the AP must be no more
than 100 m, including all cable segments.
# Antenna
Connectors to Use
... For Usage Scenario
(Configured settings) Connector 1 Connector 2 Connector 3 Connector 4
22x2YesNoNoYes
3 3x3; or 2x2 plus DFS* Yes Yes No Yes
4 4x4 (default ??OK??);
or 3x3 plus DFS* Yes Yes Yes Yes
1
XA4 Series High Density Access Points
2
Power— See the matrix below to select a compatible PoE switch or Xirrus-supplied injector for your AP. If
using an injector, you must provide a data connection from the switch to the injector as well as another cable
from the injector's OUT port to the AP’s GIGABIT1/PoE port. PoE injectors require an AC outlet.
Apply power to GIG1/POE port only—other AP Gigabit ports will not draw power if connected to a
powered switch port, and AP LEDs will not light.
Workstation with a Web browser to configure the AP via the Xirrus Management System or directly via the
AP’s Windows Management Interface (WMI).
NOTE: Leave protective plastic film on the AP until installation is complete, to avoid leaving marks on the AP.
Direct Ceiling Mount—use the furnished mounting plate with four user-supplied screws that are appropriate
for the construction type of the mounting site. The AP attaches to the mounting plate with four keyhole studs
that are pre-installed on the back of the AP.
Choose a Suitable Location
Choose an indoor location that is central to your users, and that is away from heat sources.
The location must be capable of supporting the weight of the AP and the mounting bracket (about 5?? lb total).
For optimal placement, we recommend that a predictive survey be performed by a qualified Xirrus partner.
Maintain a distance of at least 50 feet between additional APs.
Keep the unit away from electrical devices or appliances that generate RF noise-at least 3 to 6 ft (1m - 2m).
To ensure good air flow, it is essential that the AP’s vents are not blocked.
The XA4 can operate from a Wireless Distribution System (WDS) link. However, the unit must be configured
via the Ethernet connection prior to mounting and power must be supplied via the GIG1 Ethernet connector.
AP Model
Maximum
Power
Consumption
Generic
PoE Switch
(802.3at)
Xirrus
PoE Switch
XP1-MSI-30
XP1-MSI-75M
XP1-MSI-75
(POE-75U-1UP-X)
XP8-MSI-70M
XP2-MSI-95M
XA4-240 38W
(Ports
1-12 only)
2
XA4 Series High Density Access Points
3
Install Mounting Hardware—Ceiling Mount
The following steps use a mounting plate, which offers a secure mount and ease of dismount.
For Panel Antennas:
Install your antenna(s) as directed by the manufacturer. Note that radio IAP1 is dual-band, so if you use single-
band antennas for it, you must configure IAP1 to the antenna’s band (2.4 GHz or 5.0 GHz). See “Zero-Touch
Provisioning and Ongoing Management” on page 4).
Use low-loss coaxial cables compatible with the XA4’s RP-SMA connectors. Note that some antennas include
integrated cables as part of the unit, and these do not need separate cables.

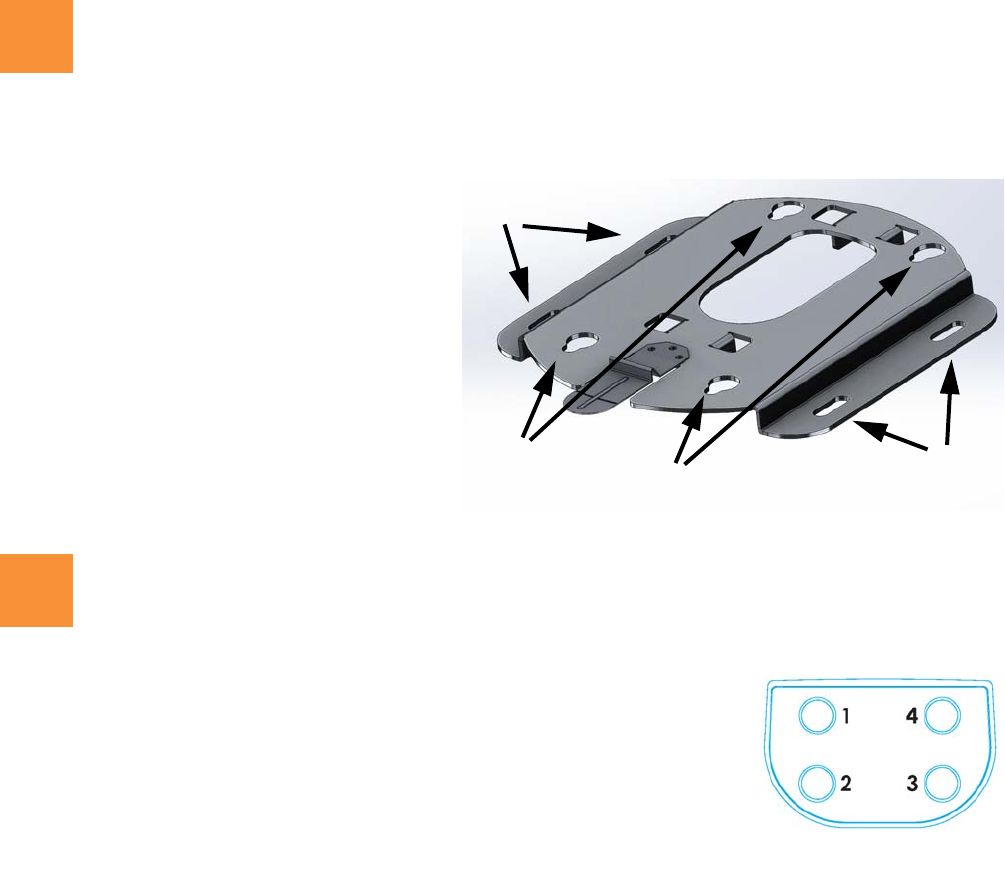

1. Use the AP mounting plate to mark the
placement on the ceiling of the cable feed
opening and of the 4 mounting slots.
2. Drill and prepare holes for user-supplied
screws as appropriate.
3. Cut an access hole for the cable(s) in the
ceiling and draw enough cable through to
attach to the AP when it is installed.
4. Align the mounting plate over the prepared
holes (position the edges with the mounting
slots flush against the wall.). Feed the cable(s)
through. Secure the plate with the screws.
Install Antennas
See the Xirrus External Antenna Guide for recommended antennas.
Check the network plan for the number of antennas to connect to each of the
four radios, named IAP1 to IAP4. The table on page 1 shows which
connector numbers to use, and the image at right shows their numbering.
For Rubber Duck Antennas:
Install the antennas on the AP at the locations described above.
3
Mounting slots
AP attachment
keyhole slots
Mounting slots
Cable
feed
4
Antenna Connectors
XA4 Series High Density Access Points
4
Connect Cables and Install AP
NOTE: Once you connect GIG1/POE, an automatic upgrade typically starts soon after the AP has Internet connectivity. Do
not unplug this port during the upgrade or the AP may become inoperable. The upgrade should take 10 minutes or less.
Zero-Touch Provisioning and Ongoing Management
Most customers use the Xirrus Management System (XMS) for the initial setup and continuing management of
Xirrus APs. XMS users set up new APs for zero-touch provisioning via the following platforms. Wait five minutes
after powering up the AP to automatically discover it, then use XMS to view and manage it. Newly discovered
APs are automatically assigned to the XMS “default” profile, and receive the configuration defined for that profile.
XMS-Cloud—performs zero-touch provisioning. Your new APs appear in XMS even before you receive your
equipment. When the email arrives with your login information, use XMS-Cloud to specify the initial settings
for your APs. A Guided Tour will walk you through the basic steps of creating a profile containing

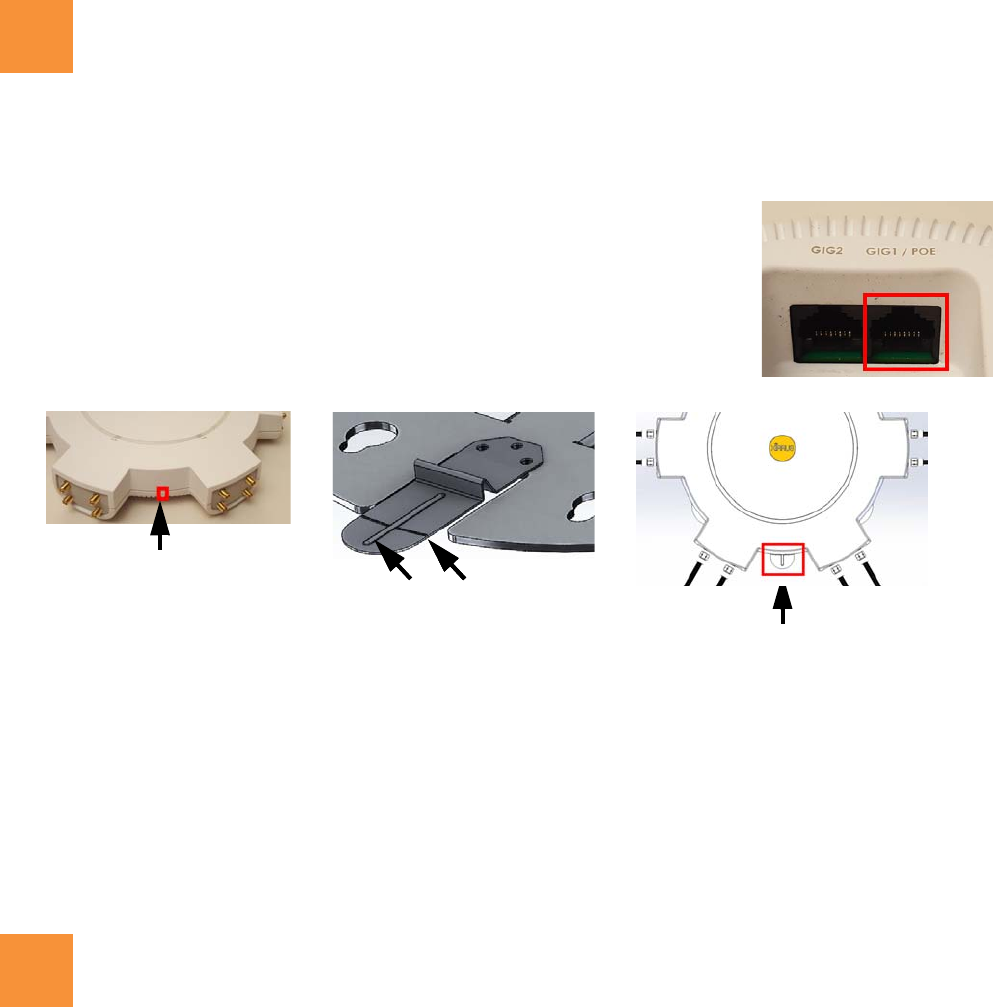

1. Connect the cable that carries power and data to GIG1/PoE (shown in red). If you
use a Xirrus-supplied injector, its CONNECT LED should light (for 70W and
higher injectors, it is OK if it blinks). If power is being properly supplied, the AP’s
LEDs will light and then commence blinking in their rotating boot pattern. A
second data connection may be plugged into GIG2 (optional).
2. If using panel antennas, connect the cables as indicated in the table on page 1.
3. Mount the AP: Position the keyhole studs on the back of the AP over the keyhole slots on the mounting plate
using the following aid—line up the alignment line on the AP (small bump located on the AP as indicated
above) with the vertical line on the lock lever.
4. Push the AP against the mounting plate and slide the AP towards the locking lever until the keyhole slugs are
secure in the slots and the lever locks in place. The edge of the AP will line up with the horizontal line on the
lock lever.
5. If you need to remove the AP, push down on the lock lever to unlock the AP. Continue to hold it down while
you slide the AP away from the lever and pull the AP off the mounting plate.
5
POE
Alignment Lines on
Lock/Unlock Lever
Alignment Line
on AP
Alignment Lines on
Lock/Unlock Lever Lock/Unlock Lever
Installed AP
6
1.800.947.7871 Toll Free in the US
+1.805.262.1600 Sales
+1.805.262.1601 Fax
2101 Corporate Center Drive
Thousand Oaks, CA 91320, USA
To learn more visit:
xirrus.com or
email info@xirrus.com
© 201 Xirrus, Inc. All Rights Reserved. The Xirrus logo is a registered trademark of Xirrus, Inc.
All other trademarks are the property of their respective owners. Content subject to change without notice.
812-0085-013 Rev A
configuration settings, including creating SSIDs and firewall/application control rules. Once the installed AP
has Internet connectivity, it will automatically contact Xirrus for cloud-based zero-touch provisioning per your
settings, install the latest applicable license, and upgrade the AP to the latest software version as appropriate.
XMS-Enterprise—detects and provisions new Xirrus devices deployed in your network. Create and configure
a default profile for newly added APs, then set up discovery for the APs’ subnetwork. New devices will
automatically receive the configuration defined in the default profile.
If you are not using XMS, please see the Xirrus Wireless AP User's Guide to configure the AP manually via the
Express Setup menu. The User Guide is available from http://support.xirrus.com (login required). Select the
Libraries tab and click the ArrayOS - XR Platform Latest Release link.

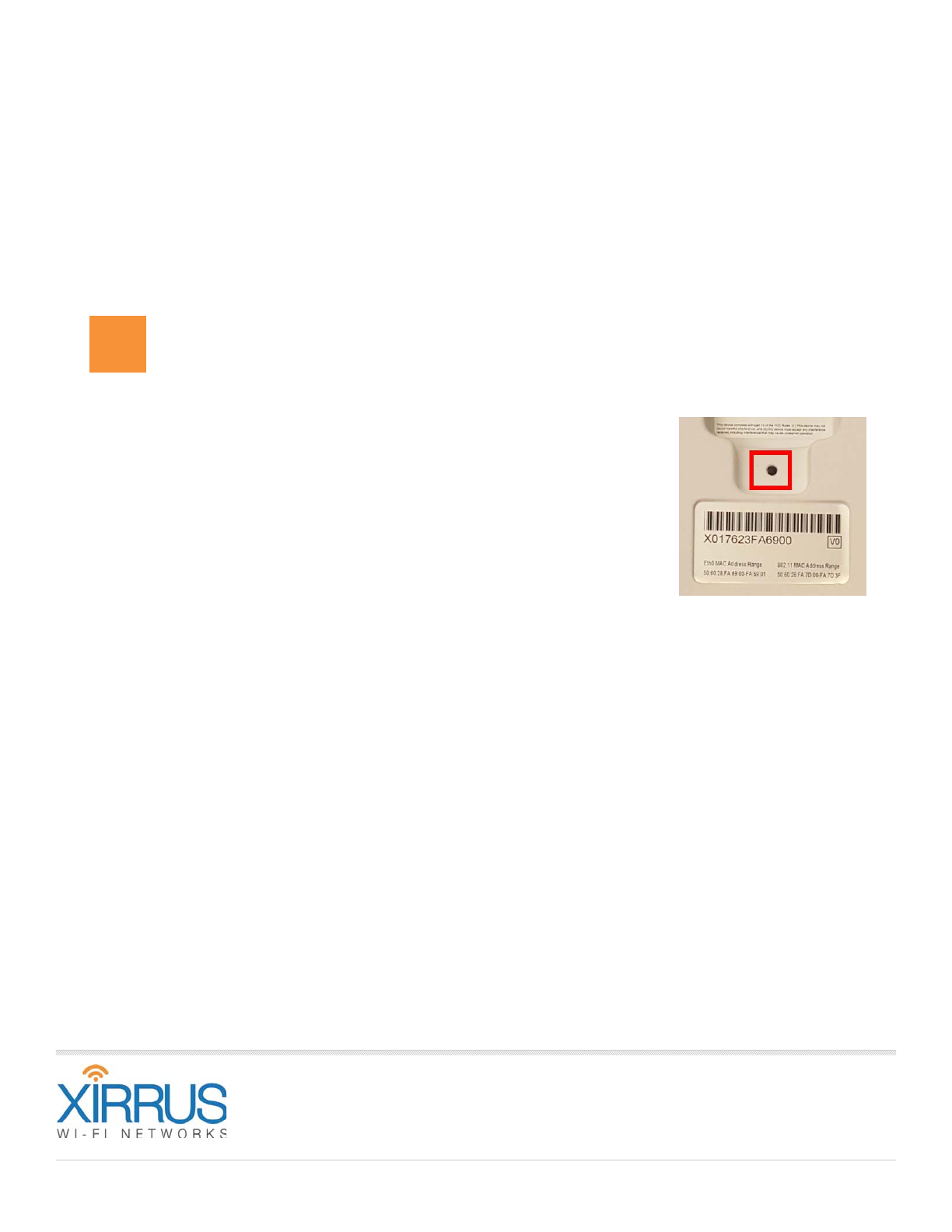

Using the Reset Button
The reset button returns the AP to factory default settings while rebooting. It is
located on the bottom of the AP, just above the serial number/bar code. Use the
reset button as follows:
Unplug the cable from the GIG1/PoE port.
Press the reset button all the way (there should be a faint click) and hold it.
Plug the cable back in and continue to keep the button pressed for 10 seconds.
This triggers the factory default reset during the boot process.
7
Wireless Access Point
553
Appendix C: Notices (XA, XD and XR500/
600 Series Only)
This appendix contains the following information:
“Notices” on page 553
“EU Directive 1999/5/EC Compliance Information” on page 562
“Compliance Information (Non-EU)” on page 569
“Safety Warnings” on page 570
“Translated Safety Warnings” on page 571
“Software License and Product Warranty Agreement” on page 572
“Hardware Warranty Agreement” on page 572
Notices
Wi-Fi Alliance Certification
www.wi-fi.org
This Appendix contains Notices, Warnings, and Compliance information for
the XA, XD and XR500/600 Series only.
For Notices, Warnings, and Compliance information for outdoor products,
please see the Quick Installation Guide for that product.
For Notices, Warnings, and Compliance information for XR-320 and
X2-120, please see the X2 and XR300 Series Notices and Regulatory
Guide.
For Notices, Warnings, and Compliance information for all other APs,
please see “Notices (XR-1000 to XR-6000 Indoor Models)” on page 571.
Wireless Access Point
554
FCC Notice for XD4-240 (XD4240)
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
FCC Notice for All Other Devices Covered by This Appendix
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate RF energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following safety measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced wireless technician for help.
For All Devices Covered by This Appendix
The rest of the information in this Appendix applies to all Xirrus XA, XD and
XR500/600 Series APs, except as noted.
Wireless Access Point
555
This device complies with Part 15 of the FCC Rules, with operation subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause unwanted operation.
For all models available in the USA/Canada market, only channels 1~11 can be
operated in the 2.4GHz band. Selection of other channels is not possible.
This device and its antenna(s) must not be co-located or operating in conjunction
with any other antenna or transmitter except in accordance with FCC multi-
transmitter product procedures.
This device is restricted for indoor use.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
IMPORTANT NOTE: FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. To ensure compliance with FCC and Industry Canada
RF exposure requirements, this device must be installed in a location where the
antennas of the device will have a minimum distance of at least 30 cm (12 inches)
from all persons, except that XD2 models must have a minimum distance of at
least 20 cm (8 inches) from all persons, and the antennas of XA4 models must
have a minimum distance of at least 34 cm (13.6 inches) from all persons. Using
higher gain antennas and types of antennas not certified for use with this product
is not allowed. The device shall not be co-located with another transmitter.
High Power Radars
High power radars are allocated as primary users (meaning they have priority) in
the 5250MHz to 5350MHz and 5650MHz to 5850MHz bands. These radars could
cause interference and/or damage to LE-LAN devices.
!FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this
equipment.
Wireless Access Point
556
Non-Modification Statement
Unauthorized changes or modifications to the device are not permitted. Use only
the supplied internal antenna, or external antennas supplied by the manufacturer.
Modifications to the device will void the warranty and may violate FCC
regulations.
Cable Runs for Power over Ethernet (PoE)
The AP must be connected to PoE networks without routing cabling to the
outside plant — this ensures that cabling is not exposed to lightning strikes or
possible cross over from high voltage.
Battery Warning
UL Statement
Use only with listed ITE product.
Industry Canada Statement (XA, XD Series)
This device complies with Industry Canada license-exempt RSS standards (RSS
247), and standards for Digital Transmission Systems (DTSs), Frequency Hopping
Systems (FHSs) and License-Exempt Local Area Network (LE-LAN) Devices.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
For product available in the USA/Canada market, only channel 1~11 can be
operated. Selection of other channels is not possible.
!Caution! The AP contains a battery which is not to be replaced by the customer.
Danger of Explosion exists if the battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the manufacturer. Dispose of used
batteries according to the manufacturer's instructions.
Wireless Access Point
557
Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à 11
peuvent être exploités. Sélection d'autres canaux n'est pas possible.
This device and its antenna(s) must not be co-located or operating in conjunction
with any other antenna or transmitter except in accordance with IC multi-
transmitter product procedures.
Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnement en
association avec une autre antenne ou transmetteur.
Dynamic Frequency Selection (DFS) for devices operating in the bands 5250- 5350
MHz, 5470-5600 MHz and 5650-5725 MHz
Sélection dynamique de fréquences (DFS) pour les dispositifs fonctionnant dans les
bandes 5250-5350 MHz, 5470-5600 MHz et 5650-5725 MHz
The device for operation in the band 5150-5250 MHz is only for indoor use to
reduce the potential for harmful interference to co-channel mobile satellite
systems.
Les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement
pour une utilisation à l'intérieur afin de réduire les risques de brouillage préjudiciable aux
systèmes de satellites mobiles utilisant les mêmes canaux.
Users should also be advised that high-power radars are allocated as primary
users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and
that these radars could cause interference and/or damage to LE-LAN devices.
De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute
puissance sont désignés utilisateurs principaux (c.-à-d., qu'ils ont la priorité) pour les
bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer du
brouillage et/ou des dommages aux dispositifs LAN-EL.
For indoor use only.
Pour une utilisation en intérieur uniquement.
IMPORTANT NOTES (XA, XD Series):
IC Radiation Exposure Statement:
To ensure compliance with Industry Canada RF exposure requirements, this
device must be installed in a location where the antennas of XD Series devices will
have a minimum distance of at least 30 cm (12 inches) from all persons; for XA4
models the minimum distance from antennas is 34 cm (13.6 inches). Using higher
Wireless Access Point
558
gain antennas and types of antennas not certified for use with this product is not
allowed. The device shall not be co-located with another transmitter.
Installez l'appareil en veillant à conserver une distance d'au moins 30 cm (pour XA4: 34
cm) entre les éléments rayonnants et les personnes. Cet avertissement de sécurité est
conforme aux limites d'exposition définies par la norme CNR-102 at relative aux
fréquences radio.
External Antennas (for XA4 only)
This radio transmitter (IC: 5428A - XDR240, IC: 5428A - XDR241) has been
approved by Industry Canada to operate with the antenna types listed below
with the maximum permissible gain indicated. Antenna types not included in this
list, having a gain greater than the maximum gain indicated for that type, are
strictly prohibited for use with this device.
Le présent émetteur radio (IC: 5428A - XDR240, IC: 5428A - XDR241) a été approuvé
par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et
ayant un gain admissible maximal d'antenne. Les types d'antenne non inclus dans cette
liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits
pour l'exploitation de l'émetteur.
IC: 5428A - XDR240
Ant. Brand Model Name
(P/N)
Antenna
Type Connector
Gain (dBi)
2.4GHz 5GHz
1 WNC EW2458-02 Dipole
Antenna Reversed-
SMA 23
2 Laird PDQ24499 Directional
Antenna Reversed-
SMA 8.6 9.4
Wireless Access Point
559
IC: 5428A - XDR241
The maximum antenna gain permitted for devices in the bands 5250-5350 MHz
and 5470-5725 MHz shall be such that the equipment still complies with the
e.i.r.p. limit.
Le gain maximal d'antenne permis pour les dispositifs utilisant les bandes 5250-5350
MHz et 5470-5725 doit se conformer à la limite de p.i.r.e.
The maximum antenna gain permitted for devices in the band 5725-5850 MHz
shall be such that the equipment still complies with the e.i.r.p. limits specified for
point-to-point and non-point-to-point operation as appropriate.
Le gain maximal d'antenne permis (pour les dispositifs utilisant la bande 5725-5850
MHz) doit se conformer à la limite de p.i.r.e. spécifiée pour l'exploitation point à point et
non point à point, selon le cas.
Ant. Brand Model Name
(P/N)
Antenna
Type Connector
Gain (dBi)
5GHz
1 WNC EW2458-02 Dipole
Antenna Reversed-SMA 3
2 Laird PDQ24499 Directional
Antenna Reversed-SMA 9.4
Wireless Access Point
560
Industry Canada Statement (except for XA4 and XD Series)
This device complies with RSS-210 of the Industry Canada Rules. Operation is
subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux
appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions
suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce
dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de
provoquer un fonctionnement indésirable.
Caution:
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to
reduce the potential for harmful interference to co-channel mobile satellite
systems;
(ii) high-power radars are allocated as primary users (i.e. priority users) of the
bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause
interference and/or damage to LE-LAN devices.
When operating the XR-600 Series in the band 5250-5350 MHz with a maximum
e.i.r.p. greater than 200 mW in Canada, please adjust antenna/EUT to comply
with the following e.i.r.p. elevation mask, where θ is the angle above the local
horizontal plane (of the Earth) as shown below:
(i) -13 dB(W/MHz) for 0° ≤ θ < 8°
(ii) -13 - 0.716 (θ-8) dB(W/MHz) for 8° ≤ θ < 40°
(iii) -35.9 - 1.22 (θ-40) dB(W/MHz) for 40° ≤ θ ≤ 45°
(iv) -42 dB(W/MHz) for θ > 45°
Avertissement:
(i) les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés uniquement
pour une utilisation à l'intérieur afin de réduire les risques de brouillage préjudiciable aux
systèmes de satellites mobiles utilisant les mêmes canaux;
(ii) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de
haute puissance sont désignés utilisateurs principaux (c.-à-d., qu'ils ont la priorité) pour
Wireless Access Point
561
les bandes 5 250-5 350 MHz et 5 650-5 850 MHz et que ces radars pourraient causer du
brouillage et/ou des dommages aux dispositifs LAN-EL.
IMPORTANT NOTE (Series other than XA and XD):
IC Radiation Exposure Statement:
To ensure compliance with Industry Canada RF exposure requirements, this
device must be installed in a location where the antennas of the device will have a
minimum distance of at least 30 cm (12 inches) from all persons. Using higher
gain antennas and types of antennas not certified for use with this product is not
allowed. The device shall not be co-located with another transmitter.
Installez l'appareil en veillant à conserver une distance d'au moins 30 cm entre les
éléments rayonnants et les personnes. Cet avertissement de sécurité est conforme aux
limites d'exposition définies par la norme CNR-102 at relative aux fréquences radio.
Wireless Access Point
562
EU Directive 1999/5/EC Compliance Information
This section contains compliance information for the Xirrus Wireless AP family of
products. The compliance information contained in this section is relevant to the
European Union and other countries that have implemented the EU Directive
1999/5/EC.
Declaration of Conformity
This Appendix contains Notices, Warnings, and Compliance information for
the XA, XD and XR500/600 Series only. For other models, see the notes at
the beginning of this appendix.
Cesky [Czech] Toto zahzeni je v souladu se základnimi požadavky a
ostatnimi odpovidajcimi ustano veni mi Směrnice
1999/5/EC.
Dansk [Danish] Dette udstyr er i overensstemmelse med de
væsentlige krav og andre relevante bestemmelser i
Direktiv 1999/5/EF.
Deutsch [German] Dieses Gerat entspricht den grundlegenden
Anforderungen und den weiteren entsprechenden
Vorgaben der Richtinie 1999/5/EU.
Eesti [Estonian] See seande vastab direktiivi 1999/5/EU olulistele
nöuetele ja teistele as jakohastele sätetele.
English This equipment is in compliance with the essential
requirements and other relevant provisions of
Directive 1999/5/EC.
Español [Spain] Este equipo cump le con los requisitos esenciales asi
como con otras disposiciones de la Directiva 1999/5/
CE.
Ελληνυκη [Greek] Αυτόζ ο εξοπλτσμόζ είναι σε συμμόρφωση με τιζ
ουσιώδειζ απαιτήσειζ και ύλλεζ σχετικέζ διατάξειζ τηζ
Οδηγιαζ 1999/5/EC.
Wireless Access Point
563
Français [French] Cet appareil est conforme aux exigences essentielles
et aux autres dispositions pertinentes de la Directive
1999/5/EC.
ĺslenska [Icelandic] Þetta tæki er samkvæmt grunnkröfum og öðrum
viðeigandi ákvæðum Tilskipunar 1999/5/EC.
Italiano [Italian] Questo apparato é conforme ai requisiti essenziali ed
agli altri principi sanciti dalla Direttiva 1999/5/CE.
Latviski [Latvian] Šī iekārta atbilst Direktīvas 1999/5/EK būtiskajā
prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių [Lithuanian] Šis įrenginys tenkina 1995/5/EB Direktyvos
esminius reikalavimus ir kitas šios direktyvos
nuostatas.
Nederlands [Dutch] Dit apparant voldoet aan de essentiele eisen en
andere van toepassing zijnde bepalingen van de
Richtlijn 1995/5/EC.
Malti [Maltese] Dan l-apparant huwa konformi mal-htigiet essenzjali
u l-provedimenti l-ohra rilevanti tad-Direttiva 1999/
5/EC.
Margyar [Hungarian] Ez a készülék teljesiti az alapvetö követelményeket
és más 1999/5/EK irányelvben meghatározott
vonatkozó rendelkezéseket.
Norsk [Norwegian] Dette utstyret er i samsvar med de grunnleggende
krav og andre relevante bestemmelser i EU-direktiv
1999/5/EF.
Polski [Polish] Urządzenie jest zgodne z ogólnymi wymaganiami
oraz sczególnymi mi warunkami określony mi
Dyrektywą. UE:1999/5/EC.
Portuguès [Portuguese] Este equipamento está em conformidade com os
requisitos essenciais e outras provisões relevantes da
Directiva 1999/5/EC.
Wireless Access Point
564
Assessment Criteria
The following standards were applied during the assessment of the product
against the requirements of the Directive 1999/5/EC:
Radio: EN 301 893 and EN 300 328 (if applicable)
EMC: EN 301 489-1 and EN 301 489-17
Safety: EN 60950, EN 62311 and EN 50385
CE Marking
For the Xirrus Wireless AP, the CE mark and Class-2 identifier opposite are
affixed to the equipment and its packaging:
Russian Certification Marking
For the Xirrus XR-500, XR-520H, XR-2000, and XR-4000 Series Wireless APs, the
approval mark is affixed to the equipment:
Slovensko [Slovenian] Ta naprava je skladna z bistvenimi zahtevami in
ostalimi relevantnimi popoji Direktive 1999/5/EC.
Slovensky [Slovak] Toto zariadenie je v zhode so základnými
požadavkami a inými prislušnými nariadeniami
direktiv: 1999/5/EC.
Suomi [Finnish] Tämä laite täyttää direktiivin 1999/5//EY olennaiset
vaatimukset ja on siinä asetettujen muiden laitetta
koskevien määräysten mukainen.
Svenska [Swedish] Denna utrustning är i överensstämmelse med de
väsentliga kraven och andra relevanta bestämmelser
i Direktiv 1999/5/EC.
Wireless Access Point
565
WEEE Compliance
Natural resources were used in the production of
this equipment.
This equipment may contain hazardous
substances that could impact the health of the
environment.
In order to avoid harm to the environment and
consumption of natural resources, we encourage
you to use appropriate take-back systems when
disposing of this equipment.
The appropriate take-back systems will reuse or
recycle most of the materials of this equipment in
a way that will not harm the environment.
The crossed-out wheeled bin symbol (in
accordance with European Standard EN 50419)
invites you to use those take-back systems and
advises you not to combine the material with
refuse destined for a land fill.
If you need more information on collection, re-
use and recycling systems, please contact your
local or regional waste administration.
Please contact Xirrus for specific information on
the environmental performance of our products.
Wireless Access Point
566
National Restrictions
In the majority of the EU and other European countries, the 2.4 GHz and 5 GHz
bands have been made available for the use of Wireless LANs. The following table
provides an overview of the regulatory requirements in general that are
applicable for the 2.4 GHz and 5 GHz bands.
*Dynamic frequency selection and Transmit Power Control is required in these
frequency bands.
**France is indoor use only in the upper end of the band.
The requirements for any country may change at any time. Xirrus recommends
that you check with local authorities for the current status of their national
regulations for both 2.4 GHz and 5 GHz wireless LANs.
The following countries have additional requirements or restrictions than those
listed in the above table:
Belgium
The Belgian Institute for Postal Services and Telecommunications (BIPT) must
be notified of any outdoor wireless link having a range exceeding 300 meters.
Xirrus recommends checking at www.bipt.be for more details.
Draadloze verbindingen voor buitengebruik en met een reikwijdte van meer dan 300
meter dienen aangemeld te worden bij het Belgisch Instituut voor postdiensten en
telecommunicatie (BIPT). Zie www.bipt.be voor meer gegevens.
Frequency
Band (MHz)
Max Power Level
(EIRP) (mW) Indoor Outdoor
2400–2483.5 100 X X **
5250–5350 *200 X N/A
5470–5725* 1000 X X
Wireless Access Point
567
Les liasons sans fil pour une utilisation en extérieur d’une distance supérieure à 300
mèters doivent être notifiées à l’Institut Belge des services Postaux et des
Télécommunications (IBPT). Visitez www.bipt.be pour de plus amples détails.
Greece
A license from EETT is required for the outdoor operation in the 5470 MHz to
5725 MHz band. Xirrus recommends checking www.eett.gr for more details.
Η δη ιουργβάικτ ωνεξωτερικο ρουστη ζ νησυ νοτ των 5470–5725 ΜΗz ε ιτρ ετάιωνο
ετάά όάδειά της ΕΕΤΤ, ου ορηγεβτάι στερά ά ό σ φωνη γν η του ΓΕΕΘΑ. ερισσότερες
λε τομ ρειεωστο www.eett.gr
Italy
This product meets the National Radio Interface and the requirements
specified in the National Frequency Allocation Table for Italy. Unless this
wireless LAN product is operating within the boundaries of the owner’s
property, its use requires a “general authorization.” Please check with
www.communicazioni.it/it/ for more details.
Questo prodotto é conforme alla specifiche di Interfaccia Radio Nazionali e rispetta il
Piano Nazionale di ripartizione delle frequenze in Italia. Se non viene installato
all’interno del proprio fondo, l’utilizzo di prodotti wireless LAN richiede una
“autorizzazione Generale.” Consultare www.communicazioni.it/it/ per maggiori
dettagli.
Norway, Switzerland and Liechtenstein
Although Norway, Switzerland and Liechtenstein are not EU member states,
the EU Directive 1999/5/EC has also been implemented in those countries.
Calculating the Maximum Output Power
The regulatory limits for maximum output power are specified in EIRP (radiated
power). The EIRP level of a device can be calculated by adding the gain of the
antenna used (specified in dBi) to the output power available at the connector
(specified in dBm).
Wireless Access Point
568
Integrated Antennas
Xirrus Wireless APs (except for XA4 APs) employ integrated antennas that cannot
be removed and which are not user accessible. Nevertheless, as regulatory limits
are not the same throughout the EU, users may need to adjust the conducted
power setting for the radio to meet the EIRP limits applicable in their country or
region. Adjustments can be made from the product’s management interface —
either Web Management Interface (WMI) or Command Line Interface (CLI).
External Antennas (for XA4 only)
Operating Frequency
The operating frequency in a wireless LAN is determined by the access point. As
such, it is important that the access point is correctly configured to meet the local
regulations. See National Restrictions in this section for more information.
If you still have questions regarding the compliance of Xirrus products or you
cannot find the information you are looking for, please contact us at:
Xirrus, Inc.
2101 Corporate Center Drive
!WARNING: In order to comply with radio frequency (RF) exposure
limits, the antennas for this product should be positioned no less than 34
cm from your body or nearby persons.
!WARNING: Do not locate the antenna near overhead power lines or other
electric light or power circuits, or where it can come into contact with such
circuits. When installing the antenna, take extreme care not to come into
contact with such circuits, because they may cause serious injury or death.
For proper installation and grounding of the antenna, please refer to
national and local codes (for example, U.S.:NFPA 70, National Electrical
Code, Article 810, Canada: Canadian Electrical Code, Section 54).
!To reduce potential radio interference to other users, the antenna type and
its gain should be so chosen that the equivalent isotropically radiated
power (EIRP) is not more than that permitted for successful
communication.
Wireless Access Point
569
Thousand Oaks, CA 91320
USA
Tel: 1.805.262.1600
1.800.947.7871 Toll Free in the US
Fax: 1.866.462.3980
www.xirrus.com
Compliance Information (Non-EU)
This section contains compliance information for the Xirrus Wireless AP family of
products. The compliance information contained in this section is relevant to the
listed countries (outside of the European Union and other countries that have
implemented the EU Directive 1999/5/EC).
Declaration of Conformity—Brazil
This Appendix contains Notices, Warnings, and Compliance information for
the XA, XD and XR500/600 Series only. For other models, see the notes at
the beginning of this appendix.
For XR-500 Only
Wireless Access Point
570
Declaration of Conformity
Safety Warnings
Mexico XR-520: Dictamen #: 1402D00742
XR-600: Dictamen #: 1402CE08098
XR-520: Cofetel Cert #: RCPXIXR13-1003
Thailand This telecommunication equipment conforms to
NTC technical requirement.
This Appendix contains Notices, Warnings, and Compliance information for
the XA, XD and XR500/600 Series only. For other models, see the notes at
the beginning of this appendix.
!Safety Warnings
Read all user documentation before powering this device. All Xirrus
interconnected equipment should be contained indoors. This product is
not suitable for outdoor operation. Please verify the integrity of the
system ground prior to installing Xirrus equipment. Additionally,
verify that the ambient operating temperature does not exceed 50°C
(40°C for the XR500/600 Series).
!Circuit Breaker Warning
The indoor wireless AP relies on the building’s installation for over
current protection. Ensure that a fuse or circuit breaker no larger than
120 VAC, 15A (U.S.) or 240 VAC, 10A (International) is used on all
current-carrying conductors.
Wireless Access Point
571
Translated safety warnings appear below.
Translated Safety Warnings
Avertissements de Sécurité
!Explosive Device Proximity Warning
Do not operate the wireless AP near unshielded blasting caps or in an
explosive environment unless the device has been modified to be
especially qualified for such use.
!Lightning Activity Warning
Do not work on the Wireless AP or connect or disconnect cables during
periods of lightning activity.
This Appendix contains Notices, Warnings, and Compliance information for
the XA, XD and XR500/600 Series only. For other models, see the notes at
the beginning of this appendix.
!Sécurité
Lisez l'ensemble de la documentation utilisateur avant de mettre cet
appareil sous tension. Tous les équipements Xirrus interconnectés
doivent être installés en intérieur. Ce produit n'est pas conçu pour être
utilisé en extérieur. Veuillez vérifier l'intégrité de la terre du système
avant d'installer des équipements Xirrus. Vérifiez également que la
température de fonctionnement ambiante n'excède pas 50°C (40°C pour
XR-520).
!Proximité d'appareils explosifs
N'utilisez pas les Wireless APs à proximité d'amorces non blindées ou
dans un environnement explosif, à moins que l'appareil n'ait été
spécifiquement modifié pour un tel usage.
Wireless Access Point
572
Software License and Product Warranty Agreement
For Software License and Product Warranty information, please see http://
www.xirrus.com/support/eula/.
Hardware Warranty Agreement
For Hardware Warranty information, please see http://www.xirrus.com/
support/eula/.
!Foudre
N'utilisez pas les Wireless APs et ne branchez pas ou ne débranchez pas
de câbles en cas de foudre.
!Disjoncteur
Les Wireless APs dépend de l'installation du bâtiment pour ce qui est
de la protection contre les surintensités. Assurez-vous qu'un fusible ou
qu'un disjoncteur de 120 Vca, 15 A (États-Unis) ou de 240 Vca, 10 A
(International) maximum est utilisé sur tous les conducteurs de
courant.
