Cambridge Mobile Telematics DWTAGV22 Bluetooth Module User Manual Installation Manual premiumx

Cambridge Mobile Telematics Bluetooth Module Installation Manual premiumx

Users Manual

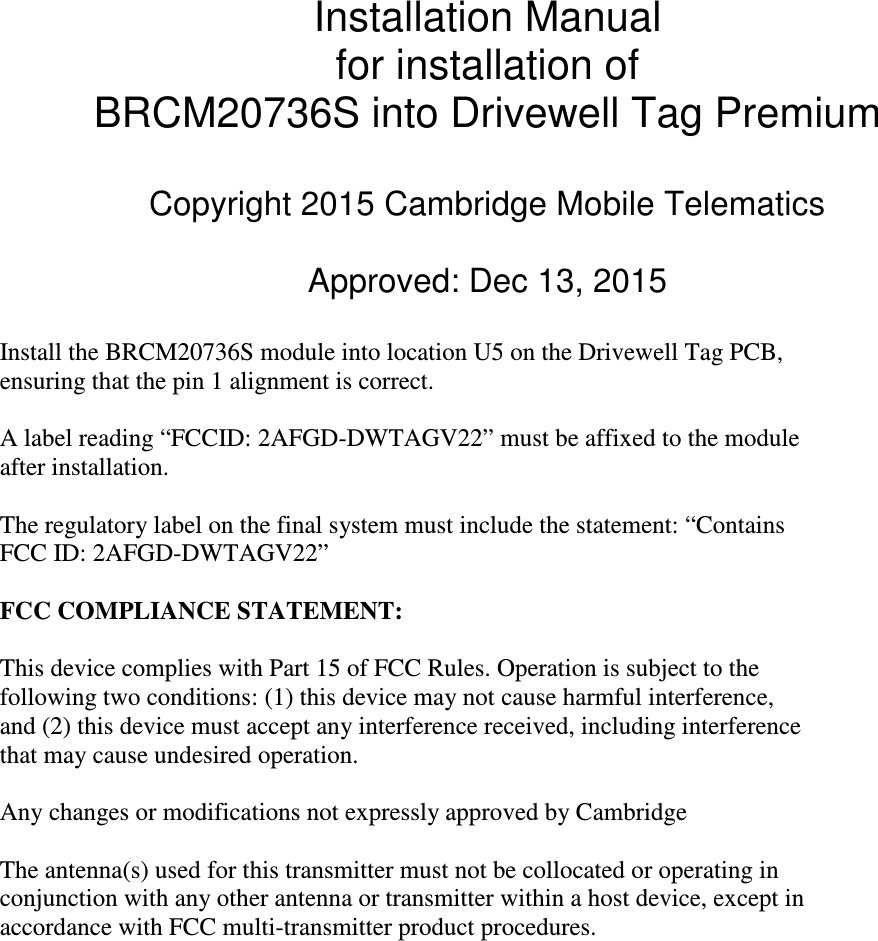

Installation Manual for installation of BRCM20736S into Drivewell Tag Premium Copyright 2015 Cambridge Mobile Telematics Approved: Dec 13, 2015 Install the BRCM20736S module into location U5 on the Drivewell Tag PCB, ensuring that the pin 1 alignment is correct. A label reading “FCCID: 2AFGD-DWTAGV22” must be affixed to the module after installation. The regulatory label on the final system must include the statement: “Contains FCC ID: 2AFGD-DWTAGV22” FCC COMPLIANCE STATEMENT: This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by Cambridge The antenna(s) used for this transmitter must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures.
