Title PCM EXTERNAL LOOPBACK
Summary
Sets the PCM into external LOOPBACK mode, whereby the data
written to the PCM output is read again on the input pin. A check is
made that the data read back is the same (up to usual codec
transformations) as that written. The LOOP BACK consists of 512
bytes of random data.
The PCM port mode is selectable as PCM Mode (pcm_mode),
which is the same as for PCM LB
(radiotest_pcm_loop_back)
The external LOOP BACK may be a simple wire.
Related Test
Spec Name None
Note On the Casira under test, set CN8 jumper to Codec BYP and on
header CN12 link pins 10 and 11.
Test Arguments PCM Mode = 0 to 2 (default = 1)
Return Data None
Exit Click on Reset Chip.

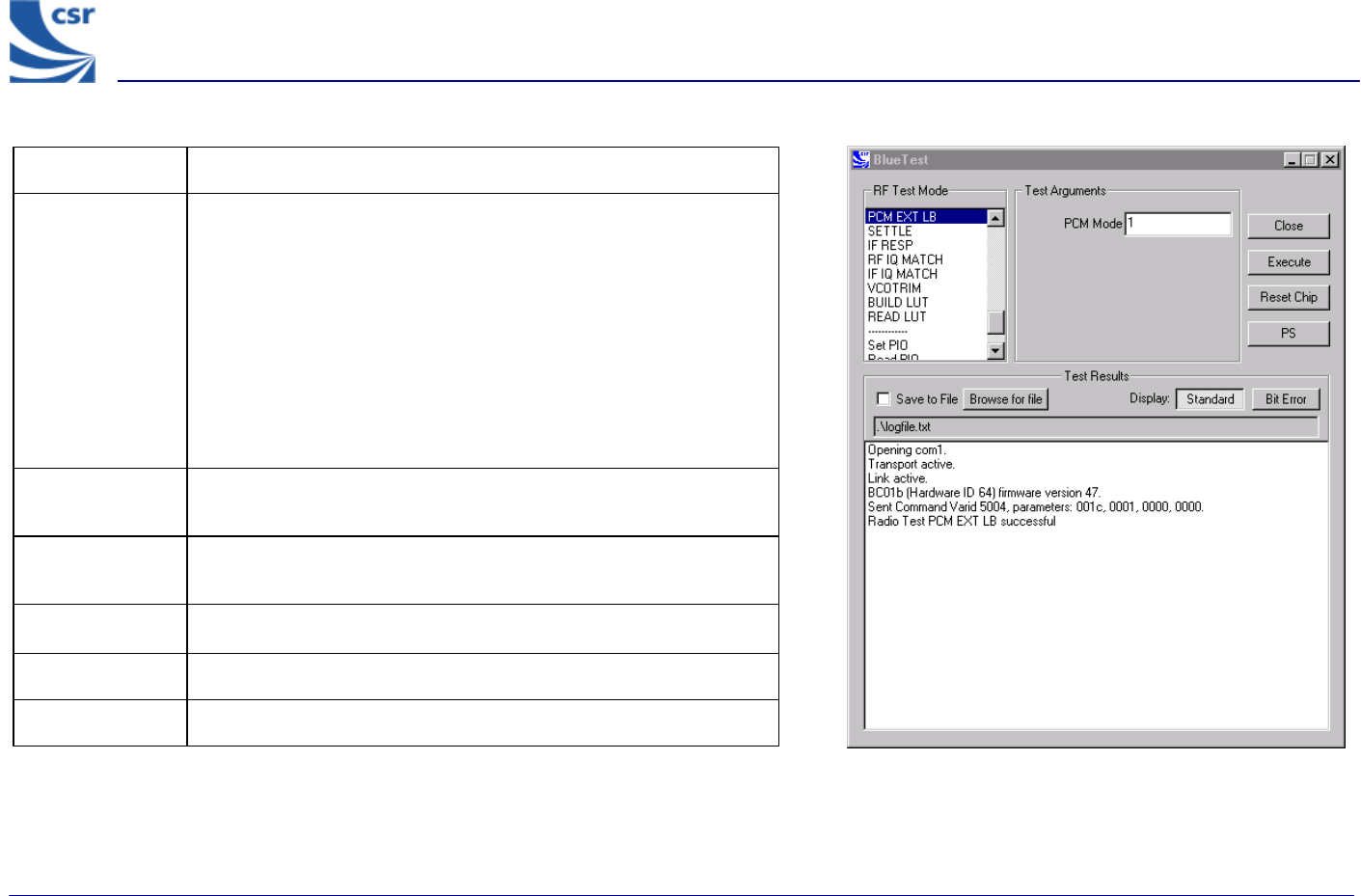

PCM EXT LB Example Display
BlueTest Instruction Manual
bc01-an-047b
© Copyright CSR Ltd 2001
This material is subject to CSR’s non-disclosure agreement.
Page 37 of 56
BlueCore
TM
01

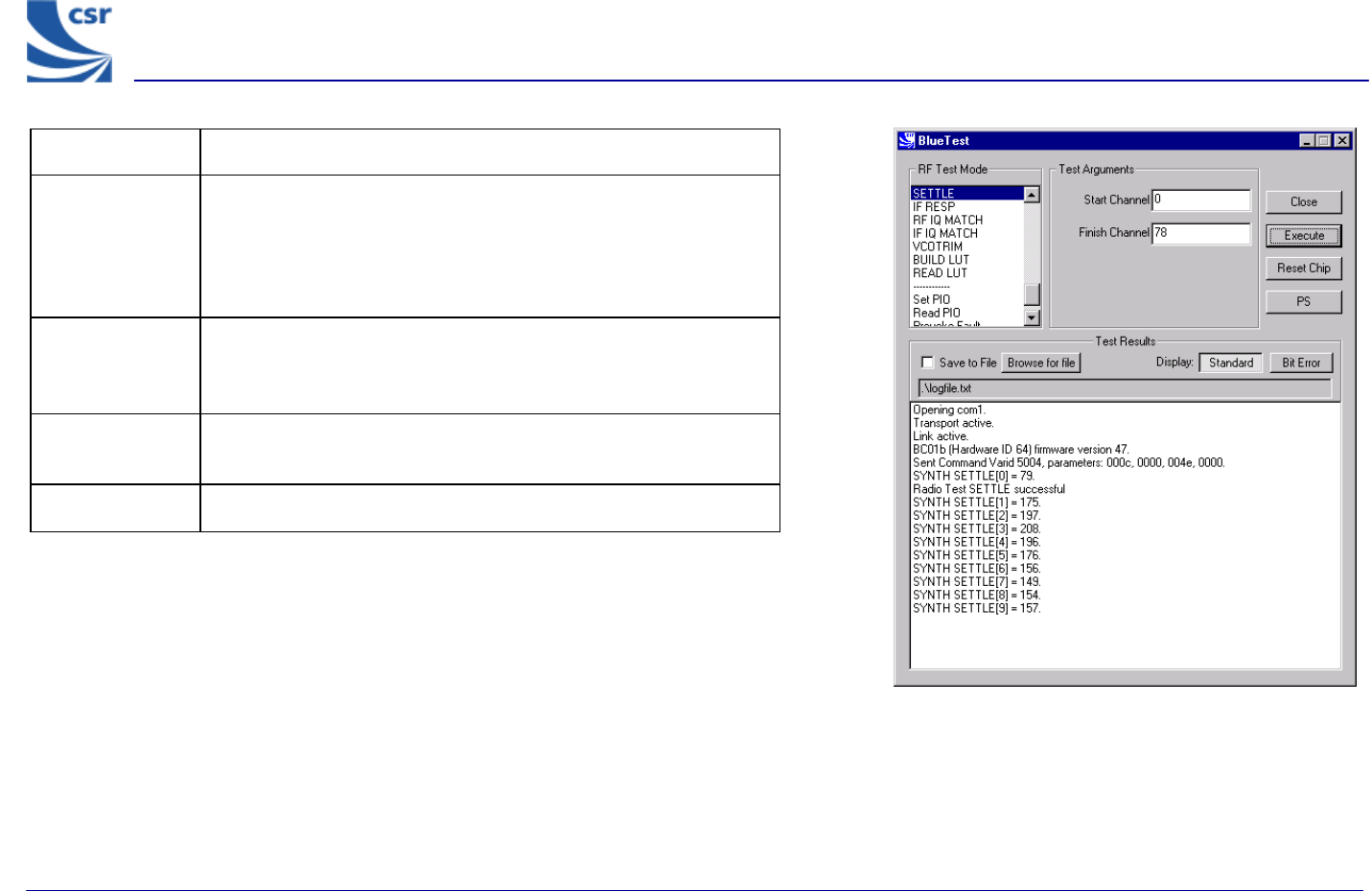

Title SETTLE
Summary
Builds the LUT as normal, then does a step from Start Channel
(chan1) to Finish Channel (chan2), while the synthesiser is
running. It digitises the synthesiser (LO_TUNE) error
voltage at intervals of 10 – 20µs over the next 200µs and
writes the results to an array.
Test Arguments
Start Channel (chan1) = 0 to 78 (default 0)
Finish Channel (chan2) = 0 to 78 (default 78)
Return Data A sequence of ten reports of the synthesiser (LO_TUNE) error
voltage over the next 200µs.
Exit Click on Reset Chip or another routine being called.
SETTLE Example Display
BlueTest Instruction Manual
bc01-an-047b
© Copyright CSR Ltd 2001
This material is subject to CSR’s non-disclosure agreement.
Page 38 of 56
BlueCore
TM
01
Title IF RESP
Summary
Sweeps transmit IF carrier frequency over designated number of
samples (n_samples) within range (0-3MHz maximum) and
measures RSSI. Returns table of RSSI value against frequency
offset to characterise IF filter response.
Test
Arguments
No. of Samples(n_samples) = 0 to 65535 (default = 10)
Start (lo_offset) = 0 to 3MHz (default 0.001 MHz)
Finish (hi_offset) = 0 to 3 MHz (default = 3.000
MHz. Must be greater than lo_offset)
Return Data A sequence of reports of RSSI and frequency offset.
Exit Click on Reset Chip.

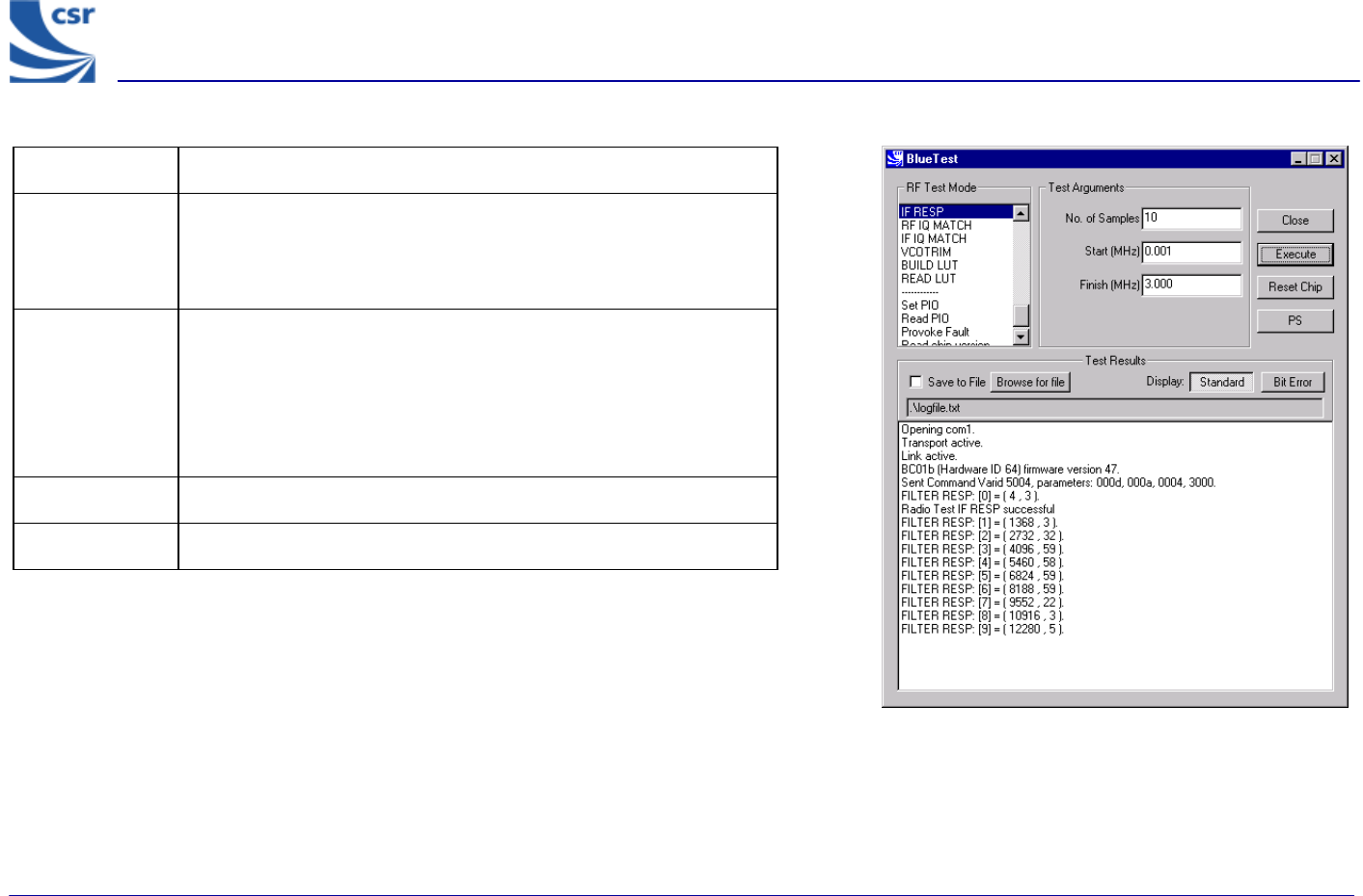

IF RESP Example Display
BlueTest Instruction Manual
bc01-an-047b
© Copyright CSR Ltd 2001
This material is subject to CSR’s non-disclosure agreement.
Page 39 of 56
BlueCore
TM
01

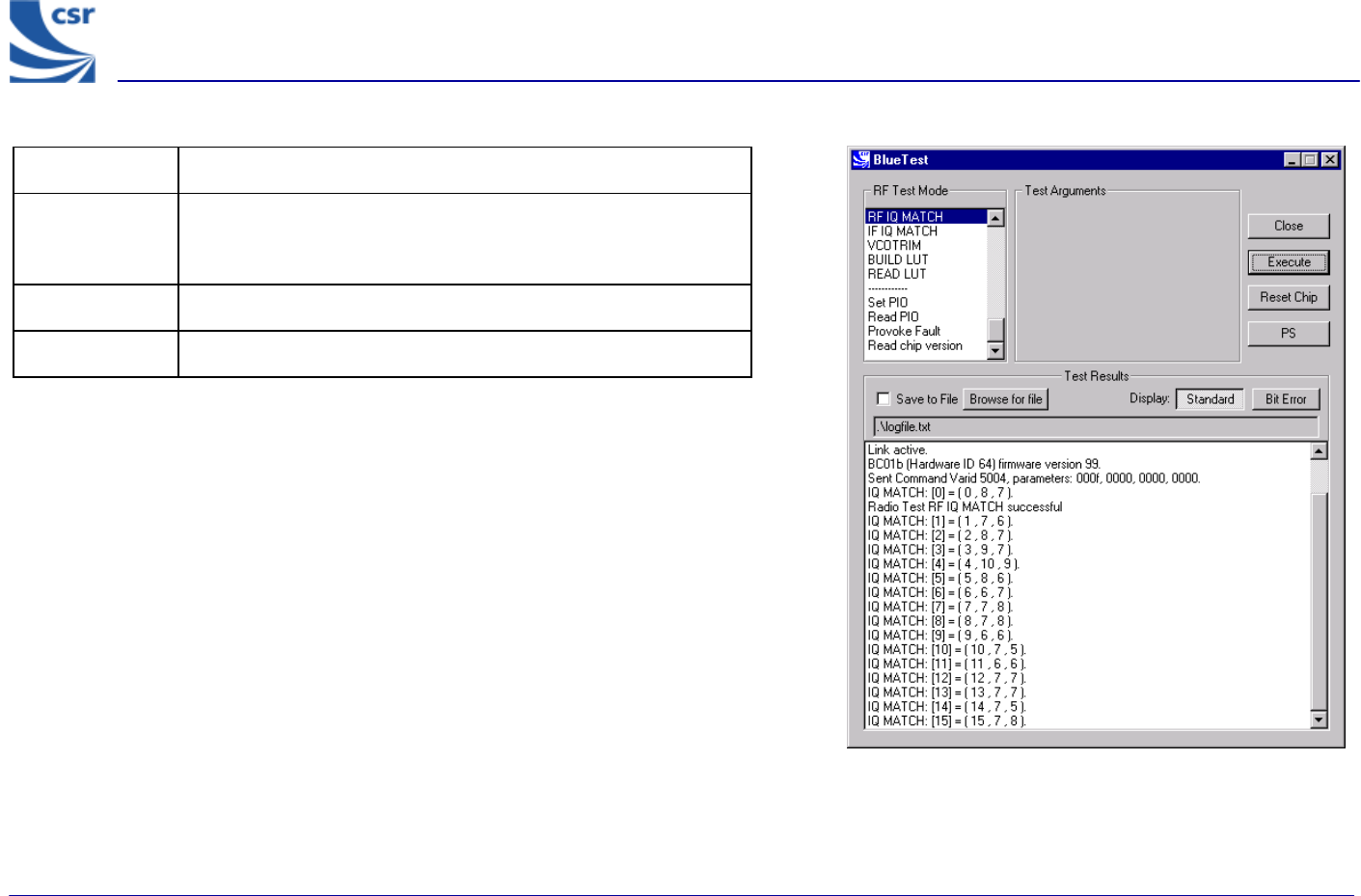

Title RF IQ MATCH
Summary Measures RF IQ match by injecting test signal, sweeping IQ trim
and measuring RSSI for on-channel and image. Returns array of
IQ measurements against IQ trim.
Return Data An array of 16 IQ measurements against IQ trim.
Exit Click on Reset Chip.
RF IQ MATCH Example Display
BlueTest Instruction Manual
bc01-an-047b
© Copyright CSR Ltd 2001
This material is subject to CSR’s non-disclosure agreement.
Page 40 of 56
BlueCore
TM
01

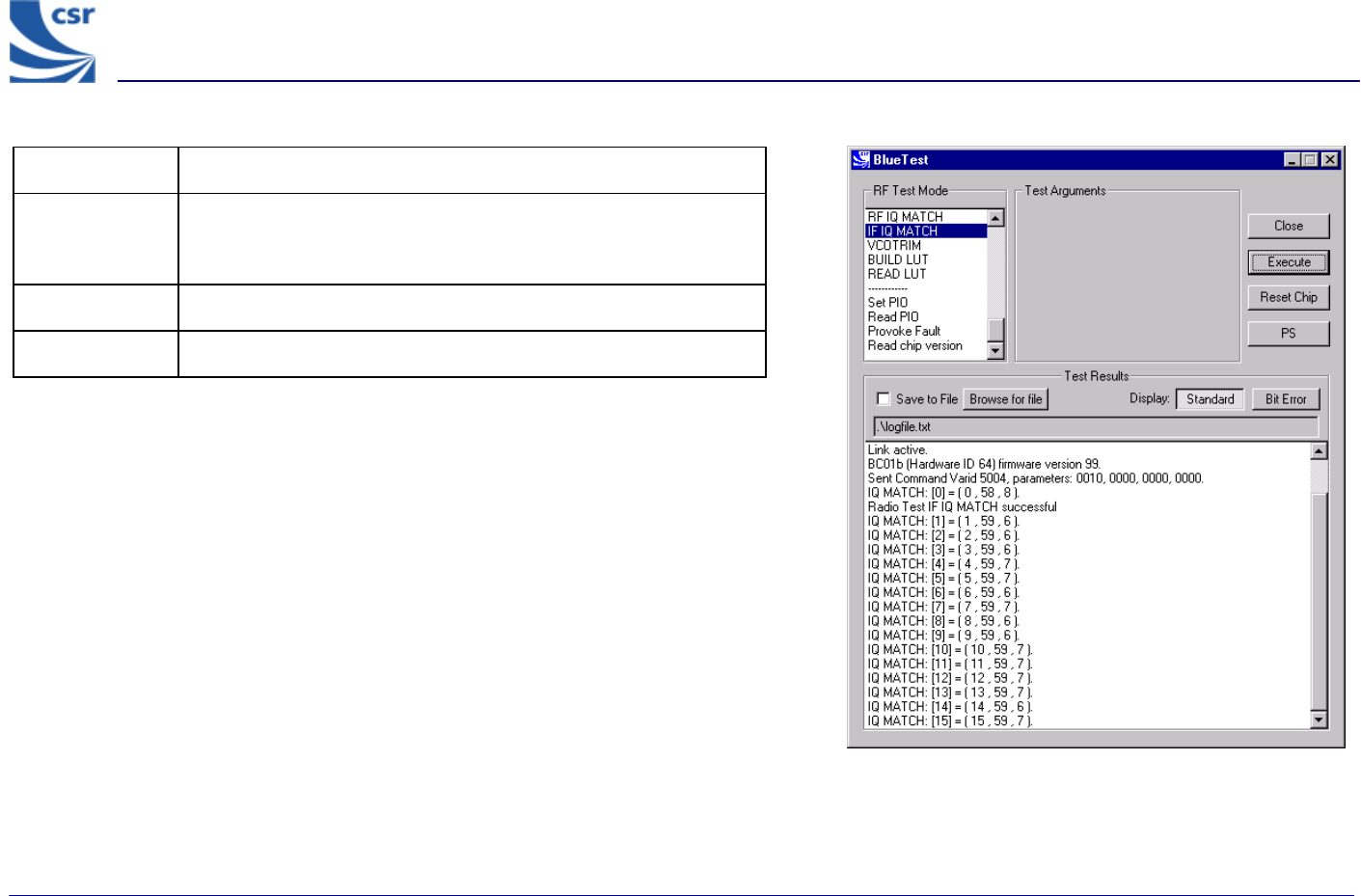

Title IF IQ MATCH
Summary Measures IF IQ match by injecting test signal, sweeping IQ trim
and measuring RSSI for on-channel and image. Returns array of
IQ measurements against IQ trim.
Return Data An array of 16 IQ measurements against IQ trim.
Exit Click on Reset Chip.
IF IQ MATCH Example Display
BlueTest Instruction Manual
bc01-an-047b
© Copyright CSR Ltd 2001
This material is subject to CSR’s non-disclosure agreement.
Page 41 of 56
BlueCore
TM
01

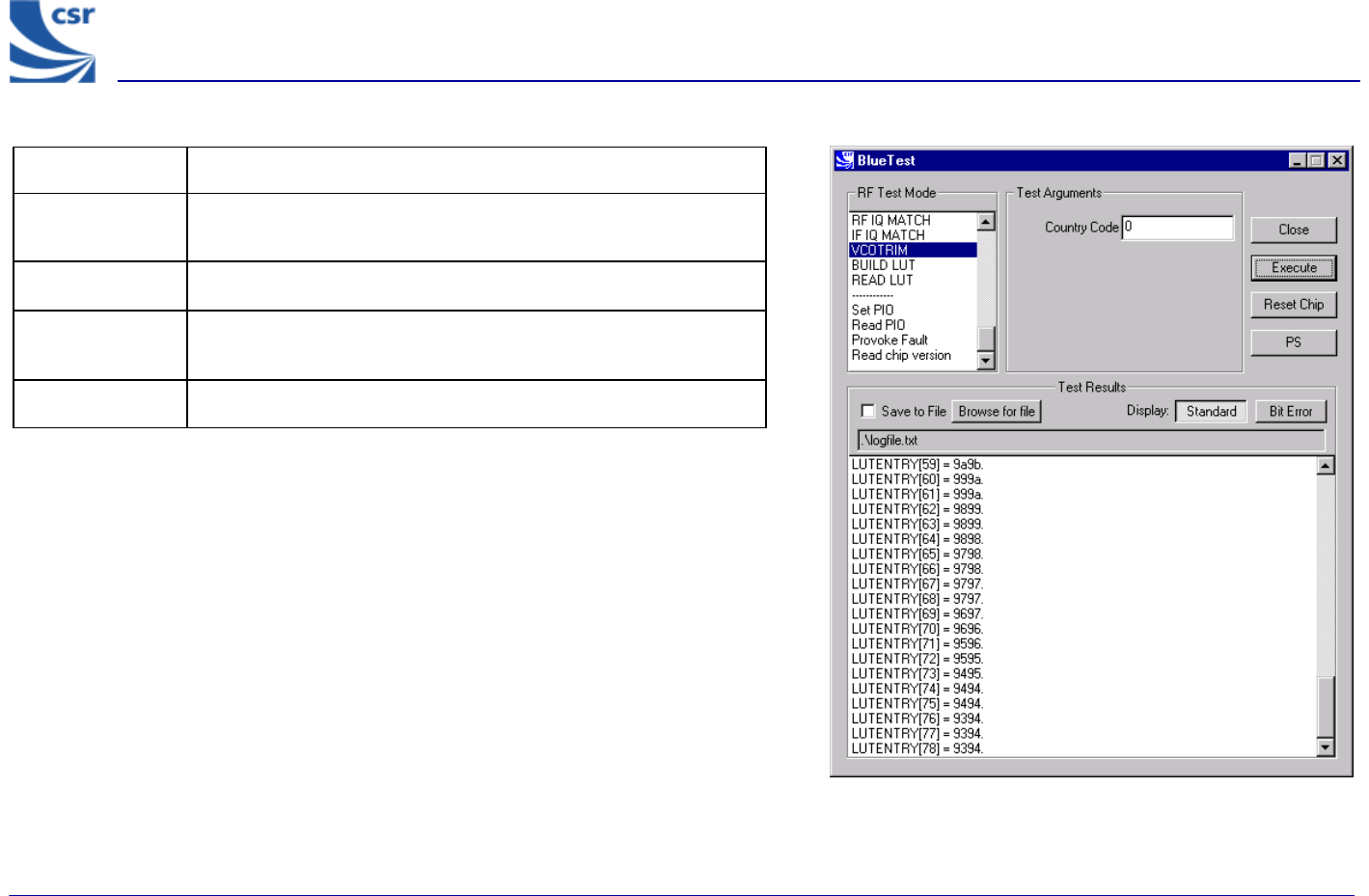

Title VCO TRIM
Summary Produces look up table of VCO trim versus hop frequencies for a
designated country hop sequence.
Test Arguments Country Code (cc) = 0 to 3 (default = 0)
Return Data An array of 79 values for VCO trim if Country Code is 0
otherwise 23 values.
Exit Click on Reset Chip.
VCO TRIM Example Display
BlueTest Instruction Manual
bc01-an-047b
© Copyright CSR Ltd 2001
This material is subject to CSR’s non-disclosure agreement.
Page 42 of 56
BlueCore
TM
01
Miscellaneous Test Routines

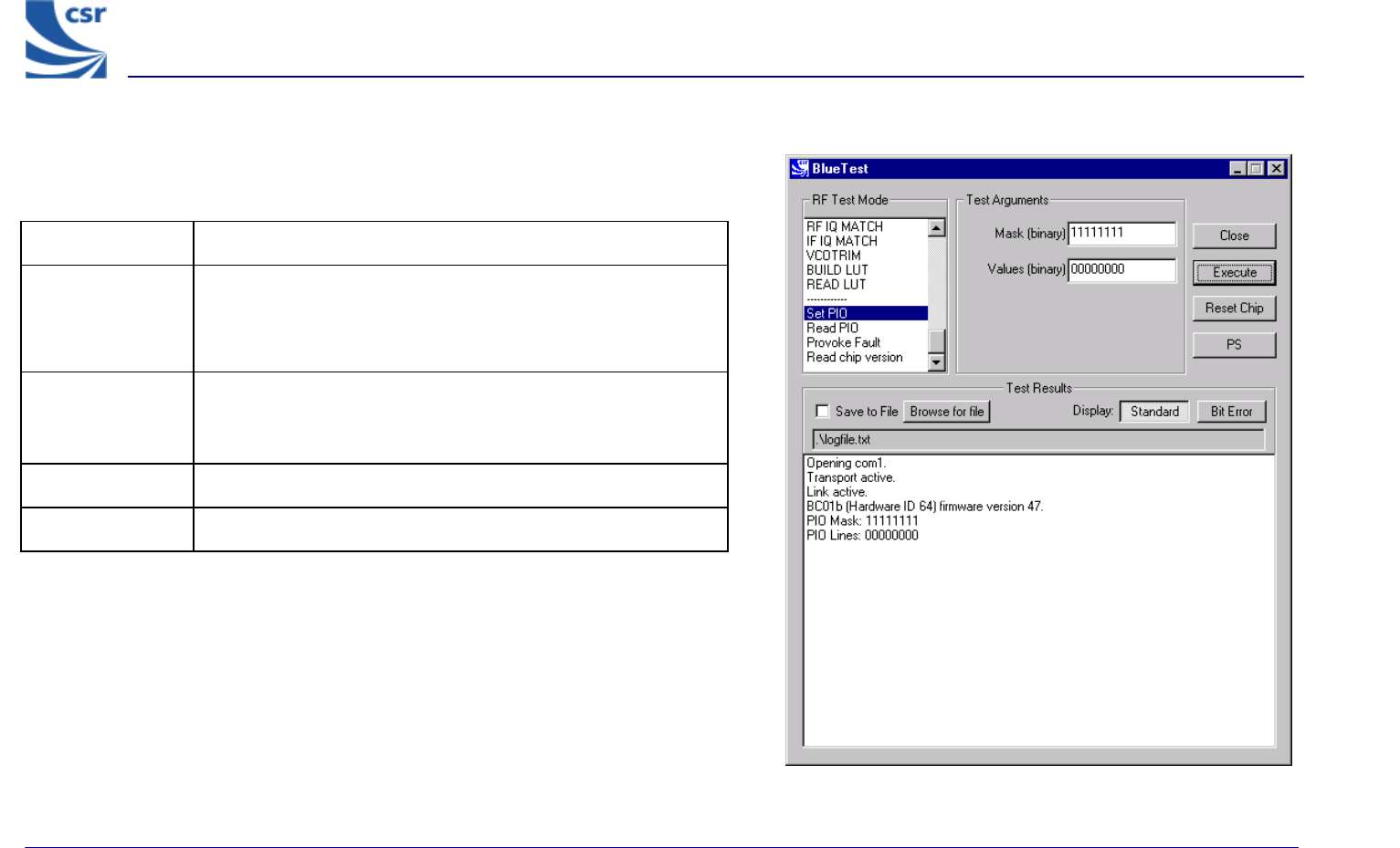

Title Set PIO
Summary
Enables designated PIO lines as outputs and sets them as
desired. To be used with caution since it over-rides previous
settings. Bit 0 corresponds to PIO[0], and a logic one enables it
as an output.
Test Arguments
Mask (default = 11111111)
Values (default = 00000000)
Return Data None
Exit Click on Reset Chip.
Set PIO Example Display
BlueTest Instruction Manual
bc01-an-047b
© Copyright CSR Ltd 2001
This material is subject to CSR’s non-disclosure agreement.
Page 43 of 56
BlueCore
TM
01

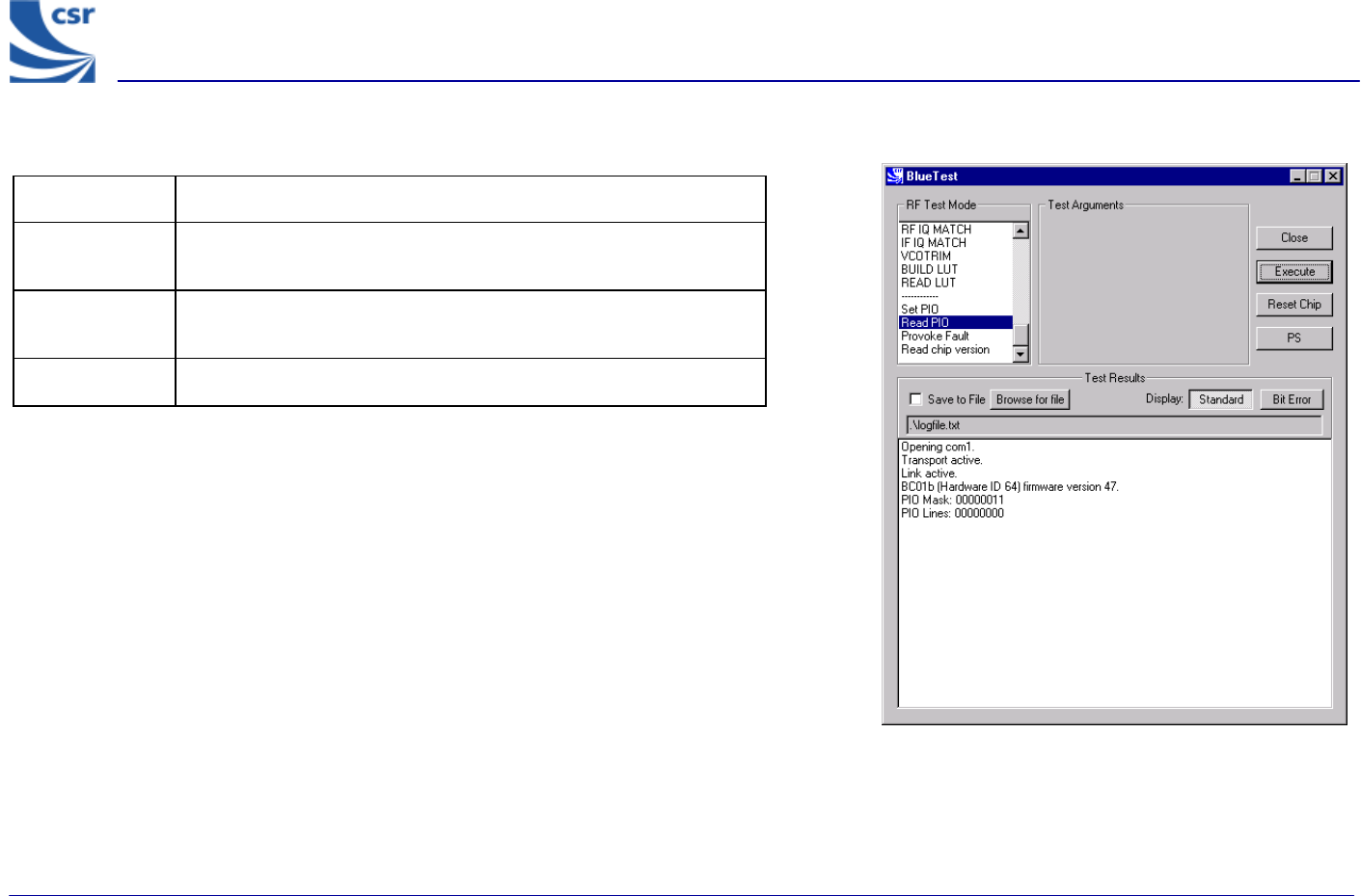

Title Read PIO
Summary Reads the logic state of the PIO pins. Valid whether they are
inputs or outputs.
Return Data PIO Lines (uint8) sent over BCSP channel 3, giving the logic level
at each of the pins.
Exit Click on Reset Chip.
READ PIO Example Display
BlueTest Instruction Manual
bc01-an-047b
© Copyright CSR Ltd 2001
This material is subject to CSR’s non-disclosure agreement.
Page 44 of 56
BlueCore
TM
01

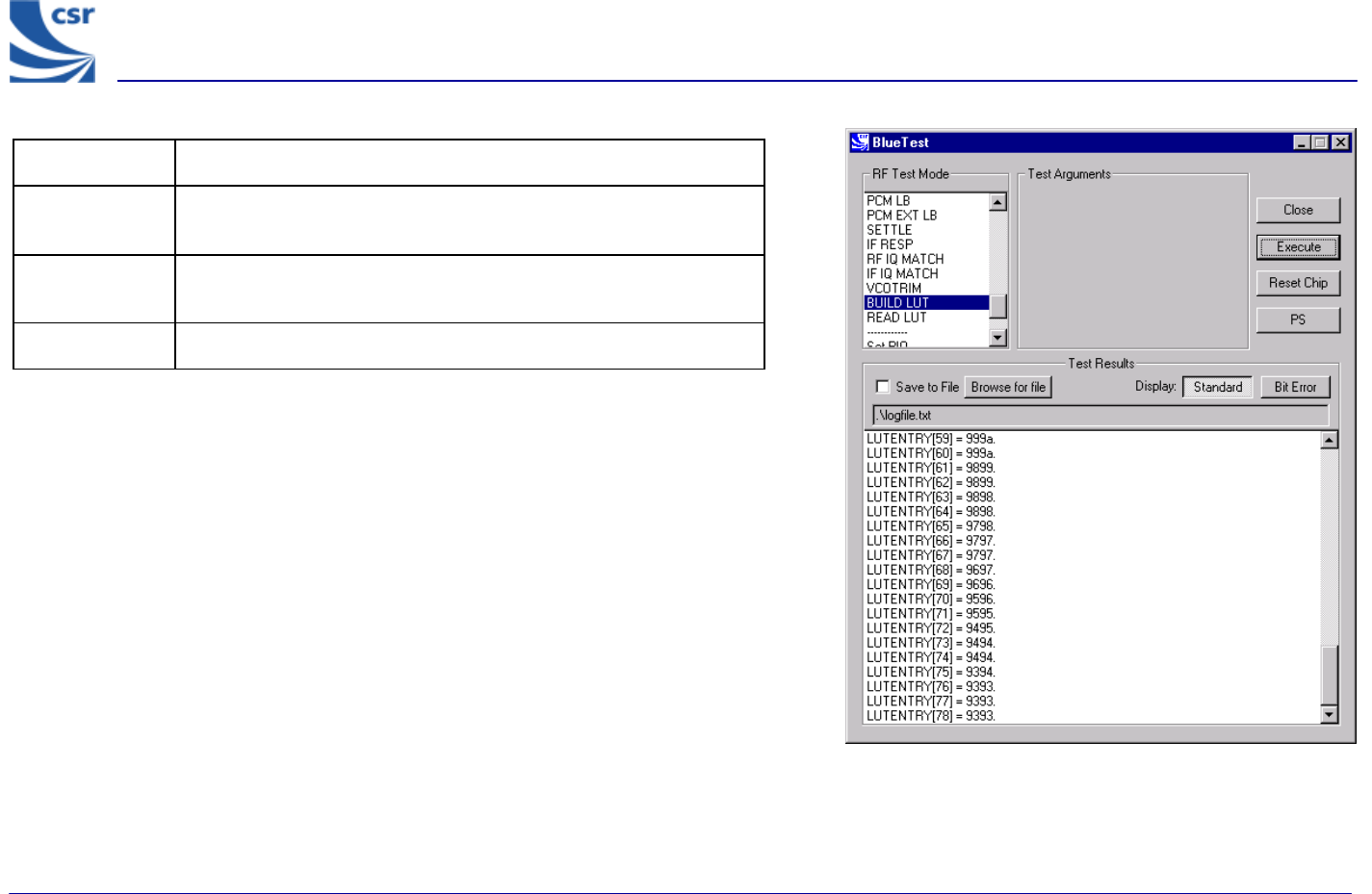

Title BUILD LUT
Summary Builds the radio’s channel LO_TRIM frequency look-up table then
returns it to the host.
Return Data A sequence of 79 uint16 numbers, containing the calibration data
just generated.
Exit Click on Reset Chip.
BUILD LUT Example Display
BlueTest Instruction Manual
bc01-an-047b
© Copyright CSR Ltd 2001
This material is subject to CSR’s non-disclosure agreement.
Page 45 of 56
BlueCore
TM
01
Title READ LUT
Summary Reports the radio’s channel LO_TRIM frequency look-up-table
(LUT) to the host.
Return Data
A sequence of 79 (uint16) numbers containing the contents of the
look up table (LUT) for Europe and North America or a sequence of
23 (uint16) numbers for other countries. The upper byte contains
the transmitter trim and the lower byte contains the receiver trim.
Exit Click on Reset Chip.
READ LUT Example Display
BlueTest Instruction Manual
bc01-an-047b
© Copyright CSR Ltd 2001
This material is subject to CSR’s non-disclosure agreement.
Page 46 of 56
BlueCore
TM
01

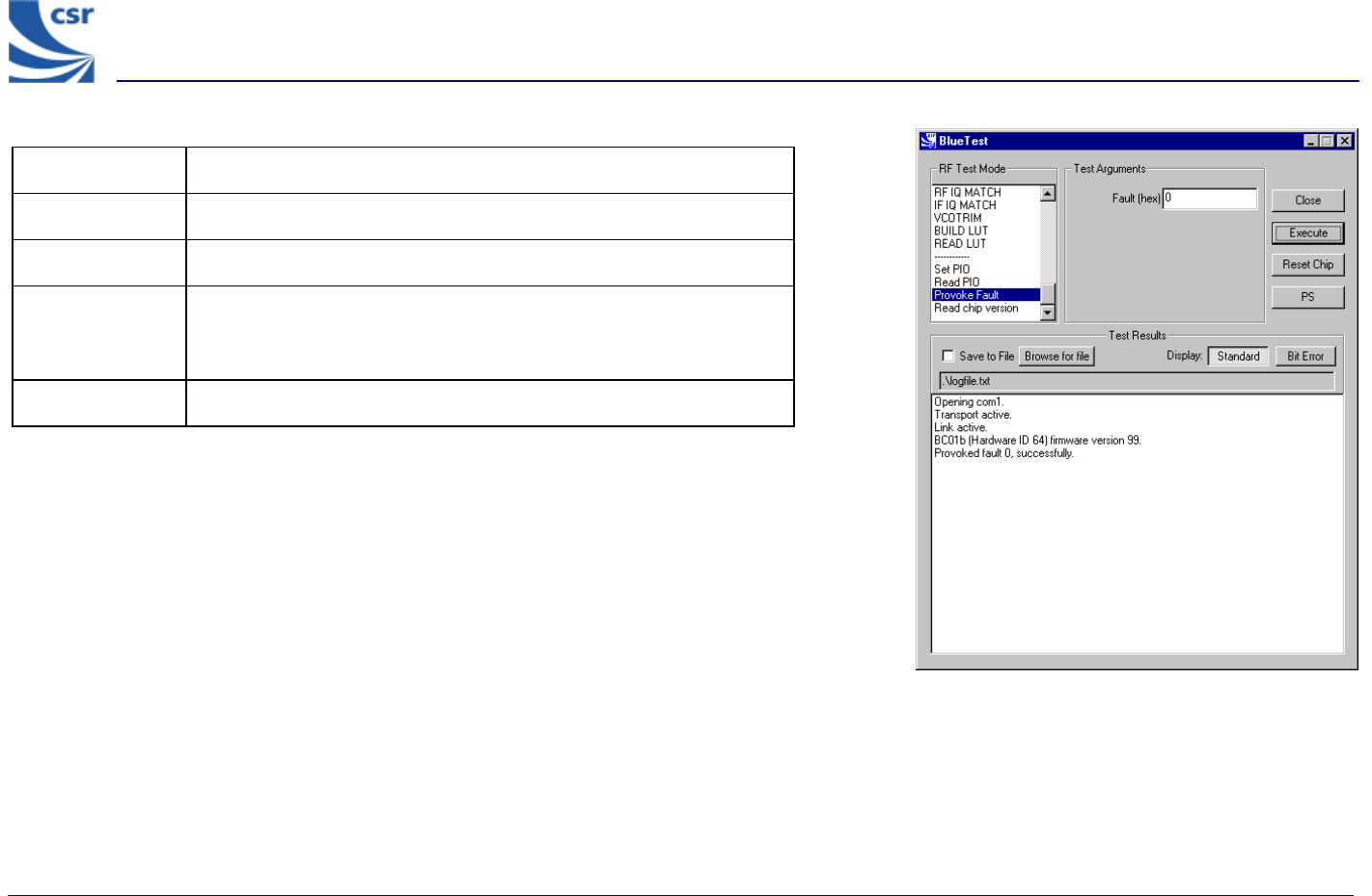

Title PROVOKE FAULT
Summary Provokes a fault mode in the on-chip processor.
Return Data None
Test Arguments Fault (hex) = 0 to 2b (default = 0)
Note: Contact CSR for more information about using fault modes.
Exit Click on Reset Chip.
PROVOKE FAULT Example Display
BlueTest Instruction Manual
bc01-an-047b
© Copyright CSR Ltd 2001
This material is subject to CSR’s non-disclosure agreement.
Page 47 of 56
BlueCore
TM
01
Title READ CHIP VERSION
Summary Reads the hardware ID and firmware version of device.
Return data Hardware ID and firmware version.

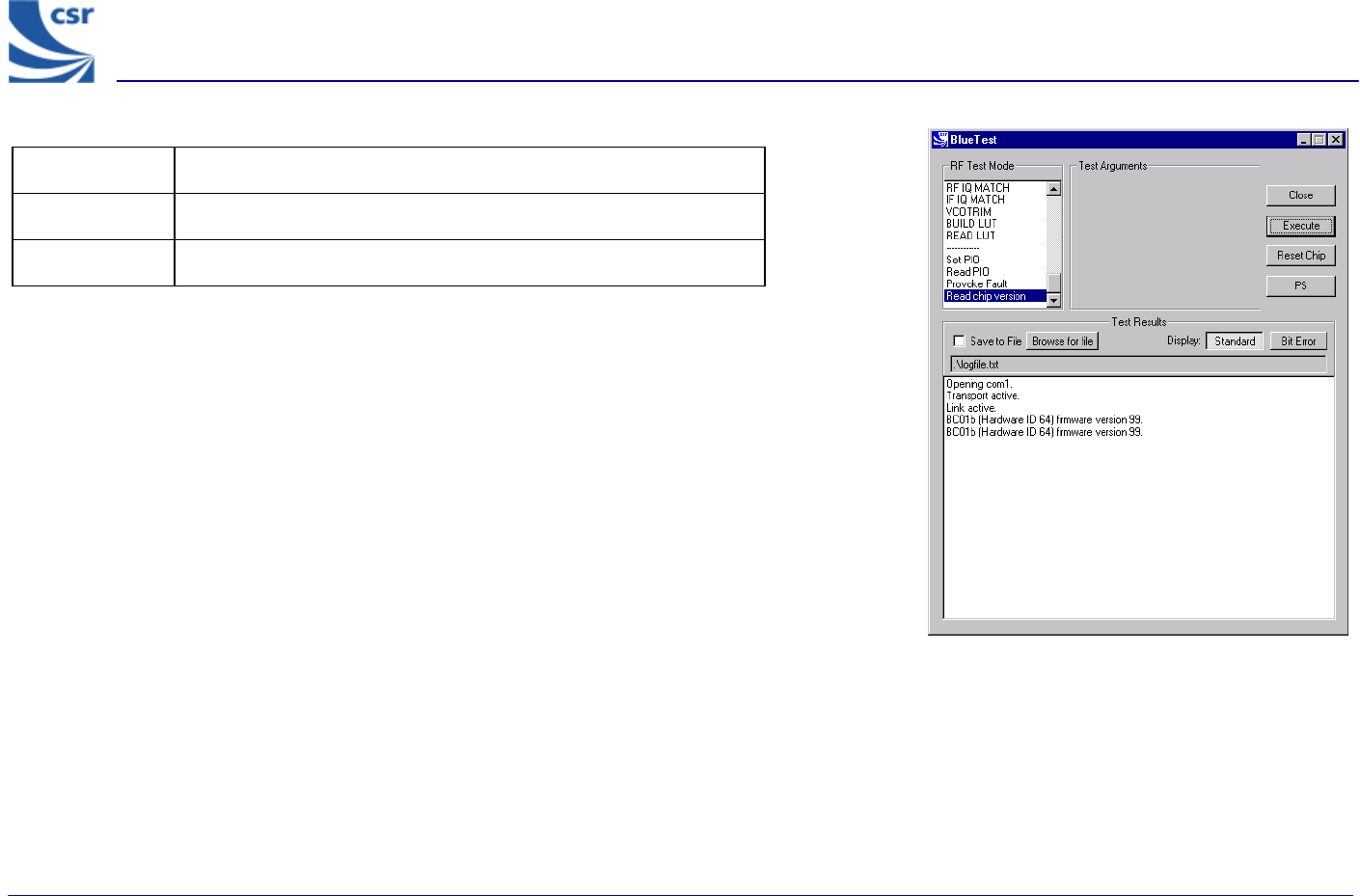

READ CHIP VERSION Example Display
BlueTest Instruction Manual
bc01-an-047b
© Copyright CSR Ltd 2001
This material is subject to CSR’s non-disclosure agreement.
Page 48 of 56
BlueCore
TM
01
Persistent Store Keys
Select PS from the main menu.
Enter a Key number.
To read a PS Key value, click on Read. The setting displays in the Value
field.
To change a PS key setting, enter a different value in the Value field and
click on Set.
To exit, click on OK.

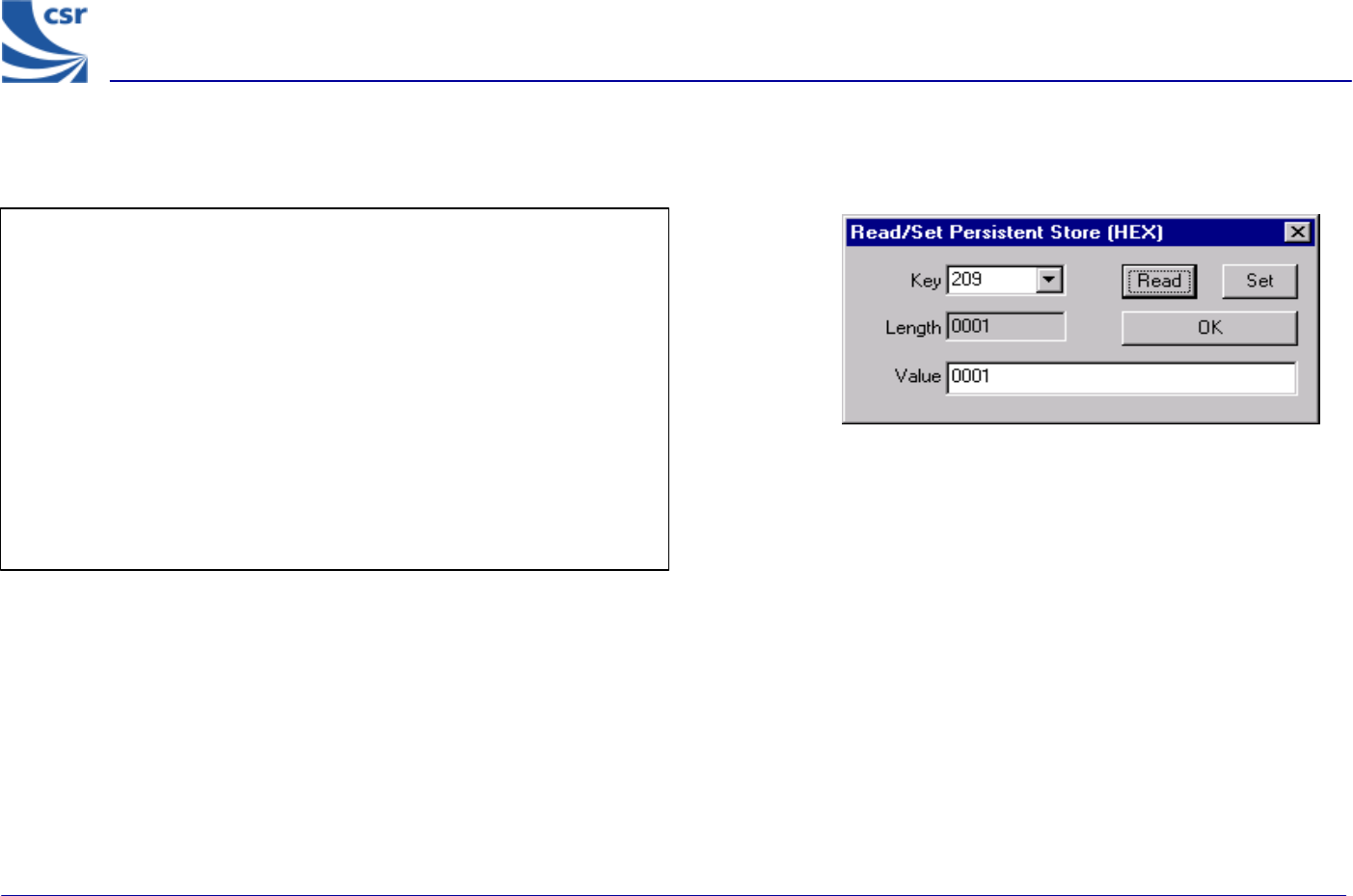

PERSISTENT STORE KEY Example Display
BlueTest Instruction Manual
bc01-an-047b
© Copyright CSR 2001
This material is subject to CSR’s non-disclosure agreement. Page 49 of 56
BlueCore
TM
01
Appendix 1
BIST Parameters
Name Type Min Max Meaning
lo_freq uint16 2402 2480 Bluetooth channel frequency in MHz
lxlvl uint16 0 63 Internal amplifier power setting. Use
50 for maximum power
mod_freq uint16 0 65535 Modulation frequency for modulated
carrier transmit test in units of 1/4096
MHz
highside bool 0 Non-
zero Receive IF setting, use false (0)
rx_attn uint16 0 15 Initial attenuation setting, overwritten
by AGC
country_code uint16 0 3 Simplified hop sequence code, use
country_code 0 for 79 hops
txrx_freq uint16 1 65535 Period in microseconds between RX
and TX events; default 12500 (20
slots)
lb_offs uint16 1 65535 Offset in microseconds between
receive and transmit in loopback
report_freq uint16 1 65535 Time in seconds between reports to
host, default 1
pkt_type uint16 0 15 Standard Bluetooth packet type (12-
13 disallowed. 0, 1, 2 not useful)
pkt_size uint16 0 339 Size of payload for packet type
bits_count uint32 1 4.2 x
109 Target for total bits used in BER
measurement; default 1.6 M bit
Reset bool 0 1 1 resets total count for BER
measurement
offset_half_mhz int16 -5 +5 Transmit IF offset; default –2
pcm_mode uint16 0 2 PCM loopback mode; 0 = 4-wire
slave, 1 = 4-wire master, 2 = 2-wire
slave
BlueTest Instruction Manual
bc01-an-047b
© Copyright CSR 2001
This material is subject to CSR’s non-disclosure agreement. Page 50 of 56
BlueCore
TM
01
Name Type Min Max Meaning
chan1 uint16 0 78 Bluetooth channel number
chan2 uint16 0 78 Bluetooth channel number
n_samples uint16 0 65535 Number of samples in range from min
to max for IF filter response test
lo_offset uint16 0 65535 Min offset in 1/4096MHz for IF filter
response test
hi_offset uint16 0 65535 Max offset in 1/4096MHz for IF filter
response test
output_mask Uint8 0 FF Bit mask for PIO; 0=input, 1=output
output Uint8 0 FF Bit values for PIO output
xtal_trim Uint16 0 63 Crystal trim value
uap Uint16 0 FF Bluetooth address; Upper Address
Part
Lap 0 FFFFFF Bluetooth address; Lower Address
Part
Trim Uint16 0 511 Value for configuring IQ trim
n_errs Uint16 0 15 Number of errors
Lvl Uint16 0 15 Local oscillator output level
tx_offset Uint16 0 Transmitter offset
lo_offset Uint16 0 Local oscillator offset
radio_on_offset Uint16 0 Time between turning radio on and
starting to transmit in microseconds
BlueTest Instruction Manual
bc01-an-047b
© Copyright CSR 2001
This material is subject to CSR’s non-disclosure agreement. Page 51 of 56
BlueCore
TM
01
Appendix 2
Known Software Issue(s) in BlueTest Version 1.4
(a) Pressing the Reset Chip button on the GUI while data is being transmitted sends a
hardware reset command to the chip and restarts the serial stack software.
Closing the GUI sends a hardware reset command to the chip.
If the link fails, the connection can only be recreated by manually resetting the chip
(power off/on) and by clicking on Reset Chip or closing down and restarting the GUI (both
of which will restart the serial stack software).
The above will not occur if no data is visibly scrolling in the window.
The tests concerned are:
g VCOTRIM
g BUILD LUT
g READ
g LUT
(b) There is a race between command responses indicating that a test has started and the
first data relating to that test. This does not affect the test results.
(c) It is not possible to rouse the chip from Deep Sleep except by powering down the chip
and restarting.
BlueTest Instruction Manual
bc01-an-047b
© Copyright CSR 2001
This material is subject to CSR’s non-disclosure agreement. Page 52 of 56
BlueCore
TM
01
Appendix 3
Combining Tests Using a Second Unit
Several tests require a second BlueCore01 unit to be operating to provide a test signal for
the equipment under test. The following table provides a quick reference guide to tests that
use a second unit.
SECOND UNIT
PAUSE
RADIO STATUS
TXSTART
TXDATA1
TXDATA2
TXDATA3
TXDATA4
RXSTART
RXSTART2
RXDATA1
RXDATA2
BIT ERR1
BIT ERR2
LOOP BACK
RX LOOP BACK
BER LOOP BACK
DEEP SLEEP
PCM LB
PCM EXT LB
SETTLE
IF RESP
RF IQ MATCH
IF IQ MATCH
VCO TRIM
BUILD LUT
READ LUT
SET PIO
READ PIO
PROVOKE FAULT
READ CHIP VERSION
EQUIPMENT UNDER
TEST
PAUSE
RADIO STATUS
TXSTART
TXDATA1
TXDATA2
TXDATA3
TXDATA4
RXSTART1
X
RXSTART2
X
RXDATA1
X
RXDATA2
X
BIT ERR1
X
BIT ERR2
X
LOOP BACK
RX LOOP BACK
X
BER LOOP BACK
X
DEEP SLEEP
PCM LB
PCM EXT LB
SETTLE
IF RESP
RF IQ MATCH
IF IQ MATCH
VCO TRIM
BUILD LUT
READ LUT
SET PIO
READ PIO
PROVOKE FAULT
READ CHIP VERSION
BlueTest Instruction Manual
bc01-an-047b
© Copyright CSR 2001
This material is subject to CSR’s non-disclosure agreement.
Page 53 of 56
BlueCore
TM
01
Appendix 4
Configuration Commands Available During Tests
Particular configuration commands are appropriate to use during certain tests. The following
table is a quick reference guide to which configuration commands can be used during which
tests.
Configuration
Commands
CFG FREQ
CFG PKT
CFG BIT ERR
CFG TXIF
CFG XTAL FTRIM
CFG UAP/LAP
CFG ACC ERRS
CFG IQ TRIM
CFG TX TRIM
CFG LO LVL
CFG TX COMP
CFG SETTLE
EQUIPMENT
UNDER TEST
PAUSE
RADIO STATUS
TXSTART
X
X
X
TXDATA1
X
X
X
X
X
TXDATA2
X
X
X
X
X
TXDATA3
X
X
X
TXDATA4
X
X
X
RXSTART1
X
RXSTART2
X
RXDATA1
X
RXDATA2
X
BIT ERR1
X
X
X
X
X
BIT ERR2
X
X
X
X
X
LOOP BACK
X
X
RX LOOP BACK
X
X
BER LOOP BACK
X
X
DEEP SLEEP
PCM LB
PCM EXT LB
SETTLE
IF RESP
RF IQ MATCH
IF IQ MATCH
VCO TRIM
BUILD LUT
READ LUT
SET PIO
READ PIO
PROVOKE FAULT
BlueTest Instruction Manual
bc01-an-047b
© Copyright CSR 2001
This material is subject to CSR’s non-disclosure agreement.
Page 54 of 56
BlueCore
TM
01
Appendix 5
Bluetooth Packet Types
Use the CFG FREQ command to set the frequency as appropriate to the size of the packet type
being used in the test.
Extracted from Packet Types section of Specification of the Bluetooth System, v1.1, dated
1 December 2000.
BlueTest Instruction Manual
bc01-an-047b
© Copyright CSR 2001
This material is subject to CSR’s non-disclosure agreement.
Page 55 of 56
BlueCore
TM
01
CSR’s Life Support Policy and Use in Safety-Critical Applications
CSR’s products are not authorised for use in life-support or safety-critical applications.
Trademarks and Patents
BlueCore is a trademark of CSR.
Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG Inc, USA and
licensed to CSR.
CSR reserves the right to make technical changes to its products as part of its development
programme.
For further information, refer to the following document(s):
Document Reference
Bluetooth (SIG) Test Specification - RF Rev 0.9r, dated 31 January 2000
Specification of the Bluetooth System, v1.1 Rev 1.1, dated 01 December 2000
BlueTest Instruction Manual
bc01-an-047b
© Copyright CSR Ltd 2000
This material is subject to CSR’s non-disclosure agreement.
Page RegInsert
BlueCore
TM
01
Regulatory Notes & Information
This device complies with Part 15 of the FCC Rules.
Operation is subject to the two following conditions :-
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications to the transmitter not expressively approved by CSR could void
the authority ability to operate the equipment.
User Label Warning !
The transmitter is in compliance with the Part 15 FCC Rules. A label which demonstrates
compliance with the FCC is located on the bottom of the laptop.
The label contains the following information :-
Contains FCC ID:- PIW632500516610
This label ID is to be used only for Dell lap tops. The use of this transmitter outside Dell laptops is illegal.
Transmitter Warning !
Installers of the Bluetooth transmitter should note that the Bluetooth transmitter should not
be co-located with any other transmitter, for example WLAN interfaces in the lap top.
The distance between the Bluetooth transmitter and antennas of other radio equipment
must be at least 20cm in distance away from each other. Any closer installations require additional
certification filings to examine co-location issues.
BlueTest Instruction Manual
bc01-an-047b
© Copyright CSR 2001
This material is subject to CSR’s non-disclosure agreement.
Page 56 of 56
BlueCore
TM
01
Record of Changes
Date: Revision: Reason for Change:
13 SEP 00 a Original publication of this document
(CSR reference: bc01-an-047a).
16 JUL 01 b Revision and addition of tests and appendices
BlueTest Instruction Manual
AN047
July 2001
