CASIRA User Manual
BC01-um-001c
BlueCore01
CASIRA Bluetooth Development Kit
User Manual
AN007
Cambridge Silicon Radio Ltd
Unit 300, Science Park, Milton Road,
Cambridge CB4 0XL England.
Registered in England UK 3665875
Tel: Development kit support +44 (0)8709 410249
General Enquiries +44 (0)1223 424167
Fax: +44 (0)1223 424178
E-mail: Development kit support: ev-support@CSR.com
Software Bug Reports: bcswbugs@CSR.com
Sales: sales@CSRadio.com
http://www.CSR.com
BC01-um-001c Page 2 of 26
Change History
Version Date Comment
a20 APR 2000 First draft from standard literature
b12 MAY 2000 First Release Alpha 5
c25 AUG 2000 Update; Note added on page 20
BC01-um-001c Page 3 of 26
CONTENTS
1DEFINITIONS 4
1.1 Acronyms and Abbreviations 4
2HARDWARE OVERVIEW. 6
3CASIRA BLUETOOTH DEVELOPMENT KIT 8
4HARDWARE SETUP 9
5OVERVIEW OF THE BLUECHAT APPLICATION. 10
6INSTALLING THE BLUECHAT APPLICATION 11
7CONFIGURING THE BLUECHAT APPLICATION 12
8ESTABLISHING AN ACL CONNECTION 13
9SENDING TEXT BETWEEN SYSTEM UNITS OVER AN ACL
CONNECTION 15
10 SENDING A DATA FILE BETWEEN SYSTEM UNITS OVER AN ACL
CONNECTION 15
11 DISCONNECTING AN ACL CONNECTION 17
12 INITIATING AND BREAKING AN AUDIO CONNECTION 17
SENDING CUSTOM HCI COMMANDS. 18
14 FLASH LOADER INSTRUCTIONS. 18
14.1 Installing the CSR_Flashloader program. 19
14.2 Connecting the SPI lead for Firmware updates. 19
14.3 Running CSR_Flashloader. 20
15 CAMBRIDGE CONSULTANTS LIMITED COMMAND AND WATCH
WINDOW APPLICATION. 25
16 TRADEMARK ACKNOWLEDGMENTS 25
17 APPENDIX: KNOWN FIRMWARE / SOFTWARE DEFICIENCIES AT
ALPHA RELEASE: 26
BC01-um-001c Page 4 of 26
1 DEFINITIONS
Bluetooth A set of technologies providing short range audio and data transfer over
radio connections.
BlueCoreSingle chip Bluetooth System from CSR.
1.1 Acronyms and Abbreviations
ADC Analogue to Digital Converter
AGC Automatic Gain Control – part of the radio
API Application Program Interface
bc01 BlueCoreTM01 – CSR Bluetooth chip
BCSP BlueCoreTM Serial Protocol
BIST Built-in Self Test
CCL Cambridge Consultants Ltd
CVSD Continuously Variable Slope Delta (modulation)
DAC Digital to Analogue Converter
DLL Win32 Dynamic Link Library.
EXE Win32 executable
GUI Graphical User Interface
HCI Host Controller Interface
ISM Industrial, Scientific and Medical – unlicensed radio band at 2.4 GHz
L2CAP Logical Link Control and Adaptation Protocol – a Bluetooth protocol
stack layer
LM Link Manager – a Bluetooth protocol stack
LNA Low Noise Amplifier
PA Power Amplifier
PCM Pulse Coded Modulation – digitised audio sample stream
PIO Parallel input/output
RF Radio Frequency
RFCOMM Serial cable emulation protocol – a Bluetooth protocol stack layer
Scheduler The BlueCore01 operating kernel. A simple co-operative multi-
tasking scheduler with event queues and memory pool management.
SCO Synchronous Connection Oriented
BC01-um-001c Page 5 of 26
SDD Service Discovery Database– an element of Bluetooth
SDP Service Discovery Protocol a Bluetooth protocol stack layer
SPI Serial Peripheral Interface – a synchronous, single master, serial
interface
USB Universal Serial Bus
BC01-um-001c Page 6 of 26
2 HARDWARE OVERVIEW.
The CSR CASIRA Bluetooth Development kit has been developed primarily to assist
CSR’s customers in the development of host-side software and external radio circuits
outside the BlueCoreTM ICs. It will also be used to assist CSR’s customers to evaluate
the BlueCoreTM chips. The Evaluation system consists of two identical modules that
allow the user to send both data and voice over a Bluetooth link. Each unit is driven
from a PC for data connections and from a headset (supplied with the kit) for voice
connection.
Each unit consists of a motherboard and a Bluetooth radio transceiver daughter card
module. The first radio module shipped with the system uses the CSR BlueCore01
chip and also includes the front-end filter, an LNA, a PA, a TX/RX switch, a flash
memory, a crystal and an external (connectorised and detachable) antenna. The radio
module plugs into the motherboard. Hardware upgrades will be shipped in the format
of a new replacement radio module when new versions of the CSR BlueCore IC
product range become available. The motherboard provides a serial port (RS232), SPI
port, USB port, PCM port, power supply socket and audio socket.
The on-board CODEC can be used for the voice interface although it is possible to
connect direct to the PCM connection via the internal Molex connector. The signal

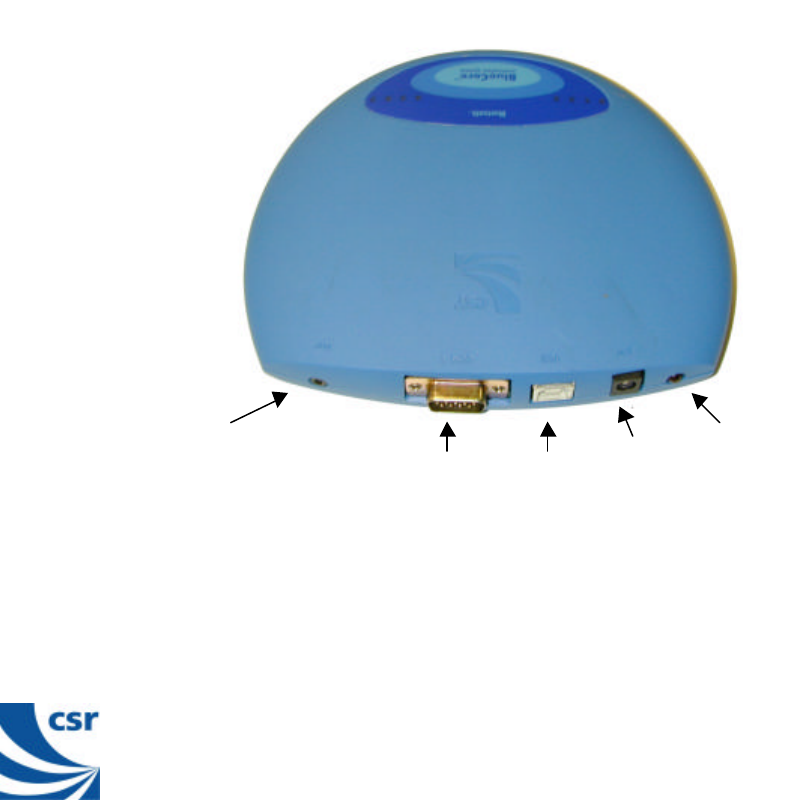

One CASIRA Bluetooth Development kit Unit
Headset
Socket RS232
Port USB
Port
Power
Socket
Power LED
BC01-um-001c Page 7 of 26
levels on the RS232 port conform to the RS232 standard and are generated on the
motherboard. It is also possible to connect to the BlueCoreTM01 UART using CMOS
(3V) levels using the second internal Molex connector on the 3V UART/Serial PCM
port. The USB port is type “B”.
USB Functionality.
First systems do not support USB. The first new BlueCoreTM radio module upgrade
will support USB. This is expected to be available in Q3 2000.
Note: When using USB the UART CTS and UART RTS pins are used for the
USB- and USB+ respectively. Hence it is not possible to use one unit with
both USB and RS232 connections operating simultaneously.
Eight LED’s are provided on each module and the function of each is as follows
LED 0 Radio RX ON LED 1 Radio TX ON
LED 2 ACL/LMP data received LED 3 ACL/LMP data transmitted
LED 4 SCO data received LED 5 SCO data transmitted
LED 6 UART data received LED 7 UART data transmitted

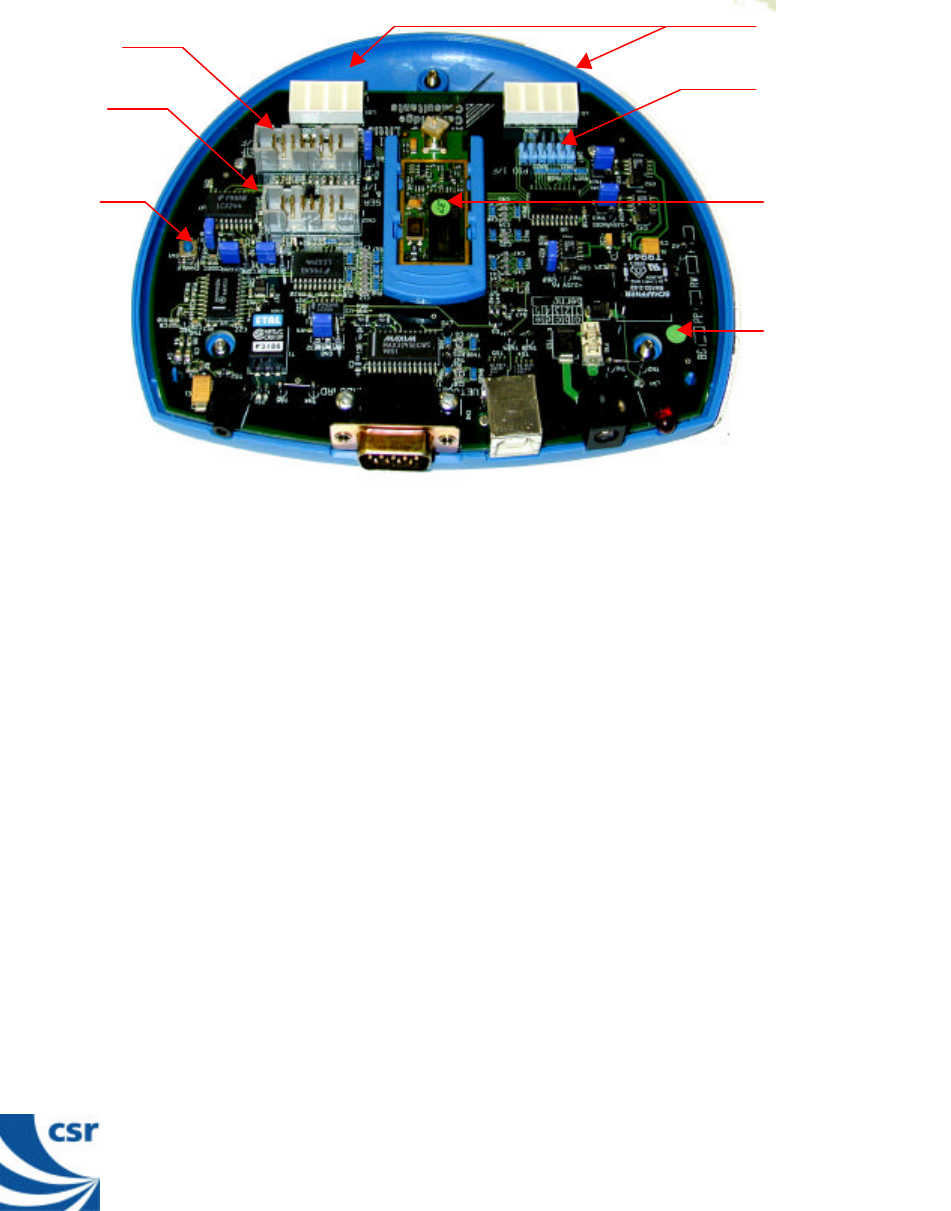

SPI Interface
3VUART/
Serial PCM
Port
LEDs
Reset
PIO Interface
Detachable
Radio
Module
Motherboard

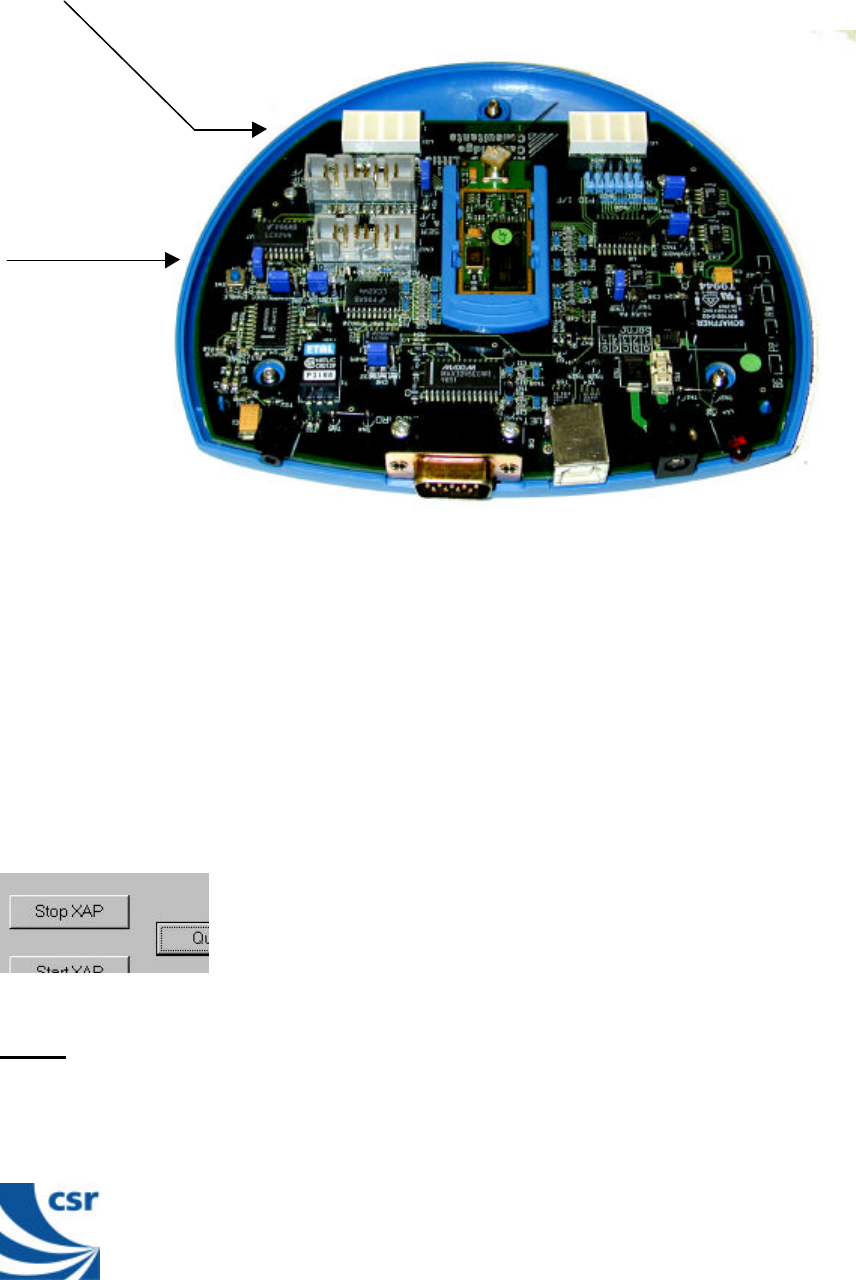

Inside the CASIRA
Bluetooth
Development kit
BC01-um-001c Page 8 of 26
3 CASIRA BLUETOOTH DEVELOPMENT KIT
The following items are included in the CASIRA Bluetooth Development kit
Qty Description
1Carry-case with handle and external sleeve
2CASIRA Bluetooth Development Kit Units
2Power supplies
2SPI Programming leads
25 Metre long RS232 leads
2Country specific Mains adapter plugs
2Audio Headsets
1CSR CASIRA Bluetooth Development kit CDROM containing documentation
and software.
1CCL BlueStack SDKlite CDROM containing documentation and software.
BC01-um-001c Page 9 of 26
4 HARDWARE SETUP
Remove the power supplies and the appropriate mains power connectors from the
carry case and push the mains connector onto the power supplies, making sure that
they are fully pressed home. Plug these two power supplies into the mains but DO
NOT connect the DC output connector to the BlueCore Evaluation System units
yet. The power supplies should be connected AFTER the BlueChat application is
installed and configured.
Remove the two serial cables from the carry case and connect one end of each to the
COM ports on two PC’s (WindowsTM98 / NT). Connect the other ends of the serial
cables to the COM1 port of each of the CASIRA Bluetooth Development kit Units.
Remove the two headsets from the carry case and connect one to each of the CASIRA
Bluetooth Development kit Unit headset sockets.
BC01-um-001c Page 10 of 26
5 OVERVIEW OF THE BLUECHAT APPLICATION.
The CSR CASIRA Bluetooth Development kit is supplied with a PC program called
BlueChat that allows the user to send text, send a file and set up a voice connection
between the two system units.
A single window display gives a constant report on the Bluetooth radio link via a
watch window. The communication between the PC and the CASIRA Bluetooth
Development kit Units is at the HCI level.
BC01-um-001c Page 11 of 26
6 INSTALLING THE BLUECHAT APPLICATION
The BlueChat Application allows the user to issue commands via the RS232 port of a
PC running under Windows™98 or Windows™ NT to the Development system
units. The software must be installed from the CSR CASIRA Bluetooth Development
kit CDROM provided.
System Requirements for the BlueChat Application
- Pentium processor-based personal computer
- Microsoft Windows™98 or Windows™ NT v4.0(service pack 3 or later)
- 16 MB of RAM (24 MB recommended)
- 10 MB of available hard disk space
Installation instructions:
1 Insert the CASIRA Bluetooth Development kit CDROM into your CDROM
drive.
2 From your CDROM in the “software\host\BlueChat”folder run the file
“install.exe” and change the path if required, Click “unzip”, Click “OK”
and finally Click “CLOSE” to complete the installation.
3 From your “BlueChat” folder create a shortcut for BlueChat.exe and place
it on your desktop or taskbar for convenience as required.
BlueChat should now be installed and ready for use.
BC01-um-001c Page 12 of 26
7 CONFIGURING THE BLUECHAT APPLICATION
Start the BlueChat Program on each PC by double Clicking on the BlueChat shortcut
on your desktop, or on the BlueChat Icon in the BlueChat folder.

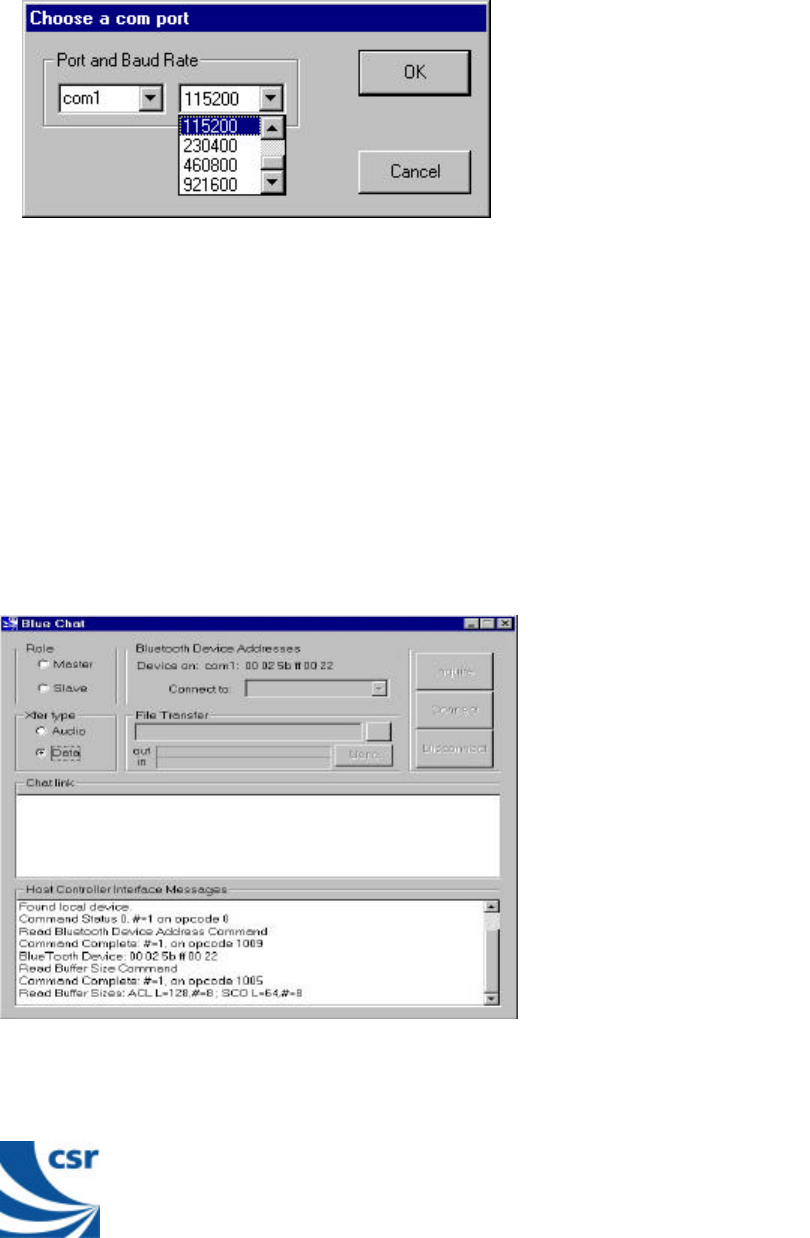

A port selection window will appear:
Click on the drop down menu button and select the COM port that you connected the
serial cable to for that PC.
Click “OK” when your selection is complete.
Up to two BlueChat windows may be open at any one time allowing a single PC to be
used for both evaluation modules. In this mode a different COM port must be selected
in each window and each of the CASIRA Bluetooth Development kit Units must be
connected to the appropriate COM port.
Now plug in the the power supplies to the CASIRA Bluetooth Development kit
System Units. The following screen should appear after a few seconds with the
associated messages to show that each PC has connected to the system unit:
BC01-um-001c Page 13 of 26
8 ESTABLISHING AN ACL CONNECTION

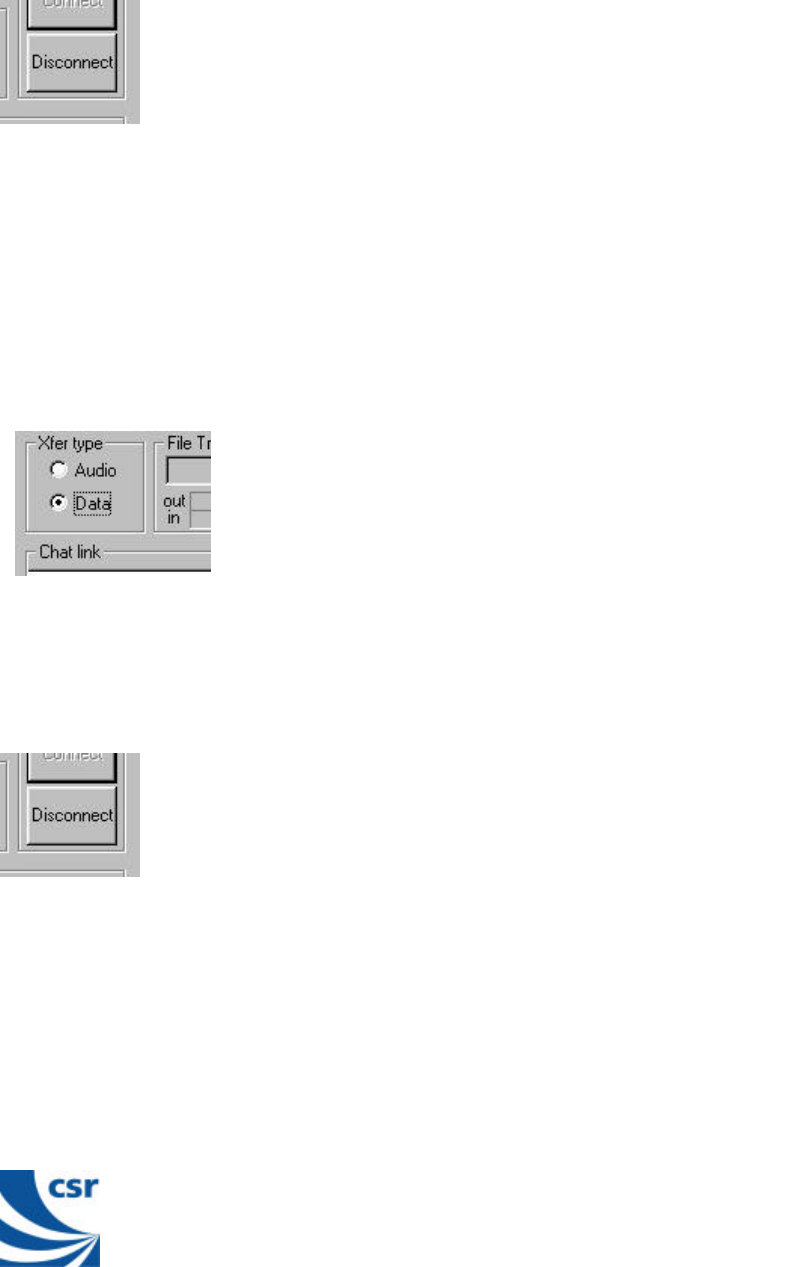

First make sure that the Xfer type is still set at the default power-on value of ‘data’.
Then select the Role of one unit to be the slave by selecting the slave button:

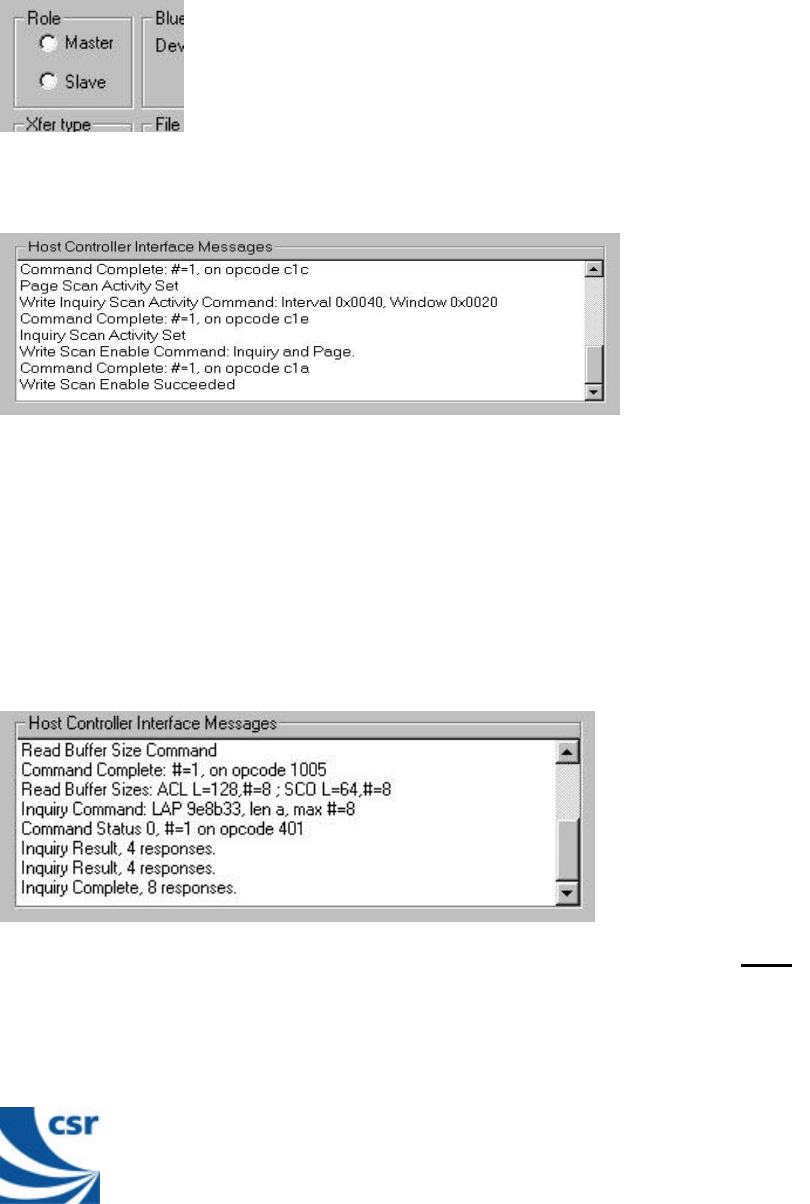

Selecting a slave causes the first unit to enter inquiry scan mode:
Next, selecting the role of the other system unit to be master will now cause an
“Inquiry” to be initiated by the master
The master now collects Bluetooth addresses from Slave modules that can been found
on the radio channels.
The “Host Controller Interface Message” window will give information on the results
of the Inquiry. This procedure should take approximately 10 seconds to complete. It
is usual to see 8 responses after inquiry scan is complete :
The user must ensure that the CASIRA Bluetooth Development kit Units are NOT
both set to the same Role
WARNING –See appendix for a known software
deficiency after initial power up of System Units
BC01-um-001c Page 14 of 26

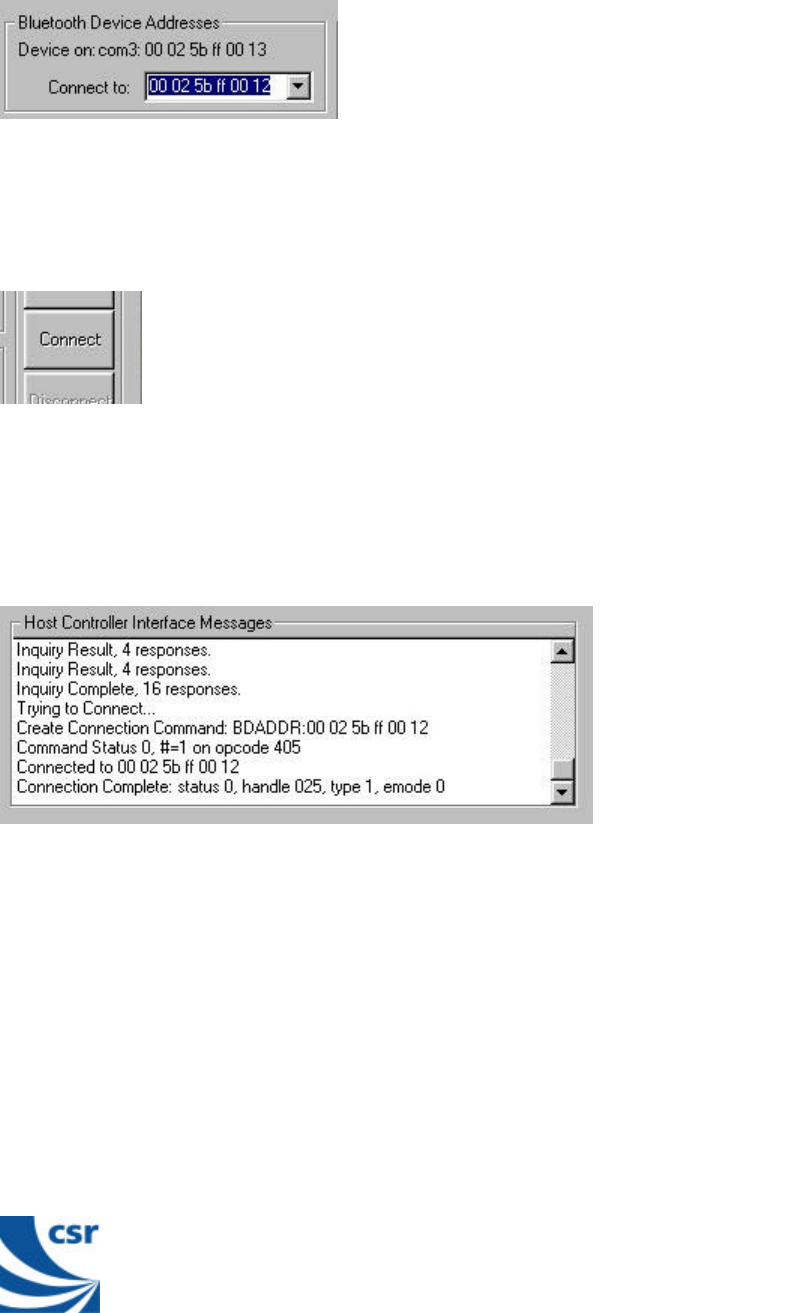

On completion of the Inquiry, the addresses of any Slaves found will be shown in the
“Bluetooth Device Addresses” list. Next select a Slave from the list as shown below.
It is only necessary that the the address is shown (selected) in the “Connect to:”
window, it is NOT necessary to hit return at this point.
Next click on the Connect button at the master
If only one slave is discovered then its address automatically appears in the “Connect
to:” window and it is then only necessary to click on the “Connect” button.

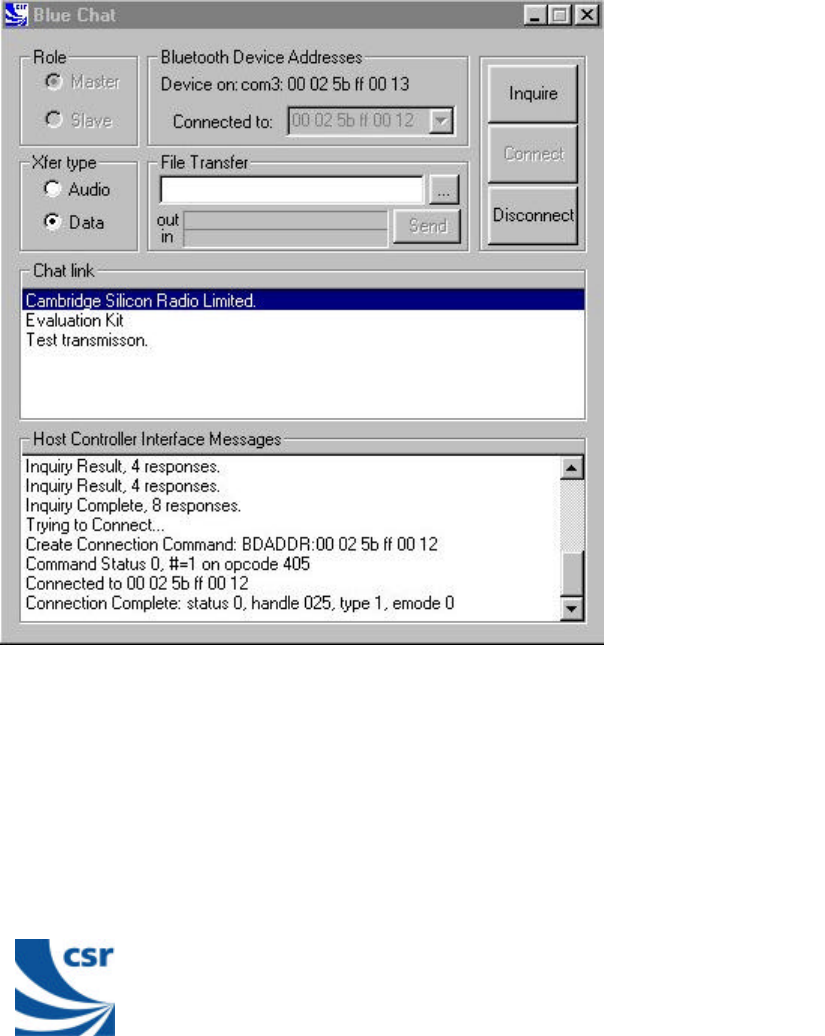

The ACL link to the Slave is now set up and the following results are shown at the
master
BC01-um-001c Page 15 of 26
9 SENDING TEXT BETWEEN SYSTEM UNITS OVER AN ACL
CONNECTION

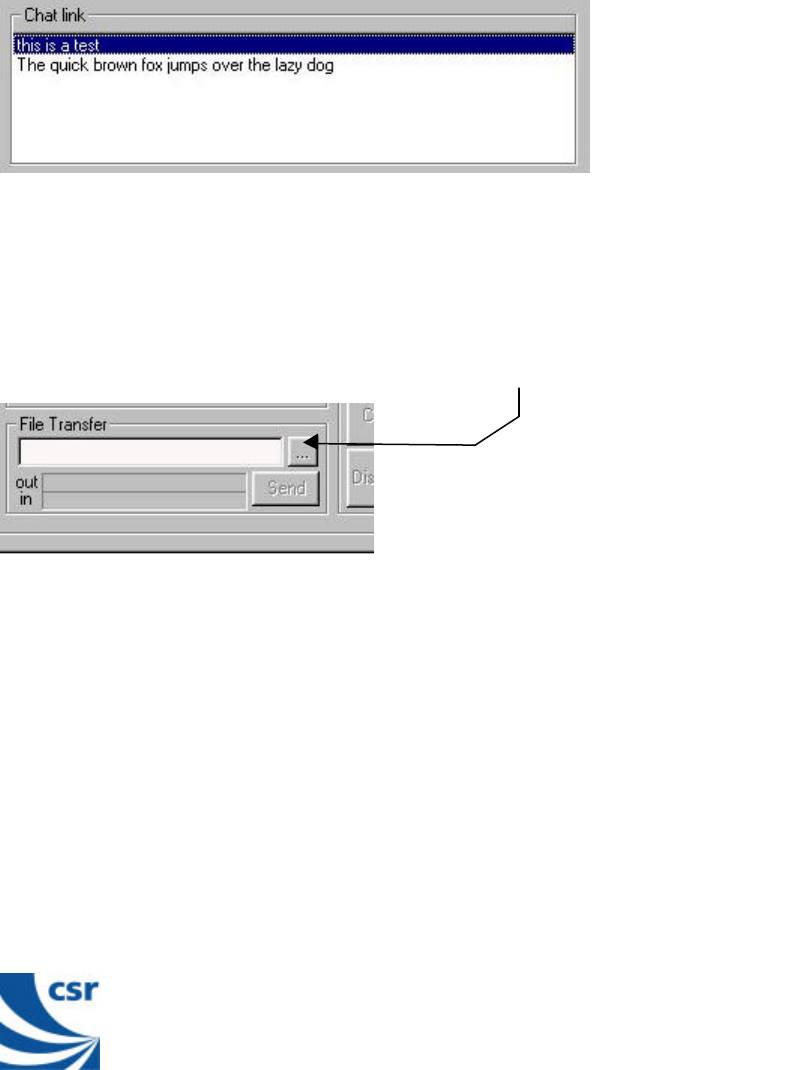

Once the connection between the two modules has been completed text data can be
sent by clicking on the Chat link window and typing a message. The text should
appear in the Chat link window at the other BlueChat PC. Text transfer is
bidirectional between master and slave (but remember to click on the “Chat link“
window first before typing at the other end)
10 SENDING A DATA FILE BETWEEN SYSTEM UNITS OVER AN
ACL CONNECTION
Data may be sent over ACL connection by clicking on the File Transfer select
button, at either the master or the slave
BC01-um-001c Page 16 of 26

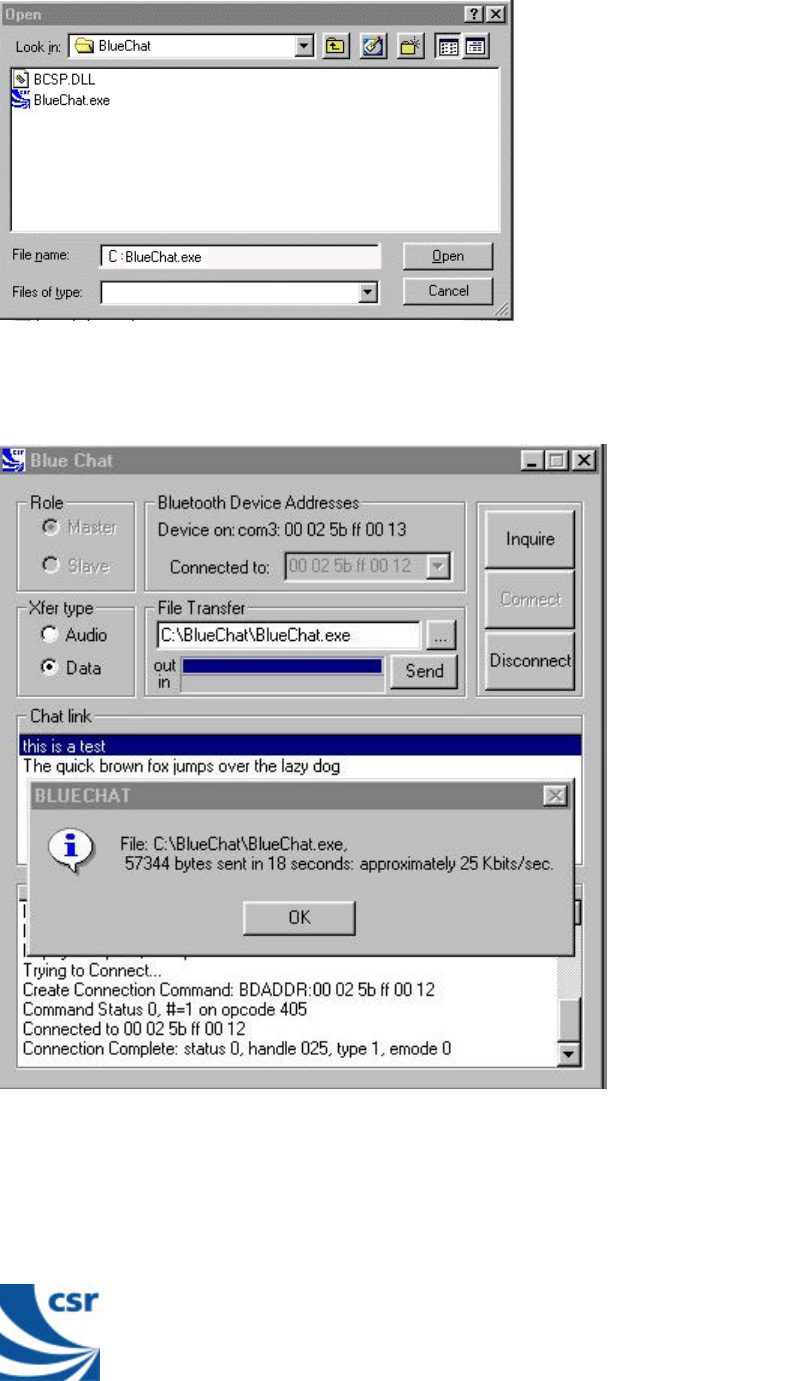

Select a file to transfer from your chosen directory :
Finally press the Send button to transmit the file. A progress bar is shown at during
the transmission and when completed the file transfer information is given.
BC01-um-001c Page 17 of 26
11 DISCONNECTING AN ACL CONNECTION
Pressing the Disconnect button at either system unit will stop the command transfer
and close down the ACL connection
It is necessary to re-establish the roles of master and slave after a disconnect.
However the BlueChat application will remember the Bluetooth device addresses
from previously discovered slaves so it is not necessary to repeat an Inquiry before re-
establishing an ACL connection.
12 INITIATING AND BREAKING AN AUDIO CONNECTION
At startup the default Xfer type is Data.
The audio connection can be established by selecting the Audio button after an ACL
connection has first been esatblished
Audio communication between the two headsets is now enabled.
To disconnect an audio connection press the Disconnect button.
It is necessary to re-establish the roles of master and slave after a disconnect.
However the BlueChat application will remember the Bluetooth device addresses
from previously discovered slaves so it is not necessary to repeat an Inquiry before re-
establishing an ACL connection. After a new connect the audio connection should be
re-established.
BC01-um-001c Page 18 of 26
13 SENDING CUSTOM HCI COMMANDS.

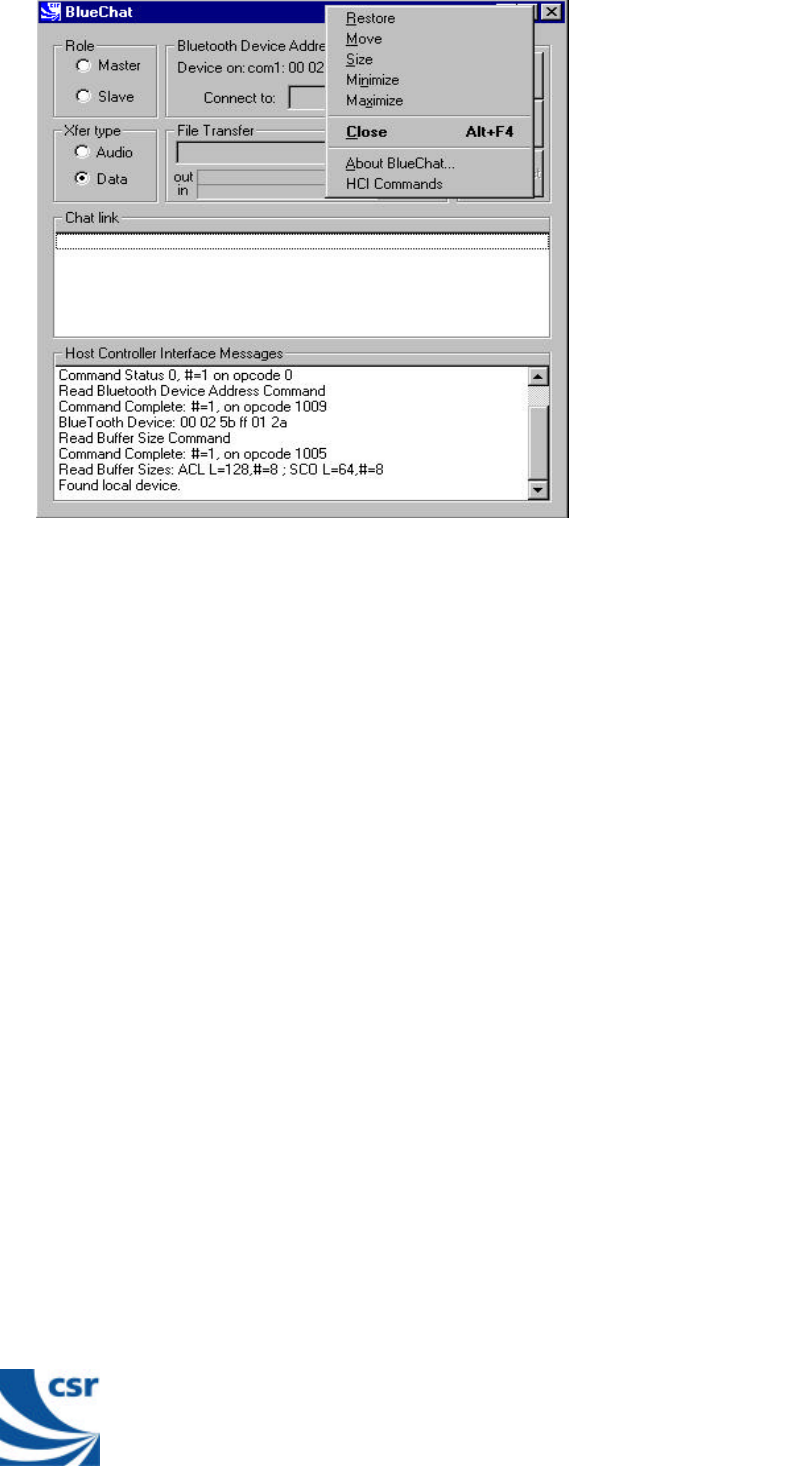

By editing Bluechat.HCI it is possible to add your own custom HCI commands these may be
transmitted across the Bluetooth link. This is achieved by pulling down the HCI command
menu by right clicking on the BlueChat toolbar and selecting “HCI commands” as shown
above.
14 FLASH LOADER INSTRUCTIONS.
The CASIRA Bluetooth Development kit is pre-configured with firmware on the
BlueCoreTM chips that allows data and voice communication. When new firmware
upgrades become available from CSR the user will need to install and use the Flash
loader Program supplied with the system to upload the new firmware into the
Systems Units.
The Flash loader program “CSR_Flashloader” allows the user to download to the
evaluation kit Flash memory. The first task of the program is to load into internal
RAM a small boot loader that takes data from the UART and stores the data to the
external Flash memory. Once the Flash upload is complete and verified the boot
loader in RAM will be over written by the executed program.
BC01-um-001c Page 19 of 26
14.1 Installing the CSR_Flashloader program.
System Requirements for Installing the Flash Loader Application
- Pentium processor-based personal computer
- Microsoft WindowsTM98 or WindowsTM NT v4.0 (service pack 3.0 or later)
- 16 MB of RAM (24 MB recommended)
- 10 MB of available hard disk space which includes room for the Firmware binary
files.
Installation instructions
1. Insert the CASIRA Bluetooth Development kit CDROM into your CDROM
drive.
2. From your CDROM run the “install.exe” file from the
“software\host\CSR_Flashloader” folder which will created on your hard
drive.
3. From your CSR_Flashloader directory create a shortcut for
CSR_Flashloader.exe and place it on your desktop or taskbar as required
for convenience.
4. Select close from the unzip menu to exit.
14.2 Connecting the SPI lead for Firmware updates.
Before using the CSR_Flashloader program the SPI programming lead must be
connected to the Evaluation module.
Commence as follows:
1 Remove all leads from the Evaluation module.
2 Undo the three lid retaining screws in the base of the module.
3 Connect the SPI programming lead to the connector marked “CN16 SIF”.
4 Connect the other end of the lead to the PC printer port.
5 Connect the DC connector to the “pwr” socket and verify the power LED is
lit.
BC01-um-001c Page 20 of 26
The unit is now ready for Flash Memory programming to commence.
14.3 Running CSR_Flashloader.
Click on the CSR_Flashloader shortcut that you created previously.
With the application running the display should be:
Click on the Stop XAP button to stop the internal processor .
NOTE: If you experience any problems running this software from a
laptop/notebook PC remove the link CN18 from the Casira motherboard as
illustrated above.
SPI connector
CN18
[Nearest the
reset button]
BC01-um-001c Page 21 of 26

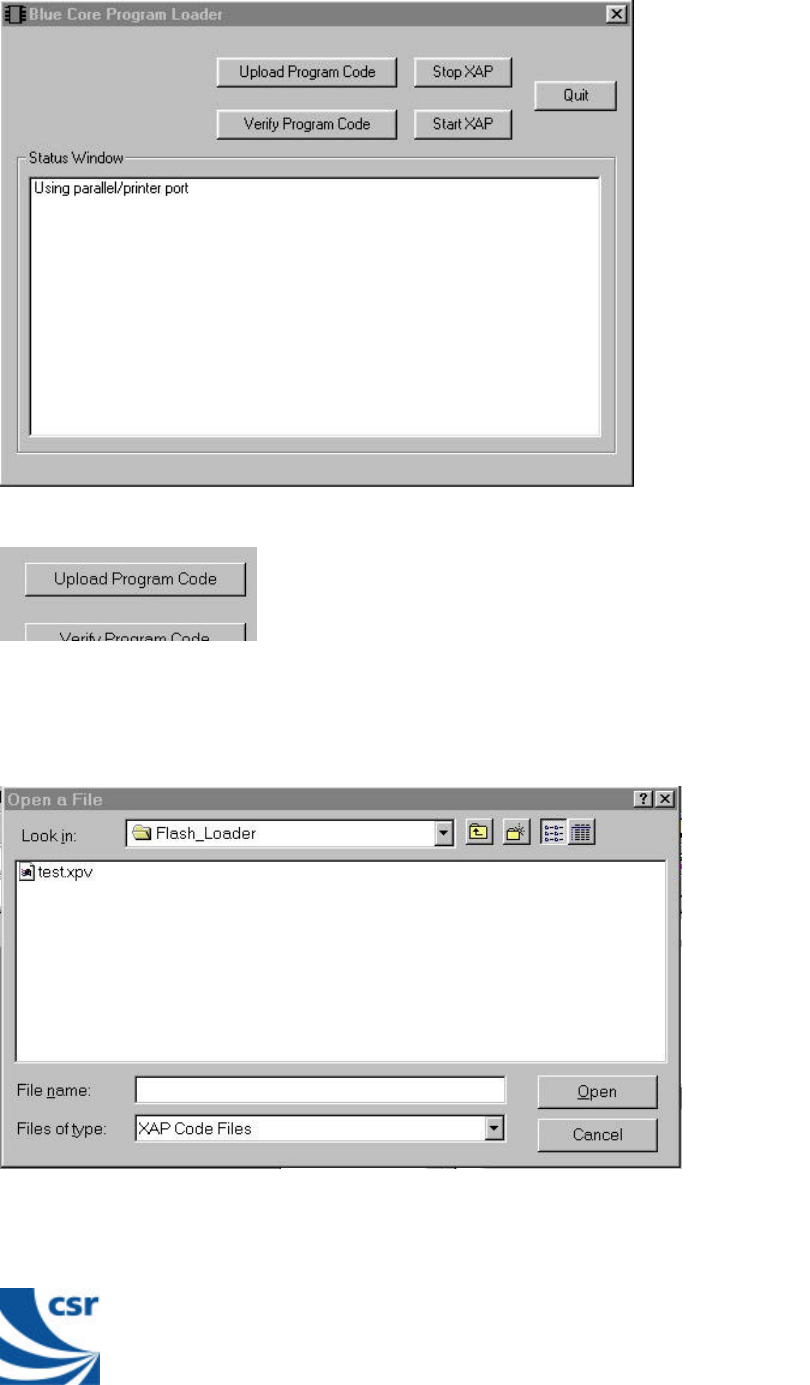

Click on the Upload Program Code button to select the file to upload.
A new dialog box is displayed.
Select the file to upload and click on the Open button.
BC01-um-001c Page 22 of 26

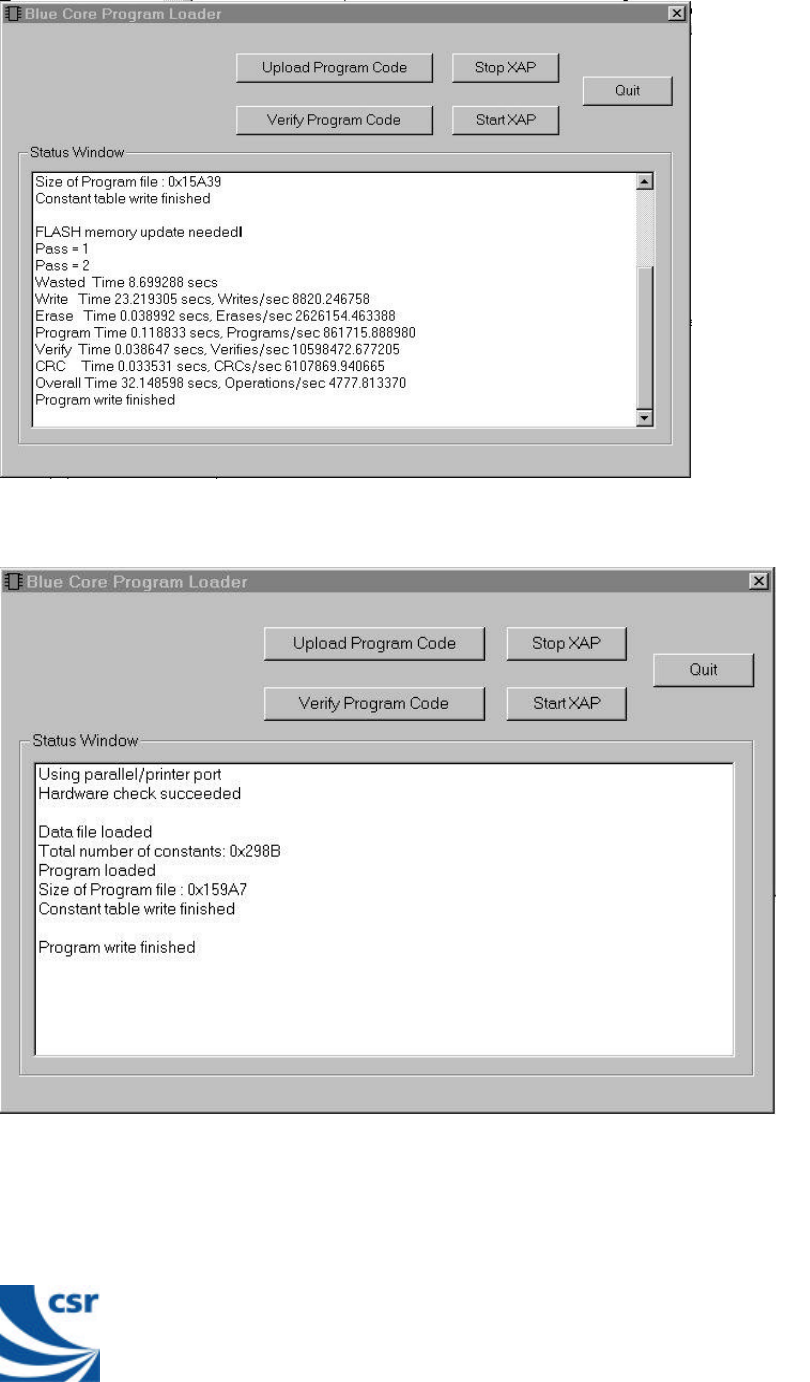

On completion of the upload the result window will be as shown below.
If the file to be uploaded is the same as the file already in Flash then the window will
be as follows:
Finally we need to verify the code that was uploaded.

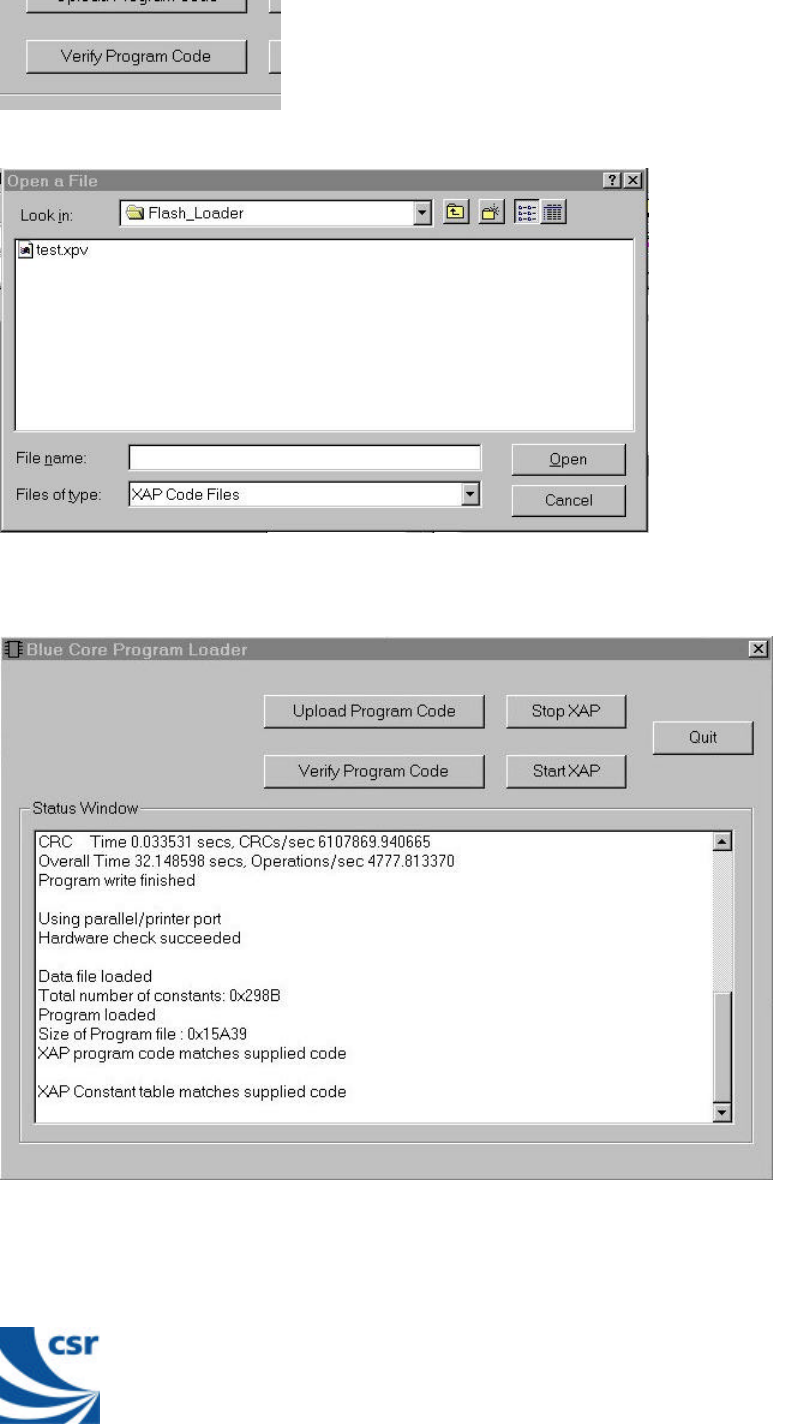

Click on the Verify Program Code button .
BC01-um-001c Page 23 of 26
A file select dialog box is displayed.
Select the file to verify against.
Verification of the uploaded code is shown in the information window.
BC01-um-001c Page 24 of 26
Now press the Start button or power cycle the CASIRA Bluetooth Development kit
Unit for the new code to take effect.
Selct “Quit” when loading and verification is complete.
BC01-um-001c Page 25 of 26
15 CAMBRIDGE CONSULTANTS LIMITED COMMAND AND WATCH
WINDOW APPLICATION.
The Command and Watch Window Application allows the user to issue commands
via the RS232 port of a PC running under Windows™ NT 4.0 to the Evaluation
system. The software allows the user to generate scripts that may be used as simple
applications using the CCL BlueStack (upper layers host software). This software
must be installed from the separate CDROM provided by CCL in the CASIRA
Bluetooth Development kit carry case.
Installation, configuration, operating instructions and further documentation on the
Cambridge Consultants Limited Command and Watch Window application, together
with BlueStack are included on the CCL CDROM.
16 TRADEMARK ACKNOWLEDGMENTS
BlueCoreTM is a trademary of Cambridge Silicon Radio Ltd.
BlueStack is a British-registered trademark of Cambridge Consultants Ltd
(GB2205395)
WindowsTM is a trademark of the Microsoft Corportation
BC01-um-001c Page 26 of 26
17 APPENDIX: KNOWN FIRMWARE / SOFTWARE DEFICIENCIES
AT ALPHA RELEASE:
1. The operation of the System Units can be unreliable when first operated. If the
inquire or connect fails during the first BlueChat session it is necessary to stop
and start the session again to correctly establish Bluetooth links (rather than
repeatedly select the Connect or Inquire buttons). It some cases it is necessary to
repeat this procedure until a connection is successfully established.
2. If a disconnect is made during a file transfer, the re-establishment of a connection
can result in a failure of the BlueChat Session.
3. Repeated switching between Audio and Data Xfer types results in a failure of the
BlueChat session.
4. If a failure of the BlueChat session occurs it is often necessary to cycle the power
supply or push the (internal) reset button of the system unit as well as restart the
BlueChat session
