CM-TX-99 Lazerpoint™ RF Transmitter
Installation Instructions
Application
Camden CM-TX-99 RF Transmitter is ideal for applications
where running additional cable is expensive or impractical.
Installation
CM-TX-99 is installed by aligning the pins with the socket on
the CM-120i/W Keypad or
CM-325 Touchless switch and plugging it in.
Pairing
CM-TX-99 is easily paired with Camden CM-RX-91 and CM-
RX-92 Lazerpoint™ Receivers.
Pairing the CM-120i/W Keypad
To learn the transmitter into the receiver, press the PB1 button
(on the CM-RX-91/92) using a small blunt object, such as a
small blade screwdriver or similar. Within 10 seconds, enter
a valid user code on the CM-120i/W Keypad connected to a
CM-TX-99 transmitter. The Green LED Array will ash once to
conrm enrollment.
Pairing the CM-325 Touchless Switch
To learn the transmitter into the receiver, press the PB1 button
(on the CM-RX-91/92) using a small blunt object, such as a
small blade screwdriver or similar. Within 10 seconds, wave
your hand in front of the CM-325 connected to a CM-TX-99
transmitter to activate the switch. The Green LED Array will
ash once to conrm enrolment.
If you wait longer than the 10-second period, the receiver will
time out of Learn Mode and revert back to standby. The LED
will then ash to indicate
the number of transmitters learned into the receiver.
Package Contents
1CM-TX-99 Lazerpoint™
RF Transmitter

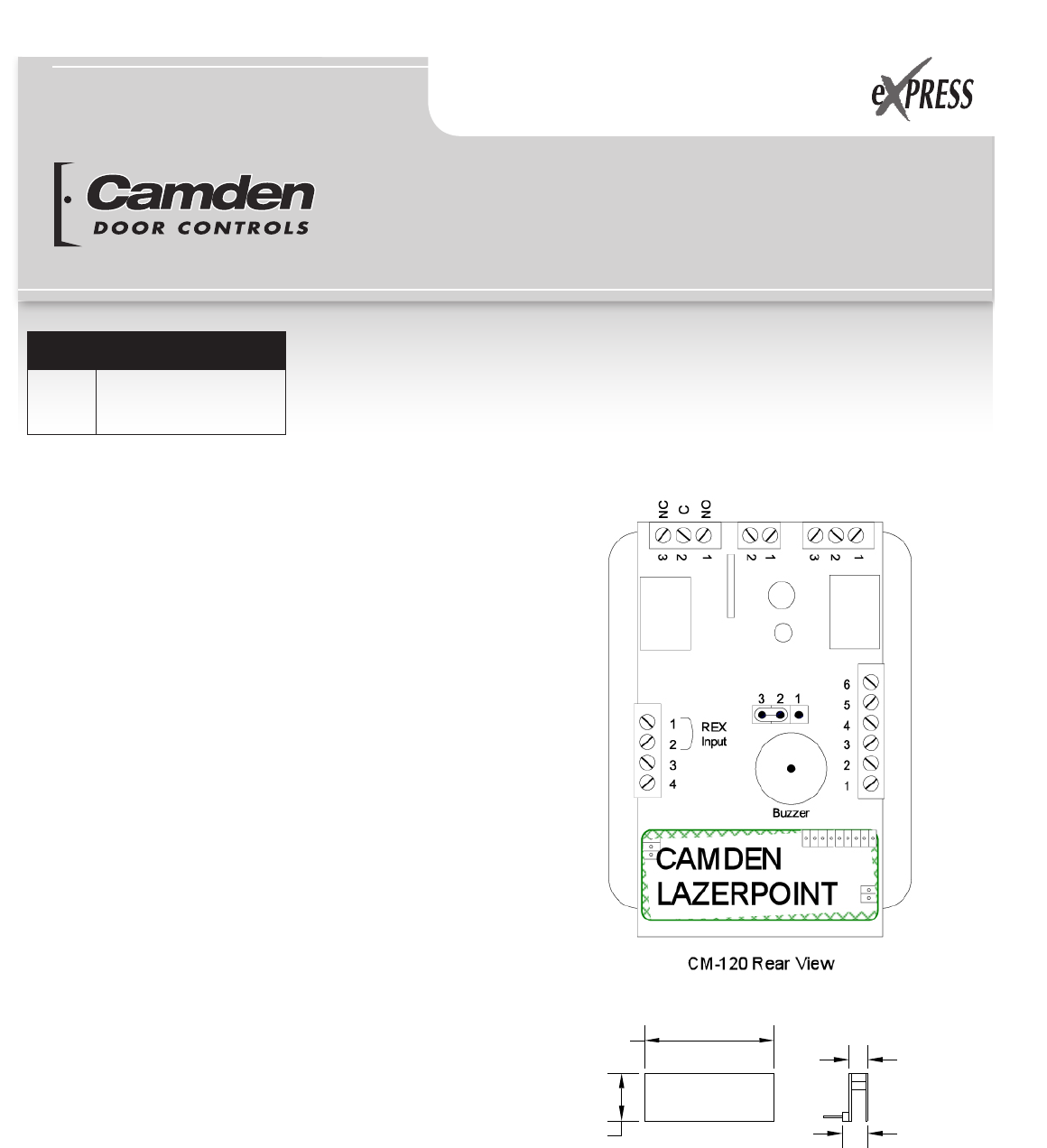

Description
CAMDEN DOOR CONTROLS CM-TX-99 RF Transmitter is designed for industrial and
commercial applications, where wireless operation is required. The transmitter is
a plug-in board designed to interface to the CM-120i/W Keypads and the CM-325
Touchless Switch.
(40mm)
1⁄”
(15mm)
9/16”
(6mm)
1/4”
(8mm)
5/16”
CAMDEN
LAZERPOINT
Page 1 of 2
Page 2 of 2
Push Buttons Key Pads Strikes Magnetic Locks Key Switches Relays & Timers Access Control
File: CM-TX-99 Lazerpoint RF
Transmitter-Manual-Eng .indd-Rev3
October 26, 2016
Part No.: 40-82B0148
5502 Timberlea Blvd.,
Mississauga, ON Canada
L4W 2T7
www.camdencontrols.com
Toll Free: 1.877.226.3369
Questions? Call us toll-free at 1-877-226-3369
CM-TX-99 Lazerpoint™ RF Transmitter Installation Instructions
IC & FCC INFORMATION FOR USERS
IC: 8725A-TX99
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes :
1) l’appareil ne doit pas produire de brouillage;
2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
FCC ID: 2AHAB-TX99
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Changes or modications made to this equipment not expressly approved by Camden Door Control could void the user’s authority to operate the equipment.
OEM Labeling Requirements
WARNING: The Original Equipment Manufacturer (OEM) must ensure that FCC labeling requirements are met. This includes a clearly visible label on the
outside of the nal product enclosure that displays the contents shown in the gure below.
Required FCC Label for OEM products containing the CM-TX99 Module.
Contains FCC ID: 2AHAB-TX99 & IC: 8725A-TX99
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference
and (2) this device must accept any interference received, including interferences that may cause undesired operation.
IMPORTANT: OEMs must test nal product to comply with unintentional radiators (FCC section 15.107 & 15.109) before declaring compliance of their nal
product to Part 15 of the FCC Rules.
