AUTOMATIC DOOR KEY SWITCHES
CM-160/170/180
APPLICATION
Camden automatic door key switches are designed to control automatic pedestrian
& overhead doors.
They may also be used for shunting, bypassing alarms, request to exit, timed
functions and many other applications. Camden key switches are versatile and can
be supplied in various logos and languages to suit any commercial, industrial or
residential application.
• 3 FORMATS: JAMB, HEADER OR
SINGLE GANG MOUNT
• 2, 3, OR 4 POSITION MAINTAINED AND
2 POSITION MOMENTARY MODELS
• VARIOUS LOGOS, AND LANGUAGES
• KEY REMOVABLE IN ALL MAINTAINED
POSITIONS
• UL/CSA APPROVED SWITCH RATED
4 AMPS @ 28V DC
Camden Door Controls CM-160/170/180 Series key switches are economical,
automatic door controls. All key switches are keyed alike, and keys are removable
in all maintained positions. The switches are UL/CSA approved, and rated 4 amps @
28 VDC.
The CM-160 1 11/16” x 3” compact lamacoid faceplate is designed for easy
installation directly in the aluminum jamb or operator header.
The CM-170 narrow stainless steel faceplate is 1 1/2” x 4 1/2”, and is designed to
mount in the aluminum jamb.
The CM-180 stainless faceplate is 2 3/4” x 4 1/2” and will fit on any standard
electrical box, flush or surface.
DESCRIPTION
CM-170/23
OFF
AUTO H.O.
AUTOMATIC
DOOR
(114mm)
4 ½”
(44mm)
1 ¾”
DAY NIGHTOFF
AUTOMATIC
DOOR
(76mm)
3”
(43mm)
1 ⁄”
CM-160/23
CM-160 CM-170
CM-180/24
FEATURES
Listed
Components

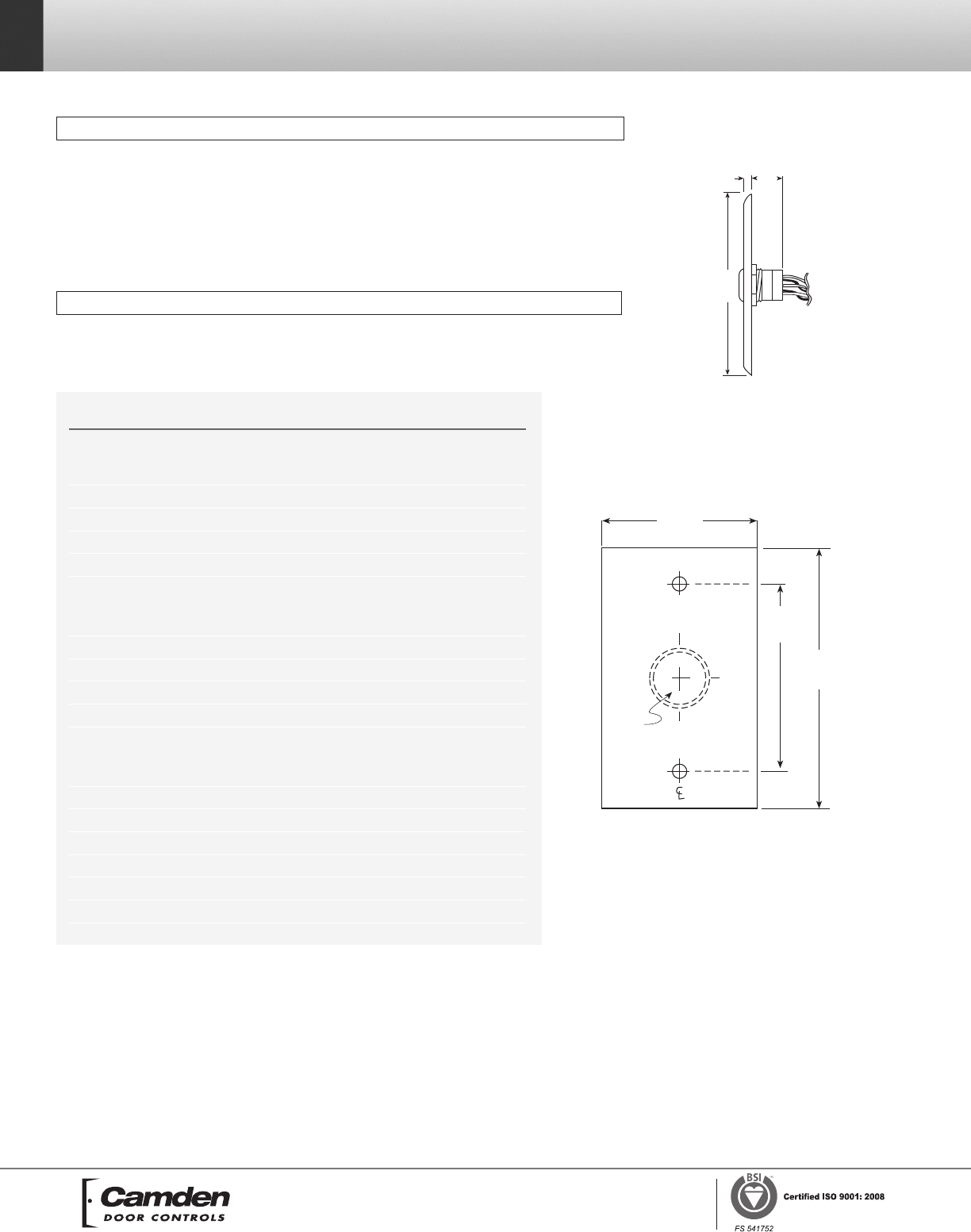

5502 Timberlea Blvd. Mississauga, ON Canada L4W 2T7 • Toll Free: 1 877 226-3369 (CAMDEN9)
Tel: (905) 366-3377 • Fax: (905) 366-3378 • E-mail: info@camdencontrols.com • www.camdencontrols.com
LIT-SP-KYSWTCHR1
The key switches to be used throughout the site/complex shall be Camden Door
Controls CM-160, 170, or 180 series key switches.
The switches shall all be keyed alike, with the key removable in all maintained
positions. Faceplates shall be constructed of engraved plastic, or stainless steel with
laser etched lettering. Switches shall be rated at a minimum of 4 amps @ 28V AC.
AUTOMATIC DOOR KEY SWITCHES
ARCHITECTS /ENGINEERS SPECIFICATIONS
ORDERING INFORMATION
All CM-160/170/180 series key switches are complete ready-to-install assemblies.
They are supplied with mounting hardware, 2 keys and 6” wire leads.
1" D
CUT OUT
FOR SWITCH
(83mm)
3 ¼”
(70mm)
2 ¾”
(114mm)
4 ½”
MODEL DESCRIPTION
1 11/16” X 3” LAMACOID
CM-160/20 OFF-OPEN MOMENTARY
CM-160/21 OFF-AUTO MAINTAINED
CM-160/22 OFF-AUTO-HOLD OPEN MAINTAINED
CM-160/23 OFF-DAY-NIGHT MAINTAINED
CM-160/24 OFF-EXIT-AUTO-HOLD OPEN MAINTAINED
1 1/2” X 4 1/2” NARROW STAINLESS
CM-170/20 OFF-OPEN MOMENTARY
CM-170/21 OFF-AUTO MAINTAINED
CM-170/22 OFF-AUTO-HOLD OPEN MAINTAINED
CM-170/23 OFF-DAY-NIGHT MAINTAINED
CM-170/24 OFF-EXIT-AUTO-HOLD OPEN MAINTAINED
2 3/4” X 4 1/2” SINGLE GANG STAINLESS
CM-180/20 OFF-OPEN MOMENTARY
CM-180/21 OFF-AUTO MAINTAINED
CM-180/22 OFF-AUTO-HOLD OPEN MAINTAINED
CM-180/23 OFF-DAY-NIGHT MAINTAINED
CM-160/24 OFF-EXIT-AUTO-HOLD OPEN MAINTAINED
CM-A126 2 KEYS FOR KEY SWITCHES
CM-170
CM-180
(114mm)
4 ½”
(19mm)
¾”
(5mm)
3⁄16”
