INTRODUCTION
Congratulations on your purchase of this IEEE 802.11b WLAN CardBus
Adapter.
This manual helps to get familiar with the WLAN CardBus Adapter. This
manual contains detailed instructions in operation of this product. Please keep
this manual for future reference.
With a WLAN (IEEE 802.11b) CardBus Adapter, a laptop computer or a
station can communicate with another computer in a wireless way. Easy-to-
use utilities are bundled with WLAN CardBus Adapter for configuration,
monitoring, and diagnosis purposes.
WLAN CardBus Adapter can wirelessly transmit and receive data,
minimizing the need for wired connections, at a speed of up to eleven megabit
per second. With WLAN CardBus Adapter, you can locate your Notebook PC
or station wherever you want without wires and cables.
WLAN CardBus Adapter provides users with an access to real-time
information anywhere in their organization. The mobility provides
productivity and service, which are not available under wired networks. The
WLAN Card Bus Adapter configuration is easy to change from peer-to-peer
networks, suitable for a small number of users, to full infrastructure networks
of thousands of users that allow roaming around a broad area.
Overview of this User’s Guide
Introduction. Describes the WLAN CardBus Adapter.
Unpacking and Setup. Helps you get started with the basic installation of the
WLAN CardBus Adapter.
Hardware Installation. Describes the LED indicators of the Adapter.
Software Installation. Tells how to setup the driver and the utility setting.
Technical Specifications. Lists the technical (general, physical and
environmental) specifications of the WLAN CardBus Adapter.
3
UNPACKING AND SETUP
This chapter provides unpacking and setup information for the WLAN
CardBus Adapter.
Unpacking
Open the box of the WLAN CardBus Adapter and carefully unpack it.
The box should contain the following items:
u One 802.11b WLAN CardBus Adapter
u One Driver & Utility CD-ROM
u Quick Installation Guide
If any item is found missing or damaged, please contact your local
reseller for replacement.
Setup
The setup of the WLAN CardBus Adapter can be performed using the
following steps:
u Visually inspect the CardBus Adapter and make sure that it is
fully plugged in to the CardBus slot.
u Make sure that there is a well environment that there is no much
intrusion to have a better connection.
5
HARDWARE INSTALLATION
LED Indicator
PWR (POWER)
The PWR indicator lights green when the WLAN CardBus Adapter is
receiving power, otherwise, it is off.
LNK (LINK)
The LNK indicator blinks green when the WLAN CardBus Adapter is
connected to a network successfully. Otherwise the LNK indicator is
off.
Check the installation
The LEDs of the WLAN CardBus Adapter are clearly visible and the
status of the network link can be seen instantly:
1. Once the device is plugged to the station’s CardBus slot, the
PWR LED of the WLAN CardBus Adapter will light up
indicating a normal status.
2. When the device plugged to the station’s CardBus slot and the
driver was installed, the LNK LED will start blinking and off
three seconds continuously, it means that the device is starting to
scan the 802.11b wireless devices near the WLAN Card Bus
Adapter.
3. While the WLAN CardBus Adapter linked up to the Access Point
or to other Wireless LAN station, the LNK LED will always light
up.
7
SOFTWARE INSTALLATION
This section will lead you to install the driver and utility of the WLAN
CardBus Adapter.
Windows 98/ME/2000 Driver Installation
1. Once you plug the WLAN CardBus Adapter into your computer’s
CardBus slot, the Windows OS will auto detect a new device and
need to install the driver.
2. Place your WLAN CardBus Adapter’s Driver & Utility CD-ROM
to your CD-ROM Drive, as the Windows will auto search the
driver or refer to the
“D:\CardBus\Drivers\2k_me_98\Netr8180.inf ” in the dialog box
(D:\ will depends on where the CD-ROM drive is located).
Windows XP Driver Installation
1. Once you plug the WLAN CardBus Adapter into your
computer’s CardBus slot, the Windows OS will auto detect a
new device and need to install the driver.
2. Place your WLAN CardBus Adapter’s Driver & Utility CD-
ROM to your CD-ROM Drive, as the Windows will auto search
the driver or refer to the “D:\CardBus\Drivers\xp \Netr8180.inf ”
in the dialog box (D:\ will depends on where the CD-ROM drive
is located).
8
Windows 98/ME/2000/XP WLAN Utility Installation
1. Insert the WLAN CardBus Adapter Driver & Utility CD-ROM
into computer’s CD-ROM Drive and it will automatically run a
setup menu. In some specific setting on Windows system, you
may need to proceed the software manually, press the Windows
Start → Run → type “D:\CardBus\Setup.exe” in the dialog box
(D:\ will depend on where the CD-ROM drive is located).

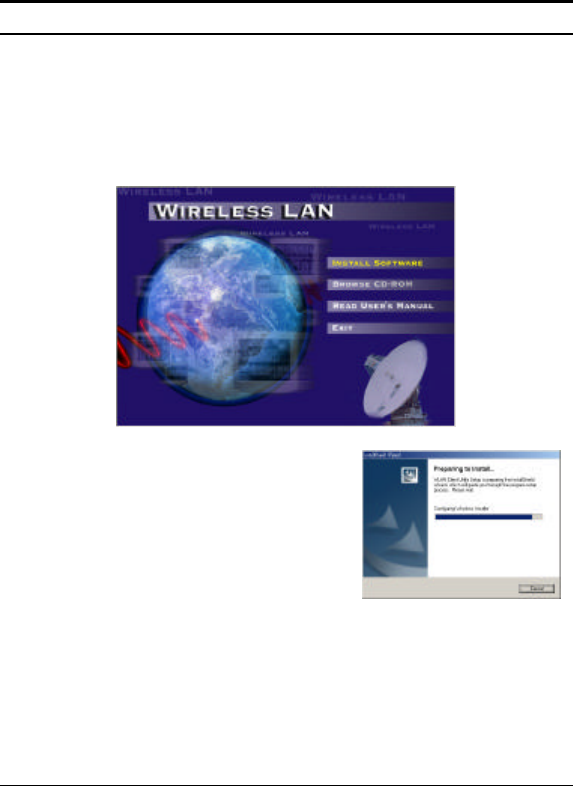

2. Then select Install Software →
WLAN CardBus Adapter on the
menu. The installation program will
help you to setup the WLAN
CardBus utility.
Be noted that the Windows XP have
its own Wireless Utility; you can either use the utility of
Windows XP or the provided utility.
3. Follow the procedure of the installation program.
9
4. After finish the installation, remove the CD-ROM and plugged
in the WLAN CardBus Adapter, you will see the icon on right
side bottom of the Windows task bar.
WLAN Utility Setting
With the WLAN CardBus Adapter utility, users can configure all the
functions provided by the WLAN Monitor Utility. Double -click the
utility icon that appears in the taskbar.

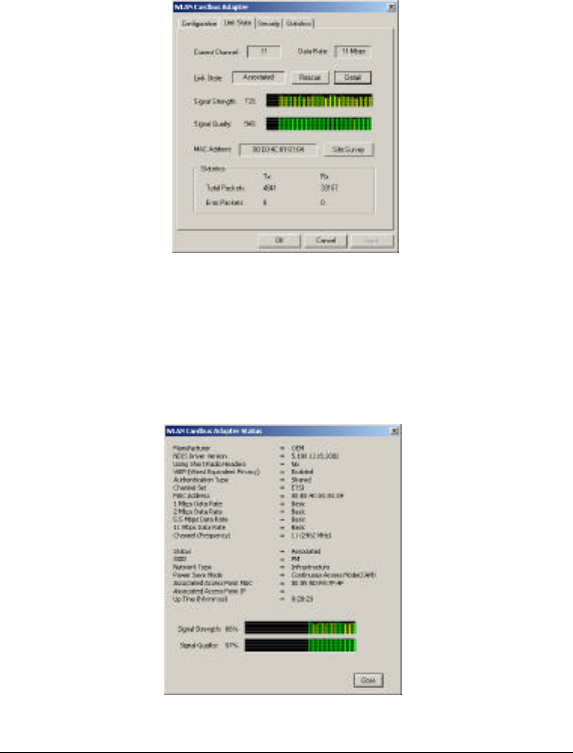

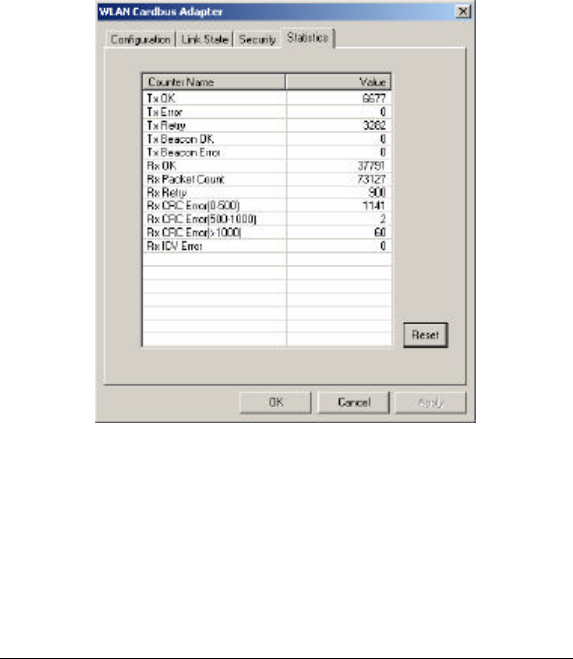

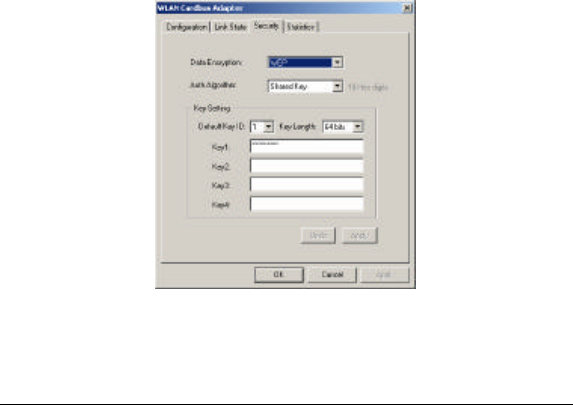

The WLAN Monitor Utility includes four tabs: Configuration, Link
State, Security and Statistics.
Configuration
As you enter the Configuration screen, you will see the current setting
appears in the screen.
10
Ø Network Type:
If you want to connect with Access Point, please set the mode as”
Infrastructure” mode. If you have more stations and just want to set
them as local network, please set the mode as ” Ad-Hoc” mode.
Ø Channel:
It shows radio channel numbers that used for WLAN networking.
The channel number can be set only under the Ad-Hoc operation
mode. In Ad-Hoc mode stations, each station must have the same
channel numbers and SSID.
In Infrastructure mode, the WLAN CardBus Adapter will
automatically detect the channel number of the Access Point.
Ø SSID:
The SSID differentiates one WLAN group name from another; so all
access points and all devices attempting to connect to a specific
WLAN group name must use the same SSID. A device will not be
permitted to join the BSS unless it can provide the unique SSID.
If the SSID parameter is “ANY”, it will detect the strongest signal of
the wireless station.
Ø Data Rate:
You can choose one of the transmission rates as follows, 11Mbps,
5.5Mbps, 2Mbps, 1Mbps, and Auto. The Auto will automatically
detect the suitable linking transfer rate and auto fall back when the
signal is not too strong to transmit data, it will auto fall back from
11Mbps to 5.5Mbps, 2Mbps and 1 Mbps.
Ø Fragment Threshold:
11
Fragmentation Threshold is a way of transmitting the packets that will
be fragmented. Choose a setting within a range of 256 to 2432 bytes.
It is recommended to fragment the packet when the link quality is bad,
it is to prevent the wasting time of resending a long packet that is lost.
Ø RTS:
The RTS/CTS Threshold is a station initiates the process by sending a
RTS frame , the other ends receives the RTS and responds with a CTS
frame, the station must receive a CTS frame before sending the data
frame. This is to prevent the collisions by each station. Choose a
setting within a range of 0 to 2432 bytes. It is recommended limiting a
long packet to prevent each station waiting too long to transmit a data.
Ø Power Save:
To set your WLAN CardBus Adapter as power saving mode, select
“CAM”, “Max” or “Fast”.
Ø Use Short Preamble:
The usage of the preamble is to limit the packet size of the data to
transmit. It is recommended to choose the short preamble when the
link quality is bad, it is to prevent the wasting time of resending a long
packet that is lost.
When the setting is messy, press “Undo” button to recover to the last
setting, and press “Apply” to save the current setting.
Link State
12
As you enter the Link State screen, you will see the current setting.
To rescan the signal between the wireless station and your WLAN
CardBus Adapter, click the “Rescan” button.
To display the detail information, click on the “Detail” button.
The Signal Strength and Signal Quality will be shown in the screen
below under the Link State of the utility,

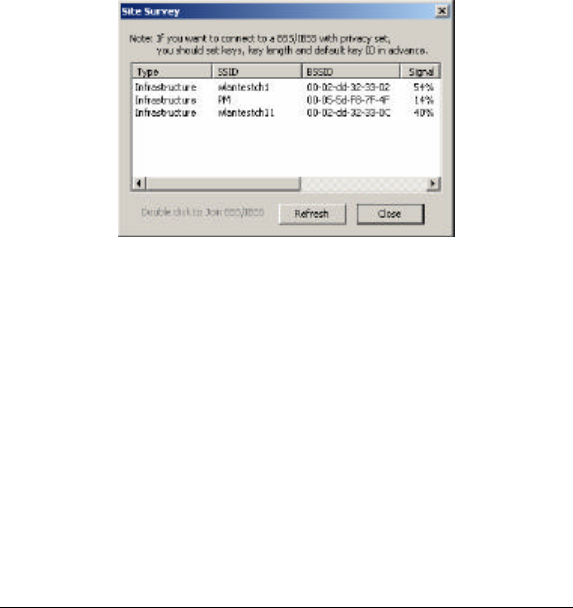

Ø Site Survey
13
The screen shows all the messages of Wireless devices around your
Wireless CardBus Adapter. The messages of the wireless devices
include Network Type, SSID, BSSID and the Signal.
You can click the Refresh button to find the new wireless devices, and
then you can double-click the BSSID to choose the wireless station
that you want to connect.
Click “Refresh” button to rescan the wireless station around your
WLAN CardBus Adapter.
14
Security
This function is used to protect wireless communication from
eavesdropping. A secondary function of encryption is to prevent
unauthorized access to a wireless network, and it can be achieved by
using the Encryption function.
Ø Data Encryption:
Select WEP for data encryption or No Encryption.
Ø Auth Algorithm:
Open System Authentication algorithm is mostly used. In Shard Key
Authentication algorithm, you must have security on, the algorithm
should be different, and some steps use packets with encryption by
transferring a challenge text. In order to choose which authentication
algorithm will be used, you must know which one the AP supports
first. Most AP only supports Open System.
15
Ø Key Setting #1 ~ #4:
You can type the key that you want to use from Key#1 to Key #4, and
the key that you type will be the encryption between the station that
you connected with, if you select 64bit, you must type 10 values in the
following range (0~F, hexadecimal). Besides, if you select 128bit, you
must type 26 values (0~F, hexadecimal).
Follow the steps below to set your WEP:
1. Select the Encryption type: 64bit or 128bit.
2. Type WEP Key: If you select 64bit, you must type 10 values in
the following range (0~F, hexadecimal) from Key1 to Key 4
space. Besides, if you select 128 bit, you must type 26 values
(0~F, hexadecimal) in each WEP Key from Key 1 to Key 4.
3. Select WEP Key: Select one of WEP Key from Key1 to Key4
for using.
4. Select the Authentication Type: Open System or Shared Key.
Note: After all the settings are completed, click on Submit button to save the setting.
16
Statistics
The following screen shows various statistics including the Data
Packets, Management Packets and Rejected Packets in transmitting
and receiving status.
You can click the Reset button to reset Statistics Tab.
17
TECHNICAL SPECIFICATIONS
General
Radio Technology IEEE 802.11b Direct Sequence Spread Spectrum (DSSS)
Interface CardBus Type II specification 32bit data bus
Data Transfer Rate 1, 2, 5.5, 11Mbps (auto sense)
Receiver Sensitivity 11Mbps: Typical -80dBm @ 8% PER (Packet Error Rate)
2Mbps: Typical -87dBm @ 8% PER (Packet Error Rate)
Frequency Range 2400 ~ 2497 MHz ISM band (channels 1 ~ 14)
Modulation Schemes
DBPSK/DQPSK/CCK
Channels 1~11 channels (FCC), 1~13 channels (ETSI), 1~14 channels (Japan)
Media Access
Protocol CSMA/CA with ACK
Security 64/128-bits WEP Encryption
Diagnostic LED PWR (Power) & LNK (Link status)
Antenna Integrated Microstrip dual diversity antennas
Physical and Environmental
Driver Support Windows 98, Windows 2000, Windows ME, Windows XP
Continuous Current
Consumption 250mA typ. for receive mode, 450mA typ. for transmit mode
Temperature Operating: 0° ~ 40° C, Storage: -25° ~ 70° C
Humidity 10% ~ 95% RH, no condensation
Dimensions 86 x 61 x 14 mm (W x H x D)
Certifications FCC Part 15.247 for US, ETS 300 328 for Europe,
ARIB STD-T66 for Japan
