Cameo Communications WLG1600 802.11g 54Mbps WIRELESS LAN COMPACT FLASH DRIVE User Manual WLG 1600 v001oc
Cameo Communications Inc 802.11g 54Mbps WIRELESS LAN COMPACT FLASH DRIVE WLG 1600 v001oc
users manual
802.11g 54Mbps Wireless LAN
Compact Flash Adapter
Brand: CAMEO; Model: WLG-1600
User’s Guide
![](/img.php?id=714308&img=bg2.png)
i
Regulatory notes and statements
Wireless LAN, Health and Authorization for use
Radio frequency electromagnetic energy is emitted from Wireless LAN devices.
The energy levels of these emissions however are far much less than the
electromagnetic energy emissions from wireless devices like for example mobile
phones. Wireless LAN devices are safe for use frequency safety standards and
recommendations. The use of Wireless LAN devices may be restricted in some
situations or environments for example:
·On board of airplanes, or
·In an explosive environment, or
·In case the interference risk to other devices or services is perceived or identified
as harmful
In case the policy regarding the use of Wireless LAN devices in specific
organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial
plants, private buildings etc.) is not clear, please ask for authorization to use these
devices prior to operating the equipment.
Regulatory Information/disclaimers
Installation and use of this Wireless LAN device must be in strict accordance with
the instructions included in the user documentation provided with the product. Any
changes or modifications made to this device that are not expressly approved by the
manufacturer may void the user’s authority to operate the equipment. The
Manufacturer is not responsible for any radio or television interference caused by
unauthorized modification of this device, of the substitution or attachment.
Manufacturer and its authorized resellers or distributors will assume no liability for
any damage or violation of government regulations arising from failing to comply
with these guidelines.
USA-FCC (Federal Communications Commission) statement
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause
undesired operation of this device.
FCC Radio Frequency Exposure statement
This Wireless LAN radio device has been evaluated under FCC Bulletin OET 65
and found compliant to the requirements as set forth in CFR 47 Sections 2.1091,
2.1093, and 15.247 (b) (4) addressing RF Exposure from radio frequency devices.
![](/img.php?id=714308&img=bg3.png)
ii
The radiated output power of this Wireless LAN device is far below the FCC radio
frequency exposure limits. Nevertheless, this device shall be used in such a manner
that the potential for human contact during normal operation is minimized.
When nearby persons has to be kept to ensure RF exposure compliance, in order to
comply with RF exposure limits established in the ANSI C95.1 standards, the
distance between the antennas and the user should not be less than 20 cm.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses, and can radiate radio frequency energy. If not
installed and used in accordance with the instructions, it may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try and correct the interference by one or more of the following
measures:
1. Reorient or relocate the receiving antenna.
2. Increase the distance between the equipment and the receiver.
3. Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
Export restrictions
This product or software contains encryption code that may not be exported or
transferred from the US of Canada without an approved US Department of
Commerce export license.
Safety Information
Your device contains a low power transmitter. When device is transmitted it sends
out radio frequency (RF) signal.
CAUTION: To maintain compliance with FCC’s RF exposure guidelines, this
equipment should be installed and operated with minimum distance 20cm between
the radiator and your body. Use on the supplied antenna. Unauthorized antenna,
modification, or attachments could damage the transmitter and may violate FCC
regulations.
![](/img.php?id=714308&img=bg4.png)
iii
The antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating
in conjunction with any other antenna or transmitter.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
Protection requirements for health and safety – Article 3.1a
Testing for electric safety according to EN 60950 has been conducted. These are
considered relevant and sufficient.
Protection requirements for electromagnetic compatibility – Article
3.1b
Testing for electromagnetic compatibility according to EN 301 489-1, EN 301 489-
17 and EN 55024 has been conducted. These are considered relevant and sufficient.
Effective use of the radio spectrum – Article 3.2
Testing for radio test suites according to EN 300 328 has been conducted. These are
considered relevant and sufficient.
經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得擅自變更頻
率、加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象時,應立
即停用,並改善至無干擾時方得繼續使用。
前項合法通信,指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
![](/img.php?id=714308&img=bg5.png)
iv
TABLE OF CONTENT
Introduction ................................................................................................ 1
Overview of this User’s Guide................................................................. 1
Unpacking and Setup.................................................................................. 2
Unpacking ................................................................................................ 2
Setup......................................................................................................... 2
Connecting the Compact Flash I/O .......................................................... 2
Hardware Installation ................................................................................. 4
LED Indicator........................................................................................... 4
Check the installation............................................................................... 4
Software Installation................................................................................... 5
Windows 98se/ME/2000/XP Utility and Driver Installation ................... 5
Wireless Utility Setting ............................................................................ 7
![](/img.php?id=714308&img=bg6.png)
1
INTRODUCTION
Congratulations on your purchase of this IEEE 802.11g Wireless compact flash
Adapter.
This manual helps to get familiar with the Wireless compact flash Adapter. This
manual contains detailed instructions in operation of this product. Please keep this
manual for future reference.
With a Wireless LAN (IEEE 802.11g) compact flash Adapter, a desktop or laptop
computer can communicate with another computer in a wireless way. Easy-to-use
utilities are bundled with Wireless compact flash Adapter for configuration,
monitoring, and diagnosis purposes.
Wireless compact flash Adapter can wirelessly transmit and receive data,
minimizing the need for wired connections, at a speed of up to fifty-four megabit
per second.
Wireless compact flash Adapter provides users with an access to real-time
information anywhere in their organization. The mobility provides productivity and
service, which are not available under wired networks. The Wireless compact flash
Adapter configuration is easy to change from peer-to-peer networks, suitable for a
small number of users, to full infrastructure networks of thousands of users that
allow roaming around a broad area.
Overview of this User’s Guide
Introduction. Describes the Wireless compact flash Adapter and its features.
Unpacking and Setup. Helps you get started with the basic installation of the
Wireless compact flash Adapter.
Hardware Installation. Describes the LED indicators of the Adapter.
Software Installation. Tells how to setup the driver and the utility setting.
Technical Specifications. Lists the technical (general, physical and environmental)
specifications of the Wireless compact flash Adapter.
![](/img.php?id=714308&img=bg7.png)
2
UNPACKING AND SETUP
This chapter provides unpacking and setup information for the Wireless compact
flash Adapter.
Unpacking
Open the box of the Wireless compact flash Adapter and carefully unpack it. The
box should contain the following items:
One 802.11g Wireless LAN compact flash Adapter
One Driver & Utility CD-ROM
If any item is found missing or damaged, please contact your local reseller for
replacement.
Setup
The setup of the Wireless compact flash Adapter can be performed using the
following steps:
Visually inspect the compact flash connector and make sure that it is fully
plugged in to the system’s compact flash I/O.
Make sure that there is a well environment that there is no much intrusion to
have a better connection.

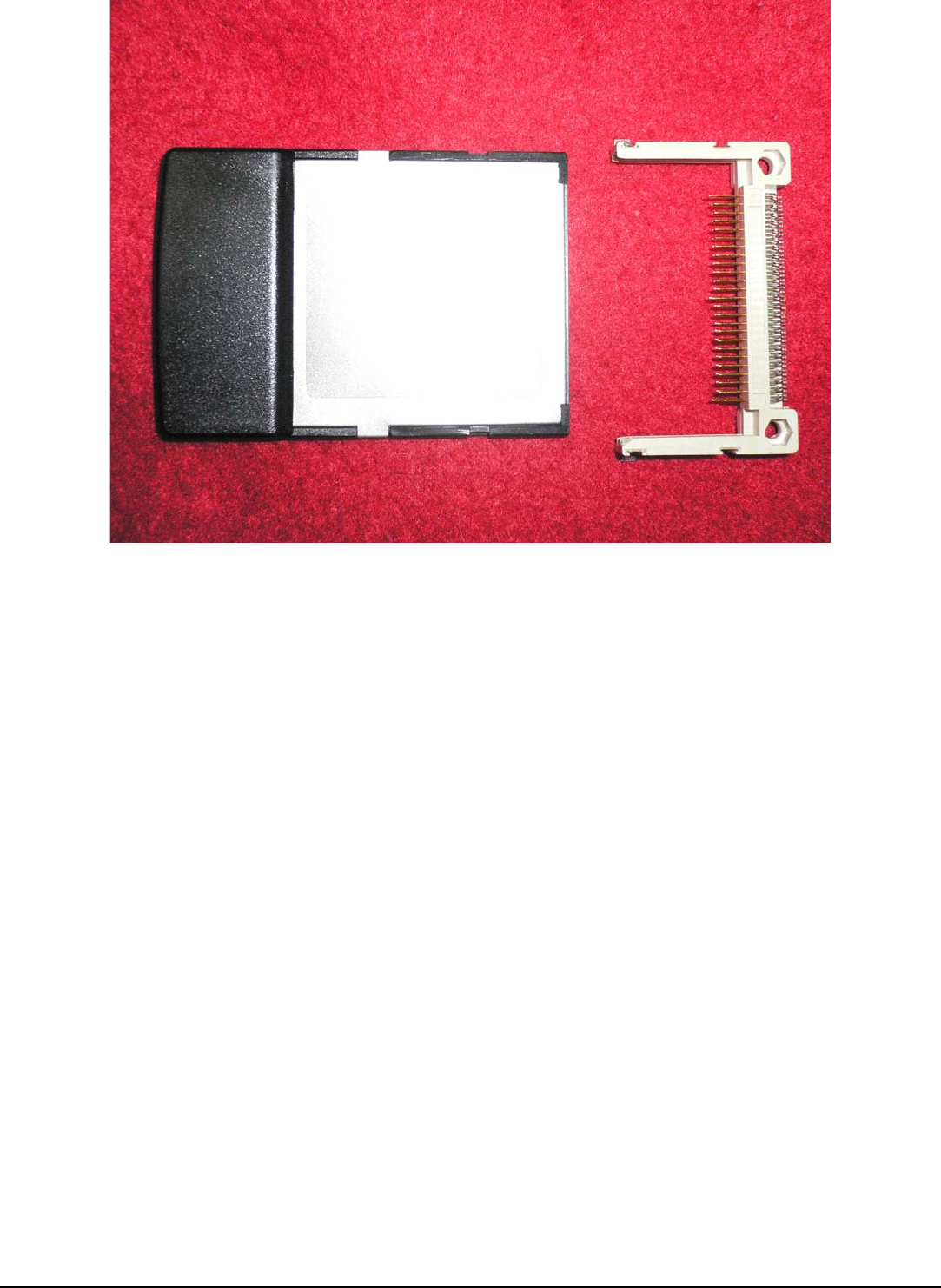

Connecting the CF I/O
The CF I/O that comes with the Adapter has Type I connectors on both ends. One is
a male Type I connector that plugs into the CF I/O, and the other is a female Type I
connector that plugs into the Adapter.
This CF I/O have a special function, it can be twist to any direction to have the best
connection in the air. It is recommended that the Wireless Compact Flash Adapter
was vertically plane with the ground.
![](/img.php?id=714308&img=bg8.png)
3
![](/img.php?id=714308&img=bg9.png)
4
HARDWARE INSTALLATION
LED Indicator
LNK (LINK)
The LNK indicator lights green when the Wireless LAN is connected to a network
successfully. Otherwise the LNK indicator blinks green while the Wireless compact
flash Adapter is scanning the wireless device.
Check the installation
The LEDs of the Wireless compact flash Adapter are clearly visible and the status
of the network link can be seen instantly:
1. When connected to the compact flash I/O and the driver was installed, the LNK
LED will start blinking, it means that the device is starting to scanning a 802.11g
wireless device near the Wireless compact flash Adapter.
2. While the Wireless compact flash Adapter linked up to the Access Point or to
other Wireless LAN station, the LNK LED will always light up.
![](/img.php?id=714308&img=bga.png)
5
SOFTWARE INSTALLATION
This section will lead you to install the driver and utility of the Wireless Compact
Flash Adapter.
Windows 98se/ME/2000/XP Utility and Driver Installation

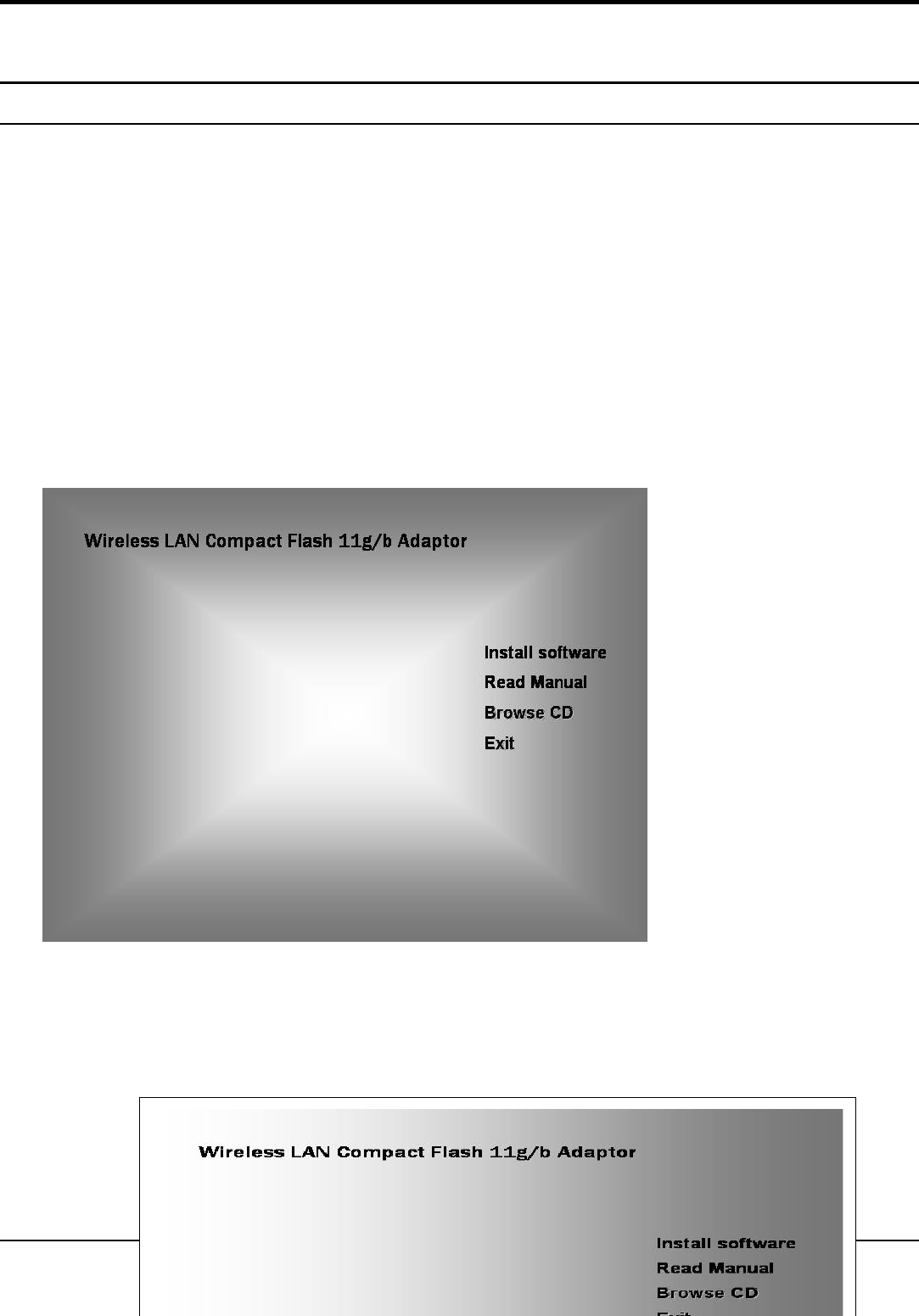

1. Insert the Wireless LAN compact flash Adapter Driver & Utility CD-ROM into
computer’s CD-ROM Drive and it will automatically run a setup menu and
install the driver and the utility, for Win98se, please reboot the system to install
the driver to the system properly. In some specific setting on Windows system,
you may need to proceed the software manually, go to your Windows Start
menu and choose Run, type “D:\Utility\Setup.exe” in the dialog box (D:\ will
depend on where your CD-ROM drive is located) and click OK.
2. If you need to install the driver manually, refer each Windows OS to the
following CD-Rom directory path: D:\Drivers\<Windows OS>\SIS163U.INF.
Note: (D:\ will depends on where the CD-ROM drive is located and
<Windows OS> will depend on the Windows Operating System you are using)
3. The Install Shield Wizard screen will appear. Click “Next” to continue.

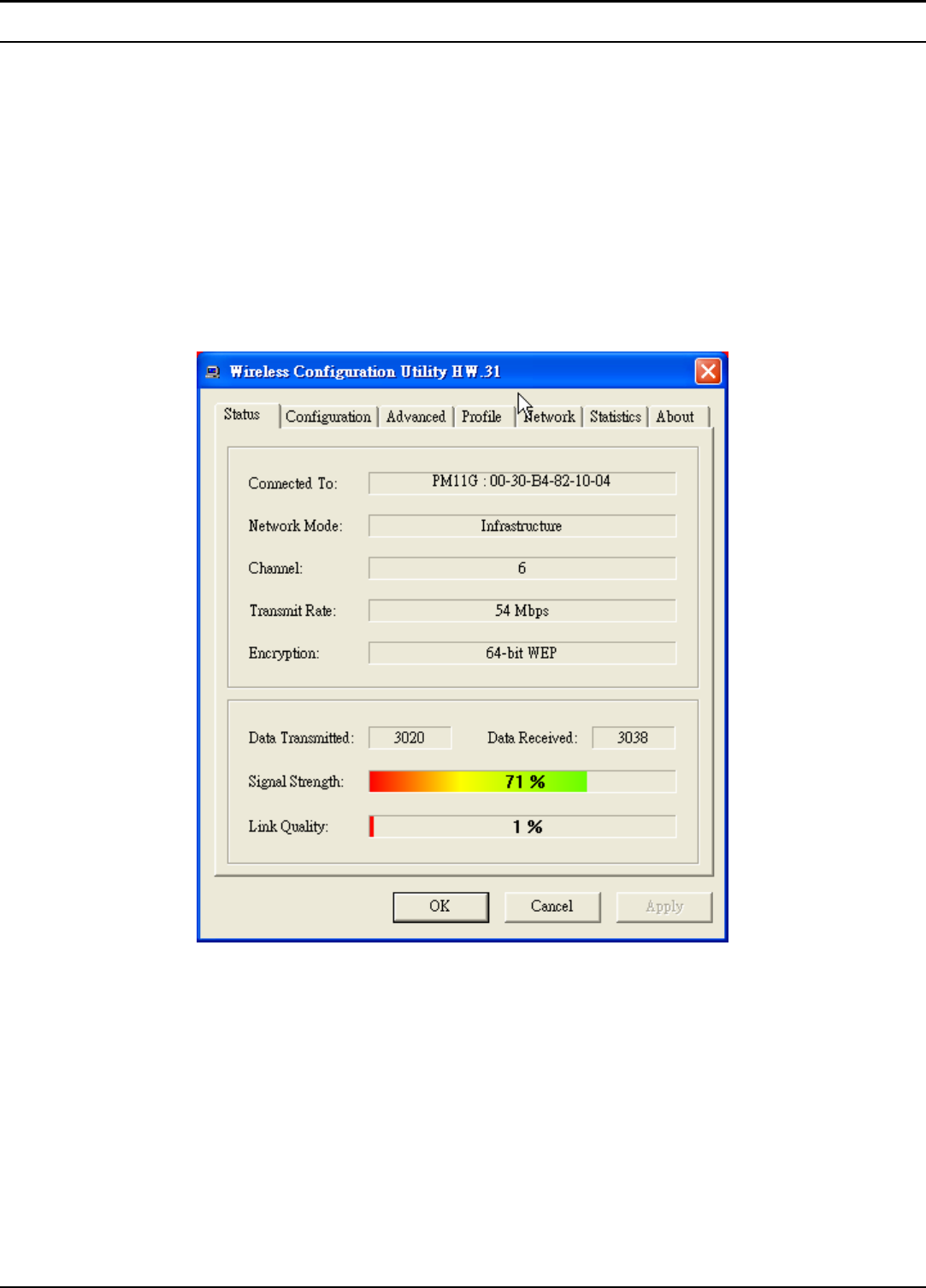

4. The installation program will help you to setup the Wireless Utility.
Be noted that the Windows XP have its own Wireless Utility; you can either
use the utility of Windows XP or the provided utility.
![](/img.php?id=714308&img=bgb.png)
6
5. After finish the installation, plugged in the Wireless LAN Compact Flash
Adapter, you will see Wireless Configuration Utility Country Selector, select
the country where you are using this Wireless device, users are responsible for
ensuring that the channel set configuration is in compliance with the regulatory
standards of these countries.
.
Warning: Be noted that selecting the incorrect region may result in a
violation of applicable law; you will need to select the correct domain.
6. You will see the icon on the Windows task bar when you finish the installation.
When the icon in the toolbar represents in green color, it is properly connected
to the network and if it represents in red color, then it is not connected to the
network.
![](/img.php?id=714308&img=bgc.png)
7
Wireless Utility Setting
With the Wireless Compact Flash Adapter utility, users can configure all the
functions provided by the Wireless Monitor Utility. Double-click the utility icon
that appears in the taskbar.
The Wireless Monitor Utility includes seven tabs: Status, Configuration, Advanced,
Profile, Network, Statistics and About.
Status
The Status screen shows you the status of the Wireless Adapter, it shows that where
the device is connected to, the Network mode, the Channel, the transmit rate and
the encryption mode.
There are two dialog boxes showing the data transmitted and the data received. The
two signal lines show the Signal Strength and the Link Quality of the device.
![](/img.php?id=714308&img=bgd.png)
8

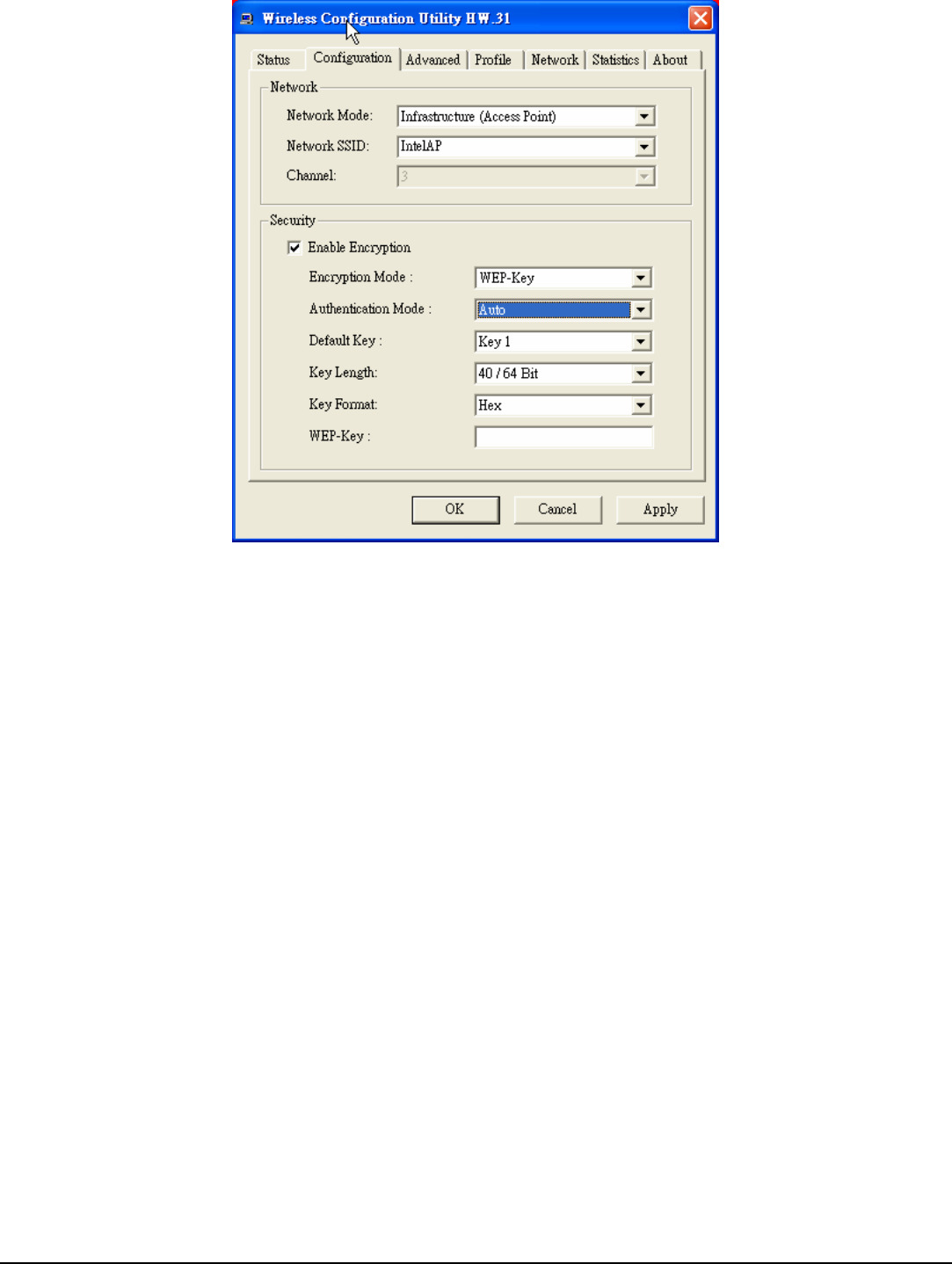

Configuration
The Configuration function helps you to configure the Network and the Security.
Network: the setting of the Network mode, the SSID and the Channels.
¾ Network Mode:
If you want to connect with an Access Point, please set to “Infrastructure” mode. If
you have more stations and just want to set them as local network, please set the
mode to “Ad-Hoc” mode.
¾ Network SSID:
The SSID differentiates one Wireless LAN group name from another; so all access
points and all devices attempting to connect to a specific Wireless LAN group
name must use the same SSID. A device will not be permitted to join the BSS
unless it can provide the unique SSID.
If the SSID parameter is “ANY”, it will detect the strongest signal of the wireless
station.
¾ Channel:
It shows radio channel numbers that used for Wireless LAN networking.
The channel number can be set only under the Ad-Hoc operation mode. In Ad-Hoc
mode stations, each station must have the same channel numbers and SSID.
In Infrastructure mode, the Wireless Compact Flash Adapter will automatically
detect the channel number of the Access Point.
Security: the setting of the Network Encryption.
This function is used to protect wireless communication from eavesdropping. A
secondary function of encryption is to prevent unauthorized access to a wireless
network, and it can be achieved by using the Encryption function.
![](/img.php?id=714308&img=bge.png)
9
¾ Encryption Mode:
There are two kinds of encryption mode, WEP encryption .
Click the Enable Encryption to activate the security of the Compact Flash Adapter.
WEP-Key: WEP (Wired Equivalent Privacy) relies on a secret key that is
shared between a mobile station and a base station (Access Point).
WEP-Passphrase: the Passphrase in the dialog box helps you to create a
group of WEP key in the Key Setting.
¾ Authentication Mode:
Open System: with the same WEP key between the stations, the stations
don’t need to be authenticated, and this algorithm was set to default.
Shared Key: with the same WEP key between the stations in this
Authentication algorithm, this type will use packets with encryption by
transferring a challenge text which will be acknowledge by both side of the
stations. In order to choose which authentication algorithm will be used, you
must know which one the station supports this algorithm first.
It is recommended to select “Auto” if you are not familiar with the setting.
¾ Default Key (Key 1 ~ Key 4):
You can type the key that you want to use from Key#1 to Key #4, and the key that
you type will be the encryption between the stations that you connected with.
¾ Key Length, Key Format and WEP Key:
If you select 64bit in Hex format, you must type 10 values in the following range
(0~F, hexadecimal), or 64bit in ASCII format, you must type 5 values in the
following range (0~9, A~Z and a~z Alphanumeric).
If you select 128bit in Hex format, you must type 26 values (0~F, hexadecimal), or
128bit in ASCII format, you must type 13 values in the following range (0~9, A~Z
and a~z Alphanumeric).
Be sure that the Compact Flash Adapter and the wireless station were set in the
same key.
Note: After all the settings are completed, click Apply to save the setting.
![](/img.php?id=714308&img=bgf.png)
10

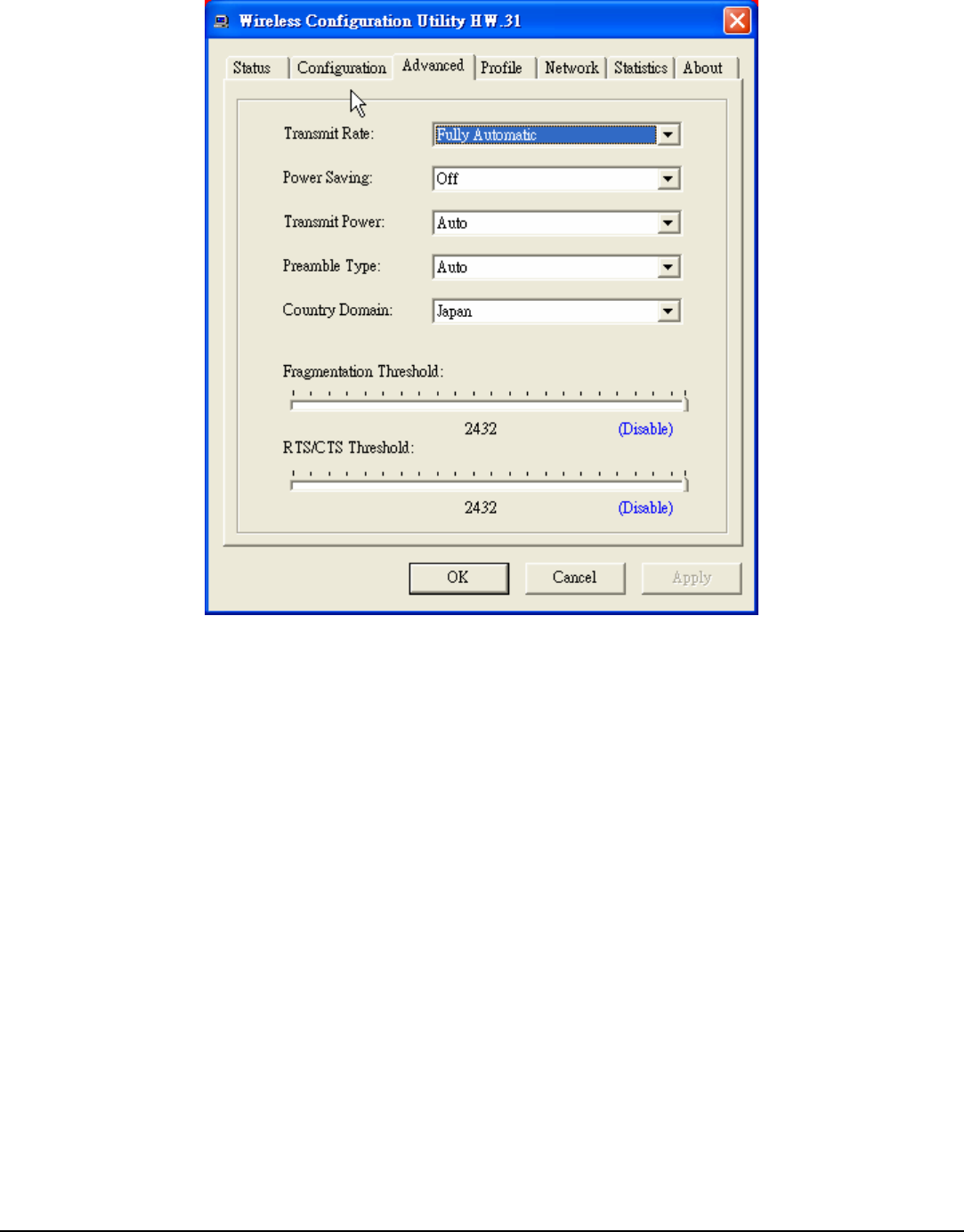

Advanced
The Advanced settings help you to control the Wireless Adapter to adjust with
wireless devices in certain environment.
¾ Transmit Rate:
You can choose one of the transmission rates as follows, 54Mbps, 48Mbps,
36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps, 5.5Mbps, 2Mbps,
1Mbps, and Fully Automatic. The Fully Automatic will automatically detect the
suitable linking transfer rate and auto fall back when the signal is not too strong to
transmit data, it will auto fall back from 54Mbps to 1 Mbps.
¾ Power Saving:
To set your Wireless Adapter as power saving mode, select “Off”, “Normal” or
“Maximum”.
¾ Transmit Power:
By selecting the Transmit Power, you can select the Radio Frequency output power
from Minimum, 12.5%, 25%, 50%, 100% or Auto.
![](/img.php?id=714308&img=bg10.png)
11
¾ Preamble Type:
The usage of the preamble is to limit the packet size of the data to transmit. It is
recommended to choose the short preamble when the link quality is bad, it is to
prevent the wasting time of resending a long packet that is lost. The Default is Auto
which access short and long preamble.
¾ Country Domain:
This is the channel selection of each country regulatory domain, select the country
where you are using this wireless device, users are responsible for ensuring that the
channel set configuration is in compliance with the regulatory standards of these
countries.
¾ Fragment Threshold:
Fragmentation Threshold is a way of transmitting the packets that will be
fragmented. Choose a setting within a range of 256 to 2432 bytes. It is
recommended to fragment the packet when the link quality is bad, it is to prevent
the wasting time of resending a long packet that is lost.
¾ RTS/CTS Threshold:
The RTS/CTS Threshold is a station initiates the process by sending a RTS frame,
the other ends receives the RTS and responds with a CTS frame, the station must
receive a CTS frame before sending the data frame. This is to prevent the collisions
by each station. Choose a setting within a range of 256 to 2432 bytes. It is
recommended limiting a long packet to prevent each station waiting too long to
transmit a data.
![](/img.php?id=714308&img=bg11.png)
12

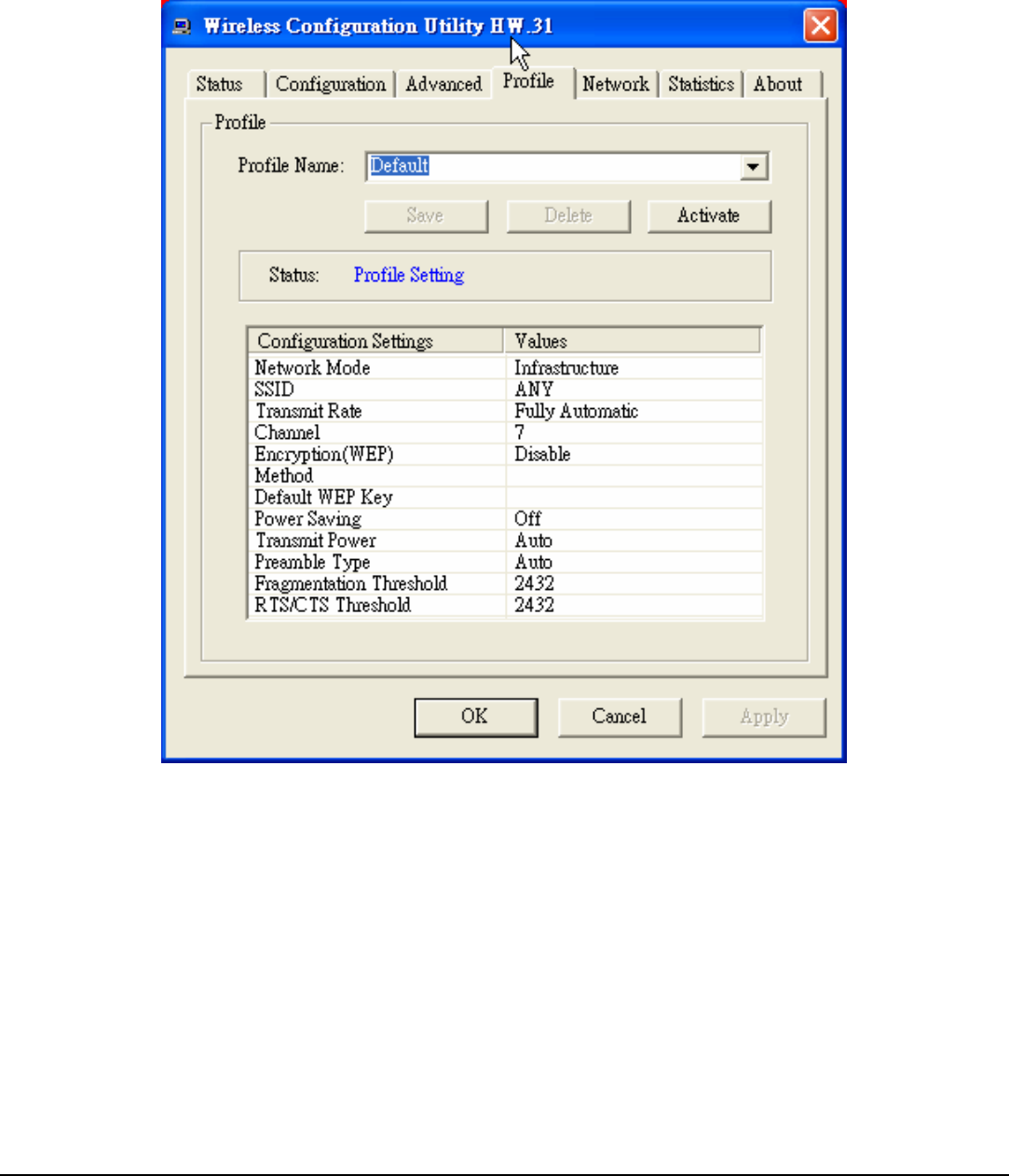

Profile
The Profile section allows you to set values for all parameters by selecting a
previously defined profile. Type a name in the Profile Name field to create a profile,
click “Save” and then click “Apply” when a profile is done. You can click “Delete”
if the profile is no longer used, to activate other profile, choose a profile name in
the Profile Name field and click Activate.
![](/img.php?id=714308&img=bg12.png)
13

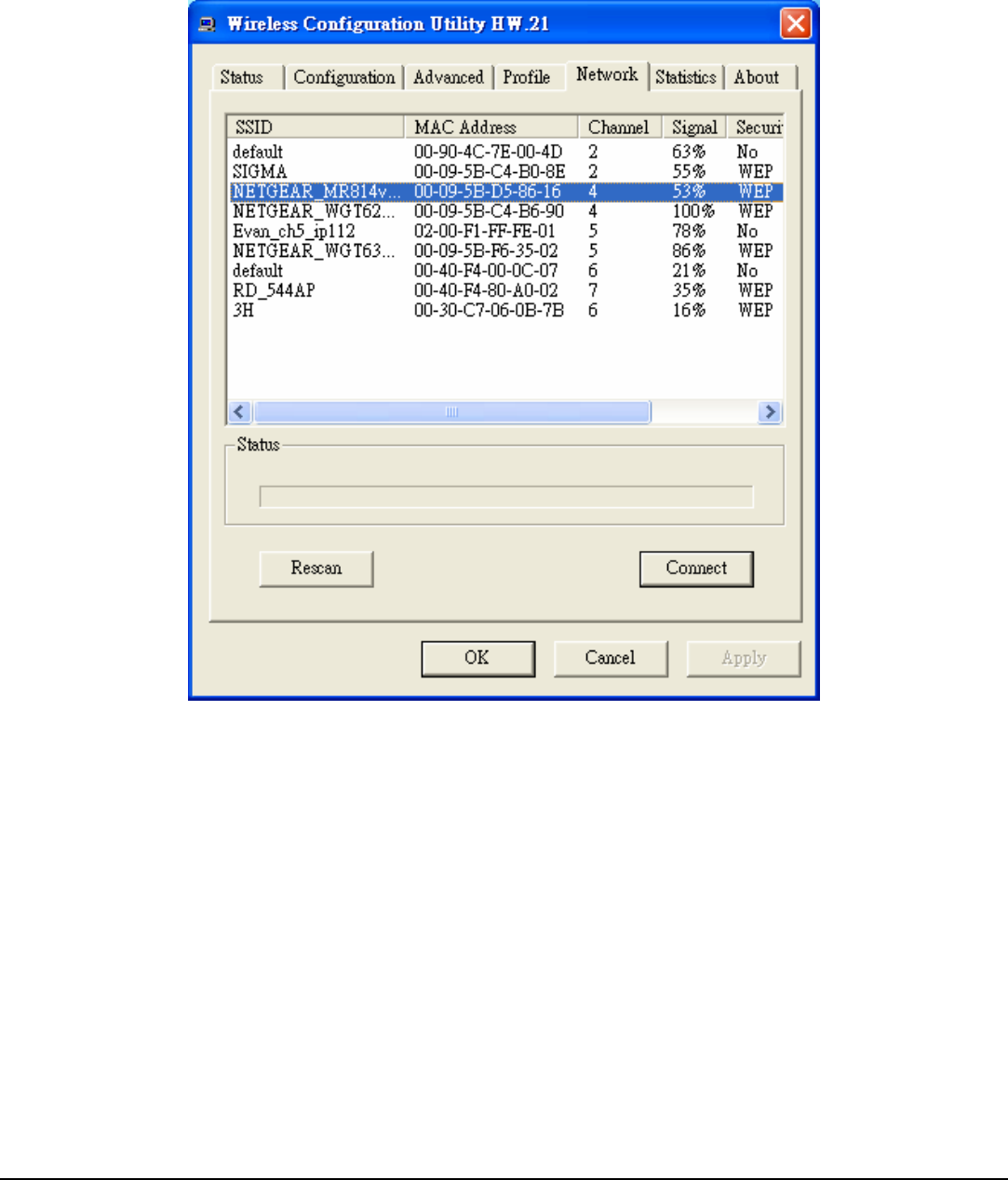

Network
The screen shows all the Wireless devices around your Wireless Adapter. The
information of the wireless devices includes the SSID, MAC Address, Channels,
Signal, the Security type and the Network mode.
You can click the “Rescan” button to find the new wireless devices, and double-
click the device to choose the wireless station that you want to connect with.
![](/img.php?id=714308&img=bg13.png)
14

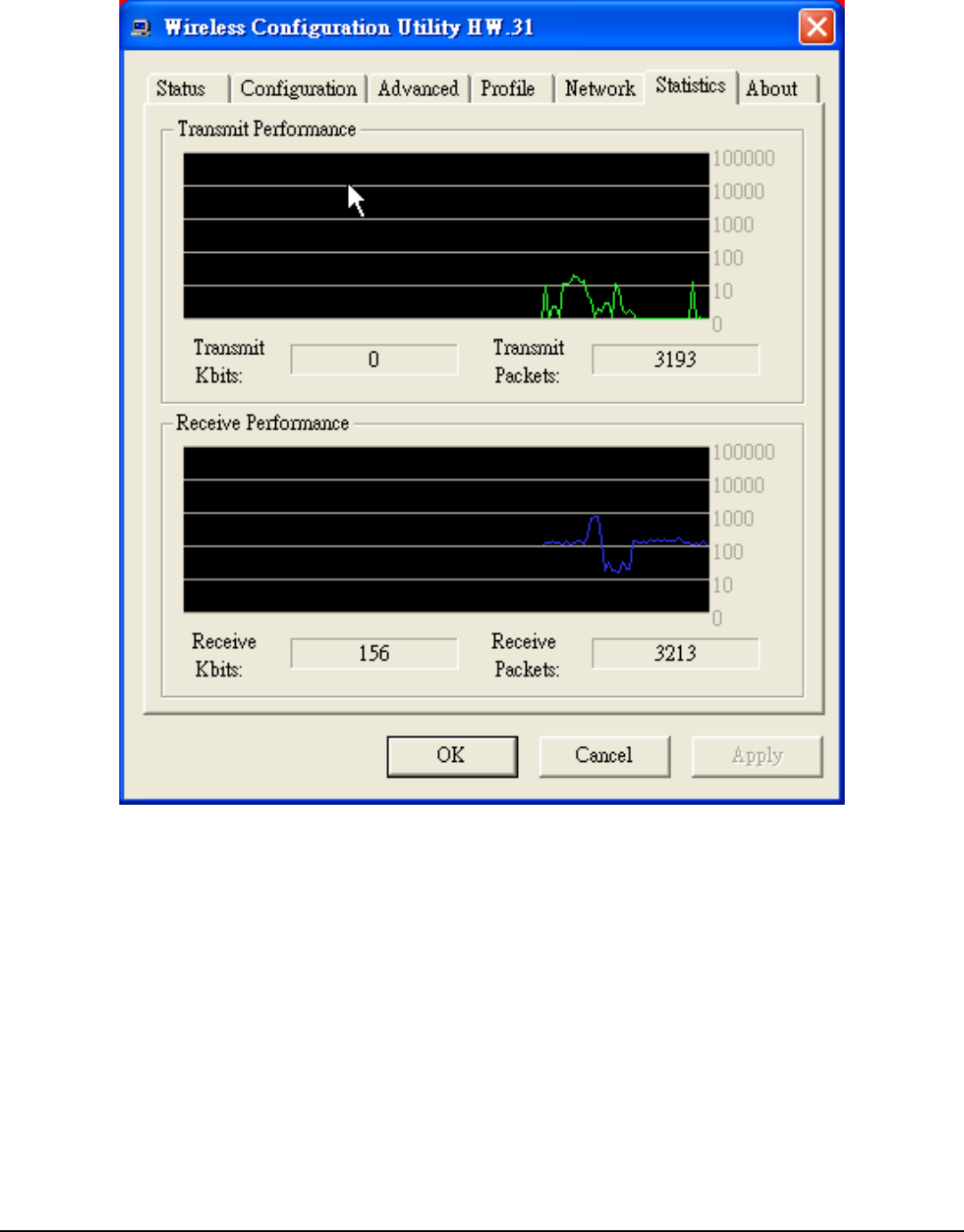

Statistics
The Statistics section shows the real-time transmit and receive packets of the
Wireless Adapter.
![](/img.php?id=714308&img=bg14.png)
15

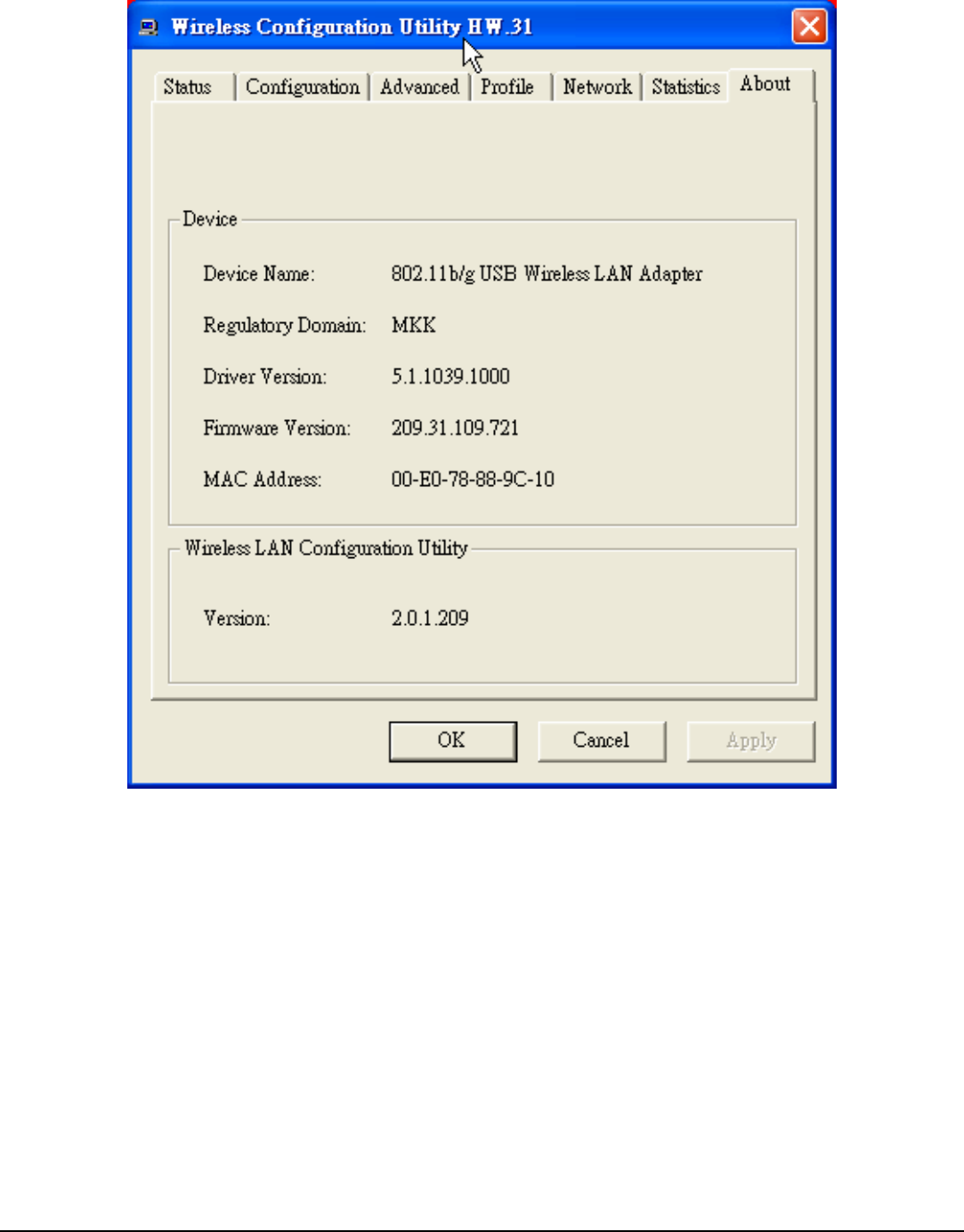

About
The About section shows the Device Name, Regulatory Domain, Driver Version,
MAC Address and the Utility version.
