TABLE OF CONTENT
Introduction................................................................................................1
Overview of this User’s Guide .................................................................................1
Unpacking and Setup .................................................................................2
Unpacking.................................................................................................................2
Setup..........................................................................................................................2
IDentifying external components...............................................................3
LED...........................................................................................................................3
Check the installation................................................................................................3
Software Installation ..................................................................................4
Windows Based Utility Installation..........................................................................4
Wireless Utility Setting..............................................................................6
Link Information.......................................................................................................6
Configuration ............................................................................................................7
Site Survey ..............................................................................................................10
Profile......................................................................................................................11
WPS.........................................................................................................................12
About.......................................................................................................................16
Technical Specifications ..........................................................................17
1
INTRODUCTION
Congratulations on your purchase of this Wireless N USB Adapter.
This manual contains detailed instructions regarding the operation of this product.
Please keep this manual for future reference.
With the Wireless N USB Adapter, a desktop or laptop computer can communicate
with another computer wirelessly. An easy-to-use utility is bundled with the
Wireless USB Adapter for configuration, monitoring, and diagnostic purposes.
The Wireless N USB Adapter can wirelessly transmit and receive data, at a speed
of up to 54 megabits per second.
The Wireless N USB Adapter provides users with access to real-time information
anywhere in their organization. The mobility of the Wireless N USB Adapter
provides productivity and service, which are not available under wired networks.
The Wireless N USB Adapter can easily adapt from peer-to-peer networks, suitable
for a small number of users, to full infrastructure networks of thousands of users
that allow roaming around a broad area.
Overview of this User’s Guide
Introduction. Describes the Wireless N USB Adapter and its features.
Unpacking and Setup. Helps you get started with the basic installation of the
Wireless N USB Adapter.
Hardware Installation. Describes the LED indicator on the Adapter.
Software Installation. Describes how to setup the driver and the utility setting.
Technical Specifications. Lists the technical (general, physical and environmental)
specifications of the Wireless N USB Adapter.
2
UNPACKING AND SETUP
This section provides unpacking and setup information for the Wireless N USB
Adapter.
Unpacking
The box should contain the following items:
One IEEE 802.11n draft 2.0 USB Adapter
One Driver & Utility CD-ROM
If any item is found missing or damaged, please contact your local reseller for
replacement.
Setup
Before installation, check the following:
Make sure your computer is running at least a 300MHz or above processor with
256MB RAM or above
Make sure the USB ports are is USB 2.0 port
The operating system on your computer must be the following: Windows 2000
(Service Pack 4), XP (Service Pack 2), Windows Vista
A draft 802.11n or 802.11b/g access point.
Make sure the environment has minimal interference and obstructions.
3
IDENTIFYING EXTERNAL COMPONENTS
LED
When the LED is blinking, the WLAN Adapter is transmitting or receiving data on
the Wireless Ethernet network.
Check the installation
The LED of the IEEE 802.11n draft 2.0 USB Adapter is clearly visible and the
status of the network link can be seen instantly:
1. When connected to the USB port and the driver were installed, the LINK LED
will start blinking, and it means that the device is starting to scan a wireless
device near the IEEE 802.11n draft 2.0 USB Adapter.
2. While the IEEE 802.11n draft 2.0 USB Adapter linked up to the Access Point or
to other Wireless LAN station, the LINK LED will always light up.
4
SOFTWARE INSTALLATION
This section describes how to install the driver and utility for the Wireless N USB
Adapter.
Windows Based Utility Installation

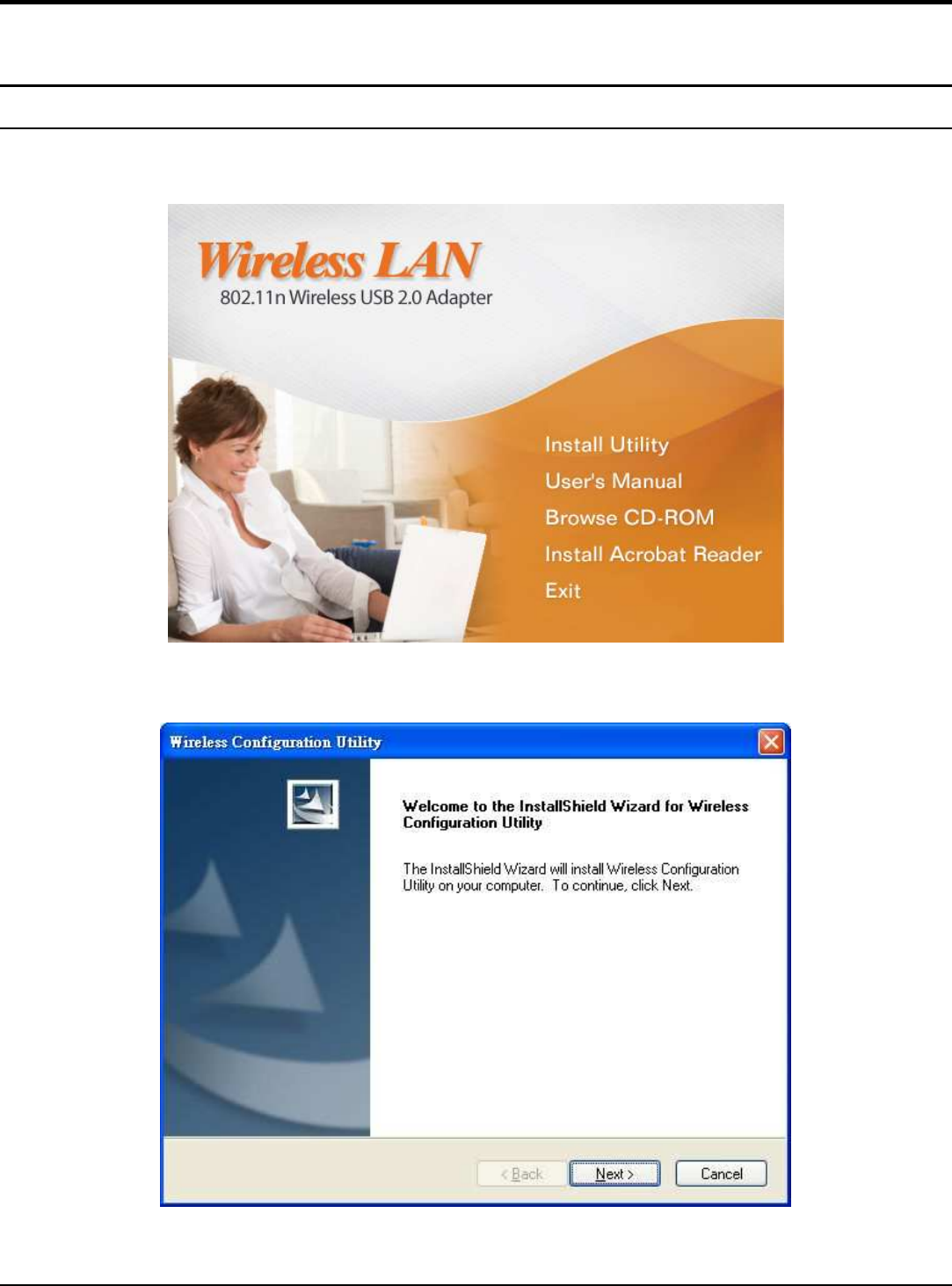

1) Insert the Utility and Driver CD-ROM into your computer’s CD-ROM Drive and
then click Install Utility.
2) Follow the InstallShield Wizard Instructions
5

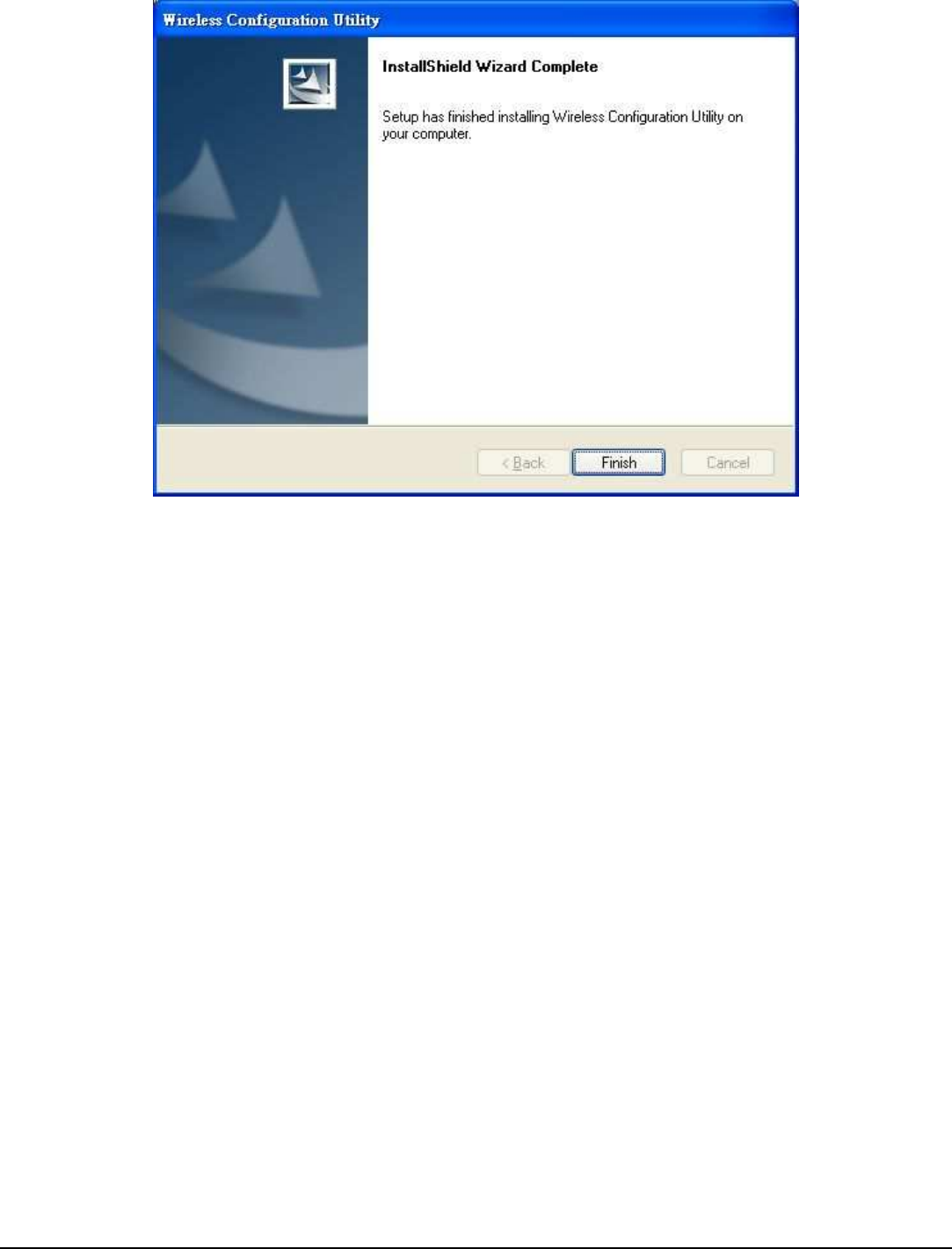

3) Click Finish to restart the computer.
4) Plug the Wireless N USB Adapter into an available USB slot on your computer.
6

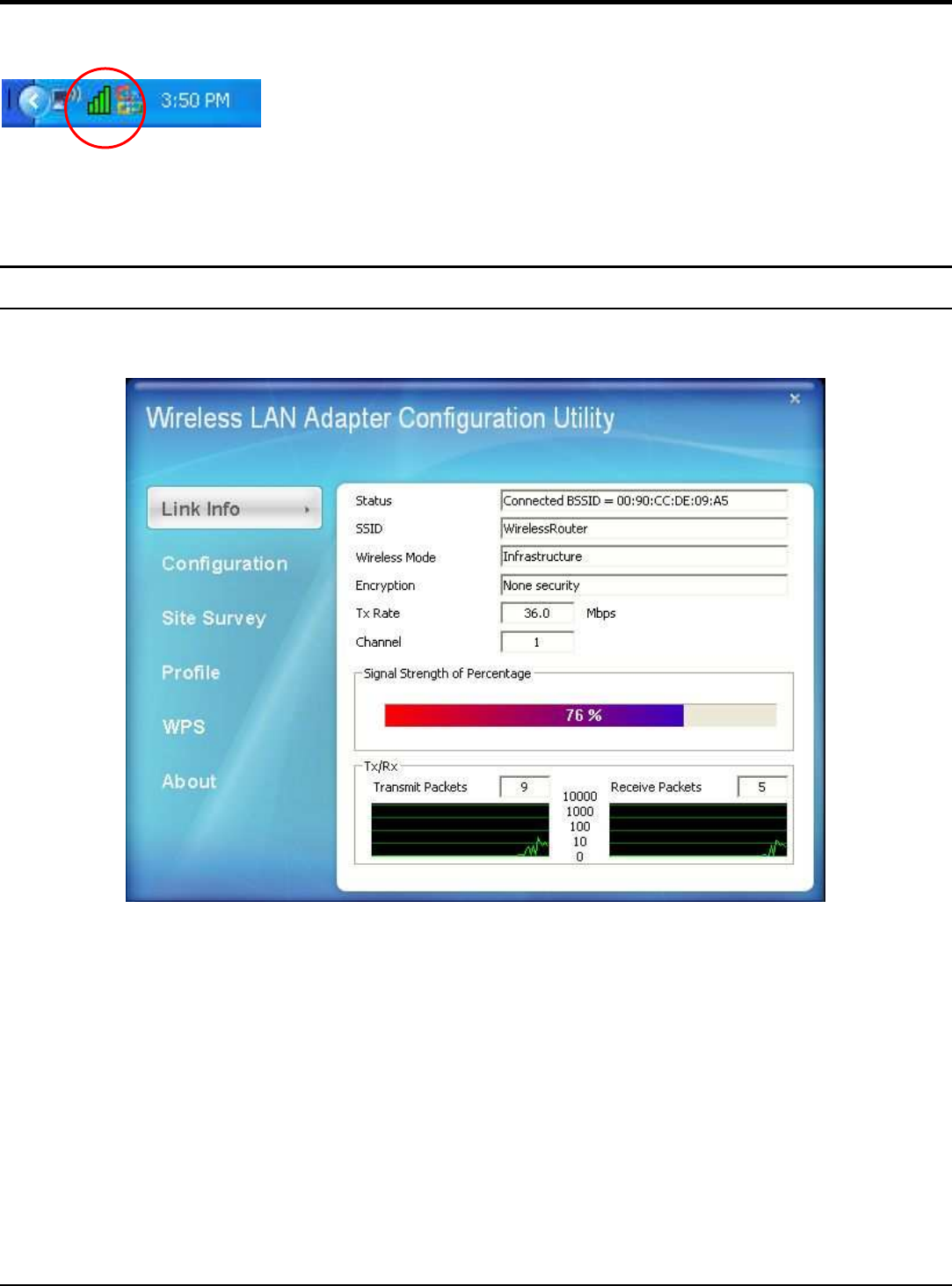

WIRELESS UTILITY SETTING
The user can configure the wireless settings using the Wireless Adapter
Configuration Utility. Double-click the utility icon that appears in the taskbar.
The Wireless Adapter Configuration Utility is divided into six sections: Link Info,
Configuration, Site Survey, Profile, WPS and About.
Link Information
This is the default screen after launching the Utility program.
Status: Shows the associated BSSID, which can be used to identify the wireless
access point.
SSID: Shows the current SSID, which must be the same on the wireless client and
AP in order for communication to be established.
Frequency: Shows the current frequency used for the wireless network.
Wireless Mode: Shows the current wireless mode used for wireless communication.
Encryption: Shows the current encryption mode used on the wireless network.
TxRate: Shows the current data rate used for transmitting.
Channel: Shows the current channel for communication.
7
Note：For FCC domain device, you can only select Channel 1~11.
For ETSI domain device, you can only select Channel 1~13.
Link Quality: Shows the link quality of the Wireless N USB Adapter with the
Access Point when operating under Infrastructure mode.
Signal Strength: Shows the wireless signal strength of the connection between the
Wireless N USB Adapter with the Access Point.
Data Rate:
Shows the statistics of data transfer, and the calculation is based on the
number of packets transmitted and received.

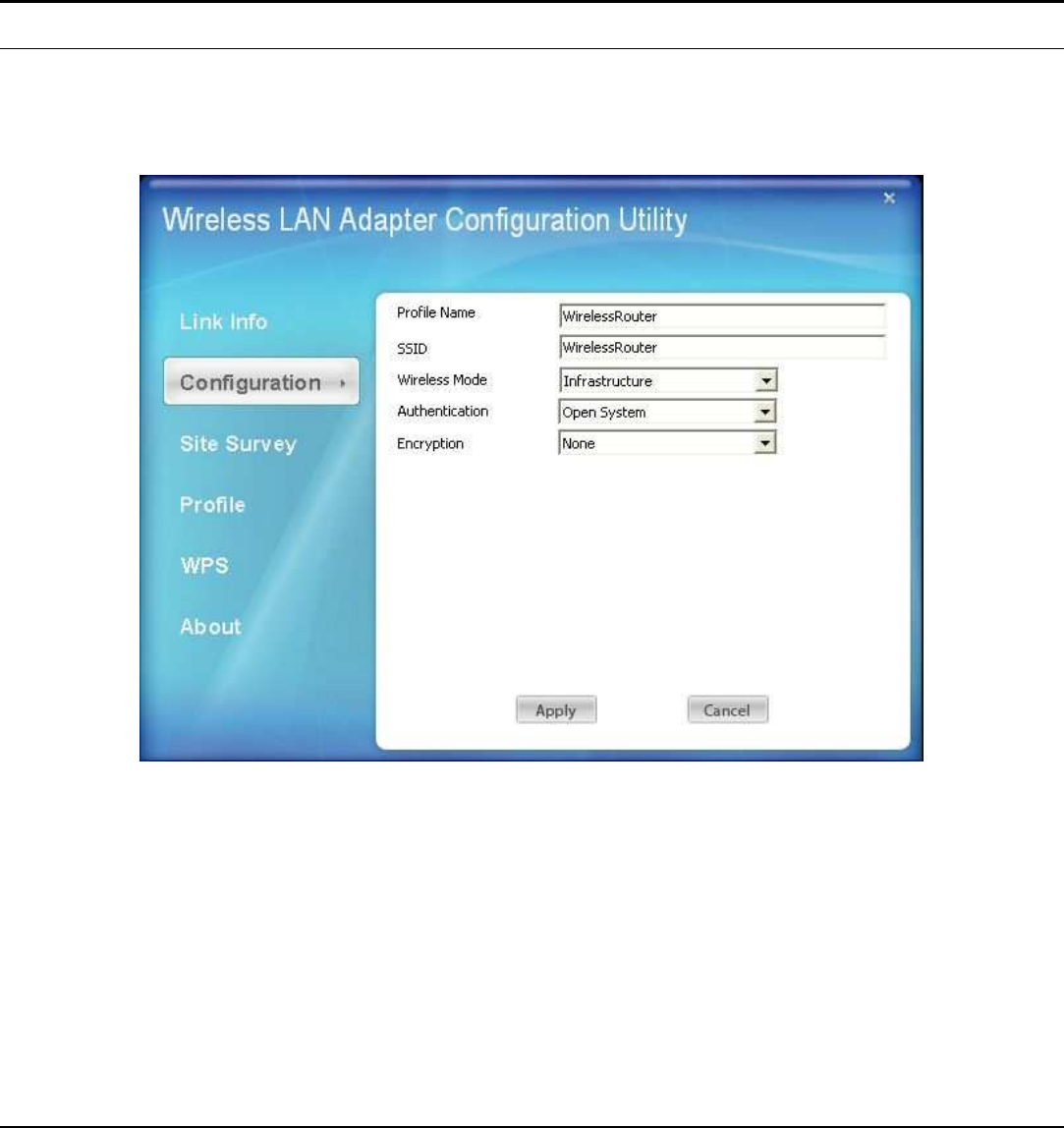

Configuration
This screen is where you set the basic wireless settings for the Wireless N USB
Adapter.
Profile Name: Shows the Profile Name.
SSID: Service Set Identifier, which is a unique name shared among all clients in a
wireless network. The SSID must be identical for each client in the wireless
network.
Wireless Mode: There are two modes available for selection
● Infrastructure – to establish wireless communication with the LAN and other
wireless clients through the use of Access Points.
8
● Ad-Hoc – to establish point-to-point wireless communication directly with
other wireless client devices.
Authtication: The following options are available: Open System, Shared Key,
WPA-PSK, WPA2-PSK, WPA EAP-TLS, WPA2 EPA-TLS . Select Open System,
Shared Key for WEP data encryption feature.

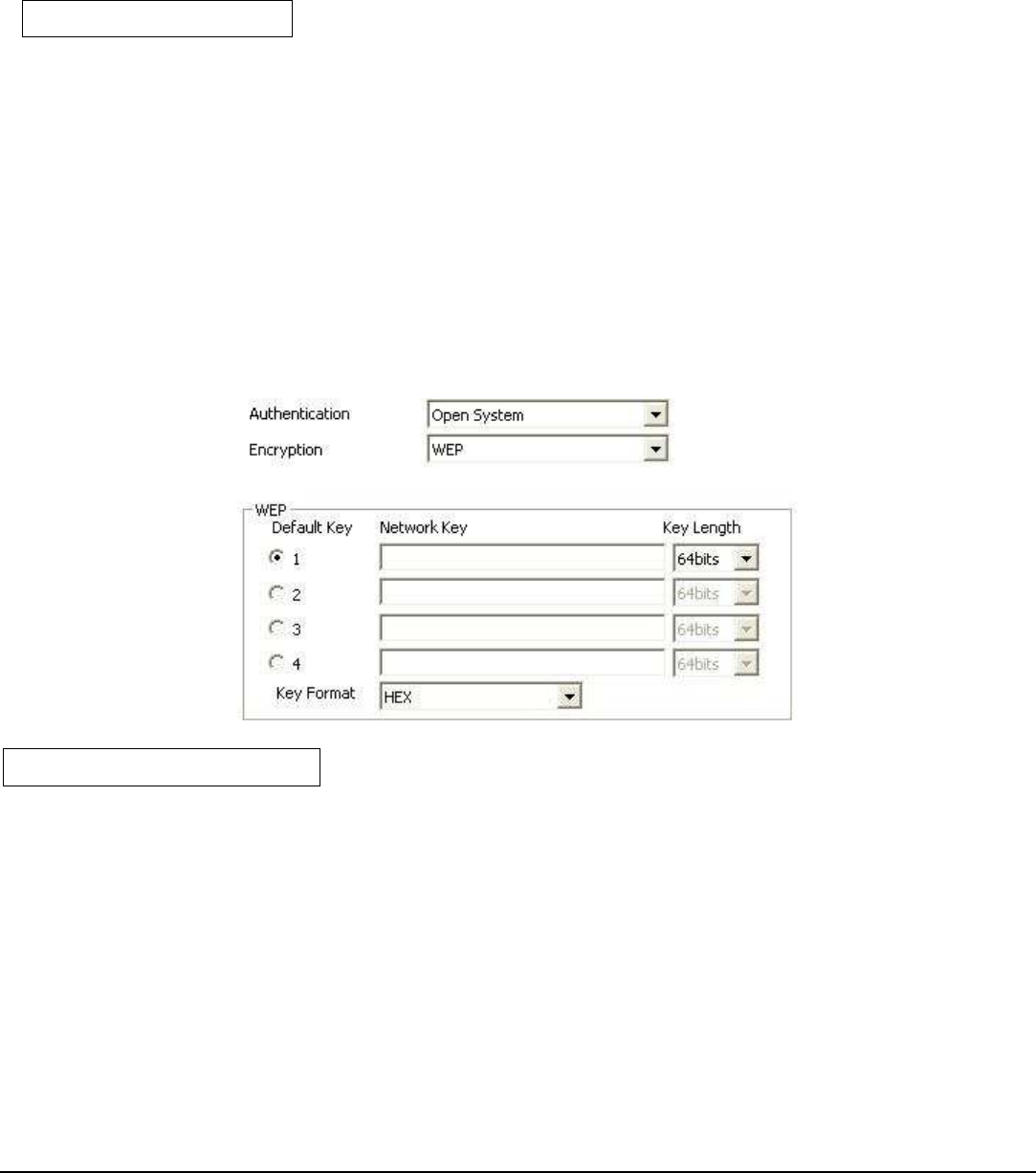

Open or Shared Key
Open System and Shared Key require the user to set a WEP key to exchange
data with other wireless clients that have the same WEP key.
Default Key: select one of the 4 keys to use.
Network Key: choose the encryption way, either in HEX or ASCII formats,
and enter the password in the blank space.
Key Length: select 64 or 128 bits as the length of the keys
Key Format: HEX or ASCII

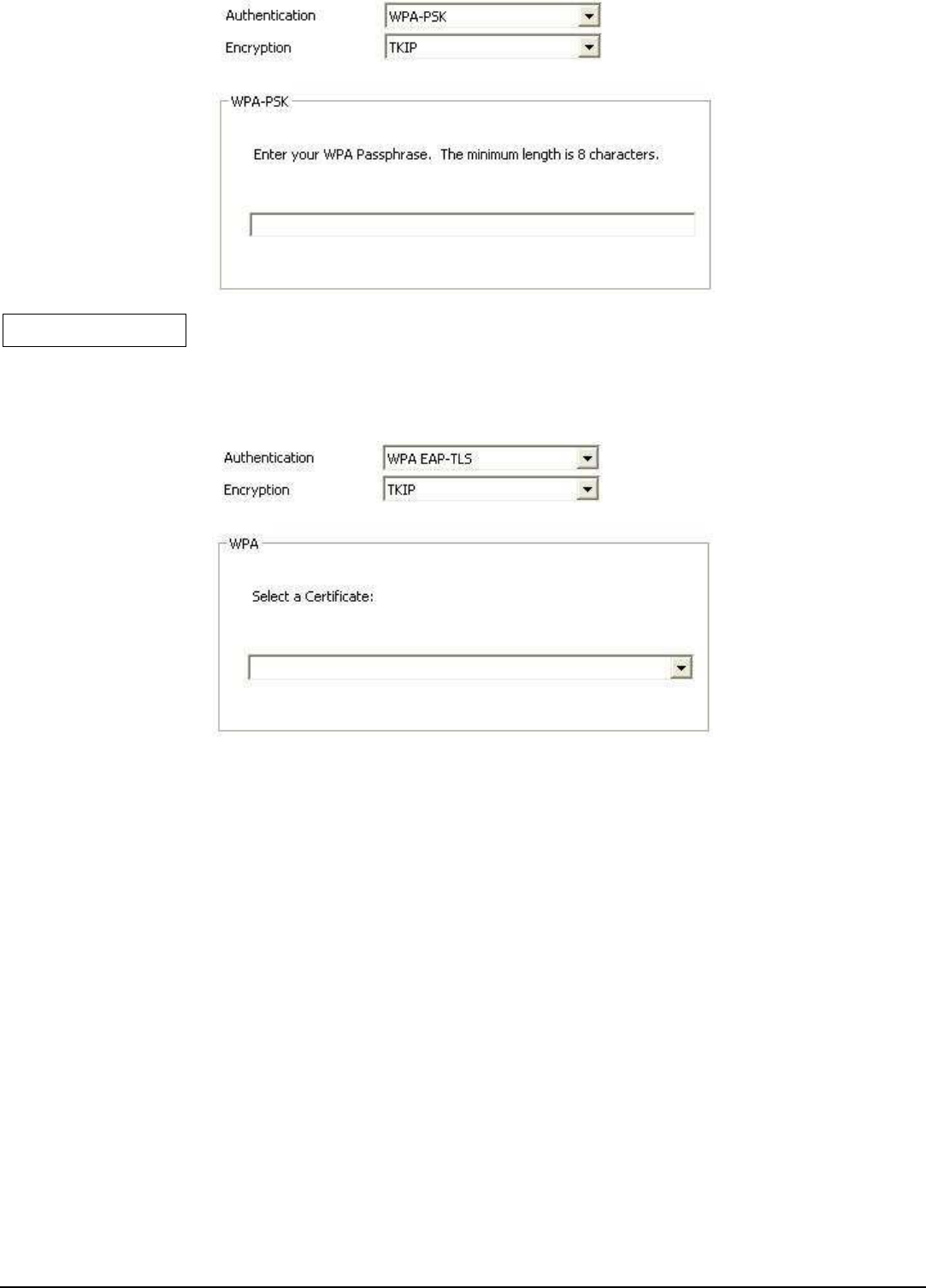

WPA-PSK / WPA2-PSK
If using the WPA-PSK/WPA2-PSK authentication method, please select the
Encryption type for TKIP or AES then enter the Passphrase key. The minimum
length is 8 characters.
9
WPA EAP-TLS
If using the WPA/WPA2 EAP-TLS authentication method, please select the
Encryption type for TKIP or AES then select the WPA/WPA2 Certificate from
drop down list.
10

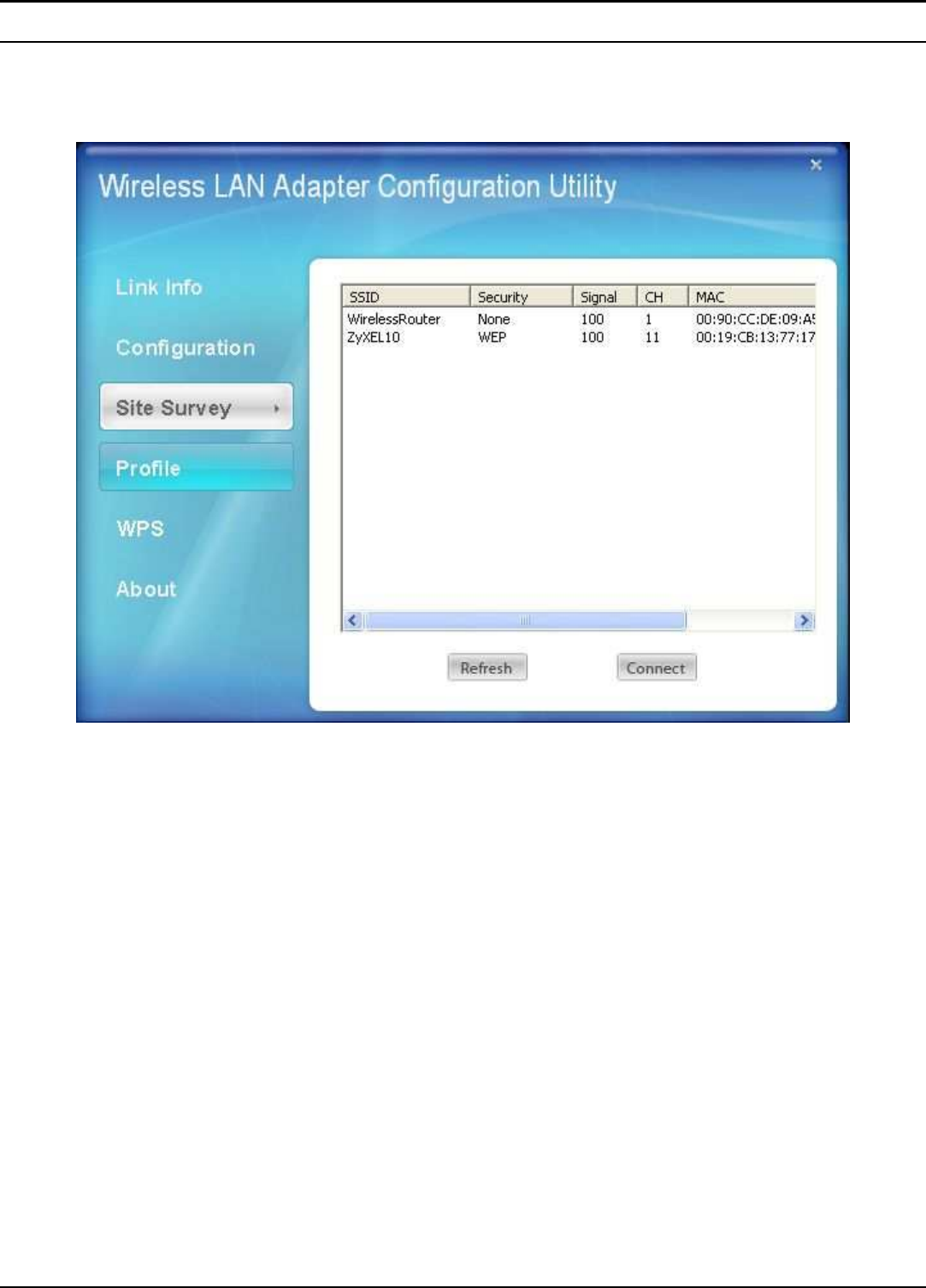

Site Survey
This screen allows the user to scan for available wireless networks (wireless clients
and Access Points). It also allows the user to establish wireless communications
with an available wireless network.
Available Network – displays the wireless networks (wireless clients and access
points) that are within range.
Select any one of the wireless networks by double-clicking on it or clicking on the
“Connect” button.
Click the “Refresh” button to scan for available networks.
11

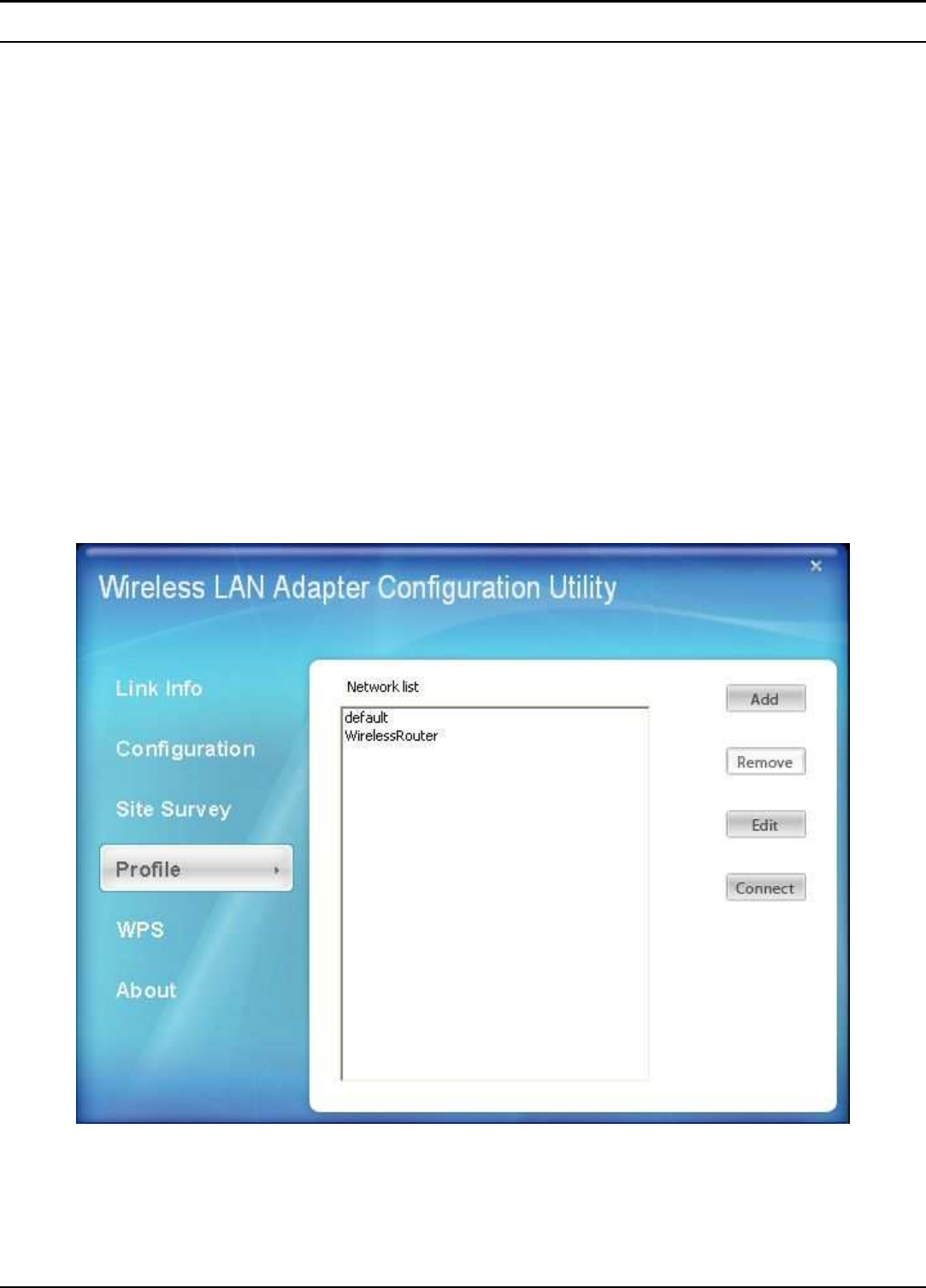

Profile
Profile – The user can create and manage the created profiles for home, work or
public areas. By double-clicking on one of the created profile, the setting will adjust
to the specific setting such as SSID, channel, and encryption as saved by that
particular profile.
Add: Adds a profile. The following screen will appear. The user can enter the
necessary information required for accessing Access Points or Wireless Router
Remove: Deletes the selected profile
Edit: Edit an exist profile. The screen will back to profile. Edit the SSID and select
the Wireless Mode, Authentication and Encryption then click Apply to save the
profile. When the Profile name was changed, a new profile will be added in the list.
Connect: Selected a profile from list then click the Connect to connecting to the
wireless network with the profile setting.
12
WPS
WiFi Protected Setup (WPS) is an optional certification program from the Wi-Fi
Alliance that is designed to ease the task of setting up and configuring security on a
wireless network. There are two methods used in the WPS as below instruction.

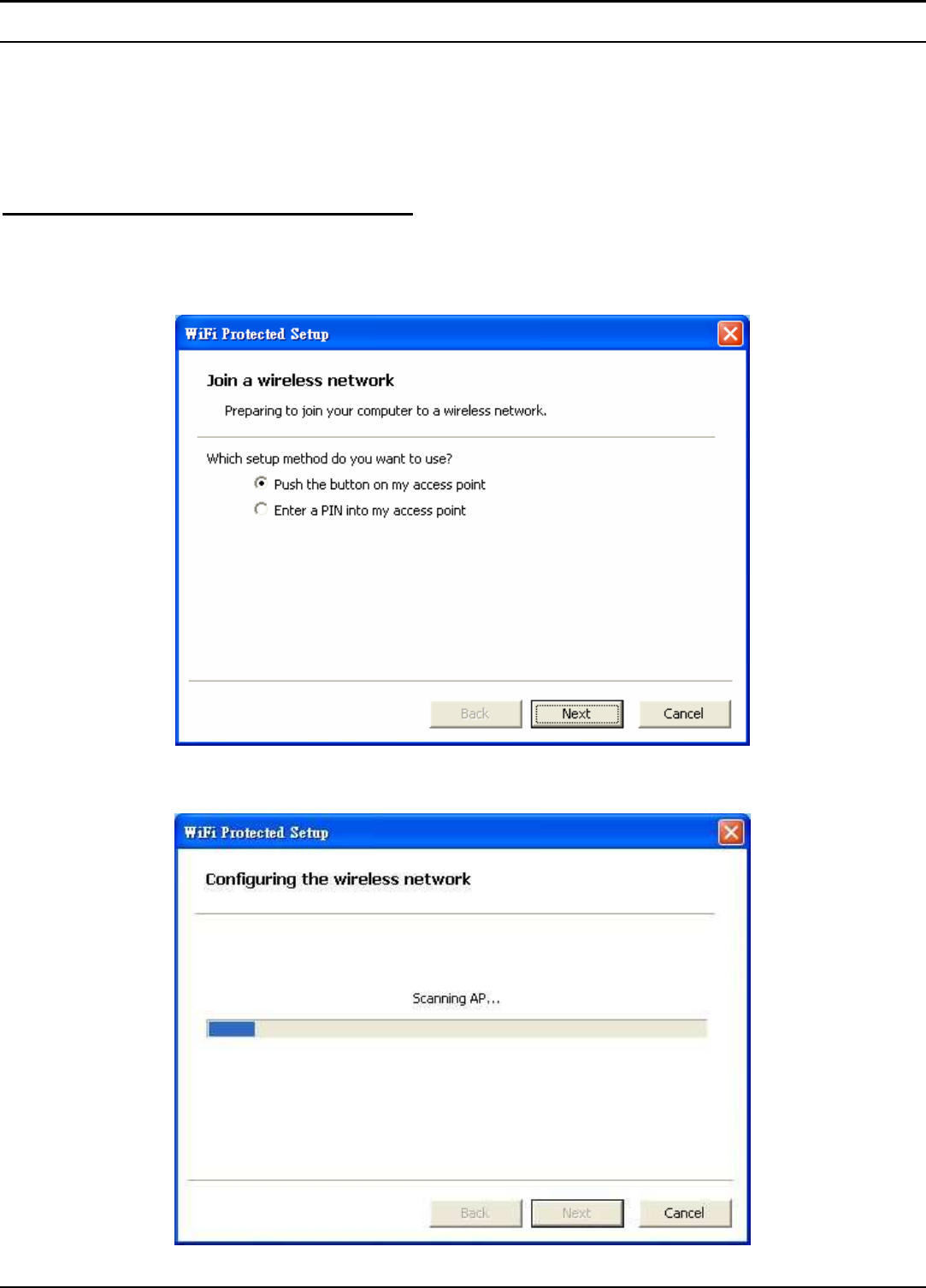

Push the button on my access point
Using the WPS configuration with the “Push the button on my access point”
method, the configuration steps as below:
1) Selected the “Push the button on my access point”.
2) Push the WPS configuration button on your wireless access point or router.
3) Cliek the Next button start the WPS configuration.
13

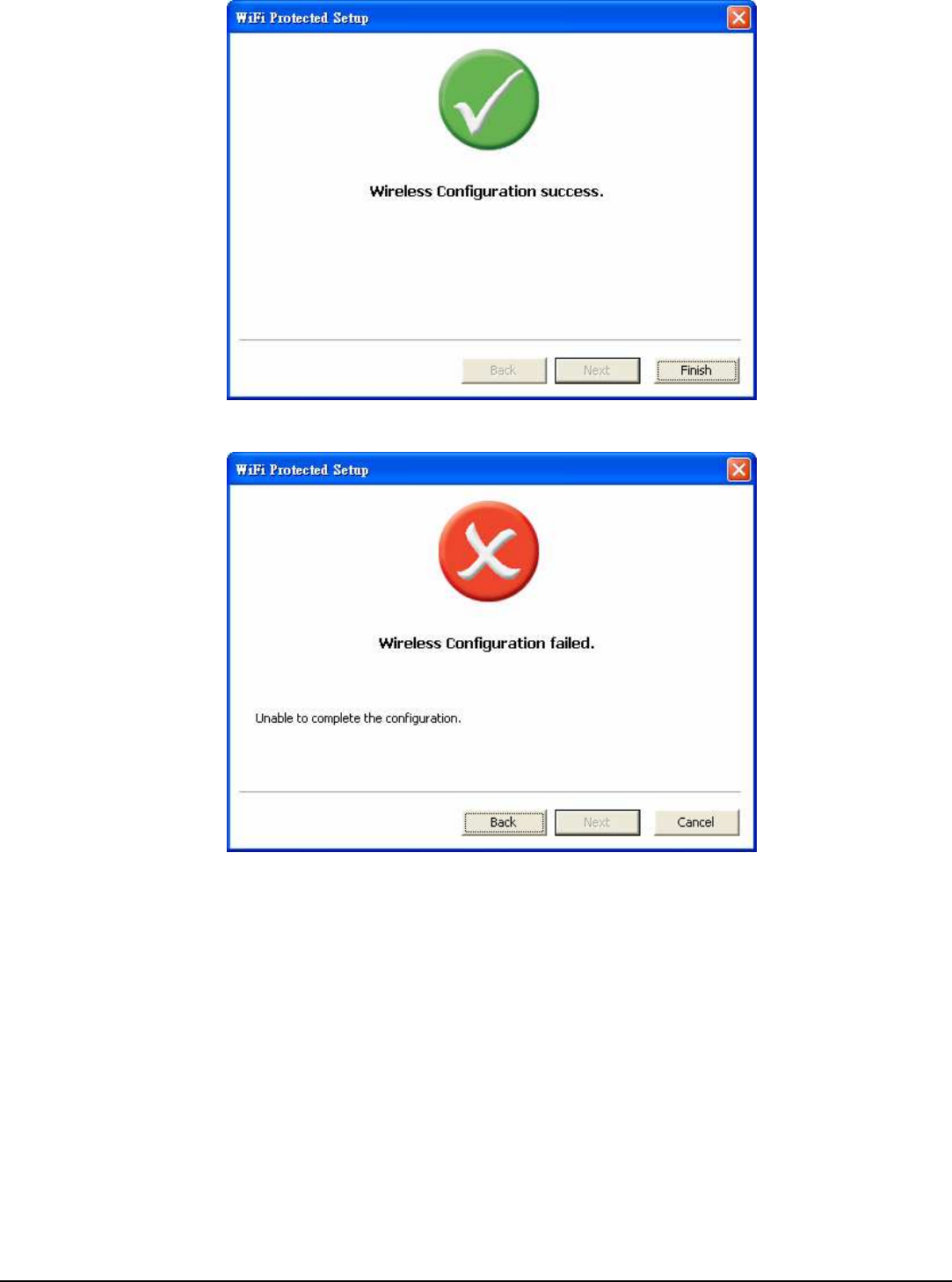

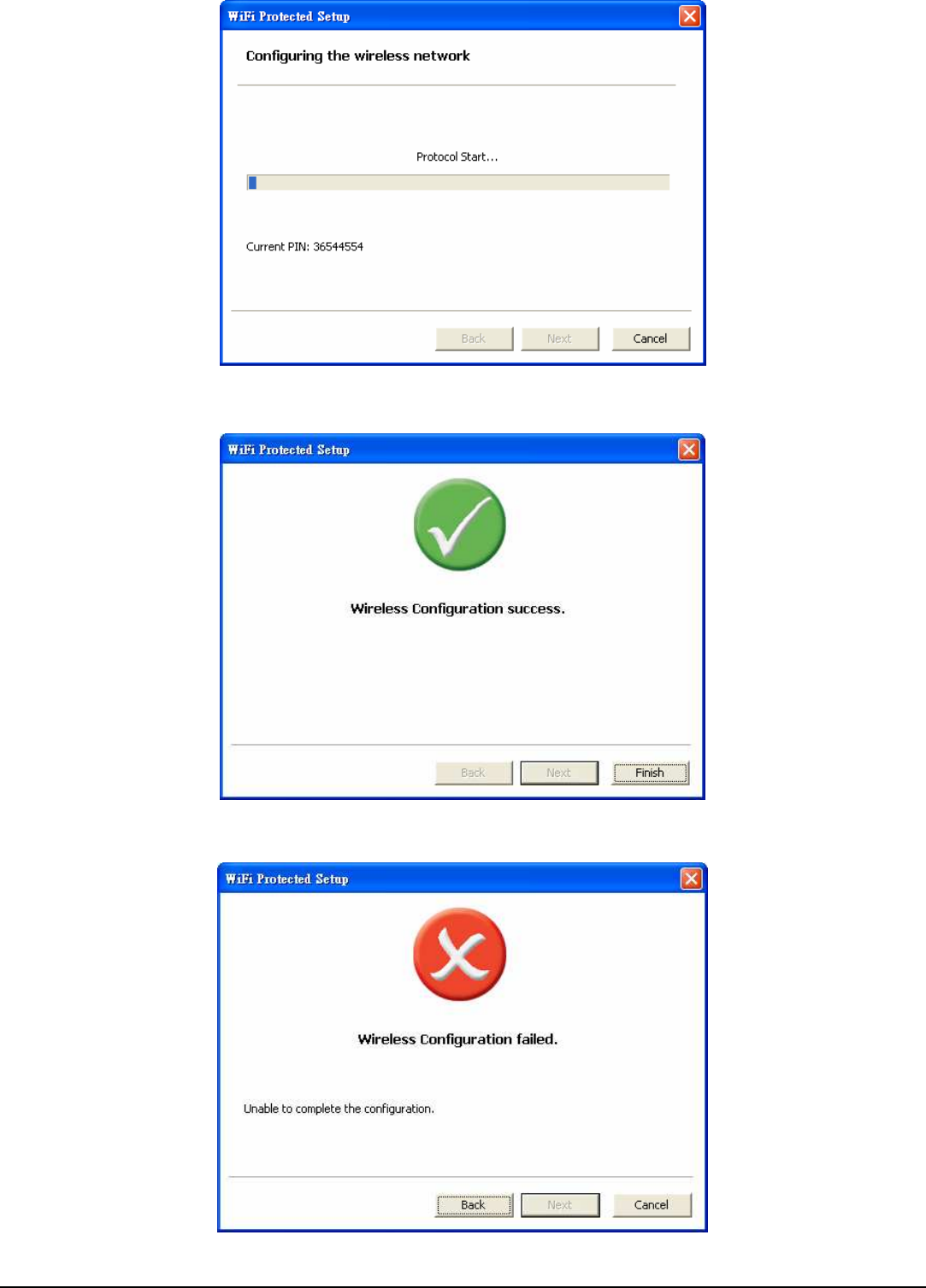

4) If the WPS configuration was successful, the follow window will show on.
5) If the WPS configuration was failed, the follow window will show on.
14
Enter a PIN into my access point
Using the WPS configuration with the “Enter a PIN into my access point” method,
the configuration steps as below:
1) Selected the “Enter a PIN into my access point”, the PIN will be show on the
button of the windows.
2) Enter the PIN code into the WPS “Clint PIN number” of you wireless access
point or router then click the Start PIN button, the wireless access point or
router will start the WPS configuration process.
3) Selected a wireless access point or router which one will be connecting then
click the Next button start the WPS configuration. If the “Automatically select
the network” was checked, the setup step will be skip.
15
4) If the WPS configuration was successful, the follow window will show on.
5) If the WPS configuration was failed, the follow window will show on.
16

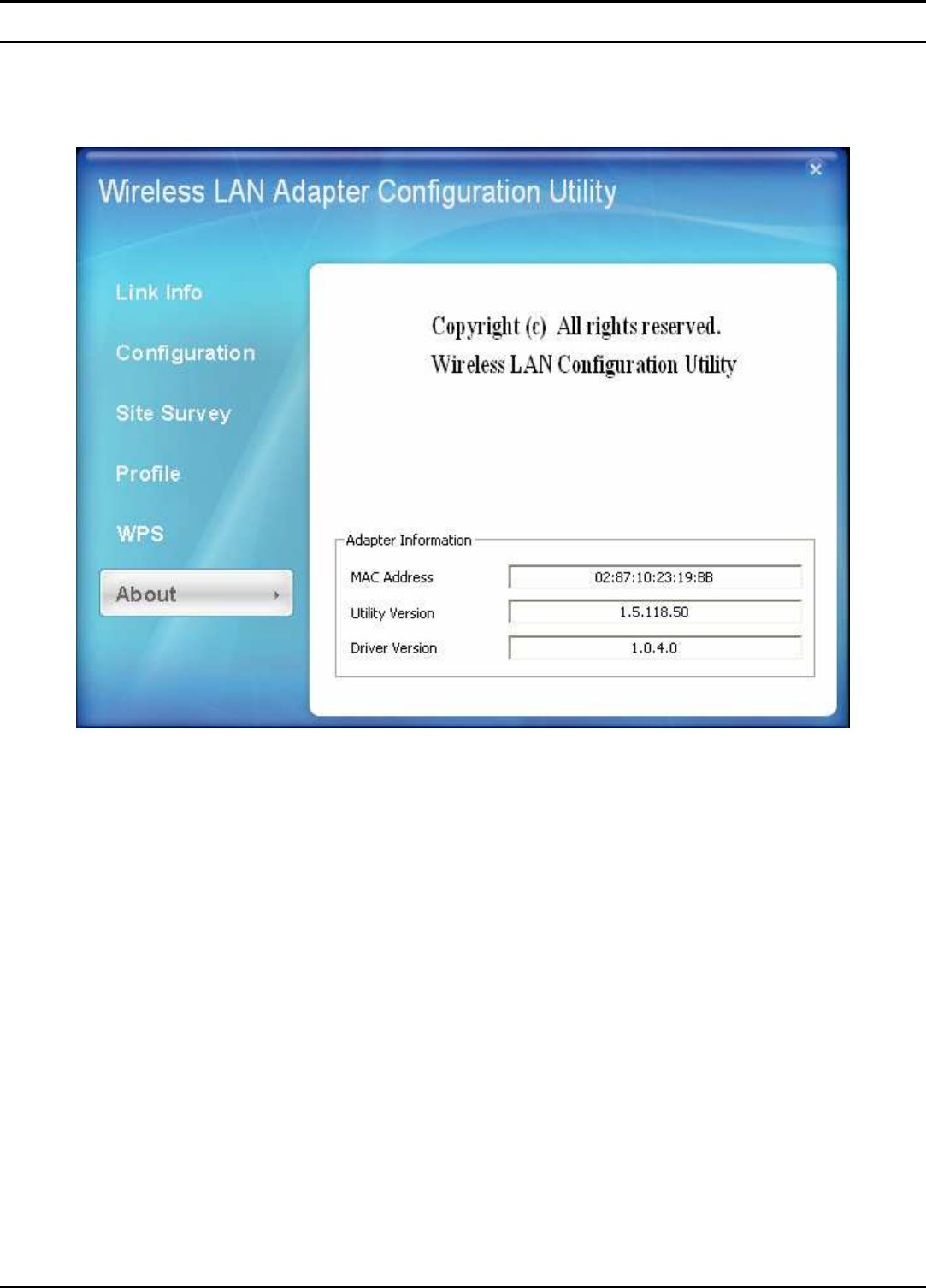

About
This screen displays information about the Wireless N USB Adapter, such as the
Driver and Utility version. When a new version of the utility becomes available for
upgrade, users will be able to identify by version numbers.
17
TECHNICAL SPECIFICATIONS
Hardware
Interface USB 2.0 Compliant
Standards IEEE 802.11n draft v1.0, IEEE 802.11b and IEEE 802.11g
Antenna Integrated Printed Antenna 2dBi
LED Indicator Activity
Power
Consumption Receive Mode: 250mA
Transmit Mode: 320 mA
Supported OS Windows 2000, XP, Vista
Dimensions
(LxWxH) 86.5 x 30 x 13 mm
Weight 15 g (0.5 oz.)
Temperature Operating: 0° ~ 40° C (32° ~ 104° F)
Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity 10% ~ 95% max (Non-condensing)
Certification FCC Part 15.247 for US, ETS 300, 328 for Europe, LP0002
Wireless
Module
Technique 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK
(1Mbps)
802.11g/802.11n: OFDM
Frequency 2.412 to 2.484 GHz (Industrial Scientific Medical Band)
Media Access
Protocol CSMA/CA with ACK
Data Rate (auto
fallback) 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps
802.11g: 54Mbps, 48Mbps, 36Mbps, 30Mbps, 24Mbps,
22Mbps, 18Mbps, 12Mbps, 11Mbps and 6Mbps
802.11n: up to 300Mbps (auto sense) for Rx
150Mbps (auto sense) for Tx
Output Power 17.5 dBm
Receiving
Sensitivity 150Mbps 10% PER @ -63 dBm (tytpical)
54Mbps 10% PER @ -73 dBm (tytpical)
11Mbps 8%
PER @ -89 dBm (typical)
Security 64/128-bit WEP (Hex/ASCII), WPA/WPA2, WPA-PSK/WPA2-
PSK
Channels 1~11 Channels (FCC/NCC); 1~13 Channels (ETSI)
