Camos CAMOS-BH200M BLUETOOTH ADAPTER User Manual BH 200M manual ENG motosonic

Camos Co., Ltd. BLUETOOTH ADAPTER BH 200M manual ENG motosonic

USERS MANUAL

Version 1.0 Printed in Korea
www.motosonicusa.com
2830 N. Ontario Street, Burbank, CA 91504
tel. 818 526 7771 fax. 818 526 7766
Thank you for purchasing the Motosonic Bluetooth adaptor.
The manufacturer does not take any responsibility on the sales of products nor entrust
the responsibility to a 3rd party. Product warranty shall not apply to any failure or mal-
function which results from improper maintenance, operation, or unauthorized
modification of products. Furthermore, the warranty does not apply to parts replaced
without the manufacturer's consent.
Motosonic provides a one year limited warranty. Costs to repair may be charged to the
consumer while the product is still under warranty if the product is returned due to the
following reasons :
1. Improper maintenance
2. Modification or replacement of parts in a user's disposition.
3. Using improper power source
4. Natural disaster including flood, fire and earthquake
5. Replacement of expendable parts.
Warranty only covers the original manufactured parts. Costs for repairs after the
warranty period is over will be charged to the consumer. Please contact the distributor or
after sales service center.
BLUETOOTH STEREO & MONO DONGLE
CONTENTS
Safeguard Instructions
Safeguard Instructions
PRELIMINARY REMARKS
Preparation
Composition
Name and function of each part
Button operating time and state
Operation
Audio device
Mobile phone
Wireless communication device
Mobile phone in concurrence with music play
Appendix
Battery charging and standard use time
Specification and features
.........................................................................................4
..........................................................................................................8
........................................................................9
.......................................................................10
.........................................................................................................12
.......................................................................................................13
........................................................................14
................................................15
..........................................................17
..................................................................................18
Please read the “Safeguard Instructions” carefully before using this product.
Following these instructions prevents users from possible damage that may
relate to the misuse of this product. It is very important to follow these
instructions. We state “Caution” and “Warning” to clarify any potential for
damage associated with misuse of the product.
May cause bodily harm or even death
if users ignore warnings in the safe-
guard instructions.
DO NOT
PRECAUTION
MUST FOLLOW DIRECTIONS
ABOUT SIGN
WARNING
BLUETOOTH STEREO / MONO DONGLE
SAFEGUARD INSTRUCTIONS
SAFEGUARD INSTRUCTIONS
Check the service voltage(DC IN 5V) before connecting the power.
- It may cause fire, electric shock and or other damage.
WARNING
4 5
May cause bodily harm or even death
if users ignore cautions in the safe-
guard instructions.
CAUTION
Use in regular temperature and humidity.
- It may cause explosion and fire.
Do not put the battery in fire, heat, or short circuit.
- It may cause explosion and fire.
Do not disassemble, repair or modify if you are not an authorized service person.
- It may cause harm and damage. Please inquire to distributor.
Do not use water, a thinner or a solvent to clean the product.
- It may cause damage and fire.
Do not operate with wet hands or get the product wet.
- It may cause damage and electric shock.
Do not put metallic materials such as pins and needles in the hole and between
the cracks of the product.
- In case of fire, stop using immediately. It may cause fire, electric shock and damage.
Do not use if you see or smell smoke coming from the product.
- This may be a fire hazard. Please contact your distributor.
Do not replace built-in battery at user's discretion.
- It may cause an explosion. Please replace the product or use the same battery type.
Unplug the cord before handling the product.
- It may cause electric shock.
Keep the product unplugged when not in use.
- It may cause fire and electric shock from overheating.
Use a dry cloth when you clean an exterior of the product.
- Wetting the product may cause electric shock.
Do not disconnect the product while still in use.
- Disconnect the product safely after powering off.
Unplug the product and remove cords before use.
- It may cause damage to cords, fire, and (or) electric shock.
Do not throw the product.
- It may cause defect and damage.
Do not pull from the cord line when you unplug it.
- It may cause cord defect.
Do not put the product in an unstable place where the product may be exposed
to shock and (or) impact.
- The product may fall and get damaged.
Do not place the product in extremely high temperatures and in the direct ray of
sunlight for an extended period of time.
- It may cause extensive damage to the product.
PREPARATION
6 7
BLUETOOTH STEREO / MONO DONGLE
SAFEGUARD INSTRUCTIONS
CAUTION
12
8 9
BLUETOOTH STEREO / MONO DONGLE BLUETOOTH STEREO & MONO DONGLE
MO ST
LED
POWER, PAIRING(P) KEY
STEREO/MONO SWITCH
CHARGER PORT(USB)
RESET
EARPHONE PORT
BH-200M Bluetooth Dongle
Audio Cable Mobile Cable RX/TX Cable
PTT Button USB Charger Instruction Manual
BH-200M
블루투스 스테레오&모노 동글
BLUETOOTH STEREO&MONO DONGLE

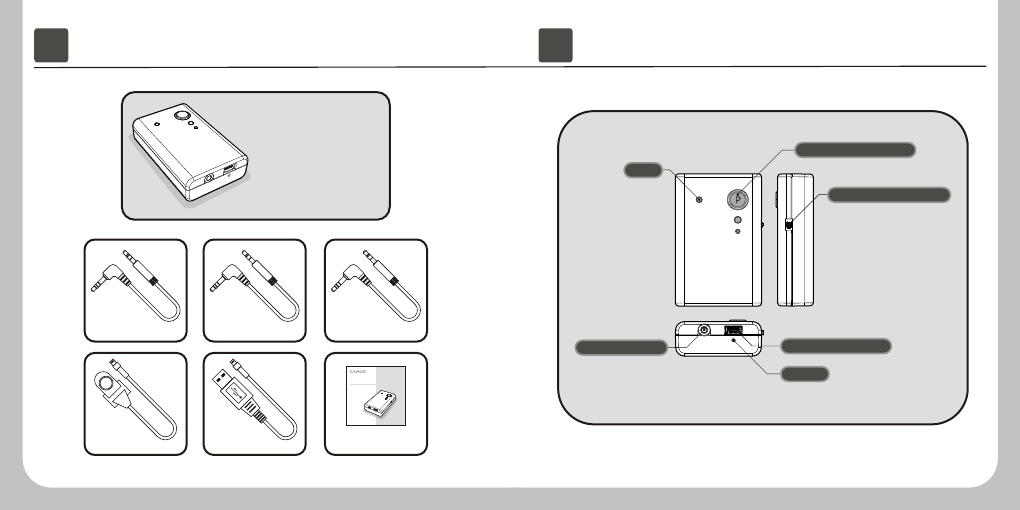

COMPOSITION NAME and FUNCTION of EACH PART
* BF adaptor(BM-200M) is only for Motosonic product, BHS-700D Headset.
Connection to non-compatible devices may cause mal-function.
3
10 11
BLUETOOTH STEREO / MONO DONGLE
BUTTON OPERATING TIME and STATE
MODE OPERATION LED STATUS
Power ON
Power OFF
Pairing
Connected
Stand-BY
Press [(P)KEY] for 3 sec.
Press [(P)KEY] for 3 sec.
Press [(P)KEY] for 7 sec on power off status.
-
-
Flashing for 2 sec.
Flashing 3 times for 1 sec. and Flashing-out.
Flashing every 100ms.
Flashing 2 or 3 times every 1 sec.
Flashing every 3 sec.
OPERATION
2
1
1. Place MO/ST switches to ST position. 1. Place MO/ST switches to MO position.
2. One signal cord connects to BH-200M and the other connects to the earphone(lineout)
port of the audio device.
3. Convert the connecting headset to Pairing mode. (Please refer to headset manual)
4. Press [(P)KEY] for 7 seconds to enter Pairing mode.
(At this time the LED is flashing every 100ms)
5. Once it connects with the headset, Led is flashing 3 times per second.
(If it fails to connect, try it again.)
6. You can play music after turning on your Audio device and pushing the play button.
2. One signal cord connects to BH-200M and the other connects to the earphone port of
the audio device.
3. Convert the connecting headset to Pairing mode. (Please refer to headset manual)
4. Press [(P)KEY] for 7 seconds to enter Pairing mode.
(At this time the Led is flashing in every 100ms)
5. Once it connects with the headset, Led is flashing 2~3 times per second.
(If it fails to connect, try again.)
6. To answer calls : Press "SEND" key on mobile
7. To end calls : Press "END" key on mobile and [(P)KEY] shortly on BH-200M.
8. To make calls : Enter phone number and press "SEND" key.
If other Bluetooth devices are turned on, connection problems may occur.
Please try to connect it after deactivating other Bluetooth devices.
12 13
BLUETOOTH STEREO / MONO DONGLE BLUETOOTH STEREO & MONO DONGLE
AUDIO DEVICE MOBILE PHONE
If other Bluetooth devices are turned on, connection problems may occur.
Please try to connect it after deactivating other Bluetooth devices.
The functions [Last call], [End call] and [Transfer to voice] are not available
while the Headset is connected to the BH-200M.
After ending a call, press the "END" key on your mobile phone then briefly
press the [(P)KEY] on the BH-200M.
If the connection between BH-200M and Headset is as MONO, it can not
connect as STEREO and (or) will be disconnected.
4
3
Bluetooth Built-in
Without Bluetooth
14 15
BLUETOOTH STEREO / MONO DONGLE BLUETOOTH STEREO & MONO DONGLE
1. Place MO/ST switches to MO position.
WIRELESS COMMUNICATION DEVICE
MOBILE PHONE in CONCURRENCE with MUSIC PLAY
3. One signal cord connects to the BH-200M and the other connects to the earphone
(lineout) port of the audio device.
4. Convert the connecting headset to Pairing mode. (Please refer to headset manual)
5. Press [(P)KEY] for 7 seconds to enter Pairing mode.
(At this time the LED is flashing every 100ms)
6. Once it connects with the headset, Led is flashing 3 times per second.
(If it fails to connect, try it again.)
7. Turn on your wireless communication device.
Sending : Push [PTT KEY] / Reception : Automatic
2. Connect PTT cable to USB port.
If other Bluetooth devices are turned on, connection problems may occur.
Please try to connect it after deactivating other Bluetooth devices.
It is possible to connect CH2 of Headset while using your wireless communi-
cation device, but you will not be able to communicate in this mode.
To begin communication, press the [(+)KEY] and [(-)KEY] together on the
Headset for 1 second.
If the earphone port has 4 sections, it can not be used.
1. Connect the same way as the Audio Device.
2. Connect Headset and Bluetooth enabled mobile phone after selecting hands-free or
headset mode. (Please refer to headset manual.)
3. Music will mute automatically while on a phone call, and return to play music after
pressing the [(P)KEY] for one or two seconds.
4. To answer calls : Refer to Headset manual
5. To end calls : Refer to Headset manual
6. To make calls : Refer to Headset manual
1. Connect your non-Bluetooth enabled Audio Device and Headset.
(Refer to a manual for Headset / Audio Device)
2. Connect BH-200M the same way as the Mobile phone.
3. Music will mute automatically while on a phone call, and return to play music after
pressing the [(P)KEY] for one or two seconds.
If the connection between BH-200M and Headset is MONO, the STEREO of
mobile can not connect and (or) disconnect.
16 17
APPENDIX
1
_Connect BH-200M and USB port on computer with USB cable.
_LED flashes while battery is charging.
CHARGING TIME
About 2.5 hours
STANDARD USE TIME
Waiting time
176 hours
Speak / Play
7.5 hours
BLUETOOTH STEREO / MONO DONGLE
BATTERY CHARGING and STANDARD USE TIME
Battery Charging
_LED flashes 5 times every 30 sec.
Battery Dying
2
Device Name
Bluetooth Version
Bluetooth Profile
Frequency Range
Out Power
Range
Operating Temperature
Dimension
Weight
Wireless communication device
Version 2.0
HSPAG, A2DP source
2.402 ~ 2.480 MHz
0.25 ~ 2.5mW
Max. 10m
-20 ~ 50 ˚C
29.0(W) x 46.0(H) x 12.0 (D) mm
16.4 g
18
BLUETOOTH STEREO & MONO DONGLE
SPECIFICATION and FEATURES
Re-Connecting
_It connects automatically with the latest connected device when turned on.
Some devices may have problems connecting automatically.
If this occurs, try pairing again.
19
BLUETOOTH STEREO / MONO DONGLE
REGULATORY INFORMATION
• FCC Compliance Information
This device complies with part 15 of FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received.
Including interference that may cause undesired operation.
• Information to User
This equipment has been tested and found to comply with the limits for a Class B digital
device, Pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio Frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures ;
_Reorient or relocate the receiving antenna.
_Increase the separation between the equipment and receiver
_Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
_Consult the dealer or an experienced radio/TV technician for help.
• FCC WARNING
This equipment may generate or use radio frequency energy. Changes or modifications
to this equipment may cause harmful interference unless the modifications are
expressly approved in the instruction manual. The user could lose the authority to
operate this equipment if an unauthorized change or modification is made.
Hereby, CAMOS, declares that this Bluetooth Adaptor(BH-200M) is in compliance
with the essential requirements and other relevant provisions of Directive 1999/5/EC.
REGULATORY INFORMATION
20 21
MEMOMEMO
BLUETOOTH STEREO / MONO DONGLE BLUETOOTH STEREO & MONO DONGLE

Navigation menu
