Camos CAMOS-BHS600 MOTORCYCLE BLUETOOTH SYSTEM User Manual BHS 600 manual ENG A5
Camos Co., Ltd. MOTORCYCLE BLUETOOTH SYSTEM BHS 600 manual ENG A5
Camos >
users manual
INSTRUCTION MANUAL
Printed in Korea
Ver. 1.0
BHS-600 / BHS-500
INSTRUCTION MANUAL
MOTORCYCLE BLUETOOTH SYSTEM
Thank you for purchasing our product.
This manual is for BHS-600 / BHS-500. Please read this instruction manual
thoroughly for proper usages and application before connecting and operating
the equipment.
CAMOS owns all intellectual property rights including copyrights instruction
manual, hardware and related software of BHS-600 / BHS-500 which will be
protected by the Copyright Act. Without CAMOS's written permission, they
cannot be copied, re-printed or translated into other languages.
Design and specifications are subject to change with notice.
Manufacture would not take any responsibilities on the sales of products nor
entrust the responsibilities to the 3rd party. Product warranty shall not apply
to any failure or malfunction which results from improper maintenance,
operation, unauthorized modification of product.
CAMOS warrants the quality of product for a one year. Though the product
is still under warranty period, repairing of products results from any of the
following events;
Warranty only covers the manufactured goods. Repairs after warranty period
is finished, repairs will be charged to the users. Please contact the distributor
and service center for A/S.
1) Improper maintenance
2) Modification or replace of parts in the user's disposition
3) Using improper power source
4) Natural disaster including flood, fire, and earthquake
5) Replacement of expendable parts
Preliminary Remarks
Warranty
3
CONTENTS
Composition
Headset charge
Product function check
Name and function of each part
KEY operating time and beep operating state
Headset mounting and dismounting
Headset custody
......................................................................6
..................................................................6
........................................................7
............................................8
...........................9
.......................................9
.................................................................9
PREPARATION
Headset power ON/OFF
Volume UP/DOWN
Headset registration and connection method
Function directions
_To answer the phone
_To call
_To listen to music
_To talk
_To talk between music playing
_To speak over the telephone between music playing
_To speak over the telephone between conversation
......................................................10
.............................................................10
..........................10
......................................................12
.........................................................................12
...........................................................13
.........................................................................13
..........................................14
..............14
..............15
OPERATION
Battery charging and standard use time
Specification and feature
FAQ
.................................16
....................................................16
................................................................................16
APPENDIX
Safety rules .......................................................................4
SAFETY RULES
Please read the “Safety Rules” carefully before using this product. Following of the safety
rules prevents users from any damage related with the misuse of this product. It is very
important that users follow these safety rules. We state “Caution” and “Warning” to clarify
any potential for damage associated with misuse of the product.
May cause bodily harm or even
death if users ignore warnings
in the safety rules.
Warning About signs
“Precautions”
“Do Not”
“Follow Directions Carefully”
SAFETY RULES
May cause bodily harm or even
death if users ignore cautions
in the safety rules.
Caution
Place the product where it doesn’t prevent the driver from driving.
- The driver’s view of sight should not be blocked.
Do not use unapproved power voltage.
- This may cause fire or electric shock.
Do not use in bathtub. Do not pull the plug with wet hands.
- This may cause electric shock.
Do not get product wet and operate with wet hands.
- This may cause electric shock.
Do not use damaged electric cord.
- This may cause fire and(or) electric shock.
Be careful when thunder and lightening occurs.
- There is a danger of electric shock.
Do not attempt to open, disassemble or repair the product by any person
except an authorized service dealer.
- This may cause electric shock and(or) malfunction. You should request
an authorized service dealer for any inspection and repair of the product.
Do not put pins or needles into the product or electric cord of product.
- If this happens, stop the product operation immediately. Continuous
use may cause fire, electric shock and(or) malfunction.
Do not get product wet and operate with wet hands.
- This may cause electric shock.
SAFETY RULES
Stop using the product immediately when you drop it or damage the
outside shell.
- Continuous use may cause fire, electric shock and(or) malfunction.
Warning
Caution
Do not put the product in place where sudden temperature
increase occurs such as the vehicle’s dashboard.
If you find any strange occurrences or malfunction in the product
or any foreign substance gets into the product, please contact the
authorized retailer where you purchased the product.
Do not use the product in the following locations.
In direct rays of the sun and near heating products
High in humidity and with bad ventilation
Dusty or oily locations
Low temperatures
Unstable environment
- This may cause malfunction.
Keep the product strongly in the helmet.
- It may cause to separate from the helmet.
Clean the product often.
- Dust in the area may cause fire.
Do not place elctric cord near a heating product.
- The cord surface may melt and cause fire and(or) electric shock.
Unplug the product and remove cords when moving.
- It may damage cords and cause fire and(or) electric shock.
Do not pul the cord line when you unplug it.
- Damaged cords may cause fire and(or) electric shock.
Unplug the product when you don’t use it for a long time.
- Damaged cords may cause fire and(or) electric shock.
Do not place the product where high temperature and(or) the direct ray
of the sun occurs.
- This may cause fire, electric shock and(or) mal ion.funct
Do not put the product in an unstable place where the product may be
exposed to shock and(or) impact.
- The product may fall and be damaged.
Keep electric cord properly positioned.
- An improperly positioned electric cord may cause fire or electric shock
when metal material is in contact with power source.
4 5
Phone Feature
∙ Stop music function
∙ Play music function
∙ Volume control(UP/DOWN)
Music Feature
∙ Conversation function between Driver and Passenger
∙ Mobilephone call function during the conversation between the Driver
and Passenger. - Since phone call is on priority, the Driver and Passenger
conversation will be on mute during the call
∙ Stop talk function
∙ Start talk function
Talk Feature

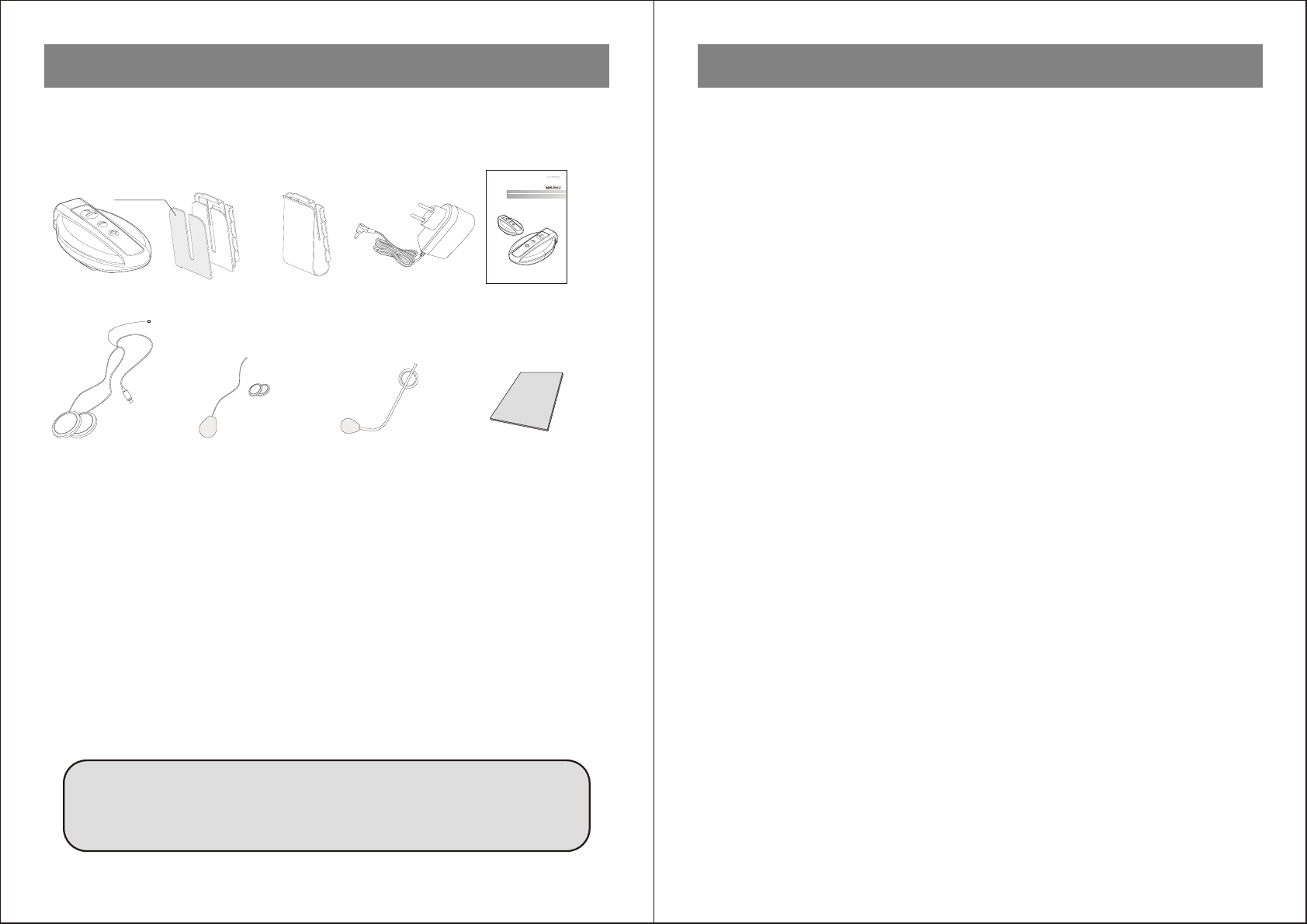

• Composition
Li-Polymer Battery is included to this Headset. Use to fill up perfectly Battery after
buying product.
∙ Display device : RED LED
∙ When it is charging RED LED is lighted up, and when it is ended RED LED is turned
off lights.
∙ Separate charger and Headset when LED is turned off lights.
∙ When battery is lack, Beep sound rings until charged.
∙ Auto answer call function
∙ Dialing function
_Last number redialing
_Transfer Dialing
_Voice Dialing
∙ End Call function
∙ Volume control(Up/Down)
Should use the DC adapter provided by CAMOS.
It could be occurred breakdown or damage if use adaptor
that is not approved.
Bracket ABluetooth Instruction
Manual
DC Adaptor
Charger
67
PREPARATION PREPARATION
Microphone AEarphone
Dual Side Adhesive Tape
• Product function check
• Headset charge
BHS-600 / BHS-500
INSTRUCTION MANUAL
MOTORCYCLE BLUETOOTH SYSTEM
Microphone B
Bracket B
(By Clip)
Dual side
Adhesive tape
(By Dual side adhesive tape)

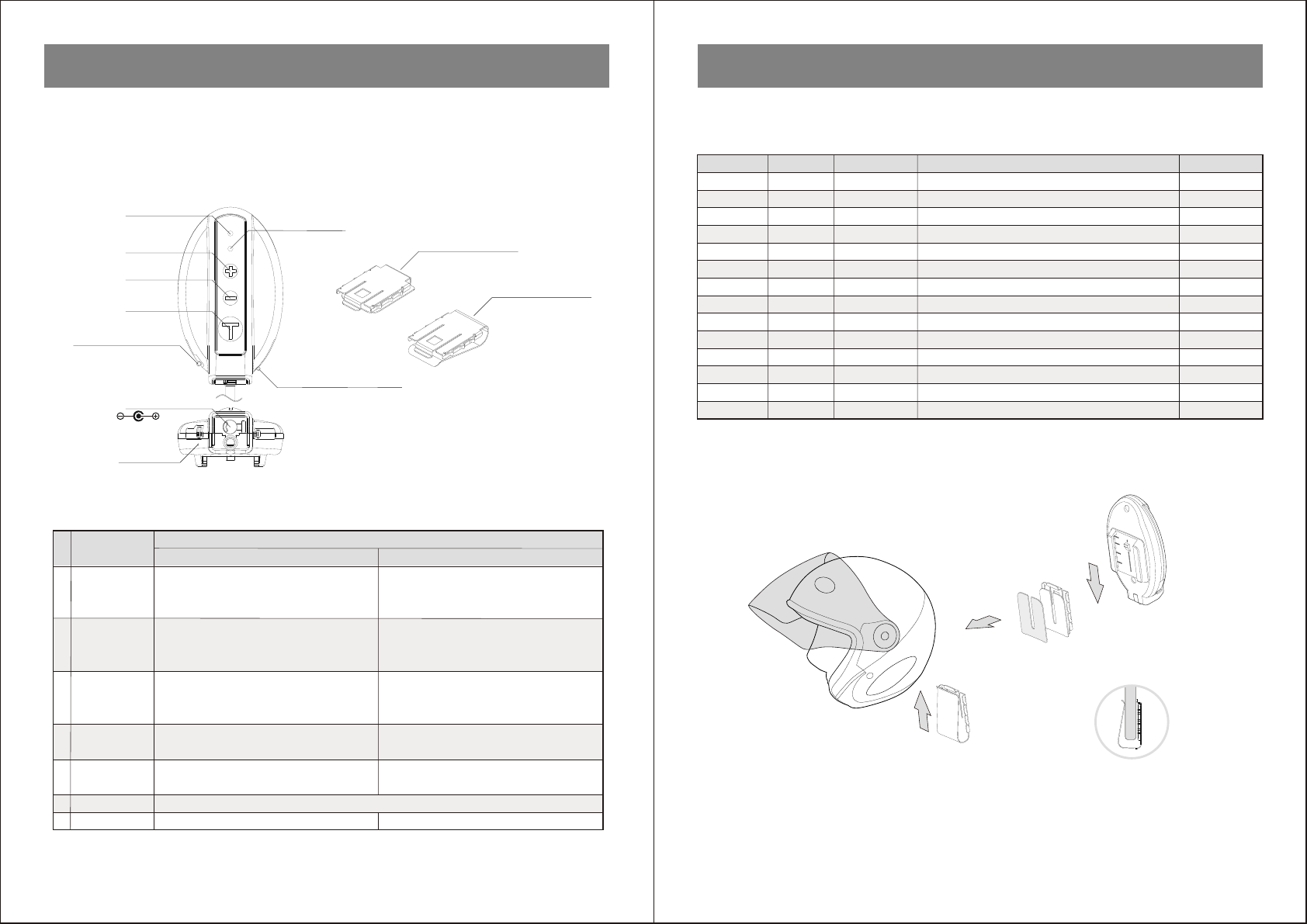

1. Name of each part
DC IN
GREEN LED
(Only BHS-600)
(+) KEY
RED LED
(-) KEY
TALK KEY
PAIRING SWITCH
(CH1, CH2 / Only BHS-600)
MASTER / SLAVE SWITCH
(Only BHS-600)
BRACKET A Type
8 9
PREPARATION PREPARATION
• Name and function of each part • KEY operating time and Beep operating state
2. Function of each part
∙ Short press in case there is no specified mention about time.
∙ Volume Down
∙ When disconnected at passage 30 minutes after
Link loss state, Reconnecting attempt
∙ Volume UP
∙ When disconnected at passage 30 minutes after
Link loss state, Reconnecting attempt
∙ Power ON / OFF : Press for 3 sec.
∙ Volume UP
∙ When disconnected at passage 30 minutes after
Link loss state, Reconnecting attempt
∙ Last number redialing
∙ Transfer dialing : Press for 2 sec.
∙ Voice dialing : Press for 2 sec.
∙ End call
∙ CH1 PAIRING (CH2 → CH1 switching)
Master ↔ Slave switching
∙ Function that do Power OFF in various active states
∙ Talk Start / Stop : at same time press for 1 sec.
TALK
PAIRING
(Slide Switch)
RESET KEY
(-)KEY + (+)KEY
–––
2
3
4
5
6
1
/
∙ CH1 PAIRING (CH1 → Ch2 switching)
∙ Music Play / Stop : at same time press for 3 sec.
–––
No
KEY CH 1 CH 2
FUNCTION
∙ Power ON / OFF : Press for 3 sec.
∙ Volume Down
∙ When disconnected at passage 30 minutes after
Link loss state, Reconnecting attempt
MASTER / SLAVE
(Slide Switch)
(+)KEY
(-) KEY
1) During action, even if SLIDE SWITCH is located to CH1 or CH2, do not return to Pairing even if power goes to OFF → ON.
2) When CH1 is pairing with other devices, SLIDE SWITCH position moves to CH2(within 3 seconds) and again moves to CH1.
Then after 3 sec. Paring works.
3) CH2 is action equally with upside.
Operation state Operation KEY KEY operating time
Beep
For 2 sec. lighting then Stand by (RED LED)
LED(Red) operation
CH1 Power ON
CH2 Power ON
Stand - BY
CH1 Power OFF
CH2 Power OFF
PAIRING Attempt
PAIRING Done
Last Number Dialing
Transfer Dialing
Voice Dialing
End Call
Music Play / Stop
Talk Start / Stop
Low Battery Warning
(-) KEY
(+) KEY
(-) KEY
(+) KEY
PAIRING Switch
TALK
TALK
TALK
TALK
(-)KEY + (+)KEY
(-)KEY + (+)KEY
3 sec.
3 sec.
3 sec.
3 sec.
3 sec. Later
Short Push
2 sec.
2 sec.
Short Push
At same time 3 sec.
At same time 1 sec.
At 100ms once blinking per 1 sec.
At 100ms 2 sec. intervals blinking then lighting-out (RED LED)
At 100ms 2 sec. intervals blinking then lighting-out (GREEN LED)
At 100ms 3 min. blinking → as failed, at 100ms once blinking per 1 sec.
At 100ms twice blinking per 1 sec.
Until charging, at 30 sec. intervals Beep
DI, RI, RING
DI, RI, RING
DI, RI, RI~
DI, RI, RI~
PI, RI, RI, RI, RING
DING, DING, DING 30 sec. Intervals
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
–––
For 2 sec. lighting then Stand by (GREEN LED)
PI, RI, RI, RI
∙ Keep where power secures by state that turn off.
∙ Keep to avoid high temperature, direct ray of light, lower than 50℃ or hot vehicles inside etc.
Performance of product is fallen if keep at high temperature and Battery life can decrease.
∙ Parts offered with product keep in dry place that moisture or moisture does not exist.
• Headset mounting and dismounting
• Headset custody
BRACKET B Type
I-1. Fix the bracket(A type) firmly
in the back of the helmet by using
dual side adhesive tape.
II. Push up the Bluetooth main body
into the bracket.
I-2. Fix the bracket(B type) in the lower part of the helmet by using clips provided.
Refer to the figure below. Joining the Bluetooth main body with bracket
is the same as above(Braket A).
RESET KEY
10 11
OPERATION OPERATION
This Headset is operated particularly CHs with POWER ON/OFF as below.
When POWER ON, press the preferred CH's KEY for 3 sec. then be POWER ON.
Press again for 3 sec. then be POWER OFF.
(Details contents : 9 page KEY operating Time and Beep operating state)
Press (+)KEY or (-)KEY to control volume while operates.
Should register Headset to Bluetooth device(ex. Cellular phone) to use Headset.
Registration is process connecting via certification that is encrypted between two devices
that Bluetooth function is.
∙ Select "CAMOS BHS-600(BHS-500)" in searched device list.
∙ Should connect to Bluetooth device that register to connect
(or, after connection cancellation) Headset after registration.
1) Power ON Headset CH1[press (-) KEY for 3 sec.].
2) Change [Pairing Switch] to CH2 for Headset CH1's pairing then change again to CH1.
3) Refer to the instruction manual of cellular phone and then connect Headset after
searching and registration.
1. Connecting Headset with cellular phone
1) Power ON Headset CH1[press (-) KEY for 3 sec.].
2) Change [Pairing Switch] to CH2 for Headset CH1's Pairing then change again to CH1.
3) Refer to the instruction manual of Audio device and then connect Headset after
searching and registration.
1) On a Headset should change [Master/Slave Switch] toward Slave and Press (+)key
for 3 seconds to put the power on. Change [Pairing Switch] toward CH1 then again
toward CH2.
2) On the other Headset should change [Master/Slave Switch] toward Master and
Press (+)key for 3 seconds to put the power on. Change [Pairing Switch ] toward
CH1 then again toward CH2.
∙ Connect with CH1 of Headset when use to connect Headset with Bluetooth device.
(ex. Cellular phone)
∙ Connect with CH2 of Headset when use to connect Headset with Headset.
(this CH2 of Headset does not available to connect with other Bluetooth devices)
∙ When connect with a preferred device, at first POWER OFF the connected Bluetooth.
(When Headset is already connected with other device it does not operate Pairing Mode)
∙ Once connected device is connected automatically when POWER ON.
(-) KEY ∙ Power ON : Press for 3 sec.
∙ Power OFF : Press for 3 sec.
(+) KEY ∙ Power ON : Press for 3 sec.
∙ Power OFF : Press for 3 sec.
CH 1 CH 2
–––
–––
2. Connecting Headset with Audio Device
3. Connecting Headset with Headset : between CH2 and CH2
Volume control is available in operation state.
Remark : The volume lever for the conversation between CH2 is fixed,
therefore volume is not adjustable.
∙ In order to disconnect the audio device, uncheck the bluetooth option on
the audio device. Turn off the headset power and it will be automatically
connected when the power is back on.
• Headset POWER ON/OFF
• Volume UP/DOWN
• Headset registration and connection method
∙ Refer to the Instruction manual of cellular phone to replay music files that
is built-in to cellular phone and to listen to music.
∙ In order to disconnect the cellular phone, uncheck the bluetooth option
on the cellular phone. Turn the headset power and bluetooth will be
automatically connected with audio device when the power is back one.
12 13
OPERATION OPERATION
1) When completed the connection Headset with Celluar phone, become to answer /
to call state.
2) The function of Auto Answer Call is included this Headset, does not need additional
key operating to answer because is received automatically.
3) Press [TALK KEY] shortly to disconnect on a headset.
1. To answer the phone
• Function direction
Based on kinds of Cellular phone, maybe only MP3 file s are
played Check the format if the stored music file s are MP3 or not.
1) Last Number Dialing
_Shortly press [Talk KEY] to use the function of last number dialing.
2) Call Transfer
_If press [TALK KEY] for 2 sec. in current cellular phone calling , telephone is
connected to Headset.
_If press [TALK KEY] for 2 sec. again, can move to current cellular phone calling.
3) Voice Dialing
_If press [TALK KEY] for 2 sec., voice information is announced.
This time, should operate following voice information to call.
2. To call
∙ Please refer to the instructional manual of each cellular phone for voice
dialing. Voice Dialing option of bluetooth is only available for the cellular
phones that has the voice dialing option and registered for the stereo
headset service.
∙ If cellular phone is disconnected due to the long distant between the
headset and cellular phone the call will be automatically connected when
these two equipments get near within distance of 10m within 30min.
∙ When 30 minutes are passed, press [(+)KEY or (-)KEY] shortly.
It will be re-connected, starting receiving signals again.
When failed to connect, POWER OFF then ON again for pairing.
3. To listen to music
1) To listen to music files stored to a cellular phone through Headset
_Connect Headset with Cellular phone( Audio built-in).
_Please refer to the cellular phone manual to find how to select the "mp3" mode
to play.
_To stop the music press [(-)KEY] and [(+)KEY] for 3 sec at same time.
_To play the music again press [(-)KEY] and [(+)KEY] for 3 sec. at same time.
2) To listen to music files stored to an Audio Device through Headset
_Connect Headset with an Audio device.
_Please refer to the audio device manual to play the music.
_To stop the music press [(-)KEY] and [(+)KEY] for 3 sec. at same time.
_To listen the music press [(-)KEY] and [(+)KEY] for 3 sec. at same time.
∙ Even if press [(-)KEY] and [(+)KEY] for 3 sec. at same time then music
is stopped, the Audio Device is playing continuously.
∙ Based on kinds of Cellular phone, maybe only MP3 files are played.
∙ Stopping / Playing by pressing [(-)KEY] and [(+)KEY] for 3 seconds is
only possible on "MUSIC MODE".
_When completed to connect Headset(CH2) with Headset(CH2), become to Talk.
_To stop to Talk, press [(-)KEY] and [(+)KEY] for 1 sec. at same time.
_To talk again, press [(-)KEY] and [(+)KEY] for 1 sec. at same time.
4. To talk
∙ The volume of conversation between CH2 is not adjustable.
14 15
OPERATION OPERATION
_Connect Headset with Cellular phone or Audio Device then make to listen to music.
_Connect Headset(CH2) with Headset(CH2) then make to Talk.
_When sensed the Audio signal while listen to music, Music is in Mute state and become
to talk between Headsets.
_To stop to talk press [(-)KEY] and [(+)KEY] for 1 sec. at same time. This time, start
again after 10 sec. to listen to music of Mute state.
_To talk again, press [(-)KEY] and [(+)KEY] for 1 sec. at same time.
5. To talk between music playing
∙ If CH2 conversation is started in the middle of playing the mp3, the music
will turn to mute mode.
∙ After or during the conversation, if there is no sound for 10 seconds, music
will be play with proper volume.
1) To speak over the telephone between playing music files stored to Cellular phone
_Connect Headset with Cellular phone built-in Audio, then make to listen to music.
_Connect Headset with Cellular phone.
_If there is an in-coming call while music is played, the music will be stopped and turn to
conversation mode.
6. To speak over the telephone between music playing
2) To speak over the telephone while replay the music files stored to Audio Device
_At first, register Headset to cellular phone.
_Release Bluetooth mode of cellular phone.
_Connect Headset with audio device then make listen to music.
_Set up Bluetooth ON mode of cellular phone so that connect Headset with cellular phone.
_When in-coming the signal of cellular phone while listen to music, music is disconnected
then start to speak over the telephone.
_Connect Headset(CH2) with Headset(CH2) then make to Talk.
_Connect Headset with Cellular phone.
_If there is an in-coming call to the cellular phone, the conversation will be on mute
for the cellular phone call.
_When the call is hung up, conversation mode will be back on.
7. To speak over the telephone between conversation
∙ When the user hangs up the phone call by pressing [TALK KEY] on the headset
shortly, the stopped audio device will be back on the playing mode.
∙ If the user dials to make a phone call by pressing the [TALK KEY], the music
would not be played automatically. If the user desires to play the music,
press [(+) and (-) KEY] at the same time for 3 seconds.
∙ When the user hangs up the phone call by pressing [TALK KEY] on the
headset shortly, the stopped audio device will be back on the playing mode.
∙ In order to connect the headset with Audio device and cellular phone at
the same times, please use the audio device that only supports the stereo.
∙ When press once [TALK KEY] shortly, the music is disconnected and cellular
phone returns to call to last number based on kinds of cellular phone, should
press twice [TALK KEY].
∙ If power is turned off or the cellular phone is away from the headset for more
than 10m while music is being played, note that these two devices will be
disconnected and the music will become mute.
∙ Conversation and phone call at the same time is not allowed.
16 17
APPENDIX REGULATORY INFORMATION
• Battery charging and standard use time
• Specification and Feature
Charging time Standard use time
About 2 hours Stand-BY time Speak / Play / Conversation Play + Conversation
180 hours 13 hours 8 hours
Device name
Bluetooth version
Supported Bluetooth profile
Frequency range
Transmission output
Wireless use distance
Dimension
Weight
Operating temperature
Adapter input
Adapter output
Wireless Data Communication System(BHS-600 / BHS-500)
Version 2.0
HFP, HSP, A2DP, AG profile
2.402 ~ 2.480MHz
0.25 ~ 2.5mW
At max 10m
51(W) x 90(H) x 20.5(D) mm
120g
-20 ~ 50℃
AC 100 ~ 240V, 50/60Hz
DC 5V, 500mA
• FAQ (Frequently Asked Questions)
• FCC compliance Information
This device complies with part 15 of FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received.
Including interference that may cause undesired operation.
• Information to User
This equipment has been tested and found to comply with the limits for a Class B digital device,
Pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio Frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures ;
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
• FCC WARNING
This equipment may generate or use radio frequency energy. Changes or modifications to this
equipment may cause harmful interference unless the modifications are expressly approved in
the instruction manual. The user could lose the authority to operate this equipment if an
unauthorized change or modification is made.
Hereby, , declares that this
is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
[CAMOS] [Motorcycle Bluetooth System(BHS-500/
BHS-600)]
18 19
MEMO MEMO
