Camos DVWS-100 Digital Video Wireless System User Manual DVWS 100 EN indd

Camos Co., Ltd. Digital Video Wireless System DVWS 100 EN indd

User Manual

DVWS-100
Thank you for purchasing this product.
For proper usages and application, please
read this instruction manual carefully.
PRINTED IN KOREA ver. 1.0 * The design and speci cations of this product in order to improve its quality
may be changed without notice.
DIGITAL VIDEO WIRELESS SYSTEM
Instruction Manual
2
CONTENT
Safety instructions ....................................................................... 3
1. Box contents ........................................................................... 4
2. Features .................................................................................... 4
3. Functions ................................................................................. 5
4. Connections and installation .......................................... 6
5. Cleaning and maintenance ............................................. 8
6. Speci cation .......................................................................... 8
3
Safety instructions
Please read the “Safety Rules” carefully before using this product. Following the
safety rules prevents users from damages related with the misuse of the product.
It is very important to follow these safety rules. We state Caution and Warning
to clarify any potential risk for a damage associated with the misuse of the product
Do not put the product in place where sudden temperature increasing and
should use on optimum voltage, temperature and humidity.
--- It may cause to electronic shock or malfunction.
Do not place where interfere with visual  eld and watch or operate monitor
during driving.
--- It may cause tra c accident.
Do not place near of air bag e ective range.
--- It may cause malfunction of air bag or accident, injury due to hitting
--- monitor by air bag.
Keep clean dust on power socket.
--- It may cause electronic shock and  re by bad connection.
Do not pull cord with a jerk, should catch a plug and pull.
Do not use damaged cord.
--- It may cause cord malfunction, electronic shock and  re.
When clean exterior, power o and wipe with dry cloth.
--- Wet cloth may cause a electronic shock.
Do not clean exterior with volatility or oily solvent.
Neither keep touching rubber and plastic for long time.
--- It may cause change of surface, fall of paint, malfunction and  re.
Do not put metals as like pin and needle into hole and chink of grill, speaker.
--- In case of inserting them, stop to operate, it may cause electronic shock,  re
and malfunction.
Do not disassemble, repair and remodeling.
--- It may cause malfunction and injury, can not get warranty.
--- Make inquiries to agent for repair and checkup.
4

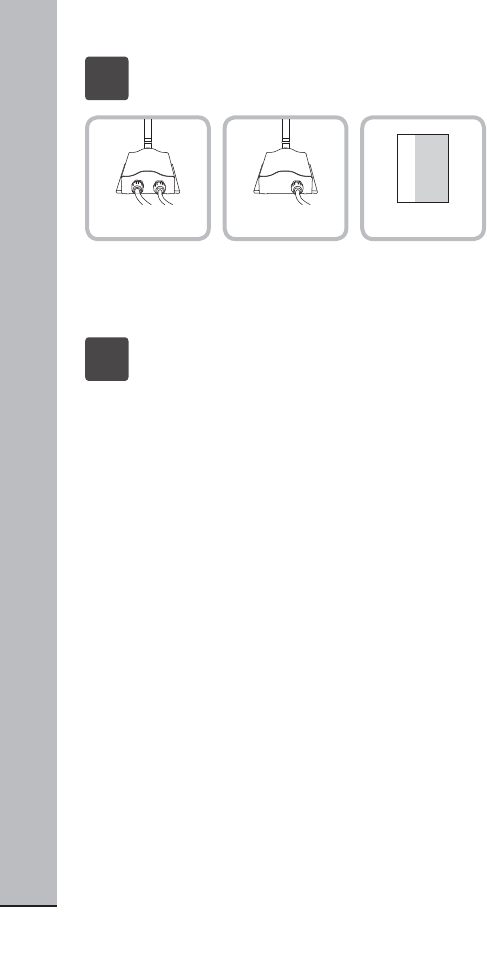

1 BOX CONTENT
2 FEATURES
Transmitter Receiver Manual
Black anodized aluminium housing with installation bracket
Fixed unit 2,4 GHz High power short antenna
Connections for 6-Pol Mini DIN
Video system: PAL/NTSC
High Level operating system
Own DVWS ID-System
Waterprotected housing
5
■ The surrounding temperature should be between -10° C und 55° C
3 FUNCTION
With this digital video- and audio transmitting system, images and audio signals
will be transmitted wirelessly from di rent video sources like receiver, DVD-Player
or rear-view cameras to the monitor.
The transmitter will be connected to power supply with 12/24V and the 6-POL MINI
DIN adaptor is connected directly with the camera.
The receiver will be connected the same way to the monitor. Picture and sound
now will be transmitted wirelessly from video source to the monitor. Disturbances
because of other wireless systems like shop-or  lling stations security systems are
excluded.
To use the system as a rear-view system, it is neccessary, to use a monitor with
stand-by connection. Please connect this with +12V of the back light, to get the
monitor and camera startet automatically when you choose the reverse gear.
Receiver and transmitter have to have steady plus after starting the car.
ATTENTION: The transmission time of the picture from the camara to the
monitor takes less than 200ms, so please take care while driving back-
wards.
6

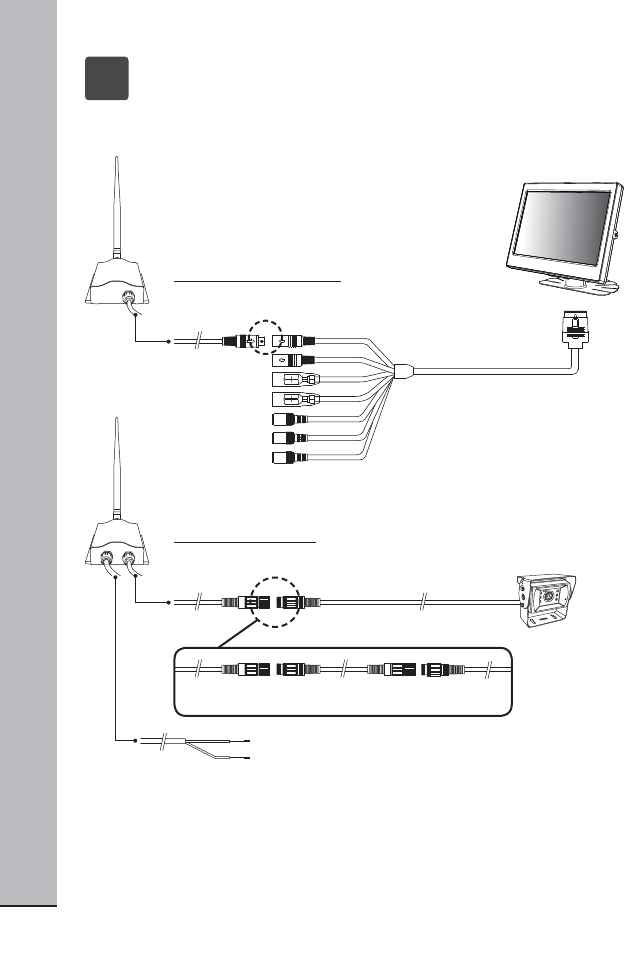

4 CONNECTION AND INSTALLATION
Transmitter
Waterproof connector (IP-65)
12/24V DC (-) IN (BLACK)
12/24V DC (+) IN (RED)
Receiver
6-POL mini DIN connector
Multi cable
Monitor (4” ~ 19”)
12/24V DC IN
Adaptor for tilt camera
CM-42/CM-42A(Optional)
Original CAMOS Rear-view system >>

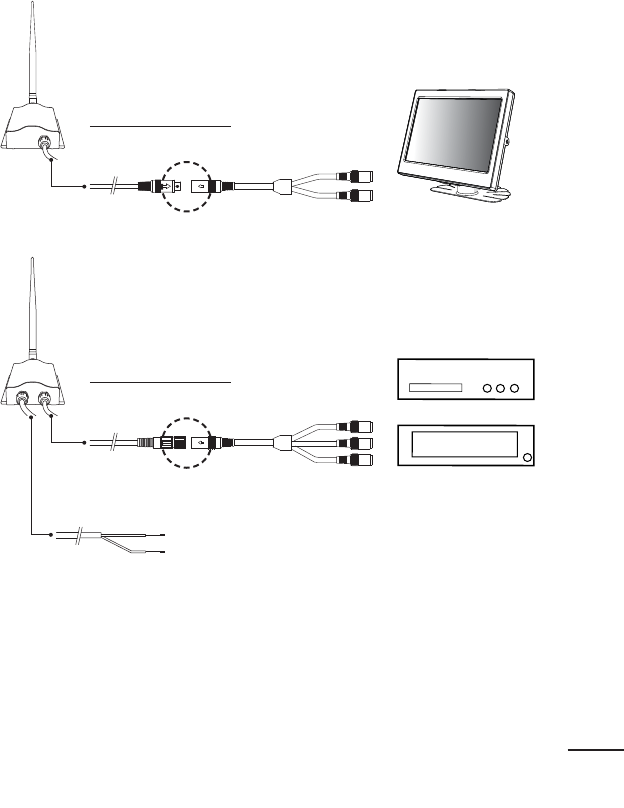

7
Receiver
Waterproof connector (IP-65)
Outdoor
Adaptor CY-009, 6-Pol mini DIN
to Chinch (Optional)
Monitor (4” ~ 19”)
12/24V DC IN
Transmitter
Waterproof connector (IP-65)
12/24V DC (-) IN (BLACK)
12/24V DC (+) IN (RED)
Adaptor DRC-004A, 6-Pol mini DIN
to Chinch (Optional)
ASTRA
Video/DVD
Receiver
8
5 CLEANING AND MAINTENANCE
■ Cleaning
- Disconect the modul from power supply
- Cleaning with a clammy cloth
■ Entering of contaminats
Never enter contaminats into the body, there could be a short circuit and the
system could be broken.
Do not water the housing.
■ Maintenance
Do not try to repair the system by yourself. Do not open or remove the cover.
Please contact professional services.
6 SPECIFICATIONS
Composite Video Signal
-10˚C ~ 55˚C
-20˚C ~ 70˚C
142(W) x 90(H) x 33(D) mm
290g
up to 50m inside/ 200m out side
High-Level OS embedded
30 fps real time Video transmitting
IEEE 802.11n HT20, WiFi Communication
High Level Security 64/128 bit WEP, WPA, WPA2
POWER SUPPLY
CHANNEL
VIDEO INPUT SIGNAL
OPERATING TEMPERATURE
STORAGE TEMPERATURE
DIMENSION
WEIGHT
RANGE
OPERATING SYSTEM
IMAGE TRANSFER RATE
COMMUNICATION
CONDIFICATION SYSTEM
VOLTAGE
CURRENT
Max, 10
DC 12V - 24V
4 Watt (DC 12V)
2412 MHz to 2457 MHz
9
FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
NOTE : This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communica-
tions.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be deter-
mined by turning the equipment o and on, the user is encouraged to try to correct the interfer-
ence by one or more of the following measures:
_Reorient or relocate the receiving antenna.
_Increase the separation between the equipment and receiver.
_ Connect the equipment into an outlet on a circuit di erent from that to which the receiver is
connected.
_Consult the dealer or an experienced radio/TV technician for help.
Caution : Changes or modi cations not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
IMPORTANT NOTE : To comply with FCC RF exposure compliance requirements, the antenna used
for this transmitter must be installed to provide a separation distance of at least 20 cm from
all persons and must not be co-located or operating in conjunction with any other antenna or
transmitter.
10
EC R&TTE Compliance Statement
Hereby, Camos Co., Ltd., declares that this model DVWS-100 is in compliance with the es-
sential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of
conformity may be consulted at www.address.com/DoC.pdf.
IMPORTANT NOTE: To comply with Council Recommendation 1999/519/EC of 12 July 1999 on
the limitation of exposure of the general public, the antenna used for this transmitter must be
installed to provide a separation distance of at least 20 cm from all persons and must not be
colocated or operating in conjunction with any other antenna or transmitter.
Intended use of the equipment: Digital video and audio transmission system
This equipment may be operated in EU.
Restrictions of use:
Only the frequency band within 2412 MHz - 2447 MHz (8 CHs) is available
for outdoor use.
Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz.
Military Radiolocation use. Refarming of the 2.4 GHz has been ongoing in re-
cent years to allow current relaxed regulation. Full implementation planned
2012.
General authorisation is required.
For private use, a general authorisation is required if WAS/RLAN’s are used
outside own premises. For public use, a general authorisation is required.
Restricted at the geographical area within a radius of 20 km from the cen-
tre of Ny-Ålesund.
SRD with DSSS and other than FHSS wideband modulation.
1. Maximum mean e.i.r.p. density is 2 mW/MHz. Maximum 100 mW e.i.r.p.
2. Maximum mean e.i.r.p. density is 20 mW/MHz. Maximum 100 mW e.i.r.p.
Permitted to use SRD for outdoor applications only for purposes of gathering
telemetry information for automated monitoring and resources accounting
systems or security systems.
3. Maximum mean e.i.r.p. density is 10 mW/MHz. Maximum 100 mW e.i.r.p.
Indoor applications.
France
Italy
Norway
Russian
Federation
0678
11
MEMO
