Canam Technology M4DBDA7 MARK-IV Digital Narrowband (Class-A) Signal Booster User Manual UHF CHANNELIZED OUTPUT LIMIT CONTROL

Canam Technology, Inc MARK-IV Digital Narrowband (Class-A) Signal Booster UHF CHANNELIZED OUTPUT LIMIT CONTROL

Users Manual

MARK-IVD 700MHZ NARROWBAND SIGNAL BOOSTER
M4DBDA7
USER’S MANUAL
REVISION 0
SUBMITTED BY:
CANAM TECHNOLOGY, INC.
August, 2012
CANAM TECHNOLOGY, INC. (CTI)
MARK-IVD 700MHZ NARROWBAND SIGNAL BOOSTER M4DBDA7 USER’S MANUAL
Page 2 of 11
Rev0 August/2012
TABLE OF CONTENTS
Section A. INTRODUCTION ..................................................................................... 3
Section B. SYSTEM DESCRIPTION ........................................................................... 5
Section C. PHYSICAL OVERWIEW .......................................................................... 6
Section D. START - UP .............................................................................................. 8
D.1 ACCESSING D.U.T. WEB SERVER ................................................................... 8
D.1.1 Connect D.U.T to P.C computer using a crossover cable ................... 8
D.1.2 Connect D.U.T to local area network ..................................................... 9
D.2 USING AND SETTING UP D.U.T ...................................................................... 10
Section E. RF CONNECTIONS .............................................................................. 11
CANAM TECHNOLOGY, INC. (CTI)
MARK-IVD 700MHZ NARROWBAND SIGNAL BOOSTER M4DBDA7 USER’S MANUAL
Page 3 of 11
Rev0 August/2012
Section A. INTRODUCTION
The MARK-IVD 700MHZ Narrowband Signal Booster (M4DBDA7) is a Class B
Narrowband Signal Booster to operate within range 763-775 MHz (DL path),
793-805 MHz (UL path) for Land Mobile radio FCC Part 90.
This document is the M4DBDA7 User’s Maintenance Manual, intended for the
Radio Technical Personnel.
This manual is intended to be used with the M4DBDA7 Equipment only. It is
not to be used with any other equipment unless it is authorized by Canam
Technology, Inc.
Canam Technology, Inc provide this document “as is” without any
warranty of any kind. Canam Technology may make changes to the
equipment, software or specifications in this document at any time
without notice to the user. These changes will be notified to the
party responsible for FCC compliance and they will be incorporated
in future releases of this document.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment”
This document may contain typographical errors and technical
inaccuracies. Canam Technology will not accept any liability from
the use and misuse of this manual, the information contained within,
or the consequences of any actions resulting from the use of this
information.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IVD 700MHZ NARROWBAND SIGNAL BOOSTER M4DBDA7 USER’S MANUAL
Page 4 of 11
Rev0 August/2012
Signal boosters such as the M4DBDA7 generate radio signals and,
therefore, electromagnetic fields. The technical personnel should
have a complete understanding of FCC CFR Title 47 sections 1.1307
and 1.1310. Recommendations are included in this Manual, but
they do not substitute the FCC guidelines.
M4DBDA7 Key Features:
Narrowband Class B Signal Booster, per FCC Part 90.
Maximum Output Power at the antenna port +37 dBm per
carrier.
AGC circuit provides a constant output power, regardless of
the input power.
This device may require the use of antennas for proper functioning,
depending on the application. The installation of the antennas
should be performed by qualified technical personnel. All antennas
should be fixed mounted and physically secured to one location
The people must be away from the antennas at least 1.0 meters to
comply with the RF Human Maximum Permissible Exposure limits, as
long as the antenna system gain is lower than 11.3 dBi. If greater
gain is used the separation should be increased, please refer to the
FCC Rules.
If service should be performed on the antenna, please shut down
the transmitter or lower its power in order to comply with the
maximum permissible exposure.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IVD 700MHZ NARROWBAND SIGNAL BOOSTER M4DBDA7 USER’S MANUAL
Page 5 of 11
Rev0 August/2012
Section B. SYSTEM DESCRIPTION
This system (D.U.T.) is an 700MHz Signal Booster to operate within range 763-
775 MHz (DL path), 793-805 MHz (UL path) for Land Mobile radio FCC Part 90.
The system features eight or more programmable frequency narrowband
filters. The desired operation frequencies must be configured using built-in
Web Server.
Programmable Individual Rx Threshold level (Squelch) per filter allows
transmission if the probe signal is greater than configured Squelch.
Individual Automatic Gain Control (AGC) per filter delivers constant output
power level per channel (+/- 1 dB) regardless of their input level variations.
The maximum output level per filter can be changed with option “Maximum
Desired Output Level per filter” in Main Settings page from Web Server
The built-in Web Server provides a Graphical User Interface (GUI) to ease in
remote monitoring & control. Access is obtained via a PC’s Web Browser
and a TCP/IP connection to the Unit. The system can be connected directly
to a PC computer or can be plugged into the local area network.
Some pages shown by the Web Server are the following:
“Main Status”: depicts status alarm indicators and meters.
“Main Settings”: is used to configure system-level macro settings.
“Filter Settings” contains the settings that can be configured for each
filter window.
Never operate the system without adequate Load/Termination on the
Donor/Base and Service/Side T/R port. The 700 MHz Signal Booster will amplify
until 120dB gain any input stimulus greater than Rx Threshold level (Squelch).
The Web Server allows to Mute/Un-mute Power Amplifiers in “Main Settings”
page. Make sure the power amplifiers are un-muted before start with the
test.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IVD 700MHZ NARROWBAND SIGNAL BOOSTER M4DBDA7 USER’S MANUAL
Page 6 of 11
Rev0 August/2012
Section C. PHYSICAL OVERWIEW

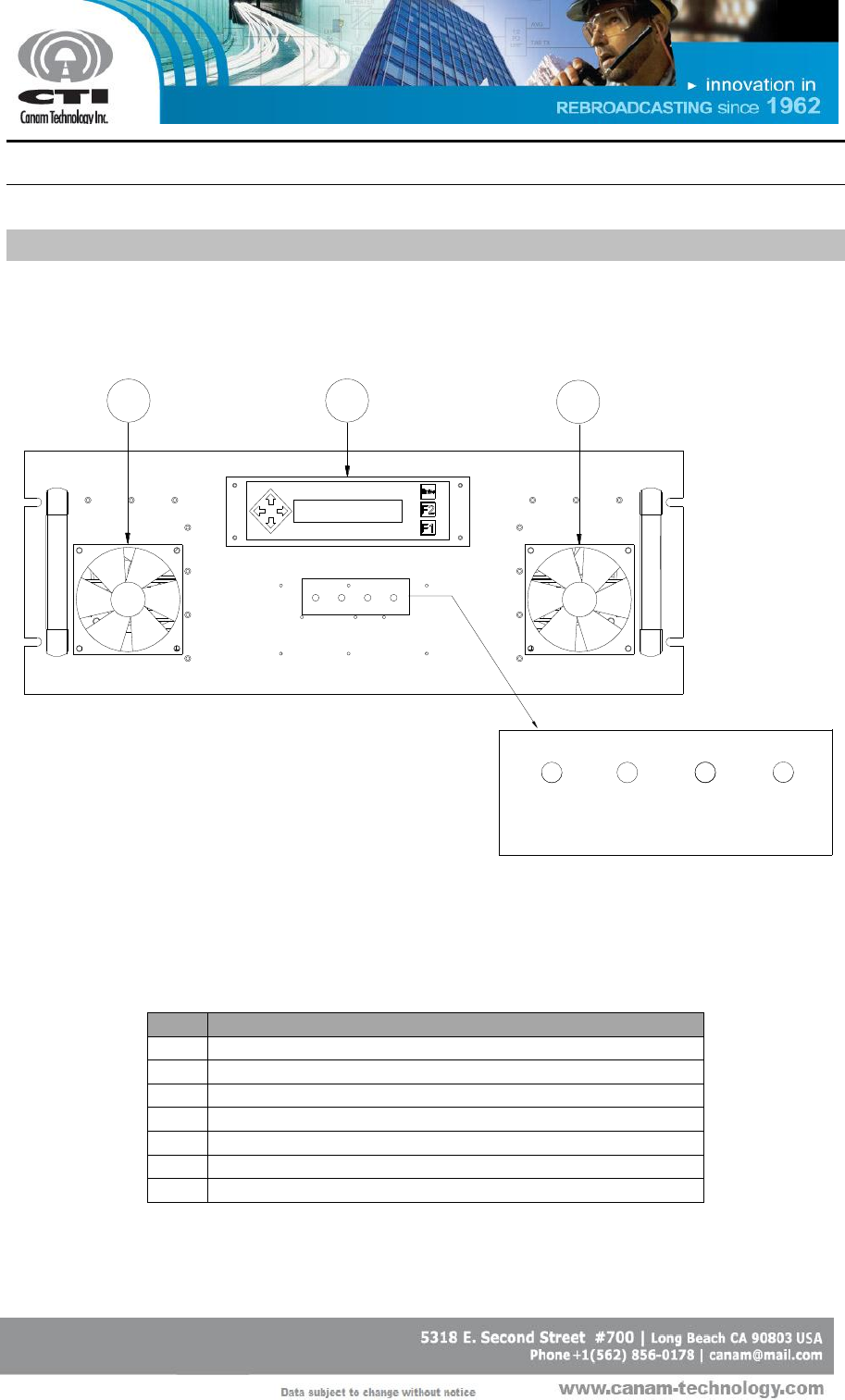

Figure 1 shows the visual status that the D.U.T. front panel. Table 1 contains a
brief explanation.
123
STATUS LEDs
POWER ON SUMMARY
ALARM
GREEN = OK
RED = BAD
UPLINK
SUB-SYSTEM
ALARM
GREEN = OK
RED = BAD
DOWNLINK
SUB-SYSTEM
ALARM
GREEN = OK
RED = BAD
Figure 1 - Front Panel details
Table 1 – Front Panel details
Item
Description
1
Intake fan 1
2
LCD Display/Keypad
3
Intake fan 2
4
Power ON LED (Green = ok, Red = bad)
5
Summary Alarm LED (Green = ok, Red = bad)
6
Reflected Power Alarm LED (Green = ok, Red = bad)
7
Cooling Alarm LED (Green = ok, Red = bad)
CANAM TECHNOLOGY, INC. (CTI)
MARK-IVD 700MHZ NARROWBAND SIGNAL BOOSTER M4DBDA7 USER’S MANUAL
Page 7 of 11
Rev0 August/2012

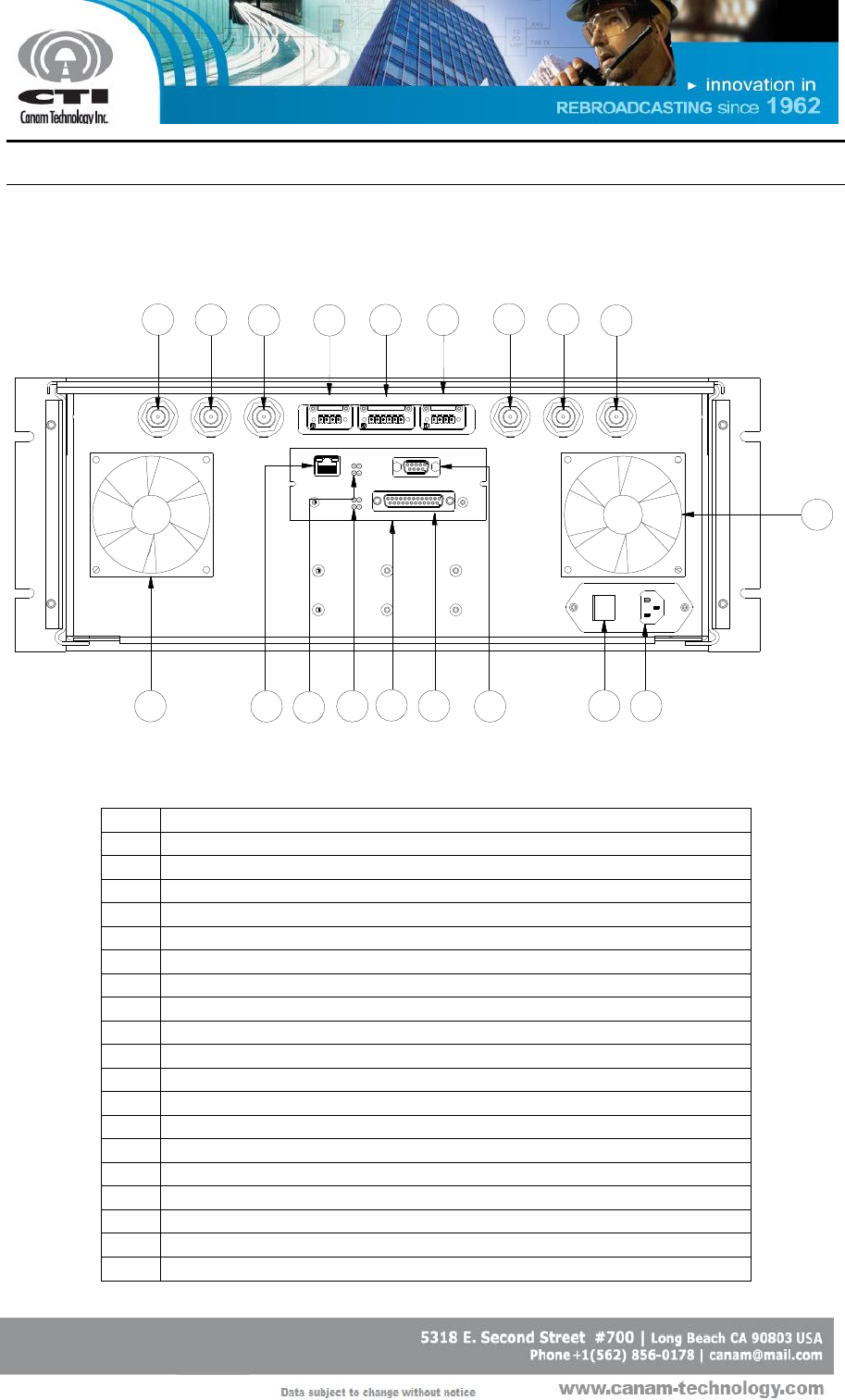

Figure 2 shows the connectors and visual status that the D.U.T rear panel has.
Table 2Table 1 contains a brief explanation.
Figure 2 - Rear Panel details.
Table 2 – Rear Panel details.
Item
Description
1
UL Tx TEST PORT
2
DONOR/BASE T/R PORT
3
DL Rx TEST PORT
4
FAN 1 DE-01
5
AUX I/O DE-02
6
FAN 1 DE-03
7
UL Rx TEST PORT
8
SERVICE/SIDE T/R PORT
9
DL Tx TEST PORT
10
AIR EXHAUST REAR FAN#2
11
AC POWER "IEC" INLET
12
AC MAINS ON/OFF POWER SWITCH
13
(ECM) FACTORY SERIAL DEBUG PORT
14
(ECM) DB-25 I/O CONNECTOR
15
PLUGGABLE EMBEDDED CONTROL MODULE (ECM)
16
(ECM) RED LEDS (RELAY CONTACTS)
17
(ECM) GREEN LEDS STATUS INDICATORS
18
(ECM) ETHERNET 10/100 NETWORK PORT
19
AIR EXHAUST REAR FAN#1
CANAM TECHNOLOGY, INC. (CTI)
MARK-IVD 700MHZ NARROWBAND SIGNAL BOOSTER M4DBDA7 USER’S MANUAL
Page 8 of 11
Rev0 August/2012
Section D. START - UP
D.1 ACCESSING D.U.T. WEB SERVER
The system can be connected to a PC computer using an Ethernet crossover
cable or to LAN using an Ethernet straight cable.
D.1.1 Connect D.U.T to P.C computer using a crossover cable

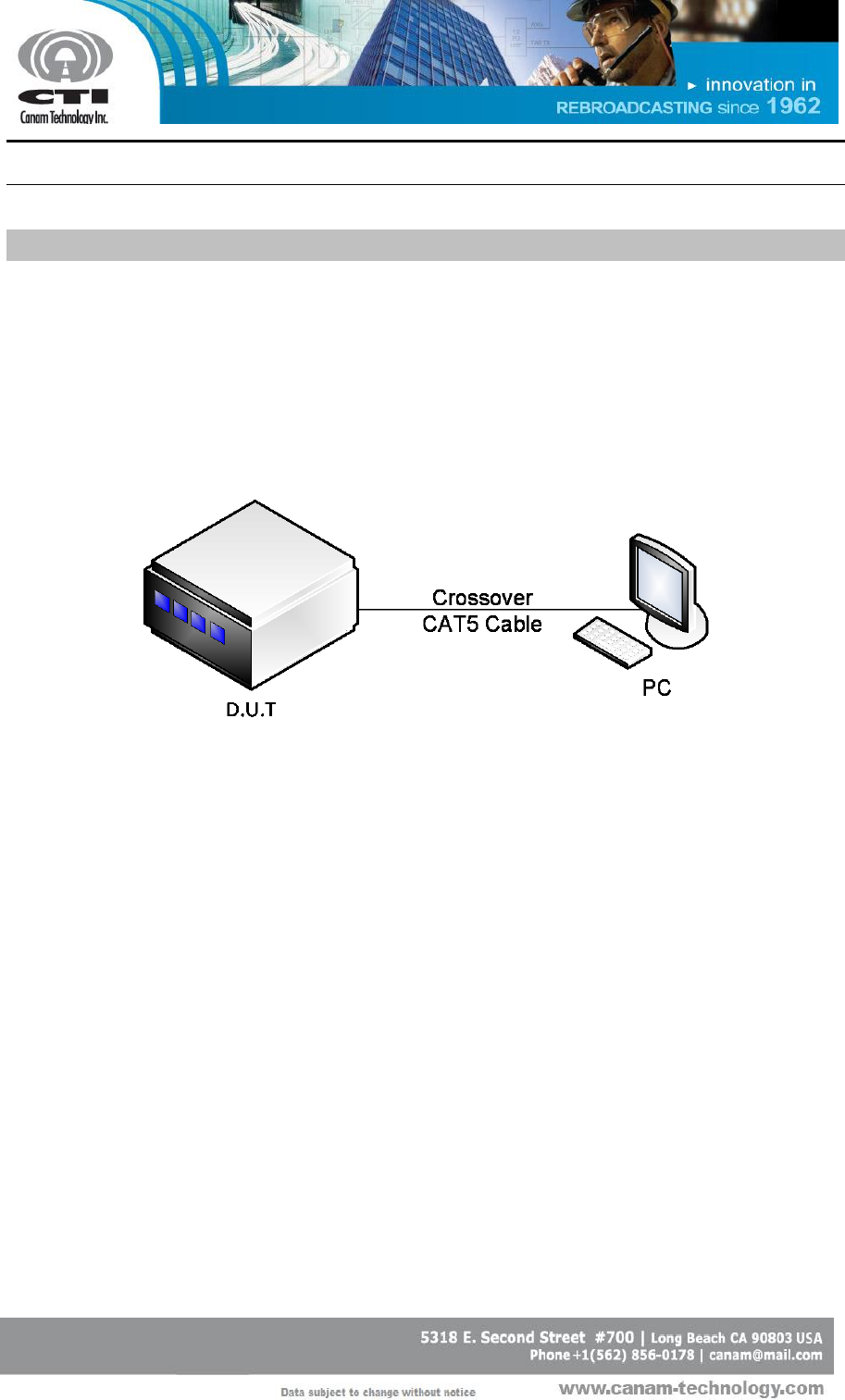

Figure 3 – D.U.T. connected directly to PC computer.
1. Use an Ethernet crossover cable for connect equipment directly to a
PC computer LAN port (refer to Item #8 in Figure 2).
2. The IP address of the equipment is shown in the LCD display. By default
it is 192.168.100.87 with Network Mask = 255.255.255.0.
o To verify IP address press the Down key in LCD Display and
Keypad assembly until get IP ADDRESS value.
3. Configure the local computer IP address to allow access to the
controller, within the same sub-net.
o Go to “Star >> Control Panel >>Network Settings”.
o Right-Click on the “Local Area Connection” and choose
“Properties”.
o Look for “Internet Protocol” and click “Properties”.
o Select “Use the following IP Address”.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IVD 700MHZ NARROWBAND SIGNAL BOOSTER M4DBDA7 USER’S MANUAL
Page 9 of 11
Rev0 August/2012
Configure PC computer IP address as 192.168.100.X (X is a
value between 0-255) with Network Mask = 255.255.255.0.
Default gateway can be same value as IP address.
o Select “Obtain DNS server address automatically”.
4. Open a web browser and access the equipment by typing, in the
address bar, the IP address of the equipment (http://192.168.100.87).
o Login with username = factory, password = factory.
D.1.2 Connect D.U.T to local area network

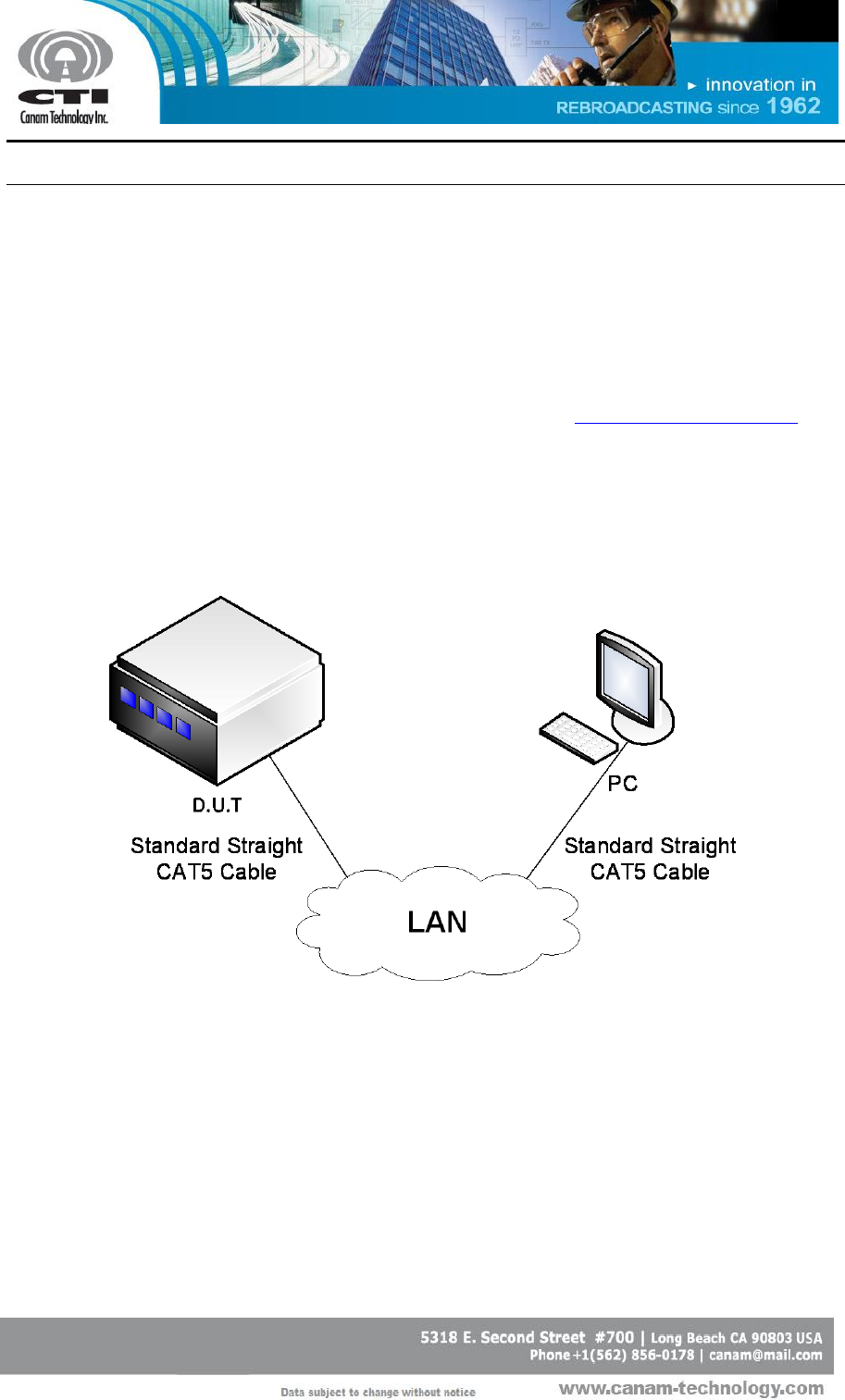

Figure 4 - D.U.T. connected into local area network.
The following steps are necessary to connect D.UT to LAN:
1. Find out the subnet the PC computer is currently plugged into.
2. Configure D.U.T IP address avoiding conflict with other devices IP
addresses. Use procedure in previous section D.1.1.
Please refer to UHF Narrow band Signal Booster O&M Manual for more
details.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IVD 700MHZ NARROWBAND SIGNAL BOOSTER M4DBDA7 USER’S MANUAL
Page 10 of 11
Rev0 August/2012
D.2 USING AND SETTING UP D.U.T
1. Open a web browser and access the equipment by typing, in the
address bar, the IP address ( http://192.168.100.87 ) assigned to the
equipment.
o Login with username = factory, password = factory.
o The Main Status page will be displayed if connection available.
2. Go to Calibration page for:
o Changing meters calibration, settings such as “Local Oscillator”,
minimum readable for some meters.
3. Go to Filter Settings page for:
o Configuring the center desired frequencies.
o Enable/disable filter windows.
o Setting other filters attributes as Fine-Tune, Rx Threshold,
Enable/disable AGC.
4. Go to Main Settings page for:
o Changing “Maximum Desired Output Level per Filter”.
o Enabling/disabling MCPA output per path.
CANAM TECHNOLOGY, INC. (CTI)
MARK-IVD 700MHZ NARROWBAND SIGNAL BOOSTER M4DBDA7 USER’S MANUAL
Page 11 of 11
Rev0 August/2012
Section E. RF CONNECTIONS
1. Use a coaxial cable to connect the test instrument input to D.U.T.
Donor/Base or Service/Mobile when corresponds (refer to Items #2 and
#8 in Figure 2).
2. Use a coaxial cable to connect the RF generator output to D.U.T.
Donor/Base or Service/Mobile when corresponds (refer to Items #2 and
#8 in Figure 2).
