Cannon PIXMA MG5320 1 User Manual To The 6a98a227 1c07 4abe A334 1f227153077c
User Manual: Cannon PIXMA MG5320 to the manual
Open the PDF directly: View PDF
.
Page Count: 9
3
Preparing to Connect My Multifunction
To My Network
Network Requirements
Before connecting the machine to the network, make sure that configuration of the computer and access point or router is
complete, and that the computer is connected to the network.
Wireless Connection
Before connecting the machine to the network, the computer needs to be connected to the network. Make sure that
configuration of the computer and access point or router is complete.
<< Previous Next >>
4
Preparing to Connect My Multifunction
To My Network << Previous Next >>
4
Notes on Network Connection
• The configuration, router functions, setup procedures and security settings of
the network device vary depending on your system environment. For details,
refer to your device's instruction manual or contact its manufacturer.
• In an office setup, consult your network administrator
• If you connect to a network that is not protected with security measures, there
is a risk of disclosing data such as your personal information to a third party.
• If an error message appears or if you have trouble with the network
connection, refer to the printed manual: Network Setup Troubleshooting.
• Place the machine and computer on the same network segment.
An "Ad-hoc connection," which establishes a direct connection to the computer
over a wireless connection without using an access point, is not supported.
A wireless Access Point or Router is required to use your printer on a wireless LAN
Using the Machine from Additional Computers
5
Software Installation
If the machine is already connected to a wireless connection, it can be used from additional computers on the same network. Connection to the
network is confirmed automatically. Only the software needs to be installed. It is not necessary to make any changes or settings on the printer
itself.
IMPORTANT
• Log on as the administrator (or a member of the Administrators group).
• Quit all running applications before installation.
• If the firewall function of your security software is turned on, a warning message may appear that Canon software is attempting to access
the network. If such a warning message appears, set the security software to always allow access.
A step-by-step walk through of the wireless setup is built in to the installation routine of the software that shipped with your PIXMA.
Insert the Setup CD-ROM* that came with your printer into your CD-ROM drive of each computer you wish to use with the printer and
proceed through the easy to follow instructions
*Note: If you don’t have or cannot use the Setup CD-ROM, you can still install the software on the computer by using a file downloaded
from our web site. Click here for information
<< Previous Next >>
Installing the Drivers & Software
7
<< Previous Next >>

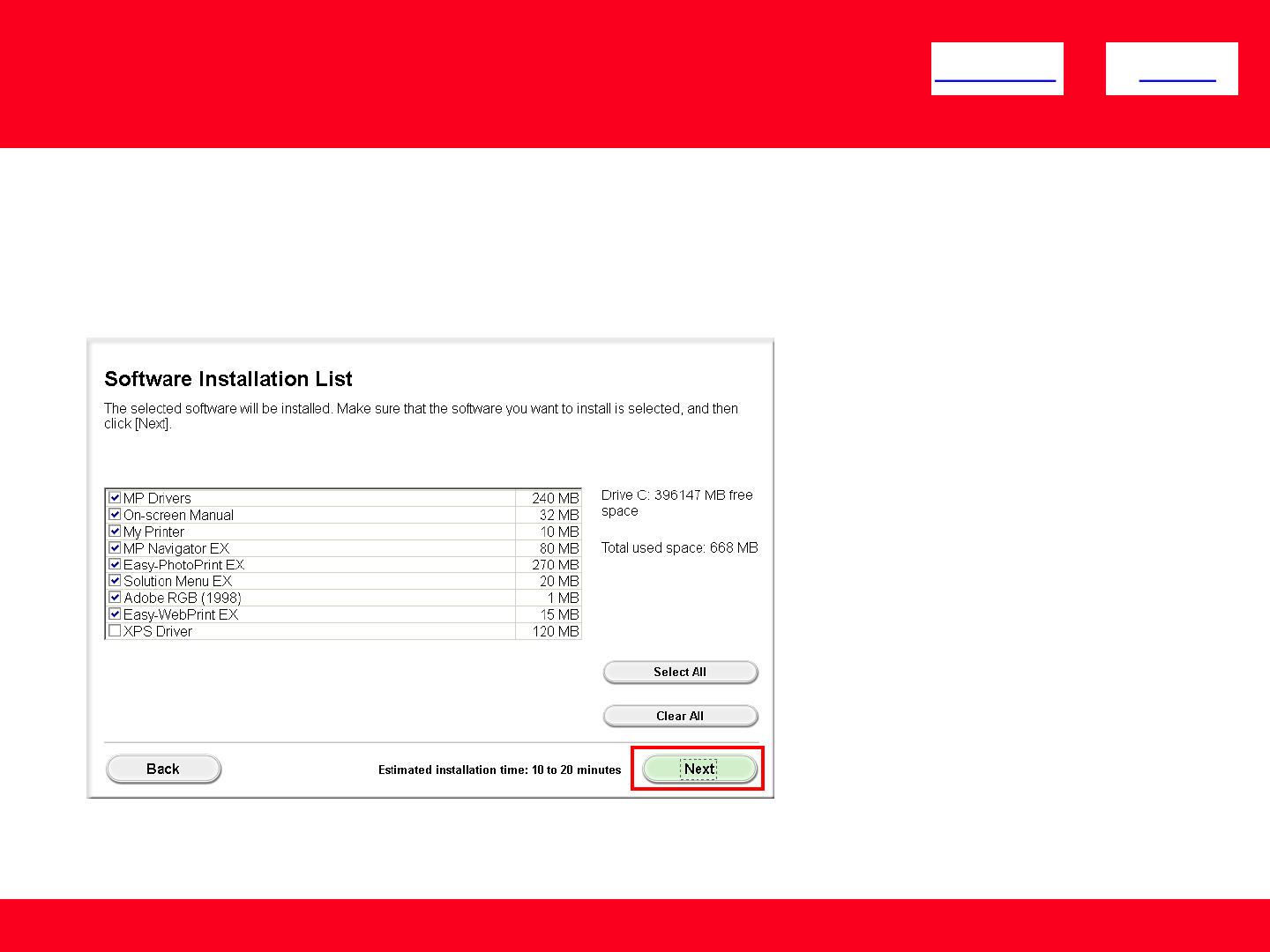

Network connection is automatically confirmed. . Continue to follow any remaining On-screen instructions to install the software. On the
Software Installation List screen, select any software to be installed. MP Drivers is required for the printer to be able to print and scan and
cannot be de-selected. MP Navigator EX and Easy-PhotoPrint EX* are highly recommended to take full advantage of your printer’s features.
*Note: If you are using the downloaded Mini
Master Setup file, only the MP Drivers will
be installed.
You can download the additional software
applications from the Software section of the
Drivers & Software page where you obtained
the Mini Master setup file.
Installing the Drivers & Software
9
<< Previous
9
Installing the PIXMA MG5320 on Your Wireless Network
If you can’t find your CD-ROM, you may download the MG5300 series Mini Master Setup, which includes the same step-by-step installation as
the CD-ROM, by following the instructions below:

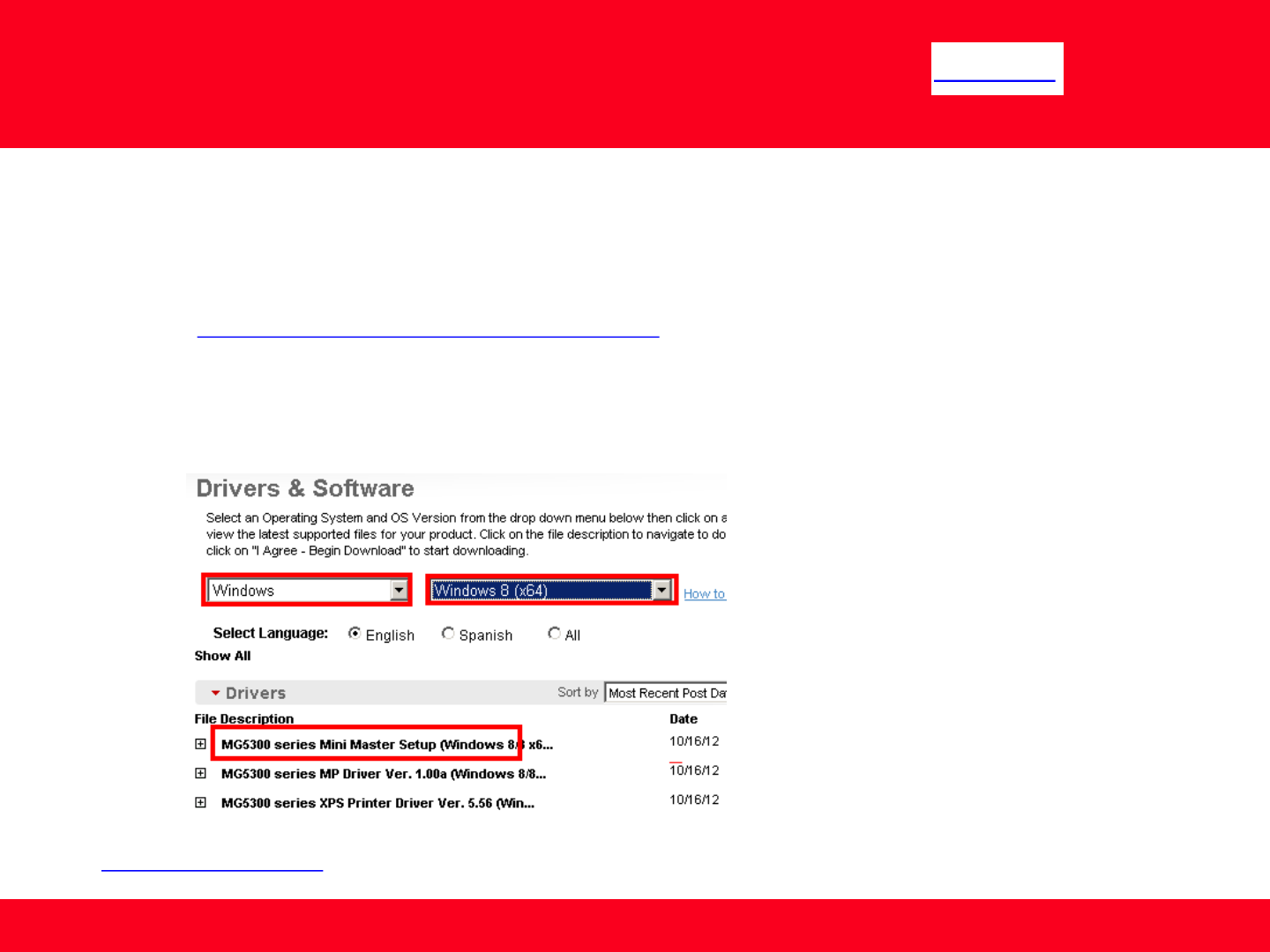

1. Click here to access the MG5320 Drivers & Software page.
2. Select the operating system and version of your computer (see example below).
3. Expand the ‘Drivers’ section, if necessary, by clicking the red triangle.
4. Click on ‘MG5300 series Mini Master Setup’ .
5. After reading the details and disclaimer, click ‘I Agree – Begin Download’ and save the file to your computer.
6. Once the download is complete, double-click the file from its download location to begin the installation.
Return to Setup instructions
