Users Manual
CM13264
WLAN MODULE UNIT
Installation Manual

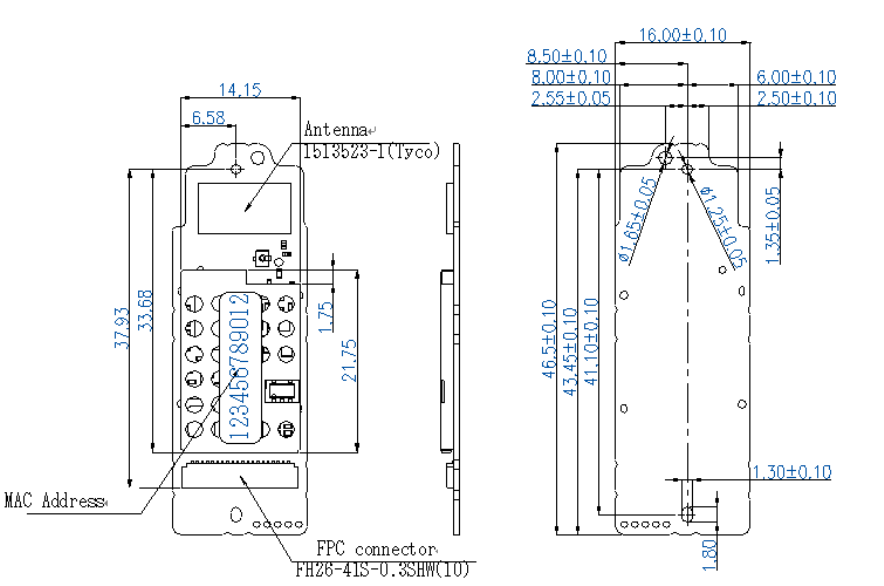

Module dimension
here are 3 holes on modules to fix module in host Application like DSC and printer.
T
The 3 holes are insulated from Modules.
FPC connector
Part name of FPC connector on module is FH26-41S-0.3SHW(10). FPC which connects
module and host application has to be designed to adapted for FH26-41S-0.3SHW(10).

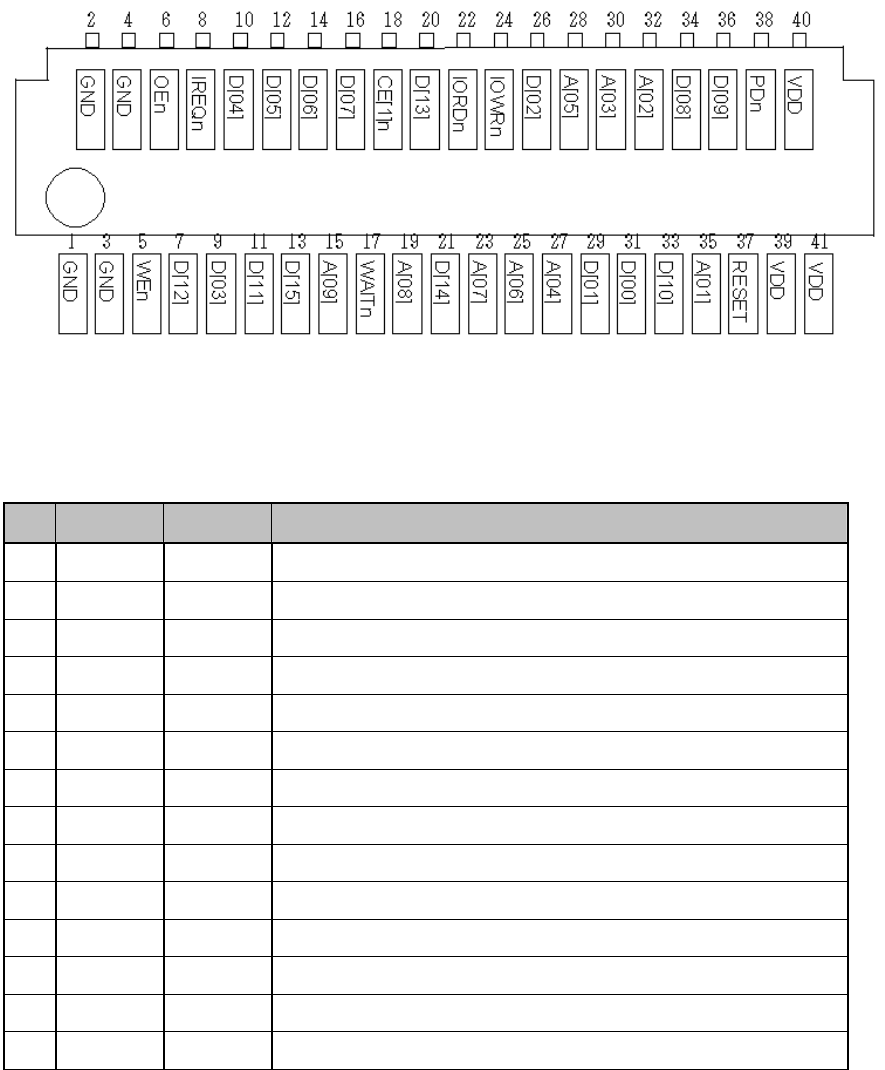

Pin layout of FH26-41S-0.3SHW(10) on module is shown below.
Pin description is below
No. Pin Name I/O Type Description
1 GND - Connect to GND
2 GND - Connect to GND
3 GND - Connect to GND
4 GND - Connect to GND
5 WEn I Connect to CF card #36 (WEn) Internally 100kohm Pull up.
6 OEn I Connect to CF card #9 (OEn) Internally 100kohm Pull up.
7 D[12] I/O Connect to CF card #28 (D[12]) Internally 100kohm Pull up.
8 IREQn O Connect to CF card #37 (IREQn) Internally 100kohm Pull up.
9 D[03] I/O Connect to CF card #2 (D[03]) Internally 100kohm Pull up.
10 D[04] I/O Connect to CF card #3 (D[04]) Internally 100kohm Pull up.
11 D[11] I/O Connect to CF card #27 (D[11]) Internally 100kohm Pull up.
12 D[05] I/O Connect to CF card #4 (D[05]) Internally 100kohm Pull up.
13 D[15] I/O Connect to CF card #31 (D[15]) Internally 100kohm Pull up.
14 D[06] I/O Connect to CF card #5 (D[06]) Internally 100kohm Pull up.
15 A[09] I Connect to CF card #10 (A[09]) Internally 100kohm Pull up.
16 D[07] I/O Connect to CF card #6 (D[07]) Internally 100kohm Pull up.
17 WAITn O Connect to CF card #42 (WAITn) Internally 100kohm Pull up.
18 CE[1]n I Connect to CF card #7 (CE[1]n) Internally 100kohm Pull up.
19 A[08] I Connect to CF card #11 (A[08]) Internally 100kohm Pull up.
20 D[13] I/O Connect to CF card #29 (D[13]) Internally 100kohm Pull up.
21 D[14] I/O Connect to CF card #30 (D[14]) Internally 100kohm Pull up.
22 IORDn I Connect to CF card #34 (IORDn) Internally 100kohm Pull up.
23 A[07] I Connect to CF card #12 (A[07]) Internally 100kohm Pull up.
24 IOWRn I Connect to CF card #35 (IOWRn) Internally 100kohm Pull up.
25 A[06] I Connect to CF card #14 (A[06]) Internally 100kohm Pull up.
26 D[02] I/O Connect to CF card #23 (D[02]) Internally 100kohm Pull up.
27 A[04] I Connect to CF card #16 (A[04]) Internally 100kohm Pull up.
28 A[05] I Connect to CF card #15 (A[05]) Internally 100kohm Pull up.
29 D[01] I/O Connect to CF card #22 (D[01]) Internally 100kohm Pull up.
30 A[03] I Connect to CF card #17 (A[03]) Internally 100kohm Pull up.
31 D[00] I/O Connect to CF card #21 (D[00]) Internally 100kohm Pull up.
32 A[02] I Connect to CF card #18 (A[02]) Internally 100kohm Pull up.
33 D[10] I/O Connect to CF card #49 (D[10]) Internally 100kohm Pull up.
34 D[08] I/O Connect to CF card #47 (D[08]) Internally 100kohm Pull up.
35 A[01] I Connect to CF card #19 ([A1]) Internally 100kohm Pull up.
36 D[09] I/O Connect to CF card #48 (D[09]) Internally 100kohm Pull up.
37 RESET I Connect to CF card #41 (Reset), Active High, Internally 100kohm Pull down.
38 PDn I Assert L to enter Power Save mode. Internally 200kohm Pull up.
39 VDD - Connect to 3.3V
40 VDD - Connect to 3.3V
41 VDD - Connect to 3.3V

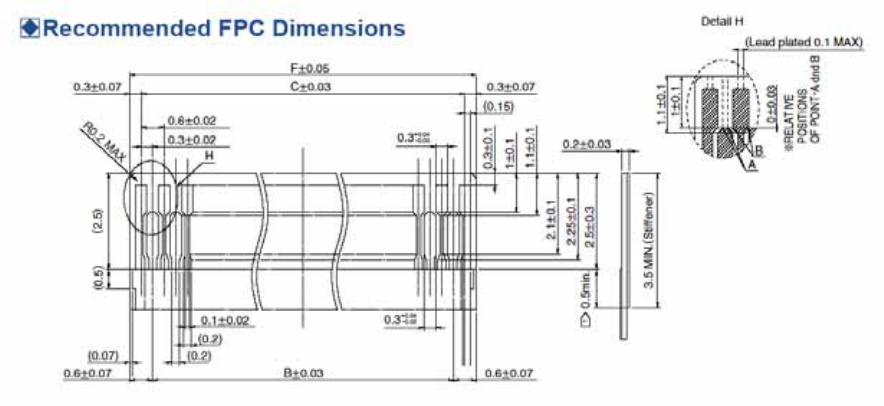

Recommended FPC Dimension
B =11.4 C=12.0 F=12.6 All dimension: mm

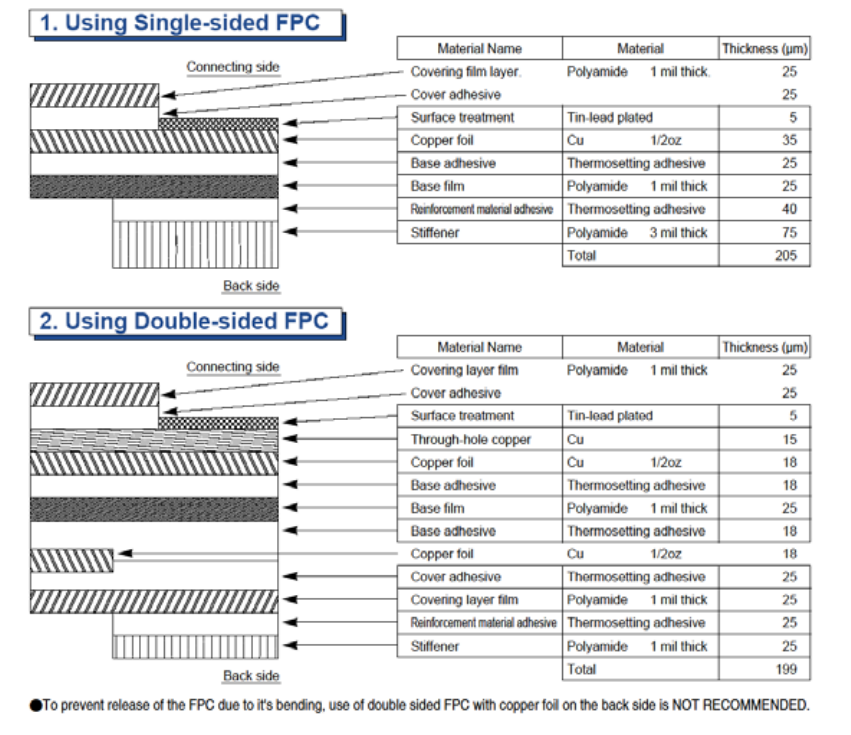

Recommended FPC Construction
FCC WARNING
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTICE
The antenna(s) used for this transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter. OEM integrators and end-users
must be provided with transmitter operation conditions for satisfying RF exposure
compliance. This grant is valid only when the device is sold to OEM integrators and the
OEM integrators are instructed to ensure that the end user has no manual instructions
to remove or install the device with any other antenna or transmitter.
This equipment complies with FCC radiation exposure limits set forth for uncontrolled
equipment and meets the FCC radio frequency (RF) Exposure Guidelines in
Supplement C to OET65. This equipment has very low levels of RF energy that it is
deemed to comply without testing of specific absorption ratio (SAR).
