Workgroup

Systems

1- 800-OK-CANON

www.usa.canon.com

Canon U.S.A., Inc.

One Canon Plaza

Lake Success, NY 11042

As an ENERGY STAR®Partner, Canon U.S.A., Inc. has determined that these products meet the ENERGY STAR®

guidelines for energy efficiency. ENERGY STAR and the ENERGY STAR certification mark are registered U.S.

marks. Windows and Windows NT are registered trademarks of Microsoft Corporation in the United

States and/or other countries. Novell and NetWare are registered trademarks of Novell, Inc. in the

United States and other countries. IPX/SPX is a trademark of Novell, Inc. Solaris is a trademark of Sun

Microsystems, Inc. in the United States and other countries. Canon, LASER CLASS, NetSpot, and

Canon Know How are registered trademarks, and UHQ and the GENUINE logo are trademarks of

Canon Inc. IMAGEWARE and Remote UI are trademarks, and IMAGEANYWARE is a service mark of

Canon U.S.A., Inc. All other terms and product names may be trademarks or registered trademarks of

their respective owners, and are hereby acknowledged.

Specifications subject to change without notice.

0033W736

1003-LC700-40M

PRINTED ON RECYCLED

PAPER IN THE U.S.A.

Type: Desktop Transceiver

Applicable Line: Public Switched Telephone Network

Compatibility: G3

Automatic Document Feeder: Up to 70 Sheets (Letter)*

Up to 30 Sheets (Legal)*

Up to 30 Sheets (Ledger)*

Scanning Method: Contact Image Sensor

Document Sizes:

Maximum: 11" x 39.4" (279mm x 1,000mm)

Minimum: 5.8" x 5" (148mm x 128mm)

Effective Scanning Width

LASER CLASS 710/730i: 10" (254mm)

LASER CLASS 720i: 8.43" (214mm)

InstaScan:

Approx. 1.1 Sec./Page (Letter, Standard Mode)

Approx. 35 Scans/Min.(Letter, Standard Mode)

Data Compression System: MH, MR, MMR, JBIG**

Modem Speed: 33.6/31.2/28.8/26.4/24/21.6/19.2/16.8/

14.4/12/9.6/7.2/4.8/2.4 Kbps

Automatic Fallback

Transmission Speed:

Approx. 3 Sec./Page*** (V.34/33.6 Kbps + JBIG)

Printing Method: Laser Dry Electrostatic Transfer

Printing Speed: Approx. 19 Pages/Min. (

Letter

)

Halftone: 256 Shades of Gray

TX/RX Resolution Horizontal Vertical

Ultra Fine Mode 406 pels/in. x 391 lines/in.

(16 pels/mm x 15.4 lines/mm)

Super Fine Mode: 203 pels/in. x 391 lines/in.

(8 pels/mm x 15.4 lines/mm)

Fine Mode: 203 pels/in. x 196 lines/in.

(8 pels/mm x 7.7 lines/mm)

Standard Mode: 203 pels/in. x 98 lines/in.

(8 pels/mm x 3.85 lines/mm)

Effective Recording Width: 8.2" (210mm)

Recording Paper Supply

LASER CLASS 710/730i: 600 Sheets: 2 x 250-sheet, Adjustable

Cassette; 100-sheet MP Tray; Optional

500-sheet Cassette (Letter)

LASER CLASS 720i: 350 Sheets: 1 x 250-sheet, Adjustable

Cassette; 100-sheet MP Tray; Optional

500-sheet Cassette (Letter) + Optional

250-sheet Adjustable Cassette

Receiving Paper Tray: Face-down, Print-in-order: 250 Sheets

Recording Paper Size: Letter/Legal/A4

Enhanced Imaging Quality: UHQ™ (Ultra High Quality)

Enhanced Printing Quality: 1200-dpi Smoothing for Incoming Faxes

Printing Resolution: 1200 dpi x 1200 dpi

Printer Cartridge: FX7 Cartridge

Cartridge Yield: Approx. 4,500 Pages†

Power Consumption

Standby: Approx. 15W; Max.: Approx. 980W (LC 710)

Approx. 20W (LC 720i/730i)

Energy Saver: 5W (LC 710), 15W (LC 720i/730i)

Dimensions (H x W x D)

LASER CLASS 710/730i

Without Handset: 18-1/8" x 19-3/4" x 19-3/4"

(459mm x 499mm x 499mm)

With Handset: 18-1/8" x 22-1/2" x 19-3/4"

(459mm x 569mm x 499mm)

LASER CLASS 720i

Without Handset: 15" x 19-3/4" x 19-3/4"

(379mm x 499mm x 499mm)

With Handset: 15" x 22-1/2" x 19-3/4"

(379mm x 569mm x 499mm)

Weight (Excluding Handset Option)

LASER CLASS 710: Approx. 52 lb. 15oz. (24kg)

LASER CLASS 720i: Approx. 48 lb. 8 oz. (22kg)

LASER CLASS 730i: Approx. 55 lb. 2oz (25kg)

Environmental Conditions

Temperature: 50˚F - 90.5˚F (10˚C - 32.5˚C)

Humidity: 20% - 80% RH

Dialing: Automatic Dialing

One-touch Speed-dialing: 72 Locations

Coded Speed-dialing: 128 Locations

Group-dialing: 199 Groups

Each Group Can Accommodate up to 199

Locations

Maximum Dial Digits: 120

Error Re-dialing

Manual Re-dialing

Dial Search

Energy Saver Key

Programmable Key

Send Feature

LASER CLASS 720i/730i: Standard

LASER CLASS 710: Optional;

Super G3 is Standard

Sending Methods: E-mail, I-fax, Super G3 fax

File Server (FTP)

Number of Addresses: 210

File Format: M-TIFF (MH/MR/MMR), PDF

Sending Resolution

Simple Mode: 200 dpi x 100 dpi, 200 dpi x 200 dpi

E-mail Mode: 200 dpi x 100 dpi, 200 dpi x 200 dpi

200 dpi x 400 dpi, 400 dpi x 400 dpi

Networking

Delayed Transmission: Up to 210 Destinations and up to

70 Reservations

Memory Polling Transmission

Polling Reception

Multi-Polling: Up to 210 Locations

Delayed Polling: Up to 200 Locations

Up to 5 Designated Times per Speed-dial

Sequential Broadcast: Up to 210 Locations

(200 Pre-programmed Speed-dials)

RelayBroadcast: Up to 200 Locations

Relay Boxes:Up to 50

Delayed Relay Broadcast: Up to 5 Designated Times per Speed-dial

Relay Broadcast Command

Transmission to Confidential Mail Box

Confidential Mail Box: Up to 50 Boxes

Memory Transmission/Reception:

LASER CLASS 710/720i: (8MB) Up to 510 Pages (Standard)

▲

One Open Slot, Optional 32MB for

Total Capacity.

LASER CLASS 730i: (40MB) Up to 1,500 Pages

Receiving Restriction

Password and Sub-address (ITU-T STD)

Convenience:

Auto Receive Reduction (70% ~ 100%)

Dual Access

TX Reservation During RX

TX Reservation During Memory TX

Memory RX During Copy

Memory TX During Copy

Scan During Printing

Transmission Reservation: Up to 70 Reservations

LCD (Liquid Crystal Display): 20-digits x 2-line

Department Access Code: Up to 99 Codes

LocalCopy Function: Multiple Copy up to 99 Pages

Program Buttons: Up to 72

Memory Lock Reception

Battery Backup: Up to 12 Hours (LC 710/720i)

Up to 3 hours (LC 730i)

RX Document Multiple Printout: Up to 99 Pages

RX Page Footer

Transfer Mode

Soft Counter

Report/Reference:

Activity Report (up to 40 Transactions)

Non-delivery Report

Management Report

List of Phone Numbers for One-touch

and Coded Speed-dialing

List of Transaction Schedule

User Data List

File Reference

TTI(Transmitter Terminal Identification)

TTI Selector: Up to 99 Identifications

RTI(Remote Terminal Identification)

Options:

33.6 Kbps Dual Line

Printer Kit III (for LC 710 Only)

Network Kit III (for LC 710 Only)

500-sheet Cassette (Letter)

250-sheet Adjustable Cassette

(for LC 720i Only)

Provided by Third Party Facsimile Memory: 32MB

(LC 710/720i)

Printer Memory: 32MB, 64MB

Stamp

Stamp Refill

Braille Kit D-1

Telephone Handset Kit 8

Pedestal

♦

(H x W x D):

17-3/4" x 18-7/8" x 17-1/2"

(450mm x 478mm x 444mm)

Printer Kit III (Optional for LC 710; Standard for LC 720i/730i)

Type: Embedded Print Controller

Processor: Power PC405 200MHz RISC Processor

Memory: Standard 8MB (72MB Max.)

PDL Support: PCL 5e, PCL 6, PJL

Internal Fonts: PCL 5e/6: 45 Roman Fonts,

32 Bar-code Fonts

Interface Connections: Parallel (IEEE 1284)

USB 1.1 Optional RJ-45 (10/100Base-T)

(Compatibility: Nibble, Byte, and ECP Mode)

Memory: 8MB

Paper Sizes:

A4/A/B5/Executive/Legal/Letter/Postcard/

Double Postcard/C5/COM10/Monarch/DL

Media Type: Plain Paper/Heavy Paper/Recycled Paper/

Colored Paper/Bond Paper/Plain Paper 2

Notification Job Completion: Yes (E-mail)

■

Toner Saver: Yes

Duplex Printing (Print Jobs): Yes

Network Kit III (Optional for LC 710;✖Standard for LC 720i/730i)

CPU: ETRAX 100LX (32-bit RISC CPU 100MHz)

Memory (RAM): 4MB

Memory (ROM): 2MB (Flash)

SDRAM: 128 Kbytes

Network I/F: 10Base-T, 100Base-TX (RJ-45)

Network OS: Novell

®

NetWare

®

v.3.2, 4.1, 4.2, 4.11,

5.0, 5.1 (IPX/SPX™)

Windows

®

95/98/Me (TCP/IP)

Windows NT

®

4.0/Windows 2000/

Windows XP (TCP/IP)

Solaris™1.1x, 2.5 or Later (TCP/IP)

Protocol Stacks: IPX/SPX: 802.2, 802.3, Ethernet II,

802.2 SNAP, TCP/IP

Other Features: Remote UI Supported

NetSpot Supported

Interface: 10Base-T/100Base-TX

Internet Fax Function: Yes

I-fax Resolution: Up to 200 dpi x 200 dpi

E-mail Resolution: Up to 400 dpi x 400 dpi

TX Mode: Simple Mode (I-fax), E-mail Mode

Protocol: SMTP; POP3

Mail Address: 5 Destinations

File Type

Simple Mode: M-TIFF

E-mail Mode: M-TIFF, PDF

Send Settings: Document Name

Subject

Text

Signature

Priority

RX Confirmation

Message

Network Scanning: Yes

††

*Temperature: 15-27.5˚ C; Humidity: 20-80% RH; Paper Weight: 20 lb.;

Paper Thickness: <120 µm

** Actual compression ratio may vary with image

*** Approximate 3-second-per-page fax transmission time based on ITU-T No. 1

Chart (JBIG, Standard Mode) at 33.6 Kbps modem speed when transmit-

ting to another V.34 machine. The Public Switched Telephone Network

(PSTN) currently supports 28.8 Kbps modem speeds or lower, depending

on telephone line conditions.

†Based on 4% original, 5% coverage.

▲Based on ITU-T No. 1 Chart (Standard Mode).

♦Requires 500-sheet letter-sized Cassette

■Requires Network Kit III

†† Scan to E-mail

✖

Requires Printer Kit III

WHAT IS INTERNET FAXING?

Internet-enabled fax machines plug into your existing data network.

They convert scanned documents into file formats that are easily

transported over the Internet or your company intranet, sending data

to E-mail addressdestinations or other I-fax-capable machines.

Internet faxing bypasses the public switched telephone network and

offers many advantages for your business:

•

Lowers communication costs by eliminating per-call charges for each

transmission—especially for long-distance and international calls.

• Allows for simultaneous and instantaneous distribution of informa-

tion to all recipients. Data is transmitted to all recipients at once,

at the maximum speed of your network—not the telephone line—

eliminating delays associated with sequential broadcast technology.

• Maintains image quality and document integrity through end-to-end

digital transmission. Your faxes are impervious to distortion from

static and line noise, so resolution is never compromised.

• Increases productivity by eliminating busy signals and rescanning

tasks—every fax gets through the first time, every time.

The Canon LASER CLASS 700 Series utilizes the ITU-T.37 standard

for Internet Fax transmissions. Similar to the standards for corporate

E-mail systems, this makes I-fax technology easy to use and instantly

familiar to your employees. The T.37“store and forward” process

relays a fax transmission from an originating device to an IP fax gate-

way. The data is then sent to a receiving device, either another I-fax

unit or your PC’s E-mail inbox through mail servers. Store and forward

Internet faxing works essentially the same as sending an E-mail with

an attachment. From a user’s perspective, it is little different from

traditional G3 fax technology. The G3 format is replaced as a PDF or

M-TIFF file that is basically a snapshot of the original document.

The file is then sent using network data lines. Because the Canon

LASER CLASS 700 Series offers both I-fax and Super G3 sending,

totalcommunications flexibility is at your fingertips, allowing you to:

• Send a fax to an E-mail address

• Receive E-mail from an E-mail address

• Receive a G3 fax and forward it to E-mail

• Receive an I-fax and forward it to a G3 fax

• Scan images to E-mail

LASER CLASS 700 Series Specifications

Money Isn’t All You’re Saving

3Options:

• I-fax to I-fax

• I-fax to PC

• PC to I-fax

LAN

Mail Server Mail Server

I-fax I-fax

LAN

INTERNET

PC PC

E-mail

Mail Server acts like

a Post Office

E-mail

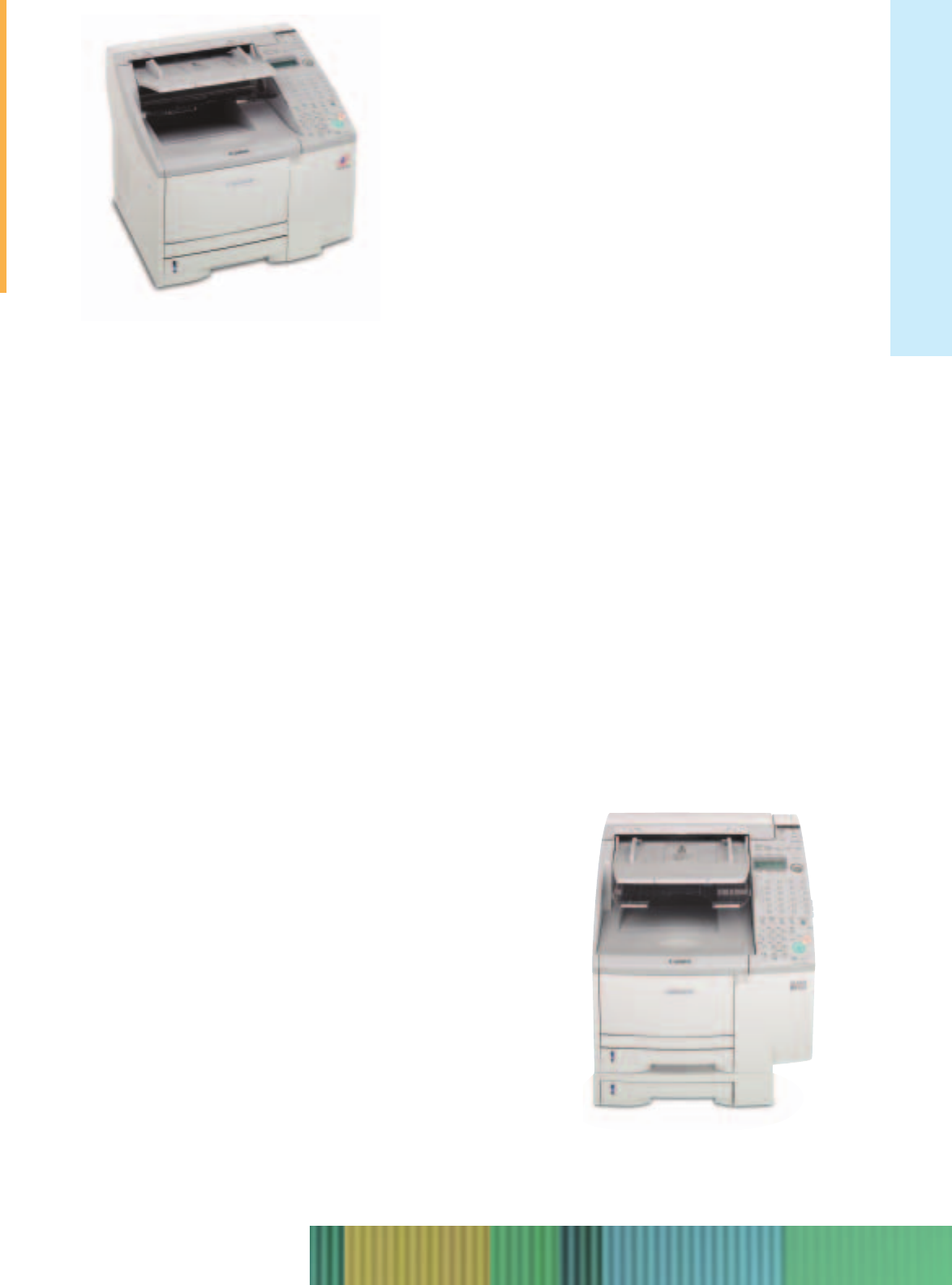

The LASER CLASS 710

shown here with

standard 250-sheet

front-loading, user-

adjustable paper

cassettes, is comple-

mented by a 100-sheet

MultiPurpose Tray.

Add an optional

500-sheet cassette

for maximum

printing productivity.

The installation of

Printer Kit III and

Network Kit III enable

the Internet Fax

function. These boards

are standard on the

LASER CLASS 730i/720i

and optional on the

LASER CLASS 710.

Printer Kit III

Network Kit III

Workgroup

Systems

1- 800-OK-CANON

www.usa.canon.com

Canon U.S.A., Inc.

One Canon Plaza

Lake Success, NY 11042

As an ENERGY STAR®Partner, Canon U.S.A., Inc. has determined that these products meet the ENERGY STAR®

guidelines for energy efficiency. ENERGY STAR and the ENERGY STAR certification mark are registered U.S.

marks. Windows and Windows NT are registered trademarks of Microsoft Corporation in the United

States and/or other countries. Novell and NetWare are registered trademarks of Novell, Inc. in the

United States and other countries. IPX/SPX is a trademark of Novell, Inc. Solaris is a trademark of Sun

Microsystems, Inc. in the United States and other countries. Canon, LASER CLASS, NetSpot, and

Canon Know How are registered trademarks, and UHQ and the GENUINE logo are trademarks of

Canon Inc. IMAGEWARE and Remote UI are trademarks, and IMAGEANYWARE is a service mark of

Canon U.S.A., Inc. All other terms and product names may be trademarks or registered trademarks of

their respective owners, and are hereby acknowledged.

Specifications subject to change without notice.

0033W736

1003-LC700-40M

PRINTED ON RECYCLED

PAPER IN THE U.S.A.

Type: Desktop Transceiver

Applicable Line: Public Switched Telephone Network

Compatibility: G3

Automatic Document Feeder: Up to 70 Sheets (Letter)*

Up to 30 Sheets (Legal)*

Up to 30 Sheets (Ledger)*

Scanning Method: Contact Image Sensor

Document Sizes:

Maximum: 11" x 39.4" (279mm x 1,000mm)

Minimum: 5.8" x 5" (148mm x 128mm)

Effective Scanning Width

LASER CLASS 710/730i: 10" (254mm)

LASER CLASS 720i: 8.43" (214mm)

InstaScan:

Approx. 1.1 Sec./Page (Letter, Standard Mode)

Approx. 35 Scans/Min.(Letter, Standard Mode)

Data Compression System: MH, MR, MMR, JBIG**

Modem Speed: 33.6/31.2/28.8/26.4/24/21.6/19.2/16.8/

14.4/12/9.6/7.2/4.8/2.4 Kbps

Automatic Fallback

Transmission Speed:

Approx. 3 Sec./Page*** (V.34/33.6 Kbps + JBIG)

Printing Method: Laser Dry Electrostatic Transfer

Printing Speed: Approx. 19 Pages/Min. (

Letter

)

Halftone: 256 Shades of Gray

TX/RX Resolution Horizontal Vertical

Ultra Fine Mode 406 pels/in. x 391 lines/in.

(16 pels/mm x 15.4 lines/mm)

Super Fine Mode: 203 pels/in. x 391 lines/in.

(8 pels/mm x 15.4 lines/mm)

Fine Mode: 203 pels/in. x 196 lines/in.

(8 pels/mm x 7.7 lines/mm)

Standard Mode: 203 pels/in. x 98 lines/in.

(8 pels/mm x 3.85 lines/mm)

Effective Recording Width: 8.2" (210mm)

Recording Paper Supply

LASER CLASS 710/730i: 600 Sheets: 2 x 250-sheet, Adjustable

Cassette; 100-sheet MP Tray; Optional

500-sheet Cassette (Letter)

LASER CLASS 720i: 350 Sheets: 1 x 250-sheet, Adjustable

Cassette; 100-sheet MP Tray; Optional

500-sheet Cassette (Letter) + Optional

250-sheet Adjustable Cassette

Receiving Paper Tray: Face-down, Print-in-order: 250 Sheets

Recording Paper Size: Letter/Legal/A4

Enhanced Imaging Quality: UHQ™ (Ultra High Quality)

Enhanced Printing Quality: 1200-dpi Smoothing for Incoming Faxes

Printing Resolution: 1200 dpi x 1200 dpi

Printer Cartridge: FX7 Cartridge

Cartridge Yield: Approx. 4,500 Pages†

Power Consumption

Standby: Approx. 15W; Max.: Approx. 980W (LC 710)

Approx. 20W (LC 720i/730i)

Energy Saver: 5W (LC 710), 15W (LC 720i/730i)

Dimensions (H x W x D)

LASER CLASS 710/730i

Without Handset: 18-1/8" x 19-3/4" x 19-3/4"

(459mm x 499mm x 499mm)

With Handset: 18-1/8" x 22-1/2" x 19-3/4"

(459mm x 569mm x 499mm)

LASER CLASS 720i

Without Handset: 15" x 19-3/4" x 19-3/4"

(379mm x 499mm x 499mm)

With Handset: 15" x 22-1/2" x 19-3/4"

(379mm x 569mm x 499mm)

Weight (Excluding Handset Option)

LASER CLASS 710: Approx. 52 lb. 15oz. (24kg)

LASER CLASS 720i: Approx. 48 lb. 8 oz. (22kg)

LASER CLASS 730i: Approx. 55 lb. 2oz (25kg)

Environmental Conditions

Temperature: 50˚F - 90.5˚F (10˚C - 32.5˚C)

Humidity: 20% - 80% RH

Dialing: Automatic Dialing

One-touch Speed-dialing: 72 Locations

Coded Speed-dialing: 128 Locations

Group-dialing: 199 Groups

Each Group Can Accommodate up to 199

Locations

Maximum Dial Digits: 120

Error Re-dialing

Manual Re-dialing

Dial Search

Energy Saver Key

Programmable Key

Send Feature

LASER CLASS 720i/730i: Standard

LASER CLASS 710: Optional;

Super G3 is Standard

Sending Methods: E-mail, I-fax, Super G3 fax

File Server (FTP)

Number of Addresses: 210

File Format: M-TIFF (MH/MR/MMR), PDF

Sending Resolution

Simple Mode: 200 dpi x 100 dpi, 200 dpi x 200 dpi

E-mail Mode: 200 dpi x 100 dpi, 200 dpi x 200 dpi

200 dpi x 400 dpi, 400 dpi x 400 dpi

Networking

Delayed Transmission: Up to 210 Destinations and up to

70 Reservations

Memory Polling Transmission

Polling Reception

Multi-Polling: Up to 210 Locations

Delayed Polling: Up to 200 Locations

Up to 5 Designated Times per Speed-dial

Sequential Broadcast: Up to 210 Locations

(200 Pre-programmed Speed-dials)

RelayBroadcast: Up to 200 Locations

Relay Boxes:Up to 50

Delayed Relay Broadcast: Up to 5 Designated Times per Speed-dial

Relay Broadcast Command

Transmission to Confidential Mail Box

Confidential Mail Box: Up to 50 Boxes

Memory Transmission/Reception:

LASER CLASS 710/720i: (8MB) Up to 510 Pages (Standard)

▲

One Open Slot, Optional 32MB for

Total Capacity.

LASER CLASS 730i: (40MB) Up to 1,500 Pages

Receiving Restriction

Password and Sub-address (ITU-T STD)

Convenience:

Auto Receive Reduction (70% ~ 100%)

Dual Access

TX Reservation During RX

TX Reservation During Memory TX

Memory RX During Copy

Memory TX During Copy

Scan During Printing

Transmission Reservation: Up to 70 Reservations

LCD (Liquid Crystal Display): 20-digits x 2-line

Department Access Code: Up to 99 Codes

LocalCopy Function: Multiple Copy up to 99 Pages

Program Buttons: Up to 72

Memory Lock Reception

Battery Backup: Up to 12 Hours (LC 710/720i)

Up to 3 hours (LC 730i)

RX Document Multiple Printout: Up to 99 Pages

RX Page Footer

Transfer Mode

Soft Counter

Report/Reference:

Activity Report (up to 40 Transactions)

Non-delivery Report

Management Report

List of Phone Numbers for One-touch

and Coded Speed-dialing

List of Transaction Schedule

User Data List

File Reference

TTI(Transmitter Terminal Identification)

TTI Selector: Up to 99 Identifications

RTI(Remote Terminal Identification)

Options:

33.6 Kbps Dual Line

Printer Kit III (for LC 710 Only)

Network Kit III (for LC 710 Only)

500-sheet Cassette (Letter)

250-sheet Adjustable Cassette

(for LC 720i Only)

Provided by Third Party Facsimile Memory: 32MB

(LC 710/720i)

Printer Memory: 32MB, 64MB

Stamp

Stamp Refill

Braille Kit D-1

Telephone Handset Kit 8

Pedestal

♦

(H x W x D):

17-3/4" x 18-7/8" x 17-1/2"

(450mm x 478mm x 444mm)

Printer Kit III (Optional for LC 710; Standard for LC 720i/730i)

Type: Embedded Print Controller

Processor: Power PC405 200MHz RISC Processor

Memory: Standard 8MB (72MB Max.)

PDL Support: PCL 5e, PCL 6, PJL

Internal Fonts: PCL 5e/6: 45 Roman Fonts,

32 Bar-code Fonts

Interface Connections: Parallel (IEEE 1284)

USB 1.1 Optional RJ-45 (10/100Base-T)

(Compatibility: Nibble, Byte, and ECP Mode)

Memory: 8MB

Paper Sizes:

A4/A/B5/Executive/Legal/Letter/Postcard/

Double Postcard/C5/COM10/Monarch/DL

Media Type: Plain Paper/Heavy Paper/Recycled Paper/

Colored Paper/Bond Paper/Plain Paper 2

Notification Job Completion: Yes (E-mail)

■

Toner Saver: Yes

Duplex Printing (Print Jobs): Yes

Network Kit III (Optional for LC 710;✖Standard for LC 720i/730i)

CPU: ETRAX 100LX (32-bit RISC CPU 100MHz)

Memory (RAM): 4MB

Memory (ROM): 2MB (Flash)

SDRAM: 128 Kbytes

Network I/F: 10Base-T, 100Base-TX (RJ-45)

Network OS: Novell

®

NetWare

®

v.3.2, 4.1, 4.2, 4.11,

5.0, 5.1 (IPX/SPX™)

Windows

®

95/98/Me (TCP/IP)

Windows NT

®

4.0/Windows 2000/

Windows XP (TCP/IP)

Solaris™1.1x, 2.5 or Later (TCP/IP)

Protocol Stacks: IPX/SPX: 802.2, 802.3, Ethernet II,

802.2 SNAP, TCP/IP

Other Features: Remote UI Supported

NetSpot Supported

Interface: 10Base-T/100Base-TX

Internet Fax Function: Yes

I-fax Resolution: Up to 200 dpi x 200 dpi

E-mail Resolution: Up to 400 dpi x 400 dpi

TX Mode: Simple Mode (I-fax), E-mail Mode

Protocol: SMTP; POP3

Mail Address: 5 Destinations

File Type

Simple Mode: M-TIFF

E-mail Mode: M-TIFF, PDF

Send Settings: Document Name

Subject

Text

Signature

Priority

RX Confirmation

Message

Network Scanning: Yes

††

*Temperature: 15-27.5˚ C; Humidity: 20-80% RH; Paper Weight: 20 lb.;

Paper Thickness: <120 µm

** Actual compression ratio may vary with image

*** Approximate 3-second-per-page fax transmission time based on ITU-T No. 1

Chart (JBIG, Standard Mode) at 33.6 Kbps modem speed when transmit-

ting to another V.34 machine. The Public Switched Telephone Network

(PSTN) currently supports 28.8 Kbps modem speeds or lower, depending

on telephone line conditions.

†Based on 4% original, 5% coverage.

▲Based on ITU-T No. 1 Chart (Standard Mode).

♦Requires 500-sheet letter-sized Cassette

■Requires Network Kit III

†† Scan to E-mail

✖

Requires Printer Kit III

WHAT IS INTERNET FAXING?

Internet-enabled fax machines plug into your existing data network.

They convert scanned documents into file formats that are easily

transported over the Internet or your company intranet, sending data

to E-mail addressdestinations or other I-fax-capable machines.

Internet faxing bypasses the public switched telephone network and

offers many advantages for your business:

•

Lowers communication costs by eliminating per-call charges for each

transmission—especially for long-distance and international calls.

• Allows for simultaneous and instantaneous distribution of informa-

tion to all recipients. Data is transmitted to all recipients at once,

at the maximum speed of your network—not the telephone line—

eliminating delays associated with sequential broadcast technology.

• Maintains image quality and document integrity through end-to-end

digital transmission. Your faxes are impervious to distortion from

static and line noise, so resolution is never compromised.

• Increases productivity by eliminating busy signals and rescanning

tasks—every fax gets through the first time, every time.

The Canon LASER CLASS 700 Series utilizes the ITU-T.37 standard

for Internet Fax transmissions. Similar to the standards for corporate

E-mail systems, this makes I-fax technology easy to use and instantly

familiar to your employees. The T.37“store and forward” process

relays a fax transmission from an originating device to an IP fax gate-

way. The data is then sent to a receiving device, either another I-fax

unit or your PC’s E-mail inbox through mail servers. Store and forward

Internet faxing works essentially the same as sending an E-mail with

an attachment. From a user’s perspective, it is little different from

traditional G3 fax technology. The G3 format is replaced as a PDF or

M-TIFF file that is basically a snapshot of the original document.

The file is then sent using network data lines. Because the Canon

LASER CLASS 700 Series offers both I-fax and Super G3 sending,

totalcommunications flexibility is at your fingertips, allowing you to:

• Send a fax to an E-mail address

• Receive E-mail from an E-mail address

• Receive a G3 fax and forward it to E-mail

• Receive an I-fax and forward it to a G3 fax

• Scan images to E-mail

LASER CLASS 700 Series Specifications

Money Isn’t All You’re Saving

3Options:

• I-fax to I-fax

• I-fax to PC

• PC to I-fax

LAN

Mail Server Mail Server

I-fax I-fax

LAN

INTERNET

PC PC

E-mail

Mail Server acts like

a Post Office

E-mail

The LASER CLASS 710

shown here with

standard 250-sheet

front-loading, user-

adjustable paper

cassettes, is comple-

mented by a 100-sheet

MultiPurpose Tray.

Add an optional

500-sheet cassette

for maximum

printing productivity.

The installation of

Printer Kit III and

Network Kit III enable

the Internet Fax

function. These boards

are standard on the

LASER CLASS 730i/720i

and optional on the

LASER CLASS 710.

Printer Kit III

Network Kit III

LASER CLASS 730i

The flagship of Canon’s LASER CLASS 700 Series Internet Facsimile

Systems, the LASER CLASS 730i does it all. Offering a powerful com-

bination of Internet faxing, 33.6 Kbps Super G3 faxing, PC faxing,

plus local and network duplex printing, network scanning, and con-

venience copying capabilities as standard, it’s the one multifunction

device that can handle your every need. Easy to connect and use,

the LASER CLASS 730i provides Parallel and USB ports for local

printing, and a 10/100Base-T Ethernet interface for network printing,

scanning, and faxing.

The LASER CLASS 730i features up to 1,500 pages, or 40MB, of

standard page memory, 35 scans per minute, a 70-page** face-up

document feeder, and full Dual Access, so you can put the most

robust communication tool to work in your office, right out of the

box. Add a 500-sheet Paper Cassette to the standard three-way,

600-sheet paper supply and optional Dual Line faxing, and raise

your office productivity to new heights.

The LASER CLASS 730i also delivers:

• M-TIFF and PDF file format support for Internet faxing and

network scanning ✝✝

• Automatic inbound routing of faxesto the desktop by sub-

address, telephone number, and E-mail

• Up to 1,500 pages of memory (40MB)

• 200 Speed- /Group-dials, Soft Counter, Confidential Mail Box,

Broadcasting, and more

•

10"-wide effective scanning width for faxing 11" x 17" documents

• Support for Canon’s Remote UI™(User-interface)—access and

control the unit using a standard Web browser

• Support for Canon imageWARE™—create and manage digital

document databases

• Support for Canon’s NetSpot®Suite—easy device installation,

status monitoring, and network management

• 20,000-impression-per-month duty cycle to keep pace with

busy environments

** 15-27.5˚C, 20-80% RH, 20 lb. < 120 µm

✝✝ Scan to E-mail

WORKGROUP SYSTEMS

LASER CLASS 720i

The LASER CLASS 720i is an ideal choice when you require standard

Internet faxing, PC faxing, Super G3 faxing, and local and network

printing and scanning capabilitiesfor lower-volume environments.

Its standard complement of 8MB (up to 510 pages) memory and

350-sheet letter/legal paper supply provide ample capacity for work-

group faxing and printing needs.

Like the LASER CLASS 730i, this model offers 3-second-per-page

transmission speed,* a 70-sheet** document feeder with 1.1 second/

page scanning, and 19-ppm, 1200-dpi laser output. Its 8.4" maximum

effective scanning width is perfect for everyday scanning and faxing

applications, while the Dual Line option gives you twice the faxing

power to keep pace with your business. The LASER CLASS 720i also

gives you:

• M-TIFF and PDF file format support for Internet faxing and

network scanning ✝ ✝

• Automatic inbound routing of faxes to the desktop by sub-address,

telephone number, and E-mail

• Standard memory up to 510 pages; 1,500 pages, maximum

• 200 Speed- /Group-dials, Soft Counter, Confidential Mail Box,

Broadcasting, and more

• Full Dual Access

• 200-dpi Internet fax resolution/400-dpi E-mail resolution

• Support for Canon’s Remote UI (User-interface)—access and control

the unit using a standard Web browser

• Support for Canon imageWARE—create and manage digital

document databases

• Support for Canon’s NetSpot Suite—easy device installation, status

monitoring, and network management

• 20,000-impression-per-month duty cycle to keep pace with

busy environments

LASER CLASS 710

The LASER CLASS 710 is a high-performance, high-speed Super G3

fax. Featuring a 3-second-per-page transmission speed,* a 70-

sheet** document feeder with 1.1 second/page scanning, and

19-ppm, 1200-dpi laser output, the LASER CLASS 710 gives you all

the faxing power you need today, with the opportunity to easily

upgrade your capabilities tomorrow.

Leverage your investment in Canon’s industry-leading fax technol-

ogy by enabling optional local Parallel and USB printing capabili-

ties with the Printer Kit III. Or raise the bar to full multifunctionality,

and give everyone in your office the ability to print, scan, and fax

right from their desktops with the optional Network Kit III. Even add

optional memory and paper capacity as you see fit, and design the

configuration that offers the most value for your office. And like the

LASER CLASS 720i/730i, the base LASER CLASS 710 provides:

• Automatic inbound routing of faxesto the desktop by sub-address,

telephone number, and E-mail (when configured with the optional

Printer Kit III and Network Kit III)

• Up to 510 pages of 8MB standard page memory, expandable to

40MB (1,500 pages)

• 200 Speed- /Group-dials, Soft Counter, Confidential Mail Box,

Broadcasting, and more

• 10"-wide effective scanning width for faxing 11" x 17" documents

• Full Dual Access

• Support for Canon’s imageWARE software, Remote UI

(User-interface),

and NetSpot Suite when connected to the network

• Optional 33.6 Kbps Dual Line Option to give twice the faxing capabil-

ity—send or receive two faxes at once, or send and receive faxes at

the same time

• 20,000-impression-per-month duty cycle to keep pace with

busy environments

A NEW STANDARD IN

FACSIMILE COMMUNICATIONS

Canon, the market leader in laser facsimile

solutions presents the LASER CLASS®700 Series.

Three cost effective, compact, high-quality

Internet Facsimile Systems that bridge the gap

between your telephone and data network

lines. Taking advantage of Canon’s state-of-the-

art technology, the LASER CLASS 700 Series

provides true multifunctionality, delivering crisp

1200-dpi, 19-page-per-minute printing, Super G3

Faxing, and Internet faxing in a totally integrated

communications solution. • The Printer Kit III is standard on the LASER CLASS 720i/730i models, and optional on the LASER CLASS 710;

enables local printing via IEEE 1284 Parallel and USB interfaces, plus duplex printing capability.

• The Network Kit III is standard on the LASER CLASS 720i/730i models, and optional on the LASER CLASS 710;

enables Internet faxing, network printing, and scan-to-E-mail capabilities via a 10/100Base-T interface, in

addition to the functions enabled by the Printer Kit III.

Note: Installation of the Printer Kit III is required for installation of the Network Kit III.

** 15-27.5˚C, 20-80% RH, 20 lb., <120 µm

▲When the system is configured with 40MB memory, battery backup is reduced to three

hours, maximum.

*** The Canon NetSpot Accountant module is available as an option.

✝✝ Scan to E-mail

LASER CLASS®730iLASER CLASS®720iLASER CLASS®710

Modem Speed Super G3 33.6 Kbps Super G3 33.6 Kbps Super G3 33.6 Kbps

Automatic Document Feeder 70 Sheets, Face-up** 70 Sheets, Face-up** 70 Sheets, Face-up**

Original Scanning Speed 35 Scans/Min. (1.1 Sec./Pg.) 35 Scans/Min. (1.1 Sec./Pg.) 35 Scans/Min. (1.1 Sec./Pg.)

Standard Fax Memory Up to 1,500 Pages (40MB) Up to 510 Pages (8MB) Up to 510 Pages (8MB)

Maximum Fax Memory Up to 1,500 Pages (40MB) Up to 1,500 Pages (40MB) Up to 1,500 Pages (40MB)

Standard Paper Capacity 250 + 250 + 100 250 + 100 250 + 250 + 100

Maximum Paper Capacity 1,100 Sheets 1,100 Sheets 1,100 Sheets

33.6 Kbps Dual Line Optional Optional Optional

Print Speed 19 Pages per Minute 19 Pages per Minute 19 Pages per Minute

Output Resolution 1200 dpi at 19 ppm 1200 dpi at 19 ppm 1200 dpi at 19 ppm

Duplex Printing Standard (Print Jobs) Standard (Print Jobs) Optional (Print Jobs)

Local Printing Standard Standard Optional

Network Printing Standard Standard Optional

PC Faxing Standard Standard Optional

Internet Faxing Standard Standard Optional

I-fax File Formats M-TIFF, PDF M-TIFF, PDF M-TIFF, PDF

Network Scanning

✝✝

Standard Standard Optional

Convenience Copying Up to 99 Copies Up to 99 Copies Up to 99 Copies

Collated Output Yes, Face-down Yes, Face-down Yes, Face-down

Effective Scanning Width 10 Inches 8.4 Inches 10 Inches

Battery Backup Up to 3 Hours Up to 12 Hours ▲Up to 12 Hours▲

NetSpot Suite Standard*** Standard*** Optional

imageWARE Optional Optional Optional

LASER CLASS 720i

LASER CLASS 710

The FX7 Cartridge produces up to 4,500 prints at 5%

image coverage, and makes maintenance a snap.

The user-friendly control

panel makes all functions

easily accessible.

The LASER CLASS 700 Series, shown with maximum paper

capacity of 1,100 sheets.

Comparison

Chart

*Approximate 3-second-per-page fax transmission time based on ITU-T No. 1 Chart ( JBIG, Standard Mode) at 33.6 Kbps modem speed when transmitting to another V.34 machine.

The Public Switched Telephone Network (PSTN) currently supports 28.8 Kbps modem speeds or lower, depending on telephone line conditions.

** 15-27.5˚C, 20-80% RH, 20 lb. < 120 µm

**✝✝ Scan to E-mail

LASER CLASS 730i

The flagship of Canon’s LASER CLASS 700 Series Internet Facsimile

Systems, the LASER CLASS 730i does it all. Offering a powerful com-

bination of Internet faxing, 33.6 Kbps Super G3 faxing, PC faxing,

plus local and network duplex printing, network scanning, and con-

venience copying capabilities as standard, it’s the one multifunction

device that can handle your every need. Easy to connect and use,

the LASER CLASS 730i provides Parallel and USB ports for local

printing, and a 10/100Base-T Ethernet interface for network printing,

scanning, and faxing.

The LASER CLASS 730i features up to 1,500 pages, or 40MB, of

standard page memory, 35 scans per minute, a 70-page** face-up

document feeder, and full Dual Access, so you can put the most

robust communication tool to work in your office, right out of the

box. Add a 500-sheet Paper Cassette to the standard three-way,

600-sheet paper supply and optional Dual Line faxing, and raise

your office productivity to new heights.

The LASER CLASS 730i also delivers:

• M-TIFF and PDF file format support for Internet faxing and

network scanning ✝✝

• Automatic inbound routing of faxesto the desktop by sub-

address, telephone number, and E-mail

• Up to 1,500 pages of memory (40MB)

• 200 Speed- /Group-dials, Soft Counter, Confidential Mail Box,

Broadcasting, and more

•

10"-wide effective scanning width for faxing 11" x 17" documents

• Support for Canon’s Remote UI™(User-interface)—access and

control the unit using a standard Web browser

• Support for Canon imageWARE™—create and manage digital

document databases

• Support for Canon’s NetSpot®Suite—easy device installation,

status monitoring, and network management

• 20,000-impression-per-month duty cycle to keep pace with

busy environments

** 15-27.5˚C, 20-80% RH, 20 lb. < 120 µm

✝✝ Scan to E-mail

WORKGROUP SYSTEMS

LASER CLASS 720i

The LASER CLASS 720i is an ideal choice when you require standard

Internet faxing, PC faxing, Super G3 faxing, and local and network

printing and scanning capabilitiesfor lower-volume environments.

Its standard complement of 8MB (up to 510 pages) memory and

350-sheet letter/legal paper supply provide ample capacity for work-

group faxing and printing needs.

Like the LASER CLASS 730i, this model offers 3-second-per-page

transmission speed,* a 70-sheet** document feeder with 1.1 second/

page scanning, and 19-ppm, 1200-dpi laser output. Its 8.4" maximum

effective scanning width is perfect for everyday scanning and faxing

applications, while the Dual Line option gives you twice the faxing

power to keep pace with your business. The LASER CLASS 720i also

gives you:

• M-TIFF and PDF file format support for Internet faxing and

network scanning ✝ ✝

• Automatic inbound routing of faxes to the desktop by sub-address,

telephone number, and E-mail

• Standard memory up to 510 pages; 1,500 pages, maximum

• 200 Speed- /Group-dials, Soft Counter, Confidential Mail Box,

Broadcasting, and more

• Full Dual Access

• 200-dpi Internet fax resolution/400-dpi E-mail resolution

• Support for Canon’s Remote UI (User-interface)—access and control

the unit using a standard Web browser

• Support for Canon imageWARE—create and manage digital

document databases

• Support for Canon’s NetSpot Suite—easy device installation, status

monitoring, and network management

• 20,000-impression-per-month duty cycle to keep pace with

busy environments

LASER CLASS 710

The LASER CLASS 710 is a high-performance, high-speed Super G3

fax. Featuring a 3-second-per-page transmission speed,* a 70-

sheet** document feeder with 1.1 second/page scanning, and

19-ppm, 1200-dpi laser output, the LASER CLASS 710 gives you all

the faxing power you need today, with the opportunity to easily

upgrade your capabilities tomorrow.

Leverage your investment in Canon’s industry-leading fax technol-

ogy by enabling optional local Parallel and USB printing capabili-

ties with the Printer Kit III. Or raise the bar to full multifunctionality,

and give everyone in your office the ability to print, scan, and fax

right from their desktops with the optional Network Kit III. Even add

optional memory and paper capacity as you see fit, and design the

configuration that offers the most value for your office. And like the

LASER CLASS 720i/730i, the base LASER CLASS 710 provides:

• Automatic inbound routing of faxesto the desktop by sub-address,

telephone number, and E-mail (when configured with the optional

Printer Kit III and Network Kit III)

• Up to 510 pages of 8MB standard page memory, expandable to

40MB (1,500 pages)

• 200 Speed- /Group-dials, Soft Counter, Confidential Mail Box,

Broadcasting, and more

• 10"-wide effective scanning width for faxing 11" x 17" documents

• Full Dual Access

• Support for Canon’s imageWARE software, Remote UI

(User-interface),

and NetSpot Suite when connected to the network

• Optional 33.6 Kbps Dual Line Option to give twice the faxing capabil-

ity—send or receive two faxes at once, or send and receive faxes at

the same time

• 20,000-impression-per-month duty cycle to keep pace with

busy environments

A NEW STANDARD IN

FACSIMILE COMMUNICATIONS

Canon, the market leader in laser facsimile

solutions presents the LASER CLASS®700 Series.

Three cost effective, compact, high-quality

Internet Facsimile Systems that bridge the gap

between your telephone and data network

lines. Taking advantage of Canon’s state-of-the-

art technology, the LASER CLASS 700 Series

provides true multifunctionality, delivering crisp

1200-dpi, 19-page-per-minute printing, Super G3

Faxing, and Internet faxing in a totally integrated

communications solution. • The Printer Kit III is standard on the LASER CLASS 720i/730i models, and optional on the LASER CLASS 710;

enables local printing via IEEE 1284 Parallel and USB interfaces, plus duplex printing capability.

• The Network Kit III is standard on the LASER CLASS 720i/730i models, and optional on the LASER CLASS 710;

enables Internet faxing, network printing, and scan-to-E-mail capabilities via a 10/100Base-T interface, in

addition to the functions enabled by the Printer Kit III.

Note: Installation of the Printer Kit III is required for installation of the Network Kit III.

** 15-27.5˚C, 20-80% RH, 20 lb., <120 µm

▲When the system is configured with 40MB memory, battery backup is reduced to three

hours, maximum.

*** The Canon NetSpot Accountant module is available as an option.

✝✝ Scan to E-mail

LASER CLASS®730iLASER CLASS®720iLASER CLASS®710

Modem Speed Super G3 33.6 Kbps Super G3 33.6 Kbps Super G3 33.6 Kbps

Automatic Document Feeder 70 Sheets, Face-up** 70 Sheets, Face-up** 70 Sheets, Face-up**

Original Scanning Speed 35 Scans/Min. (1.1 Sec./Pg.) 35 Scans/Min. (1.1 Sec./Pg.) 35 Scans/Min. (1.1 Sec./Pg.)

Standard Fax Memory Up to 1,500 Pages (40MB) Up to 510 Pages (8MB) Up to 510 Pages (8MB)

Maximum Fax Memory Up to 1,500 Pages (40MB) Up to 1,500 Pages (40MB) Up to 1,500 Pages (40MB)

Standard Paper Capacity 250 + 250 + 100 250 + 100 250 + 250 + 100

Maximum Paper Capacity 1,100 Sheets 1,100 Sheets 1,100 Sheets

33.6 Kbps Dual Line Optional Optional Optional

Print Speed 19 Pages per Minute 19 Pages per Minute 19 Pages per Minute

Output Resolution 1200 dpi at 19 ppm 1200 dpi at 19 ppm 1200 dpi at 19 ppm

Duplex Printing Standard (Print Jobs) Standard (Print Jobs) Optional (Print Jobs)

Local Printing Standard Standard Optional

Network Printing Standard Standard Optional

PC Faxing Standard Standard Optional

Internet Faxing Standard Standard Optional

I-fax File Formats M-TIFF, PDF M-TIFF, PDF M-TIFF, PDF

Network Scanning

✝✝

Standard Standard Optional

Convenience Copying Up to 99 Copies Up to 99 Copies Up to 99 Copies

Collated Output Yes, Face-down Yes, Face-down Yes, Face-down

Effective Scanning Width 10 Inches 8.4 Inches 10 Inches

Battery Backup Up to 3 Hours Up to 12 Hours ▲Up to 12 Hours▲

NetSpot Suite Standard*** Standard*** Optional

imageWARE Optional Optional Optional

LASER CLASS 720i

LASER CLASS 710

The FX7 Cartridge produces up to 4,500 prints at 5%

image coverage, and makes maintenance a snap.

The user-friendly control

panel makes all functions

easily accessible.

The LASER CLASS 700 Series, shown with maximum paper

capacity of 1,100 sheets.

Comparison

Chart

*Approximate 3-second-per-page fax transmission time based on ITU-T No. 1 Chart ( JBIG, Standard Mode) at 33.6 Kbps modem speed when transmitting to another V.34 machine.

The Public Switched Telephone Network (PSTN) currently supports 28.8 Kbps modem speeds or lower, depending on telephone line conditions.

** 15-27.5˚C, 20-80% RH, 20 lb. < 120 µm

**✝✝ Scan to E-mail

LASER CLASS 730i

The flagship of Canon’s LASER CLASS 700 Series Internet Facsimile

Systems, the LASER CLASS 730i does it all. Offering a powerful com-

bination of Internet faxing, 33.6 Kbps Super G3 faxing, PC faxing,

plus local and network duplex printing, network scanning, and con-

venience copying capabilities as standard, it’s the one multifunction

device that can handle your every need. Easy to connect and use,

the LASER CLASS 730i provides Parallel and USB ports for local

printing, and a 10/100Base-T Ethernet interface for network printing,

scanning, and faxing.

The LASER CLASS 730i features up to 1,500 pages, or 40MB, of

standard page memory, 35 scans per minute, a 70-page** face-up

document feeder, and full Dual Access, so you can put the most

robust communication tool to work in your office, right out of the

box. Add a 500-sheet Paper Cassette to the standard three-way,

600-sheet paper supply and optional Dual Line faxing, and raise

your office productivity to new heights.

The LASER CLASS 730i also delivers:

• M-TIFF and PDF file format support for Internet faxing and

network scanning ✝✝

• Automatic inbound routing of faxesto the desktop by sub-

address, telephone number, and E-mail

• Up to 1,500 pages of memory (40MB)

• 200 Speed- /Group-dials, Soft Counter, Confidential Mail Box,

Broadcasting, and more

•

10"-wide effective scanning width for faxing 11" x 17" documents

• Support for Canon’s Remote UI™(User-interface)—access and

control the unit using a standard Web browser

• Support for Canon imageWARE™—create and manage digital

document databases

• Support for Canon’s NetSpot®Suite—easy device installation,

status monitoring, and network management

• 20,000-impression-per-month duty cycle to keep pace with

busy environments

** 15-27.5˚C, 20-80% RH, 20 lb. < 120 µm

✝✝ Scan to E-mail

WORKGROUP SYSTEMS

LASER CLASS 720i

The LASER CLASS 720i is an ideal choice when you require standard

Internet faxing, PC faxing, Super G3 faxing, and local and network

printing and scanning capabilitiesfor lower-volume environments.

Its standard complement of 8MB (up to 510 pages) memory and

350-sheet letter/legal paper supply provide ample capacity for work-

group faxing and printing needs.

Like the LASER CLASS 730i, this model offers 3-second-per-page

transmission speed,* a 70-sheet** document feeder with 1.1 second/

page scanning, and 19-ppm, 1200-dpi laser output. Its 8.4" maximum

effective scanning width is perfect for everyday scanning and faxing

applications, while the Dual Line option gives you twice the faxing

power to keep pace with your business. The LASER CLASS 720i also

gives you:

• M-TIFF and PDF file format support for Internet faxing and

network scanning ✝ ✝

• Automatic inbound routing of faxes to the desktop by sub-address,

telephone number, and E-mail

• Standard memory up to 510 pages; 1,500 pages, maximum

• 200 Speed- /Group-dials, Soft Counter, Confidential Mail Box,

Broadcasting, and more

• Full Dual Access

• 200-dpi Internet fax resolution/400-dpi E-mail resolution

• Support for Canon’s Remote UI (User-interface)—access and control

the unit using a standard Web browser

• Support for Canon imageWARE—create and manage digital

document databases

• Support for Canon’s NetSpot Suite—easy device installation, status

monitoring, and network management

• 20,000-impression-per-month duty cycle to keep pace with

busy environments

LASER CLASS 710

The LASER CLASS 710 is a high-performance, high-speed Super G3

fax. Featuring a 3-second-per-page transmission speed,* a 70-

sheet** document feeder with 1.1 second/page scanning, and

19-ppm, 1200-dpi laser output, the LASER CLASS 710 gives you all

the faxing power you need today, with the opportunity to easily

upgrade your capabilities tomorrow.

Leverage your investment in Canon’s industry-leading fax technol-

ogy by enabling optional local Parallel and USB printing capabili-

ties with the Printer Kit III. Or raise the bar to full multifunctionality,

and give everyone in your office the ability to print, scan, and fax

right from their desktops with the optional Network Kit III. Even add

optional memory and paper capacity as you see fit, and design the

configuration that offers the most value for your office. And like the

LASER CLASS 720i/730i, the base LASER CLASS 710 provides:

• Automatic inbound routing of faxesto the desktop by sub-address,

telephone number, and E-mail (when configured with the optional

Printer Kit III and Network Kit III)

• Up to 510 pages of 8MB standard page memory, expandable to

40MB (1,500 pages)

• 200 Speed- /Group-dials, Soft Counter, Confidential Mail Box,

Broadcasting, and more

• 10"-wide effective scanning width for faxing 11" x 17" documents

• Full Dual Access

• Support for Canon’s imageWARE software, Remote UI

(User-interface),

and NetSpot Suite when connected to the network

• Optional 33.6 Kbps Dual Line Option to give twice the faxing capabil-

ity—send or receive two faxes at once, or send and receive faxes at

the same time

• 20,000-impression-per-month duty cycle to keep pace with

busy environments

A NEW STANDARD IN

FACSIMILE COMMUNICATIONS

Canon, the market leader in laser facsimile

solutions presents the LASER CLASS®700 Series.

Three cost effective, compact, high-quality

Internet Facsimile Systems that bridge the gap

between your telephone and data network

lines. Taking advantage of Canon’s state-of-the-

art technology, the LASER CLASS 700 Series

provides true multifunctionality, delivering crisp

1200-dpi, 19-page-per-minute printing, Super G3

Faxing, and Internet faxing in a totally integrated

communications solution. • The Printer Kit III is standard on the LASER CLASS 720i/730i models, and optional on the LASER CLASS 710;

enables local printing via IEEE 1284 Parallel and USB interfaces, plus duplex printing capability.

• The Network Kit III is standard on the LASER CLASS 720i/730i models, and optional on the LASER CLASS 710;

enables Internet faxing, network printing, and scan-to-E-mail capabilities via a 10/100Base-T interface, in

addition to the functions enabled by the Printer Kit III.

Note: Installation of the Printer Kit III is required for installation of the Network Kit III.

** 15-27.5˚C, 20-80% RH, 20 lb., <120 µm

▲When the system is configured with 40MB memory, battery backup is reduced to three

hours, maximum.

*** The Canon NetSpot Accountant module is available as an option.

✝✝ Scan to E-mail

LASER CLASS®730iLASER CLASS®720iLASER CLASS®710

Modem Speed Super G3 33.6 Kbps Super G3 33.6 Kbps Super G3 33.6 Kbps

Automatic Document Feeder 70 Sheets, Face-up** 70 Sheets, Face-up** 70 Sheets, Face-up**

Original Scanning Speed 35 Scans/Min. (1.1 Sec./Pg.) 35 Scans/Min. (1.1 Sec./Pg.) 35 Scans/Min. (1.1 Sec./Pg.)

Standard Fax Memory Up to 1,500 Pages (40MB) Up to 510 Pages (8MB) Up to 510 Pages (8MB)

Maximum Fax Memory Up to 1,500 Pages (40MB) Up to 1,500 Pages (40MB) Up to 1,500 Pages (40MB)

Standard Paper Capacity 250 + 250 + 100 250 + 100 250 + 250 + 100

Maximum Paper Capacity 1,100 Sheets 1,100 Sheets 1,100 Sheets

33.6 Kbps Dual Line Optional Optional Optional

Print Speed 19 Pages per Minute 19 Pages per Minute 19 Pages per Minute

Output Resolution 1200 dpi at 19 ppm 1200 dpi at 19 ppm 1200 dpi at 19 ppm

Duplex Printing Standard (Print Jobs) Standard (Print Jobs) Optional (Print Jobs)

Local Printing Standard Standard Optional

Network Printing Standard Standard Optional

PC Faxing Standard Standard Optional

Internet Faxing Standard Standard Optional

I-fax File Formats M-TIFF, PDF M-TIFF, PDF M-TIFF, PDF

Network Scanning

✝✝

Standard Standard Optional

Convenience Copying Up to 99 Copies Up to 99 Copies Up to 99 Copies

Collated Output Yes, Face-down Yes, Face-down Yes, Face-down

Effective Scanning Width 10 Inches 8.4 Inches 10 Inches

Battery Backup Up to 3 Hours Up to 12 Hours ▲Up to 12 Hours▲

NetSpot Suite Standard*** Standard*** Optional

imageWARE Optional Optional Optional

LASER CLASS 720i

LASER CLASS 710

The FX7 Cartridge produces up to 4,500 prints at 5%

image coverage, and makes maintenance a snap.

The user-friendly control

panel makes all functions

easily accessible.

The LASER CLASS 700 Series, shown with maximum paper

capacity of 1,100 sheets.

Comparison

Chart

*Approximate 3-second-per-page fax transmission time based on ITU-T No. 1 Chart ( JBIG, Standard Mode) at 33.6 Kbps modem speed when transmitting to another V.34 machine.

The Public Switched Telephone Network (PSTN) currently supports 28.8 Kbps modem speeds or lower, depending on telephone line conditions.

** 15-27.5˚C, 20-80% RH, 20 lb. < 120 µm

**✝✝ Scan to E-mail

Workgroup

Systems

1- 800-OK-CANON

www.usa.canon.com

Canon U.S.A., Inc.

One Canon Plaza

Lake Success, NY 11042

As an ENERGY STAR®Partner, Canon U.S.A., Inc. has determined that these products meet the ENERGY STAR®

guidelines for energy efficiency. ENERGY STAR and the ENERGY STAR certification mark are registered U.S.

marks. Windows and Windows NT are registered trademarks of Microsoft Corporation in the United

States and/or other countries. Novell and NetWare are registered trademarks of Novell, Inc. in the

United States and other countries. IPX/SPX is a trademark of Novell, Inc. Solaris is a trademark of Sun

Microsystems, Inc. in the United States and other countries. Canon, LASER CLASS, NetSpot, and

Canon Know How are registered trademarks, and UHQ and the GENUINE logo are trademarks of

Canon Inc. IMAGEWARE and Remote UI are trademarks, and IMAGEANYWARE is a service mark of

Canon U.S.A., Inc. All other terms and product names may be trademarks or registered trademarks of

their respective owners, and are hereby acknowledged.

Specifications subject to change without notice.

0033W736

1003-LC700-40M

PRINTED ON RECYCLED

PAPER IN THE U.S.A.

Type: Desktop Transceiver

Applicable Line: Public Switched Telephone Network

Compatibility: G3

Automatic Document Feeder: Up to 70 Sheets (Letter)*

Up to 30 Sheets (Legal)*

Up to 30 Sheets (Ledger)*

Scanning Method: Contact Image Sensor

Document Sizes:

Maximum: 11" x 39.4" (279mm x 1,000mm)

Minimum: 5.8" x 5" (148mm x 128mm)

Effective Scanning Width

LASER CLASS 710/730i: 10" (254mm)

LASER CLASS 720i: 8.43" (214mm)

InstaScan:

Approx. 1.1 Sec./Page (Letter, Standard Mode)

Approx. 35 Scans/Min.(Letter, Standard Mode)

Data Compression System: MH, MR, MMR, JBIG**

Modem Speed: 33.6/31.2/28.8/26.4/24/21.6/19.2/16.8/

14.4/12/9.6/7.2/4.8/2.4 Kbps

Automatic Fallback

Transmission Speed:

Approx. 3 Sec./Page*** (V.34/33.6 Kbps + JBIG)

Printing Method: Laser Dry Electrostatic Transfer

Printing Speed: Approx. 19 Pages/Min. (

Letter

)

Halftone: 256 Shades of Gray

TX/RX Resolution Horizontal Vertical

Ultra Fine Mode 406 pels/in. x 391 lines/in.

(16 pels/mm x 15.4 lines/mm)

Super Fine Mode: 203 pels/in. x 391 lines/in.

(8 pels/mm x 15.4 lines/mm)

Fine Mode: 203 pels/in. x 196 lines/in.

(8 pels/mm x 7.7 lines/mm)

Standard Mode: 203 pels/in. x 98 lines/in.

(8 pels/mm x 3.85 lines/mm)

Effective Recording Width: 8.2" (210mm)

Recording Paper Supply

LASER CLASS 710/730i: 600 Sheets: 2 x 250-sheet, Adjustable

Cassette; 100-sheet MP Tray; Optional

500-sheet Cassette (Letter)

LASER CLASS 720i: 350 Sheets: 1 x 250-sheet, Adjustable

Cassette; 100-sheet MP Tray; Optional

500-sheet Cassette (Letter) + Optional

250-sheet Adjustable Cassette

Receiving Paper Tray: Face-down, Print-in-order: 250 Sheets

Recording Paper Size: Letter/Legal/A4

Enhanced Imaging Quality: UHQ™ (Ultra High Quality)

Enhanced Printing Quality: 1200-dpi Smoothing for Incoming Faxes

Printing Resolution: 1200 dpi x 1200 dpi

Printer Cartridge: FX7 Cartridge

Cartridge Yield: Approx. 4,500 Pages†

Power Consumption

Standby: Approx. 15W; Max.: Approx. 980W (LC 710)

Approx. 20W (LC 720i/730i)

Energy Saver: 5W (LC 710), 15W (LC 720i/730i)

Dimensions (H x W x D)

LASER CLASS 710/730i

Without Handset: 18-1/8" x 19-3/4" x 19-3/4"

(459mm x 499mm x 499mm)

With Handset: 18-1/8" x 22-1/2" x 19-3/4"

(459mm x 569mm x 499mm)

LASER CLASS 720i

Without Handset: 15" x 19-3/4" x 19-3/4"

(379mm x 499mm x 499mm)

With Handset: 15" x 22-1/2" x 19-3/4"

(379mm x 569mm x 499mm)

Weight (Excluding Handset Option)

LASER CLASS 710: Approx. 52 lb. 15oz. (24kg)

LASER CLASS 720i: Approx. 48 lb. 8 oz. (22kg)

LASER CLASS 730i: Approx. 55 lb. 2oz (25kg)

Environmental Conditions

Temperature: 50˚F - 90.5˚F (10˚C - 32.5˚C)

Humidity: 20% - 80% RH

Dialing: Automatic Dialing

One-touch Speed-dialing: 72 Locations

Coded Speed-dialing: 128 Locations

Group-dialing: 199 Groups

Each Group Can Accommodate up to 199

Locations

Maximum Dial Digits: 120

Error Re-dialing

Manual Re-dialing

Dial Search

Energy Saver Key

Programmable Key

Send Feature

LASER CLASS 720i/730i: Standard

LASER CLASS 710: Optional;

Super G3 is Standard

Sending Methods: E-mail, I-fax, Super G3 fax

File Server (FTP)

Number of Addresses: 210

File Format: M-TIFF (MH/MR/MMR), PDF

Sending Resolution

Simple Mode: 200 dpi x 100 dpi, 200 dpi x 200 dpi

E-mail Mode: 200 dpi x 100 dpi, 200 dpi x 200 dpi

200 dpi x 400 dpi, 400 dpi x 400 dpi

Networking

Delayed Transmission: Up to 210 Destinations and up to

70 Reservations

Memory Polling Transmission

Polling Reception

Multi-Polling: Up to 210 Locations

Delayed Polling: Up to 200 Locations

Up to 5 Designated Times per Speed-dial

Sequential Broadcast: Up to 210 Locations

(200 Pre-programmed Speed-dials)

RelayBroadcast: Up to 200 Locations

Relay Boxes:Up to 50

Delayed Relay Broadcast: Up to 5 Designated Times per Speed-dial

Relay Broadcast Command

Transmission to Confidential Mail Box

Confidential Mail Box: Up to 50 Boxes

Memory Transmission/Reception:

LASER CLASS 710/720i: (8MB) Up to 510 Pages (Standard)

▲

One Open Slot, Optional 32MB for

Total Capacity.

LASER CLASS 730i: (40MB) Up to 1,500 Pages

Receiving Restriction

Password and Sub-address (ITU-T STD)

Convenience:

Auto Receive Reduction (70% ~ 100%)

Dual Access

TX Reservation During RX

TX Reservation During Memory TX

Memory RX During Copy

Memory TX During Copy

Scan During Printing

Transmission Reservation: Up to 70 Reservations

LCD (Liquid Crystal Display): 20-digits x 2-line

Department Access Code: Up to 99 Codes

LocalCopy Function: Multiple Copy up to 99 Pages

Program Buttons: Up to 72

Memory Lock Reception

Battery Backup: Up to 12 Hours (LC 710/720i)

Up to 3 hours (LC 730i)

RX Document Multiple Printout: Up to 99 Pages

RX Page Footer

Transfer Mode

Soft Counter

Report/Reference:

Activity Report (up to 40 Transactions)

Non-delivery Report

Management Report

List of Phone Numbers for One-touch

and Coded Speed-dialing

List of Transaction Schedule

User Data List

File Reference

TTI(Transmitter Terminal Identification)

TTI Selector: Up to 99 Identifications

RTI(Remote Terminal Identification)

Options:

33.6 Kbps Dual Line

Printer Kit III (for LC 710 Only)

Network Kit III (for LC 710 Only)

500-sheet Cassette (Letter)

250-sheet Adjustable Cassette

(for LC 720i Only)

Provided by Third Party Facsimile Memory: 32MB

(LC 710/720i)

Printer Memory: 32MB, 64MB

Stamp

Stamp Refill

Braille Kit D-1

Telephone Handset Kit 8

Pedestal

♦

(H x W x D):

17-3/4" x 18-7/8" x 17-1/2"

(450mm x 478mm x 444mm)

Printer Kit III (Optional for LC 710; Standard for LC 720i/730i)

Type: Embedded Print Controller

Processor: Power PC405 200MHz RISC Processor

Memory: Standard 8MB (72MB Max.)

PDL Support: PCL 5e, PCL 6, PJL

Internal Fonts: PCL 5e/6: 45 Roman Fonts,

32 Bar-code Fonts

Interface Connections: Parallel (IEEE 1284)

USB 1.1 Optional RJ-45 (10/100Base-T)

(Compatibility: Nibble, Byte, and ECP Mode)

Memory: 8MB

Paper Sizes:

A4/A/B5/Executive/Legal/Letter/Postcard/

Double Postcard/C5/COM10/Monarch/DL

Media Type: Plain Paper/Heavy Paper/Recycled Paper/

Colored Paper/Bond Paper/Plain Paper 2

Notification Job Completion: Yes (E-mail)

■

Toner Saver: Yes

Duplex Printing (Print Jobs): Yes

Network Kit III (Optional for LC 710;✖Standard for LC 720i/730i)

CPU: ETRAX 100LX (32-bit RISC CPU 100MHz)

Memory (RAM): 4MB

Memory (ROM): 2MB (Flash)

SDRAM: 128 Kbytes

Network I/F: 10Base-T, 100Base-TX (RJ-45)

Network OS: Novell

®

NetWare

®

v.3.2, 4.1, 4.2, 4.11,

5.0, 5.1 (IPX/SPX™)

Windows

®

95/98/Me (TCP/IP)

Windows NT

®

4.0/Windows 2000/

Windows XP (TCP/IP)

Solaris™1.1x, 2.5 or Later (TCP/IP)

Protocol Stacks: IPX/SPX: 802.2, 802.3, Ethernet II,

802.2 SNAP, TCP/IP

Other Features: Remote UI Supported

NetSpot Supported

Interface: 10Base-T/100Base-TX

Internet Fax Function: Yes

I-fax Resolution: Up to 200 dpi x 200 dpi

E-mail Resolution: Up to 400 dpi x 400 dpi

TX Mode: Simple Mode (I-fax), E-mail Mode

Protocol: SMTP; POP3

Mail Address: 5 Destinations

File Type

Simple Mode: M-TIFF

E-mail Mode: M-TIFF, PDF

Send Settings: Document Name

Subject

Text

Signature

Priority

RX Confirmation

Message

Network Scanning: Yes

††

*Temperature: 15-27.5˚ C; Humidity: 20-80% RH; Paper Weight: 20 lb.;

Paper Thickness: <120 µm

** Actual compression ratio may vary with image

*** Approximate 3-second-per-page fax transmission time based on ITU-T No. 1

Chart (JBIG, Standard Mode) at 33.6 Kbps modem speed when transmit-

ting to another V.34 machine. The Public Switched Telephone Network

(PSTN) currently supports 28.8 Kbps modem speeds or lower, depending

on telephone line conditions.

†Based on 4% original, 5% coverage.

▲Based on ITU-T No. 1 Chart (Standard Mode).

♦Requires 500-sheet letter-sized Cassette

■Requires Network Kit III

†† Scan to E-mail

✖

Requires Printer Kit III

WHAT IS INTERNET FAXING?

Internet-enabled fax machines plug into your existing data network.

They convert scanned documents into file formats that are easily

transported over the Internet or your company intranet, sending data

to E-mail addressdestinations or other I-fax-capable machines.

Internet faxing bypasses the public switched telephone network and

offers many advantages for your business:

•

Lowers communication costs by eliminating per-call charges for each

transmission—especially for long-distance and international calls.

• Allows for simultaneous and instantaneous distribution of informa-

tion to all recipients. Data is transmitted to all recipients at once,

at the maximum speed of your network—not the telephone line—

eliminating delays associated with sequential broadcast technology.

• Maintains image quality and document integrity through end-to-end

digital transmission. Your faxes are impervious to distortion from

static and line noise, so resolution is never compromised.

• Increases productivity by eliminating busy signals and rescanning

tasks—every fax gets through the first time, every time.

The Canon LASER CLASS 700 Series utilizes the ITU-T.37 standard

for Internet Fax transmissions. Similar to the standards for corporate

E-mail systems, this makes I-fax technology easy to use and instantly

familiar to your employees. The T.37“store and forward” process

relays a fax transmission from an originating device to an IP fax gate-

way. The data is then sent to a receiving device, either another I-fax

unit or your PC’s E-mail inbox through mail servers. Store and forward

Internet faxing works essentially the same as sending an E-mail with

an attachment. From a user’s perspective, it is little different from

traditional G3 fax technology. The G3 format is replaced as a PDF or

M-TIFF file that is basically a snapshot of the original document.

The file is then sent using network data lines. Because the Canon

LASER CLASS 700 Series offers both I-fax and Super G3 sending,

totalcommunications flexibility is at your fingertips, allowing you to:

• Send a fax to an E-mail address

• Receive E-mail from an E-mail address

• Receive a G3 fax and forward it to E-mail

• Receive an I-fax and forward it to a G3 fax

• Scan images to E-mail

LASER CLASS 700 Series Specifications

Money Isn’t All You’re Saving

3Options:

• I-fax to I-fax

• I-fax to PC

• PC to I-fax

LAN

Mail Server Mail Server

I-fax I-fax

LAN

INTERNET

PC PC

E-mail

Mail Server acts like

a Post Office

E-mail

The LASER CLASS 710

shown here with

standard 250-sheet

front-loading, user-

adjustable paper

cassettes, is comple-

mented by a 100-sheet

MultiPurpose Tray.

Add an optional

500-sheet cassette

for maximum

printing productivity.

The installation of

Printer Kit III and

Network Kit III enable

the Internet Fax

function. These boards

are standard on the

LASER CLASS 730i/720i

and optional on the

LASER CLASS 710.

Printer Kit III

Network Kit III
