EN-1
FCC Notice
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in residential installation. This
equipment generates, uses and can radiate radio frequency energy and if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, detectable by turning the equipment in question off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna
Increase the distance between the equipment and the receiver
Connect the equipment to an outlet on a different circuit than that which the receiver
is connected to.
Or consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference that may cause undesired operation.
EN-2
Contents
Important safeguards................................................................................................3
Overview....................................................................................................................8
Power........................................................................................................................9
Remote control..........................................................................................................11
Installation.................................................................................................................14
Basic connections.....................................................................................................16
Preparation................................................................................................................18
Basic operation.........................................................................................................20
Menu operation.........................................................................................................23
Using an SD Card....................................................................................................26
Troubleshooting.........................................................................................................29
Maintenance..............................................................................................................33

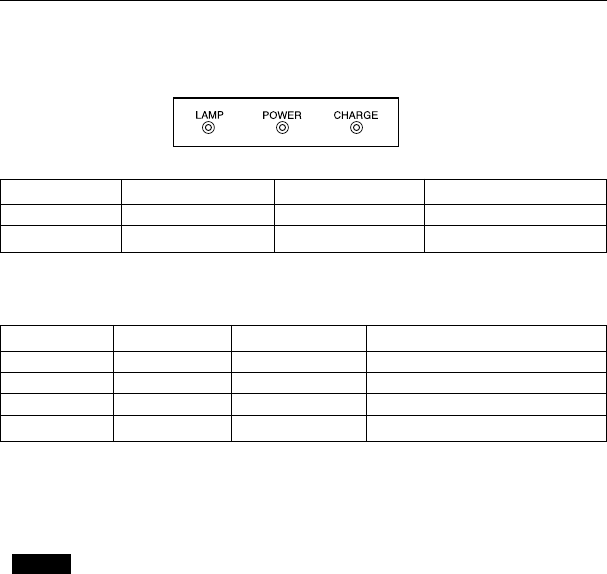

Indicators...................................................................................................................34
Specifications.............................................................................................................36
EN-3
Important safeguards
Please read all these instructions regarding your projector and retain them for future
reference. Follow all warnings and instructions marked on the projector.
1. Read instructions
All the safety and operating instructions should be read before the appliance is operated.
2. Retain instructions
The safety and operating instructions should be retained for future reference.
3. Warnings
All warnings on the appliance and in the operating instructions should be adhered to.
4. Instructions
All operating instructions must be followed.
5. Cleaning
Unplug this projector both from the wall outlet and battery before cleaning it. Do not
use liquid aerosol cleaners. Use a damp soft cloth for cleaning.
6. Attachments and equipment
Never add any attachments and/or equipment without the approval of the manufacturer
as such additions may result in the risk of fire, electric shock or other personal injury.
7. Water and moisture
Do not use this projector near water or in contact with water.
8. Accessories
Do not place this projector on an unstable cart, stand, tripod, bracket or table. Use
only with a cart, stand, tripod bracket, or table recommended by the manufacturer or
sold with the projector. Any mounting of the appliance should follow the manufacturer’s
instructions and should use a mounting accessory recommended by the manufacturer.
EN-4
9. Ventilation
Slots and openings in the cabinet are provided for ventilation, ensuring reliable operation
of the projector and to protect it from overheating. Do not block these openings or allow
them to be blocked by placing the projector on a bed, sofa, rug, or bookcase.
Ensure that there is adequate ventilation and that the manufacturer’s instructions
have been adhered to.
10. Power sources
This projector should be operated only from the type of power source indicated on the
marking label. If you are not sure of the type of power, please consult your appliance
dealer or local power company.
11. Power-cord protection
Power-supply cords should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them. Pay particular attention to cords at
plugs, convenience receptacles, and points where they exit from the appliance. Do not
put the power cord under a carpet.
12. Overloading
Do not overload wall outlets and extension cords as this can result in a fire or electric shock.
13. Objects and liquids
Never push objects of any kind through openings of this projector as they may touch
dangerous voltage points or short-out parts that could result in a fire or electric shock. Never
spill liquid of any kind on the projector, adaptor or battery.
14. Servicing
Do not attempt to service this projector yourself. Refer all servicing to qualified
service personnel.
15. Damage requiring service
Unplug this projector from the wall outlet and refer servicing to qualified service personnel
under the following conditions:
EN-5
(a) If the power-supply cord or plug is damaged.
(b) If the adaptor or the battery is damaged.
(c) If liquid has been spilled, or objects have fallen into the projector, adaptor or battery.
(d) If the projector does not operate normally after you follow the operating instructions.
Adjust only those controls that are covered by the operating instructions. An improper
adjustment of other controls may result in damage and may often require extensive work
by a qualified technician to restore the projector to its normal operation.
(e) If the projector has been exposed to rain or water.
(f ) If the projector has been dropped or the cabinet has been damaged.
(g) If the projector exhibits a distinct change in performance- this indicates a need for service.
16. Replacement parts
When replacement parts are required, be sure that the service technician has used
replacement parts specified by the manufacturer or parts having the same characteristics as
the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
17. Safety check
Upon completion of any service or repair to this projector, ask the service technician
to perform safety checks determining that the projector is in a safe operating condition.
18. Keep appropriate method when recharge the battery.
19. The projector is a precision instrument. Please pay attention on static electricity.
EN-6
WARNING:
Unplug the power cord or remove the battery immediately if there is something
wrong with your projector.
Do not operate if smoke, strange noise or odor comes out of your projector, adaptor or
battery. It may cause fire or electric shock. In this case, unplug immediately and contact
your dealer.
Never remove the cabinet.
This projector contains high voltage circuitry. An inadvertent contact may result in an
electric shock. Except as specifically explained in User Manual, do not attempt to service
this product by yourself. Please contact your dealer when you want to fix, adjust, or
inspect the projector.
Do not modify the projector.
It can lead to fire or electric shock.
Do not keep using the damaged projector.
If the projector is dropped and the cabinet is damaged, unplug the projector and contact
your dealer for inspection.
It may lead to fire if you keep using the damaged projector.
Do not face the projection lens to the sun.
It can lead to fire.
Use correct voltage.
If you use incorrect voltage, it can lead to fire.
Only use the provided AC adaptor.
Do not place the projector on uneven surface.
Place the projector on a level and stable surface only.
Do not look into the lens when the projector is operating.
It may hurt your eyes. Never let children look into the lens when the projector is on.
EN-7
Do not unplug the power cord or remove the battery during operation.
It can lead to lamp breakage, fire, electric shock or other trouble. Wait for the fan to stop
before unplugging the power cord or remove the battery.
Do not touch the air outlet grilles and bottom plate.
Do not touch them or put other equipment close to the air outlet grilles because they
become hot during operation.
The heated air outlet grilles and bottom plate may cause injury or damage to other
equipment. Also, do not put the projector on a desk that is easily affected by heat.
Do not look into the air outlet grilles when projector is operating.
Heat, dust, etc. may blow out of them and hurt your eyes.
Do not block the air inlet and outlet grilles.
If they are blocked, heat may be generated inside the projector, causing deterioration in
the projector quality and fire.
Don’t put upwards. It may block the exhausted holes.
Don’t drop.
Don’t project to person’s eyes.
EN-8
Overview
1
2
5
6
4
8
7
3
9
Control panel
1 LAMP indicator
2 POWER indicator
3 CHARGE indicator
4 POWER button
5 Four directional
buttons
6 OK button
7 MENU button
Terminal board
1 S-VIDEO terminal
2 VIDEO terminal
3 VGA IN terminal
4 Power jack
5 AUDIO IN terminal
6 AUDIO OUT(Earphone)terminal
7 SD Card slot
123
4
5
6
7
123
4
6
7
5
1
Bottom side
1 Battery latch
1 Focus ring
2 Control panel
3 Terminal board
4 Air outlet grille
5 Lens
6 Kensington lock
7 Remote control sensor (Rear side only)
8 Speaker
9 Air inlet grille
EN-9
Power
Using the provided AC adapter or an optional Lithium-ion rechargeable battery.
Warning:
The projector must be used with the provided AC adapter. Damage caused by the
use of an incorrect adapter is not covered under the warranty.
Using the AC adapter
1. Insert the plug from the AC adapter into the
DC IN terminal.
2. Insert the appropriate end of the power cord
into the AC adapter.
3. Insert the plug on the power cord into a wall outlet.
The POWER indicator lights red when using
the AC adapter.
Using the battery
The projector must be used with specified Lithium-ion rechargeable battery.
Charge the battery before using the projector for the first time use. Using the projector
for charging the battery. You may also use the projector when charging the battery.
For battery charging
Warning:
When you use the battery, please observe the safety precautions.
1. Move the battery latch to the open side.
2. Position the projector on the battery.
1
2
3
EN-10
4. Insert the plug from the AC adapter into the DC IN terminal.
5. Insert the appropriate end of the power cord into the AC adapter.
6. Insert the plug on the power cord into a wall outlet.
The CHARGE indicator lights red when charging is started and turns off when
charging is completed.
We recommended that you full charge the battery all the time.
When the projector is off, the charger works as a fast charging mode. It takes
approximately 5 hours to complete charging.
When the projector is on, the charger works as a slow charging mode.It takes
approximately 7 hours to complete charging.
For battery removal
Slide the battery lock switches on the two sides
to remove the battery from the projector.
3. Match the battery carefully until it fits in place.
4
5
6
CHARGE (Red) CONDITION
On Charging battery
Off Battery full
EN-11
Remote control
For the first time use:
Remove the transparent insulation tape by pulling it before
use.

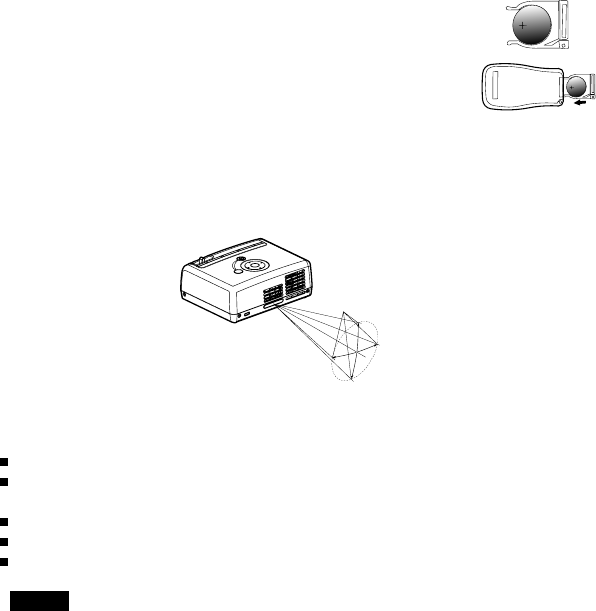

For battery change:
1. Push the catch to the right and remove the battery
holder.
Catch
Battery holder
1POWER button
2Four directional buttons
3Menu button
4Enter button
5Keystone S T buttons
6VolumeS T buttons
7Source button
8Mute button
9Blank button
10 4:3/16:9 button
1 1 Auto button
EN-12
2. Remove the old Lithium coin cell and install new one (CR2025).
Ensure that the side with the mark “+” is up.
3. Push the battery holder back into the remote control until you feel
a click.
Operating Range
The infrared signal operates by line-of-sight up to a distance of approximately 9.8 (3 m) and
within a 30-degree angle of the remote sensor. The projector will not function if there are
objects between the remote control and the remote sensor on the projector or if strong light
falls on the remote sensor. A weak battery will also prevent the projector from operating.
This sample may be slightly different from actual range.
Remote Control Precautions
Handle the remote control carefully.
Do not use the remote control if it got wet. Remove the battery immediately. Make sure
the remote control and battery are dry before use.
Avoid excessive heat and humidity.
Do not place the battery upside down.
Keep the coin cell battery out of reach of children so as not to allow them to swallow
the cell battery.
Approx. 30
Approx. 3m
o
EN-13
CAUTION:
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to your local regulations.
Do not recharge, disassemble or dispose of the battery in fire.
EN-14
Installation

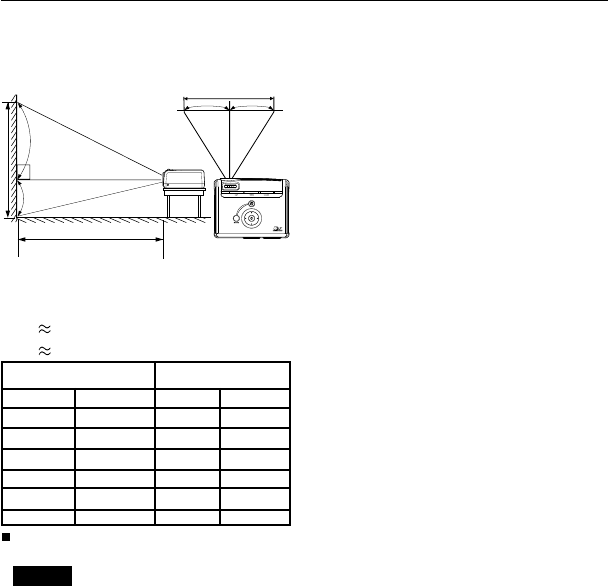

Layout of the projector
Image size varies depending on the distance between the screen and the projector.
Front projection
L
W
A
B
H
CD
L : Between the screen and the front edge of the projector
A : Height of the projected image under the horizontal line
Optical offset:
B:A 27:13
C:D 41:59
inch
12
20
30
40
50
60
Screen diagonal size Distance (L)
cm
30.5
50.8
76.2
101.6
127.0
152.4
inch
15.4
26.0
39.0
53.0
66.1
78.9
cm
40
66
99
135
167
200
The above figures are approximate and may be slightly different from the actual
measurements.
EN-15
Caution:
Do not place the projector on a carpet or any flammable materials. It may cause
damage or fire.
Place the projector at least 10 cm (or 4 inches) away from the wall to prevent the air
inlet grille and the air outlet grilles that emit hot air from being blocked.
Do not use the projector in the following locations and manners, which may cause
fire or electric shock.
a. In a dusty or humid place.
b. In a sideways or upside-down position.
c. Near a heater.
d. In an oily, smoky, or damp place such as a kitchen.
e. In direct sunlight.
f. Where the temperature rises high, such as in a closed car.
g. Where the temperature is lower than +41°F (or +5°C) or higher than +95°F (or
+35°C).
Important:
Do not apply force to the lens, because the lens may be damaged.
EN-16
VIDEO IN
S-VIDEO IN
to S-video output
to video output
VCR etc.
AUDIO IN
AUDIO OUT
to Audio output
Basic connections
This projector can be connected with various devices such as a VCR, video camera,
videodisc player, or personal computer that have analog RGB output connectors.
Important:
Make sure that the connected device is turned off before starting connection.
Plug in the AC adapter of the projector and the connected devices firmly. When
unplugging, hold and pull the plug. Do not pull the cord.
When the projector and the connected devices are located too close to each other,
the projected image may be affected by their interference.
See the owner’s guide of each device for details about its connections.
Projector + AV device
Projector + DVD player or HDTV
Some DVD players have an output
connector for 3-line fitting (Y, CB, CR). When
connecting such DVD player with this
projector, use the VGA IN terminal.
VGA IN
DVD Player or
HDTV decoder
AUDIO IN
AUDIO OUT
to Audio output
EN-17
Projector + Computer
For computer with D-SUB
Important:
When you use a longer RGB cable instead of the common length cable, the image
may not be projected correctly.
Some computers require additional connectors or analog RGB output adapters to
be connected with this projector.
For Macintosh
If your Macintosh has no video port, a monitor output adapter is required. Contact your
dealer for further information.
Some Macintoshes require a MAC adapter for the RGB cable for connection with
this projector.
to monitor port
VGA IN
Desktop type Laptop type
AUDIO IN
AUDIO OUT
to Audio output
Important:
The terminal’s names Y, PB, and PR are given as examples of when a HDTV decoder
is connected.
The terminal’s names vary depending on the connected devices.
Image may not be projected correctly with some DVD players.
EN-18
Preparation
Preparation for projection
1. Attach the provided AC adapter to the projector.
2. Plug the AC adapter in the wall outlet.
The POWER indicator lights red when using the AC adapter.
Warning:
Do not look into the lens directly when the projector is on.
Use 100-240 V AC 50/60 Hz to prevent fire or electric shock.
Do not place any objects on the AC adapter and power cord or do not place the
projector near heat sources to prevent damage to the power cord. If either the AC
adapter or power cord should be damaged, contact your dealer for replacement
because it may cause fire or electric shock.
Do not modify or alter the AC adapter. If the AC adapter is modified or altered, it may
cause fire or electric shock.
Caution:
Plug in the power cord firmly. When unplugging, hold and pull the power plug, not
the power cord.
Do not plug in or out the power cord with your hand wet. It may cause electric shock.
Important:
Install the screen on a flat wall at 90 degrees to the floor.
Images may not be projected in a shape of a regular rectangle or with its aspect ratio 4:3,
depending on the installation conditions of the projector and the screen.
To correct vertical keystone distortion:
On the optional remote control: press the Keystone S T buttons.
On the control panel: adjust Keystone in the Image menu.
EN-19

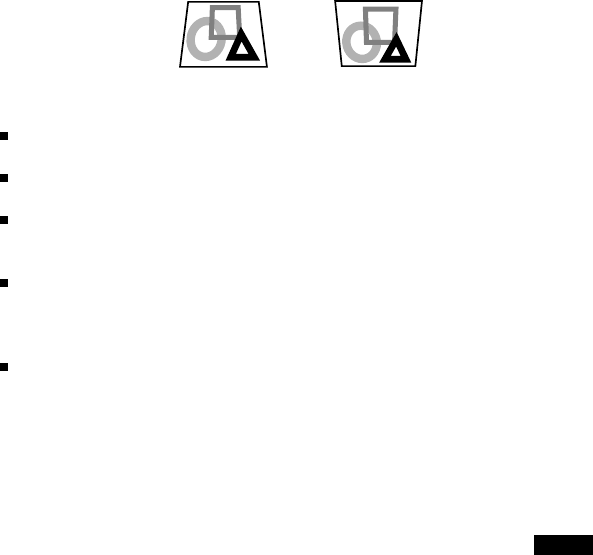

In the following cases:
Important:
When the keystone adjustment is carried out, the adjustment value is indicated. Note
that this value doesn’t mean a projection angle.
The allowable range of the adjustment value in the keystone adjustment varies
depending on the installation conditions.
When the keystone adjustment takes effect, the resolution decreases. In addition,
stripes may appear or straight lines may bend in images with complicated patterns.
They are not due to product malfunctions.
Noise may appear on the screen during the keystone adjustment because of the
type of the video signal being projected and the setting values of the keystone
adjustment. In such cases, set the keystone adjustment values in the range where
the image is displayed without noise.
When the keystone adjustment is carried out, the image may not be displayed
correctly because of the type of input signal.
Press the Keystone S. Press the Keystone T.
EN-20
Basic operation
On the control panel
Power-on
1. Turn on the device connected to the projector first.
2. Plug the AC adapter in both the projector and the wall outlet.
The POWER indicator lights up.
The CHARGE indicator lights up when the projector connects with a not fully
charged battery.
The projector charges a not fully charged battery all the time.
The projector stops charging battery when battery is fulled.
3. Press the POWER button either on the control panel or the remote control.
The LAMP indicator lights up and the POWER indicator goes off.
The message “Searching for source” appears on the screen.
The lamp occasionally fails to light up. Turn off the projector, wait for one minute
and then turn on it again.
After the POWER button is pressed, the image may flicker before the lamp
becomes stable. This is not a product malfunction.
Stand-by. Off On
When the On Off
lamp is on.
Indicator
Condition LAMP(Green) POWER(Red)
EN-21
Important:
Images may not be projected with good quality in an extremely hot or cold environment.
(This is not a product malfunction.)
4. Adjust the focus by turning the focus ring.
5. Choose your desired external input source using the COMPUTER / VIDEO buttons.
The projector automatically selects the appropriate signal format. The selected
signal format is displayed on the screen.
6. Adjust the image size by changing the distance between the projector and the screen.
If necessary, adjust the focus ring again.
Caution:
The air outlet fan rotates faster as the temperature around the projector rises.
Power-off
Use the following procedure to turn off the projector. Do not turn off the projector by unplugging
the power cord while the lamp is on. Unplugging while the lamp is on degrades the lamp’s
performance and causes failure in the projector.
1. Press the POWER button either on the control panel or on the remote control.
The message “POWER OFF? PRESS POWER AGAIN” appears on the screen.
To cancel, press any button except the POWER button.
2. Press the POWER button either on the control panel or on the remote control within
10 seconds again.
Both the lamp and the LAMP indicator will go out.
The POWER indicator lights up.
3. Unplug the power cord.
The CHARGE indicator will go out if a not fully chargedbattery is connected
with the projector.
The POWER indicator goes out.
Important:
In case the system has frozen or hung up for whatever reason and the system has
stopped responding, you may shut off the system by holding down the POWER
button either on the control panel or on the remote control for 5 seconds.
EN-22
On the remote control
Keystone S T button
Press the Keystone S or KeystoneT to adjust image distortion caused by tilting the projector.
Important:
Keystone adjustment will not change the shape of the menus, the start-up screen,
and the background (with no signal input).
Volume S T button
Press the Volume S to increase the volume, press the Volume T to reduce the volume.
Source button
If multiple sources are connected withto the projector simultaneously, press the
Source buttonThe projector will detect your source.
Important:
The image may not be projected or auto adjustmentsetting may not be performed
correctly for input signals other than those supported by the projector.
Mute button
The sound is temporarily cut off when the Mute button is pressed. To cancel mute,
press it again.
Blank button
The screen is temporarily cut off when the Blank button is pressed. To cancel blanking,
press the Blank button again.
4:3/16:9 button
Toggle the 4:3/16:9 button to change the aspect ratio.
Auto button
If source is a computer, press the Auto button to adjust frequency and phase.
EN-23
*1: Not active when connecting with VGA signal and SD card mode.
*2: Active when connecting with VGA, Component_P and HD source.
*3: Active when connecting with VGA source only.
*4: Only available for SD card mode.
*5: SD Slideshow Delay will be active when SD Slideshow sets to Auto.
*6: Range -15 - +15 for 4:3 aspect ratio; -10 - +10 for 16:9 aspect ratio.
Menu operation
Color
Gamma
Contrast
High Brightness Mode
Color Temperature
Color R
Color G
Color B
Brightness 0 - 100
0 - 100
On, Off
PC, Movie, Photo, Enhanced
Saturation*1 0 - 100
0 - 6
0 - 100
0 - 100
0 - 100
-15 - +15
-10 - +10
4:3, 16:9
*6
0 - 31
Management
AV Set
Keystone
Aspect Ratio
Sharpness
Tracking*3
H. Position*2
V. Position*2
Frequency*2
Projection Ceiling
Projection Rear
Source Lock
Lamp Hour Elapse
OSD Transparency
Reset
Battery level
Volume
Mute
0 - 15
Language
0 - 31
OK
Tint*1 0 - 100
-20 - +20
-20 - +20
-20 - +20
0 - 31
On, Off
On, Off
On, Off
0 - xxxx
On, Off
SD Slideshow*4
SD Slideshow Delay*4,5
SD Picture Information*4
Manual, Auto
3 sec, 6 sec, 9 sec, 12 sec, 15 sec
On, Off
EN-24
1 Color
Brightness..............Use to adjust the image brightness. The image becomes brighter as
the value increases.
Contrast.................Use to adjust the image contrast. The contrast becomes higher as
the value increases.
Gamma.................. Use to select Gamma mode.
PC: For computer or notebook.
Movie: Common video mode.
Photo: Computer photo mode.
Enhanced: For enhanced Gamma mode.
High Brightness Mode Select On for high brightness mode.
Saturation..............Use to adjust a video image from black and white to fully
saturated color.
Tint........................ Use to adjust the color balance of the image.
Color Temperature..Use to adjust the color temperature.
Color R...................Use to adjust the red color.
Color G.................. Use to sdjust the green color.
Color B...................Use to adjust the blue color.
2. Image
Keystone............... Use to adjust the image distortion caused by tilting projection.
Aspect Ratio...........Use to choose aspect ratio.
Sharpness..............Use to adjust the image sharpness. The image becomes sharp as
the value increases.
H. Position............. Use to adjust the horizontal position of the image.
V. Position............. Use to adjust the vertical position of the image.
Frequency..............Use to change the display data frequency to match the frequency
of your computer’s graphic card.
Tracking.................Use to eliminate image noise such as wide stripes.
EN-25
3. Management
Projection Ceiling........... Use to reverse the image horizontally.
Project Rear................... Use to reverse the image vertically.
Source Lock................... Use to lock the current source.
Lamp Hour Elapse............ Displays the LED lamp’s elapsed operating time (in hour).
Battery level................. Displays the remaining battery level.
OSD Transparency...........
Use to adjust OSD’s transparency.
Reset............................. Press control panel’s OK button or remote control’s Enter button
and then choose “Yes” to turn the display parameters to the
factory default settings.
4. AV Set
Volume.........................Use to adjust the volume.
Mute............................ Use to mute the sound.
SD Slideshow...............Use to select slideshow display mode.
Manual: for playback once.
Auto: for continuous playback.
SD Slideshow Delay..... Use to adjust the slideshow display interval.
SD Picture Information.... Use to display picture information.
5. Language...............Use to select the language used in the menu. [English, Deutsch,
Français, Italiano Español, Português, , , ]
EN-26
Using an SD Card
You can playback image and video files stored in an SD card.
Video
MPEG1
Supported file type: *.mpg
(I-Frame
Supported audio format: MPEG1 AUDIO LAYER I and MPEG1 AUDIO LAYER
only)
II( 8Bit OUT )
Supported audio sampling rate: 8k,11.025k,12k,16k,22k,24k,32k,48k Hz
(Note: 44.1KHz is not supported)
Supported brand name Supported model name
Premier DC-4381 DC-5381 DC-5384 DC-4365
AVI
Supported file type: *.avi
(MJPG
Supported audio format: PCM mono ( 8Bit OUT )
only)
Supported audio sampling rate: 8k,11.025k,12k,16k,22k,24k,32k,48k Hz
(Note: 44.1KHz is not supported)
Supported Supported model name
brand name
Canon PowerShot S45 PowerShot S50 PowerShot A40 PowerShot G3
Casio Exilim EXS2 QVR4
Fuji Film FinePixA303 FinePixF601 FinePixF602Zom
Konica Digital Revio
KD-400Z
Kyocera Finecam S4
Minolta DiMAGE 7Hi
Pentax Optio 330GS
Ricoh Caplio RR1 RDC-7
Samsung Digimax 350SE
QuickTime
Supported file type: *.mov
(MJPG
Supported audio format: UnCompressed ( 8Bit OUT )
only)
Supported audio sampling rate: 8k,11.025k,12k,16k,22k,24k,32k,48kHz
(Note: 44.1KHz is not supported)
Supported Supported model name
brand name
Epson PhotoPC 3000Z
Nikon Coolpix4500 CoolPix5000 CoolPix5700
Olympus C4040 C5050 C-730 Ultra Zoom D-520
PanasonicLecia Lumix DMC-LC5
EN-27
Still Image
JPEG
Supported file type: *.jpg (up to 16M pixels)
Supported Supported model name
brand name
Canon PowerShot G1 PowerShot A40
Casio QV-2800UX
Fuji Film FinePix F401
Kodak DC210 DC240 DC4800
Minolta DiMAGE 5 S304
Nikon 950
Olympus C700 C920Z 5050
PanoasonicLeica Digilux 1 Lumix DMC-LC5
Pentax 330 RS Optio 330
Sanyo AZ1
Sony CD Mavica CyberShot
Note:
1. The accessing time varies depending on the file size.
Memory
SD
Supported brand name Supported capacity
Card
Hagiwara 32M ~ 1G
ATP 64M ~ 1G
SanDisk 64M ~ 1G
Toshiba 64M ~ 1G
Panasonic 32M ~ 1G
Note:
1. NTFS format is not supported when formatting the SD Card.
2. Do not remove the SD Card while accessing or playing back the files
because it may damage the data.
EN-28
Inserting/Removing an SD Card
1. Insert the SD card in the correct orientation shown.
2. To removing an SD card, press lightly on the edge
of the SD card and it will eject.
Playing Back Files in SD Card
1. Insert an SD card stored image and video files into the SD card slot.
2. Select SD Card as input source.
Thumbnail display will appear on the screen.
3. You may press remote control’s Source button to change thumbnail display mode
if still images and video clips saved in an SD card.
The still image thumbnail will display first and then automatically followed by
video clip thumbnail.
4. Use four directional buttons to select the desired image/video clip, and press remote
control’s Enter button or control panel’s OK button to playback.
Pressing remote control’s Enter button or control panel’s OK button again will
stop, pause or exit from playback.
5. Press remote control’s Source button again to exit SD Card mode.
Lock
EN-29
Troubleshooting
The following offers solutions to some of the common problems you may encounter. We
suggest that you consult this chart before contacting your dealer.
Images aren’t projected on the screen.
Problem
Power isn’t turned on.
Images aren’t projected
on the screen.
Images suddenly
disappear.
LAMP(Red) POWER(Red) Charge(Red) Solution
Off Off Off
Check the states of the indicators.
Cancel blanking by pressing the Blank button.
On rare occasion, the lamp fails to light up. In such cases, try to
light the lamp again.
Check that the cable connected to the external device isn’t
broken.
When an extension cord is being used, replace it with the supplied
cable and check whether images are projected correctly.
The air inlet or outlet grille may be blocked.
tRemove the objects blocking the air inlet or outlet grille and
carry out the following.
1. Wait for the air inlet or outlet fan to stop (or wait for the LAMP
indicator to go out.)
2. Unplug the power cord from the wall outlet.
3. Wait about 1 minute.
4. Plug the power cord into the wall outlet.
5. Press the POWER button.
Check that the battery or power cord connected with the
projector correctly.
Cause and solution
Connect the power cord
to the projector.
Plug the power cord into
a wall outlet.
EN-30
Turn on the power of the connected device, or check whether
there is something wrong with the connected device.
Check the external device outputs signals. (Check this
especially when the external device is a notebook
computer.)
Check that the cable connected to the external device
isn’t defective.
Check that the projector is connected to the external
device using the correct terminals.
Check that the connected device is correctly selected as
the input source.
When an extension cord is being used, replace it with the
supplied cable and check whether images are projected
correctly.
Cause and solution
Cause and solution
Images aren’t projected correctly.
“Searching for source” is
displayed.
Problem
Projected images are shaking.
Projected images are displaced.
Check that the cable connected to the external
device isn’t intermittent.
Connect the cable’s plug with the external device’s
connector firmly.
Some computers output out-of-spec signals on rare
occasion. Adjust the Image menu.
Adjust the projector and the screen so that they
are perpendicular to each other.
Adjust Brightness in the Color menu.
Adjust the focus.
Clean the lens.
Adjust Brightness and Contrast in the Color menu.
Adjust the projector and the screen so that they
are perpendicular to each other.
Projected images are distorted.
Projected images are dark.
Projected images are blurred.
Problem
EN-31
Others
Problem Cause and solution
Projected images appear wavy
and distorted.
Tint in projected images is
incorrect.
Projected images are
obscured.
Fine streak pattern appears in
projected images.
Only the motion areas in the
images supplied from the
computer aren’t displayed.
Rainbow blurprojected images.
This symptom is normal for a DLP projector and is
not a malfunction. (A very small number of pixels
may stay lit or out, but such sympton is not a
malfunction. Pixels of 99.99% or more are effective.)
This is due to color breaking noise that occurs in a DLP
system and is not a malfunction.
It occurs because of interference with the screen
and isn’t a product malfunction. Change the screen
or readjust the focus of the projector.
Connect the cable’s plug with the external device’s
connector firmly.
Keep the projector away from equipment generating
interfering radio waves.
When the keystone adjustment is carried out, the
image may not be displayed correctly because of
the type of input signal. This isn’t a product
malfunction. In this case, readjust the keystone
so that the amount of keystone correction is as
small as possible.
Check that the cable connected to the external
device isn’t broken.
This is caused by the computer being used. Contact
the manufacturer of your computer.
Match the output resolution of your computer with the
resolution of the projector. For the method to change
the output resolution of the computer, contact the
manufacturer of your computer.
Some images and texts appear obscured during
the keystone adjustment. In such cases, use the
projector without applying the keystone
adjustment.
White dots are seen on projected
images.Black dots are seen
onprojected images.
EN-32
This air comes out as a result of cooling the inside of
the projector. This isn’t a product malfunction.
The microcomputers inside the projector may be
wrongly operating because of noise.
Press the POWER button twice to turn off the lamp
and unplug the power cord from the wall outlet. Wait
about 1 minute, plug the power cord in, and try
again
Check that the battery is loaded in the remote control
or the battery isn’t weak.
Check that the remote control sensor isn’t exposed
to direct sunlight or fluorescent light.
Use the remote control within its operation range.
Low battery power. Charge the battery. You may
press the MENU button to cancel the icon display.
No battery power. Charge the battery. You may press
the MENU button to cancel the icon display.
Cause and solution
Hot air is emitted from the
air outlet grilles.
The menu can’t be used.
The remote control doesn’t
function easily at all.
displays on the upper-
right of the screen.
displays on the center
of the screen.
Problem
Others
EN-33
Maintenance
Caution:
Be sure to turn off the lamp and unplug the power cord from the wall outlet before you
perform any maintenance on the projector.
Cleaning of the projector and the ventilation slots
Use a soft cloth to clean the projector and the ventilation grilles. When the grilles
become dirty, wipe them with a soft cloth dampened with diluted mild detergent, and
then wipe them with a dry cloth.
To protect the surface of the projector from fading or deteriorating:
Do not spray insecticide on or inside the projector.
Do not use benzine or thinner to clean it.
Do not let rubber or plastic materials contact with projector.
Cleaning of the lens
Use a standard lens-cleaning brush or a piece of lens tissue dampened with lens cleaning
fluid. The lens surface is fragile. Use only recommended, nonabrasive lens-cleaning
materials. Do not touch the lens with your fingers.
EN-34
POWER (Red)
OFF
ON
CHARGE (Red)
OFF
OFF
CONDITION
System ON
System standby
POWER (Red)
OFF
OFF
ON
ON
CHARGE (Red)
ON
OFF
ON
OFF
CONDITION
System ON+Battery charging
System ON + Battery full
System standby+Battery charging
System standby+Battery full
Normal condition (AC Adaptor only)
Indicators
This projector has three indicators, each of which shows the operation condition of the
projector.
The following offer solutions to possible problems. If these problem persist, turn the
projector off and consult your appliance dealer.
Normal condition ( AC Adaptor + Battery)
LAMP(Green)
ON
OFF
LAMP(Green)
ON
ON
OFF
OFF
EN-35
Normal condition (Battery only)
Abnormal condition
POWER (Red)
OFF
ON
Flashing x 10
CHARGE (Red)
OFF
OFF
OFF
CONDITION
System ON
System standby
Low Battery (System turned off)
LAMP (Green)
ON
OFF
OFF
LAMP (Red)
OFF
OFF
OFF
Flashing x 1
Flashing x 2
Flashing x3
ON
POWER (Red)
Off x 1 (Flashing)
Off x 3 (Flashing)
Off x 4 (Flashing)
OFF
OFF
OFF
OFF
CHARGE (Red)
-
-
-
-
-
-
-
CONDITION
System Failure
Fan abnormal
Over temperature
System Failure
System Failure
System Failure
System Failure
EN-36
Specifications
Type DLPTM projector
Rated input 15V, 2.0A
Display technology Single 0.55” DLP panel
Native resolution 800 x 600 pixels
Colors 16.7 million
Projection lens Fixed zoom with focus adjustment; F2.0
Light source RGB LED lamps
Projection range Typical image size: 12" - 60"
Typical distance: 40cm - 200cm
Performance range Typical image size: 15" - 50"
Typical distance: 48cm - 167cm
PC compatibility VGA (Expand) 640 x 480
SVGA (Real) 800 x 600
XGA (Compress) 1024 x 768
SXGA (Compress) 1280 x 960
Video compatibility NTSC-M, 4.43; PAL60; PAL- M, N; SECAM;
HDTV 480p, 720p, 1080i from analog RGB connector
I/O Connectors DC IN jack; Yellow RCA jack for composite video input; S-
Video; D-SUB 15 female for analog VGA input; AUDIO
IN ; AUDIO OUT; SD CARD slot
Outside dimensions 121 x 99 x 47.5mm (W x D x H)
Weight Approx. 1 lb (0.45kg)
AC adapter input 100-240V AC 50/60 Hz
Length of power cord 72.8 inch + 72.8 inch (1.85m + 1.85m)
The specifications and outside appearance of the projector are subject to change
without prior notice.
EN-37

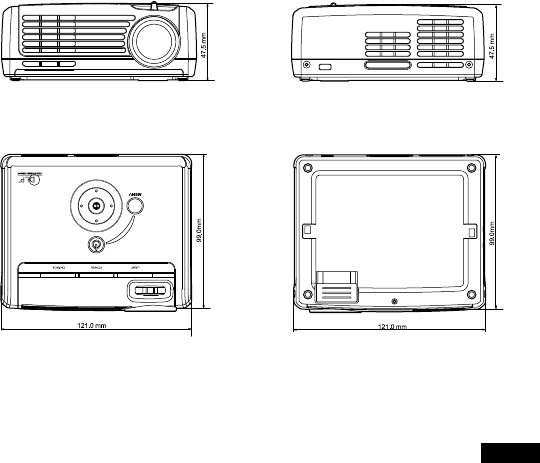

Dimensional drawings (unit : mm)
EN-38
What’s included in the box
1 Soft Carrying Bag (for projector only)
1 User’s Manual
1 Quick Start Guide
1 Composite Video Cable
1 AC Adaptor
1 Power Cord
1 Remote Control
1 Lithium-ion Rechargeable Battery
* Output: Normal DC 11.1V 4300 mAh
EN-39
Signal mode Resolution (H x V) Horizontal frequency (kHz) Vertical frequency (Hz)
VGA 60 640 x 350 31.47 59.94
VGA 85 640 x 350 37.86 85.08
VGA mode3 640 x 480 31.47 59.94
MAC 640 x 480 37.86 72.00
VGA VESA 72 640 x 480 37.86 72.80
VGA VESA 75 640 x 480 37.50 75.00
VGA VESA 85 640 x 480 43.27 85.01
VGA VESA 85 720 x 400 37.93 85.04
SVGA VESA 56 800 x 600 35.16 56.00
SVGA VESA 60 800 x 600 37.88 60.00
SVGA VESA 72 800 x 600 48.08 72.00
SVGA VESA 75 800 x 600 46.88 75.00
SVGA VESA 85 800 x 600 53.67 85.06
MAC 16 832 x 624 49.72 74.55
MAC 19 1024 x 768 60.24 75.02
XGA VESA 60 1024 x 768 48.36 60.00
XGA VESA 70 1024 x 768 56.48 70.00
XGA VESA 75 1024 x 768 60.02 75.03
XGA VESA 85 1024 x 768 68.68 85.00
HP 75 1024 x 768 62.94 74.92
SXGA VESA 70 1152 X 864 64.00 70.02
Specification of RGB signals in each computermode of the projector
EN-40
Important:
Some computers aren’t compatible with the projector.
The projector’s maximum resolution is 800 x 600 pixels. It may not display images of
higher resolutions than 800 x 600 correctly.
Images with SYNC on G (Green) signal may jitter.
Images with SYNC on G (Green) signal may be tinged with green.
If the resolution and frequency of your computer aren’t shown on the table, find the
compatible resolution and frequency by changing the resolution of your computer.
Signal mode Resolution Horizontal frequency Vertical frequency
(H x V) (kHz) (Hz)
480i 720 x480 15.80 60.00
480p 720 x480 31.50 60.00
576i 720 x576 15.60 50.00
576p 720 x576 31.30 50.00
720p 60 1280 x720 45.00 60.00
720p 50 1280 x720 37.50 50.00
1080i 60 1920 x1080 33.80 60.00
1080i 50 1920 x1080 28.10 50.00
Specification of HDTV signals

Navigation menu
