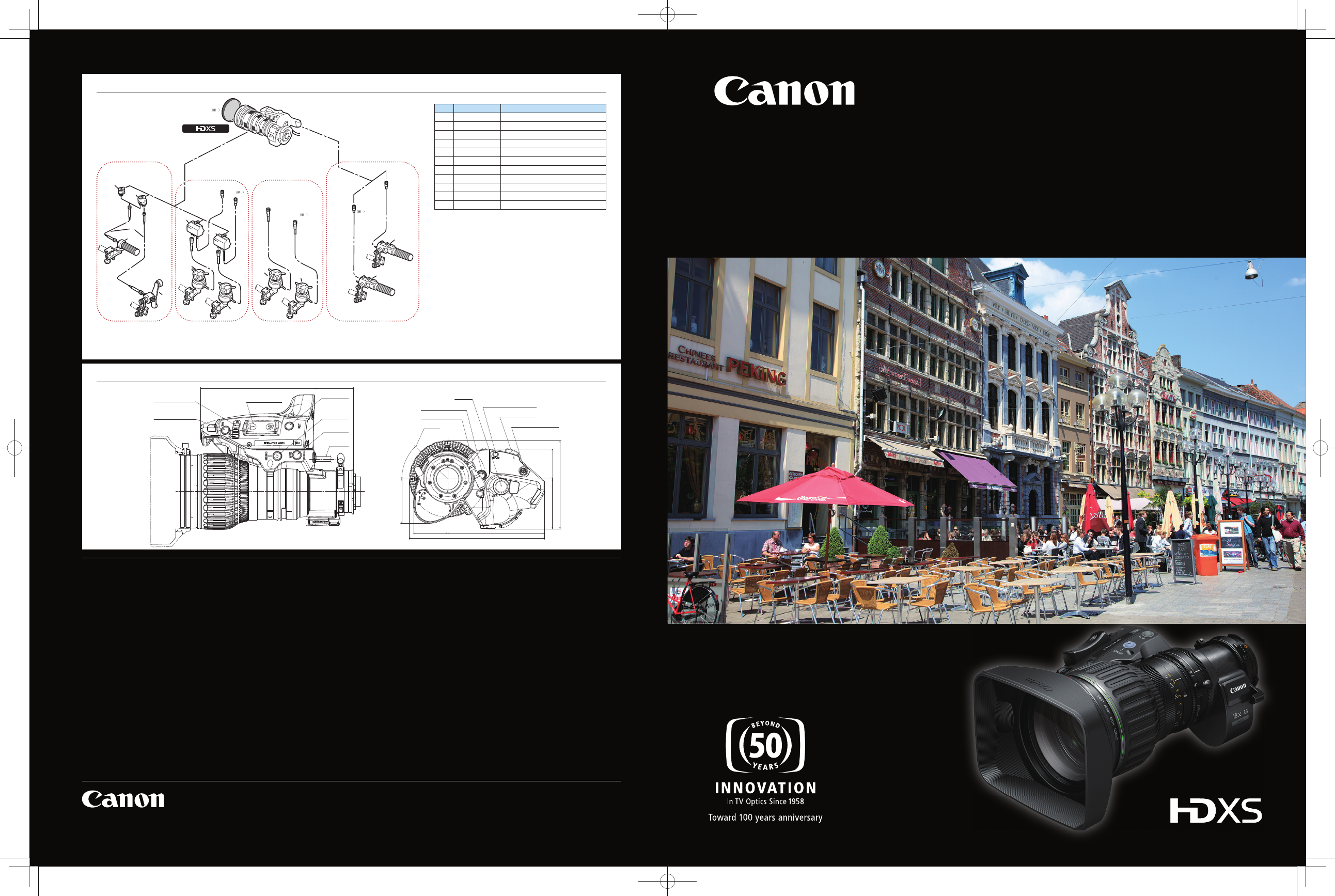

ACCESSORIES

DIMENSIONS

20p

20p

12p

6p

20p 8p

Zoom/Focus

Manual Controllers Focus

Servo Controllers

(For IRSE Lenses) (For IASE Lenses)

Zoom

Servo Controllers

Filter

82mm P0.75

⑧

⑩

⑪

⑬

⑫

⑰⑰

⑯

⑯

⑳

⑲

②

⑥20p

6p

4

1

2

3

（※1）CC-2012 conversion cable is necessary to connect between IRSE Digital Drive Lens and FPM-420.

（※2）CC-2006 conversion cable is necessary to connect between IASE Digital Drive Lens and FPD-400.

（※3）CC-2008 conversion cable is necessary to connect between New Digital Drive Lens and ZSD-300M.

（※4）For the optical accessories, the 82mm diameter P0.75 fi lters are applicable. The fi lters are to be attached to the lens barrel. (UV/ Clear/ Cross/ Snow Cross/ Sunny Cross/ Polarized Light/ Softon/ ND8)

（※5）FPD-400 is not available from Canon stock.

# Unit Description

②FFM-100 Flex Focus Module

⑥FFM-200 Flex Dual Module

⑧FC-40 Flex Cable

⑩FFC-200 Flex Focus Controller

⑪FZC-100 Flex Zoom Controller

⑫FPM-420 Focus Positional Servo Module

⑬FPM-420D Focus Positional Servo Module

⑯FPD-400※5Focus Positional Demand

⑰FPD-400D Focus Positional Demand

⑲ZSD-300M Zoom Servo Demand

⑳ZSD-300D Zoom Servo Demand Expand Freedom in HD Image Captured with Enhanced Compact HD Lens

PUB.0000000

HJ18e

x

7.6B

Specifications subject to change without notice.

North & South America

Canon U.S.A., Inc.

Imaging Technologies & Communications Group

Broadcast and Communications Sales & Marketing

Division(Headquarters)

One Canon Park

Melville, NY 11747-3336

Tel:+1(800)321-4388

Email:bctv@cusa.canon.com

http://www.canonbroadcast.com/

Chicago

100 Park Blvd. Itasca, IL 60143

Tel:+1(630)250-6236 Fax+1:(630)250-0399

Atlanta

5625 Oakbrook Pkwy. Norcross, GA 30093

Tel:+1(770)849-7890 Fax:+1(770)849-7888

Los Angeles

15955 Alton Parkway lrvine, CA 92618

Tel:+1(949)753-4330 Fax:+1(949)753-4337

Dallas

3200 Regent Blvd. lrving, TX 75063

Tel:+1(972)409-8871 Fax:+1(972)409-8869

Latin America

Tel & Fax:+1(954)757-0980

Mexico

Canon Mexicana S.de R.L. de C.V.

Professional Broadcast & Film Industry Business

Department

Blvd. Manuel Avila Camacho No.138 Col. Lomas

de Chapultepec Mexico 11000 D.F.

Tel:555249 4900 Fax:555249 4901

Canada

Canon Canada, Inc.

Broadcast and Communications Div.

6390 Dixie Road

Mississauga, Ontario, L5T 1P7, Canada

Tel:+1(905)795-2012 Fax:+1(905)795-2140

Europe/Africa/Middle East

Canon Europe Ltd

Broadcast products Div.

3 The Square, Stockley Park

Uxbridge Middlesex

United Kingdom UB11 1ET

Tel:+44 (0)20 8588 8140

Fax:+44 (0)20 8588 8603

Email : tvprod@canon-europe.com

http://www.canon-europe.com/tv-products/

Australia

Canon Australia Pty. Ltd.

CCI Division

1 Thomas Holt Drive, North Ryde, NSW 2113,

Australia

Tel:+61(0)2-9805-2000

China

Canon (China) Co., Ltd.

Broadcast Equipment Products

15F Jinbao Building No.89 Jinbao Street

Dongcheng District, Beijing 100005, China

Tel:+86-10-8513-9999 Fax:+86-10-8513-9128

http://www.canon.com.cn

Canon Hongkong Co., Ltd.

19F The Metropolis Tower, 10 Metropolis Drive,

Hunghom, Kowloon, Hong Kong

Tel:+852-2170-2828

http://www.canon.com.hk

Asia/Japan

Canon Inc.

(ICP GROUP 5)

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo

146-8501, Japan

Tel:+81(0)3-3757-7453 Fax:+81(0)3-3757-7086

Canon Singapore Pte Ltd.

1 HarbourFront Avenue, #04-01 Keppel Bay Tower,

Singapore 098632

Tel:+65-6799-8888

http://www.canon.com.sg

Canon Korea Consumer

Imaging Inc.

Canon Bldg. 5F, 168-12 Samseong-dong,

Gangnam-gu, Seoul, 135-090, Korea

Tel:+82-2-2191-8500

http://www.canon-ci.co.kr

HJ18ex

1.8

2.8

4

5.6

137

60

∞

m

ft

50

5

10

3

2

7.6B

7.6

-137mm

1:1.8

LENS

ZOOM

HDTV

CANON

RETURN SWITCH

MEMO SWITCH

AUX SWITCH

IRIS OPERATION

CHANGE-OVER SWITCH

MOMENTARY IRIS AUTO SWITCH

ZOOM OPERATION SWITCH

INDEX MARK

F.B.ADJUSTING LOCK SCREW

ZOOM SPEED VOLUME

VTR SWITCH

INFORMATION DISPLAY On/Off SWITCH

INFORMATION DISPLAY

DIGITAL FUNCTION SELECTOR

LENS CABLE

115

40.5

160.5

105

35.6 59.5

52.9

45°

44.5

137.7

0316HJ18ex76B_ip.indd 1-2 14/03/19 9:58

HJ18ex

1.8

2.8

4

5.6

137

60

∞

m

ft

50

5

10

3

2

7.6B

7.6

-137mm

1:1.8

LENS

ZOOM

HDTV

CANON

HJ18ex

7.6B

7.6

-137mm

1:1.8

Telephoto

ULTRA TELEPHOTO

with Image Stabilizer

4.3mm 6.2mm 7.6mm 10mm 28mm 60mm 106mm

137mm

168mm 274mm 316mm 400mm 500mm 800mm 1000mm

7.5mm 8.5mm 14mm 120mm

128mm

158mm 212mm 336mm 560mm 1120mm

Category Features

Zoom

Ratio

Focal Length (2/3 inch）

HJ40x14B

with 2x Extender

HJ40x10B

with 2x Extender

HJ18x28B

with 2x Extender

HJ22ex7.6B

with 2x Extender

HJ21ex7.5B

with 2x Extender

HJ14ex4.3B

with 2x Extender

HJ15ex8.5B

Multi-Purpose

Exclusive EFP

Standard

Super Wide

Image Stabilized

40x

40x

18x

22x

21x

18x

17x

14x

15x

SUPER TELEPHOTO

with Image Stabilizer

PREMIUM STANDARD

STANDARD

ENG/EFP LENS

WIDEST ANGLE LENS

(to date in TV industry)

WIDER RANGE IS

with VAP

PORTABLE

ULTRA TELEPHOTO

TELEPHOTO

ENG/EFP LENS

SUPER QUALITY

HJ18ex7.6B with 2x Extender

4.3mm

6.2mm

7.6mm

7.5mm

8.5mm

10mm

14mm

28mm

60mm

106mm

120mm

128mm

158mm

168mm

212mm

274mm

316mm

336mm

400mm

500mm

560mm

800mm

1000mm

1120mm

137mm

HJ17ex6.2B

with 2x Extender

Canon HDxs lens series

Specially designed optical lens elements

To date, aberration correction functions have

often been employed on 2/3’’ HDTV cameras for

broadcast use. The new drive unit of the HJ18ex7.6B

can output accurate lens position data from the

moment the power is turned on. Additionally,

Canon’s newly developed high-performance encoder

does not require initialization as earlier units did,

and this contributes to the quick start when shooting.

By memorizing any two focal lengths, the Canon drive unit can automatically "shuttle" between two points, moving in either direction.

As an example, this function is effective for shots in which an operator wants to start from a wide angle and then zoom in rapidly on to an object.

■Digital Functions

A speci c zoom speed can be preset in memory making it possible to repeat the zoom speed as often as you like with the push of a simple button.

Using a preset speed when zooming in and zooming out contributes to create stable images, particularly with slow zooms.

Frame Preset

Speed Preset

Shuttle Shot

An angle of view can be preset in either of two memories and the lens will zoom at the highest speed, or in a preset zoom speed, to the preset

position with the push of a simple button.

As an example, this function is effective for situations such as interview programs, where it is necessary to switch between bust shot and wide

shot.

HJ18ex7.6B

SPECIFICATIONS

In recent years, as HD has become the standard in TV programming worldwide,

Canon has made numerous contributions to the broadcasting industry by

developing lenses that deliver the highest picture quality.

The previous model, the HJ17ex7.6B has been used in a wide variety of

applications including news reporting, and has been enthusiastically adopted as

a standard lens by customers worldwide.

Eight years have passed since the HJ17ex7.6B was introduced, and Canon has

been enhancing its performance and incorporating the latest optical technology in

developing the HJ18ex7.6B.

The HJ18ex7.6B retains the compact and lightweight design essential to standard

lenses, while upgrading specifications and performance across the board.

This new lens also incorporates a new digital drive unit which further increases

usability and operability when shooting. As this lens brings together many of

Canon’s state-of-the-art technologies, the HJ18ex7.6B is sure to become a next-

generation standard and to be widely adopted by even more professional users.

The HJ18ex7.6B can operate even longer on battery

power than its predecessor. Power consumption while

the zoom, focus, and iris functions are not being

operated has been reduced by approximately 20%,

further enhancing the mobility of the camera operator.

The Canon drive unit integrates a variety of operations, stored digitally, that can be manipulated using the display.

Canon’s unique display-based functions, which are

highly regarded in the industry, have helped a variety

of operations. We have listened to our customers,

and a new simplified mode has brought the operation

method even easier and closer to the ideal.

• The new drive unit uses three 20-pin connectors.

It provides virtual pins even with the digital full

servo controllers, thereby enabling more advanced

operation.

• Canon’s new high-performance encoder is capable

of extremely high-precision output. This simplifies

calibration when composing virtual and live-action

images, thus resulting in more accurate composites.

Expand Freedom in HD Image Capture with Canon's Compact HD Lens

■Aberration Correction and Virtual Functions

Enabled without Lens Initialization

■Saved Power Consumption

■Simple Display Operations

■More Advanced Virtual Operability and

More Precise Virtual Image Expression

HJ18ex7.6B 16:9 4:3

Built-in Extender 1.0× 2.0× 1.0× 2.0×

Zoom Ratio 18 : 1

Local Length 7.6-137mm 15.2-274mm 7.6-137mm 15.2-274mm

Maximum Relative Aperture 1:1.8 at 7.6-103mm

1:2.4 at 137mm

1:3.6 at 15.2-206mm

1:4.8 at 274mm

1:1.8 at 7.6-103mm

1:2.4 at 137mm

1:3.6 at 15.2-206mm

1:4.8 at 274mm

Angular Field of View 64.6°×39.1°

4.0°×2.3°

35.1°×20.1°

2.0°×1.1

60.1°×46.9°

3.7°×2.8°

32.3°×24.5°

1.8°×1.4°

M.O.D. 0.56m (10mm with Macro)

Object Dimensions at M.O.D. 65.5×36.8cm at 7.6mm

3.8×2.1cm at 137mm

32.8×18.4cm at 15.2mm

1.9×1.1cm at 274mm

60.4cm×45.3cm at 7.6mm

3.5cm×2.6cm at 137mm

30.2×22.7cm at 15.2mm

1.8×1.3cm at 274mm

Approx. Size W×H×L = 160.5×105.0×206.2mm

Approx. Mass 1.58kg

Object Dimensions with Macro at M.O.D. 6.7×3.8cm at 7.6mm

(10mm with Macro)

6.1×4.6cm at 7.6mm

(10mm with Macro)

HDTV Zoom Lens for 2/3inch 3CCD Camera

MAIN FEATURES

FEATURES OF NEW DRIVE UNIT

With 18x zoom, the HJ18ex7.6B lens has the highest magnification in its class, and its 137

mm tele focal length is also the longest in its class – thus enhancing the camera operator’s

possibility to express images. Combining optical design technology and cutting-edge optical

simulation technology accumulated by Canon over several decades, this lens maintains

excellent camera balance in terms of overall length and weight while also delivering expanded

specifications.

The MOD of 0.56m is the shortest in its class. This, combined with the widest angle setting of

7.6 mm, allows a wide variety of scenes to be captured. This increased mobility and flexibility

for camera operators and crews allows shooting under almost any conditions, including in tight

spaces.

The size and weight of lenses are important factors contributing to comfort and convenience

when shooting. The HJ18ex7.6B lens is very compact and lightweight, as befits an HD

standard lens. The total length is 206.2 mm, and the weight is 1.58 kg (IRSE) - this enhances

the mobility and enables the camera operators to shoot comfortably.

■Highest Magnification and Longest Focal Length in its Class

(As of January 1. 2014)

Frame1:

Preset

Frame2: Zoom

ZSpeed: 800

Focus

[ Basic ]

Frame1:

Preset

Frame2: Zoom

ZSpeed:

Zoom

500

■Minimum Object Distance (MOD) in its Class (As of January 1. 2014)

■Compact and Lightweight

The HDxs series has been supported by many customers in the broadcast industry and is in

wide use throughout the world.

As a HD zoom lens for broadcast applications with the toughest demands anywhere, the HDxs

series incorporates optical elements, a wide-diameter aspherical lens, Canon’s cutting-edge

design technology and Canon’s exclusive optical simulation to achieve reduced chromatic

aberration, distortion, and ghosting.

As part of the HDxs series, the HJ18ex7.6B inherits the optical performance refined by Canon

over decades, and as a next-generation standard lens, incorporates even more advanced

optical simulation technology, newly developed optical materials, and the latest optical

processing technology. It delivers advanced optical performance from the widest angle to the

telephoto, allowing camera operators to capture amazing images.

■State-of-the-Art Canon Optical Technology for Advanced Optical Performance

0316HJ18ex76B_ip.indd 3-4 14/03/19 9:58
