Device Capability File Configuration List

-1- USRM1-4033-00

■ imagePRESS C7000VP Series

● Configuration List

● A figure of constitution

◆Configuration No. 1 ◆Configuration No. 2

◆Configuration No. 3 ◆Configuration No. 4

◆Configuration No. 5 ◆Configuration No. 6

Configuration

No.

Stacker

tray

1

Stacker

tray

2

Stapling

Saddle

Stitching

Punching

Trimming Dev Cap file name

1 - - - - - - C7000VP_1_jmf-x.xxx.xml

2 ✓ - - - - - C7000VP_81_jmf-x.xxx.xml

3 ✓ ✓ - - - - C7000VP_241_jmf-x.xxx.xml

4 - - ✓ - - - C7000VP_781_jmf-x.xxx.xml

5 - - ✓ ✓ - - C7000VP_1805_jmf-x.xxx.xml

6 ✓ - ✓ - - - C7000VP_861_jmf-x.xxx.xml

7 ✓ ✓ ✓ - - - C7000VP_1021_jmf-x.xxx.xml

8 ✓ - ✓ ✓ - - C7000VP_1885_jmf-x.xxx.xml

9 ✓ ✓ ✓ ✓ - - C7000VP_2045_jmf-x.xxx.xml

10 - - ✓ - ✓ - C7000VP_2829_jmf-x.xxx.xml

11 - - ✓ ✓ ✓ - C7000VP_3853_jmf-x.xxx.xml

12 ✓ - ✓ - ✓ - C7000VP_2909_jmf-x.xxx.xml

13 ✓ ✓ ✓ - ✓ - C7000VP_3069_jmf-x.xxx.xml

14 ✓ - ✓ ✓ ✓ - C7000VP_3933_jmf-x.xxx.xml

15 ✓ ✓ ✓ ✓ ✓ - C7000VP_4093_jmf-x.xxx.xml

17 - - ✓ ✓ - ✓ C7000VP_5901_jmf-x.xxx.xml

20 ✓ - ✓ ✓ - ✓ C7000VP_5981_jmf-x.xxx.xml

21 ✓ ✓ ✓ ✓ - ✓ C7000VP_6141_jmf-x.xxx.xml

23 - - ✓ ✓ ✓ ✓ C7000VP_7949_jmf-x.xxx.xml

26 ✓ - ✓ ✓ ✓ ✓ C7000VP_8029_jmf-x.xxx.xml

27 ✓ ✓ ✓ ✓ ✓ ✓ C7000VP_8189_jmf-x.xxx.xml

Functionality

This Device Capability File comes with restrictions stated in an enclosed license.

Device Capability File provides system options information attached to your imagePRESS series to Prinect Digital Print Manager.

Please install a Device Capability File that corresponds to a combination of system options attached to your imagePRESS copier

machine. For the details of installation procedure, refer to a user manual accompanying the Prinect Digital Print Manager.

The "x" in the file name indicates a Device Capability File version and is different depending on the version.

The pink box in the illustration indicates the puncher unit.

Device Capability File Configuration List

-2- USRM1-4033-00

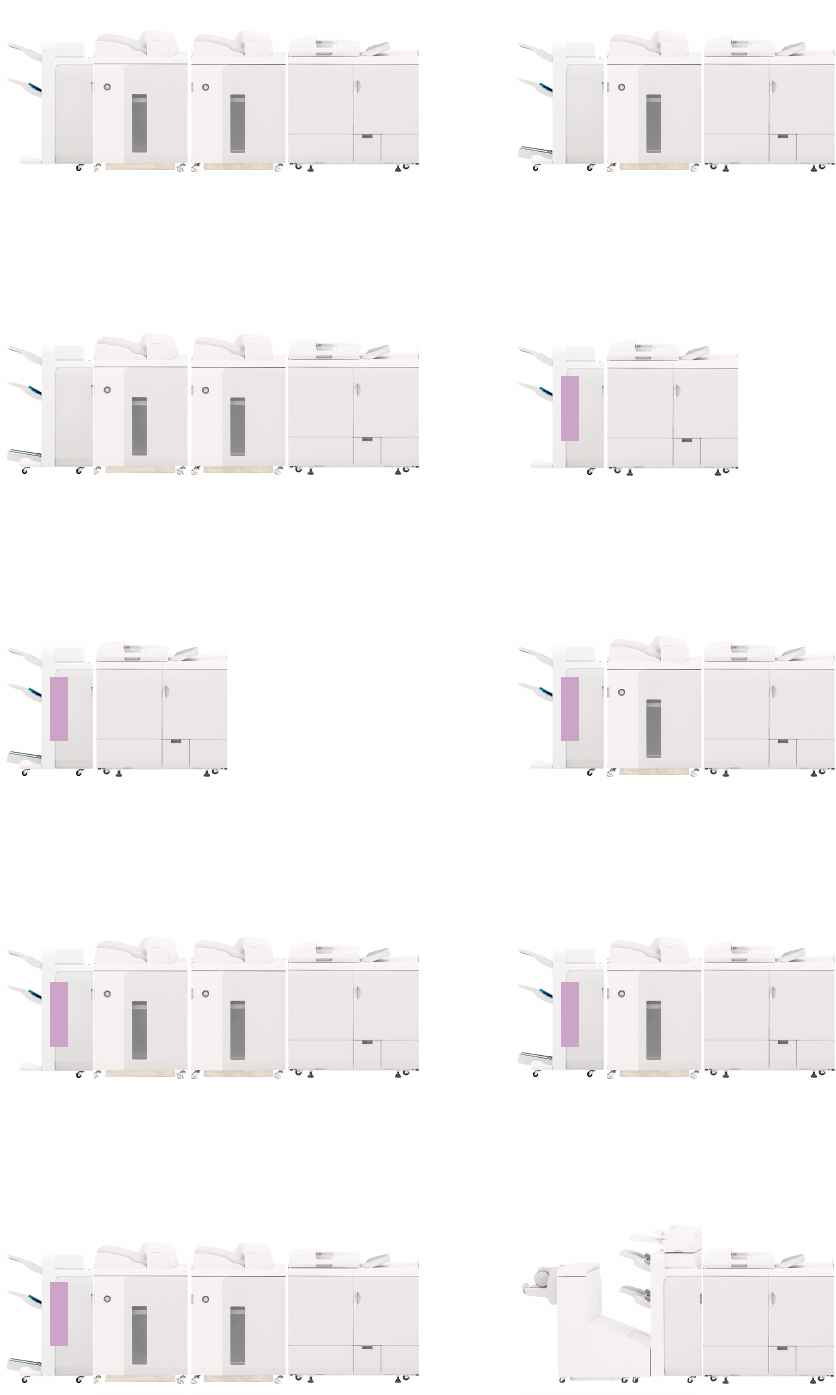

◆Configuration No. 15 ◆Configuration No. 17

◆Configuration No. 9 ◆Configuration No. 10

◆Configuration No. 11 ◆Configuration No. 12

◆Configuration No. 13 ◆Configuration No. 14

◆Configuration No. 7 ◆Configuration No. 8

Device Capability File Configuration List

-3- USRM1-4033-00

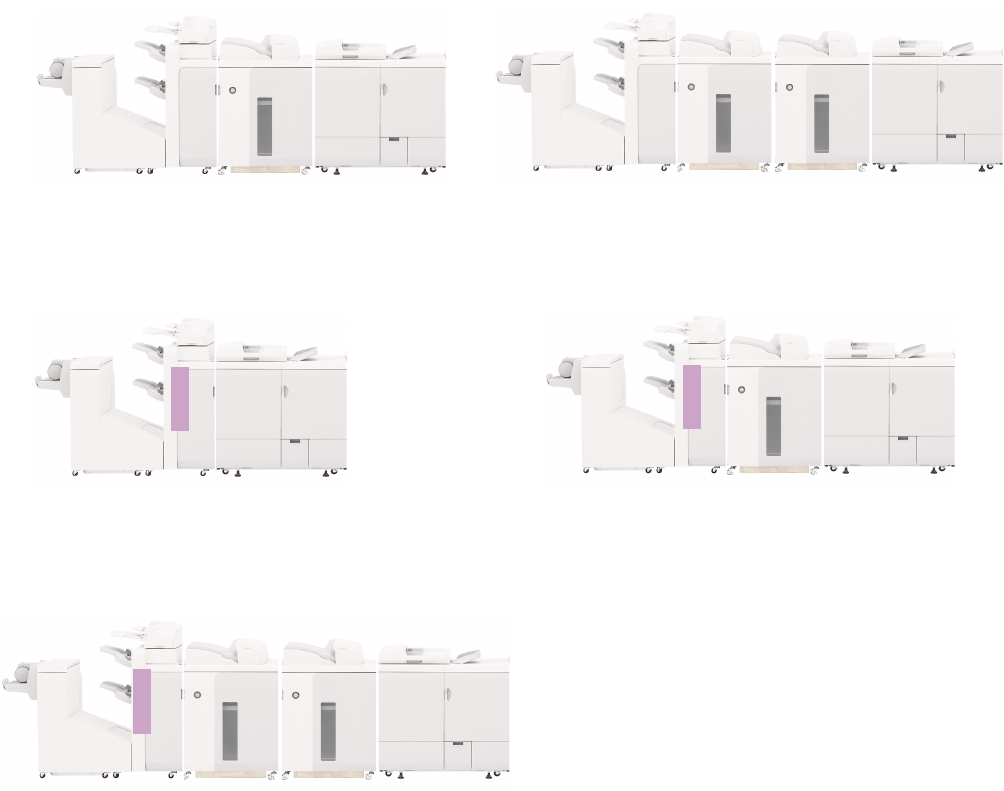

◆Configuration No. 23 ◆Configuration No. 26

◆Configuration No. 27

◆Configuration No. 21◆Configuration No. 20

Device Capability File Configuration List

-4- USRM1-4033-00

■ imagePRESS C1 Series

● Configuration List

● A figure of constitution

◆Configuration No. 1 ◆Configuration No. 2

◆Configuration No. 3 ◆Configuration No. 4

◆Configuration No. 5

Configuration

No. Stapling

Saddle Stitching

Punching Dev Cap file name

1 - - - C1_1_jmf-x.xxx.xml

2 ✓ - - C1_797_jmf-x.xxx.xml

3 ✓ ✓ - C1_1821_jmf-x.xxx.xml

4 ✓ - ✓ C1_2845_jmf-x.xxx.xml

5 ✓ ✓ ✓ C1_3869_jmf-x.xxx.xml

Functionality
