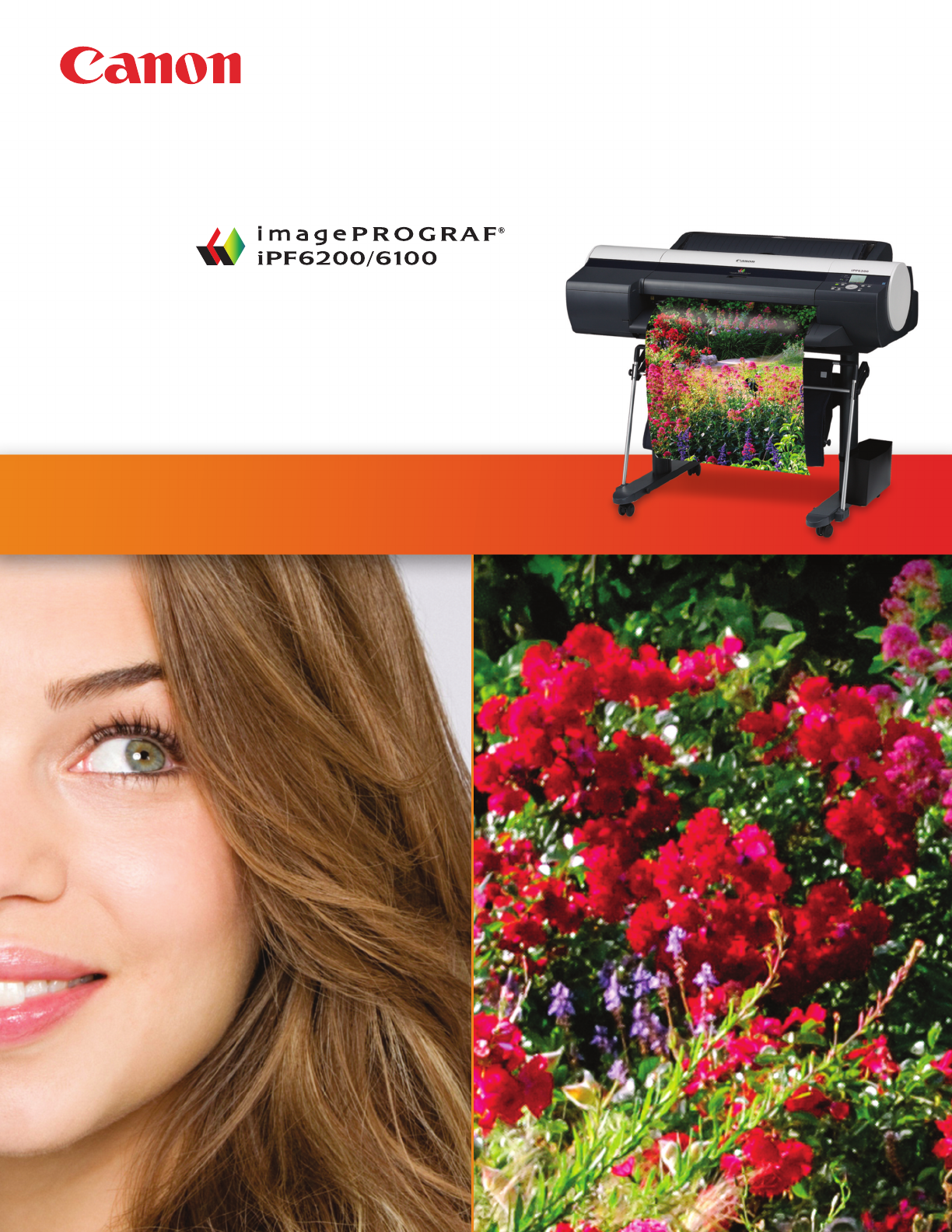

GRAPHIC ARTS

LARGE-FORMAT PRINTING

iPF6200/6100

Canon imagePROGRAF®

iPF6200/iPF6100

large-format printers

Extraordinary 24"-wide, 12-color

imaging for enthusiasts and experts!

For those who expect more from

a large-format printing system,

Canon now offers an expanded

line-up of 24"-wide, 12-color,

high-speed, high-resolution

printing solutions, optimized

to produce exquisite images for

dedicated artisans and demanding

professionals alike.

Now you can choose from two

high-end, 24"-wide printing

systems. Each combines Canon’s

breakthrough 12-color set of

durable LUCIA inks and world

renowned printing technologies

with enhanced productivity

features, enabling both experts

and enthusiasts to achieve

extraordinary results.

imagePROGRAF iPF6100: Ideal for photo-

graphy, fine-art reproductions, proofing, and

high-end graphic applications, this 12-color

system is optimized to meet the needs of

photographers, digital artists, and graphics

professionals.

imagePROGRAF iPF6200: Equipped

with an EFI®Colorproof eXpress RIP and

a built-in 80GB hard drive, this 12-color

system provides the extra data capacity

and control that busy agencies, design

groups, and prepress operations require.

imagePROGRAF iPF6100: Ideal for photo-

graphy, fine-art reproductions, proofing,

and high-end graphic applications, this

12-color system is optimized to meet the

needs of photographers, digital artists, and

graphics professionals.

imagePROGRAF iPF6200: Equipped

with an EFI®Colorproof eXpress RIP and

a built-in 80GB hard drive, this 12-color

system provides the extra data capacity

and control that busy agencies, design

groups, and prepress operations require.

FEATURES

Canon digital imaging expertise, breakthrough color science, and sophisticated printing

technologies are seamlessly integrated to help you achieve magnificent results.

iPF6200/6100

A UNIQUE 12-COLOR INK SET

• This wide gamut ink set produces a

brilliant range of vibrant colors, subtle

mid-tones, smooth gradients, and

fine details.

• Four monochromatic shades deliver

dramatic contrast and truer gray tones.

ARCHIVAL LUCIA PIGMENT INKS

• Color-stable, light-fast, and water-resistant

• Specially formulated to reduce graininess,

resist scratches, and minimize bronzing

ULTRA-HIGH-QUALITY IMAGING

• High-resolution output, up to 2400 x

1200 dpi with tiny 4pl droplets of ink

• Built-in calibration for consistent,

reliable results

• Canon’s next-generation—Kyuanos®—

color management system

.

MAXIMUM PRODUCTIVITY

• Two 1.07" print-heads, with a total

of 30,720 nozzles

• Built-in 80GB hard drive for data

storage, job management, and

security (iPF6200 only)

• High-speed output that doesn’t

sacrifice quality

•

Canon’s L-COA Image Processor

optimizes system performance

• A reliable, worry-free ink system

• Borderless printing reduces trimming

and finishing requirements

SOFTWARE SOLUTIONS

• Print Plug-in for Digital Photo Professional

• Print Plug-in for Adobe®Photoshop®

•

Print Plug-in for Microsoft®Word/Excel/

PowerPoint®*

• Digital Photo Front-Access

• Canon Printer Driver

• PosterArtist Lite (iPF6200 only)

• EFI Colorproof eXpress (iPF6200 only)

• PosterArtist 2008 (Optional)

* See www.usa.canon.com/download for availability.

An unparalleled pallet of colors!

RG B CPC M PM Y BK GY PGY MBK

With a 12-color ink set that includes cyan,

photo cyan, magenta, photo magenta, yellow,

red, green, and blue plus four monochromatic

shades—black, matte black, gray, and photo-

gray—these printers deliver a broad gamut

for greater tonal range and more precise

reproduction of color.

• The 12-color advantage: Canon’s 12-color

system enables a wide color gamut with

an extraordinary range of depth and tone,

empowering you to produce images with

vibrant saturated colors, subtle hues,

smooth transitions, and deep shadows.

• Red, Green, and Blue: These colors

expand the color space while significantly

improving saturation levels for the additive

primary colors.

• Photo Cyan, Photo Magenta, Gray,

and Photo Gray: These colors help

smooth color transitions, reduce graini-

ness, and maintain a neutral gray balance

for better overall image quality.

• Four monochromic shades: A greater

black to white tonal range is enabled for

more dramatic light to dark contrast and

better mid-tone clarity. Black density on

coated and uncoated media is optimized

because the printer will automatically

select the appropriate black ink based

on the type of media being used.

ARCHIVAL LUCIA INKS

Canon’s specially formulated LUCIA

pigment inks have outstanding archival

characteristics. By coating each pigment

particle with a special polymer compound

Canon has increased the ink’s resistance

to fading and scratching. These specially

for mulated inks also improve image quality

by reducing graininess and bronzing, so

prints look great from every angle.

At the core of the iPF6100 and iPF6200

printers is the L-COA processor. This is a

unique Canon innovation that intelligently

directs output data through the dual,

high-density print-heads, each with 2,560

nozzles per color for a total of 30,720

nozzles. Each print-head deposits ink on

the media with both speed and accuracy.

By combining high-speed, precision imaging

with superfine 4pl ink droplets and print

resolutions up to 2400 x 1200 dpi, these

large-format printers are built to efficiently

produce a full range of color-rich images

and complex graphics demanded by fine art

applications and professional photographers.

HIGH-CAPACITY 80GB HARD DRIVE

(iPF6200 ONLY)

For busy work groups and production printing

environments, Canon offers the iPF6200

model, equipped with an 80GB hard drive that

has 30 individual Mail Boxes, support for up

to 500 job records, and enhanced security

features to help protect sensitive materials.

The extra-large hard drive maximizes

productivity by relieving the workload from

an operator’s host computer while providing

more capacity for print job data storage and

retrieval so multiple copies and reprints can

be made without resending the job files.

SYSTEM CALIBRATION—SIMPLIFIED

Unlike the complex and time-consuming

calibration normally required in professional

settings, these printers offer a simplified

process that enables easy recalibration

back to the original, optimal factory set-

tings across all the printer’s media types—

in just minutes.

KYUANOS: CANON’S NEXT-GENERATION

COLOR MATCHING PLATFORM

Kyuanos is a high-precision color matching

engine developed by Canon. This underlying

technology supports rich color expression

across a wide spectrum of input and out-

put formats and enables advanced color

management functions such as Ambient

Light Adjustment, which optimizes output

for more predictable and consistent color

perception in the lighting conditions of an

intended display location.

Built for performance and productivity

iPF6200/6100

An array of workflow solutions are available

that expand the system’s capabilities and

simplify its use. These software packages

provide the additional tools needed to address

the unique requirements of large-format

printing applications.

• Print Plug-in for Adobe Photoshop and

Digital Photo Professional for enhanced

image processing

• Print Plug-in for Microsoft Word/Excel/

PowerPoint* enables easy enlargements

from these popular office documents

• Canon Printer Driver,*†to optimize

workflow productivity

• Digital Photo Front-Access for file

display and easy access to application

software

• EFI Color eXpress software RIP for a

true Adobe PostScript printing and proofing

solution (iPF6200 only)

• PosterArtist Lite (PC Only) is Canon’s

template-based poster creation software

package (iPF6200 only)

SEAMLESS CAMERA-TO-PRINTER

WORKFLOW

Shoot with a Canon EOS Digital SLR

camera and take full advantage of the wider

Adobe RGB color space enabled by the

included software and the 12-color LUCIA

ink system.

16-BIT IMAGE PROCESSING

The Print Plug-ins for Adobe Photoshop

and Digital Photo Professional support high-

bit depth workflows and16-bit image

processing to virtually eliminate problems

such as banding.

EXTENSIVE RIP SUPPORT

The iPF6200 printer comes equipped with

an EFI Color eXpress software RIP. With

a simple set-up wizard and intuitive user

interface, EFI Color eXpress is designed

to enable all levels of users to produce

accurate color proofs quickly, easily, and

effectively. This software enables color

definition according to your operation’s

specific requirements, includes pre-defined

modes for proofing, photo, and mono-

chrome output and even supports remote

job processing and printing. Other features

include nesting, validation printing, one-click

spot color handling, and PS compliant as

well as the software being PC and MAC

compatible.

A wide range of compatible third-party RIPs and software

solutions are also available for the iPF6100 and iPF6200

models from approved Canon Alliance Partners.To learn

more about the available RIP solutions please visit

http://www.usa.canon.com/alliance.

* Please see the Specifications page for OS compatibility.

†Please visit www.usa.canon.com/download for availability.

Every aspect of these imagePROGRAF

printers has been engineered for the produc-

tion of ultra-high quality large-format images.

PORTRAITS AND PHOTOGRAPHY

A world leader in digital photography,

Canon has included with these printers the

essential tools and technologies needed

to produce exceptional photo enlargements.

The Print Plug-ins for Photoshop and Digital

Photo Professional enable 16-bit image pro-

cessing to dramatically improve gradations

and image quality. Digital Photo Front-

Access is a Canon developed utility to

import images from a camera, memory

card, USB, or other source and import

them into software applications such as

PosterArtist and Adobe Photoshop. The

system’s wide color gamut and durable

LUCIA inks reduce graininess, minimize

“bronzing” and produce realistic images

with richer, deeper tones that will last for

years to come.

FINE ART REPRODUCTIONS–GICLÉE

When creating exact reproductions, the

imagePROGRAF printer’s high-resolution 2400

x 1200 dpi output and precise placement of

superfine 4pl droplets of ink mean that

museum-quality images can be printed with

absolute confidence. The 12-color ink set

provides an unprecedented color spectrum

to ensure reproductions are faithful to the

artist’s original.

PROOFING

With high-speed throughput, advanced

12-color imaging, and equipped with an

EFI Colorproof eXpress RIP, the iPF6200

printer is an efficient, accurate, and easy-to-

use proofing solution. The wide color gamut

enabled by the 12-color ink set means that

a greater range of colors can be reproduced.

The stability of Canon’s LUCIA pigmented

inks increase the reliability of the proof as the

prints will exhibit little or no perceptible color

shift. Canon’s patented 30,720-nozzle, 2400

x 1200 dpi print-head technology delivers

the clear images, smooth transitions, and

solid fills required for professional proofing

applications.

POSTERS, DISPLAYS, AND MORE

Canon imagePROGRAF printers offer

an array of software solutions and print

technologies that can expand your range

of output options to the full spectrum of

professional graphic applications. Canon’s

template-driven PosterArtist Lite (iPF6200

and PC only) software helps users of all

levels to design, import images, edit, and

print posters, banners, signs, and more. A

wide range of media—including a variety of

papers, adhesive-backed materials, and

films—make it possible to create a diverse

range of large-format applications.

Achieve Magnificent Results

As an ENERGY STAR®Partner, Canon U.S.A., Inc. has determined that these products

meet the ENERGY STAR guidelines for energy efficiency. ENERGY STAR and the ENERGY

STAR mark are registered U.S. marks. Adobe, Photoshop, PostScript, and Illustrator are

registered trademarks of Adobe Systems Incorporated in the United States and/or other

countries. Microsoft, Windows, Windows Vista, and PowerPoint are registered trade-

marks of Microsoft Corporation in the United States and/or other countries. Macintosh

is a trademark of Apple Computer, Inc. QuarkXPress is a trademark of Quark, Inc. and all

applicable affiliated companies, Reg. U.S. Pat. and Tm. Off. and in many other countries.

CANON, IMAGEPROGRAF, IMAGERUNNER, LUCIA, KYUANOS, and the GENUINE logo are

registered trademarks of Canon Inc. in the United States and may also be registered

trademarks or trademarks in other countries. IMAGEANYWARE is a trademark of Canon.

All other referenced product names and marks are trademarks of their respective owners

and are hereby acknowledged.

Specifications and availability subject to change without notice.

©2013 Canon U.S.A., Inc. All rights reserved.

1-800-OK-CANON

www.usa.canon.com

Canon U.S.A., Inc.

One Canon Park

Melville, NY 11747

0128W813

1212AR-6200/6100-10M-LCR

PRINTED ON RECYCLED

PAPER IN THE U

.

S

.

A

.

iPF6200/6100

SPECIFICATIONS

Print-Head

PF-03

Technology

FINE (Full-photolithography Inkjet Nozzle Engineering)

Configuration

Two Print-Heads (Total 12 Colors)

6 Colors per Print-Head

Print-Head (L) Y/PC/C/PGY/GY/MBK

Print-Head (R) PM/M/BK/R/G/B

Number of Nozzles

2,560 per Color (30,720 Total)

Droplet Size

4 Picoliter

Nozzle Pitch (Head Resolution)

1200 dpi

Print Head Swath

1.07 inch

Print Resolution (Max.)

2400 x 1200 dpi

Ink Type

LUCIA Ink (Pigment-based)

Ink Tank

PFI-101 (C, M, Y, PC, PM, R, G, B)

PFI-103 (BK, MBK, GY, PGY)

Colors

Cyan, Photo Cyan, Magenta, Photo Magenta, Yellow,

Black, Matte Black, Gray, Photo Gray, Red, Green, Blue

Ink Tank Capacity

Starter (Packaged with a Printer): 90ml per Color

Replacement: 130ml per Color

Ink Supply Method

Tubing System

Nozzle Recovery System

Non-firing Nozzle Detection and Compensation

Printer Controller

L-COA Controller

Printer Memory

384MB

Hard Disk Capacity

80GB (iPF6200)

Media Feed

Roll Feed: One Roll, Front Output

Top-Loading Manual Feed: One Sheet, Front Output

Front-Loading Manual Feed: One Sheet, Front Output

Media Width

8"–24" (Cut Sheet and Roll)

Minimum Media Length

Top-Loading Manual Feed: 11.0" (279mm)

Front-Loading Manual Feed: 13.8" (350mm)

Roll Feed: 8" (203mm)

Maximum Print Length

Manual Feed (Top): 62" (1.6m)

Manual Feed (Front): 36" (914mm)

Roll Feed: 59 Feet (18m)*

Borderless Printing Width (Roll Media Only)

10" (254mm), B4 (257mm), A3+ (329mm), 14" (356mm),

16" (407mm), A2 (420mm), A2+/17" (432mm),

B2 (515mm), A1 (594mm), 24" (610mm)

Media Cutter

Built-in Durable Rotary Blade

Printer Stand

Standard

Media Thickness

Top-Loading Manual Feed

0.07mm-0.8mm (2.8mil-31.4mil)

Front-Loading Manual Feed

0.5mm-1.5mm (19.6mil-59.0mil)

Roll Feed

0.07mm-0.8mm (2.8-31.4mil)

Media Core Sizes

2" or 3" Core (with Supplied Adapter)

Printable Margins

Manual Feed (Top/Front)

Leading and Left/Right Edges: 0.12" (3mm),

Trailing Edge, Top Feed: 0.12" (3mm) Except Art Paper;

Top Feed (Art Paper): 0.90" (23mm);

Front Feed: 0.90" (23mm)

Roll Feed

All Sides: 0.12" (3mm) or 0" for Borderless

Maximum Media Roll Outer Diameter

5.9" (150mm)

Bundled Software

Printing Software

Canon Printer Driver, Print Plug-in for Photoshop**,

Print Plug-in for DPP***, Printer Driver Extra Kit****

(Free Layout, imageRUNNER®Linking Function)

Applications

EFI Colorproof eXpress (iPF6200 Only)

PosterArtist 2008 Lite (iPF6200 Only),

Digital Photo Front-Access

Utilities

imagePROGRAF Status Monitor (Windows®), Print

Monitor (Macintosh®), Media Configuration Tool,

Remote UI

Printer Language

GARO (Canon Proprietary)

Operating System

u

Windows (2000, XP, Windows Vista®32/64 bit)

Macintosh OS X (10.2-10.4.9, 10.5)

Interface

Standard

USB 2.0 High-Speed

10/100Base-T/TX

Optional

IEEE1394 (FireWire®) (iPF6100 Only)

Acoustic Noise

Operation 49dB or Less

Power Supply

AC 100-120V (50-60Hz)

Power Consumption

Maximum: 100W or Less

Standby: 6W or Less

Power Off: Less than 1W (compliant with executive order)

Certifications

UL, FCC Class B, ENERGY STAR®

Operational Environment

Temperature: 59–86 F° (15–30 C°)

Relative Humidity: 10–80% (No Condensation)

Dimensions with Stand (H x W x D)

39.1" x 46.3" x 35.2"

Weight

Approx. 146 lb. with Stand

(Excludes Ink Tank and Print-Heads)

Package Dimensions/Weight (H x W x D)

35.2" x 52.0" x 36.0"/228 lb.

User-Replaceable Items

Print-Head (PF-03)

Maintenance Cartridge (MC-16)

Options

iPF6100

IEEE1394 Expansion Board (EB-05)

Roll Holder Set (RH2-24)

Roll Holder Set (RH-25)

PosterArtist 2008 (PC Only)

iPF6200

Roll Holder Set (RH-25)

PosterArtist 2008 (PC Only)

* The maximum printable length varies depending on the

application, OS, and RIP used. The maximum printable

length from Printer Driver 2008 is 50 feet.

** For Adobe Photoshop 6, 7, CS, CS2, CS3 running on

Windows 2000/XP/Vista (32 bit) or Macintosh

OS X 10.2/10.3/10.4/10.5

*** For Digital Photo Professional version 2.1 or later running

on Windows 2000/XP/Vista (32 bit) or Macintosh OS X

10.2/10.3/10.4/10.5

**** Not compatible with Windows 64-bit OS

uFor imagePROGRAF Printer Driver 2008. For printing from

PostScript applications such as Adobe Illustrator or

QuarkXPress, please use a PostScript compatible RIP

package. For a list of Canon recommended RIP packages,

please consult with Canon Alliance and Industry Market

program list of RIP vendors.
