• Please read the precautions on the next page

before using your camera for the first time.

Camera User Guide

ENGLISH

This camera has three basic functions:

This guide explains the shooting and replay functions.

The downloading function is covered separately in the Software Starter Guide.

Shooting Replaying Downloading Images to a Computer

Precautions

Camera Body Temperature

If your camera is used for prolonged periods, the camera body may

become warm. Please be aware of this and take care when operating

the camera for an extended period.

About the LCD monitor

The LCD monitor is produced with extremely high-precision

manufacturing techniques. With more than 99.99% of the pixels

operating to specifications, less than 0.01% of the pixels may

occasionally misfire or appear as black, red or green dots. This has no

effect on the recorded image and does not constitute a malfunction.

Notice: Please ensure that you read and follow the handling and

safety precautions on pages 4 to 8 of this guide before

attempting to use the camera.

Disclaimer

• While every effort has been made to ensure that the information

contained in this guide is accurate and complete, no liability can be

accepted for any errors or omissions. Canon Inc. reserves the right to

change the specifications of the hardware and software described herein

at any time without prior notice.

• No part of this guide may be reproduced, transmitted, transcribed, stored

in a retrieval system, or translated into any language in any form, by any

means, without the prior written permission of Canon Inc.

• Canon Inc. makes no warranties for damages resulting from corrupted or

lost data due to a mistaken operation or malfunction of the camera, the

software, the CompactFlash™ cards (CF cards), personal computers,

peripheral devices, or use of non-Canon CF cards.

Trademark Acknowledgments

• Canon is a trademark of Canon Inc.

• CompactFlash is a trademark of SanDisk Corporation.

• Other names and products not mentioned above may be registered

trademarks or trademarks of their respective companies.

Table of Contents

Read This First

Please Read .......................................................................... 4

Safety Precautions ............................................................... 4

Warnings ............................................................................. 5

Cautions ............................................................................... 7

Preventing Mulfunctions .................................................... 8

Preparing the Camera

Guide to Components ......................................................... 9

Front View ..................................................................... 9

Back View .................................................................... 10

Operation Panel ............................................................ 11

Charging the Battery Pack ................................................ 12

Installing the Battery Pack ................................................ 14

Using the AC Adapter (Optional) ..................................... 16

Installing a CF Card ........................................................... 17

Attaching the Wrist Strap ................................................. 18

Setting the Date and Time ................................................ 19

Quick Start

Shooting ............................................................................ 20

Replaying ........................................................................... 21

Table of Contents

Basic Functions

Turning the Power On/Off ................................................ 22

Switching between the Shooting/Replay Modes ............. 23

Using the Optical Viewfinder ........................................... 23

Using the LCD Monitor ..................................................... 25

Shooting Mode ............................................................ 25

Replay Mode ................................................................ 26

Information Displayed on the LCD Monitor ..................... 26

Shooting Mode ............................................................ 26

Replay Mode ................................................................ 27

LCD Monitor Menus/Switching between Display Modes .. 28

Shooting Mode ............................................................ 28

Replay Mode ................................................................ 28

Pressing the Shutter Button .............................................. 30

Using the Zoom ................................................................. 31

Telephoto/Wide Angle .................................................. 31

Digital Zoom ................................................................ 32

Shooting

Selecting a Shooting Mode ............................................... 33

Functions Available in Each Shooting Mode .................... 34

Adjusting the Image Quality ............................................ 35

Using the Flash .................................................................. 36

Using the Self-Timer .......................................................... 37

Shooting Continuously ..................................................... 38

Shooting Close-Ups/Infinity Shots ..................................... 39

Adjusting the Exposure Compensation ............................ 40

Setting the White Balance ................................................ 41

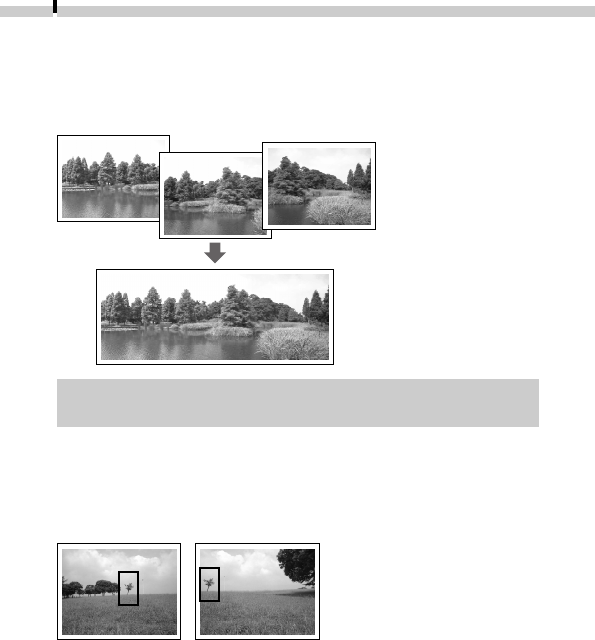

Shooting in Stitch Assist Mode ......................................... 42

Framing a Subject ......................................................... 42

Shooting ...................................................................... 43

Shooting/Replaying with a TV Monitor ............................ 45

Table of Contents

Replaying/Erasing

Displaying Images Singly (Single Image Replay) .............. 46

Zooming an Image ....................................................... 46

Displaying Images in Sets of Nine (Multi Image Replay) . 47

Switching between Sets of Nine Images ........................ 47

Rotating Images in the Display ......................................... 48

Automating Playback (Auto Play) .................................... 49

Protecting Images ............................................................. 51

Print Settings (DPOF Settings) ........................................... 52

Displaying the Print Settings Menu ................................ 52

Setting the Print Style ................................................... 53

Selecting Images for Printing ......................................... 54

Resetting Print Settings ................................................. 56

Erasing Images .................................................................. 57

Erasing Images Singly .................................................... 57

Erasing All Images ........................................................ 58

Camera Settings

Displaying the Setup Menu .............................................. 59

Switching the Digital Zoom On/Off .................................. 60

Resetting the File Number ................................................ 61

Saving the Shooting Mode Setting .................................. 62

Switching the Beep On/Off ............................................... 63

Switching the AtuoPower Down Function On/Off .......... 64

Formatting CF Cards .......................................................... 65

Setting the Language ....................................................... 66

Appendices

Care and Maintenance of the Camera ............................. 67

Troubleshooting ................................................................ 68

List of Messages ................................................................. 72

Specifications ..................................................................... 74

Index .................................................................................. 76

Canon Customer Support Help Desk ................................ 78

Read This First

Please Read

Test Shots

Before you shoot images of subjects of importance to you, we strongly

recommend that you shoot several trial images to confirm that you are

operating the camera correctly. Please note that Canon Inc., its

subsidiaries and affiliates, and distributors of its digital cameras are not

liable for any consequential damages arising from any malfunction of

the Canon digital camera or CompactFlash™ card (CF card) resulting in

the failure of an image to be recorded or to be recorded in a format

that is machine sensible.

Warning Against Copyright Infringement

Please note that Canon digital cameras are intended for personal use

and must be used in a manner that respects international and domestic

the copying of images from performances, exhibitions, or commercial

properties by means of a camera or other device may contravene

personal use.

Use of the Equipment in a Foreign Country

This camera is manufactured according to the specifications of the

country in which it is sold and the warranty is only effective in the

country of sale. If a problem arises while the camera is in use abroad,

please convey it back to the country of sale before proceeding with a

warranty claim to a Canon Customer Support Help Desk.

Safety Precautions

• Before using the camera, please ensure that you have read and

understood the safety precautions described below. Always ensure that

the camera is operated correctly.

• The safety precautions noted on the following pages are intended to

instruct you in the safe and correct operation of the camera and its

accessories to prevent injuries or damage to yourself, other persons

and equipment.

• In the next few pages, the term “equipment” refers primarily to the

camera and its power supply accessories.

Read This First

WARNINGS

• Do not aim the camera directly into the sun or at other intense light

sources which could damage your eyesight.

• Do not trigger the flash in close proximity to human or animal eyes.

Exposure to the intense light produced by the flash may damage

eyesight. In particular, remain at least one meter (39 inches) away from

infants when using the flash.

• Store this equipment out of the reach of children and infants.

Accidental damage to the camera or batteries by a child could result in

serious injury. In addition, placement of the wrist strap around the

child’s neck could result in asphyxiation.

• Do not attempt to disassemble or alter any part of the equipment that

is not expressly described in this guide. Disassembly or alteration may

result in high-voltage electrical shock. Internal inspections, alterations

and repairs should be conducted by qualified service personnel

authorized by your camera distributor or a Canon Customer Support

Help Desk.

• To avoid the risk of high-voltage electrical shock, do not touch the flash

portion of the camera if it has been damaged. Similarly, never touch

internal portions of the equipment which become exposed as a result

of damage. There is a risk of high-voltage electrical shock. Please take

the first opportunity to consult your camera distributor or a Canon

Customer Support Help Desk.

• Stop operating the equipment immediately in the event that it emits

smoke or noxious fumes. Failure to do so may result in fire or electrical

shock. Immediately turn the camera’s power off and remove the camera

battery or unplug the power cord from the electrical outlet. Confirm

that smoke or fume emissions have ceased. Please consult your camera

distributor or the closest Canon Customer Support Help Desk.

• Stop operating the equipment if it is dropped or the casing is

damaged. Failure to do so may result in fire or electrical shock.

Immediately turn the camera’s power off and remove the camera

battery or unplug the power cord from the electrical outlet. Please

consult your camera distributor or the closest Canon Customer Support

Help Desk.

Read This First

• Do not allow the equipment to come into contact with, or become

immersed in, water or other liquids. Do not allow liquids to enter the

interior. The camera has not been waterproofed. If the exterior comes

into contact with liquids or salt air, wipe it dry with a soft, absorbent

cloth. In the event that water or other foreign substances enter the

interior, immediately turn the camera’s power off and remove the camera

battery or unplug the power cord from the electrical outlet. Continued

use of the equipment may result in fire or electrical shock. Please consult

your camera distributor or the closest Canon Customer Support Help Desk.

• Do not use substances containing alcohol, benzene, thinners or other

flammable substances to clean or maintain the equipment. The use of

these substances may lead to fire.

• Do not cut, damage, alter or place heavy items on the power adapter

cord. Any of these actions may cause an electrical short circuit, which

may lead to fire or electrical shock. Replace a broken or damaged

power adapter cord.

• Do not handle the power cord if your hands are wet. Handling it with

wet hands may lead to electrical shock. When unplugging the cord,

ensure that you hold the solid portion of the plug. Pulling on the

flexible portion of the cord may damage or expose the wire and

insulation, creating the potential for fires or electrical shocks.

• Use of power sources not expressly recommended for this equipment

may lead to overheating, distortion of the equipment, fire, electrical

shock or other hazards. Use only the recommended power accessories.

• Do not place the batteries near a heat source or expose them to direct

flame or heat. Neither should you immerse them in water. Such

exposure may damage the batteries and lead to the leakage of

corrosive liquids, fire, electrical shock, explosion or serious injury.

• Do not attempt to disassemble, alter or apply heat to the batteries.

There is serious risk of injury due to an explosion. Immediately flush

with water any area of the body, including the eyes and mouth, or

clothing, that comes into contact with the inner contents of a battery.

If the eyes or mouth contact these substances, immediately flush with

water and seek medical assistance.

• Avoid dropping or subjecting the batteries to severe impacts that could

damage the casings. It could lead to leakage and injury.

• Do not short-circuit the battery terminals with metallic objects, such as

key holders. It could lead to overheating, burns and other injuries. Use

the supplied battery case to transport or store the battery pack.

Read This First

• Before you discard a battery, cover the terminals with tape or other

insulators to prevent direct contact with other objects. Contact with

the metallic components of other materials in waste containers may

lead to fire or explosions. Discard the batteries in specialized waste

facilities if available in your area.

• Use of batteries not expressly recommended for this equipment may

cause explosions or leaks, resulting in fire, injury and damage to the

surroundings. Use only recommended batteries and accessories.

• Use only the recommended battery charger to charge the Battery Pack

NB-1L rechargeable batteries. Use of chargers not expressly

recommended may result in overheating, distortion, fire or electrical

shock.

• Disconnect the battery charger or the compact power adapter from

both the camera and electrical outlet after recharging and when the

camera is not in use to avoid fires and other hazards.

• The camera terminal of the battery charger cord and the compact

power cord is designed for exclusive use with your camera. Do not use

it with other products or batteries. There is a risk of fire and other

hazards.

CAUTIONS

• Avoid using, placing or storing the equipment in places subject to

strong sunlight or high temperatures, such as the dashboard or trunk

(boot) of a car. Exposure to intense sunlight and heat may cause the

batteries to leak, overheat or explode, resulting in fire, burns or other

injuries. High temperatures may also cause deformation of the casing.

Ensure that there is good ventilation when using the compact power

adapter to charge the battery pack or power the camera.

• Do not store the equipment in humid or dusty areas. Storage in such

areas could lead to fire, electrical shock or other damage.

• Be careful not to bang the camera or subject it to strong impacts or

shocks that could lead to injury or damage the equipment when

wearing or holding it by the wrist strap.

• Be careful not to cover the flash with your fingers when shooting. In

addition, do not touch the surface of the flash after taking several

pictures in rapid succession. Either action could result in burns.

• If your camera is used for prolonged periods, the camera body may

become warm. Please take care when operating the camera for an

extended period as your hands may experience a burning sensation.

Read This First

Preventing Malfunctions

Avoid Strong Magnetic Fields

Never place the camera in close proximity to electric motors or other

equipment generating strong electromagnetic fields. Exposure to

strong magnetic fields may cause malfunctions or corrupt image data.

Avoid Condensation Related Problems

Moving the equipment rapidly between hot and cold temperatures

may cause condensation (water droplets) to form on its external and

internal surfaces. You can avoid this by placing the equipment in an

airtight, resealable plastic bag and letting it adjust to temperature

changes slowly before removing it from the bag.

If Condensation Forms Inside the Camera

Stop using the camera immediately if you detect condensation.

Continued use may damage the equipment. Remove the CF card and

battery or power cord (if connected) from the camera and wait until

the moisture evaporates completely before resuming use.

Extended Storage

When not using the camera for extended periods of time, remove the

battery pack and store the equipment in a safe place. Storing the camera

for extended periods with a battery pack installed will run down the

battery pack and may damage the camera. Please note, however, that

the date, time and other camera settings may reset to the default

settings if the battery pack has been removed for approximately three

weeks. Follow the instructions in this guide to reset the desired settings.

Preparing the Camera

Guide to Components

Front View

* Used to connect the camera to a TV or computer. Open the cover and

use the supplied video cable to connect to a TV or use the supplied

interface cable to connect to a computer.

=Optical Viewfinder Window ➜ p. 23

=AF Auxiliary Light Emitter

=Red-Eye Reduction Lamp ➜ p. 36

=Self-Timer Lamp ➜ p. 37

=Flash ➜ p. 36

=DIGITAL/VIDEO OUT

Terminal* ➜ p. 45

=DIGITAL/VIDEO

Terminal Cover

=Lens

Preparing the Camera

Back View

=CF Card Slot Cover ➜ p. 17

=Strap Holder ➜ p. 18

=Battery Cover ➜ p. 14

=Optical Viewfinder ➜ p. 23

=Lock for the CF Card Slot Cover ➜ p. 16

=LCD Monitor ➜ p. 25

=Tripod Socket

=DC Coupler Terminal Cover ➜ p. 16

Preparing the Camera

Operation Panel

Indicators

• The indicators will light or flash when the main switch is pressed or at

various stages as the shutter button is pressed.

Upper Indicator

Green: Ready to record

Flashing Green: During camera warm-up / Recording to CF card /

Reading CF card / Deleting CF card images

Red: Ready to record with flash

Flashing Red: Ready to record but the camera blur warning /

low light warning is flashing

Lower Indicator

Orange: Macro mode

= (Macro) / (Infinity) / (Right) Button

➜ p. 39

= (Continuous) / (Self-Timer) / (Left) Button

➜ p. 37

= (Flash) / (Set) Button ➜ p. 36

=Indicators =Main Switch ➜ p. 22

=Shutter Button ➜ p. 30

=Zoom Lever ➜ p. 31

=Mode Switch ➜ p. 23

= (Display) Button

➜ p. 25

= (Menu) Button

Preparing the Camera

Charging the Battery Pack

Recharge the battery pack with battery charger CB-2L or CB-2LE

the first time you use the camera or when the “Change the battery

pack” message is displayed.

Battery charger model names and types vary by region.

• Insert the battery pack into the charger as shown and plug the

charger into an electrical outlet.

• The charging indicator will flash red while the battery pack is

charging. It will change to a steady red when the charge is

complete.

• After charging, unplug the battery charger and remove the

battery pack from it.

• The battery pack utilizes lithium ion cells, avoiding the need to

completely use or discharge the battery charge before recharging it.

You may recharge the battery at any charge state without

permanently reducing its capacity.

• It takes approximately 120 minutes to charge a battery pack fully

from a fully discharged state. (Based on standard Canon testing

conditions) Please charge it at an ambient temperature ranging

between 5 and 40 ºC (41 and 104 ºF).

• Charge times may vary according to the ambient temperature and

the charge state of the battery pack.

• To protect and prolong the life of the battery pack, do not

charge it for longer than 24 hours at a time.

CB-2L CB-2LE

AC Power Cord

Preparing the Camera

Handling Precautions

• Do not charge the battery pack in poorly ventilated areas.

• Do not charge batteries other than Battery Pack NB-1L in this charger.

• The battery pack continues to discharge a minimal portion of its

power while installed in the camera, even with the camera power off.

This will shorten battery life. To conserve the battery pack, remove it

from the camera during extended periods of disuse and store it in its

case in a cool, dry place. Recharge it fully before using it again.

• If the performance of the battery pack diminishes substantially even

when it is fully charged, the battery pack should be replaced.

Preparing the Camera

Installing the Battery Pack

Install rechargeable Battery Pack NB-1L in the camera as shown below.

• Please recharge the battery pack (➜ p. 12) before you use it for

the first time.

Battery Lock

• Slide the battery cover in the

direction of the arrows.

• Press the battery lock while inserting

the battery pack all the way in until

the lock clicks.

• To remove the battery pack, press the

battery lock and pull the battery pack

out.

• Slide the battery cover closed.

• The camera contains a built-in rechargeable lithium battery to

save the date and time settings whenever the main battery is

removed. The main battery and AC adapter (optional) recharge

this battery whenever the camera is powered by them. When you

first purchase the camera, please leave the main battery in the

camera for approximately four hours or plug in the AC adapter

(optional) for that length of time. This battery will recharge even

when the camera’s main switch is set to Off.

• If the Set Date/Time menu displays when the main switch is

turned on, the charge of the built-in lithium battery is low. Please

follow the procedure in the previous paragraph to recharge it.

Preparing the Camera

• Never open the battery cover or remove the battery pack when the

main switch is on.

• Remove the battery pack from the camera when the camera is not

in use. Please note, however, that the date, time and other camera

settings may reset to the default settings if the battery pack has

been removed for approximately three weeks.

• Please use the AC adapter (optional) for this camera for extended

periods of use (➜ p. 16).

Battery Performance

Recordable Images Replay Time

LCD Monitor On LCD Monitor Off

Battery Pack NB-1L Approx. 85 shots Approx. 270 shots Approx. 50 min.

(fully charged)

• The actual performance may vary from the above data according to the

shooting conditions and the shooting mode.

• At low operating temperatures, the battery performance may drop and the

battery icon may appers sooner than at high temperatures. To improve

performance at these temperatures, warm the battery in your pocket just

before using it in the camera.

Shooting: 23 ºC (73 ºF), (Fine / Large), zoom used, flash used one in four

shots

Replay: 23 ºC (73 ºF), continuous replay, 3 seconds per image

Battery Pack Charge

The following icons and messages will display when the charge of

the battery pack is low.

Battery pack charge is low. Recharge it as soon as possible

before it is required for an extended period.

When the LCD monitor is off, this icon will display when you

press the , / or / button.

Battery charge is insufficient to operate the camera. Replace

the battery pack immediately.

Change the

battery pack

Preparing the Camera

Using the AC Adapter (optional)

It is recommended that you use the optional Canon AC adapter Kit

ACK300, which includes the Compact Power Adapter CA-PS300, the

DC Coupler DR-300 and the power cord, when using the camera for

extended periods of time to shoot or connect to a computer.

• Turn the camera power off before connecting or disconnecting

the AC adapter.

Compact Power Adapter

CA-PS300

DC Coupler

DR-300

• Connect the power cord to the

compact power adapter first and

then plug the other end into the

electrical outlet.

• Open the battery cover and press the

battery lock in the direction shown

while inserting DC Coupler DR-300.

Insert the DC coupler all the way in

until the battery lock clicks. Slide the

battery cover closed.

• Open the DC coupler terminal cover

and attach the cord to the DC

terminal.

• After you have finished using the

camera, unplug the AC adapter from

the electrical outlet.

Battery

Lock

Preparing the Camera

Installing a CF Card

Turn the camera power off and insert the CF card with the

following procedures.

• Slide the lock down and open the CF

card slot cover.

• Insert the CF card until the slot’s eject

button fully extends. Close the CF

card slot cover.

• To remove the CF card, push the eject

button and pull the CF card out.

CF Card Eject Button

CF Cards and Estimated Capacities (Recordable Images)

Quality FC-8M FC-16M FC-30M FC-48M

Super-Fine / Large (

1600 x 1200 pixels

)4 9 20 31

Fine / Large (

1600 x 1200 pixels

)12255279

Fine / Small (

640 x 480 pixels

) 46 92 192 289

• These figures reflect standard shooting conditions established by Canon.

Actual totals may vary according to the subject, shooting conditions and

shooting mode.

Preparing the Camera

Handling Precautions for CF Cards

• CF cards are high-precision electronic devices. Do not bend them,

apply force to them, or subject them to shocks or vibration.

• Do not attempt to disassemble or alter a CF card.

• Moving a CF card rapidly between temperature extremes will cause

condensation to form in the card and lead to a malfunction. To avoid

condensation, place the CF card in a sealed plastic bag before

moving it into a different temperature zone and allow it to adjust

slowly to the new temperature. If condensation forms on the CF

card, store it at room temperature until the water droplets have

evaporated naturally.

• Place the CF card in the supplied case for storage.

• Do not use or store CF cards in the following types of location.

- Locations subject to strong magnetic fields

- Location subject to dust or sand

- Locations subject to high humidity and high temperatures

• Never open the CF card cover while the main switch is on.

• When the indicator flashes green, the camera is recording, reading

or deleting images to and from the CF card. Never turn off the

power or remove the CF card while the indicator flashes green.

• Please note that CF cards from other manufacturers, or CF cards

which have been edited with application software using other

formats, may not operate correctly in the camera.

Attaching the Wrist Strap

• Thread the small loop of the wrist strap

through the strap holder on the

camera and pull the large loop through

the small loop until the small loop fits

snugly against the strap holder.

• Be careful not to wave the camera

about or catch it on other items

when dangling it from the wrist

strap.

Preparing the Camera

Setting the Date and Time

• The Set Date/Time menu will appear

the first time the camera power is

turned on or whenever the built-in

rechargeable lithium battery charge

is low. Start from Step 4 to set the

date and time.

• Press the main switch until the

indicator glows green.

• Press the button several times

until the Setup menu displays (➜ p.

59).

• Use the or button to select .

• Select a field (year, month, day, hour,

minutes and date format) with the

button.

• The factory default for the date

format in some regions may differ

from that shown.

• Use the or button to change

the value in a field.

• Press the button.

• Press the MENU button to close the

Setup menu.

• Please note that the date and time settings may reset to the

default settings if the camera battery has been removed for

approximately three weeks. Reset the settings when this occurs.

Quick Start

Shooting

Slide the mode switch to

the (Shooting) position.

Press the main switch.

Holding it until the indicator

glows green ➜ p. 22.

To zoom, press the zoom

lever towards the

(telephoto) or (wide

angle) icon.

Press the shutter button.

Press the shutter button

lightly (halfway), wait until

the two beeps sound, and

then press it all the way.

Another beep will sound,

indicating that the shot has

been taken.

Quick Start

When you have finished viewing images, press the main switch to

turn off the power.

Erasing Shortcut

1.Hold down the button and

press the button.

2.Use the button to select [OK]

and press the button.

Replaying

Slide the mode switch to

the (Replay) position.

The last image will appear in

the LCD monitor.

Press these buttons to

switch to another image.

The button displays the

previous image. The

button displays the next

image.

Basic Functions

Turning the Power On/Off

Press the main switch until the indicator

glows green.

• When the mode switch is set to

(Shooting), the lens will extend when

the main switch is turned on.

• When the mode switch is set to

(Replay), the LCD monitor will turn on.

Turn off the power by pressing the

main switch again.

• The Set Date/Time menu will appear the first time the camera

power is turned on. Please set the date and time (➜ p. 19).

• If the power save function turns off the power, press the main

switch again to restore it.

Auto Power Down Function

Shooting Mode

The power will automatically shut off approximately 3 minutes after

the last function is accessed.

Replay Mode

The power will automatically shut off approximately 5 minutes after

the last function is accessed.

While Connected to a Computer

A warning message will appear on the computer screen

approximately 5 minutes after the last function is accessed. The

power will automatically shut off approximately 1 minute later if no

functions are accessed.

• The auto power down function will not activate while the camera is

in auto play mode.

• The camera’s settings can be changed to turn off the auto power

down function (the auto power down function is always on when

the camera is connected to a computer.) (➜ p. 64)

Basic Functions

Switching between the Shooting/Replay Modes

Shooting

Slide the mode switch to the

position.

Replay

Slide the mode switch to the

position.

• The lens remains extended when the

mode switch is first switched to replay.

It retracts when you press the or

button.

Using the Optical Viewfinder

This camera is equipped with an optical viewfinder for standard shots.

Optical Viewfinder

Align the square brackets (autofocus

metering field) inside the viewfinder

on the primary subject to compose

the image.

Basic Functions

About the Autofocus Function

This camera employs AiAF (artificial intelligence autofocus) technology

which uses a broad metering field to calculate the focal distance with

high precision. It delivers a crisp focus even when the photographic

subject is slightly off-center.

Using the Focus Lock

The following types of subject may not be suited to autofocus

photography. Use the focus lock in these situations.

• Subjects with extremely low contrast to the surroundings

• Subjects with extremely bright objects at the center of the

composition

• Subjects that are moving quickly

When recording through glass, try to shoot as close to the glass as

possible to reduce the chances of light reflecting back off the glass.

How to Use the Focus Lock

1. Aim the camera so that a subject at the same focal distance as the

main subject is centered in the brackets in the optical viewfinder.

2. Press the shutter button halfway and wait until two beeps sound.

3. Re-aim the camera to compose the shot as desired and press the

shutter button all the way.

Basic Functions

Using the LCD Monitor

The LCD monitor can be used to shoot

or replay images.

• The image in the LCD monitor will

darken in strong sunlight or bright

light. This does not constitute a

malfunction.

LCD Monitor

Shooting Mode

• Pressing the button turns the

LCD monitor on or off.

• The LCD monitor setting (On or Off) is saved by the camera

when the power is turned off so that the same setting is

automatically available when the power is turned on again.

However, the setting may be lost when the power has been

turned off after the “Change the battery pack” message has

displayed, while the LCD monitor was on in shooting mode.

• In macro mode, the parallax phenomenon may cause images

composed with the optical viewfinder to be off-center. Use the

LCD monitor to compose close-ups in macro mode (p. 39).

• In insufficient light, the camera blur warning icon will

display in the center of the LCD monitor when the recording

preparations are complete. The upper indicator will also flash

red. Use the flash or affix the camera to a tripod to obtain

better results.

Basic Functions

Remaining Image

Capacity

p.33

p.40

p.41

p.35

p.36

p.37

p.39

Shooting Mode

Exposure Compensation

White Balance

Image Quality

Flash

Shooting Method

Macro/Infinity

Information Displayed on the LCD Monitor

Shooting Mode

In shooting mode, information about the current settings and

remaining image capacity will display on the LCD monitor for

approximately six seconds when the actions below are taken,

regardless of whether the LCD monitor is set to On or Off.

While this information is displayed, you may set the flash,

continuous mode, self-timer, macro and infinity settings.

• The power is turned on.

• The , , / , or / button is pressed.

• The camera settings are changed.

• The Setup menu is closed.

• The shutter button has been pressed and a shot has been taken.

(LCD monitor must be on)

• Sliding the mode switch to the

position turns the LCD monitor on.

• In replay mode, pressing the

button cycles between display modes.

Single Image Replay

Standard ➞ Detailed ➞ No Display

Multi Image Replay (9 Images)

Standard ➞ No Display

Information Displayed

Replay Mode

Basic Functions

Replay Mode

File Number

Image Number

Shooting Date

In standard mode, the following

information is displayed.

• File Number

• Image Number (Image Number/Total

Number of Images)

• Shooting Date

• Protection Status ( )

In detailed mode, the following

supplementary information is displayed.

The following information may also be displayed with some images.

A sound file (WAV file) is attached (this camera does not feature sound

recording).

A sound file in a format other than the WAV format is attached or the

file format is not recognized.

p.33

p.39

p.37

p.36

p.40

p.41

p.35

Shooting Mode

Macro/Infinity

Shooting Method

Flash

Exposure Compensation

White Balance

Image Quality

• Images shot with this camera may not display the information

in detailed mode on other digital cameras.

Basic Functions

LCD Monitor Menus / Switching between Display Modes

Zoomed Image Entire Image

(Single Image Display)

Replay Mode

The zoom lever

can be used to

switch between

magnification

levels.

Auto

Manual

Black & White

Stitch Assist

Shooting Mode

The following menus will display on the LCD monitor according to

the shooting mode selection.

Basic Functions

Four red bars appear at the top of each menu. Each one represents,

from left to right, the [Rec. Mode], [+/- (Exp.)], [White Balance] and

[Setup] menus. The bar for the currently selected menu becomes

orange. Bars displayed in gray represent menus that cannot be

displayed in the shooting mode which is currently selected.

Switches between

Sets of Nine Images

Displays Nine Images

(Multi Image Display)

Closes the Setup menu and

prepares the camera for shooting.

Basic Functions

Pressing the Shutter Button

The shutter button features a two-stage action.

Pressing Halfway

The camera uses the first stage to

automatically set the exposure, autofocus

and white balance. When it has finished

metering, two beeps sound and the

upper indicator glows green.

When the flash is used, the indicator

glows red when the flash is ready to fire.

A flashing red indicator warns of

insufficient light or the risk of camera blur.

In macro mode, the lower indicator also

glows orange.

Pressing Fully

Pressing the shutter button down fully

activates the shutter and causes one beep to

sound. While the image is being recorded to

the CF card, the indicator flashes green.

If you keep the shutter button pressed

down after the shot, the image

displays on the LCD monitor. Pressing

the button in this state causes the

image to remain in the LCD monitor

even if you release the shutter button.

Indicator

• The displayed image can be erased immediately by holding down

the button and pressing the button (➜ p. 21).

• The image ceases to display when the shutter button is pressed

halfway again.

• Recorded images are temporarily stored in the camera’s built-in

memory and then written to the CF card. The next image can be

recorded immediately after the first as long as sufficient built-in

memory is available.

Basic Functions

Using the Zoom

The zoom can be adjusted to any setting in the 35 to 70 mm range

in 35 mm film equivalent terms.

Telephoto/Wide Angle

Pressing the zoom lever towards

(telephoto) zooms in on the subject,

making it appear closer.

Pressing the zoom lever towards

(wide angle) zooms out from the

subject, making it appear more distant.

Basic Functions

• The digital zoom function combines the optical zoom with a

digital teleconverter feature. Please note, however, that the more

the image is zoomed with the digital zoom, the grainier the

image becomes.

Digital Zoom

• The digital zoom is available when the LCD monitor is on and the

digital zoom feature is set to On in the Setup menu (➜ p. 59).

• The digital zoom is not available in the or modes.

If you continue to press the zoom lever towards after the lens is

fully extended, you will activate the digital zoom, which makes the

subject appear even closer.

Continuing to press the zoom lever

towards further zooms the image in

successive steps up to a power of 4.

Double-clicking the zoom lever towards

zooms the image to a power of 2

on the first double-click, and a power

of 4 on the second.

Pressing the zoom lever towards

zooms out.

Zoom Setting

Shooting

Selecting a Shooting Mode

The camera features the following shooting modes.

Auto Mode Most settings are automatically selected by

the camera.

Manual Mode

The image quality, exposure, white balance

and other settings are manually selected by

the user.

Black & White Mode Images are shot in black and white.

Stitch Assist Mode Images are shot in overlapping series to

create single panoramic images.

• Use the or button to select a

shooting mode.

• The shooting mode resets to

when the power is turned off,

unless the camera is set to

remember the last selected mode in

the Setup menu.

Shooting

Functions Available in Each Shooting Mode

* Default value.

●

Setting available.

▲

Selectable for first frame only.

Digital Zoom

Flash


Quality

Shooting

Method

Macro Mode

Infinity Mode

Exposure Compensation

White Balance

p.60

p.36

p.35

p.38

p.37

p.39

p.40

p.41

Auto Manual Black & White Stitch Assist

Auto

Red-Eye Reduction

Off

Slow-Synchro

Super-Fine/Large

Fine/Large

Fine/Small

Single

Continuous

Self-Timer

Reference

Page

Function

●

▲

●

Shooting

Adjusting the Image Quality

Images can be recorded at the following quality (resolution and

compression) settings.

Super-Fine / Large (1600 x 1200 pixels)

Fine / Large (1600 x 1200 pixels)

Fine / Small (640 x 480 pixels)

• Available with the , , and

modes. ( : selectable for

the first image only)

• Press the button several times

until the Setup menu displays

(➜ p. 59).

• Use the or button to select .

• Press the button to choose the

quality fuinction.

• Use the or button to choose a

quality setting. Then press the

button to select the chosen quality.

Approximate File Size of One Image

Image Quality File Size

1458 KB

580 KB

153 KB

* These figures reflect standard shooting conditions

established by Canon. Actual totals may vary according to

the subject, shooting conditions and shooting mode.

• Image quality settings are retained even when the shooting

mode is changed, except for mode.

• See page 17 regarding available CF card types and their

estimated capacities.

• The image quality settings are saved when the power is turned off.

Select a shooting mode

(➜ p. 33)

Shooting

Using the Flash

Select a shooting mode

(➜ p. 33)

1. Available with the , , ,

and modes.

●

Setting available.

▲

Can be selected for first image only.

• Press the button to cycle through

the flash settings.

• The flash mode may be adjusted while information about the

current settings is displayed on the LCD monitor (➜ p. 26).

When the image information is not displayed, you can press any

of the , / or / buttons to activate the display.

• The flash can be fired when the upper indicator glows a steady

red.

• The flash takes approximately 10 seconds to charge. Recharging

time may vary with the state of the battery charge.

●

▲

Auto The flash fires automatically as required by the light level.

Red-Eye A series of flashes are fired to reduce the red-eye

Reduction phenomenon.

On A flash fires with every shot.

Off A flash will not fire.

Slow-Synchro

The flash timing is adjusted to slow shutter speeds.

This reduces the chance that the background will be

dark when shots are taken at night or in rooms with

artificial lighting. Use of a tripod is recommended.

Shooting

Red-Eye Reduction

The red-eye phenomenon is caused by light reflected from the blood

vessels in the back of the eye; the effect is most often seen when using a

flash to photograph people in dimly lit environments. This phenomenon

can be prevented by recording in the red-eye reduction mode. The

red-eye reduction flash will fire when the shutter button is pressed

halfway, helping to reduce the chance that eyes will appear red.

Using the Self-Timer

• Available with the , , ,

and modes. ( : selectable

for first image only)

• Display .

• When the shutter button is pressed,

the self-timer indicator will flash and

the shutter will activate after 10

seconds. The flashing will accelerate

two seconds before the picture is

taken.

• The self-timer mode may be set while information about the

current settings is displayed on the LCD monitor (➜ p. 26).

When the image information is not displayed, you can press any

of the , / or / buttons to activate the display.

• To switch off the self-timer, press the again.

Select a shooting mode

(➜ p. 33)

• Please note that a slow shutter speed will be selected in dark

places when the flash is set to off. Be careful to avoid camera

blur under these conditions.

- When shooting in mode, be extremely careful to hold the

camera still to avoid camera blur.

- Always fix the camera to a tripod to shoot in , , and

modes since the shutter speed is slower than in mode. If

an image shot in mode is dark, re-shooting it in mode

will produce a brighter image.

Shooting

Shooting Continuously

• Available with the and modes.

• Display .

• The camera will shoot continuously at

approximately 2 images per second*

(with the LCD monitor off) while the

shutter button is held down.

Recording ceases when the shutter

button is released.

* This figure reflects standard shooting

conditions established by Canon.

Actual figures may vary according to

the subject and shooting conditions.

• The continuous mode may be set while information about the

current settings is displayed on the LCD monitor (➜ p. 26).

When the image information is not displayed, you can press any

of the , / or / buttons to activate the display.

• Images may be recorded consecutively in continuous mode until

the CF card is full.

• The interval between shots may lengthen slightly when the

camera’s built-in memory becomes full.

Select a shooting mode

(➜ p. 33)

Shooting

Shooting Close-Ups/Infinity Shots

Macro Mode

Use this mode to record subjects in the range of 10

to 57 cm (4 to 22 in.) from the tip of the lens

when set to wide angle and in the range of 27 to

57 cm (11 to 22 in.) when set to telephoto.

Infinity Mode

Use this mode to record landscapes and distant

objects. It can also be used for compositions

combining both near and distant objects.

●

Setting available.

▲

Selectable for first image only.

• Display or .

• The macro/infinity modes may be set while information about

current settings is displayed on the LCD monitor (➜ p. 26). When

the image information is not displayed, you can press any of the

the , / or / buttons buttons to activate the display.

• Turning the power off will deselect the settings.

• In macro mode, the parallax phenomenon may cause images

composed with the optical viewfinder to be off-center. Use the

LCD monitor to compose close-ups in macro mode.

Select a shooting mode

(➜ p. 33)

●

▲

●

• Available with the , , ,

and modes.

Shooting

Adjusting the Exposure Compensation

An image can be under-exposed if the subject is backlit or

positioned in a bright location. Lights in night shots may also

appear too bright. To avoid under-exposing the image, use the

exposure compensation function.

• Available with the , , and

modes. ( : selectable for

the first image only)

• Press the button several times

until the +/- (Exp.) menu displays

(➜ p. 28).

• Use the or button to select a

setting.

• A shot can be taken immediately

after. The menu will reappear after

the shot, allowing you to adjust the

setting.

Select a shooting mode

(➜ p. 33)

• The selected exposure compensation setting will remain

effective even after the power is turned off.

Shooting

Setting the White Balance

Setting the white balance to match the dominant light source

when shooting will adjust the coloring of the image to the

correct settings for the prevailing light conditions.

Auto Settings are automatically selected by the camera.

Daylight Use this setting for recording outdoors on a bright day.

Cloudy Use this setting for overcast, shaded, twilight or

evening skies.

Tungsten Use this setting for recording under tungsten lighting.

Fluorescent User this setting for recording under fluorescent lighting

• Available with the , and

modes. ( : selectable for the

first image only)

• Press the button several times

until the White Balance menu

displays (➜ p. 28).

• Use the or button to select a

setting.

• A shot can be taken immediately

after. The menu will reappear after

the shot, allowing you to adjust the

setting.

Select a shooting mode

(➜ p. 33)

• The selected white balance setting will remain effective even

after the power is turned off.

Shooting

Shooting in Stitch Assist Mode

Stitch Assist mode can be used to shoot images, which overlap,

and which can later be merged to create one panoramic image

on a computer.

• To merge the images on the computer, use PhotoStitch, one of

the supplied programs.

Framing a Subject

The PhotoStitch program detects the overlapping portions of

adjoining images and merges them. When shooting, try to

include a distinctive item (landmark) in the overlapping portions.

• Compose each frame so that it overlaps 30 - 50% of the adjoining

image. Try to keep the vertical misalignment to less than 10% of

the image height.

• Do not include moving items in the overlap.

• Do not try to stitch images that include both distant and close

items. Objects may appear warped or doubled up.

The overlapping seams of

several adjacent images

can be joined into a single

panoramic image.

Shooting

• Shoot the first frame in the series.

• The exposure and white balance

settings are set and locked with the

first image. Successive images use

the same settings.

• Make the brightness in each image consistent. The final image

will appear unnatural if the difference in brightness is too great.

For good results, pan (swivel) the

camera to take successive shots.

To shoot close-ups, slide the camera

over the subject, keeping it parallel as

you move.

Shooting

Images can be shot in two sequences.

Left to right horizontally

Right to left horizontally

Select a shooting mode

(➜ p. 33)

Left to right horizontally

Shooting

• Compose the second image so that

it overlaps a portion of the first and

shoot.

• Pressing the or button allows

you to check the images that have

been recorded.

• Minor discrepancies in the overlapping

portions can be corrected when the

images are stitched together.

• Repeat the procedure for additional

images. A sequence may contain up

to 26 images.

• Press the button to close Stitch

Assist mode.

• The zoom, flash ( / / ), image quality, exposure

compensation, white balance and macro/infinity mode ( / )

settings can only be adjusted for the first image. The remaining

images use the same settings. Additional images use the same

settings.

• The digital zoom, certain flash settings ( / ) and continuous

shooting mode cannot be used with the Stitch Assist mode.

• A TV monitor cannot be used when shooting in Stitch Assist mode.

Shoot the second image

Shoot the third image

Shooting

Shooting/Replaying with a TV Monitor

A TV monitor can be used to shoot or replay images when it is

connected to the camera via the supplied video cable (VC-200).

Always turn the camera and TV power off when attaching or

detaching the video cable.

• After the cable has been attached, turn on the TV and switch it to

the Video mode.

• Turn the camera power on and use the mode switch to select the

shooting or replay mode. You can use the normal procedures to

shoot or replay images.

• If the image does not appear on the TV when shooting, press the

button.

• TV monitors cannot be used in Stitch Assist mode.

• Images will not appear in the camera’s LCD monitor when the

TV is used as the monitor.

• Due to different video signal standards [NTSC/PAL], a camera

purchased in one region may not display images properly when

connected to a TV from another region.

• An image can be magnified

approximately 2.5 times in the single

image replay mode.

• Use the or button to move the

selection area around the image.

• Press the zoom lever towards to

reset the zoom setting to normal.

Replaying/Erasing

Displaying Images Singly (Single Image Replay)

• The last recorded

image will

appear in the

display (single

image replay).

• Press the button to switch the

display to the previous image. The

button switches to the next image.

Hold down the button to advance

through the images more rapidly.

Images will appear coarser at the

faster speed.

Zooming an Image

• You can erase the displayed image with a shortcut by holding

down the button and pressing the button (➜ p. 21).

• A TV monitor can be used to replay images (➜ p. 45).

Approximate

Location of the

Magnified Area

Replaying/Erasing

• The last recorded image will appear

in the display (single image replay).

• A set of nine

images will

appear in the

display (multi

image replay).

• You can change the image selection

with the or button. Pressing

the zoom lever towards will cause

the selected image to fill the display.

• Successive

sets of nine

images can

be shown in

the display.

• Press the button to display the

previous set of nine images. The

button displays the next set of nine.

• Pressing the zoom lever towards

returns the display to the multi image

replay mode.

Displaying Images in Sets of Nine

(Multi Image Replay)

Selected Image

• You can erase the displayed image by holding down the

button and pressing the button (➜ p. 21).

Switching between Sets of Nine Images

Replaying/Erasing

Rotating Images in the Display

Images can be rotated 90º or 270º clockwise in the display.

0º (Original) 90º 270º

• Use the or button to select

then press the button.

• Cycle between the 90º/270º/0º

orientation each time you press the

button.

• Press the button several times

until the replay screen reappears.

• If an image has been rotated in the camera before being loaded

onto a computer, the particular software in use will determine

whether or not the rotation settings are retained.

Replaying/Erasing

Automating Playback (Auto Play)

All of the images on a CF card can be displayed one-by-one

automatically with the auto play function. Each image is displayed

for approximately 3 seconds.

• Use the or button to select

then press the button.

• The camera will read the images on

the CF card and start auto play.

• As with the single image display

mode, pressing the or button

during auto play will advance through

the images more rapidly.

• The display interval may vary for

some images.

Replaying/Erasing

Pausing and Resuming Auto Play

• Pressing the button temporarily

pauses auto play. Press the

button again to resume auto play.

• If the or button is pressed

while auto play is paused, the display

can be switched to the previous or

next image, respectively.

• Hold down the or button to

advance through the images more

rapidly.

Stopping Auto Play

Replaying/Erasing

Protecting Images

You can protect important images to prevent their accidental erasure.

• Use the or button to select

then press .

• Use the or button to select an

image. Press the button to

protect it.

• Pressing the button protects the

image. If the button is pressed a

second time, the protection is

removed.

• Press the button several times

until the replay screen reappears.

Protected

Icon

• Please note that even protected images are erased when a CF

card is reformatted.

Replaying/Erasing

Print Settings (DPOF Settings)

Images on a CF card can be individually selected for printing in a

specified number of copies. The print type and date or file number

printing options can also be selected. These settings are compatible

with Digital Print Order Format (DPOF) standards so that images can

be printed conveniently on DPOF compliant digital printers or at

participating photo labs.

Displaying the Print Settings Menu

• Use the or button to select

then press the button.

• The following settings can be

adjusted in the Print Order menu.

[Order]: Selecting Images for Printing

➜ p. 54

[Set up]: Setting the Print Style

➜ p. 53

[Reset]: Resetting Print Settings

➜ p. 56

• The mark will display on images that have had print marks

set by another DPOF-compliant camera. These settings will be

overwritten by any settings set by your camera.

Replaying/Erasing

Setting the Print Style

The following settings can be selected.

Standard Prints one image per page.

Index Prints the selected images in a single sheet.

Print Type

Both Prints the images in both standard and index

formats.

Date Adds the date to the print.

File No. Adds the file number to the print.

• Use the or button to select

[Set up].

• Use the or button to select ,

or .

• Use the or button to select a

setting. Press the button.

Display the Print Settings

menu (➜ p. 52).

Replaying/Erasing

(Print Type)

You may select [Standard], [Index] or

[Both] options.

(Date)

You may select either [On] or [Off].

(File No.)

You may select either [On] or [Off].

• Press the button several times

until the replay screen reappears.

• Use the or button to select

[Order].

Display the Print Settings

menu (➜ p. 52).

• The date is printed in the format selected in the date format

field of the Set Date/Time menu.

• The date and file number options cannot both be set to On

when [Index] is selected as the print type.

Selecting Images for Printing

Replaying/Erasing

• Use the or button to select an

image.

• You can use the zoom lever to switch

between the single image and multi

image (3 images) display.

• Pressing the button displays the

icon so that the number of print

copies can be specified. Pressing the

button a second time causes the

icon to disappear and restores

the image selection mode.

• Use the or button to select the

number of copies. The maximum is

99 copies.

• Press the button several times

until the replay screen reappears.

Index

• Use the or button to select an

image.

• Pressing the button causes a

check mark icon to appear. Pressing

the button a second time

deselects the image.

Number of Print Copies

The selection method will vary according to the print type ( ) (➜ p. 53).

Standard/Both

Check Mark for Index

Printing

Replaying/Erasing

• Images are printed in the order of the oldest image to the newest.

• When the print type is set to [Both] and both the date and file

number are set to [On], only the file number will print on the

index sheet.

• The output of some printers or developing labs may not reflect

the specified print settings.

Resetting Print Settings

Resetting the print settings removes them from all the selected

images and resets the print type to [Standard], the date setting to

[Off] and the file number setting to [Off].

• Use the or button to select

[Reset].

• Use the or button to select

[OK].

• To cancel instead of resetting, select

[Cancel].

Display the Print Settings

menu (➜ p. 52).

• Press the button several times

until the replay screen reappears.

Replaying/Erasing

Erasing Images

Erasing Images Singly

• Please note that erased images

cannot be recovered. Exercise

adequate caution before erasing a

file.

• Protected images cannot be erased

with this function.

• Use the or button to select

then press the button.

• Use the or button to select the

image you wish to erase.

• Use the or button to select

[OK].

• To cancel instead of erasing, select

[Cancel].

• Images can also be erased using a shortcut (➜ p. 21).

Replaying/Erasing

Erasing All Images

• Please note that erased images

cannot be recovered. Exercise

adequate caution before erasing a

file.

• Protected images cannot be erased

with this function.

• Use the or button to select

then press the button.

• Use the or button to select

[OK].

• To cancel the command, select

[Cancel].

Camera Settings

Displaying the Setup Menu

The Setup menu is used to adjust the camera settings. The procedure

for displaying the Setup menu is slightly different for each shooting

mode (p. 33). Use the procedures shown below.

Please see page 35 for instructions on changing the image quality

settings.

• The Setup menu can be displayed in

the mode, but not the mode.

• Press the button until the

Setup menu displays.

• After adjusting the settings, press the

button again to close the

menu.

Camera Settings

• Use the or button to select

[On] or [Off].

• This function is not available in the

or mode.

Display the Setup menu

(➜ p. 59)

Switching the Digital Zoom On/Off

• Use the or button to select

then press the button.

Camera Settings

About File Numbers

• Images are assigned individual frame numbers ranging from 0001 to

9900 and organized in folders containing up to 100 images. The

folders are assigned names from 100 to 998. (Folder numbers cannot

contain 99 in the last two digits.)

• Since images shot in , or are always saved into the same

folder, some folders may contain 101 or more images.

• Use the or button to select

[On] or [Off].

• Shooting with the File No. Reset set to Off is useful for avoiding

file name duplication when the images are uploaded to a

computer and organized in a single directory or album.

Resetting the File Number

You can select the method which the camera uses to assign file

numbers with the File No. Reset function.

The starting file number is reset to 100-0001 each time a new CF card is

inserted. New images recorded on previously recorded CF cards with

existing files are assigned the next available number.

Off

The file number of the last recorded image is saved so that the next

image recorded on any CF card, including a new one, is assigned the

next available number.

• Use the or button to select

then press the button.

Display the Setup menu

(➜ p. 59)

Camera Settings

Saving the Shooting Mode Setting

You can select whether or not to save the shooting mode settings

when the camera is turned off. When set to [Last], the current

shooting mode setting will still be effective when the camera is

turned on again.

• Use the or button to select

then press the button.

• Use the or button to select

[Last] or [Auto].

• When [Auto] is selected, the shooting setting will reset to

when the camera power is turned on the next time.

Display the Setup menu

(➜ p. 59)

Camera Settings

Display the Setup menu

(➜ p. 59)

Switching the Beep On/Off

A beep sounds for confirmation purposes when the shutter button is

pressed or a camera setting is changed. The beep can be turned off.

• Use the or button to select

then press the button.

• Use the or button to select

[On] or [Off].

• The warning beep is not controlled by this setting and will still

sound.

Camera Settings

Switching the Auto Power Down Function On/Off

The auto power down function can be set to automatically turn the

camera power off after a set period of time passes without the

camera being used.

The camera shuts off after approximately 3 minutes in shooting mode or

approximately 5 minutes in replay mode if the camera is not used. Press

the main switch to restore power.

Off

If it is on, the LCD monitor shuts off after approximately 3 minutes in the

shooting mode if the camera is not used. Pressing any button other than

the main switch will turn the LCD monitor on again.

• Use the or button to select

then press the button.

• Use the or button to select

[On] or [Off].

Display the Setup menu

(➜ p. 59)

• The auto power down function will not activate while the

camera is in auto play mode.

Camera Settings

Formatting CF Cards

New CF cards must be formatted in accordance with the following

procedures before use.

• Please note that formatting a CF card erases all its data,

including protected images and other types of data.

• Use the or button to select

then press the button.

• Use the or button to select

[OK].

• To cancel formatting, select [Cancel].

Display the Setup menu

(➜ p. 59)

• When the camera is not operating as expected, reformatting

the CF card may solve the problem.

• When a non-Canon brand CF card is malfunctioning, reformatting

it may solve the problem.

Camera Settings

Setting the Language

The language in which menus and messages are displayed can be

selected with this function.

• Use the or button to select

then press the button.

• Use the or button to select a

language.

Display the Setup menu

(➜ p. 59)

• The Language menu can also be displayed in replay mode by

holding down the SET button and pressing the MENU button.

• The Language menu may appear differently on cameras in some

regions.

Appendices

Care and Maintenance of the Camera

Use the following procedures to clean the camera body, lens,

viewfinder and LCD monitor.

• Never use thinners, benzene, synthetic cleansers or water to

clean the camera. These substances may distort or damage the

equipment.

Camera Body

Gently wipe dirt off the camera body with a soft cloth or eyeglass

lens wiper.

Lens

First use a lens blower brush to remove dust and dirt, then remove

any remaining dirt by wiping the lens lightly with a soft cloth.

• Never use synthetic cleansers on the camera body or lens.

• If dirt remains, contact the closest Canon Customer Support

Help Desk (see the back of this guide).

Viewfinder and LCD Monitor

Use a lens blower brush to remove dust and dirt. If necessary, gently

wipe the viewfinder with a soft cloth or an eyeglass lens wiper to

remove stubborn dirt.

• Never rub or press strongly on the LCD monitor. These actions

may damage it or lead to other problems.

Appendices

Troubleshooting

Camera will not operate

Cause Solution

• Press the main switch for a few

moments.

• Close the battery cover or CF card

cover and then press the main

switch again to turn the camera off.

• Insert a fully charged battery pack.

• Use an approved AC power source.

• Wipe the battery terminals with a

clean, dry cloth.

Camera will not record

Cause Solution

• Slide the mode switch to the

(Shooting) position.

• Wait until the flash charges. When

the indicator glows red you can

press the shutter button.

• Replace the CF card.

• If necessary, download the images

to a computer and then erase all or

some of the card’s images to create

space.

• Format CF card. See Formatting a CF

Card (➜ p. 65).

• If reformatting does not work, the CF

card logic circuits may be faulty or

damaged. Contact the nearest Canon

Customer Support Help Desk.

Power is not on

Battery cover or CF

card cover opened

Insufficient battery

voltage

Poor contact between

battery pack and

camera terminals

Mode switch is set to

(Replay)

Flash is charging

CF card full

CF card not formatted

correctly

Appendices

Lens will not retract

Cause Solution

• Close the battery cover or CF card

cover and then press the main

switch again to turn the camera off.

• Close the battery cover or CF card

cover and then press the main

switch to turn the camera off.

Battery pack consumed quickly

Cause Solution

• Fully charge and discharge the

battery pack several times to restore

its capacity.

Battery pack will not charge

Cause Solution

• Replace battery pack with a new

one.

• Seat the battery pack more firmly in

the charger.

• Plug the battery charger all the way

into the electrical outlet.

Battery cover or CF

card cover opened

with main switch

turned on

Battery cover or CF

card cover opened

while camera was

recording to the CF

card (warning signal

sounds)

Battery pack capacity

reduced because of

disuse for an extended

period of time, such as

one year

Battery pack life

exceeded

Poor connection

between battery pack

and battery charger

Appendices

Image is blurred, out of focus, or not as expected

Cause Solution

• Be careful not to move the camera

when pressing the shutter button.

• Ensure that there is at least 57 cm

(22 in.) between the camera lens

and subject.

• Use the macro mode to shoot close-

ups between 10 and 57 cm (4 and

22 in.) from the lens when set to

wide angle and between 27 and 57

cm (11 and 22 in.) when set to

telephoto.

• Use the infinity mode to shoot

distant subjects.

• Be careful not to block the AF

auxiliary light emitter with your

fingers or other items.

Subject is too dark in image

Cause Solution

• Set the flash to On.

• Set the exposure compensation to a

positive (+) setting.

• Shoot within 27 cm to 3 m (11 in.

to 10 ft.) of the subject at the

maximum wide angle or 27 cm to 2

m (11 in. to 7 ft.) of the subject at

the maximum telephoto setting

when using the flash.

Camera moved

Subject is out of focal

range

Autofocus function is

hampered by

something obstructing

the AF auxiliary light

emitter

Insufficient light for

shooting

Subject is much darker

than its surroundings

Subject is too far

away for flash to

reach

Appendices

Subject is too bright

Cause Solution

• When using the flash, stay 27 cm to

3 m (11 in. to 10 ft.) from the

subject at the maximum wide angle

or 27 cm to 2 m (11 in. to 7 ft.)

from the subject at the maximum

telephoto setting.

• Adjust the exposure compensation

to a negative (-) setting.

• Change the shooting angle.

• Set the flash to Auto or Off.

Flash will not fire

Cause Solution

• Set the flash to Auto or On.

Subject is too close

Subject is much

brighter than its

surroundings

Light is shining directly

on subject or reflected

off subject onto

camera

Flash is set to On

Flash is set to Off

Appendices

List of Messages

The following messages may appear in the LCD monitor.

Busy...: Image is being recorded to, or read

from, CF card

No CF card: You attempted to shoot or replay

images without a CF card installed.

Cannot record!: You attempted to shoot an image

without a CF card installed.

CF card error: CF card has experienced an anomaly.

CF card full: CF card is too full to accommodate

more images or print settings.

Naming error!: The file could not be created because

there is a file with the same name as

the directory that the camera is

attempting to create, or the highest

possible file number has already been

reached. Save all the images you

wish to retain onto a computer, then

reformat the CF card. Please note

that formatting will erase all the

existing images and other data.

Change the battery pack: Battery charge is insufficient to

operate the camera. Charge the

battery pack immediately.

No image: No images recorded on CF card.

Image too large: You attempted to replay an image

larger than 3200 x 2400 pixels.

Incompatible JPEG format: You attempted to replay an

incompatible JPEG file.

Appendices

Corrupted Data: You attempted to replay an image

with corrupted data.

CCD RAW: You attempted to replay a CCD RAW

image.

Unidentified Image: You attempted to replay an image that

was recorded in a special format

(proprietary format used by the camera

of another manufacturer, etc.).

Cannot magnify!: You attempted to magnify an image

which was photographed with another

camera, recorded in a different format,

or edited on a computer.

Cannot rotate: You attempted to rotate an image

which was photographed with another

camera, recorded in a different format,

or edited on a computer.

Protected!: You attempted to erase a protected

image.

Too many marks: Too many images have been marked

for printing. Cannot process any more.

Cannot complete!: Failed to save print settings.

Exx: (xx: number) Camera malfunction.

Turn the power off and then back

on, then shoot or replay. Problem

exists if error code reappears. Note

the number and contact Canon

Customer Support Help Desk. If an

error code displays directly after

taking a picture, the shot may not

have been recorded. Check image in

replay mode.

Appendices

Specifications

PowerShot S100 DIGITAL ELPH / DIGITAL IXUS

Image Sensor: Approx. 2.11 million-pixel

1/2.7 inch charge coupled device

(effective pixels: approx. 2.02 million)

Image Quality: Super-Fine / Large (1600 x 1200 pixels)

Fine / Large (1600 x 1200 pixels)

Fine / Small (640 x 480 pixels)

Recording Media: CompactFlash™ Card (Type I)

Image Format: Design rule for Camera File System

(Images / Thumbnails: JPEG)

Sensitivity: Equivalent to ISO 100

Lens: 5.4 - 10.8 mm

(35 mm film equivalent: 35 - 70 mm)

F 2.8 (wide angle) - F4.0 (telephoto)

Digital Teleconverter: 2x / 4x

Focusing Range: Standard: 57 cm - ∞ (22 in. - ∞)

Macro: 10 - 57 cm (4 - 22 in.) (wide angle)

27 - 57 cm (11 - 22 in.) (telephoto)

Viewfinder: Real-image optical viewfinder

1.5 inch low-temperature polycrystalline silicon

TFT LCD

Metering Method: Center weighted metering

Focusing Method: TTL 3 point AiAF

Auto Exposure Method: TTL program AE

White Balance Control: TTL auto / manual

Shutter: Mechanical + electronic

Shutter Speed: 1 - 1/1500 sec. (1-sec. for Slow-Synchro mode and

manual mode with flash set to Off)

Flash: Built-in (Auto, On, Off, Red-Eye Reduction, Slow-

Synchro)

Flash Range: 27 cm - 3 m (11 in. - 10 ft.) (wide angle)

27 cm - 2 m (11 in. - 7 ft.) (telephoto)

Camera Modes: Shooting / Replay

Appendices

Interface: USB / CF Card Slot (Type I) / Video Out

Power Supply: Battery Pack NB-1L

Compact Power Adapter CA-PS300 (with DC

Coupler DR-300)

Operating Temperatures: 0 - 40 ºC (32 - 104 ºF)

Operating Humidity: 10 - 90%

Dimensions: 87.0 x 57.0 x 26.9 mm (3.4 x 2.2 x 1.1 in.)

excluding protrusion

Weight: Approx. 190 g (6.7 oz.) excluding battery and CF

card

Battery Pack NB-1L

Type: Rechargeable lithium ion cell

Rated Voltage: 3.7 V

Rated Amperage: 680 mAh

Life-span: Approx. 300 charge cycles

Operating Temperatures: 0 - 40 ºC (32 - 104 ºF)

Dimensions: 32.3 x 49.8 x 10.6 mm (1.3 x 1.9 x 0.4 in.)

Weight: Approx. 29 g ( 1.0 oz.)

Battery Charger CB-2L CB-2LE

Input Voltage: AC 100 - 240 V (50/60 Hz)

Rated Output: 4.2 V / 0.58 A 4.2 V / 0.65 A

Rated Input: 7.5 VA (100 V) 12.5 VA (240 V)

Operating Temperatures: 0 - 40 ºC (32 - 104 ºF)

Dimensions : 65 x 105 x 36 mm (2.6 x 4.1 x 1.4 in.)

Weight: Approx.110 g ( 3.9 oz.) Approx.95 g ( 3.4 oz.)

CompactFlash™Card

Card Slot Type: Type I

Dimensions: 36.4 x 42.8 x 3.3 mm (1.4 x 1.7 x 0.1 in.)

Weight: Approx. 10 g ( 0.4 oz.)

* All data is based on Canon’s standard testing methods. Subject to change

without notice.

Appendices

Index

AC Adapter 16

Autofocus 24

Auto Mode 33

Auto Play 49

Auto Power Down 22

On/Off 64

Battery

AC Power Supply 16

Handling 13

Installing 14

Performance 15

Recharging 12

Battery Pack 12

Beep 63

Black and White Mode 33

Camera Settings 59

Care and Maintenance 67

CF Card

Capacity 17

Formatting 65

Handling 18

Installing 17

Continuous Shooting 38

Date and Time 19

Digital Zoom 32, 60

Displaying Information 26

DPOF 52

Erasing 57

Erasing All Images 58

Erasing Images Singly 57

Erasing the Displayed Image

Exposure 40

File Number 61

Flash 35

Focus Lock 24

Image Quality 35

Indicator 11

Infinity Mode 39

Information Display 26

Language Settings 66

LCD Monitor 10

Menus/ Switching between

Display Modes 28

Using 25

Macro Mode 39

Main Switch 11, 22

Magnifying Images 46

Manual Mode 33

Mode Switch 11, 23

Multi Image Replay 47

Appendices

Optical Viewfinder 23

Power On/Off 22

Pressing Fully 30

Pressing Halfway 30

Print Settings 52

Selecting 54

Print Style 53

Resetting Print Settings

Protecting Images 51

Red-Eye Reduction 36

Replay 21, 46

TV Monitor 45

Rotate 48

Self-Timer 37

Setup Menu 59

Shooting 20, 33

TV Monitor 45

Functions Available in each

Shooting Mode 34

List of Modes 33

Saving the Shooting Mode

Setting 62

Selecting 33

Shutter Button 11, 30

Pressing Fully 30

Pressing Halfway 30

Single Image Replay 46

Stitch Assist Mode 42

Telephoto 31

Video Cable VC-200 45

Viewfinder 23

White Balance 41

Wide Angle 31

Wrist Strap 18

Zoom 31

Zooming Images 46

Zoom Lever 11, 31

Appendices

Canon Customer Support

Canon Inc.

30-2 Shimomaruko 3-chome, Ohta-ku, Tokyo

146-8501, Japan

NORTH AMERICA

Canon U.S.A., Inc.

Canon Customer Care Center

Phone (US): 1-800-828-4040

(Available Mon. - Fri., 9 AM to 8 PM Eastern Time)

Canon Canada Inc.

Phone (Canada): 1-800-OK-CANON (1-800-652-2666)

(24 hours/day, 7 days/week)

EUROPE

Europe, Africa & Middle East

Canon Europa N.V.

PO Box 2262, 1180 EG Amstelveen, The Netherlands

Canon (UK) Ltd.

Helpdesk

Tel No.: 08705 143 723 (Calls may be recorded.)

Fax No.: 08705 143 340 BBS No.: 08705 143 350

Canon France S.A.

Hotline : 01.41.99.70.70

Tél : 01.41.99.77.77 Télécopie : 01.41.99.79.51

Canon Photo Vidéo France S.A.

Hotline : 01.49.04.01.00 Télécopie : 01.49.04.01.01

Canon Deutschland GmbH

Canon-Hotline-Service

Customer-Support: (02151) 349-555

Telefax: (02151) 349-588

Info-Desk Tel: (02151) 349-566

Info-Desk Fax : (02151) 349-599

Mailbox : (02151) 349-577

Appendices

Canon Euro-Photo GmbH

Customer-Support: (02154) 495-610

Info-Desk: (02154) 495-444

Fax: (02154) 495-333

Canon Italia S.p.A.

Pronto Canon : 02 8249 2000 BBS : 02 8249 2099

Canon Belgium N.V. / S.A.

Helpdesk: 0900-10627

Tel.: (02) 722.04.11 Fax: (02) 721.32.74

Canon Luxembourg S.A.

Tel.: (352) 48 47 961 Fax: (352) 48 47 96232

Canon Nederland N.V.

Helpdesk: 023 - 5 681 681

Tel.: 023 - 5 670 123 Fax: 023 - 5 670 124

Canon Danmark A/S

Hotline: 44 88 26 66

Canon España S.A.

Help Desk: 906 301 255

Tel: (91) 538 45 00 Fax: (91) 411 41 76

E-mail: helpdesk@btlink.net

Canon Norge as

Tlf. 22 62 93 21 Faks: 22 62 06 15

E-mail: helpdesk@canon.no

Finland

Canon OY

Puhelin: 010 54420 Fax: 010 544 4571

Help Desk: 0600 0 22606 (14,80 mk/min+pvm)

Help Desk: 0600 0 22666 (enint. 40mk/puhelu+pvm)

Sähköposti: helpdesk@canon.fi

Canon (Schweiz) AG

Tel. 01-835-6161, Fax 01-835-6860

Hotline 0900 57 55 20

Canon Svenska AB

Stensätravägen 13, S-127 88, Skärholmen, Sweden

Appendices

Austria

Canon GmbH

Zetschegasse 11, 1232 Wien, Austria

Tel: 01 680 88-0

Fax: 01 680 88-222

OCEANIA

Canon Australia Pty. Ltd.

Info-Line: (02) 9805 2864

Canon New Zealand Ltd.

Info-Line: 0900-522666

ASIA

Canon Singapore Pte. Ltd.

79 Anson Road, #09-01 / 06, Singapore 079906

Phone: (65) 532 4400 Fax: (65) 221 7577

Canon Hongkong Co., Ltd.

9/F, The Hong Kong Club Building, 3A Chater Road, Central, Hong Kong

Phone: 852-2739-0802 Fax: 852-2369-7701

Canon Marketing Services

No.1 Jalan Kilang Timor, #09-00, Pacific Tech Centre,

Singapore 159303

Phone: (65) 799 8888 Fax: (65) 273 3317

Canon Marketing (Malaysia) Sdn. Bhd.

Wisma General Lumber, Block D, Peremba Square,

Saujana Resort, Section U2, 40150,

Shah Alam, Selangor Darul Ehsan, Malaysia

Phone: (60) 3 744 6000, (60) 3 745 0055

Fax: (60) 3 745 0505

Canon Marketing (Thailand) Co., Ltd.

10th Floor, Bangkok City Tower,

179/34-45 South Sathorn Road,

Bangkok 10120, Thailand

Phone: (662) 344 9999 Fax: (662) 344 9910

Canon Marketing (Hongkong) Co., Ltd.

10/F, Mirror Tower, 61 Mody Road, Tsimshatsui East

Kowloon HongKong

Phone: 852-2170-2828 Fax: 852-2723-9684

FCC Notice

(Digital Camera, Model PC1001)

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions;

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may

cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for Class B

digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15

of the FCC rules.

Do not make any changes or modifications to the equipment unless otherwise

specified in the manual. If such changes or modifications should be made, you could

be required to stop operation of the equipment.

Canon U.S.A. Inc.

One Canon Plaza, Lake Success, NY 11042, U.S.A.

Tel No. (516) 328-5600

Canadian Radio Interference Regulations

THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN

INTERFERENCE CAUSING EQUIPMENT REGULATIONS.

Règlementation canadienne sur les interférences radio

CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU

REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA.

Canon Powershot S100 Users Manual DIGITAL ELPH / IXUS

Canon-Powershot-S100-Digital-Elph-Users-Manual-588031 canon-powershot-s100-digital-elph-users-manual-588031

Canon Cameras US Canon PowerShot S100 2MP Digital Manual Canon Cameras US Canon PowerShot S100 2MP Digital Manual

S100 to the manual 3efb534b-6c85-4ee9-900b-cb27857309f3

s100hw Camera User Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
