Photo Printing Guide

QA7-3584-V02 XXXXXX ©CANON INC.2005 PRINTED IN THAILAND

The following ink tank is compatible with this printer.

For details on ink tank replacement, refer to “Replacing an Ink Tank” in this guide.

QA7-3584-V02

ENG

Exif Print

This printer supports Exif Print.

Exif Print is a standard for enhancing the communication between digital cameras and printers. By connecting

to an Exif Print-compliant digital camera, the camera’s image data at the time of shooting is used and

optimized, yielding extremely high quality prints.

International ENERGY STAR® Program

As an ENERGY STAR® Partner, Canon Inc. has determined that this product meets the ENERGY STAR

guidelines for efficiency.

The International ENERGY STAR® Office Equipment Program is a global program that promotes

energy saving through the use of computer and other office equipment.

The program backs the development and dissemination of products with functions that effectively reduce

energy consumption. It is an open system in which business can participate voluntarily. The targeted products

are office equipment such as computers, monitors, printers, faxes and copiers.

Their standards and logos are uniform among participating nations.

Power Requirements

Never use a power supply voltage other than that supplied in the country of purchase. Using the incorrect

voltage could cause a fire or electric shock. The correct power supply voltages and frequencies are as follows:

AC 100-240 V, 50/60 Hz

Trademark Notices

• “Microsoft” and “Windows” are trademarks of Microsoft Corporation, registered in the United States and

other countries.

• “Macintosh” and “Mac” are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.

• “Microdrive” is a trademark of International Business Machines Corporation.

• “SmartMedia” is a trademark of Toshiba Corporation.

• “MEMORY STICK”, “Memory Stick PRO”, “MEMORY STICK Duo” and “Memory Stick Pro Duo” are trademarks

of Sony Corporation.

• “xD-Picture Card” is a trademark of Fuji Photo Film CO., Ltd.

• “MultiMediaCard” is a trademark of Infineon Technologies AG.

• “SD card” and “miniSD Card” are trademarks of SD Association.

• “IrDA Feature Trademark” is owned by the Infrared Data Association and used under license therefrom.

• “Bluetooth” is a trademark of Bluetooth SIG, Inc., U.S.A and are licensed to Canon Inc.

express written permission.

Bluetooth ID: B02165

Contents

Easy Setup Instructions..................................................................................3

Unpack the Printer ........................................................................................................3

Preparing the Printer.....................................................................................................4

Installing the Print Head................................................................................................5

Installing an Ink Tank ....................................................................................................7

Printer Parts and Their Functions....................................................................8

Printer ..........................................................................................................................8

Menu Screen...............................................................................................................11

Preparation When Using the Printer..............................................................16

Turning On/Off the Printer...........................................................................................16

Using a Memory Card ..................................................................................................17

Loading Paper.............................................................................................................20

Changing the Print Settings ........................................................................................24

Printing from the Memory Card.....................................................................28

Printing Photograph....................................................................................................28

Other Useful Functions................................................................................................32

Changing the Other Settings.......................................................................................43

Printing Photographs Directly from a Digital Camera.....................................45

Printing Photographs Directly from a PictBridge Compliant Device ..............................45

Printing Photographs Directly from a

Canon Bubble Jet Direct Compatible Digital Camera.....................................................50

Printing Photographs from a Wireless Communication Device.......................51

Setting the Page Size, Media Type, and Layout When Printing

from a Mobile Phone or a PDA .....................................................................................51

Performing Infrared Communication............................................................................53

Performing Bluetooth Communication.........................................................................55

Printing with the Computer...........................................................................58

Installing the Printer Driver .........................................................................................58

How to View the On-screen Manual .............................................................................63

Printing Maintenance ...................................................................................65

When Printing Becomes Faint or Colors are Incorrect ...................................................65

Replacing an Ink Tank .................................................................................................71

Introduction

This Photo Printing Guide uses the following symbols to indicate important information. Always

observe the instructions indicated by these symbols.

Instructions that, if ignored, could result in death or serious personal injury

caused by incorrect operation of the equipment. These must be observed for

safe operation.

Instructions that, if ignored, could result in personal injury or material damage

caused by incorrect operation of the equipment. These must be observed for

safe operation.

Also read the Safety Precautions. Observe the warnings and cautions to avoid

personal injury or damage to the printer.

Troubleshooting...........................................................................................75

An Error Message is Displayed on the LCD ...................................................................75

Cannot See the Display Properly on the LCD/Cannot See the Display on the LCD..........77

Paper Does Not Feed Properly/Paper Jam ....................................................................77

Printing is Blurred/Colors are Wrong/White Streaks appear ........................................78

Printed Surface is Scratched or Ink Blots .....................................................................79

Cannot Print Properly from the Digital Camera.............................................................81

Cannot Install the Printer Driver ..................................................................................83

Cannot Print Properly through Wireless Communication ..............................................84

Appendix .....................................................................................................85

For the Optional Bluetooth Unit Users .........................................................................85

Specifications .............................................................................................................87

Safety Precautions......................................................................................................90

Regulatory Information ...............................................................................................92

Easy Setup Instructions

Unpack the Printer

Check that all the following items are in the box. If anything is missing or is

damaged, contact a Canon service representative.

Documentation and Setup Software &

User’s Guide CD-ROM

Print Head

Power Cord

Ink Tank

BCI-16 Color

Printer

Easy Setup Instructions

Preparing the Printer

1Place the printer on a flat surface.

2Plug the power cord into the back of the printer and connect the other

end to a power outlet.

• Never attempt to plug the Power Cord into the power outlet or unplug the Power

Cord when your hands are wet.

• Never damage, modify, stretch, or excessively bend or twist the power cord. Do not

place heavy objects on the power cord.

• Never use any power supply other than the standard power supply available in the

country of purchase. Using the incorrect voltage and frequency could cause a fire or

electric shock.

• Always push the plug all the way into the power outlet.

3Press the POWER button. The printer will initialize.

Note

If you leave the printer more than five minutes without using any button on the

operation panel, the LCD goes into sleep mode automatically. Press the OK button to

turn on the LCD again.

Important

* During printing, part of the sheet is ejected

from the back of the printer.

Leave 12cm (4.7in) or more clear space at the

back of the printer.

Easy Setup Instructions

4Select the display language.

(1) Press the ST buttons to select the language you want to display on the LCD.

(2) Press the OK button.

Note

If you accidentally changed the languages, see “Language selection” on page 44 to

select your language.

Installing the Print Head

1Slide the Cover Open Switch

toward the right to open the Cover.

The Print Head Holder moves to the

center.

2Press the Lock button, then raise

the Lock Lever.

Do not touch internal parts other than

the Lock Lever.

Easy Setup Instructions

3Take the Print Head from its

package and remove the protective

cap.

Dispose of the protective cap.

There might be some transparent or light

blue ink on the inside of the bag the Print

Head comes in, or the inside of the

protective cap this has no effect on print

quality. Be careful not to get ink on yourself

when handling these items.

Notes

• Do not touch the Print Head Nozzles.

• Do not attempt to reattach the

protective cap once it has been

Print Head Nozzles

4Observe the mark and place the

Print Head in the Print Head Holder.

Print Head

Print Head Holder

mark

5Lock the Print Head into place by

lowering the Lock Lever.

Press down the Lock button until it

clicks.

Do not touch the Lock Lever once the

Print Head has been installed.

Easy Setup Instructions

Installing an Ink Tank

• For safety reasons, store an Ink Tank out of the reach of small children.

• Do not drop or shake an Ink Tank as this may cause the ink to leak out and stain your

clothes and hands.

1Unpack a new Ink Tank and remove

the orange protective cap.

Dispose of the protective cap.

Notes

• Do not touch the ink port.

• Do not attempt to reattach the protective

cap once it has been removed.

Ink ports

2Insert the Ink Tank slant into the

slot aligning the X mark with the W

mark.

3Press the until it clicks into

place.

4Close the Cover.

Note

Wait until the preparatory operation is

complete: It takes about 80 seconds.

Printer Parts and Their Functions

This section describes the components of the printer.

Printer

Cover

Open to replace the Ink Tank

or remove jammed paper.

Front View

Paper Support

Open and pull out

before printing to

support paper.

Paper Guide

When loading

paper, ensure

that the left edge

just touches this

guide. Paper Output Tray

The printed paper

will be ejected.

Card Slot

Set the memory

card from a

digital camera

here. For

instructions,

see “Using a

Memory Card”

on page 17.

Indicator Lamp

This lamp will turn on

when the memory card

is set. It will flash while

reading or writing from

the card.

Infrared Port

Receives the data sent

from a mobile phone or a

PDA via infrared

communication.

Direct Print Port

Connects the printer to

a digital camera,

digital video

camcorder or the

optional Bluetooth

unit*.

Auto Sheet Feeder

Load paper here.

LCD Monitor

Displays menus, setting items, and

photos for printing.

Cover Open

Switch

Slide to the

right to open

the Cover.

* The Bluetooth unit is not available to some regions due to the law or the

regulations of the countries. For details, contact a Canon service representative.

Printer Parts and Their Functions

Operation Panel

POWER button

Press to turn on the

printer or off. See

“Turning On the

Printer” on page 16.

POWER lamp

Off: the printer is off.

Lighting: the printer is

ready to print, is

currently printing, or is

currently initializing.

Flashing: the printer is

preparing to turn on or

off.

Menu button

Displays menu

options on the LCD.

See “Menu Screen”

on page 11.

Settings button

Allows you to set

the Page size,

Media type, and

Bordered/

Borderless

printing. See

“Changing the

Print Settings”

on page 24.

Alarm lamp

Indicates that an

error has

occurred. An error

message is

displayed on the

LCD.

Search button

Looks up target photos in the

memory card using the shooting

date as the search key. See

“Searching for Photos with the

Shooting Date—Search” on page

32.

Stop/Reset button

Allows you to reset the print settings

you made. Also, to cancel printing in

progress, press this button.

Back button

Allows you to return to the previous

screen.

Trimming button

Allows you to trim the photo

displayed on the screen. See

“Printing a Specified Area—

Trimming” on page 34.

buttons

Press to enlarge

or reduce the

photo being

displayed on the

screen. Pressing

this button in

trimming mode

allows you to

enlarge/reduce

the area to be

trimmed. See

“Printing a

Specified Area—

Trimming” on

page 34.

STW X buttons

Use these buttons, shown as arrows on the

LCD, to select a menu item or photo, to

specify the number of copies to print, to

make print settings, or to scroll the screen.

Additionally, use these buttons in trimming

mode to move the trimming area.

Print button

Press to start printing according to

the settings displayed on the LCD.

OK button

Allows you to make a selection. For example, selecting

a photo to be printed, selecting a menu item or other

settings. Also, press to resume printing once an error

has been resolved. The printer will then initialize

ready for printing.

Printer Parts and Their Functions

Rear V

USB Port

Connects the printer to a computer through a

USB interface.

Power Cord Connection

Connector used to connect

the supplied power cord.

 Inside the Printer

Print Head Lock Lever

Locks the Print Head into the Print Head

Holder.

Once the Print Head is installed,

do not touch this lever.

Paper Thickness Lever

Move to the right when printing.

Move to the left if ink smudges or the printed

surface is stained.

See “Inappropriate paper type used” on page 79.

Print Head Holder

Install the Print Head here.

Cover Open Switch

Slide to the right to open

the Cover.

Printer Parts and Their Functions

Menu Screen

Press the Menu button to display the menu screen. Refer to the following menu list

to access functions in each menu.

Photo gallery*

Photo print*

Print studio*

Layout print

Sticker print

Print all photos

Color balance

DPOF print

Photo Index print

You can view the photos in the memory card

on the LCD and print them.

See “Printing Photograph Displayed on the

LCD—Photo Gallery” on page 28.

You can specify how many copies to print

each photo and print them at once.

See “Specifying How Many Copies to Print

for Each Photograph—Photo Print” on page

30.

You can use various print functions to suit

your needs such as printing on a sticker or

printing an index of all photos.

See “Print Menus in Print Studio” on page

13.

* Available only when inserting a memory card.

Continue to next page

Printer Parts and Their Functions

Print settings

Wireless print settings

Bluetooth settings*

Other settings

Language selection

Reset setting

Save settings

Load settings

Nozzle check

Cleaning

Deep cleaning

Head alignment print

Roller cleaning

Bottom plate cleaning

Maintenance

Device settings

Tool box

You can use the menu to perform

maintenance and configure the printer

settings. There are two submenus:

Maintenance and Device settings.

See “Tool Box Submenus” on page 14.

Manual head align

* Available only when attaching the Bluetooth unit BU-20.

Printer Parts and Their Functions

Print Menus in Print Studio

Print studio provides you with the following print menus.

Layout print

Prints the specified photo in the specified layout.

See “Printing Multiple Photos on One Sheet of

Media—Layout Print” on page 35.

Sticker print

Prints stickers from a favorite photo.

See “Printing Stickers from a Photo—Sticker Print”

on page 37.

Print all photos

Prints all photos.

See “Print all photos” on page 41.

Photo Index print

Prints an index of all photos.

See “Photo Index print” on page 41.

Color balance

Prints 9 color samples of a photo on a sheet of

paper. You can select your favorite color tone from

them and print.

See “Printing with Adjusted Color

Balance—Color Balance” on page 38.

DPOF print

Prints according to the DPOF settings, if available.

See “DPOF print” on page 41.

Printer Parts and Their Functions

Tool Box Submenus

You can select Maintenance to perform maintenance or Device settings to

configure the printer settings.

Nozzle check

Prints a check pattern to ensure that ink is output correctly.

See “Printing the Nozzle Check Pattern” on page 66.

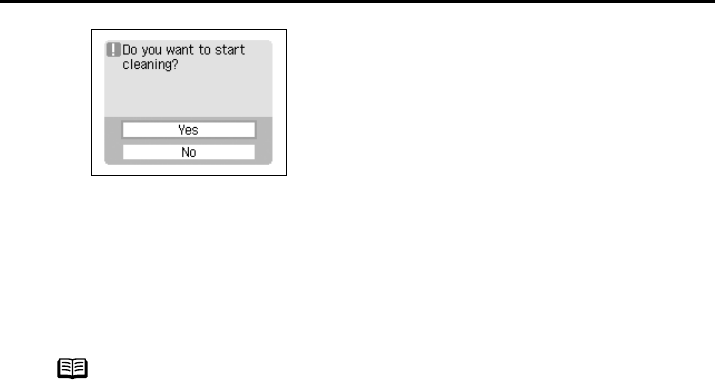

Cleaning

Cleans the Print Head when nozzles are clogged.

See “Print Head Cleaning” on page 67.

Deep cleaning

If print quality does not improve after standard head cleaning, use Deep cleaning.

See “Print Head Deep Cleaning” on page 68.

Manual head align

Aligns the Print Head.

See “Aligning the Print Head” on page 69.

Head alignment print

Prints the current settings of the print head position. See “Printing a current setting of the

Print Head position” on page 70.

Roller cleaning

Cleans the feed roller. See “Paper Feed Roller is dirty” on page 77.

Bottom plate cleaning

Cleans the bottom plate. See “Printed on the back side of the sheet/The roller inside the

printer is extremely dirty” on page 79.

Maintenance

Displays the maintenance items below.

Device settings

Displays the setting items below for printer configuration.

Print settings

• Ink drying wait time

See “Sets time to dry ink on the printing surface.” on page 80.

Wireless print settings

Sets the page size and layout to use when printing a photo from a device via an infrared or

Bluetooth communication.

See “Setting the Page Size, Media Type, and Layout When Printing from a Mobile Phone or a

PDA” on page 51.

Printer Parts and Their Functions

Bluetooth settings*

The Bluetooth settings menu is displayed only when the optional Bluetooth unit BU-20 is

attached to the printer.

•Device name

See “Device name” on page 57.

• Access refusal

See “Access refusal” on page 57.

•Security

See “Security” on page 57.

•Passkey

See “Passkey” on page 57.

* Available only when attaching the Bluetooth unit BU-20.

Other settings

•Date display

See “Date display” on page 43.

• Read/write attribute

See “Using Data in the Memory Card on the Computer” on the

User’s Guide

• Low ink warning

See “Accompanied by Ink Tank icon with '?'” on page 76.

• Ink counter reset

See “Resetting the Ink Counter” on page 73.

•Adjust contrast

See “Adjust contrast” on page 43.

• Slide show setting

See “Slide show setting” on page 43.

Language selection

Sets the language for the LCD.

See “Language selection” on page 44.

Reset setting

Returns the settings other than languages and the Print Head position to the factory

settings.

See “Reset setting” on page 44.

Save settings

Sets whether to save the settings you make on the Settings screen.

Load settings

Sets whether to call the settings you make on the Save settings screen.

Preparation When Using the Printer

Turning On/Off the Printer

This section describes the method to turn on/off the printer.

Turning On the Printer

Follow the procedure below to turn on the printer.

1Plug the Power Cord into the back of the printer and connect the other

end to a power outlet.

2Press POWER to turn the printer on.

Turning Off the Printer

Follow the procedure below to turn off the printer.

1Check the following before turning off the printer.

• The Indicator lamp of the memory card is not flashing.

•The POWER lamp is not flashing.

• The printer is not printing.

Important

Data in the memory card may be damaged if you remove the memory card or

turn off the printer when the Indicator lamp is flashing.

Indicator lamp

The POWER lamp flashes then changes to

steady (non-flashing).

The menu screen appears on the LCD. At

this point, only the Tool box menu is

available for selection. Inserting a

memory card that contains stored photos

makes all menus available for selection.

See “Printing Photograph Displayed on

the LCD—Photo Gallery” on page 28 for

the instruction on selecting among

menus and displaying a photo stored in a

memory card.

Preparation When Using the Printer

2Turn off the printer.

(1) Turn off the printer by pressing the POWER

button.

Using a Memory Card

Let's take a look at different types of memory cards and how to insert and remove

them.

Memory Cards Supported by this Printer

Supported memory cards are as follows:

Note

Before unplugging the power cord, turn off

the printer and ensure that the lamp has

gone out.

Memory Cards which can be inserted

directly

Memory Cards which can be used

through a special adapter

• CompactFlash (CF)

card

• Microdrive

Supports TYPE I/

TYPE II (3.3V)

•xD-Picture Card

•Memory Stick

•Memory Stick PRO

•Memory Stick Duo

•Memory Stick PRO Duo

• SD Memory Card

•Multimedia Card

• miniSD Card

•SmartMedia

Supports 3.3V card

only (1 MB and 2

MB cards not

supported)

*1 Purchase the CompactFlash Card Adapter for

xD-Picture Card separately.

*2 Use the special adapter supplied with the

card.

Preparation When Using the Printer

Important

• This printer supports images taken with a camera compatible with the Design rules

for Camera File system, CIFF, Exif2.21 or earlier, JFIF, TIFF (Exif2.21 compliant) and

DPOF (Ver. 1.00 compliant).

• Photos stored in a memory card not supported by the digital camera may fail in

loading or be damaged. For types of memory cards supported by the digital camera,

refer to your digital camera user’s manual.

• Use the digital camera to format a memory card. Memory card data formats may not

be compatible with computer-specific formats.

• Images edited on the computer may result in improper printing.

Preparation When Using the Printer

Inserting a Memory Card

This printer is equipped with two Card Slots to meet various types of memory

cards. Refer to the illustration below to find the Card Slot corresponds to your

memory card.

Check the card face and insert it gently until it reaches the bottom and the

Indicator lamp turns on. The card’s end protrudes from the Card Slot even if it

is correctly set.

Important

Insert only a single type of memory card.

• For CompactFlash (CF) card, Microdrive and xD-Picture

Card*

Insert the card into the left slot with its label facing up.

• For Memory Stick, Memory Stick PRO, Memory Stick Duo*, Memory Stick

PRO Duo*, SD Memory Card, Multimedia Card, and miniSD Card*

Insert the card into the right slot with the arrow-printed side facing up.

•For SmartMedia

Insert the card into the right slot with

the gold contact facing up.

Turn on

* Use the compliant adapter.

Preparation When Using the Printer

Removing a Memory Card

Note

If you use the printer connected to your computer, follow the instructions for removal of

the memory card from the computer. For the procedure, refer to the

User’s Guide

1Ensure that the Indicator lamp is not flashing, then remove the memory

card.

Hold the exposed portion of the memory card with your fingers to remove the

memory card.

Important

Removing the memory card or turning off the printer while the Indicator lamp is

flashing can damage the data stored in the memory card.

Loading Paper

Print Media to Avoid

Do not use the following types of paper. Using such paper will not only

produce unsatisfactory results, but can also cause the printer to jam or

malfunction. Also, do not use a cut paper or memo pad.

• Folded, curled or wrinkled paper

•Damp paper

• Paper that is too thin (less than 64 gsm or 17 lb)

• Paper that is too thick* (more than 105 gsm or 28 lb)

* non-Canon brand paper

• Picture postcards

• Postcards with an affixed photo or sticker

• Any type of paper with holes

Indicator lamp

Preparation When Using the Printer

Loading the Print Media

Note

Refer to “Media Types for Card Direct Printing” on page 23.

1Turn on the printer.

(1) Press the POWER button.

2Flatten the four corners of the paper before loading it.

Note

If paper is curled, gently bend the corners in the opposite direction until the paper

becomes completely flat. See “Curled paper used” on page 80.

3Prepare to load paper.

(1) Slide the Cover Open Switch toward the right to open the Cover.

(3) Close the Cover.

(2) Open the Paper Support.

(2) Ensure that the Paper Thickness Lever is set to

the right.

Note

Set the Paper Thickness Lever on the left, only if

ink smudges or the printed surface is stained.

Preparation When Using the Printer

4Load the paper.

Note

Do not touch the printed surface until the ink dries. For specific drying times, refer to

the instructions packaged with your media.

Important

* During printing, part of the sheet

is ejected from the back of the

printer.

Leave 12cm (4.7in) or more clear

space at the back of the printer.

(1) Insert the paper into the Paper Support with print side

facing up.

When loading the credit card sized paper, load sheets

in the portrait position (feed from the short side).

(2) Align the paper with the right edge of the Auto Sheet

Feeder and insert the paper until it is fully inserted.

(3) Slide the Paper Guide

against the left side of

the stack of paper.

• 101.6×152.4mm/

4"×6" paper

•Photo stickers

Shorter margin

Preparation When Using the Printer

Media Types for Card Direct Printing

* When printing on sticker paper, select Sticker print from Print studio. When printing

photos in a mobile phone or a PDA on sticker paper, select Stickers ×16 in the

Wireless print settings screen.

Note

You may not be able to purchase some Canon brand papers depending on your country.

Media Type Paper Support

Load Limit

Page Size Media Type

Photo Paper Pro 101.6×152.4 mm/

4"×6": up to 20 sheets

[4"×6"

(101.6×152.4)]

[Photo Paper Pro]

Photo Paper Plus

Glossy

101.6×152.4 mm/

4"×6": up to 20 sheets

[4"×6"

(101.6×152.4)]

[Photo Plus Glossy]

Photo Paper Plus

Semi-gloss

101.6×152.4 mm/

4"×6": up to 20 sheets

[4"×6"

(101.6×152.4)]

[Photo Plus Glossy]

Glossy Photo

Paper

101.6×152.4 mm/

4"×6": up to 20 sheets

[4"×6"

(101.6×152.4)]

[Glossy Photo Paper]

Credit Card:

up to 20 sheets

[Credit card] [Glossy Photo Paper]

Matte Photo

Paper

101.6×152.4mm/

4"×6": up to 20 sheets

[4"×6"

(101.6×152.4)]

[Matte Photo Paper]

Photo Stickers 101.6×152.4 mm/

4"×6": up to 1 sheet

—* —

Preparation When Using the Printer

Changing the Print Settings

This section explains the print settings you can set from the LCD and the buttons

you should use to set them.

To Change Print Setting

This section describes the steps to change the print settings using the Effects

setting as an example. For information on each item, see “Print Setting Items”

on page 25.

1Press Settings button on the operation panel.

The Settings screen is displayed.

2Select the Settings tab.

3Select an item to set.

Note

You can display the Settings screen from any

screen by pressing the Settings button on the

operation panel.

Press the WX buttons to select the Settings

tab.

Select tab 2.

Press the ST buttons to select a setting

item.

Select No effects here.

Preparation When Using the Printer

4Display the selected item.

5Complete setting.

Press the Settings button.

Note

You can save the print settings.

1Press the Menu button on the operation panel.

2Use the WX buttons to select Tool box and then press the OK button.

3Use the WX buttons to select Device settings and then press the OK button.

4Use the ST buttons to select Save settings and then press the OK button.

5Use the ST buttons to select Yes and press the OK button.

You can print photos applying the saved print settings when you select Load settings.

Print Setting Items

The Settings tab contains the following setting items.

Tab1

•Page size

Select the page size for the print job.

•Media type

Select the media type.

•Print quality

Standard.................Gives priority to speed over quality when printing.

High .......................Gives priority to quality over speed when printing.

Press the WX buttons to display the

selected item.

Change to Sepia here.

Note

For information on available media types and on setting Page size and Media type,

refer to “Media Types for Card Direct Printing” on page 23.

Preparation When Using the Printer

•Border

Bordered ................Prints with a border.

Borderless ..............Prints on the whole paper without a border.

• Date/file no.

No date/file no........Does not print the date the photo was taken.

Print date only.........Prints the date the photo was taken.

Print file no. only .....Prints file numbers (DCF numbers) on photos.

Print date & file no. .Prints shooting dates and file numbers (DCF numbers)

on photos.

Tab2

• Red eye correction ON/Red eye correction OFF

If you select Red eye correction ON, the Red eye correction function corrects

red-eye caused by reflection when the flash hits a person’s eyes.

• Vivid photo ON/Vivid photo OFF

If you select Vivid photo ON, Vivid photo function (Greens and blue are

printed more brightly) is used.

• Photo optimizer pro ON/Photo optimizer pro OFF

If you select Photo optimizer pro ON,

Photo optimizer pro function

automatically corrects the image brightness and color.

• Noise reduction ON/Noise reduction OFF

If you select Noise reduction ON, digital camera noise (which may be seen

in dark areas or areas such as sky) is reduced.

• Face brightener ON/Face brightener OFF

If you select Face brightener ON, the Face brightener function activates and

prints darkened faces brighter when printing photos taken against a bright

light.

• Image optimizer ON/Image optimizer OFF

If you select Image optimizer ON, the Image optimizer function corrects the

contours and smooths out the jaggedness.

Note

You can change the date display format.

See “Changing the Other Settings” on page 43.

Preparation When Using the Printer

• Brightness

Adjusts the brightness of a printed image.

Brightness +2/Brightness +1/Brightness standard/Brightness -1/

Brightness -2

• Contrast

Adjusts the contrast of a printed image.

Contrast +2/Contrast +1/Contrast standard/Contrast -1/Contrast -2

•Color hue

Adjusts the color hue of a printed image.

Color hue red +2/Color hue red +1/Color hue original/Color hue yellow +1/

Color hue yellow +2

• Effect

No effects ....................Prints a photo without any processing.

Sepia...........................Prints a photo using sepia tones only.

Simulate illustration.....Prints a photo in the manner of an illustration.

Printing from the Memory Card

Printing Photograph

You can print the photos you took and stored in a memory card while displaying on

the LCD. You can print your favorite photos one by one, or display a list of the

photos and specify the number of copies to print for each photo listed.

Note

If you leave the printer more than five minutes without using any button on the

operation panel, the LCD goes into sleep mode automatically. Press the OK button to

turn on the LCD again.

Printing Photograph Displayed on the LCD—Photo Gallery

You can display the photos stored in the memory card on the LCD and print

them.

1Prepare to print.

To prepare the printer for printing:

(1) Turn on the printer.

See “Turning On the Printer” on page 16.

(2) Load the paper.

See “Loading Paper” on page 20.

(3) Insert the memory card into the Card Slot.

See “Inserting a Memory Card” on page 19.

Note

Menu Screen

The menu screen is displayed when the printer is turned on. Tool box is the only

available menu at the moment. All menu options can be viewed when a memory card

with stored photos is inserted into the Card Slot.

Press the Menu button to display the menu screen if the other screen is displayed.

Printing from the Memory Card

2Select Photo gallery.

3Select the photo to print.

Notes

Displaying Photos Automatically on the LCD

You can automatically display photos stored in a memory card on the LCD.

•Press the OK button when viewing photos in the Photo gallery to start the

slideshow.

•Press the Stop/Reset button when viewing a slideshow to stop the slideshow.

You can set the picture quality of the slideshow. See “Changing the Other Settings”

on page 43.

You can do...

• You can zoom in/out on the photo on the LCD using the buttons.

• See “Searching for Photos with the Shooting Date—Search” on page 32.

• See “Printing a Specified Area—Trimming” on page 34.

(1) Press the Menu button.

(3) Press the OK button.

The stored photo is displayed

on the LCD.

Note

The watch icon may appear when

importing photos from a memory

card.

(2) Use the WX buttons to select

Photo gallery.

(1) Using the WX buttons, select the image to print.

(2) Press the Print button.

The print confirmation screen is displayed.

Printing from the Memory Card

4Confirm the settings.

(2) Confirm the Page size,Media type and Print quality.

To change any of the settings, press the Settings button on the operation panel.

See “To Change Print Setting” on page 24.

5Start printing.

(1) Ensure that the paper is loaded in the print confirmation screen.

Specifying How Many Copies to Print for Each Photograph—

Photo Print

You can specify the number of copies to print for each photo.

1Prepare to print.

See “Preparation When Using the Printer” on page 16.

2Select Photo print.

(1) Press the Menu button.

(2) Use the WX buttons to select Photo print and press the OK button.

Photos stored in the memory card are displayed.

(1) Press the ST buttons to

specify the number of copies

to print.

The number of copies

(2) Press the Print button.

Printing from the Memory Card

3Specify the number of copies to print.

(1) Use the WX buttons, select the photo you want to print.

(3) Repeat steps (1) and (2) and specify the number of copies for each photo you want

to print.

(4) Press the OK button.

The print confirmation screen is displayed.

Note

You can do...

• You can zoom in/out on the photo on the LCD using the buttons.

• See “Searching for Photos with the Shooting Date—Search” on page 32.

• See “Printing a Specified Area—Trimming” on page 34.

4Start printing.

(1) Confirm the Page size and Media type.

To change any of the settings, press the Settings button.

See “To Change Print Setting” on page 24.

(2) Press the Print button.

The specified number of copies for each image will be printed.

(2) Use the ST buttons to specify the number of

copies to print.

Printing from the Memory Card

Other Useful Functions

You can print your favorite photo as a postcard or sticker using the following

features.

• “Searching for Photos with the Shooting Date—Search” on page 32

• “Printing a Specified Area—Trimming” on page 34

• “Printing Multiple Photos on One Sheet of Media—Layout Print” on page 35

• “Printing Stickers from a Photo—Sticker Print” on page 37

• “Printing with Adjusted Color Balance—Color Balance” on page 38

• “Other Print Functions” on page 41

Searching for Photos with the Shooting Date—Search

When there are many photos stored on the memory card, you can select photos to

display or print by specifying the shooting date with the search function.

Notes

• You can use the search function to specify a date or date range from the Photo

gallery,Photo print,Layout print,Sticker print or Color balance menus to display or

print only photos that match the dates you set.

• If you have specified the number of copies to print for photos or pasted photos to

specify the layout before using the search function, the photos will be printed even

if they are excluded by the search.

• You can use the Print all photos and Photo Index print menus to print photos from

the date or date range you set.

1Set the search method.

(1) Press the Search button on the operation

panel.

The Search screen is displayed.

(2) Use the ST buttons to select a search

method, then press the OK button.

One date only

Sets the search date to one specific day.

Select date range

Specifies a range of dates to search.

Note

There may be a delay before the Search screen is

displayed, depending on the number of photos

stored in the memory card.

Printing from the Memory Card

2Specify a date range.

•If you select One date only

•If you select Select date range

Notes

• The date that you specified is displayed in the format that you set at the Date

display setting. See “Date display” on page 43.

• To cancel the search mode, follow the procedure below.

1Press the Search button.

The Search screen is displayed.

2 Select Cancel search, and press the OK button.

The search mode is canceled and all the photos in the memory card can be

displayed and printed.

Removing the memory card also cancel the search mode.

(1) Use the WX buttons to select the shooting

date to search and then press the OK button.

You can display the photos that are shot within

the specified date.

(1) Use the WX buttons to select the earliest

shooting date to search and then press the OK

button.

(2) Use the WX buttons to select the latest

shooting date to search and then press the OK

button.

You can display the photos that are shot within

the specified range of date.

Printing from the Memory Card

Printing a Specified Area—Trimming

You can print a specified area of the photo displayed on the LCD.

Note

Please trim the photo after specifying Page size,Media type, and Borderless/Bordered

on each settings screen. If you change the settings after trimming the photo, the

trimmed selection will be lost.

1Select the photo to trim.

Use the WX buttons to select the photo.

2Set the Trimming Mode.

3Trim the sections you want to print.

•Trimming button: you can rotate the trimming area.

•STW X buttons: you can move the trimming area.

• buttons: you can enlarge or reduce the trimming area.

4Finalize the trimmed area.

(1) Press the OK button.

The trimming area is fixed and the original photo is displayed.

Notes

• Trimming limits are displayed on photographs that have been trimmed.

• Once the trimmed area is finalized, if you press the Trimming button again, you can

modify the trimmed area.

• If you want to cancel the trimming mode, press the Trimming button and then press

the Stop/Reset button in the Trimming screen. Removing the memory card also

cancels the trimming mode.

• You cannot save the trimmed image to a memory card.

Press the Trimming button on the operation

panel.

The printer is now in Trimming Mode.

Printing from the Memory Card

Printing Multiple Photos on One Sheet of Media—Layout Print

You can print the specified photo in the specified layout (Borderless or

Bordered ×2/×4/×8/Half, borderless/Half, bordered/Half, borderless (w/

lines)/Half, bordered (w/lines)/Album (4/right)/Album (4/left)).

1Prepare to print.

See “Preparation When Using the Printer” on page 16.

2Select Layout print.

(1) Press the Menu button.

(2) Use the WX buttons to select Print studio and then press the OK button.

The Print studio menu is displayed.

(3) Use the WX buttons to select Layout print and then press the OK button.

The screen for specifying the layout is displayed.

3Specify the layout.

Borderless

Bordered

×2 ×4 Half×8

Half

(w/lines)

(1) Use the WX buttons to select the layout.

(2) Press the OK button.

The screen for specifying the paste method is

displayed.

Printing from the Memory Card

4Select the paste method.

(1) Use the ST buttons to select the paste method and then press the OK button.

Paste all

All the photos in the memory card are pasted automatically in the selected layout.

Print confirmation screen is displayed. Proceed to step 6.

Paste one by one

Paste photos one by one on the specified layout. Proceed to step 5.

Note

You can do...

• You can zoom in/out on the photo on the LCD using the buttons.

• See “Searching for Photos with the Shooting Date—Search” on page 32.

• See “Printing a Specified Area—Trimming” on page 34.

5Paste photos one by one.

(2) Press the OK button.

The photo is pasted on the layout.

(3) Repeat steps (1) and (2) for each photo you want to print.

Press the Back button to cancel pasting the specified photo.

Press the Stop/Reset button to clear all photos pasted in the selected layout.

(4) Press the Print button.

The print confirmation screen is displayed.

Note

You cannot paste photos on more than one page. Start printing once you have pasted

photos on one page.

6Start printing.

(1) Confirm the Page size and Media type.

To change any of the settings, press the Settings button.

See “To Change Print Setting” on page 24.

(2) Use the ST buttons to specify the number of copies to print.

(3) Press the Print button.

Printing the photos pasted on the specified layout is started.

(1) Use the WX buttons to display the photo you

want to paste.

Printing from the Memory Card

Printing Stickers from a Photo—Sticker Print

You can print your favorite photo on the Canon Photo Stickers.

1Prepare to print.

See “Preparation When Using the Printer” on page 16.

2Select Sticker print.

(1) Press the Menu button.

(2) Use the WX buttons to select Print studio from the menu screen and then press

the OK button.

The Print studio menu is displayed.

(3) Use the WX buttons to select Sticker print and then press the OK button.

The screen for specifying the layout is displayed.

3Specify the layout.

(1) Use the WX buttons to specify the layout.

(2) Press the OK button.

The photo selection screen is displayed.

4Select the photo to print.

(1) Use the WX buttons to select the photo you want to print.

(2) Press the OK button.

Note

You can do...

• You can zoom in/out on the photo on the LCD using the buttons.

• See “Searching for Photos with the Shooting Date—Search” on page 32.

• See “Printing a Specified Area—Trimming” on page 34.

Stickers ×16

Printing from the Memory Card

5Select a frame.

Notes

• To print without a frame, press the OK button without pressing anything else.

• If the photo is upside-down, you can use the ST buttons to rotate the photo 180

degrees and adjust the frame up or down for printing.

• If you want to rotate a photo 90 degrees to match a frame, adjust the size of the

trimming area. See “Printing a Specified Area—Trimming” on page 34.

(2) Press the OK button.

The print confirmation screen is displayed.

6Start printing.

(1) Confirm the Page size.

(2) Use the ST buttons to specify the number of copies to print.

(3) Press the Print button.

Specified photo will be printed on the photo stickers.

When printing stickers, be sure to load the media so that it faces in the correct

direction. See “Loading the Print Media” on page 21.

Printing with Adjusted Color Balance—Color Balance

This function allows you to print a sample of a photo in 9 different hues on a

single sheet of paper. You can then select the hue you like from the sample

and print a final copy.

1Prepare to print.

See “Preparation When Using the Printer” on page 16.

2Select Color balance.

(1) Press the Menu button.

(2) Use the WX buttons to select Print studio, and press the OK button.

The Print studio menu is displayed.

(3) Use the WX buttons to select Color balance, and press the OK button.

The photo selection screen is displayed.

(1) Use the WX buttons to select a frame.

Printing from the Memory Card

3Select a photo to print.

(1) Use the WX buttons to display the photo you want to print.

(2) Press the OK button.

Note

You can do...

• You can zoom in/out on the photo on the LCD using the buttons.

• See “Searching for Photos with the Shooting Date—Search” on page 32.

• See “Printing a Specified Area—Trimming” on page 34.

4Print a sample.

If you have already printed a sample or you want to omit this procedure, select

No to skip to the step 5.

(1) Use the ST buttons to select Yes, then press the OK button.

(2) Confirm your print settings.

Press the Settings button to change print settings if necessary.

(3) Press the Print button.

A sample is printed.

5Select a hue.

After printing a sample, the hue selection screen is displayed on the LCD.

Refer to the sample photo, and select the number of the hue you like.

Printing from the Memory Card

Note

Depending on the paper you use, you may need to wait for a few minutes to let the

colors settle. Wait until the colors of the sample photo settle, then select the number of

the hue that you like.

6Start printing.

(1) Confirm your print settings.

Press the Settings button to change print settings if necessary. See “To Change

Print Setting” on page 24.

(2) Use the ST buttons to set the number of copies you want to print.

(3) Press the Print button.

The photo will be printed in your favorite color tone.

(1) Use the STW X buttons to select the number of

the hue that you like.

(2) Press the OK button.

The print confirmation screen is displayed.

Sample photo

Bright/Soft

Brightness/Contrast

Dark/Sharp

Yellow Color tone Red

Printing from the Memory Card

Other Print Functions

Print studio also contains the following print menus.

• Print all photos

You can print all photos saved on a memory card.

• Photo Index print

You can print a list of all photos saved in the memory card.

•DPOF print

If DPOF (Digital Print Order Format) settings are made on the camera,

photos are printed automatically according to those settings.

1Prepare to print.

See “Preparation When Using the Printer” on page 16.

2Select a print menu.

(1) Press the Menu button.

(2) Use the WX buttons to select Print studio and then press the OK button.

(3) Use the WX buttons to select a print menu, and press the OK button.

Note

When using index printing, the number of images printed on a single sheet of

paper depends on the page size, as follows:

– 4"×6"/101.6×152.4 mm: 24 images

– Credit card: 6 images

Notes

• This printer allows you to make the following DPOF settings:

–Image format: CIFF, Exif (Tiff), and JFIF

–Print type - Standard: The Photos for which you specified Standard using the

DPOF function are printed.

–Print type - Index: The photos for which you specified Index using the DPOF

function are printed according to the index print layout.

–Photos to Print: Only the photos specified using the DPOF function is printed

(photos cannot be specified from the operation panel).

–Copies: photos are printed according to the numbers of copies specified

using the DPOF function (numbers of copies cannot be specified from the

operation panel).

– Other functions (addition of comments, trimming/rotation, etc.) are not

supported.

• Photos are automatically scaled according to the page size. The upper, lower,

left, and/or right portion(s) of the photo may be missing depending on the size

of the paper you use.

• The shooting date format is as specified in the DPOF setting from DPOF print.

Printing from the Memory Card

Note

You can do...

• You can zoom in/out on the photo on the LCD using the buttons.

• See “Searching for Photos with the Shooting Date—Search” on page 32.

• See “Printing a Specified Area—Trimming” on page 34.

3Start printing.

(1) Confirm your settings.

To change any of the settings, press the Settings button.

See “To Change Print Setting” on page 24.

(2) Use the ST buttons to set the number of copies you want to print.

You cannot select print quantities for DPOF print.

(3) Press the Print button.

Print all photos: All photos saved on the memory card are printed.

Photo Index print: A list of all photos saved on the memory card is printed.

DPOF print: The photos are printed according to the DPOF information on the

memory card.

Printing from the Memory Card

Changing the Other Settings

This section explains the setting menu in the Device settings.

1Turn on the printer.

2Press the Menu button.

3Use the WX buttons to select Tool box and then press the OK button.

4Use the WX buttons to select Device settings and then press the OK

button.

For the rest of the procedures, see each setting menu.

Date display

You can change the format for printing the date.

(1) Use the ST buttons to select Other settings and then press the OK button.

(2) Use the ST buttons to select Date display and then press the OK button.

(3) Use the ST buttons to select the date display format and then press the OK

button.

Note

The shooting date format is as specified in the DPOF setting from DPOF print.

Adjust contrast

You can adjust contrast of the LCD, if it is too high or too low. This adjustment

does not operate on printings.

(1) Use the ST buttons to select Other settings and then press the OK button.

(2) Use the ST buttons to select Adjust contrast and then press the OK button.

(3) Use the WX buttons to increase or decrease contrast and then press the OK

button.

Slide show setting

You can select whether to display photos quickly or in fine detail during the

slide show.

(1) Use the ST buttons to select Other settings and then press the OK button.

(2) Use the ST buttons to select Slide show setting and then press the OK button.

(3) Use the ST buttons to select Image quality: Std or Image quality: High and then

press the OK button.

Printing from the Memory Card

Language selection

You can change the language displayed on the LCD.

(1) Use the ST buttons to select Language selection and then press the OK button.

(2) Use the ST buttons to select a language and then press the OK button.

Reset setting

You can reset all settings, other than the display language and the Print Head

position, to the initial state.

(1) Use the ST buttons to select Reset setting and then press the OK button.

(2) Use the ST buttons to select Yes and then press the OK button.

Printing Photographs Directly from a Digital Camera

Printing Photographs Directly from a

Digital Camera

Printing Photographs Directly from a PictBridge

Compliant Device

Connecting a PictBridge compliant device such as digital camera, camcorder or

mobile phone to the printer allows you to print recorded images directly without

using a computer.

Notes

• PictBridge is an Industry standard enabling a range of digital photo solutions,

including the direct printing of photos from a digital still camera, camcorder or

mobile phone* without the need to use a computer.

• Canon Bubble Jet Direct allows you to print photos from a Canon Bubble Jet Direct

compatible (PictBridge incompatible) digital camera or digital video camcorder

without a computer by simply connecting the digital camera or digital video

camcorder to this printer.

* Hereafter, the PictBridge compliant digital still camera, digital camcorder camera

equipped mobile phone are collectively called a PictBridge compliant device.

Connecting to a PictBridge Compliant Device

To connect a PictBridge compliant device to this printer, use the USB cable

supplied with the device.

Do not connect any equipment other than PictBridge compliant devices, Canon Bubble

Jet compatible camera, or the Bluetooth unit (option) to the Direct Print Port of the

printer. If you do so, electric shock, fire, or damage to the device could result.

Note

When producing photos with the digital device connected to the printer, it is advisable

to use the AC adapter supplied with the device. If you use the device battery, be sure to

charge it fully.

1Set up the printer for printing.

See “Easy Setup Instructions” on page 3.

2Turn on the printer.

See “Turning On the Printer” on page 16.

Printing Photographs Directly from a Digital Camera

3Load the 101.6×152.4mm/4"×6" paper into the Paper Support in the

portrait position (feed from the short side) with the print side facing up.

4Connect the PictBridge compliant device to the printer.

Note

Depending on the model or brand of your device, you may have to select a mode of

printing photos compliant with PictBridge before connecting the device.

You may also have to turn on the device or select Play mode manually after connecting

the device to the printer.

Perform necessary operations according to the instruction manual supplied with your

device.

(1) Ensure that the device is turned off.

(2)

Connect the camera to the printer using the USB cable (for connection to a computer)

supplied with the device

Note

Some types of the PictBridge compliant devices turn on automatically when connected

to the printer. If the device not turns on automatically, turn it on manually.

(3) Turn on and set up the device for direct printing.

When the connection between the device and printer has been established, the

POWER lamp on the printer flashes twice.

* The power-on sequence may differ depending on the model or brand of the

device.

Either of the following icons will display on the LCD display of the device when

the printer is correctly connected.

A PictBridge compliant device.

* This mark indicates that the product is PictBridge-compatible.

A Canon Bubble Jet Direct compatible digital camera.

If the icon does not appear, see “Cannot Print Properly from the Digital

Camera” on page 81.

Printing Photographs Directly from a Digital Camera

Confirming or Changing the Device Settings

To change the paper size or paper type, operate the device to select the

PictBridge print setup mode and confirm or change the settings.

The settings below can be changed by pressing the S

Settings button when the

device is connected. However, changes can be made on the Settings screen

only when the corresponding items below are in D

Default (selections based on

the printer setting) using the controls of the device.

About the Settings Explained Below

The settings explained on the following pages cannot be made on some

devices. If any setting cannot be made, the default setting explained above is

used.

Names of settings that are displayed on Canon PictBridge compliant devices

are used in the description given below.

Different names may be displayed on your device depending on the brand or

model.

For details, refer to your device’s instruction manual.

About Image Data Format for Printing

This printer accepts images* taken with a camera compatible with the Design

rule for Camera FIle system and PNG files.

*Exif 2.21 compliant

About “Paper size” and “Paper type”

When you have selected DDefault (selections based on the printer setting), the

printer operates based on the Settings screen. To print on Photo Paper Pro,

select F

Fast Photo from PPaper type on the display of the device. Select PPhoto for

PictBridge compliant device

setting items

Printer setting on the Settings screen

Paper size: Default You can change the printer settings on tab1.

See “Print Setting Items” on page 25.

Paper type: Default

Layout: Default

Image Optimize: Default You can change the printer settings on tab2.

See “Print Setting Items” on page 25.

Printing Photographs Directly from a Digital Camera

Photo Paper Plus Glossy. The following sizes and types of paper can be loaded

in the printer by selecting options from P

Paper size and PPaper type.

* Sticker media manufactured by Canon. Set Paper size to 10×15cm/4"×6"

when printing stickers.

About “Layout” and “Trimming”

For LLayout, when you have selected DDefault (selections based on the printer

setting), the printer operates based on the Settings screen.

Note

When printing onto Photo Stickers (PS-101) (16-up), use the following settings.

1 Load the paper.

2 Select 1

10× 15 cm/4" × 6" for the PPaper size, and PPhoto for the PPaper type.

3 Select N-up for Layout, then select 16.

Some PictBridge compliant devices display the Layout option; 2

2-up,44-up,99-up, and

16-up. In this case always select 16-up. If there are no options on the PictBridge

compliant device that correspond to 2-up, 4-up, 9-up, or 16-up, printing on stickers is

not possible.

By default, OOff (NNo trimming) is selected for TTrimming.

About “Image optimize”

When you have selected DDefault (selections based on the printer setting), the

printer operates based on the Settings screen.

If you use a Canon PictBridge-compliant device, you can select V

VIVID,NNR,

VIVID+NR, or F

Face. (Note that these options cannot be selected for some

models.)

Notes

•When VVIVID is selected, green and blue portions of photos are printed vividly.

•When NNR (Noise Reduction) is selected, noise in blue portions, such as the sky, and

dark portions is removed.

•When V

VIVID+NR is selected, functions of both VVIVID and NNR are performed.

•When Face is selected, backlit images are corrected when printed.

“Paper size” setting “Paper type” setting Paper loaded in printer

10×15 cm / 4"×6" Photo Photo Paper Plus Glossy

Photo Paper Plus

Semi-gloss

Glossy Photo Paper

Photo Stickers*

Fast Photo Photo Paper Pro

5.4×8.6 cm / Credit Card Photo Glossy Photo Paper Credit

Card

Printing Photographs Directly from a Digital Camera

About “Date/File No. print”

By default, OOff is selected for this printer.

If you select an image which has had the shooting date embedded in it using a

camera with print mode, select O

Off for this function. If you select Date, File No.,

or Both, the date or file number will be printed over the embedded date.

Notes

• Never disconnect the USB cable during printing.

When disconnecting the USB cable between the product and printer, follow the device

instructions given in the Instruction manual.

• Controls of the digital camera cannot be used for the following:

– Print quality setting

–Printer maintenance

• For the device operation method and troubleshooting, refer to your device’s manual.

• For print error messages, refer to “Cannot Print Properly from the Digital Camera” on

page 81.

Printing Photographs Directly from a Digital Camera

Printing Photographs Directly from a

Canon Bubble Jet Direct Compatible Digital Camera

The following is a list of media types that can be set on a Canon Bubble Jet Direct

compatible digital camera or digital video camera (PictBridge incompatible) along

with their limitations when connected to this printer.

Media Types for Digital Camera

When you connect a digital camera, you can use the following media:

Notes

• For the digital camera operation method and troubleshooting, refer to your digital

camera’s manual.

For print error messages, see “Cannot Print Properly from the Digital Camera” on

page 81.

• By operating the digital camera, you can make the following prints:

– You can make a standard print from the photo displayed in the single display

mode or in the index display mode.

– You can print specified numbers of photos, or make an index print by editing the

DPOF.

– For the images taken with an Exif Print compatible digital camera, the ExifPrint

function can be used.

– If date printing is set from the digital camera, the date when the photograph was

taken is to be printed (excluding the index print).

– Photos will be scaled automatically according to the image size set on the digital

camera and the size of the media set on the printer.

• The digital camera does not support the following functions:

– Print quality setting

– Printer maintenance

• Index printing can only be specified for images that were taken with a camera

compatible with the Design rule for Camera File system (Exif2.21 compliant).

Digital Camera Setting Media Type

Card #1 Photo Paper Pro 4"×6" / 101.6×152.4 mm

Card #2 Photo Paper Plus Glossy 4"×6" / 101.6×152.4 mm

Photo Paper Plus Semi-gloss

4"×6" / 101.6×152.4 mm

Glossy Photo Paper 4"×6" / 101.6×152.4 mm

Card #3 Not supported

LTR Not supported

A4 Not supported

Printing Photographs from a Wireless Communication Device

Printing Photographs from a Wireless

Communication Device

If you have a mobile phone or a PDA with an infrared port for wireless data

transmission, you can print photos through a cordless connection with the printer.

If the optional Bluetooth unit BU-20 is connected to the printer, you can also print

photos through Bluetooth communication.

When printing photos through Infrared Communication:

• See “Setting the Page Size, Media Type, and Layout When Printing from a

Mobile Phone or a PDA” below.

• See “Performing Infrared Communication” on page 53.

When printing photos through Bluetooth Communication:

• See “Setting the Page Size, Media Type, and Layout When Printing from a

Mobile Phone or a PDA” below.

• See “Performing Bluetooth Communication” on page 55.

Setting the Page Size, Media Type, and Layout When

Printing from a Mobile Phone or a PDA

You can select the page size, media type, layout and borderless printing on

the Wireless print setting screen when printing from a mobile phone or a PDA

through Infrared communication or Bluetooth communication.

The initial setting is borderless printing on 4" x 6" Photo Paper Plus Glossy.

1Turn on the printer.

2Display the Wireless print settings screen.

(1) Press the Menu button.

(2) Use the WX buttons to select Tool box and then press the OK button.

(3) Use the WX buttons to select Device settings and then press the OK button.

(4) Use the ST buttons to select Wireless print settings and then press the OK

button.

The Wireless print settings screen is displayed.

3Confirm or change the settings.

(1) Use the ST buttons to select the item to set.

(2) Use the WX buttons to change the setting.

Printing Photographs from a Wireless Communication Device

(3) Press the OK button after finishing all settings you need.

The photos in the mobile phone or the PDA can be printed according to the

following settings.

Setting Items

(1) Select the page size for the wireless print.

(2) Select the media type for the wireless print.

Note

For information on wireless print compatible page size and media type, see “Media

Types for Card Direct Printing” on page 23

(3) Corrects the contours and smooths out the jaggedness.

Image optimizer ON/Image optimizer OFF

(4) Select the layout of the photos as below.

Sticker print:

Stickers x 2, x 4, x 9, x 16

Free-cut stickers 1, 2, 3, 4

Printing on paper other than sticker:

Bordered, x 2, x 4, x 8

Borderless, x 2, x 4, x 8

Note

When printing on Canon Photo Stickers, make the settings as below.

(1)

(2)

(3)

(4)

Page size Media type Layout

Stickers Photo Plus Glossy Stickers ×16

Printing Photographs from a Wireless Communication Device

Performing Infrared Communication

You can print photos in your mobile phone or PDA.

When printing through infrared communication, also refer to the manual of your

mobile phone or PDA.

1Turn on the printer.

2Load the paper.

See “Loading Paper” on page 20.

3Set the print setting.

See “Setting the Page Size, Media Type, and Layout When Printing from a

Mobile Phone or a PDA” on page 51.

4Start Infrared Communication.

(1) Oppose the infrared port of the mobile phone or the PDA to that of the printer at a

distance of less than 7.9 inch (20 cm).

Note

The effective angle of the Infrared Port of the printer is about 10° from the central axis

in both vertical and horizontal directions.

The allowable distance of communication with the printer depends on the mobile

phone or the PDA you use. For this distance, refer to the manual of your mobile phone

or PDA.

(2) Select the photo to print and send the data to the printer using the infrared

communication function of the mobile phone or the PDA.

Printing will start after receiving all data.

Infrared Port of printer

Less than 7.9 inch (20 cm)

(Do not block with any

obstacle.)

Effective angle

(in both vertical and horizontal direction): About 10°

Infrared Port

Printing Photographs from a Wireless Communication Device

Notes

• In order to use infrared communication, your mobile phone or PDA must satisfy the

following requirements:

– The mobile phone or PDA must have an IrDA port and be compatible with image

data transfer using infrared communication.

– Printable contents: Image taken with a camera-equipped mobile phone or PDA.

• For the procedure to print from your mobile phone or PDA, refer to the manual of

your mobile phone or PDA.

• Do not place any obstacle between the infrared ports of the printer and mobile

phone or PDA. Data cannot be transmitted between them.

• During printing, be careful not to interrupt infrared communication with the printer.

If it is interrupted, send the data from the mobile phone or the PDA again.

• Depending on your device, the Fine print quality option may not be available due to

the restriction on the infrared transfer capacity.

• We recommend printing on sticker or credit card-sized paper when the print quality

on other types of paper is not fine.

About transmittable data

• It does not support printing a downloaded content or photo and a photo attached to

an E-mail for security reason.

• It does not support printing video files.

• Depending on your device, it may not print data stored in a memory card.

• Depending on the size of a photo, it may take a while for this printer to start to print

after starting the infrared transfer.

• It automatically sets the photo quality and orientation (horizontal or vertical)

according to the photo size.

• It automatically sets to the margin according to the photo size.

Printing Photographs from a Wireless Communication Device

Performing Bluetooth Communication

This section explains the procedure to print photos through Bluetooth

communication from the mobile phone or the PDA with the optional Bluetooth unit

BU-20.

Note

The printer cannot print data from a PC via a Bluetooth communication.

 Requirements for Bluetooth Communication

The following requirements must be met when printing via a Bluetooth

communication.

•Compatible devices

OPP (Object Push Profile) or BIP (Basic Imaging Profile) compatible mobile

phones equipped with Bluetooth.

Refer to the user’s manual of your mobile phone to ascertain whether it fits

this profile.

•Printable contents

Image taken with a camera-equipped mobile phone or PDA.

Printing through Bluetooth communication

When you print through Bluetooth communication from a mobile phone or a

PDA, refer to the manual of your mobile phone or PDA.

1Prepare to print.

(1) Turn on the printer.

(2) Load the paper

See “Loading Paper” on page 20.

2Attach the Bluetooth unit BU-20 to the printer.

Printing Photographs from a Wireless Communication Device

3Set the print setting.

See “Setting the Page Size, Media Type, and Layout When Printing from a

Mobile Phone or a PDA” on page 51.

4Start printing from a mobile phone or a PDA.

For the procedure to print from your mobile phone or PDA, refer to the manual

of your mobile phone or PDA.

• When you select the device name, select the initial value “Canon DS810-1”.

• If you are required to enter the passkey, enter the initial value “0000”.

You can change the device name of the printer or passkey in Bluetooth

settings on the printer. See “Changing the Bluetooth Settings—Bluetooth

settings” on page 56.

Notes

• Communication is possible up to about ten meters depending on the conditions

below. The printing speed may change depending on the following conditions:

– Presence of obstacles between the communication equipment and radio wave

conditions.

– Presence of magnetic fields, static electricity or electromagnetic interference.

– Receiver sensitivity and antenna performance of the communication equipment.

• For the transmittable data, refer to “About transmittable data” on page 54.

Changing the Bluetooth Settings—Bluetooth settings

You can change settings such as device name of a printer and passkey in

Bluetooth settings.

1Turn on the printer.

2Connect the Bluetooth unit BU-20 to the Direct Print Port.

Note

The Bluetooth settings screen is displayed only when the optional Bluetooth unit BU-

20 is attached to the printer.

3Display the Bluetooth settings screen.

(1) Press the Menu button.

(2) Use the WX buttons to select Tool box and then press the OK button.

(3) Use the WX buttons to select Device settings and then press the OK button.

(4) Use the ST buttons to select Bluetooth settings and then press the OK button.

The Bluetooth settings screen is displayed.

Printing Photographs from a Wireless Communication Device

4Change the setting.

(1) Use the ST buttons to select the setting item you want to change.

(2) Use the WXST buttons to select the items you want to set then press the OK

button.

(3) After setting all necessary items, press the OK button.

Setting Items

•Device name: Select the device name of this printer displayed on

the screen of the Bluetooth devices.

When you set DS810-2, the printer name on the

Bluetooth device is “Canon DS810-2”.

The initial value is set to DS810-1.

•Access refusal:Selecting ON will disable searching and printing

from Bluetooth devices.

•Security:Selecting Enable will enable a passkey to be set.

Setting a passkey will prevent incorrect access

from other Bluetooth devices.

•Passkey: You can change the passkey. The passkey refers to

an identification number to be determined. It is

used to prevent incorrect access from other

Bluetooth devices.

The initial value is set to “0000”.

After you change the passkey, you are required to

enter the new passkey again. Enter the new

passkey to Bluetooth device.

Printing with the Computer

Installing the printer driver on your personal computer enables you to connect it to

the printer for printing.

Notes

• This product package does not include a USB cable. Please purchase one

separately.

• This section explains how to install the printer driver, and how to use the

User’s

Guide

. Refer to the

User’s Guide

for instructions on how to open the printer driver

and how to print from your personal computer.

Installing the Printer Driver

To prepare your printer for printing, you must copy some software called a

“Printer Driver” to the hard disk in your personal computer, in a process called

“Installation”.

Installing the Printer Driver—Windows®

Notes

• Use a computer equipped on which Windows XP or Windows 2000 can operate.

• Do not disconnect the cable or remove the CD-ROM during the installation. The

driver cannot be correctly installed.

• The screens below refer to Windows XP installation. Screens may differ depending

on the operating system you are using.

• Before installing the driver, disable all anti-virus programs and automatically

loading programs.

• When installing the printer driver in Windows XP or Windows 2000, log on to the

system as a member of the Administrators group.

• Do not switch users during the installation process.

• If the following screen appears automatically, click

Cancel to quit the screen and turn off the printer.

Next, remove and replace the USB cable connected

to your computer. Then follow steps 3 to 10 to install

the printer driver.

1Prepare the Printer.

See “Easy Setup Instructions” on page 3.

Printing with the Computer

2Ensure that the printer and computer are turned off.

3Turn on the computer and start Windows. If any applications

automatically run, quit them.

Disable any anti-virus programs.

Do NOT turn the printer on at this stage.

4Place the

Setup Software & User’s Guide CD-ROM

in the CD-ROM drive.

Notes

• If the installer in the CD-ROM does not run automatically, click Start and select My

Computer, then double-click the CD-ROM icon.

For Windows 2000, double-click My Computer in the Windows screen, then double-

click the CD-ROM icon.

• If the language selection screen appears, select a language, then click OK.

• If the place selection message appears, select your place of residence, then click

When the screen shown on the right is displayed,

click

Easy Install

Note

There are two types of the printer driver installations: the Easy Install installation and

the Custom Install installation.

Select Easy Install in order to install application software, On-screen Manual and

printer drivers. Select Custom Install in order to choose the options you would like to

install.

6When the list of applications to install

appears, verify the contents, click Install.

OFF

Printing with the Computer

7Read the License Agreement, then click Yes to continue.

Installation will begin.

Installation of the printer driver, On-screen Manuals, and applications will

begin. Follow the on-screen instructions.

8Connect your USB cable when the Printer

Connection screen appears.

(1) Connect one end of a USB cable to the computer, the other to the printer.

(2) Turn the printer on.

As the installation proceeds, the “Print Head Alignment Recommended” screen

appears.

When Restart is displayed, ensure the Restart the system now (recommended)

check box is selected, then click Restart.

Note

If you cannot proceed to the next procedure after three minutes, refer to the “Cannot

Install the Printer Driver” on page 83.

(3) Confirm the content and click Next.

The “Installation Results” window appears.

Printing with the Computer

9Confirm the installation results and click Next.

10 When the “Installation completed

successfully” window appears, click Exit.

Installing the Printer Driver—Macintosh®

Notes

• The steps described in this section reflect Mac OS X v.10.3.x.

• Use Mac OS X v.10.2.x or later. Mac OS X v.10.3.x is recommended.

• Do not remove or insert the USB cable during installation, as this may result in the

computer or printer not operating normally.

• Before installing the driver, disable all anti-virus programs and automatically

loading programs.

1Connect the end of the USB cable to the computer, the other to the

printer.

2Turn on the Mac.

3Turn on the printer.

4Place the

Setup Software & User’s Guide CD-ROM

in the CD-ROM drive.

Note

If the CD-ROM folder does not open automatically, double-click the CD-ROM icon on the

desktop.

Note

For U.S. customer only

Follow the on-screen instructions to register your

product.

For more information, refer to the attached leaflet.

If the screen shows check box for restarting your

system, you can restart the system instead of

just exiting the program. To restart the system,

ensure that the check box is selected and then

click Restart.

Printing with the Computer

5Double-click the Setup icon.

6When the “Authenticate” screen appears,

enter your administrator name and password.

Click OK.

Note

If the place selection message appears, select your place of residence, then click Next.

7When the screen shown on the right is

displayed, click Easy Install.

8When the list of applications to install appears, click Install.

Note

Move the cursor over items to display explanations of each application below.

9Read the License Agreement, then click Yes to continue.

Installation will begin.

Installation of the printer driver, On-screen Manuals, and applications will

begin. Follow the on-screen instructions.

Note

For U.S. customer only

The Manual folder does not appear in the CD-ROM

folder.

Note

To install the

User’s Guide

in the other language than

the installed one, double-click the Manual folder in

Setup Software & User’s Guide CD-ROM

,Canon folder,

and then copy a language folder to your hard disk.

If you do not know your administrator name or

password, click , then follow the on-screen

instructions.

Note

There are two types of the printer driver installations:

the Easy Install installation and the Custom Install

installation.

Select Easy Install in order to install application

software, On-screen Manual and printer drivers. Select

Custom Install in order to choose the options you

would like to install.

Printing with the Computer

10 When the “Installation completed

successfully” screen appears, click Restart.

How to View the On-screen Manual

You can use the On-screen Manuals to obtain necessary information for

printing from your computer. Install the following On-screen Manuals when

you need to know how to print from your computer, printer driver setup, or

how to use the supplied print application.

• Select Easy Install to install the printer driver and the print application.

• Select Custom Install to select and install the On-screen Manuals.

If you have not installed the On-screen Manuals yet or if you deleted them,

Follow the procedure below.

How to Open the On-screen Manual

This section describes how to display the On-screen Manuals on your

computer.

Note

For U.S. customer only

Click Continue to register your product.

For more information, refer to the attached leaflet.

Note

After your computer is restarted, check the Printer Setup

Utility (Print Center for Mac OS X v.10.2.x) to ensure that

the printer is added.

If it is not added, add the printer.

For more information, refer to the Mac Help.

Printing with the Computer

1Double-click the SELPHY DS810 On-screen Manual shortcut icon on the

desktop.

The On-screen Manual list is displayed.

Notes

• To display the On-screen Manuals from the Start menu, Click on Start, select All

Programs (or Programs), Canon SELPHY DS810 Manual and SELPHY DS810 On-

screen Manual.

• You can search what you want to look up by keywords. For more information, refer to

the

User’s Guide

•When you click Help in the Finder Menu Bar, and select Mac Help from the menu (the

Mac Help window opens), Library appears in the menu bar. Click Library to open the

On-screen Manual.

• You can search what you want to look up by keywords. For more information, refer to

the

User’s Guide

Click to go to the top page of

the

User’s Guide

Click to go to the top page of

the

Printer Driver Guide

Click to go to the top page of

the

Photo Application Guide

Printing Maintenance

When Printing Becomes Faint or Colors are Incorrect

When printing becomes faint or colors are incorrect, even if ink remains in the Ink

Tanks, the Print Head Nozzles are probably clogged. Follow the procedures below to

clean the nozzles.

Notes

• If the print quality is poor, adjust the Print Head position.

It may solve the problem.

See “Aligning the Print Head” on page 69.

• If Ink Tank replacement does not resolve the problem, the Print Head may be worn

out. Contact a Canon service representative.

“Printing the Nozzle Check Pattern” on page 66

Step 1

“Print Head Cleaning” on page 67

Step 2

If the problem remains after performing Print Head Cleaning twice

“Print Head Deep Cleaning” on page 68

Step 3

If the problem remains after performing Print Head Deep Cleaning

“Replacing an Ink Tank” on page 71

Step 4

If the pattern is

printed normally,

select All A.

If the print quality is poor, perform Print Head Cleaning.

After Print Head Cleaning,

print the nozzle check pattern.

Printing Maintenance

Printing the Nozzle Check Pattern

Print the nozzle check pattern to determine whether the ink ejects properly

from the Print Head Nozzles. Use this function when printed results are

blurred or the color is incorrect.

1Prepare to print.

(1) Turn on the printer.

See “Turning On the Printer” on page 16.

(2) Load the supplied paper or Canon 4"×6"/ 101.6×152.4mm paper into the Paper

Support. See “Loading Paper” on page 20.

2Print the Nozzle Check Pattern.

(1) Press the Menu button.

(2) Use the WX buttons to select Tool box and then press the OK button.

(3) Use the WX buttons to select Maintenance and then press the OK button.

(4) Use the ST buttons to select Nozzle check

and then press the OK button.

(5) Select Yes and then press the OK button.

The nozzle check pattern is printed.

Printing Maintenance

3Examining the nozzle check pattern.

Print Head Cleaning

Clean the Print Head if white stripes appear in the nozzle check pattern.

Cleaning the Print Head consumes ink, so perform Cleaning only when

necessary.

1Turn on the printer.

See “Turning On the Printer” on page 16.

2Start Print Head Cleaning.

(1) Press the Menu button.

(2) Use the WX buttons to select Tool box and then press the OK button.

(3) Use the WX buttons to select Maintenance and then press the OK button.

• When all print check patterns are

successfully printed:

Select All A and then press the OK button.

• When there is more than one white stripe

on the print check patterns:

Select

Also B

and then press the

button.

The confirmation screen of Cleaning is

displayed.

Select Yes to start the cleaning.

See “Print Head Cleaning” on page 67.

When no white stripes appear

When white stripes appear

(4) Use the ST buttons to select Cleaning and

then press the OK button.

Printing Maintenance

3Print the nozzle check pattern to verify that the Print Head Nozzles are

clean.

When Print Head Cleaning finishes, the confirmation message is displayed.

Select Yes.

See “Printing the Nozzle Check Pattern” on page 66.

Note

If the problem remains after performing Print Head Cleaning twice, try Print Head Deep

Cleaning.

Print Head Deep Cleaning

If print quality does not improve by standard Print Head Cleaning, try Print

Head Deep Cleaning, which is a more powerful process. Print Head Deep

Cleaning consumes ink, so perform this procedure only when necessary.

1Turn on the printer.

See “Turning On the Printer” on page 16.

2Start Print Head Deep Cleaning.

(1) Press the Menu button.

(2) Use the WX buttons to select Tool box and then press the OK button.

(3) Use the WX buttons to select Maintenance and then press the OK button.

(4) Use the ST buttons to select Deep cleaning and then press the OK button.

(5) Select Yes and then press the OK button.

Important

Do not perform any other operations until the Print Head Deep Cleaning finishes. This

takes about one minute.

When Print Head Deep Cleaning finishes, the confirmation message is displayed.

Select Yes.

(5) Select Yes and then press the OK button.

Important

Do not perform any other operations until

the Print Head Cleaning finishes. This takes

about 40 seconds.

Printing Maintenance

3Print the nozzle check pattern to verify that the Print Head Nozzles are

clean.

See “Printing the Nozzle Check Pattern” on page 66.

Notes

• If the problem remains, replace the Ink Tank.

See “Replacing an Ink Tank” on page 71.

• If Ink Tank replacement does not resolve the problem, the Print Head may be worn

out.

Contact a Canon service representative.

Aligning the Print Head

If print quality is poor, adjust the Print Head position. It may solve the problem.

1Prepare to print.

(1) Turn on the printer.

See “Turning On the Printer” on page 16.

(2) Load the supplied paper or Canon 4"×6"/ 101.6×152.4mm paper into the Paper

Support. See “Loading Paper” on page 20.

2Print the Pattern.

(1) Press the Menu button.

(2) Use the WX buttons to select Tool box and then press the OK button.

(3) Use the WX buttons to select Maintenance and then press the OK button.

(4) Use the ST buttons to select Manual head

align and then press the OK button.

The pattern print confirmation screen is

displayed.

(5) Select Yes and then press the OK button.

The pattern is printed.

(6) When the confirmation message is displayed,

select Yes and then press the OK button.

Printing Maintenance

3Align the Print Head.

(2) Press the T button to move the cursor on the column B and select the most even,

least irregular patterns and use the WX buttons to select the number that

corresponds.

Repeat the operation for the column C and D.

(3) Press the OK button.

The Print Head position is adjusted.

Note

Printing a current setting of the Print Head position

1Turn on the printer.

See “Turning On the Printer” on page 16.

2 Load the supplied paper or Canon 4"×6"/ 101.6×152.4mm paper into the Paper

Support. See “Loading Paper” on page 20.

3Press the Menu button.

4 Select Tool box and then press the OK button.

5 Select Maintenance and then press the OK button.

6 Select Head alignment print and then press the OK button.

The pattern print confirmation screen is displayed.

7 Select Yes and then press the OK button.

The Head alignment value is printed.

(1) Look at the print out. From the patterns on the

column A, select the most even, least irregular

patterns and use the WX buttons to select the

number that corresponds.

Printing Maintenance

Replacing an Ink Tank

When replacing an Ink Tank, check the model number very carefully.

The printer will not print properly if the wrong Ink Tank is used.

• Ink Tank: BCI-16 Color

Replacing an Ink Tank

When an Ink Tank runs out of ink, replace it using the following steps.

1Ensure that the printer is on.

2Open the Cover.

3Remove the empty Ink Tank.

(1) Slide the Cover Open Switch toward the right

to open the Cover.

The Print Head Holder moves to the center.

(1) Push the tab.

(2) Remove the Ink Tank.

Important

• Handle Ink Tanks carefully to avoid staining clothing or the surrounding area.

• Discard empty Ink Tanks according to the local laws and regulations regarding

disposal of consumables.

Printing Maintenance

4Prepare a replacement Ink Tank.

5Insert the Ink Tank.

6Close the Cover.

The Print Head Holder moves to the right.

Important

Be sure to reset the ink counter using the following procedure when changing the Ink

Tank.

Notes

• To maintain optimal print quality, use an Ink Tank within six months of its first use.

• Once an Ink Tank has been used, do not remove it from the printer and leave it out in

the open. This will cause the Ink Tank to dry out and the printer may not function

properly if it is reinstalled.

• Color ink is consumed in the cleaning and deep cleaning, which are necessary to

maintain the printer’s capabilities.

• When an Ink Tank runs out of ink, replace the Ink Tank with a new one immediately.

• If printing is continued with no ink in the Ink Tank, a problem may occur.

(1) Unpack a new Ink Tank and remove the orange

protective cap.

Dispose of the protective cap.

Important

• Do not reattach the protective cap once you have

removed it.

• Once the protective cap is removed, do not touch

the open ink port.

(1) Set a new Ink Tank with it slightly

slanted aligning the X mark with the

W mark.

(2) Push down on the on the Ink

Tank until it clicks into place.

Printing Maintenance

Resetting the Ink Counter

When an Ink Tank is replaced, the ink counter must be reset.

The low ink warning is only displayed properly if the ink counter is reset.

Message Prompting Confirmation of Ink Tank Replacement

If an Ink Tank is removed, the printer will output a message prompting you to

confirm replacement of the Ink Tank at the start of the next print job.

When an Ink Tank has been replaced, follow the procedure below to reset the

ink counter. The low ink warning is only displayed properly if the ink counter is

reset.

1Reset the ink counter.

Note

To reset the ink counter from Tool box

1Press the Menu button.

2 Select Tool box and then press the OK button.

3 Select Device settings and then press the OK button.

4 Select Other settings and then press the OK button.

5 Select Ink counter reset and then press the OK button.

The Ink counter reset confirmation screen is displayed.

6 Select Yes and then press the OK button.

How Low Ink Warning Works

The low ink warning notifies you of low ink levels during printing. The Low Ink

Warning has been preset to be automatically displayed.

When you reset the ink counter, it will assume that the Ink Tank is full

regardless of how much ink actually remains. The reset is the only way to

match the counter value with an actual ink volume. Reset the ink counter when

installing a new Ink Tank.

(1) Check the message, select Yes and then press

the OK button.

This returns the ink level of the ink counter full.

If you select No after replacing the Ink Tank,

select Ink counter reset from Tool box to reset

the ink counter. Failing to reset the ink counter

may result in the low ink warning displaying

incorrectly.

Printing Maintenance

Low Ink Warning Display

How to Display Low Ink Warning Correctly

• Reset the ink counter every time you install a new Ink Tank.

The ink counter cannot work correctly unless you synchronize it with the

actual ink level. The ink counter can only be adjusted when it is reset at the

time a new Ink Tank is installed.

• Do not reset the ink counter of an Ink Tank in use.

Synchronization of the counter and the actual ink level will not work

properly.

The '!' shows a low ink level in the Ink Tank.

A new Ink Tank should be prepared.

Important

If you did not reset the counter when you installed the current Ink Tank, the low ink

warning may not function correctly, until the next time you replace the Ink Tank.

Refer to “Accompanied by Ink Tank icon with '?'” on page 76.

Troubleshooting

Let's take a look at countermeasures against problems which may occur during use

of the printer.

Note

Here, we will discuss errors indicated on the LCD, problems that might occur during

direct printing from the digital camera. If you cannot find the symptom corresponding

to a certain problem, refer to the

User’s Guide

• “An Error Message is Displayed on the LCD” on page 75

• “Cannot See the Display Properly on the LCD/Cannot See the Display on the LCD” on

page 77

• “Paper Does Not Feed Properly/Paper Jam” on page 77

• “Printing is Blurred/Colors are Wrong/White Streaks appear” on page 78

• “Printed Surface is Scratched or Ink Blots” on page 79

• “Cannot Print Properly from the Digital Camera” on page 81

• “Cannot Install the Printer Driver” on page 83

• “Cannot Print Properly through Wireless Communication” on page 84

An Error Message is Displayed on the LCD

If a message is displayed on the LCD, take the corresponding countermeasure

described below.

Message/Error Try This

There are no photos

in memory card.

• Photo data edited/processed on the computer should be printed

from the computer, not from the camera.

• There is no proper data in the memory card. See “Memory Cards

Supported by this Printer” on page 17.

Ink tank replaced? • If the Ink Tank has been replaced with a new one.

Select Yes to reset the ink counter.

See “Resetting the Ink Counter” on page 73.

• If the Ink Tank has been removed for a certain period (the Ink Tank

has not been replaced)

Select No on the dialog box described above.

The waste ink

absorber is almost

full.

The printer has a built-in waste ink absorber to hold the ink used

during Print Head Cleaning, for example.

This error message indicates that the waste ink absorber is nearly full.

Press the OK button to cancel the error so you can continue printing.

However, because printing is disabled once the waste ink absorber

becomes completely full until the waste ink absorber is replaced, you

are recommended to contact a Canon service representative as early as

possible. (You will need to replace a particular part of the printer.)

Troubleshooting

Note

Accompanied by Ink Tank icon with '?'

Always be sure to reset the ink counter when you replace Ink Tank.

See “Resetting the Ink Counter” on page 73.

A “?” is displayed next to the Ink counter between the time one Ink Tank is removed

and the ink counter is reset when the next one is installed. Display of the “?” can be

disabled by changing the settings on Low ink warning.

1Press the Menu button.

2 Select Tool box and then press the OK button.

3 Select Device settings and then press the OK button.

4 Select Other settings and press the OK button.

5 Select Low ink warning and then press the OK button.

The confirmation screen is displayed.

6 Select Hide and then press the OK button.

Incompatible device

detected.

Disconnect the camera cable and reconnect it.

Depending on the model or brand of your device, you may have to

select a print mode compliant with PictBridge before connecting the

device.

You may also have to turn on the device or select Play mode manually

after connecting the device to the printer.

Perform necessary operations according to the instruction manual

supplied with your device.

If the error is still unresolved, there is a possibility that you are using a

digital camera or digital video camcorder that is not supported by this

printer. Use a digital camera or digital video camcorder compatible

with this printer.

**** Error code An error requiring servicing might have occurred. (POWER lamp and

Alarm lamp flash alternately.)

Disconnect the printer cable from the printer, and then turn the printer

off and unplug the printer from the power supply. Plug the printer back

in and turn the printer back on after leaving it for a while.

If the problem remains, contact a Canon service representative.

Message/Error Try This

The Ink Tank level accompanied by the Ink Tank icon

with the “?” indicates Ink Tank is not synchronized

with its ink counter.

Troubleshooting

Cannot See the Display Properly on the LCD/Cannot

See the Display on the LCD

Paper Does Not Feed Properly/Paper Jam

Possible Cause Try This

Cannot see the display

properly on the LCD/the

display on the LCD is

illegible

If the LCD contrast is too strong or too weak, adjust the Adjust

contrast setting in the Tool box. See “Adjust contrast” on page 43.

Cannot see the display

on the LCD

The LCD may be in sleep mode. Press the OK button to deactivate

sleep mode. If you leave the printer more than five minutes without

using any buttons on the operation panel, the LCD goes into sleep

mode automatically.

Possible Cause Try This

Inappropriate paper type

used

Check to see if the paper you are printing on is too thin or curled.

See “Print Media to Avoid” on page 20.

Paper Feed Roller is dirty Follow the steps described below to clean the Paper Feed Rollers.

If post cards do not feed properly, even after correcting any paper

curl, clean the Paper Feed Roller.

1. Ensure that the printer is turned on.

2. Load 3 sheets of Canon 4"×6"/101.6×152.4 mm paper with

print side facing down.

3. Select Roller cleaning from the menu.

•Press the Menu button.

• Select Tool box and then press the OK button.

• Select Maintenance and then press the OK button.

• Select Roller cleaning and then press the OK button.

4. Select Yes, and press the OK button.

The printer loads the paper in the Auto Sheet Feeder, performs a

cleaning operation and then ejects it. After ejecting the paper,

the printer operates for a few minutes and stops.

If the situation is not improved, repeat the same operation for a few

times.

Perform Roller cleaning only when necessary.

Troubleshooting

Printing is Blurred/Colors are Wrong/White Streaks appear

Paper Jams

(1)

Slowly pull the paper out from the back of the printer or, from

the front of the printer.

• If the paper does not come out from the front of the printer or

the back of the printer, or the paper tears and some of it is left

in the printer, turn the printer off, then open the Cover and

remove the piece of paper. Do not touch internal parts in the

printer.

• If you cannot extract the paper, turn

the printer off, and then turn it back

on.

The remaining paper will be ejected

automatically.

(2)

Close the Cover and reload the paper into

the Paper Support, then press the OK

button on the printer.

• If you have turned on the power again

at the step (1), redo the printing.

• If you cannot reach or remove the torn

paper, do not attempt to disassemble the printer by yourself.

Contact a Canon service representative.

Possible Cause Try This

Ink Tank is not installed

If an Ink Tank is not installed, install it. If an Ink Tank is installed, push

the PUSH mark on the Ink Tank to ensure it has snapped firmly into place.

Media type is not

selected properly

Ensure that the media type selected in the Settings screen is the

same type as the media type loaded on the printer.

See “To Change Print Setting” on page 24.

Print Head Nozzles

clogged/Print Head is

misaligned

Print the nozzle check pattern to check for uneven ink output.

See “Printing the Nozzle Check Pattern” on page 66.

• When a specific color is missing from the nozzle check pattern,

clean the Print Head. If ink supply is uneven: See “Print Head

Cleaning” on page 67.

• Print Head is misaligned.

Align the Print Head. See “Aligning the Print Head” on page 69.

If this does not solve the problem,

Ink Tank

may run out of ink.

Replace the vacant

Ink Tank

See “Replacing an Ink Tank” on page 71.

Media is not loaded with

the print-side up

Check that your paper is loaded with the correct print side facing up.

See “Loading the Print Media” on page 21.

Note

Follow the instructions packaged with your specialty media for

loading and handling.

Troubleshooting

Note

When the color is different from what is displayed on the LCD or when it is not printed

with your favorite color

You can adjust the brightness, contrast, and color balance of photos for printing from

the Settings screen. See “To Change Print Setting” on page 24.

Printed Surface is Scratched or Ink Blots

Possible Cause Try This

There are ink blots on

the printed surface

Clean the Paper Feed Roller.

See “Paper Does Not Feed Properly/Paper Jam” on page 77.

There are ink blots on

the back side of the

printed surface

If the protrusions inside the printer are stained, open the Cover of

the printer and then wipe ink off the protrusions using a swab or

the like as shown.

Important

Before cleaning, be sure to turned off the printer.

Printed on the back side

of the sheet/The roller

inside the printer is

extremely dirty

Follow the steps described below to clean the inside of the printer.

1. Ensure that the printer is turned on.

2. Load the Glossy Photo Paper (4"×6"/ 101.6×152.4mm paper).

3. Select Bottom plate cleaning from the menu.

•Press the Menu button.

• Select Tool box and then press the OK button.

• Select Maintenance and then press the OK button.

• Select Bottom plate cleaning, and press the OK button.

4. Select Yes and press the OK button.

Note

If the problem remains after performing, repeat this procedure

starting with step 1.

If the problem remains, contact a Canon service representative.

Important

Check that your paper is loaded with the correct print side facing up.

Inappropriate paper type

used

Check to see if the paper you are printing on is too thick or curled.

See “Print Media to Avoid” on page 20.

Note that smudging may occur at the top and bottom edges of the

paper when using Borderless Printing.

Note

If this does not solve the problem, set the Paper Thickness Lever to

the left. See “Paper Thickness Lever” on page 10.

Return the Paper Thickness Lever to the right after printing.

Troubleshooting

Note

Sets time to dry ink on the printing surface.

In case the ink is still wet and the print surface becomes dirty, set longer time to dry

ink.

1Press the Menu button.

2 Select Tool box and then press the OK button.

3 Select Device settings and then press the OK button.

4 Select Print settings and then press the OK button.

5 Select Ink drying wait time and then press the OK button.

6 Select Standard, Long or Longer and then press the OK button.

Curled paper used If all four corners or the printing surface of the paper is curled, the

paper may become dirty or the paper may not feed properly. Use

the paper after correcting paper curl as follows.

(1)Face up the printing surface*1, and cover it with a non-printing

regular paper to avoid damaging the surface.

(2)Roll up the paper in a direction opposite to paper curl as the

figure below.

(3)Check the printing paper if paper curl is corrected within

approximately 2 to 5 mm *2.

It is recommended to print the curl-corrected paper one sheet at

a time.

Possible Cause Try This

(1) (2)

Troubleshooting

Cannot Print Properly from the Digital Camera

The following are the possible errors that may occur when printing directly from a

digital still camera or digital video camcorder*, and the countermeasures to

eliminate them.

* Hereafter, the digital still camera and digital video camcorder are collectively

called a digital camera or camera.

Notes

• PictBridge or Canon Bubble Jet Direct compatible digital cameras can be connected

to your printer for direct printing.

• This section describes errors that are indicated on Canon brand PictBridge- or

Bubble Jet Direct-compatible cameras. The error messages and operations may vary

depending on the camera you are using. If you cannot clear the error on your device,

check the error message displayed on the LCD of the printer, and then clear it. For

details, see “An Error Message is Displayed on the LCD” on page 75.

• A communication time out occurs if printing takes a long time or if it takes too much

time to send data. This may stop printing. In such a case, disconnect the cable

between the printer and the camera, and reconnect the cable between the printer

and the camera. Then, turn the camera on, if it does not automatically turn on. If the

problem is still unresolved, select some other photo and check if it can be printed or

not.

• Depending on the model or brand of your device, you may have to select a print

mode compatible with PictBridge before connecting the device. You may also have

to turn on the device or select Play mode manually after connecting the device to the

printer.

Perform necessary operations according to the instruction manual supplied with

your device.

• The Print Head Nozzles may be clogged if printing becomes faint or colors are

incorrect.

See “Printing is Blurred/Colors are Wrong/White Streaks appear” on page 78.

• If the paper is curled or its surface is scratched during printing, make sure that you

are using the correct type of paper.

If this error occurs even when you are using the correct type of paper, slide the

Paper Thickness Lever to the left. See “Printed Surface is Scratched or Ink Blots” on

page 79.

• To disconnect the cable connected between the digital camera and printer, follow

the procedure below.

1 Disconnect the cable from the printer.

2 Turn off the digital camera.

3 Disconnect the cable from the digital camera.

When disconnecting the cable, be sure to hold the connector by its sides.

• For the errors indicated on the camera and their solution, also refer to the user’s

manual of the camera. For other troubles on the digital camera, contact the

manufacturer of the camera.

Troubleshooting

*1To resume printing, you can press the OK button on the printer instead of selecting

Continue.

*2The waste ink absorber absorbs ink used during cleaning, for example. If this message

appears, you will need to call for servicing to replace the absorber and to check the printer

for proper operation.

Camera Error Message Try This

Printer in use/Printer

warming up

• Images are being printed from the computer.

Wait until printing ends. The printer automatically starts printing

the images from the camera after completing the current

printing.

• If the printer is warming up, wait until warm-up ends. When it is

ready, the printer starts printing automatically.

No paper/Paper Error Load the paper in the Auto Sheet Feeder, and select Continue*1 in

the display on your camera.

Paper jam Select Stop in the display on your camera to stop printing.

Remove the jammed paper, load new paper, and press the OK

button on the printer and retry printing.

Printer cover open Close the Cover on the printer.

No printhead The Print Head is defective or not installed.

Install a Print Head according to Easy Setup Instructions on page 3.

If the Print Head has already been installed, remove the Print Head

and reinstall it. If the error still remains, the Print Head may be

defective. Contact the Canon service representative.

Waste tank (ink

absorber*2) full

The printer has built-in waste ink absorber to hold the ink used

during Print Head Cleaning. This error message indicates that the

waste ink absorber is nearly full. You can continue printing for a

while by selecting Continue*1 in the display on your camera.

However, because printing is disabled once the waste ink absorber

becomes completely full until the waste

ink

absorber is replaced,

you are recommended to contact the Canon service representative

as early as possible. (You will need to replace a particular part of

the printer.)

No Ink Install an

Ink Tank

. Be sure to press the mark on the

Ink Tank

ensure it is firmly seated. Once the Ink Tank is installed, the

printing job resumes.

Printer error An error requiring servicing might have occurred (POWER lamp and

Alarm lamp flash alternately).

Disconnect the cable between the printer and the camera, turn off

the printer, and unplug the power cord of the printer from the

power supply. After a while, plug the power cord of the printer back

in, turn on the printer, and then reconnect the camera to the

printer.

If the same error occurs, contact a Canon service representative.

Troubleshooting

Cannot Install the Printer Driver

Possible Cause Try This

Unable to proceed

beyond the Printer Port

Screen

Reinstall the printer driver.

1. Click Cancel.

2. Click Start Over on the Installation Failure screen.

3. Click Back on the displayed screen.

4. Click Exit on the SELPHY DS810 screen, then remove the CD-

ROM.

5. Turn the printer off.

6. Restart the computer.

7. Carefully follow the procedures described and reinstall the driver.

See “Installing the Printer Driver” on page 58.

Other applications

running in the

background

Other applications opened on your computer can interfere with the

installation routine. Close all open software applications before

reinstalling the printer driver.

See “Installing the Printer Driver” on page 58.

Installation does not start

automatically when the

CD-ROM is inserted into

the drive

If printer driver installation did not start automatically when you

inserted the CD-ROM into the CD-ROM drive:

1. Click Start and select My Computer.

2. Double-click the CD-ROM icon.

For Windows 2000, open the My Computer window, and then

double-click the CD-ROM icon.

Double-click the CD-ROM icon on your desktop to start installation.

If the CD-ROM icon does not appear, there may be a problem with

your CD-ROM. Contact a Canon service representative.

Installation procedure is

not followed correctly

Install the printer driver again if you did not follow the installation

procedure properly.

See “Installing the Printer Driver” on page 58.

If the installer was forced to terminate due to an error, remove the

CD-ROM from the CD-ROM drive and restart your computer. Reinstall

the printer driver. If this problem persists, contact a Canon service

representative.

Not supported OS is used

Use a computer equipped on which Windows XP or Windows 2000

can operate.

Use a Macintosh series computer equipped with USB interface on

Mac OS X v.10.2.1 to v.10.3.x can operate.

Troubleshooting

Cannot Print Properly through Wireless Communication

Note

This printer cannot print data from a PC via Bluetooth communication.

Possible Cause Try This

The infrared

communication distance

or the Infrared Port angle

is incorrect

Place the printer at a distance of 7.9 inch/20 cm from the mobile

phone or the PDA.

Ensure that the Infrared Ports are at a proper angle and there are

no obstacles between them. Retry printing.

The allowable distance and angle for infrared communication

depend on the functions of the mobile phone or the PDA in addition

to environmental conditions.

See “Performing Infrared Communication” on page 53.

Your mobile phone or

PDA is not able to make a

suitable connection (For

Infrared Communication)

Use models equipped with an IrDA port and support image data

transmission via infrared communication.

The mobile phone or the

PDA is too far away from

the printer (For

Bluetooth

communication)

Place the mobile phone or the PDA within 33 feet (10m) of the

printer when attempting to print via a wireless communication.

The printer is installed in

an incorrect location (For

Bluetooth

communication)

You can establish a connection between a mobile phone or a PDA

and the printer up to a distance of approximately 33 feet/10m for

Bluetooth communication, however the following conditions may

affect both your ability to establish a connection and the

connection speed:

• Obstructions or electric devices placed between the printer and

your mobile phone or PDA

• Locations where magnetic fields, static electricity, or radio wave

interference are present

• The sensitivity and antenna efficiency of your mobile phone or

PDA

Try changing the location of the printer or moving the mobile phone

or the PDA closer to the printer.

The device you are using

is compatible with a

different standard (For

Bluetooth

communication)

The printer cannot connect to devices that use a different standard

(profile) for printing, even if they are Bluetooth compliant. Refer to

the user’s manual of your mobile phone or PDA to see which

profiles it is compatible with.

You have not selected

the correct printer at

your mobile phone or

PDA (For Bluetooth

communication)

You can confirm the printer name at Device name in the Bluetooth

settings menu. Select the corresponding printer name at your

mobile phone or PDA.

Appendix

For the Optional Bluetooth Unit Users

Safety Precautions

Please read the safety warnings and cautions provided in this manual to ensure that

you use your product safely. Do not attempt to use the product in any way not

described in this manual.

You may cause an electric shock/fire or damage the printer if you ignore any of these

safety precautions.

You may cause injury or damage the printer if you ignore any of these safety

precautions.

This product emits low level magnetic flux. If you use a cardiac pacemaker and feel

abnormalities, please be away from this product and consult your doctor.

Do not use this product inside medical institutions such as hospitals or near electronic

medical equipment.

Magnetic flux may affect the operation electronic medical equipment.

Keep the product at least 22 cm (8.7 in) away from the pacemaker.

Magnetic flux may affect the operation of the cardiac pacemaker.

Do not use this product in aircraft.

Magnetic flux may cause malfunction, and lead to accidents.

Do not use the product near automatically controlled equipment such as automatic doors

and fire alarms.

Radio waves may cause equipment malfunction, thus leading to accidents.

Do not attempt to disassemble or modify the product.

Doing so may cause injury, electric shock or fire.

Appendix

Specifications

Communication method Bluetooth standard Ver 1.2

Output Power Class2

Communication distance Line-of-sight distance: approx. 10 meters*

* It may vary depending on factors including the presence of

obstacles between communication equipment, radio wave

conditions, the presence of magnetic fields around

microwave ovens and locations where electrostatic and radio

interference occur, and receiver sensitivity and antenna

performance of communication equipment.

Profile OPP (Object Push Profile)

BIP (Basic Imaging Profile)

Frequency band 2.4GHz band

Transmission speed Approx. 720kbps

Power supply Supplied from the Direct Print Port on the printer

DC 4.4V 5.25V

Power consumption 500mW (MAX)

Operating temperature 5°C 35°C (41°F 95°F)

Operating humidity 10%RH 90%RH (no condensation)

Dimensions 18.5 (W) × 47.5 (D) × 8.7 (H) mm

0.73 (W) × 1.87 (D) × 0.34 (H) inches

(with cap attached)

Weight Approx. 7g (0.02lb)

Appendix

Specifications

Printer

Printing resolution (dpi): 4800 (horizontal)*×1200 (vertical)

* Ink droplets can be placed with a horizontal pitch of 1/4800 inch at

minimum. Supported only when printing with a computer. Resolution

may vary based on printer driver setting.

Print speed Photo Printing Standard (PictBridge) PP-101 4"×6" borderless Approx.

63 seconds*

* When printing a 5 megapixel image taken by certain Canon digital

camera from PictBridge on default settings using Photo Paper Plus

Glossy without border. Actual print speed may vary depending on

image data, print mode, type of paper used and device that the printer

is connected to.

Print width: 94.8mm max (3.732inches)

(for Borderless Printing: 101.6mm/4.0inches)

Resident print control mode: Canon extended mode

Receive buffer: 42 KB

Interface: USB/IrDA Ver. 1.2/ Direct Print Port/Bluetooth Ver. 1.2 (Optional, image

data only)

Acoustic noise level: Approx. 39 dB (A) (in the highest print quality mode)

Operating environment: Temperature: 5 to 35°C (41 to 95°F)

Humidity: 10 to 90%RH (no condensation)

Storage environment: Temperature: 0 to 40°C (32 to 104°F)

Humidity: 5 to 95% RH (no condensation)

Power supply: AC 100-240 V, 50/60 Hz

Power consumption: Standby: Approx. 1.5 W

Printing: Approx. 11 W

Off: Approx. 0.7 W

Dimensions

(with the Paper Support

retracted):

220 (W)×222 (D)×99 (H) mm

8.66 (W)×8.74 (D)×3.90 (H) inches

Weight: Approx. 1.9 kg (4.19 lb.)

Print Head: Cyan, Magenta, Yellow: 128×2×3 nozzles

Supported recording media: CompactFlash, Microdrive, SmartMedia, Memory Stick, Memory Stick

PRO, SD card, Multimedia card, xD-Picture Card*, Memory Stick Duo*,

Memory Stick PRO Duo*, miniSD Card*

* Can be used with the addition of a special adapter sold separately.

Supported recording formats: Image data taken with a camera compatible with the Design rule for

Camera File system, CIFF, Exif2.21 or earlier, JFIF, TIFF (Exif2.21

compliant), DPOF compliant

Appendix

Camera Direct Print

Canon Bubble Jet Direct

Interface: Direct Print Port

(Connect a DS810-compatible digital camera or digital video camcorder

using the USB cable supplied with the camera.)

Compatible digital cameras

and digital video camcorders:

DS810-compatible digital cameras and digital video camcorders

Compatible Paper: Card #1 (Photo Paper Pro 4"×6" /101.6×152.4 mm), Card #2 (Photo

Paper Plus Glossy, Photo Paper Plus Semi-gloss or Glossy Photo Paper

4"×6" /101.6×152.4 mm), Card #3 (not applicable), LTR (not applicable),

A4 (not applicable)

Layout Print: Standard: Borderless/with border, Index Print: 6-24 images

(Depending on the size of print media)

Effect: Exif 2.21 compliant

DPOF Version: Ver. 1.00 compliant

(Index print, number of copies, select images, print special characters

(date))

PictBridge

Paper size: Default (selections based on the printer setting), 10×15cm/4"×6"

(Photo Paper Plus Glossy/Photo Paper Pro/Photo Paper Plus Semi-

gloss/Glossy Photo Paper/Photo Stickers*), 5.4×8.6cm/Credit Card

(Glossy Photo Paper Card Size)

* Canon-brand sticker. Printing on this paper is available only when the

Layout function on your camera has a 16-up option. See “Media Types

for Card Direct Printing” on page 23.

Paper type: Default (selections based on the printer setting), Photo (Photo Paper

Plus Glossy), Fast (Photo Paper Pro)

Layout: Default (selections based on the printer setting), Borderless, Bordered,

N-up (2, 4, 9, 16)*

* Layout compatible with Canon brand sticker above. See “Media Types

for Card Direct Printing” on page 23.

Trimming: Default (Off: No trimming), On (follow camera’s setting), Off

Image optimize: Default (selections based on the printer setting), “VIVID”*, “NR” (Noise

Reduction)*, “VIVID+NR”*, “Face”*

* If using a Canon PictBridge-compatible Camera, you can select it.

Date/File No. print Default (Off: No printing), Date, File No., Both, Off

Canon IJ Printer Driver System Requirements

• Use a computer equipped on which Windows XP

or Windows 2000 can operate.

•USB interface*

•CD-ROM drive

• Available hard-disk space for printer driver

installation (including temporary files): 110MB

* USB operation can only be guaranteed on a PC

with pre-installed Windows XP or Windows 2000.

• Use a Macintosh series computer equipped with

USB interface on Mac OS X v.10.2.1 to v.10.3.x

can operate.

•USB interface

•CD-ROM drive

• Available hard-disk space for printer driver

installation: 110 MB

• The following functions are not supported

- Photo Optimizer PRO

- Poster Printing

- Fit to Page Printing

- Reverse Order Printing (supported with

Mac OS X v.10.3.x or later)

Appendix

Additional System Requirements for On-screen Manual

Browser: Windows HTML Help Viewer

Note: Microsoft® Internet Explorer 5.0 or later must

be installed.

The On-screen Manual may not be displayed

properly depending on your operating system or

Internet Explorer version. We recommend that you

keep your system up to date with Windows Update.

Browser: Help Viewer

Note: The On-screen Manual may not be displayed

properly depending on your operating system. We

recommend that you keep your system up to date.

Appendix

Safety Precautions

Please read the safety warnings and cautions provided in this manual to ensure that

you use your printer safely. Do not attempt to use printer in any way not described

in this manual.

You may cause an electric shock/fire or damage the printer if you ignore any of these safety

precautions.

Choosing a Location Do not place the printer close to flammable solvents such as alcohol or thinners.

Power supply Never attempt to plug in or unplug the printer from the power supply when your hands are

wet.

Always push the plug all the way into the power outlet.

Never damage, modify, stretch or excessively bend or twist the power

cord. Do not place heavy objects on the power cord.

Never plug the printer into a power socket that is shared with other

equipment (extension lead/cord, 2- or 3-way adapter, etc.).

Never use the printer if the power cord is bundled or knotted.

If you detect smoke, unusual smells or strange noises around the printer, immediately unplug

the printer at the power supply and call for service.

Periodically, unplug the printer and use a dry cloth to wipe off any

dust or dirt collected on the plug and the power outlet.

If the printer is placed at a location exposed to a lot of dust, smoke, or

high humidity, the dust collected on the plug absorbs moisture and

may cause insulation failure and fire.

Cleaning the printer Use a damp cloth to clean the printer. Never use flammable solvents

such as alcohol, benzene or thinners.

If flammable solvents come in contact with electrical components

inside the printer, it could cause a fire or electric shock.

Always unplug the printer from the power outlet before cleaning the printer.

If you accidentally switch the printer on while cleaning it, you could injure yourself or damage

the printer.

Maintaining the

printer

Do not attempt to disassemble or modify the printer. There are no user serviceable parts

inside the printer.

The printer contains high-voltage components. Never attempt any maintenance procedure not

described in this guide.

Working around the

printer

Do not use flammable sprays near the printer.

This could cause a fire or electric shock if the spray comes into contact with electrical

components inside the printer.

Appendix

You may cause injury or damage the printer if you ignore any of these safety precautions.

Choosing a location Do not install the printer in a location that is unstable or subject to excessive vibration.

Do not install the printer in locations that are very humid or dusty, in direct sunlight,

outdoors, or close to a heating source.

To avoid the risk of fire or electric shocks, install the printer in a location with an ambient

temperature range of 5°C to 35°C (41°F to 95°F) and humidity of 10% to 90% (condensation

free).

Do not place the printer on a thick rug or carpet.

Power supply Ensure that the area around the power outlet is kept clear at all times

so you can easily unplug the power cord if necessary.

Never remove the plug by pulling on the cord.

Do not use an extension lead/ cord.

Never use a power supply source other than the one rated for the printer in the country where

you purchased the printer.

AC 100-240 V, 50/60 Hz

Working around the

printer

Never put your hands or fingers in the printer while it is printing.

Do not place any metal objects (paper clips, staples, etc.) or containers of flammable solvents

(alcohol, thinners, etc.) on top of the printer.

Should any foreign object (metal or liquid) fall into the printer, unplug the power cord and call

for service.

When installing or transporting this printer, do not incline it, lay it down on its side, or turn it

upside down. Ink can leak.

Print Head and Ink

Tank

For safety reasons, store Print Head and Ink Tank out of the reach of small children.

If a child should ingest any ink, consult a doctor immediately.

Do not shake Print Head and Ink Tank.

Ink may leak out and stain clothing or the surrounding area.

Never touch the electrical contacts on a Print Head after printing.

The metal parts may be very hot and could cause burns.

During printing Do not touch the part around the ejecting paper during printing.

This could cause the printer to malfunction.

Appendix

Regulatory Information

Color Printer Model: K10260 (DS810)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in

a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of a shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC Rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If

such changes or modifications should be made, you could be required to stop operation of the equipment.

Canon U.S.A., Inc.

One Canon Plaza

Lake Success, NY 11042

1-516-328-5600

Canadian Radio Interference Regulations

This digital apparatus does not exceed Class B limits for radio noise emissions from a digital apparatus

as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the

Industry Canada.

Cet appareil numérique respecte les limites de bruits radio éléctiques applicables aux appareils

numériques de Classe B prescrites dans la norme sur le matériel brouilleur: “Appareils Numériques”,

NMB-003 édictée par l’Industrie Canada.

Exif Print

This printer supports Exif Print.

Exif Print is a standard for enhancing the communication between digital cameras and printers. By connecting

to an Exif Print-compliant digital camera, the camera’s image data at the time of shooting is used and

optimized, yielding extremely high quality prints.

International ENERGY STAR® Program

As an ENERGY STAR® Partner, Canon Inc. has determined that this product meets the ENERGY STAR

guidelines for efficiency.

The International ENERGY STAR® Office Equipment Program is a global program that promotes

energy saving through the use of computer and other office equipment.

The program backs the development and dissemination of products with functions that effectively reduce

energy consumption. It is an open system in which business can participate voluntarily. The targeted products

are office equipment such as computers, monitors, printers, faxes and copiers.

Their standards and logos are uniform among participating nations.

Power Requirements

Never use a power supply voltage other than that supplied in the country of purchase. Using the incorrect

voltage could cause a fire or electric shock. The correct power supply voltages and frequencies are as follows:

AC 100-240 V, 50/60 Hz

Trademark Notices

• “Microsoft” and “Windows” are trademarks of Microsoft Corporation, registered in the United States and

other countries.

• “Macintosh” and “Mac” are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.

• “Microdrive” is a trademark of International Business Machines Corporation.

• “SmartMedia” is a trademark of Toshiba Corporation.

• “MEMORY STICK”, “Memory Stick PRO”, “MEMORY STICK Duo” and “Memory Stick Pro Duo” are trademarks

of Sony Corporation.

• “xD-Picture Card” is a trademark of Fuji Photo Film CO., Ltd.

• “MultiMediaCard” is a trademark of Infineon Technologies AG.

• “SD card” and “miniSD Card” are trademarks of SD Association.

• “IrDA Feature Trademark” is owned by the Infrared Data Association and used under license therefrom.

• “Bluetooth” is a trademark of Bluetooth SIG, Inc., U.S.A and are licensed to Canon Inc.

express written permission.

Bluetooth ID: B02165

Photo Printing Guide

The following ink tank is compatible with this printer.

For details on ink tank replacement, refer to “Replacing an Ink Tank” in this guide.

QA7-3584-V02

ENG

Canon Selphy Ds810 Printing Guide DS810_PPG_ENG

Navigation menu

Versions of this User Manual:

Views

Navigation
