Wireless File Transmitter

WFT-E6

E

INSTRUCTION MANUAL

To comply with local radio wave regulations, Canon offers five region-specific versions of the

transmitter (WFT-E6A, E6B, E6C, E6D, and E6E) in various areas around the world (See

Areas of Use and Restrictions.). For convenience, we refer to the product in this manual

simply as “the transmitter,” without reference to versions A, B, C, D, or E.

This product also supports the EOS C300. When using the transmitter, refer to “Guide for

Canon Camcorders”.

COPY

2

Thank you for purchasing a Canon product.

The Wireless File Transmitter WFT-E6 is an accessory for EOS-1D X cameras. In addition to

time syncing with other cameras (over a wireless LAN connection) and Bluetooth connectivity

with GPS devices, the transmitter enables the following operations.

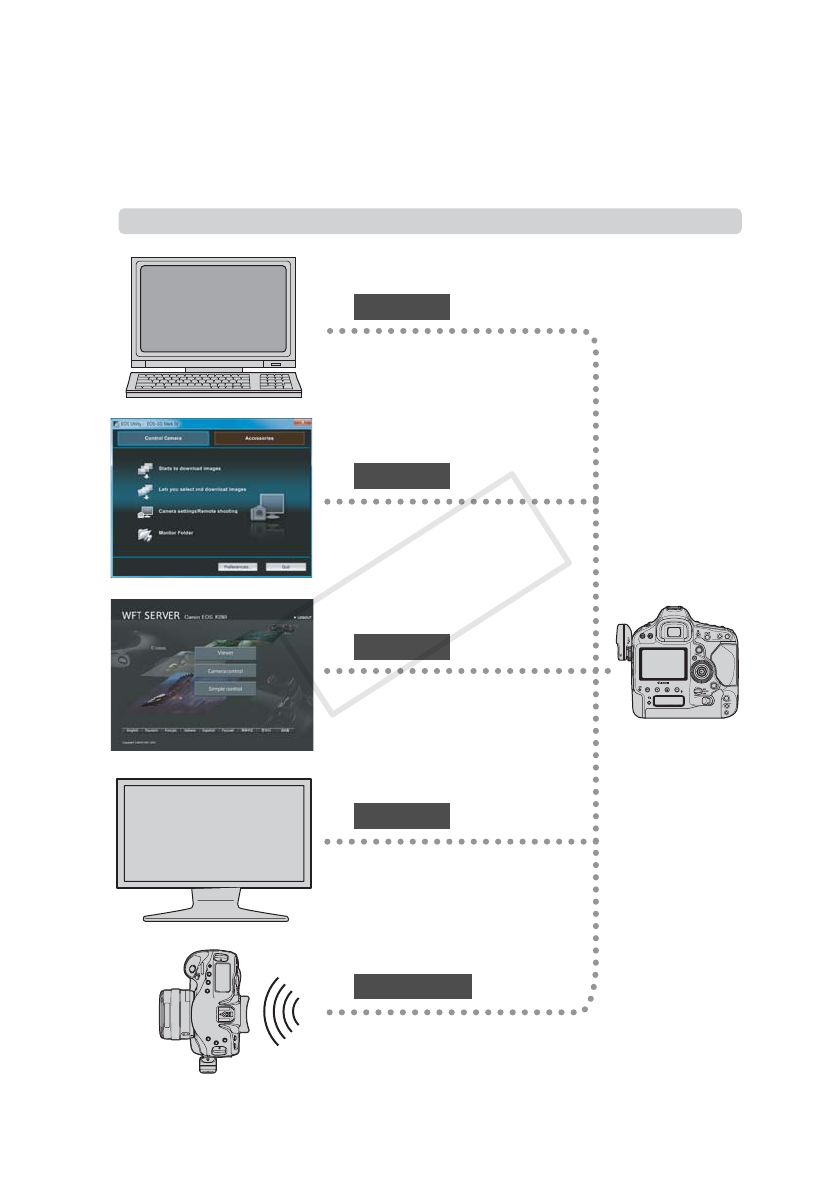

Wireless LAN Functions

Transfer images to an FTP server

Use a web browser to capture, view,

and download images remotely

Use EOS Utility to capture, view, and

download images remotely

View images on a DLNA-compatible TV

or other devices

Wirelessly trigger shooting by slave

cameras linked to a master camera

FTP TransferFTP Transfer

EOS Utility

WFT Server

Media Server

Linked Shooting

COPY

3

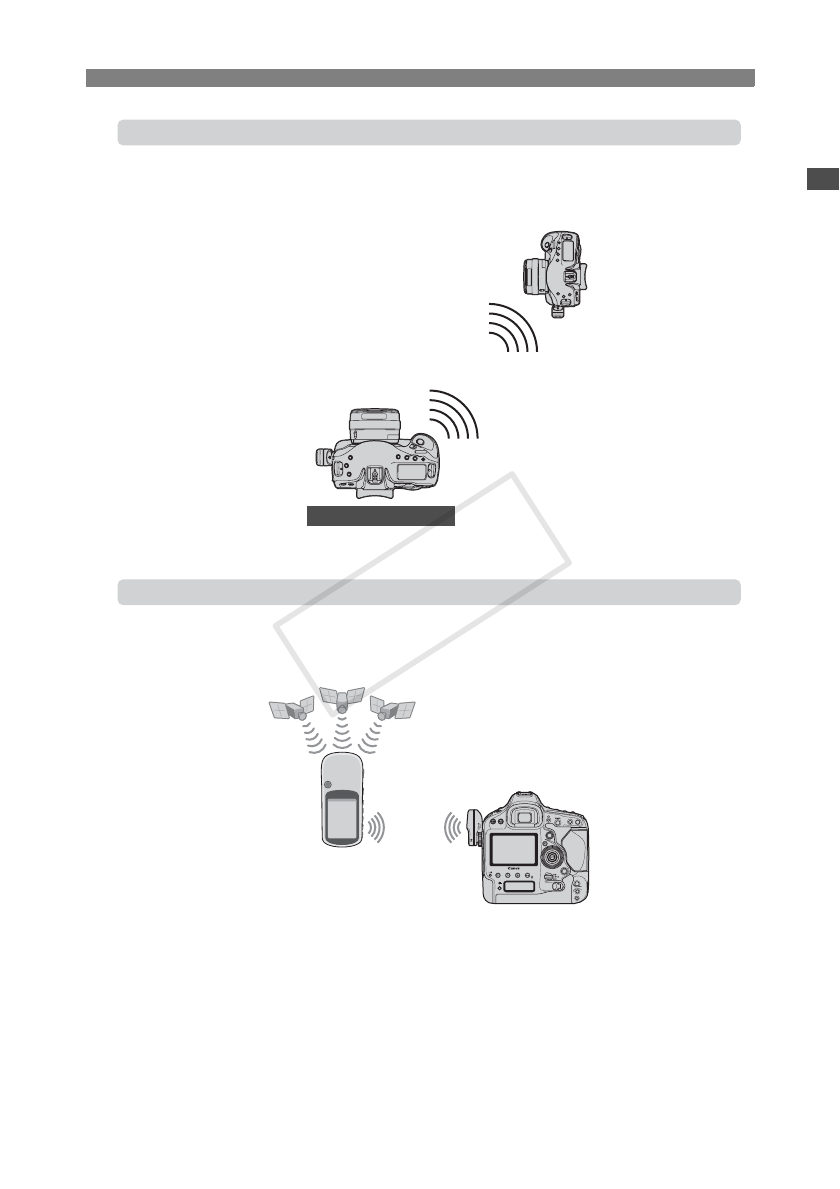

Sync the Camera Time Wirelessly

Slave camera

Master camera

Connect to GPS Devices (commercially available) via Bluetooth

Add the latitude, longitude, altitude, date and time, and

other shooting information to images

Connected via Bluetooth

COPY

4

These instructions should be followed only after your wireless LAN and FTP server settings

are complete. For details on configuring these settings, refer to the documentation provided

with the respective equipment.

Terms in brackets [ ] indicate button or icon names or other software elements. Brackets

also denote camera menu items.

Page numbers in parentheses indicate where you can find additional information.

Instructions on camera operations should be followed only after you have read the Camera

Instruction Manual and are familiar with operating the camera.

Sections of this manual labeled with the following symbols contain information of the

corresponding nature.

: Warnings to avoid potential problems are labeled with a caution symbol.

: Supplemental information is labeled with a note symbol.

Conventions Used in this Manual

Windows is a trademark or registered trademark of Microsoft Corporation in the United

States and other countries.

Macintosh is a registered trademark of Apple Corporation in the United States and other

countries.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Wi-Fi Certified, WPA, WPA2, and the Wi-Fi Certified logo are trademarks of the Wi-Fi

Alliance.

WPS as used on camera settings screens and in this manual signifies Wi-Fi Protected

Setup.

UPnP is a trademark of the UPnP Implementers Corporation.

Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc.

All other corporate and brand names in this manual are trademarks or registered

trademarks of their respective owners.

Using the transmitter for remote image transfer, capture, or viewing requires adequate knowledge of

configuring your wireless LAN and FTP server.

Canon cannot provide support for configuring wireless LANs or FTP servers.

Note that Canon cannot be held liable for any loss or damage to the transmitter from erroneous network

or FTP server settings. In addition, Canon cannot be held liable for any other loss or damage caused by

use of the transmitter.

COPY

5

Chapter List

Introduction 2

Basic Network Settings 13

Transferring Images to an FTP Server 27

Remote Capture Using EOS Utility 43

Remote Capture Using WFT Server 49

Using the Transmitter as a Media Server 61

Linked Shooting 65

Managing Settings Information 79

Synchronizing the Camera Time Wirelessly 89

Using Bluetooth GPS Devices 93

Troubleshooting 97

Reference 113

1

2

3

4

5

6

7

8

9

10

11

COPY

6

Introduction

Conventions Used in this Manual ...................................................................................................... 4

Chapter List........................................................................................................................................ 5

Contents............................................................................................................................................. 6

Safety Warnings................................................................................................................................. 8

Nomenclature..................................................................................................................................... 9

Attaching to the Camera .................................................................................................................. 10

Subsequent Organization of This Manual........................................................................................ 11

1Basic Network Settings 13

Getting Ready.................................................................................................................................. 14

Displaying the Connection Wizard................................................................................................... 15

Selecting the Communication Method and LAN Type ..................................................................... 16

Using the Wizard to Establish a Connection.................................................................................... 19

WPS Connections (PBC Mode)....................................................................................................... 21

WPS Connections (PIN Mode) ........................................................................................................ 22

Configuring Network Settings .......................................................................................................... 23

2Transferring Images to an FTP Server 27

Configuring FTP Communication Settings....................................................................................... 28

Automatic Image Transfer After Each Shot ..................................................................................... 30

Transferring Images Individually...................................................................................................... 33

Batch Transfer ................................................................................................................................. 36

Checking Image Transfer History .................................................................................................... 41

Viewing Transferred Images............................................................................................................ 42

3Remote Capture Using EOS Utility 43

Configuring EOS Utility Communication Settings ............................................................................ 44

Using EOS Utility ............................................................................................................................. 47

4Remote Capture Using WFT Server 49

Configuring WFT Server Communication Settings .......................................................................... 50

Displaying WFT Server .................................................................................................................... 52

Viewing Images................................................................................................................................ 53

Remote Capture [Camera control] ................................................................................................... 55

Remote Capture [Simple control]..................................................................................................... 58

Remote Capture............................................................................................................................... 59

Using WFT Server in Linked Shooting............................................................................................. 60

5Using the Transmitter as a Media Server 61

Configuring Media Server Communication Settings ........................................................................ 62

Displaying Captured Images on a Television................................................................................... 63

Contents

COPY

7

Contents

6Linked Shooting 65

Preparing Slave Cameras................................................................................................................ 66

Basic Linked Shooting ..................................................................................................................... 67

Arranging the Slave Cameras.......................................................................................................... 68

Using the Transmitter with WFT Server........................................................................................... 70

7Managing Settings Information 79

Checking Settings............................................................................................................................ 80

Changing Settings............................................................................................................................ 82

Saving and Loading Settings ........................................................................................................... 85

8Synchronizing the Camera Time Wirelessly 89

Synchronizing the Time ................................................................................................................... 90

9Using Bluetooth GPS Devices 93

Connecting GPS Devices via Bluetooth........................................................................................... 94

10 Troubleshooting 97

Responding to Error Messages ....................................................................................................... 98

Wireless LAN Notes....................................................................................................................... 111

Checking Network Settings............................................................................................................ 112

11 Reference 113

Creating and Registering Captions................................................................................................ 114

Specifications................................................................................................................................. 115

Index .............................................................................................................................................. 124

COPY

8

The following precautions are intended to prevent harm to you and others as well as damage to

equipment. Become familiar with the precautions before using the transmitter to ensure correct

and safe operation.

To prevent fire, excessive heat, chemical leakage, or explosion, follow these safety guidelines.

• Do not insert metallic objects between electrical contacts of the transmitter, accessories, or connecting cables.

Do not use the transmitter where there is flammable gas. There is a risk of explosion or fire.

If the transmitter is dropped and internal parts are exposed, do not touch the exposed parts. There is a risk of

electrical shock.

Do not disassemble or modify the transmitter. High-voltage internal parts may cause electrical shock.

Do not store the transmitter in dusty or humid places. There is a risk of fire or electrical shock.

Before using the transmitter on board airplanes or in hospitals, make sure use is permitted. Electromagnetic

waves emitted by the transmitter may interfere with instrumentation or medical equipment.

Do not leave the transmitter inside a vehicle in hot weather or near a heat source. The transmitter may become

hot and cause burns if touched.

Do not cover or wrap the transmitter with a cloth. This may trap heat inside, posing a risk of case deformation or

fire.

Do not use paint thinner, benzene, or other organic solvents to clean the transmitter. This poses a risk of fire and

may be hazardous to your health.

If the product malfunctions, becomes damaged, or requires repair, contact your dealer

or the nearest Canon Service Center.

The transmitter is a precision instrument. Do not drop it or subject it to shock.

The transmitter is not waterproof. Do not use it underwater.

Wipe off any moisture with a clean, dry cloth. If the transmitter has been exposed to salty air,

wipe it with a clean damp cloth after wringing it out to remove excess water.

Never leave the transmitter near any equipment that generates a strong magnetic field,

such as magnets or electric motors.

Do not leave the transmitter in excessive heat, such as in a vehicle in direct sunlight. High

temperature may damage the transmitter.

Do not wipe the transmitter using cleaners containing organic solvents. If the transmitter

becomes difficult to clean, take it to the nearest Canon Service Center.

To avoid corrosion, do not store the transmitter where there are strong chemicals, such as in

darkrooms or chemical labs.

Safety Warnings

Warning Preventing Serious Injury or Death

Caution Preventing Injury or Equipment Damage

Handling Precautions

COPY

9

Nomenclature

Attachment pin

Tightening screw

Terminal

Transmitter Case

GPS device connection

Bluetooth connection Wired LAN

connection

Wireless LAN

connection

EOS-1D X rear LCD panel

COPY

10

Turn off the camera before attaching the transmitter.

The transmitter is powered by the camera. Ensure the camera battery has sufficient

charge. If the charge drops below 19%, you cannot transfer captured images.

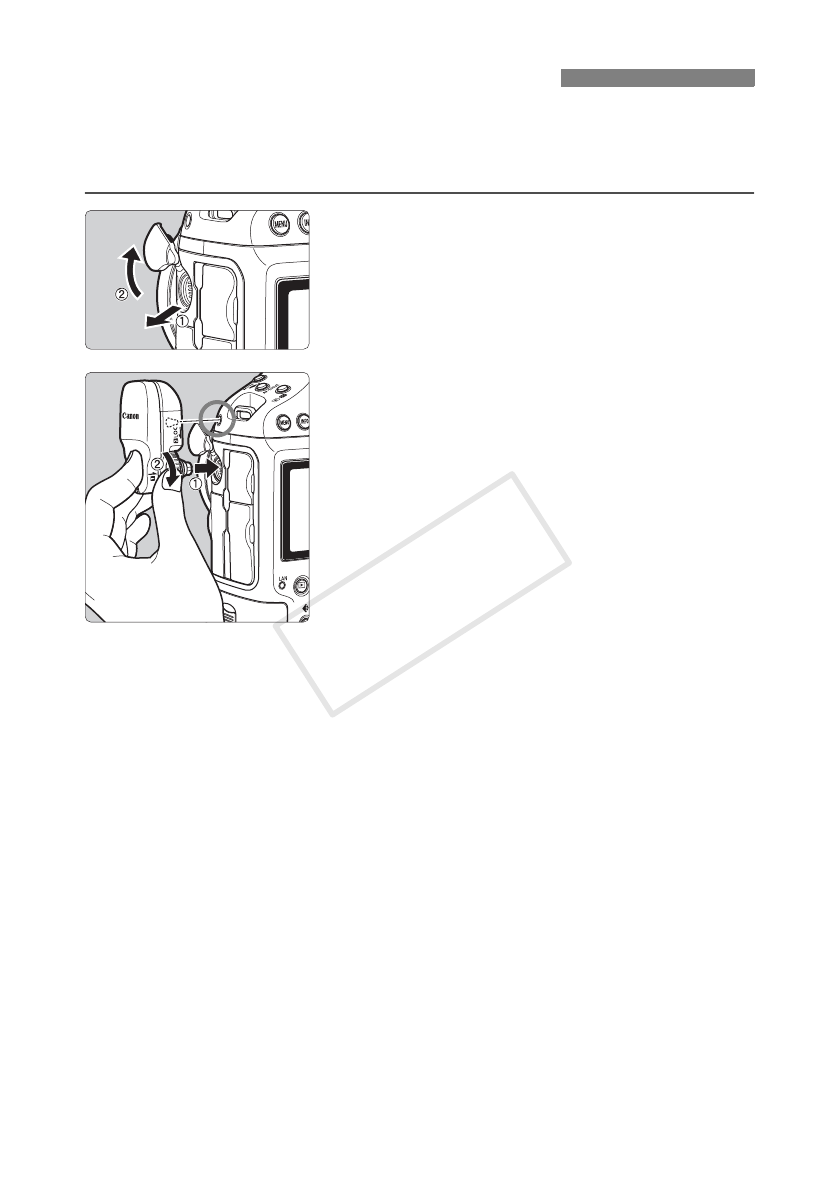

1Open the terminal cover on the camera.

Pull out the system extension terminal cover and

rotate it toward the front.

2Attach the transmitter.

Align the transmitter terminal and attachment pin

with the corresponding camera terminal and hole.

Push the terminal firmly into the camera.

As you push the terminal into the camera with your

left index finger, turn the tightening screw until it

stops rotating to attach the transmitter securely.

Removal

Turn off the camera.

Loosen the tightening screw until it spins freely.

Pull the terminal out of the camera.

Attaching to the Camera

COPY

11

Click one of the following chapter titles to view the corresponding page.

Subsequent Organization of This Manual

1 Basic Network Settings (p.13)

2 Transferring Images to an FTP Server (p.27)

3 Remote Capture Using EOS Utility (p.43)

4 Remote Capture Using WFT Server (p.49)

5 Using the Transmitter as a Media Server (p.61)

6 Linked Shooting (p.65)

7 Managing Settings Information (p.79)

8 Synchronizing the Camera Time Wirelessly

(p.89)

9 Using Bluetooth GPS Devices (p.93)

COPY

12

COPY

13

Basic Network Settings

Complete the basic network settings by following transmitter connection

instructions on the camera menu screen.

COPY

14

The connection instructions help you follow the steps to connect the transmitter to an existing

wireless LAN.

Set up the wireless LAN terminal (wireless LAN access point or adapter) and computer in

advance so that the transmitter can join the wireless network. When configuring the basic

network settings, bring the transmitter within 3 m / 9.8 ft. of the wireless LAN terminal.

Wireless Transmission of Movie

Individual movie files are large, and wireless file transmission takes some time. When setting

up an environment for stable transmission to the wireless LAN terminal, refer to the information

on page 111.

Set up a DLNA*-compatible television, digital photo frame, or similar media player so that it is

ready for use after the transmitter is connected to its network.

* DLNA: Digital Living Network Alliance

Set up the camera attached with this transmitter, and other cameras compatible with linked

shooting with WFT units attached.

Getting Ready

[FTP trans.], [EOSUtility], [WFTserver]

[MediaServ.]

[LinkedShot]

COPY

15

This section describes the process of following the connection instructions. If an error is

displayed, refer to “Troubleshooting” in Chapter 10 (p.97) and check the settings.

Pressing the shutter button or other camera controls during configuration by the connection

instructions will close the connection instructions. Do not press the shutter button or other

controls until configuration is finished.

On the [

5

2] tab, set [Auto power off] to [Disable]. If auto power off is activated, the

connection instructions will be closed during the configuration process.

1Turn the camera on.

2Display the transmitter menu.

On the camera, press the <7> button.

On the [53] tab, select [Communication

settings] and press <0>.

3Select [Communication func].

Set [Communication func] to [Enable], and then

press <0>.

X[Network settings] is now available.

4Select [Network settings].

5Select [Connection wizard].

XThe [Select communication method] screen is

displayed.

XThe <Y> lamp on the camera starts blinking.

Displaying the Connection Wizard

COPY

16

Turn the <5> dial to select the communication

method, and then press <0>.

Select [OK] and press <0> to go to the next

screen.

• FTP trans.

Select this option to transfer captured images to an FTP server.

Images can be automatically transferred as you shoot them, or you can select images to be

transferred later.

Computer Operating Systems

Use of [FTP trans.] requires that one of the following operating systems be installed on your

computer. In addition, the computer must be set up as an FTP server in advance.

• Windows 7 (Professional, Enterprise, or Ultimate Edition for 32- or 64-bit systems)

• Windows Vista (Business, Enterprise, or Ultimate Edition for 32- or 64-bit systems)

• Windows XP Professional

• Mac OS X 10.6 or 10.7

For instructions on setting up your computer as an FTP server, refer to the computer

documentation.

The following operating systems cannot be used because FTP server functionality is

not provided.

• Windows 7 Home Premium

• Windows Vista Home Premium/Home Basic Edition

• Windows XP Home Edition

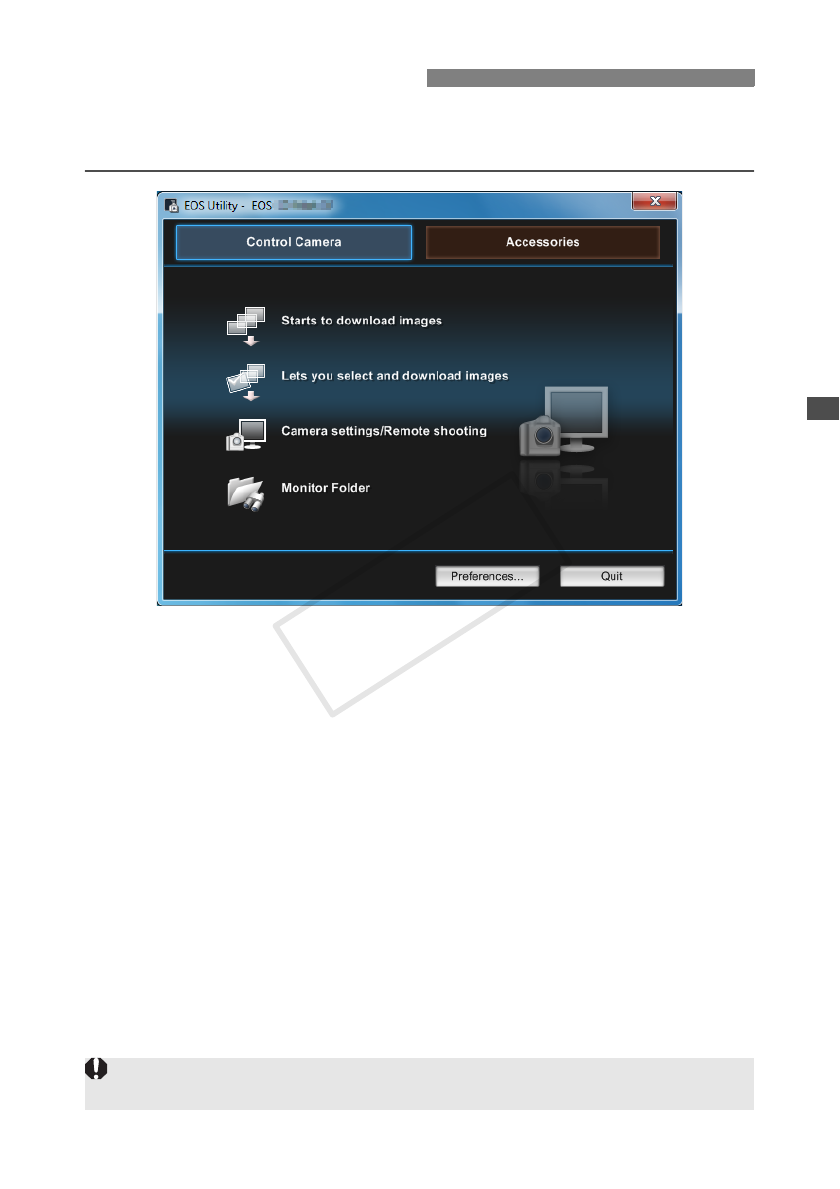

• EOSUtility

Select this option for remote capture over a wireless LAN using the EOS Utility software

included with your camera.

In addition to remote capture, all camera operations in EOS Utility are supported. With this

option, a wireless network is used instead of the USB cable.

Requires a computer with EOS Utility (included with EOS-1D X cameras) installed.

Selecting the Communication Method and LAN Type

Selecting the Communication Method

COPY

17

Selecting the Communication Method and LAN Type

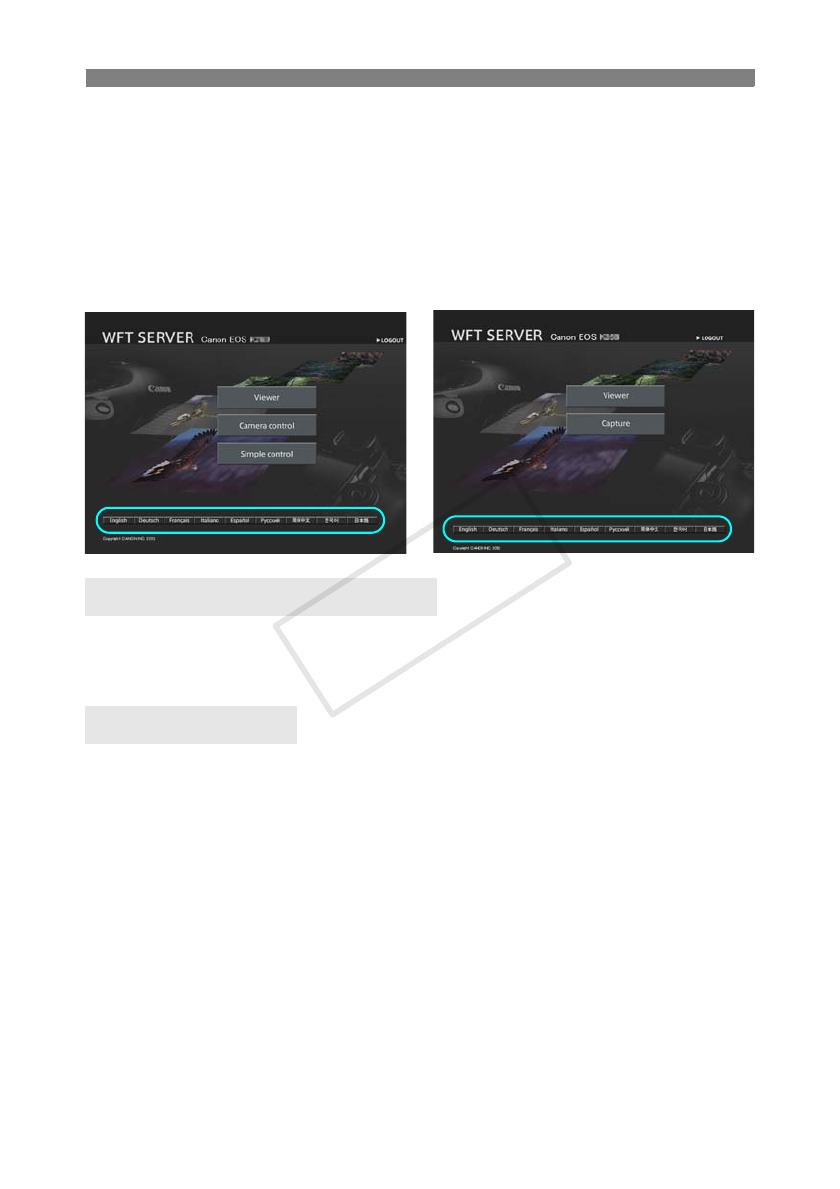

• WFTserver

Select this option for remote capture over a wireless LAN with the transmitter acting as a

server.

Additionally, images on a memory card in the camera can be viewed and downloaded to a

computer.

The camera can be accessed like browsing a webpage, by users at up to three computers.

Computer Operating Systems

Any computer with a web browser can be used, regardless of the operating system.

Even devices other than computers can be used, if they feature a web browser. However, if

the web browser does not support JavaScript, WFT Server functions will be limited. Also

note that devices with limited performance may display images more slowly, and

downloading images to these devices may not be possible.

• MediaServ.

Select this option to view images on a memory card in the camera over a wireless LAN on a

television.

This function requires a DLNA-compatible television, digital photo frame, or similar media

player.

• LinkedShot

Select this option when performing linked shooting, using multiple compatible cameras with

WFT units attached. Up to 10 slave cameras can be linked to the master camera on which you

will release the shutter. Note that there will be a slight delay after you release the master

camera shutter before the slave cameras shoot. Movie shooting is not supported.

For further instructions on [LinkedShot], refer to page 65 of this manual.

COPY

18

Selecting the Communication Method and LAN Type

For [LinkedShot] instructions, refer to page 65. Note that no information about

[LinkedShot] is given in this chapter.

Turn the <5> dial to select the type of LAN, and

then press <0>.

Select [OK] and press <0> to go to the next

screen.

Wireless LAN

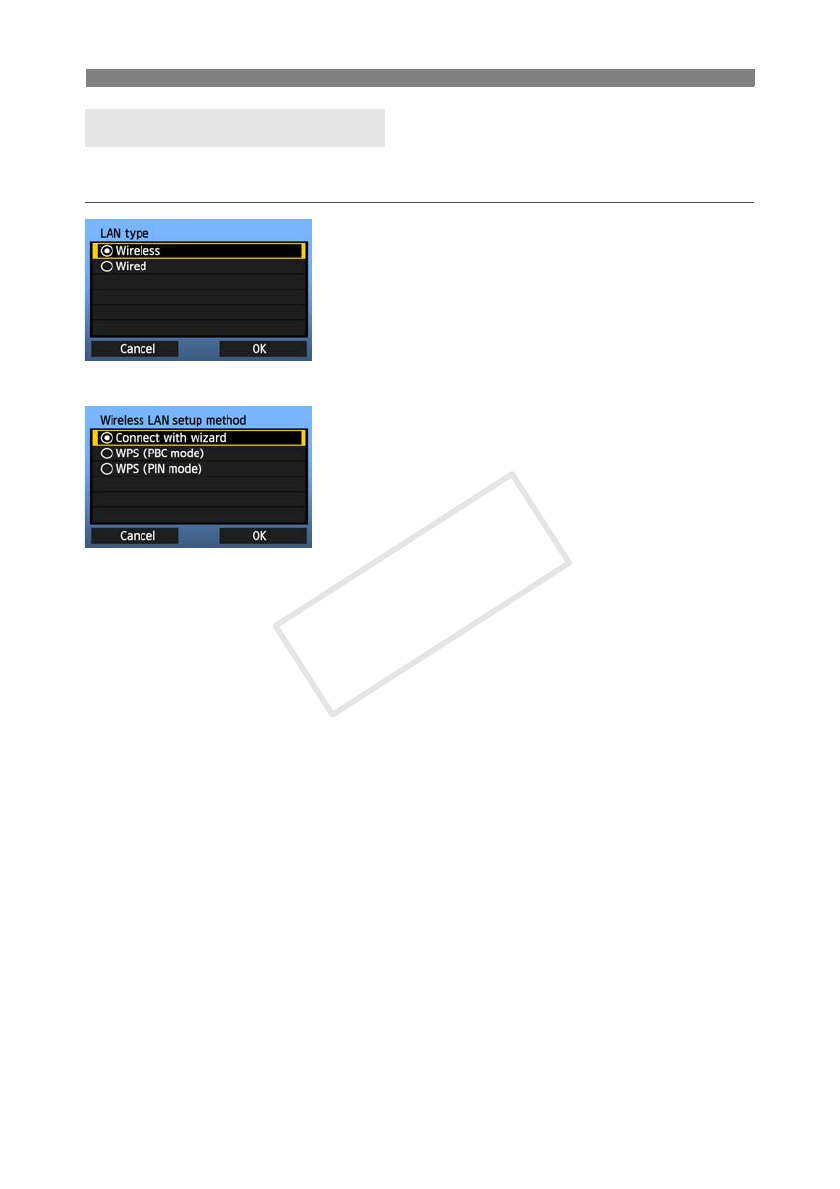

The [Wireless LAN setup method] screen is

displayed.

[Connect with wizard]: See p.19

[WPS (PBC mode)]: See p.21

[WPS (PIN mode)]: See p.22

Select [WPS (PBC mode)] or [WPS (PIN mode)]

when using a wireless LAN terminal compatible with

Wi-Fi Protected Setup (WPS).

Wired LAN

With this option, a wired LAN connection is established using the Ethernet RJ-45 terminal on

the EOS-1D X. For details, refer to the Wired LAN Instruction Manual included with the EOS-1D

X.

Selecting the LAN Type

COPY

19

When you select [Connect with wizard], active wireless LAN terminals in your area are listed,

accompanied by information about them. Select the SSID (or ESS-ID) of your desired wireless

LAN terminal.

1Select [Connect with wizard].

Turn the <5> dial to select [Connect with

wizard], and then press <0>.

2Select the wireless LAN terminal.

To select the wireless LAN terminal, press <0>.

Turn the <5> dial to select the wireless LAN

terminal, and then press <0>.

Select [OK] and press <0> to go to the next

screen.

1Indicates whether the device is in infrastructure or ad hoc mode

2An icon is displayed if the wireless LAN terminal is encrypting communication

3Indicates the first 9 characters of the SSID

4Indicates the channel used

Encryption by Wireless LAN Terminals

If the wireless LAN terminal is encrypting communication, select the corresponding method in

[Authentication] and [Encryption].

[Authentication]: Open system, Shared key, WPA-PSK, or WPA2-PSK

[Encryption]: WEP, TKIP, or AES

[Enter connection] and [Search again]

To configure settings for the wireless LAN terminal manually, select [Enter connection] and

press <0>. Complete the settings for the items displayed, one after another.

To search for wireless LAN terminals again, select [Search again] and press <0>.

Using the Wizard to Establish a Connection

Selecting the Wireless Network

123 4

COPY

20

Using the Wizard to Establish a Connection

Next, enter the encryption key of the wireless LAN terminal. For details on the encryption key,

refer to the device’s instruction manual.

Note that the screens displayed in steps 1 to 3 below vary depending on the authentication and

encryption of the wireless LAN terminal.

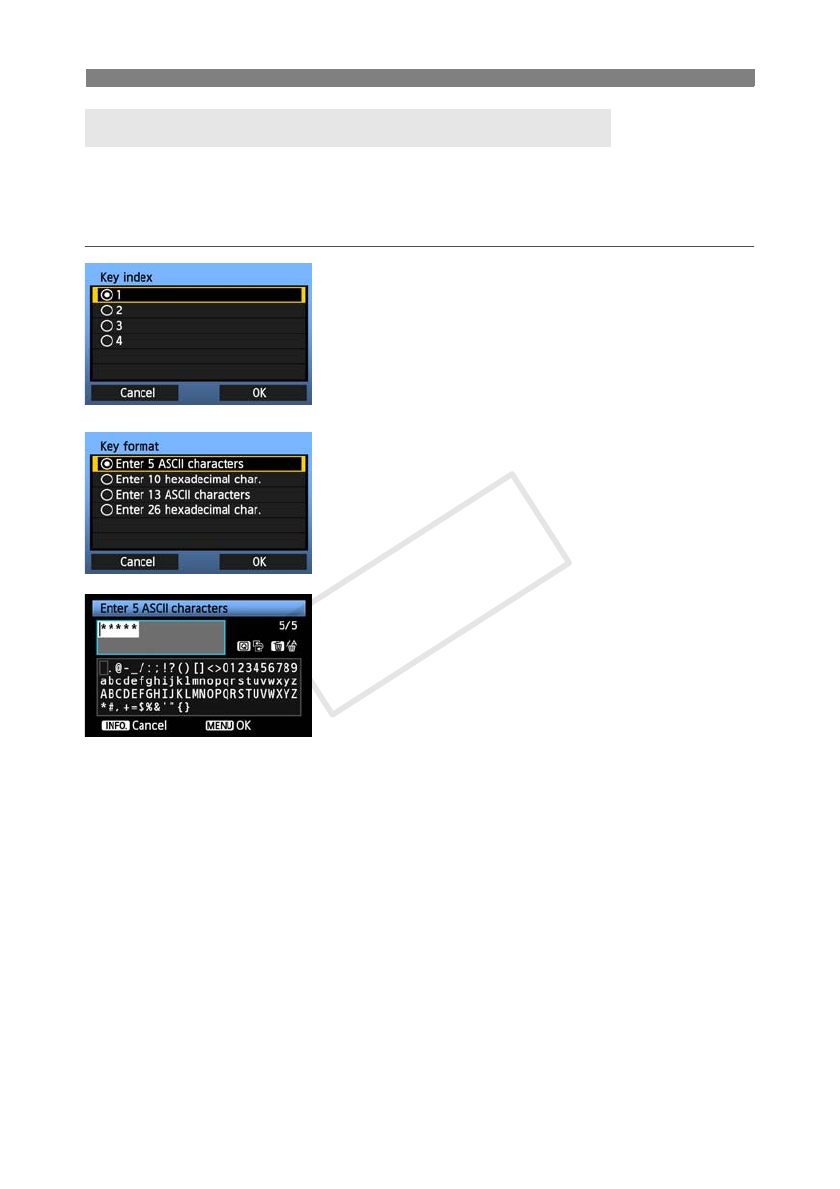

1 The [Key index] screen is displayed only if WEP

encryption is used by the wireless LAN terminal.

Turn the <5> dial to select the key index number

specified as the access point, and then press

<0>.

Select [OK] and press <0> to go to the next

screen.

2 Turn the <5> dial to select the key format, and

then press <0>.

Select [OK] and press <0> to go to the next

screen.

3 Enter the encryption key.

To switch between input areas, press the <Q>

button.

To move the cursor, turn the <5> dial.

In the bottom input area, turn the <5> dial and

press <0> to enter the encryption key.

If you make a mistake, press the <L> button to

erase it.

When you press the <7> button to complete

the connection with the wireless LAN terminal, the

[Network] screen (p.23) is displayed.

To return to the previous screen, press the

<6> button. The entry is erased.

Entering the Wireless LAN Encryption Key

COPY

21

This is a connection mode when using a wireless LAN terminal compatible with Wi-Fi Protected

Setup (WPS). Pushbutton Connection mode (PBC mode) makes it easy to establish a

connection between the camera and the wireless LAN terminal by pressing the WPS button on

the wireless LAN terminal.

Note that if multiple wireless LAN terminals are active in your area, it may be harder to establish

a connection. In this case, try using [WPS (PIN mode)] to establish a connection.

Confirm the position of the WPS button on the wireless LAN terminal in advance.

It may take about one minute to establish connection.

Connection may not be possible if stealth functions are enabled on the wireless LAN

terminal. Deactivate stealth functions.

1Select [WPS (PBC mode)].

Turn the <5> dial to select [WPS (PBC mode)],

and then press <0>.

Select [OK] and press <0> to go to the next

screen.

2Establish a connection with the

wireless LAN terminal.

Press the WPS button on the wireless LAN

terminal. For details about where the button is

located and how long to press it, refer to the

instruction manual of the wireless LAN terminal.

Select [OK] and press <0> to establish a

connection with the wireless LAN terminal.

When the connection with the wireless LAN

terminal is established, the [Network] screen

(p.23) is displayed.

WPS Connections (PBC Mode)

COPY

22

This is a connection mode when using a wireless LAN terminal compatible with Wi-Fi Protected

Setup (WPS). In PIN code connection mode (PIN mode), an 8-digit identification number

specified on the camera is set on the wireless LAN terminal to establish a connection.

Even if there are multiple wireless LAN terminals active in your area, this is a relatively reliable

method of establishing a connection using a shared identification number.

It may take about one minute to establish connection.

Connection may not be possible if stealth functions are enabled on the wireless LAN

terminal. Deactivate stealth functions.

1Select [WPS (PIN mode)].

Turn the <5> dial to select [WPS (PIN mode)],

and then press <0>.

Select [OK] and press <0> to go to the next

screen.

2Specify the PIN code on the wireless

LAN terminal.

On the wireless LAN terminal, specify the 8-digit

PIN code shown on camera LCD monitor.

For instructions on setting PIN codes on the

wireless LAN terminal, refer to the instruction

manual of the wireless LAN terminal.

Select [OK] and press <0> to display the

confirmation screen.

3Establish a connection with the

wireless LAN terminal.

Select [OK] and press <0> to establish a

connection with the wireless LAN terminal.

When the connection with the wireless LAN

terminal is established, the [Network] screen

(p.23) is displayed.

WPS Connections (PIN Mode)

COPY

23

Turn the <5> dial to select how to configure the

network settings, and then press <0>.

Select [OK] and press <0> to go to the next

screen.

[Auto setting]

Settings otherwise configured with [Manual setting] can be configured automatically.

However, the IP address and similar settings must be automatically assigned and

configured in environments using DHCP servers or wireless LAN terminals or routers

supporting DHCP server functions.

If an error is displayed, select [Manual setting] regardless of whether the IP address and

similar settings are automatically assigned and configured.

[Manual setting]

The [IP address set.] screen is displayed after you select

[Manual setting]. If [Auto setting] results in an error, enter

the IP address manually. As the IP address, enter the IP

address assigned to the camera.

Enter the [IP address], [Subnet mask], [Gateway], and

[DNS address] on each screen as they are displayed.

If you are not sure what to enter, refer to page 112, “Checking

Network Settings,” or ask the network administrator or

another person knowledgeable about the network.

When entering numbers for the IP address, subnet mask,

and so on, press <0> to move the input position and

turn the <5> dial to enter the number.

Configuring Network Settings

COPY

24

Configuring Network Settings

The following instructions are for settings screens that vary depending on the communication

method (FTP Transfer, EOS Utility, WFT Server, or Media Server), as shown below. Read the

page that introduces the selected communication method.

FTP trans.

Chapter 2 (p.27)

EOSUtility

Chapter 3 (p.43)

WFTserver

Chapter 4 (p.49)

MediaServ.

Chapter 5 (p.61)

Completing Settings for the Communication Method

Windows 7 and Windows Vista Users

Before performing the operations from page 43, perform the operations below. If these operations are

not performed, the WFT Pairing Software described on page 44 may not start.

Open the [C Drive]  [Program Files]  [Canon]  [EOS Utility]  [WFTPairing] folder (in this

order), and then double-click the [WFT FirewallSettings] icon.

After performing this operation, perform the operation on page 43.

COPY

25

Configuring Network Settings

The virtual keyboard is displayed during entry of the encryption key, server name, and other

information.

Switching to other input areas

To switch between input areas, press the <Q>

button.

Moving the cursor

To move the cursor, turn the <5> dial.

You can also move the cursor using <9>.

Entering text

In the bottom input area, turn the <5> dial to move

the cursor and press <0> to enter text.

You can also move the cursor using <9>.

You can check how many characters you have

entered by referring to [*/5] in the upper-right corner of

the screen.

Deleting text

If you make a mistake, press the <L> button to erase

it.

Confirming entries

Press the <7> button to confirm what you have

entered and go to the next screen.

Canceling entries

Press the <6> button to erase the entry and

return to the previous screen.

Virtual Keyboard Operation

COPY

26

COPY

27

Transferring Images

to an FTP Server

With FTP transfer, you can automatically transfer each image to the FTP

server as you shoot or transfer a set of shots together.

COPY

28

These instructions are continued from Chapter 1.

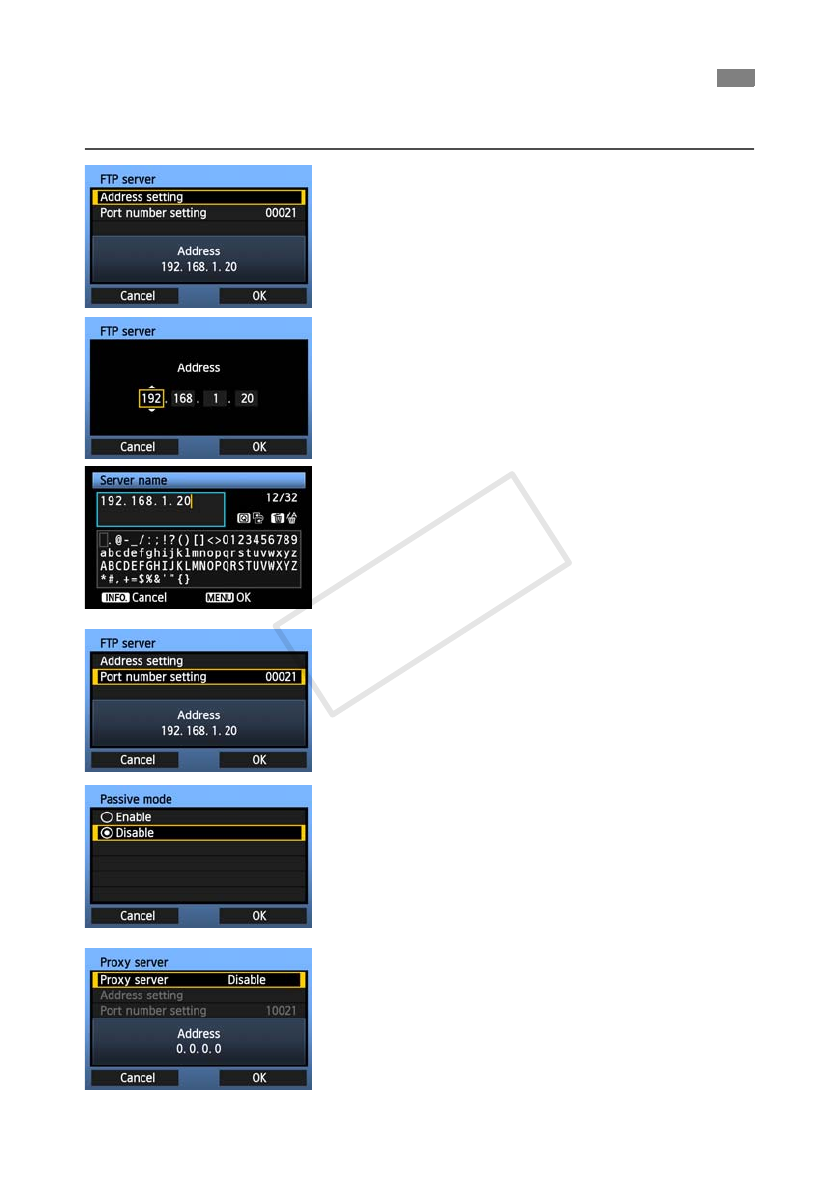

1 Turn the <5> dial to select [Address setting],

and then press <0>.

2 If you have set the DNS server setting to

[Disable], the screen on the left is displayed.

Press <0> to select the input position, and then

turn the <5> dial to enter the IP address of the

FTP server.

If you have set the DNS server IP address setting

to [Auto assign] or [Manual setting], the screen

on the left is displayed.

For instructions on screen operations, refer to

“Virtual Keyboard Operation” (p.25).

Enter the FTP server’s server name or IP address.

3 In [Port number setting], enter 00021, in most

cases.

Turn the <5> dial to select [OK], and then press

<0> to go to the next screen.

4

Complete the [Passive mode] settings.

If an Error 41 (“Cannot connect to FTP server”) is

displayed in step 8, setting [Passive mode] to

[Enable] may resolve it.

5 Complete the [Proxy server] settings.

Turn the <5> dial to select [OK], and then press

<0> to go to the next screen.

Configuring FTP Communication Settings

COPY

29

Configuring FTP Communication Settings

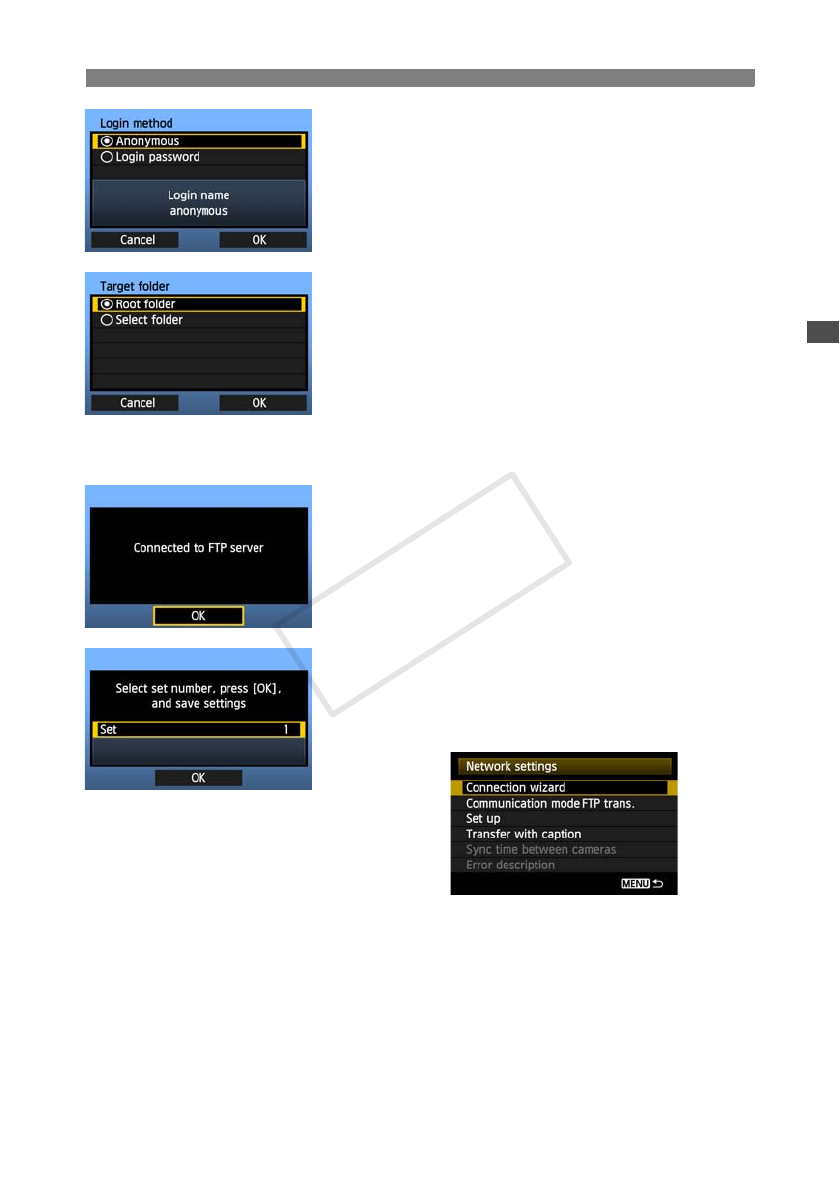

6 Complete the [Login method] settings.

Turn the <5> dial to select [OK], and then press

<0> to go to the next screen.

7 Complete the [Target folder] settings.

Select [Root folder] to have images saved in the

root folder as specified in FTP server settings.

(p.42)

Select [Select folder] to specify a subfolder in the

root folder. If no folder exists, a folder will be

created automatically.

Turn the <5> dial to select [OK], and then press

<0> to connect to the FTP server.

8 On the confirmation screen displayed next, select

[OK] and press <0>.

XThe <Y> lamp on the camera is lit in green.

9 Press <0>. Turn the <5> dial to select the set

number, and then press <0>.

Turn the <5> dial to select [OK], and then press

<0>. After the connection wizard is closed, the

display reverts to the menu screen.

Settings information is stored on the camera. It is

not stored on the transmitter.

The network settings for FTP transfer are now complete.

During image transfer, the <Y> lamp on the camera blinks in green.

COPY

30

An image can be automatically transferred to the FTP server immediately after shooting. You

can also continue still photo shooting even while images are being transferred.

Before shooting, be sure to insert a memory card in the camera. If you shoot without recording

images, they cannot be transferred.

Note that automatic transfer of movie is not supported. Transfer the movie after shooting, as

described on pages 33-40.

1Select [Communication settings].

2Select [Network settings].

Once you have set [Communication func] to

[Enable], you can select [Network settings].

3Select [Set up].

4Select [Automatic transfer].

Select [Enable].

5Take the picture.

XThe captured image is transferred to the FTP

server.

Automatic Image Transfer After Each Shot

During continuous shooting, images are transferred to the FTP server in the order they are captured.

The captured images are also stored on the memory card.

Any images for which transfer fails or is interrupted will be transferred automatically when the

wireless LAN connection is recovered (p.32). These images can also be transferred in batch

manually at a later time (p.36).

COPY

31

Automatic Image Transfer After Each Shot

With automatic transfer, you can select which images to transfer when recording images of

different sizes to separate cards, or when recording both RAW and JPEG images.

1Select [Communication settings].

2Select [Network settings].

Once you have set [Communication func] to

[Enable], you can select [Network settings].

3Select [Set up].

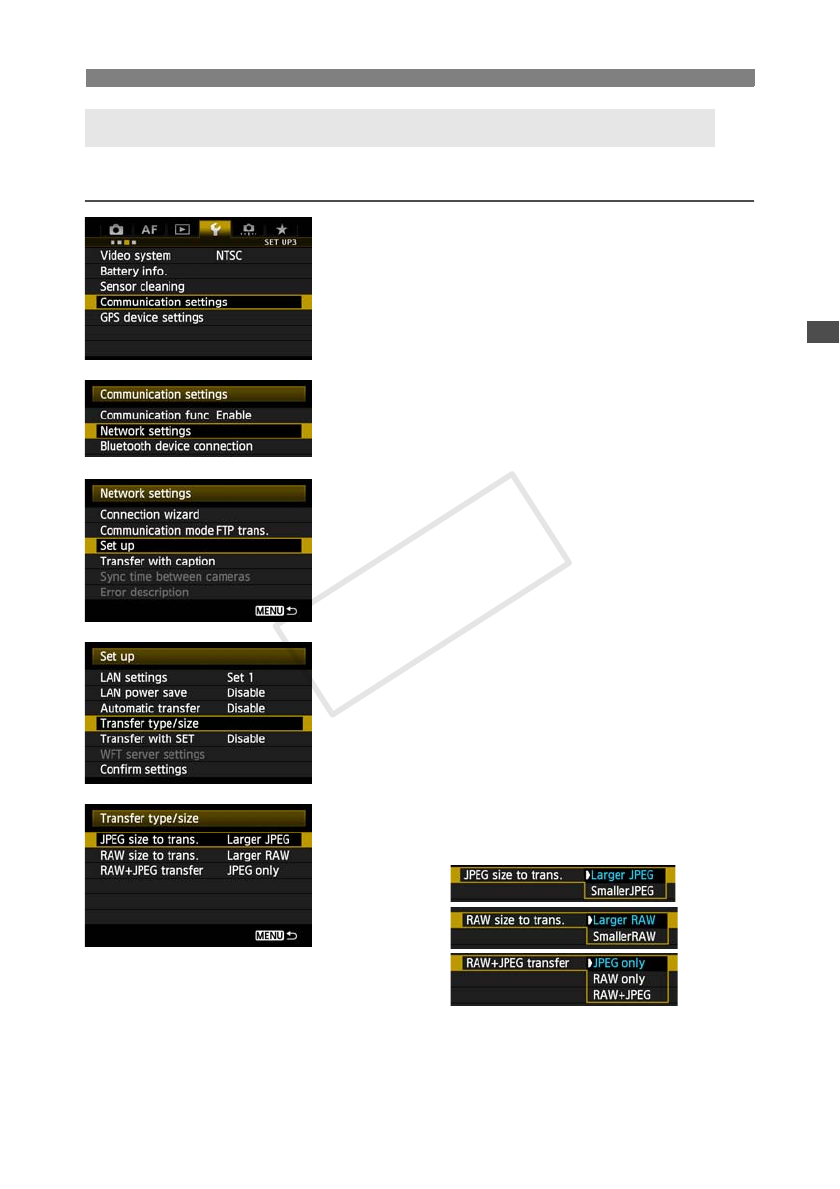

4Select [Transfer type/size].

5Select the size and type of images to

transfer.

Selecting Particular Sizes or Types of Images to Transfer

COPY

32

Automatic Image Transfer After Each Shot

To transfer smaller JPEGs when the camera is set up to record larger JPEGs to one card

and smaller JPEGs to the other, set [JPEG size to trans.] to [Smaller JPEG].

To transfer either RAW or JPEG images when the camera is set up to record RAW images

to one card and JPEGs to the other, specify which images to transfer in the [RAW+JPEG

transfer] setting. Similarly, complete the same setting when RAW+JPEG images are

recorded simultaneously to a single memory card.

When images of the same size are recorded to both cards simultaneously, images recorded

to card 1 are transferred, regardless of image quality (compression).

If transfer fails, the <Y> lamp on the camera

blinks in red. In this case, press the <7> button,

select [Communication settings] on the [53] tab,

and press <0>. When the screen shown on the left

is displayed, check the error number and see page 98

to eliminate the cause of the error.

Once the cause of the error is eliminated, the images

whose transfer previously failed will be transferred automatically. With this option activated,

transfer is attempted again automatically after failure, whether when automatic transfer is used

or when transferring captured images via FTP. Note that when you cancel image transfer, or

turn off the camera, the image will not be re-transferred automatically. See page 36 and transfer

the image manually.

In the menu, select [Communication settings]  [Network settings]  [Set up] 

[LAN power save].

When this option is set to [Enable], the transmitter will log off from the FTP server after

transfer and switch to standby mode. Wireless connectivity will be restored automatically

when you attempt to transfer images, and the transmitter will reconnect to the FTP server.

Auto Retry if Transfer Fails

Enabling LAN Power Management

COPY

33

Simply select an image and press <0> to transfer it. You can also add a caption before

transferring images. You can also continue still photo shooting even while images are being

transferred.

1Select [Communication settings].

2Select [Network settings].

Once you have set [Communication func] to

[Enable], you can select [Network settings].

3Select [Set up].

4Select [Transfer with SET].

Select [Enable].

5Select the image.

Press the <x> button on the camera.

Select the image to transfer, and then press <0>

to transfer the image.

Movie cannot be transferred this way.

Selecting movie and pressing <0> will

display the movie playback panel.

Transferring Images Individually

Transferring the Current Image

COPY

34

Transferring Images Individually

You can add a registered caption to each image before transfer. This is convenient if you want

to inform the recipient the printing quantity, for example. The caption is also added to images

stored on the camera.

For instructions on creating and registering captions, refer to page 114.

You can check for captions added to images by examining the Exif information, in the user

comments.

1Take the picture.

2Select [Communication settings].

3Select [Network settings].

Once you have set [Communication func] to

[Enable], you can select [Network settings].

4Select [Transfer with caption].

XThe last captured image is displayed.

It is not possible to select other images on the

[Transfer with caption] screen. To select another

image for transfer with a caption, view that image

before following these steps.

Adding a Caption Before Transfer

COPY

35

Transferring Images Individually

5Select a caption.

Turn the <5> dial to select the [Caption] frame,

and then press <0>.

Turn the <5> dial to select the content of the

caption, and then press <0>.

6Transfer the image.

Turn the <5> dial to select [Transfer], and then

press <0>.

COPY

36

After shooting, you can select multiple images as desired and transfer them all at once. You

can also transfer unsent images or images that could not be sent previously.

You can also continue still photo shooting even while images are being transferred.

1On the [32] tab, select [Image

transfer].

2Select [Image sel./transfer].

3Select [Sel.Image].

XAn image is displayed.

4Select images to transfer.

Press <0>. Turn the <5> dial to display <X> in

the upper left corner of the image to transfer.

Press <0> to confirm your selection.

You can select up to 9,999 images.

To display three images per screen, hold the <u>

button and turn the <6> dial left. To display one

image per screen, hold the <u> button and turn

the <6> dial right.

After selecting images to transfer, press the

<7> button.

Batch Transfer

Selecting Images to Transfer

COPY

37

Batch Transfer

5Transfer the images.

Select [FTP Trans.].

Select [OK] on the confirmation screen displayed

next.

XA transfer progress screen is displayed.

Selecting [RAW+JPEG transfer] in step 2 on the

preceding page will give you the option of transferring

RAW images, JPEG images, or both types of images.

You will have the same options whether you specify

[Sel. Image], [Sel. n], or [All image] as the image

selection method.

You can use the menu even during image transfer. However, to prevent transfer problems,

some menu items are unavailable during transfer, including [Network settings], [Protect

images], [Erase images], [Format card], and [Record func+card/folder sel.].

[RAW+JPEG transfer] Options

Menu Operation During Image Transfer

If you shoot a movie during the image transfer of captured images, the image transfer will be

temporary cancelled during movie shooting.

COPY

38

Batch Transfer

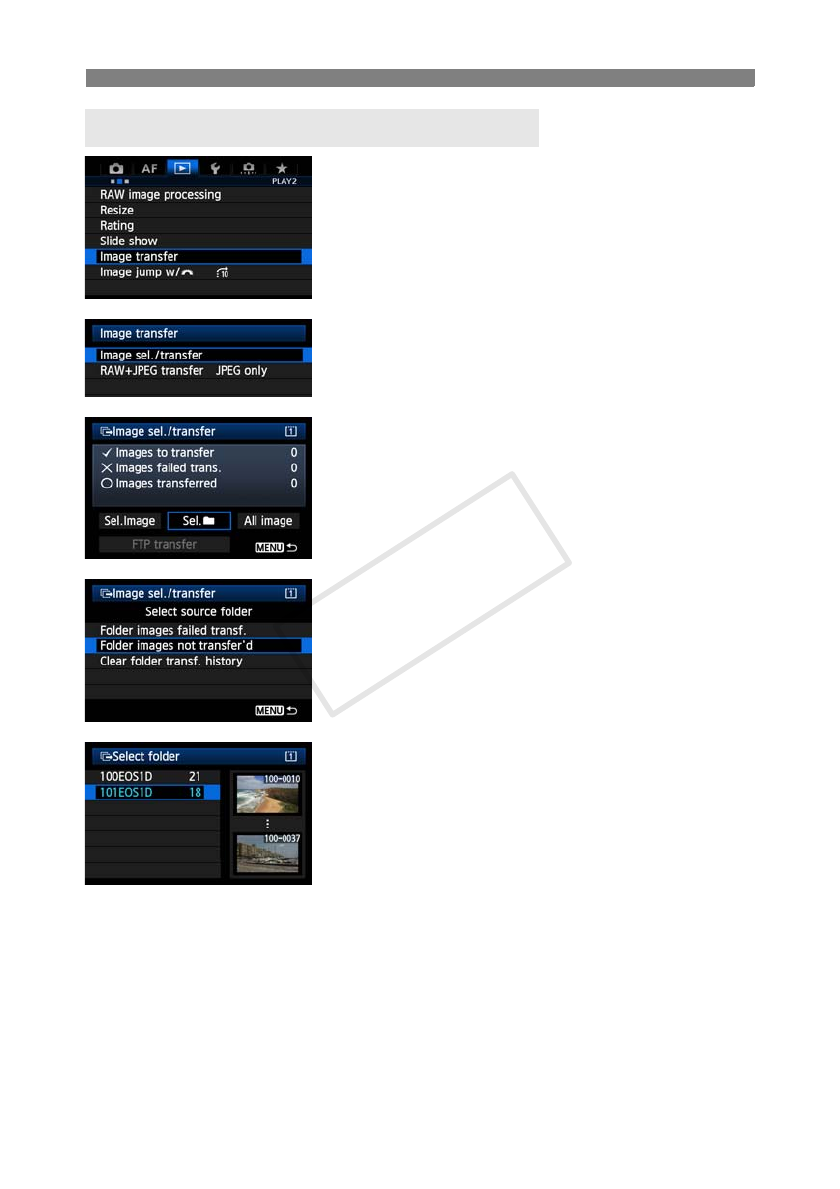

1On the [32] tab, select [Image

transfer].

2Select [Image sel./transfer].

3Select [Sel.n].

4Select [Folder images not transfer’d].

To transfer images that could not previously be

transferred, select [Folder images failed transf.].

5Select a folder.

Batch Transfer of Images in a Folder

COPY

39

Batch Transfer

6Transfer the images.

Select [FTP Trans.].

Select [OK] on the confirmation screen displayed

next.

XA transfer progress screen is displayed.

Selecting [Clear folder transf. history] will set the transfer history of images in the selected folder to

“unsent.” This enables you to resend all the images in the folder later by selecting [Folder images not

transfer’d].

COPY

40

Batch Transfer

1On the [32] tab, select [Image

transfer].

2Select [Image sel./transfer].

3Select [All image].

4Select [Card images not transferred].

To transfer images that could not previously be

transferred, select [Card images failed transfer].

5Transfer the images.

Select [FTP Trans.].

Select [OK] on the confirmation screen displayed

next.

XA transfer progress screen is displayed.

Batch Transfer of Images on Memory Cards

Selecting [Clear card’s transf. history] will set the transfer history of images on the memory card to

“unsent.” This enables you to resend all the images on the card later by selecting [Card images not

transferred].

COPY

41

To check the transfer history in [Image sel./transfer], select [Sel.Image].

Image not selected for transfer (no icon)

Image selected for transfer

Image could not be transferred

Image transferred

On the [Image sel./transfer] screen, you can check

the number of images for transfer as well as the

transfer history of images in the memory card.

Specifically, you can check the number of images

classified as [Images failed trans.] and [Images

transferred].

Checking Image Transfer History

Checking the Transfer History of Individual Images

Checking the Transfer History of Memory Cards

COPY

42

Images transferred to the FTP server are stored in the following folder as specified in the FTP

server settings.

Under the default settings of the FTP server, images are stored in [C drive]  [Inetpub]

folder  [ftproot] folder, or in a subfolder of this folder.

If the root folder of the transfer destination has been changed in the FTP server settings, ask

the FTP server administrator where images are transferred.

Open the [Macintosh HD]  [Users] folder. The folder where images are stored is located

in the folder of the user currently logged on, or in a subfolder there.

Under the default transmitter settings, transferred images will be stored in the root folder

specified in the FTP server settings, in a folder structure such as A/DCIM/100EOS1D which is

automatically created.

Additionally, when you have selected card 1 for recording and playback, a folder structure such

as “A/DCIM/100EOS1D” is automatically created for image storage. For card 2, the folder

structure is “B/DCIM/100EOS1D”. (Images are stored separated, with card 1 images in folder A

and card 2 images in folder B.)

Viewing Transferred Images

Windows

Macintosh

Folders for Image Storage

COPY

43

Remote Capture

Using EOS Utility

You can use EOS Utility to shoot remotely over a wireless LAN.

In addition to remote capture, all EOS Utility camera operations except

firmware updating are supported, because this option utilizes a wireless

network instead of a USB cable.

The WFT-E6 cannot be used with the Mac version of EOS Utility (as of November 2011).

Check the Canon website for the latest system requirements, including supported OS

versions.

COPY

44

These instructions are continued from Chapter 1.

With EOS Utility, you can use the included WFT Pairing Software to establish a connection

between the transmitter and a computer.

WFT Pairing Software is installed automatically during easy installation of the software

provided with the camera. If it is not installed, install it on the computer for communication with

the transmitter before this procedure.

The configuration procedure is as follows, using Windows 7 as an example.

1 First, the pairing screen is displayed.

Turn the <5> dial to select [OK]. When you press

<0>, the following message is displayed. ******

represents the last six digits of the MAC address of

the WFT-E6 for the connection.

2 Start the pairing software.

Normally, it is installed in the same location as

EOS Utility.

XAfter the pairing software starts up, an icon is

displayed in the task bar.

XWhen the camera is detected, a message is

displayed.

Configuring EOS Utility Communication Settings

COPY

45

Configuring EOS Utility Communication Settings

3 Double-click the pairing software icon.

XDetected cameras are listed. Cameras that have

already been connected are not included in the

list.

Click [Connect].

If multiple cameras are displayed, identify the

camera to connect to by its [MAC address] or [IP

address].

You can check the [MAC address] and [IP

address] by accessing [Confirm settings] in the

menu (p.80).

4 When the camera detects the computer on which

you clicked [Connect] in step 3, the message on

the left is displayed.

Turn the <5> dial to select [OK], and then press

<0>.

5 Press <0>. Turn the <5> dial to select the set

number, and then press <0>.

After you turn the <5> dial to select [OK] and

press <0>, the connection wizard is closed and

EOS Utility starts up.

XThe <Y> lamp on the camera is lit in green.

Settings information is stored on the camera. It is

not stored on the transmitter.

The EOS Utility network settings are now complete.

COPY

46

Configuring EOS Utility Communication Settings

There is no need to complete pairing again if you will continue using a particular camera,

transmitter, and computer together after pairing without changing the settings.

Before your next PTP session, simply turn on the camera to which the transmitter is

attached and start the pairing software. The connection between the camera and computer

will be established automatically.

You can add the pairing software to the software launched at startup of your computer. In

EOS Utility on the [Preferences]  [Basic Settings] tab, select [ Add WFT Pairing

Software to the Startup folder].

COPY

47

For EOS Utility instructions, refer to the Software Instruction Manual (PDF). You can take full

advantage of EOS Utility via the transmitter just as via a USB connection, without restrictions.

Using EOS Utility

In Remote Live View shooting, the rate of image transmission is slower than via USB. The motion of

moving subjects cannot be displayed smoothly.

COPY

48

COPY

49

Remote Capture

Using WFT Server

Using a web browser, you can view images on a memory card in the camera

and download them to a computer.

Additionally, you can shoot remotely over a wireless LAN. Note that bulb,

mirror lockup, and movie shooting are not supported.

COPY

50

These instructions are continued from Chapter 1.

Press <0>. Turn the <5> dial to select the set

number, and then press <0>.

Press <0> again. After the connection wizard is

closed, the display reverts to the menu screen.

XThe <Y> lamp on the camera is lit in green.

Settings information is stored on the camera. It is

not stored on the transmitter.

Enter a logon name and password for accessing the camera from a computer. The logon name

and password you specify here are used on the computer when connecting to the camera.

1 Turn the <5> dial to select [Set up], and then

press <0>.

2 Turn the <5> dial to select [WFT server

settings], and then press <0>.

Configuring WFT Server Communication Settings

Setting up an Account

COPY

51

Configuring WFT Server Communication Settings

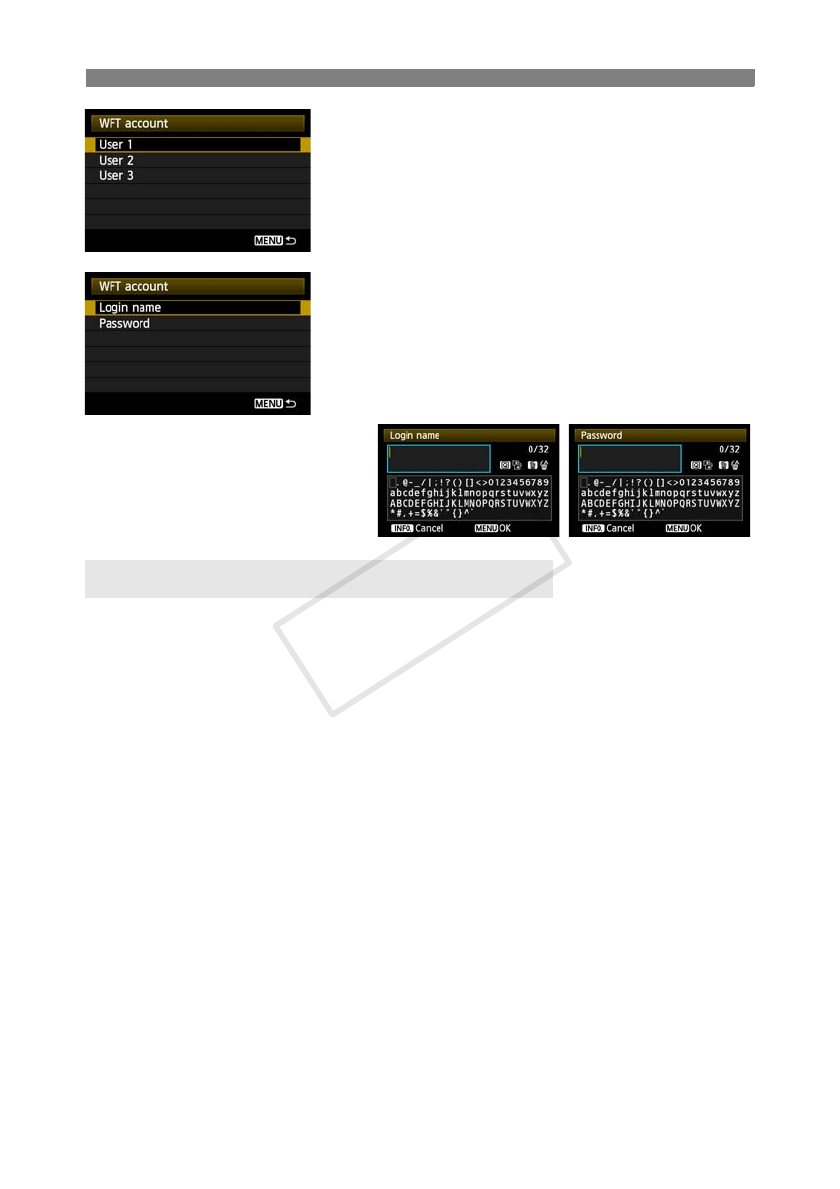

3 Turn the <5> dial to select [WFT account], and

then press <0>.

When changing the port number, turn the <5>

dial to select [Port number] and press <0>. Note

that there is normally no need to change the port

number (80).

4 Select a user number.

With WFT Server, you can connect the camera to

up to three computers. Select a user number to

prevent conflicts when users at other computers

are connected to the transmitter simultaneously.

Turn the <5> dial to select [User *], and then

press <0>.

5 After you select [Login name] and [Password],

the following input screen is displayed.

For instructions on input screen operations, refer

to “Virtual Keyboard Operation” (p.25).

The WFT Server network settings are now complete.

COPY

52

In the web browser, display WFT Server, a screen for transmitter operations. Make sure you

have already established a connection between the camera and computer.

1Start the web browser.

First, start Internet Explorer or another web

browser.

2Enter the URL.

In the address field, enter the IP address assigned

to the camera.

Press the <

Enter

> key.

3Complete the [Login name] and

[Password] settings.

Enter the login name and password as specified in

the procedure on page 51. Click [OK] to display

the WFT Server screen.

Web browsers that support JavaScript now display

the screen on the left below in step 4.

Otherwise, a message is displayed if JavaScript is

not supported. Choosing not to use JavaScript will

display the screen on the right below in step 4,

with limited functions.

4Select the language.

Select a language at the bottom of the screen.

Displaying WFT Server

JavaScript supported JavaScript not supported

If you don’t know the URL (IP address)

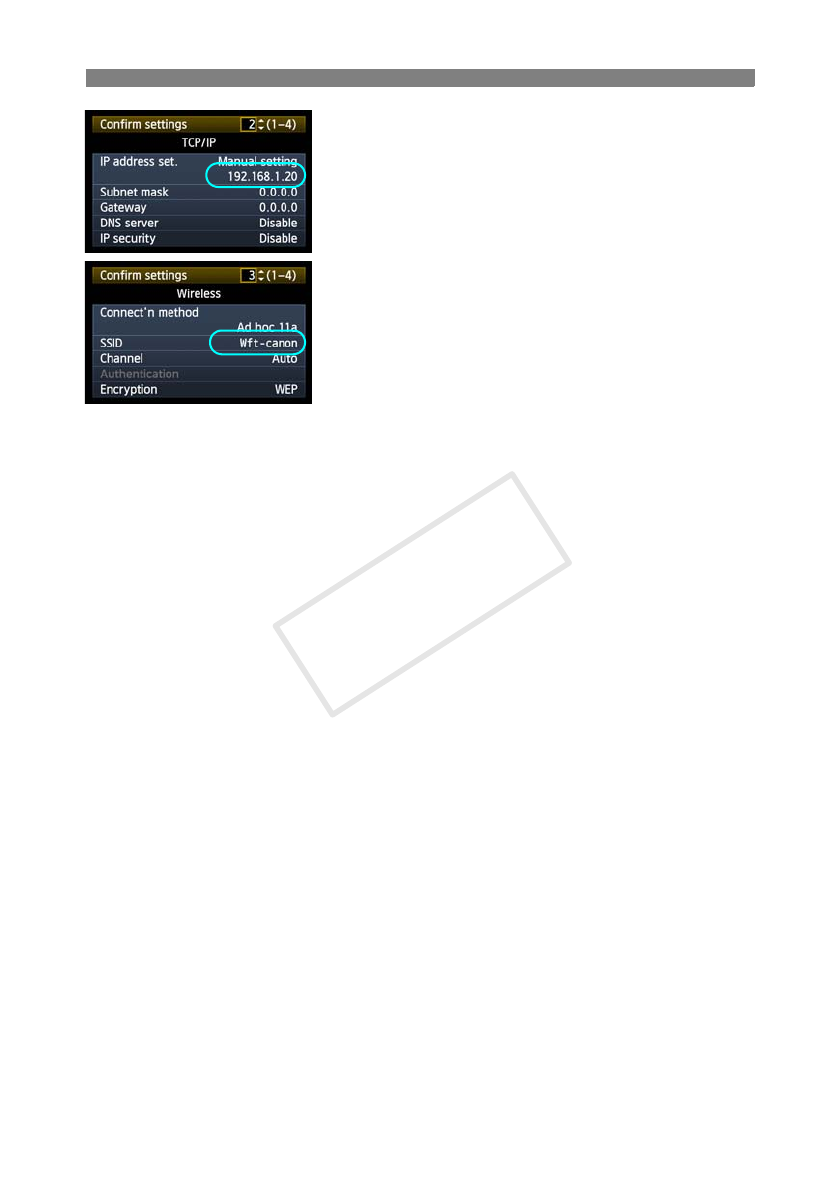

You can check the URL (IP address) by accessing [Confirm settings] in the menu (p.80).

COPY

53

Browse images on the camera’s memory card as follows.

1Click [Viewer].

XThe image viewing screen is displayed.

2Select the memory card.

Click [CF1] or [CF2].

Click the [DCIM] folder and select the folder

containing the images.

3Select an image.

To view another image, click the < >

buttons or jump to other pages.

In JavaScript-compatible web browsers, you can

specify how many thumbnails are shown per

screen by clicking the pull-down list in the upper-

right corner of the screen.

Viewing Images

COPY

54

Viewing Images

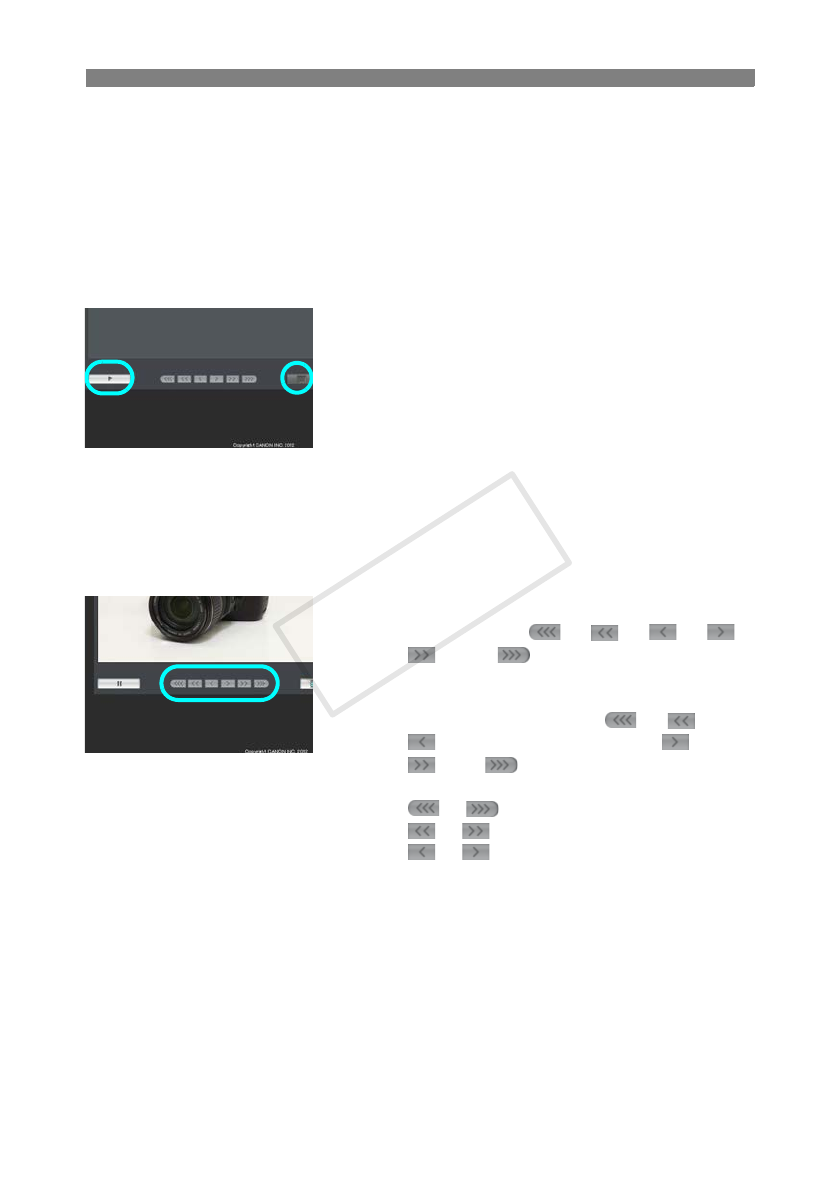

4Download images to the computer.

Click a thumbnail.

XThe image is displayed at a larger size.

To download the image to your computer, click

<>.

Click [Return] to return to the image viewing

screen.

Although actual RAW images and movies are not displayed here, they can be downloaded to

the computer in the same way as JPEGs.

COPY

55

First, set up the camera for Live View shooting. Note that remote capture of movies is

not supported.

For web browsers that do not support JavaScript, refer to page 59, “Remote Capture.”

1Click [Camera control].

XThe advanced capture screen is displayed.

* Items that cannot be set via WFT Server are shaded on the screen.

Remote Capture [Camera control]

①Battery check ⑪Quality

②Drive mode ⑫Shooting mode

③Possible shots ⑬White balance

④AF mode ⑭Metering mode

⑤Release button ⑮Menu

⑥AF/MF switch ⑯Live View shooting button

⑦Shutter speed ⑰Manual focus button

⑧Aperture ⑱Live View image size switching button

⑨ISO speed ⑲Live View image screen

⑩Exposure compensation

①

⑯

②③④ ⑤⑥

⑦

⑧

⑨

⑩

⑪

⑫

⑬

⑭

⑮

⑰⑱

⑲

COPY

56

Remote Capture [Camera control]

2Set the lens focus mode switch to

<f>.

Under these conditions, click the release button

(⑤). When you let go of the button, the camera

autofocuses and the picture is taken.

With One-Shot AF, the picture is not taken if focus

is not achieved. Try following the next steps to

display Live View image and focus manually.

3Display Live View image.

Click the Live View shooting button (⑯).

XThe AF/MF switch (⑥) is set to <g>, and Live

View image is displayed.

If Live View image is not displayed, enable Live

View shooting in the menu (⑮).

To make Live View image display more

responsive, click the Live View image size

switching button (⑱). Live View image is now

displayed at a smaller size, improving

responsiveness. To restore the original size, click

this button again.

4Manually adjust the focus.

Click the buttons < >, < >, < >, < >,

< >, and < > to adjust the focus. Note that

autofocus is not supported during Live View image

display.

To focus more closely, click < >, < >, or

< >. To focus farther away, click < >,

< >, or < >.

Three levels of focus adjustment are available.

< > < > : Largest increment

< > < > : Intermediate increment

< > < > : Smallest increment

⑯⑱

COPY

57

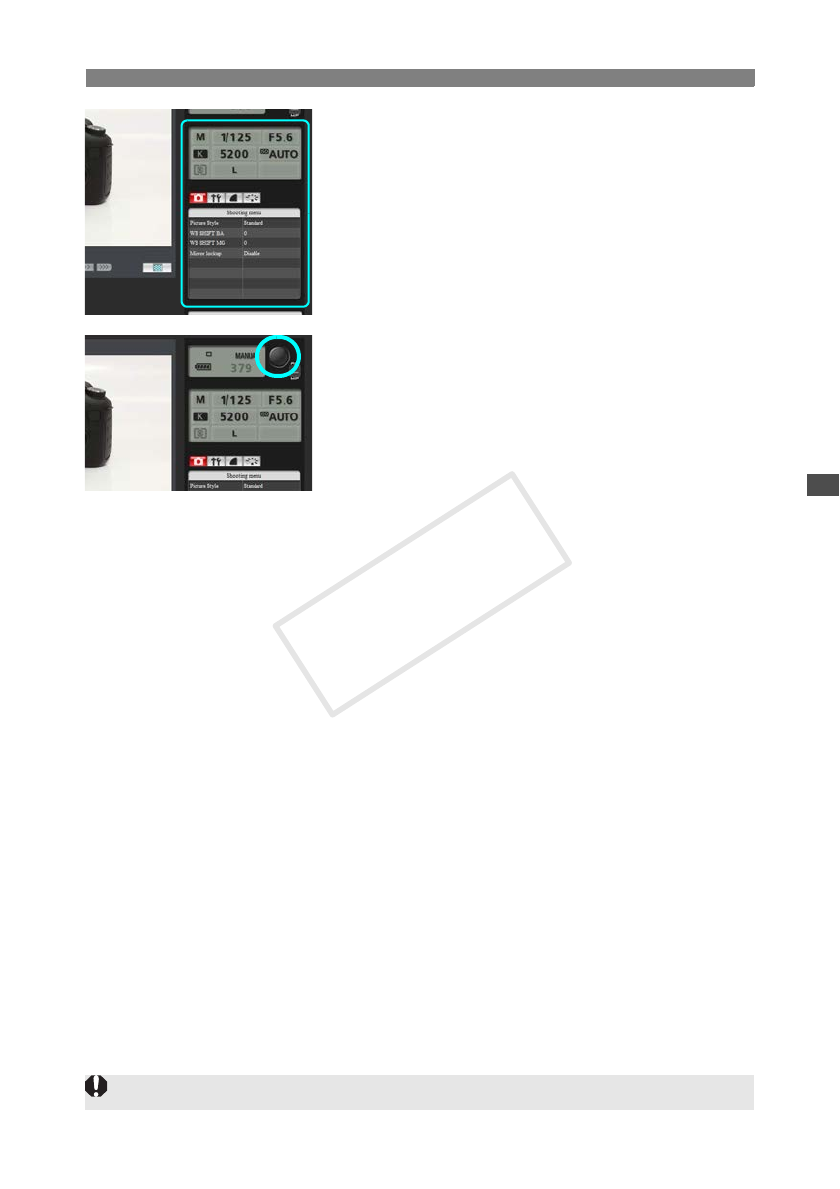

Remote Capture [Camera control]

5Configure the shooting settings.

Click setting items (such as quality) to view the

setting details, which you can configure.

Complete the settings as needed.

6Take the picture.

Click the release button (⑤). When you let go of

the button, the picture is taken.

XThe captured image is now displayed.

Captured images are stored on the memory card.

To download images to your computer, refer to

page 53, and use the [Viewer] function.

The Live View image may freeze when shooting if the camera is accessed by multiple computers.

COPY

58

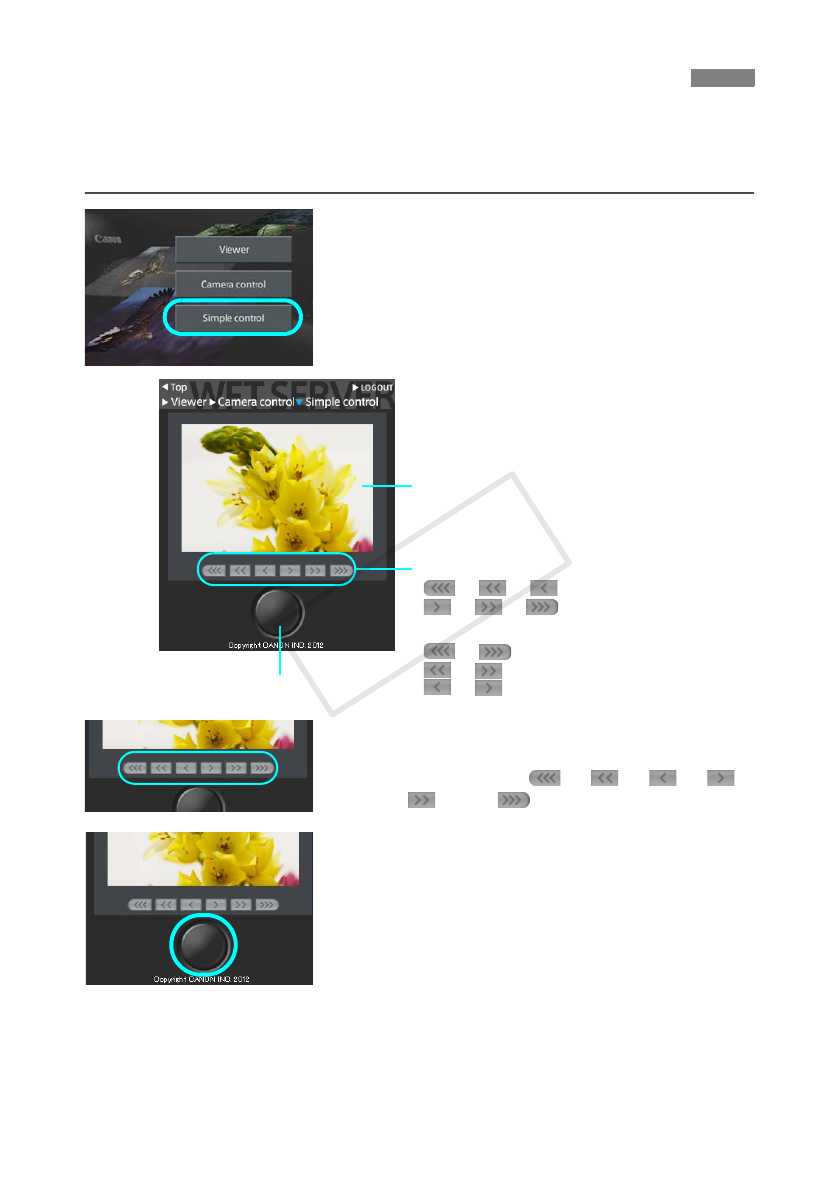

First, set up the camera for Live View shooting. Note that remote capture of movies is

not supported.

For web browsers that do not support JavaScript, refer to page 59, “Remote Capture.”

1Click [Simple control].

XThe basic capture screen is displayed, and then

Live View image is displayed.

2Manually adjust the focus.

Set the lens focus mode switch to <f>.

Click the buttons < >, < >, < >, < >,

< >, and < > to adjust the focus.

3Take the picture.

Click the release button. When you let go of the

button, the picture is taken.

XThe captured image is now displayed.

Captured images are stored on the memory card.

To download images to your computer, refer to

page 53, and use the [Viewer] function.

Remote Capture [Simple control]

Live View image screen

Release button

Manual focus button

< > < > < >: Focuses more closely

< > < > < >: Focuses farther away

Levels of focus adjustment

< > < > : Largest increment

< > < > : Intermediate increment

< > < > : Smallest increment

COPY

59

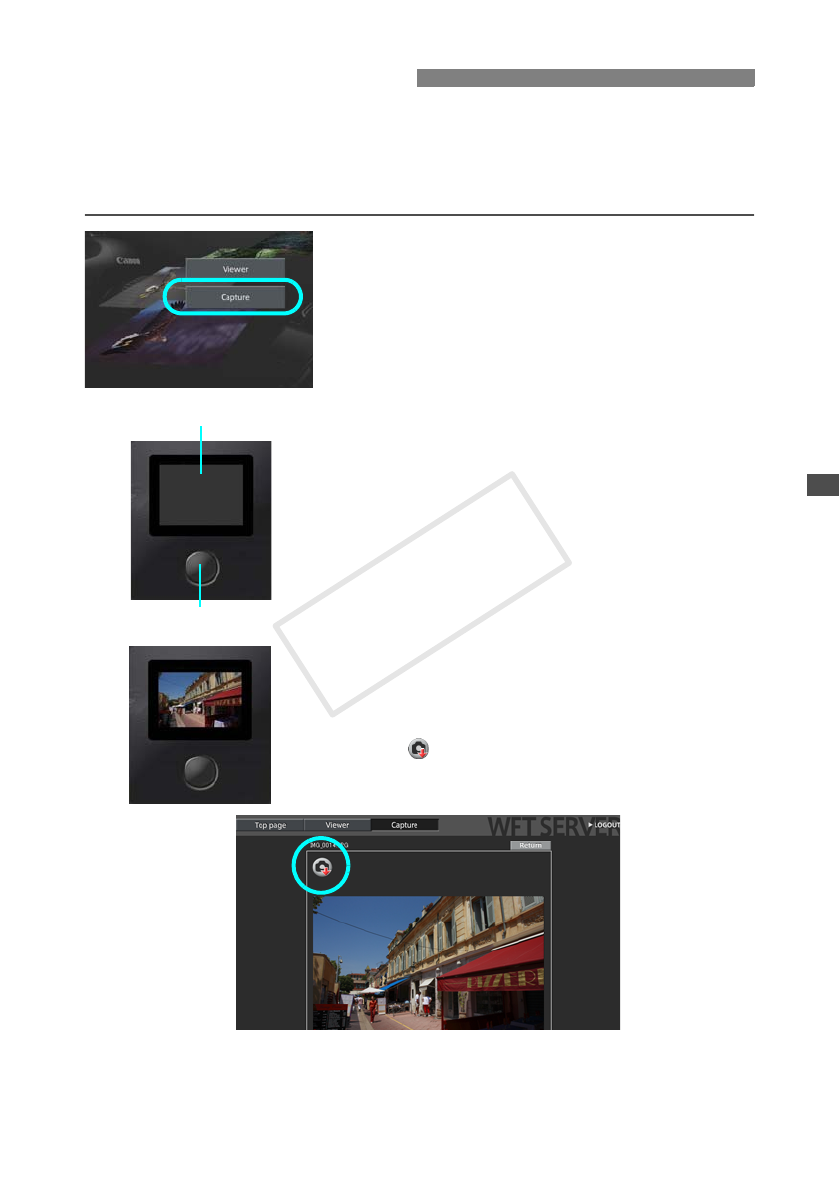

The following instructions are for remote capture with web browsers that do not support

JavaScript.

First, set up the camera for Live View shooting. Note that remote capture of movies is

not supported.

1Click [Capture].

XThe capture screen is displayed.

Live View image is not displayed.

2Take the picture.

Set the lens focus mode switch to <g>. Adjust

the focus on the camera.

Click the release button. When you let go of the

button, the picture is taken.

XThe captured image is now displayed.

Captured images are stored on the memory card.

3Download images to the computer.

Click the image.

XThe image is displayed at a larger size.

To download the image to your computer, click

<>.

Click [Return] to return to the capture screen.

Although actual RAW images are not displayed here, they can be downloaded to the computer

in the same way as JPEGs.

Remote Capture

Screen

Release button

COPY

60

Remote Capture in WFT Server can be used in conjunction with the transmitter’s “Linked

Shooting” function (p.70). Additionally, you can view and download images on master or slave

camera memory cards.

Using WFT Server in Linked Shooting

Slave camera

Slave cameraSlave camera

Slave camera

WFT Server

Linked Shooting

Master camera

COPY

61

Using the Transmitter

as a Media Server

Images on a memory card in the camera can be viewed over a wireless LAN

on a television.

This function requires a DLNA*-compatible television, digital photo frame, or

similar media player. (Subsequently, this equipment is collectively referred

to as the media player.)

* DLNA: Digital Living Network Alliance

COPY

62

These instructions are continued from Chapter 1.

Press <0>. Turn the <5> dial to select the set

number, and then press <0>.

Press <0> again. After the connection wizard is

closed, the display reverts to the menu screen.

The information you specified is stored on the

camera. It is not stored on the transmitter.

The media server network settings are now complete.

Configuring Media Server Communication Settings

COPY

63

Operate the media player controls to display on a television the images on the camera’s

memory card. Note that RAW images and movies cannot be displayed.

The following operations are done on the media player. For details, refer to the media player

instruction manual.

1Display the media player settings

screen on your television.

Using the media player functions, display the

<

EOS1D

> (media server) icon on the

television.

A different icon may be displayed, depending on

the media player. In that case, locate the icon

labeled EOS1D.

2Select the <

EOS1D

> (media server)

icon.

Selecting the <

EOS1D

> icon will display an

icon of the memory card. After you select this icon,

you can select folders and images.

Select an image to display it at a larger size on the

television. For details, refer to the media player

instruction manual.

Displaying Captured Images on a Television

EOS1D

Information overlay and details displayed on the television vary depending on the media player.

Note that depending on the media player, image information may not be displayed.

Icons labeled 1-100 (for example) contain images grouped by file number in the selected folder

(***EOS1D).

Date information shown for images is based on Exif information added to the images.

Date information shown for memory cards or folders may be the current date set on the camera, in

some cases.

EOS 1D



CF

02/28/2012 100EOS1D

02/28/2012 1-100

02/28/2012


02/28/2012

COPY

64

COPY

65

Linked Shooting

With linked shooting, up to 10 slave cameras can be linked in a wireless

network (via IEEE 802.11g in ad hoc mode) to the master camera on which

you will release the shutter.

Note that there will be a slight delay after you release the master camera

shutter until the slave camera shutters are released. Movie shooting is not

supported.

Slave camera

Master camera

COPY

66

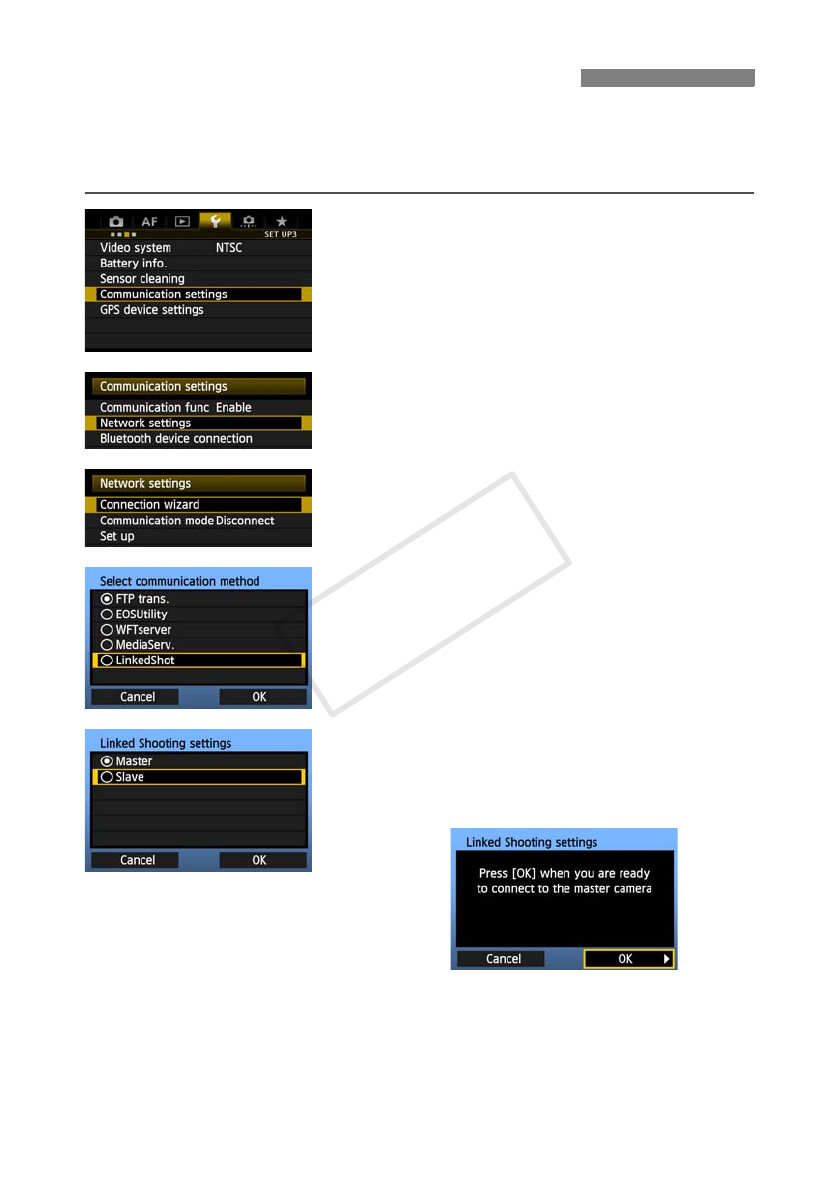

After setting up the slave cameras as described on this page, follow the steps on the next page

for basic linked shooting. For instructions to view or download to your computer the images

stored on cameras, refer to page 70.

1Select [Communication settings].

2Select [Network settings].

Once you have set [Communication func] to

[Enable], you can select [Network settings].

3Select [Connection wizard].

4Select [LinkedShot].

5Set up the slave cameras.

Select [Slave].

XThe slave cameras are now ready, with the

following screen displayed.

When using multiple slave cameras, set up all

slave cameras to slave state.

Once the settings are complete, slaves cannot be

added or removed. You must repeat the setup

process from step 1.

Preparing Slave Cameras

COPY

67

Shoot with the master camera linked to slave cameras as follows.

1Set up the master camera.

Configure the settings on the master camera

following steps 1-3 on the preceding page, and

then select [Master].

2Select [Auto connect].

For [Manual connect] instructions, refer to page

71.

3Switch to setting up the slave cameras.

On the slave cameras, select [OK].

4Check the number of slave cameras.

XOn the master camera LCD monitor, the number of

slave cameras detected is displayed.

5Establish the connection.

On the master camera and all slave cameras,

select [OK].

XA screen confirming the connection of the camera

is displayed.

Settings information is stored on the cameras. It is

not stored on the transmitters.

Basic Linked Shooting

COPY

68

Arrange the slave cameras in clear view of the master camera, without objects between

them.

You can arrange master camera in an overall circumference of up to approximately 100 m /

328 ft. However, the distance supported for linked shooting may be shorter depending on

the wireless communication conditions, which are affected by how the cameras are

arranged, the environment of use, and weather conditions.

Pressing the shutter button halfway on the master camera puts slave cameras in the same

state, as if the shutter buttons were pressed halfway. Similarly, fully pressing the shutter

button on the master camera has the same effect on slave cameras, which respond as if the

shutter buttons were fully pressed.

There will be a slight delay after you release the master camera shutter until the slave

camera shutters are released. (Simultaneous capture is not possible.)

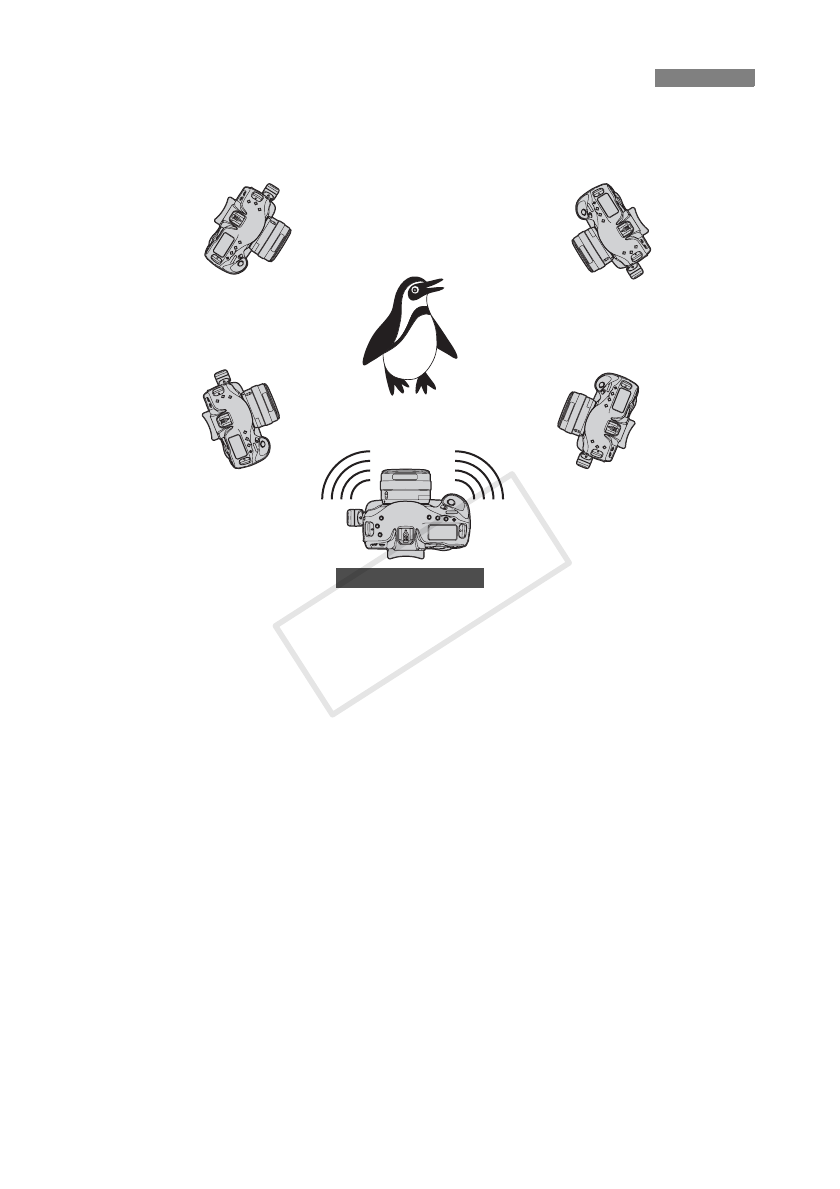

Arranging the Slave Cameras

Slave camera

Slave cameraSlave camera

Slave camera

Master camera

COPY

69

Arranging the Slave Cameras

Do not use multiple flash units. Although slight, there is a difference in the shutter release timing

which may cause out-of-sync flash firing and inadequate exposure.

Linked shooting is not possible when master and slave cameras are set to [Mirror lockup]

[Enable] or [Enable:Mirror down w/ s].

During linked shooting, when you press the AE lock or depth-of-field preview button, the camera

adjusts the focus and meters as if you had pressed the shutter button halfway.

Once you have established a connection between the master camera and slave cameras, the

settings are retained even after you replace the batteries.

If you will no longer use a slave camera in linked shooting, set [Communication mode] to

[Disconnect] on that slave camera.

Any cameras compatible with linked shooting, when they have WFT series transmitters attached,

can be used as slave cameras, regardless of model.

COPY

70

Using WFT Server, you can shoot remotely with a master camera linked to slave cameras that

will shoot at the same time. WFT Server can also be used to access master or slave cameras

for Live View display, and you can adjust the focus and configure remote capture settings as

needed.

Additionally, images on camera memory cards can be viewed and downloaded.

Using the Transmitter with WFT Server

Slave camera

Slave cameraSlave camera

Slave camera

WFT Server

Linked Shooting

Master camera

COPY

71

Using the Transmitter with WFT Server

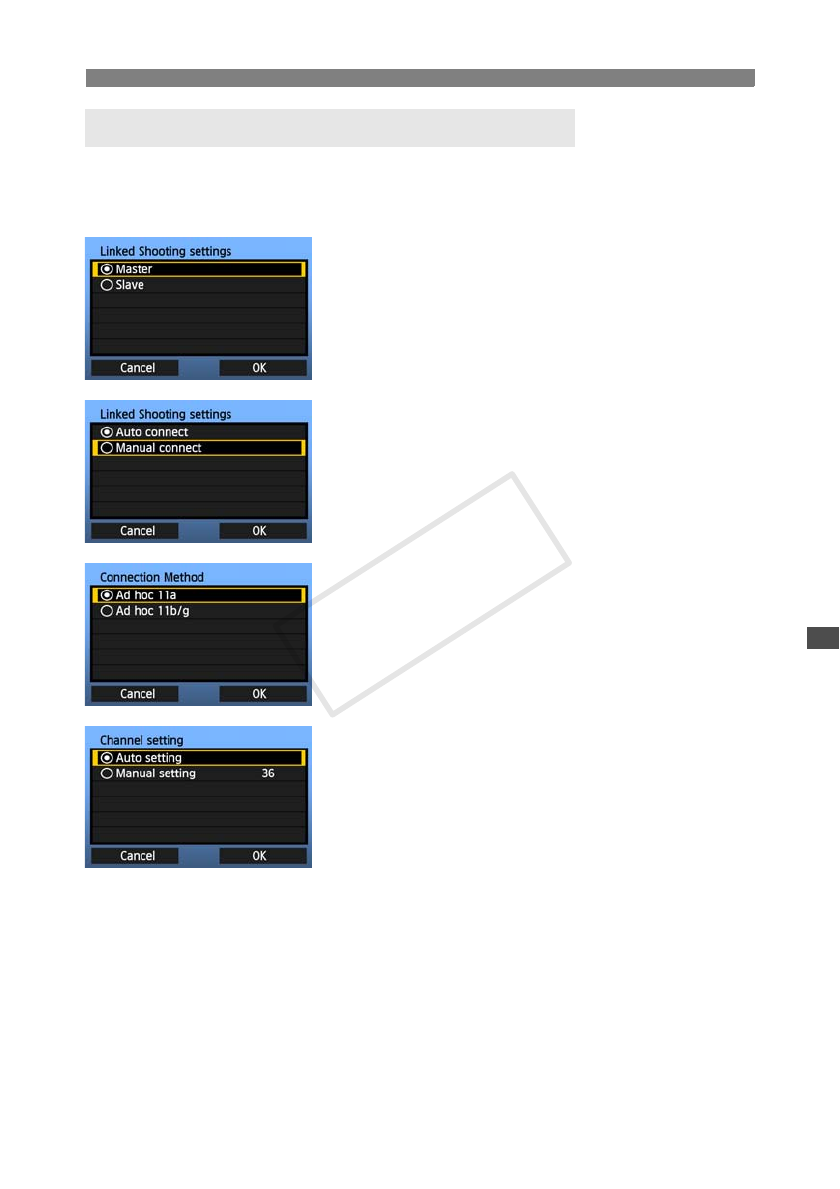

1Set up the slave cameras.

Set up the slave cameras as described on page 66.

2Set up the master camera.

Complete settings on the master camera following

steps 1–3 on page 66, and then select [Master].

3Select [Manual connect].

4Select the connection mode.

Select the wireless LAN ad hoc mode supported

by the computer.

5Specify the channel.

When selecting [Manual setting], specify the

same channel on the master camera, slave

cameras, and computer.

Connect the Master and Slave Cameras

COPY

72

Using the Transmitter with WFT Server

6Enter the encryption key.

Enter a 5-digit encryption (WEP) key and press the

<7> button.

The key entered here will be saved on the

computer and used to access the master camera

from the computer.

7Switch to setting up the slave cameras.

XOn the slave cameras, select [OK].

8Check the number of slave cameras.

XOn the master camera LCD monitor, the number of

slave cameras detected is displayed.

9Establish the connection.

On the master camera and all slave cameras,

select [OK].

XA screen confirming the connection of the camera

is displayed.

Settings information is stored on the cameras. It is

not stored on the transmitters.

COPY

73

Using the Transmitter with WFT Server

Check the network settings on the master and slave cameras as follows. Note that without a

good understanding of these settings, you cannot access the cameras from a computer.

1On the master camera, select

[Communication settings].

2Select [Network settings].

Once you have set [Communication func] to

[Enable], you can select [Network settings].

3Select [Set up].

4Select [Confirm settings].

XThe settings are displayed.

Check the Camera Settings

COPY

74

Using the Transmitter with WFT Server

5Check the settings.

Turn the <5> dial to display other screens.

Write down the IP address and SSID.

6Check the slave camera settings.

Check network settings on the slave cameras just

as you checked the master camera settings.

Write down the IP address of all slave cameras.

Each camera has a different address.

The SSID will match the master camera SSID.

COPY

75

Using the Transmitter with WFT Server

Enter a login name and password for accessing WFT Server on cameras from a computer.

Although you can specify different login names and passwords for each camera, it is also

possible to use the same information for all cameras.

1On the master camera, select

[Communication settings].

2Select [Network settings].

Once you have set [Communication func] to

[Enable], you can select [Network settings].

3Select [Set up].

4Select [WFT server settings].

5Select [WFT account].

Note that there is normally no need to change

[Port number].

Configure WFT Server Communication Settings

COPY

76

Using the Transmitter with WFT Server

6Select a user number.

WFT Server can accept connections from up to

three computers per camera. Select a user

number to prevent conflicts when users at other

computers are connected to the transmitter at the

same time.

7Complete the [Login name] and

[Password] settings.

After you select [Login name] and [Password],

the following input screen is displayed.

For instructions on input screen operations, refer

to “Virtual Keyboard Operation” (p.25).

IP addresses assigned to cameras end in 1–11, as in 192.168.1.1–192.168.1.11.

For this reason, assign computer IP addresses that end in a number higher than 11, as in

192.168.1.12.

IP Addresses Assigned to Computers

COPY

77

Using the Transmitter with WFT Server

To access the cameras from the computer, use the computer’s standard search function to

detect wireless LAN terminals. For details, refer to the computer instruction manual.

1From the computer, find cameras on the

network.

Use built-in searching on the computer to detect

wireless LAN terminals.

2Connect to a camera.

Select a device with the same ID as the SSID you

wrote down in steps 5 and 6 on page 74.

After the computer requests an encryption (WEP)

key, enter the key set in step 6 on page 72.

XThe computer is now connected to the camera.

1Start a web browser on the computer.

First, start Internet Explorer or another web

browser.

2Select the camera to connect to.

Enter the IP address you wrote down in steps 5

and 6 on page 74.

XThe browser now connects to the camera with the

IP address you entered.

To access a different camera, change the IP

address in this step.

3Complete the [Login name] and

[Password] settings.

Enter the [Login name] and [Password] as

specified in the procedure on page 76. Click [OK]

to display the WFT Server screen.

Access the Cameras from the Computer

Display WFT Server

COPY

78

Using the Transmitter with WFT Server

4Select the language.

Select a language on the bottom of the screen.

Web browsers that support JavaScript now display

the screen on the left.

A message is displayed if JavaScript is not

supported. Selecting not to use JavaScript will

display the screen on the right, with limited

functions.

Refer to “Viewing Images” on page 53.

Images on camera memory cards can be viewed and downloaded. To switch cameras,

enter the IP address of the master or slave camera in the web browser.

Refer to “Remote Capture [Camera control]” on page 55. Remote capture as described on

pages 58 and 59 is also possible.

To switch cameras, enter the IP address of the master or slave camera in the web browser.

You can access slave cameras, adjust the focus and configure shooting functions, and then

use the master camera for linked shooting.

When shooting remotely with linked shooting, access the master camera. If you connect to a

slave camera, only that slave camera will shoot, without linked shooting.

View Images on the Camera

Shoot Remotely

COPY

79

Managing

Settings Information

COPY

80

Check the network settings as follows.

1Select [Communication settings].

2Select [Network settings].

Once you have set [Communication func] to

[Enable], you can select [Network settings].

3Select [Set up].

4 Select [Confirm settings].

XThe settings are displayed.

Checking Settings

COPY

81

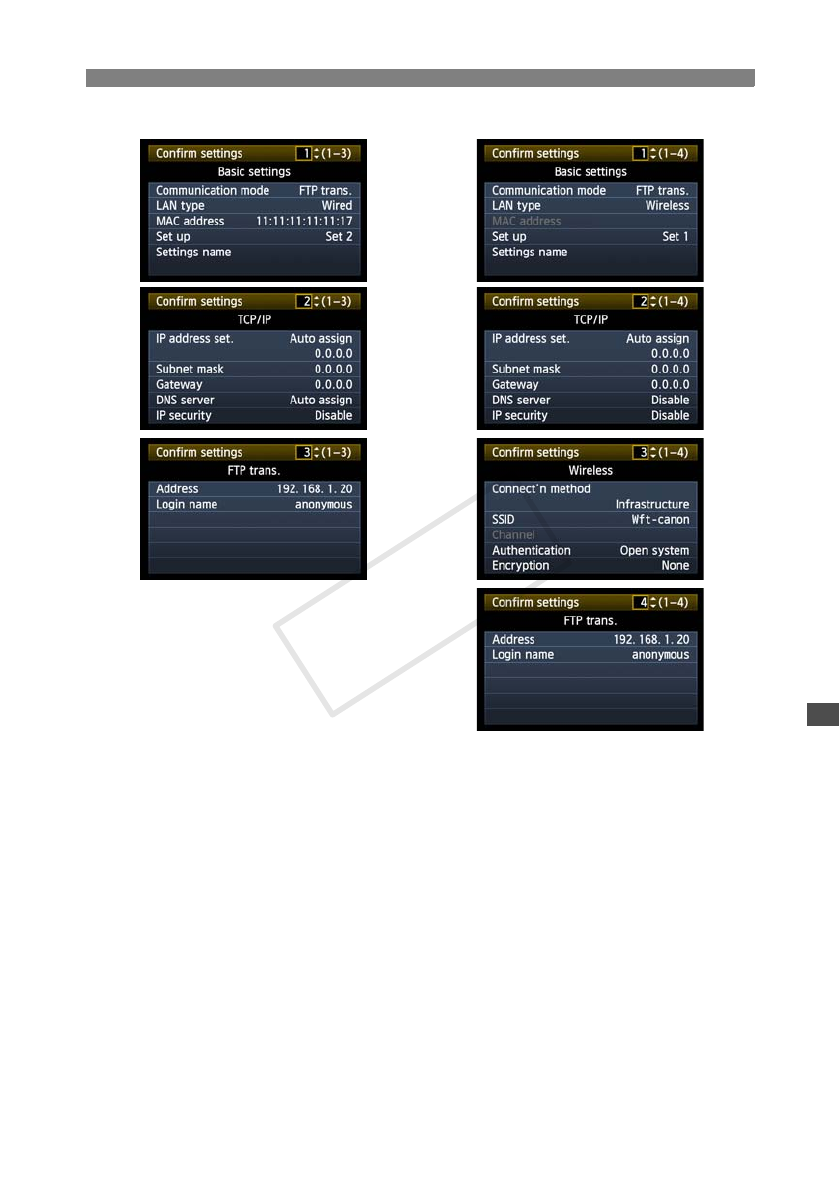

Checking Settings

E

xamp

l

e o

f

FTP

trans

f

er an

d

w

i

re

d

LAN

sett

i

ngs

E

xamp

l

e o

f

FTP

trans

f

er an

d

w

i

re

l

ess

LAN

sett

i

ngs

COPY

82

Settings originally completed using the connection wizard can be changed as follows. You can

also change IP security settings (IPsec) that cannot be set using the connection wizard, as well

as other settings, such as when an image with the same file name as an existing file is sent to

the FTP server. (p.83)

1Select [Communication settings].

2Select [Network settings].

Once you have set [Communication func] to

[Enable], you can select [Network settings].

3Select [Set up].

4Select [LAN settings].

5Select the settings number.

Select the settings number that identifies the LAN

settings.

Changing Settings

COPY

83

Changing Settings

6Select [Change].

After selecting [Change settings name], you can

rename the settings.

7Select the item to change.

Select the desired item from [LAN type], [TCP/IP],

[FTP server], or [Wireless LAN] and change the

setting.

Configured in [TCP/IP]  [Security].

IPsec is a set of standards for encrypted communication over the Internet. It provides effective

security for both wireless and wired LANs. To use this function, you must enable IPsec in the

network settings of your computer. When IPsec is employed, only transport mode is supported,

and 3DES or AES encryption and SHA1 authentication are used. Note that the IP address of

the computer for communication with the transmitter must be entered in [Destination address]

on the settings screen.

Configured in [FTP server]  [Directory structure].

Selecting [Camera] automatically creates a folder structure matching that of the camera’s (such

as A/DCIM/100EOS1D) in the server’s root folder for image storage. If you have created a

subfolder in the root folder by changing the [Target folder] setting, a folder structure such as A/

DCIM/100EOS1D is automatically created in that folder for image storage.

Selecting [Default] will use the root folder for image storage. If you have created a subfolder in

the root folder by changing the [Target folder] setting, images are saved in that folder.

IP Security (IPsec)

Directory Structure of the Target Folder

COPY

84

Changing Settings

Configured in [FTP server]  [Overwrite same file].

When the transmitter is configured to prevent overwriting

If there is already a file of the same name in the target folder on the FTP server, the new file is

saved with an extension consisting of an underscore and a number, as in IMG_0003_1.JPG.

When you resend images if initial transfer fails

Even if the transmitter is configured to overwrite files of the same name, if you resend an image

file that could not be transferred initially, the existing file may not be overwritten in some cases.

If this happens, the new file is saved with an extension consisting of an underscore, a letter,

and a number, as in IMG_0003_a1.JPG.

Configured in [FTP server]  [Passive mode].

Enable this setting in network environments protected by a firewall. If an Error 41 occurs

(“Cannot connect to FTP server”), setting passive mode to [Enable] may enable access to the

FTP server.

To prevent accidental changes to LAN settings, set [Protect

settings] to [On].

Overwriting Files of the Same Name

Passive Mode

Preventing Changes to Settings

COPY

85

Network settings can be saved on a memory card for use with other cameras.

1Select [Communication settings].

2Select [Network settings].

Once you have set [Communication func] to

[Enable], you can select [Network settings].

3Select [Set up].

4Select [LAN settings].

5Select the settings number.

Select the settings number that identifies the LAN

settings.

Saving and Loading Settings

Saving Settings

COPY

86

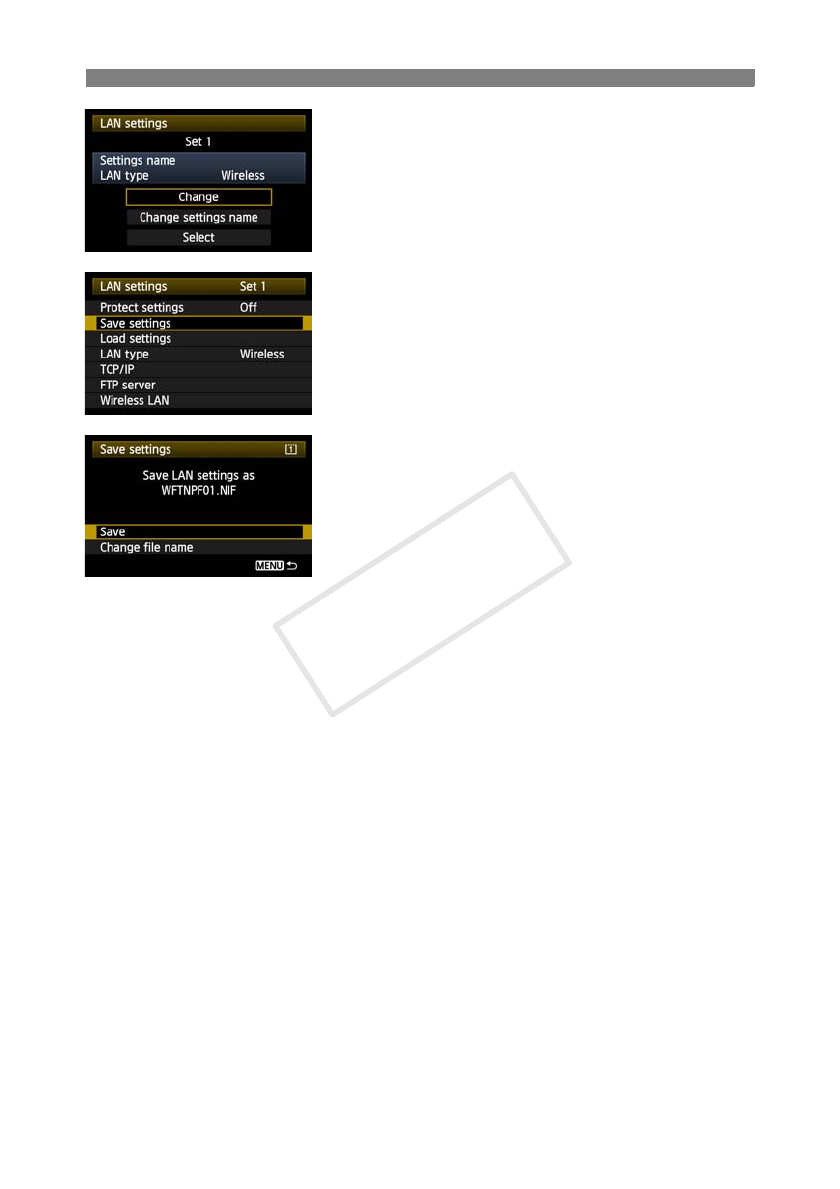

Saving and Loading Settings

6Select [Change].

7Select [Save settings].

8Select [Save].

XThe settings are now saved as a file on the

memory card.

The settings are saved as a file (WFTNPF**.NIF)

in the area of the memory card shown when the

card is opened (in the root directory).

The file name is determined automatically by the

camera: WFTNPF, followed by a number (01 to

99) and the extension NIF. You can rename the file

as desired by selecting [Change file name].

COPY

87

Saving and Loading Settings

Load settings files stored on a memory card as follows.

Make sure the settings file is saved in the folder shown when the memory card is opened (that

is, the root directory).

1Select [Load settings].

2Select the settings file.

XSelect a settings file that matches your network

environment.

3Load the settings file.

XInformation from the settings file is loaded into the

selected settings number.

Loading Settings

COPY

88

COPY

89

Synchronizing the

Camera Time Wirelessly

The time on EOS-1D X cameras can be synchronized over a wired LAN

connection. Also you can wirelessly synchronize multiple EOS-1D X

cameras when WFT-E6 units are attached.

Set the master camera time on up to 10 slave cameras, as needed. Note

that even after synchronization, there will be a slight margin of error

between master and slave camera time of ±0.05 seconds, at most.

Slave camera

Master camera

COPY

90

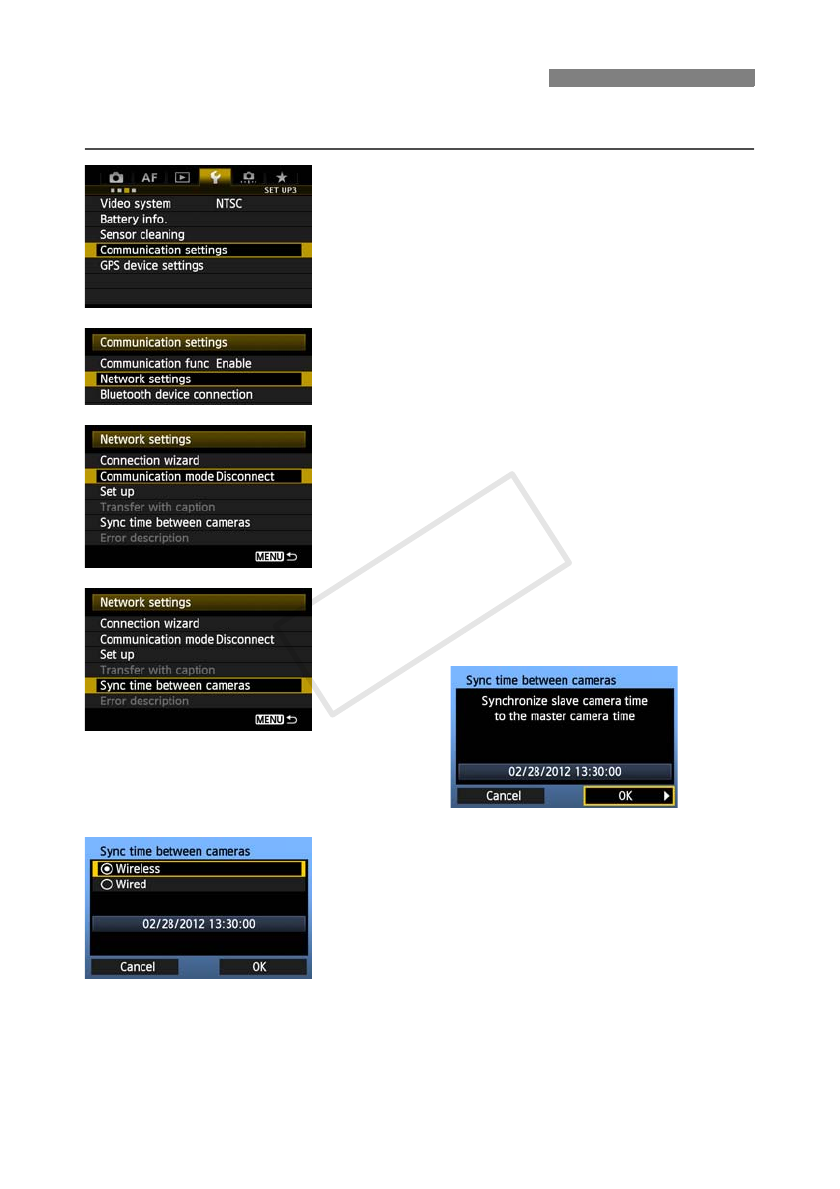

Steps 1–5 are the same on master and slave cameras.

1On the [53] tab, select [Communication

settings].

2Select [Network settings].

Once you have set [Communication func] to

[Enable], you can select [Network settings].

3Set [Communication mode] to

[Disconnect].

Once you have set [Communication mode] to

[Disconnect], you can select [Sync time between

cameras].

4Select [Sync time between cameras].

XSelect [OK] on the next screen displayed, shown

below.

5Select [Wireless].

After selecting [Wireless], select [OK].

Synchronizing the Time

COPY

91

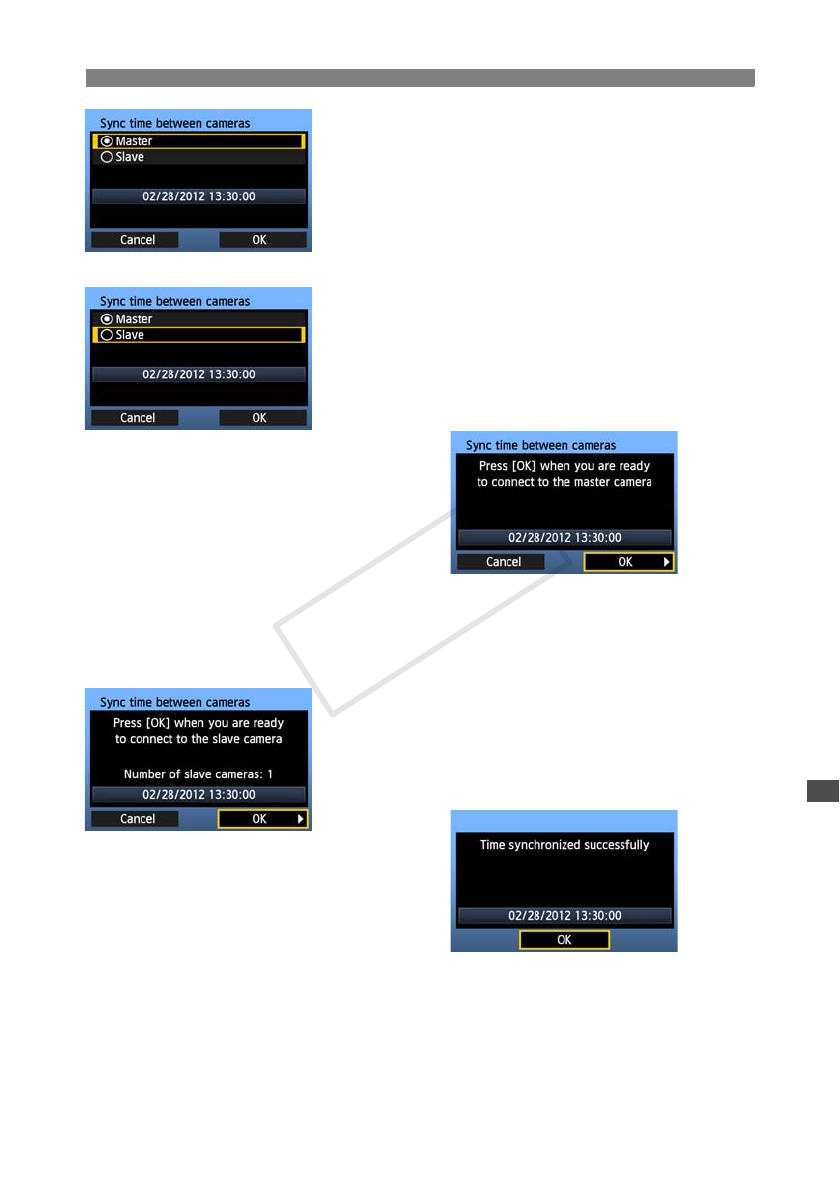

Synchronizing the Time

6Set up the master camera.

After configuring the master camera settings

following steps 1–5 on the preceding page, select

[Master].

XWhen the next screen is displayed, the master

camera is ready. Go to step 7 to set up the slave

cameras.

7Set up the slave cameras.

After configuring the slave camera settings

following steps 1–5 on the preceding page, select

[Slave].

XSelect [OK] on the next screen displayed, shown

below.

To set the time on multiple slave cameras, follow

these steps on each slave camera. The master

camera screen shown in step 8 indicates the

number of slave cameras.

8On the master camera, select [OK].

Check the number of slave cameras, and then

select [OK].

XThe time on slave cameras is now synchronized to

the master camera time.

Select [OK] to return to the [Network settings]

screen.

COPY

92

COPY

93

Using Bluetooth GPS

Devices

Information including the latitude, longitude, elevation, and date and time

can be obtained from commercially-available GPS devices connected via

Bluetooth and added to images. The additional information can be checked

on the camera as well as by using commercially-available GPS-compatible

mapping software.

For a list of specific GPS devices supported, contact the Canon Service

Center.

For GPS device instructions, refer to the device’s instruction manual or contact the

manufacturer.

COPY

94

1On the [53] tab, select [Communication

settings].

2Select [Bluetooth device connection].

Once you have set [Communication func] to

[Enable], you can select [Bluetooth device

connection].

XPress <0> when the next screen shown below is

displayed.

3Select the GPS device.

Nearby Bluetooth® devices in use are listed.

Turn the <5> dial to select the GPS device, and

then press <0>.

Select [OK] and press <0>.

If a Bluetooth® password has been set on the

GPS device, a password input screen is displayed.

Enter the password.

XThe transmitter now starts to establish a

connection with the GPS device.

It may take a few minutes to establish a

connection with the GPS device.

Camera operations such as shooting, menu

display, or image playback are not possible

until the connection is established.

Connecting GPS Devices via Bluetooth

COPY

95

Connecting GPS Devices via Bluetooth

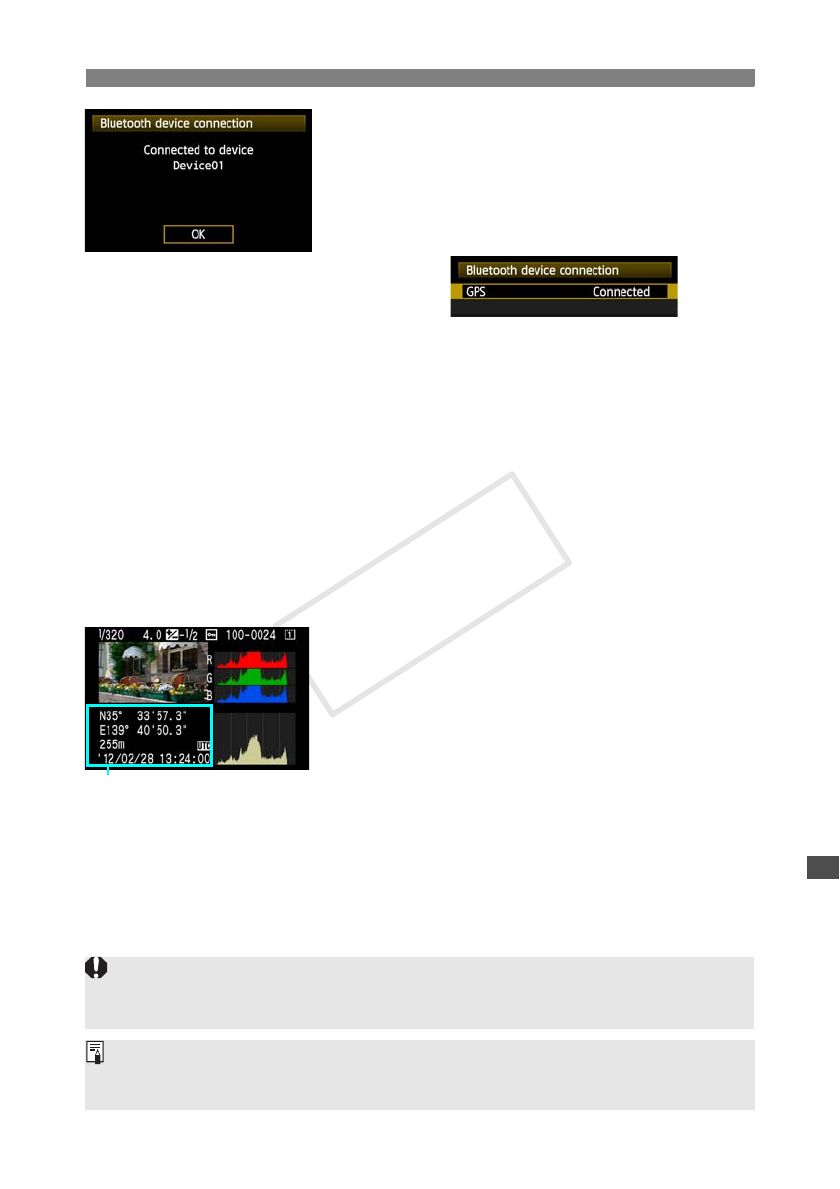

4When the confirmation message is

displayed, select [OK].

The GPS connection status changes to

[Connected]. Pressing <0> under these

conditions will enable you to disconnect the GPS

device.

While the Bluetooth connection is active, <s> and

the <r> are shown on the EOS-1D X rear LCD

panel.

5Confirm operation of the GPS device.

Make sure the GPS device has determined the

current location.

6Take the picture.

After confirming that <r> is shown on the

EOS-1D X rear LCD panel, shoot when ready.

If the <r> icon is blinking when you shoot,

accurate GPS data will not be added to images.

7Check the GPS data.

Playback the image in single image display.

Press the <6> button to display the shooting

information screen with GPS data.

From top to bottom: latitude, longitude,

altitude, and Coordinated Universal Time

When the camera’s power is turned off and on or when it wakes up from auto power off, do not shoot

until the <r> lamp remains lit. If you shoot while the lamp is blinking, the correct GPS information

may not be added to images.

The date and time indicated is the Coordinated Universal Time (UTC) as obtained by the GPS device,

which is nearly the same as Greenwich Mean Time (GMT). In some cases, the date and time of the

zone specified on the GPS device is indicated.

COPY

96

Connecting GPS Devices via Bluetooth

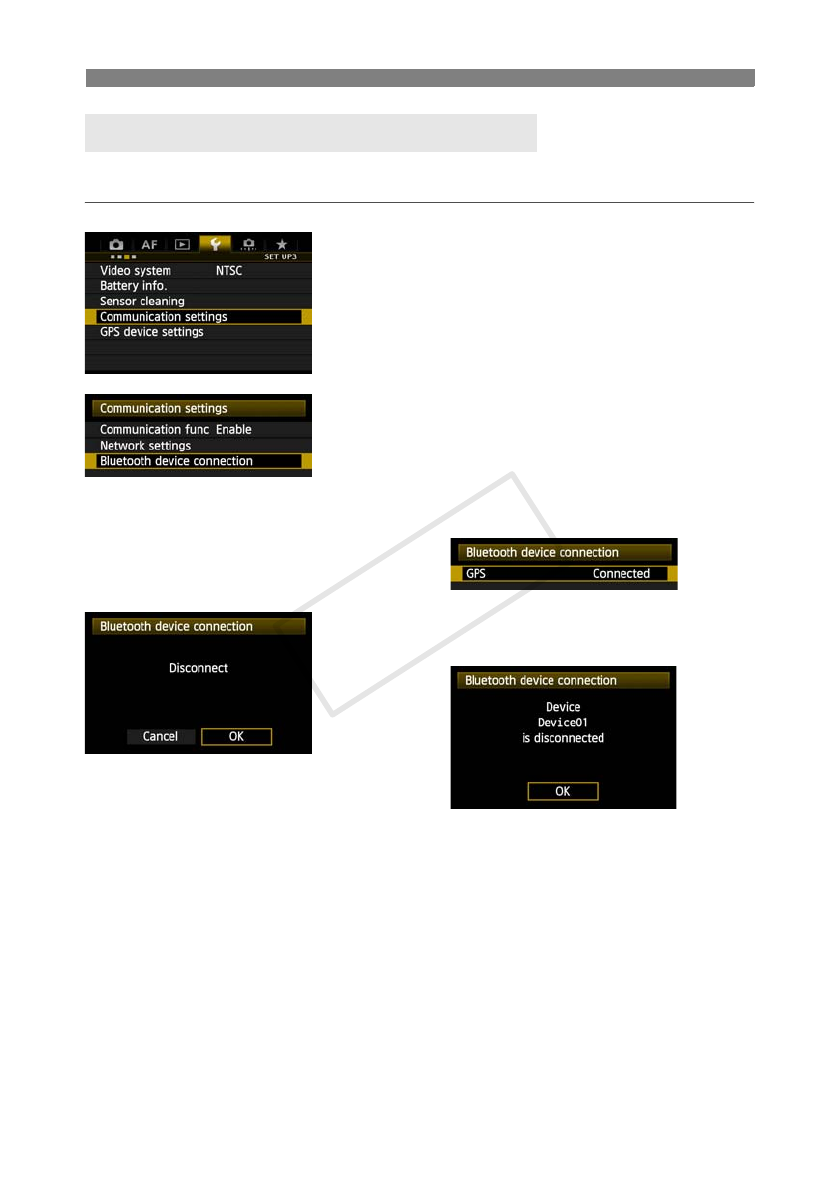

The Bluetooth connection with the GPS device will not be terminated if you simply turn off the

camera. To cancel the connection, follow these steps.

1On the [53] tab, select [Communication

settings].

2Select [Bluetooth device connection].

Once you have set [Communication func] to

[Enable], you can select [Bluetooth device

connection].

XPress <0> when the next screen shown below is

displayed.

3Select [OK].

XThe Bluetooth connection is canceled.

Select [OK] to return to the [Bluetooth device

connection] screen.

Canceling the Bluetooth Connection

COPY

97

Troubleshooting

Transfer speed in ad hoc mode may become extremely slow when the transmitter is used

with certain types of computer. For more information, contact your dealer or nearest Canon

Service Center.

COPY

98

If transmitter errors are displayed on the camera LCD monitor, refer to the examples of

corrective actions in this section to eliminate the cause of the error. In case of errors, the

<Y> lamp on the camera starts blinking. The error details can also be checked on the [53]

tab [Communication settings]  [Network settings]  [Error description].

Click the error number in the following chart to jump to the corresponding page.

If [Waiting to retry transfer…] is displayed

If image transfer via FTP fails after shooting, the

screen on the left is displayed, and the camera’s

<Y> lamp blinks in red. Check the error number

and eliminate the cause of the error.

Once the cause of the error is eliminated, the images

whose transfer previously failed will be transferred

automatically.

Note that if you cancel image transfer or turn off the camera, auto retry is not performed. Follow

the steps on page 36 to transfer the images.

Responding to Error Messages

11 (p.99) 12 (p.99)

21 (p.99) 22 (p.100) 23 (p.100) 24 (p.101) 25 (p.102)

26 (p.102)

41 (p.103) 42 (p.104) 43 (p.104) 44 (p.104) 45 (p.105)

46 (p.105) 47 (p.106)

51 (p.106) 52 (p.106) 53 (p.106) 54 (p.106)

61 (p.107) 62 (p.107) 63 (p.108) 64 (p.108) 65 (p.108)

66 (p.109) 67 (p.109) 68 (p.109) 69 (p.109)

71 (p.110) 72 (p.110) 73 (p.110)

82 (p.110)

91 (p.110)

COPY

99

Responding to Error Messages

Is the pairing software running?

XStart the pairing software and follow the instructions to re-establish the connection (p.44).

Are the transmitter and wireless LAN terminal configured with the same encryption

key for authentication?

XThis error occurs if the encryption keys do not match when the authentication method for

encryption is [Open system].

The setting is case-sensitive, so check upper- and lower-case characters. Make sure the

correct encryption key for authentication is entered on the transmitter (p.20).

Are the target computer and wireless LAN terminal on?

XTurn on the target computer and wireless LAN terminal.

What to check on the transmitter

On the transmitter, the network setting is [Auto setting] or the IP address setting is

[Auto assign]. Does the error occur under these settings?

XIf no DHCP server is used, set the transmitter’s network setting to [Manual setting] and

IP address setting to [Manual setting] (p.23).

What to check on the DHCP server

Is the DHCP server on?

XTurn the DHCP server on.

Are there enough addresses for assignment by the DHCP server?

XIncrease the number of addresses assigned by the DHCP server.

XRemove devices assigned addresses by the DHCP server from the network to reduce the

number of addresses in use.

Is the DHCP server working correctly?

XCheck the DHCP server settings to make sure it is working correctly as a DHCP server.

XIf applicable, ask your network administrator to ensure the DHCP server is available.

11: Connection target not found

12: Connection target not found

21: No address assigned by DHCP server

Responding to Error Messages 21 - 26

Also check the following points when responding to errors numbered 21 - 26.

Are the transmitter and wireless LAN terminal configured with the same encryption key for

authentication?

XThis error occurs if the encryption keys do not match when the authentication method for

encryption is [Open system]. The setting is case-sensitive, so check upper- and lower-case

characters. Make sure the correct encryption key for authentication is entered on the transmitter

(p.20).

COPY

100

Responding to Error Messages

What to check on the transmitter

On the transmitter, the DNS address setting is [Auto assign] or [Manual setting].

Does the error occur under these settings?

XIf no DNS server is used, set the transmitter’s DNS address setting to [Disable] (p.23).

On the transmitter, does the DNS server’s IP address setting match the server’s

actual address?

XConfigure the IP address on the transmitter to match the actual DNS server address

(p.23, 112).

What to check on the DNS server

Is the DNS server on?

XTurn the DNS server on.

Are the DNS server settings for IP addresses and the corresponding names

correct?

XOn the DNS server, make sure IP addresses and the corresponding names are entered

correctly.

Is the DNS server working correctly?

XCheck the DNS server settings to make sure the server is working correctly as a DNS

server.

XIf applicable, ask your network administrator to ensure the DNS server is available.

What to check on the network as a whole

Does your network include a router or similar device that serves as a gateway?

XIf applicable, ask your network administrator for the network gateway address and enter it

on the transmitter (p.23, 112).

XMake sure the gateway address setting is correctly entered on all network devices,

including the transmitter.

What to check on the transmitter

Is another device on the transmitter network using the same IP address as the

transmitter?

XChange the transmitter’s IP address to avoid using the same address as another device

on the network. Otherwise, change the IP address of the device that has a duplicate

address.

XIn network environments with a DHCP server, if the transmitter’s IP address setting is

[Manual setting], change it to [Auto assign] (p.23).

22: No response from DNS server

23: Duplicate IP address

COPY

101

Responding to Error Messages

What to check on the transmitter

The transmitter’s proxy server setting is [Enable]. Does the error occur under this

setting?

XIf no proxy server is used, set the transmitter’s proxy server setting to [Disable] (p.28).

Do the transmitter’s [Address setting] and [Port No.] settings match those of the

proxy server?

XConfigure the transmitter’s proxy server address and port number to match those of the proxy

server (p.28).

In the transmitter’s [Proxy server] settings, have you only entered [Server name]?

XIf the proxy server’s [Address] setting is not configured on the transmitter, enter it along

with the DNS server address (p.23). Make sure the server name and port number for the

proxy server are entered correctly (p.28).

What to check on the proxy server

Is the proxy server on?

XTurn the proxy server on.

Is the proxy server working correctly?

XCheck the proxy server settings to make sure the server is working correctly as a proxy

server.

XIf applicable, ask your network administrator for the proxy server address or server name

and port number, and then enter them on the transmitter.

What to check on the network as a whole

Does your network include a router or similar device that serves as a gateway?

XIf applicable, ask your network administrator for the network gateway address and enter it

on the transmitter.

XMake sure the gateway address setting is correctly entered on all network devices,

including the transmitter.

24: No response from proxy server

COPY

102

Responding to Error Messages

Is another device on the transmitter network using the same IP address as the

transmitter?

XThis error occurs if the transmitter is connected to a network where another device

subsequently connects with the same IP address. Change the transmitter’s IP address to

avoid using the same address as another device on the network. Otherwise, change the

IP address of the device that has a duplicate address.

What to check on the transmitter

On the transmitter, the network setting is [Auto setting]. Does the error occur under

this setting?

XIf no DHCP server is used, set the transmitter’s network setting to [Manual setting]

(p.23).

What to check on the DHCP server

Is the DHCP server on?

XTurn the DHCP server on.

Are the DHCP server settings for IP addresses and the corresponding names

correct?

XOn the DHCP server, make sure IP addresses and the corresponding names are entered

correctly.

Is the DHCP server working correctly?

XCheck the DHCP server settings to make sure it is working correctly as a DHCP server.

XIf applicable, ask your network administrator to ensure the DHCP server is available.

What to check on the network as a whole

Does your network include a router or similar device that serves as a gateway?

XIf applicable, ask your network administrator for the network gateway address and enter it

on the transmitter (p.23).

XMake sure the gateway address setting is correctly entered on all network devices,

including the transmitter.

25: Another terminal has set the same IP address

26: No response from DHCP server

COPY

103

Responding to Error Messages

What to check on the transmitter

On the transmitter, does the FTP server’s IP address setting match the server’s

actual address?

XConfigure the IP address on the transmitter to match the actual FTP server address

(p.28).

Are the transmitter and wireless LAN terminal configured with the same encryption

key for authentication?

XThis error occurs if the encryption keys do not match when the authentication method for

encryption is [Open system].

The setting is case-sensitive, so check upper- and lower-case characters. Make sure the

correct encryption key for authentication is entered on the transmitter (p.20).

On the transmitter, does the [Port number setting] for the FTP server match the

actual port number of the FTP server?

XConfigure the same port number (usually 21) on the transmitter and FTP server.

Configure the port number on the transmitter to match the actual FTP server port number

(p.28).

If only the FTP server’s [Server name] is configured on the transmitter, are the DNS

server settings complete?

XIf the FTP server’s [Address] setting is not configured on the transmitter, enable use of

the DNS server on the transmitter and enter its address (p.23). Make sure the FTP server

name is entered correctly (p.28).

What to check on the FTP server

Is the FTP server working correctly?

XConfigure the computer correctly to function as an FTP server.

XIf applicable, ask your network administrator for the FTP server address and port number,

and then enter them on the transmitter.

Is the FTP server on?

XTurn the FTP server on. The server may have been turned off because of an energy-

saving mode.

On the transmitter, does the FTP server’s IP address setting (in [Address]) match

the server’s actual address?

XConfigure the IP address on the transmitter to match the actual FTP server address

(p.28).

Is a firewall or other security software enabled?

XSome security software uses a firewall to restrict access to the FTP server. Change the

firewall settings to allow access to the FTP server.

XYou may be able to access the FTP server by setting [Passive mode] to [Enable] on the

transmitter (p.84).

41: Cannot connect to FTP server

COPY

104

Responding to Error Messages

Are you connecting to the FTP server via a broadband router?

XSome broadband routers use a firewall to restrict access to the FTP server. Change the

firewall settings to allow access to the FTP server.

XYou may be able to access the FTP server by setting [Passive mode] to [Enable] on the

transmitter (p.84).

If you are using Windows XP Service Pack 2 or later, is access to the FTP server

blocked by [Windows Firewall]?

XChange the Windows Firewall settings to allow access to the FTP server.

What to check on the network as a whole

Does your network include a router or similar device that serves as a gateway?

XIf applicable, ask your network administrator for the network gateway address and enter it

on the transmitter (p.23).

XMake sure the gateway address setting is correctly entered on all network devices,

including the transmitter.

What to check on the FTP server

Is the FTP server configured to restrict access to only some IP addresses?

XChange the FTP server settings to allow access from the [IP address] configured on the

transmitter in the TCP/IP settings.

What to check on the FTP server

Have you exceeded the maximum number of FTP server connections?

XDisconnect some network devices from the FTP server or increase the maximum number

of connections.

This error occurs if the transmitter fails to disconnect from the FTP server for some

reason.

XTurn off and on the FTP server and camera.

42: FTP server rejected connection

43: Cannot connect to FTP server. Error code received from server.

44: Cannot disconnect FTP server. Error code received from server.

COPY

105

Responding to Error Messages

What to check on the transmitter

On the transmitter, is the [Login name] entered correctly?

XCheck the logon name for accessing the FTP server. The setting is case-sensitive, so

check upper- and lower-case characters. Make sure the correct logon name is entered on

the transmitter (p.29).

On the transmitter, is the [Login password] entered correctly?

XIf a logon password is configured on the FTP server, check the upper- and lower-case

characters to make sure the password on the transmitter matches it (p.29).

What to check on the FTP server

Do the user rights for the FTP server allow reading, writing, and log access?

XConfigure the FTP server’s user rights to allow reading, writing, and log access.

Is the folder specified as the transfer destination on the FTP server named with

ASCII characters (p.25)?

XUse ASCII characters for the folder name.

What to check on the FTP server

The connection was terminated by the FTP server.

XRestart the FTP server.

Do the user rights for the FTP server allow reading, writing, and log access?

XConfigure the FTP server’s user rights to allow reading, writing, and log access.

Do user rights allow access to the target folder on the FTP server?

XConfigure the user rights for access to the target folder on the FTP server to allow saving

images from the transmitter.

Is the FTP server on?

XTurn the FTP server on. The server may have been turned off because of an energy-

saving mode.

Is the hard disk of the FTP server full?

XIncrease available space on the hard disk.

45: Cannot login to FTP server. Error code received from server.

46: For the data session, error code received from FTP server

COPY

106

Responding to Error Messages

This error occurs if, for some reason, the transmitter fails to receive confirmation

from the FTP server that image file transfer is complete.

XTurn off and on the FTP server and camera and transfer the images again.

Is the transmitter too far from the GPS device?

XBring the GPS device closer to the transmitter.

Are any obstacles blocking the line of sight between the transmitter and the GPS

device?

XMove the GPS device to a position visible from the point of view of the transmitter.

The transmitter and GPS device were disconnected, for some reason, and the

connection cannot be restored.

XThe connection is more likely to be lost if there are nearby wireless LAN terminals,

cordless telephones, microphones, microwave ovens, or similar devices operating on the

same 2.4 GHz band used for Bluetooth communication. Also note that the connection is

more likely to be lost in poor weather or high humidity.

Is the GPS device on?

XTurn the GPS device on.

Is the GPS device ready for the Bluetooth connection?

XTurn the GPS device on and set it up for connection via Bluetooth.

Is the transmitter too far from the GPS device?

XBring the GPS device closer to the transmitter.

Is the GPS device on?

XTurn the GPS device on.

Is the same password set on the transmitter and GPS device?

XThe setting is case-sensitive, so check upper- and lower-case characters. Make sure the

correct password is entered on the GPS device and transmitter.

The GPS device does not support SPP (Serial Port Profile).

XConfirm that the GPS device supports SPP.

47: Image file transfer completion not confirmed by FTP server

51: Connection to Bluetooth device lost

52: Bluetooth device cannot be found

53: Incorrect Bluetooth password

54: No compatible Bluetooth service available on connected device

COPY

107

Responding to Error Messages

Are any obstacles blocking the line of sight between the transmitter and the

antenna of the wireless LAN terminal?

XMove the antenna to a position clearly visible from the point of view of the transmitter

(p.111).

What to check on the transmitter

On the transmitter, does the SSID setting match that of the wireless LAN terminal?

XCheck the SSID on the wireless LAN terminal, and configure the same SSID on the

transmitter (p.19).

What to check on the wireless LAN terminal

Is the wireless LAN terminal on?

XTurn on the wireless LAN terminal.

If you are filtering by MAC address, did you register the transmitter’s MAC address

on the wireless LAN terminal?

XRegister the transmitter’s MAC address (p.80) on the wireless LAN terminal.

What to check on the transmitter

Is the transmitter configured for communication in infrastructure mode?

XConfigure the transmitter for communication in ad hoc mode.

What to check on the wireless LAN terminal

Is there a nearby wireless LAN terminal for ad hoc communication?

XSet up a wireless LAN terminal for ad hoc communication near the transmitter.

61: Selected SSID wireless LAN network not found

62: No response from wireless LAN terminal

COPY

108

Responding to Error Messages

Are the transmitter and wireless LAN terminal configured for the same

authentication method?

XThe transmitter supports these authentication methods: [Open system], [Shared key],

[WPA-PSK], and [WPA2-PSK] (p.19).

XWhen using an AirPort for communication in infrastructure mode, [Open system] is not

supported. Configure a [Shared key] on the transmitter (p.19).

Are the transmitter and wireless LAN terminal configured with the same encryption

key for authentication?

XThe setting is case-sensitive, so check upper- and lower-case characters. Make sure the

correct encryption key for authentication is entered on the transmitter and wireless LAN

terminal (p.20).

If you are filtering by MAC address, did you register the transmitter’s MAC address

on the wireless LAN terminal?

XRegister the transmitter’s MAC address (p.80) on the wireless LAN terminal.

Are the transmitter and wireless LAN terminal configured for the same encryption

method?

XThe transmitter supports these encryption methods: [WEP], [TKIP], and [AES] (p.19).

If you are filtering by MAC address, did you register the transmitter’s MAC address

on the wireless LAN terminal?

XRegister the transmitter’s MAC address (p.80) on the wireless LAN terminal.

Are any obstacles blocking the line of sight between the transmitter and the

antenna of the wireless LAN terminal?

XMove the antenna to a position clearly visible from the point of view of the transmitter

(p.111).

The wireless LAN connection was lost, for some reason, and the connection

cannot be restored.

XThe following are possible reasons: excessive access to the wireless LAN terminal from

other terminals, a microwave oven or similar appliance in use nearby (interfering with

IEEE 802.11b/g/n reception on the 2.4 GHz band), or poor weather or high humidity

(p.111).

63: Wireless LAN authentication failed

64: Cannot connect to wireless LAN terminal

65: Wireless LAN connection lost

COPY

109

Responding to Error Messages

Are the transmitter and wireless LAN terminal configured with the same encryption

key for authentication?

XThe setting is case-sensitive, so check upper- and lower-case characters. Make sure the

correct encryption key for authentication is entered on the transmitter and wireless LAN

terminal (p.20).

Note that if the authentication method is [Open system], an Error 41 (“Cannot connect to

FTP server”) is displayed.

Are the transmitter and wireless LAN terminal configured for the same encryption

method?

XThe transmitter supports these encryption methods: [WEP], [TKIP], and [AES] (p.19).

If you are filtering by MAC address, did you register the transmitter’s MAC address

on the wireless LAN terminal?

XRegister the transmitter’s MAC address (p.80) on the wireless LAN terminal.

Have you pressed the Wi-Fi Protected Setup (WPS) button on the wireless LAN

terminal for as long as indicated in the wireless LAN terminal instructions?

XRefer to the instruction manual for the wireless LAN terminal to determine how long to

hold the WPS button.

Are you attempting to establish the connection near the wireless LAN terminal?

XTry establishing the connection when both devices are within reach of each other.

Connection is in progress by other wireless LAN terminals in Pushbutton

Connection mode (PBC mode) of Wi-Fi Protected Setup (WPS).

XWait a while before trying to establish the connection, or try to establish a connection in

PIN code connection mode (PIN mode) (p.22).

66: Incorrect wireless LAN encryption key

67: Incorrect wireless LAN encryption method

68: Cannot connect to wireless LAN terminal. Retry from the

beginning.

69: Multiple wireless LAN terminals have been found. Cannot

connect. Retry from the beginning.

COPY

110

Responding to Error Messages

Are you following the correct procedure to establish the connection with slave

cameras?

XOperate slave cameras by following the correct instructions (p.66, 67).

Are the slave cameras too far from the master camera?

XBring the slave cameras closer to the master camera.

Are you following the correct procedure to establish the connection with master

camera?

XOperate the master camera by following the correct instructions (p.66, 67).

Is the master camera too far from the slave cameras?

XBring the master camera closer to the slave cameras.

Are you following the correct procedure to establish a connection between the

master and slave cameras?

XOperate the master and slave cameras by following the correct instructions (p.90, 91).

Are the master and slave cameras too far apart?

XBring the master and slave cameras closer together.

Is the transmitter attached correctly?

XMake sure the transmitter is securely inserted in the camera (p.10).

Another problem has occurred, identified with an error number other than 11 to 82.

XTurn the camera’s power switch off and on.

71: Cannot connect to slave camera

72: Cannot connect to master camera

73: Could not synchronize the time

82: Wireless File Transmitter not connected

91: Other error

COPY

111

When using the transmitter with a wireless LAN, try the following corrective actions if the

transmission rate drops, the connection is lost, or other problems occur.

When using the transmitter indoors, install the wireless LAN terminal in the same room

where you are shooting.

Install the wireless LAN terminal higher than the transmitter.

Install the device where people or objects do not come between it and the camera.

Install the device as close as possible to the camera. In particular, note that during

outdoor use in poor weather, rain may absorb radio waves and disrupt the connection.

If the transmission rate over a wireless LAN drops because of interference from the following

electronic devices, switching to a wired LAN can resolve the problem.

The transmitter communicates over wireless LANs via IEEE 802.11b/g/n and Bluetooth

using radio waves in the 2.4 GHz band. For this reason, the wireless LAN transmission

rate may drop if there are nearby microwave ovens, cordless telephones, microphones,

or similar devices operating on the same frequency band.

If a wireless LAN terminal on the same frequency band as the transmitter is used nearby,

the transmission rate of the wireless LAN may drop.

If multiple transmitters are connected to a single wireless LAN terminal, be careful not to

use duplicate camera IP addresses.

Note that the transmission rate drops when multiple transmitters access a single wireless

LAN terminal.

To reduce radio wave interference when there are multiple wireless IEEE 802.11b/g/n

devices on the 2.4 GHz band, leave a gap of four channels between each wireless LAN

channel. For example, use channels 1, 6, and 11, channels 2, 7, and 12, or channels 3, 8,

and 13.

When IEEE 802.11a/n can be used (on the 5 GHz band), switch to IEEE 802.11a/n (on

the 5 GHz band) and specify a different channel.

Wireless LAN radio waves can be easily intercepted. For this reason, we recommend

activating encrypted communication in the wireless LAN terminal settings.

Wireless LAN Notes

Wireless LAN Terminal Installation and Antenna Position

Nearby Electronic Devices

Using Multiple Transmitters

Security

COPY

112

Click the Windows [Start] button  [All Programs]  [Accessories]  [Command Prompt].

Type ipconfig/all and press the <

Enter

> key.

The IP address assigned to the computer is displayed, as well as the subnet mask, gateway,

and DNS server information.

To avoid using the same IP address for the computer and other devices on the network when

configuring the IP address assigned to the camera (page 23), change the rightmost numbers

here.

In Mac OS X, open the [Terminal] application, type ifconfig -a, and press the <

Return

> key.

The IP address assigned to the computer is indicated in the [en0] item by [inet], in the format

***.***.***.***.

To avoid using the same IP address for the computer and other devices on the network when

configuring the IP address assigned to the camera (page 23), change the rightmost numbers

here.

* For information on the [Terminal] application, refer to the Mac OS X help.

Checking Network Settings

Windows

Macintosh

COPY

113

Reference

COPY

114

Follow these steps to create captions and register them on the camera, as introduced in

“Adding a Caption Before Transfer” (p.34). When creating and registering captions, use a

computer on which EOS Utility is installed.

Before you start, attach the transmitter to the camera and use the USB cable provided

with the camera to connect the camera to the computer. For instructions on connecting the

camera to the computer with the USB cable and starting EOS Utility, refer to the Software

Instruction Manual (PDF) provided with the camera.

1Start EOS Utility and select [Camera

settings/Remote shooting].

XThe camera settings/remote

capture screen is displayed.

2On the [ ] tab, select [WFT Captions].

XThe screen for caption creation is displayed.

To acquire caption data stored on the camera,

select [Load settings].

3Enter the caption or captions.

Enter up to 31 characters (in ASCII format).

4Register the captions on the camera.

Select [Apply to camera] to register your new

captions on the camera.

Creating and Registering Captions

COPY

115

Type

Type: IEEE 802.11a/b/g/n wireless image transfer accessory (IPsec-

compatible) with Bluetooth connectivity for GPS devices

Wireless LAN

Standards compliance: IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

Transmission method: DS-SS modulation (IEEE 802.11b)

OFDM modulation (IEEE 802.11a/g/n)

Transmission range: Approx. 150 m / 492 ft.

* With no obstructions between the transmitting and receiving antennas

and no radio interference

* With a large, high-performance antenna attached to the wireless LAN

access point

Transmission frequency (central frequency):

Connection method: Infrastructure or ad hoc mode

* Wi-Fi Protected Setup supported

Security: Authentication method: Open, shared key, WPA-PSK, and WPA2-PSK

Encryption: WEP, TKIP, and AES

Specifications

Version Frequency Channels

WFT-E6A

2412–2462 MHz 1–11

5180–5320 MHz 36–64

5745–5825 MHz 149–165

WFT-E6B

2412–2472 MHz 1–13

5180–5320 MHz 36–64

5500–5700 MHz 100–140

WFT-E6C 2412–2472 MHz 1–13

5745–5805 MHz 149–161

WFT-E6D

2412–2462 MHz 1–11

5280–5320 MHz 56–64

5500–5700 MHz 100–140

WFT-E6E

2412–2472 MHz 1–13

5180–5320 MHz 36–64

5500–5700 MHz 100–140

5745–5825 MHz 149–165

COPY

116

Specifications

Network Functions

FTP transfer: Automatic transfer

Image selection and transfer

Transfer using SET button

Transfer with captions

EOS Utility: EOS Utility remote control functions over wireless LAN

WFT Server: Camera control, simple control, basic shooting,

image viewing, and downloading

Media Server: DLNA compatible

Linked shooting: Shooting with up to 10 slave cameras linked to a master camera

Transmission range: Approx. 100 m / 328 ft.

Wireless time syncing: Syncing up to 10 slave cameras to the master camera time

Margin of error with master camera: Approx. ±0.05 seconds

Bluetooth connection

Standards compliance: Bluetooth 2.0+EDR

Supported devices: Wireless connectivity with Bluetooth GPS devices

Number of Possible Shots Approx. number of shots

* Using a fully charged LP-E4N Battery Pack.

* Based on Camera & Imaging Products Association (CIPA) standards.

* Fewer images can be captured when transferring images

consecutively over wireless LAN.

Dimensions and Weight

Dimensions (W x H x D): 24.7 x 57.0 x 34.1 mm / 0.97 x 2.24 x 1.34 in.

Weight: Approx. 38 g / 1.34 oz. (body only)

Operating Environment

Temperature: 0°C–45°C / 32°F–113°F

Humidity: 85% or less

All preceding specifications are based on Canon testing standards.

Transmitter specifications and appearance are subject to change without notice.

Connection Normal Temperature

(23°C / 73°F)

Low Temperature

(0°C / 32°F)

Wireless LAN 950 750

COPY

117

MEMO

COPY

118

MEMO

COPY

119

MEMO

COPY

120

MEMO

COPY

121

MEMO

COPY

122

MEMO

COPY

123

MEMO

COPY

124

A

Account ..................................................... 50

Ad hoc ....................................................... 19

Area of use.... Areas of Use and Restrictions

Authentication......................................19, 83

Auto power off ........................................... 15

B

Batch transfer................................ 36, 38, 40

Bluetooth ................................................... 93

Browser ..................................................... 52

C

Camera control..........................................55

Caption......................................................34

Channel......... Areas of Use and Restrictions

Connection ................................................ 15

Coordinated Universal Time...................... 95

D

DHCP server .............................................23

Digital photo frame ....................................61

DLNA......................................................... 61

DNS address.............................................23

DNS server................................................ 28

E

Encryption ...........................................19, 83

Encryption key...........................................20

EOS Utility..................................... 11, 43, 47

EOSUtility.................................................. 16

Error .......................................................... 98

ESS-ID ...................................................... 19

F

File of same name.....................................84

Folder .................................................. 29, 42

FTP server........................................... 11, 27

FTP trans................................................... 16

G

Gateway .................................................... 23

GPS...........................................................93

I

IEEE 802.11a/b/g/n ........... Areas of Use and

Restrictions

Image transfer .....................................11, 27

Infrastructure............................................. 19

IP address........................................... 23, 28

IPsec......................................................... 83

J

JPEG......................................................... 31

K

Key format................................................. 20

Keyboard................................................... 25

L

LCD panel................................................... 9

Linked shooting................................... 11, 65

LinkedShot................................................ 17

Login ......................................................... 29

Logon name.............................................. 50

M

MAC address ............................................ 44

Master camera.................................... 67, 91

Media player ............................................. 61

Media Server....................................... 11, 61

MediaServ................................................. 17

Movie ............................................ 30, 54, 55

N

Network..................................................... 13

O

Open system............................................. 19

P

Pairing................................................. 24, 44

Passive mode ........................................... 84

Password ............................................ 50, 94

PBC mode................................................. 21

PIN code connection mode....................... 22

PIN mode.................................................. 22

Port number .............................................. 28

Protect settings ......................................... 84

Proxy......................................................... 28

Pushbutton connection mode ................... 21

R

RAW.......................................................... 31

RAW+JPEG.............................................. 32

Remote capture .......... 11, 43, 49, 55, 58, 59

Index

COPY

125

Index

Router........................................................ 23

S

Select folder .............................................. 29

Settings information...................................79

Shared key ................................................19

Simple control............................................ 58

Slave camera ......................................66, 91

SSID.......................................................... 19

Stealth functions.................................. 21, 22

Storage......................................................42

Subnet mask .............................................23

Sync camera time......................................89

T

Target........................................................29

Target folder..............................................83

Television ............................................61, 63

TKIP .......................................................... 19

Transfer after shooting ..............................36

Transfer history .........................................41

Transfer with SET...................................... 33

Transferred images ...................................42

Transferring images, automatic................. 30

Transferring images, individual images..... 33

Troubleshooting......................................... 97

U

URL ........................................................... 52

UTC...........................................................95

V

Viewing images .........................................53

W

Web........................................................... 52

WEP .......................................................... 19

WFT Server......................................... 11, 49

WFTserver................................................. 17

Wi-Fi Protected Setup ............................... 21

Wired LAN................................................. 18

Wireless LAN specification

...................... Areas of Use and Restrictions

Wizard ....................................................... 15

WPA2-PSK................................................19

WPA-PSK..................................................19

WPS (Wi-Fi Protected Setup)..............21, 22

COPY

CANON INC.

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

CANON EUROPA N.V.

Bovenkerkerweg 59, 1185 XB Amstelveen, The Netherlands

CPA-E008-002 © CANON INC. 2014

This instruction manual is current as of February 2012. For information on using the transmitter with

accessories introduced after this date, contact your nearest Canon Service Center.

COPY
