PRODUCT GUIDE

Specifications are subject to change without notice. Weight and

dimensionsareapproximate. Canon is a registered trademark of

Canon Inc. in the United States and may also be a registered

trademark or trademark in other countries. IMAGEANYWARE is a

trademark of Canon. “HDV” and the “HDV” logoare trademarks

of Sony Corporation and Victor Company of Japan, Limited (JVC).

Other namesand products not mentioned above may be registered

trademarksor trademarksof their respective companies.

Warning: Unauthorized recording of copyrighted materials may infringe

on the rights of copyright owners and be contrary to copyright laws.

Image. Flexibility. Control.

Canon professional camcorders deliver performance where it counts—in the field,

in the studio, wherever and whenever the solution requires maximum image quality

and creative control. Embodying decades of Canon leadership and know-how in the

design and manufacture of cameras and lenses, Canon pro camcorders provide

not only outstanding HD and SD capture quality but also the operability, flexibility,

reliability and connectivity that professionals demand. You won’t find more capable tools

for the capture of creative, powerful video content. Put them to work.

Image quality starts with optics, and only

Canon professional camcorders deliver

the many benefits of Canon’s world-

renowned lens technologies. Genuine

Canon Professional L-series camcorder

lensesincorporate Fluorite and Ultra-Low-

Dispersion elements plus SR multi-coating

to ensure outstanding resolution and

contrast with minimal chromatic aberration.

The choiceof professionals the world over,

Canon L-series lenses deliver a level of image

quality throughout the entire zoom range

unmatched by conventional optics. The

standard 20x zoom covers an exceptionally

wide and useful range of focal lengths,

perfect for a wide range of shooting

situations.

Fast, Responsive Zoom Control

With an ergonomically designed ring shape

and increased speed, the zoom control on

Canon professional camcorders starts and

stops with exceptional smoothness and

provides a comprehensive array of options.

The zoom can be controlled in 3 different

ways—the lens zoom

ring, grip zoom lever

or handlezoom lever

(for low-angle shots).

Select from among

3 basic zoom speed

ranges and fine-tune

the zooming with 16

levels of speed control.

With the Genuine

Canon 20x HD Video

Zoom Lens, zooms from wide to tele range

can be varied in speed from 5 minutes to

an astounding 1.2 seconds at the fastest

setting. Variable zoom speed operation with

16 levels of speed control is also possible

through the pressure-sensitive zoom lever

(rocker). Or choose from one of the 16 levels

and preset it to perform constant pace

zooms. Startingand stopping of zoom

movement is always ramped to avoid

“zoom shock” and provide more natural,

pleasing look to your footage.

Precise, Flexible Focus Control

HD capture demands precise focus. The

highly responsive, independently function-

ing focus ring (with selectable operational

direction) enables the videographer to

focus manually even while zooming—in

both Manual Focus and AF modes. There

are 4 selectable preset focus speeds along

with 3 sensitivity settings for the focus

ring, makingit possible to fine-adjust

responsiveness as

desired. Push AF

control enables

temporary manual

override to quickly

find critical focus,

while a Focus Limit

function can be

engaged tolimit the focusing range of the

lens, for example, for macro shooting.

Dedicated Peaking and Magnifying controls

are available to further assist in focusing.

For Peaking, frequency (edge thickness)

and gain (edge density) levels are

adjustable. 2 settings can be stored and

recalled quickly with a touch of a button.

Furthermore, by using the included external

component video monitor cable, the opera-

tor can also use peaking and magnifying

controls to check manual focus on a larger

screen, instead of viewing the image through

the viewfinder.

The XL H1S and XL H1A feature the XL mount

system that boosts shooting range and

flexibility through the use of optional inter-

changeable lenses. The wide-angle Canon

6x HD Video Zoom XL 3.4–20.4mm L lens

(equivalent to 24.5–147mm in 35mm still

photography), for example, is ideal for

applications requiring a wider field-of-view.

This L-series lens incorporates legendary

Canon optical superiority and captures

images with exceptional color and resolu-

tion, providing full HD clarity and detail.

The XL lens mount also enables the use of

the Extender XL 1.6x, which increases the

focal length by 1.6x. Moreover, the EF

Adapter XL enables users to attach a wide

array of superb Canon EF lenses (L-series

lenses recommended), designed for the

renowned EOS SLR photography system,

for specialized image capture.

Proven Canon Optical Image

Stabilizer technology ensures steadier

images. The system uses a gyro sensor to

detect camera movement and activate a

Vari-Angle Prism to continuously compen-

sate for shake and jitter. The Canon 20x

HD Video Zoom Lens, moreover, effectively

corrects over a wide vibration range

through the use of the latest Canon

SuperRange Optical Image Stabilizer

technology. It further improves low-frequency

vibration detection by analyzing the image

at the CCD sensor. The result is extraordinary

camerashake correction, even at long

focal lengths.

Asophisticated

3CCD design employs

separate native

16:9 sensors for

each primary color.

The high pixel count

—approximately

Canon Technologies Raise the Standard of Image Quality.

SLOW Approx. 4.3 sec. (speed: 16x) to approx. 5 min. (speed: 1x)

NORMAL Approx. 2.0 sec. (speed: 16x) to approx. 3 min. (speed: 1x)

FAST Approx. 1.2 sec. (speed: 16x) to approx. 60 sec. (speed: 1x)

Zoom speed can be set to NORMAL, SLOW or FAST via C.Fn-02

4 5

XH G1S

1.67 million (1440 x 1080) per sensor—

ensures detailed HD capture (equal to

about 800 TV linesof horizontal resolution).

Color is rendered with exceptional accuracy

with wide dynamic range and virtually no

chroma noise.

Engineered and

manufactured

exclusively by

Canon, specifi-

cally for HD, the

latest-generation

DIGIC DV II ImageProcessor uses propri-

etary algorithms and architectures to

deliver optimal image quality. The

DIGIC DV II Image Processor is optimized

for HD video,operating at 1440 x 1080

pixels with 4:2:2 color sampling. Color

reproduction is remarkably natural, espe-

cially in skin tone areas and with dark and

light scenes. A hybrid noise reduction

system employs dual processes to ensure

brilliantly clear HD images.

EF Adapter XL

Extender XL

1.6x

without

SuperRange

Optical Image

Stabilizer

with SuperRange

Optical Image

Stabilizer

CCD R

CCD G

CCD B

PROFESSIONAL

VIDEO

TECHNOLOGY

Genuine Canon

Video Lens

Canon Interchangeable

XL Lens Mount

DIGIC DV II

Image Processor

Three 1/3" Native 16:9

CCDs (1440 x 1080)

SuperRange Optical

Image Stabilizer

Canon 6x HD Video Zoom XL 3.4–20.4mm L lens

Sophisticated Audio Control

Canon professional camcorders provide the

videographer with advanced control over

all aspects of audio during recording. The

cameras are equipped with 2 XLR inputs

with individual sen-

sitivity settings.

Sensitivity for the

XLR line input in

manual mode has

been increased,

and the audio line

output level can be

switched between

1Vrms and 2 Vrms

at full scale for

wider compatibility

in post-production environments. Maximum

audio output is +6 dBV with audio recorded

at the standard +4 dBu input setting. XLR

and microphone sensitivity selections

include +12 dB, +6 dB, 0 dB, -6 dB and

-12 dB. 2-channel recording is possible via

simultaneous use of the supplied micro-

phone and the XLR inputs. Automatic level

control settings for the XLR inputs provide

the choice of linked or independent 2-channel

operation. The camcorder is also equipped

with a 3.5mm stereo mini-jack for a camera

microphone and a rugged headphone

terminal with level control. Additional audio

controls include an audio limiter function

(in manual recording mode) to prevent

distortion caused by sudden loud sounds,

a 1 kHz Reference Tone (selectable to

-12 dB, -18 dB or -20 dB) and monitor output

selections of LR/LL/RR/monaural.

The XL H1S and XH G1S areready for any

professional application with HD-SDI,

Genlock and Time Code Connections

(BNC).SDI outputs conform to industry

standards HD-SDI (SMPTE 299M) or SD-SDI

(SMPTE 272M). Audio and Time Code are

both embedded. The HD-SDI output provides

an uncompressed 1.485 Gbps 60i signal at

1920 x 1080 resolution with 4:2:2 color

sampling. The 4:2:2 color space ensures

better color accuracy for compositing or

“green screen” work, and because a single

industry standard connection carries video,

audio and SMPTE (LTC) Time Code, cable

complexity is significantly reduced. This

enables longer cable runs, improves the

operator’s mobility and simplifies the cabling

process. Genlock input enables synchro-

nization of multiple cameras, whether in a

live-switched production environment in the

studio or on location. When shooting HD, it

can accept either an SD (blackburst) or HD

(tri-level) sync signal. Additionally, the

camcorders feature SMPTE Time Code Input

and Output terminals

to better accommodate

time code requirements

in multi-camerashoots

or when synching with

other devices. The

XH G1S also features

flags for 24F 2:3 pull-

down information.

Added to the video

outputted through

HD-SDI, which nor-

mally outputs 60i,

these reference markers ensure that the

extra frames removed can be located by

compatible hardware or software. Using

flags ensures that the cadence of the 24F

video is accurate for professional editing.

Superior Connectivity

Additional standard connectors include a

resilient 6-pin IEEE 1394 terminal, which

provides a robust connection to external

hardware. Also provided are component

analog video output (1080/60i or

480/60i connection),

S-Video input/output,

compositevideo out-

put and LANC terminal.

Canon professional

camcorders are also

equipped with flash

accessory shoes for

use with Canon EX-

series Speedlites.

These camcorders provide an extraordinary

range of user customization options, making

them unmatched in versatility and flexibility.

23 image adjustments, 22 display options

(with 40 sub-items) and 21 custom function

settings (with 33 sub-items) can be used to

fine-tune the cameras’ performance and

operating characteristics for different envi-

ronments, different users or different jobs.

Organizations that use many cameras can

take advantage of this feature to easily

matchup multipleunits. Sets of adjustments

can be recorded and transferred to ensure

superior camera-to-camera uniformity.

Image Enhancements

Videographers can achieve virtually any

look desired, thanks to an extensive range

of independent adjustments.

Gamma: The NORMAL gamma curve is ideal

for viewingfootage on TV monitors. The

camcordersalso offer CINE 1 to create

images with the quality and appearance

of film for TV viewing. For images that are

intended to be transferred to film, the CINE

2setting provides an appropriate gamma

curve.

Knee: 4settings (AUTO, HIGH, MIDDLE,

LOW) that fine-tune dynamic range (knee

point) adjustments in highlight areas

control overexposure when shooting

high-brightness subjects. HIGH enables

high-key shooting, while LOW protects

the image from overexposure.

Black: Adjustments to dynamic range in

the dark areas of the image are covered

with 3 settings (STRETCH, MIDDLE, PRESS).

STRETCH expands the range, providing

greater shadow detail. PRESS narrows the

range, increasing the deep black content

of the image.

Master Pedestal: Adjustments in steps

from –9 to +9 set the video reference black.

Higher values brighten the darker areas of

the image to reduce overall contrast.

Setup Level: Black level can be adjusted

from –9 to +9.

Sharpness: Control the sharpness of the

imagein steps from –9 to +9.

Horizontal Detail: High, Middle and Low

settings adjust the horizontal detail center

frequency.

Horizontal/Vertical Detail Balance:

Settings from –9 to+9 adjust the horizontal/

vertical proportion of the detail correction.

Coring: Subtle noise components can be

adjusted in steps from –9 to +9.

Noise Reduction 1/Noise Reduction 2:

With Off, High, Middle and Low options for

each, these settings deliver a variety of noise

reduction methods and levels to assure the

best image quality across numerous shoot-

ing situations.

Color Matrix: Correct color matrices are

provided for NORMAL (images to be viewed

on a TV monitor), CINE 1 (images with the

quality and appearance of film as viewed

on TV) and CINE 2 (images intended to be

transferred to film).

Color Gain/Hue: Color Gain and Hue are

adjustable from –50 to +50 and –9 to +9

respectively.

Master Red, Blue and Green Gain: Each

setting is independently adjustable from

–50 to +50 to provide precise control over

color balance.

6Color Matrixes: By altering 2 of the 3

primary colors, color matrixes including

RG, RB, GR, GB, BR and BG (eachinde-

pendently adjustablefrom –50 to +50)

provide extremely fine color control.

6 7

Sensitivity for the XLR line

has been increased; output

at a maximum +6 dBV is

possible when recorded at

the standard+4 dBu

2built-in XLR terminals allow for

2-channel recording via simultaneous

useof the supplied microphone and

XLR inputs.

BNC HD-SDI,

Genlock, Time Code

input andoutput

terminals (available

on XL H1S)

S-Video input/out-

put; composite

video; audio

input/output

(RCA)

Component output terminal

Supplied microphone

6-pin IEEE1394

terminal for HDV/DV

input/output;

LANC terminal

2Channel Recording via supplied microphone and XLR inputs

XLR input sensitivity can be set for

Channel 1/2 individually

Usethe supplied microphone and XLR

input at the same time

Audio and Connections (XL H1S / XL H1A)

PROFESSIONAL

VIDEO

TECHNOLOGY

Unrivaled Customization

Capability

HD-SDI, Genlock and Time

Code Connection Terminals

(XL H1S and XH G1S only)

BNC style HD-SDI,

Genlock, Time Code

input and output

terminals (XH G1S)

Custom Display Adjustments

The operating menu on Canon professional

camcorders can be customized to suit

individual user preferences, maximizing

convenience and efficiency.

Custom Functions

Camcorder operation can be further fine-

tuned through the use of Custom Functions.

With a wide array of customizable options,

camera functions can be optimized to

maximize shooting efficiency and uniformity

of capture.

Custom Presets

Store up to 9custom presets (sets of

custom image adjustments) for instant

access as needed. Custom presets can be

stored on memory cards (SD/SDHC or MMC)

—along with custom functions, display set-

tings and photos—and shared with other

Canon professional camcorders. This feature

can be used to ensure uniform camera setup

across multiple camcorders. The 3 custom

preset channels (CP7–CP9) are presets

CP7 optimizes images for viewing on

consumer-use TV monitors by minimizing

noise in dark areas and improving contrast;

CP8 settings yieldmovie-like images when

viewed on TV; CP9 settings are ideal for

images that will be turned into film. Each

of these channels can be reset as desired.

Frame Rates

Shoot using any combination of frame rates

in 1080 HD or SD (16:9 or 4:3 aspect ratio)

formats. Selectableframe rates include 60i,

30F or 24F as well as an optional upgrade

to add 50i/25F frame rates (performed by a

Canon Factory Service Center).

Canon professional camcorders incorporate

numerous features that deliver superb con-

trol over operation and image enhancement.

Skin Tone Detail: This feature minimizes

imperfections in skin areas without removing

other details. Fine adjustments in Hue,

Chroma, Area and Y level, plus a level adjust-

ment for softening skin tones, enable the

operator to achieve the most natural results.

Iris: The Iris Limit function can be set from

OFF to f/9.5. With the Canon 20x HD Video

Zoom Lens, the multi-level iris control

becomes available beyond the iris diffraction

f-number (f/9.5) all the way up to closed

(Iris Limit set to OFF). It can also be controlled

using LANC with the optional Canon ZR-2000.

Gain: Gain val-

ues can be fine-

tuned in 0.5 dB

increments from

0 to+18 dB,

enabling the

operator to opti-

mize sensitivity

when shooting

in low light.

Additionally,

-3 dB and +36 dB

settings are available. The gain limit can

also be set duringAGC, so that levels can

be judiciously adjusted, for example, when

shooting in the dark. While selecting a WB

or Gain setting, a new function ensures

shockless transitions.

Color Correction: Color Correction enables

the user to control R or B gain (-6 to +6)

in 16 areas as well as selected colors set

at the Hue, Chroma, Area, Y level while

shooting. Selective Noise Reduction lets

the user apply noise reduction to targeted

color areas. The Menu selection bar uses

numbers to simplify EVF Setup, Skin

Detail and Color Correction.

White Balance: The camera’s high-precision,

through-the-lens, 128-segment white

balance features an increased adjustment

range of 2,000–15,000° Kelvin. White

subjects are captured white, even in difficult

lighting situations, such as candle light.

Several automatic modes also deliver accu-

rate color in a variety of shooting situations.

Auto — The camera accurately and

automatically adjusts white balance.

Outdoor —White balance is adjusted for

bright sunlight (5,600° Kelvin).

Indoor — White balance is optimized for

incandescent lighting

(3,200° Kelvin).

Color Temperature —

White balance can be

selected in 100° Kelvin

intervals in a range of

2,000–15,000° Kelvin.

Program AE

Modes

The camcorder’s 7 pre-programmed Auto

Exposure modes cover a wide variety of

shooting situations. Ideal settings produce

top-quality results quickly and easily. To

simplify operation, Manual Mode is located

next to OFF on the Power Dial.

Full Auto: The camera takes over for point-

and-shoot simplicity, setting focus, shutter

speed, aperture, gain, white balance and

AE program shift to achieve ideal results.

Auto: This mode offers all the convenience

of Easy Recording, but allows the operator

the option of manually changing the settings.

Shutter Priority: The user selects the shutter

speed and the camera automatically selects

the proper aperture for correct exposure.

Aperture Priority: The user selects the

lens aperture, and the camera automati-

cally sets the proper shutter speed for

correct exposure.

Manual: Thismode allows the user to

select aperture and shutter speed in any

combination. The viewfinder indicates the

relation of selected combinations to the

exposure as metered by the camera.

Spotlight: Perfect for an automatic solu-

tion to a typically tricky situation: when the

subject is illuminated by a concentrated light

source (such as a spotlight) and the back-

ground is relatively dark, this mode auto-

matically adjusts exposure to compensate.

Night: As ambient light levels begin to fall,

the camera uses slower shutter speeds to

achieve optimal image quality.

Viewfinder

The XL H1S and XL H1A are equipped with

a2.4-inch widescreen combination EVF/

LCD monitor (approx. 215,000 dots) for a

clear, high-resolution image. The XH G1S

8 9

Custom

Function No. Description

C.Fn-00 Recording Mode Icon

C.Fn-01 Camera Data 1 (F/stop and Shutter Speed)

C.Fn-02 Camera Data 2 (Exposure, White Balance, Gain)

C.Fn-03 Zoom Indicator

C.Fn-04 Focus Distance Display

C.Fn-05 ND Filter Displays

C.Fn-06 Image Effects

C.Fn-07 Focusing Assist Functions (Peaking and Magnification)

C.Fn-08 Customized Functions (Custom Function and Custom Preset)

C.Fn-09 Video Recording Standard Definition

C.Fn-10 DV Recording Mode

C.Fn-11 Frame Rate Display

C.Fn-12 Tape-Related Icons and Displays

(Operation Mode, Time Code, DV Control)

C.Fn-13 RemainingTime on the Tape (Normal, Warning, Off)

C.Fn-14 Tape/Card-Related Displays

(Ext. Control, Image Stabilization, Image Size/Quality)

C.Fn-15 Light Metering-Related Displays

(Spot AE Point and Light Metering)

C.Fn-16 Still Images-Related Icons (Drive Mode, Flash)

C.Fn-17 RemainingStill Images on the Memory Card

(Normal and Warning)

C.Fn-18 Audio-Related Displays (Mic Mode, XLR and DV Audio)

C.Fn-19 Condensation Warning Icon

C.Fn-20 Battery-Related Displays (Off, Normal, Warning)

C.Fn-21 Wireless Remote Display (Off, Normal, Warning)

Custom

Function No. Function Description

C.Fn-00 Shockless WB/Gain Softens transitions when changing white balance or gain

C.Fn-01 Zoom RingControl Changes Zoom Ring responsiveness

C.Fn-02 Zoom Speed Changes Zoom key speed

C.Fn-03 Focus Ring Control Sets the sensitivity of the Focus Ring control

C.Fn-04 Buttons OPER.1 Changes the responsiveness of the buttons

(Magnification and White Balance Set)

C.Fn-05 Buttons OPER.2 Changes the responsiveness of the buttons

(Record Review, Bars, Fade, End Search, and Gain Set)

C.Fn-06 Rings Direction The directional response of the Zoom, Focus, and Iris rings can be set

C.Fn-07 OPER. Direction Changes the operation of the cursor and shutter

C.Fn-08 Iris Limit Sets the diffraction limit (On/Off)

C.Fn-09 Photo Button Selects function for Photo + CP Data, Photo, Magnifying and OFF

C.Fn-10 Marker Level Intensity level of the frame overlays and markers on screen can be set—40%

(gray) or 100% (white)

C.Fn-11 Focus Assist

B/W Mode

Selects whether to change the display to black-and-white

when Focus Assist is activated

C.Fn-12 Object Distance

Units Display Selects whether distance to object is displayed in feet or meters

C.Fn-13 Zoom Indicator Selects whether the zoom indicator is a graphic bar or a numeric display

C.Fn-14 Color Bars Selects EBU SD (Type 1) or ARIB Multiformat HDTV (Type 2) color bars

C.Fn-15 1kHz Tone Selects the level of the reference audio tone—OFF, -12 dB, or -20 dB

C.Fn-16 Wireless Remote Selects whether or not the camcorder will respond to

wireless controller commands

C.Fn-17 LANC AE Shift Exposure control selection using Canon ZR-2000 Zoom Remote Controller

C.Fn-18 Tally Lamp Controls the function of the Tally Lamp—ON, Blink, or

OFF by wireless control

C.Fn-19 LED Selects whether and which set of LED indicators on the camcorder will be

active.

C.Fn-20 Custom REC Sets custom recording mode for character record and magnifying

Custom Functions for XL H1S and XL H1A Custom Functions for XH G1S and XH A1S

Custom

Function No. Function Description

C.Fn-00 Shockless WB/Gain Softens transitions when changing white balance or gain

C.Fn-01 AE Response Adjusts response levels when exposure changes

C.Fn-02 Zoom Ring Control Changes Zoom Ring responsiveness

C.Fn-03 Zoom Speed Changes Zoom key speed

C.Fn-04 Focus Ring Control Sets the sensitivity of the Focus Ring control

C.Fn-05 Buttons OPER.1 Changes the responsiveness of the buttons

(Magnification and White Balance Set)

C.Fn-06 Buttons OPER.2 Changes the responsiveness of the buttons

(Record Review, Bars, Fade, End Search, and Gain Set)

C.Fn-07 Rings Direction The directional response of the Zoom, Focus, and Iris rings can be set

C.Fn-08 OPER. Direction Changes the operation of the cursor and shutter

C.Fn-09 Iris Limit Sets the diffraction limit (On/Off)

C.Fn-10 Photo Button Selects function for Photo + CP Data, Photo, Magnifying and OFF

C.Fn-11 Marker Level Intensity level of the frame overlays and markers on screen can be set—40%

(gray) or 100% (white)

C.Fn-12 Focus Assist

B/W Mode

Selects whether to change the display to black-and-white

when Focus Assist is activated

C.Fn-13 Object Distance

Units Display Selects whether distance to object is displayed in feet or meters

C.Fn-14 Zoom Indicator Selects whether the zoom indicator is a graphic bar or a numeric display

C.Fn-15 Color Bars Selects EBU SD (Type 1) or ARIB Multiformat HDTV (Type 2) color bars

C.Fn-16 1kHz Tone Selects the level of the reference audio tone—OFF, -12 dB, or -20 dB

C.Fn-17 LANC AE Shift Exposure control selection using Canon ZR-2000 Zoom Remote Controller

C.Fn-18 Tally Lamp Controls the function of the Tally Lamp—ON, Blink, or

OFF by wireless control

C.Fn-19 LED Selects whether and which set of LED indicators on the camcorder will be

active.

C.Fn-20 Custom REC Sets custom recording mode for character record and magnifying

and XH A1S provide both an EVF (approx,

269,000 dots) and a separate flip-out 2.8-

inch LCD monitor (approx. 207,000 dots).

Numerous viewing functions are provided

to maximize convenienceand boost the

quality of capture. Aspect guides provide

industry-standard picture formats, while

Histogram and EXIF displays offer real-time

brightness information for highly accurate

adjustments. The operator can choose to

display up to 8 characters of the Custom

Preset name and the SDI bit map display

may be turned on or off. All viewfinder

display information can be removed to

leave a clear, unobstructed viewing area.

AMagnifying function (operable with the

Photo button) enlarges the viewfinder

image, making it easier to perform fine

image adjustments. Remaining memory is

displayed when using Focus Enhancements

External Hard Disk Recorders.

Enhanced Operation

Versatility and convenience are hallmarks

of Canon professional camcorders. Still

images can be “grabbed” from footage

either while shooting or during playback.

These images can be saved on the memory

card for subsequent transfer. The camera’s

power LED illuminates green when the

camera is powered up and ready. Playback

mode preserves the letter-box format,

allowing an accurately proportioned view

of captured footage. A default write and

protect function prevents accidental erasures.

Marker colors may be specified at the user’s

discretion. The camcorders also support

9 languages: German, English, Spanish,

French, Italian, Polish, Russian, Chinese

(simplified) and Japanese.

PROFESSIONAL

VIDEO

TECHNOLOGY

Operational and Image

Enhancement Control

Custom Presets Adjustable Items

Gamma Curve* Color Gain

Knee Point Adjustment Color Phase

Black Stretch/Black Press R Gain

Master Pedestal* G Gain

Setup Level* BGain

Sharpness R-G Matrix

Horizontal Detail Frequency R-B Matrix

Horizontal/Vertical Detail Balance G-R Matrix

Coring G-B Matrix

Noise Reduction 1* B-R Matrix

Noise Reduction 2* B-G Matrix

Color Matrix*

*Only for video recording

High Definition Shoulder-mount HDV Camcorder High Definition Handheld HDV Camcorder

• Genuine Canon 20x High Definition L-series Video Zoom Lens III

•Three 1/3" Native 16:9 CCD Image Sensors with 1.67 Megapixels (1440 x 1080)

• XL H1S only: HD-SDI (SMPTE 299M) /SD-SDI (SMPTE

272M) Output with embedded audio and time code,

Genlock Input, SMPTE Time Code Input and Output

• Independent Focus, Zoom and Iris rings

• True 1080 HD Capture with a choice of 60i, 30F Progressive or 24F Progressive frame rates

• Canon DIGIC DV II Image Processor delivers the highest image quality

• Canon Interchangeable XL Lens Mount

• SuperRange Optical Image Stabilizer can correct a wide range of movements without

image degradation

• Complete Customization with 23 image adjustments, 22 display options and 21

custom function settings

• 2 Built-in XLR Terminals with independent audio level control

For morethan a decade, Canon has brought industry-leading optics and image processing expertise to the

professional video market with the XL-series camcorders. Today, leading videographers rely on these

remarkable camcorders for superior image quality and ultimate creative control, ensured by advanced

Canon technologies and open architecture system design. The latest in that line are the XL H1S and XL H1A

HD camcorders. They bring to the XL-series the finest in high-definition capture capability, ensuring that

they will continue to be favorites among independent filmmakers, corporate and event shooters and

broadcast and news market professionals.

Your Vision… in High Definition

Professionals who require a smaller, lighter weight HD camcorder, but who refuse

tosacrifice capability and performance, will find the Canon XH G1S and XH A1S to

be ideal solutions. The latest in a family of high quality HDV camcorders, they

deliver the advanced features and extraordinary image control capabilities

videographers need to make their visions reality in high definition. Even the most

demanding users will find uncommon flexibility, versatility and capability in the

extensive array of features and optional accessories. They will meet and exceed

the highest expectations.

•Genuine Canon 20x High Definition L-series Zoom Lens

• Three 1/3" Native 16:9 CCD Image Sensors with 1.67 Megapixels (1440 x 1080)

• XH G1S: HD-SDI (SMPTE 299M) /SD-SDI (SMPTE 272M)

Output with embedded audio and time code and 24F 2:3 pull-

down flags, Genlock Input, SMPTE Time Code Input/Output

• True 1080 HD Capture with a choice of 60i, 30F Progressive

or 24F Progressive frame rates

• Canon DIGIC DV II Image Processor delivers the highest image quality

• SuperRange Optical Image Stabilizer can correct a wide range of movements without

image degradation

•Instant AF dramatically reduces focusing time and increasing accuracy

• Complete Customization with 23 image adjustments, 22 display options and 21

custom function settings

•2 Built-in XLR Terminals with independent audio level control

XH G1S/XH A1S Kit Contents

•XH G1S/XH A1S Body

• Lens Hood

• Eyecup

• Compact Power Adapter CA-920

• Power Supply Coupler DC-920

• External microphone holder adjustment

band

• HDVM-E63PR Digital Video Cassette

• Battery Pack BP-950G

•SD Memory Card SDC-32M

• Wireless Controller WL-D5000

• Shoulder Strap SS-1100

•Component Cable DTC-1000

•Stereo Video Cable STV-290N

• USB Cable IFC-300PCU

•AC Cable

• Tripod Adapter Base

BNC style HD-SDI,

Genlock, Time Code

input and output

terminals (available

on XL H1S only)

BNC style HD-

SDI, Genlock,

Time Code input

and output

terminals

(available on

XH G1S only)

External Sensor for

Instant AF

HIGH

DEFINITION

CAMCORDERS

Exceptional Image Quality... Definitive Control...

Professional Functionality

XL H1S/XL H1A Kit Contents

• XL H1S/XL H1A Body

•Genuine Canon 20x HD Video Zoom Lens III

• Camera Dust Cap

• Lens Hood

• Lens Soft Case (Not Shown)

• Color Viewfinder

•Compact Power Adapter CA-920*

•DC Coupler DC-920*

•Microphone Unit

• External Microphone Holder Adjustment

Band

• HDVM-E63PR Digital Video Cassette

• Battery Pack BP-950G*

•SD Memory Card SDC-32M

• Wireless Controller WL-D5000

• Shoulder Strap SS-1100

• Component Video Cable DTC-1000*

•Stereo Video Cable STV-250N*

• External Monitor Cable

• Tripod Adapter Base

•Adapter Holder Plate

*Also available as an optional accessory.

HIGH

DEFINITION

CAMCORDERS

16 18

1715

9 24 2520 22

141210

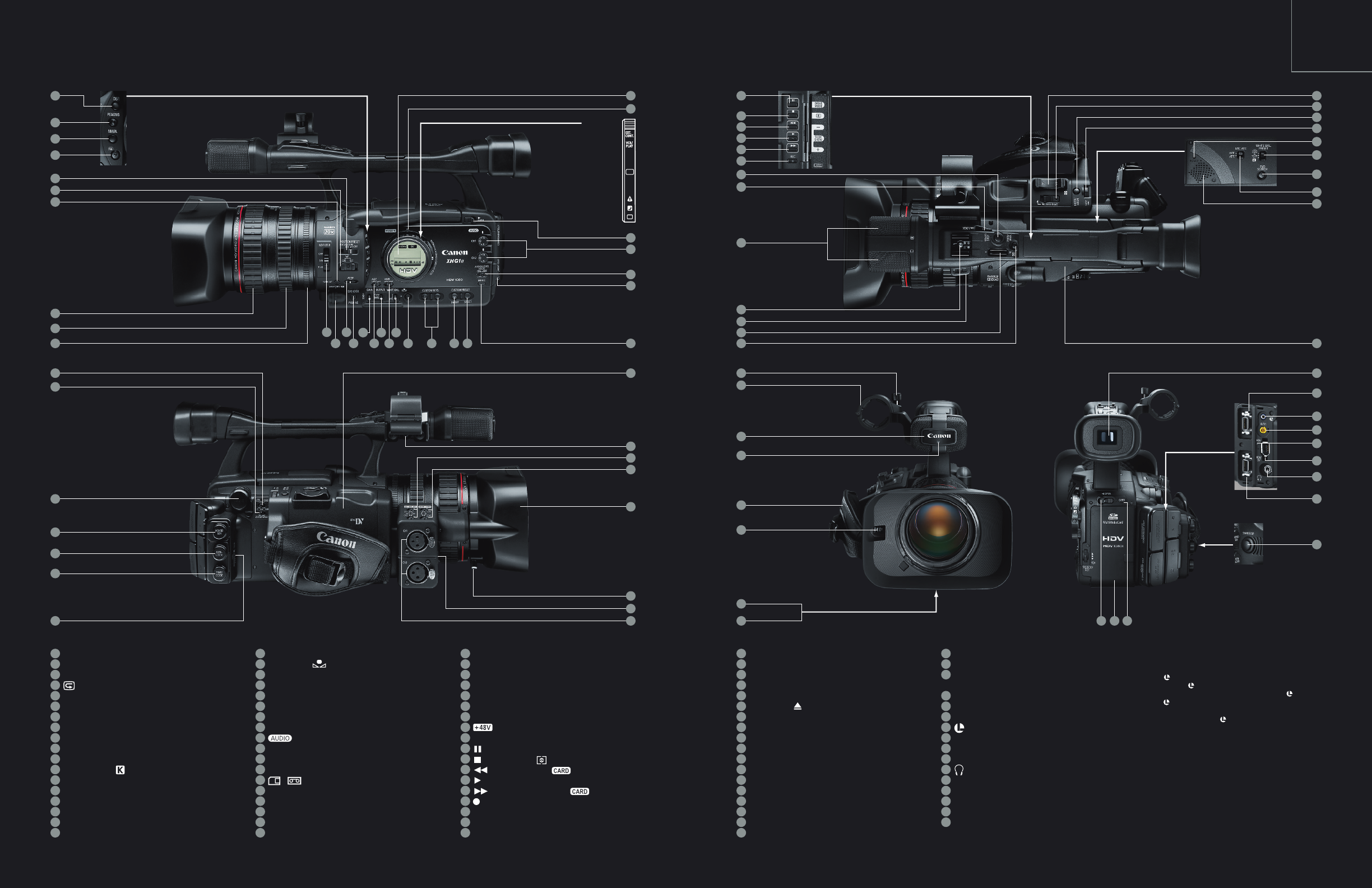

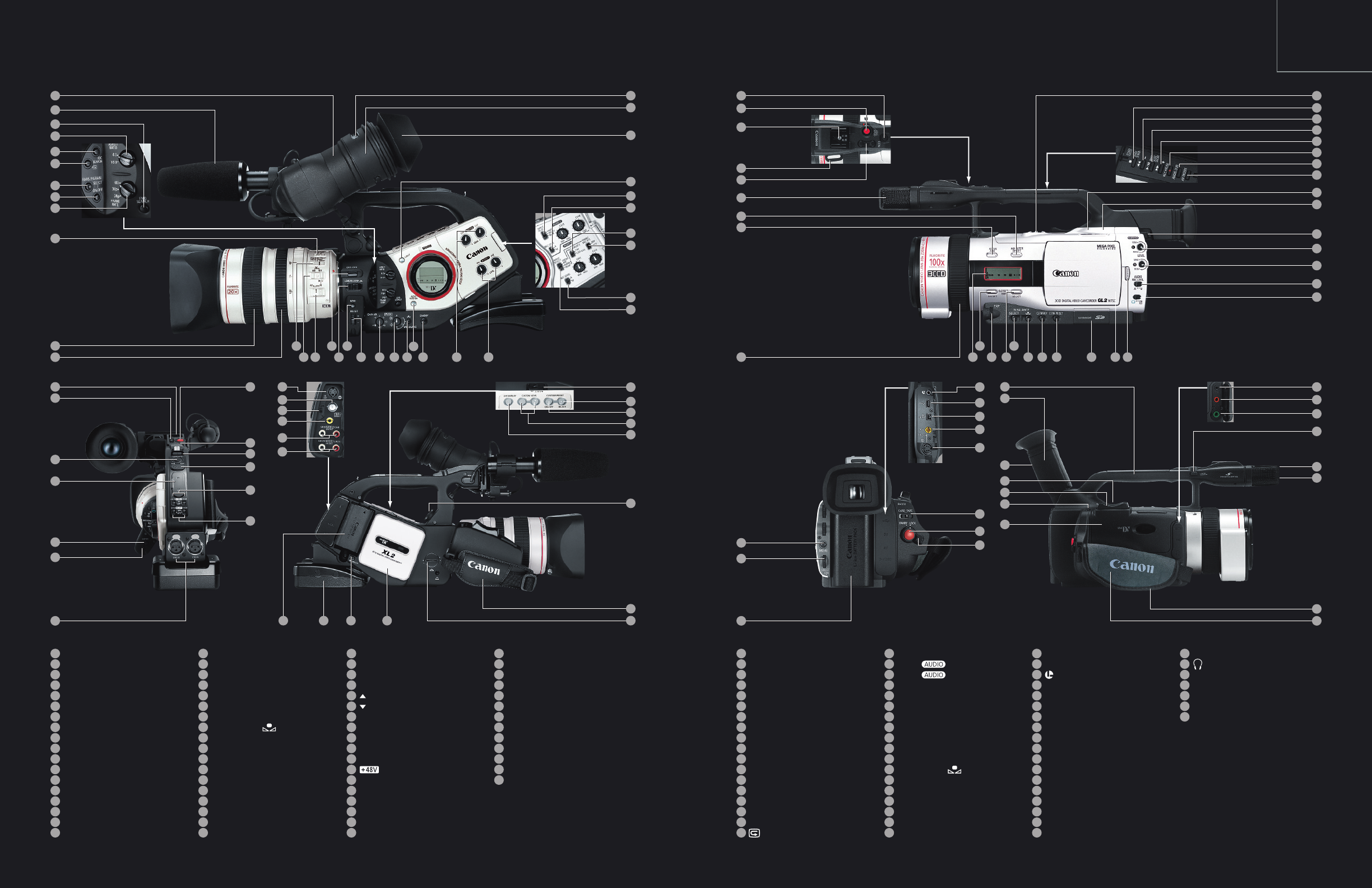

POWER Dial

External Control Mode

VCR/PLAY Mode

Power Off

Manual

Auto

Shutter-Priority

Aperture-Priority

Spotlight

Night

Easy Recording

OFF

46 47

44 48 49

53 89

Gain Dial

White Balance Dial

End Search Button

White Balance Button

Audio Output CH Button

Standby Button

Side Panel

Input Select Switch

Rec Level Switch

CH 1 Dial

Front Mic ATT. Switch (CH1/CH2)

XLR Rec CH Select Switch (CH1/CH2)

CH 2 Dial

Rec Level Switch

Input Select Switch

Light Button

Power Indicator

EVF Display Button

Dioptric Adjustment Lever

Color Viewfinder

Stereo/Mono Microphone Selector

Microphone

Stabilizer ON/OFF Switch

ND Filter Unlock Button

Focus Ring

Zoom Ring

Iris Ring

ND Filter Operating Ring

Position Preset Switch

AF Switch/Position Reset ON/SET Switch

Focus Mode Switch

EVF Peaking/EVF Magnifying Buttons

Exp. Lock Button

Lens Release Switch

Select Dial/Iris Dial

Set Button

Custom Keys

Eject Switch

Custom Preset ON/OFF Button

Custom Preset Select Button

Screw Hole for Adapter Holder

S-Video Terminal; Composite Video;

Audio Terminals (CH1/CH2, RCA)

Battery Pack

TC-IN Terminal*

TC-OUT Terminal*

GENLOCK Terminal*

HD/SD SDI Terminal*

Battery Release Button

Cassette Compartment

AE Shift Dial

Lock Switch

Front MIC Terminals

Tally Lamp; Remote Sensor

Remote Sensor

Lens Hood

Lens Hood Lock Screw

Memory Card Slot

Photo Button

Grip Zoom Lever

Viewfinder Lock Screw

Hot Shoe

Start/Stop Button

Handle Zoom Lever

Photo Button

Remote Sensor

Tally Lamp

Phone Level Dial

(Headphone) Terminal

Screw Hole for Adapter Holder

(Pause) Button/DRIVE MODE Button

(Stop) Button/ (Metering Mode) Button

(Rewind) Button/ – Button

(Play) Button/SLIDESHOW Button

(Fast Forward) Button/ + Button

REC (Record) Button

Eye Cup

Mode Select Switch

(Record Review) Button

BARS/FADE Select Button

BARS/FADE ON/OFF Button

Menu Button

Frame Rate Switch

Microphone Lock Screw

HDV/DV Terminal

Terminal

Switches

MIC ATT Switches

Zoom Speed Switch

Card/Tape Switch

Card Access Indicator

Zoom Speed Dial

Start/Stop Button

Input Terminals (CH1/CH2, XLR)

Component Out Terminal

* XL H1S only

• Do not use tripods with fastening screws longer than 5.5mm as

it may damage the camcorder.

• The terminal (LANC) stands for Local Application Control Bus

System. The terminal allows you to connect and control

connected devices. Connect only devices with the mark to

the terminal.

• Operation cannot be guaranteed for connections with

devices not bearing the mark.

• Some buttons of connected devices may not operate or may

operate differently than the buttons on the camcorder.

12 13

Nomenclature for XL H1S / XL H1A

HIGH

DEFINITION

CAMCORDERS

1917

181614

20 22 23

87 88

OFF

WHITE BAL. (White Balance) Switch

WHITE BAL. Button

CUSTOM KEYS

CUSTOM PRESET ON/OFF Button

CUSTOM PRESET SELECT Button

Side Panel

POWER Indicator

Open (Open The LCD Display) Switch

CH1/CH2 Dials

AUDIO LEVEL Lock Switch

SELECT/SET Dial

MENU Button

/ (Card/Tape) Switch

ZOOM SPEED Switch

VIDEO2 Terminal

HD/SD SDI Terminal*

GENLOCK Terminal*

TIME CODE Terminal*

DISP. (Display) Button

PEAKING Button

MAGN. (Magnification) Button

(Record Review) Button

POSITION PRESET Switch

POSITION PRESET ON/SET Switch

PUSH AF Button

Focus Ring

Zoom Ring

Iris Ring

ND FILTER Switch

SHUTTER Dial/ Dial

Focus Mode Switch

EXP. LOCK Button

GAIN Switch

AGC (Automatic Gain Control) Switch

OUTPUT Switch

AWB (Automatic White Balance) Switch

TIME CODE Switch

Cassette Compartment

MIC (External Microphone) Terminal

XLR MIC ATT. Switches

AUDIO LEVEL Switches

Lens Hood

Lens Hood Locking Screw

Switches

CH1/CH2 Input Terminals

(Pause) Button/DRIVE MODE Button

(Stop) Button/ (Metering Mode) Button

(Rewind) Button/ – Button

(Play) Button/SLIDESHOW Button

(Fast Forward) Button/ + Button

REC (Record) Button

Start/Stop Button

LOCK Switch

Microphone

Hot Shoe

Strap Mount

Handle Zoom Lever

PHOTO Button/MAGN. Button

Grip Zoom Lever

OPEN/EJECT Switch

PHOTO Button/MAGN. Button

Zoom Speed Adjustment Dial

RESET Button

WHITE BAL. PRESET Switch

END SEARCH Button

MIC ATT. Switch

Speaker

LCD Panel

Microphone Lock Screw

External Microphone Holder

Remote Sensor

Tally Lamp

Grip Belt

External Sensor for the Instant AF

Attachment Sockets for the Optional TA-100 Tripod

Adapter or the Supplied Tripod Adapter Base

Tripod Socket**

Viewfinder

VIEWFINDER COMPONENT OUT Terminal

Terminal

A/V1 Terminal

HDV Indicator

HDV/DV Terminal

(Headphones) Terminal

HD/SD COMPONENT OUT Terminal

Start/Stop Button

OPEN (Open The Battery Compartment) Switch

Battery/Memory Card Compartment

CARD Access Indicator

* XH G1S only

**Do not use tripods with fastening screws longer than 5.5mm as

it may damage the camcorder.

• The terminal (LANC) stands for Local Application Control Bus

System. The terminal allows you to connect and control

connected devices. Connect only devices with the mark to

the terminal.

• Operation cannot be guaranteed for connections with

devices not bearing the mark.

• Some buttons of connected devices may not operate or may

operate differently than the buttons on the camcorder.

POWER Dial

External Control Mode

VCR/PLAY Mode

Power Off

Manual

Auto

Shutter-Priority

Aperture-Priority

Spotlight

Night

Easy Recording

14 15

Nomenclature for XH G1S / XH A1S

HIGH

DEFINITION

CAMCORDERS

16 17

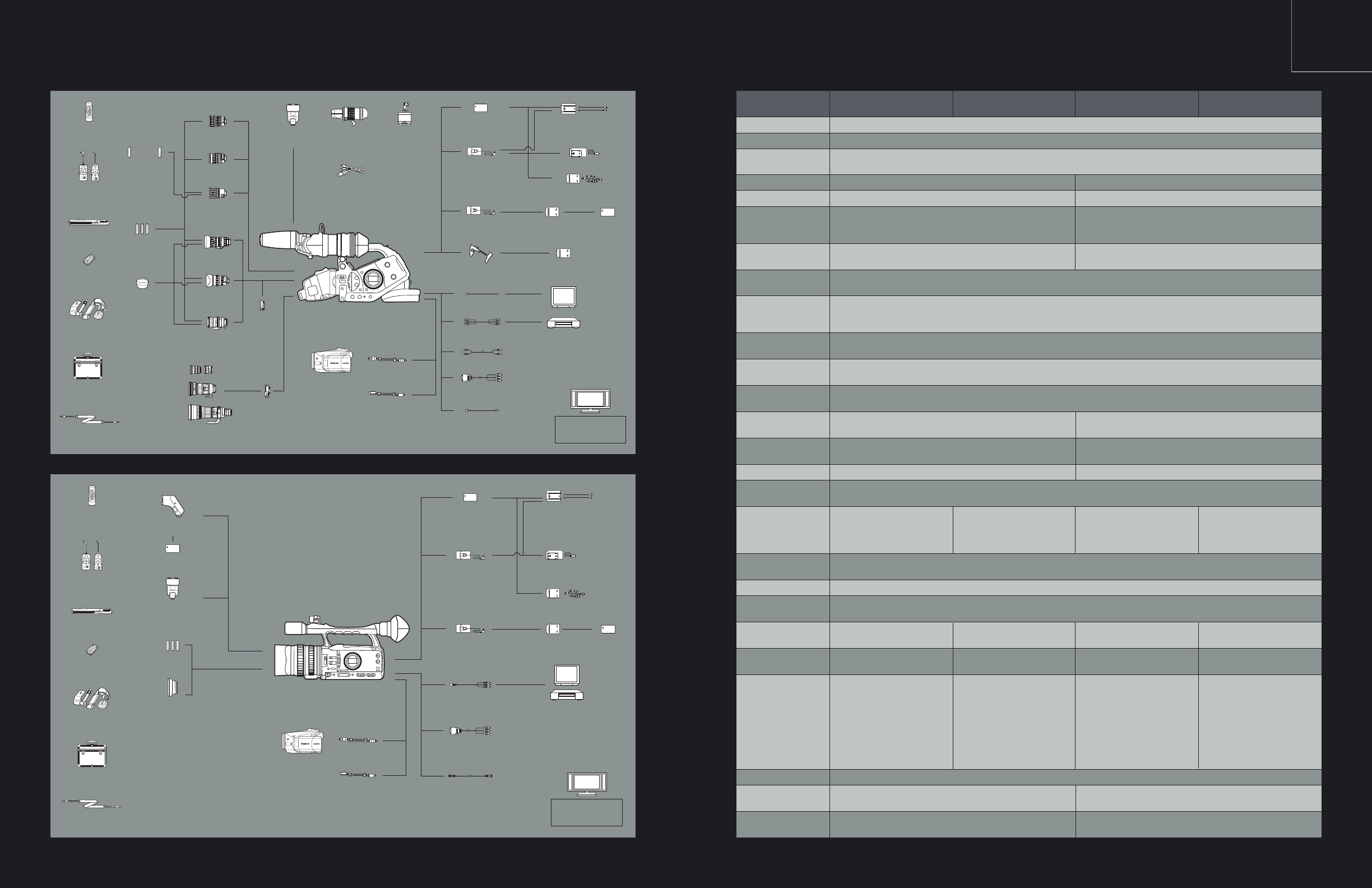

Wireless Controller

WL-D5000

Zoom Remote

Controller

ZR-1000/2000

Tripod Adapter

TA-100

Tripod Adapter

Base

Shooting Brace

SBR-1000

System Case

HC-3200

Shoulder Strap

SS-1000

Circular

Polarizer

PL-C 82mm

Protect

Filter

82mm

HD 20x zoom

XL 5.4-108 mm L IS III

Speedlite 220EX,

430EX II, 580EX II

Black and White

Viewfinder Unit

FU-1000

External Monitor Cable

XL H1S/XL H1A

4Pin to 6Pin

IEEE 1394 Cable

6Pin to 6Pin

IEEE 1394 Cable

Color Viewfinder Unit

FU-2000

Battery Pack BP-950G

(included with XL H1S/XL H1A)

/970G/930/945

Compact Power Adapter

CA-910/920

(included with XL H1S/XL H1A)

Car Battery Adapter CB-910/920

Dual Battery Charger/Holder

CH-910

BP900 series

Battery Pack

Other video equipment

such as cameras and

video switchers

Power Supply Coupler DC-920

(included with XL G1S/XL A1S)

Power Supply Coupler DC-905

(for CA-910/CB-910)

DC Power Supply Coupler

DC-915

Stereo Video Cable

STV-290N/250N

D Terminal Component Cable

(DTC-1000)

Dual Battery Charger/Holder

CH-910 E/B/AA/CH

BNC cable (available on the market)

HD/SD SDI terminal/TC terminal

GENLOCK terminal/V2 terminal

Speedlite

220EX, 430EX II, 580EX II

Filter Set

FS-72U

Wide Converter

WD-H72

Battery Pack BP900 series

Battery Video Light

VL-10Li, VL-10Li II

4Pin to 6Pin

IEEE 1394 Cable

6Pin to 6Pin

IEEE 1394 Cable

Signal System

Recording Media

Image Sensor

Lens

Image Stabilizer

AFSystem

Minimum Illumination

Zoom

Video Recording System

Audio RecordingSystem

Recording Speed

Maximum Recording Time

Viewfinder

Microphone

Memory Card

(Photos+Presets)

Video Terminals

Audio Terminals

HDV/DV Terminal

Headphone Terminal

Genlock Terminal

Time Code Terminal

Component (output only), S-Video

(input/output), BNC (output only),

RCA (input/output)

—

NTSC and HDV

MiniDV

1/3-in. 3CCD (horizontal pixel shift),

approx. 1,670,000 pixels 16:9 and 4:3 switchable

20x Video Zoom 5.4–108mm f/1.6–3.5

SuperRange Optical Image Stabilizer (Vari-Angle Prism)

TTL video signal sensing system autofocus,

manual focusing with focus ring

24F: Auto mode: 3 lux (shutter speed 1/24, Gain +18 dB)

Manual mode: 0.3 lux (shutter speed 1/3)

Handle zoom: 16 fixed speed level settings;

Grip zoom: variable speed, 16 fixed speed level settings

Two rotary heads, helical scan azimuth recording

[HDV] High Definition Video 1080i,

[DV] Consumer digital VCR SD system

[HDV] MPEG-1 Audio Layer II, 16-bit (48 kHz), Bit rate: 384kbps (2CH);

[DV] PCM digital sound, 16-bit (48 kHz) or 12-bit (32 kHz)

[HDV/DV: SP mode] 18.81mm/s

[DV: LP mode] 12.56mm/s

[HDV/DV: SPmode] 60 min.

[DV: LP mode] LP: 90 min.

2.4-in. wide, 16:9 aspect ratio TFT color,

approx. 215,000 dots

Stereo electret condenser microphone or monaural selectable

SDHC (SD High Capacity) memory card, SD memory card, MultiMediaCard (MMC)

Component (output only), S-Video

(input/output), BNC (output only),

RCA (input/output),

HD/SD-SDI (output only)

RCA (input/output), MIC: 3.5mm stereo mini-jack (unbalanced);

XLR: 2 systems

Compliant with IEEE 1394 protocol

ø3.5mm stereo mini-jack, less than 50 ohm;

-infinity to-12dBV (with 16 ohm load)

BNC type connector, input: 1 Vp-p/75

ohms (tri-level or blackburst sync)

BNC connector, input: 1Vp-p/75 ohms,

output: 1Vp-p/75 ohms

HD/SD-SDI Terminal

Power Supply

Dimensions (W x H x D)

Weight

—

HD-SDI: video standard: compliant

with SMPTE292M; embedded audio

standard: compliant with

SMPTE299M; time code standard:

compliant with SMPTE RP 188 (LTC);

SD-SDI (480/60i) video standard:

compliant with SMPTE259M; embed-

ded audio standard: compliant with

SMPTE272M; time code standard:

compliant with SMPTE RP 188 (LTC)

7.4V DC (battery pack)

8.9 x 8.7 x 19.5 in./226 x 220 x 496mm

(excluding the grip belt)

5.4 lbs./2.4kg (body only)

8.3 lbs./3.7kg (with lens and battery)

XL H1AXL H1S

Component (output only),

AV mini-terminal (input/output),

BNC (output only),

—

20x Video Zoom 4.5–90mm f/1.6–3.5

SuperRange Optical Image Stabilizer (Lens Shift)

Instant AF (TTL-video signal detection system and external phase difference

metering system), Normal AF (TTL-video signal detection system)

manual focusing with focus ring

24F: Auto mode: 2.5 lux (shutter speed 1/24, Gain +18 dB)

Manual mode: 0.3 lux (shutter speed 1/3)

0.57-in. wide, 16:9 aspect ratio TFT color,

approx. 269,000 dots

Stereo electret condenser microphone

Component (output only),

AV mini-terminal (input/output),

BNC (output only),HD/SD-SDI (output

only), HD/SDl (output only)

BNC type connector, input: 1 Vp-p/75

ohms (tri-level or blackburst sync)

BNC connector, input: 1Vp-p/75 ohms,

output: 1Vp-p/75 ohms

—

HD-SDI: video standard: compliant

with SMPTE292M; embedded audio

standard: compliant with

SMPTE299M; time code standard:

compliant with SMPTE RP 188 (LTC);

SD-SDI (480/60i) video standard:

compliant with SMPTE259M; embed-

ded audio standard: compliant with

SMPTE272M; time code standard:

compliant with SMPTE RP 188 (LTC)

5.5 x 7.4 x 12.6 in./140 x 189 x 321mm

(excluding the grip belt)

4.9 lbs./2.2kg (body only)

5.4 lbs./2.5kg (with lens and battery)

XH A1SXH G1S

LCD Screen Flip-up Viewfinder 2.8-in. wide, 16:9 aspect ratio TFT color,

approx. 207,000 dots

HIGH

DEFINITION

CAMCORDERS

Standard Definition Shoulder-mount HDV Camcorder Standard Definition Handheld HDV Camcorder

18 19

•Genuine Canon 20x Professional L-series Fluorite Lens

• Three 1/3" Progressive Scan CCD Image Sensors with 16:9 and 4:3 aspect ratio

shooting formats

• Variable frame rates: 60i, 30p and 24p

• XL Mount Interchangeable Lens System with ability to change lenses

from the XL-series lenses or Canon’s photographic lenses

• SuperRange Optical Image Stabilizer corrects camera shake

instantly while maintaining the integrity of the image

Open Up a World of Possibilities

The Canon XL2 enables video capture closer to the finished product than ever

before. Work that previously was limited to post-production can be simply and

effectively accomplished in the field, in the camcorder. The XL2 offers performance

found only in muchmore expensive camcorders. Total Image Control and the solid

foundation of Genuine Canon Optics, interchangeable lens capability and superb

Canon image processing quality are united in the XL2. It brings a unique level of

performance and convenience to this class of camcorder.

XL2 Kit Contents

•XL2 Body

•20x Zoom XL 5.4-108mm L IS Lens

• Color Viewfinder*

• Wireless Controller WL-D4000

• Lens Cap (Not Shown)

• Lens Dust Cap

• Lens Hood

• Lens Soft Case (Not Shown)

• Camcorder Dust Cap (Not Shown)

• Compact Power Adapter CA-920†

• AC Cable*

• DC Coupler DC-920

•Battery Pack BP-930*

• Shoulder Strap SS-1000

• Stereo Video Cable STV-150*

•S-Video Cable S-150*

•Microphone

• Adapter Holder Plate

Create Your Vision

With the GL2, Canon has created a camcorder with a wealth of features, each

selected to further elevate the standard by which camcorders are judged. The

camera’s excellence begins with its outstanding Canon L-series Fluorite lens and

includes pro-level capture control features found in Canon’s higher-end camcorders.

Incorporating precision optics, superior digital processing and a sleek innovative

design, the Canon GL2 offers reliable professional performance. Offering exceptional

control, the camcorder is ideal for the serious videographer seeking a compact

solution that opens the door to creative excellence.

•Genuine Canon 20x Professional L-series Fluorite Lens

• Three 1/4" CCD Image Sensors

• Optical Image Stabilizer corrects camera shake instantly while maintaining the

integrity of the image

• 1.7 Megapixel Still Images

• Digital Video Format and IEEE 1394 (DV In/Out Terminal)

• MultiMediaCard/SD Memory Card Capability

GL2 Kit Contents

•GL2 Body

• Battery Pack BP-915*

• DC Coupler DC-920*

• Wireless Controller WL-D77

•S-Video Cable S-150*

• Stereo Video Cable STV-250N*

• Shoulder Strap SS-650*

•SD Memory Card SDC-8M

• Large Eyecup

•Lens Hood

• Compact Power Adapter CA-920*

• Digital Video Solution Disk

•USB Interface Cable IFC-400PCU*

ASPECT RATIO

Selector Switch

Genuine Canon 20x

Professional L-series

Fluorite Lens with Optical

Image Stabilizer

Canon L-series Lenses,

EF Adapter XL and

Extender XL 1.6x

Canon

EF-series

lenses

The VL-3 Video Light (left)

and the DM-50 Directional

Stereo Microphone (right)

attached on Advanced

Accessory Shoe

STANDARD

DEFINITION

CAMCORDERS

STANDARD

DEFINITION

CAMCORDERS

*Also available as an optional accessory.*Also available as an optional accessory.

28 302924 25 262318

2217

2119

37 44 50

65646362

Auto/Manual Focus Switch

EXP. LOCK Button

LENS RELEASE Switch

MENU Button

AUDIO MONITOR Button

GAIN Dial

WHITE BALANCE Selector Knob

WHITE BALANCE Set Button

AUDIO MONITOR Button

STANDBY Button

CH3/CH4 LEVEL Dial (AUDIO2)

CH1/CH2 LEVEL Dial (AUDIO1)

INPUT SELECT (CH3, CH4) Switch

REC LEVEL (CH3, CH4) Switch

REC CH SELECT Switch

FRONT MIC ATT. Switch

REC LEVEL (CH1, CH2) Switch

INPUT SELECT (CH1, CH2) Switch

Viewfinder Focusing Ring

Stereo Microphone

END SEARCH Button

ASPECT RATIO Selector Switch

REC SEARCH + Button

REC SEARCH –/Record Review Button

BARS/F.GRAIN SELECT Button

BARS/F.GRAIN ON/OFF Button

FRAME RATE Selector Switch

STABILIZER Switch

Dioptric Adjustment Lever

Viewfinder

Eye Cup

LIGHT

Focusing Ring

Zooming Ring

Position Preset Switch

ND Filter Switch

Advanced Accessory Shoe

Handle Zoom Lever

PHONE LEVEL Dial

DV/REMOTE (LANC) Terminal Door

SHUTTER Speed Button

XLR Input Terminals

REC START/STOP Button

Lock Lever

Strap Mount

HEADPHONES Terminal

Switches

MIC ATT. Switches

S-video Terminal

Video Terminal (BNC)

RCA/BNC Selector

Video Terminal (RCA)

AUDIO 2 RCA Terminal

AUDIO 1 RCA Terminal

EJECT Switch

CUSTOM PRESET SELECT Button

CUSTOM PRESET ON/OFF Button

CUSTOM KEYS

EVF DISPLAY Button

AE SHIFT Dial

Main Battery

Shoulder Pad

BATT. RELEASE Button

Cassette Compartment

Grip Belt

Backup Battery Compartment

33 3530 3431 3225 2827

2926

BATTERY RELEASE Button

Manual LEVEL L Dial

Manual LEVEL R Dial

AUDIO REC LEVEL Switch

Program Selector Switch

Focus Ring

Audio LCD Panel

D.E. (digital effects) ON/OFF Button

EXPOSURE Dial

D.E. (digital effects) SELECT button

WHITE BALANCE SELECT Button

WHITE BALANCE Set Button

CSTM KEY Button

CSTM PRESET Button

Memory Card Slot

LCD Panel

LCD Panel Open Button

MENU Button

PHOTO Button

START/STOP Button

Advanced Accessory Shoe

Strap attachment Bar

Zoom Control

Stereo Microphone

ND FILTER Button

FOCUS A/M Button

POWER Switch

STOP/INDEX SCREEN Button

REW/card- Button

PLAY/PAUSE Button

FF/Card+ Button

REC PAUSE Button

AUDIO DUBBING Button

AV INSERT Button

+ REC SEARCH Button

Record review/– REC SEARCH Button

SELECT Dial

Battery Pack

REMOTE Terminal

USB Terminal

DV Terminal

Audio/Video Terminal

S-video Terminal

MOVIE MODE Switch

Start/Stop Button

Standby Lever

Carrying Handle

Viewfinder

Viewfinder Focusing Lever

OPEN/EJECT Button

Zoom Control

PHOTO Button

Cassette Compartment Cover

DC5V Terminal

MIC Terminal

(Phones) Terminal

LOCK Lever

Tally Lamp

Remote Sensor

Tripod Socket

Grip Belt

20 21

Nomenclature for GL2Nomenclature for XL2

STANDARD

DEFINITION

CAMCORDERS

22 23

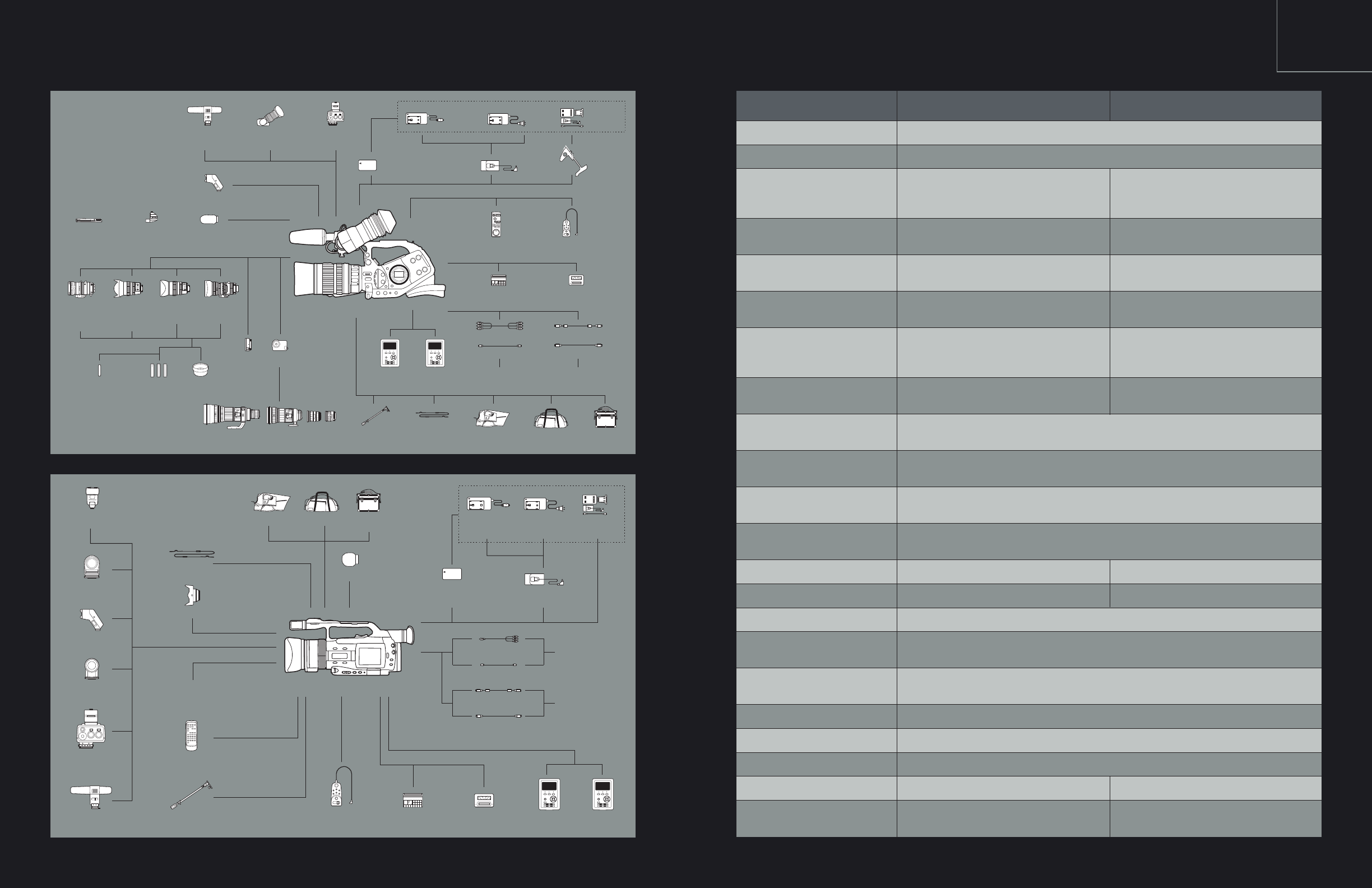

SpecificationsSystem Chart

Ratio Converter

RC-72

Wide-Angle

3x Zoom Lens

XL 3.4-10.2mm

f/1.8-2.2

16x Zoom Lens

XL 5.5-88mm

f/1.6-2.6 IS II

EF Lens Group

(Except EF-S lenses)

Pro Mist 1/2, BLK Pro Mist 1/2,

Soft FX 2, ND6/ND3 Filters

FS-72U

Filter Set

20x Zoom Lens

XL 5.4-108mm

f/1.6-3.5 L IS

16x Manual

Servo Zoom Lens

XL 5.4-86.4mm

f/1.6

MM-XL1 Mini-Mount

Digital Device

(Available Commercially)

TV/VCR

(Available Commercially)

VL-10Li Video Light

FU-1000

Monochrome CRT

Viewfinder Unit

S-150 S-video Cable

STV-150 Stereo Video Cable 4-pin to 4-pin IEEE 1394 Cable

CB-920

Car Battery

Charger

CA-920

Compact

Charger

DVM-CL

DV Head Cleaning Cassette

DVM-E60/E80

Digital Video Cassette

ZR-1000/ZR-2000

Zoom Remote Controller

WL-D4000

Wireless Controller

BP-930/BP-945/BP-950G/BP-970G

Lithium Ion Battery Pack

DC-920

DC Coupler

Adapter

Holder

FireStore FS-4 Pro

(40GB or 80GB)

FireStore

FS-4

XL2

CH-910

Dual Battery

Charger

4-pin to 6-pin IEEE 1394 Cable

MA-300

Microphone Adapter

DM-50

Directional Microphone

TA-100 Tripod Adapter EQ-XL Equalizer

SS-1000

Shoulder Strap HC-3200

System Case

KATA BagKATA RaincoverSteady Stick

EF Adapter

Extender

XL 1.6x

(Except 3x lens)

FireStore FS-4 Pro

(40GB or 80GB)

FireStore FS-4

EQ-GL

GL2

TV/VCR

(Available

Commercially)

Digital Device

(Available

Commercially)

S-150 S-video Cable

STV-250N Stereo Video Cable

4-pin to 4-pin IEEE 1394 Cable

4-pin to 6-pin IEEE 1394 Cable

KATA Raincover KATA Bag HC-4100

System Case CB-920

Car Battery Charger

CA-920

Compact Charger

CH-910

Dual Battery Charger

VFL-1 Video Light

VL-10Li Video Light

VL-3 Video Light

MA-300

Microphone Adapter

DM-50

Directional Microphone

WL-D77

Wireless Controller

Stereo Microphone

(Available Commercially)

ZR-1000/ZR-2000

Zoom Remote Controller

Steady Stick DVM-E60/E80

Digital Video Cassette

DVM-CL

DV Head Cleaning Cassette

WD-58H Wide Converter

SS-650

Shoulder Strap

BP-915/BP-930/BP-945/

BP-950G/BP970G

Lithium Ion Battery Pack DC-920

DC Coupler

Speedlite

220EX, 430EX II, 580EX II

Signal System

Recording Media

Image Sensor

Lens

Image Stabilizer

AFSystem

Minimum Illumination

Zoom

Video Recording System

Audio Recording System

Recording Speed

Maximum Recording Time

LCD Screen

Microphone

Video Terminals

Audio Terminals

HDV/DV Terminal

Headphone Terminal

Power Supply

Dimensions (W x H x D)

Weight

1/4-in. 3CCD (horizontal pixel shift),

approx. 410,000 total pixels

20x Zoom 4.2–84mm f/1.6–2.9

Optical Image Stabilizer (Vari-Angle Prism)

TTL autofocus, manual focusing possible

Approx. 0.37 lux (shutter speed 1/8)

–

2.5-in. TFT color, approx. 200,000 dots

4.6 x 5.4 x 12 in./118 x 136 x 306mm

2.5 lbs./1.1kg

NTSC and DV

MiniDV

1/3-in. 3CCD (horizontal pixel shift),

approx. 680,000 total pixels

16:9 and 4:3 switchable

XL Lens System

20x Zoom XL 5.4–108mm L IS Lens

SuperRange Optical Image Stabllizer (Vari-Angle Prism),

20x Zoom XL 5.4–108mm L IS installed

TTL autofocus, manual focusing possible,

20x Zoom XL 5.4–108mm L IS installed

Approx. 5.5 lux (20x Zoom XL 5.4–108mm

LIS installed, auto mode, 60i frame rate, 4:3 aspect

ratio, shutter speed 1/60)

Manual/Power zoom: 16 fixed speed level settings

Two rotary heads, helical scan azimuth recording

PCM digital recording: 16-bit (48 kHz) 2CH, 12-bit (32 KhZ) 4CH

[SPmode] 18.81mm/s

[LP mode] 12.56mm/s

[SP mode] 80 min.

[LP mode] 120 min.

Flip-up Viewfinder

Stereo electret condenser microphone

S-Video (input/output)

RCA terminal (output)

RCA (input/output), MIC: 3.5 mm stereo mini-jack

(unbalanced); XLR: 2 systems

[DV] Compliant with IEEE 1394 protocol

ø3.5mm stereo mini-jack

7.2V DC (battery pack)

8.9 x 8.7 x 19.5 in./225 x 220 x 496mm

5.3 lbs./2.4kg (body only)

7.8 lbs./3.5kg (with lens and battery)

XL2

Viewfinder 0.44-in. TFT color, approx. 180,000 dots2.0-in. TFT color, approx. 200,000 dots

STANDARD

DEFINITION

CAMCORDERS

GL2

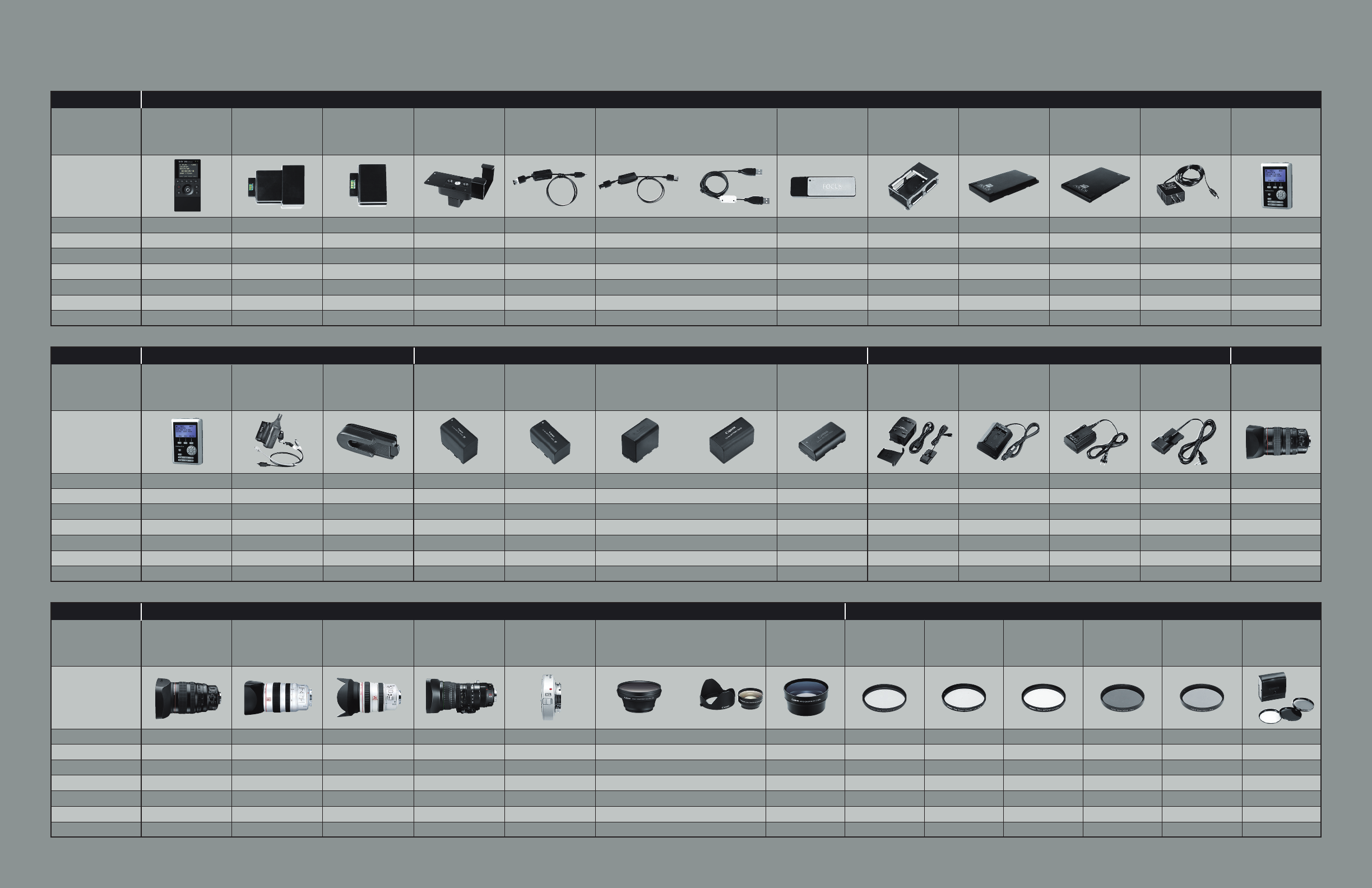

Accessories

24 25

XL H1S

XL H1A

XHG1S

XHA1S

XL2

GL2

ITEM

DESCRIPTION

ITEM CODE

PORTABLE DTE RECORDERS & ACCESSORIES

XL H1S

XL H1A

XHG1S

XHA1S

XL2

GL2

ITEM

DESCRIPTION

ITEM CODE

PORTABLE DTE RECORDERS & ACCESSORIES BATTERIES CHARGERS & ADAPTERS LENSES

XL H1S

XL H1A

XHG1S

XHA1S

XL2

GL2

ITEM

DESCRIPTION

ITEM CODE

LENSES

Wide Converter

WD-H72

1724B001

•

FILTERS

Filter Set

FS-72U

3093A002

•

Wide Converter

WD-58H Ratio Converter

RC-72

72mm

Pro Mist

Filter

0553B001

•

8030A001

•

0002V411

•

72mm

ND6

Filter

72mm

ND3

Filter

72mm Black

Pro Mist

Filter

72mm

Soft FX2

Filter

0002V438

•

0002V435

•

0002V436

•

0002V437

•

HD 6x Zoom XL

3.4–20.4mm L 20x Zoom XL

5.4–108mm L IS 3x Zoom XL

3.4–10.2mm

9825A002

•

1696B002

•

3159A002

•

16x Manual Servo

Zoom Lens Extender

1.6x

7122A002

•

3163A002

•

Car

Battery Adapter

CB-920

Compact

Power Adapter

CA-920

8034A002

•

8029A002

•

HD 20x Zoom XL

5.4–108mm L IS II

DC Coupler

DC-920

0987B002

•

8033A001

•

Battery Pack

BP-915

3057A002

•

Battery Pack

BP-930

3058A002

•

FS Replacement

Belt Clip Battery Pack

BP-970G Battery Pack

BP-950G

FS-4 Pro

Domestic Recorder

60GB FS Camera Mount Battery Pack

BP-945

1011V056

•

0971B002

•

0972B002

•

0741B001

•**

0740B001

•**

4244A002

•

FS High Capacity

Battery Pack FS Extra Battery

(90 min.)

FS Replacement

AC Adapter

(110V)

FS-CV

802.11g Dongle FS-CV

Mount Cage

FS-4 Pro

Domestic Recorder

100GB

1381V098

•*

0739B001

•**

0738B001

•**

0738B002

•**

1381V116

•*

1011V057

•

FS-CV

High Capacity Battery

1381V095

•*

FS-CV

Camera Cradle

FS-CV

4-6 Pin Firewire

Cable

FS-CV

6-6 Pin Firewire

Cable

FS-CV

Hard Disk Drive

Recorder 100GB

FS-CV

Standard Battery

FS-CV

USB 2.0 AA

Cable

1379V742

•

1381V091

•*

1381V090

•*

1379V744

•*

1379V743

•*

1381V092

•*

Dual

Battery Charger

CH-910

3036A002

•

*Compatible with FS-CV Recorder only ** Compatible with FS-C Recorder

26 27

Accessories

XL H1S

XL H1A

XHG1S

XHA1S

XL2

GL2

ITEM

DESCRIPTION

ITEM CODE

VIEWING ACCESSORIES MICROPHONES VIDEO LIGHTS & ACCESSORIES CONTROL UNITS

XL H1S

XL H1A

XHG1S

XHA1S

XL2

GL2

ITEM

DESCRIPTION

ITEM CODE

MEDIA CABLES

D Terminal Component

Video Cable

DTC-1000

DV Head Cleaning

Cassette

DVM-CL

0976B001

•

3134A002

•

CASES

USB Cable

IFC-400PCU FS 48"

4-6 Pin Firewire Cable FS 12"

4-6 Pin FirewireCable

0742B002

•†

9370A001

•

0742B001

•†

XL H1S

XL H1A

XHG1S

XHA1S

XL2

GL2

ITEM

DESCRIPTION

ITEM CODE

CASES

System Hard Case

HC-3200 Roller Case KATA

Backpack

1552B001

•

9826A001

•

0797V171

•

OTHERS

KATA

Medium

Shoulder Bag

Equalizer

EQ-XL1

KATA

Case

(for XL Series)

System Isolator

SI-XL1

0002V413

•

0002V409

•

0954V372

•

0002V410

•

Mini Mount

MM-XL1

0002V408

•

Steady Stick

0002V414

•

Tripod Adapter

TA-100

9859A001

•

Shooting Brace

SBR-1000

0975B001

•

KATA

Raincover

(for XL Series)

0002V412

•

System Hard Case

HC-4100

8031A001

•

System Hard Case

HC-4200

1723B001

•

Stereo

Video Cable

STV-250N

Stereo

Video Cable

STV-150

3067A002

•

3065A002

•

S-Video Cable

S-150

DV Cable

CV-150F

(4-4 Pin Firewire)

3062A002

•

3060A002

•

HDV/DV Tape

DVM-E63 MiniDV Cassette

DVM-E80

1313B001

•

4254A002

•

MiniDV Cassette

DVM-E60

3133A002

•

Halogen Bulb

JR7.2V10WF

(Replacement Bulb for

VL-10 Li II)

Speedlite

580EX II

3141A002

(•)

1946B002

•

Zoom

Remote Controller

ZR-2000

Speedlite

430EX II Speedlite

220EX

2805B002

•

0973B002

•

2262A006

•

Battery

Video Light

VL-10Li II

Microphone Adapter

&Shoulder Pad

MA-300

1729B001

•

8032A002

•

Directional

Stereo Microphone

DM-50

3176A002

•

EF Adapter XL

3162A002

•

Remote Viewfinder

RVC Kit

0974B004

•

Color Viewfinder

Unit

FU-2000

0974B002

•

Monochrome CRT

Viewfinder Unit

FU-1000

3157A002

•

Zoom

Remote Controller

ZR-1000

3089A002

•

†Compatible with FS-4 Pro Recorder

1-800-OK-CANON

www.usa.canon.com

Canon U.S.A., Inc.

One Canon Plaza

Lake Success, NY 11042 U.S.A.

Canon Canada, Inc.

6390 Dixie Road

Mississauga, Ontario L5T 1P7 Canada

Canon Latin America, Inc.

703 Waterford Way, Suite 400

Miami, FL 33126 U.S.A.

Canon Mexicana, S. de R.L. de C.V.

Blvd. Manuel Ávila Camacho No. 138, Piso 17

Col. Lomas de Chapultepec

C.P. 11000 México, D.F. México

0128W532 01/09

PRINTED IN U.S.A.

www.cusa.canon.com/camcorder/pro

PRODUCT GUIDE

Specifications are subject to change without notice. Weight and

dimensionsareapproximate. Canon is a registered trademark of

Canon Inc. in the United States and may also be a registered

trademark or trademark in other countries. IMAGEANYWARE is a

trademark of Canon. “HDV” and the “HDV” logoare trademarks

of Sony Corporation and Victor Company of Japan, Limited (JVC).

Other namesand products not mentioned above may be registered

trademarksor trademarksof their respective companies.

Warning: Unauthorized recording of copyrighted materials may infringe

on the rights of copyright owners and be contrary to copyright laws.

Canon Xh A1S Product Guide

Navigation menu

Versions of this User Manual:

Views

Navigation
