Users Manual

1/1
Legal Notices
FCC (Federal Communications Commission)
Note: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules, and the limits for an ISM equipment, pursuant to
Part 18 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate, radio frequency energy and, if not installed and
used in accordance with the Operator's Manual, may cause harmful interference to radio
communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
Use of shielded cables are required to comply with Class A limits in Subpart B of Part 15 of the
FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the
manual. If you make such changes or modifications, you could be required to stop operation of
the equipment.
If your equipment malfunctions, please contact your local authorized Canon dealer from whom
you purchased the equipment (if under warranty), or with whom you have a servicing contract. If
you are not sure who to contact, and have both purchased and are using the equipment in the
U.S.A., please refer to the "SUPPORT" page on Canon U.S.A.'s Web site
(http://www.usa.canon.com).
This transmitter must not be co-located or operated in conjunction with any other antenna or
transmitter.
This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules. Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of this device.
This equipment complies with FCC/IC radiation exposure limits set forth for uncontrolled
equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C
to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment
should be installed and operated with at least 20cm and more between the radiator and
person’s body (excluding extremities: hands, wrists, feet and ankles).
User's Guide
Wireless LAN Board NB-W1
Please read this guide before operating this product.
After you finish reading this guide, store it in a safe place for future reference.
Users in the European Union and other European countries
WEEE Directive
European Union (and EEA) only.
This symbol indicates that this product is not to be disposed of with your household
waste, according to the WEEE Directive (2002/96/EC) and your national law. This
product should be handed over to a designated collection point, e.g., on an
authorized one-for-one basis when you buy a new similar product or to an authorized
collection site for recycling waste electrical and electronic equipment (EEE).
Improper handling of this type of waste could have a possible negative impact on the
environment and human health due to potentially hazardous substances that are
generally associated with EEE. At the same time, your cooperation in the correct
disposal of this product will contribute to the effective usage of natural resources. For
more information about where you can drop off your waste equipment for recycling,
please contact your local city office, waste authority, approved WEEE scheme or
your household waste disposal service. For more information regarding return and
recycling of WEEE products, please visit www.canon-europe.com/environment.
(EEA: Norway, Iceland and Liechtenstein)
European Radio Approval Information (for products fitted with Euapproved radio devices)
This Product is a printer; low power, Radio LAN type devices (radio frequency (RF) wireless communication devices),
operating in the 2.4 GHz band, may be embedded in your printer system which is intended for office use. This section is
only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.
Wireless devices that may be in your system are only qualified for use in the European Union or associated areas if a
CE mark with a Notified Body Registration Number and the Alert Symbol is on the system label.
The power output of the wireless device or devices that may be embedded in you printer is well below the RF exposure
limits as set by the European Commission through the R&TTE directive.
Regulatory Compliance Statements
Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4
GHzGHz Band, may be embedded in your printer system. The following section is a general overview of considerations
while operating a wireless device.
The equipment complies with the RF Exposure Requirement 1999/519/EC, Council Recommendation of 12 July 1999
on the limitation of exposure of the general public to electromagnetic fields (0 Hz to 300 GHz).
vi
Preface
Thank you for purchasing a Canon product.
The Wireless LAN Board NB-W1 is a product that enables you to wirelessly connect your
Canon MFP (Color imageRUNNER/imageRUNNER/imagePRESS series) to a network.
This document describes the procedure for connecting a machine that includes the Wireless
LAN Board NB-W1 to a network.
Please read this manual thoroughly before operating the product to familiarize yourself with
its capabilities, and to make the most of its many functions. After reading this manual, store it
in a safe place for future reference.
How To Use This Manual
Symbols Used in This Manual
The following symbols are used in this manual to explain procedures, restrictions,
handling precautions, and instructions that should be observed for safety.
CAUTION Indicates a caution concerning operations that may lead to injury to
persons, or damage to property if not performed correctly. To use the
machine safely, always pay attention to these cautions.
IMPORTANT Indicates operational requirements and restrictions. Be sure to read
these items carefully to operate the product correctly, and avoid damage
to the product.
NOTE Indicates a clarification of an operation, or contains additional
explanations for a procedure. Reading these notes is highly
recommended.
vii

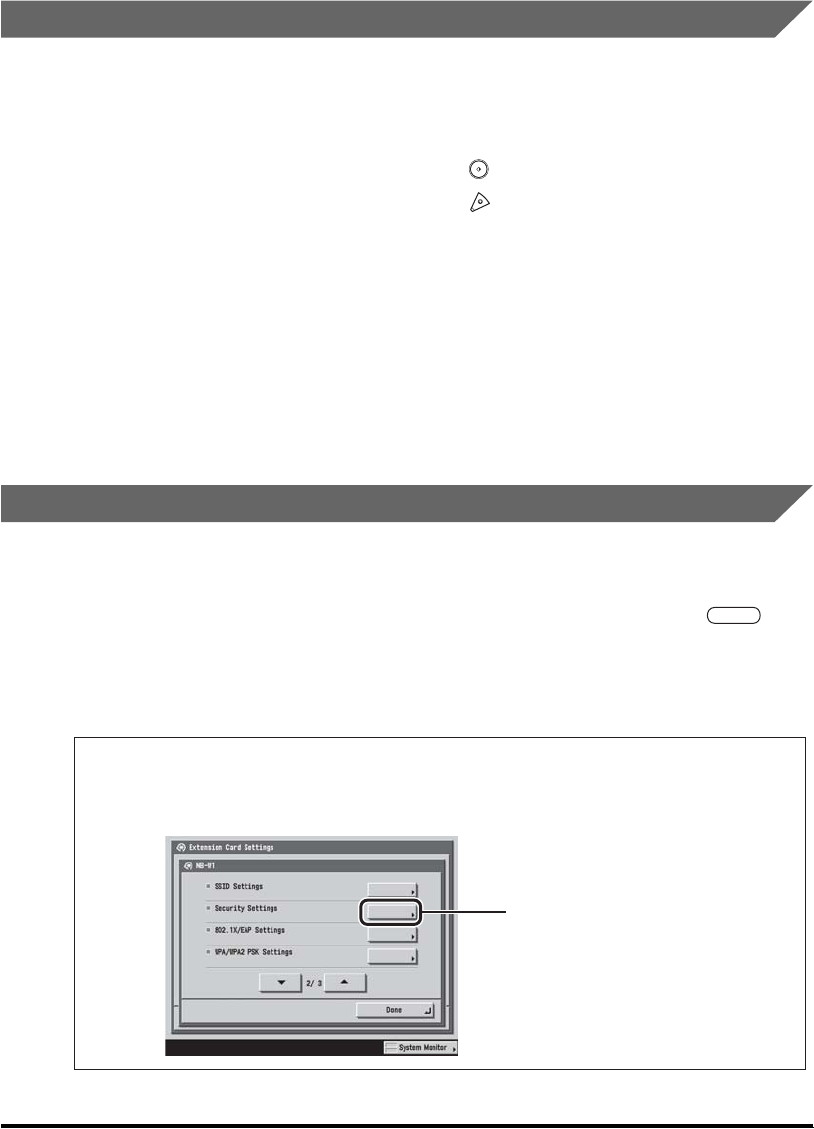

Keys and Buttons Used in This Manual
The following symbols and key/button names are a few examples of how keys and
buttons to be clicked or pressed are expressed in this manual:
•Control Panel Keys: Key Icon (Key Name)
•Touch Panel Display Keys: [Key Name]
•Buttons on Computer Operation Screens: [Button Name]
Displays Used in This Manual
Screen shots of the touch panel display used in this manual have been taken from
the imageRUNNER 5075.
The keys or buttons which you should click or press are marked with a , as
shown below.
When multiple buttons or keys can be clicked or pressed, they will be highlighted
and mentioned in the order in which they should be clicked or pressed.
Examples: (Start)
(Stop)
Examples: [Cancel]
[Done]
Examples: [OK]
[Add]
1
Press [Security Settings] on the Expansion Card Settings
screen.
Press this key for operation.
CHAPTER
1-1
1
Before You Start
This chapter describes what you need to know before you start using the product, including the
system requirements, and the procedure for setting a primary network.
Confirming the Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Parts and Their Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6
NB-W1 External Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7
Setting the Primary Network to NB-W1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Checking the Wireless LAN Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
Confirming the Network
1-2
Before You Start
1
Confirming the Network
The NB-W1 can be used in either of the following network environments that have
an access point.
NOTE
The NB-W1 normally communicates with the Infrastructure Mode, which works via an
access point. Only when a firmware update has been performed unsuccessfully, does
the NB-W1 communicate using the Adhoc Mode, which is its emergency startup mode.
For information on the Adhoc Mode, see "Emergency Startup Mode (Adhoc Mode)," on
p. 4-13.
■Environment where a computer, access point, and the NB-W1
communicate wirelessly
Access Point
Confirming the Network 1-3
Before You Start
1

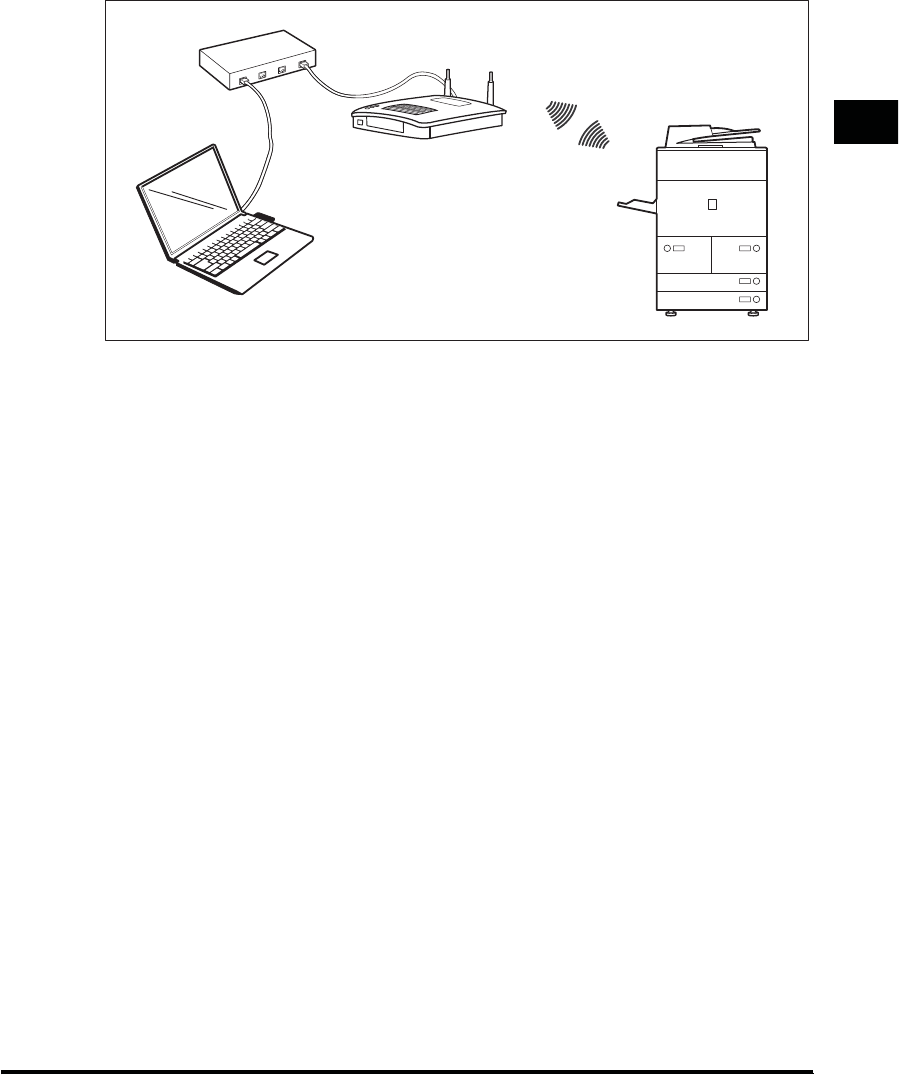

■Environment where a computer and access point are connected with a LAN
cable and the access point and the NB-W1 communicate wirelessly
Access Point
Hub
System Requirements
1-4
Before You Start
1
System Requirements
This section describes the system requirements of the NB-W1, including the types
of access points and authentication servers it supports.
IMPORTANT
For information on the wireless LAN devices that can communicate with the NB-W1, see
the Canon Web site (http://www.usa.canon.com/ for the U.S.A., http://
www.canon-europe.com/ for the UK, or http://www.canon.com/ for other countries/
regions).
NOTE
•
For information on the system requirements for printing and sending faxes, and the
network environments the machine can use, see the Network Guide (PDF manual)
included with the machine.
•
An authentication server is required when the authentication mode is set to '802.1X/
EAP'.
■Access Point
Hardware
Cisco Aironet 1200 series hardware
based on Cisco IOS Software
Release 12.2 (11) JA or later, and
Proxim ORiNOCO AP-600 series with
firmware version 2.4.5 or later
Standard IEEE802.11b, IEEE802.11g
Frequency Band 2.4 GHz band (ISM (Industrial
Scientific Medical) band)
Encryption
and
Authentication
Method
WEP (Wired Equivalent Privacy) Supports 64-bit and 128-bit WEP.
WPA (Wi-Fi Protected Access)/
WPA2-PSK (Pre-Shared Key)
Complies with WPA and 802.11i
(WPA2) standards.
802.1X/EAP (Extensible
Authentication Protocol) + WEP
Supports 802.1X authentication and
Dynamic WEP. Requires a RADIUS
server.
WPA/WPA2+802.1X/EAP
Complies with WPA and 802.11i
(WPA2) standards, and supports
802.1X authentication. Requires a
RADIUS server. Includes WPA/WPA2
Enterprise.
System Requirements 1-5
Before You Start
1
■Authentication Server
•RADIUS server
- Microsoft IAS (Internet Authentication Server) based on Microsoft Windows Server
2003
- Cisco Secure ACS (Access Control Server) Version 3.1 or later
NOTE
•
The RADIUS server supports EAP-TLS (Extensible Authentication Protocol-Transport
Level Security), PEAP (Protected EAP), or EAP-TTLS (EAP-Tunneled TLS)
authentication.
•
Authentication with a RADIUS server requires a server certificate, and a root CA
(Certificate Authority) certificate. When using EAP-TLS authentication, a client
certificate, and client private key are also required.
■Certificate Authority
•Microsoft Windows Server 2003 CA
Parts and Their Functions
1-6
Before You Start
1
Parts and Their Functions
This section describes the various parts and their functions.

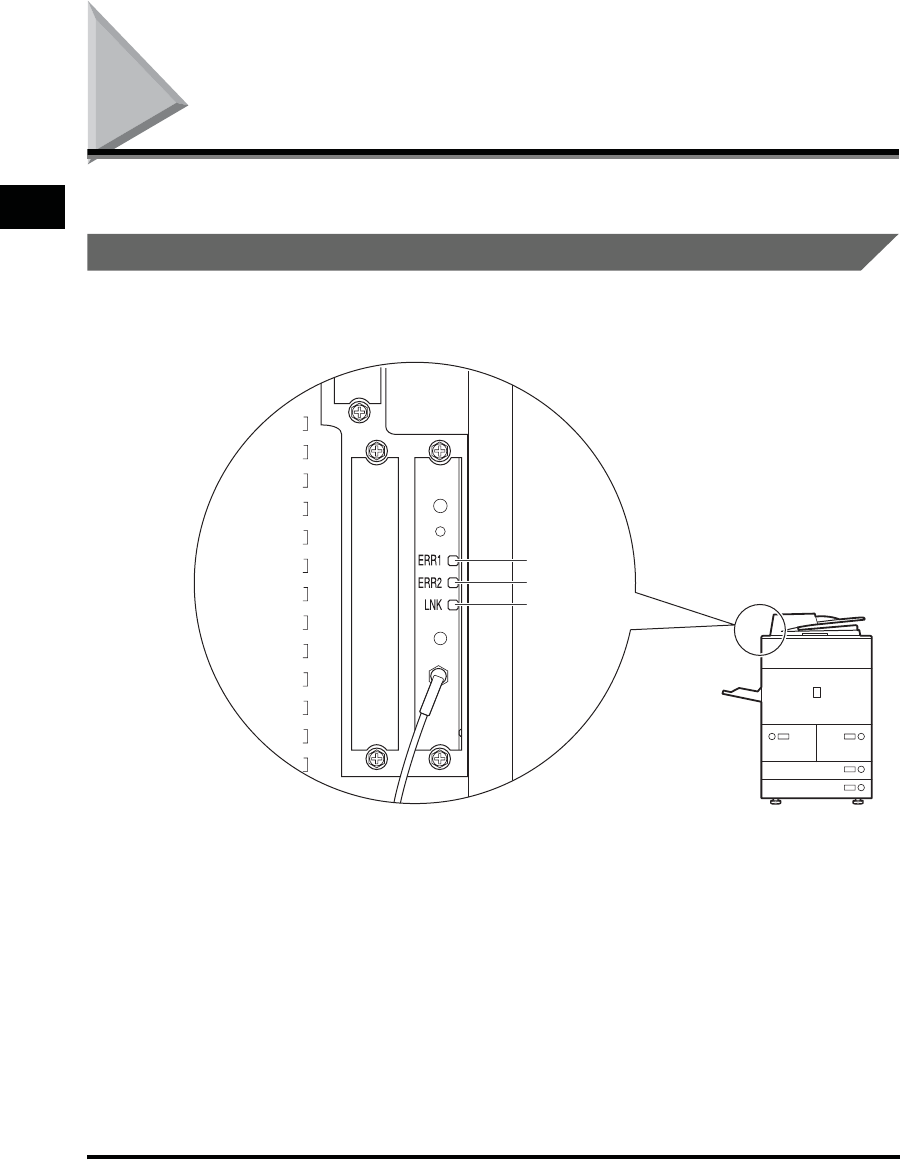

LED Indicators
If problems occur when communicating with the NB-W1, check the LED indicators
on the side of the machine. For details on errors, see Chapter 3, "Troubleshooting."
aERR1 Indicator (Yellow)
Flashes when a problem occurs with security
settings or an error occurs during authentication.
bERR2 Indicator (Orange)
Flashes when a problem occurs with the NB-W1
hardware.
cLNK Indicator (Green)
Lights up when the NB-W1 is correctly connected
to the network.
c
b
a
Parts and Their Functions 1-7
Before You Start
1

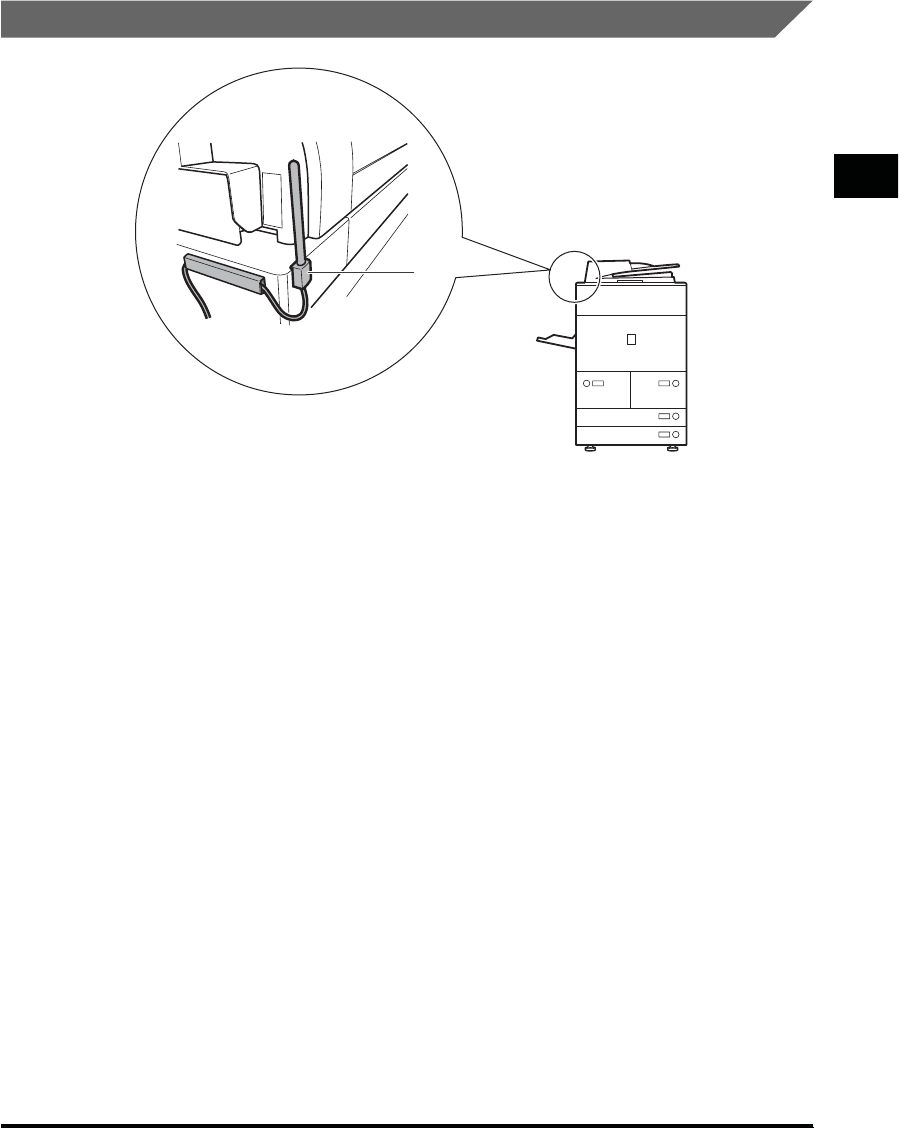

NB-W1 External Antenna
aMake sure to use the external antenna included
with this product. When experiencing difficulty
communicating, adjust the position of this
antenna.
a
