Technical guide
PRISMAdirect
Technical reference manual
Edition 2017-11
Software version All versions GB
Contents
Chapter 1
Introduction.........................................................................................................................7
This manual...................................................................................................................................................... 8
Copyright and Trademarks..............................................................................................................................9
Additional information...................................................................................................................................10
Chapter 2
PRISMAdirect.................................................................................................................... 11
Introduction.....................................................................................................................................................12
Contents....................................................................................................................................................12
Concepts................................................................................................................................................... 13
PRISMAdirect context.................................................................................................................................... 15
Functionality overview............................................................................................................................ 15
Import & Export........................................................................................................................................16
JDF/JMF Interface.................................................................................................................................... 17
Chapter 3
Import / export services...................................................................................................19
Import..............................................................................................................................................................20
Manual...................................................................................................................................................... 20
Automatic................................................................................................................................................. 21
Possible types of Import................................................................................................................... 21
Importing from older versions................................................................................................................23
Import checks........................................................................................................................................... 24
Export.............................................................................................................................................................. 28
Manual...................................................................................................................................................... 28
Automatic................................................................................................................................................. 29
PRISMAdirect export types..................................................................................................................... 30
Logging........................................................................................................................................................... 31
Chapter 4
Media catalogue management........................................................................................33
Media Catalog management......................................................................................................................... 34
Chapter 5
XML format....................................................................................................................... 35
Overview......................................................................................................................................................... 36
Element descriptions......................................................................................................................................38
Oce element..............................................................................................................................................38
DocWorks element...................................................................................................................................39
Job Element..............................................................................................................................................40
Order Element.......................................................................................................................................... 41
Jobs element (Order JobLinks)...............................................................................................................42
Job element (Order JobLinks)................................................................................................................ 43
Attachments element...............................................................................................................................44
Attachment element................................................................................................................................ 45
Preflight element......................................................................................................................................47
Convert element.......................................................................................................................................48
Contents
3
PRISMAdirect - All versions
AutoDocumentPreparation element.......................................................................................................49
AutodocumentPreparationOperations element.................................................................................... 50
AutoDocumentPreparationOperation element......................................................................................51
VdpRelevantData element.......................................................................................................................52
VdpTableList element..............................................................................................................................53
VdpTable element....................................................................................................................................54
ItemValues element................................................................................................................................. 55
ItemValue element...................................................................................................................................56
CreationValue element............................................................................................................................ 57
LastUsedValue..........................................................................................................................................58
Definitions element..................................................................................................................................59
Definition element....................................................................................................................................60
DefinitionText element............................................................................................................................ 61
Languages element..................................................................................................................................62
Language element................................................................................................................................... 63
Views element..........................................................................................................................................64
View element............................................................................................................................................65
Translation element.................................................................................................................................66
TreeDefinition element............................................................................................................................67
ItemViewGroup element......................................................................................................................... 68
ItemViewLeaf element.............................................................................................................................69
OrderItemDefinitions element................................................................................................................ 70
ProductItemDefinitions element.............................................................................................................71
ItemDefinition element............................................................................................................................72
ItemShortText element............................................................................................................................74
ItemTreeText element..............................................................................................................................75
xxxMetaData element..............................................................................................................................76
xxxDefault element..................................................................................................................................77
GroupMetaData element.........................................................................................................................78
NumberMetaData element......................................................................................................................79
NumberDefault element..........................................................................................................................80
StringMetaData element......................................................................................................................... 81
Stingdefault element............................................................................................................................... 82
BooleanMetaData element......................................................................................................................83
BooleanDefault element..........................................................................................................................84
ItemTrueText element............................................................................................................................. 85
ItemFalseText element............................................................................................................................ 86
ItemUndefinedText element................................................................................................................... 87
EnumMetaData element..........................................................................................................................88
EnumValues element...............................................................................................................................89
EnumValue element.................................................................................................................................90
EnumDefault element..............................................................................................................................91
DateMetaData element............................................................................................................................92
DateDefaultOffset element......................................................................................................................93
ProductDefinitions element.....................................................................................................................94
Stationery element...................................................................................................................................95
BoundDocument element....................................................................................................................... 96
Flyer element............................................................................................................................................97
BusinessCard element.............................................................................................................................98
NewMiscellaneous element....................................................................................................................99
Legacy element...................................................................................................................................... 100
VisualizedProductDefinition element................................................................................................... 101
ProductDefinition element.................................................................................................................... 102
Renamings element...............................................................................................................................103
Renaming element.................................................................................................................................104
ItemDisplayChild element..................................................................................................................... 105
ReferencedViews element.....................................................................................................................106
Referencedview element.......................................................................................................................107
OrderDefinition element........................................................................................................................108
Icons element......................................................................................................................................... 109
Contents
4
PRISMAdirect - All versions
IconReference element..........................................................................................................................110
Icon element...........................................................................................................................................111
LookupMetadata element......................................................................................................................112
ODBCSettings element..........................................................................................................................113
Rules..............................................................................................................................................................114
xxxKey.....................................................................................................................................................114
LanguageKey..........................................................................................................................................115
UUID & GUID..........................................................................................................................................116
Implementation Issues.................................................................................................................................117
Chapter 6
JDF mapping in PRISMAdirect...................................................................................... 119
JDF / JMF interface.......................................................................................................................................120
General concepts and mechanisms............................................................................................................122
Mapping file deployment.............................................................................................................................123
JDF to PRISMAdirect: mapping for job submission..................................................................................124
File structure...........................................................................................................................................124
Interpretation logic.................................................................................................................................131
Mapping file customization...................................................................................................................135
Generic extension mapping............................................................................................................135
Add a new rule.................................................................................................................................136
Change an existing rule.................................................................................................................. 137
PRISMAdirect to JDF: mapping for job status........................................................................................... 139
Debugging help............................................................................................................................................ 142
Default submission mappings.....................................................................................................................143
User information....................................................................................................................................143
Finishing................................................................................................................................................. 145
Media definition..................................................................................................................................... 153
Archiving.................................................................................................................................................165
Delivery...................................................................................................................................................167
Emailing..................................................................................................................................................168
Cost estimation and cost quotation......................................................................................................169
Miscellaneous.........................................................................................................................................171
DSF endpoint................................................................................................................................................ 175
Contents
5
PRISMAdirect - All versions
Contents
6
PRISMAdirect - All versions
Chapter 1
Introduction
This manual
Release information
This manual is valid for All versions of PRISMAdirect.
For whom is this Technical guide intended?
The PRISMAdirect Technical reference manual (TRM) is not the user manual of PRISMAdirect.
The TRM provides the information about the behaviour, configuration and programming of the
PRISMAdirect.
The target group for the TRM are the Administrators and Application Developers of
PRISMAdirect.
Abbreviations
• TRM: Technical Reference Manual
This manual
8Chapter 1 - Introduction
PRISMAdirect - All versions
Copyright and Trademarks
Copyright
Copyright 2017 Océ.
Illustrations and specifications do not necessarily apply to products and services offered in each
local market. No part of this publication may be reproduced, copied, adapted or transmitted,
transcribed, stored in a retrieval system, or translated into any language or computer language in
any form or by any means, electronic, mechanical, optical, chemical, manual, or otherwise,
without the prior written permission of Océ.
OCÉ MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THE CONTENTS OF THIS
PUBLICATION, EITHER EXPRESS OR IMPLIED, EXCEPT AS PROVIDED HEREIN, INCLUDING
WITHOUT LIMITATION, THEREOF, WARRANTIES AS TO MARKETABILITY, MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE OF USE OR NON-INFRINGEMENT. OCÉ SHALL NOT BE
LIABLE FOR ANY DIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR
LOSSES OR EXPENSES RESULTING FROM THE USE OF THE CONTENTS OF THIS PUBLICATION.
Océ reserves the right to revise this publication and to make changes from time to time in the
content hereof without obligation to notify any person of such revision or changes.
Language
Original instructions that are in British English.
Trademarks
Océ, Océ PRISMA are registered trademarks of Océ-Technologies B.V. Océ is a Canon company.
Access, Excel, Microsoft are trademarks or registered trademarks of Microsoft Corp. incorporated
in the United States and/or other countries.
All other trademarks are the property of their respective owners.
Copyright and Trademarks
Chapter 1 - Introduction 9
PRISMAdirect - All versions
Additional information
[WROX] – “Professional XML”; Wrox Press, August 2000; ISBN 1-861003-11-0.
[XMLSDK] – “Microsoft XML 3.0 - XML Developer’s Guide”; part of MS XML SDK 3.0; Microsoft
Corp.; 2000.
[MSDN] – http://msdn.microsoft.com/xml
[JDF1.3] – “JDF Specification”; CIP 4; version 1.3.
Downloads
http://downloads.oce.com/ProductDownloads/Index/542
on page
Additional information
10 Chapter 1 - Introduction
PRISMAdirect - All versions
Chapter 2
PRISMAdirect
Introduction
Contents
This document describes the PRISMAdirect Open Interface v1.0 regarding Orders, Jobs and
Definitions.
Chapter 2 describes the position of the Open Interface in the system.
Chapter 3 describes the import and export functionality.
Chapter 4 describes the media attributes.
Chapter 5 describes the XML format used in the Open Interface.
Chapter 6 presents the functionality offered by the JDF/JMF Interface and describes the tables
used for JDF to PRISMAdirect ticket and job status mapping.
Introduction
12 Chapter 2 - PRISMAdirect
PRISMAdirect - All versions
Concepts
To understand this document a number of concepts must be understood:
•Hot Folder: Directory on a file-system that is monitored by a dedicated application. The
application will respond to changes in that directory.
•NT Service: a program that is running continuosly in the background, even if no user is logged
in.
•GUID & UUID: Global Unique Identifier resp. Universal Unique Identifier. Large number that is
guarantied unique.
•Order processing workspace: a part (workspace) of the PRISMAdirect web application that
allows order managers and operators to manage orders and their jobs and perform print-
related tasks.
•Product & order editor: a part (workspace) of the PRISMAdirect web application allowing the
management of the Current Definition (see below).
•JobNumber: shown in the Order processing workspace > Order and Job views as the number
of the job. Note that this number is not unique.
•OrderNumber: shown in the Order processing workspace > Order view as the number of the
job. Note that this number is not unique.
•JobID: identifer of a Job. A GUID is used to guarantee that this number is always unique.
•OrderID: identifer of an Order. A GUID is used to guarantee that this number is always unique.
•DefinitionID: identifier of a Definition. A GUID is used to guarantee that this number is always
unique.
•Job: is a combination of one or more documents (PDF file(s)) and a set of Job attributes. The
set of attributes is collectively called the jobticket. The jobticket must be interpreted as the print
job description containing print/production information related to that Job (e.g. copies,
binding) as specified by the creator (end-user).
•Order: is a combination of one or more Jobs and a set of Order attributes. The set of attributes
is collectively called the orderticket. The orderticket must be interpreted as order description
containing specific details (e.g. owner, delivery information) as declared by the creator (end-
user).
•Product: this is the blueprint of a Job, a collection of job type, Item arrangement in Views,
default values and value constraints. It is defined in Product & order editor.
•Item: an attribute belonging to a Job or an Order, e.g. a field in a jobticket. An item has some
related concepts in the context of the PRISMAdirect XML Schema. These are explained below.
•ItemDefinition: defines the datatype, default value and possible values of an item. In other
words, an ItemDefinition is a type specifier for an item.The set of ItemDefinition elements is
part of the Definition element.
•ItemValue: the instance of an item in a job. It represents the actual value of an item in the
context of that job.
•ItemViewLeaf & ItemViewGroup: represent the position of an item in a graphical tree-like
presentation of a job ticket. An ItemViewGroup represents an item in the "tree" which only
purpose is to group several other items. Whereas an ItemViewLeaf represents a leaf of the
"tree". ItemViewLeaf and ItemViewGroup elements are part of a View-element.
•View: defines the presentation of the job or order. Part of a Definition element. It contains the
set of ItemViewLeaf and ItemViewGroup elements used.
•Definition: Structured description of the jobticket/orderticket used in the system and views on
the ticket. It contains the "declaration" of all ItemDefinition elements that belong to a Job or
Order and View declarations. Attachement elements describe files that belong to a Job (source
documents).
•Current Definition: identifies the Definition that is "current", i.e. the Definition that is used to
create Orders and their contained Jobs and to present them in the Order processing
workspace. The Current Definition may be set to a different Definition over time. This may lead
to a mismatch between new Jobs and Jobs that were created using an earlier
Concepts
Chapter 2 - PRISMAdirect 13
PRISMAdirect - All versions
•Media: “a media is a physical substrate that can be processed by a printing system. It is
something you can hold or lay down somewhere.”
•Note: This means a media is a sheet or a roll of a certain material and shape and should not be
confused with just the size of a sheet, a side of a sheet or the size of an image to be printed.
•Media attributes: Main attributes that define a media. These are the attributes that together
uniquely identify a media inside the system and allow a user to select that media instead of
another one. Examples: media size, media type, etc
•Media Catalog: A media catalog is an ordered administration of media descriptions to be used
in an Océ product. The order of the media in the catalog may be used by these Océ products as
a default ranking mechanism when multiple media from the catalog match a media request.
This document assumes that the reader is familiar with XML.
Concepts
14 Chapter 2 - PRISMAdirect
PRISMAdirect - All versions
PRISMAdirect context
Functionality overview
The Open Interface of PRISMAdirect provides functionality for:
• Importing orders or jobs into the system and exporting orders from the system
• Submitting jobs from a JDF enabled external application and provide status feedback
With PRISMAdirect, jobs cannot exist without being associated to an order, and an order can be
seen as a container having at least one or more jobs, a container defining common things like
delivery or owner information, etc.
However, depending on the situation, we can speak of order (together with contained jobs)
import or job import. Whenever job import is in discussion (e.g. JDF submission), a single job
order is actually created with either a default orderticket or one created based on import
mappings.
Export on the other hand will always export orders together with their jobs (tickets plus
attachments) in a packet ZIP file.
Figure 1 shows how this functionality is embedded in the overall PRISMAdirect system. The base
of the system is the PRISMAdirect, which contains orders and a configuration store. On top of this
core, all applications are built.
PRISMAdirect context
Chapter 2 - PRISMAdirect 15
PRISMAdirect - All versions
Import & Export
This functionality is available in two modes: manual and automatic.
Office users submit orders/jobs by means of a Submission Client. These orders are loaded into
the order store by the Import Service. The Order processing workspace provides the Print room 5
Order managers/Operators with a list of waiting orders/jobs and various handling possibilities.
These include printing and manual export of the order. Also, from the Order processing
workspace, orders can be imported manually.
Office users can also use the WebDriver/WebShop to submit orders. Because the WebShop has
no relation with the Open Interface it is not discussed any further here.
The Product & order editor is used to update or create a new Current Definition used in the
system. This includes creation and deletion of fields (‘items’) and adding or removing them in the
client’s or operator’s view (a.k.a. Web shop or Print room views). The complete description of the
jobticket and orderticket fields, and the views on them, is called a Definition. The Definition can
be exported manually with the Product & order editor. Exported Definitions can be imported by
any PRISMAdirect system with the same or newer version.
As can be seen in Figure 1, the Import Service imports orders or jobs from ‘Hot Folders’ into the
system. This is called automatic import. The Export Service can perform an automatic export of
orders and Definitions to files in the export folders.
The last system component shown in Figure 1 is the PRISMAdirect Configuration application.
This application is used to configure the import & export services, edit UPP job ticket mappings,
etc.
Import & Export
16 Chapter 2 - PRISMAdirect
PRISMAdirect - All versions
JDF/JMF Interface
The functionality permits external applications to submit JDF jobs to PRISMAdirect and get status
feedback for the submmitted jobs. This functionality is partially supported by the JDF Hot Folder
in the Import Service – without job status feedback and with a much smaller JDF support of the
PD ticket.
NOTE
It is recommended that new applications use the new JDF/JMF interface instead of the old Hot
Folder mechanism. The Hot Folder will be supported for a limited time and will become
deprecated.
The JDF job contains only the JDF ticket and the Data Files. As Figure 1 shows the system maps
the JDF ticket to the ODW ticket by the use of a JDF-to-PD mapping file. The job status exposed
by PRISMAdirect can also be mapped to values specific for the external application. This is done
via another mapping file. Both mapping files can be changed by the user to fit the external
application’s specifics.
JDF/JMF Interface
Chapter 2 - PRISMAdirect 17
PRISMAdirect - All versions
JDF/JMF Interface
18 Chapter 2 - PRISMAdirect
PRISMAdirect - All versions
Chapter 3
Import / export services
Import
Manual
Orders
Order processing
workspace Orders can be imported manually. Currently, only orders exported from systems with
the same PRISMAdirect version are supported. When a directory is selected the application will
show all names of ZIP files in the directory.
Files The ZIP file has a well defined structure and strict file names. It may contain one or more
folders, each one containing an order together with all its related content. Such a (order) folder
contains the following:
• An orderticket file (XML file) and a JDF ticket file (also XML), together defining order metadata
• For each job inside the order:
• A jobticket file (XML file) and if exported a JDF ticket file (also XML) together defining job
metadata
• The job attachments and current/original merged PDF if available at export time. In previous
releases these where PDF files, but as of ODW 3.1 (Open Interface version 1.4) this can be
any type of file. However the accepted mimetype per attachment has limitations
File contents The XML files not only contain the user’s intent, but also reference(s) to the related
document files. If the definition used to create the imported Order or Job is different than the
Current definition (different set of items), the Order/Job it will be updated to the Current definition
with the remark that old ItemValue fields are not deleted.
The order and its jobs must be compliant with the rules specified in the Definition it was last been
edited. If not, the import action will fail.
None of the imported files will be changed.
If an order is already present in the system, it cannot be imported again. The present order has to
be deleted first. Note that orders are not identified by their OrderNumber, as shown in the Order
processing workspace, but through their QEntryId. The QEntryId can be found in the XML file and
is the only unique reference of an order.
Definitions
Product & order editor In the Product & order editor Definitions can be imported manualy. When
a directory is selected, the application will show all names of ZIP files in the directory.
The ZIP file should contain a single Definition with format. The ZIP will also contain other files
describing the Product informations, WebShops defined in the system and their settings, etc,
which are not in the scope of this document.
At import the Definition is read into the Product & order editor, but not saved yet into the system.
The user has to publish after importing. When the Definition is published it is also made current.
The Definition must contain a set of obliged items. Of these items, some of the properties must
have the default value.
Import
20 Chapter 3 - Import / export services
PRISMAdirect - All versions

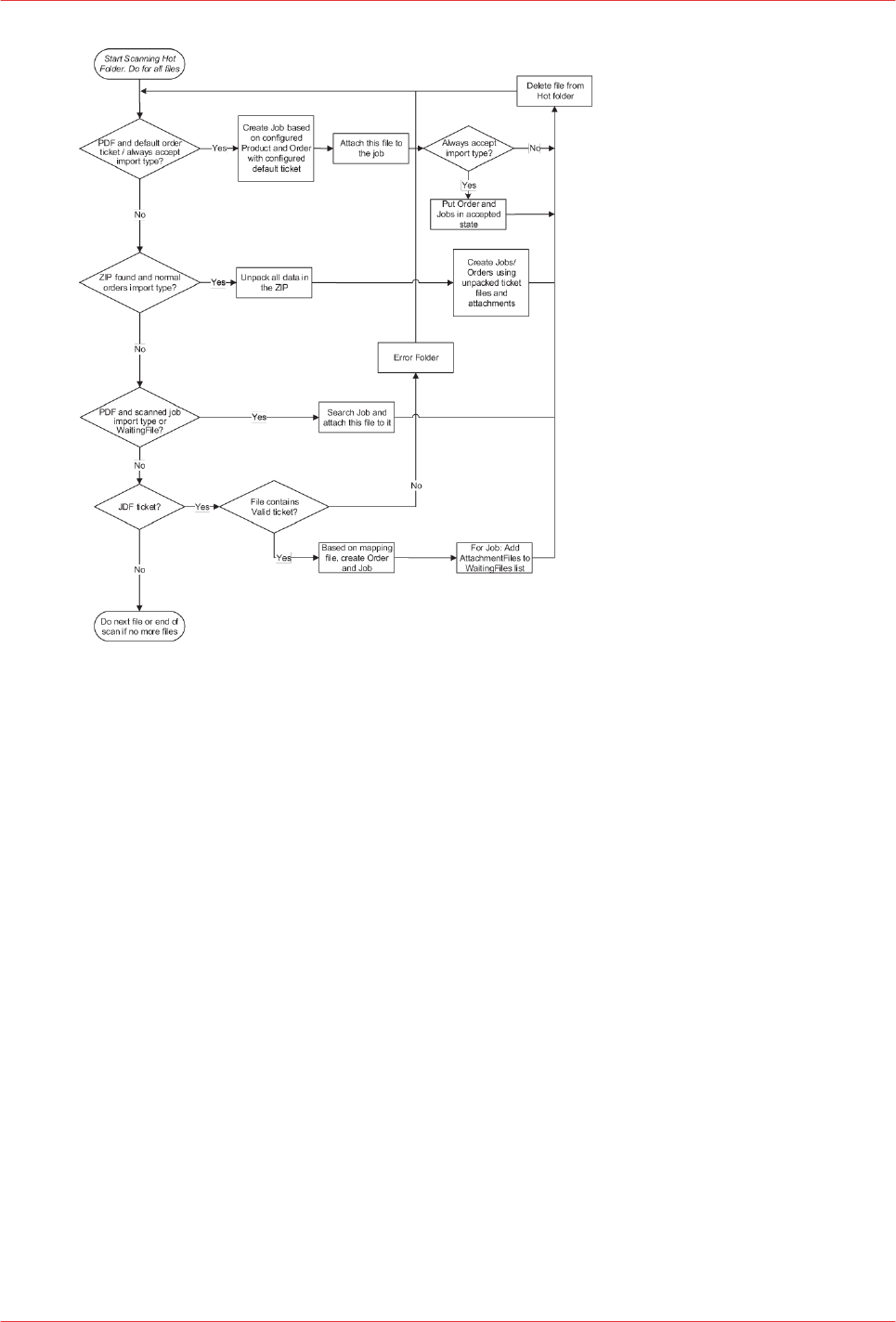

Automatic
The Import service has a “Pause” option. This will stop watching configured Hot folders. If it is
on, clients can still submit jobs to the Hot folders but they will not be picked up until “Pause” is
disabled.
A Hot folder can be configured to work in one of five modes. These modes are described in the
following paragraphs.
In each case, a web shop must be also specified as in PRISMAdirect all orders must belong to a
web shop, thus, any orders created via automatic import must be associated to a web shop.
Possible types of Import
Normal orders: this is the type of hot folder that accepts jobs exported from the current version of
PRISMAdirect.
NOTE
Depending on the type of export selected, besides the PRISMAdirect ticket file and the
corresponding attachments, there could be a JDF ticket and additional PDF files also. If preserve
history is enabled, the JDF ticket is imported as is, but if the preserve history is disabled, the JDF
ticket is not imported and is created from scratch (losing history). The JDF ticket is however not
part of the Open Interface document.
JDF ticket orders: if a Hot folder is declared this way, it will accept JDF job tickets. For each JDF
job ticket found in the folder, the import service will attempt to create a Job and an Order in the
system using information from the JDF ticket. Based on a configurable mapping table the system
transfers settings from the JDF ticket to the PRISMAdirect jobticket and orderticket. PRISMAdirect
ships three default mapping tables that can be chosen at user’s convenience (of course, those can
be customized and chosen to be used for import):
• Standard JDF to PD
• DSF (a customized JDF) to PD
• uniFLOW (slightly modified JDF) to PD
PDF only job with default order ticket: with this type of job the PDF placed in the hot folder is
attached to a default jobticket filled with the default values from the definition. The product used
to create the job can be chosen as an import setting.
The orderticket used to create the order can be also configured.
Always accept orders and jobs: this is the same as PDF only job with default order ticket type of
import, but in this case both the
Scanned job: this type of hot folder accepts PDF files that come from a scanner. The name must
satisfy a certain template that includes a prefix, a job number and the date and time of creation.
The import service searches for the Job with the corresponding number. If it finds it and if that
Job contains a placeholder attachment, it will attach the given PDF to that Job. The Job must be
created previous to the scan operation.
Automatic
Chapter 3 - Import / export services 21
PRISMAdirect - All versions
Other issues
Validation Before importing a Job, Order or Definition it is validated.
Old Definitions
If a job is imported that was last edited with a non-current definition, the job is upgraded to the
current definition.
Possible types of Import
22 Chapter 3 - Import / export services
PRISMAdirect - All versions
Importing from older versions
Orders/jobs from PRISMAdirect 1.1.1 and older cannot be imported into PRISMAdirect 1.2 and
higher.
The definition of PRISMAdirect 1.1.1 and higher can be imported.
Importing from older versions
Chapter 3 - Import / export services 23
PRISMAdirect - All versions
Import checks
Before importing a job or Definition the import service performs a number of checks to ensure
the integrity of the system. Of course all XML files must comply with the XML format.
Jobs/Orders
First of all, a Job or Order must comply with the XML schema.
Secondly, ItemValues must comply with the defining type. These checks are additional to the
checks described in § 7.2.19.
•Number: The integer value must lie between the minimum and maximum.
•Text (String): The string must contain no more characters than the Maximum length. If the
Multi line attributes is set to “0”, the string cannot contain carrige returns or line feeds.
•Yes/No (Boolean): valid Boolean according to § 7.2.19.
•Choice (Enum): An option must exist with this value. Checked against the Option name. In the
XML this is called the EnumKey.
•Date: properly formatted date.
•Group: empty string (“”).
Definitions
Changing Definitions When changing the Definition outside the Product & order editor it is
important to change the DefinitionID too. Otherwise the system will assume it is the same
Definition, causing all kinds of strange problems.
Language The language of the PRISMAdirect installation must be available in the Definition.
Views The following Views must be present for the OrderDefinition and each ProductDefinition in
the Definition:
• - WebShop
• - PrintShop
• - WebShopPrintTicket
• - PrintShopPrintTicket
Each View’s ViewKey must be of the form <PRODUCT_GUID>.<VIEW_NAME>
OrderItemDefinitions If importing the Definition, there are no strict requirements as the system
has a ‘self-healing’ mechanism which will automatically add mandatory ItemDefinitions (R&D,
Locked) to a Definition if they don’t exist.
However, if manually editing the Current definition, the following items must exist in order to
avoid corruption:
• EmailWhenBudgetApprovedOrRejected
• OrderHasBeenAccounted
• PaymentDate
• LastName
• WebShopId
• NumberOfJobsInside
• CommunicationState
• ProcessingTokenID
• FinalCost
• UserId
• PaymentTransactionInternalSettings
• ContactAddress
• SubmittersDescription
• IsOrderCostApproved
• FirstName
• PaymentTransactionId
Import checks
24 Chapter 3 - Import / export services
PRISMAdirect - All versions
• Account
• WsFriendlyCommunicationState
• IsJobCostPossiblyOutdated
• EmailWhenOrderRejected
• PaymentProvider
• EmailWhenOrderAccepted
• ManualLabor
• WebShopName
• ProcessingUserName
• OcFriendlyCommunicationState
• CreationDate
• IsOrderPaid
• OrderName
• BillingAddress
• EmailWhenOrderReady
• BudgetApproversRemarks
• OrderJobQEntryIDs
• EmailAddress
• IsOrderLocked
• RequestCostQuotation
• EmailMessage
• EstimatedCost
• Company
• Date
• OrderNumber
• JobType
• FinalizedDate
ProductItemDefinitions If importing the Definition, there are no strict requirements as the system
has a ‘self-healing’ mechanism which will automatically add mandatory ItemDefinitions (R&D,
Locked) to a Definition if they don’t exist.
However, if manually editing the Current definition, the following items must exist in order to
avoid corruption:
• EmailWhenBudgetApprovedOrRejected
• ProofPrint
• CoverMediaWeight
• CaseName
• OrderQEntryID
• Pages
• CopyrightAdministration
• Punching
• CoverMediaColor
• WebShopId
• PublishingDepartment
• Role
• NumberOfJobsInside
• DocumentMediaWeight
• BindingMethod
• JobName
• ChargeBackID1
• Author
• CommunicationState
• OperatorNotes
• IsStationeryJob
Import checks
Chapter 3 - Import / export services 25
PRISMAdirect - All versions
• NrOfSourcePages
• JobSizeEstimation
• HasStaticAttachment
• ProcessingTokenID
• FinalCost
• JobInfo
• FinishingTime
• Plexity
• JobHasBeenPrinted
• EstimatedColorPages
• StationeryHeader
• Title
• OrientationAndBindingEdge
• PrepareTime
• CoverMediaSize
• JobSource
• ProductName
• CaseType
• DocumentProgrammed
• IntentRemarks
• MergeRequired
• ProcessingServiceUserNameOnBehalfOf
• CoverPlace
• IsJobCostPossiblyOutdated
• EstimatedBWPages
• IsJobPaid
• JobNumber
• JobReady
• PrintInColor
• ProcessingServiceTokenIDOnBehalfOf
• IpAddress
• PDFAvailable
• Copies
• AssignedTo
• ManualLabor
• DocumentMediaColor
• Folding
• DocumentMediaType
• WebShopName
• IsVDPJob
• ProcessingUserName
• NumberOfCopiesPerSet
• StationeryDescription
• CreationDate
• Media
• JmfEndpointName
• JobHasConflicts
• Quantity
• ReadyDate
• PrinterName
• InternalJobState
• NewCoverMedia
• JobContainsPreparedAttachment
• RequestSoftProof
Import checks
26 Chapter 3 - Import / export services
PRISMAdirect - All versions
• DocumentMediaSize
• Category
• EstimatedCost
• EmailMessage
• NumberOfBussinessCardsPerSet
• IgnoreAutomationDocumentPreparationErrors
• IsJobCostApproved
• PrintingDuration
• Date
• CoverMediaType
• PreviousEstimatedCost
• DocumentType
• OrderNumber
Removed items The following Item Definitions were removed from the internal definition of
previous PRISMAdirect versions.The system does not use them anymore internally but they are
still supported for backwards-compatibility reasons:
CoverMedia
DocumentMedia
FinishingType
PrintOnBothSides
CoverAt
Orientation
PrintOnColor
Drilling
The values of these items are mapped automatically (using a mapping table) to the values of
corresponding new Item Definitions:
Old Item Definition New Item Definition
CoverMedia NewCoverMedia
DocumentMedia Media
FinishingType BindingMethod
PrintOnBothSides Plexity
CoverAt CoverPlace
Orientation OrientationAndBindingEdge
PrintOnColor PrintInColor
Drilling Punching
Import checks
Chapter 3 - Import / export services 27
PRISMAdirect - All versions
Export
Manual
Orders
In the Order processing workspace, one or more orders can be exported to ZIP file. Upon
initializing export, after the preparation is complete, the data will be sent as ZIP response to the
browser. Depending on its configuration, the browser will ask for a save location or automatically
save the file to its ‘Downloads’ location.
Files The ZIP file has a well defined structure and strict file names. It may contain one or more
folders, each one containing an order together with all its related content. Such a (order) folder
contains the following:
• An orderticket file (XML file) and a JDF ticket file (also XML), together defining order metadata
• For each job inside the order:
• A jobticket file (XML file) and if exported a JDF ticket file (also XML) together defining job
metadata
• The job attachments and current/original merged PDF if available
File names When an order is exported, filenames for the order and its jobs will be generated by
the system. If possible a combination of a prefix and the jobnumber will be used, e.g.
“Job-1890.xml”. If a file with that name already exists in the chosen folder, a new name is
generated. In the example shown above, the system would try “Job-1890.1.xml”,
“Job-1890.2.xml”, etc.
The names of the attachement files can be found in the XML files.
Compatibility Mode Backwards compatibility is out of discussion as previous PRISMAdirect
versions didn’t support any type of import at all. However, those exported ZIP files will probably
support import in later versions of PRISMAdirect8.
Definitions
In the Product & order editor the Definition can be exported to a ZIP containing XML files. These
files contain no Orders, only one Definition.
Export
28 Chapter 3 - Import / export services
PRISMAdirect - All versions
Automatic
In the PRISMAdirect Configuration the target directories for Orders can be chosen. Multiple target
directories can be specified. It is also possible to configure export to delete the Orders after they
have been exported.
Each Order will be individually exported into one ZIP file and the name of this file will be based
on the order QEntryID.
Finally, it is possible to pause the export robot. If this checkbox is checked, automatic export is
disabled.
Orders If the export service is configured to export Orders (so not paused), all Orders that comply
to a certain query are exported to a certain directory. Each directory has its own SQL-like query
that can be created using the PRISMAdirect Configuration build-in tool. This query determines
which Orders are exported to that directory. If an Order matches multiple queries, the Export
Service will export the Order to each of the matching directories. If one of these export-folders is
configured
Automatic
Chapter 3 - Import / export services 29
PRISMAdirect - All versions
PRISMAdirect export types
At export, either manual or automatic, there is an option to “Export original files and job ticket
only”. This means that the following files are omitted:
• JDF Ticket – used to store the history of the Job
• Converted Files – as a result, after import, if an operation is performed that will invalidate the
Merge result, the convert operation must be run for all the attachments that are not in PDF
format.
PRISMAdirect export types
30 Chapter 3 - Import / export services
PRISMAdirect - All versions
Logging
Two types of logging are used; the EventLog and log-files. The import and export services use the
EventLog to log errors that effect the behaviour of the service itself. The log-files are used to log
the actions done on specific orders, jobs or files10.
Automatic
Only automatic import and export actions are logged to log files. However, if a file cannot be
used because it is open in another application, a new file will be created.
Not only all successful imports are logged, but also the failures. When possible the cause of the
failure is also logged.
Format
Each action is written to a line in the log file, formatted as shown below:
***<Date+Time>”|”<LoggerName>”|”<Action Type>”|”<Action Description><end of line>
• Date+Time: Always logged as “YYYY-MM-DD HH:MM:SS” read from the system clock.
• Logger Name: Shows the source of the logged message.
• Action Type: Either “Error”, “Warning” or “Information”.
• Action Description: Free text.
Manual
Manual imports and exports are not logged in the log-files. Error situations however are logged
in the EventLog by the respective application.
Logging
Chapter 3 - Import / export services 31
PRISMAdirect - All versions
Logging
32 Chapter 3 - Import / export services
PRISMAdirect - All versions
Chapter 4
Media catalogue management
Media Catalog management
PRISMAdirect defines two types of media, found in two ItemDefinitions: NewCoverMedia and
Media. NewCoverMedia contains the full media specification for document covers. Media
contains the full media specification for document itself.
Format The media is identified by a fixed set of media attributes, formatted as below:
<Name>”,”<Size>”,”<Tab>”,”<Insert>”,”<CycleLength>”,”<Weight>”,”<Type>”,
”<Color>”,”<PunchPattern>”,”<SingleSided>”,”<PrePrinted>
• Name – free (case sensitive) string, recommended use is the commercial name or ordering
name
• Size – Indicates the the media width and height. MediaWidth is always smaller than or equal to
MediaHeight. For roll media, MediaWidth indicates the width of the roll and MediaHeight
equals 0 (zero)
• Tab – Describes wheter the media has tab edges attached to the main body.
• Insert – If this attribute has values “Insert”, no images may be printed on the media. For inserts
“ImageableSides” is ignored.
• CycleLength – Indicates the set size of cyclic media, allows for advanced error handling, and
automatic tab spooling.
• Weight – Indicates the media weight.
• Type – Recommended use is the material of which the media is made
• Color – Recommended use is to indicate the colour appearance of the media.
• PunchPattern – Used to indicate how many holes are prepunched in the sheets of the media.
• SingleSided – Flag used to describe if the media is single sided or not
• PrePrinted – Flag used to describe if the media is preprinted or not
After installation PRISMAdirect comes with a fixed set of media.
A new media can be created using PRISMAdirect and then imported in PRISMAdirect using
Product & order editor. New media can also be created from the Product & order editor by a
combination of the above mentioned media attributes inherited from PRISMAdirect.
Media Catalog management
34 Chapter 4 - Media catalogue management
PRISMAdirect - All versions
Chapter 5
XML format
Intentions This chapter describes the XML format used in the Open Interface. This chapter is
derived from [XMLSCHEMA], which is an interal R&D document.
Overview
Figure 3 shows a simplified view of the root of the Schema. The root element is the Oce element.
From the DocWorks element the schema is devided into three subtrees. The first part shows the
Job subtree, which provides a presentation of a Job. The second part shows the Order subtree.
The third part shows the Definitions subtree. The Job element consist of Attachement,
VdpRelevantData and ItemValues elements. The first refers to digital source files/documents
belonging to a job. The second stores properties related to VDP jobs The last represents the
properties of the job (number of required copies, required finishing options, name of document,
name of job submitter, email address of job submitter, etc). A Job has a related Definition. This
Definition specifies, among others, what Attachement and ItemValue elements must be included
in a Job element.
Figure 3: Simplified root of the Schema
Figure 4 shows a simplified view of a Definition element. Definition elements are more complex
than Job elements. A Definition contains several other elements like ItemDefinition elements,
View elements and Language elements. Each of these element types are stored in container
elements: ProductItemDefinitions, OrderItemDefinitions, Views, Languages, etc.
An ItemDefintion specifies datatype, default value and possible values of an ItemValue. The
collection of ItemDefinition elements contained in the ProductItemDefinitions and
OrderItemDefinitions containers specifies all items that must be present in a Job or Order.
Figure 4: Simplified Definition element
A Definition does not only define the ItemValue elements of a Job or Order, it also defines their
presentation and behavioral aspects. These presentation and behavioral aspects are covered by
Overview
36 Chapter 5 - XML format
PRISMAdirect - All versions
View elements. A View is used to generate a graphical presentation (user interface) of a Job or
Order.
There are 4 structural types of Views:
• ProductTreeview: defines the presentation of the Product
• OrderTreeView: defines the presentation of the Order
• ProductDefaultGroup: a predefined blueprint group with Product ItemDefinitions
• OrderDefaultGroup: a predefined blueprint group with Order ItemDefinitions
The DefaultGroups must only be seen as templates of ItemDefinitions groups and are used to
more easily define the Product (defining a Job type) in the Product & order editor.
The relation between Jobs and Products should be clarified: Products are Job blueprints of
different fixed major types (Flyer, Business cards, Generic) that also capture a collection of
settings. A Job is created in the WebShop or Order processing workspace based on a product
that must be chosen, thus, a Job can be of different types.
Views are mostly used to define Products and the Order (which is a single blueprint), and for each
Product and the Order there are 4 views that must be present in the Definition:
• WebShop: defines the client view and it is used to generate the user interface of a Job or Order
in the PRISMAdirect WebShop application
• PrintShop: defines how a Job or Order will be presented to a DPC operator in the
PRISMAdirect Order processing workspace
• WebShopPrintTicket: defines the layout of the print ticket for the client
• PrintShopPrintTicket: defines the layout of the print ticket for the operator
Besides defining which items will be presented in the user interface and what their ordering and
grouping will be, a view also defines some item specific attributes:
• a Boolean that specifies whether an item is read-only or editable,
• a Boolean that specifies whether entering a value for an item is required
• a Boolean that specifies whether the last entered value should be stored into the system for
that user and prefilled when the user orders that Product again
Note that as a consequence of the View concept, a Job or Order presented in the WebShop
application may differ from the presentation a DPC operator will get in the Order processing
workspace. The client may not see all Job/Order items that are visible for the operator or vice
versa and the ordering and grouping of items may differ. Besides, the item attributes as specified
above may differ. For example, an item that is editable for the client may be read-only for the DPC
operator.
In order to provide multi-language support in PRISMAdirect applications that present Jobs/Orders
to end-users, all string elements in Definition elements that might be presented in a user-interface
are available in all supported languages, stored in Translations elements.
All languages supported by a particular Defintion are specified in its Languages element.
Language dependent strings (i.e. elements of type Translations) must be provided for all
languages for which there is a Language element present in the Definition.
Overview
Chapter 5 - XML format 37
PRISMAdirect - All versions
Element descriptions
This paragraph describes the elements used in the PRISMAdirect schema.
Unless stated otherwise, elements can contain no other elements and attributes than the ones
specified here.
All elements have a “Version” attribute of type Int used for deserialization purposes.
Theoretically, elements could evolve independently in the evolution of Definition structure and
this attribute can be used to independently interpret each element.
However, to avoid redundancy, “Version” will be omitted from the following descriptions.
Oce element
The Oce element is the root element of the XML file. It contains one DocWorks element. The
schema doesn’t allow other elements to be added to the Oce element.
Element Oce
Attributes -
Parent element -
Child elements DocWorks
<other elements>
Exactly one.
Element descriptions
38 Chapter 5 - XML format
PRISMAdirect - All versions
DocWorks element
The DocWorks element is the beginning of the DocWorks specific part of the XML file. The
DocWorks element contains a Job, Order and/or a Definitions element. It can also contain neither,
although that wouldn’t make sense. The Definitions element contains zero one or two definitions
of a ticket-template and the views on the ticket. The Job and Order elements can appear only
once.
The SchemaVersion attribute is now obsolete and used to contain the version number of the
Newton schema to which the XML-file complies. This attribute must be of the type integer (MS
XML: int) and the value “12” should be used.
The SystemVersion attribute is now obsolete and used to describe the version number of the
‘things’-list11. This attribute must be of the type int and “10” should be used.
The Version attribute has been introduced and is now used to internally identify the definition
version:
- “5” for PRISMAdirect 1.1 and 1.1.1
- “6” for PRISMAdirect 1.2 and higher
Element DocWorks
Attributes SchemaVersion
SystemVersion
Version
Int.
Int.
Int.
Parent element Oce -
Child elements Job
Order
Definitions
Zero or one.
Zero or one.
Zero or one.
DocWorks element
Chapter 5 - XML format 39
PRISMAdirect - All versions
Job Element
The Job element is located in the DocWorks element. It contains a single job, consisting of a
jobticket, eventual VDP settings and references to a number of files. The files can contain
anything. The Attachments child element contains the references to the files. The ItemValues
child element contains the jobticket.
The QEntryID attribute is the job’s unique identifier (GUID). See § 7.3.3 for more info.
JobID is another unique identifier but it is not used anymore. For compatibility still, it should be
uniquely set according to the syntax described in the schema.
The ProductType attribute defines the type of job attachments and CardID defines the product
type.
ProductDefinition is the GUID of the Product itself.
The CreationLanguageKey attribute contains the language at which the client submitted the job.
The possible values for the attribute a listed in § 7.3.2.
The CreationDefinitionID is obsolete and it is not used anymore. It should be set to empty GUID:
"00000000-0000-0000-0000-000000000000".
The LastUsedDefinitionID attribute contains the ID of the Definition with which the job was last
saved.
The CreationViewID attribute is not used anymore and it should always be set to “PrintShop”.
The OrderID links the Job to a certain Order in the system as in PRISMAdirect Jobs cannot exist
without Orders.
Element Job
Attributes JobID
CreationLanguageKey
LastUsedDefinitionID
CreationDefinitionID
CreationViewID
ProductType
ProductDefinition
CardID
OrderID
QEntryID
UUID
Enumeration
UUID
UUID
Enumeration
Enumeration
UUID
Enumeration
UUID
UUID
Parent element DocWorks -
Child elements Attachments
VdpRelevantData
ItemValues
Exactly one.
Exactly one.
Exactly one.
Job Element
40 Chapter 5 - XML format
PRISMAdirect - All versions
Order Element
The Order element is also placed as a child of DocWorks element. It contains a single order,
consisting of a list of Jobs and the orderticket.
The QEntryID attribute uniquely identifies the Order (GUID). OrderID is another unique indentifier
that should be set according to the schema but the QEntryID is the one that counts.
Like the Job, contains the same CreationLanguageKey, CreationDefinitionID and
LastUsedDefinitionID with the same purpose. See § 7.2.3 for details.
Element Order
Attributes OrderID
CreationLanguageKey
LastUsedDefinitionID
CreationDefinitionID
QEntryID
UUID
Enumeration
UUID
UUID
UUID
UUIDParent element DocWorks -
Child elements Jobs
ItemValues
Exactly one.
Exactly one.
Order Element
Chapter 5 - XML format 41
PRISMAdirect - All versions
Jobs element (Order JobLinks)
The Jobs element placed under an Order element is only a container for Job element links to the
Jobs belonging to the Order. It doesn’t have any specific attributes.
Element Jobs
Attributes -
Parent element Order -
Child elements Job (Order JobLink) One or more.
Jobs element (Order JobLinks)
42 Chapter 5 - XML format
PRISMAdirect - All versions
Job element (Order JobLinks)
Each Job in the Jobs list is only a link.
The JobID attribute holds the ID of the Job linked to the Order and can be used to locate the
corresponding Job entity that contains all data.
The JobPath attribute should be left empty.
Elemtent Job
Attributes JobID
JobPath
UUID
String
Parent element Jobs (Order JobLinks) -
Child elements -
Job element (Order JobLinks)
Chapter 5 - XML format 43
PRISMAdirect - All versions
Attachments element
The Attachments element is located in the Job element. It contains a number of Attachment
elements. The Attachments element has no attributes.
Element Attachments
Attributes -
Parent element Job -
Child elements Attachment One or more.
Attachments element
44 Chapter 5 - XML format
PRISMAdirect - All versions
Attachment element
The Attachment element is located in the Attachments element. Each Attachment element
contains a single reference to a file.
The AttachmentKey attribute contains the identifier of the attachment.
The MimeType specifies the mimetype of the attachment.
The FilePath attribute must be set to “.\” because the attachment files must be placed in the same
Hot Folder as the XML file. The FileName attribute must contain the name of the file, including
extension. E.g. “Test.pdf”.
The DocumentName attribute contains the original name of the document that the client ‘printed’
to PRISMAdirect.
The FileIncluded attribute indicates whether or not the file in the Attachment is needed for the job
to be complete. The import service only imports attachment files where FileIncluded is set to “1”.
The FilePresent attribute is a Boolean that indicates that the attachment has a file connected to it.
This attribute must have the value “0”.
AttachmentType attribute contains the type of the attachment (no longer held by the JobType
ticket item) and it can hold one of the value: atDigital (digital documents), atOther (other digital
attachments), or atPaper (paper original submissions)
Converted attribute indicates if a certain attachment was converted on not. If true, the Convert
element must be present as child element containing more information.
ConvertedFileName attribute indicates the URI/path of the file that was converted (For example .
\file.pdf or http://server:port/path/file.pdf)
JDFId attribute is used for linking the Attachment with the Resource in the JDF ticket. This should
not be changed unless 3’rd party tools also change the runlist id form the JDF ticket.
FileLastWriteTime stores the timestamp ticks at which the attachment was last written.
BWPages and ColorPages attribute caches color detection information for the attachment.
IsOperationRunning and APSCancellationToken are PRISMAdirect ‘internal’ attributes that help
during attachment processing. They should be set as: IsOperationRunning="0" and
APSCancellationToken=""
Element Attachment
Attributes AttachmentKey
MimeType
FilePath
FileName
DocumentName
FilePresent
FileIncluded
AttachmentType
Converted
ConvertedFileName
JDFld
FileLastWriteTime
BWPages
ColorPages
IsOperationRunning
APSCancellationToken
String
String
String
String
String
Boolean
Boolean
String
Boolean
String
String
Long
Int
Int
Boolean
String 4
Attachment element
Chapter 5 - XML format 45
PRISMAdirect - All versions
Parent element Attachments -
Child elements Preflight
Convert
AutoDocumentPreparation
-
-
-.
Attachment element
46 Chapter 5 - XML format
PRISMAdirect - All versions
Preflight element
The Preflight element is an optional element located in the Attachment element. It contains the
result of the preflight operation on the referenced Attachment.
The IsPreflighted child element indicates if the current attachment was preflighted or not. It can
be “0” or “1”.
If the attachment was indeed preflighted the PreflightResult child element indicates the state of
the operation: Pending, OK, Error, etc.
The PreflightedFileName child element contains the name of the file resulted from the Preflight
process.
The PdfReport child element contains the name of a PDF file that contains the report of the
Preflight operation.
The XMLReport child element points to an XML file that contains the report of the Preflight
operation.
Element Preflight
Attributes -
Parent element Attachment -
Child elements ISPreflighted
PreflightResult
PreflightedFileName
PdfReport
XmlReport
Boolean
Enumeration
String
String
String
Preflight element
Chapter 5 - XML format 47
PRISMAdirect - All versions
Convert element
This element is marked as optional in the schema, but it should be present if Converted flag is
“1” at Attachment element level. It contains detailed conversion info in case of converted
attachments.
The IsPreflighted child element indicates if the current attachment was preflighted or not. It can
be “0” or “1”.
If the attachment was preflighted the PreflightResult child element indicates the state of the
operation: Pending, OK, Error, etc.
The ConvertedFileName child element contains the name of the file resulted from the conversion
process.
Element Convert
Attributes -
Parent element Attachment -
Child elements Converted
PreflightResult
ConvertedFileName
Boolean
Enumeration
String
Convert element
48 Chapter 5 - XML format
PRISMAdirect - All versions
AutoDocumentPreparation element
This element is present if preparation templates had been applied to the Job.
The Result element stores the current status of the operation: InProgress, Pending, Error, OK, etc.
Check the actual schema for all possible values.
Element AutoDocumentPreparation
Attributes -
Parent element Attachment -
Child elements Result
AutoDocumentPreparationOperations
Enumeration
Exactly one
AutoDocumentPreparation element
Chapter 5 - XML format 49
PRISMAdirect - All versions
AutodocumentPreparationOperations element
This is simply a list corresponding to all templates that had been applied to the Job.
It has no specific attributes.
Element AutodocumentPreparationOperations
Attributes -
Parent element AutoDocumentPreparation -
Child element AutoDocumentPreparationOpera‐
tion
One or more
AutodocumentPreparationOperations element
50 Chapter 5 - XML format
PRISMAdirect - All versions
AutoDocumentPreparationOperation element
This element holds information about a template applied to the Job.
The TemplateName element stores the template name.
Result stores the current status of the operation: InProgress, Pending, Error, OK, etc. Check the
actual schema for all possible values.
ResultMessage element stores the resulting message of template application. This can be a
success message or error with detailed information. It is actually a dictionary stored in JSON
format of Lang/Value pairs that holds messages for all 18 languages supported by PRISMA
products. This is for localization purposes as the message is seen in the Order processing
workspace.
Element AutoDocumentPreparationOperation
Attributes -
Parent element AutoDocumentPreparationOperations -
Child element TemplateName
Result
ResultMessage
String
Enumeration
String
AutoDocumentPreparationOperation element
Chapter 5 - XML format 51
PRISMAdirect - All versions
VdpRelevantData element
PRISMAdirect is VDP-enabled and supports fixed or user-submitted VDP master document and
fixed or manual data source. This is tightly coupled with PRISMAprepare VDP functionality.
This element stores information relevant only for VDP-type jobs. It has various inner elements
that store VDP settings.
VdpManualInputFields fields holds an encoded XML describing master document fields. In case
of manual data source input, it will hold also the input values. VdpDataSourceInfo will store a text
description of the fields in the master used only to provide nice information to the user.
VdpDelimiter and VdpSeparator are used in case of CSV (Text) data source do define the
instance/field separators.
VDPPreviewGeneratedForCurrentJobState, VDPColorDetectionDoneForCurrentJobState,
VDPPreviewGeneratedForCurrentJobStatePagesThreshold, VDPComposedDocumentTotalPages
and IsPreviewTruncated are internal fields and should be set to “False” or “0” depending on the
type.
VdpTable and VdpTableList are used only in case of an Excel/Access data source type.
VdpTableList contains the name of the available tables in the data source while VdpTable stores
the selected one. This value has to be present in the ones in VdpTableList.
VdpDataSourceType is an Integer from 0-4 representing the index of the possible data source
types:
• - Undefined for non-VDP Jobs
• - Excel for XLS(X) data sources
• - Text for CSV data source
• - Access for MDB data source
• - Raw for manual input data source
VdpHasImages is a flag marking if the master document has image frames.
Element VdpRelevantData
Attributes -
Parent element Job
Child elements VdpManualInputFields
VdpDelimiter
VdpSeparator
VdpDataSourceInfo
VDPPreviewGeneratedForCurrentJobState
VDPColorDetectionDoneForCurrentJobState
VDPPreviewGeneratedForCurrentJobStatePa‐
gesThreshold
VDPComposedDocumentTotalPages
VdpTable
VdpDataSourceType
VdpHasImages
VdpTableList
IsPreviewTruncated
String(XML)
String
String
String
Boolean
Boolean
Integer
Integer
String
Integer
Boolean
Zero or one
Boolean
VdpRelevantData element
52 Chapter 5 - XML format
PRISMAdirect - All versions
VdpTableList element
This element is a container list of VdpTable elements. It holds the table names for Excel/Access
VDP data source types.
It has no specific attributes.
Element VdpTableList
Attributes -
Parent element VdpRelevantData -
Child elements VdpTable Zero or more
VdpTableList element
Chapter 5 - XML format 53
PRISMAdirect - All versions
VdpTable element
The element only stores a single value, a table name in the data source in case of Excel/Access
data source types.
It has no specific attributes.
Element VdpTable Holds the actual value
Attributes -
Parent element VdpTableList -
Child elements -
VdpTable element
54 Chapter 5 - XML format
PRISMAdirect - All versions
ItemValues element
The ItemValues element is located in the Job or Order elements. It contains zero or more
ItemValue elements.
Element ItemValues
Attributes -
Parent element Job
Order
-
-
Child elements ItemValue One or more.
ItemValues element
Chapter 5 - XML format 55
PRISMAdirect - All versions
ItemValue element
The ItemValue element is located in the ItemValues element. It contains the value for a single
jobticket or orderticket attribute. The value provided when the job was created is stored in the
CreationValue element. The current value (may be the same) is stored in the LastUsedValue
element. The ItemKey attribute indicates the item the value is related to. An ItemDefinition with
the same ItemKey can exist in the Definition element (§ 7.2.22) specified for this job.
Element ItemValue
Attributes ItemKey string
Parent element Itemvalues -
Child elements CreationValue
LastUsedValue
Exactly one.
Exactly one.
ItemValue element
56 Chapter 5 - XML format
PRISMAdirect - All versions
CreationValue element
The CreationValue element is located in the ItemValue element. It contains the value provided for
the ItemValue when the job was created. That value is stored in the element’s value.
The format in which the value is stored depends of the DataType attribute of the related
ItemDefinition15:
•dtNumber: integer numeric value converted to a string.
•dtString or dtLookup: the string (value) itself.
•dtBoolean: Either “.TRUE” or “.FALSE” (respectively true (1) and false (0)).
•dtDate: a date formatted as “YYYYMMDDHHMMSS_TZ”.
•dtGroup: must be an empty string (“”).
•dtEnum: the EnumKey of the chosen option.
The DataType attribute also has some extensions with types of items used for the finishing
process of a job. The value for these types is the same as for the dtEnum DataType.
The element has a single relevant attribute, Null, marking that there is no value at all for this item.
There is a distinction between Null and an empty (“”) or 0 value – which can still be considered
values.
Element CreationValue Element value is the value (string).
Attributes Null Boolean
Parent element ItemValue -
Child elements -
CreationValue element
Chapter 5 - XML format 57
PRISMAdirect - All versions
LastUsedValue
The LastUsedValue element is located in the ItemValue element. It contains the current value for
the ItemValue. That value is stored in the element’s value.
The format in which the value is stored is the same as used for the CreationValue
Element LastUsedValue Element value is the ItemValue's value
(string).
Attributes Null Boolean
Parent element ItemValue -
Child elements -
LastUsedValue
58 Chapter 5 - XML format
PRISMAdirect - All versions
Definitions element
The Definitions element is located in the DocWorks element. It contains a set of Definition
elements. Usually this will be a limited number of Definitions; zero to two.
Element Definitions
Attributes -
Parent element DocWorks -
Child elements Definition Zero or one.
Definitions element
Chapter 5 - XML format 59
PRISMAdirect - All versions
Definition element
The Definition element is located in the Definitions element. It represents a single Definition.
The DefinitionID attribute uniquely identifies the Definition.
The Languages child element contains a list of languages supported in this definition. The
AttachmentDefinitions element contains a list of attachment specifications. An attachment is a file
that is connected to a job.
Element Definition
Attributes DefinitionID UUID
Parent element Definitions -
Child elements DefinitionText
Languages
Views
OrderItemDefinitions
ProductItemDefinitions
OrderDefinition
ProductDefinitions
Icons
Exactly one.
Exactly one.
Exactly one.
Exactly one.
Exactly one.
Definition element
60 Chapter 5 - XML format
PRISMAdirect - All versions
DefinitionText element
The DefinitionText element16 is located in the Definition element. It contains zero or more
Translation elements. The DefinitionText element contains the localised name of the definition.
For each translated string, one Translation child element is present.
The StringID and TooltipID attributes are for internal use only. If Export sets those attributes the
values must be left unchanged. Otherwise the attributes must be set to “0”.
Element DefinitionText
Attributes StringID
TooltipID
Int
Int
Parent element Definition -
Child elements Translation One or more.
DefinitionText element
Chapter 5 - XML format 61
PRISMAdirect - All versions
Languages element
The Languages element is located in a few elements. It contains a number of Language elements,
each specifying a language that is supported in the Definition.
Element Languages
Attributes -
Parent element Definition
ProductDefinition
OrderDefinition
-
-
-
Child elements Language One or more.
Languages element
62 Chapter 5 - XML format
PRISMAdirect - All versions
Language element
The Language element is located in the Languages element. Each Language element contains a
specification of a language that is supported in the Definition.
The LanguageKey attribute specifies the language.
Element Language
Attributes LanguageKey Enumeration
Parent element Languages -
Child elements -
Language element
Chapter 5 - XML format 63
PRISMAdirect - All versions
Views element
The Views element is located in the Definition element. It contains a set of View elements, each
describing a ‘look’ on the jobticket or orderticket.
Element Views
Attributes -
Parent element Definition -
Child elements View Zero or more.
Views element
64 Chapter 5 - XML format
PRISMAdirect - All versions
View element
The View element is located in the Views element. A View element describes a ‘look’ on the
jobticket/orderticket. Such a View consists of a tree-like list of the items to show. An item has
several properties controlling its behaviour.
The ViewKey attribute identifies the view. The ViewKey must be unique within the Views element
and is subjected to the rules. The maximum length of the ViewKey is 60 characters.
The Type attribute is an enumeration determining the type of the view. ViewType can have one of
the following values (case sensitive):
• ProductTreeview
• OrderTreeView
• ProductDefaultGroup
• OrderDefaultGroup
The Visible attribute flags this view as visible or not. It is not currently used, it should be set to
“1”.
The ViewText child element contains the localised name of the view. The Description child
element contains possible details about the view (where it is displayed, what category of items it
groups). They are both of the same type as a DefinitionText element.
The TreeDefinition child element is the ‘root’ of the ‘tree’ of items a jobticket consists of.
Element View
Attributes ViewKey
Type
Visible
String
String
Boolean
Parent element Views -
Child elements TreeDefinition
ViewText
Description
Exactly one.
Exactly one.
Exactly one.
View element
Chapter 5 - XML format 65
PRISMAdirect - All versions
Translation element
The Translation element is used in various other elements. The element contains a single
translated string. The LanguageKey attribute contains the string’s language and is subjected to
the rules.
For each translated string, a corresponding Language element must be defined. The translated
string is stored in the element’s value. An empty string is also allowed. The maximum length of
the translated string is 255 characters.
The Tooltip attribute contains the translated string that will be displayed in the tooltip for the
element.
Element Translation Element value is the translated string.
Attributes LanguageKey
Tooltip
Enumeration
String
Parent element Various
Child elements -
Translation element
66 Chapter 5 - XML format
PRISMAdirect - All versions
TreeDefinition element
The TreeDefinition element is located in the View element. It represents the ‘root’ of a ‘tree’ of
jobticket/orderticket items17.
The ItemViewGroup child element contains a group of items (branch). In this case, that group is
located in the root of the tree.
Element TreeDefinition
Attributes -
Parent element View -
Child elements ItemViewGroup Zero or more.
TreeDefinition element
Chapter 5 - XML format 67
PRISMAdirect - All versions
ItemViewGroup element
The ItemViewGroup element is either located in the TreeDefinition element, or in the
ItemViewGroup element. The ItemViewGroup element represents a group of items that is
organised in one branch.
The ItemKey attribute forms the link between the ItemDefinition and this element. An
ItemViewGroup element must only be used if DataType of the related ItemDefinition is
“dtGroup”.
The IsExpanded is not used anymore and should be set to “1”.
The Visible attribute flags this view as visible or not. Not used for now, should be set to “1”.
Element ItemViewGroup
Attributes ItemKey
IsExpanded
Visible
String
Boolean
Boolean
Parent element TreeDefinition
ItemViewGroup
-
-
Child elements ItemViewGroup
ItemViewLeaf
Zero or more.
Zero or more.
ItemViewGroup element
68 Chapter 5 - XML format
PRISMAdirect - All versions
ItemViewLeaf element
The ItemViewLeaf element is located in the ItemViewGroup element and describes the view on a
single item.
The ItemKey attribute forms the link between the ItemDefinition and this element. An
ItemViewLeaf element must only be used when the DataType of the related ItemDefinition is
“dtNumber”, “dtString”, “dtEnum”, “dtBoolean” or “dtDate”.
The ReadOnly attribute specifies if the user can change the item. The Required attribute specifies
if the user must provide a value for the item. The Stored attribute specifies if the value typed by
the user should be used as the new default during the next session. An attribute value of “1” sets
these properties, “0” resets them.
Element ItemViewLeaf
Attributes ItemKey
ReadOnly
Required
Stored
String
Boolean
Boolean
Boolean
Parent element ItemViewGroup -
Child elements -
ItemViewLeaf element
Chapter 5 - XML format 69
PRISMAdirect - All versions
OrderItemDefinitions element
The OrderItemDefinitions element is located in the Definition element. It contains a set of
declarations of orderticket items.
Element OrderItemDefinitions
Attributes -
Parent element Definition -
Child elements ItemDefinition Zero or more.
OrderItemDefinitions element
70 Chapter 5 - XML format
PRISMAdirect - All versions
ProductItemDefinitions element
Similar to OrderItemDefinitions element, it is located in the Definition element. It contains a set of
declarations of jobticket items.
Element ProductItemDefinitions
Attributes -
Parent element Definition -
Child elements ItemDefinition Zero or more.
ProductItemDefinitions element
Chapter 5 - XML format 71
PRISMAdirect - All versions
ItemDefinition element
The ItemDefinition element is located in the OrderItemDefinitions or ProductItemDefinitions
elements. Each ItemDefinition element represents a declaration for a single jobticket or
orderticket item.
The ItemKey attribute identifies the item. Within the ItemDefinitions element the ItemKey must be
unique and is subjected to the rules. If a certain item exists in multiple definitions
, multiple ItemDefinition elements will exists with identical ItemKeys. The maximum length of the
ItemKey is 60 characters.
The ItemKey can have three forms depending on the case:
- ItemName: for system wide leaf items
- SpecializedGroupName.GroupName for default groups declarations
- Product/OrderID.ViewName.GroupName for groups created inside ProductDefinition/
OrderDefinition Views. Those may be predefined, created from default groups or custom
The DataType attribute determines the item type. This enumeration can have one of the following
values:
 dtGroup: special type of Item. In the user interface this item can ‘contain’ other items, e.g.
because it is a branch in a tree.
 dtNumber: numeric item. Integer numbers only.
 dtString: text item.
 dtBoolean: item can have one of two fixed values.
 dtEnum: item can have a one of a limited set of values.
 dtDate: date and time.
 dtLookup: a more special type of item definition that allows defining an ODBC data source and a
query in order to dynamically retrieve a list of items. In this regard, ie behaves like a dynamic-
value dtEnum.
PRISMAdirect supports a special type of items called Visual Ticket Items. These items are based
on a dtEnum item and present choices strictly related to visual settings of a job. Because they are
specialized and more complex items, new DataTypes are added for them:
 dtBinding
 dtOrientation
 dtPlexity
 dtCoverPlace
 dtMedia
 dtCover
 dtPrintInColor
 dtPunching
 dtFolding
The Locked attribute specifies if the ItemDefinition can be removed in the Product & order editor.
If “0” the item can be removed, if “1” the item cannot. In [DEFAULTTICKET] a number of items
are specified where this attribute must be set (attribute value = “1”). For all other items it must be
set to “0”.
ItemDefinition element
72 Chapter 5 - XML format
PRISMAdirect - All versions
The RD_Only attribute specifies when the item is visible in the Product & order editor. If the
attribute is “0” the item is visible, if “1” it is not. In [DEFAULTTICKET] a number of items are
specified where this attribute must be set (attribute value = “1”). For all other attributes it must be
set to “0”. Those items al mainly system internal items that should never appear anywhere.
The Log attribute specifies if the item should be logged in the joblog. If the attribute is “0” the
item’s value is not logged, if it is “1” it is logged.
The RDHybrid_Only attribute marks the ItemDefinition as having an intermediary state between
Locked and RD_Only: It can be seen in Product & order editor in order to be placed in products
views, email templates, etc, but cannot be edited at all.
The ItemDefVersion identifies the structural version of the ItemDefinition and it is the same as
Version.
The AllowAddition, AllowOther and BaseChoiceItemDefVersion are used in case of dtEnum types
(also called “choice types”). AllowAddition is a flag marking if addition of new values from
Product & order editor is allowed to this item. AllowOther controls if the “Other” option (value) is
allowed. Finally, BaseChoiceItemDefVersion is internally used and should be set to Definition
Version (“6” in the current version).
The ItemShortText element contains a localised string containing the name of the item. This
string can be used in e.g. a joblist. The ItemTreeText element contains the localised text that
should be used when drawing the ticket as described in the TreeDefinition. The difference
between the ItemShortText and ItemTreeText lies in the use of the text, which determines the
length of the string.
The xxxMetaData elements contain data-type specific metadata for the item. The name of the
element depends on the DataType of the item definition.
Element ItemDefinition
Attributes ItemKey
DataType
Locked
RD_Only
RDHybrid_Only
Log
ItemDefVersion
AllowAddition
AllowOther
BaseChoiceItemDefVersion
String
Enumeration
Boolean
Boolean
Boolean
Boolean
Int
Boolean
Boolean
Int
Parent element xxxItemDefinitions -
Child elements ItemShortText
ItemTreeText
xxxMetaData
Exactly one.
Exactly one.
Exactly one.
ItemDefinition element
Chapter 5 - XML format 73
PRISMAdirect - All versions
ItemShortText element
The ItemShortText element contains the localised name of the item. This text is e.g. used in a
joblist in the Order processing workspace. The StringID and TooltipID attributes are for internal
use in PRISMAdirect. If Export sets these attributes the value must be left unchanged. Otherwise
the attributes must be set to “0”.
Element ItemShortText
Attributes StringID
TooltipID
Int
Int
Parent element ItemDefinition -
Child elements Translation One or more.
ItemShortText element
74 Chapter 5 - XML format
PRISMAdirect - All versions
ItemTreeText element
The ItemTreeText element contains the localised name of the item. This text is e.g. used in the
tree-view of the ticket specified by the TreeDefinition. The StringID and TooltipID attributes are for
internal use in PRISMAdirect. If Export sets these attributes the value must be left unchanged.
Otherwise the attributes must be set to “0”.
Element ItemTreeText
Attributes StringID
TooltipID
Int
Int
Parent element ItemDefinition -
Child elements Translation One or more.
ItemTreeText element
Chapter 5 - XML format 75
PRISMAdirect - All versions
xxxMetaData element
The xxxMetaData element is an abstract19 element located under the ItemDefinition element.
Being an abstract element it does not actually exist. Instead exactly one of its child elements must
be used. Which one depends on the DataType attribute of the parent ItemDefinition element.
Element xxxMetaData
Attributes -
Parent element ItemDefinition -
Child elements GroupMetaData
NumberMetaData
StringMetaData
BooleanMetaData
EnumMetaData
DateMetaData
Exactly one on the mentioned
child elements.
xxxMetaData element
76 Chapter 5 - XML format
PRISMAdirect - All versions
xxxDefault element
The xxxDefault element is an abstract20 element located under the xxxMetaData element.
Being an abstract element it does not actually exist. Instead exactly one of its child elements must
be used. Which one depends on the DataType attribute of the related ItemDefinition element.
Element xxxDefault
Attributes -
Parent element xxxMetaData -
Child elements NumberDefault
StringDefault
BooleanDefault
EnumDefault
DateDefaultOffset
Exactly one of the elements.
Which one depends on the
item’s datatype.
-
xxxDefault element
Chapter 5 - XML format 77
PRISMAdirect - All versions
GroupMetaData element
The GroupMetaData element is located in the xxxMetaData element. It contains the metadata for
a group. Currently this element is empty.
Element GroupMetaData
Attributes -
Parent element xxxMetaData -
Child elements -
GroupMetaData element
78 Chapter 5 - XML format
PRISMAdirect - All versions
NumberMetaData element
The NumberMetaData element is located in the xxxMetaData element. It contains metadata of
numeric items.
The Minimum attribute contains the minimum value of the item. The Maximum attribute contains
the maximum. The NumberDefault child element contains the default value of the item.
The Decimals attribute contains the maximum number of decimals that the item can have.
Element NumberMetaData
Attributes Minimum
Maximum
Decimals
Int
Int
Int
Parent element xxxMetaData -
Child elements NumberDefault Exactly one.
NumberMetaData element
Chapter 5 - XML format 79
PRISMAdirect - All versions
NumberDefault element
The NumberDefault element contains the default value for a numeric item. It is located in the
NumberMetaData and the xxxDefault elements.
The element has a single relevant attribute, Null, marking that there is no value at all for this item.
There is a distinction between Null and an empty (“”) or 0 value – which can still be considered
values.
Element NumberDefault Element value is the default
value (Int).
Attributes Null Boolean
Parent element NumberMetaData
xxxDefault
-
Child elements -
NumberDefault element
80 Chapter 5 - XML format
PRISMAdirect - All versions
StringMetaData element
The StringMetaData element is located in the xxxMetaData element. It contains the metadata of
text (string) items.
The MaxLength attribute specifies the maximum number of characters in the string. The
MultiLine attribute specifies if the string can contain multiple lines of text or not. The
StringDefault child element contains the default value of the item.
Element StringMetaData
Attributes MaxLength
MultiLine
Int
Boolean
Parent element xxxMetaData -
Child elements StringDefault Exactly one.
StringMetaData element
Chapter 5 - XML format 81
PRISMAdirect - All versions
Stingdefault element
The StringDefault element contains the default value for string items. It is located in the
StringMetaData and the xxxDefault element.
The element has a single relevant attribute, Null, marking that there is no value at all for this item.
There is a distinction between Null and an empty (“”) or 0 value – which can still be considered
values.
Element StringDefault Element value is the default
value (string)
Attributes Null Boolean
Parent element StringMetaData
xxxDefault
-
-
Child elements -
Stingdefault element
82 Chapter 5 - XML format
PRISMAdirect - All versions
BooleanMetaData element
The BooleanMetaData element contains the metadata of Boolean items. Boolean items can either
be true or false.
The BooleanDefault child element contains the default value of the item. The ItemTrueText
contains the localised caption of the value if that is True. The ItemFalseText contains the localised
caption of the value if that is False. The ItemUndefinedText contains the localised caption when
the value is not defined.
Element BooleanMetaData
Attributes -
Parent element xxxMetaData -
Child elements BooleanDefault
ItemTrueText
ItemFalseText
ItemUndefinedText
Exactly one.
Exactly one.
Exactly one.
Exactly one.
BooleanMetaData element
Chapter 5 - XML format 83
PRISMAdirect - All versions
BooleanDefault element
The BooleanDefault element contains the default value for a Boolean item. The default is stored
in the element value and can either be true (“1”) or false (“0”). The BooleanDefault element is
used in the BooleanMetaData and the xxxDefault element.
The element has a single relevant attribute, Null, marking that there is no value at all for this item.
There is a distinction between Null and an empty (“”) or 0 value – which can still be considered
values.
Element BooleanDefault Element value is the default
(boolean).
Attributes Null Boolean
Parent element BooleanMetaData
xxxDefault
-
-
Child elements -
BooleanDefault element
84 Chapter 5 - XML format
PRISMAdirect - All versions
ItemTrueText element
The ItemTrueText element contains the localised caption of a Boolean value for True-values.
The StringID and TooltipID attributes are for internal use only. If Export sets these attributes the
value must be left unchanged. Otherwise the attributes must be set to “0”.
The Translation child elements contain the localised value-caption.
Element ItemTrueText
Attributes StringID
TooltipID
Int
Int
Parent element BooleanMetaData -
Child elements Translation Zero or more.
ItemTrueText element
Chapter 5 - XML format 85
PRISMAdirect - All versions
ItemFalseText element
The ItemFalseText element contains the localised caption of a Boolean value for False-values.
The StringID and TooltipID attributes are for internal use only. If Export sets these attributes the
value must be left unchanged. Otherwise the attributes must be set to “0”.
The Translation child elements contain the localised value-caption.
Element ItemFalseText
Attributes StringID
TooltipID
Int
Int
Parent element BooleanMetaData -
Child elements Translation Zero or more.
ItemFalseText element
86 Chapter 5 - XML format
PRISMAdirect - All versions
ItemUndefinedText element
The ItemUndefinedText element contains the localised caption of a Boolean value for Undefined-
values.
The StringID and TooltipID attributes are for internal use in only. If Export sets these attributes the
value must be left unchanged. Otherwise the attributes must be set to “0”.
The Translation child elements contain the localised value-caption.
Element ItemUndefinedText
Attributes StringID
oltipID
Int
Int
Parent element ToBooleanMetaData -
Child elements Translation Zero or more.
ItemUndefinedText element
Chapter 5 - XML format 87
PRISMAdirect - All versions
EnumMetaData element
The EnumMetaData element is located in the xxxMetaData element. It contains the metadata for
an enumerated item.
The EnumValues element contains the possible enumerations. The EnumDefault element
contains the default value.
Element EnumMetaData
Attributes -
Parent element xxxMetaData -
Child elements EnumValues
EnumDefault
Exactly one..
Exactly one.
EnumMetaData element
88 Chapter 5 - XML format
PRISMAdirect - All versions
EnumValues element
The EnumValues element contains the possible enumerations for an enumerated item. The
possible enumerations are stored in an EnumValue element.
Element EnumValues
Attributes -
Parent element EnumMetaData -
Child elements EnumValue One or more.
EnumValues element
Chapter 5 - XML format 89
PRISMAdirect - All versions
EnumValue element
The EnumValue element contains a single enumeration for an enumerated item. It contains both
the language independent key of the EnumValue, as well as the localised caption of the value.
The EnumKey attribute contains the identifier of the value. This identifier must be unique within
the EnumValues element and is subjected to the rules. The maximum length of the EnumKey is
60 characters.
The StringID and TooltipID attributes are for internal use only. If Export sets these attributes the
value must be left unchanged. Otherwise the attributes must be set to “0”.
The Locked attribute specifies if this EnumValue can be removed in the Product & order editor. A
number of EnumValue elements must have the locked attribute set (=”1”). This are the
EnumValues (’options’) listed in [DEFAULTTICKET] where the item itself is locked. In all other
situations the Locked attribute must be set to “0”.
The DefaultIconIndex, HighlightIconIndex and LowAttentionIconIndex are optional attributes that
configure the icons used for an enumeration value on the user interface for different states.
However, for now this is not yet fully supported and DefaultIconIndex will be used in all cases.
The value of this attribute represents the index in the Icons list defined in another section of the
Definition. See Icons element for information on that section.
The Translation element contains the localised caption of the value.
Element EnumValue
Attributes EnumKey
StringID
TooltipID
Locked
DefaultIconIndex
HighlightIconIndex
LowAttentionIconIndex
String
Int
Int
Boolean
Int
Int
Int
Parent element EnumValues -
Child elements Translation Zero or more.
EnumValue element
90 Chapter 5 - XML format
PRISMAdirect - All versions
EnumDefault element
The EnumDefault element is used in the EnumMetaData and the xxxDefault elements. It contains
the default value for an enumerated item. More specific, it contains the EnumKey of the default
value.
The element has a single relevant attribute, Null, marking that there is no value at all for this item.
There is a distinction between Null and an empty (“”) or 0 value – which can still be considered
values.
Element EnumDefault Element value is the default
(string)
Attributes Null Boolean
Parent element EnumMetaData
xxxDefault
-
-
Child elements -
EnumDefault element
Chapter 5 - XML format 91
PRISMAdirect - All versions
DateMetaData element
The DateMetaData element contains the metadata for a Date item. The DateDefaultOffset child
element contains the default value.
Element DateMetaData
Attributes -
Parent element xxxMetaData -
Child elements DateDefaultOffset Exactly one.
DateMetaData element
92 Chapter 5 - XML format
PRISMAdirect - All versions
DateDefaultOffset element
The DateDefaultOffset element contains the default value for a date-item. The default value is an
offset value, and should be added to the current date when creating a job or order.
The element has a single relevant attribute, Null, marking that there is no value at all for this item.
There is a distinction between Null and an empty (“”) or 0 value – which can still be considered
values.
Element DateDefaultOffset Element value is the default
value offset (Int).
Attributes Null Boolean
Parent element DateMetaData
xxxDefault
-
-
Child elements -
DateDefaultOffset element
Chapter 5 - XML format 93
PRISMAdirect - All versions
ProductDefinitions element
This element stores a list of Product structures, one for each product defined in the system. There
are multiple Product types, thus, multiple element types can be nested:
• Stationery
• BoundDocument
• Flyer
• BusinessCard
• NewMiscellaneous
• Legacy
At least one Legacy and NewMiscellaneous type of products must be defined.
The element doesn’t have any specific attributes.
Element ProductDefinitions
Attributes -
Parent element Definition -
Child elements Stationery
BoundDocument
Flyer
BusinessCard
NewMiscellaneous
Legacy
Zero or more.
Zero or more.
Zero or more.
Zero or more.
One or more.
One or more.
ProductDefinitions element
94 Chapter 5 - XML format
PRISMAdirect - All versions
Stationery element
This element defines a product type used to order stationery items. Those are usually various
print-enabled objects like mugs, USB sticks, etc.
The ItemKey attribute stores the identifier of the product. This must be a unique indentifier in the
entire system of UUID type.
The IsDefault attribute is an optional Boolean flag not used for this product type so it shouldn’t be
set.
It has only one child element of type VisualizedProductDefinition.
Element Stationery
Attributes ItemKey
IsDefault
UUID
Boolean
Parent element ProductDefinitions -
Child elements VisualizedProductDefinition Exactly one.
Stationery element
Chapter 5 - XML format 95
PRISMAdirect - All versions
BoundDocument element
This element defines a product type that models a document with binding via its internal
restrictions.
It has the same attributes and structure as a Stationery element.
BoundDocument element
96 Chapter 5 - XML format
PRISMAdirect - All versions
Flyer element
Same as BoundDocument, but models a flyer-type product via its internal restrictions.
It has the same attributes and structure as a Stationery element.
Flyer element
Chapter 5 - XML format 97
PRISMAdirect - All versions
BusinessCard element
This element models a special type of product used to create business cards. It is basically a VDP
enabled product type and Product & order editor will present a customized interface especially for
the file input area.
Still, structurally speaking, it has the same attributes and structure as a Stationery element.
BusinessCard element
98 Chapter 5 - XML format
PRISMAdirect - All versions
NewMiscellaneous element
This type of element models a type of product also known as “Generic” as it has no internal
restrictions and allows configuring everything the way user really wants even if it wouldn’t make
sense.
The definition must contain at least one product of this type.
The IsDefault attribute is actually used for this type of product and it allows in Product & order
editor to define a fallback product of this type that will be used in case a product is deleted from
the system and there are existing Jobs based on that product. As internally each Job must be the
blueprint of a product that is referenced and used for value constraints, display, etc, the default
“Generic” will be the one inheriting such Jobs. Although the schema doesn’t specify this,
obviously, there must be one and only one default at a given time.
The ShowRemarksIn…Intent optional flags control if remarks will be shown in the WebShop for
the client user or in the Order processing workspace for the operator (PrintShop).
Element NewMiscellaneous
Attributes ItemKey
IsDefault
ShowRemarksInPrintShopIn‐
tent
ShowRemarksInWebShopIn‐
tent
UUID
Boolean
Boolean
Boolean
Parent element ProductDefinitions -
Child elements ProductDefinition
ReferencedViews
Exactly one.
Exactly one.
NewMiscellaneous element
Chapter 5 - XML format 99
PRISMAdirect - All versions
Legacy element
The Legacy type of product is a very special type used for backwards compatibility. It is also a
generic product but without visualization support (previewer, etc), only used to provide support
for legacy jobs. Exactly one of this type of product must exist in the system. From Product &
order editor it cannot be removed and other instances cannot be created.
The ShowRemarksIn…Intent and IsDefault optional flags are not used for this product type so it
shouldn’t be set.
Element Legacy
Attributes ItemKey
IsDefault
ShowRemarksInPrintShopIn‐
tent
ShowRemarksInWebShopIn‐
tent
UUID
Boolean
Boolean
Boolean
Parent element ProductDefinitions -
Child elements ProductDefinition
ReferencedViews
Exactly one.
Exactly one.
Legacy element
100 Chapter 5 - XML format
PRISMAdirect - All versions
VisualizedProductDefinition element
This element is just a wrapper element used for all product types except NewMiscellaneous and
Legacy and it is used to indicate that the product is of “visualized type” meaning that it supports
preview (via the Previewer component available for both the client and the operator). Although
not reflected in the structure, NewMiscellaneous also is a “visualized type”, Legacy type being
the only one left.
However, for compatibility reasons, the wrapper must be used as indicated.
It has no relevant attributes.
Element VisualizedProductDefinition
Attributes -
Parent element Stationery
BoundDocument
Flyer
BusinessCard
-
-
-
-
Child elements ProductDefinition
ReferencedViews
Exactly one.
Exactly one.
VisualizedProductDefinition element
Chapter 5 - XML format 101
PRISMAdirect - All versions
ProductDefinition element
This element defines some of the structural properties of the defined product tied to the
Definition. The rest of the properties (mainly visual) are defined in another file, not a part of
OpenInterface specification.
The ItemKey uniquely identifies the product type and it is redundant information also defined at
product level (Stationery, Flyer, etc.).
The ProductFileInputType is a value indicating what input file configuration is available for the
product and it can be one of the following very different types:
• Stationery – always set for Stationery – type products that have no such an area as it is not
about documents and files
• Normal – marks regular document-oriented products
• Static – for products that have a preconfigured attached file to be ordered and that can’t be
changed from anywhere outside the Product & order editor (product configuration)
• VDP – for VDP-enabled products
The VDPProductType applies for VDP-enabled products and it is an optional attribute with the
following possible values:
• LateBound – for manually chosen (by the user/operator) master documents
• EarlyBound – for preconfigured (Product & order editor) master documents
• None
The ItemDisplayRoot child element isn’t actually used but must have the same structure as a
DefinitionText element. All values can be set to 0 for Integers and “” (empty) for Strings.
The Renamings element contains caption customizations for item definitions contained by the
product views.
The Languages element is redundant and for now it should be set the same everywhere it
appears. See for more information.
Element ProductDefinition
Attributes ItemKey
ProductFileInputType
VDPProductType
UUID
Enumeration
Enumeration
Parent element VisualizedProductDefinition
NewMiscellaneous
Legacy
-
-
-
Child elements ItemDisplayRoot
Renamings
Languages
Exactly one.
Exactly one.
Exactly one.
ProductDefinition element
102 Chapter 5 - XML format
PRISMAdirect - All versions
Renamings element
This element is only a list container that holds customizations of item definition appearance
names (captions). It should be noted that currently any customization performed for an item
definition present in the Product is shared for all views so currently having the same
ItemDefinition named “X” in WebShop View and “Y” in PrintShop View is not supported.
Items that are present in any views of the product but are not present in this list will use the
default captions defined at ItemDefinition level.
This element has no specific attributes.
Element Renamings
Attributes -
Parent element ProductDefinition
OrderDefinition
-
-
Child elements Renaming Zero or more.
Renamings element
Chapter 5 - XML format 103
PRISMAdirect - All versions
Renaming element
This element defines a customization of an ItemDefinition name performed in the Product & order
editor. Item definitions have default captions defined for all system active languages but they can
be overridden at product level by defining such an entry.
The ItemDefinition attribute links the renaming to the respective item definition and this value
must be the same as the ItemKey of the referred ItemDefinition.
The element contains one or more ItemDisplayChild that define the new captions.
Element Renaming
Attributes ItemDefinition String
Parent element Renamings -
Child elements ItemDisplayChild Exactly one.
Renaming element
104 Chapter 5 - XML format
PRISMAdirect - All versions
ItemDisplayChild element
This element contains a list of Translation elements, one for each active Language in the
definition.
It has no specific attributes.
Element ItemDisplayChild
Attributes -
Parent element Renaming -
Child elements Translation Zero or more.
ItemDisplayChild element
Chapter 5 - XML format 105
PRISMAdirect - All versions
ReferencedViews element
This is also a list container element that allows the definition of links between the product and its
corresponding View elements. It has exactly 4 elements of type ReferencedView, one for each
type of view.
It has no specific attributes.
Element ReferencedViews
Attributes -
Parent element VisualizedProductDefinition
NewMiscellaneous
Legacy
OrderDefinition
-
-
-
-
Child elements ReferencedView Four of child element
ReferencedViews element
106 Chapter 5 - XML format
PRISMAdirect - All versions
Referencedview element
The content of this element is a View ItemKey that links the Product/Order definition to a defined
View.
It has no specific attributes.
Element ReferencedView The value is the View ItemKey
Attributes -
Parent element ReferencedViews -
Child elements -
Referencedview element
Chapter 5 - XML format 107
PRISMAdirect - All versions
OrderDefinition element
PRISMAdirect supports a single type of Order that can be globally configured in Product & order
editor. This element is fixed and defines the associated properties.
The ItemKey is an UUID that can be randomly generated and must be then used in related View
ItemKey creation.
The ItemDisplayRoot child element isn’t actually used but must have the same structure as a
DefinitionText element. All values can be set to 0 for Integers and “” (empty) for Strings.
The Renamings element contains caption customizations for order item definitions contained by
the product views.
The Languages element is redundant and for now it should be set the same everywhere it
appears.
The ReferencedViews, as for a ProductDefinition, make the link to order Views.
Element ProductDefinition
Attributes ItemKey
ProductFileInputType
VDPProductType
UUID
Enumeration
Enumeration
Parent element VisualizedProductDefinition
NewMiscellaneous
Legacy
-
-.
-
Child elements ItemDisplayRoot
Renamings
Languages
ReferencedViews
Exactly one.
Exactly one.
Exactly one.
Exactly one.
OrderDefinition element
108 Chapter 5 - XML format
PRISMAdirect - All versions
Icons element
This element store the list icons optionally used by Enum-type ItemDefinitions. It is simply a
container list of IconReference elements.
It has no relevant attributes.
Element Icons
Attributes -
Parent element Definition -
Child elements IconReference Zero or more.
Icons element
Chapter 5 - XML format 109
PRISMAdirect - All versions
IconReference element
This element is a wrapper of an Icon element that attaches the IconIndex attribute.
The IconIndex attribute is a positive Integer uniquely identifying an Icon element. This value must
be used in references to this icon.
Element IconReference
Attributes IconIndex Integer
Parent element Icons -
Child elements Icon Exactly one.
IconReference element
110 Chapter 5 - XML format
PRISMAdirect - All versions
Icon element
This element stores the actual information about the icon.
The URL and Image child elements are used to identify or store the actual image. There are two
cases:
• Images embedded in the default definition:
• 1. URL is set to a value that identifies the resource and looks like: embeddedimage://
entityassembly/embeddedresources/images/sea24_cover_front.png
2. o Image is set to Null and has no content
• - Images uploaded by the product administrator:
• 1. o URL is set to: embeddedimage://definition/
2. o Image contains the Base64 encoding of the image itself.
Both URL and Image child elements have a Null Boolean attribute to mark if the URL or Image
content is actually null. There is a distinction between Null and an empty (“”) or 0 value – which
can still be considered values.
Element Icon
Attributes -
Parent element IconReference -
Child elements URL
Icon
Exactly one.
Exactly one.
Icon element
Chapter 5 - XML format 111
PRISMAdirect - All versions
LookupMetadata element
This is a wrapper element for the ODBCSettings element that holds the settings for a lookup item
definition.
It has no specific attributes.
Element LookupMetadata
Attributes -
Parent element xxxMetaData -
Child elements ODBCSettings Exactly one.
LookupMetadata element
112 Chapter 5 - XML format
PRISMAdirect - All versions
ODBCSettings element
This element stores the actual retrieval settings for a lookup item definition.
The ConnectionDataSource attribute holds a string value containing the ODBC connection name.
The ConnectionUsername and ConnectionPassword store the credentials used to access the data
store.
The QueryString attribute stores as a string value the query to use to retrieve the items from the
data source.
Element ODBCSettings
Attributes ConnectionDataSource
ConnectionUsername
ConnectionPassword
QueryString
String
String
String
String
Parent element LookupMetadata -
Child elements -
ODBCSettings element
Chapter 5 - XML format 113
PRISMAdirect - All versions
Rules
This paragraph contains a set of rules and concepts that apply to the XML Schema. This
paragraph is referenced too from the element descriptions.
xxxKey
ItemKey, AttachmentKey, ViewKey and EnumKey attributes are used as identifiers. The value of
these attributes is subjected to some rules:
• Valid characters are a-z, A-Z, 0-9 and ‘_’.
• The Key cannot start with ‘_’.
Rules
114 Chapter 5 - XML format
PRISMAdirect - All versions
LanguageKey
A LanguageKey attribute (enumeration) specifies a language.
The possible values are:
• en-us English (US)
• en-gb English (UK)
• nl-nl Dutch
• de-de German
• fr-fr French
• da-dk Danish
• it-it Italian
• nb-no Norwegian
• pt-pt Portuguese
• es-es Spanish
• sv-se Swedish
• fi-fi Finnish
• pl-pl Polish
• ch-cz Czech
• hu-hu Hungarian
• zh-cn Simplified Chinese
• ru-ru Russian
• ja-jp Japanese
LanguageKey
Chapter 5 - XML format 115
PRISMAdirect - All versions
UUID & GUID
A UUID is the same as a GUID. GUID stands for Global Unique Identifier. UUID for Universal
Unique Identifier.
These identifiers are based on the MAC21-address of the network card of the machine they are
generated on. Additionally, a sequence number is included. This makes a UUID or GUID a
garantied unique number.
UUIDs and GUIDs can be generated with GuidGen.exe. This tool comes with the MS Platform
SDK and MS Visual Studio 6.
An example GUID is: “A959FAA1-CC73-11d4-9B62-0008C752E41D”. Valid characters are 0-9 and
A-F. Note that the ‘-‘ characters must be placed at the positions shown in the example above.
UUID & GUID
116 Chapter 5 - XML format
PRISMAdirect - All versions
Implementation Issues
Encoding Only the standard encodings supported by MS XML are supported. In normal operation
the XML files must be UTF-16 encoded.
Adding elements The complete schema is closed. This means that no items can be present
except for the ones specified in the schema.
Implementation Issues
Chapter 5 - XML format 117
PRISMAdirect - All versions
Implementation Issues
118 Chapter 5 - XML format
PRISMAdirect - All versions
Chapter 6
JDF mapping in PRISMAdirect
JDF / JMF interface
The JDF/JMF interface enables job submission to PRISMAdirect and provides job status feedback
for JDF-enabled client applications. It does this by enabling one or more configurable JMF
endpoints which listen for and react to JMF messages received over HTTP from the JDF Clients.
Job submission
The JDF Clients can submit a job to PRISMAdirect by sending a specific JMF message and
specifying the JDF ticket and the Data files to be attached. The following scenarios are supported
for submission of a new job:
1. JMF message with link to JDF ticket
The JDF Client sends a JMF message that specifies a URL (HTTP, FILE) where the JDF ticket
can be found. The JDF ticket must be available at the specified URL. The JDF ticket will
contain URL(s) that refers to the Data Files that must be attached to the job. The Data Files
must be available at the specified URL(s). The JMF Server must handle the download of the
JDF ticket and the Data Files from the specified URL(s).
2. MIME with link(s) to Data Files
The JDF Client sends a MIME multipart message that contains the JMF message and the JDF
ticket. The JMF message must contain a CID URL pointing to the body part of the MIME
message that contains the JDF ticket. The JDF ticket contains URL(s) referencing the Data
Files. The Data Files must be available at the location specified by the URL(s). The JMF Server
must handle the download of the data files from the specified URL(s).
3. MIME that includes the Data Files
The JDF Client sends a MIME multipart message containing the JMF message together with
the JDF ticket and the Data Files. The JMF message contains a CID URL pointing to the part of
the message that specifies the JDF ticket. The JDF ticket must contain one or more CID URL(s)
that point to the part(s) of the MIME message that contain the Data File(s).
For more details and examples related to the described scenarios, see SubmitQueueEntry
(section 5.11.10) and JDF Packaging (section 8.3) in the JDF Specification 1.3.
The JMF Server must obtain the JDF ticket and the attached data files which will be used to
create a new job in PRISMAdirect. Because internally PRISMAdirect works with a PD ticket, the
JDF ticket must be “converted” and the values from it must be transferred to a PD ticket. For this
the system will use a mapping table (JDF-to-PD) which specifies “what values to take from the
JDF ticket and where to put them in the PD ticket”.
PRISMAdirect will also create an Order into the system as jobs in PRISMAdirect must belong to
Orders. The ItemValues in the orderticket will also be mapped based on the same mapping table
Status feedback
When required by the JDF Client, the system will expose the status of the jobs. The values for the
status are specific to PRISMAdirect. The system will offer the possibility to customize these
values to Client specific job statuses. For this again a mapping table (PD-to-JDF) will be used. The
table will map each value of the status attributes in PD to another value.
The interface can be configured from the PRISMAdirect Web Configuration workspace where the
product administrator can add, remove and configure the JMF Endpoints.
Each JMF endpoint configured in the system must have one JDF-to-PD mapping table and one
PD-to-JDF mapping table for job status assigned to it. The mapping tables will be XML files
stored on disk. At installation, the system copies the default mapping files in a special location in
the asset folder on the Central Server machine: “$(OCE_STORAGE)\Asset\JMF Endpoints”.
JDF / JMF interface
120 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
When the product administrator adds a new JMF endpoint from the MMC he can choose to use
the default mappings or assign custom mappings for the JDF-to-PD mapping and/or for the PD-
to-JDF mapping. To use custom mappings, the product administrator can select another file on
disk. The selected files must have the .XML extension and it must be validated against a
predefined xml schema.
At any moment in the lifecycle of a JMF endpoint the product administrator can reconfigure it
and also change or assign other mapping files.
JDF / JMF interface
Chapter 6 - JDF mapping in PRISMAdirect 121
PRISMAdirect - All versions
General concepts and mechanisms
In the context of the JDF/JMF interface to PRISMAdirect (PD) two types of mapping tables are
used, one to map the JDF ticket to the PD ticket and one to map the PD job status to a customer
specific job status. This document is meant to be a specification of the two mapping tables. It
describes the syntax of the mapping files and also the customization possibilities.
The document should serve system engineers and C&SS as support for understanding the
structure of the mapping tables and for adapting them to the needs of the customer if necessary.
The JDF/JMF interface enables job submission to PRISMAdirect and provides job status feedback
for JDF-enabled client applications. It does this by enabling one or more configurable JMF
endpoints which listen for and react to messages received over HTTP from the JDF Clients.
•Job submission
The JDF Clients can submit a job to PRISMAdirect by sending a JDF ticket and the Data files
attached. Because internally PRISMAdirect works with a proprietary ticket, the JDF ticket must
be "converted" and the values from it must be transferred to a PD ticket. For this the system
will use a mapping table (JDF-to-PD) which specifies "what values to take from the JDF ticket
and where to put them in the PD ticket".
•Status feedback
When required by the JDF Client, the system will expose the status of the jobs. The values for
the status are specific to PRISMAdirect. The system will offer the possibility to customize these
values to Client specific job statuses. For this again a mapping table (PD-to-JDF) will be used.
The table will map each value of the status attributes in PD to another value.
The interface can be configured from the administration interface where the product
administrator can add, remove and configure the JMF Endpoints.
Each JMF endpoint configured in the system will have one JDF-to-PD mapping table and one PD-
to-JDF mapping table assigned to it. The mapping tables will be XML files stored separately for
each endpoint. After installation the system provides two default mapping tables.
When adding a new JMF endpoint, the product administrator can associate the default mapping
tables with it or choose other mapping tables. At any moment after this, the product
administrator can change the assignment to another mapping table or he can modify the existing
mapping table directly by editing the XML file.
This offers freedom to the customers to adapt the functionality of the JDF/JMF interface so that it
fits to their own JDF structure and also to their own job status values.
To each JMF endpoint, the product administrator can assign a different couple of mapping tables.
So, on the same PRISMAdirect installation, different JDF Client applications can interact with the
system based on different mappings JDF-to-PD and PD-to-JDF.
General concepts and mechanisms
122 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
Mapping file deployment
When the product administrator adds a new JMF endpoint from the administration interface he
must assign one mapping file for the JDF-to-PD mapping and one for the PD-to-JDF mapping.
The system will create a folder on disk especially for the new endpoint and will copy the mapping
files selected by the product administrator to that folder. The selected files must have the .XML
extension. The sub-folders for each endpoint will be created in the asset folder on the Central
Server machine of the PRISMAdirect installation: “$(OCE_STORAGE)\Asset\JmfEndpoints”.
If the administrator does not select specific mapping files, the system will copy the default
mapping files to the same folder.
At any moment in the lifecycle of a JMF endpoint the product administrator can reconfigure it
and assign other mapping files.
Mapping file deployment
Chapter 6 - JDF mapping in PRISMAdirect 123
PRISMAdirect - All versions
JDF to PRISMAdirect: mapping for job submission
File structure
The mapping file is used for extracting the job characteristics from the JDF ticket and creating the
PRISMAdirect ticket with it. The structure of the file is quite simple; it consists in a list of mapping
nodes. For each ticket item in the default PRISMAdirect ticket there is a mapping node Sample
from the default JDF-to-PD mapping file:
<? xml version = "1.0" encoding="utf-8"?>
<jc:Mappings SchemaVersion="1.0" AttachmentPath="/jdf:JDF/jdf:ResourcePool/
jdf:FileSpec/@URL" xsi:schemaLocation="oce-com-pa-jc GrayBoxMappings.xsd"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:jc="oce-com-pa-
jc">
<jc:TextMapping Prefix="" Name="FirstName" Optional="false" Separator="">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/…/@FirstName"/>
</jc:TextMapping>
...
<jc:NumberMapping Name="Copies" Optional="false">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourceLinkPool/…/@Amount"/>
</jc:NumberMapping>
...
<jc:EnumMapping Name="DocumentMediaColor" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool…/@MediaColorName"/>
<jc:EnumValueMapping JdfValue="White" AccessEnumValue="White"/>
<jc:EnumValueMapping JdfValue="Blue" AccessEnumValue="Blue"/>
<jc:EnumValueMapping JdfValue="Red" AccessEnumValue="Red"/>
<jc:EnumValueMapping JdfValue="Green" AccessEnumValue="Green"/>
<jc:EnumValueMapping JdfValue="Yellow" AccessEnumValue="Yellow"/>
<jc:EnumValueMapping JdfValue="Gray" AccessEnumValue="Gray"/>
<jc:EnumValueMapping JdfValue="Orange" AccessEnumValue="Orange"/>
<jc:EnumValueMapping JdfValue="Pink" AccessEnumValue="Pink"/>
<jc:EnumValueMapping JdfValue="Black" AccessEnumValue="Black"/>
</jc:EnumMapping>
...
<jc:ConditionalEnumMapping Name="CoverPlace" Optional="false">
<jc:ConditionalEnumValue AccessEnumValue="None">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/…/@FrontCoatings"
ExpectedValue="None"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/…/@BackCoatings"
ExpectedValue="None"/>
JDF to PRISMAdirect: mapping for job submission
124 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
</jc:ConditionalEnumV
<jc:ConditionalEnumValue AccessEnumValue="Front">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/…/@FrontCoatings"
ExpectedValue="Coated"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/…/@BackCoatings"
ExpectedValue="None"/>
</jc:ConditionalEnumValue >
<jc:ConditionalEnumValue AccessEnumValue="Back">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/…/@FrontCoatings"
ExpectedValue="None"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/…/@BackCoatings"
ExpectedValue="Coated"/>
</jc:ConditionalEnumValue>
</jc:ConditionalEnumMapping>
...
</jc:Mappings>
Depending on the type of the ticket item in PRISMAdirect there are several types of mapping
nodes:
•NumberMapping
•DateMapping
•TextMapping
•EnumMapping
•ConditionalEnumMappin
•BooleanMapping
•TimeSpanMapping
•MediaMapping (MediaEnumMapping, MediaConditionalEnumMapping)
Common fields
There are some common fields for all the mapping nodes independent of the type. Let’s take a
random example of a mapping node:
<jc:TextMapping Prefix="" Name="FirstName" Optional="false" Separator="">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/…/@FirstName"/>
</jc:TextMapping>
XPath="/jdf:JDF/…/@FirstName" – This is an essential attribute in a mapping node. It
specifies the location in the JDF structure where the value to be set in the PRISMAdirect ticket will
be taken from. It uses an XPath expression to point to the desired location in the xml structure of
the JDF.
It is not in the same place in each type of node, but every mapping node must contain at least
one XPath expression.
Name="FirstName" – The attribute specifies the name of the ticket item in PRISMAdirect whose
value will be changed with the one obtained from the JDF.
Optional="[true/false]" – The attribute is related to the interpretation of the mapping node.
It specifies if applying the mapping is mandatory or not.
File structure
Chapter 6 - JDF mapping in PRISMAdirect 125
PRISMAdirect - All versions
NumberMapping
<jc:NumberMapping Name="Copies" Optional="false">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourceLinkPool/…/@Amount"/>
</jc:NumberMapping>
The NumberMapping node is a simple node. It contains only the common attributes defined
above.
DateMapping
<jc:DateMapping Name="Date" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/…/@LastEnd"/>
</jc:DateMapping>
The DateMapping node is similar to the number mapping. It contains only the common attributes
defined above.
TextMapping
<jc:TextMapping Prefix="Address:" Name="Location" Optional="false"
Separator=",">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/…/jdf:Address/@Street"/>
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/…/jdf:Address/@City"/>
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/…/jdf:Address/@PostalCode"/>
</jc:TextMapping>
The TextMapping can contain more than one XPath expression.
Prefix="Address:" -
The attribute specifies a prefix to be placed in the PRISMAdirect ticket item in front of the value
retrieved from JDF.
Separator="," – The attribute specifies a character or a string to be used as separator between
multiple values taken from the JDF.
EnumMapping
<jc:EnumMapping Name="DocumentMediaColor" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/…/@MediaColorName"/>
<jc:EnumValueMapping JdfValue="White" AccessEnumValue="White"/>
<jc:EnumValueMapping JdfValue="Blue" AccessEnumValue="Blue"/>
<jc:EnumValueMapping JdfValue="Red" AccessEnumValue="Red"/>
<jc:EnumValueMapping JdfValue="Green" AccessEnumValue="Green"/>
<jc:EnumValueMapping JdfValue="Yellow"AccessEnumValue="Yellow"/>
<jc:EnumValueMapping JdfValue="Gray"AccessEnumValue="Gray"/>
<jc:EnumValueMapping JdfValue="Orange"AccessEnumValue="Orange"/>
<jc:EnumValueMapping JdfValue="Pink"AccessEnumValue="Pink"/>
<jc:EnumValueMapping JdfValue="Black"AccessEnumValue="Black"/>
File structure
126 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
</jc:EnumMapping>
This mapping type is usually used for the PRISMAdirect ticket items of type choice which have a
list of options defined.
Aside from the common attributes the EnumMapping contains a list of EnumValueMapping
nodes each for one of the options of the ticket item in the PRISMAdirect ticket.
JdfValue="White" - The attribute refers to the value found in the JDF ticket at the specified
XPath.
AccessEnumValue="White" - The attribute represents the corresponding option in the ticket
item in PRISMAdirect.
ConditionalEnumMapping
<jc:ConditionalEnumMapping Name="CoverPlace"Optional="false">
<jc:ConditionalEnumValue AccessEnumValue="None">
<jc:StringCondition JdfField="/jdf:JDF/…/jdf:Media/
@FrontCoatings"ExpectedValue="None"/>
<jc:StringCondition JdfField="/jdf:JDF/…/jdf:Media/
@BackCoatings"ExpectedValue="None"/>
</jc:ConditionalEnu
<jc:ConditionalEnumValue AccessEnumValue="Front">
<jc:StringCondition JdfField="/jdf:JDF/…/jdf:Media/
@FrontCoatings"ExpectedValue="Coated"/>
<jc:StringCondition JdfField="/jdf:JDF/…/jdf:Media/
@BackCoatings"ExpectedValue="None"/>
</jc:ConditionalEn
<jc:ConditionalEnumValue AccessEnumValue="Back"
<jc:StringCondition JdfField="/jdf:JDF/…/jdf:Media/
@FrontCoatings"ExpectedValue="None"/>
<jc:StringCondition JdfField="/jdf:JDF/…/jdf:Media/
@BackCoatings"ExpectedValue="Coated"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="FrontAndBack">
<jc:StringConditionJdfField="/jdf:JDF/…/jdf:Media/
@FrontCoatings"ExpectedValue="Coated"/>
<jc:StringCondition JdfField="/jdf:JDF/…/jdf:Media/
@BackCoatings"ExpectedValue="Coated"/>
</jc:ConditionalEnumValue>
</jc:ConditionalEnumMapping>
This mapping type is usually used for the PRISMAdirect ticket items of type choice which have a
list of options defined.
The mapping node contains a list of ConditionalEnumValue nodes with an attribute:
File structure
Chapter 6 - JDF mapping in PRISMAdirect 127
PRISMAdirect - All versions
AccessEnumValue="None" – The attribute refers to one of the options of the choice ticket item in
the PRISMAdirect ticket.
It is recommended that the mapping contains one ConditionalEnumValue node for each option in
the choice ticket item specified in the Name. But this is not mandatory.
Each ConditionalEnumValue element contains one or more conditions represented by
StringCondition or NumericJdfFieldCondition or NumericComparisonCondition
nodes (see Conditions below).
BooleanMapping
<jc:BooleanMapping Name="Collate" Optional="true" EvaluateTo="false">
<jc:StringCondition JdfField="/jdf:JDF/…/@Collate"ExpectedValue="None"/>
<jc:StringCondition JdfField="/jdf:JDF/
@Types"ContainedValue="DigitalPrinting"/>
</jc:BooleanMapping>
This mapping type is used for PRISMAdirect ticket items that have a true/false value. The node
can contain one or more condition nodes (see Conditions below).
Additionally it contains a specific attribute:
EvaluateTo="true/false" – The attribute specifies the value of the ticket item as a result of
the evaluation of the contained condition nodes.
TimeSpanMapping
<jc:TimeSpanMapping Name="FinishingTime" Optional="true">
<jc:TimeSpan Start="/jdf:JDF/jdf:AuditPool/…/@Start" End="/jdf:JDF/
jdf:AuditPool/…/@End"/>
</jc:TimeSpanMapping>
This type of mapping is used for ticket items that hold a numeric value representing a time span.
It contains a TimeSpan node with two attributes:
Start="/jdf:JDF/jdf:AuditPool/…/@Start" – The attribute contains an XPath that should
point to a date value in the JDF ticket. This is the start date for the time span.
End="/jdf:JDF/jdf:AuditPool/…/@End" - The attribute contains an XPath that should point
to a date value in the JDF ticket. This is the end date for the time span.
MediaMapping
Two types of nodes are used for mapping the Media attributes. Both are specific nodes and
cannot be used for ticket items other than the ones related to Media: MediaEnumMapping and
MediaConditionalEnumMapping.
Examples:
<jc:MediaEnumMapping Name="CoverMediaColor" Type="Cover" MediaPartitioner="/
jdf:JDF/jdf:ResourcePool/jdf:DigitalPrintingParams" Optional="true">
<jc:JdfField XPath="/jdf:JDF/…/jdf:Media[@ID='${MediaID}']/@MediaColorName"/>
<jc:EnumValueMapping JdfValue="White" AccessEnumValue="White"/>
<jc:EnumValueMapping JdfValue="Blue" AccessEnumValue="Blue"/>
File structure
128 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
...
<jc:EnumValueMapping JdfValue="Black" AccessEnumValue="Black"/>
</jc:MediaEnumMapping>
<jc:MediaConditionalEnumMapping Name="DocumentMediaSize" Type="Content"
MediaPartitioner="/jdf:JDF/jdf:ResourcePool/jdf:DigitalPrintingParams"
Optional="true">
<jc:ConditionalEnumValue AccessEnumValue="A0">
<jc:NumericCondition ExpectedValue="2383.9344"JdfField="/jdf:JDF/…/
jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="3370.392"JdfField="/jdf:JDF/…/
jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A0">
<jc:NumericCondition ExpectedValue="2383.9344"JdfField="/jdf:JDF/…/
jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="3370.392"JdfField="/jdf:JDF/…/
jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
...
</jc:MediaConditionalEnumMapping>
Both mapping structures build on existing mapping types with some additional attributes:
Type="Cover/Content" – A JDF ticket can defined multiple Media nodes, some to be used for
the Content of the document to be printed, some for the Cover. The Type attribute specifies
if the Media referred by the JdfField node should be the Media used for Cover or Content.
MediaPartitioner="/jdf:JDF/jdf:ResourcePool/jdf:DigitalPrintingParams" - A
document can be printed on multiple types of Media. This attribute points to the location in the
JDF ticket that specifies which media is used for which parts of the document.
The MediaEnumMapping builds on top of the EnumMapping type and has the same structure
(see EnumMapping above).
The MediaConditionalEnumMapping builds on top of the ConditionalEnumMapping type and
has the same structure (see ConditionalEnumMapping above).
Conditions
Additionally every type of mapping node can contain one or more condition nodes. The
conditions can be: StringCondition, NumericJdfFieldCondition or NumericComparisonCondition.
StringCondition and NumericJdfFieldCondition both have a similar structure:
JdfField="/jdf:JDF/…/jdf:Media/@FrontCoatings" - The attribute has the same meaning
as the one defined in the Common Fields section. It refers to a location in the JDF ticket where a
value should be taken from.
ExpectedValue="None" - The attribute refers to the expected value to be found in the JDF at
the XPath specified by the JdfField attribute.
File structure
Chapter 6 - JDF mapping in PRISMAdirect 129
PRISMAdirect - All versions
ContainedValue="Front" – The attribute can be used instead of the ExpectedValue attribute.
In this case it refers to the value that should be contained in the JDF at the XPath specified by the
JdfField attribute.
Both StringCondition and NumericJdfFieldCondition nodes can be used without an
ExpectedValue or a ContainedValue attribute.
<jc:NumericComparisonCondition Value_1="/jdf:JDF/…/@Dimension[0]"Value_2="/
jdf:JDF/…/@Dimension[1]" Comparison="LessThan"/>
The condition defines two values to be compared and the expected relation between them.
Value_1="/jdf:JDF/…/@Dimension[0]"
Value_2="/jdf:JDF/…/@Dimension[1]" – The attributes define the two values that will be
compared. The XPath must point to a numeric value in the JDF ticket.
Comparison="LessThan" - The attribute specifies the expected relation between the two values.
The possible values for this attribute are limited to: LessThan, GreaterThan and Equal.
File structure
130 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
Interpretation logic
As mentioned before, each JMF endpoint defined in the context of the JDF Server will have a
JDF-to-PD mapping file attached. At startup of the JDF server this mapping file will be loaded
from disk and kept in-memory as long as the JDF server is up and running.
When the JDF client submits a new JDF ticket (+ Data files) to the JDF server a specified mapper
module will use the mapping table loaded at startup to transfer values from the JDF ticket into a
default PD ticket. If all the mappings are applied correctly, the outcome should be a PD ticket
containing all the ticket specifications, as if the customer had filled-in the PD ticket directly.
General rules for the mapping process:
• The module attempts to apply each mapping node in the table.
• If the mapping is applied successfully it moves on to the next node
• If applying the mapping fails and the mapping node is Optional="false" the mapping process
stops and the entire submission attempt is considered failed.
• If applying the mapping fails and the mapping node is Optional="true" it is skipped and the
process continues with the next mapping node in the list.
• If all the mappings or at least the ones that have Optional="false" are applied correctly, the
process is considered successful and the outcome should be a customized PD ticket.
Rules for applying the different types of mapping nodes:
NumberMapping
<jc:NumberMapping Name="Copies" Optional="false">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourceLinkPool/…/@Amount"/>
</jc:NumberMapping>
The system retrieves the value at the specified XPath in the JDF ticket xml structure. In the PD
ticket the Copies item gets the retrieved value.
Limitation: the retrieved value is applied in the PD ticket only if it is valid in the context of PD. For
example the Copies ticket item being a number item can never be set with “John Doe” but only
with a numeric value. Also the item can have constraints on the minimum and maximum
acceptable value so again, if the value from the JDF is outside of these bounds, it cannot be set in
the PD ticket.
DateMapping
<jc:DateMapping Name="Date" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/…/@LastEnd"/>
</jc:DateMapping>
The system retrieves the value specified by the XPath. The system then tries to convert the string
obtained from the JDF ticket into a valid Date object. In the PD ticket the Date item will get the
serialized Date object as value.
TextMapping
<jc:TextMapping Prefix="" Name="FirstName" Optional="false" Separator="">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/…/jdf:Person/@FirstName"/>
</jc:TextMapping>
The system retrieves the value at the specified XPath in the JDF ticket xml structure. In the PD
ticket the FirstName item gets the retrieved value.
Interpretation logic
Chapter 6 - JDF mapping in PRISMAdirect 131
PRISMAdirect - All versions
Limitation: the retrieved value is applied in the PD ticket only if it is valid in the context of PD.
For example the FirstName ticket item being a text item can have a limited length for the text. So
if the text is longer than the limitation the value cannot be set.
EnumMapping
<jc:EnumMapping Name="DocumentMediaWeight" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/…/@Weight"/>
<jc:EnumValueMapping JdfValue="65"AccessEnumValue="65032gram047m2"/>
<jc:EnumValueMapping JdfValue="80"AccessEnumValue="80032gram047m2"/>
<jc:EnumValueMapping JdfValue="90"AccessEnumValue="90032gram047m2"/>
<jc:EnumValueMapping JdfValue="100"AccessEnumValue="100032gram047m2"/>
<jc:EnumValueMapping JdfValue="120"AccessEnumValue="120032gram047m2"/>
<jc:EnumValueMapping JdfValue="160"AccessEnumValue="160032gram047m2"/>
<jc:EnumValueMapping JdfValue="170"AccessEnumValue="170032gram047m2"/>
</jc:EnumMapping>
The system retrieves the value at the specified XPath in the JDF ticket xml structure. Next the
system parses all the EnumValueMapping nodes trying to find the one with the JdfValue equal to
the value taken from the JDF ticket.
If the node is found, the value of the AccessEnumValue attribute is set in the PD ticket for the
ticket item specified by Name.
Example:
The value retrieved from the JDF ticket is ="100". The system will set the value of the
DocumentMediaWeight ticket item to "100032gram047m2".
Limitation: the retrieved value is applied in the PD ticket only if it is valid in the context of PD. In
this case the list of options defined for the choice item in PD must include the one retrieved from
the JDF.
ConditionalEnumMapping
<jc:ConditionalEnumMapping Name="BindingMethod" Optional="true">
<jc:ConditionalEnumValue AccessEnumValue="SaddleStitch">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:StitchingParams/
@StitchType"ExpectedValue="Saddle"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:StitchingParams/
@NumberOfStitches" ExpectedValue="2"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Staples_1">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:StitchingParams/
@NumberOfStitches" ExpectedValue="1"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Staples_2">
Interpretation logic
132 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:StitchingParams/
@NumberOfStitches" ExpectedValue="2"/>
</jc:ConditionalEnumValue>
....
</jc:ConditionalEnumMapping
The system parses the ConditionalEnumValue nodes. For each node it evaluates the
conditions in the NumericJdfFieldCondition or StringCondition or NumericComparisonCondition
sub-nodes (see Condition evaluation below). If all the conditions in one ConditionalEnumValue
node are met, the parsing stops and the system attempts to set the value of the PD ticket item
with the value of the corresponding AccessEnumValue attribute.
BooleanMapping
<jc:BooleanMapping Name="Collate" Optional="true" EvaluateTo="false">
<jc:StringCondition JdfField="/jdf:JDF/…/@Collate"ExpectedValue="None"/>
<jc:StringCondition JdfField="/jdf:JDF/
@Types"ContainedValue="DigitalPrinting"/>
</jc:BooleanMapping>
The system evaluates all the contained condition nodes (see Conditions evaluation). If all the
conditions are met, the EvaluateTo attribute specifies what value to give to the ticket item.
In the case of the above mapping node, if both string conditions are met, the Collate ticket item
will get the value “false”, otherwise the ticket item gets the value “”.
TimeSpanMapping
<jc:TimeSpanMapping Name="FinishingTime" Optional="true">
<jc:TimeSpan Start="/jdf:JDF/jdf:AuditPool/…/@Start"End="/jdf:JDF/
jdf:AuditPool/…/@End"/>
</jc:TimeSpanMapping>
The Start and the End attributes should refer to values representing a point in time – a date and a
time of day. The system will load both values and it will compute the difference in time between
the two. The result will be a span of time which will be set as the value of the PD ticket item (in
this case FinishingTime).
MediaMapping (MediaEnumMapping, MediaConditionalEnumMapping)
The JDF ticket can contain multiple Media definitions, for all the types of Media used to print the
document.
The system first tries to identify the Media used for “Cover” or “Content” as specified by the
Type attribute. For this the location specified by the MediaPartitioner node is used to analyze
which pages use which Media. As a basic rule, the Media used for the page number “0” or “-1”
or the page with the highest number (the last page) will be identified as the Media for “Cover”.
After the Media has been identified, the ID of the Media is used to retrieve the needed attributes
from the specified location in the JDF.
Example:
MediaEnumMapping is a specialized version of the EnumMapping type.
Interpretation logic
Chapter 6 - JDF mapping in PRISMAdirect 133
PRISMAdirect - All versions
<jc:MediaEnumMapping Name="CoverMediaColor" Type="Cover"MediaPartitioner="/
jdf:JDF/jdf:ResourcePool/jdf:DigitalPrintingParams"Optional="true">
<jc:JdfField XPath="/jdf:JDF/…/jdf:Media[@ID='${MediaID}']/@MediaColorName"/>
<jc:EnumValueMapping JdfValue="White" AccessEnumValue="White"/>
<jc:EnumValueMapping JdfValue="Blue" AccessEnumValue="Blue"/>
...
<jc:EnumValueMapping JdfValue="Black" AccessEnumValue="Black"/>
</jc:MediaEnumMapping>
The system tries to identify the Media to be used for Cover (Type="Cover") by looking in the
partitions node (MediaPartitioner="/jdf:JDF/…/jdf:DigitalPrintingParams").
Next the XPath in the JdfField node is updated with the ID of the chosen Media ([@ID='$
{MediaID}']).
Finally, the system proceeds to apply the mapping as a regular EnumMapping type.
Conditions evaluation
Rules for evaluating the conditions:
1. String condition
• Evaluating the condition is done by comparing the value retrieved from the JDF ticket at th
e XPath specified by JdfField to the ExpectedValue attribute.
• If the node has a ContainedValue attribute instead, the condition is met if the value of the
attribute is contained in the value retrieved from the JDF ticket by JdfField.
• If the node does not contain an ExpectedValue or a ContainedValue attribute then the
condition is met if the XPath specified by JdfField exists in the JDF ticket.
Example:
<jc:StringConditionJdfField="/jdf:JDF/jdf:ResourcePool/jdf:GluingParams/
@Status"ExpectedValue="Available"/>
For the StringCondition:
IF The value in the JDF ticket at
"/jdf:JDF/jdf:ResourcePool/jdf:GluingParams/@Status" is “Available”
THEN The condition is met.
ELSE The condition is not met.
2. Numeric condition
<jc:NumericCondition ExpectedValue="2383.9344"JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
• The value retrieved from the JDF at the XPath specified by the JdfField attribute must be
numeric. The numeric value is then compared to the ExpectedValue attribute. The
condition is met if the values are equal with an accepted variation of 1.
3. Numeric comparison condition
<jc:NumericComparisonCondition Value_1="/jdf:JDF/jdf:ResourcePool/
jdf:Media/@Dimension[0]" Value_2="/jdf:JDF/jdf:ResourcePool/jdf:Media/
@Dimension[1]" Comparison="LessThan"/>
• The system retrieves the numeric value indicated by the Value_1 and Value_2 attributes.
• The condition is met if the numeric relation between the two values corresponds to the one
specified by the Comparison attribute.
For the example above the evaluation can be read as:
IF Value_1 LessThan Value_2
THEN Condition is met
ELSE Condition is not met.
Interpretation logic
134 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
Mapping file customization
The system offers a default mapping table that covers the relevant ticket items in the default
ticket definition. The default mapping table contains one mapping node for one PD ticket item.
This assures that in the PD job ticket all the relevant ticket items can be set by the submitter
indirectly, via the JDF ticket.
The customer can add new ticket items to the ticket definition by using the Job Ticket Editor. By
default these items will not be impacted since they are not targeted by the mapping file. There
are two ways to cover these new fields.
Generic extension mapping
JDF permits adding of generic key-value pairs in a specific structure in the JDF ticket:
<JDF ID="NodeIDRoot" Type="ProcessGroup" Types="...
DigitalPrinting ..."xmlns="http://www.CIP4.org/JDFSchema_1_1"
Status="Waiting"xmlns:oce="http://www.oce.com/JDF_Extension/1_00" >
<oce:KeyValuePair Key="Key1">Value 1</oce:KeyValuePair>
<oce:KeyValuePair Key="Key2">Hello, World!</oce:KeyValuePair>...</JDF>
This is not a modification of the mapping file but a possible generic extension of the JDF ticket to
support custom user defined ticket fields.
After mapping all the items defined in the mapping table, the system performs an additional
step. It searches for all the oce:KeyValuePair nodes in the JDF ticket. The Key attribute specifies
the name of the item in the PD ticket and the inner content of the node becomes the value for this
item.
Example:
The default ticket definition contains a series of items related to user profile information ( eg:
FirstName, LastName, Department, Location, TelephoneNumber, EmailAddress, etc).
Suppose the PrintShop where PRISMAdirect is installed wants to stay connected to its customers
via a social network (facebook, google+). The customer wants to extend the user information with
the FaceBook account. For this he will add a new item in the PD ticket called FacebookAccount
from JTE.
Additionally, the JDF tickets that are sent to the JDF/JMF interface of PRISMAdirect must contain
a new node:
<oce:KeyValuePair Key="FacebookAccount">John.Doe</oce:KeyValuePair>
The job ticket in PRISMAdirect will have the FacebookAccount field set with the value
“John.Doe”.
Mapping file customization
Chapter 6 - JDF mapping in PRISMAdirect 135
PRISMAdirect - All versions
Add a new rule
Another way to solve the problem of user defined ticket items is by modifying the mapping table
and including mapping nodes for these items also. The mapping mechanism is driven by the
mapping table, so a new mapping node for a new item means that at submission the value for
that item will be automatically taken from the JDF if possible.
Example:
If a customer wants to allow job submitters to specify the output type for a printed job, he can
add a new ticket item from JTE called OutputType. It is created as a choice item and has the
following options: Finisher, Tray, Booklet_Maker, Perfect_Binder.
Once the ticket definition is updated, the mapping file can be extended to cover also this item.
The following node can be added to the mapping xml:
<jc:EnumMapping Name="OutputType" Optional="true">
<jc:JdfFieldXPath="/jdf:JDF/jdf:ResourcePool/jdf:DigitalPrintingParams/
@OutputBin"/>
<jc:EnumValueMapping JdfValue="Finisher" AccessEnumValue="Finisher"/>
<jc:EnumValueMapping JdfValue="Tray" AccessEnumValue="Tray"/>
<jc:EnumValueMapping JdfValue="BookletMaker"
AccessEnumValue="Booklet_Maker"/>
<jc:EnumValueMapping
JdfValue="PerfectBinder"AccessEnumValue="Perfect_Binder"/>
</jc:EnumMapping>
Now the mapping file is updated. Let’s say the next job that is submitted to PRISMAdirect
contains the following fragment in the attached JDF ticket:
<JDF Types="... DigitalPrinting ..." ...>
<ResourcePool>
<DigitalPrintingParams ID="NodeIDDPP" Class="Parameter"Status="Available"
OutputBin="PerfectBinder" ...>
</ResourcePool> ... ourceLinkPool>
<DigitalPrintingParamsLink rRef="NodeIDDPP" Usage="Input" />
...
</ResourceLinkPool> </JDF>
After the mapping process is complete, in the new job created the item OutputType will have the
value “Perfect_Binder”.
Add a new rule
136 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
Change an existing rule
Different JDF-enabled applications can store the information in the JDF ticket in different ways. If
two or more of such applications want to submit jobs to PRISMAdirect, the system must be able
to understand both JDF ticket formats.
For this it is possible to define two JMF endpoints one for each JDF Client app. Each JMF
endpoint will use a separate mapping file which can be customized to support a different
structure of the JDF ticket.
Example:
A customer has extended the PD ticket with a ticket field allowing the job submitters to ask for a
special finishing: SquareBinding. There is an online finisher on some iPR printers supporting this,
called “Saddle press”.
The Océ JDF syntax and the Kodak syntax for this finishing are different. Suppose the customer
needs to support Océ and Kodak applications and he needs to map both syntaxes.
Two endpoints must be enabled for this each with a customized mapping table.
1. This is the Océ syntax:
<JDF ID="jdf_1" Type="Combined" Category="DigitalPrinting"
Types="LayoutPreparation Imposition Interpreting Rendering DigitalPrinting
Stitching">
<ResourcePool>
<Component ID="Product_4" Class="Quantity" Status="Unavailable"
ComponentType="PartialProduct"/>
<StitchingParams ID="ProcessID_5" Class="Parameter" Status="Available"
StitchType="Saddle" NumberOfStitches="2">
<GeneralID IDUsage="oce:SaddlePress" IDValue="On"/>
<GeneralID IDUsage="oce:SaddlePressAdjustment" IDValue="+5"/>
</StitchingParams>
<Component ID="Product_5" Class="Quantity" Status="Unavailable"
ComponentType="PartialProduct"/>
</ResourcePool>
<ResourceLinkPool>
<ComponentLink rRef="Product_4" Usage="Input" Orientation="Flip0"
CombinedProcessIndex="5"/>
<StitchingParamsLink rRef="ProcessID_5" Usage="Input"/>
<ComponentLink rRef="Product_5" Usage="Output" Orientation="Flip0"
CombinedProcessIndex="5"/>
</ResourceLinkPool> </JDF>
The mapping node that will set the value for SquareBinding should look like this:
<jc:ConditionalEnumMapping Name="BindingMethod" Optional="true">
<jc:ConditionalEnumValue AccessEnumValue="SquareBinding">
<jc:StringConditionJdfField="/jdf:JDF/jdf:ResourcePool/
jdf:StitchingParams/jdf:GeneralID[@IDUsage=’oce:SaddlePress’]/@IDValue"
ExpectedValue="On"/>
</jc:ConditionalEnumValue>
...
</jc:ConditionalEnumMapping>
2. The Kodak syntax for the same finishing type is quite different:
<JDF Activation="Active" Category="DigitalPrinting"CommentURL="http://
127.0.0.1"ICSVersions="IDP_L1-1.0 Base_L3-1.0"
ID="n0803_4792_00074"JobID="001"JobPartID="080623_105104792_000175"
MaxVersion="1.3"SettingsPolicy="BestEffort"Status="Ready"
Change an existing rule
Chapter 6 - JDF mapping in PRISMAdirect 137
PRISMAdirect - All versions
Type="Combined"Types="LayoutPreparation Imposition Interpreting
RenderingColorantControl DigitalPrinting Folding Trimming pod-
wf:SaddlePress"Version="1.3"xmlns="http://www.CIP4.org/
JDFSchema_1_1"xmlns:pod-wf="http://www.pod-wf.com"xmlns:xsi="http://
www.w3.org/2001/XMLSchema-instance"xsi:type="Combined">
<Comment/>
<ResourcePool>
<pod-wf:SaddlePressParams ID="SPP001" Class="Parameter"NoOp="false" pod-
wf:PressLevel="-5" Status="Available"/>
...
</ResourcePool>
<ResourceLinkPool>
...
</ResourceLinkPool>
</JDF>
In the mapping table for Kodak, the mapping node must be changed:
<jc:ConditionalEnumMapping Name="BindingMethod" Optional="true">
<jc:ConditionalEnumValue AccessEnumValue="SquareBinding">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/pod-
wf:SaddlePressParams/@Status" ExpectedValue="Available"/>
</jc:ConditionalEnumValue>
...
</jc:ConditionalEnumMapping>
By enabling the two endpoints and assigning a custom mapping table to each one, the system is
now configured to accept and interpret messages from the Océ and Kodak apps simultaneously.
Change an existing rule
138 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
PRISMAdirect to JDF: mapping for job status
File structure
This mapping file is used to associate PRISMAdirect specific values for job status to custom
values defined by the customer. Job status in PRISMAdirect is represented by two items:
InternalJobState and CommunicationState. The options of both these items will be exposed to
the JDF Client.
Sample of the default PD-to-JDF mapping file:
NOTE
The default mapping table maps the values of the status items to themselves.
<Mappings>
<CommunicationState>
<StatusMapping PAValue="Incoming">Incoming</StatusMapping>
<StatusMapping PAValue="New">New</StatusMapping>
<StatusMapping PAValue="Accepted">Accepted</StatusMapping>
<StatusMapping PAValue="Resubmitted">Resubmitted</StatusMapping>
...
<StatusMapping PAValue="Ready">Ready</StatusMapping>
<StatusMapping PAValue="Closed">Closed</StatusMapping>
<StatusMapping PAValue="Failed">Failed</StatusMapping>
</CommunicationState>
<InternalJobState>
<StatusMapping PAValue="Uploading">Uploading</StatusMapping>
<StatusMapping PAValue="Uploaded">Uploaded</StatusMapping>
<StatusMapping PAValue="Edited">Edited</StatusMapping>
...
<StatusMapping PAValue="Exported">Exported</StatusMapping>
<StatusMapping PAValue="Closing">Closing</StatusMapping>
<StatusMapping PAValue="Closed">Closed</StatusMapping>
</InternalJobState>
</Mappings>
The file is made up of two sections, one for InternalJobState values and one for
CommunicationState values. Each section consists in a list of StatusMapping nodes.
Each StatusMapping node associates the status value specified by the PAValue attribute to a free
string customizable by the customer.
Interpretation Logic
At the start-up of the JDF/JMF Server, for all the enabled JMF endpoints the PD-to-JDF mapping
table is loaded in memory from a file on disk.
PRISMAdirect to JDF: mapping for job status
Chapter 6 - JDF mapping in PRISMAdirect 139
PRISMAdirect - All versions
When the JDF Server attempts to send the status of the job to the JDF Client, it first retrieves the
values of InternalJobState and CommunicationState from the PRISMAdirect ticket of that job.
The mapper searches for the StatusMapping node whose PAValue attribute matches the status
from the job. It does this both for InternalJobState and for CommunicationState in their
respective sections in the XML.
When the matching StatusMapping node is found, the mapper returns the inner content of the
node to the caller.
If the match is not found, the mapper returns the status value.
Mapping file customization
The customer will be able to change the values to which any job status value is mapped. In other
words he can change the inner content for any and all of the StatusMapping nodes in the
mapping file.
Example:
In the vocabulary of the customer a new job that arrives in the system might get the status
“Unprocessed”. The analogue status in PRISMAdirect would be “New”. When the JDF Client gets
the status of the job the customer might want that the job is presented as “Unprocessed” and not
“New”. For this he simply has to update the inner content of the corresponding XML node to:
<StatusMapping PAValue="New">Unprocessed</StatusMapping>
Another use case would be the need to display the status of the job in another language other
than English. This can be easily done for all the status values. The mapping file for a JDF Client
that uses German as culture could look like this:
<Mappings>
<CommunicationState>
<StatusMapping PAValue="Incoming">Eingehend</StatusMapping>
<StatusMapping PAValue="New">Neu</StatusMapping>
<StatusMapping PAValue="Accepted">Akzeptiert</StatusMapping>
...
StatusMapping PAValue="Ready">Bereit</StatusMapping>
<StatusMapping PAValue="Closed">Geschlossen</StatusMapping>
<StatusMapping PAValue="Failed">Gescheitert</StatusMapping>
</CommunicationState>
...
</Mappings>
Of course this only applies to one JMF endpoint. A second endpoint could have the mapping file
changed to return values in another language. However PRISMAdirect does not provide
translations so modifying the mapping file is the responsibility of the customer.
InternalJobState and CommunicationState are internal ticket items of PRISMAdirect. So the list of
options cannot be changed by the user during runtime. Therefore extending the mapping file
after installation is not applicable in this case.
PRISMAdirect to JDF: mapping for job status
140 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
JMF Support
Through the JDF/JMF interface the system will expose on request the status of the submitted
jobs to the JDF Clients. The JMF message that will contain the status is a response to the
QueueStatus query:
<JMF TimeStamp="2006-09-29T13:18:01Z" SenderID="JMFSender"xmlns="http://
www.CIP4.org/JDFSchema_1_1"xmlns:xsi=http://www.w3.org/2001/XMLSchema-
instance Version="1.3">
<Response Type="QueueStatus"
ReturnCode="0"xsi:Type="ResponseQueueStatus"ID="Response-00000006"
refID="qStatus_123">
<Queue Status="Waiting" DeviceID="MainQueue" />
<QueueEntry Status="Running" QueueEntryID="0007-43a32dd5-e9e4-
43e4-9b1d-89afffdaab0" JobID="JDF_66988942-9aef-4dcc-84f7-
db35531270a4"JobPartID="PrintNode">
<JobPhase Status="InProgress" StatusDetails="New|Uploaded" />
...
</QueueEntry>
</Response>
</JMF>
The StatusDetails attribute will contain the values of both CommunicationState and
InternalJobState concatenated in this order.
PRISMAdirect to JDF: mapping for job status
Chapter 6 - JDF mapping in PRISMAdirect 141
PRISMAdirect - All versions
Debugging help
During both mapping processes JDF-to-PD and PD-to-JDF any mapping that cannot be applied
will be logged in a file to disk. The log entry will contain the ID of the job being processed and the
reason that the mapping could not be applied.
Debugging help
142 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
Default submission mappings
User information
Account
<jc:TextMapping Prefix="" Name="Account" Optional="true" Separator="">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:CustomerInfo/
@BillingCode"/>
</jc:TextMapping>
Company
<jc:TextMapping Prefix="" Name="Company" Optional="false" Separator="">
<jc:JdfFieldXPath="/jdf:JDF/jdf:ResourcePool/
jdf:Contact[@ContactTypes='Customer']/jdf:Company/@OrganizationName"/>
</jc:TextMapping>
Department
<jc:JdfFieldXPath="/jdf:JDF/jdf:ResourcePool/
jdf:Contact[@ContactTypes='Customer']/jdf:Company/jdf:OrganizationalUnit"/>
</jc:TextMapping>
EmailAddress
<jc:JdfFieldXPath="/jdf:JDF/jdf:ResourcePool/
jdf:Contact[@ContactTypes='Customer']/jdf:ComChannel[@ChannelType='Email']/@L
ocator"/>
</jc:TextMapping>
FirstName
<jc:JdfFieldXPath="/jdf:JDF/jdf:ResourcePool/
jdf:Contact[@ContactTypes='Customer']/jdf:Person/@FirstName"/>
</jc:TextMapping>
LastName
<jc:TextMapping Prefix="" Name="LastName" Optional="false" Separator="">
<jc:JdfFieldXPath="/jdf:JDF/jdf:ResourcePool/
jdf:Contact[@ContactTypes='Customer']/jdf:Person/@FamilyName"/>
</jc:TextMapping>
Location
<jc:TextMapping Prefix="" Name="Location" Optional="false" Separator="">
<jc:JdfFieldXPath="/jdf:JDF/jdf:ResourcePool/
jdf:Contact[@ContactTypes='Customer']/jdf:Address/@Street"/>
Default submission mappings
Chapter 6 - JDF mapping in PRISMAdirect 143
PRISMAdirect - All versions
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/
jdf:Contact[@ContactTypes='Customer']/jdf:Address/@City"/>
<jc:JdfFieldXPath="/jdf:JDF/jdf:ResourcePool/
jdf:Contact[@ContactTypes='Customer']/jdf:Address/@PostalCode"/>
</jc:TextMapping>
TelephoneNumber
<jc:JdfFieldXPath="/jdf:JDF/jdf:ResourcePool/
jdf:Contact[@ContactTypes='Customer']/jdf:ComChannel[@ChannelType='Phone']/@L
ocator"/>
</jc:TextMapping>
UserID
<jc:TextMapping Prefix="" Name="UserId" Optional="true" Separator="_">
<jc:JdfFieldXPath="/jdf:JDF/jdf:ResourcePool/
jdf:Contact[@ContactTypes='Customer']/@*[name()='oce:UserID']"/>
</jc:TextMapping>
User information
144 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
Finishing
BindingMethod
<jc:ConditionalEnumMapping Name="BindingMethod" Optional="true">
<jc:ConditionalEnumValue AccessEnumValue="SaddleStitch">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:StitchingParams/
@StitchType" ExpectedValue="Saddle"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:StitchingParams/
@NumberOfStitches" ExpectedValue="2"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Staples_1">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:StitchingParams/
@NumberOfStitches" ExpectedValue="1"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Staples_2">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:StitchingParams/
@NumberOfStitches" ExpectedValue="2"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Staples_3">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:StitchingParams/
@StitchType" ExpectedValue="Saddle"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:StitchingParams/
@NumberOfStitches" ExpectedValue="3"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Staples_4">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:StitchingParams/
@StitchType" ExpectedValue="Saddle"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:StitchingParams/
@NumberOfStitches" ExpectedValue="4"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Staples_5">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:StitchingParams/
@StitchType" ExpectedValue="Saddle"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:StitchingParams/
@NumberOfStitches" ExpectedValue="5"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Staples_6">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:StitchingParams/
@StitchType" ExpectedValue="Saddle"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:StitchingParams/
@NumberOfStitches" ExpectedValue="6"/>
Finishing
Chapter 6 - JDF mapping in PRISMAdirect 145
PRISMAdirect - All versions
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="WireO">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:WireCombBindingParams/@Status" ExpectedValue="Available"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="GlueBinding">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:GluingParams/
@Status" ExpectedValue="Available"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Booklet">
<jc:StringCondition JdfField="/jdf:JDF/@Types"
ContainedValue="LayoutPreparation"/>
<jc:StringCondition JdfField="/jdf:JDF/@Types" ContainedValue="Imposition"/>
<jc:StringConditionJdfField="/jdf:JDF/jdf:ResourcePool/
jdf:LayoutPreparationParams/@PresentationDirection"
ExpectedValue="FoldCatalog"/>
<jc:StringCondition JdfField="/jdf:JDF/@Types" ContainedValue="Folding"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:LayoutPreparationParams/@FoldCatalog"ExpectedValue="F4-1"/>
<jc:StringCondition JdfField="/jdf:JDF/@Types" ContainedValue="Stitching"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:FoldingParams/
@FoldCatalog" ExpectedValue="F4-1"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:StitchingParams/
@StitchType"ExpectedValue="Saddle"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="PerfectBound">
<jc:StringCondition JdfField="/jdf:JDF/@Types"
ContainedValue="CoverApplication"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:CoverApplicationParams/@Status" ExpectedValue="Available"/>
</jc:ConditionalEnumValue>
</jc:ConditionalEnumMapping>
Booklet
<jc:BooleanMapping Name="Booklet" Optional="true">
<jc:StringCondition JdfField="/jdf:JDF/@Types"
ContainedValue="LayoutPreparation"/>
<jc:StringCondition JdfField="/jdf:JDF/@Types" ContainedValue="Imposition"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:LayoutPreparationParams/@PresentationDirection"
ExpectedValue="FoldCatalog"/>
Finishing
146 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
<jc:StringCondition JdfField="/jdf:JDF/@Types" ContainedValue="Folding"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:LayoutPreparationParams/@FoldCatalog" ExpectedValue="F4-1"/>
<jc:StringCondition JdfField="/jdf:JDF/@Types" ContainedValue="Stitching"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:FoldingParams/
@FoldCatalog" ExpectedValue="F4-1"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:StitchingParams/
@StitchType" ExpectedValue="Saddle"/>
</jc:BooleanMapping>
BookletPageSize
<jc:EnumMapping Name="BookletPageSize" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:LayoutPreparationParams/
jdf:PageCell/jdf:FitPolicy/@SizePolicy"/>
<jc:EnumValueMapping JdfValue="ClipToMaxPage" AccessEnumValue="Keep"/>
<jc:EnumValueMapping JdfValue="ReduceToFit" AccessEnumValue="Reduce"/>
</jc:EnumMapping>
Collate
<jc:BooleanMapping Name="Collate" Optional="true" >
<jc:FalseCondition ExpectedValue="None" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:DigitalPrintingParams/@Collate"/>
<jc:StringCondition JdfField="/jdf:JDF/@Types"
ContainedValue="DigitalPrinting"/>
</jc:BooleanMapping>
CoverPlace
<jc:EnumMapping Name="CoverPlace" Optional="true">
<jc:StringCondition JdfField="/jdf:JDF/@Types"
ContainedValue="DigitalPrinting"/>
<jc:JdfField XPath="/jdf:JDF/jdf:Comment[@Name='oce:Covers']" />
<jc:EnumValueMapping JdfValue="Front" AccessEnumValue="Front"/>
<jc:EnumValueMapping JdfValue="Back" AccessEnumValue="Back"/>
<jc:EnumValueMapping JdfValue="FrontBack" AccessEnumValue="FrontAndBack"/>
</jc:EnumMapping>
CoverRemarks
<jc:MediaMapping Name="CoverRemarks" Type="Cover" Optional="true">
<jc:MediaParitioner XPath="/jdf:JDF/jdf:ResourcePool/
jdf:DigitalPrintingParams"/>
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:Media/@Comment"/>
Finishing
Chapter 6 - JDF mapping in PRISMAdirect 147
PRISMAdirect - All versions
</jc:MediaMapping>
Folding
<jc:EnumMapping Name="Folding" Optional="true">
<jc:StringCondition JdfField="/jdf:JDF/@Types" ContainedValue="Folding"/>
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:FoldingParams/
@FoldCatalog"/>
<jc:EnumValueMapping JdfValue="F4-1" AccessEnumValue="HalfFold"/>
<jc:EnumValueMapping JdfValue="F6-1" AccessEnumValue="TriFoldOut"/>
<jc:EnumValueMapping JdfValue="F6-4" AccessEnumValue="TriFoldIn"/>
<jc:EnumValueMapping JdfValue="F8-2" AccessEnumValue="ParallelFold"/>
<jc:EnumValueMapping JdfValue="F8-4" AccessEnumValue="GateFold"/>
<jc:EnumValueMapping JdfValue="F6-6" AccessEnumValue="ZFold"/>
<jc:EnumValueMapping JdfValue="F6-7" AccessEnumValue="ZFold"/>
<jc:EnumValueMapping JdfValue="F6-3" AccessEnumValue="SimpleGateFold"/>
</jc:EnumMapping>
OrientationAndBindingEdge
<jc:ConditionalEnumMapping Name="OrientationAndBindingEdge" Optional="true">
<jc:ConditionalEnumValue AccessEnumValue="Portrait_LeftBinding">
<jc:NumericComparisonCondition Value_1="/jdf:JDF/jdf:ResourcePool/jdf:Media/
@Dimension[0]" Value_2="/jdf:JDF/jdf:ResourcePool/jdf:Media/@Dimension[1]"
Comparison="LessThan"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourceLinkPool/
jdf:ComponentLink/@Orientation" ExpectedValue="Rotate0"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Portrait_LeftBinding">
<jc:NumericComparisonCondition Value_1="/jdf:JDF/jdf:ResourcePool/jdf:Media/
@Dimension[0]" Value_2="/jdf:JDF/jdf:ResourcePool/jdf:Media/@Dimension[1]"
Comparison="LessThan"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourceLinkPool/
jdf:ComponentLink/@Orientation" ExpectedValue="Flip0"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Landscape_LeftBinding">
<jc:NumericComparisonCondition Value_1="/jdf:JDF/jdf:ResourcePool/jdf:Media/
@Dimension[0]" Value_2="/jdf:JDF/jdf:ResourcePool/jdf:Media/@Dimension[1]"
Comparison="GreaterThan"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourceLinkPool/
jdf:ComponentLink/@Orientation" ExpectedValue="Rotate0"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Landscape_LeftBinding">
Finishing
148 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
<jc:NumericComparisonCondition Value_1="/jdf:JDF/jdf:ResourcePool/jdf:Media/
@Dimension[0]" Value_2="/jdf:JDF/jdf:ResourcePool/jdf:Media/@Dimension[1]"
Comparison="GreaterThan"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourceLinkPool/
jdf:ComponentLink/@Orientation" ExpectedValue="Flip0"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Portrait_TopBinding">
<jc:NumericComparisonCondition Value_1="/jdf:JDF/jdf:ResourcePool/jdf:Media/
@Dimension[0]" Value_2="/jdf:JDF/jdf:ResourcePool/jdf:Media/@Dimension[1]"
Comparison="LessThan"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourceLinkPool/
jdf:ComponentLink/@Orientation" ExpectedValue="Rotate90"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Portrait_TopBinding">
<jc:NumericComparisonCondition Value_1="/jdf:JDF/jdf:ResourcePool/jdf:Media/
@Dimension[0]" Value_2="/jdf:JDF/jdf:ResourcePool/jdf:Media/@Dimension[1]"
Comparison="LessThan"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourceLinkPool/
jdf:ComponentLink/@Orientation" ExpectedValue="Flip90"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Landscape_TopBinding">
<jc:NumericComparisonCondition Value_1="/jdf:JDF/jdf:ResourcePool/jdf:Media/
@Dimension[0]" Value_2="/jdf:JDF/jdf:ResourcePool/jdf:Media/@Dimension[1]"
Comparison="GreaterThan"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourceLinkPool/
jdf:ComponentLink/@Orientation" ExpectedValue="Flip90"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Landscape_TopBinding">
<jc:NumericComparisonCondition Value_1="/jdf:JDF/jdf:ResourcePool/jdf:Media/
@Dimension[0]" Value_2="/jdf:JDF/jdf:ResourcePool/jdf:Media/@Dimension[1]"
Comparison="GreaterThan"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourceLinkPool/
jdf:ComponentLink/@Orientation" ExpectedValue="Flip90"/>
</jc:ConditionalEnumValue>
</jc:ConditionalEnumMapping>
Output
<jc:ConditionalEnumMapping Name="Output" Optional="true">
<jc:ConditionalEnumValue AccessEnumValue="Stacker">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:DigitalPrintingParams/@OutputBin" ContainedValue="Stacker"/>
</jc:ConditionalEnumValue>
Finishing
Chapter 6 - JDF mapping in PRISMAdirect 149
PRISMAdirect - All versions
<jc:ConditionalEnumValue AccessEnumValue="Upperbin">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:DigitalPrintingParams/@OutputBin" ExpectedValue="Top"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="HCSExternalFinisher">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:DigitalPrintingParams/@OutputBin" ContainedValue="ExternalFinisher"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="booklet">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:DigitalPrintingParams/@OutputBin" ContainedValue="BookletMaker"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="BookletmakerExternalFinisher">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:DigitalPrintingParams/@OutputBin" ContainedValue="BookletMaker"/>
</jc:ConditionalEnumValue>
</jc:ConditionalEnumMapping>
Punching
<jc:ConditionalEnumMapping Name="Punching" Optional="true">
<jc:StringCondition JdfField="/jdf:JDF/@Types" ContainedValue="HoleMaking"/>
<jc:ConditionalEnumValue AccessEnumValue="None">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:HoleMakingParams/
@HoleType" ExpectedValue="None"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Holes_2">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:HoleMakingParams/
@HoleType" ExpectedValue="R2-generic"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Holes_3">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:HoleMakingParams/
@HoleType" ExpectedValue="R3-generic"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Holes_4">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:HoleMakingParams/
@HoleType" ExpectedValue="R4-generic"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Holes_5">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:HoleMakingParams/
@HoleType" ExpectedValue="R5-generic"/>
Finishing
150 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Holes_7">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:HoleMakingParams/
@HoleType" ExpectedValue="R7-generic"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Holes_11">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:HoleMakingParams/
@HoleType" ExpectedValue="R11m-7h4s"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Holes_23">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:HoleMakingParams/
@HoleType" ExpectedValue="W2_1i-round-0t"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Holes_12">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:HoleMakingParams/
@HoleType" ExpectedValue="S-generic"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:HoleMakingParams/
@*[name()='oce:NumberOfHoles']" ExpectedValue="12"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Holes_19">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:HoleMakingParams/
@HoleType" ExpectedValue="S-generic"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:HoleMakingParams/
@*[name()='oce:NumberOfHoles']" ExpectedValue="19"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Holes_20">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:HoleMakingParams/
@HoleType" ExpectedValue="S-generic"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:HoleMakingParams/
@*[name()='oce:NumberOfHoles']" ExpectedValue="20"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Holes_21">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:HoleMakingParams/
@HoleType" ExpectedValue="S-generic"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:HoleMakingParams/
@*[name()='oce:NumberOfHoles']" ExpectedValue="21"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Holes_32">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:HoleMakingParams/
@HoleType" ExpectedValue="S-generic"/>
Finishing
Chapter 6 - JDF mapping in PRISMAdirect 151
PRISMAdirect - All versions
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:HoleMakingParams/
@*[name()='oce:NumberOfHoles']" ExpectedValue="32"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Holes_34">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:HoleMakingParams/
@HoleType" ExpectedValue="S-generic"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:HoleMakingParams/
@*[name()='oce:NumberOfHoles']" ExpectedValue="34"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Holes_44">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:HoleMakingParams/
@HoleType" ExpectedValue="S-generic"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:HoleMakingParams/
@*[name()='oce:NumberOfHoles']" ExpectedValue="44"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Holes_47">
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:HoleMakingParams/
@HoleType" ExpectedValue="S-generic"/>
<jc:StringCondition JdfField="/jdf:JDF/jdf:ResourcePool/jdf:HoleMakingParams/
@*[name()='oce:NumberOfHoles']" ExpectedValue="47"/>
</jc:ConditionalEnumValue>
</jc:ConditionalEnumMapping>
Finishing
152 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
Media definition
CoverMediaColor
<jc:MediaEnumMapping Name="CoverMediaColor" Type="Cover" MediaPartitioner="/
jdf:JDF/jdf:ResourcePool/jdf:DigitalPrintingParams" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/
@MediaColorName"/>
<jc:EnumValueMapping JdfValue="White" AccessEnumValue="White"/>
<jc:EnumValueMapping JdfValue="Blue" AccessEnumValue="Blue"/>
<jc:EnumValueMapping JdfValue="Red" AccessEnumValue="Red"/>
<jc:EnumValueMapping JdfValue="Green" AccessEnumValue="Green"/>
<jc:EnumValueMapping JdfValue="Yellow" AccessEnumValue="Yellow"/>
<jc:EnumValueMapping JdfValue="Gray" AccessEnumValue="Gray"/>
<jc:EnumValueMapping JdfValue="Orange" AccessEnumValue="Orange"/>
<jc:EnumValueMapping JdfValue="Pink" AccessEnumValue="Pink"/>
<jc:EnumValueMapping JdfValue="Black" AccessEnumValue="Black"/>
</jc:MediaEnumMapping>
CoverMediaSize
<jc:MediaConditionalEnumMapping Name="CoverMediaSize" Type="Cover"
MediaPartitioner="/jdf:JDF/jdf:ResourcePool/jdf:DigitalPrintingParams"
Optional="true">
<jc:ConditionalEnumValue AccessEnumValue="A0">
<jc:NumericCondition ExpectedValue="2383.9344" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="3370.392" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A0">
<jc:NumericCondition ExpectedValue="2383.9344" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="3370.392" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A1">
<jc:NumericCondition ExpectedValue="1683.7776" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="2383.9344" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
Media definition
Chapter 6 - JDF mapping in PRISMAdirect 153
PRISMAdirect - All versions
<jc:ConditionalEnumValue AccessEnumValue="A1">
<jc:NumericCondition ExpectedValue="1683.7776" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="2383.9344" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A2">
<jc:NumericCondition ExpectedValue="1190.5488" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="1683.7776" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A2">
<jc:NumericCondition ExpectedValue="1190.5488" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="1683.7776" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A3">
<jc:NumericCondition ExpectedValue="1190.5488" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="841.8888" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A3">
<jc:NumericCondition ExpectedValue="1190.5488" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="841.8888" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A1">
<jc:NumericCondition ExpectedValue="1683.7776" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="2383.9344" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A1">
<jc:NumericCondition ExpectedValue="1683.7776" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="2383.9344" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
Media definition
154 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A2">
<jc:NumericCondition ExpectedValue="1190.5488" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="1683.7776" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A2">
<jc:NumericCondition ExpectedValue="1190.5488" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="1683.7776" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A3">
<jc:NumericCondition ExpectedValue="1190.5488" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="841.8888" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A3">
<jc:NumericCondition ExpectedValue="1190.5488" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="841.8888" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A4">
<jc:NumericCondition ExpectedValue="595.2744" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="841.8888" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A4">
<jc:NumericCondition ExpectedValue="595.2744" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="841.8888" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A5">
<jc:NumericCondition ExpectedValue="595.2744" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
Media definition
Chapter 6 - JDF mapping in PRISMAdirect 155
PRISMAdirect - All versions
<jc:NumericCondition ExpectedValue="419.5296" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A5">
<jc:NumericCondition ExpectedValue="595.2744" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="419.5296" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Letter">
<jc:NumericCondition ExpectedValue="612" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="792" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Letter">
<jc:NumericCondition ExpectedValue="612" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="792" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Legal">
<jc:NumericCondition ExpectedValue="612" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="1008" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Legal">
<jc:NumericCondition ExpectedValue="1008" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="612" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Ledger">
<jc:NumericCondition ExpectedValue="1224" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="792" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Ledger">
Media definition
156 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
<jc:NumericCondition ExpectedValue="1224" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="792" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Foolscap">
<jc:NumericCondition ExpectedValue="1224" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="972" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Foolscap">
<jc:NumericCondition ExpectedValue="1224" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="972" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Executive">
<jc:NumericCondition ExpectedValue="756" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="522" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Executive">
<jc:NumericCondition ExpectedValue="756" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="522" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Commercial">
<jc:NumericCondition ExpectedValue="595.2744" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="765" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Commercial">
<jc:NumericCondition ExpectedValue="595.2744" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="765" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
Media definition
Chapter 6 - JDF mapping in PRISMAdirect 157
PRISMAdirect - All versions
<jc:ConditionalEnumValue AccessEnumValue="Statement">
<jc:NumericCondition ExpectedValue="612" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="396" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Statement">
<jc:NumericCondition ExpectedValue="612" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="396" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
</jc:MediaConditionalEnumMapping>
CoverMediaType
<jc:MediaEnumMapping Name="CoverMediaType" Type="Cover" MediaPartitioner="/
jdf:JDF/jdf:ResourcePool/jdf:DigitalPrintingParams" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/
@MediaType"/>
<jc:EnumValueMapping JdfValue="Paper" AccessEnumValue="Paper"/>
<jc:EnumValueMapping JdfValue="Transparency" AccessEnumValue="Transparent"/>
<jc:EnumValueMapping JdfValue="LaminatingFoil" AccessEnumValue="Polyester"/>
<jc:EnumValueMapping JdfValue="Other" AccessEnumValue="Other"/>
</jc:MediaEnumMapping>
CoverMediaWeight
<jc:MediaEnumMapping Name="CoverMediaWeight" Type="Cover" MediaPartitioner="/
jdf:JDF/jdf:ResourcePool/jdf:DigitalPrintingParams" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/
@Weight"/>
<jc:EnumValueMapping JdfValue="65" AccessEnumValue="65032gram047m2"/>
<jc:EnumValueMapping JdfValue="80" AccessEnumValue="80032gram047m2"/>
<jc:EnumValueMapping JdfValue="90" AccessEnumValue="90032gram047m2"/>
<jc:EnumValueMapping JdfValue="100" AccessEnumValue="100032gram047m2"/>
<jc:EnumValueMapping JdfValue="120" AccessEnumValue="120032gram047m2"/>
<jc:EnumValueMapping JdfValue="160" AccessEnumValue="160032gram047m2"/>
<jc:EnumValueMapping JdfValue="170" AccessEnumValue="170032gram047m2"/>
</jc:MediaEnumMapping>
Media definition
158 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
DocumentMediaColor
<jc:MediaEnumMapping Name="DocumentMediaColor" Type="Content"
MediaPartitioner="/jdf:JDF/jdf:ResourcePool/jdf:DigitalPrintingParams"
Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/
@MediaColorName"/>
<jc:EnumValueMapping JdfValue="White" AccessEnumValue="White"/>
<jc:EnumValueMapping JdfValue="Blue" AccessEnumValue="Blue"/>
<jc:EnumValueMapping JdfValue="Red" AccessEnumValue="Red"/>
<jc:EnumValueMapping JdfValue="Green" AccessEnumValue="Green"/>
<jc:EnumValueMapping JdfValue="Yellow" AccessEnumValue="Yellow"/>
<jc:EnumValueMapping JdfValue="Gray" AccessEnumValue="Gray"/>
<jc:EnumValueMapping JdfValue="Orange" AccessEnumValue="Orange"/>
<jc:EnumValueMapping JdfValue="Pink" AccessEnumValue="Pink"/>
<jc:EnumValueMapping JdfValue="Black" AccessEnumValue="Black"/>
</jc:MediaEnumMapping>
DocumentMediaSize
<jc:MediaEnumMapping Name="DocumentMediaColor" Type="Content"
MediaPartitioner="/jdf:JDF/jdf:ResourcePool/jdf:DigitalPrintingParams"
Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/
@MediaColorName"/>
<jc:EnumValueMapping JdfValue="White" AccessEnumValue="White"/>
<jc:EnumValueMapping JdfValue="Blue" AccessEnumValue="Blue"/>
<jc:EnumValueMapping JdfValue="Red" AccessEnumValue="Red"/>
<jc:EnumValueMapping JdfValue="Green" AccessEnumValue="Green"/>
<jc:EnumValueMapping JdfValue="Yellow" AccessEnumValue="Yellow"/>
<jc:EnumValueMapping JdfValue="Gray" AccessEnumValue="Gray"/>
<jc:EnumValueMapping JdfValue="Orange" AccessEnumValue="Orange"/>
<jc:EnumValueMapping JdfValue="Pink" AccessEnumValue="Pink"/>
<jc:EnumValueMapping JdfValue="Black" AccessEnumValue="Black"/>
</jc:MediaEnumMapping>
DocumentMediaSize
<jc:MediaConditionalEnumMapping Name="DocumentMediaSize" Type="Content"
MediaPartitioner="/jdf:JDF/jdf:ResourcePool/jdf:DigitalPrintingParams"
Optional="true">
<jc:ConditionalEnumValue AccessEnumValue="A0">
Media definition
Chapter 6 - JDF mapping in PRISMAdirect 159
PRISMAdirect - All versions
<jc:NumericCondition ExpectedValue="2383.9344" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="3370.392" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A0">
<jc:NumericCondition ExpectedValue="2383.9344" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="3370.392" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A1">
<jc:NumericCondition ExpectedValue="1683.7776" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="2383.9344" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A1">
<jc:NumericCondition ExpectedValue="1683.7776" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="2383.9344" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A2">
<jc:NumericCondition ExpectedValue="1190.5488" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="1683.7776" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A2">
<jc:NumericCondition ExpectedValue="1190.5488" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="1683.7776" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A3">
<jc:NumericCondition ExpectedValue="1190.5488" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="841.8888" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
Media definition
160 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
<jc:ConditionalEnumValue AccessEnumValue="A3">
<jc:NumericCondition ExpectedValue="1190.5488" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="841.8888" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A4">
<jc:NumericCondition ExpectedValue="595.2744" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="841.8888" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A4">
<jc:NumericCondition ExpectedValue="595.2744" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="841.8888" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A5">
<jc:NumericCondition ExpectedValue="595.2744" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="419.5296" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="A5">
<jc:NumericCondition ExpectedValue="595.2744" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="419.5296" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Letter">
<jc:NumericCondition ExpectedValue="612" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="792" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Letter">
<jc:NumericCondition ExpectedValue="612" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="792" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
Media definition
Chapter 6 - JDF mapping in PRISMAdirect 161
PRISMAdirect - All versions
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Legal">
<jc:NumericCondition ExpectedValue="612" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="1008" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Legal">
<jc:NumericCondition ExpectedValue="1008" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="612" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Ledger">
<jc:NumericCondition ExpectedValue="1224" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="792" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Ledger">
<jc:NumericCondition ExpectedValue="1224" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="792" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Foolscap">
<jc:NumericCondition ExpectedValue="1224" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="972" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Foolscap">
<jc:NumericCondition ExpectedValue="1224" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="972" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Executive">
<jc:NumericCondition ExpectedValue="756" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
Media definition
162 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
<jc:NumericCondition ExpectedValue="522" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Executive">
<jc:NumericCondition ExpectedValue="756" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="522" <jc:NumericCondition
ExpectedValue="522"
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Commercial">
<jc:NumericCondition ExpectedValue="595.2744" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="765" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Commercial">
<jc:NumericCondition ExpectedValue="595.2744" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="765" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Statement">
<jc:NumericCondition ExpectedValue="612" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
<jc:NumericCondition ExpectedValue="396" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Statement">
<jc:NumericCondition ExpectedValue="612" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[1]"/>
<jc:NumericCondition ExpectedValue="396" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:Media[@ID='${MediaID}']/@Dimension[0]"/>
</jc:ConditionalEnumValue>
</jc:MediaConditionalEnumMapping>
DocumentMediaType
<jc:MediaEnumMapping Name="DocumentMediaType" Type="Content"
MediaPartitioner="/jdf:JDF/jdf:ResourcePool/jdf:DigitalPrintingParams"
Optional="false">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/
@MediaType"/>
<jc:EnumValueMapping JdfValue="Paper" AccessEnumValue="Paper"/>
Media definition
Chapter 6 - JDF mapping in PRISMAdirect 163
PRISMAdirect - All versions
<jc:EnumValueMapping JdfValue="Transparency" AccessEnumValue="Transparent"/>
<jc:EnumValueMapping JdfValue="LaminatingFoil" AccessEnumValue="Polyester"/>
<jc:EnumValueMapping JdfValue="Other" AccessEnumValue="Other"/>
</jc:MediaEnumMapping>
<jc:MediaEnumMapping Name="DocumentMediaWeight" Type="Content"
MediaPartitioner="/jdf:JDF/jdf:ResourcePool/jdf:DigitalPrintingParams"
Optional="true">
</jc:MediaEnumMapping>
DocumentMediaWeight
<jc:MediaEnumMapping Name="DocumentMediaWeight" Type="Content"
MediaPartitioner="/jdf:JDF/jdf:ResourcePool/jdf:DigitalPrintingParams"
Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:Media[@ID='${MediaID}']/
@Weight"/>
<jc:EnumValueMapping JdfValue="65" AccessEnumValue="65032gram047m2"/>
<jc:EnumValueMapping JdfValue="80" AccessEnumValue="80032gram047m2"/>
<jc:EnumValueMapping JdfValue="100" AccessEnumValue="100032gram047m2"/>
<jc:EnumValueMapping JdfValue="120" AccessEnumValue="120032gram047m2"/>
<jc:EnumValueMapping JdfValue="160" AccessEnumValue="160032gram047m2"/>
<jc:EnumValueMapping JdfValue="170" AccessEnumValue="170032gram047m2"/>
</jc:MediaEnumMapping>
Media definition
164 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
Archiving
Archive
<jc:BooleanMapping Name="Archive" Optional="true">
<jc:TrueCondition ExpectedValue="true" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:NodeInfo/jdf:GeneralID[@IDUsage='oce:Archive']/@IDValue"/>
</jc:BooleanMapping>
ArchvingMode
<jc:EnumMapping Name="ArchivingMode" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:NodeInfo/
jdf:GeneralID[@IDUsage='oce:ArchivingMode']/@IDValue"/>
<jc:EnumValueMapping JdfValue="Job" AccessEnumValue="Job"/>
<jc:EnumValueMapping JdfValue="PDF" AccessEnumValue="PDF"/>
</jc:EnumMapping>
ArchivingSecurityClass
<jc:EnumMapping Name="ArchivingSecurityClass" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:NodeInfo/
jdf:GeneralID[@IDUsage='oce:ArchivingSecurityClass']/@IDValue"/>
<jc:EnumValueMapping JdfValue="Default" AccessEnumValue="*Default"/>
<jc:EnumValueMapping JdfValue="Personal" AccessEnumValue="*Personal"/>
<jc:EnumValueMapping JdfValue="Shared" AccessEnumValue="*Shared"/>
<jc:EnumValueMapping JdfValue="Public" AccessEnumValue="*Public"/>
</jc:EnumMapping>
CaseName
<jc:TextMapping Name="CaseName" Optional="true" >
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:NodeInfo/
jdf:GeneralID[@IDUsage='oce:CaseName']/@IDValue"/>
</jc:TextMapping>
CaseType
<jc:EnumMapping Name="CaseType" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:NodeInfo/
jdf:GeneralID[@IDUsage='oce:CaseType']/@IDValue"/>
<jc:EnumValueMapping JdfValue="Customer" AccessEnumValue="Customer"/>
<jc:EnumValueMapping JdfValue="Product" AccessEnumValue="Product"/>
<jc:EnumValueMapping JdfValue="Project" AccessEnumValue="Project"/>
</jc:EnumMapping>
Archiving
Chapter 6 - JDF mapping in PRISMAdirect 165
PRISMAdirect - All versions
PublishingDepartment
<jc:EnumMapping Name="PublishingDepartment" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:NodeInfo/
jdf:GeneralID[@IDUsage='oce:PublishingDepartment']/@IDValue"/>
<jc:EnumValueMapping JdfValue="Sales" AccessEnumValue="Sales"/>
<jc:EnumValueMapping JdfValue="Service" AccessEnumValue="Service"/>
<jc:EnumValueMapping JdfValue="Marketing" AccessEnumValue="Marketing"/>
<jc:EnumValueMapping JdfValue="Production" AccessEnumValue="Production"/>
<jc:EnumValueMapping JdfValue="Procurement" AccessEnumValue="Procurement"/>
<jc:EnumValueMapping JdfValue="Logistics" AccessEnumValue="Logistics"/>
<jc:EnumValueMapping JdfValue="Development" AccessEnumValue="Development"/>
</jc:EnumMapping>
DocumentType
<jc:EnumMapping Name="DocumentType" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:NodeInfo/
jdf:GeneralID[@IDUsage='oce:DocumentType']/@IDValue"/>
<jc:EnumValueMapping JdfValue="Collateral" AccessEnumValue="Collateral"/>
<jc:EnumValueMapping JdfValue="Documentation"
AccessEnumValue="Documentation"/>
<jc:EnumValueMapping JdfValue="Contract" AccessEnumValue="Contract"/>
</jc:EnumMapping>
Archiving
166 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
Delivery
DeliveryDate
<jc:DateMapping Name="Date" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:NodeInfo/@LastEnd"/>
</jc:DateMapping>
DeliveryAddress
<jc:TextMapping Name="DeliveryAddress" Optional="false">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/
jdf:Contact[@ContactTypes='Delivery']/jdf:Address/@Street"/>
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/
jdf:Contact[@ContactTypes='Delivery']/jdf:Address/@City"/>
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/
jdf:Contact[@ContactTypes='Delivery']/jdf:Address/@PostalCode"/>
</jc:TextMapping>
DeliveryMethod
<jc:ConditionalEnumMapping Name="DeliveryMethod" Optional="true">
<jc:ConditionalEnumValue AccessEnumValue="Pickup">
<jc:StringCondition JdfField="/jdf:JDF/@Types" ContainedValue="Delivery"/>
<jc:StringCondition ExpectedValue="true" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:DeliveryParams/@Transfer"/>
</jc:ConditionalEnumValue>
<jc:StringCondition JdfField="/jdf:JDF/@Types" ContainedValue="Delivery"/>
<jc:StringCondition ExpectedValue="ExpressMail" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:DeliveryParams/@Method"/>
</jc:ConditionalEnumValue>
<jc:ConditionalEnumValue AccessEnumValue="Post">
<jc:StringCondition JdfField="/jdf:JDF/@Types" ContainedValue="Delivery"/>
<jc:StringCondition ExpectedValue="InterofficeMail" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:DeliveryParams/@Method"/>
</jc:ConditionalEnumValue>
</jc:ConditionalEnumMapping>
DeliveryRemarks
<jc:TextMapping Optional="true" Name="DeliveryRemarks">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:DeliveryParams/
jdf:Comment"/>
</jc:TextMapping>
Delivery
Chapter 6 - JDF mapping in PRISMAdirect 167
PRISMAdirect - All versions
Emailing
EmailMessage
<jc:TextMapping Name="EmailMessage" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:NodeInfo/
jdf:GeneralID[@IDUsage='oce:EmailMessage']/@IDValue"/>
<jc:TrueCondition ExpectedValue="true" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:NodeInfo/jdf:GeneralID[@IDUsage='oce:EmailWhenJobAccepted']/@IDValue"/>
</jc:BooleanMapping>
EmailWhenJobAccepted
<jc:BooleanMapping Name="EmailWhenJobAccepted" Optional="true">
<jc:TrueCondition ExpectedValue="true" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:NodeInfo/jdf:GeneralID@IDUsage='oce:EmailWhenJobAccepted']/@IDValue"/>
</jc:BooleanMapping>
EmailWhenJobReady
<jc:BooleanMapping Name="EmailWhenJobReady" Optional="true">
<jc:TrueCondition ExpectedValue="true" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:NodeInfo/jdf:GeneralID[@IDUsage='oce:EmailWhenJobReady']/@IDValue"/>
</jc:BooleanMapping>
EmailWhenJobRejected
<jc:BooleanMapping Name="EmailWhenJobRejected" Optional="true">
<jc:TrueCondition ExpectedValue="true" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:NodeInfo/jdf:GeneralID[@IDUsage='oce:EmailWhenJobRejected']/@IDValue"/>
</jc:BooleanMapping>
Emailing
168 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
Cost estimation and cost quotation
BudgetApproversRemarks
<jc:TextMapping Name="BudgetApproversRemarks" Optional="true">
<jc:StringCondition JdfField="/jdf:JDF/@Types" ContainedValue="Approval"/>
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:ApprovalParams/
jdf:GeneralID[@IDUsage='oce:BudgetApproversRemarks']/@IDVa lue"/>
</jc:TextMapping>
BudgetOwner
<jc:TextMapping Name="BudgetOwner" Optional="true">
<jc:StringCondition JdfField="/jdf:JDF/@Types" ContainedValue="Approval"/>
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:ApprovalParams/
jdf:ApprovalPerson/jdf:Contact/jdf:ComChannel[@ChannelType ='Email']/
@Locator"/>
</jc:TextMapping>
ChargeBackID1
<jc:TextMapping Name="ChargeBackID1" Optional="true" >
<jc:JdfField XPath="/jdf:JDF/jdf:NodeInfo/jdf:Employee/jdf:CostCenter/
@CostCenterID"/>
</jc:TextMapping>
EstimatedColorPages
<jc:NumberMapping Name="EstimatedColorPages" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:RunList/
jdf:GeneralID[@IDUsage='oce:EstimatedColorPages']/@IDValue"/>
</jc:NumberMapping>
EstimatedBWPages
<jc:NumberMapping Name="EstimatedBWPages" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:RunList/
jdf:GeneralID[@IDUsage='oce:EstimatedBWPages']/@IDValue"/>
</jc:NumberMapping>
EstimatedCost
<jc:TextMapping Optional="true" Name="EstimatedCost">
<jc:JdfField XPath="/jdf:JDF/jdf:Comment[@Name='Price']"/>
</jc:TextMapping>
FinalCost
<jc:TextMapping Name="FinalCost" Optional="true">
Cost estimation and cost quotation
Chapter 6 - JDF mapping in PRISMAdirect 169
PRISMAdirect - All versions
<jc:JdfField XPath="/jdf:JDF/jdf:Comment[@Name='oce:FinalCost']"/>
</jc:TextMapping>
ManualLabour
<jc:TextMapping Name="ManualLabor" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:Comment[@Name='oce:ManualLabour']"/>
</jc:TextMapping>
NrOfSourcePages
<jc:NumberMapping Optional="true" Name="NrOfSourcePages">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:RunList/@Npage"/>
</jc:NumberMapping>
RequestCostQuotation
<jc:BooleanMapping Name="RequestCostQuotation" Optional="true">
<jc:TrueCondition ExpectedValue="true" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:NodeInfo/jdf:GeneralID[@IDUsage='oce:RequestCostQuotation']/@IDValue"/>
</jc:BooleanMapping>
SubmittersDescription
<jc:TextMapping Name="SubmittersDescription" Optional="true">
<jc:StringCondition JdfField="/jdf:JDF/@Types" ContainedValue="Approval"/>
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:ApprovalParams/
jdf:GeneralID[@IDUsage='oce:SubmittersDescription']/@IDVal ue"/>
</jc:TextMapping>
Cost estimation and cost quotation
170 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
Miscellaneous
Author
<jc:TextMapping Name="Author" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/
jdf:Contact[@ContactTypes='Author']/jdf:Person/@FirstName"/>
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/
jdf:Contact[@ContactTypes='Author']/jdf:Person/@FamilyName"/>
</jc:TextMapping>
Comments
<jc:TextMapping Optional="true" Name="Comments">
<jc:JdfField XPath="/jdf:JDF/jdf:Comment[@Name='OperatorInstruction']"/>
</jc:TextMapping>
Category
<jc:TextMapping Name="Category" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:NodeInfo/
jdf:GeneralID[@IDUsage='oce:Category']/@IDValue"/>
</jc:TextMapping>
ExceptionInserts
<jc:BooleanMapping Name="ExceptionInserts" Optional="true">
<jc:TrueCondition ExpectedValue="true" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:NodeInfo/jdf:GeneralID[@IDUsage='oce:ExceptionInserts']/@IDValue"/>
</jc:BooleanMapping>
ExceptionRemarks
<jc:TextMapping Name="ExceptionRemarks" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:NodeInfo/
jdf:GeneralID[@IDUsage='oce:ExceptionRemarks']/@IDValue"/>
</jc:TextMapping>
ExceptionTabs
<jc:BooleanMapping Name="ExceptionTabs" Optional="true">
<jc:TrueCondition ExpectedValue="true" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:NodeInfo/jdf:GeneralID[@IDUsage='oce:ExceptionTabs']/@IDValue"/>
</jc:BooleanMapping>
IntentRemarks
<jc:TextMapping Name="IntentRemarks" Optional="false">
<jc:JdfField XPath="/jdf:JDF/jdf:Comment[@Name='Instruction']"/>
Miscellaneous
Chapter 6 - JDF mapping in PRISMAdirect 171
PRISMAdirect - All versions
</jc:TextMapping>
IntakeOperator
<jc:TextMapping Name="IntakeOperator" Optional="true" >
<jc:JdfField XPath="/jdf:JDF/jdf:NodeInfo/
jdf:Employee[@Roles='IntakeOperator']/jdf:Person/@FirstName"/>
<jc:JdfField XPath="/jdf:JDF/jdf:NodeInfo/
jdf:Employee[@Roles='IntakeOperator']/jdf:Person/@FamilyName"/>
</jc:TextMapping>
OffsetStacked
<jc:EnumMapping Name="OffsetStacked" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:StackingParams/
jdf:Disjointing/@OffsetDirection"/>
<jc:EnumValueMapping JdfValue="Alternate" AccessEnumValue="BySet"/>
<jc:EnumValueMapping JdfValue="None" AccessEnumValue="Off"/>
</jc:EnumMapping>
OperatorNotes
<jc:TextMapping Name="OperatorNotes" Optional="false">
<jc:JdfField XPath="/jdf:JDF/jdf:Comment[@Name='OperatorText']"/>
</jc:TextMapping>
ProofPrint (PrinterName)
<jc:TextMapping Name="ProofPrint" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:Device[@ID=/jdf:JDF/
jdf:AuditPool/jdf:ResourceAudit/jdf:DeviceLink/@rRef] /@DeviceID"/>
</jc:TextMapping>
PaperAvailable
<jc:BooleanMapping Name="PaperAvailable" Optional="true" >
<jc:TrueCondition ExpectedValue="Available" JdfField="/jdf:JDF/
jdf:ResourcePool/jdf:ExposedMedia/@Status"/>
</jc:BooleanMapping>
RequestSoftProof
<jc:BooleanMapping Name="RequestSoftProof" Optional="true">
<jc:TrueCondition ExpectedValue="true" JdfField="/jdf:JDF/jdf:ResourcePool/
jdf:NodeInfo/jdf:GeneralID[@IDUsage='oce:RequestSoftPoof']/@IDValue"/>
</jc:BooleanMapping>
Miscellaneous
172 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
JobName
<jc:TextMapping Name="JobName" Optional="false">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:CustomerInfo/
@CustomerJobName"/>
</jc:TextMapping
Copies
<jc:NumberMapping Name="Copies" Optional="false">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourceLinkPool/
jdf:ComponentLink[ @Usage='Output' and @rRef=/jdf:JDF/jdf:ResourcePool/
jdf:Component[@ComponentType='FinalProduct']/@ID ]/@Amount"/>
</jc:NumberMapping>
PrinterName
<jc:TextMapping Name="PrinterName" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:Device/@DeviceID"/>
</jc:TextMapping>
PrintInColor
<jc:EnumMapping Name="PrintInColor" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:ColorantControl/
@ProcessColorModel"/>
<jc:EnumValueMapping JdfValue="DeviceCMYK" AccessEnumValue="Color"/>
<jc:EnumValueMapping JdfValue="DeviceGray" AccessEnumValue="BlackAndWhite"/>
</jc:EnumMapping>
Plexity
<jc:EnumMapping Name="Plexity" Optional="false">
<jc:JdfField XPath="/jdf:JDF/jdf:ResourcePool/jdf:LayoutPreparationParams/
@Sides"/>
<jc:EnumValueMapping JdfValue="OneSidedFront" AccessEnumValue="Simplex"/>
<jc:EnumValueMapping JdfValue="OneSidedBackFlipX" AccessEnumValue="Simplex"/>
<jc:EnumValueMapping JdfValue="OneSidedBackFlipY" AccessEnumValue="Simplex"/>
<jc:EnumValueMapping JdfValue="TwoSidedFlipY" AccessEnumValue="Duplex"/>
<jc:EnumValueMapping JdfValue="TwoSidedFlipX" AccessEnumValue="Duplex"/>
</jc:EnumMapping>
Title
<jc:TextMapping Name="Title" Optional="true">
<jc:JdfField XPath="/jdf:JDF/@DescriptiveName"/>
</jc:TextMapping>
Miscellaneous
Chapter 6 - JDF mapping in PRISMAdirect 173
PRISMAdirect - All versions
CreationDate
<jc:DateMapping Name="CreationDate" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:AuditPool/jdf:Created/@TimeStamp"/>
</jc:DateMapping>
FinishingRemarks
<jc:TextMapping Name="FinishingRemarks" Optional="true">
<jc:JdfField XPath="/jdf:JDF/jdf:AuditPool/jdf:PhaseTime/@Comment"/>
</jc:TextMapping>
FinishingTime
<jc:TimeSpanMapping Name="FinishingTime" Optional="true">
<jc:StringCondition JdfField="/jdf:JDF/jdf:AuditPool/
jdf:PhaseTime[@ModuleType='Finisher']/@Status" ExpectedValue="Completed"/>
<jc:TimeSpan Start="/jdf:JDF/jdf:AuditPool/
jdf:PhaseTime[@ModuleType='Finisher']/@Start" End="/jdf:JDF/jdf:AuditPool/
jdf:PhaseTime[@ModuleType='Finisher']/@End"/>
</jc:TimeSpanMapping>
PrepareTime
<jc:TimeSpanMapping Name="PrepareTime" Optional="true">
<jc:StringCondition JdfField="/jdf:JDF/jdf:AuditPool/
jdf:PhaseTime[@ModuleType='Imposer']/@Status" ExpectedValue="Completed"/>
<jc:TimeSpan Start="/jdf:JDF/jdf:AuditPool/
jdf:PhaseTime[@ModuleType='Imposer']/@Start" End="/jdf:JDF/jdf:AuditPool/
jdf:PhaseTime[@ModuleType='Imposer']/@End"/>
</jc:TimeSpanMapping>
Miscellaneous
174 Chapter 6 - JDF mapping in PRISMAdirect
PRISMAdirect - All versions
DSF endpoint
DSF doesn’t completely adhere to JDF standard, thus, customization had to be done.
When adding or configuring a JDF endpoint, the user can mark the endpoint as being DSF and
additional configuration is needed that generates a new URL for DSF. This URL must be used for
DSF case, not the main one presented by the JDF endpoint configuration.
Additionally, DSF-to-PD mapping file (available for automatic Import Service) can be used for
ticket items as a better default and it is available on the PRISMAdirect installation machine: “$
(OCE_STORAGE)\Asset\Import Service Mappings”.
