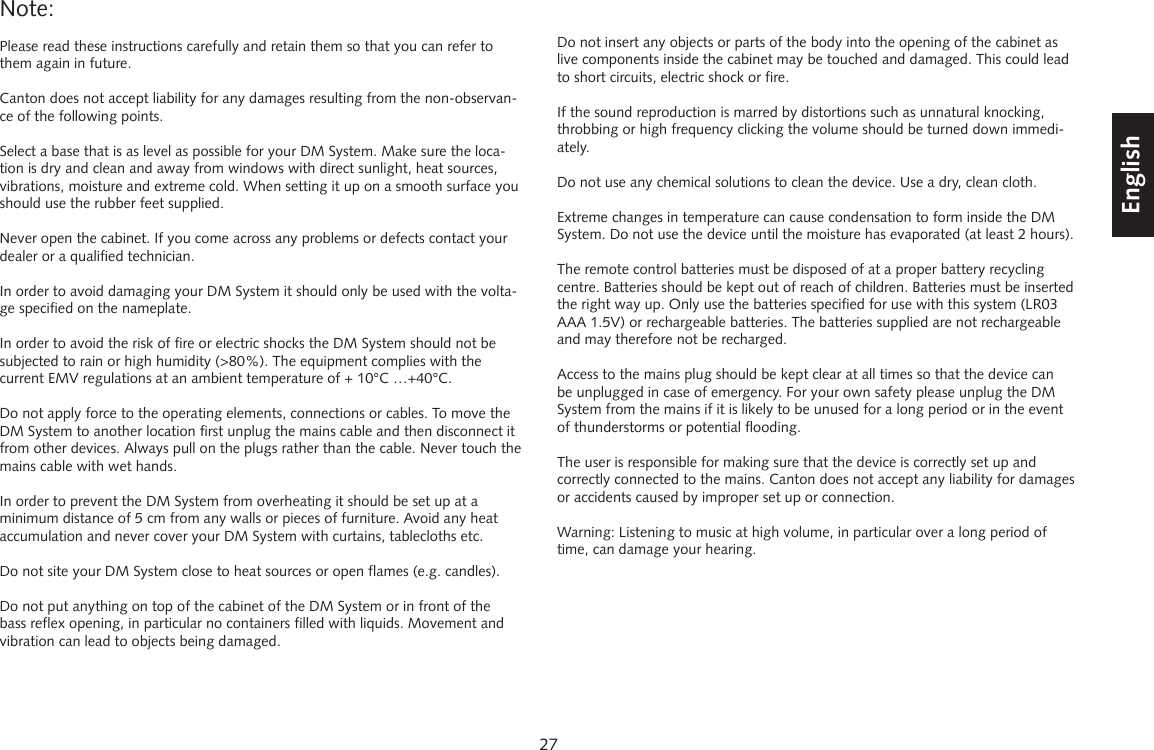

27DeutschEnglishFrançaisEspagnolNote: Please read these instructions carefully and retain them so that you can refer to them again in future.Canton does not accept liability for any damages resulting from the non-observan-ce of the following points.Select a base that is as level as possible for your DM System. Make sure the loca-tion is dry and clean and away from windows with direct sunlight, heat sources, vibrations, moisture and extreme cold. When setting it up on a smooth surface you should use the rubber feet supplied.Never open the cabinet. If you come across any problems or defects contact your dealer or a qualified technician.In order to avoid damaging your DM System it should only be used with the volta-ge specified on the nameplate.In order to avoid the risk of fire or electric shocks the DM System should not be subjected to rain or high humidity (>80%). The equipment complies with the current EMV regulations at an ambient temperature of + 10°C …+40°C.Do not apply force to the operating elements, connections or cables. To move the DM System to another location first unplug the mains cable and then disconnect it from other devices. Always pull on the plugs rather than the cable. Never touch the mains cable with wet hands.In order to prevent the DM System from overheating it should be set up at a minimum distance of 5 cm from any walls or pieces of furniture. Avoid any heat accumulation and never cover your DM System with curtains, tablecloths etc.Do not site your DM System close to heat sources or open flames (e.g. candles).Do not put anything on top of the cabinet of the DM System or in front of the bass reflex opening, in particular no containers filled with liquids. Movement and vibration can lead to objects being damaged.Do not insert any objects or parts of the body into the opening of the cabinet as live components inside the cabinet may be touched and damaged. This could lead to short circuits, electric shock or fire.If the sound reproduction is marred by distortions such as unnatural knocking, throbbing or high frequency clicking the volume should be turned down immedi-ately.Do not use any chemical solutions to clean the device. Use a dry, clean cloth.Extreme changes in temperature can cause condensation to form inside the DM System. Do not use the device until the moisture has evaporated (at least 2 hours).The remote control batteries must be disposed of at a proper battery recycling centre. Batteries should be kept out of reach of children. Batteries must be inserted the right way up. Only use the batteries specified for use with this system (LR03 AAA 1.5V) or rechargeable batteries. The batteries supplied are not rechargeable and may therefore not be recharged.Access to the mains plug should be kept clear at all times so that the device can be unplugged in case of emergency. For your own safety please unplug the DM System from the mains if it is likely to be unused for a long period or in the event of thunderstorms or potential flooding.The user is responsible for making sure that the device is correctly set up and correctly connected to the mains. Canton does not accept any liability for damages or accidents caused by improper set up or connection.Warning: Listening to music at high volume, in particular over a long period of time, can damage your hearing.

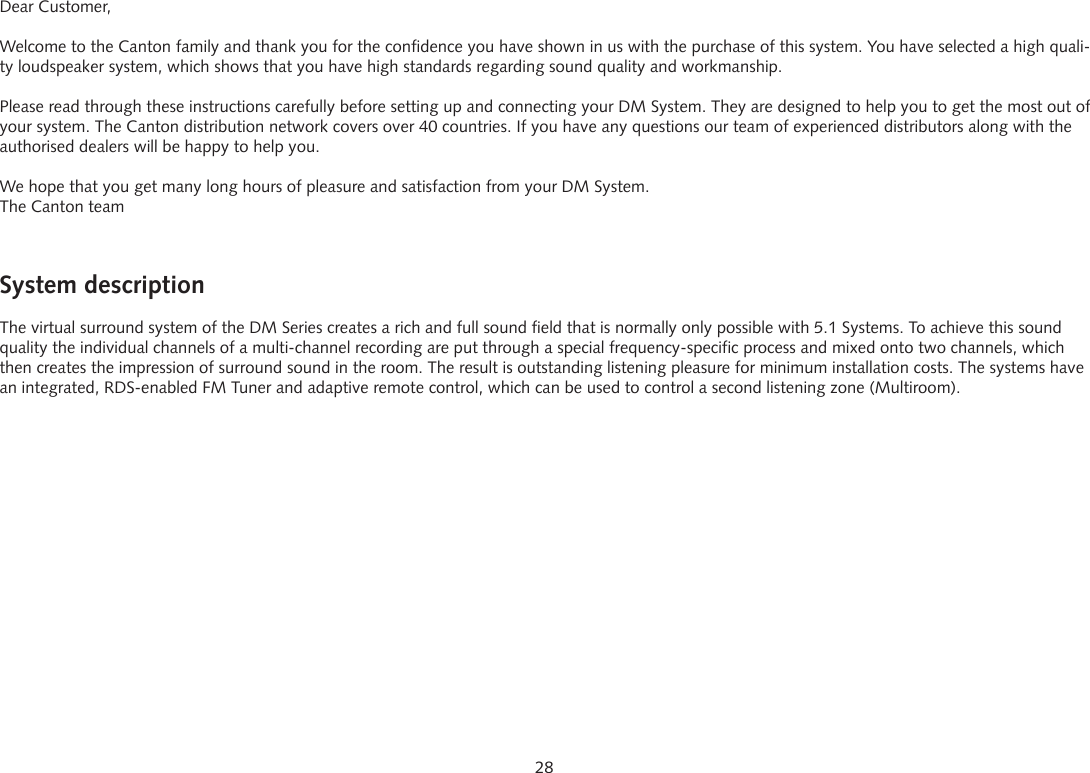

28System descriptionThe virtual surround system of the DM Series creates a rich and full sound field that is normally only possible with 5.1 Systems. To achieve this sound quality the individual channels of a multi-channel recording are put through a special frequency-specific process and mixed onto two channels, which then creates the impression of surround sound in the room. The result is outstanding listening pleasure for minimum installation costs. The systems have an integrated, RDS-enabled FM Tuner and adaptive remote control, which can be used to control a second listening zone (Multiroom).Dear Customer,Welcome to the Canton family and thank you for the confidence you have shown in us with the purchase of this system. You have selected a high quali-ty loudspeaker system, which shows that you have high standards regarding sound quality and workmanship.Please read through these instructions carefully before setting up and connecting your DM System. They are designed to help you to get the most out of your system. The Canton distribution network covers over 40 countries. If you have any questions our team of experienced distributors along with the authorised dealers will be happy to help you.We hope that you get many long hours of pleasure and satisfaction from your DM System.The Canton team

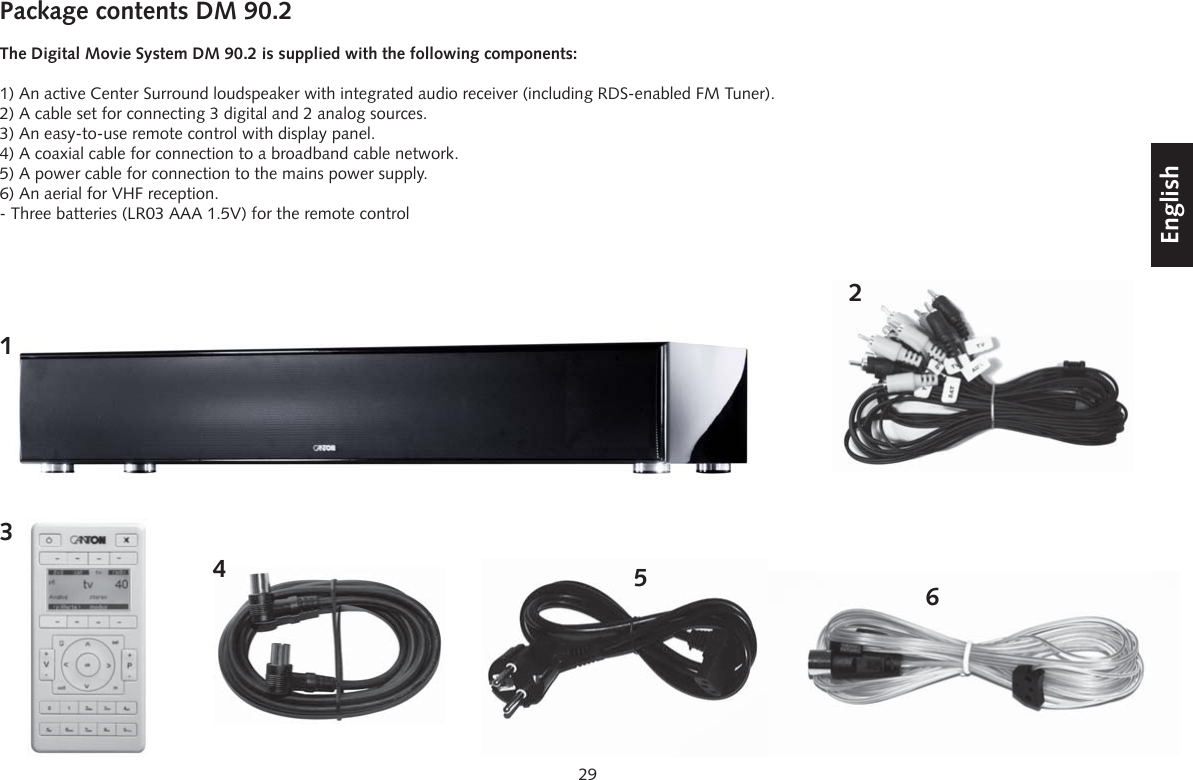

29DeutschEnglishFrançaisEspagnolPackage contents DM 90.2The Digital Movie System DM 90.2 is supplied with the following components:1) An active Center Surround loudspeaker with integrated audio receiver (including RDS-enabled FM Tuner).2) A cable set for connecting 3 digital and 2 analog sources.3) An easy-to-use remote control with display panel.4) A coaxial cable for connection to a broadband cable network.5) A power cable for connection to the mains power supply.6) An aerial for VHF reception.- Three batteries (LR03 AAA 1.5V) for the remote control156423

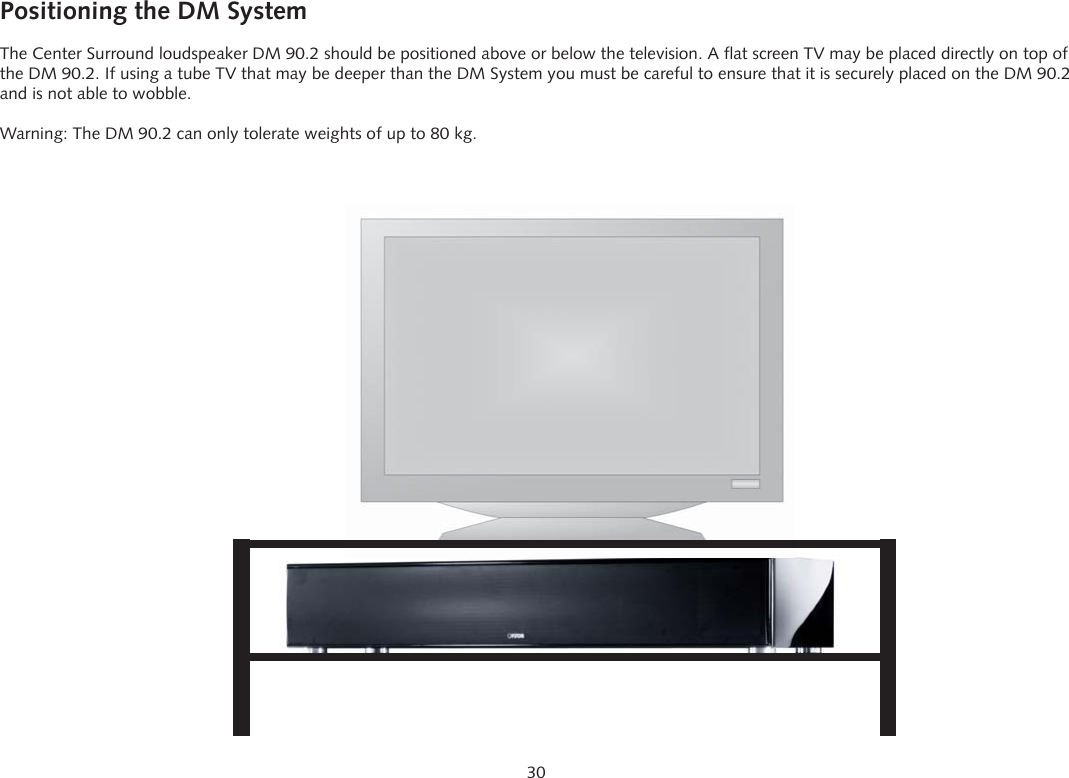

30Positioning the DM SystemThe Center Surround loudspeaker DM 90.2 should be positioned above or below the television. A flat screen TV may be placed directly on top of the DM 90.2. If using a tube TV that may be deeper than the DM System you must be careful to ensure that it is securely placed on the DM 90.2 and is not able to wobble.Warning: The DM 90.2 can only tolerate weights of up to 80 kg.

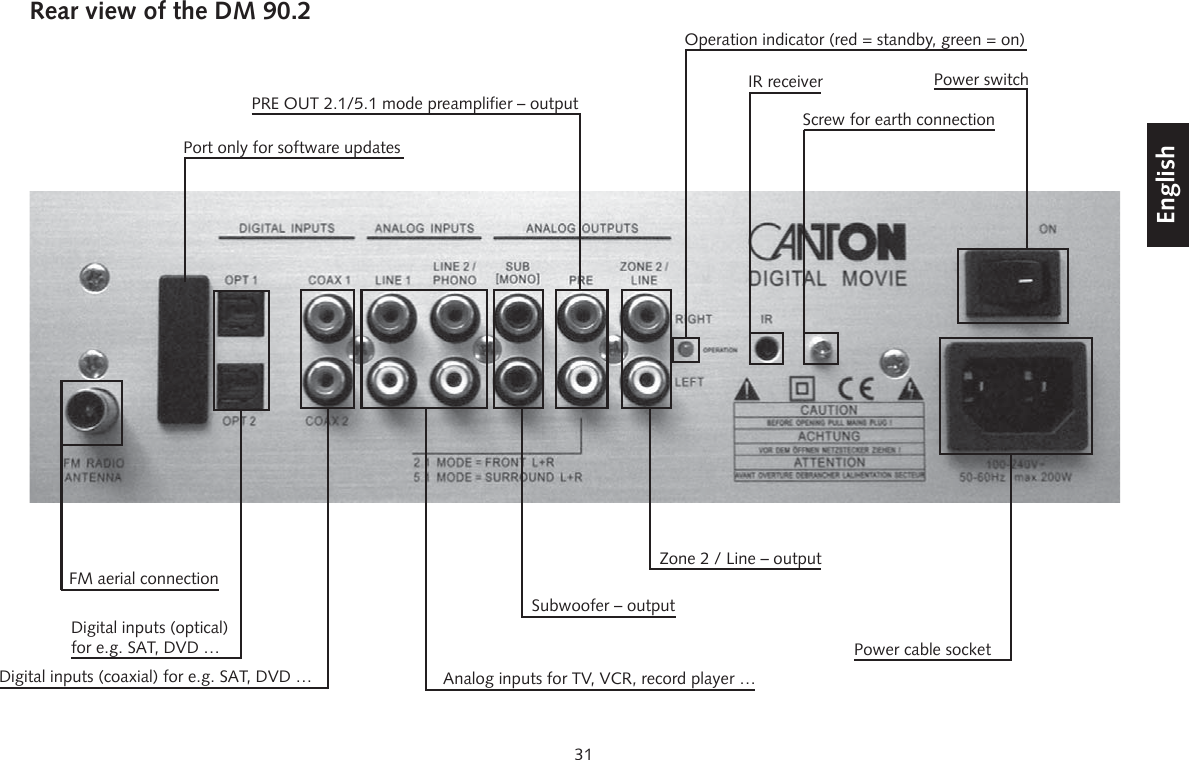

31DeutschEnglishFrançaisEspagnolRear view of the DM 90.2FM aerial connectionDigital inputs (coaxial) for e.g. SAT, DVD … Analog inputs for TV, VCR, record player …Digital inputs (optical) for e.g. SAT, DVD …PRE OUT 2.1/5.1 mode preamplifier – outputPower cable socketPower switchOperation indicator (red = standby, green = on)Subwoofer – outputZone 2 / Line – outputIR receiverPort only for software updatesScrew for earth connection

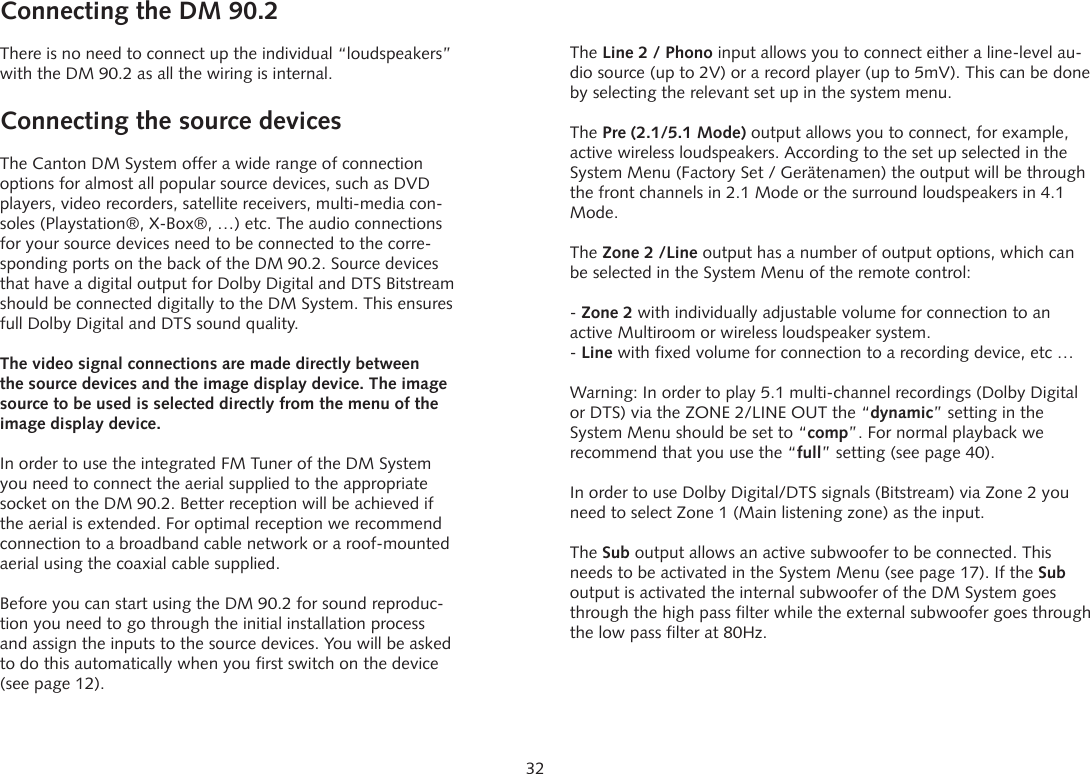

32Connecting the DM 90.2 There is no need to connect up the individual “loudspeakers” with the DM 90.2 as all the wiring is internal.Connecting the source devicesThe Canton DM System offer a wide range of connection options for almost all popular source devices, such as DVD players, video recorders, satellite receivers, multi-media con-soles (Playstation®, X-Box®, …) etc. The audio connections for your source devices need to be connected to the corre-sponding ports on the back of the DM 90.2. Source devices that have a digital output for Dolby Digital and DTS Bitstream should be connected digitally to the DM System. This ensures full Dolby Digital and DTS sound quality.The video signal connections are made directly between the source devices and the image display device. The image source to be used is selected directly from the menu of the image display device.In order to use the integrated FM Tuner of the DM System you need to connect the aerial supplied to the appropriate socket on the DM 90.2. Better reception will be achieved if the aerial is extended. For optimal reception we recommend connection to a broadband cable network or a roof-mounted aerial using the coaxial cable supplied.Before you can start using the DM 90.2 for sound reproduc-tion you need to go through the initial installation process and assign the inputs to the source devices. You will be asked to do this automatically when you first switch on the device (see page 12).The Line 2 / Phono input allows you to connect either a line-level au-dio source (up to 2V) or a record player (up to 5mV). This can be done by selecting the relevant set up in the system menu.The Pre (2.1/5.1 Mode) output allows you to connect, for example, active wireless loudspeakers. According to the set up selected in the System Menu (Factory Set / Gerätenamen) the output will be through the front channels in 2.1 Mode or the surround loudspeakers in 4.1 Mode.The Zone 2 /Line output has a number of output options, which can be selected in the System Menu of the remote control:- Zone 2 with individually adjustable volume for connection to an active Multiroom or wireless loudspeaker system.- Line with fixed volume for connection to a recording device, etc …Warning: In order to play 5.1 multi-channel recordings (Dolby Digital or DTS) via the ZONE 2/LINE OUT the “dynamic” setting in the System Menu should be set to “comp”. For normal playback we recommend that you use the “full” setting (see page 40).In order to use Dolby Digital/DTS signals (Bitstream) via Zone 2 you need to select Zone 1 (Main listening zone) as the input.The Sub output allows an active subwoofer to be connected. This needs to be activated in the System Menu (see page 17). If the Sub output is activated the internal subwoofer of the DM System goes through the high pass filter while the external subwoofer goes through the low pass filter at 80Hz.

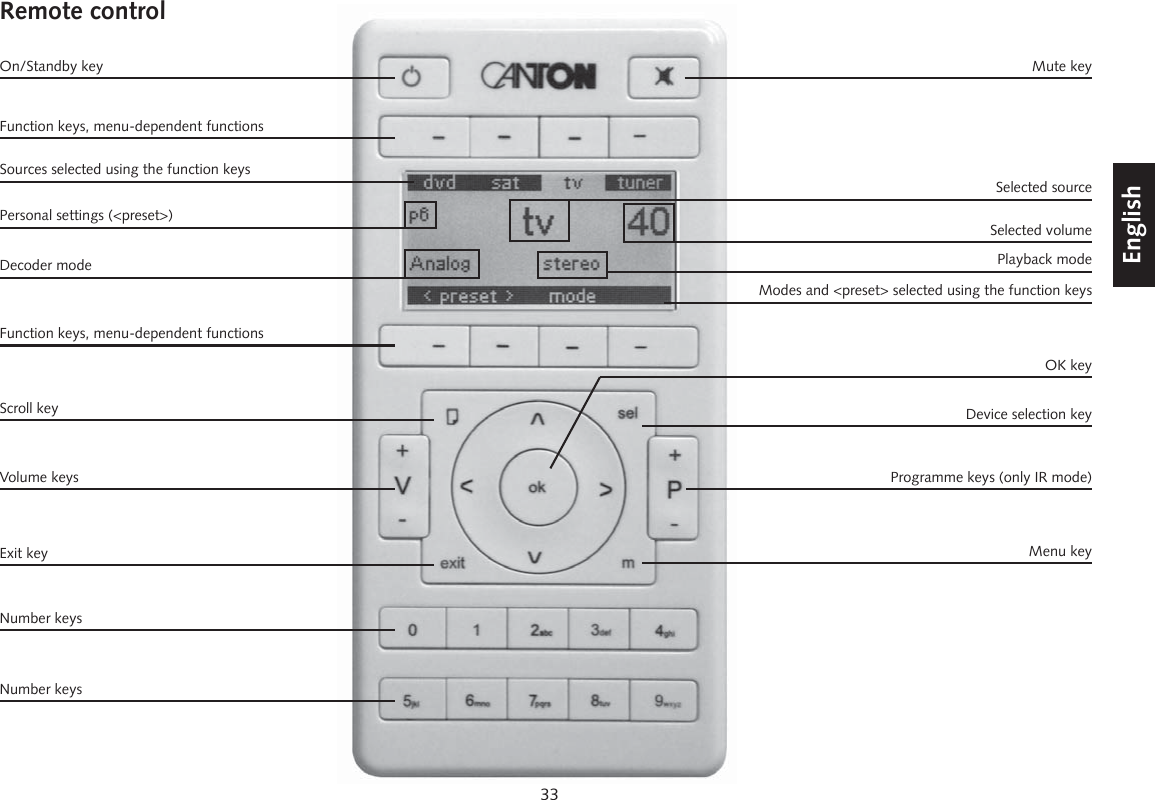

33DeutschEnglishFrançaisEspagnolRemote controlFunction keys, menu-dependent functionsNumber keysVolume keysOK keyOn/Standby keyFunction keys, menu-dependent functionsNumber keysMute keyMenu keyProgramme keys (only IR mode)Device selection keyPersonal settings (<preset>)Decoder modeSelected volumePlayback modeSelected sourceScroll keyExit keySources selected using the function keysModes and <preset> selected using the function keys

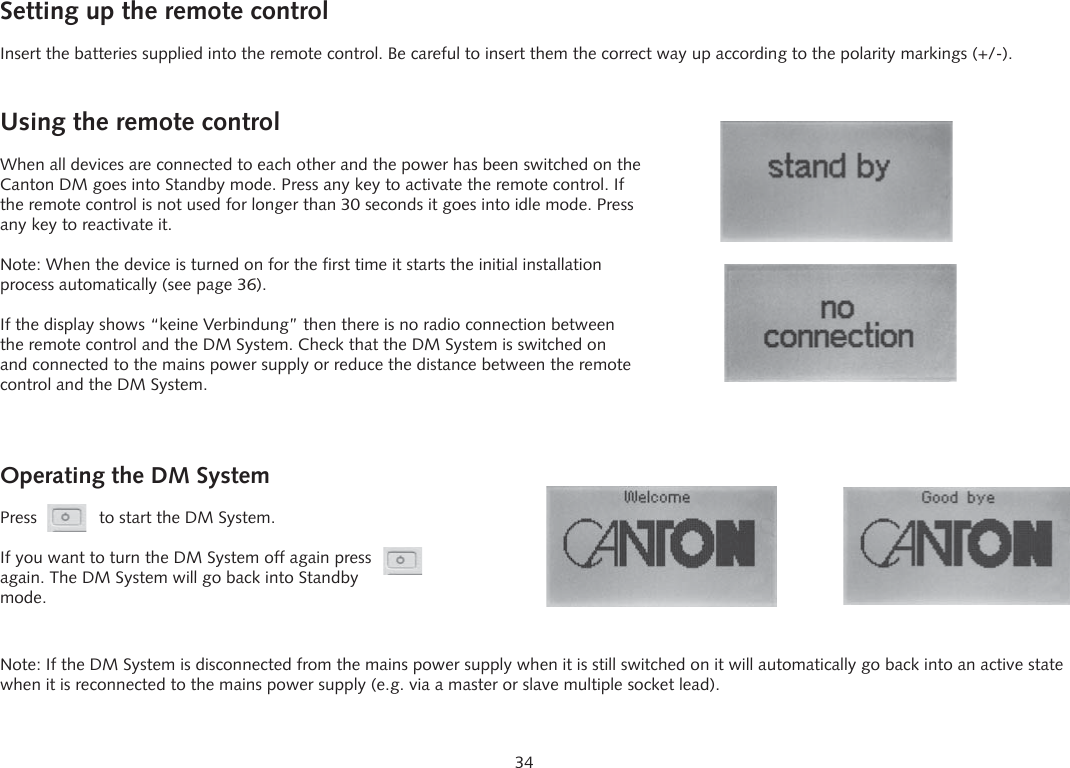

34Operating the DM SystemPress             to start the DM System.If you want to turn the DM System off again press  again. The DM System will go back into Standby mode.Setting up the remote controlInsert the batteries supplied into the remote control. Be careful to insert them the correct way up according to the polarity markings (+/-).Using the remote controlWhen all devices are connected to each other and the power has been switched on the Canton DM goes into Standby mode. Press any key to activate the remote control. If the remote control is not used for longer than 30 seconds it goes into idle mode. Press any key to reactivate it.Note: When the device is turned on for the first time it starts the initial installation process automatically (see page 36).If the display shows “keine Verbindung” then there is no radio connection between the remote control and the DM System. Check that the DM System is switched on and connected to the mains power supply or reduce the distance between the remote control and the DM System.Note: If the DM System is disconnected from the mains power supply when it is still switched on it will automatically go back into an active state when it is reconnected to the mains power supply (e.g. via a master or slave multiple socket lead).

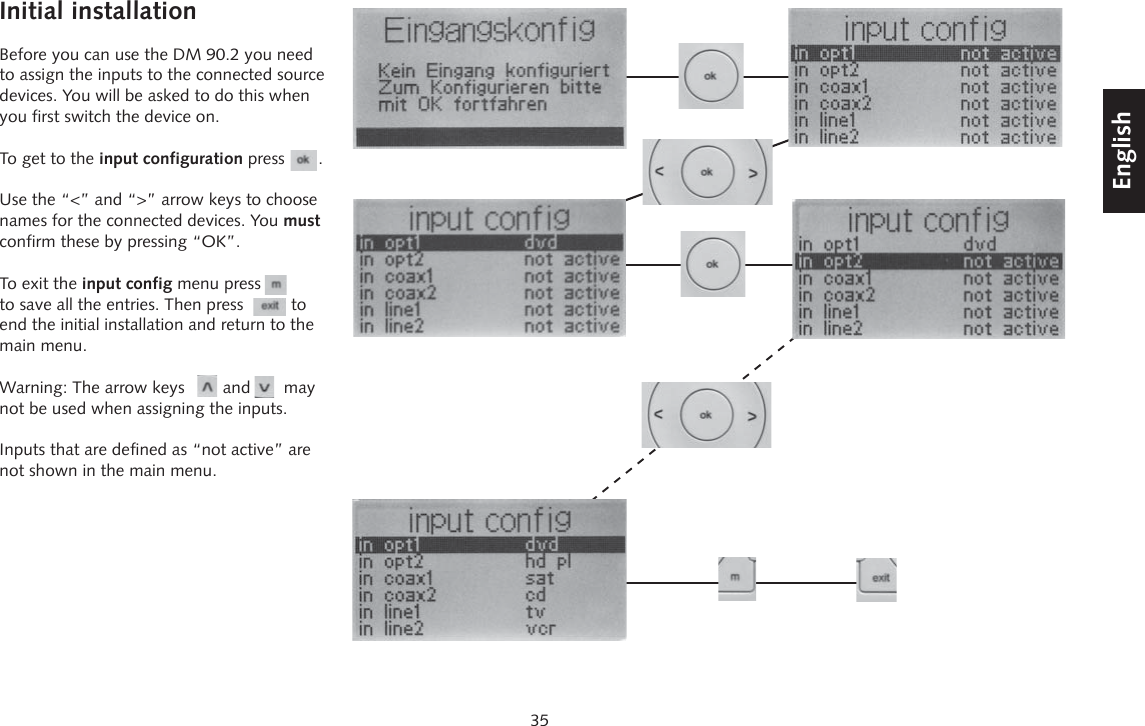

35DeutschEnglishFrançaisEspagnolInitial installationBefore you can use the DM 90.2 you need to assign the inputs to the connected source devices. You will be asked to do this when you first switch the device on.To get to the input configuration press       .Use the “<” and “>” arrow keys to choose names for the connected devices. You must confirm these by pressing “OK”.To exit the input config menu press to save all the entries. Then press          to end the initial installation and return to the main menu.Warning: The arrow keys        and       may not be used when assigning the inputs.Inputs that are defined as “not active” are not shown in the main menu.

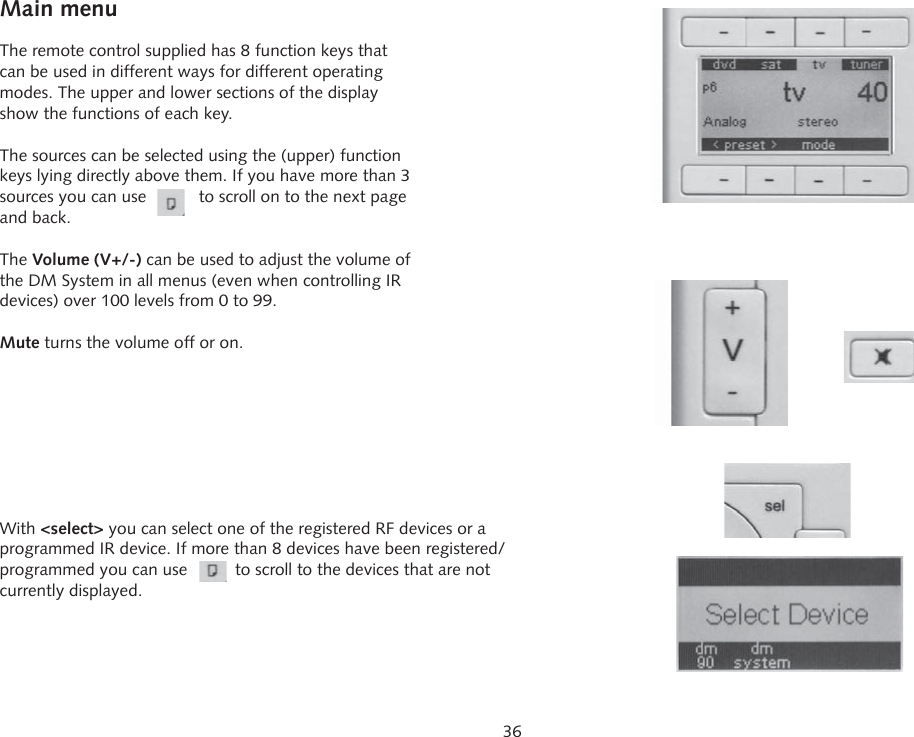

36Main menuThe remote control supplied has 8 function keys that can be used in different ways for different operating modes. The upper and lower sections of the display show the functions of each key.The sources can be selected using the (upper) function keys lying directly above them. If you have more than 3 sources you can use           to scroll on to the next page and back.The Volume (V+/-) can be used to adjust the volume of the DM System in all menus (even when controlling IR devices) over 100 levels from 0 to 99.Mute turns the volume off or on.With <select> you can select one of the registered RF devices or a programmed IR device. If more than 8 devices have been registered/ programmed you can use          to scroll to the devices that are not currently displayed.

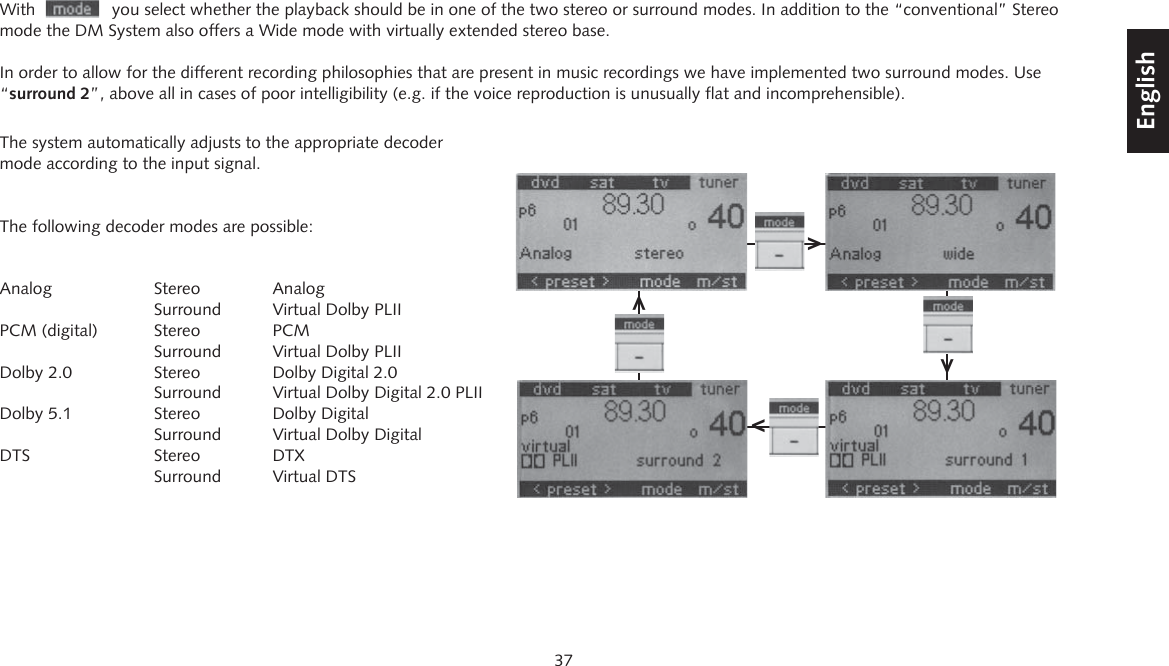

37DeutschEnglishFrançaisEspagnolWith                you select whether the playback should be in one of the two stereo or surround modes. In addition to the “conventional” Stereo mode the DM System also offers a Wide mode with virtually extended stereo base.In order to allow for the different recording philosophies that are present in music recordings we have implemented two surround modes. Use “surround 2”, above all in cases of poor intelligibility (e.g. if the voice reproduction is unusually flat and incomprehensible).><>>The system automatically adjusts to the appropriate decoder mode according to the input signal.The following decoder modes are possible: Analog Stereo Analog  Surround  Virtual Dolby PLIIPCM (digital)  Stereo  PCM  Surround  Virtual Dolby PLIIDolby 2.0  Stereo  Dolby Digital 2.0  Surround  Virtual Dolby Digital 2.0 PLIIDolby 5.1  Stereo  Dolby Digital  Surround  Virtual Dolby DigitalDTS Stereo  DTX Surround Virtual DTS

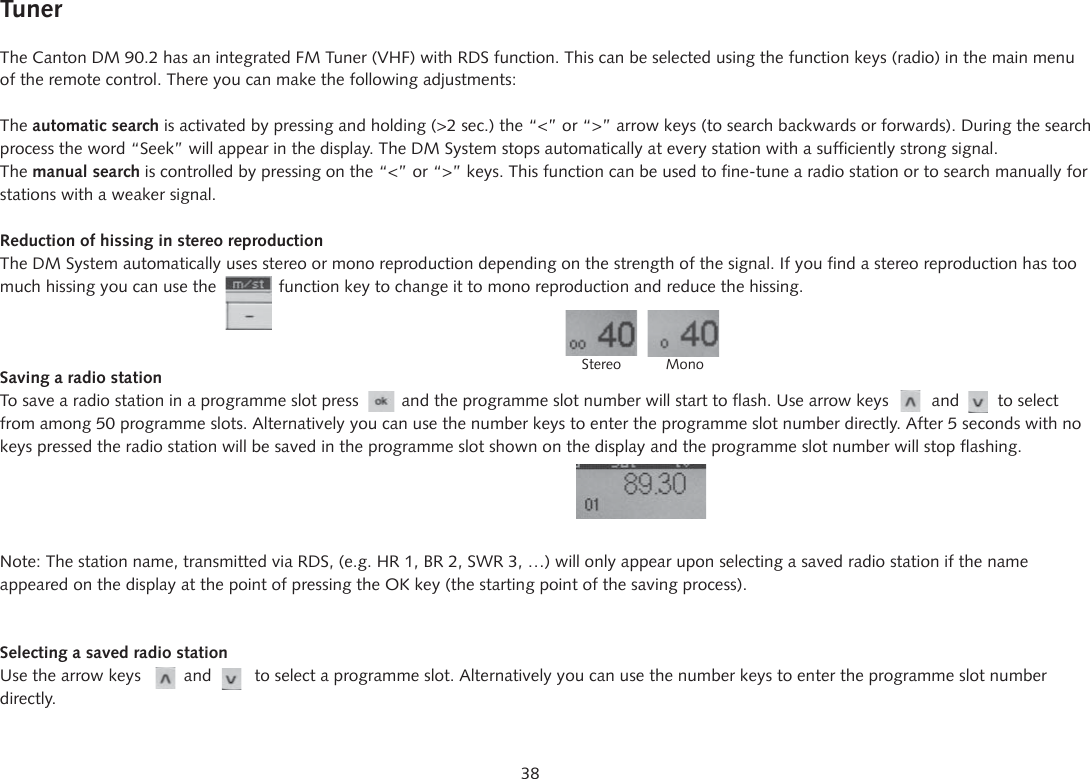

38TunerThe Canton DM 90.2 has an integrated FM Tuner (VHF) with RDS function. This can be selected using the function keys (radio) in the main menu of the remote control. There you can make the following adjustments:The automatic search is activated by pressing and holding (>2 sec.) the “<” or “>” arrow keys (to search backwards or forwards). During the search process the word “Seek” will appear in the display. The DM System stops automatically at every station with a sufficiently strong signal. The manual search is controlled by pressing on the “<” or “>” keys. This function can be used to fine-tune a radio station or to search manually for stations with a weaker signal.Reduction of hissing in stereo reproductionThe DM System automatically uses stereo or mono reproduction depending on the strength of the signal. If you find a stereo reproduction has too much hissing you can use the             function key to change it to mono reproduction and reduce the hissing.Saving a radio stationTo save a radio station in a programme slot press         and the programme slot number will start to flash. Use arrow keys         and        to select from among 50 programme slots. Alternatively you can use the number keys to enter the programme slot number directly. After 5 seconds with no keys pressed the radio station will be saved in the programme slot shown on the display and the programme slot number will stop flashing.Note: The station name, transmitted via RDS, (e.g. HR 1, BR 2, SWR 3, …) will only appear upon selecting a saved radio station if the name appeared on the display at the point of pressing the OK key (the starting point of the saving process).Selecting a saved radio stationUse the arrow keys         and         to select a programme slot. Alternatively you can use the number keys to enter the programme slot number directly.    Stereo           Mono

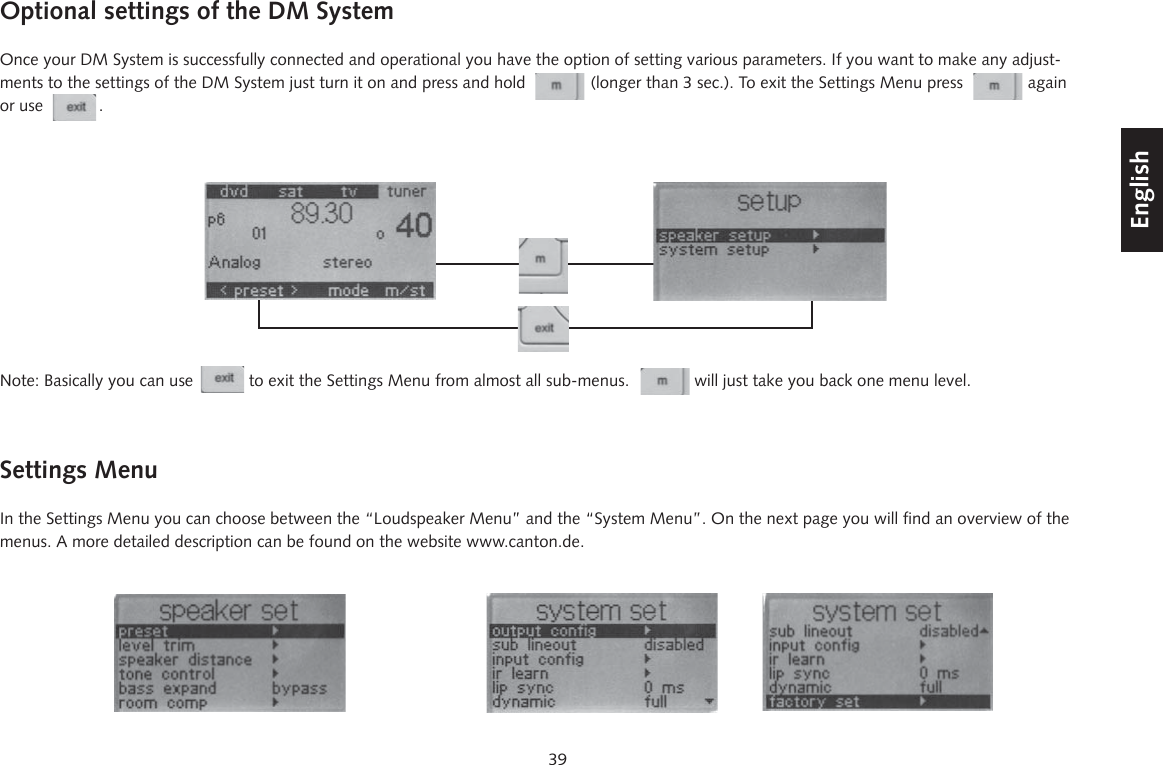

39DeutschEnglishFrançaisEspagnolOptional settings of the DM SystemOnce your DM System is successfully connected and operational you have the option of setting various parameters. If you want to make any adjust-ments to the settings of the DM System just turn it on and press and hold              (longer than 3 sec.). To exit the Settings Menu press              again or use            .Note: Basically you can use            to exit the Settings Menu from almost all sub-menus.              will just take you back one menu level.Settings MenuIn the Settings Menu you can choose between the “Loudspeaker Menu” and the “System Menu”. On the next page you will find an overview of the menus. A more detailed description can be found on the website www.canton.de.

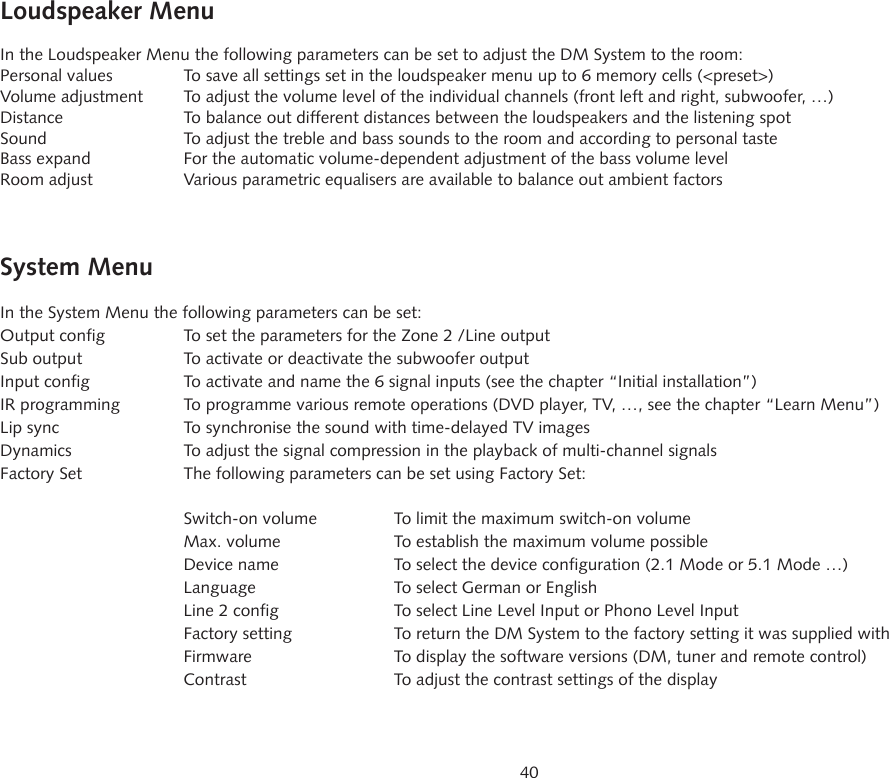

40Loudspeaker MenuIn the Loudspeaker Menu the following parameters can be set to adjust the DM System to the room:Personal values  To save all settings set in the loudspeaker menu up to 6 memory cells (<preset>)Volume adjustment  To adjust the volume level of the individual channels (front left and right, subwoofer, …)Distance  To balance out different distances between the loudspeakers and the listening spotSound   To adjust the treble and bass sounds to the room and according to personal tasteBass expand  For the automatic volume-dependent adjustment of the bass volume levelRoom adjust  Various parametric equalisers are available to balance out ambient factorsSystem MenuIn the System Menu the following parameters can be set:Output config  To set the parameters for the Zone 2 /Line outputSub output  To activate or deactivate the subwoofer outputInput config  To activate and name the 6 signal inputs (see the chapter “Initial installation”)IR programming  To programme various remote operations (DVD player, TV, …, see the chapter “Learn Menu”)Lip sync  To synchronise the sound with time-delayed TV imagesDynamics  To adjust the signal compression in the playback of multi-channel signalsFactory Set  The following parameters can be set using Factory Set:  Switch-on volume  To limit the maximum switch-on volume  Max. volume  To establish the maximum volume possible  Device name  To select the device configuration (2.1 Mode or 5.1 Mode …)  Language  To select German or English  Line 2 config  To select Line Level Input or Phono Level Input  Factory setting  To return the DM System to the factory setting it was supplied with  Firmware  To display the software versions (DM, tuner and remote control)  Contrast  To adjust the contrast settings of the display

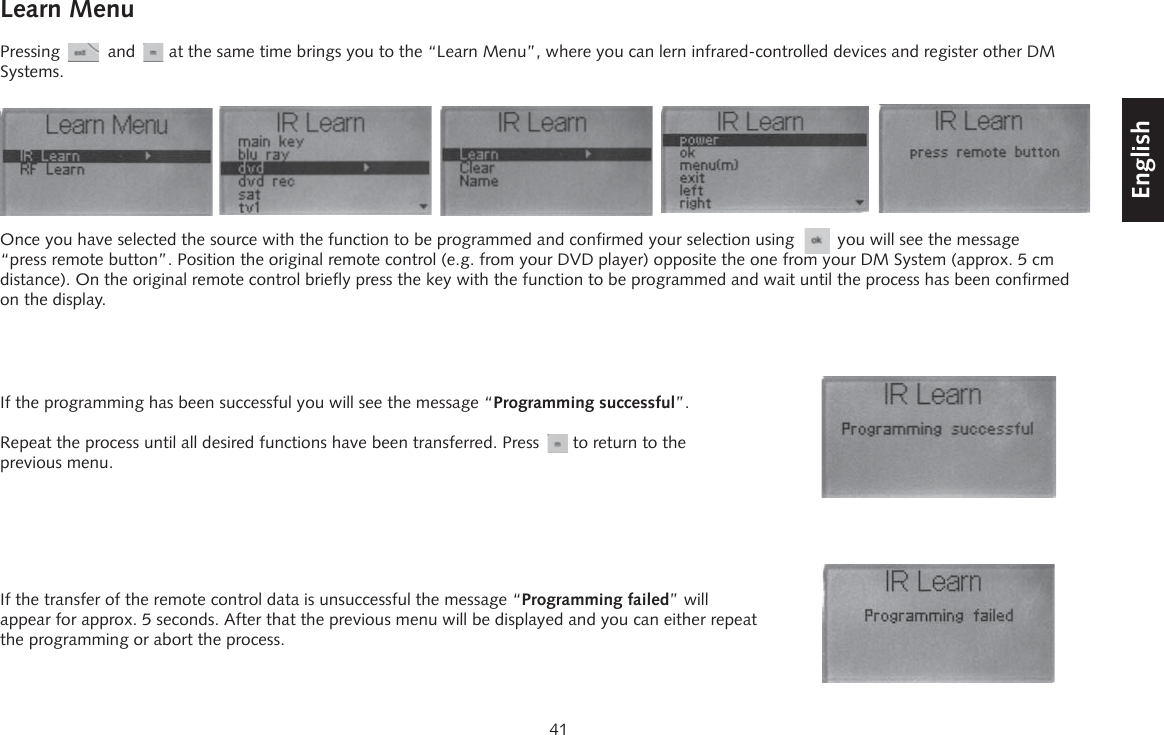

41DeutschEnglishFrançaisEspagnolLearn MenuPressing          and       at the same time brings you to the “Learn Menu”, where you can lern infrared-controlled devices and register other DM Systems.If the transfer of the remote control data is unsuccessful the message “Programming failed” will appear for approx. 5 seconds. After that the previous menu will be displayed and you can either repeat the programming or abort the process.If the programming has been successful you will see the message “Programming successful”.Repeat the process until all desired functions have been transferred. Press       to return to the previous menu.Once you have selected the source with the function to be programmed and confirmed your selection using         you will see the message “press remote button”. Position the original remote control (e.g. from your DVD player) opposite the one from your DM System (approx. 5 cm distance). On the original remote control briefly press the key with the function to be programmed and wait until the process has been confirmed on the display.

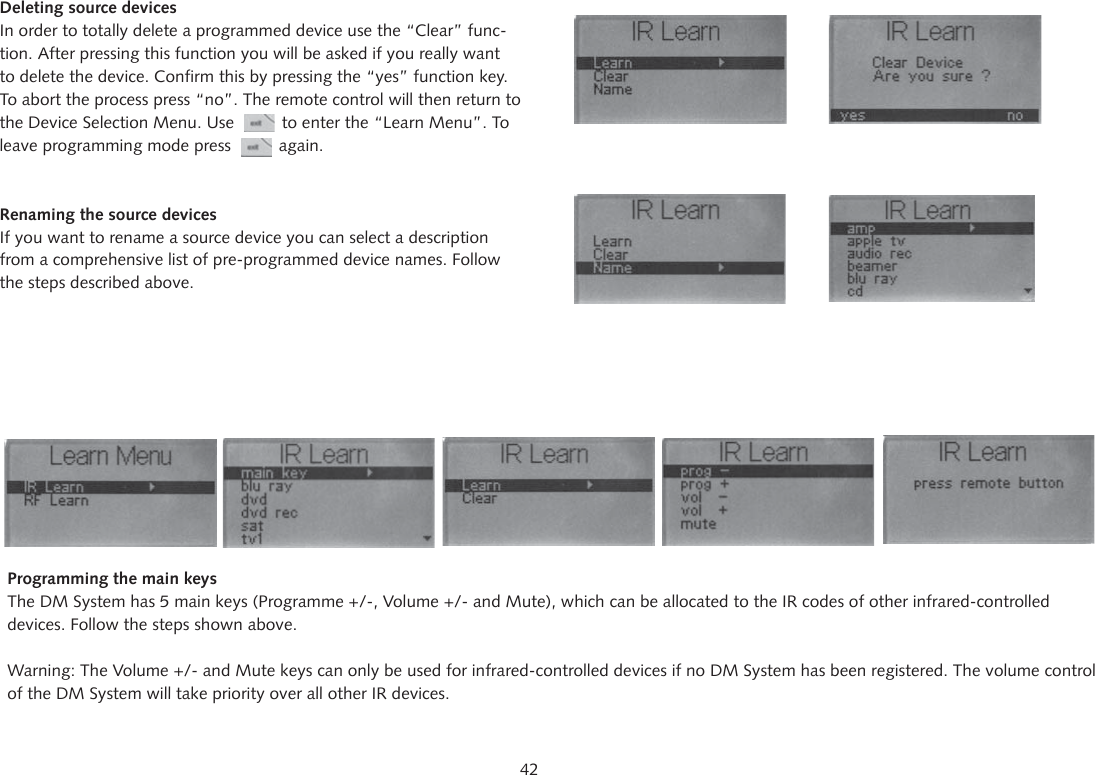

42Deleting source devicesIn order to totally delete a programmed device use the “Clear” func-tion. After pressing this function you will be asked if you really want to delete the device. Confirm this by pressing the “yes” function key. To abort the process press “no”. The remote control will then return to the Device Selection Menu. Use          to enter the “Learn Menu”. To leave programming mode press          again.Renaming the source devicesIf you want to rename a source device you can select a description from a comprehensive list of pre-programmed device names. Follow the steps described above.Programming the main keysThe DM System has 5 main keys (Programme +/-, Volume +/- and Mute), which can be allocated to the IR codes of other infrared-controlled devices. Follow the steps shown above.Warning: The Volume +/- and Mute keys can only be used for infrared-controlled devices if no DM System has been registered. The volume control of the DM System will take priority over all other IR devices.

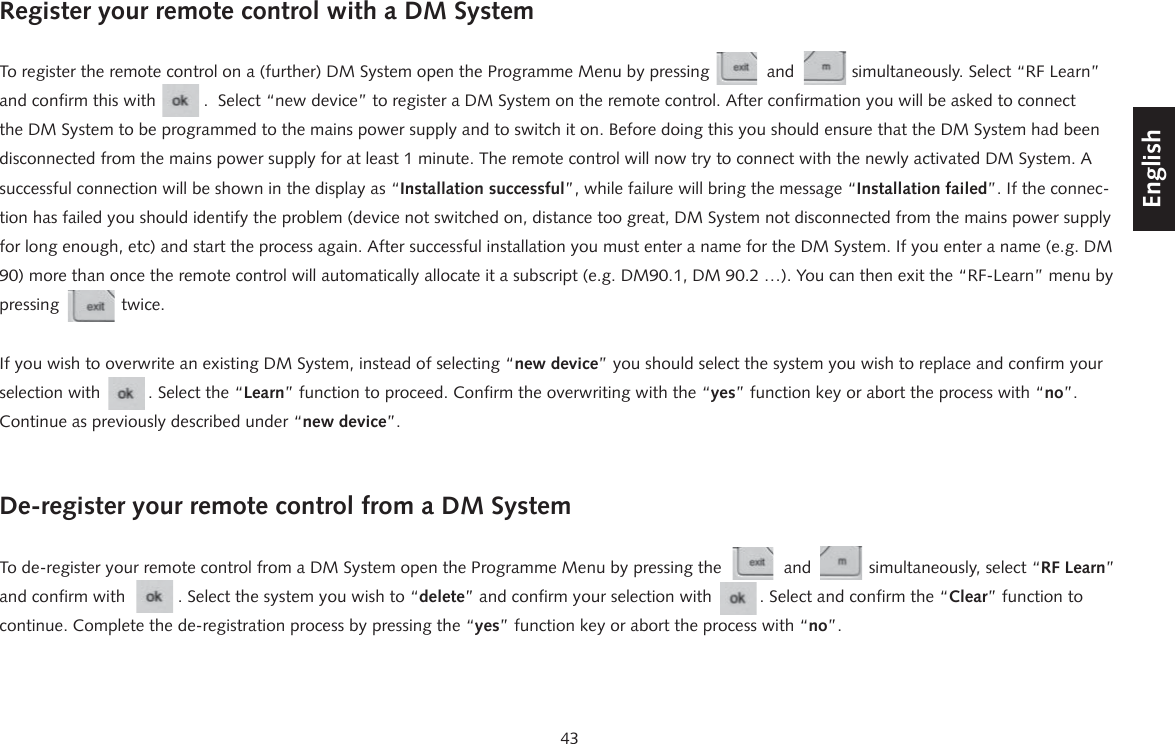

43DeutschEnglishFrançaisEspagnolRegister your remote control with a DM SystemTo register the remote control on a (further) DM System open the Programme Menu by pressing            and            simultaneously. Select “RF Learn”  and confirm this with          .  Select “new device” to register a DM System on the remote control. After confirmation you will be asked to connect the DM System to be programmed to the mains power supply and to switch it on. Before doing this you should ensure that the DM System had been disconnected from the mains power supply for at least 1 minute. The remote control will now try to connect with the newly activated DM System. A successful connection will be shown in the display as “Installation successful”, while failure will bring the message “Installation failed”. If the connec-tion has failed you should identify the problem (device not switched on, distance too great, DM System not disconnected from the mains power supply for long enough, etc) and start the process again. After successful installation you must enter a name for the DM System. If you enter a name (e.g. DM 90) more than once the remote control will automatically allocate it a subscript (e.g. DM90.1, DM 90.2 …). You can then exit the “RF-Learn” menu by pressing             twice.If you wish to overwrite an existing DM System, instead of selecting “new device” you should select the system you wish to replace and confirm your selection with          . Select the “Learn” function to proceed. Confirm the overwriting with the “yes” function key or abort the process with “no”. Continue as previously described under “new device”.De-register your remote control from a DM SystemTo de-register your remote control from a DM System open the Programme Menu by pressing the             and            simultaneously, select “RF Learn” and confirm with           . Select the system you wish to “delete” and confirm your selection with          . Select and confirm the “Clear” function to continue. Complete the de-registration process by pressing the “yes” function key or abort the process with “no”.

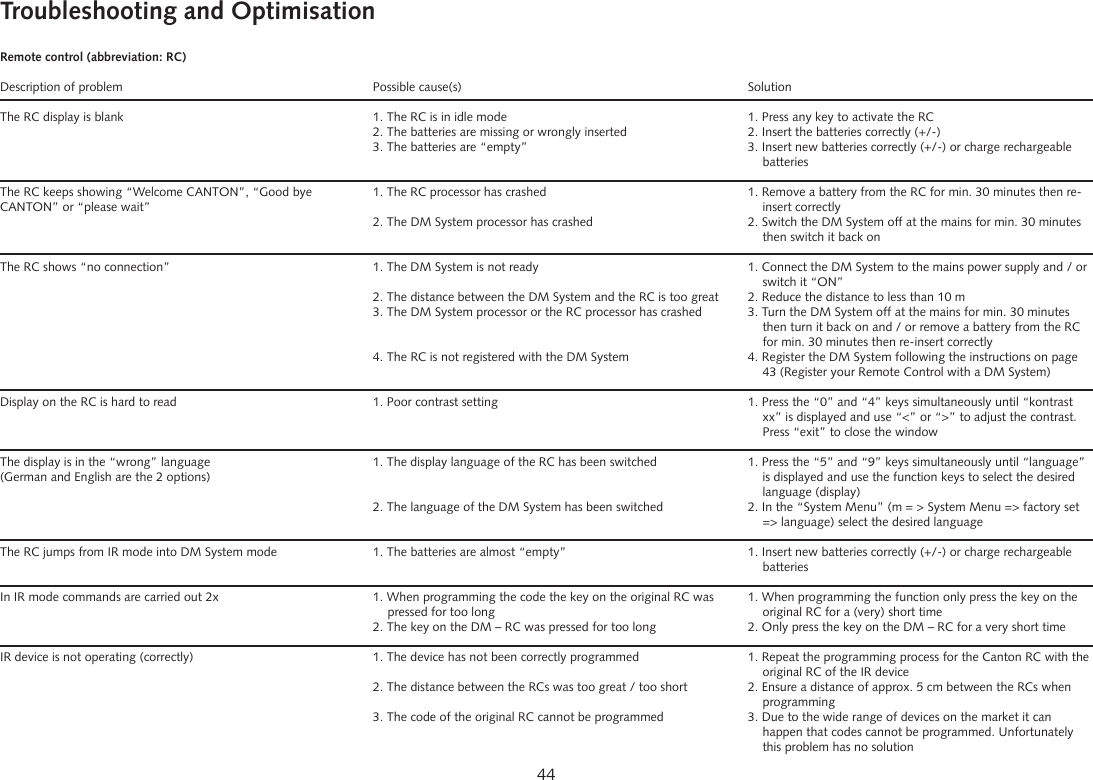

44Remote control (abbreviation: RC)Description of problem  Possible cause(s)  SolutionThe RC display is blank  1. The RC is in idle mode  1. Press any key to activate the RC  2. The batteries are missing or wrongly inserted  2. Insert the batteries correctly (+/-)  3. The batteries are “empty”  3. Insert new batteries correctly (+/-) or charge rechargeable        batteriesThe RC keeps showing “Welcome CANTON”, “Good bye   1. The RC processor has crashed  1. Remove a battery from the RC for min. 30 minutes then re- CANTON” or “please wait”        insert correctly  2. The DM System processor has crashed  2. Switch the DM System off at the mains for min. 30 minutes          then switch it back onThe RC shows “no connection”  1. The DM System is not ready  1. Connect the DM System to the mains power supply and / or      switch it “ON”         2. The distance between the DM System and the RC is too great  2. Reduce the distance to less than 10 m  3. The DM System processor or the RC processor has crashed  3. Turn the DM System off at the mains for min. 30 minutes          then turn it back on and / or remove a battery from the RC          for min. 30 minutes then re-insert correctly  4. The RC is not registered with the DM System  4. Register the DM System following the instructions on page          43 (Register your Remote Control with a DM System)Display on the RC is hard to read  1. Poor contrast setting  1. Press the “0” and “4” keys simultaneously until “kontrast           xx” is displayed and use “<” or “>” to adjust the contrast.          Press “exit” to close the window            The display is in the “wrong” language  1. The display language of the RC has been switched  1. Press the “5” and “9” keys simultaneously until “language”  (German and English are the 2 options)        is displayed and use the function keys to select the desired        language (display)  2. The language of the DM System has been switched  2. In the “System Menu” (m = > System Menu => factory set          => language) select the desired language           The RC jumps from IR mode into DM System mode  1. The batteries are almost “empty”  1. Insert new batteries correctly (+/-) or charge rechargeable        batteriesIn IR mode commands are carried out 2x  1. When programming the code the key on the original RC was   1. When programming the function only press the key on the      pressed for too long    original RC for a (very) short time       2. The key on the DM – RC was pressed for too long  2. Only press the key on the DM – RC for a very short timeIR device is not operating (correctly)  1. The device has not been correctly programmed   1. Repeat the programming process for the Canton RC with the          original RC of the IR device  2. The distance between the RCs was too great / too short  2. Ensure a distance of approx. 5 cm between the RCs when        programming  3. The code of the original RC cannot be programmed  3. Due to the wide range of devices on the market it can          happen that codes cannot be programmed. Unfortunately          this problem has no solutionTroubleshooting and Optimisation

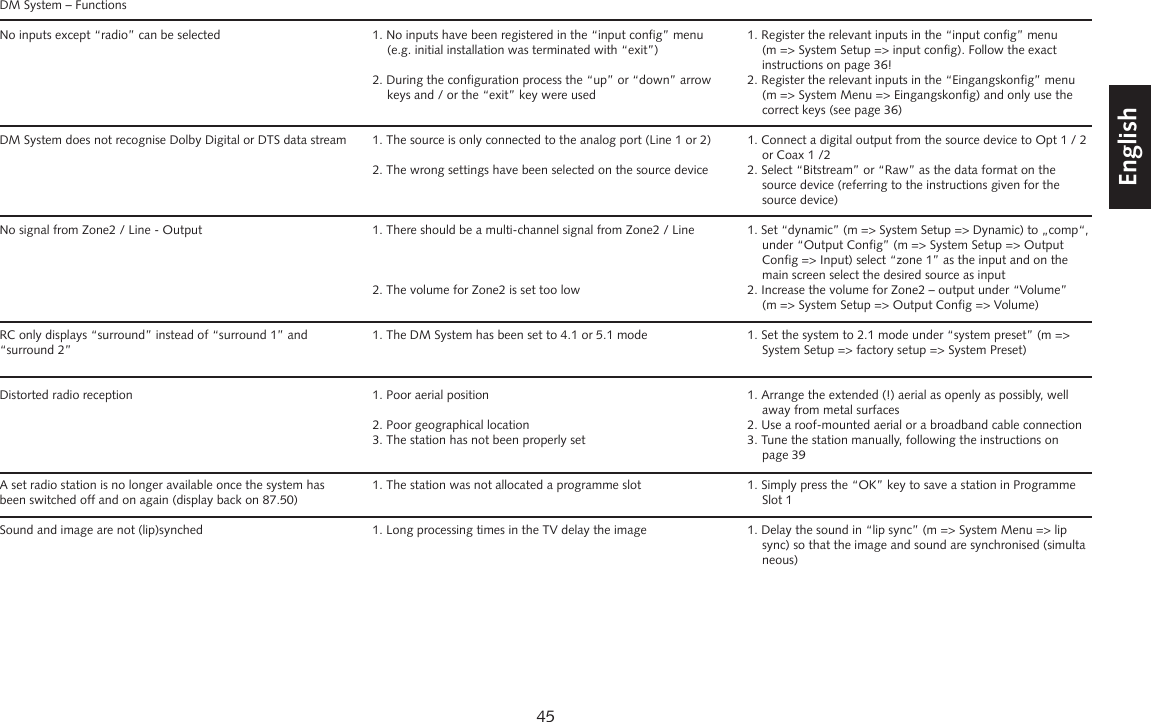

45DeutschEnglishFrançaisEspagnolDM System – FunctionsNo inputs except “radio” can be selected  1. No inputs have been registered in the “input config” menu   1. Register the relevant inputs in the “input config” menu      (e.g. initial installation was terminated with “exit”)    (m => System Setup => input config). Follow the exact          instructions on page 36!  2. During the configuration process the “up” or “down” arrow   2. Register the relevant inputs in the “Eingangskonfig” menu    keys and / or the “exit” key were used     (m => System Menu => Eingangskonfig) and only use the          correct keys (see page 36)DM System does not recognise Dolby Digital or DTS data stream  1. The source is only connected to the analog port (Line 1 or 2)  1. Connect a digital output from the source device to Opt 1 / 2          or Coax 1 /2  2. The wrong settings have been selected on the source device  2. Select “Bitstream” or “Raw” as the data format on the          source device (referring to the instructions given for the        source device)No signal from Zone2 / Line - Output  1. There should be a multi-channel signal from Zone2 / Line  1. Set “dynamic” (m => System Setup => Dynamic) to „comp“,          under “Output Config” (m => System Setup => Output          Config => Input) select “zone 1” as the input and on the          main screen select the desired source as input  2. The volume for Zone2 is set too low  2. Increase the volume for Zone2 – output under “Volume”          (m => System Setup => Output Config => Volume)    RC only displays “surround” instead of “surround 1” and   1. The DM System has been set to 4.1 or 5.1 mode  1. Set the system to 2.1 mode under “system preset” (m =>  “surround 2”        System Setup => factory setup => System Preset)     Distorted radio reception  1. Poor aerial position  1. Arrange the extended (!) aerial as openly as possibly, well          away from metal surfaces  2. Poor geographical location  2. Use a roof-mounted aerial or a broadband cable connection  3. The station has not been properly set  3. Tune the station manually, following the instructions on       page 39A set radio station is no longer available once the system has  1. The station was not allocated a programme slot  1. Simply press the “OK” key to save a station in Programme  been switched off and on again (display back on 87.50)        Slot 1Sound and image are not (lip)synched  1. Long processing times in the TV delay the image  1. Delay the sound in “lip sync” (m => System Menu => lip          sync) so that the image and sound are synchronised (simulta       neous)

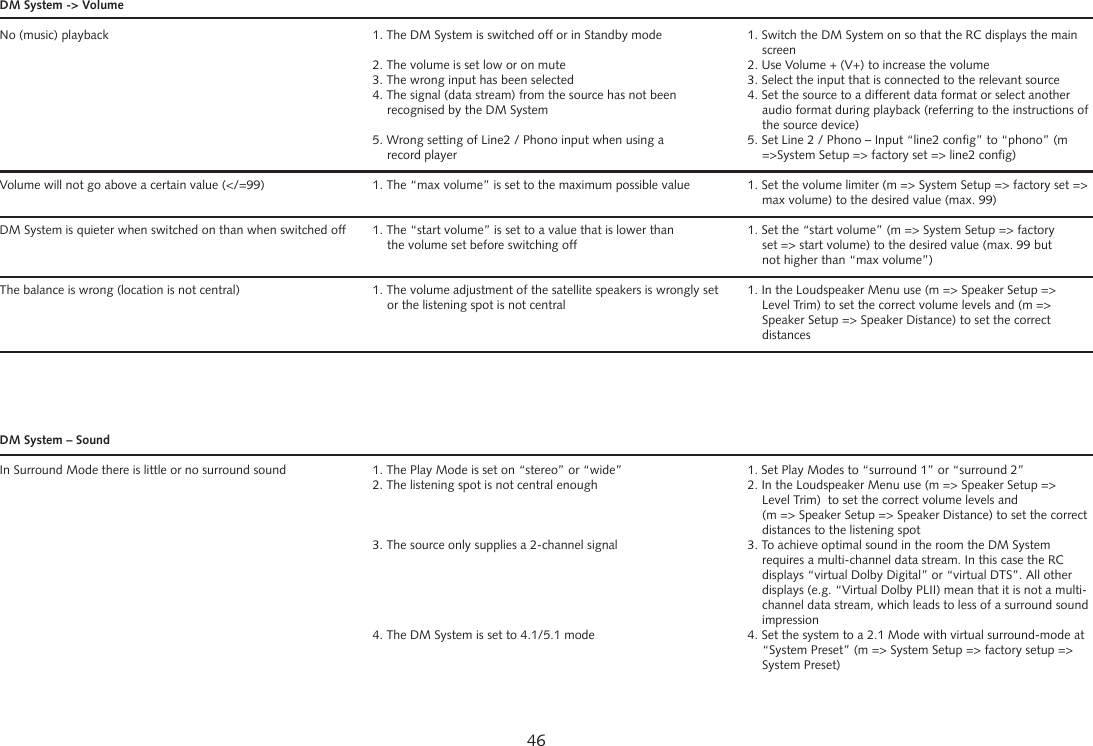

46DM System -> VolumeNo (music) playback  1. The DM System is switched off or in Standby mode  1. Switch the DM System on so that the RC displays the main        screen  2. The volume is set low or on mute  2. Use Volume + (V+) to increase the volume  3. The wrong input has been selected  3. Select the input that is connected to the relevant source  4. The signal (data stream) from the source has not been   4. Set the source to a different data format or select another      recognised by the DM System    audio format during playback (referring to the instructions of        the source device)   5. Wrong setting of Line2 / Phono input when using a   5. Set Line 2 / Phono – Input “line2 config” to “phono” (m      record player    =>System Setup => factory set => line2 config)   Volume will not go above a certain value (</=99)  1. The “max volume” is set to the maximum possible value  1. Set the volume limiter (m => System Setup => factory set =>          max volume) to the desired value (max. 99)DM System is quieter when switched on than when switched off  1. The “start volume” is set to a value that is lower than   1. Set the “start volume” (m => System Setup => factory      the volume set before switching off    set => start volume) to the desired value (max. 99 but          not higher than “max volume”)The balance is wrong (location is not central)  1. The volume adjustment of the satellite speakers is wrongly set   1. In the Loudspeaker Menu use (m => Speaker Setup =>      or the listening spot is not central    Level Trim) to set the correct volume levels and (m =>         Speaker Setup => Speaker Distance) to set the correct        distances   DM System – SoundIn Surround Mode there is little or no surround sound  1. The Play Mode is set on “stereo” or “wide”  1. Set Play Modes to “surround 1” or “surround 2”  2. The listening spot is not central enough  2. In the Loudspeaker Menu use (m => Speaker Setup =>         Level Trim)  to set the correct volume levels and         (m => Speaker Setup => Speaker Distance) to set the correct          distances to the listening spot  3. The source only supplies a 2-channel signal  3. To achieve optimal sound in the room the DM System          requires a multi-channel data stream. In this case the RC          displays “virtual Dolby Digital” or “virtual DTS”. All other          displays (e.g. “Virtual Dolby PLII) mean that it is not a multi-         channel data stream, which leads to less of a surround sound        impression  4. The DM System is set to 4.1/5.1 mode  4. Set the system to a 2.1 Mode with virtual surround-mode at          “System Preset” (m => System Setup => factory setup =>        System Preset)

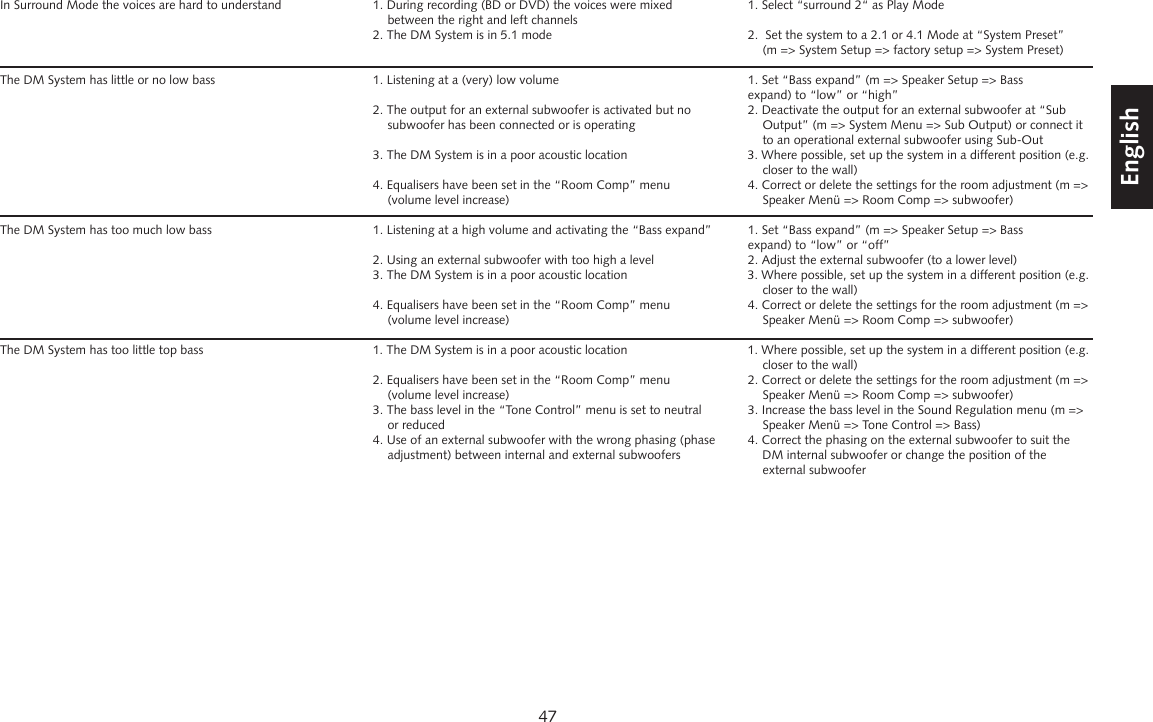

47DeutschEnglishFrançaisEspagnolIn Surround Mode the voices are hard to understand  1. During recording (BD or DVD) the voices were mixed   1. Select “surround 2“ as Play Mode    between the right and left channels  2. The DM System is in 5.1 mode  2.  Set the system to a 2.1 or 4.1 Mode at “System Preset”         (m => System Setup => factory setup => System Preset)The DM System has little or no low bass  1. Listening at a (very) low volume  1. Set “Bass expand” (m => Speaker Setup => Bass          expand) to “low” or “high”  2. The output for an external subwoofer is activated but no   2. Deactivate the output for an external subwoofer at “Sub      subwoofer has been connected or is operating    Output” (m => System Menu => Sub Output) or connect it          to an operational external subwoofer using Sub-Out  3. The DM System is in a poor acoustic location  3. Where possible, set up the system in a different position (e.g.          closer to the wall)  4. Equalisers have been set in the “Room Comp” menu   4. Correct or delete the settings for the room adjustment (m =>      (volume level increase)    Speaker Menü => Room Comp => subwoofer)The DM System has too much low bass  1. Listening at a high volume and activating the “Bass expand”  1. Set “Bass expand” (m => Speaker Setup => Bass          expand) to “low” or “off”  2. Using an external subwoofer with too high a level  2. Adjust the external subwoofer (to a lower level)  3. The DM System is in a poor acoustic location  3. Where possible, set up the system in a different position (e.g.          closer to the wall)  4. Equalisers have been set in the “Room Comp” menu   4. Correct or delete the settings for the room adjustment (m =>      (volume level increase)    Speaker Menü => Room Comp => subwoofer)              The DM System has too little top bass  1. The DM System is in a poor acoustic location  1. Where possible, set up the system in a different position (e.g.          closer to the wall)  2. Equalisers have been set in the “Room Comp” menu   2. Correct or delete the settings for the room adjustment (m =>      (volume level increase)    Speaker Menü => Room Comp => subwoofer)     3. The bass level in the “Tone Control” menu is set to neutral  3. Increase the bass level in the Sound Regulation menu (m =>      or reduced    Speaker Menü => Tone Control => Bass)  4. Use of an external subwoofer with the wrong phasing (phase   4. Correct the phasing on the external subwoofer to suit the      adjustment) between internal and external subwoofers    DM internal subwoofer or change the position of the       external subwoofer

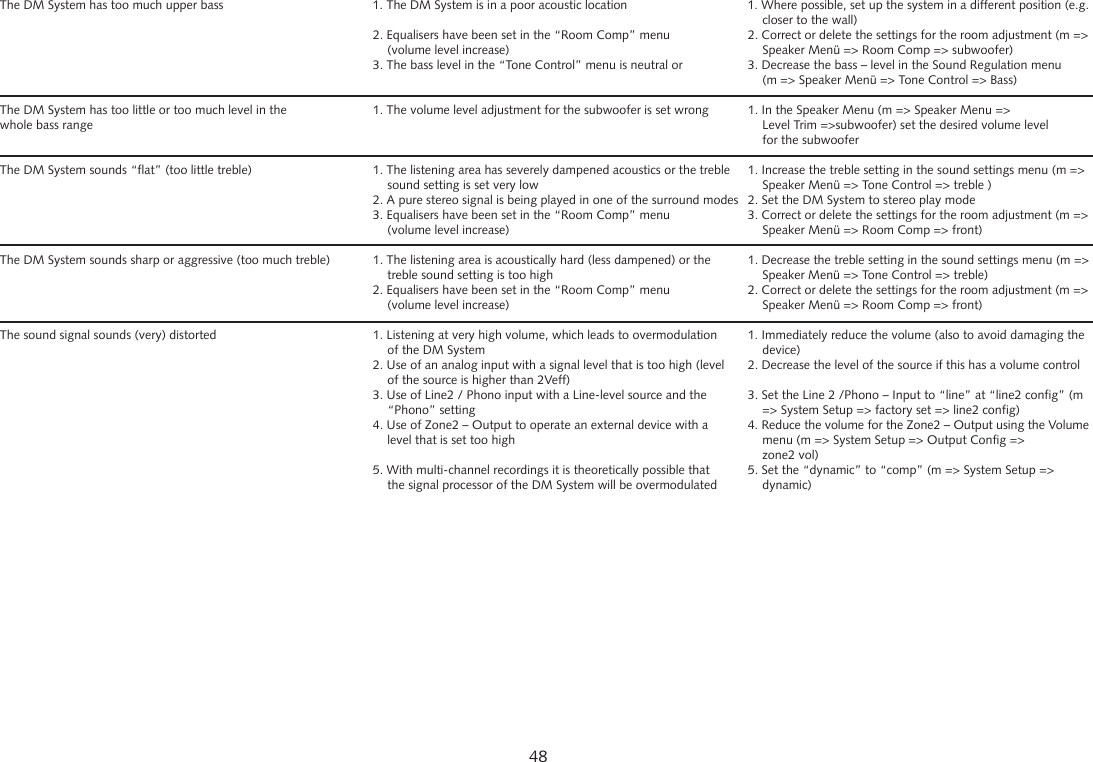

48The DM System has too much upper bass  1. The DM System is in a poor acoustic location  1. Where possible, set up the system in a different position (e.g.          closer to the wall)  2. Equalisers have been set in the “Room Comp” menu   2. Correct or delete the settings for the room adjustment (m =>      (volume level increase)    Speaker Menü => Room Comp => subwoofer)  3. The bass level in the “Tone Control” menu is neutral or  3. Decrease the bass – level in the Sound Regulation menu         (m => Speaker Menü => Tone Control => Bass)The DM System has too little or too much level in the   1. The volume level adjustment for the subwoofer is set wrong  1. In the Speaker Menu (m => Speaker Menu => whole bass range        Level Trim =>subwoofer) set the desired volume level        for the subwooferThe DM System sounds “flat” (too little treble)  1. The listening area has severely dampened acoustics or the treble   1. Increase the treble setting in the sound settings menu (m =>      sound setting is set very low    Speaker Menü => Tone Control => treble )  2. A pure stereo signal is being played in one of the surround modes  2. Set the DM System to stereo play mode  3. Equalisers have been set in the “Room Comp” menu   3. Correct or delete the settings for the room adjustment (m =>      (volume level increase)    Speaker Menü => Room Comp => front)The DM System sounds sharp or aggressive (too much treble)  1. The listening area is acoustically hard (less dampened) or the   1. Decrease the treble setting in the sound settings menu (m =>      treble sound setting is too high    Speaker Menü => Tone Control => treble)   2. Equalisers have been set in the “Room Comp” menu   2. Correct or delete the settings for the room adjustment (m =>      (volume level increase)    Speaker Menü => Room Comp => front)The sound signal sounds (very) distorted  1. Listening at very high volume, which leads to overmodulation   1. Immediately reduce the volume (also to avoid damaging the      of the DM System    device)  2. Use of an analog input with a signal level that is too high (level   2. Decrease the level of the source if this has a volume control    of the source is higher than 2Veff)  3. Use of Line2 / Phono input with a Line-level source and the   3. Set the Line 2 /Phono – Input to “line” at “line2 config” (m     “Phono” setting    => System Setup => factory set => line2 config)  4. Use of Zone2 – Output to operate an external device with a   4. Reduce the volume for the Zone2 – Output using the Volume      level that is set too high    menu (m => System Setup => Output Config =>       zone2 vol)  5. With multi-channel recordings it is theoretically possible that   5. Set the “dynamic” to “comp” (m => System Setup =>      the signal processor of the DM System will be overmodulated    dynamic)

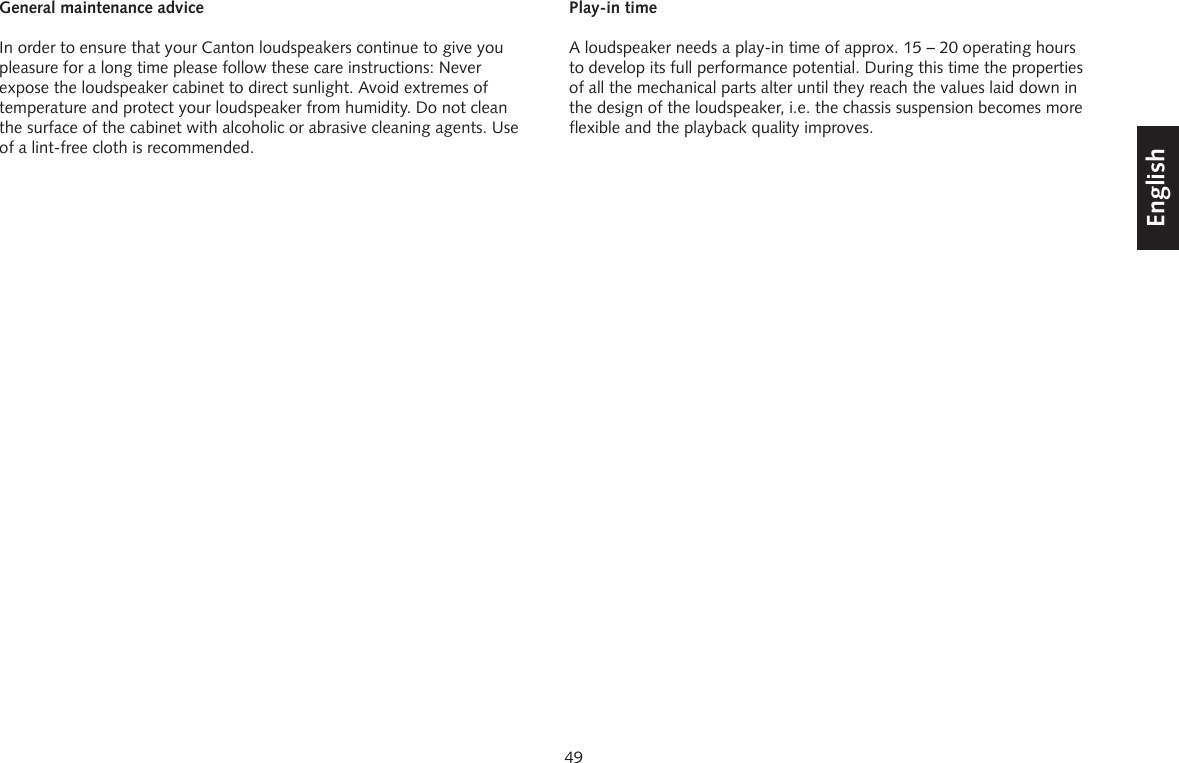

49DeutschEnglishFrançaisEspagnolGeneral maintenance adviceIn order to ensure that your Canton loudspeakers continue to give you pleasure for a long time please follow these care instructions: Never expose the loudspeaker cabinet to direct sunlight. Avoid extremes of temperature and protect your loudspeaker from humidity. Do not clean the surface of the cabinet with alcoholic or abrasive cleaning agents. Use of a lint-free cloth is recommended.Play-in timeA loudspeaker needs a play-in time of approx. 15 – 20 operating hours to develop its full performance potential. During this time the properties of all the mechanical parts alter until they reach the values laid down in the design of the loudspeaker, i.e. the chassis suspension becomes more flexible and the playback quality improves.

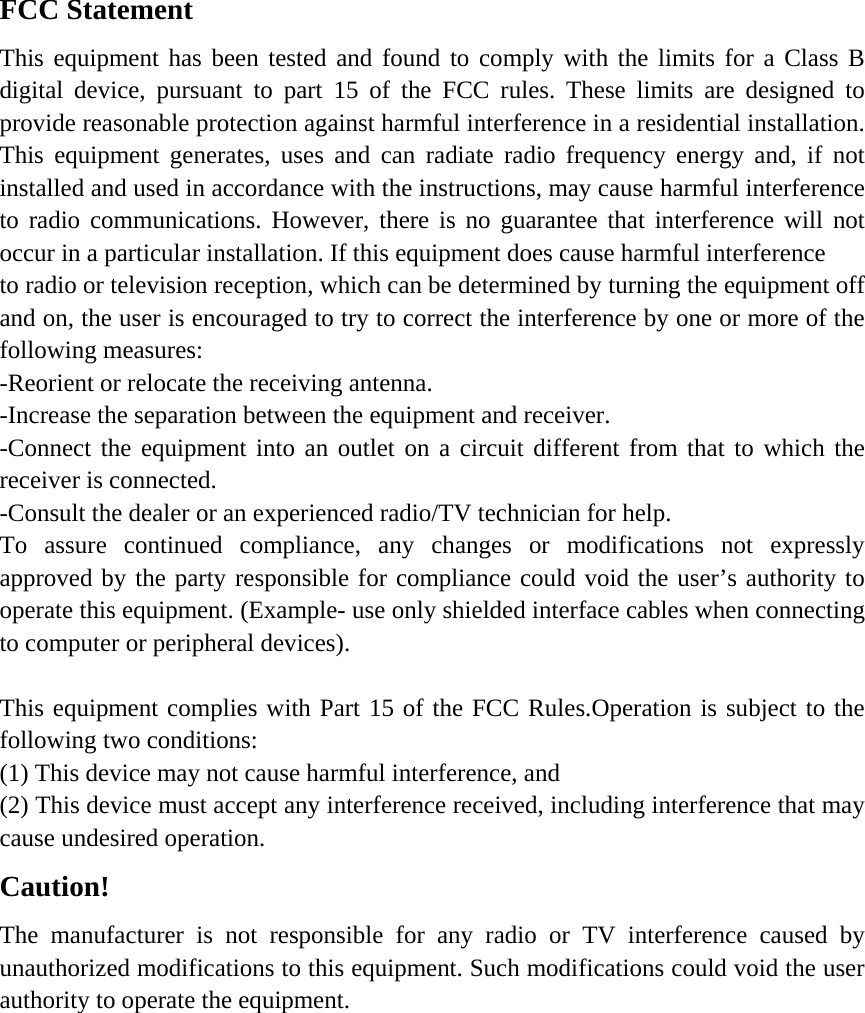

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference   to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices).  This equipment complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:     (1) This device may not cause harmful interference, and     (2) This device must accept any interference received, including interference that may cause undesired operation.     Caution!  The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.
