Carbos Electronic Technology KBS1805 WIRELESS LIGHT-UP MIRROR WITH BLUETOOTH SPEAKER User Manual Bluetooth Speaker Cone

Shenzhen Carbos Electronic Technology Co.,Ltd. WIRELESS LIGHT-UP MIRROR WITH BLUETOOTH SPEAKER Bluetooth Speaker Cone

user manual

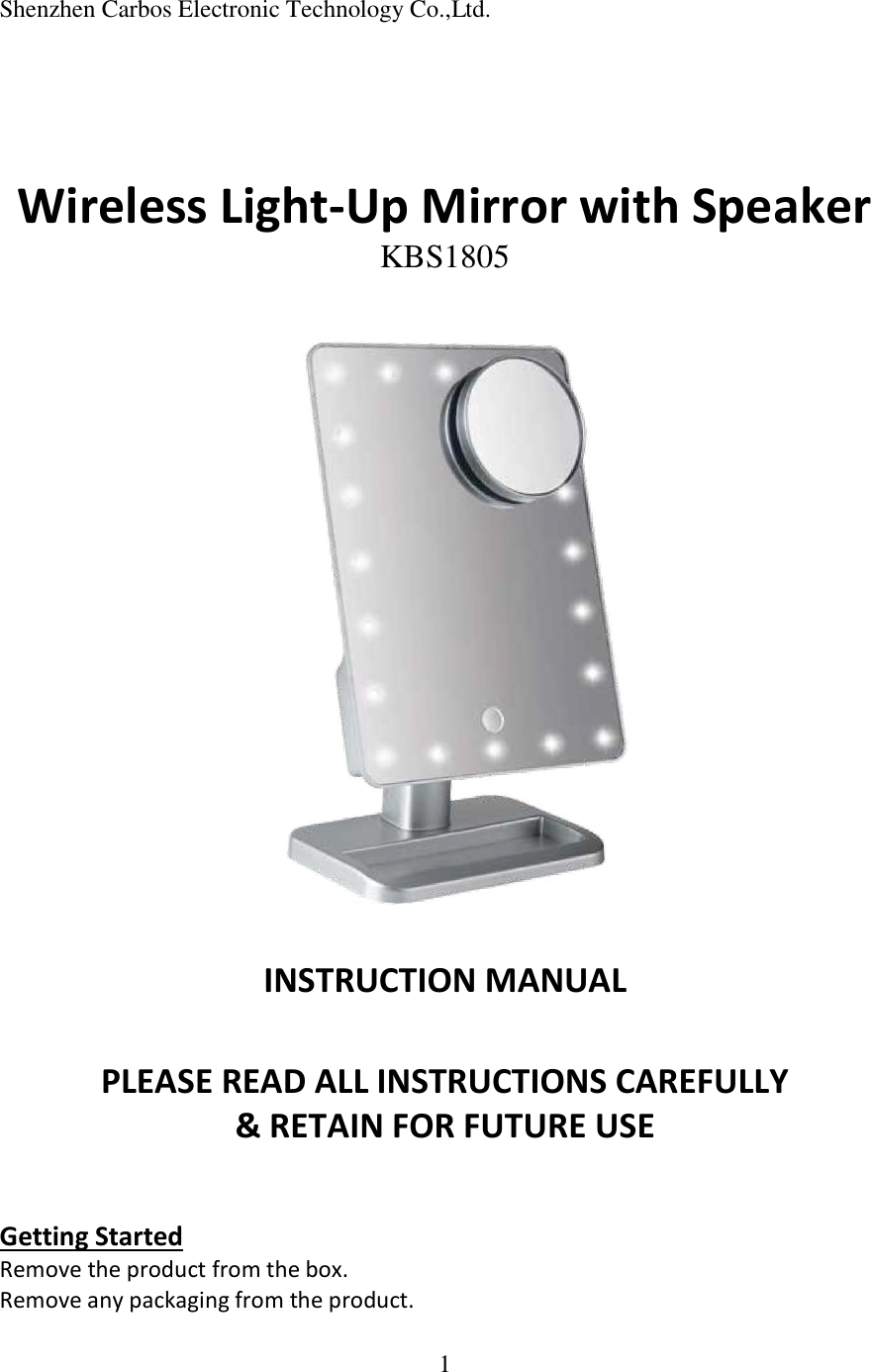

1  Shenzhen Carbos Electronic Technology Co.,Ltd.     Wireless Light-Up Mirror with Speaker KBS1805     INSTRUCTION MANUAL   PLEASE READ ALL INSTRUCTIONS CAREFULLY  & RETAIN FOR FUTURE USE   Getting Started Remove the product from the box. Remove any packaging from the product.

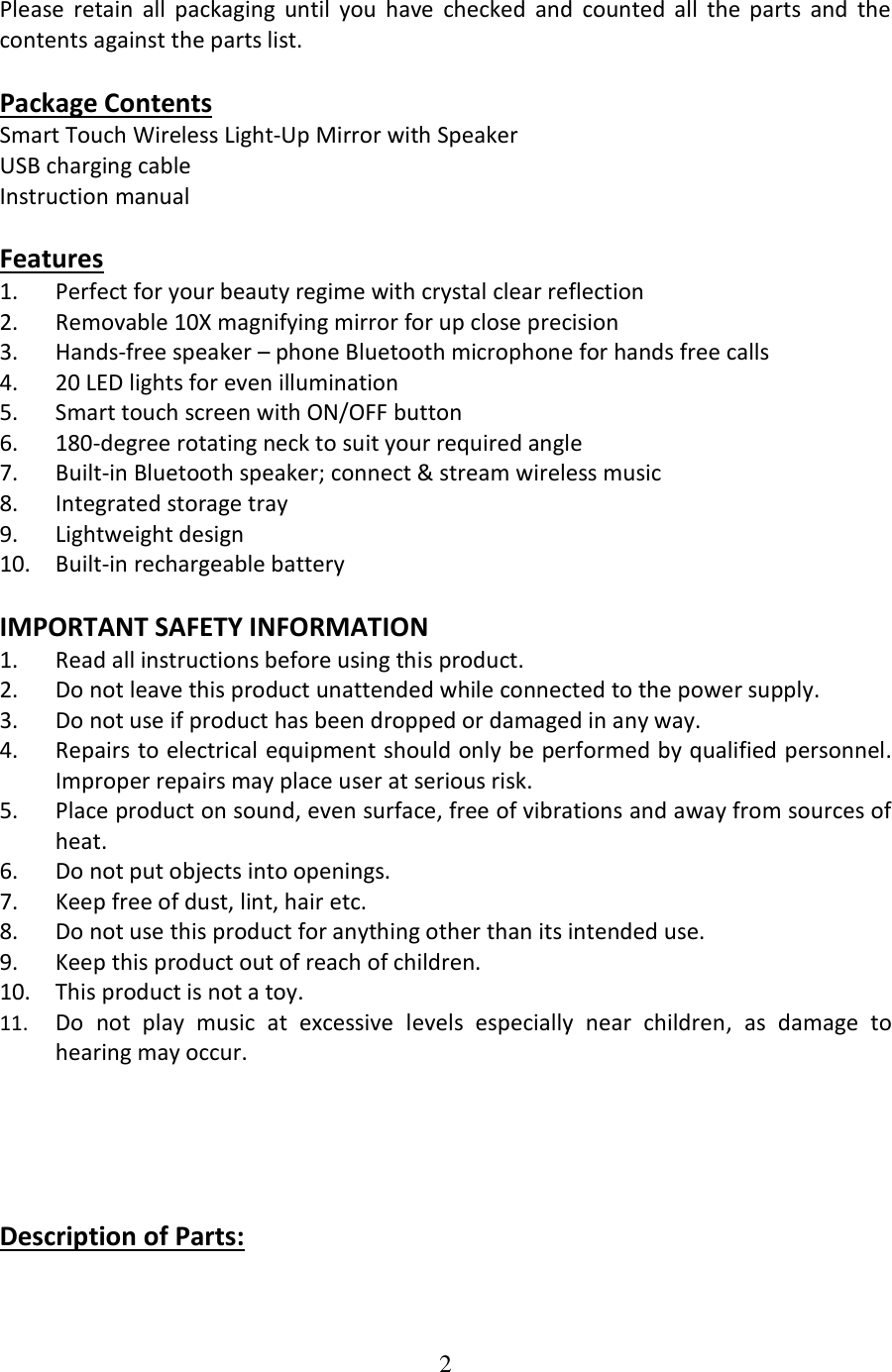

2  Please  retain  all  packaging  until  you  have  checked  and  counted  all  the  parts  and  the contents against the parts list.  Package Contents Smart Touch Wireless Light-Up Mirror with Speaker USB charging cable Instruction manual  Features 1. Perfect for your beauty regime with crystal clear reflection 2. Removable 10X magnifying mirror for up close precision 3. Hands-free speaker – phone Bluetooth microphone for hands free calls 4. 20 LED lights for even illumination 5. Smart touch screen with ON/OFF button 6. 180-degree rotating neck to suit your required angle 7. Built-in Bluetooth speaker; connect & stream wireless music 8. Integrated storage tray 9. Lightweight design 10. Built-in rechargeable battery  IMPORTANT SAFETY INFORMATION 1. Read all instructions before using this product. 2. Do not leave this product unattended while connected to the power supply. 3. Do not use if product has been dropped or damaged in any way. 4. Repairs to electrical equipment should only be performed by qualified personnel. Improper repairs may place user at serious risk. 5. Place product on sound, even surface, free of vibrations and away from sources of heat. 6. Do not put objects into openings. 7. Keep free of dust, lint, hair etc. 8. Do not use this product for anything other than its intended use. 9. Keep this product out of reach of children. 10. This product is not a toy. 11. Do  not  play  music  at  excessive  levels  especially  near  children,  as  damage  to hearing may occur.      Description of Parts:

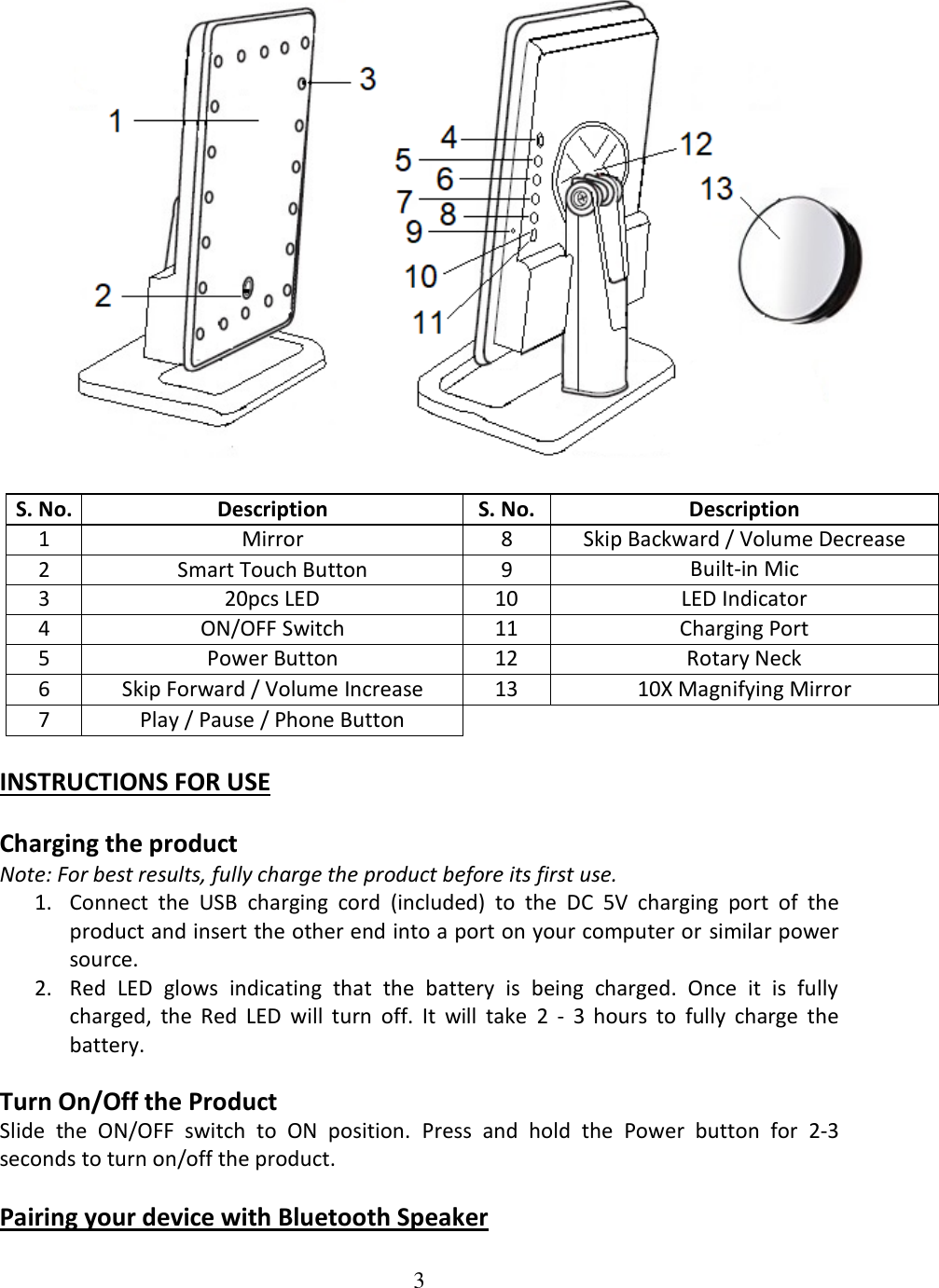

3    S. No. Description S. No. Description 1 Mirror 8 Skip Backward / Volume Decrease 2 Smart Touch Button 9 Built-in Mic 3 20pcs LED 10 LED Indicator 4 ON/OFF Switch 11 Charging Port 5 Power Button 12 Rotary Neck 6 Skip Forward / Volume Increase 13 10X Magnifying Mirror 7 Play / Pause / Phone Button  INSTRUCTIONS FOR USE  Charging the product Note: For best results, fully charge the product before its first use. 1. Connect  the  USB  charging  cord  (included)  to  the  DC  5V  charging  port  of  the product and insert the other end into a port on your computer or similar power source. 2. Red  LED  glows  indicating  that  the  battery  is  being  charged.  Once  it  is  fully charged,  the  Red  LED  will  turn  off.  It  will  take  2  -  3  hours  to  fully  charge  the battery.  Turn On/Off the Product Slide  the  ON/OFF  switch  to  ON  position.  Press  and  hold  the  Power  button  for  2-3 seconds to turn on/off the product.  Pairing your device with Bluetooth Speaker

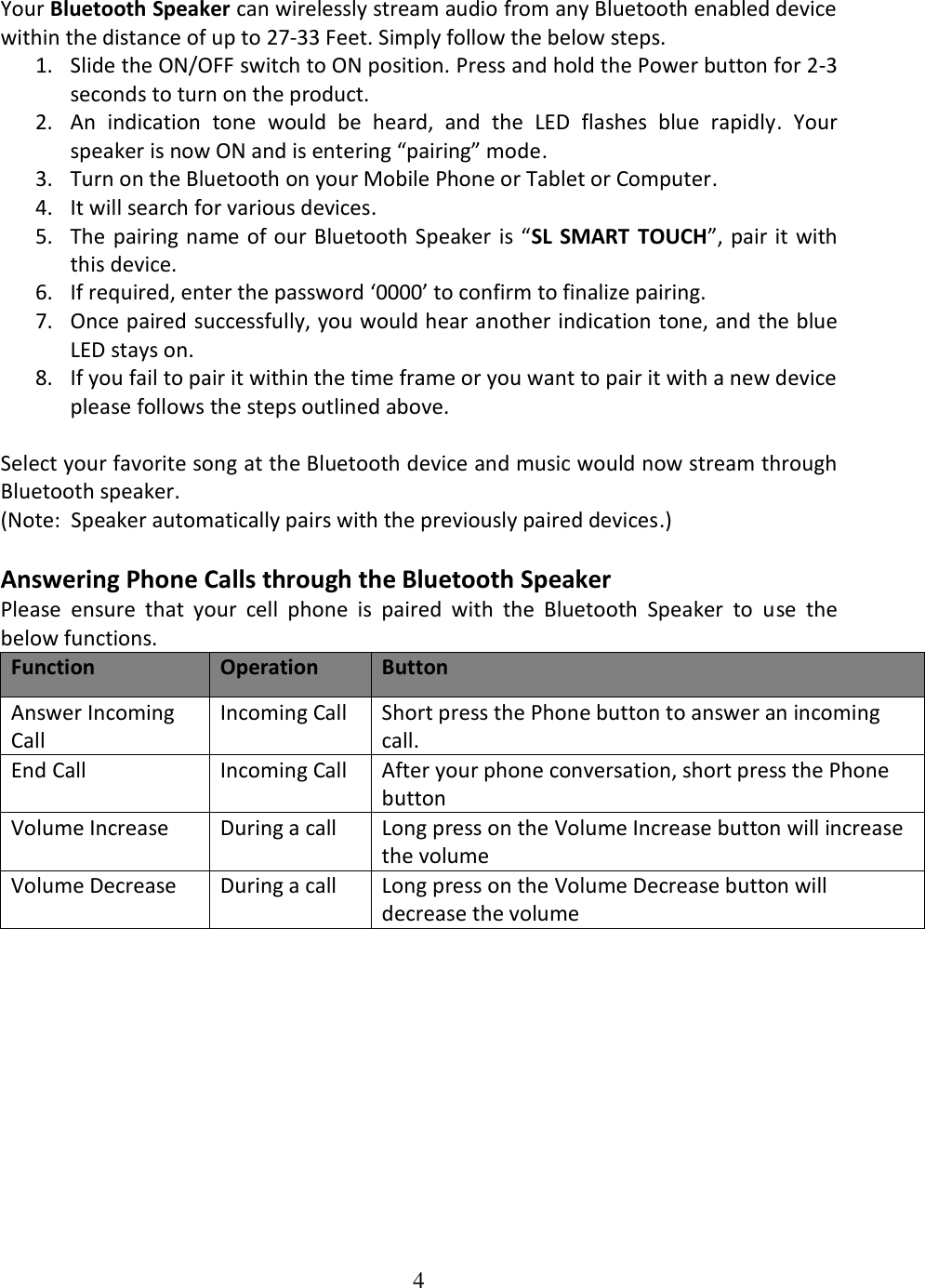

4  Your Bluetooth Speaker can wirelessly stream audio from any Bluetooth enabled device within the distance of up to 27-33 Feet. Simply follow the below steps.  1. Slide the ON/OFF switch to ON position. Press and hold the Power button for 2-3 seconds to turn on the product. 2. An  indication  tone  would  be  heard,  and  the  LED  flashes  blue  rapidly.  Your speaker is now ON and is entering “pairing” mode. 3. Turn on the Bluetooth on your Mobile Phone or Tablet or Computer. 4. It will search for various devices. 5. The pairing name of our Bluetooth Speaker is “SL  SMART  TOUCH”,  pair it with this device. 6. If required, enter the password ‘0000’ to confirm to finalize pairing. 7. Once paired successfully, you would hear another indication tone, and the blue LED stays on. 8. If you fail to pair it within the time frame or you want to pair it with a new device please follows the steps outlined above.  Select your favorite song at the Bluetooth device and music would now stream through Bluetooth speaker. (Note:  Speaker automatically pairs with the previously paired devices.)  Answering Phone Calls through the Bluetooth Speaker Please  ensure  that  your  cell  phone  is  paired  with  the  Bluetooth  Speaker  to  use  the below functions. Function Operation Button Answer Incoming Call  Incoming Call  Short press the Phone button to answer an incoming call.  End Call  Incoming Call  After your phone conversation, short press the Phone button Volume Increase During a call Long press on the Volume Increase button will increase the volume Volume Decrease During a call Long press on the Volume Decrease button will decrease the volume

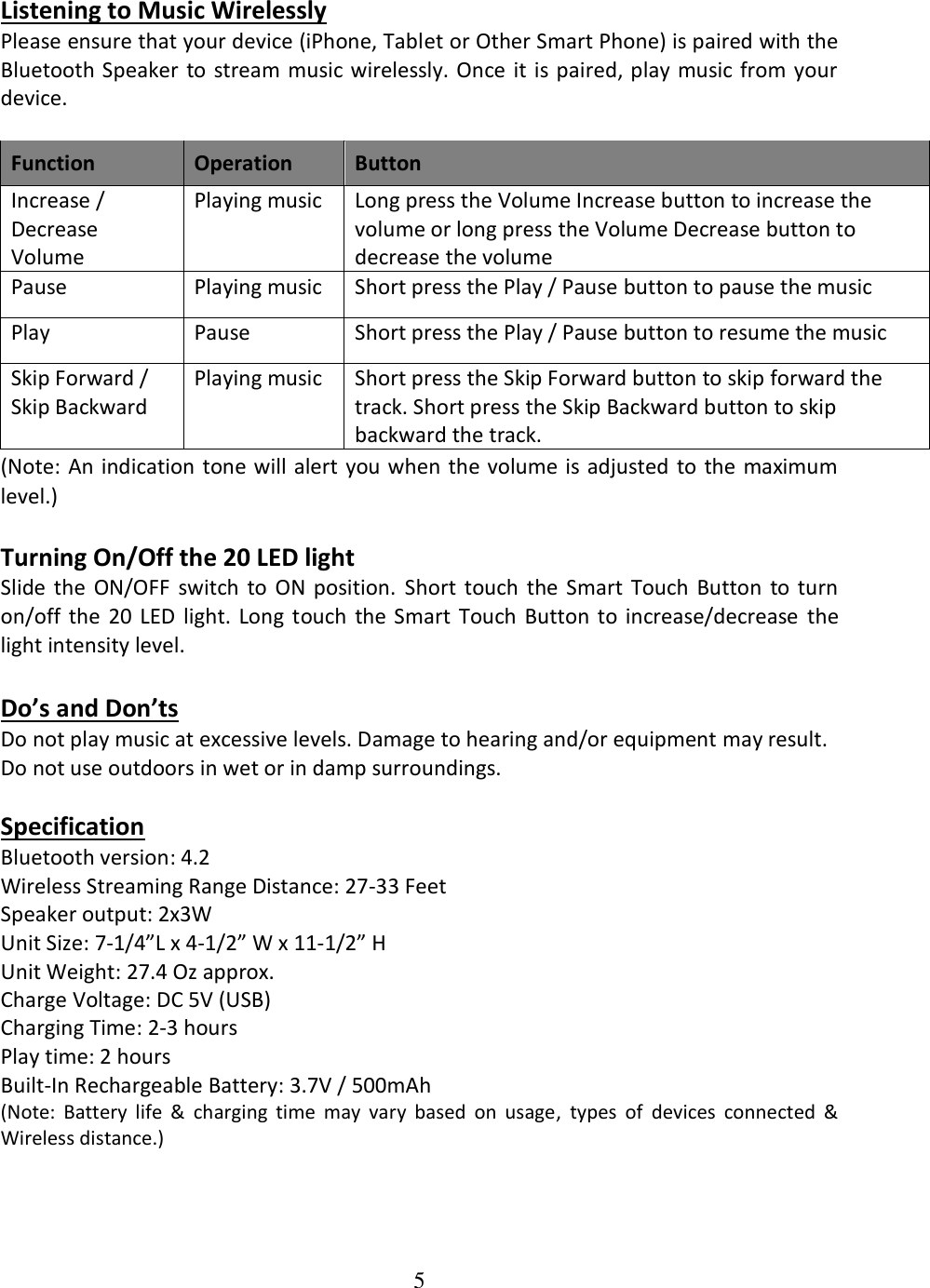

5  Listening to Music Wirelessly Please ensure that your device (iPhone, Tablet or Other Smart Phone) is paired with the Bluetooth Speaker  to stream music wirelessly. Once  it  is paired, play  music from  your device.  Function Operation Button Increase / Decrease Volume  Playing music Long press the Volume Increase button to increase the volume or long press the Volume Decrease button to decrease the volume Pause Playing music Short press the Play / Pause button to pause the music  Play Pause Short press the Play / Pause button to resume the music  Skip Forward / Skip Backward Playing music Short press the Skip Forward button to skip forward the track. Short press the Skip Backward button to skip backward the track. (Note: An indication  tone will  alert you when the volume  is  adjusted to the maximum level.)  Turning On/Off the 20 LED light Slide  the  ON/OFF  switch  to  ON position.  Short  touch  the  Smart  Touch  Button  to  turn on/off  the  20  LED  light. Long  touch  the Smart  Touch  Button  to  increase/decrease  the light intensity level.  Do’s and Don’ts Do not play music at excessive levels. Damage to hearing and/or equipment may result. Do not use outdoors in wet or in damp surroundings.  Specification Bluetooth version: 4.2 Wireless Streaming Range Distance: 27-33 Feet Speaker output: 2x3W Unit Size: 7-1/4”L x 4-1/2” W x 11-1/2” H Unit Weight: 27.4 Oz approx. Charge Voltage: DC 5V (USB) Charging Time: 2-3 hours Play time: 2 hours Built-In Rechargeable Battery: 3.7V / 500mAh (Note:  Battery  life  &  charging  time  may  vary  based  on  usage,  types  of  devices  connected  & Wireless distance.)

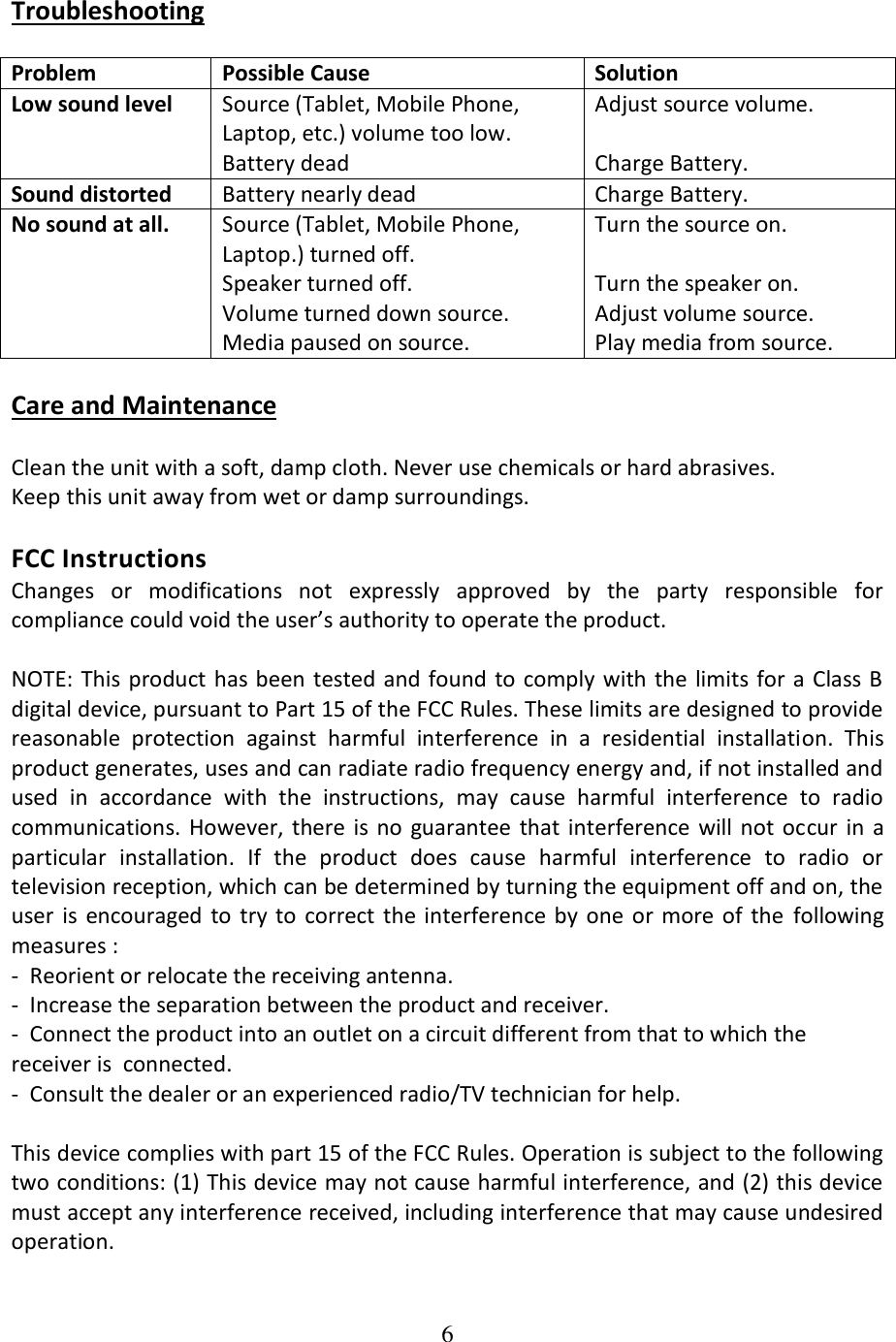

6  Troubleshooting  Problem Possible Cause Solution Low sound level Source (Tablet, Mobile Phone, Laptop, etc.) volume too low. Battery dead Adjust source volume.  Charge Battery. Sound distorted Battery nearly dead Charge Battery. No sound at all. Source (Tablet, Mobile Phone, Laptop.) turned off.  Speaker turned off.  Volume turned down source. Media paused on source. Turn the source on.  Turn the speaker on. Adjust volume source. Play media from source.  Care and Maintenance  Clean the unit with a soft, damp cloth. Never use chemicals or hard abrasives. Keep this unit away from wet or damp surroundings.  FCC Instructions Changes  or  modifications  not  expressly  approved  by  the  party  responsible  for compliance could void the user’s authority to operate the product.  NOTE: This product has been tested and found to comply with  the  limits for a Class  B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable  protection  against  harmful  interference  in  a  residential  installation.  This product generates, uses and can radiate radio frequency energy and, if not installed and used  in  accordance  with  the  instructions,  may  cause  harmful  interference  to  radio communications.  However,  there  is  no  guarantee  that interference  will not  occur  in  a particular  installation.  If  the  product  does  cause  harmful  interference  to  radio  or television reception, which can be determined by turning the equipment off and on, the user  is  encouraged to  try to  correct  the interference by one  or  more  of  the  following measures : -  Reorient or relocate the receiving antenna. -  Increase the separation between the product and receiver. -  Connect the product into an outlet on a circuit different from that to which the receiver is  connected. -  Consult the dealer or an experienced radio/TV technician for help.  This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

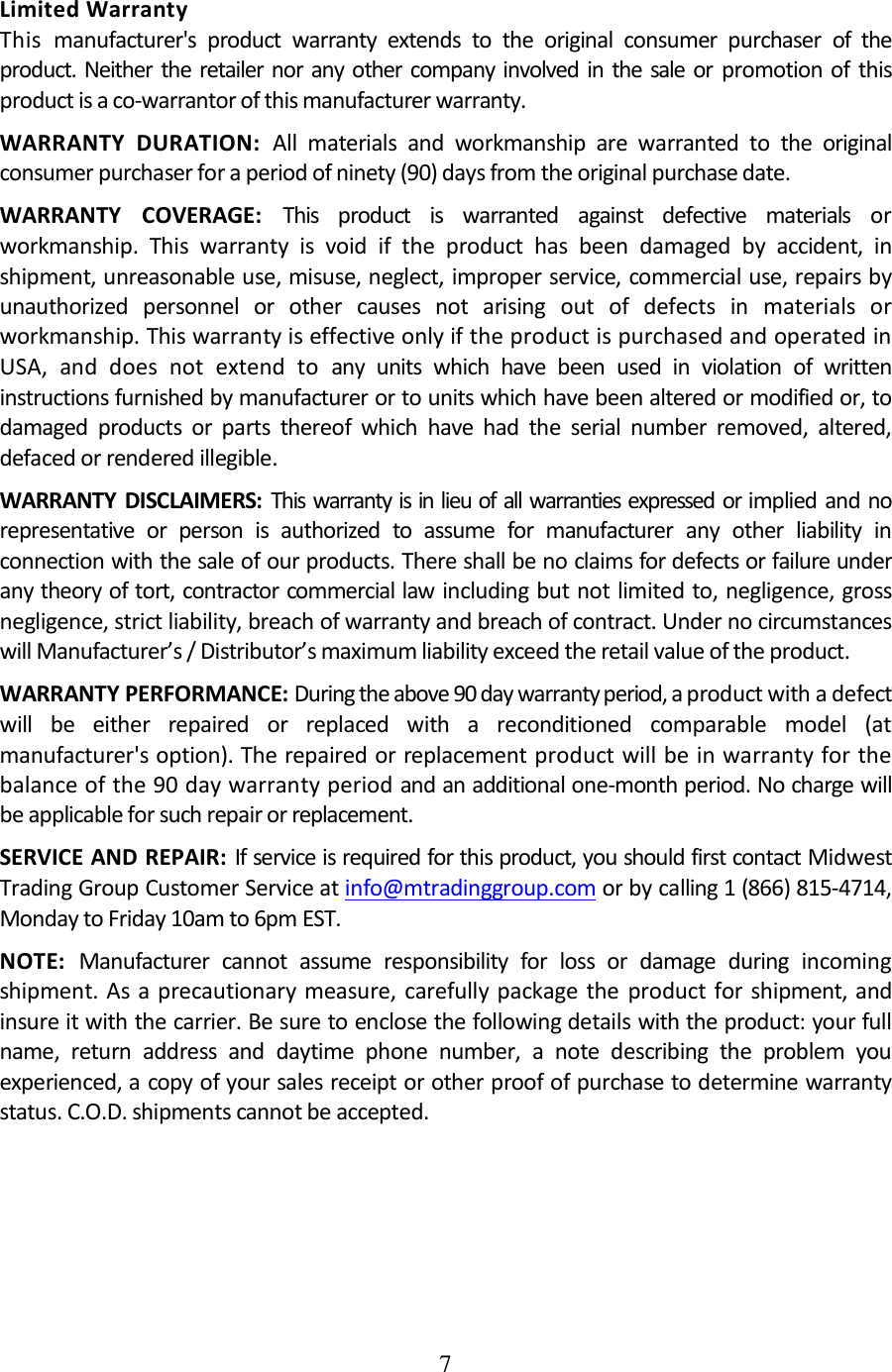

7  Limited Warranty This manufacturer's  product  warranty  extends  to  the  original  consumer  purchaser  of  the product.  Neither  the  retailer nor any other  company  involved  in  the  sale or  promotion  of  this product is a co-warrantor of this manufacturer warranty. WARRANTY  DURATION:  All  materials  and  workmanship  are  warranted  to  the  original consumer purchaser for a period of ninety (90) days from the original purchase date. WARRANTY  COVERAGE:  This  product  is  warranted  against  defective  materials  or workmanship.  This  warranty  is  void  if  the  product  has  been  damaged  by  accident,  in shipment, unreasonable use, misuse, neglect, improper service, commercial use, repairs by unauthorized  personnel  or  other  causes  not  arising  out  of  defects  in  materials  or workmanship. This warranty is effective only if the product is purchased and operated in USA,  and  does  not  extend  to  any  units  which  have  been  used  in  violation  of  written instructions furnished by manufacturer or to units which have been altered or modified or, to damaged  products  or  parts  thereof  which  have  had  the  serial  number  removed,  altered, defaced or rendered illegible. WARRANTY  DISCLAIMERS:  This warranty is in lieu of all warranties expressed or implied and no representative  or  person  is  authorized  to  assume  for  manufacturer  any  other  liability  in connection with the sale of our products. There shall be no claims for defects or failure under any theory of tort, contractor commercial law including but not limited to, negligence, gross negligence, strict liability, breach of warranty and breach of contract. Under no circumstances will Manufacturer’s / Distributor’s maximum liability exceed the retail value of the product. WARRANTY PERFORMANCE: During the above 90 day warranty period, a product with a defect will  be  either  repaired  or  replaced  with  a  reconditioned  comparable  model  (at manufacturer's option). The repaired or replacement product will be in warranty for the balance of the 90 day warranty period and an additional one-month period. No charge will be applicable for such repair or replacement. SERVICE AND REPAIR: If service is required for this product, you should first contact Midwest Trading Group Customer Service at info@mtradinggroup.com or by calling 1 (866) 815-4714, Monday to Friday 10am to 6pm EST. NOTE:  Manufacturer  cannot  assume  responsibility  for  loss  or  damage  during  incoming shipment. As a precautionary measure,  carefully package  the product for  shipment, and insure it with the carrier. Be sure to enclose the following details with the product: your full name,  return  address  and  daytime  phone  number,  a  note  describing  the  problem  you experienced, a copy of your sales receipt or other proof of purchase to determine warranty status. C.O.D. shipments cannot be accepted.

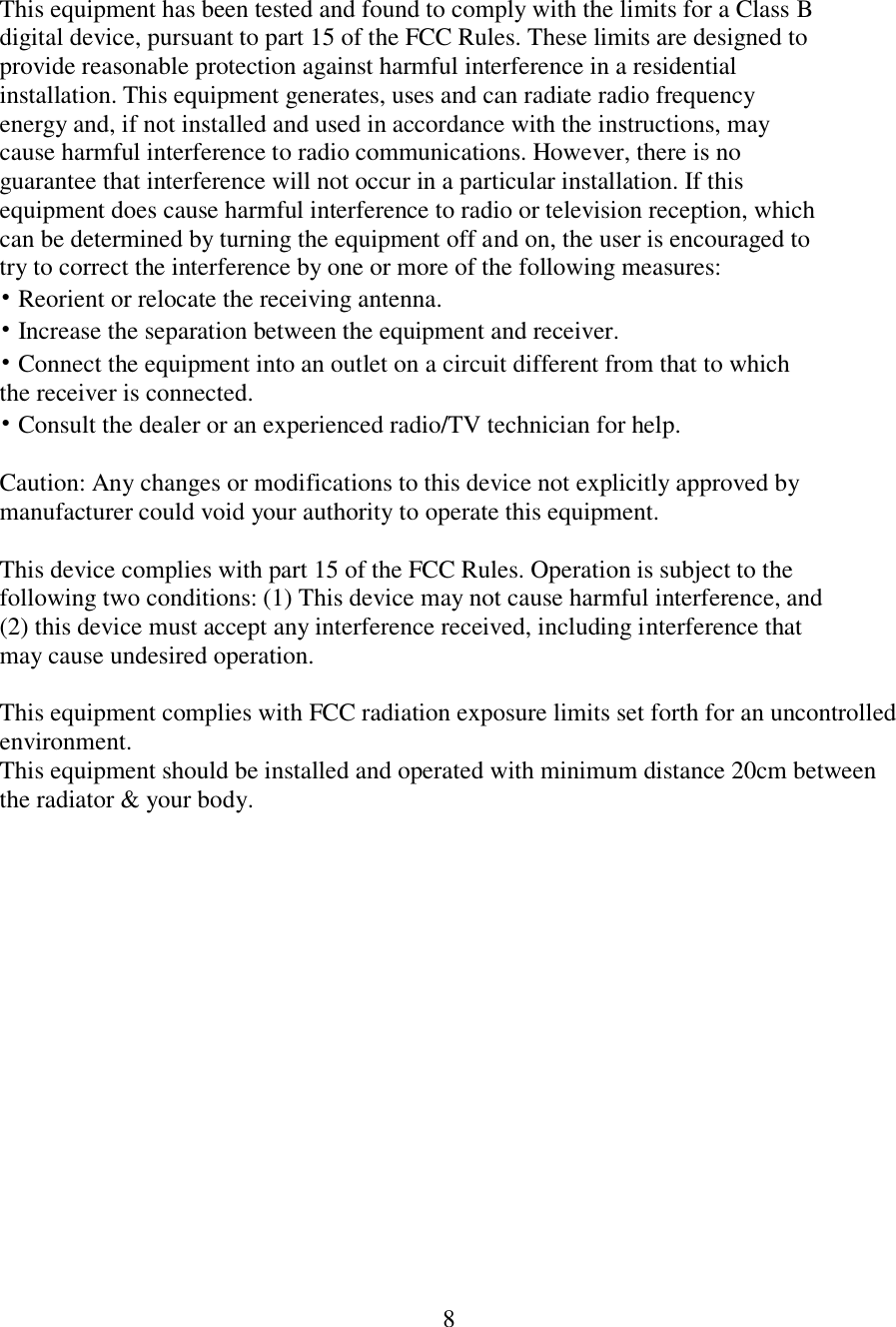

8    This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.  Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment.  This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
