1
1. Introduction
Congratulations and thank you for purchasing
the scala-rider Team Set™ Bluetooth headset
for motorcycle helmets. Now you can wear
your helmet while talking hands-free on your
Bluetooth enabled mobile phone. In addition,
you can also communicate with your passenger
using the intercom feature.
If you are using a standard non-Bluetooth
mobile phone, you can still enjoy the headset’s
advantages by connecting our optional BTA II
Bluetooth Adapter to your mobile phone
(purchased separately).
The headset is compatible with the latest
Bluetooth version. 1.2 specifications, and
works equally well with Bluetooth version. 1.1.
Please read and familiarize yourself with all
the instructions, components and controls of
your headset prior to first use.
For safety reasons we strongly recommend not
to conduct phone calls and/or intercom
conversations above 80 km/h (50 mph). Safe
driving requires your complete attention and in
particular at higher speeds. Also, the audio
quality of your headset deteriorates with higher
speeds, causing additional distraction from the
traffic around you. All this adds undue risk to
you and your passenger.
Please refer to the waiver conditions at the end
of this manual.
We wish you an enjoyable and safe scala-rider
Team Set experience.
Features
• For maximum safety, most operations are
hands-free, allowing you to keep your hands
on the handle-bars.
• Easy to attach to helmet
• Simple to use intercom feature
• Driver can add the passenger to a conference
call with a third party.
• High-capacity, rechargeable Lithium-
Polymer battery provides extended talk time
of up to 9.5 hours and in excess of one week
standby time.
• Universal Travel charger 110/240V 50/60Hz
• Supports hands-free and headset profiles
• Calls can be answered and terminated from
either the headset or from your mobile
phone (Subject to your phone's capabilities).
• Calls can be initiated from your mobile
phone; audio will be heard on the headset*
• 2-year Limited Warranty.
* Some phones require that you press briefly CTRL to transfer
the call
Definitions
BT Bluetooth®
LED Light Indicator on the headset
CTRL Control Button on the headset
2. Safety
IMPORTANT
The scala-rider Team-Set is a water-resistant
device, designed for use under moderate rain
and snow conditions. However, the headset is
not waterproof and should not be used under
severe weather conditions. The cover tongue
protecting the charging jack should be kept
tightly closed at all times to prevent moisture
from entering the device.
Observe the following safety precautions when
using your headset:
• Carefully read and understand the
instructions in this manual.
• Follow all instructions and warnings labeled
and marked in this manual.
• Use a cloth to clean the headset. DO NOT
use liquid or aerosol cleaners.
• Use caution when using your headset near
water such as bathtubs, sinks, or swimming
pools.
• Do not expose your headset to extreme
temperature, moisture, or high voltage.
• Your headset is rugged, but can be damaged
or broken if not handled with care.
• Do not expose headset to liquids, nor place
heavy objects on it.
• Do not disassemble the product or any of its
components for any reason, as this will void
the warranty and may damage the electronic
circuits. If assistance is needed, contact the
store from which you have purchased the
product, visit our website at
www.cardowireless.com or contact us via e-
mail at: support@cardosystems.com.
To reach us via phone, please call:
2
In the U.S.: Toll-free 1-800 488-0363 or 412
788-4533. In Europe: +4989 450 36-819
NOTE: Prior to contacting us, make sure that
you have a valid registration number available.
• Discontinue the use of your headset if:
o Your headset is damaged.
o Liquid has been spilled on or into the
headset.
o Your headset has been dropped and
the case has been damaged.
o Your headset exhibits a distinct
change in performance.
o Your headset does not operate
normally and adjusting the controls
does not resolve the issue.
• Disconnect your headset from the wall
charger if:
o Liquid has been spilled into the
charger or headset.
o The wall charger does not operate
normally after following the operating
instructions.
o Your wall charger has been dropped
and the case has been damaged.
o The wall charger exhibits a change in
performance.
Interference With Other
Devices
Most electronic equipment is shielded from RF
signals. However, certain electronic equipment
may not be shielded against the RF signals that
emanate from your wireless equipment.
Pacemakers
The Health Industry Manufacturers
Association recommends that a minimum
separation of about six inches (16 cm) be
maintained between a mobile phone or a
headset and a pacemaker to avoid potential
interference with the pacemaker. Be sure not to
interfere with the functionality of personal
medical devices.
Hearing Aids
Some digital headsets may interfere with some
hearing aids. In the event of such interference,
you should consult your hearing aid
manufacturer to discuss alternatives.
Other Medical Devices
If you use any other personal medical device,
consult the manufacturer of your device and/or
your physician to determine if it is adequately
shielded from interference caused by external
RF energy. Your physician may be able to
assist you in obtaining this information.
3
3. Retail Box Contents

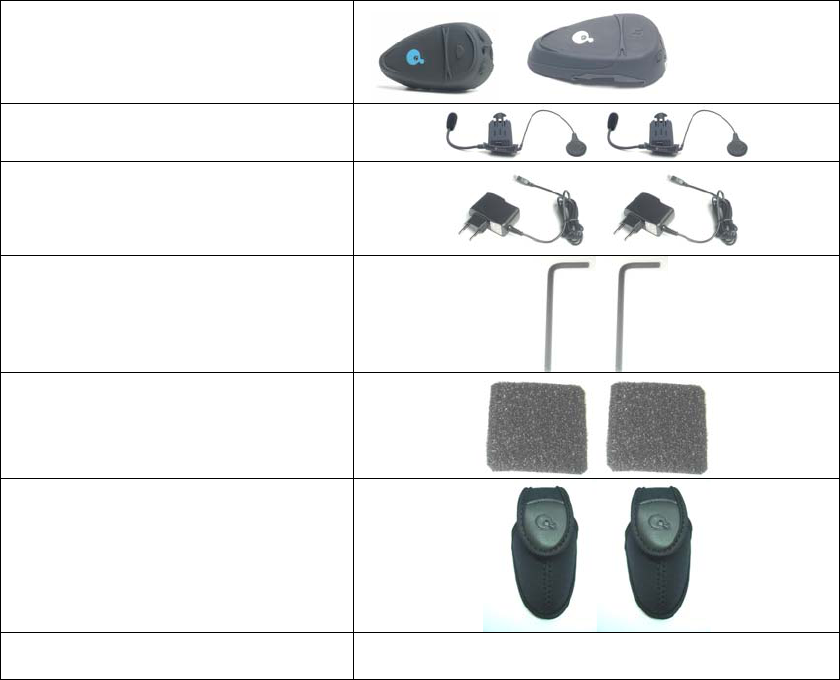

Two Headsets: Driver unit (silver logo)
and Passenger unit (blue logo)
Two Clamps (with microphone and
speaker
Two Wall Chargers
Two Allen Wrenches
Two Velcro Pads
Two Travel Pouches
Quick Start Guide, Manual on mini-CD,
Warranty and Registration Card
4

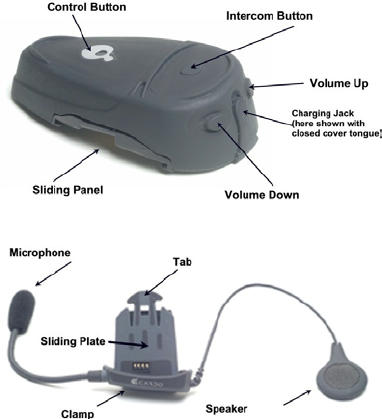

4. Components
5. Before Using
Make sure that the headsets are fully charged
for at least five hours before initial use.
1. Connect the wall chargers to
Charging Jacks of each headset
(located between the two Volume
Control buttons).
2. While charging, the red indicator
light illuminates. When charging is
complete the light will turn off.
General Instructions
All Headset functions are controlled either by:
• pushing the Control or Intercom
Button either for a short period of less
than a second or a long period of over
three seconds
or
• by clicking the volume up and volume
down buttons.
Turning on the Headsets for
the First Time
THE DRIVER UNIT (silver logo): The driver
unit permits two communication modes:
• Mobile Phone connections with third
parties
• Intercom connection with the
passenger.
In order for the headset to work with your
cellular phone, they must first recognize each
other. This process is called “pairing”, and
only needs to be performed once for each
phone.
1. Turn on your phone and make sure its
Bluetooth function is activated.
2. With the Headset turned off press and
hold the Control Button until the red
and blue indicator lights begin rapidly
alternating.
3. Search for Bluetooth devices on your
phone by following the phone’s
instructions.
4. After a few seconds the phone will
list the scala-rider Team-Set as a
discovered device. Select it and
follow your phone’s instructions to
accept the pairing.
5. When prompted enter 0000 (four
zeros) as your PIN or passkey.
6. Your phone will confirm that pairing
has succeeded.
Note: If pairing is not completed within two
minutes the headset will return to standby
mode.
Your Headset can pair with up to eight phones,
and will automatically connect to the last
phone connected to the Headset.
Reconnecting the Headset
to a Paired Phone
Although you may have previously paired your
headset to your phone, each time you turn one
of them off, some phones require that you re-
establish the link. Reconnecting may also be
necessary when your headset and phone have
lost the radio signal because the distance
between them has exceeded 30 feet or 10
meters, or major obstacles have come in the
way. After you have turned on your headset
and mobile phone, there are several methods to
re-establish the link if needed:
• Assuming your mobile phone is voice
activation capable, press briefly the
headset’s CTRL button to activate voice
dial. A signal on your phone’s screen will
indicate that the link is re-established.
• Do nothing. Once a call is received, answer
by pressing the CTRL button.
5
• With some mobile phones you should refer
to your phone’s menu and/or manual.
• The most likely solution is to simply turn off
the headset and then turn on again after
several seconds.
THE PASSENGER UNIT (blue logo): This
unit is solely intended for intercom connection
with the driver and cannot initiate or receive a
phone call. To turn on the Passenger unit, press
the Control button until the blue indicator light
illuminates. The Driver and Passenger units are
supplied paired TO EACH OTHER.
Attaching the scala-rider
Units to Your Helmets
Perform this procedure for both the driver and
passenger helmets.
1. Use the enclosed
Allen Wrench to
loosen the two
screws on the Back
Plate.
2. Slide the Back
Plate between the
internal padding
and the external
shell of the helmet
(If the external
shell is too thick
use the extension
pad)
3. Adjust the clamp’s
location so that the
microphone is
located at the
corner of your
mouth, and then
tighten the screws.
Attach the speaker
to the Velcro on
inside of your
helmet opposite
your ear, or use the
supplied Velcro
pad.
4. Slide the Headset
downwards along
the sliding panel
until a clicking
sound indicates that
the Headset is
locked in place.
The Headset name
appears on the
inside of the
Headset. Make sure
that you attach the
proper Headset to
each helmet (Silver
logo = Rider, Blue
logo= Passenger).
Removing the Headset
From the Helmet
Your Headset can be removed for charging and
storage by pressing your finger gently against
the tab and sliding the Headset up with the
other hand (Figure 1).
Figure 1
We recommend that you store your Headset in
the enclosed carry pouch when not in use.
6. Handling Calls
NOTE: Certain advanced features of the scala-
rider Team Set are only accessible to phones
equipped with the hands-free profile.
Initiating Calls by Using
Your Phone’s Keypad
1. Dial the phone number on your phone’s
keypad.
2. Press “Talk” or “Send” on your phone
to dial the number.
Voice Dialing
1. Make sure your phone is ON but no call
is in progress.
2. Tap the CTRL button and listen for a
tone.
3. Now pronounce the name of the party
you wish to call and wait for feedback
from the phone. The type of feedback
depends on your phone.
Press here
6
Answering Calls (Including
Voice Recognition Feature)
The ring tone for incoming calls increases
gradually. When you hear the ring tone (on the
headset), there are two ways you can answer
the call:
• Tap the CTRL button on your headset
once (Figure 2)
• Assuming the Voice Recognition feature
is active (See Section 7 below), answer the
call by pronouncing loudly any word of
your choice within 7 seconds. If you
remain silent for 7 seconds the call will be
automatically rejected and the ringing will
stop.

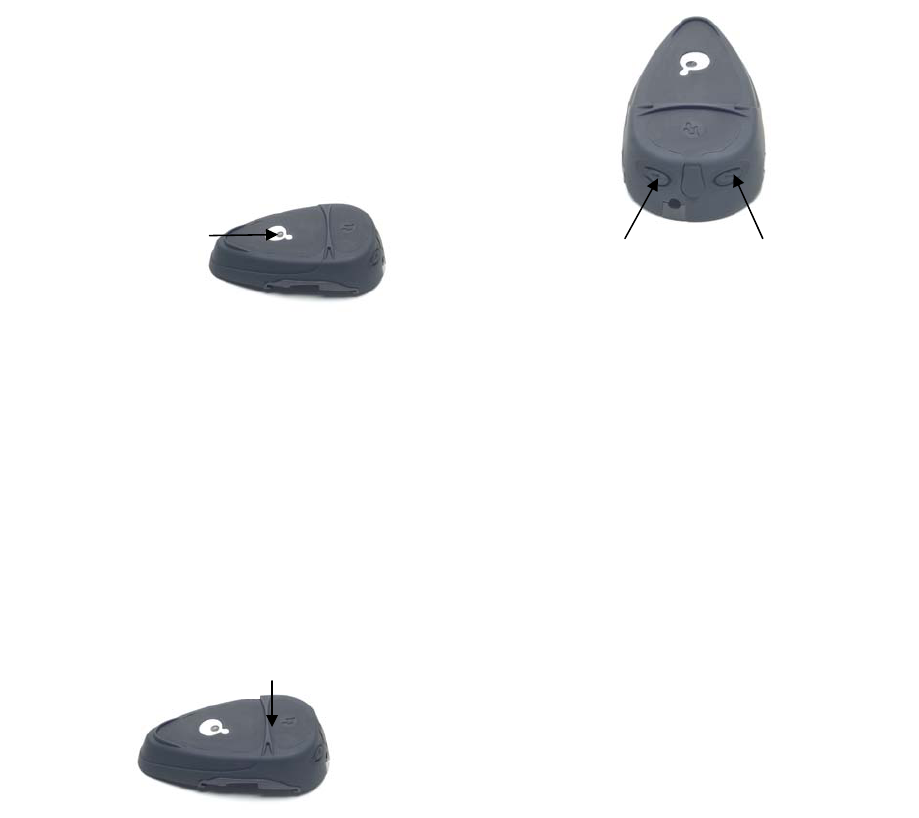

Figure 2
Terminating Calls
To terminate a call, tap the Reject/Redial/End
button, followed by a tone confirming the
termination (Figure 3)
If the other party terminates the call first, no
action is necessary.
Wait at least three seconds before pressing the
CTRL button to start voice dialing.
Figure 3
NOTE: If your mobile phone does not support
the handsfree protocol you will not be able to
end calls by pressing the Reject/redial/End
Button. Instead, please tap the CTRL button to
terminate calls.
Volume Control
The scala-rider Team Set headset comes
equipped with AGC technology to
automatically adjust itself to the optimal
speaker volume. Its embedded sensors
continuously measure the ambient noise and
driving speed to make manual adjustment of
the volume buttons virtually unnecessary.
You can also adjust the volume anytime by
pressing the volume buttons one step at a time
(Figure 4). For each step of adjustment, you
will hear a short beep.
Figure 4
Call Reject
While you hear the ring tone on the headset,
there are two ways you can reject the call:
• Tap the Redial/Reject/End button on your
headset to reject the call (FIG. 9).
• Assuming the VR feature is enabled (see
section 7 below), remain silent for 7
seconds to reject the incoming call.
Redial
While no call is in progress, tap the
Redial/Reject/End button on your headset to
redial to the last number (FIG. 9).
Intercom Functions
• To enable and disable the intercom
functions long press the Intercom button. 1
tone indicates enabled, and 2 tones
indicates disabled.
• To initiate an intercom conversation,
simply start talking while in standby mode.
• To disconnect an intercom conversation,
remain silent for 15 seconds
7. Voice Recognition
(VR) feature
The VR feature allows you to answer or reject
incoming calls by voice control without having
to remove your hands from the handlebars.
The default mode of this feature is ON.
Tap here to
answer a call
Ta
p
here to terminate a call
Press here to
increase the
volume
Press here to
decrease the
volume
7
To disable the VR feature, please refer to
section 7.1 below.
NOTE: The VR feature works well while
driving up to 70km/h or 44m/h with 3/4 helmet
and up to 120km/h or 75m/h with closed full
faced helmet.
Enable/Disable the Voice
Recognition Feature
Press and hold the Volume Up and Volume
Down buttons simultaneously for 3 seconds to
enable/disable the VR feature. You will hear
an ascending/descending tone confirming the
change each time you switch this feature ON
or OFF respectively.
Answering Calls Using
Voice Recognition
We recommend that you set your phone to
auto-answer before driving your motorcycle.
The phone will then automatically answer any
incoming calls, thus allowing you to talk
without having to perform any actions.
Alternately, you can answer an incoming call
via the headset, by loudly saying any word of
your choice within 7 seconds. If you remain
silent the call will be rejected (See following
section).
Rejecting Calls Using Voice
Recognition
To reject a call and stop the ringing, when you
hear an incoming call via the headset, remain
silent for 7 seconds.
8
8. Understanding the
Light Indicators
(LEDs) and Sound
Signals
Indicator Lights
The Headset uses the following indicator lights
to display its status
Indicator
Light
Status
None Headset is off
Alternating
Red/blue flashes
Entering pairing mode
1 blue flash
every 3 seconds
Standby-Not on a call
2 blue flashes
every 3 seconds
Call being initiated or in
progress
1 red flash every
3 seconds
Standby and battery is low
2 red flashes
every 3 seconds
Call being initiated or in
progress and battery is low
Tones
With the exception of the actions described in
the following table, all actions are followed by
a single tone to confirm that the headset has
accepted the action.
Action Tone
Mute On/off tone and mute
reminder tone every
20 seconds
Enable/Disable
intercom
Enable-1 tone,
Disable-2 tones
Stop using intercom 2 tones
9
9. FAQs
What is the scala-rider Team Set headset?
The scala-rider Team Set wireless headset is a
comfortable, stylish and easy to use accessory
to a Bluetooth® mobile phone or smart-PDA
that enables you to hear and speak without
holding your mobile phone near to your ear.
Do I need an Adapter if I already have a
Bluetooth enabled cell phone?
No. Your scala-rider Team Set communicates
with virtually every Bluetooth phone.
How does the scala-rider Team Set headset
headset work?
Once the scala-rider Team Set is “paired” to
your Bluetooth enabled mobile phone, the two
devices communicate wirelessly using
Bluetooth technology.
If I want to keep my non-Bluetooth mobile
phone, can I still use it with my scala-rider
Team Set headset?
You can hold on to your non-BT mobile phone
and still enjoy the benefits of the headset, if
you use the Cardo BTA II Bluetooth Adapter
(purchased separately). The BTA II Adapter
plugs directly into the headset jack of most
non-Bluetooth phones, thereby enabling the
phone to communicate wirelessly with your
headset.
Is the battery removable?
The battery is not removable and you should
never try to open the headset. The Headset
should be serviced by authorized personnel
only.
Do I need to turn my headset off or leave it
on when it is recharging?
Either way is fine.
When I turn on my cell phone, do I need to
pair or link my cell phone and headset again?
Once your mobile phone and headset are
paired, you will not have to pair it again,
unless an unforeseen error has occurred.
Generally, you will only need to implement the
simple steps of reconnecting your phone and
headset each time either or both are turned off
or have moved more than approximately 30
feet (10 meters) apart from each other.
Will other Bluetooth phones interfere with
my scala-rider Team Set headset? Can they
eavesdrop?
No. Once you are paired, your identity is
known only to the mobile phone you use and
no other Bluetooth phone can hear your audio
signals.
Can the headset cause interference with my
car radio?
No, the Bluetooth standard does not interfere
with car radios.
Can Wi-Fi or other 2.4 MHz transmissions
in the vicinity interfere with the scala-rider
Team Set headset?
We have not encountered such events, but in
general, interference may occur with any
Bluetooth headset, including the scala-rider
Team Set headset.
Can I wear the scala-rider Team Set headset
in the rain?
The scala-rider Team-Set is a water-resistant
device, designed for use under moderate rain
and snow conditions. However, the headset is
not waterproof and should not be used under
severe weather conditions. The cover tongue
protecting the charging jack should be kept
tightly closed at all times to prevent moisture
from entering the device.
Will scala-rider Team Set headset work
with more than one Bluetooth phone?
Yes, your scala-rider Team Set headset can be
paired with several Bluetooth phones, but you
can only work with one at a time.
Can the passenger initiate telephone calls?
No, the passenger can initiate intercom
conversations but cannot initiate or receive
external calls.
More questions? Please visit our FAQ page at
http://www.cardowireless.com
10
10. Summary of Functions
Driver Functions
If you want to… …do this
PHONE FUNCTIONS
Turn on the headset Press the Control Button steadily for at least 6 seconds
Turn off the headset Press the Control Button steadily for at least 3 seconds
Answer a call Short press the Control Button
Reject a call Short press the Intercom Button
Terminate a call Short press the Intercom Button
Increase the volume Short click the Volume Up Button.
Decrease the volume Short click the Volume Down Button.
Voice Dial During standby, short press the Control button and state the name of the
person you wish to call. Note that the persons name and number must first
be entered in the phone’s memory.
Redial During standby short press the Intercom Button
INTERCOM FUNCTIONS
Start using the intercom During standby, start talking loudly
Stop using the intercom Stop talking. The audio connection will be severed in 15 seconds.
Join intercom party to an
active call
During a call (with a phone), long press on the intercom button
Release intercom party
from an active call
During a call (with a phone), long press on the intercom button
Enable/disable intercom Long press the intercom button.
One tone=intercom enabled.
Two tones=intercom disabled.
Passenger Functions
If you want to… …do this
Turn on the headset Press the Control Button steadily for at least 3 seconds
Turn off the headset Press the Control Button steadily for at least 3 seconds
Start using intercom Begin talking
Stop using intercom Stop talking. The audio connection will be severed in 15 seconds.
Enable/disable intercom Long press the intercom button.
One tone=intercom enabled.
Two tones=intercom disabled.
Increase intercom volume Short press Volume Up Button
Decrease intercom volume Short press Volume Down Button
11
11. Troubleshooting
Problem Action
Phone-Related Problems (Driver Unit with Bluetooth Phone)
Unsuccessful Pairing 1. Delete scala-rider from your paired device list in your phone
(if it’s listed).
2. Turn off the phone and headset
3. Remove the battery from the phone and return it.
4. Repeat the pairing process as described in Turning on the
Headsets for the First Time, page 4.
Can’t answer calls or perform
voice dialing by pressing the
Control key
1. Make sure that the scala-rider headset is turned ON and in
standby mode with the blue light indicator slowly flashing.
2. Verify that the Bluetooth function on your phone is set to
ON.
3. Verify that the scala-rider headset is the correctly paired
headset to your phone.
4. Reconnect the phone and headset as described in the section
“Reconnecting the scala-rider headset to a paired phone”.
5. Check the definitions and settings on your phone.
6. Repeat the pairing process as described in Turning on the
Headsets for the First Time, page 4.
Cannot terminate calls using
the reject/redial/end functions
Your phone supports the Bluetooth headset profile only and not
the handsfree profile. Therefore you must use the Control button
to answer or terminate calls.
Can’t answer phone calls
using the Voice Recognition
(VR) feature.
1. Make sure that the VR feature is activated
2. Make sure that you speak the word loudly after prompting
I cannot perform redial 1. Make sure that the call list on your phone is not
empty.
2. The Redial feature works only with mobile phones
that support the Bluetooth. Make sure that your
phone supports this profile.
Battery does not provide at
least five hours of talk time
Make sure your scala-rider headset is fully charged. Charging time
is up to 3 hours for an empty battery. When the headset is
connected to the charger and it is fully charged, the red light
indicator turns off.
I’m trying to reject incoming
calls by remaining silent, but
the phone continues to ring.
1. Make sure the VR feature is enabled (See Section 7).
2. Reject feature works only with mobile phones that support
Bluetooth hands-free profile. Make sure your mobile phone
supports this profile.
Red LED does not light
steady when charger is
connected.
1. Make sure the charger’s DC jack is firmly plugged into the
headset.
2. Disconnect the charger’s DC jack, wait a few seconds and
plug it back in.
3. When the headset is fully charged the red light turns off.
I hear crackling noises
Possibly caused by nearby interference. If you have a GSM
phone and your headset is too close to phone, noises may be
heard.
Headset and mobile phone are more than 30 ft. (10 m) apart
or there are major obstacles (such as concrete walls) between
the headset and mobile phone.
12
Sound deteriorates when the
phone is in my back pocket.
Some mobile phones emit weaker Bluetooth signals than others,
resulting in reduced sound quality, especially when the phone is
close to your body.
Suggestion: Move the phone to your breast pocket or to a front
pocket on the same side you wear your headset.
The party I am speaking to
complains about insufficient
audio quality
1. Close helmet cover under high-speed conditions
2. Use the bigger microphone sponge.
3. Make sure the microphone is not in front of your mouth (the
microphone should be at the corner of your mouth.
Intercom-Related Problems (driver/passenger)
Cannot initiate conversation
with other party
(driver/passenger).
1. Try talking louder.
2. Make sure the microphone is located in the correct place as
described in this guide
3. Make sure that intercom is not disabled in both- driver and
passenger units.
I keep hearing the speaker
even though no-one is
speaking (audio connection is
not released).
1. If you drive with an open helmet in 60km/h or closed helmet
above 110km/h, the wind noise activate the intercom
connection between passenger and driver.
2. You can disable the intercom by following instruction in this
guide above.
3. Make sure the microphone is located in the correct place as
described in this guide
4. Make sure that intercom is not disabled in both- driver and
passenger units Follow the instruction above in this guide
NOTE: For most problems we recommend that as a first step, you turn the
headset off and then on again. If this does not help, try pairing the headset and
phone again.
13
12. Technical
Specifications
Technology Compliant with
Bluetooth®, Ver.
1.2
Maximum power 2.5 dbm
Maximum link
distance 30 feet or 10 meters
Typical talk time Up to 6 hours
Typical standby
time Up to one week
Typical charging
time Between 4 and 5
hours
Power Source Rechargeable
Lithium Polymer
battery
Weight 120 oz. or 34 g
Approvals FCC Part 15, CE,
IC. Bluetooth®
13. FCC Notice
This equipment complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
Warning: Changes or modifications to this unit
not expressly approved by the party responsible
for compliance could void the user’s authority to
operate the equipment. Use only approved
batteries and chargers. This equipment has been
tested and found to comply with Part 15 of the
FCC rules. These limits are designed to provide
reasonable protection against harmful interference
in a residential installation. This equipment
generates and can radiate radio frequency energy,
and if not installed and used in accordance with
the instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. Your scala-rider Team Set
headset is designed to operate at the maximum
strength allowed by the FCC. This means that
your headset can communicate only over a certain
distance subject on the location of the cell phone,
base unit and headset, your vehicle, the
construction and layout of your home or office.
Weather conditions can also affect performance.
CAUTION
RISK OF EXPLOSION IF BATTERY IS
REPLACED BY AN INCORRECT TYPE.
ALERTE
Risque d'explosion si la batterie est remplacיe par
un model qui ne convient pas. Il faut traiter les
batteries usיes selon les instructions.
NOTE: If this equipment causes harmful
interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/ TV
technician for help.
14. European CE
Notice
Certification and Safety Approvals/ General
Information, Regulations and Notices
This product is CE marked according to the
provisions of the R & TTE Directive (99/5/EC).
Hereby Cardo Systems, Inc. declares that this
product is in compliance with the essential
requirements and other relevant provisions of
Directive 1999/5/EC. Please note that this product
uses radio frequency bands not harmonized within
the European Union (“EU”). Within the EU this
product is intended to be used in Austria, Belgium,
Denmark, Finland, France, Germany, Greece,
Ireland, Italy, Luxembourg, The Netherlands,
Portugal, Spain, Sweden, The United Kingdom
and within EFTA in Iceland, Norway and
Switzerland. Users are not permitted to make
changes or modify the device in any way. Changes
or modifications not expressly approved by Cardo
will void the user’s authority to operate the
equipment.
15. Limited
Warranty
Your scala-rider Team Set headset is covered with a
Two-Year limited product warranty from the date of
original purchase. Please retain the retail sales receipt
and your registration data for proof of purchase.
What this limited warranty covers and for how
long
Cardo Systems, Inc. (the “Company” or “Cardo“)
warrants the scala-rider Team Set headset and
charger against defects in material and
workmanship under normal use and service for a
period of two (2) years from date of purchase
(proof of purchase and registration required). The
Company at its sole discretion, will at no charge
either repair, replace or refund the purchase price
of the product to the original purchaser during the
warranty period, provided the product has not
been damaged or tampered with and has been
returned in accordance with the terms of this
warranty to an authorized Company Service
Center. Repair, at the Company’s option, may
include the replacement of parts, boards or
batteries with functionally equivalent
reconditioned or new parts.
Warranty Conditions
This express limited warranty is extended by Cardo
Systems, Inc. solely to the original purchaser and is
not assignable or transferable to others. This is the
complete warranty for your scala-rider Team Set
headset and charger. The Company assumes no
obligation or liability for additions or modifications to
this warranty unless made in writing and signed by an
officer of the Company. Batteries are warranted only
14
if the battery capacity falls below 70% of rated
capacity or if the battery develops leakage.
This warranty becomes void if:
a. Any of the seals on the case or battery are broken
or device or battery show signs of tampering.
b. The battery is used in equipment other than the
equipment for which it was intended.
The Company disclaims all responsibility for any
equipment not furnished by Cardo Systems Inc.,
which is attached to or used in connection with the
scala-rider Team Set headset. Furthermore, the
Company is not responsible for any damage to any
part of the scala-rider Team Set headset resulting
from the use of ancillary equipment not furnished by
the Company.
What this warranty does not cover
1. Defects or damage resulting from the use of this
product in other than its normal and customary
manner.
2. Defects or damage from misuse, accident or neglect.
3. Defects caused by improper operation, maintenance,
installation, adjustment or modification of any kind.
4. Products opened, disassembled or repaired by non-
authorized parties.
5. Defects or damage due to exposure to excessive
temperatures, adverse weather conditions, external
impacts or spills of solid or liquid substances, incl.
rain.
6. All plastic surfaces and all other externally exposed
parts that are scratched or damaged after purchase.
Warranty Service
To receive warranty service, your product must be
registered. Fax the attached registration card to
the numbers listed on the card, send it by certified
mail or register online at:
http://www.cardowireless.com/registration.p
hp For services, please present the product, along
with your registration number and bill of sale
(receipt) at any authorized Service Center or at the
store from which you have purchased the product.
Returns to the Company pursuant to the limited
warranty can only be accepted with a Return
Authorization number obtained from Cardo’s
customer service department.
General Provisions
This warranty is given in lieu of all other express
or implied warranties, including without
limitation, implied warranties of merchantability
and fitness for a particular purpose. Cardo’s
obligations under this section are limited to the
duration of this limited warranty.
a. Certain limited-life components that are subject
to normal wear and tear, such as eyeglass clips,
ear loops, decorative finishes, batteries, cradles,
sleeves, neckbands, silicone caps or other
accessories, are exempt from any warranty.
b. Cardo is not liable for any incidental or
consequential damages arising from the use or
misuse of any of the Company’s products.
c. The user should never attempt to perform
service, adjustments or repairs of the Product by
him/herself. Doing so will void all warranties.
During the term of the warranty, all products must
be returned to the point of purchase or the
authorized Service Center for all necessary work.
d. The Company is not responsible for any loss or
damage incurred during shipping. All repair work
on Cardo products by parties not explicitly
authorized by the Company will void any and all
warranties.
e. The information in this Manual is furnished
strictly for informational purposes and is subject
to change without notice. Cardo assumes no
liability or responsibility for any errors or
inaccuracies that may appear in this Manual or the
Quick Guide.
Verify that your Headset is serviced by an
Authorized Cardo Dealer or
Service Center. Cardo Systems,
Inc. retains the right to amend
and change its products,
manuals and specifications at
any time without notice.
15
Waiver and General Release
By using the scala-rider Team Set you will waive substantial legal rights including the right to sue. Please
read the following carefully before using the device. If you do not accept the terms of this agreement, you
should immediately return the product for a full refund. By using the headset you agree to be bound to this
agreement and forfeit the right to sue.
Using a communication device while riding a motorcycle, scooter, moped, ATV, quad-bike or any other vehicle, whether on land,
water or air (jointly referred to as “Vehicle”) requires your complete und undivided attention. Cardo Systems, Inc., including its
Officers, Directors, Affiliates, Parent Company, Representatives, Agents, Contractors, Sponsors, Employees, Suppliers and
Resellers (jointly referred to as the “Company” or “Cardo”) strongly advises you to take all necessary precautions and remain
alert to the traffic, weather and road conditions if you chose to use the scala-rider Team Set headset, including all derivative
models irrespective of its commercial name or branding (the “Device”), and stop your Vehicle on the roadside prior to initiating
or receiving calls. Any publications, advertisements, announcements or similar notes that refer to using the Device while riding a
Vehicle are solely intended to address its technical capabilities and should not be misconstrued as if encouraging users to operate
the Device while actively involved in traffic.
By way of purchasing this Device and not returning it for a full refund (see below), you are irrevocably releasing, indemnifying
from any liability, loss, claim and expense (including attorneys fees) and holding Cardo harmless for any bodily injuries, harm or
death as well as losses or damages in goods, to any Vehicles including your own, or to any property or asset that belong to you or
to third parties, any of which may result from using the Device under any circumstances or conditions and irrespective of
jurisdiction. Cardo will not be responsible for any physical damages, irrespective of reasons, conditions or circumstances,
including malfunctioning of the Device, and all risks associated with operating it rest solely and entirely with the user of this
Device, irrespective of whether the Device is used by the original purchaser or any third party.
Cardo hereby notifies you that using this Device may also be in contravention to local, federal, state or national laws or
regulations, and that any use of the Device is entirely at your sole risk and responsibility.
1. You, your heirs, legal representatives, successors or assigns, hereby voluntarily and forever release, discharge,
indemnify and hold harmless Cardo from any and all litigation, claims, debts, demands, actions and liability which may arise,
directly or indirectly, from using the Device for any distress, pain, suffering, discomfort, loss, injury, death, damages to or in
respect to any person or property however caused, WHETHER ARISING FROM THE NEGLIGENCE OR OTHERWISE, and
which may hereafter accrue to you on some future date as a result of said use, to the fullest extent permitted by law.
2. You fully understand and assume the risks in using the Device, including risk of negligent acts or omissions by others.
3. You confirm that you are physically capable to use the Device and that you have no medical conditions or needs that
may infringe upon your abilities to do so in a safe manner. You confirm that you are at least eighteen (18) years of age and that
you have been advised of the risks associated with the use of the Device. You further confirm that you will not consume any
alcohol that may affect your alertness or any mind-altering substance, and will not carry, use or consume these substances before
or during the use of the Device.
4. You fully acknowledge our warnings and understand that: (a) risks and dangers exist in using the Device while in
traffic, incl. but not limited to injury or illness, strains, fractures, partial and/or total paralysis, death or other ailments that could
cause serious disability; (c) these risks and dangers may be caused by the negligence of the manufacturers or its agents or any
third party involved in designing or manufacturing the Device; (d) these risks and dangers may arise from foreseeable or
unforeseeable causes. You hereby assume all risks and dangers and all responsibility for any losses and/or damages, whether
caused in whole or in part by the negligence or other conduct of others, including the Company.
5. You confirm that you have read this release of liability and fully understand its terms and that you have given up
substantial rights by not returning the Device for a full refund (see refund option below).
Disclaimer of Warranty
CARDO DISCLAIMS ALL EXPRESS AND IMPLIED WARRANTIES WITH REGARD TO THE ENCLOSED DEVICE,
INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, AND NON-INFRINGEMENT. THE DEVICE AND ITS ACCESSORIES ARE PROVIDED "AS IS" AND
"AS AVAILABLE" WITHOUT WARRANTY OF ANY KIND BEYOND THOSE ASSUMED IN THE ENCLOSED MANUAL.
Limitation of Liability
IN NO EVENT SHALL CARDO BE LIABLE FOR ANY SPECIAL, INDIRECT, PUNITIVE, INCIDENTAL, EXEMPLARY OR
CONSEQUENTIAL DAMAGES, OR ANY DAMAGES WHATSOEVER RESULTING FROM THE USE OF THE DEVICE,
WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY OR
OTHERWISE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. YOU ACKNOWLEDGE AND AGREE THAT
THE LIMITATIONS SET FORTH ABOVE ARE FUNDAMENTAL ELEMENTS OF THIS AGREEMENT AND THE DEVICE
WOULD NOT BE PROVIDED TO YOU ABSENT SUCH LIMITATIONS. SOME STATE STATUTES MIGHT APPLY
REGARDING LIMITATION OF LIABILITY.
16
RETURN FOR FULL REFUND
IF YOU ARE UNWILLING TO ACCEPT AND AGREE TO THE
ABOVE CONDITIONS, YOU MAY RETURN THIS DEVICE TO
CARDO FOR A FULL REFUND, PROVIDED THAT YOU DO SO
NO LATER THAN 7 BUSINESS DAYS FOLLOWING THE
PURCHASE OF THE DEVICE (proof of purchase required) AND
SUBJECT TO THE WRAPPING BEING INTACT. WHEN DOING SO,
PLEASE REFER TO THIS SECTION.
BY NOT RETURNING THE DEVICE FOR REFUND WITHIN THE
PERIOD PROVIDED, YOU ARE EXPLICITLY IN AGREEMENT
WITH THE ABOVE, AND RENOUNCE ALL RIGHTS TO FUTURE
CLAIMS AND DEMANDS AGAINST CARDO AS DEFINED ABOVE.
17
U.S. and Worldwide Patent Pending;
©2006 Cardo Systems Inc.
Assembled in China.
Bluetooth® is a trademark owned by Bluetooth® SIG, Inc.,
scala-rider Team-Set™ is a trademark owned by Cardo Systems, Inc.
All rights reserved by Cardo Systems, Inc.
Cardo reserves all rights and explicitly prohibits any copying, dissemination, or other commercial use of the text
and/or images or any part thereof contained in this manual, with the exception of end-users of the scala-rider Team
Set headset for their own personal use, of authorized resellers and of journalists covering this product for media
purposes.
www.cardowireless.com
