CONTENTS OF RETAIL BOX
INTRODUCTION
Congratulations, and thank you for choosing the scala rider Q2
pro
Bluetooth® Headset for bikers. This Manual will help you operate the
headset, but you should rst familiarize yourself with the Bluetooth
functionality of your cellular phone and/or GPS device before using the
scala rider Q2
pro
.
The retail box of the scala rider Q2
pro
contains one headset unit. When
paired with another scala rider Q2
pro
, the headsets can be used as
an Intercom at a range of up to 1,640 ft (500m), subject to terrain and
external conditions.
The scala rider Q2
pro
oers the following uses:
1. Bluetooth headset for mobile phone communication,
supporting headset* and Handsfree* proles (10m range)
2. Bike-to-Bike Intercom Communication with another Q2
pro
unit (up to 1,640 ft. / 500 m range) in Full Duplex** mode
[purchased separately]
3. Turn-by-Turn GPS Navigation instructions and Streaming
Audio from compatible Bluetooth devices
4. FM Radio – built in FM radio receiver with six preset stations
5. MP3 Connectivity – Listen to your cable connected MP3 player
while riding
6. Bluetooth stereo headset for wireless music streaming
(supporting the Bluetooth A2DP and AVRCP proles, compatible
with a variety of MP3 Players, adapters and other audio devices)
The scala rider Q2
pro
can establish an audio connection with one Bluetooth
device at a time. Please read the section “Using the Headset” to see how
you can switch the audio connection between the paired devices.
____________________
* Mobile phones that do not support the Bluetooth Handsfree profile may
prevent you from using the Redial and Call Reject features
** Full duplex calls allow you to speak and hear the other party speak simultaneously
MC – Multi-Connection
• Radio On/Off/change stations
• Initiate/Terminate Buddy
Intercom call with Primary or
Secondary Buddy
CTRL – Control Button
• Power On, Power Off
• Answer/End Call
• A2DP functions
Charging
Jack
Volume
Down /
Rewind
Volume Up /
Forward
NOTE: The scala
rider Q2
pro
is also
available in a cord-mounted micro-
phone version to better t certain full-faced
helmets with tight chin sections.
Headset
Helmet Clamp
The
scala
pro
is also
available in a cord-mounted micro-
phone version to better t certain full-faced
Helmet Clamp
Tab
Sliding Plate
Microphone
Right Speaker
(long cord)
Left Speaker
(short cord)
MP3 Jack
Back
Plate
scala rider® Q2
™
pro
3
English
QGQ2PRO_ NB 009_001 - QG0179.indd 3 2/15/10 5:51 PM

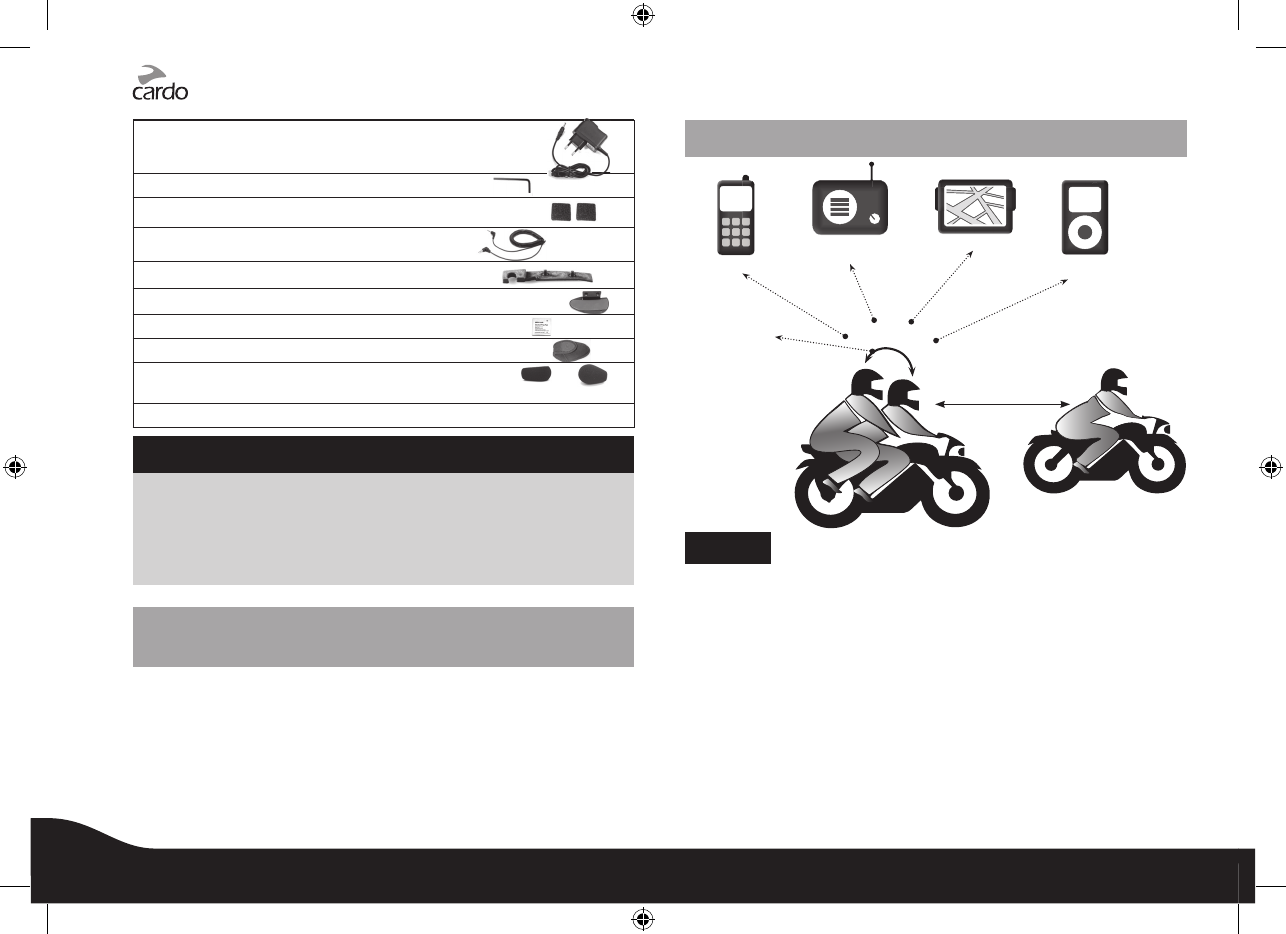

Wall Charger
Allen Wrench
Velcro Pads
MP3 Cable
MP3 Cable Holder
Glue Plate
Pre-moistened Towelette
Carry-Pouch
Microphone Sponges
Flat sponge for full-face helmets and round sponge for other helmet types
User Guide, including Warranty and Registration form
IMPORTANT:
The scala rider Q2
pro
is a water-resistant device, designed for use
under moderate rain or snow conditions. However, the headset is not
waterproof and should not be used under severe weather conditions.
The cover tongue protecting the Charging Jack should be kept tightly
closed at all times to prevent moisture from entering the device.
BEFORE USING (CHARGING THE
HEADSET)
Make sure that the headset is fully charged for at least ve hours
before initial use.
1. Connect the wall charger to the headset’s Charging Jack (located
between the two Volume Buttons).
2. While charging, the Red Light turns on (it may take up to 15
seconds until the Red Light turns on). When charging is complete, the
Red Light will turn o.
SET UP AND CONFIGURATION
STEP 1
SET UP FOR BIKE-TO-BIKE INTERCOM: PAIRING
The scala rider Q2
pro
can be paired with up to two other headsets
for Intercom communication, referred to in this guide as:
Primary Buddy
and
Secondary Buddy
Pairing is a one time process. Once the headsets are paired during
this Setup Procedure, they will remain paired and automatically
recognize each other whenever they are within range.
NOTE: The scala rider Q2
pro
allows you to speak via Intercom to
one Buddy headset at a time.
scala rider
Q2 pro
or
other scala rider
headset
Bike-to-Bike Intercom
up to 500 m / 540 yd
(in open terrain)
Mobile phone
Driver-to-Passenger
Full-duplex
Intercom
Connection
Built-in
FM radio
GPS
MP3
player
4scala rider® Q2 pro™
QGQ2PRO_ NB 009_001 - QG0179.indd 4 2/15/10 5:52 PM
PRIMARY BUDDY PAIRING (requires two
scala rider Q2
pro
headsets)
1. If either headset is turned OFF, turn it ON by pressing and holding
the CTRL Button until the Blue Light ashes three times.
2. Make sure that both headsets are now ashing slowly in Blue.
3. Pick up one headset and simultaneously press and hold the
CTRL Button and MC Button for at least six seconds until the
Red Light begins flashing rapidly, indicating it is in Intercom
Pairing mode.
4. Repeat Step 3 again for the second scala rider Q2
pro
headset.
Both headsets should now be ashing rapidly in Red.
5. Within a few seconds, both headsets will show a solid Red
light for two seconds, and then begin flashing slowly in Blue.
NOTE: If the Pairing process is not completed within one
minute the headset will return to Standby mode.
SECONDARY BUDDY PAIRING (requires three
scala rider Q2
pro
headsets)
Once you have paired the Main scala rider Q2
pro
to the
Primary Buddy headset, repeat the procedure above to pair
the Main scala rider Q2
pro
to the Secondary Buddy headset.
NOTE: The Main scala rider Q2
pro
is able to communicate with either the
Primary Buddy or the Secondary Buddy. The Primary Buddy and Secondary
Buddy are not able to communicate directly via Intercom.
NOTE: If the Pairing process is not completed within one
minute the headset will return to Standby mode.
STEP 2 (Optional)
SET UP FOR RIDER-TO-PASSENGER INTERCOM: PAIRING
There are two ways that the scala rider Q2
pro
can be used for
Driver-to-Passenger communication.
A. Both Rider and Passenger are using scala rider Q2
pro
headsets.
To Pair the two headsets, follow the Steps listed in the section
above titled PRIMARY BUDDY PAIRING (2 bikers).
B. The Rider is using a scala rider Q2
pro
and the Passenger is
using an earlier scala rider headset (i.e. a scala rider Solo™, a
scala rider FM™ or a scala rider TeamSet™ Driver unit headset).
To Pair the two headsets:
1. Starting with the earlier scala rider headset turned OFF, press
and hold the CTRL button until the Red/Blue lights begin
rapidly alternating.
2. Starting with the scala rider Q2
pro
turned ON,
simultaneously press and hold the CTRL Button and MC
Button for six seconds until the Red light begins ashing
rapidly, indicating it is in Intercom Pairing mode.
3. Within a few seconds, the scala rider Q2
pro
will show a solid Red
light for two seconds, and then begin ashing slowly in Blue.
NOTE: If the Pairing process is not completed within one minute the
headset will return to Standby mode.
NOTE: When using an earlier scala rider headset as a Passenger
headset, Voice Connect Intercom can be initiated only by
the scala rider Q2
pro
headset. Manual Connect Intercom
can be initiated from either headset by pressing the MC
button for scala rider Q2
pro
and CTRL button for any
earlier scala rider headset.
RESET INTERCOM PAIRING
You can delete all of the headset’s Intercom pairings at any time.
scala rider® Q2
™
pro
5
scala rider® Q2 pro™
English
QGQ2PRO_ NB 009_001 - QG0179.indd 5 2/15/10 5:52 PM
1. Place the scala rider Q2
pro
into Intercom Pairing mode following
the instructions in the PRIMARY BUDDY PAIRING section above.
2. Once the Red Light begins ashing rapidly, press and hold Volume
up for three seconds.
3. The Red and Blue Lights will ash ve times, conrming that the
Reset Pairing was successful.
STEP 3
SET UP FOR MOBILE PHONE CALLS: PAIRING
If you have a Bluetooth enabled mobile phone and would like to
make and receive phone calls using the scala rider Q2
pro
, you must
rst pair your headset to the mobile phone.
NOTE: If you have a compatible Bluetooth GPS device you wish to use
with the scala rider Q2
pro
, please skip this step, and continue ahead
to STEP 4: SET UP FOR BLUETOOTH GPS DEVICE.
Pairing is a one time process. Once the headset is paired to a
specific mobile phone during this Setup Procedure, they will
remain paired and automatically recognize each other whenever
they are within range. If the connection between the phone and
headset is lost, tap the CTRL button to reconnect the devices.
To Pair the scala rider Q2
pro
to a Bluetooth Mobile
Phone
1. Turn on your phone and make sure its Bluetooth function is
activated.
2. With the scala rider Q2
pro
headset turned ON, press and
hold the CTRL Button for at least six seconds until the Red and
Blue Lights begin rapidly alternating.
3. Search for Bluetooth devices on your phone by following the
phone’s instructions. Please consult your phone’s User Manual
for more information.
4. After a few seconds the phone will list the scala-rider Q2
pro
as a
discovered device. Select it and follow your phone’s instructions
to accept the pairing.
5. When prompted enter 0000 (four zeros) as your PIN or passkey.
6. Your phone will conrm that pairing has succeeded and the
headset will begin ashing slowly in Blue.
NOTE: If the Pairing process is not completed within two minutes the
headset will return to Standby mode.
With some mobile phones, you may need to tap the CTRL button
to connect the headset to the phone after pairing is complete. The
scala rider Q2
pro
headset will automatically connect to the last
phone connected to the headset.
STEP 4
SET UP FOR BLUETOOTH GPS DEVICE: PAIRING
If you have a Bluetooth enabled GPS device and would like to transmit
navigation instructions and sounds from the GPS device through the
headset’s speakers, you must rst pair your headset to the GPS device.
NOTE: Not all Bluetooth enabled GPS devices allow connections to
Bluetooth headsets like the scala rider Q2
pro
. Please consult your
GPS device’s User Manual for more information.
To Pair the scala rider Q2
pro
to a Bluetooth GPS
Device:
1. Turn on your GPS device.
2. With the scala rider Q2
pro
headset turned ON, press and
hold the volume up Button for at least six seconds until the
Red and Blue Lights begin ashing simultaneously.
3. Search for Bluetooth headsets on your GPS device by following
the device’s instructions. Please consult your GPS device’s User
Manual for more information.
6scala rider® Q2
™
pro
QGQ2PRO_ NB 009_001 - QG0179.indd 6 2/15/10 5:52 PM
4. If your GPS device prompts for a PIN or Passkey enter 0000 (four zeros).
5. Your GPS device will conrm that pairing has succeeded. The
headset will begin ashing slowly in Blue.
6. If you wish to use a Bluetooth mobile phone to make and
receive calls through the headset, you must now pair your
mobile phone to your GPS device by following your GPS
and/or mobile phone’s instructions.
NOTE: If the Pairing process is not completed within two
minutes the headset will return to Standby mode.
GETTING STARTED
ATTACHING THE CLAMP ON THE HELMET
The Helmet Clamp must be attached to the left side of the helmet.
Once attached, the headset unit can be mounted or released from
the Helmet Clamp at any time. If you wish to connect your MP3 player
to your headset, please refer rst to the assembly instructions listed in
section: USING THE MP3 PLAYER WITH YOUR HEADSET.
There are two methods that can be used in order to attach the Clamp
onto the helmet:
Standard Method: Recommended for most helmet types.
Glue Plate Method: Recommended for helmets to
which the standard method cannot be applied,
using the Glue Plate included in the box.
Standard Method
1. Use the enclosed Allen Wrench to loosen the
two screws on the Back Plate.
2. Slide the Back Plate between the internal
padding and the external shell of the helmet.
3. Adjust the clamp’s location so that the
microphone is located opposite your mouth
and then tighten the screws. You may need
to reposition the Clamp repeatedly until you
identify the best spot. The microphone must
be positioned vertically and not horizontally.
If you have purchased a helmet clamp version with the corded micro-
phone, please refer to section ATTACHING THE CORDED MICROPHONE
CLAMP ON A FULL-FACED HELMET.

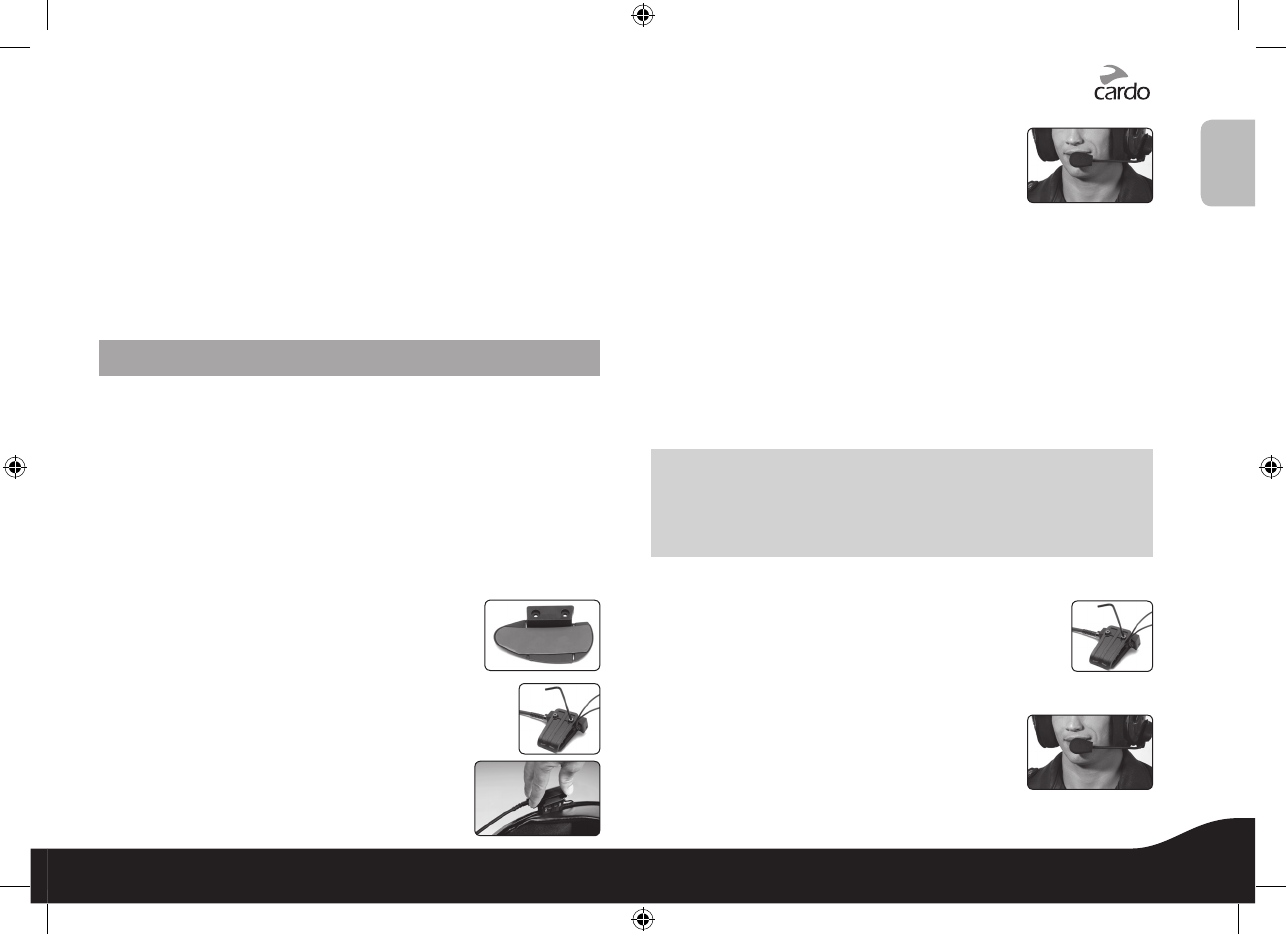

Glue Plate Method
You have the option to glue the Helmet Clamp onto your helmet,
when the above standard method cannot be used, or in case you
prefer to secure the Helmet Clamp with adhesive glue. This option
has been successfully used for a range of high end helmets.
NOTE: While we have no reason to believe that the gluing option might
negatively affect any helmet, Cardo does not assume any responsibility to
that affect, irrespective of its nature and circumstances. The Glue Plate is
offered as a free option that you may choose to use at your own risk and
subject to renouncement of any future claims.
Caution: This process can be done only once!
1. Use the enclosed Allen Wrench to remove both Allen
screws and release the Helmet Clamp’s back plate.
2. Determine the location on the helmet where the Hel-
met Clamp must be attached.
3. Adjust the Helmet Clamp’s location on the Helmet so that the
microphone is located opposite your mouth.
You may need to reposition the Clamp
repeatedly until you identify the best spot. The
microphone must be positioned vertically and
not horizontally (Be sure to clean the selected area prior to the
gluing process).
scala rider® Q2
™
pro
7
English
QGQ2PRO_ NB 009_001 - QG0179.indd 7 2/15/10 5:52 PM
4. Use the pre-moistened Towelette to clean the helmet area where
you want to install the Glue Plate. Allow to dry thoroughly.
5. Peel the foil cover from the Glue Plates’ adhesive pad.
6. Place the Glue Plate into position according to #3. Press rmly 15
seconds on all 3 parts of the Glue Plate.
7. The adhesive pad bonds to full strength over the next 24 hours.
Therefore it is recommended to not use the headset during this 24
hour period.
8. Fasten the Clamp to the Glue Plate using the Allen screws that were
previously removed.
If you have purchased a helmet clamp version with the corded
microphone, please proceed as follows:
ATTACHING THE CORDED MICROPHONE CLAMP ON A
FULL-FACED HELMET
If you are using the corded microphone version, you must rst make
sure your helmet clamp is attached to your
helmet as described in previous section
(ATTACHING THE CLAMP ON THE HELMET).
Clean the exact spot on the internal padding of
the helmet, opposite your mouth, where the
microphone will be placed and proceed as
follows.
a. Peel the foil cover from the adhesive Velcro
pad and place the Velcro pad on the chosen
location opposite your mouth.
b. Attach the microphone to the Velcro, as shown
in photo.
c. When done, tighten the screws of the clamp

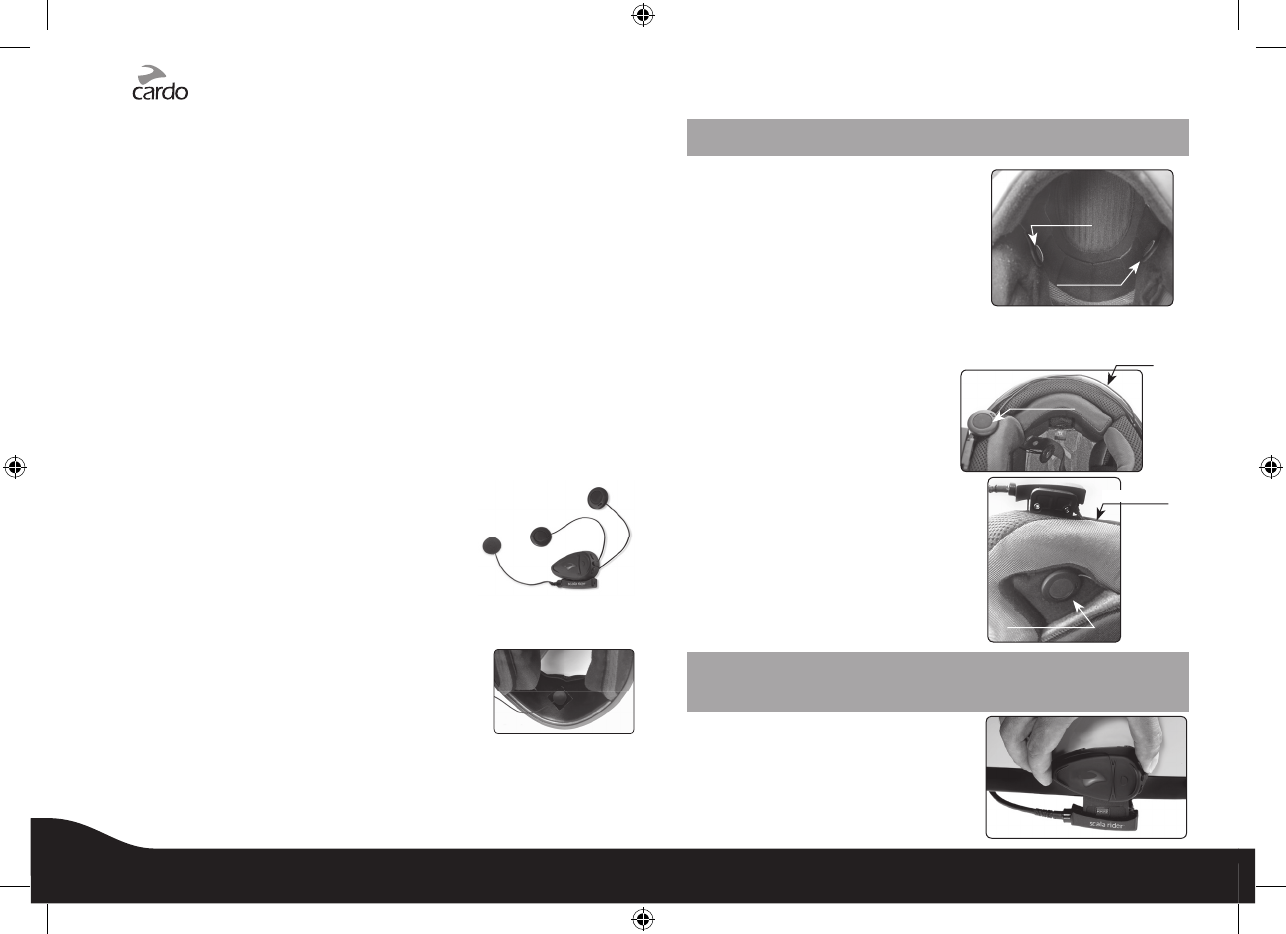

POSITIONING THE SPEAKERS
Speaker A
Speaker B
Attach the speakers to the Velcro inside
your helmet opposite your ears (short
speaker cord for the left ear [A] and the
long speaker cord [B] for the right ear). You
may want to use the supplied Velcro pad.
Using two speakers inside the helmet
may be prohibited in certain jurisdic-
tions. If this is the case, you should tuck away the long corded
speaker underneath the helmet padding as follows:
Speaker A
Speaker B
Speaker B
Cable
Lead the speaker cord [B]
alongside the rim of the
padding to the right side and
then back to the left side, near
speaker [A]. Then place the
speaker [B] underneath the
padding.
ATTACHING AND REMOVING THE
HEADSET FROM THE HELMET CLAMP
ATTACHING:
Slide the headset downwards along the
sliding panel until a clicking sound
indicates that the headset is locked in
place.
8scala rider® Q2
™
pro
QGQ2PRO_ NB 009_001 - QG0179.indd 8 2/15/10 5:52 PM

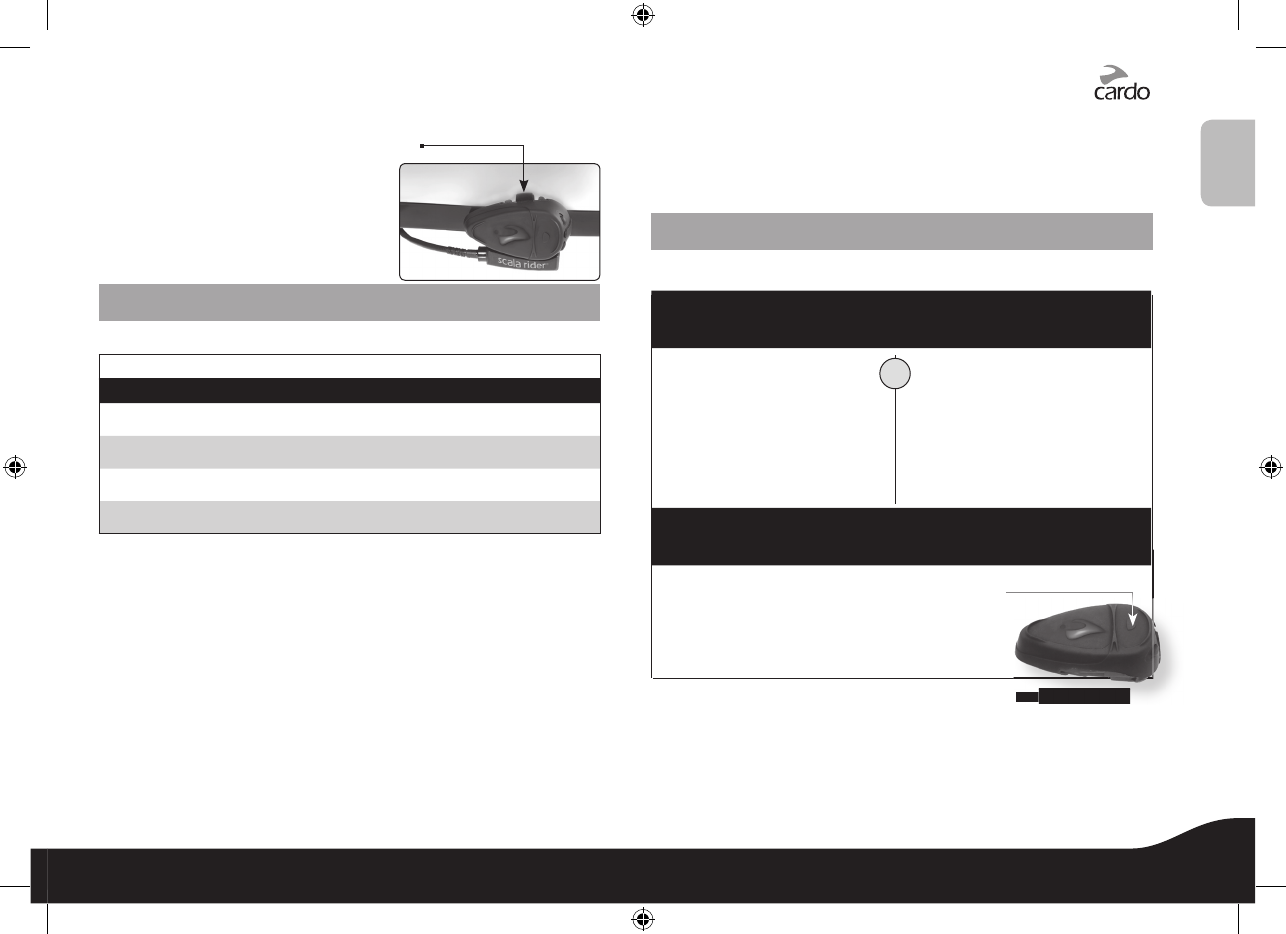

REMOVING: Press here
to remove
Your headset can be removed for charging
and storage by pressing your nger
gently against the tab and sliding the
headset up with the other hand.
We recommend that you remove the
headset from the helmet when not in use.
USING THE HEADSET
GENERAL USAGE
GENERAL FUNCTIONS
DESIRED RESULT: REQUIRED ACTION:
Turn on the
headset Press the CTRL Button steadily for at least three
seconds
Turn o the
headset Press the CTRL Button steadily for at least three
seconds
Increase the
volume Tap the Volume Up Button
Decrease the
volume Tap the Volume Down Button
AGC (Automatic Gain Control): In addition to manual Volume Control,
the scala rider Q2
pro
will automatically increase and reduce its
volume according to ambient noise and driving speed.
AUDIO SOURCES AND PRIORITIES
The dierent Audio Sources that are connected to the scala rider Q2
pro
are prioritized as follows:
Highest 1. Mobile phone Audio / GPS device (Incoming/outgoing calls ,
GPS audio and navigation instructions)
2. Primary Buddy Audio and Secondary Buddy Audio
3. A2DP audio source
4. FM Radio
Lowest 5. MP3 Connectivity (corded connection)
A high priority Audio Source will always interrupt any lower priority
Audio Source.
i.e. Mobile phone call interrupts Intercom call
Intercom call interrupts FM Radio
USING THE INTERCOM
Making Intercom calls
To start a Buddy Intercom call with the Primary Buddy while
the headset is on Standby you can either:
VOICE CONNECT:
Start talking
A Buddy Intercom call will be
established and stay on until
both sides are quiet for 30
seconds.
MC BUTTON CONNECT:
Single tap the MC Button
A Buddy Intercom call will
be established. To end the
Buddy Intercom call, single
tap the MC Button again.
To start a Buddy Intercom call with the Secondary Buddy
while the headset is on Standby:
MC BUTTON CONNECT:
Double tap the MC Button
A Buddy Intercom call will be established. To end the
Buddy Intercom call, double tap the MC Button again.
NOTE: When using a scala rider Headset (not a Q2
pro
version) as a
Passenger headset, Voice Connect Intercom can be initiated only by
the scala rider Q2
pro
headset. Manual Connect Intercom can be
initiated from either headset.
Failed Connection: On the scala rider Q2
pro
, if you attempt to start
a Buddy Intercom call with a Buddy that is already on a Phone/GPS/
Intercom call, you will hear a double beep indicating the Buddy is busy.
or
pro
version) as a
version) as a
MC Button
scala rider® Q2
™
pro
9
English
QGQ2PRO_ NB 009_001 - QG0179.indd 9 2/15/10 5:52 PM
Reconnecting the Intercom: If the scala rider Q2
pro
and its
Intercom Buddy headset go out of range and disconnect from each
other, the scala rider Q2
pro
will automatically try to reconnect to its
Intercom Buddy for ve minutes.
You can manually reconnect at any time by pressing the MC Button
(single tap for Primary Buddy and double tap for Secondary Buddy).
Receiving Intercom calls
If you are not speaking with any one, once the other party tries to
initiate a Buddy Intercom call, the call will begin immediately.
TROUBLESHOOTING THE INTERCOM:
First, make sure your microphone is located properly in front of the
center of your mouth.
The scala rider Q2
pro
is designed for use in loud environments.
Please make sure to test the Intercom functionality in a LOUD
environment, such as next to an idling motorcycle.
Please also verify that the headsets were paired together properly by
following the instructions in the relevant Setup sections.
Setting Voice Connect Intercom preference (Primary vs.
Secondary Buddy)
The headset’s Voice Connect feature allows you to start a Buddy
Intercom call by simply speaking into the microphone. You can
dene which of the two Buddy headsets you wish to connect to
when using Voice Connect Intercom.
NOTE: The Primary Buddy has priority by default.
To toggle the Voice Connect Intercom between Primary and
Secondary Buddy:
Press and hold the Volume Up Button for three seconds and
you will hear a beep:
• One beep – Voice Connect set to Primary Buddy
• Two beeps – Voice Connect set to Secondary Buddy
Enable/Disable Voice Connect feature
Press and hold the Volume Up and Down Buttons simultaneously
until you hear a beep. The default status is Voice Connect enabled.
NOTE: The Enable/Disable Voice Connect feature aects the
Intercom functionality only.
MAKING AND RECEIVING MOBILE
PHONE CALLS
PHONE FUNCTIONS
Answer a call Tap the CTRL Button or speak loudly any word
of your choice during an incoming call.
Reject a call Tap the MC Button or remain silent for 15
seconds during an incoming call.
Terminate a call Tap the CTRL Button to end a call.
Voice Dial During Standby, tap the CTRL Button and
state the name of the person you wish to
call. This feature is supported only by mobile
phones that support the Voice Dial feature.
Redial Press and hold the Volume Down Button for
three seconds during Standby.
NOTE: If your Bluetooth mobile phone is paired to a Bluetooth GPS
device, not directly to the scala rider Q2
pro
, some of the above
Phone functions may not be compatible.
When the headset is on an active phone call, any Buddy Intercom call
request will be rejected automatically.
10 scala rider® Q2
™
pro
QGQ2PRO_ NB 009_001 - QG0179.indd 10 2/15/10 5:52 PM
Once the phone call audio link drops, you can initiate and accept
Buddy Intercom calls.
STATUS LIGHT STATES
None Headset is o
Alternating Red/blue ashes Mobile phone/GPS Pairing mode
Rapid Red ashes Intercom Pairing mode
1 blue ash every 3 seconds Standby – No call is in progress
2 blue ashes every 3 seconds Call being initiated or in
progress / FM Radio ON / MP3
player on
1 red ash every 3 seconds Standby – Battery is low
2 red ashes every 3 seconds Battery is low while call is in
progress/ MP3 player is ON / FM
Radio ON
Solid red Headset is being charged
WORKING WITH THE FM RADIO
Your headset is equipped with a high-quality FM Radio receiver and
RDS (Radio Data System) technology, allowing you to choose how
and when you listen to your favorite stations.
The scala rider Q2
pro
enables you to listen to FM Radio while you
are not receiving audio from another audio source.
While listening to the radio, you do not have to worry about missing
any calls, as the headset automatically mutes the FM Radio and
switches to Bluetooth headset operation when an incoming call is
received, or when you decide to initiate a call. When the conversation
is over, the headset automatically tunes back in to the FM Radio.
The RDS Feature
Thanks to the RDS feature, your headset will automatically select the
strongest signal available for the FM station you wish to listen to, no
matter where you are riding. This allows you to leave your hands on
the handlebars at all times with no need to adjust the radio station
frequency while you are in motion.
To use the RDS feature while the Radio is on, press and hold the
Volume Up and Volume Down Buttons simultaneously for 3 seconds.
The RDS feature is set OFF by default.
Turning the FM Radio On
While no call is on the headset (either mobile phone call or Intercom
call), press and hold the MC Button on your headset for three seconds
to turn on the radio. The radio tunes in to the last radio station you
were listening to. With some phones you should wait a few seconds
after ending a call before turning on the Radio.
Turning the FM Radio O
While the radio is turned on, press and hold the MC button for three
seconds to turn the Radio o.
Switching Preset FM Radio Station
There are six pre-set Radio stations available on your scala rider Q2
pro
.
While the Radio is on, tap the MC Button to cycle between saved stations.
Searching for a New FM Radio Station
While the Radio is on, press and hold the Volume Up or Volume
Down Button for three seconds or until you hear the next station on
your headset.
Pressing Volume Up will search upwards (higher frequency). Pressing
Volume Down will search downwards (lower frequency). Once a
station is found, searching stops and you can hear the station.
To save this station, refer to the following section.
To continue searching, press the Volume Up or Volume Down Button
again for three seconds.
scala rider® Q2
™
pro
11
English
11
English
QGQ2PRO_ NB 009_001 - QG0179.indd 11 2/15/10 5:52 PM
You may still continue to listen to the current unsaved station. Pressing
the MC Button in this case will switch to the next saved station.
Saving an FM Radio Station
The FM Radio is equipped with a memory capacity of six stations.
• Select the station you wish to replace by tapping the MC button
until you nd the station you want to replace.
• Search for a new station as described above.
• Tap the MC Button within 20 seconds of finding the station to
save the current station.
If you don't save the station, the Radio will exit search mode without
saving the current station. You can still continue to listen to the
current unsaved station. Tapping the MC Button in this case will
move to the next saved station.
MP3 AUDIO
Your scala rider Q2
pro
oers 2 dierent MP3 audio options:
1. Wireless A2DP option
2. Cable option.
MP3 MUSIC – WIRELESS A2DP OPTION
Your headset is designed to receive wireless stereo music from A2DP
sources and mobile phones that support the Bluetooth A2DP and
AVRCP proles (mostly 3rd generation devices).
Using a Bluetooth device that supports the AVRCP prole will allow you to
operate all major A2DP source functions directly from your headset.
While listening to music from an A2DP source, you will not miss any
mobile or intercom calls, as the headset will automatically stop the
music giving preference to the incoming call. However, after you ter-
minate your call, some MP3 sources may not automatically continue
but require manual re-activation.
Setting Up Your MP3 Player for Bluetooth Stereo A2DP
Transmission
To use a Bluetooth Stereo (A2DP) enabled MP3 Player or Adapter to
listen to stereo music, you must rst pair the device to your headset.
Pairing the Headset to an MP3 Player or Adapter
NOTE: If your A2DP source is integrated inside your Mobile Phone, then
you should pair it with your headset as described earlier in step 3
1. Turn on your MP3 Player or Adapter, and make sure that its
Bluetooth function is activated.
2. With the scala rider Q2
pro
headset turned ON, press and hold the
Mobile Button for at least six seconds until the Red and Blue Lights
begin alternating rapidly:
3. Search for Bluetooth headsets on your MP3 Player by following the
device’s instructions.
NOTE: For use of a Bluetooth adapter, follow the device’s instructions.
4. After a few seconds the MP3 Player will list “scala rider Q2
pro
” as a
discovered device. Select it and follow your MP3 Player’s instruc-
tions to accept the pairing.
5. If your MP3 player prompts for a PIN or Passkey enter 0000 (four zeros).
6. Once pairing is complete, your MP3 Player or Adapter may conrm
that pairing has succeeded, and the headset will begin ashing
slowly in Blue.
NOTE: If the Pairing process is not completed within two minutes the
headset will return to Standby mode.
Operating Your A2DP Source from Your Headset
Play press and hold the CTRL Button for 3 seconds
Pause/Stop* press and hold the CTRL Button for 3 seconds
Forward press and hold the Volume Up Button for 3 seconds
Rewind press and hold the Volume Down Button for 3 seconds
* Varies depending on your mobile phone model
12 scala rider® Q2
™
pro
QGQ2PRO_ NB 009_001 - QG0179.indd 12 2/15/10 5:52 PM
CABLE OPTION USING THE MP3 PLAYER WITH YOUR
HEADSET
Your scala rider Q2
pro
headset can be connected to an MP3 player
device by plugging it to the Helmet Clamp’s jack with the MP3 cable.
At your option, you may further secure the MP3 cable by using the MP3
cable holder. For this purpose please proceed as follows:

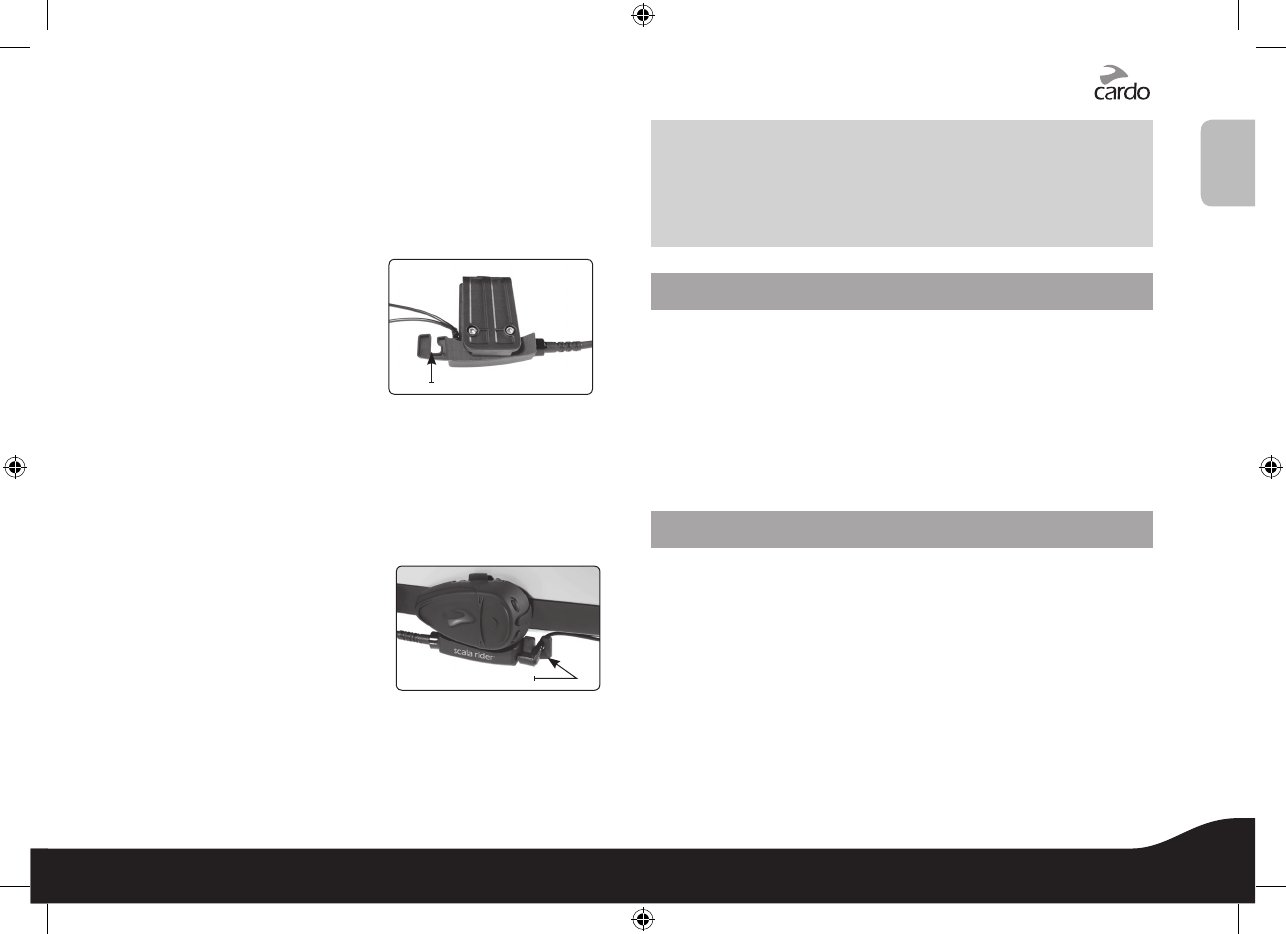

MP3 cable holder hook
1. Use the enclosed Allen Wrench to
remove both Allen screws from
Helmet clamp and release the
clamp’s back plate.
2. Place the MP3 cable holder on the
helmet clamp. Both pins on the MP3
cable holder should be xed into
corresponding indentations on clamp.
3. Place the Back Plate on top of the MP3 cable holder and secure
all parts together using the Allen screws that were previously
removed, as shown in photo.
4. Attach the clamp and headset onto your helmet as described
previously in section “ATTACHING THE CLAMP ON THE HELMET”.
5. Attach the speakers to your helmet as described in section
”POSITIONING THE SPEAKERS”.
Insert cable in hook
6. Connect the MP3 cable to your MP3
player device’s jack and the other
side to the helmet Clamp’s jack,
inserting the cable through the MP3
cable holder.
Make sure that the cable plug clicks
into place.
7. Tuck the MP3 cable into the hook of the MP3 cable holder.
8. In order to use your MP3 player, power on the headset to have it
on Standby mode, ashing slowly in Blue.
NOTE: Operate the MP3 Player device by using its buttons (FF/REW/PLAY/
PAUSE).
Volume can only be adjusted through the MP3 Player.
Any other audio connection will automatically mute the MP3 Player. The
audio signal will return only when headset is once again in Standby mode.
SUPPORT
For additional information please visit our website at
www.cardosystems.com
FAQ: www.cardosystems.com/support/faq
or contact us at:
support@cardosystems.com
Phone: USA and Canada – + 1-800-488-0363
International – +4989 450 36819
NOTICES
Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
scala rider® Q2
™
pro
13
English
QGQ2PRO_ NB 009_001 - QG0179.indd 13 2/15/10 5:52 PM
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause
undesired operation of the device.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specic operating instructions for
satisfying RF exposure compliance. This transmitter must not be co-located or operating
in conjunction with any other antenna or transmitter.
Industry Canada (IC) Statement
15.21
You are cautioned that changes or modications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the IC rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment o and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause
undesired operation of the device.
IC RF Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specic operating instructions for satisfying
RF exposure compliance. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
European CE Notice
The scala rider Q2™
pro
headset (the “Product”) is in conformity with the following essential
requirements of Council Directive 1999/5/EC (referred to as R&TTE Directive): Articles 3.1a,
3.1.b and 3.2. The Product is manufactured in accordance with Annex II of the above directive.
Declaration of Conformity (DOC)
The scala rider Q2™
pro
headset is compliant with and adopts the Bluetooth®
Specication 2.0 and has successfully passed all interoperability tests that are specied
in the Bluetooth® specication. However, interoperability between the device and other
Bluetooth®-enabled products is not guaranteed.
WAIVER AND GENERAL RELEASE
Using a communication device while riding a motorcycle, scooter, moped, ATV,
quad-bike or any other vehicle or equipment, whether on land, water or air (jointly
referred to as “Vehicle”) requires your complete and undivided attention. Cardo
Systems, Inc., including its Ocers, Directors, Aliates, Parent Company, Represen-
tatives, Agents, Contractors, Sponsors, Employees, Suppliers and Resellers (jointly
referred to as the “Company” or “Cardo”) strongly advises you to take all necessary
precautions and remain alert to the trac, weather and road conditions if you
choose to use the scala rider Q2
pro
headset, including all derivative models ir-
respective of its commercial name or branding (the “Device”), and stop your Vehicle
on the roadside prior to initiating or receiving calls. Any publications, advertise-
ments, announcements or similar notes that refer to using the Device while riding
a Vehicle are solely intended to address its technical capabilities and should not be
misconstrued as if encouraging users to operate the Device while actively involved
in trac.
By way of purchasing this Device and not returning it for a full refund (see below), you
are irrevocably releasing, indemnifying from any liability, loss, claim and expense
(including attorneys fees) and holding Cardo harmless for any bodily injuries, harm or
death as well as losses or damages in goods, to any Vehicles including your own, or to
any property or asset that belong to you or to third parties, any of which may result from
using the Device under any circumstances or conditions and irrespective of jurisdiction.
Cardo will not be responsible for any physical damages, irrespective of reasons, condi-
scala rider® Q2
™
pro
14 scala rider® Q2 pro™
QGQ2PRO_ NB 009_001 - QG0179.indd 14 2/15/10 5:52 PM
tions or circumstances, including malfunctioning of the Device, and all risks associated
with operating it rest solely and entirely with the user of this Device, irrespective of
whether the Device is used by the original purchaser or any third party.
Cardo hereby noties you that using this Device may also be in contravention to local,
federal, state or national laws or regulations, and that any use of the Device is entirely at
your sole risk and responsibility.
1. You, your heirs, legal representatives, successors or assigns, hereby voluntarily and for-
ever release, discharge, indemnify and hold harmless Cardo from any and all litigation,
claims, debts, demands, actions and liability which may arise, directly or indirectly, from
using the Device for any distress, pain, suering, discomfort, loss, injury, death, damages
to or in respect to any person or property however caused, WHETHER ARISING FROM
THE NEGLIGENCE OR OTHERWISE, and which may hereafter accrue to you on some
future date as a result of said use, to the fullest extent permitted by law.
2. You fully understand and assume the risks in using the Device, including risk of negli-
gent acts or omissions by others.
3. You conrm that you are physically capable to use the Device and that you have no
medical conditions or needs that may infringe upon your abilities to do so in a safe
manner. You conrm that you are at least eighteen (18) years of age and that you
have been advised of the risks associated with the use of the Device. You further
conrm that you will not consume any alcohol that may aect your alertness or any
mind-altering substance, and will not carry, use or consume these substances before
or during the use of the Device.
4. You fully acknowledge our warnings and understand that: (a) risks and dangers exist
in using the Device while in trac, including but not limited to injury or illness, strains,
fractures, partial and/or total paralysis, death or other ailments that could cause
serious disability; (b) these risks and dangers may be caused by the negligence of the
manufacturers or its agents or any third party involved in designing or manufacturing
the Device; (c) these risks and dangers may arise from foreseeable or unforeseeable
causes. You hereby assume all risks and dangers and all responsibility for any losses
and/or damages, whether caused in whole or in part by the negligence or other
conduct of others, including the Company.
5. You conrm that you have read this release of liability and fully understand its terms
and that you have given up substantial rights by not returning the Device for a full
refund (see refund option below).
Disclaimer of Warranty
CARDO DISCLAIMS ALL EXPRESS AND IMPLIED WARRANTIES WITH REGARD TO THE
ENCLOSED DEVICE, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTIES
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGE-
MENT. THE DEVICE AND ITS ACCESSORIES ARE PROVIDED “AS IS” AND “AS AVAILABLE”
WITHOUT WARRANTY OF ANY KIND BEYOND THOSE ASSUMED IN THE ENCLOSED
MANUAL.
Limitation of Liability
IN NO EVENT SHALL CARDO BE LIABLE FOR ANY SPECIAL, INDIRECT, PUNITIVE,
INCIDENTAL, EXEMPLARY OR CONSEQUENTIAL DAMAGES, OR ANY DAMAGES
WHATSOEVER RESULTING FROM THE USE OF THE DEVICE, WHETHER BASED ON
BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY
OR OTHERWISE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. YOU
ACKNOWLEDGE AND AGREE THAT THE LIMITATIONS SET FORTH ABOVE ARE
FUNDAMENTAL ELEMENTS OF THIS AGREEMENT AND THE DEVICE WOULD NOT
BE PROVIDED TO YOU ABSENT SUCH LIMITATIONS. SOME STATE STATUTES MIGHT
APPLY REGARDING LIMITATION OF LIABILITY.
www.cardosystems.com
scala rider® Q2
™
pro
15
English
QGQ2PRO_ NB 009_001 - QG0179.indd 15 2/15/10 5:52 PM
16 scala rider® Q2
™
pro
QGQ2PRO_ NB 009_001 - QG0179.indd 16 2/15/10 5:52 PM
