Carewell Electric Technology FAN42R REMOTE CONTROL User Manual FA42R HD5 CFL
Carewell Electric Technology (Zhongshan) Co., Ltd. REMOTE CONTROL FA42R HD5 CFL
Users Manual
Remote controller
GENERAL INFORMATION
This remote controller is designed to separately control your ceiling fan speed and light .
There are four buttons (HI, MED, LOW, OFF) to control the speed of the fan and off.
The light button will control the light ON/OFF.
The red indicator on the transmitter will light when one of the five buttons is pressed.
INSTRUCTION OF INSTALLATION AND OPERATION
1.SETTING THE CODES
This unit has 16 different code combinations. To set the codes, perform the following steps:
A. Setting the codes on the transmitter:

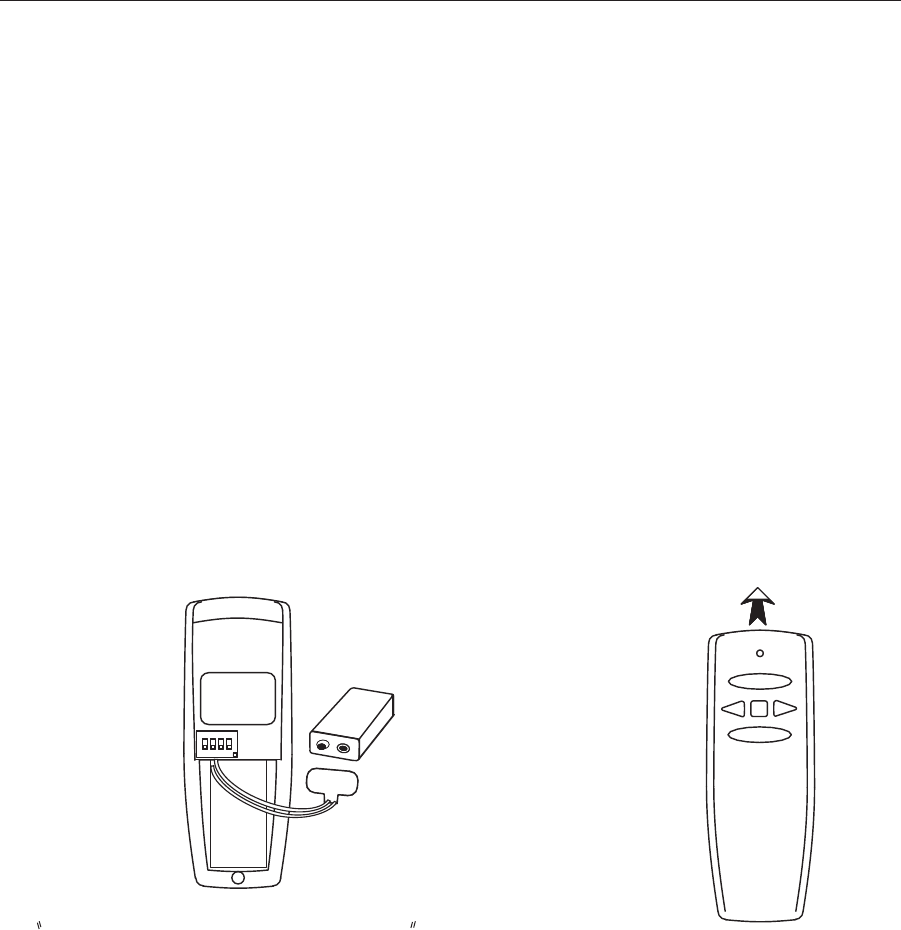

a. Remove battery cover. Press firmly on the arrow and slide battery cover off.
b. Slide code switches to your choice of up or down position. Factory setting is all up. Do not use this position. Use a
small screwdriver or ball point pen to slide firmly up or down (Figure 1).
B. Setting the codes on the receiver:
a. Slide code switches to the same position as set on your transmitter (Figure 2)
b. Replace battery cover on the transmitter.
2.INSTALLING RECEIVER IN CEILING FAN
A. Safety precautions:
WARNING: HIGH VOLTAGE! Disconnect power by
removing fuse or switching off circuit breaker.
Do not use with solid state fans.
Electrical wire must meet all local and national
electrical code requirements.
Supply for fan must be 110/120 volt, 60Hz. Maximum
fan motor amps: 1.0, Maximum light watts: 190
Otherwise power can cause serious injury or death.
B. Installing receiver in fan:
a. Remove power from the circuit.
b. Remove ceiling fan canopy from the mounting
bracket.
c. Disconnect existing wiring between ceiling fan and
Supply in electrical junction box.

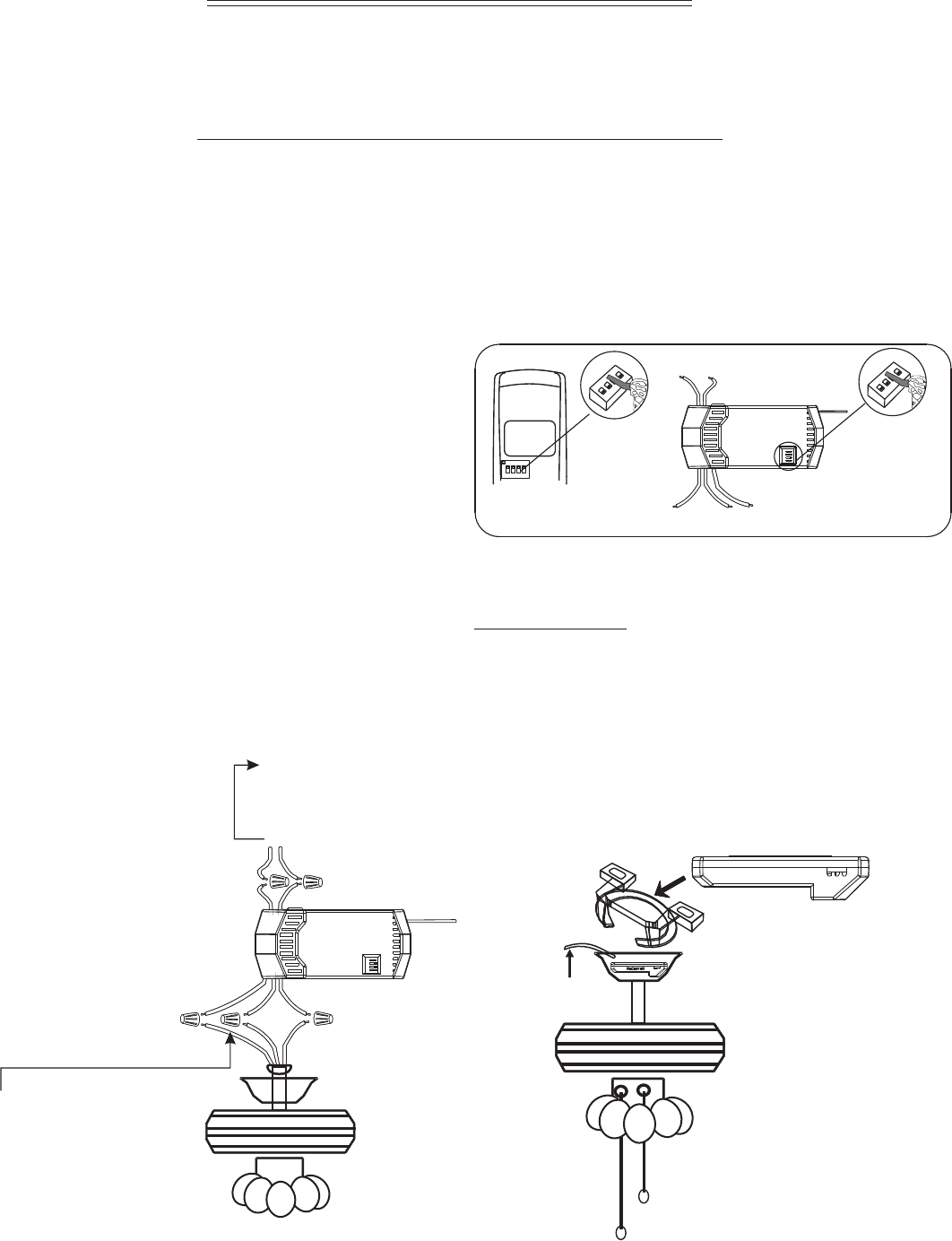

d. Make connections as follows, using the wire nuts
supplied:
Use wire connecting nuts supplied with the fan
(FIG.3)
FROM POWER SOURCE
AC 110~120 VOLT 60Hz
3.5AMPS.
CONNECT TO
Green fan wire ....Bare supply wire
Red receiver wire(AC IN L) ....Red or Black supply wire
White receiver wire(AC IN N) ....White supply wire
White receiver wire(TO MOTOR N) ....White fan wire
Black receiver wire(TO MOTOR L) ....Black fan wire
Blue receiver wire(FOR LIGHT) ....Blue light wire
CAUTION: Ceiling Angle Shall Not Exceed 30 Degrees,
For Mounting Controller, Model FAN42R-T190W
ACN ACL
ANT
COM FAN LIGHT
TRANSMITTER
CODE
SWITCHES
(FIG.1) (FIG.2)
SWITCHES
CODE
ON
1 2 3 4
ON
234
1
ON
ON
234
1
ON
INPUT
OUTPUT
ENHD42R1501CFL
RECEIVER
WHITE
ACL
ACN
INPUT
OUTPUT
RED
FA N
LIGH T
BLUE
ANT
CANOPY
BLUE
COM
BLACK
WHITE
WHITE
BLACK
Use wire connecting nuts
supplied with the remote
controller.
WIRE NUT
RECE IVER
RECEIVER
CANOPY
(FIG.4)
ANTENNA PUT AT OUTSIDE
OF CANOPY BOX CAN GET
MORE OPERATION
DISTANCE
LIGHT MUST BE KEPT AT THE ON POSITION
FAN MUST BE KEPT AT THE HIGH SPEED
If other fans or supply wires are different color, have this unit installed by qualified licensed electrician.
e. Push all connected wires up into junction box.
f. Lay the brown antenna wire on top of the receiver, and put the receiver into the mounting bracket.
g. Reinstall the canopy on the mounting bracket.
h. Restore power.
3. OPERATING TRANSMITTER:
A. Install 9 volt battery(not included). (To prevent damage to transmitter, remove the battery if not used for a long time).
B. Store the transmitter away from excessive heat or humidity.
C. This remote control unit is equipped with 16 code combinations. In order to prevent possible interference from or to
other remote units such as garage door openers, car alarm or security system. If you find that your fan and light kit go
on and off without using your remote control, simply change the code combination in your transmitter and receiver.
D. Operating the buttons on the panel of the transmitter.
HI key -for fan high speed.
MED key-for fan medium speed.
LOW key-for fan low speed.
OFF key-for fan off.
LIGHT ON/OFFkey-for light ON and OFF.
YOUR REMOTE NOW HAS FULL CONTROL OF THE FAN AND LIGHT.
FAN OFF
LO HI
MED
LIGHT ON/OFF
OPERATION DISTANCE 20 FEET
TRANSMITTER
MODEL:
FAN-HD
Optional Wall Mounting for Transmitter Holder
Place in accessible area of your home, and screw the
transmitter holder into wall using the two screws
provided, slide hand unit into holder.
4. TROUBLE SHOOTING GUIDE
1. Fails to operate
a. Power to receiver ?
b. Receiver wired correctly ?
c. Fan manual speed control in highest position ?
d. Light kit switch turned on ?
e. Good battery in the transmitter ?
f. Code set at exact same positions in both transmitter and receiver ?
2. Won't operate at distance
If transmitter operates fan/light kit when up close, but not at 20 feet away.
Try placing the brown antenna wire higher, up through ceiling/outside the junction box.
NOTICE !
Your ceiling fan and light kit assembly must meet the following requirements:
1. Do not use with solid state fans.
2. Electrical rating: 120v 60Hz 3.5A
MAX. Motor amps: 1.0
MAX. Light watts: 190
WARNING
TO REDUCE THE RISK OF SHOCK, THIS FAN MUST BE INSTALLED WITH A WALL CONTROL/SWITCH.
ON
1 2 3 4
BATTERY
9 VOLT
ENHD42R1501CFL
