Carewell Electric Technology HD1 REMOTE CONTROL User Manual AC8 HD1
Carewell Electric Technology (Zhongshan) Co., Ltd. REMOTE CONTROL AC8 HD1
User Manual
Remote controller
GENERAL INFORMATION
This remote controller is designed to separately control your ceiling fan speed and light brightness.
There are four buttons (HI, MED, LOW, OFF) to control the speed of the fan and off.
The light dimmer button will control the light brightness dimmer and off.
The blue indicator on the transmitter will light when one of the six buttons is pressed.
INSTRUCTION OF INSTALLATION AND OPERATION
2.INSTALLING RECEIVER IN CEILING FAN
A. Safety precautions:
WARNING: HIGH VOLTAGE! Disconnect power by
removing fuse or switching off circuit breaker.
Do not use with solid state fans.
Electrical wire must meet all local and national
electrical code requirements.
Supply for fan must be 110/120 volt, 60Hz. Maximum
fan motor amps: 1.0, Maximum light watts: 190
incandescent or ballast.
Otherwise power can cause serious injury or death.
B. Installing receiver in fan:
a. Remove power from the circuit.
b. Remove ceiling fan canopy from the mounting
bracket.
c. Disconnect existing wiring between ceiling fan and
Supply in electrical junction box.
d. Make connections as follows, using the wire nuts
supplied: If other fans or supply wires are different
color, have this unit installed by qualified licensed
electrician.
e. Push all connected wires up into junction box.
f. Lay the brown antenna wire on top of the receiver,
and put the receiver into the mounting bracket.
g. Reinstall the canopy on the mounting bracket.
h. Restore power.
CONNECT TO
Green fan wire ....Bare supply wire
Red or Black receiver wire(AC IN L) ....Black supply wire
White receiver wire(AC IN N) ....White supply wire
White receiver wire(TO MOTOR N) ....White fan wire
Black receiver wire(TO MOTOR L) ....Black fan wire
Blue receiver wire(FOR LIGHT) ....Blue light wire
CAUTION: Ceiling Angle Shall Not Exceed 30 Degrees,
For Mounting Controller, Model AC8.3.T
Use wire connecting nuts supplied with the fan
(FIG.3)
FROM POWER SOURCE
AC 110~120 VOLT 60Hz
3.5AMPS.
WHITE
ACL
ACN
INPUT
OUTPUT
RED
BLUE
ANT
CANOPY
BLUE
BLACK
WHITE
WHITE
BLACK
Use wire connecting nuts
supplied with the remote
WIRE NUT
RECEIVER
RECEIVER
CANOPY
(FIG.4)
ANTENNA PU T AT OUTSI DE
OF CANOPY BOX CAN GET
MORE OPERATION
DISTAN CE
LIGHT MUST BE KEPT AT THE ON POSITION
F A N M U S T B E K E P T A T T H E H I G H
1.SETTING THE CODES
This unit has 16 different code combinations. To set the codes, perform the following steps:
A. Setting the codes on the transmitter:

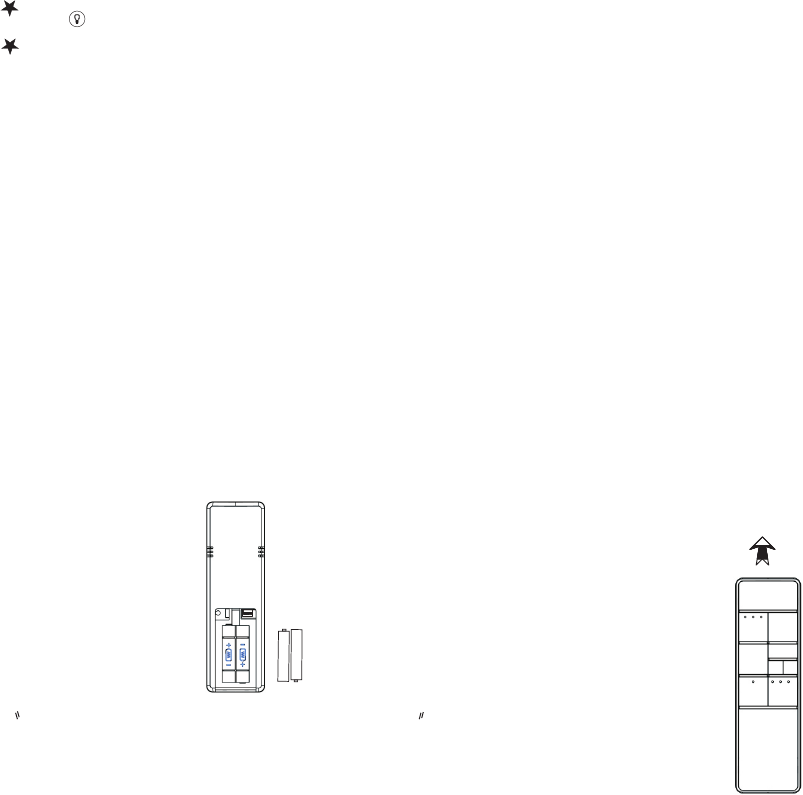

a. Remove battery cover. Press firmly on the arrow and slide battery cover off.
b. Slide code switches to your choice of up or down position. Factory setting is all up. Do not use this position. Use a
small screwdriver or ball point pen to slide firmly up or down (Figure 1).

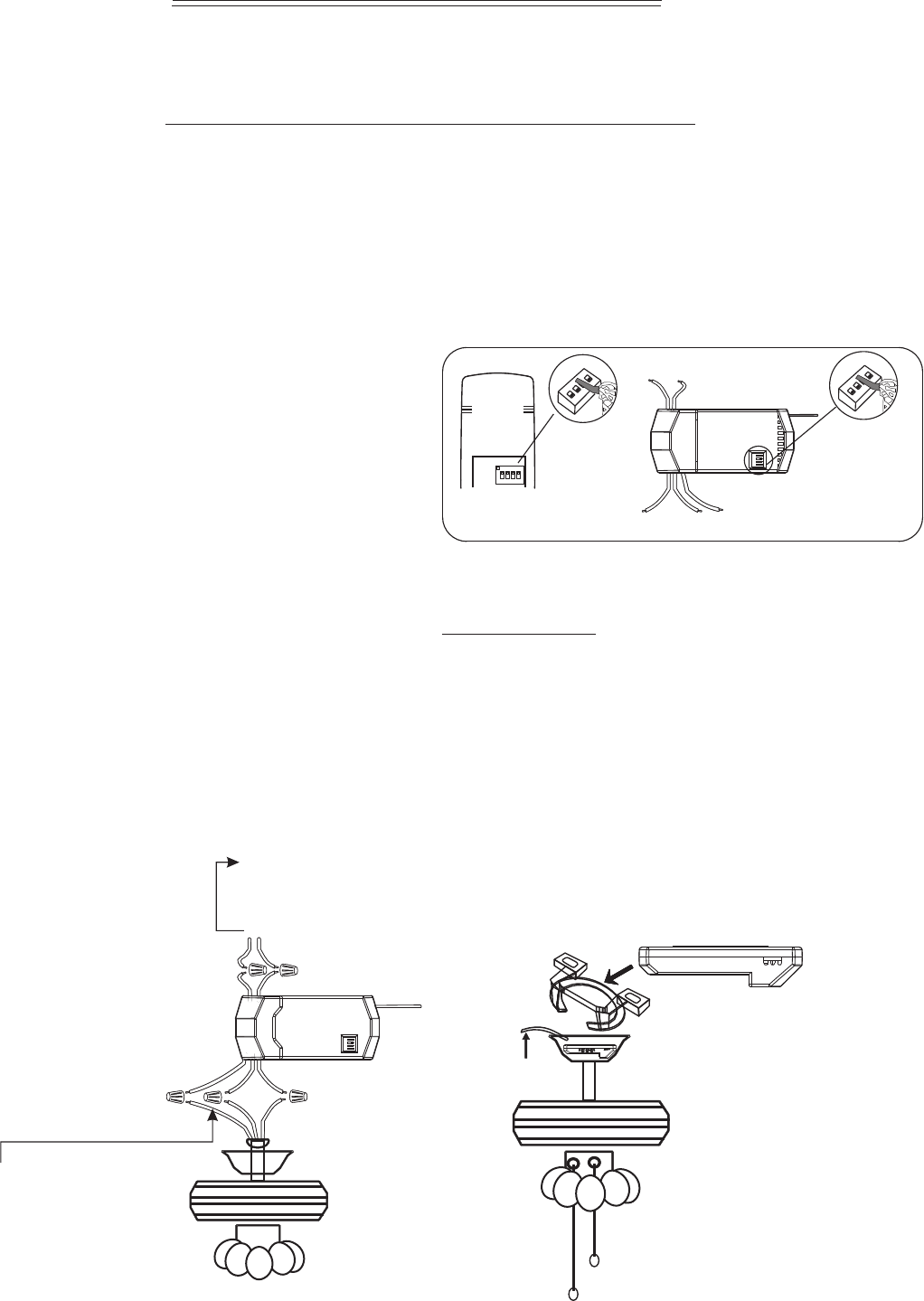

B. Setting the codes on the receiver:
a. Slide code switches to the same position as set on your transmitter (Figure 2)
b. Replace battery cover on the transmitter.
ACN ACL
ANT
COM FAN LIGHT
TRANSMITTER
CODE
SWITCHES
(FIG.1) (FIG.2)
SWITCHES
CODE
ON
1 2 3 4
ON
234
1
ON
ON
234
1
ON
INPUT
OUTPUT
RECEIVER
3. OPERATING TRANSMITTER:
A. Install 3 volt battery(not included). (To prevent damage to transmitter, remove the battery if not used for a long time).
B. Store the transmitter away from excessive heat or humidity.
C. This remote control unit is equipped with 16 code combinations. In order to prevent possible interference from or to
other remote units such as garage door openers, car alarm or security system. If you find that your fan and light kit go
on and off without using your remote control, simply change the code combination in your transmitter and receiver.
D. Operating the buttons on the panel of the transmitter.
HI key -for fan high speed.
MED key-for fan medium speed.
LOW key-for fan low speed.
OFF key-for fan off.
LIGHT/DIMMER key-for light brightness and off.
LIGHT/DELAY key-for light after 3 minutes delay off.
The light function is controlled by pressing the LIGHT/DIMMER key down to increase or decrease light.
Tap key quickly to turn light off or on.
Keep pressing the button in excess of 0.7 second and it becomes a dimmer, the light varies cyclically in 0.8 second.
The receiver can remember the last status of the light brightness when the light was switched, so that it can
resume to adjust the light brightness.
YOUR REMOTE NOW HAS FULL CONTROL OF THE FAN AND LIGHT.
Optional Wall Mounting for Transmitter Holder
Place in accessible area of your home, and screw the
transmitter holder into wall using the two screws
provided, slide hand unit into holder.
4. TROUBLE SHOOTING GUIDE
1. Fails to operate
a. Power to receiver ?
b. Receiver wired correctly ?
c. Fan manual speed control in highest position ?
d. Light kit switch turned on ?
e. Good battery in the transmitter ?
f. Code set at exact same positions in both transmitter and receiver ?
2. Won't operate at distance
If transmitter operates fan/light kit when up close, but not at 20 feet away.
Try placing the brown antenna wire higher, up through ceiling/outside the junction box.
NOTICE !
Your ceiling fan and light kit assembly must meet the following requirements:
1. Do not use with solid state fans.
2. Electrical rating: 120v 60Hz 3.5A
MAX. Motor amps: 1.0
MAX. Light watts: 190-(incandescent or ballast)
WARNING
TO REDUCE THE RISK OF SHOCK, THIS FAN MUST BE INSTALLED WITH A WALL CONTROL/SWITCH.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED
BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE
USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
OPERATION DISTANCE 20 FEET
TRANSMITTER
MODEL: HD 1
LR03 1.5V AAA
LR03 1.5V AAA
ON
1 2 3 4
POWER
LIGHT
FAN
FAN AUTO
BREEZE TIMER
UP
DOWN
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/ TV technician for help.
INDUSTRY CANADA NOTICE
This device complies with Industry Canada licence-exempt RSS standard(s). 1. Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.” 2. Changes or modifi
cations not expressly approved by the party responsible for compliance could void the user’s authority to operate
the equipment.This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. The device can be used in portable exposure conditions without Rf restrictions.
Avis d’Industrie Canada
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2)
l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d’en compromettre le fonctionnement. Cet appareil numérique ne dépasse pas les Rèlements sur l’interférence
radio par un appareil numérique de classe B stipulées dans les Règlement sur l’interférence redio d’industrie
Canada.
2.Les changements ou modifi cations de cette unité non expressément approuvés par la partie responsable de la
conformité pourraient annuler l’autorité de l’utilisateur à utiliser l’équipement.
IC RF Déclaration sur la radioexposition:Cet appareil est conforme avec I’exposition aux radiations IC Défi nies
pour un environnement non contrôlé. L’appareil peut être utilisé dans des conditions d’exposition portatifs sans
restrictions Rf.
