Welcome
Welcome to the Team Carrera!
The operating instructions contain important information regard-
ing assembly and operation of your Carrera DIGITAL 124/132
WIRELESS+ system.
Please read them carefully and keep them in a safe place after-
wards. If you have any queries, please do not hesitate to contact our
distributor or visit our websites:
carrera-toys.com · carreraclub.com
Please check the contents for completeness and possible transport
damage. The packaging contains important information and should
also be retained.
Please note that WIRELESS+ will only function in conjunction with
the Carrera DIGITAL 124/132 Control Unit or Black Box.
WIRELESS+ can be used for Carrera DIGITAL 124/132 cars.
Should you need information on operating the 30352 Carrera
DIGITAL 124/132 Control Unit or the Black Box, please refer to the
operating instructions for the Control Unit.
We hope you will derive a lot of pleasure from your new 2.4 GHz
WIRELESS+ Set single for Carrera DIGITAL 124/132.
Safety instructions
• WARNING! Not suitable for children under 36 months. Danger of
suff ocation due to small parts which may be swallowed. Caution:
risk of pinching caused by function.
• Regularly check the track and cars for damage to cables, plugs
and housings! Replace defective parts.
• The car racetrack is not suitable for outdoor operation or operation
in wet locations! Keep away from liquids.
• Do not place any metal parts onto the track to avoid short-circuits.
Do not place the track in the immediate vicinity of delicate objects,
as these could be damaged by cars hurled from the track.
• Pull the plug before cleaning the racetrack! Only use a damp cloth
for cleaning, no solvents or chemicals. When it is not in use, store
the track in a dry and dust-protected location, preferably in the origi-
nal cardboard box.
• Do not operate race track at face- or eye-level – risk of injury due
to cars being catapulted off the track.
Declaration of Conformity
The company Stadlbauer Marketing + Vertrieb GmbH, hereby con-
fi rms that the product „2.4 GHz WIRELESS+“ complies with the fun-
damental requirements of Guideline 1999/5/EC (R&TTE).
The Declaration of Conformity can be called up from the following
address: www.carrera-toys.com

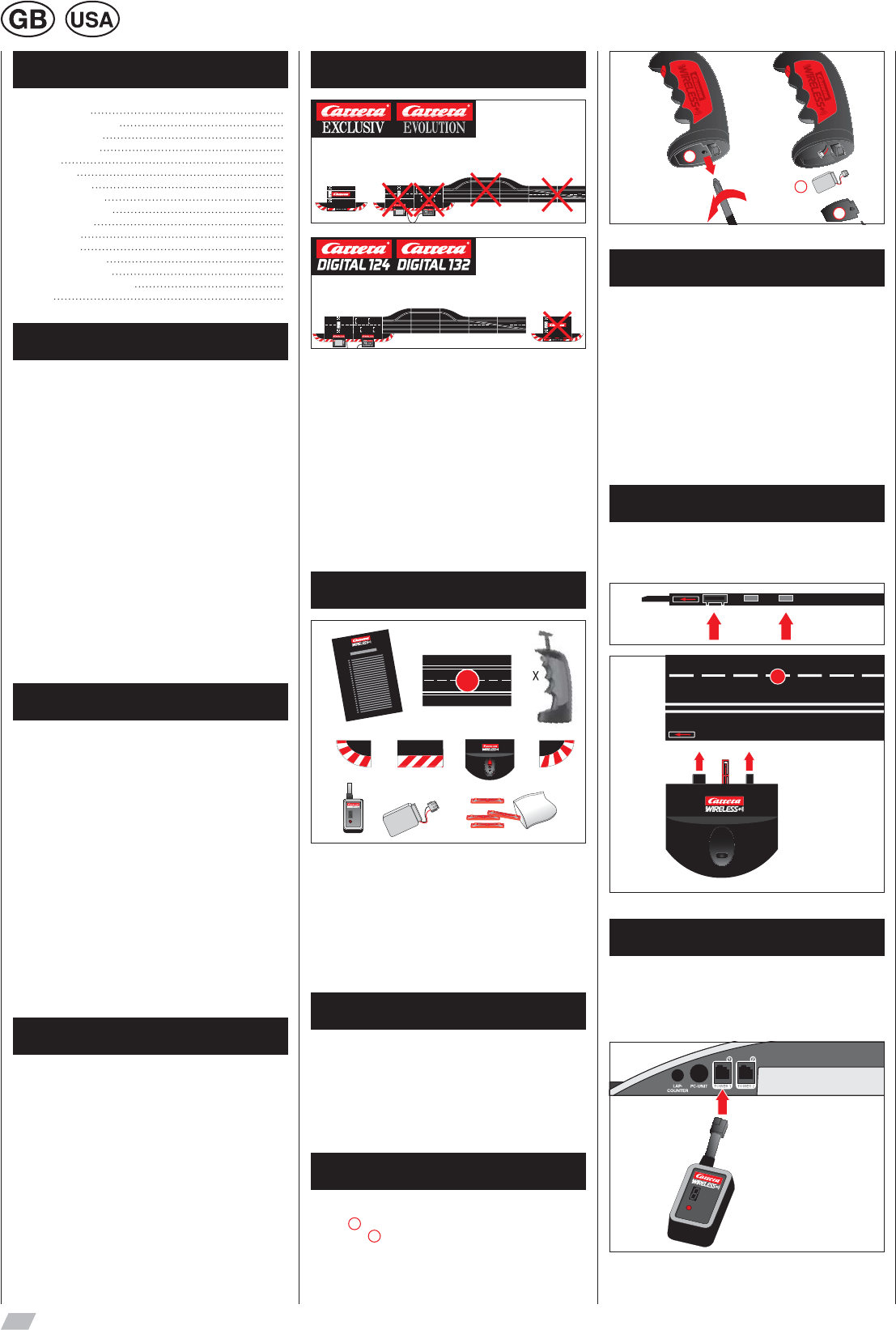

Important information
Carrera DIGITAL 124/132
EXCLUSIV
EVOLUTION
Carrera DIGITAL 124/132 EXCLUSIV
EVOLUTION
Please note that Exclusiv/Evolution (analog system) and Carrera
DIGITAL 124/132 (digital system) involve two separate and com-
pletely independent systems. We hereby expressly indicate that
both systems must be kept separate when setting up the track, i.e.
no connecting rail from Exclusiv/Evolution may be used together
with the connecting rail and Black Box of the Carrera DIGITAL 124/132,
even if only one of the two connecting rails (Exclusiv/Evolution con-
necting rail or Carrera DIGITAL 124/132 connecting rail and Black
Box) is attached to the current supply. Furthermore, no other Car-
rera DIGITAL 124/132 components (switches, electronic lap coun-
ter, pit stop) may be built into an Exclusiv/Evolution course, i.e. via
analog operation.
Non-compliance with the above information may result in damage or
destruction of the respective Carrera DIGITAL 124/132 components.
In this case no warranty may be claimed.

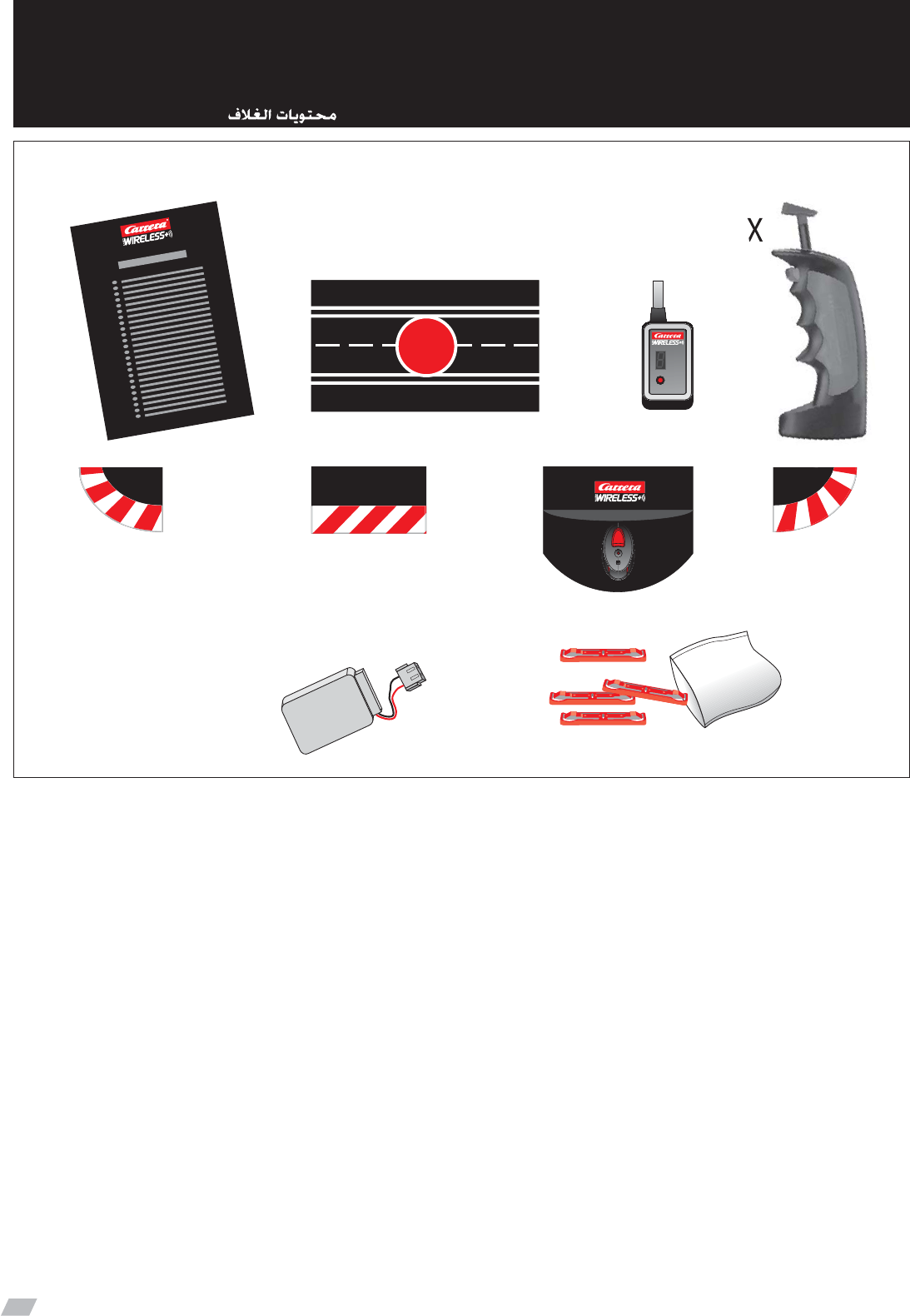

Contents of package
3,7V
150mhA
1x
1x
1x
8x
1x 1x1x AU
1x
SET
CHANNEL
1x 1x
1 WIRELESS+ Speed controllers
1 WIRELESS+ Receiver
1 WIRELESS+ Single charging cradle
1 LiPo rechargeable batteries for speed controllers
1 Adapter Unit
1 Shoulder complement
2 Shoulder end sections
8 Track section bolts
1 Instructions
Description
WIRELESS+ is the latest new cordless racetrack delight for Carrera
DIGITAL124 and Carrera DIGITAL 132. The 2.4 GHz radio technolo-
gy with frequency-hopping is free of interference and off ers a range
of up to 15 metres. Thanks to powerful lithium polymer rechargeable
battery, continuous play for up to eight hours is possible and stand-
by operation for over 80 days. WIRELESS+ off ers cordless freedom
for up to six drivers at the racetrack.
Before first use
Before fi rst using the speed controller, the rechargeable battery
supplied 2 must be inserted in the controller. Unscrew the battery
compartment 1 on the underside of the speed controller.
Connect the battery plug into the socket in the speed controller and
put the battery in place in the compartment. Finally screw down the
cover of the battery compartment again. The battery is part-loaded
at the factory, but it should be charged completely before being
used for the fi rst time.
3,7V
150mhA
2
1
1
Care of the battery
To make sure the battery performs well for as long as possible, the
following points should be observed regarding its care and storage.
• Before fi rst using them, new batteries should always be charged
fully.
• With a fully-charged battery, continuous play is possible for up
to eight hours. When the battery power is falling off , range of the
speed controller will diminish. As soon as you notice this, the battery
should be fully recharged.
• If it is not to be used for an extended period, remove the battery
and store the controller at room temperature (16-18 °C) in a dry
place. To prevent a deep discharge of the battery, the stored battery
should be charged every 2 to 3 months.
Assembly instructions
The charging unit is plugged in to the position provided at the side of
the adapter unit. This can be placed at any desired position on the
track layout. Take care the adapter unit is fi tted the right way round!
AU
Connecting the receiver
Connect the receiver according to the symbol to either of the two
sockets on the control unit which are marked Tower 1 and Tower 2.
It does not matter whether the receiver is connected to the Black
Box 30344 or the Control Unit 30352. For operating six WIRE-
LESS+ speed controllers only one 2.4 GHz receiver is required.
Symbols
SET
CHANNEL
7

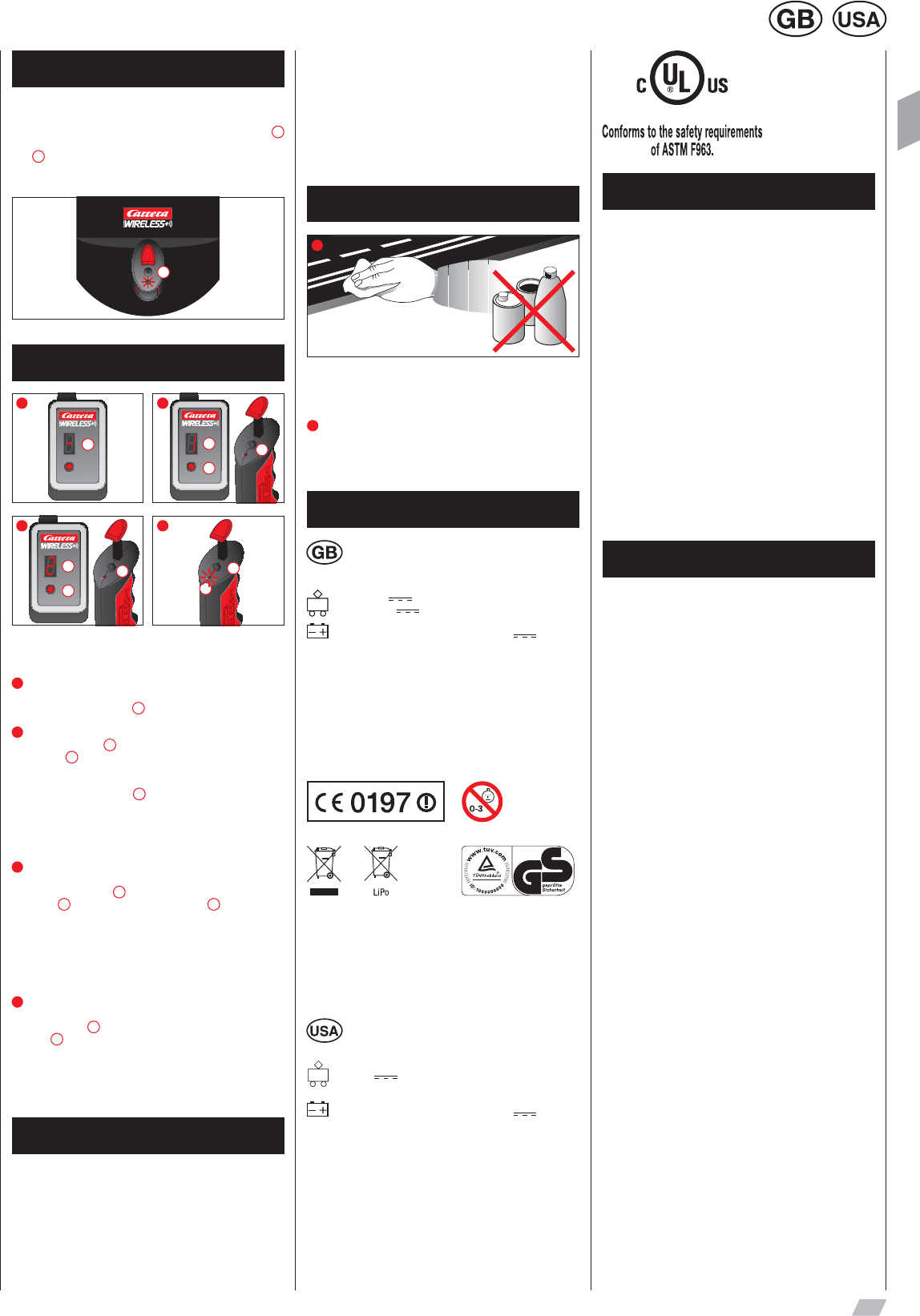

Preparation of start
Before first being used, the WIRELESS+ speed controller should be
fully charged. Place the speed controller in the charging cradle and
switch on power to the track. While the unit is charging, the LED 1
on the speed controller will flash. When charging is completed, the
LED 1 will light up continuously.
When using a lithium polymer rechargeable battery, it is possible to
top up the speed controller at any time.
1
Binding process
2
SET
CHANNEL
1
2
3
1
SET
CHANNEL
1
4
2
1
3
SET
CHANNEL
1
2
3
Before the speed controller can be used to control the cars, it must
be “bound” to the receiver.
To do this, switch on the control unit.
1
The receiver indicates it is ready for operation by a revolving light
signal in the segment display 1.
2
Push the “SET” button 2 once until the figure 1 appears in the seg-
ment display 1. The number shown is then the address of the car.
Switch to the next address by further pressing the button.
Now press the binding button 3 on the top of the speed controller.
The speed controller signals a successful binding process with
flashing of the LED, while the receiver indicates it by revolving lights
in the segments. The binding process is now complete and the
speed controller is ready for use.
3
To bind the second speed controller, follow the same procedure.
Press the “SET” button 2 on the receiver twice, until the figure
2 appears 1. Then press the binding button 3 on the second
speed controller.
When the binding process has been successfully carried out, the
cars can be coded to the corresponding speed controller. For coding
the cars, setting the speed, braking behaviour and tank capacity also
see the owner’s instructions for the Black Box, Control Unit or car.
4
To display the address set for the speed controller, press once on
the binding button 2 on the top of the speed controller.
The LED 1 will then flash, according to the address set.
If the speed controller is not actuated, it switches automatically after
about 20 seconds into energy-saving mode. The speed controller
can be reactivated by pressing the tappet or the lane-change button.
Troubleshooting
In case of any malfunctions, please check the following:
• Is the adapter unit correctly installed facing the direction of travel?
• Is the speed controller battery properly connected?
• Is the battery fully charged?
• Does the LED on the controller flash while charging?
• Is the speed controller bound to the receiver?
• Has the speed controller got a duplicate address assignment?
Note:
During operation small car parts as spoilers or mirrors may get off or
brake due to being original detailed parts of the car model. To avoid
this it is possible to remove them before operation.
All Carrera spare parts are available in the webshop:
carrera-toys.com
Delivery exclusively to Germany, Austria, Netherlands, Belgium and
Luxembourg.
Maintenance and care
1
To ensure a proper operation of the motor-racing circuit, all race-
track components should be regularly cleaned. Pull the plug prior
to cleaning.
1 Racetrack: Keep the track surface and track slots clean with a
dry cloth. Do not use any solvents or chemicals for cleaning. When
it is not in use, store the racetrack in a clean and dust-protected
location, preferably in the original cardboard box.
Technical specifications
Output voltage: Toy transformer
18 V 54 VA (Carrera DIGITAL 124)
14,8 V 51,8 VA (Carrera DIGITAL 132)
lithium polymer rechargeable battery: 3,7 150mAh
Electricity modes:
1.) Operating mode = cars are operated via speed controllers
2.) Idle mode = speed controllers not activated, no game
3.) Stand-by mode = after approx. 20 minutes idle mode the
connecting section switches to stand-by mode. LED flashes at
long intervals. CURRENT CONSUMPTION < 1 watt / 1w
By operating the speed controller the stand-by mode is finished,
the racetrack returns to idle-mode again.
4.) Off-state = power supply unit disconnected from mains supply
This device is marked by “selective sort throught” symbol related to
sort through domestic, electric and electronic, waste. This means
the product must be treated by a specialized “sorting/collecting” sys-
tem in accordance with European directive 2002/96/CE, to reduce
the impact upon environment. For more precise information, please
contact your local administration. Electronical product which are
not going through special collecting, are potentially dangerous for
environment and human health, because of dangerous substance.
Output voltage: Toy transformer
14,8 V 51,8 VA
lithium polymer rechargeable battery: 3,7 150mAh
Electricity modes:
1.) Operating mode = cars are operated via speed controllers
2.) Idle mode = speed controllers not activated, no game
3.) Stand-by mode = after approx. 20 minutes idle mode the
connecting section switches to stand-by mode. LED flashes at
long intervals. CURRENT CONSUMPTION < 1 watt / 1w
By operating the speed controller the stand-by mode is finished,
the racetrack returns to idle-mode again.
4.) Off-state = power supply unit disconnected from mains supply
Requirement for FCC Part 15
Warning: Changes or modifications not expressly approved
by the party responsible for compliance could void the user’s
authority to operate the equipment.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in
a particular installation.
If this equipment does cause harmful interference to radio or televi-
sion reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver,
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
Warnings
Guidelines and warnings about using the LiPo battery/
batteries:
LiPo rechargeable batteries are much more sensitive than the
traditional alkaline or NiMh rechargeables. For this reason all in-
structions and warnings must be scrupulously observed. Incorrect
treatment of LiPo rechargeable batteries may cause a fire. In han-
dling, charging and using the LiPo battery/batteries supplied, you
take over all responsibility for the risks attached to lithium batteries.
• Non-rechargeable batteries must not be recharged!
For recharging batteries, only the charging cradle supplied may be
used. If this instruction is disregarded, there is a risk of fire which
may endanger your health and/or cause damage to property.
NEVER use any other charging unit!
• Rechargeable batteries may only be recharged under adult super-
vision. When charging, never leave the battery unattended.
When you recharge the battery, you should always be in the vicinity
to keep watch on the process so that you can react to any possible
problem.
• If the battery swells or deforms during either discharge or charging
process, stop the process immediately. Remove the battery as fast
and as carefully as possible and place it on a safe and open area
away from any flammable materials, and keep it under observation
for at least 15 minutes. If you continue to charge or discharge a bat-
tery which has already started to swell or deform, there is danger of
fire! Even at the slightest sign of swelling or deforming, the battery
must be taken out of service.
• The battery supplied must be charged in a safe place away from
flammable materials.
• Store the battery at room temperature (16 - 18 °C) in a dry place.
Do not expose the battery to direct sunlight or any other sources of
heat. Temperatures over 50 °C are generally to be avoided.
• Always recharge the battery after use to avoid the possibility of its
becoming deep discharged. When it is not in use, recharge the bat-
tery from time to time, say every 2-3 months. Failure to observe the
methods of handling described above may lead to defects.
• When changing batteries do not use any sharp or pointed objects
or tools. Avoid damaging the protective foil around the battery at
all costs.
• When replacing defective batteries, only the recommended battery
types may be used. Damaged or unusable batteries are hazardous
waste, and must be disposed of accordingly.
• Never throw batteries, rechargeable or otherwise, on the fire or
expose them to high temperatures. This may cause a fire or an
explosion.
• The electrolyte and electrolyte vapour in the LiPo batteries are
hazardous to health. Always avoid direct contact with electrolyte.
If electrolyte makes contact with skin, eyes or other parts of the
body, it must immediately be washed out or off with plenty of fresh
water and a doctor must be consulted.
• Rechargeable batteries are not toys and must not fall into the
hands of children. Keep batteries inaccessible to children.
• The connector clips / battery connections must never be short-
circuited!
• The toy is only to be operated with a transformer or power pack
designed for use with toys!
• The transformer / the power pack is not a toy!
