Installation, Start-Up and

Service Instructions

CONTENTS Page

SAFETY CONSIDERATIONS ................. 1

PRE-INSTALLATION ........................ 1

Moving and Storage ........................ 1

Rigging .................................... 1

INSTALLATION ........................... 1-23

General .................................... 1

Uncrating .................................. 1

Accessories ................................ 1

Unit Positioning ............................ 11

Unit Isolation .............................. 12

Refrigerant and Chilled Water

Piping Access ............................. 12

Refrigerant Piping .......................... 12

Chilled Water Piping ....................... 17

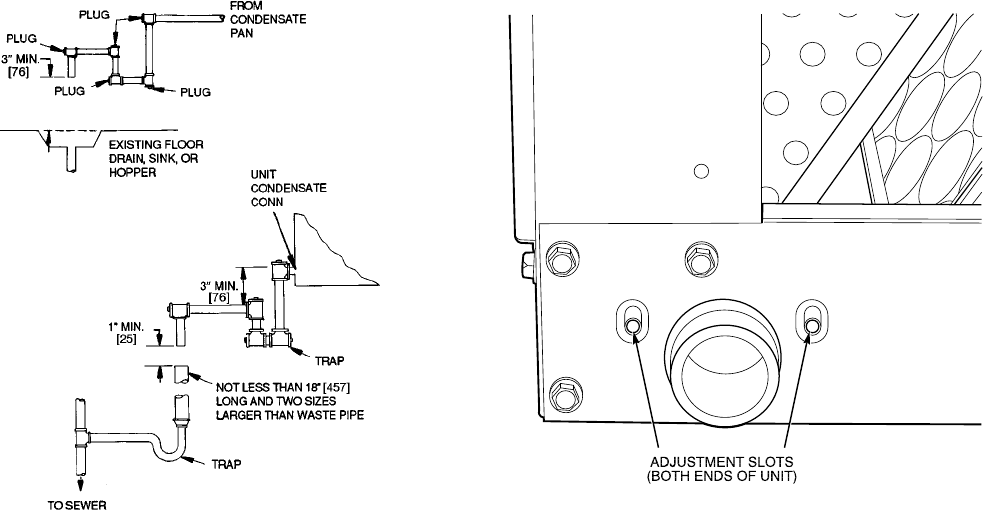

Condensate Drain .......................... 18

Fan Motors and Drives ..................... 18

Power Supply and Wiring ................... 19

Connecting Ductwork ...................... 22

Return-Air Filters .......................... 22

START-UP ................................. 23

SERVICE ................................. 23-39

Panels ..................................... 23

Fan Motor Lubrication ...................... 23

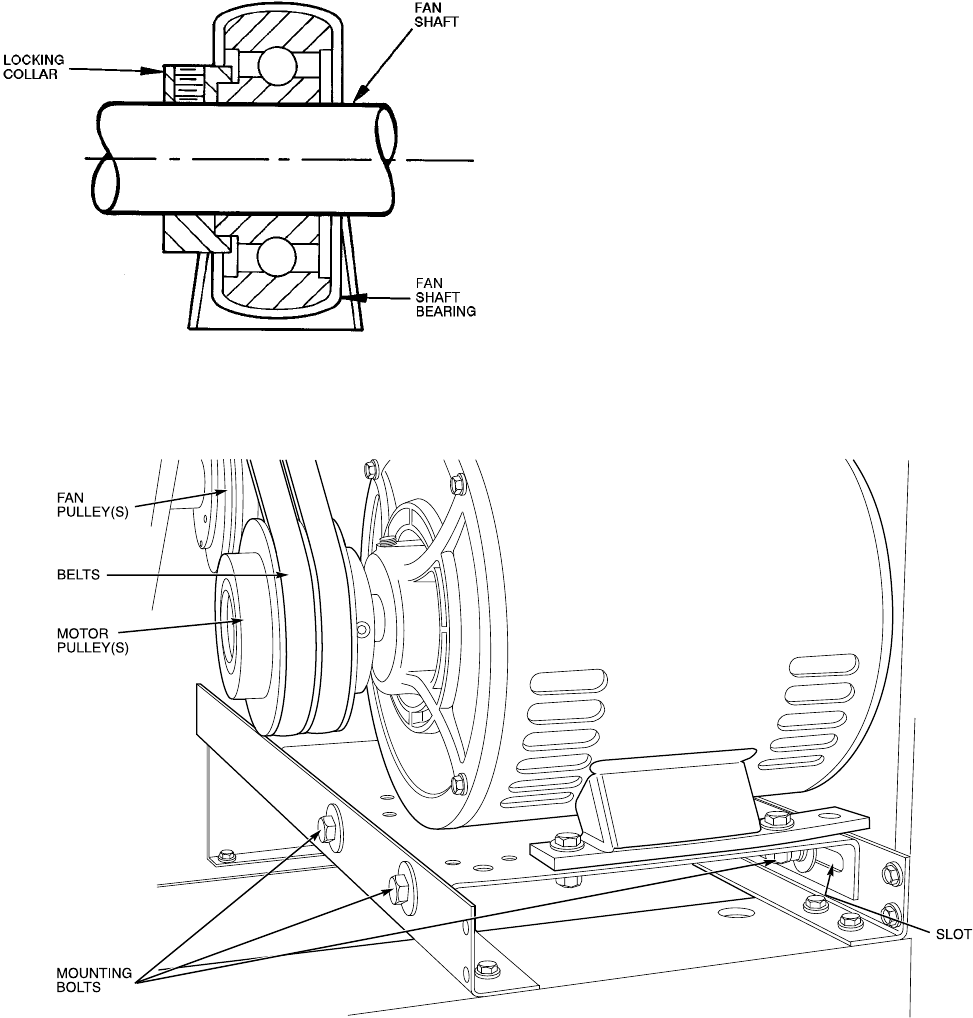

Fan Shaft Bearings ......................... 23

Centering Fan Wheel ....................... 24

Fan Shaft Position Adjustment .............. 24

Individual Fan Wheel Adjustment ........... 24

Fan Belts .................................. 24

Fan Rotation ............................... 24

Fan Pulley Alignment ....................... 25

Pulley and Drive Adjustment ................ 25

Condensate Drains ......................... 25

Return-Air Filters .......................... 25

Chilled Water Coil Freeze Protection ........ 25

Coil Removal .............................. 25

Cleaning Cooling Coil ...................... 25

Cleaning Insulation ........................ 25

Replacing Filters ........................... 39

START-UP CHECKLIST ................ CL-1,CL-2

SAFETY CONSIDERATIONS

Installing, starting up, and servicing this equipment can

be hazardous due to system pressures, electrical components

and equipment location (elevated structures, etc.).

Only trained, qualified installers and service mechanics

should install, start up, and service this equipment.

Untrained personnel can perform basic maintenance func-

tions such as cleaning coils, and cleaning and replacing

filters. All other operations should be performed by trained

service personnel.

When working on the equipment, observe precautions in

the literature and on tags, stickers, and labels attached to the

equipment.

• Follow all safety codes.

• Wear safety glasses and work gloves.

• Use care in handling, rigging, and setting bulky

equipment.

Be sure all power to equipment is shut off before per-

forming maintenance or service. More than one discon-

nect may be present.

PRE-INSTALLATION

Moving and Storage — To transfer unit from truck to

storage site, use a fork truck. Do not stack units more than

2 high during storage. If unit is to be stored for more than

2 weeks before installation, choose a level, dry storage site

free from vibration. Do not remove plastic wrap or skid from

unit until final installation.

Rigging — All 40RM Series units can be rigged by us-

ing the shipping skid. Units are shipped fully assembled. Do

not remove shipping skids or protective covering until unit

is ready for final placement; damage to bottom panels can

result. Use slings and spreader bars as applicable to lift unit.

INSTALLATION

General — Allow 2

1

⁄

2

ft at front and side of unit for

service clearance and airflow. For units equipped with an econo-

mizer, refer to the accessory installation instructions for ad-

ditional clearance requirements. Be sure floor, wall, or ceil-

ing can support unit weight (Tables 1A-1F). See

Fig. 1A-1C for dimensions.

Uncrating — Move unit as near as possible to final lo-

cation before removing shipping skid.

Remove metal banding, top skid, and plastic wrap. Ex-

amine unit for shipping damage. If shipping damage is

evident, file claim with transportation agency. Remove base

skid just prior to actual installation.

Check nameplate information against available power

supply and model number description in Fig. 2.

Accessories — Refer to instructions shipped with each

accessory for specific information.

40RM

40RMQ

40RMS

Packaged Air-Handling Units

50/60 Hz

Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.

Book 1 4

Tab 3c 2e

PC 111 Catalog No. 534-053 Printed in U.S.A. Form 40RM-9SI Pg 1 11-95 Replaces: 40RM-1SI

Table 1A — 40RM Physical Data, English

UNIT 40RM 007 008 012 014 016 024 028 034

NOMINAL CAPACITY (Tons) 67

1

⁄

2

10 12

1

⁄

2

15 20 25 30

OPERATING WEIGHT (lb)

Base Unit with TXV 381 385 405 670 685 690 1020 1030

Plenum 97 97 97 140 140 140 180 180

FANS

Qty...Diam. (in.) 1...15 1...15 1...15 2...15 2...15 2...15 2...18 2...18

Nominal Airflow (cfm) 2400 3000 4000 5000 6000 8,000 10,000 12,000

Airflow Range (cfm) 1800-

3000 2250-

3750 3000-

5000 3750-

6250 4500-

7500 6,000-

10,000 7,500-

12,500 9,000-

15,000

Nominal Motor Hp (Standard Motor)

208/230-1-60 1.3 2.4 — — — — — —

208/230-3-60 and 460-3-60 2.4 2.4 2.4 2.9 3.7 5.0 7.5 10.0

575-3-60 1.0 2.0 2.0 3.0 3.0 5.0 7.5 10.0

230-3-50, 400-3-50 2.4 2.4 2.9 2.9 2.9 5.0 7.5 10.0

Motor Speed (rpm)

208/230-1-60 1725 1725 — — — — — —

208/230-3-60 and 460-3-60 1725 1725 1725 1725 1725 1745 1745 1745

575-3-60 1725 1725 1725 1725 1725 1745 1755 1755

230-3-50, 400-3-50 1425 1425 1425 1425 1425 1425 1425 1425

REFRIGERANT R-22

Operating charge (lb)

(approx per circuit)* 3.0 3.0 1.5/1.5 2.0/2.0 2.5/2.5 3.5/3.5 4.5/4.5 5.0/5.0

DIRECT-EXPANSION COIL Enhanced Copper Tubes, Aluminum Sine-Wave Fins

Max Working Pressure (psig) 435

Face Area (sq ft) 6.67 8.33 10.0 13.25 17.67 19.88 24.86 29.83

No. of Splits 11222 2 2 2

No. of Circuits per Split 12 15 9 9 12 13 15 18

Split Type...Percentage — — Face...50/50

Rows...Fins/in. 3...15 3...15 3...17 3...15 3...15 3...17 3...15 3...15

STEAM COIL

Max Working Pressure (psig at 400 F) 175

Total Face Area (sq ft) 6.67 6.67 6.67 13.33 13.33 13.33 15.0 15.0

Rows...Fins/in. 1...9 1...9 1...9 1...10 1...10 1...10 1...10 1...10

HOT WATER COIL

Max Working Pressure (psig) 150

Total Face Area (sq ft) 6.67 6.67 6.67 13.33 13.33 13.33 15.0 15.0

Rows...Fins/in. 2...8.5 2...8.5 2...8.5 2...8.5 2...8.5 2...8.5 2...12.5 2...12.5

Water Volume

(gal) 8.3 13.9 14.3

(ft

3

)1.1 1.85 1.90

PIPING CONNECTIONS,

Quantity...Size (in.)

DX Coil — Suction (ODF) 1...1

1

⁄

8

1...1

1

⁄

8

2...1

1

⁄

8

2...1

1

⁄

8

2...1

1

⁄

8

2...1

1

⁄

8

2...1

3

⁄

8

2...1

3

⁄

8

DX Coil — Liquid Refrigerant (ODF) 1...

5

⁄

8

2...

5

⁄

8

Steam Coil, In (MPT) 1...2

1

⁄

2

1...2

1

⁄

2

Steam Coil, Out (MPT) 1...1

1

⁄

2

1...1

1

⁄

2

Hot Water Coil, In (MPT) 1...1

1

⁄

2

1...1

1

⁄

2

1...2

Hot Water Coil, Out (MPT) 1...1

1

⁄

2

1...1

1

⁄

2

1...2

Condensate (PVC) 1...1

1

⁄

4

ODM/1 IDF

FILTERS Throwaway — Factory Supplied

Quantity...Size (in.) 4...16 x 24 x 2 4...16 x 20 x 2

4...16 x 24 x 2 4...20 x 24 x 2

4...20 x 25 x 2

Access Location Either Side

LEGEND

TXV — Thermostatic Expansion Valve

*Units are shipped without refrigerant charge.

2

Table 1B — 40RMQ Physical Data, English

UNIT 40RMQ 008 012 016

NOMINAL CAPACITY (Tons) 7

1

⁄

2

10 15

OPERATING WEIGHT (lb)

Base Unit with TXV 385 427 713

Plenum 97 97 140

FANS

Qty...Diam. (in.) 1...15 1...15 2...15

Nominal Airflow (cfm) 3000 4000 6000

Airflow Range (cfm) 2250-3750 3000-5000 4500-7500

Nominal Motor Hp (Standard Motor)

208/230-1-60 2.4 — —

208/230-3-60 and 460-3-60 2.4 2.4 3.7

575-3-60 2.0 2.0 3.0

230-3-50, 400-3-50 2.4 2.9 2.9

Motor Speed (rpm)

208/230-1-60 1725 — —

208/230-3-60 and 460-3-60 1725 1725 1725

575-3-60 1725 1725 1725

230-3-50, 400-3-50 1425 1425 1425

REFRIGERANT R-22

Operating charge (lb)

(approx per circuit)* 3.0 2.0/2.0 3.0/3.0

DIRECT-EXPANSION COIL Enhanced Copper Tubes, Aluminum Sine-Wave Fins

Max Working Pressure (psig) 435

Face Area (sq ft) 8.33 10.0 17.67

No. of Splits 12 2

No. of Circuits per Split 15 9 16

Split Type...Percentage — Face...50/50

Rows...Fins/in. 3...15 4...15 4...15

STEAM COIL

Max Working Pressure (psig at 400 F) 175

Total Face Area (sq ft) 6.67 6.67 13.33

Rows...Fins/in. 1...9 1...9 1...10

HOT WATER COIL

Max Working Pressure (psig) 150

Total Face Area (sq ft) 6.67 6.67 13.33

Rows...Fins/in. 2...8.5 2...8.5 2...8.5

Water Volume

(gal) 8.3 13.9

(ft

3

)1.1 1.85

PIPING CONNECTIONS,

Quantity...Size (in.)

DX Coil — Suction (ODF) 1...1

1

⁄

8

2...1

1

⁄

8

2...1

1

⁄

8

DX Coil — Liquid Refrigerant (ODF) 1...

5

⁄

8

2...

5

⁄

8

2...

5

⁄

8

Steam Coil, In (MPT) 1...2

1

⁄

2

1...2

1

⁄

2

Steam Coil, Out (MPT) 1...1

1

⁄

2

1...1

1

⁄

2

Hot Water Coil, In (MPT) 1...1

1

⁄

2

1...1

1

⁄

2

1...2

Hot Water Coil, Out (MPT) 1...1

1

⁄

2

1...1

1

⁄

2

1...2

Condensate (PVC) 1...1

1

⁄

4

ODM/1 IDF

FILTERS Throwaway — Factory Supplied

Quantity...Size (in.) 4...16 x 24 x 2 4...16 x 20 x 2

4...16 x 24 x 2

Access Location Either Side

LEGEND

TXV — Thermostatic Expansion Valve

*Units are shipped without refrigerant charge.

3

Table 1C — 40RMS Physical Data, English

UNIT 40RMS 008 010 012 014 016 024 028 034

NOMINAL CAPACITY (Tons) 7

1

⁄

2

8

1

⁄

2

10 12

1

⁄

2

15 20 25 30

OPERATING WEIGHT (lb)

Base Unit 390 391 391 661 677 683 1035 1042

Plenum 97 97 97 140 140 140 180 180

FANS

Qty...Diam. (in.) 1...15 1...15 1...15 2...15 2...15 2...15 2...18 2...18

Nominal Airflow (cfm) 3000 3400 4000 5000 6000 8000 10,000 12,000

Airflow Range (cfm) 2250-3750 2250-4250 3000-5000 3750-6250 4500-7500 6000-10,000 7500-12,500 9000-15,000

Nominal Motor Hp

(Standard Motor)

208/230-1-60 2.4 2.4 — — — — — —

208/230-3-60 and 460-3-60 2.4 2.4 2.4 2.9 3.7 5.0 7.5 10.0

575-3-60 2.0 2.0 2.0 3.0 3.0 5.0 7.5 10.0

230-3-50 and 400-3-50 2.4 2.4 2.9 2.9 2.9 5.0 7.5 10.0

Motor Speed (rpm)

208/230-1-60 1725 1725 — — — — — —

208/230-3-60 and 460-3-60 1725 1725 1725 1725 1725 1745 1745 1745

575-3-60 1725 1725 1725 1725 1725 1745 1755 1755

230-3-50 and 400-3-50 1425 1425 1425 1425 1425 1425 1425 1425

CHILLED WATER COIL Enhanced Copper Tubes, Aluminum Sine-Wave Fins

Max Working Pressure

(psig) 435

Face Area (sq ft) — Upper 8.3 9.0 4.9 8.3 8.3 11.0 12.4 15.5

Face Area (sq ft) — Lower — — 4.9 5.5 8.3 8.3 12.4 12.4

Rows...Fins/in. 3...15

STEAM COIL

Max Working Pressure

(psig at 400 F) 175

Total Face Area (sq ft) 6.67 6.67 6.67 13.33 13.33 13.33 15.0 15.0

Rows...Fins/in. 1...9 1...9 1...9 1...10 1...10 1...10 1...10 1...10

HOT WATER COIL

Max Working Pressure

(in. wg) 150

Total Face Area (sq ft) 6.67 6.67 6.67 13.33 13.33 13.33 15.0 15.0

Rows...Fins/in. 2...8.5 2...8.5 2...8.5 2...8.5 2...8.5 2...8.5 2...12.5 2...12.5

Water Volume

(gal) 8.3 13.9 14.3

(ft

3

)1.1 1.85 1.90

PIPING CONNECTIONS,

Quantity...Size (in.)

Chilled Water — In 1...1

3

⁄

8

ODF 1...1

3

⁄

8

ODF 2...1

3

⁄

8

ODF 2...1

3

⁄

8

ODM 2...1

3

⁄

8

ODM 2...1

3

⁄

8

ODM 2...2

1

⁄

8

ODM 2...2

1

⁄

8

ODM

Chilled Water — Out 1...1

3

⁄

8

ODF 1...1

3

⁄

8

ODF 2...1

3

⁄

8

ODF 2...1

3

⁄

8

ODM 2...1

3

⁄

8

ODM 2...1

3

⁄

8

ODM 2...2

1

⁄

8

ODM 2...2

1

⁄

8

ODM

Steam Coil, In (MPT) 1...2

1

⁄

2

1...2

1

⁄

2

Steam Coil, Out (MPT) 1...1

1

⁄

2

1...1

1

⁄

2

Hot Water Coil, In (MPT) 1...1

1

⁄

2

1...1

1

⁄

2

1...2

Hot Water Coil, Out (MPT) 1...1

1

⁄

2

1...1

1

⁄

2

1...2

Condensate (PVC) 1...1

1

⁄

4

ODM/1 IDF

FILTERS Throwaway — Factory Supplied

Quantity...Size (in.) 4...16 x 24 x 2 4...16 x 20 x 2

4...16 x 24 x 2 4...20 x 24 x 2

4...20 x 25 x 2

Access Location Either Side

4

Table 1D — 40RM Physical Data, SI

UNIT 40RM 007 008 012 014 016 024 028 034

NOMINAL CAPACITY (kW) 21 26 35 43 52 70 87 105

OPERATING WEIGHT (kg)

Base Unit with TXV 173 175 184 304 311 313 463 467

Plenum 44 44 44 63 63 63 82 82

FANS

Qty...Diam. (mm) 1...381 1...381 1...381 2...381 2...381 2...381 2...457 2...457

Nominal Airflow (L/s) 1133 1604 1888 2360 2831 3775 4719 5663

Airflow Range (L/s) 850-1416 1203-2006 1416-2360 1770-2949 2124-3539 2831-4719 3539-5899 4247-7079

Nominal Motor kW (Standard Motor)

208/230-1-60 0.97 1.79 ——————

208/230-3-60 and 460-3-60 1.79 1.79 1.79 2.16 2.76 3.73 5.60 7.46

575-3-60 0.75 1.49 1.49 2.24 2.24 3.73 5.60 7.46

230-3-50, 400-3-50 1.79 1.79 2.16 2.16 2.16 3.73 5.60 7.46

Motor Speed (r/s)

208/230-1-60 28.8 28.8 ——————

208/230-3-60 and 460-3-60 28.8 28.8 28.8 28.8 28.8 29.1 29.1 29.1

575-3-60 28.8 28.8 28.8 28.8 28.8 29.1 29.3 29.3

230-3-50, 400-3-50 23.8 23.8 23.8 23.8 23.8 23.8 23.8 23.8

REFRIGERANT R-22

Operating charge (kg)

(approx per circuit)* 1.36 1.36 0.68/0.68 0.90/0.90 1.13/1.13 1.59/1.59 2.04/2.04 2.27/2.27

DIRECT-EXPANSION COIL Enhanced Copper Tubes, Aluminum Sine-Wave Fins

Max Working Pressure (kPag) 2999

Face Area (sq m) 0.62 0.77 0.93 0.93 1.64 1.85 2.30 2.77

No. of Splits 11222222

No. of Circuits per Split 12 15 9 9 12 13 15 18

Split Type...Percentage — — Face...50/50

Rows...Fins/m 3...591 3...591 3...670 3...591 3...591 3...670 3...591 3...591

STEAM COIL

Max Working Pressure (kPag at 204.4 C) 1207

Total Face Area (sq m) 0.62 0.62 0.62 1.24 1.24 1.24 1.39 1.39

Rows...Fins/m 1...355 1...355 1...355 1...394 1...394 1...394 1...394 1...394

HOT WATER COIL

Max Working Pressure (kPag) 1034

Total Face Area (sq m) 0.62 0.62 0.62 1.24 1.24 1.24 1.39 1.39

Rows...Fins/m 2...335 2...335 2...335 2...335 2...335 2...335 2...493 2...493

Water Volume

(L) 31.4 52.6 54.1

(m

3

)0.031 0.052 0.054

PIPING CONNECTIONS,

Quantity...Size (in.)

DX Coil — Suction (ODF) 1...1

1

⁄

8

1...1

1

⁄

8

2...1

1

⁄

8

2...1

1

⁄

8

2...1

1

⁄

8

2...1

1

⁄

8

2...1

3

⁄

8

2...1

3

⁄

8

DX Coil — Liquid Refrigerant (ODF) 1...

5

⁄

8

2...

5

⁄

8

Steam Coil, In (MPT) 1...2

1

⁄

2

1...2

1

⁄

2

Steam Coil, Out (MPT) 1...1

1

⁄

2

1...1

1

⁄

2

Hot Water Coil, In (MPT) 1...1

1

⁄

2

1...1

1

⁄

2

1...2

Hot Water Coil, Out (MPT) 1...1

1

⁄

2

1...1

1

⁄

2

1...2

Condensate (PVC) 1...1

1

⁄

4

ODM/1 IDF

FILTERS Throwaway — Factory Supplied

Quantity...Size 4...406 x 610 x 51 4...406 x 508 x 51

4...406 x 610 x 51 4...508 x 610 x 51

4...508 x 635 x 51

Access Location Either Side

LEGEND

TXV — Thermostatic Expansion Valve

*Units are shipped without refrigerant charge.

5

Table 1E — 40RMQ Physical Data, SI

UNIT 40RMQ 008 012 016

NOMINAL CAPACITY (kW) 26 35 52

OPERATING WEIGHT (kg)

Base Unit with TXV 175 194 323

Plenum 44 44 63

FANS

Qty...Diam. (mm) 1...381 1...381 2...381

Nominal Airflow (L/s) 1604 1888 2831

Airflow Range (L/s) 1203-2006 1416-2360 2124-3539

Nominal Motor kW (Standard Motor)

208/230-1-60 1.79 — —

208/230-3-60 and 460-3-60 1.79 1.79 2.76

575-3-60 1.49 1.49 2.24

230-3-50, 400-3-50 1.79 2.16 2.16

Motor Speed (r/s)

208/230-1-60 28.8 — —

208/230-3-60 and 460-3-60 28.8 28.8 28.8

575-3-60 28.8 28.8 28.8

230-3-50, 400-3-50 23.8 23.8 23.8

REFRIGERANT R-22

Operating charge (kg)

(approx per circuit)* 1.36 0.91/0.91 1.36/1.36

DIRECT-EXPANSION COIL

Max Working Pressure (kPag) 2999

Face Area (sq m) 0.77 0.93 1.64

No. of Splits 12 2

No. of Circuits per Split 15 9 16

Split Type...Percentage — Face...50/50

Rows...Fins/m 3...591 4...591 4...591

STEAM COIL

Max Working Pressure (kPag at 204.4 C) 1207

Total Face Area (sq m) 0.62 0.62 1.24

Rows...Fins/m 1...355 1...355 1...394

HOT WATER COIL

Max Working Pressure (kPag) 1034

Total Face Area (sq m) 0.62 0.62 1.24

Rows...Fins/m 2...335 2...335 2...335

Water Volume

(L) 31.4 52.6

(m

3

)0.031 0.052

PIPING CONNECTIONS,

Quantity...Size (in.)

DX Coil — Suction (ODF) 1...1

1

⁄

8

2...1

1

⁄

8

2...1

1

⁄

8

DX Coil — Liquid Refrigerant (ODF) 1...

5

⁄

8

2...

5

⁄

8

2...

5

⁄

8

Steam Coil, In (MPT) 1...2

1

⁄

2

1...2

1

⁄

2

Steam Coil, Out (MPT) 1...1

1

⁄

2

1...1

1

⁄

2

Hot Water Coil, In (MPT) 1...1

1

⁄

2

1...1

1

⁄

2

1...2

Hot Water Coil, Out (MPT) 1...1

1

⁄

2

1...1

1

⁄

2

1...2

Condensate (Male PVC) 1...1

1

⁄

4

ODM/1 IDF

FILTERS Throwaway — Factory Supplied

Quantity...Size 4...406 x 610 x 51 4...406 x 508 x 51

4...406 x 610 x 51

Access Location Either Side

LEGEND

TXV — Thermostatic Expansion Valve

*Units are shipped without refrigerant charge.

6

Table 1F — 40RMS Physical Data, SI

UNIT 40RMS 008 010 012 014 016 024 028 034

NOMINAL CAPACITY (kW) 26 29 35 43 52 70 87 105

OPERATING WEIGHT (kg)

Base Unit 177 177 177 300 307 310 469 473

Plenum 44 44 44 63 63 63 82 82

FANS

Qty...Diam. (mm) 1...381 1...381 1...381 2...381 2...381 2...381 2...457 2...457

Nominal Airflow (L/s) 1416 1605 1888 2360 2831 3775 4719 5663

Airflow Range (L/s) 1062-

1770 1204-

2006 1416-

2360 1770-

2949 2124-

3539 2831-

4719 3539-

5899 4247-

7079

Nominal Motor kW

(Standard Motor)

208/230-1-60 1.79 1.79 — —————

208/230-3-60, 460-3-60 1.79 1.79 1.79 1.79 2.76 3.73 5.60 7.46

575-3-60 1.49 1.49 1.49 1.49 2.24 3.73 5.60 7.46

230-3-50, 400-3-50 1.79 1.79 2.16 2.16 2.16 3.73 5.60 7.46

Motor Speed (r/s)

208/230-1-60 28.8 28.8 — —————

208/230-3-60, 460-3-60 28.8 28.8 28.8 28.8 28.8 29.1 29.1 29.1

575-3-60 28.8 28.8 28.8 28.8 28.8 29.1 29.3 29.3

230-3-50, 400-3-50 23.8 23.8 23.8 23.8 23.8 23.8 23.8 23.8

CHILLED WATER COIL

Max Working Pressure

(kPag) 2999

Face Area (sq m) — Upper 0.77 0.84 0.91 0.77 0.77 1.02 1.15 1.44

Face Area (sq m) — Lower — — — 0.51 0.77 0.77 1.15 1.15

Rows...Fins/m 3...591 3...591 3...591 3...591 3...591 3...591 3...591 3...591

STEAM COIL

Max Working Pressure

(kPag at 204.4 C) 1207

Total Face Area (sq m) 0.62 0.62 0.62 1.24 1.24 1.24 1.39 1.39

Rows...Fins/m 1...355 1...355 1...355 1...355 1...394 1...394 1...394 1...394

HOT WATER COIL

Max Working Pressure

(kPag) 1034

Total Face Area (sq m) 0.62 0.62 0.62 1.24 1.24 1.24 1.39 1.39

Rows...Fins/m 2...335 2...335 2...335 2...335 2...335 2...335 2...493 2...493

Water Volume

(L) 31.4 52.6 54.1

(m

3

)0.031 0.052 0.054

PIPING CONNECTIONS,

Quantity...Size (in.)

Chilled Water — In 1...1

3

⁄

8

ODF 1...1

3

⁄

8

ODF 2...1

3

⁄

8

ODF 2...1

3

⁄

8

ODM 2...1

3

⁄

8

ODM 2...1

3

⁄

8

ODM 2...2

1

⁄

8

ODM 2...2

1

⁄

8

ODM

Chilled Water — Out 1...1

3

⁄

8

ODF 1...1

3

⁄

8

ODF 2...1

3

⁄

8

ODF 2...1

3

⁄

8

ODM 2...1

3

⁄

8

ODM 2...1

3

⁄

8

ODM 2...2

1

⁄

8

ODM 2...2

1

⁄

8

ODM

Steam Coil, In (MPT) 1...2

1

⁄

2

1...2

1

⁄

2

Steam Coil, Out (MPT) 1...1

1

⁄

2

1...1

1

⁄

2

Hot Water Coil, In (MPT) 1...1

1

⁄

2

1...1

1

⁄

2

1...2

Hot Water Coil, Out (MPT) 1...1

1

⁄

2

1...1

1

⁄

2

1...2

Condensate (PVC) 1...1

1

⁄

4

ODM/1 IDF

FILTERS Throwaway — Factory Supplied

Quantity...Size (mm) 4...406 x 610 x 51 4...406 x 508 x 51

4...406 x 610 x 51 4...508 x 610 x 51

4...508 x 635 x 51

Access Location Either Side

7

TXV — Thermostatic Expansion Valve

NOTES:

1. Dimensions in [ ] are in millimeters.

2. Direction of airflow.

3. Recommended clearance:

• Rear: 3 in. (76 mm )

• Front: 2 ft, 6 in. (762 mm)

• Right Side: 2 ft, 6 in. (762 mm)

• Left Side: 2 ft, 6 in. (762 mm)

• Local codes or jurisdiction may prevail.

4. Liquid piping not supplied by Carrier.

5. Duct flange is factory supplied and field

installed.

6. 40RMS units may require alternate or ad-

ditional field-fabricated piping access holes.

Fig. 1A — Dimensions — Sizes 007-012

UNIT UNIT WEIGHT

lb (kg)

40RM007 381 (173)

40RM008 385 (175)

40RM012 405 (184)

40RMQ008 385 (175)

40RMQ012 427 (194)

40RMS008 390 (177)

40RMS010 391 (177)

40RMS012 391 (177)

8

Fig. 1B — Dimensions — Sizes 014-024

TXV — Thermostatic Expansion Valve

NOTES:

1. Dimensions in [ ] are in millimeters.

2. Direction of airflow.

3. Recommended clearance:

• Rear: 3 in. (76 mm)

• Front: 2 ft, 6 in. (762 mm)

• Right Side: 2 ft, 6 in. (762 mm)

• Left Side: 2 ft, 6 in. (762 mm)

• Local codes or jurisdiction may

prevail.

4. Liquid piping not supplied by Carrier.

5. Duct flange is factory supplied and field

installed.

6. 40RMQ016 and 40RMS units may re-

quire alternate or additional field-fabricated

piping access holes.

UNIT UNIT WEIGHT

lb (kg)

40RM014 670 (304)

40RM016 685 (311)

40RM024 690 (313)

40RMQ016 713 (323)

40RMS014 661 (300)

40RMS016 677 (307)

40RMS024 683 (310)

9

Fig. 1C — Dimensions — Sizes 028,034

UNIT UNIT WEIGHT

lb (kg)

40RM028 1020 (463)

40RM034 1030 (467)

40RMS028 1035 (469)

40RMS034 1042 (473)

TXV — Thermostatic Expansion Valve

NOTES:

1. Dimensions in [ ] are in millimeters.

2. Direction of airflow.

3. Recommended clearance:

• Rear: 3 in. (76 mm)

• Front: 2 ft, 6 in. (762 mm)

• Right Side: 2 ft, 6 in. (762 mm)

• Left Side: 2 ft, 6 in. (762 mm)

• Local codes or jurisdiction may

prevail.

4. Liquid piping not supplied by Carrier.

5. Duct flange is factory supplied and field

installed.

6. 40RMS units may require alternate or

additional field-fabricated piping ac-

cess holes.

10

Unit Positioning — The unit can be mounted on the

floor for vertical application with return air entering the face

of the unit and supply air discharging vertically through the

top of the unit. The unit can also be applied in a horizontal

arrangement with return air entering horizontally and the sup-

ply air discharging horizontally. When applying the unit in

a horizontal arrangement, ensure the condensate drain pan is

located at the bottom center of the unit for adequate con-

densate disposal. See Fig. 3 for condensate connections for

each unit position.

Typical positioning and alternate return air locations are

shown in Fig. 3. Alternate return air locations can be used by

moving the unit panel from the alternate return air location

to the standard return air location.

IMPORTANT: Do NOT attempt to install unit with

return air entering top panel of unit. Condensate will

not drain from unit.

*YC and WD option codes for all 034 size units and 008, 010 units with 208/230-1-60

power designate standard motor and high-static drive.

NOTE: See the following table for the sizes available for each unit.

UNIT 007 008 010 012 014 016 024 028 034

40RM XX XXXXXX

40RMQ XXX

40RMS XXXXXXXX

Fig. 2 — Model Number Nomenclature

LEGEND

Accessory Line

Alternate Air Intake and Discharge

Air Intake and Discharge

Fig.3—Typical Unit Positioning

11

Unit Isolation — Where extremely quiet operation is

essential, install isolators between floor and base of unit, or

between ceiling and top section of unit.

Be sure that unit is level and adequately supported. Use

channels at front and sides of unit for reference points when

leveling.

Refrigerant and Chilled Water Piping Access —

The 40RM Series units come with standard knockouts for

refrigerant and chilled water piping. These knockouts are lo-

cated on both sides of the unit for installation flexibility. The

standard knockouts provide sufficient access to the unit’s coils

for all 40RM and some 40RMQ units, however, for 40RMQ016

and 40RMS units, additional holes must be field-fabricated

to accommodate the piping. See Fig. 4 for the positions and

dimensions of the additional access holes required for these

units, including hole diameters and drilling dimensions. Rec-

ommended access hole use is also listed for all units. Note

that Fig. 4 shows the access holes on the control-box side of

the unit; this is the side of the unit with the coil headers, so

it is used most often for piping access.

Refrigerant Piping — See Tables 1A, 1B, 1D, 1E for

refrigerant pipe connection sizes. For ease in brazing, it is

recommended that all internal solder joints be made before

unit is placed in final position.

The 40RM and 40RMQ direct-expansion units have

internal factory-installed thermostatic expansion valves (TXVs),

distributors, and nozzles for use with R-22. See Table 2 for

part numbers. Knockouts are provided in the unit corner posts

for 40RM and 40RMQ008 and 012 refrigerant piping. The

40RMQ016 unit requires additional field-fabricated piping

access holes. See Fig. 4, which also lists recommended knock-

outs and access holes to use for each 40RM and 40RMQ

unit size. Recommended fittings are listed in Table 3.

The sensor bulb capillary tubes must be routed from the

TXVs inside the unit through one of the piping access holes.

Clamp the TXV sensor bulb on a vertical portion of the suc-

tion line, outside the unit. See Fig. 5.

UNIT USE HOLE

NUMBERS

FIELD-FABRICATED HOLE DIAMETERS,

in. (mm) FIELD-FABRICATED HOLE POSITION

DIMENSIONS, in. (mm)

No. 5 No. 6 No. 7 No. 8 A B C D

40RM007,008

40RMQ008 1,3———— — — — —

40RM012-034

40RMQ012 1,2,3,4———— — — — —

40RMS008-012 4, 5 1

3

⁄

4

(44.5) — — — 6.25 (158.8) — — —

40RMS014-024 4, 5, 6, 7 1

3

⁄

4

(44.5) 1

3

⁄

4

(44.5) 1

3

⁄

4

(44.5) — 3.0 (76.2) 6.0 (152.4) 10.5 (266.7) —

40RMQ016 3*, 5, 6, 7 1

1

⁄

8

(28.6) 1

1

⁄

8

(28.6) 1

3

⁄

4

(44.5) — 3.25 (82.6) 6.125 (155.6) 10.38 (263.7) —

40RMS028,034 5, 6, 7, 8 2

1

⁄

2

(63.5) 2

1

⁄

2

(63.5) 2

1

⁄

2

(63.5) 2

1

⁄

2

(63.5) 6.0 (152.4) 9.625 (244.5) 13.38 (339.9) 17.0 (431.8)

*Must be enlarged from 1

1

⁄

8

in. to 1

3

⁄

4

inches.

NOTE: Access hole knockouts 1-4 are factory-supplied.

Fig. 4 — Refrigerant and Chilled Water Piping Access Holes

12

IMPORTANT: Never attach the sensor to the suction

manifold. Do NOT mount the sensor on a trapped por-

tion of the suction line.

40RM Series evaporator coils have a face-split design. En-

sure that lower circuit of coil is first on/last off when con-

nected to the condensing unit and/or system controls. See

Fig. 6.

External TXVequalizer connections are provided and factory-

brazed into the coil suction manifolds.

If suction line must be horizontal, clamp bulb to suction

line at least 45 degrees above bottom, at approximately the

4 o’clock or 8 o’clock position. See Fig. 7.

NOTE: The 40RMQ units are supplied with factory-installed

thermostatic expansion valves and check valve bypasses.

No extra piping connections or kits are required to install the

40RMQ with a 38AQS condensing unit in a heat pump

system, however, some field supplied components may be

required. See the following two sections.

FIRST ON/LAST OFF=B

VERTICAL INSTALLATION

FIRST ON/LAST OFF=A

HORIZONTAL INSTALLATION

Fig.6—Typical Evaporator Coil Connections

(40RM, 40RMQ)

LEGEND

TXV — Thermostatic Expansion Valve

NOTE: The 8 o’clock position is shown above.

Fig. 7 — TXV Sensing Bulb Location

LEGEND

TXV — Thermostatic Expansion Valve

NOTE: Component location arrangement shown for field installation

of sight glasses, solenoid valves, filter driers, and TXV sensing bulbs.

The TXVs and equalizer lines are factory installed.

Fig. 5 — Face-Split Coil Suction and

Liquid Line Piping (Typical)

13

Table 2 — Factory-Installed Nozzle and Distributor Data

UNIT TXV

Qty...Part No. DISTRIBUTOR

Qty...Part No.

FEEDER TUBES

PER DISTRIBUTOR*

Qty...Size (in.)

NOZZLE

Qty...Part No.

40RM007 1...XVE-5 1...1116 12 1...E5

40RM008 1...SVE-8 1...1126 15 1...C6

40RMQ008 1...SVE-8 1...1657 15 1...C6

40RM012 2...XVE-4 2...1115 9 2...E4

40RMQ012 2...XVE-4 2...1655 9 2...E4

40RM014 2...XVE-5 2...1115 9 2...E5

40RM016 2...XVE-8 2...1116 12 2...E6

40RMQ016 2...SVE-8 2...1126 16 2...C6

40RM024 2...XVE-10 2...1116 13 2...E8

40RM028 2...EBSVE-11 2...1126 15 2...C10

40RM034 2...SVE-15 2...1126 18 2...C12

* Feeder tube size is

1

⁄

4

in. (6.35 mm).

NOTE: Hot gas bypass applications require field-supplied auxiliary side connector.

38AQS008/40RMQ008 HEAT PUMP SYSTEM PIPING —

Addition of a liquid solenoid valve (LLSV) is recommended

when the piping system length exceeds 75 feet. The LLSV

must be a bi-flow type suited for use in heat pump systems.

The recommended valve is Sporlan model CB14S2 (5/8-in.

ODF, 7/8-in. ODM) available from the Replacement Com-

ponents Division as part number EF23JS-214. This solenoid

valve requires Sporlan part no. MKC-2 coils that must be

purchased locally. Wire the solenoid valve in parallel with

the compressor contactor coil.

The LLSV must be installed at the outdoor unit with the

flow arrow pointed toward the outdoor unit (in-flow

direction for the heating mode.)

FILTER DRIER REQUIREMENTS FOR 38AQS012/

40RMQ012 AND 38AQS016/40RMQ016 HEAT PUMP

SYSTEMS — The 38AQS012 and 016 units do not in-

clude filter driers. Filter driers must be field-supplied

and installed in 38AQS012/40RMQ012 and 38AQS016/

40RMQ016 systems. The filter driers used with these sys-

tems must be bi-flow types suited for use in heat pump

applications. The Replacement Component Division part num-

bers listed in Fig. 8 are recommended and available for field

installation.

LEGEND

TXV — Thermostatic Expansion Valve

RECOMMENDED FILTER DRIERS*

(38AQS012,016/40RMQ SYSTEMS)

UNIT

38AQS

LIQUID

LINE

SIZE

(in.)

PART NO. QUANTITY

REQUIRED FIGURE

REFERENCE

012

1

⁄

2

P504-8084S 2 A

5

⁄

8

P504-8165S 1 B

016

1

⁄

2

P504-8084S 2 A

5

⁄

8

P504-8085S 2 A

*Available from Carrier Replacement Components Division.

Fig. 8 — Filter Drier Requirements —

38AQS012/40RMQ012 and 38AQS016/40RMQ016

Heat Pump Systems

14

Table 3 — Fitting Requirements

UNIT ACCESS

HOLE NO.* CONNECTION

TYPE CIRCUIT FITTINGS REQUIRED†

(in.)

40RM

007

1 Suction — 1

1

⁄

8

Street Elbow

1

1

⁄

8

Nipple, 10

5

⁄

8

L

1

1

⁄

8

Long Radius Elbow

3 Liquid —

5

⁄

8

Street Elbow

5

⁄

8

Nipple, 8

5

⁄

8

L

5

⁄

8

Long Radius Elbow

40RM

40RMQ

008

1 Suction — 1

1

⁄

8

Street Elbow

1

1

⁄

8

Nipple, 8

5

⁄

8

L

1

1

⁄

8

Long Radius Elbow

3 Liquid —

5

⁄

8

Street Elbow

5

⁄

8

Nipple, 8

5

⁄

8

L

5

⁄

8

Long Radius Elbow

40RMS

008-012

4 Return —

1

3

⁄

8

Nipple, 4

3

⁄

8

L

1

3

⁄

8

Long Radius Elbow

1

3

⁄

8

Nipple, 7

3

⁄

8

L

1

3

⁄

8

Long Radius Elbow

5 Supply — 1

3

⁄

8

Nipple, 6

5

⁄

8

L

1

3

⁄

8

Long Radius Elbow

40RM

012

1 Suction Lower (2) 1

1

⁄

8

Street Elbow

2 Liquid Lower

5

⁄

8

Street Elbow

5

⁄

8

Nipple, 8

1

⁄

2

L

5

⁄

8

Long Radius Elbow

3 Liquid Upper

5

⁄

8

Street Elbow

5

⁄

8

Nipple, 13

1

⁄

2

L

5

⁄

8

Long Radius Elbow

4 Suction Upper

1

1

⁄

8

Nipple, 5

3

⁄

4

L

1

1

⁄

8

Long Radius Elbow

1

1

⁄

8

Nipple, 12 L

1

1

⁄

8

Long Radius Elbow

40RMQ

012

1 Suction Lower (2) 1

1

⁄

8

Street Elbow

2 Liquid Lower

5

⁄

8

Street Elbow

5

⁄

8

Nipple, 5

1

⁄

2

L

5

⁄

8

Long Radius Elbow

3 Liquid Upper

5

⁄

8

Street Elbow

5

⁄

8

Nipple, 10

1

⁄

2

L

5

⁄

8

Long Radius Elbow

4 Suction Upper

1

1

⁄

8

Nipple, 5

5

⁄

8

L

1

1

⁄

8

Long Radius Elbow

1

1

⁄

8

Nipple, 12 L

1

1

⁄

8

Long Radius Elbow

40RM

014

1 Suction Lower 1

1

⁄

8

Street Elbow

1

1

⁄

8

Nipple, 7

5

⁄

8

L

1

1

⁄

8

Long Radius Elbow

2 Liquid Lower

5

⁄

8

Street Elbow

5

⁄

8

Nipple, 1

7

⁄

16

L

5

⁄

8

Long Radius Elbow

3 Liquid Upper

5

⁄

8

Street Elbow

5

⁄

8

Nipple, 11

1

⁄

2

L

5

⁄

8

Long Radius Elbow

4 Suction Upper

1

1

⁄

8

Nipple, 5

5

⁄

8

L

1

1

⁄

8

Long Radius Elbow

1

1

⁄

8

Nipple, 13 L

1

1

⁄

8

Long Radius Elbow

40RMS

014-024

4 Supply Lower 1

3

⁄

8

Long Radius Elbow

1

3

⁄

8

Nipple, 3

3

⁄

4

L

1

3

⁄

8

Long Radius Elbow

5 Return Lower 1

3

⁄

8

Long Radius Elbow

1

3

⁄

8

Nipple, 3

3

⁄

8

L

1

3

⁄

8

Long Radius Elbow

6 Return Upper 1

3

⁄

8

Long Radius Elbow

1

3

⁄

8

Nipple, 7 L

1

3

⁄

8

Long Radius Elbow

7 Supply Upper 1

3

⁄

8

Long Radius Elbow

1

3

⁄

8

Nipple, 11

3

⁄

4

L

1

3

⁄

8

Long Radius Elbow

*See Fig. 4 for access hole location by number.

†Fittings are listed in order from header or tee stub connection out to access hole in corner support post.

15

Table 3 — Fitting Requirements (cont)

UNIT ACCESS

HOLE NO.* CONNECTION

TYPE CIRCUIT FITTINGS REQUIRED†

(in.)

40RM

016

1 Suction Lower 1

1

⁄

8

Street Elbow

1

1

⁄

8

Nipple, 2

3

⁄

4

L

1

1

⁄

8

Long Radius Elbow

2 Liquid Lower

5

⁄

8

Street Elbow

5

⁄

8

Nipple, 1

3

⁄

8

L

5

⁄

8

Long Radius Elbow

3 Liquid Upper

5

⁄

8

Street Elbow

5

⁄

8

Nipple, 11

1

⁄

2

L

5

⁄

8

Long Radius Elbow

4 Suction Upper

1

1

⁄

8

Nipple, 5

5

⁄

8

L

1

1

⁄

8

Long Radius Elbow

1

1

⁄

8

Nipple, 13 L

1

1

⁄

8

Long Radius Elbow

40RMQ

016

3 Suction Lower 1

1

⁄

8

Nipple, 3 L

1

1

⁄

8

Long Radius Elbow

5 Liquid Lower

5

⁄

8

Nipple, 2

7

⁄

8

L

5

⁄

8

45° Elbow

5

⁄

8

Nipple, 1

5

⁄

8

L

5

⁄

8

Long Radius Elbow

6 Liquid Upper

5

⁄

8

Nipple, 2

7

⁄

8

L

5

⁄

8

45° Elbow

5

⁄

8

Nipple, 4

1

⁄

4

L

5

⁄

8

Long Radius Elbow

7 Suction Upper

1

1

⁄

8

Nipple, 5 L

1

1

⁄

8

45° Elbow

1

1

⁄

8

Nipple, 8

3

⁄

4

L

1

1

⁄

8

Long Radius Elbow

40RM

024

1 Suction Lower 1

1

⁄

8

Street Elbow

1

1

⁄

8

Nipple, 7

5

⁄

8

L

1

1

⁄

8

Long Radius Elbow

2 Liquid Lower

5

⁄

8

Street Elbow

5

⁄

8

Nipple, 6

1

⁄

2

L

5

⁄

8

Long Radius Elbow

3 Liquid Upper

5

⁄

8

Street Elbow

5

⁄

8

Nipple, 9

1

⁄

2

L

5

⁄

8

Long Radius Elbow

4 Suction Upper

1

1

⁄

8

Nipple, 5

5

⁄

8

L

1

1

⁄

8

Long Radius Elbow

1

1

⁄

8

Nipple, 11 L

1

1

⁄

8

Long Radius Elbow

40RM

028

1 Suction Lower 1

3

⁄

8

Street Elbow

1

3

⁄

8

Nipple, 11 L

1

3

⁄

8

Long Radius Elbow

2 Liquid Lower

5

⁄

8

Street Elbow

5

⁄

8

Nipple, 1

1

⁄

2

L

5

⁄

8

Long Radius Elbow

3 Liquid Upper

5

⁄

8

Street Elbow

5

⁄

8

Nipple, 19

3

⁄

4

L

5

⁄

8

Long Radius Elbow

4 Suction Upper

1

3

⁄

8

Nipple, 4

3

⁄

16

L

1

3

⁄

8

Long Radius Elbow

1

3

⁄

8

Nipple, 23

1

⁄

4

L

1

3

⁄

8

Long Radius Elbow

*See Fig. 4 for access hole location by number.

†Fittings are listed in order from header or tee stub connection out to access hole in corner support post.

16

Table 3 — Fitting Requirements (cont)

UNIT ACCESS

HOLE NO.* CONNECTION

TYPE CIRCUIT FITTINGS REQUIRED†

(in.)

40RMS

028, 034

5 Supply Lower 2

1

⁄

8

Long Radius Elbow

2

1

⁄

8

Nipple, 3

1

⁄

2

L

2

1

⁄

8

Long Radius Elbow

6 Return Lower 2

1

⁄

8

Long Radius Elbow

2

1

⁄

8

Nipple, 3 L

2

1

⁄

8

Long Radius Elbow

7 Return Upper 2

1

⁄

8

Long Radius Elbow

2

1

⁄

8

Nipple, 6

7

⁄

8

L

2

1

⁄

8

Long Radius Elbow

8 Supply Upper 2

1

⁄

8

Long Radius Elbow

2

1

⁄

8

Nipple, 11

7

⁄

8

L

2

1

⁄

8

Long Radius Elbow

40RM

034

1 Suction Lower 1

3

⁄

8

Street Elbow

1

3

⁄

8

Nipple, 3 L

1

3

⁄

8

Long Radius Elbow

2 Liquid Lower

5

⁄

8

Street Elbow

5

⁄

8

Nipple, 7

3

⁄

4

L

5

⁄

8

Long Radius Elbow

3 Liquid Upper

5

⁄

8

Street Elbow

5

⁄

8

Nipple, 18

1

⁄

2

L

5

⁄

8

Long Radius Elbow

4 Suction Upper

1

3

⁄

8

Nipple, 4

3

⁄

16

L

1

3

⁄

8

Long Radius Elbow

1

3

⁄

8

Nipple, 19

1

⁄

4

L

1

3

⁄

8

Long Radius Elbow

*See Fig. 4 for access hole location by number.

†Fittings are listed in order from header or tee stub connection out to access hole in corner support post.

Chilled Water Piping — See Tables 1C and 1F for

chilled water connection sizes. For ease in brazing, it is rec-

ommended that all internal solder joints be made before unit

is placed in final position.

Knockouts are provided in the unit corner posts for 40RM

and 40RMQ refrigerant piping; additional field-fabricated ac-

cess holes are required for 40RMS chilled water piping. See

Fig. 4, which lists recommended knockouts and access holes

to use for each 40RMS unit size.

To size, design, and install chilled water piping, consult

the Carrier System Design manual. See Fig. 9 for an ex-

ample of a typical installation. Recommended fittings are listed

in Table 3.

To access 40RMS coil vents and drains, remove the unit

side panel over the coil header. Vent and drain plugs are on

the top and bottom of header, respectively. See the Service

section for information on preventing coil freeze-up during

winter.

Fig.9—Typical 40RMS Chilled Water Piping

17

Condensate Drain — Install a trapped condensate drain

line to unit connection as shown in Fig. 10. The unit drain

connection is a PVC stub. See Fig. 11. Some areas may re-

quire an adapter to connect to either galvanized steel or

copper pipe. For these applications, install a field-supplied

threaded PVC adapter.

NOTE: A trap must be installed in the condensate drain line

to ensure that the static pressure of fans is balanced with the

water column in the drain line and that condensate can drain

completely from pan. Without a trap, air can be drawn up

drain line until water level in condensate pan becomes equal

to static pressure created by fans, preventing complete drain-

age. Conditions will worsen as filters become dirty.

Install clean-out plugs in trap. Pitch drain line downward

to an open floor drain or sump. Provide service clearance

around drain line to permit removal of unit panels. Observe

all local sanitary codes.

As shipped, the unit’s condensate drain pan is NOT sloped

towards the drain connection. The pan slope must be changed

to pitch towards the side of the unit with the drain con-

nection. See Fig. 11. Loosen the 2 screws next to the drain

outlet at both ends of the unit, push drain pan down in

the slots near the drain connection, and up in the slots

on the opposite end. Retighten screws. The pan should

have a pitch of at least

1

⁄

4

-in. over its length toward the drain

connection.

Fan Motors and Drives — Motor and drive pack-

ages are factory installed in all units. The standard motor

and drive packages consist of the following items:

1 — fan motor

1 — adjustable motor pulley

1 — fan pulley

1 —fan belt (40RM007-016, 40RMQ008-016, 40RMS

008-016 units)

2 —matched fan belts (40RM024-034, 40RMS024-034

units)

For instructions on changing fan rotation, changing drive

speeds and adjusting drives, see Pulley and Drive Adjust-

ment in the Service section.

NOTE: Dimensions in [ ] are in millimeters.

Fig. 10 — Condensate Drains

Fig. 11 — Drain Pan Slope Adjustment

18

Power Supply and Wiring — Check the unit data

plate to ensure that available power supply matches electri-

cal characteristics of the unit. Provide a disconnect switch of

size required to provide adequate fan motor starting current.

See Tables4-6forunit electrical data.

Install disconnect switch and power wiring in accordance

with all applicable local codes. See Fig. 12-14 and the unit

label diagram. For units with motor sizes less than 5 Hp

(3.7 kW), connect power wiring to unit with no. 10 ring ter-

minal. For units with motor sizes of 5 Hp (3.7 kW) or more,

connect power wiring with

1

⁄

4

-in. ring terminal.

The 40RM, 40RMQ and 40RMS size 007-016 units (ex-

cept 40RM016 with YC or WD option) that have motors wired

for 460-v, 3-ph, 60 Hz operation can be field-converted to

230-v, 3-ph, 60 Hz operation. Rewire the motor according to

the diagram plate on the motor. After reconfiguring the mo-

tor, place the sticker specifying 230-v operation (supplied in

installation packet) over the 460-v sticker on the units cor-

ner post.

Fan motors are factory installed on all units. Indoor-fan

contactors are located in the fan contactor box behind the

side access panel (see Fig. 12 and 13). Wire the thermostat

to the 24-v control circuit terminal block located in the side

of the fan contactor control box, according to Fig. 14 or the

unit label diagram. If the air handler is part of a split system,

complete the wiring from the condensing unit to the ther-

mostat shown in Fig. 14.

FAN

CONTACTOR

BOX

CONDENSATE

DRAIN

CONNECTION

(HORIZONTAL)

WIRING

ACCESS

COIL

REFRIGERANT/

CHILLED WATER

PIPING ACCESS

CONDENSATE

DRAIN

CONNECTION

(VERTICAL)

MOTOR

AND DRIVE

FAN SCROLL

FILTER

ELEMENTS

FILTER

RETAINER

CLIP

TXV BULB

ACCESS

FAN DRIVE

PULLEY

TXV — Thermostatic Expansion Valve

Fig. 12 — Wiring and Service Access

(Side Panel Removed)

23

22

21

13

12

11

105°C 600V RJ AW

FAN

CONTACTOR

24V

TERMINAL

BLOCK

POWER

WIRING

KNOCKOUT

Fig. 13 — Fan Contactor Box and Terminal Block

(Cover Removed) (Typical)

19

Table 4 — Electrical Data, Standard Motors

UNIT V*-PH-HZ VOLTAGE

LIMITS

FAN MOTOR POWER SUPPLY

Hp FLA Minimum

Circuit Amps MOCP

40RM

007

208/230-1-60 187-253 1.3 7.6 9.5 15

208/230-3-60 187-253 2.4 5.8 7.3 15

460-3-60 414-528 2.4 2.6 3.3 15

575-3-60 518-632 1.0 1.35 1.7 15

230-3-50 207-253 2.4 5.8 7.3 15

400-3-50 360-440 2.4 2.6 3.3 15

40RM

40RMQ

40RMS

008

208/230-1-60 187-253 2.4 11.0 13.8 20

208/230-3-60 187-253 2.4 5.8 7.3 15

460-3-60 414-528 2.4 2.6 3.3 15

575-3-60 518-632 2.0 2.4 3.0 15

230-3-50 207-253 2.4 5.8 7.3 15

400-3-50 360-440 2.4 2.6 3.3 15

40RMS

010

208/230-1-60 187-253 2.4 11.0 13.8 20

208/230-3-60 187-253 2.4 5.8 7.3 15

460-3-60 414-528 2.4 2.6 3.3 15

575-3-60 518-632 2.0 2.4 3.0 15

230-3-50 207-253 2.4 5.8 7.3 15

400-3-50 360-440 2.4 2.6 3.3 15

40RM

40RMQ

40RMS

012

208/230-3-60 187-253 2.4 5.8 7.3 15

460-3-60 414-528 2.4 2.6 3.3 15

575-3-60 518-632 2.0 2.4 3.0 15

230-3-50 207-253 2.9 7.5 9.4 15

400-3-50 360-440 2.9 3.4 4.3 15

40RM

40RMS

014

208/230-3-60 187-253 2.9 7.5 9.4 15

460-3-60 414-528 2.9 3.4 4.3 15

575-3-60 518-632 3.0 3.8 4.8 15

230-3-50 207-253 2.9 7.5 9.4 15

400-3-50 360-440 2.9 3.4 4.3 15

40RM

40RMQ

40RMS

016

208/230-3-60 187-253 3.7 10.6 13.3 20

460-3-60 414-528 3.7 4.8 6.0 15

575-3-60 518-632 3.0 3.8 4.8 15

230-3-50 207-253 2.9 7.5 9.4 15

400-3-50 360-440 2.9 3.4 4.3 15

40RM

40RMS

024

208/230-3-60 187-253 5.0 15.2/14.4 19.0/18.0 30/30

460-3-60 414-528 5.0 7.2 9.0 15

575-3-60 518-632 5.0 5.6 7.0 15

230-3-50 207-253 5.0 14.4 18.0 30

400-3-50 360-440 5.0 7.2 9.0 15

40RM

40RMS

028

208/230-3-60 187-253 7.5 22.0/21.0 27.5/26.3 45/45

460-3-60 414-528 7.5 10.5 13.1 20

575-3-60 518-632 7.5 7.6 9.5 15

230-3-50 207-253 7.5 21.0 26.3 45

400-3-50 360-440 7.5 10.5 13.1 20

40RM

40RMS

034

208/230-3-60 187-253 10.0 26.4/25.0 33.0/31.3 55/55

460-3-60 414-528 10.0 12.5 15.6 25

575-3-60 518-632 10.0 9.6 12.0 20

230-3-50 207-253 10.0 25.0 31.3 55

440-3-50 360-440 10.0 12.5 15.6 25

See Legend and Notes on page 21.

20

Table 5 — Electrical Data, Alternate Motors

UNIT V*-PH-HZ VOLTAGE

LIMITS

FAN MOTOR POWER SUPPLY

Hp FLA Minimum

Circuit Amps MOCP

40RM

007

208/230-1-60 187-253 2.4 11.0 13.8 20

208/230-3-60 187-253 2.9 7.5 9.4 15

460-3-60 414-528 2.9 3.4 4.3 15

575-3-60 518-632 2.0 2.4 3.0 15

40RM

40RMQ

40RMS

008

208/230-3-60 187-253 2.9 7.5 9.4 15

460-3-60 414-528 2.9 3.4 4.3 15

575-3-60 518-632 3.0 3.8 4.8 15

230-3-50 207-253 2.9 7.5 9.4 15

400-3-50 360-440 2.9 3.4 4.3 15

40RMS

010

208/230-3-60 187-253 2.9 7.5 9.4 15

460-3-60 414-528 2.9 3.4 4.3 15

575-3-60 518-632 3.0 3.8 4.8 15

230-3-50 207-253 2.9 7.5 9.4 15

400-3-50 360-440 2.9 3.4 4.3 15

40RM

40RMQ

40RMS

012

208/230-3-60 187-253 3.7 10.6 13.3 20

460-3-60 414-528 3.7 4.8 6.0 15

575-3-60 518-632 3.0 3.8 4.8 15

230-3-50 207-253 5.0 14.4 18.0 30

400-3-50 360-440 5.0 7.2 9.0 15

40RM

40RMS

014

208/230-3-60 187-253 3.7 10.6 13.3 20

460-3-60 414-528 3.7 4.8 6.0 15

575-3-60 518-632 5.0 5.6 7.0 15

230-3-50 207-253 5.0 14.4 18.0 30

400-3-50 360-440 5.0 7.2 9.0 15

40RM

40RMQ

40RMS

016

208/230-3-60 187-253 5.0 15.2/14.4 19.9/18.0 30/30

460-3-60 414-528 5.0 7.2 9.0 15

575-3-60 518-632 5.0 5.6 7.0 15

230-3-50 207-253 5.0 14.4 18.0 30

400-3-50 360-440 5.0 7.2 9.0 15

40RM

40RMS

024

208/230-3-60 187-253 7.5 22.0/21.0 27.5/26.3 45/45

460-3-60 414-528 7.5 10.5 13.1 20

575-3-60 518-632 7.5 7.6 9.5 15

230-3-50 207-253 7.5 21.0 26.3 45

400-3-50 360-440 7.5 10.5 13.1 20

40RM

40RMS

028

208/230-3-60 187-253 10.0 26.4/25.0 33.0/31.3 55/55

460-3-60 414-528 10.0 12.5 15.6 25

575-3-60 518-632 10.0 9.6 12.0 20

230-3-50 207-253 10.0 25.0 31.3 55

400-3-50 360-440 10.0 12.5 15.6 25

LEGEND

FLA — Full Load Amps

MOCP — Maximum Overcurrent Protection

*Motors are designed for satisfactory operation within 10% of nomi-

nal voltages shown. Voltages should not exceed the limits shown in

the Voltage Limits column.

NOTES:

1. Minimum Circuit Amp and MOCP values are calculated in

accordance with NEC (National Electrical Code) (U.S.A. stand-

ard), Article 440.

2. Motor FLA values are established in accordance with UL (Under-

writers’ Laboratories) Standard 1995 (U.S.A. standard).

3. Unbalanced 3-Phase Supply Voltage

Never operate a motor where a phase imbalance in supply volt-

age is greater than 2%.

Use the following formula to determine

the percentage of voltage imbalance.

% Voltage Imbalance

max voltage deviation from average voltage

= 100 x average voltage

EXAMPLE: Supply voltage is 400-3-50.

AB = 393 v

BC = 403 v

AC = 396 v 393 + 403 + 396

Average Voltage = 3

1192

=3

= 397

Determine maximum deviation from average voltage.

(AB) 397 − 393 = 4 v

(BC) 403 − 397 = 6 v

(AC) 397 − 396 = 1 v

Maximum deviation is 6 v.

Determine percent voltage imbalance.

6

% Voltage Imbalance = 100 x 397

= 1.5%

This amount of phase imbalance is satisfactory as it is below the

maximum allowable 2%.

IMPORTANT: If the supply voltage phase imbalance is more than

2%, contact your local electric utility company immediately.

21

Table 6 — Fan Contactor Coil Data

UNIT

40RM, 40RMQ

40RMS

VOLTAGE

(vac)

MAXIMUM

HOLDING

VA

007-034 24 10

Connecting Ductwork — Refer to the Carrier Sys-

tem Design Manual for the recommended design and layout

of ductwork. Figure 15 shows recommended duct connec-

tion to units with 2 fans.

DISCHARGE CONNECTIONS — Duct flanges are factory

supplied; they are shipped inside the unit attached to the hair-

pin end of the coil tube sheet for field installation. Using the

existing screws, install the duct flanges on the unit’s fan deck.

Each fan discharge requires 2 flanges; each flange must be

bent in the middle to conform to the discharge opening. See

Fig. 16. After flanges are installed, connect them to the sup-

ply duct using a canvas connection to prevent vibration. It is

important that this connection be properly fabricated to pre-

vent high air friction losses and air noise.

RETURN CONNECTION — When using return-air duct-

work, route return-air duct to the unit’s return air inlet near

the filter rack, using a canvas connection to prevent trans-

mission of unit vibration. If the duct blocks off the unit’s

access panel, provide a slip joint in the ductwork to permit

removal for servicing.

OUTDOOR-AIR INLET CONNECTION — Connect outdoor-

air inlet to field-installed accessory economizer. Refer to econo-

mizer Installation Instructions.

Return-Air Filters — Type and size of filters are

shown in Tables 1A-1F and are factory-supplied and in-

stalled. In all units with 2 fans, a filter replacement tool (hook)

is shipped inside the unit for field use when replacing filters.

See the Service section for instructions on filter element

replacement.

Fig. 14 — Unit Wiring

LEGEND

CB — Circuit Breaker

HC — Heating Contactor

HTR — Electric Heater

IFC — Indoor-Fan Contactor

IFM — Indoor-Fan Motor

NEC — National Electrical Code

TB — Terminal Block

T’STAT — Thermostat

Factory Wiring

Field Control Wiring

NOTE: Use copper conductors only.

Fig. 15 — Typical Fan Discharge Connections

for Multiple Fan Units

596 22

→

START-UP

Before starting unit, check the following and correct as

necessary:

• Is unit solidly supported?

• Is fan adjusted for speed and pulley alignment?

• Are pulleys, motor, and bearings securely mounted?

• Are there any loose parts that will rattle or vibrate?

• Is condensate drain pan pitched for correct drainage?

• Are coil baffle plates tight against coil to prevent air

bypass?

• Are all panels securely fastened?

• Are all electrical connections correct and tight?

Also refer to condensing unit instructions before starting

a split system. A split system start-up checklist is provided

in the back of these instructions.

SERVICE

Inspection and maintenance should be performed at

regular intervals and should include the following:

• Complete cleaning of cabinet, fan wheel, cooling coil, con-

densate pan and drain, heating coils, and return-air grille

(if present).

• Inspection of panels and sealing of unit against air

leakage.

• Adjustment of fan motor, belt, bearings, and wheels.

• Cleaning or replacement of filters.

• Testing for cooling/heating system leaks.

• Checking of all electrical connections.

Most unit service can be performed by removing one or

both of the unit’s side panels. Coil cleaning or removal or

insulation cleaning may require removal of a rear, top, or

bottom panel, depending on the unit’s orientation. When serv-

ice is completed, replace unit panels.

Panels — Panels are fastened to unit frame with sheet

metal screws. Fan and coil compartment must be sealed tightly

after service to prevent air from bypassing the cooling coil.

Fan Motor Lubrication — Fan motor supplied with

unit is permanently lubricated and requires no further

lubrication.

Fan Shaft Bearings — Bearings on 007-012 size units

are sealed, permanently lubricated bearings that require no

further lubrication. Size 014-034 units have pillow-block bear-

ings (Fig. 17) that must be lubricated with suitable bearing

grease approximately every 3 months. See Table 7 for suit-

able lubricants.

Table 7 — Lubricant Data

MANUFACTURER LUBRICANT

Sunoco Prestige 42

Texaco Multifak 2

Texaco Regal AFB-2*

Mobil Mobilplex EP No. 2

*Preferred lubricant because it contains rust and oxidation

inhibitors.

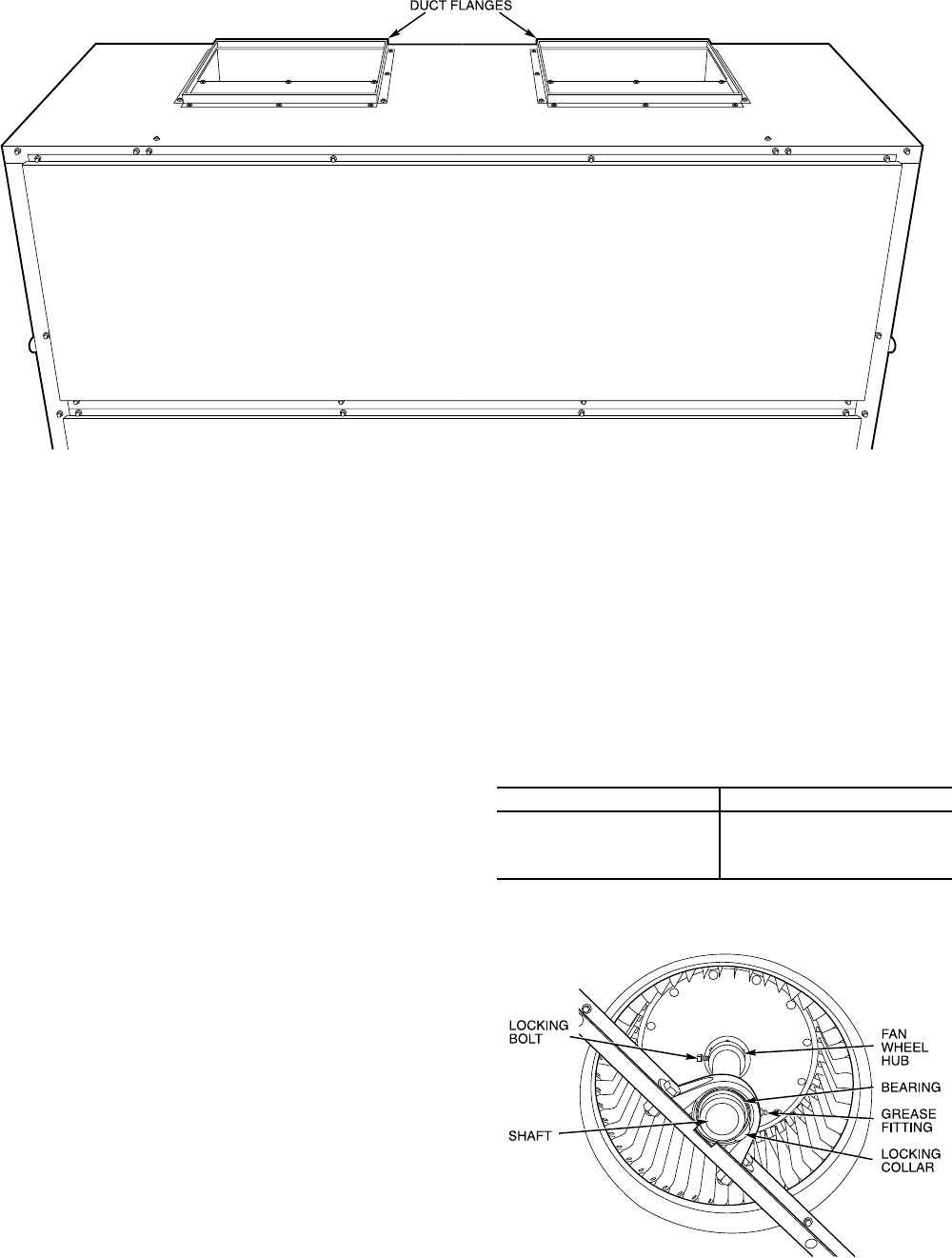

Fig. 16 — Duct Flange Installation

Fig. 17 — Fan Shaft, Bearings, and Fan Wheel

(Typical)

23

Centering Fan Wheel — If fan and fan shaft assem-

bly are not properly centered, blades may scrape against scroll

or may create an objectionable whistling noise. It may be

necessary to adjust individual fan wheels or move entire fan

shaft. See the following two sections.

Fan Shaft Position Adjustment — Loosen set-

screw or locking collar of each fan shaft bearing. Slide shaft

into correct position and replace locking collar (Fig. 18). To

replace locking collar, push collar up against inner face of

bearing. Turn collar in direction of fan rotation until tight,

and tighten setscrew. Tightening locking collar in direction

of fan rotation results in further tightening of collar should

setscrew work itself loose.

Individual Fan Wheel Adjustment — Loosen the

2 locking bolts holding fan wheel hub to shaft. See Fig. 17.

Position fan wheel in center of the fan housing and tighten

locking bolts. Clearance between wheel and housing should

be the same on both sides.

Fan Belts — Motor mounting plate and motor support

angles are slotted to permit both vertical and horizontal

adjustment. Adjust belt(s) for correct deflection by loosen-

ing motor plate mounting bolts, moving motor/plate assem-

bly forward or back, and retightening bolts. Press down on

belt with one finger midway between fan and motor pulleys

to check deflection. For units with motor sizes up to and

including 3.7 Hp (2.76 kW), correct deflection is

3

⁄

16

-in.

(4.8 mm) For larger motor sizes, correct deflection is

1

⁄

8

-in.

(3.2 mm). See Fig. 19.

NOTE: The 028 and 034 size units with 60 Hz motors are

shipped with an extra set of matching belts. Use the pre-

installed belts or extra belts depending on the adjustable

pulley setting.

If complete belt replacement is required during serv-

icing, loosen the motor plate mounting bolts (Fig. 19), move

motor/plate assembly towards fan pulley, and pull belt(s) off

pulleys. Reverse the procedure with new bolts and readjust

deflection.

Fan Rotation — Correct fan rotation with respect to

fan outlet is shown in Fig. 20.

To reverse the direction of rotation of a 3-phase fan mo-

tor, reverse any 2 of the power leads. Refer to the connection

diagram on the inside of motor terminal box cover for proper

reversing procedure of single-phase motor.

Fig. 18 — Fan Shaft Bearing

Fig. 19 — Fan Motor Mounting

24

Fan Pulley Alignment — Align as follows:

1. Loosen setscrews on pulleys.

2. Align pulleys visually and tighten setscrews on fan pul-

ley to lock it in place.

3. Use the methods shown in Fig. 21 to check proper pulley

alignment.

4. If pulleys are not in correct alignment, loosen the motor

holddown bolts and slide the motor axially until the pul-

leys are aligned.

5. Tighten motor holddown bolts.

Pulley and Drive Adjustment — To obtain desired

fan speed, refer to the fan motor and drive data in

Tables 8A-10D and adjust fan motor pulley as follows:

1. Remove belt from fan motor pulley after loosening mo-

tor from motor base.

2. Loosen setscrew in moveable flange of pulley. Screw move-

able flange toward fixed flange to increase the fan speed

and away from fixed flange to reduce speed. Before tight-

ening setscrew, make certain that setscrew is over nearest

flat surface of pulley hub (Fig. 21).

Increasing fan speed produces a greater load on mo-

tor. Do not exceed rated capacity of motor.

Condensate Drains — Keep condensate drains free of

dirt and foreign matter.

Return-Air Filters — Refer to Replacing Filters sec-

tion, page 39, for filter accessibility and removal. Replace

with clean filters of the sizes listed in Tables 1A-1F.

Chilled Water Coil Freeze Protection — Shut off

water supply to unit. Remove side panel of unit and remove

vent and drain plugs in top and bottom of coil header. Drain

coil and blow out remaining water. Reinstall plugs and side

panel.

Alternative freeze protection methods follow:

• Circulate hot water within the water coil’s supply main or

supplementary space heating.

• Close off supply lines to unit and open a union or field-

supplied drain valve in the return line.

IMPORTANT: Draining from return line will not

completely drain water from coils.

After draining as much water as possible from coils, add

sufficient antifreeze to prevent residual water in the coil

from freezing.

• Add a sufficient quantity of non-corrosive antifreeze to the

entire system to prevent all water within the system from

freezing.

Coil Removal — Remove unit panels and corner posts

as required. Disconnect coil connections and remove fasten-

ing screws. Remove coil through end or side sections of unit.

Cleaning Cooling Coil — Remove return-air filters.

Remove any heavy dirt that may have accumulated on un-

derside of coil. Coil can be cleaned more easily with a stiff

brush, vacuum cleaner, or compressed air when coil is dry.

If coil is wet or if water is to be used for cleaning, guard

against splashing water on electrical components or dam-

aging surrounding area. Clean coil baffles as applicable and

check for tight fit to be sure air does not bypass coil.

Cleaning Insulation — The insulation contains an

immobilized antimicrobial agent that helps prevent the

growth of bacteria and fungi. Clean the inner surface of the

insulation according to the separate maintenance instruc-

tions shipped with the unit.

Fig. 20 — Fan Rotation

Fig. 21 — Fan Pulley Adjustments

25

Table 8A — Fan Motor Data, Standard Motor — English

UNIT 40RM

007

40RM

40RMQ

40RMS

008

40RMS

010

40RM

40RMQ

40RMS

012

40RM

40RMS

014

40RM

40RMQ

40RMS

016

40RM

40RMS

024

40RM

40RMS

028

40RM

40RMS

034

208/230-1-60

Speed (rpm) 1725 1725 1725 — — — — — —

Hp 1.3 2.4 2.4 — — — — — —

Frame (NEMA) 56Y 56Y 56Y — — — — — —

Shaft Dia (in.)

5

⁄

85

⁄

85

⁄

8

——————

208/230-3-60 and 460-3-60

Speed (rpm) 1725 1725 1725 1725 1725 1725 1745 1745 1745

Hp 2.4 2.4 2.4 2.4 2.9 3.7 5.0 7.5 10.0

Frame (NEMA) 56Y 56Y 56Y 56Y 56Y 56Y S184T S213T S215T

Shaft Dia (in.)

5

⁄

85

⁄

85

⁄

85

⁄

87

⁄

87

⁄

8

1

1

⁄

8

1

3

⁄

8

1

3

⁄

8

575-3-60

Speed (rpm) 1725 1725 1725 1725 1725 1725 1745 1755 1755

Hp 1.0 2.0 2.0 2.0 3.0 3.0 5.0 7.5 10.0

Frame (NEMA) 56 56HZ 56HZ 56HZ 56HZ 56HZ 184T S213T D215T

Shaft Dia (in.)

5

⁄

87

⁄

87

⁄

87

⁄

87

⁄

87

⁄

8

1

1

⁄

8

1

3

⁄

8

1

3

⁄

8

230-3-50 and 400-3-50

Speed (rpm) 1425 1425 1425 1425 1425 1425 1425 1425 1425

Hp 2.4 2.4 2.4 2.9 2.9 2.9 5.0 7.5 10.0

Frame (NEMA) 56Y 56Y 56Y 56Y 56Y 56Y 184T S213T S215T

Shaft Dia (in.)

5

⁄

85

⁄

85

⁄

87

⁄

87

⁄

87

⁄

8

1

1

⁄

8

1

3

⁄

8

1

3

⁄

8

NEMA — National Electrical Manufacturers Association

Table 8B — Fan Motor Data, Alternate Motor — English

UNIT 40RM

007

40RM

40RMQ

40RMS

008

40RMS

010

40RM

40RMQ

40RMS

012

40RM

40RMS

014

40RM

40RMQ

40RMS

016

40RM

40RMS

024

40RM

40RMS

028

208/230-1-60

Speed (rpm) 1725 ———————

Hp 2.4———————

Frame (NEMA) 56Y———————

Shaft Dia (in.)

5

⁄

8

———————

208/230-3-60 and 460-3-60

Speed (rpm) 1725 1725 1725 1725 1725 1725 1745 1745

Hp 2.9 2.9 2.9 3.7 3.7 5.0 7.5 10.0

Frame (NEMA) 56Y 56Y 56Y Y56Y Y56Y S184T S213T S215T

Shaft Dia (in.)

7

⁄

87

⁄

87

⁄

87

⁄

87

⁄

8

1

1

⁄

8

1

3

⁄

8

1

3

⁄

8

575-3-60

Speed (rpm) 1725 1725 1725 1725 1745 1745 1755 1750

Hp 2.0 3.0 3.0 3.0 5.0 5.0 7.5 10.0

Frame (NEMA) 56HZ 56HZ 56HZ 56HZ 184T 184T S213T D215T

Shaft Dia (in.)

7

⁄

87

⁄

87

⁄

87

⁄

8

1

1

⁄

8

1

1

⁄

8

1

3

⁄

8

1

3

⁄

8

230-3-50 and 400-3-50

Speed (rpm) — 1425 1425 1425 1425 1425 1425 1425

Hp — 2.9 2.9 5.0 5.0 5.0 7.5 10.0

Frame (NEMA) — 56Y 56Y S184T S184T S184T S213T S215T

Shaft Dia (in.) —

7

⁄

87

⁄

87

⁄

8

1

1

⁄

8

1

1

⁄

8

1

3

⁄

8

1

3

⁄

8

NEMA — National Electrical Manufacturers Association

26

Table 8C — Fan Motor Data, Standard Motor — SI

UNIT 40RM

007

40RM

40RMQ

40RMS

008

40RMS

010

40RM

40RMQ

40RMS

012

40RM

40RMS

014

40RM

40RMQ

40RMS

016

40RM

40RMS

024

40RM

40RMS

028

40RM

40RMS

034

208/230-1-60

Speed (r/s) 28.75 28.75 28.75 — — — — — —

Shaft kW 0.97 1.79 1.79 — — — — — —

Frame (NEMA) 56Y 56Y 56Y — — — — — —

Shaft Dia (mm) 15.9 15.9 15.9 — — — — — —

208/230-3-60 and 460-3-60

Speed (r/s) 28.75 28.75 28.75 28.75 28.75 28.75 29.08 29.08 29.08

Shaft kW 1.79 1.79 1.79 1.79 2.16 2.76 3.73 5.60 7.46

Frame (NEMA) 56Y 56Y 56Y 56Y 56Y 56Y S184T S213T S215T

Shaft Dia (mm) 15.9 15.9 15.9 15.9 22.2 22.2 28.6 34.9 34.9

575-3-60

Speed (r/s) 28.75 28.75 28.75 28.75 28.75 28.75 29.08 29.25 29.25

Shaft kW 0.746 1.49 1.49 1.49 2.24 2.24 3.73 5.60 7.46

Frame (NEMA) 56 56HZ 56HZ 56HZ 56HZ 56HZ 184T S213T S215T

Shaft Dia (mm) 15.9 22.2 22.2 22.2 22.2 22.2 28.6 34.9 34.9

230-3-50 and 400-3-50

Speed (r/s) 23.75 23.75 23.75 23.75 23.75 23.75 23.75 23.75 23.75

Shaft kW 1.79 1.79 1.79 2.16 2.16 2.16 3.73 5.60 7.46

Frame (NEMA) 56Y 56Y 56Y 56Y 56Y 56Y 184T S213T S215T

Shaft Dia (mm) 15.9 15.9 15.9 22.2 22.2 22.2 28.6 34.9 34.9

NEMA — National Electrical Manufacturers Association

Table 8D — Fan Motor Data, Alternate Motor — SI

UNIT 40RM

007

40RM

40RMQ

40RMS

008

40RMS

010

40RM

40RMQ

40RMS

012

40RM

40RMS

014

40RM

40RMQ

40RMS

016

40RM

40RMS

024

40RM

40RMS

028

208/230-1-60

Speed (r/s) 28.75 — — — — — — —

Shaft kW 1.79 — — — — — — —

Frame (NEMA) 56Y———————

Shaft Dia (mm) 15.9 — — — — — — —

208/230-3-60 and 460-3-60

Speed (r/s) 28.75 28.75 28.75 28.75 28.75 29.08 29.08 29.17

Shaft kW 2.16 2.16 2.16 2.76 2.76 3.73 5.60 7.46

Frame (NEMA) 56Y 56Y 56Y Y56Y Y56Y S184T S213T S215T

Shaft Dia (mm) 22.2 22.2 22.2 22.2 22.2 28.6 34.9 34.9

575-3-60

Speed (r/s) 28.75 28.75 28.75 28.75 29.08 29.08 29.25 29.17

Shaft kW 1.49 2.24 2.24 2.24 3.73 3.73 5.60 7.46

Frame (NEMA) 56HZ 56HZ 56HZ 56HZ 184T 184T S213T D215T

Shaft Dia (mm) 22.2 22.2 22.2 22.2 28.6 28.6 34.9 34.9

230-3-50 and 400-3-50

Speed (r/s) — 23.75 23.75 23.75 23.75 23.75 23.75 23.75

Shaft kW — 2.16 2.16 3.73 3.73 3.73 5.60 7.46

Frame (NEMA) — 56Y 56Y S184T S184T S184T S213T S215T

Shaft Dia (mm) — 22.2 22.2 22.2 28.6 28.6 34.9 34.9

NEMA — National Electrical Manufacturers Association

27

Table 9A — Standard Drive Data, 60 Hz — English

UNIT 40RM

007

40RM

40RMQ

40RMS

008

40RMS

010

40RM

40RMQ

40RMS

012

40RM

40RMS

014

40RM

40RMQ

40RMS

016

40RM

40RMS

024

40RM

40RMS

028

40RM

40RMS

034

MOTOR DRIVE

Motor Pulley Pitch Diameter

(in.) 2.4-3.4 2.8-3.8 2.8-3.8 3.4-4.4 2.8-3.8 2.8-3.8 3.7-4.7 4.3-5.3 4.3-5.3

Pulley Factory Setting

Full Turns Open 2.5 2.5 2.5 2.5 2.5 2.5 3.0 3.0 3.0

FAN DRIVE

Pulley Pitch Dia (in.) 8.8 8.8 8.8 8.8 9.0 9.0 9.4 11.0 11.0

Pulley Bore (in.) 11111

7

⁄

16

1

7

⁄

16

1

7

⁄

16

1

15

⁄

16

1

15

⁄

16

Belt No. — Section 1—A 1—A 1—A 1—A 1—A 1—A 2—B 2—B* 2—B*

Belt Pitch (in.) 40.3 41.3 41.3 42.3 42.3 42.3 41.8 (2) 42.8

(2) 43.8 (2) 42.8

(2) 43.8

FAN SPEEDS (rpm)

Factory Setting 568 647 647 764 632 632 771 752 752

Range 470-666 549-745 549-745 666-863 537-728 537-728 679-863 682-841 674-831

Max Allowable Speed (rpm) 1200 1200 1200 1200 1200 1200 1200 1100 1100

Change per

1

⁄

2

Turn of

Moveable Motor Pulley

Flange 19.6 19.6 19.6 19.7 19.1 19.1 15.3 13.1 13.1

MAX FULL TURNS FROM

CLOSED POSITION 555555666

SHAFTS CENTER DISTANCE

(in.) 10.44-

12.32 10.44-

12.32 10.44-

12.32 10.44-

12.32 10.44-

12.32 10.44-

12.32 9.12-

10.99 6.67-

9.43 6.67-

9.43

*Four belts shipped with unit. Use correct set of 2 belts sized according to the pulley setting.

Table 9B — Medium-Static Drive Data, 60 Hz — English

UNIT 40RM

007

40RM

40RMQ

40RMS

008

40RMS

010

40RM

40RMQ

40RMS

012

40RM

40RMS

014

40RM

40RMQ

40RMS

016

40RM

40RMS

024

40RM

40RMS

028

40RM

40RMS

034

MOTOR DRIVE

Motor Pulley Pitch Diameter

(in.) 3.4-4.4 3.4-4.4 3.4-4.4 3.4-4.4 3.4-4.4 3.7-4.7 4.3-5.3 4.3-5.3 4.3-5.3

Pulley Factory Setting

Full Turns Open 2.5 2.5 2.5 2.5 2.5 3.0 3.0 3.0 3.0

FAN DRIVE

Pulley Pitch Dia (in.) 8.8 8.0 8.0 8.0 8.2 8.6 9.4 9.4 9.4

Pulley Bore (in.) 11111

7

⁄

16

1

7

⁄

16

1

7

⁄

16

1

15

⁄

16

1

15

⁄

16

Belt No. — Section 1—A 1—A 1—A 1—A 1—A 1—B 2—B 2—B* 2—B*

Belt Pitch (in.) 42.3 40.3 40.3 40.3 41.3 41.8 41.8 (2) 38.8

(2) 39.8 (2) 38.8

(2) 39.8

FAN SPEEDS (rpm)

Factory Setting 764 841 841 841 820 842 881 881 881

Range 666-863 733-949 733-949 733-949 715-926 742-943 798-984 798-984 798-984

Max Allowable Speed (rpm) 1200 1200 1200 1200 1200 1200 1200 1100 1100

Change per

1

⁄

2

Turn of

Moveable Motor Pulley

Flange 19.7 21.6 21.6 21.6 21.1 16.7 15.3 15.3 15.3

MAX FULL TURNS FROM

CLOSED POSITION 555556666

SHAFTS CENTER DISTANCE

(in.) 10.44-

12.32 10.44-

12.32 10.44-

12.32 10.44-

12.32 10.44-

12.32 10.44-

12.32 9.16-

10.99 6.67-

9.43 6.67-

9.43

*Four belts shipped with unit. Use correct set of 2 belts sized according to the pulley setting.

28

Table 9C — High-Static Drive Data, 60 Hz — English

UNIT 40RM

007

40RM

40RMQ

40RMS

008

40RMS

010

40RM

40RMQ

40RMS

012

40RM

40RMS

014

40RM

40RMQ

40RMS

016

40RM

40RMS

024

40RM

40RMS

028

40RM

40RMS

034

MOTOR DRIVE

Motor Pulley Pitch Diameter

(in.) 3.4-4.4 3.4-4.4 3.4-4.4 3.4-4.4 3.7-4.7 4.3-5.3 4.3-5.3 4.3-5.3 4.3-5.3

Pulley Factory Setting

Full Turns Open 2.5 2.5 2.5 2.5 3.0 3.0 3.0 3.0 3.0

FAN DRIVE

Pulley Pitch Dia (in.) 7.0 6.0* 6.0 6.0 7.4 7.9 7.4 8.6 8.6

Pulley Bore (in.) 11111

7

⁄

16

1

7

⁄

16

1

7

⁄

16

1

15

⁄

16

1

15

⁄

16

Belt No. — Section 1—A 1—A 1—A 1—A 1—B 1—B 2—B 2—B 2—B

Belt Pitch (in.) 41.3 37.3 37.3 37.3 39.8 39.8 36.8 37.8 37.8

FAN SPEEDS (rpm)

Factory Setting 961 1121 1121 1121 979 1060 1118 1024 1024

Range 838-

1084 978-

1200*† 978-

1200† 978-

1200† 873-

1096 950-

1171 1014-

1200† 873-

1075 873-

1075

Max Allowable Speed (rpm) 1200 1200 1200 1200 1200 1200 1200 — —

Change per

1

⁄

2

Turn of

Moveable Motor Pulley

Flange 24.6 28.7 28.7 28.7 19.4 18.4 19.4 16.7 16.7

MAX FULL TURNS FROM

CLOSED POSITION 555566666

SHAFTS CENTER DISTANCE

(in.) 10.44-

12.32 10.44-

12.32 10.44-

12.32 10.44-

12.32 10.44-

12.32** 9.16-

10.99 8.16-

10.02 6.67-

9.43 6.67-

9.43

*Valves for 3-phase motor shown. For single-phase motor, pulley pitch diameter is 7 in.

and resulting fan speed is 837-1096 rpm.

†It is possible to adjust drive so that fan speed exceeds maximum allowable. DO NOT

exceed 1200 rpm.

**575-v unit has a center distance of 9.16-10.99.

Table 9D — Standard Drive Data, 50 Hz — English

UNIT 40RM

007

40RM

40RMQ

40RMS

008

40RMS

010

40RM

40RMQ

40RMS

012

40RM

40RMS

014

40RM

40RMQ

40RMS

016

40RM

40RMS

024

40RM

40RMS

028

40RM

40RMS

034

MOTOR DRIVE

Motor Pulley Pitch Diameter

(in.) 2.4-3.4 2.8-3.8 2.8-3.8 3.4-4.4 3.4-4.4 3.4-4.4 4.3-5.3 4.3-5.3 4.3-5.3

Pulley Factory Setting

Full Turns Open 2.5 2.5 2.5 2.5 2.5 2.5 3.0 3.0 3.0

FAN DRIVE

Pulley Pitch Dia (in.) 8.0 8.0 8.0 8.0 9.0 9.0 8.6 11.0 11.0

Pulley Bore (in.) 11111

7

⁄

16

1

7

⁄

16

1

7

⁄

16

1

15

⁄

16

1

15

⁄

16

Belt No. — Section 1—A 1—A 1—A 1—A 1—A 1—A 1—B 2—B 2—B

Belt Pitch (in.) 39.3 39.3 39.3 40.3 42.3 42.3 41.8 43.8 43.8

FAN SPEEDS (rpm)

Factory Setting 517 588 588 695 618 618 795 622 622

Range 428-606 499-677 449-677 606-784 538-697 538-697 713-878 557-687 557-687

Max Allowable Speed (rpm) 1200 1200 1200 1200 1200 1200 1200 1100 1100

Change per

1

⁄

2

Turn of

Moveable Motor Pulley

Flange 17.8 17.8 17.8 17.8 15.9 15.9 13.8 10.8 10.8

MAX FULL TURNS FROM

CLOSED POSITION 555555666

SHAFTS CENTER DISTANCE

(in.) 10.44-

12.32 10.44-

12.32 10.44-

12.32 10.44-

12.32 10.44-

12.32 10.44-

12.32 9.12-

10.99 6.67-

9.43 6.67-

9.43

29

Table 9E — Medium-Static Drive Data, 50 Hz — English

UNIT 40RM

007

40RM

40RMQ

40RMS

008

40RMS

010

40RM

40RMQ

40RMS

012

40RM

40RMS

014

40RM

40RMQ

40RMS

016

40RM

40RMS

024

40RM

40RMS

028

40RM

40RMS

034

MOTOR DRIVE

Motor Pulley Pitch Diameter

(in.) 3.4-4.4 3.4-4.4 3.4-4.4 3.4-4.4 3.4-4.4 3.7-4.7 4.0-5.0 4.3-5.3 4.3-5.3

Pulley Factory Setting

Full Turns Open 2.5 2.5 2.5 2.5 2.5 3.0 2.5 3.0 3.0

FAN DRIVE

Pulley Pitch Dia (in.) 8.0 7.0 7.0 6.0 7.5 7.9 7.0 9.4 9.4

Pulley Bore (in.) 111 11

7

⁄

16

1

7

⁄

16

1

7

⁄

16

1

15

⁄

16

1

15

⁄

16

Belt No. — Section 1—A 1—A 1—A 1—A 1—A 1—B 2—A 2—B 2—B

Belt Pitch (in.) 40.3 41.3 41.3 37.3 39.3 39.8 36.8 39.8 39.8

FAN SPEEDS (rpm)

Factory Setting 695 794 794 926 741 756 916 728 728

Range 606-784 692-896 692-896 808-1045 646-836 667-848 814-1018 652-803 652-803

Max Allowable Speed (rpm) 1200 1200 1200 1200 1200 1200 1200 1100 1100

Change per

1

⁄

2

Turn of

Moveable Motor Pulley

Flange 17.8 20.4 20.4 23.7 19.0 15.1 20.4 12.6 12.6

MAX FULL TURNS FROM

CLOSED POSITION 555556566

SHAFTS CENTER DISTANCE

(in.) 10.44-

12.32 10.44-

12.32 10.44-

12.32 10.44-

12.32 10.44-

12.32 9.16-

10.99 9.16-

10.99 6.67-

9.43 6.67-

9.43

Table 9F — High-Static Drive Data, 50 Hz — English

UNIT 40RM

007

40RM

40RMQ

40RMS

008

40RMS

010

40RM

40RMQ

40RMS

012

40RM

40RMS

014

40RM

40RMQ

40RMS

016

40RM

40RMS

024

40RM

40RMS

028

40RM

40RMS

034

MOTOR DRIVE

Motor Pulley Pitch Diameter

(in.) 3.4-4.4 3.4-4.4 3.4-4.4 4.0-5.0 3.4-4.4 4.0-5.0 4.0-5.0 4.3-5.3 4.3-5.3

Pulley Factory Setting

Full Turns Open 2.5 2.5 2.5 3.0 2.5 3.0 3.0 3.0 3.0

FAN DRIVE

Pulley Pitch Dia (in.) 6.0 5.5 5.5 5.5 6.0 7.0 6.4 8.0 8.6

Pulley Bore (in.) 11111

7

⁄

16

1

7

⁄

16

1

7

⁄

16

1

15

⁄

16

1

15

⁄

16

Belt No. — Section 1—A 1—A 1—A 1—A 2—A 2—A 2—A 2—B 2—B

Belt Pitch (in.) 37.3 37.3 37.3 36.3 36.3 39.3 34.3 36.8 37.8

FAN SPEEDS (rpm)

Factory Setting 926 1010 1010 1166 926 916 1002 855 795

Range 808-

1045 881-

1140 881-

1140 1036-

1200* 808-

1045 814-

1018 891-

1113 766-

944 713-

878

Max Allowable Speed (rpm) 1200 1200 1200 1200 1200 1200 1200 1100 1100

Change per

1

⁄

2

Turn of

Moveable Motor Pulley

Flange 23.7 25.9 25.9 21.6 23.7 17.0 18.5 14.8 13.8

MAX FULL TURNS FROM

CLOSED POSITION 555656666

SHAFTS CENTER DISTANCE

(in.) 10.44-

12.32 10.44-

12.32 10.44-

12.32 916-

10.99 9.16-

10.99 9.16-

10.99 8.16-

10.02 6.67-

9.43 6.67-

9.43

*It is possible to adjust drive so that fan speed exceeds maximum allowable. DO NOT

exceed 1200 rpm.

30

Table 9G — Standard Drive Data, 60 Hz — SI

UNIT 40RM

007

40RM

40RMQ

40RMS

008

40RMS

010

40RM

40RMQ

40RMS

012

40RM

40RMS

014

40RM

40RMQ

40RMS

016

40RM

40RMS

024

40RM

40RMS

028

40RM

40RMS

034

MOTOR DRIVE

Motor Pulley Pitch Diameter

(mm) 61.0-

86.4 71.1-

96.5 71.1-

96.5 86.4-

111.8 71.1-

96.5 71.1-

96.5 94.0-

119.4 109.2-

134.6 109.2-

134.6

Pulley Factory Setting

Full Turns Open 2.5 2.5 2.5 2.5 2.5 2.5 3.0 3.0 3.0

FAN DRIVE

Pulley Pitch Dia (mm) 224 224 224 224 229 229 239 279 279

Pulley Bore (mm) 25.4 25.4 25.4 25.4 36.5 36.5 36.5 49.2 49.2

Belt No. — Section 1—A 1—A 1—A 1—A 1—A 1—A 2—B 2—B* 2—B*

Belt Pitch (mm) 1024 1049 1049 1074 1074 1074 1062 (2) 1087

(2) 1113 (2) 1087

(2) 1113

FAN SPEEDS (r/s)

Factory Setting 9.5 10.8 10.8 12.7 10.5 10.5 12.9 12.5 12.5

Range 7.8-11.1 9.2-12.4 9.2-12.4 11.1-14.4 9.0-12.1 9.0-12.1 11.3-14.4 11.4-14.0 11.2-13.9

Max Allowable Speed (r/s) 20.0 20.0 20.0 20.0 20.0 20.0 20.0 18.3 18.3

Change per

1

⁄

2

Turn of

Moveable Motor Pulley

Flange 0.327 0.327 0.327 0.328 0.318 0.318 0.255 0.218 0.218

MAX FULL TURNS FROM

CLOSED POSITION 555555666

SHAFTS CENTER DISTANCE

(mm) 265-313 265-313 265-313 265-313 265-313 265-313 232-279 169-240 169-240

*Four belts shipped with unit. Use correct set of 2 belts sized according to the pulley setting.

Table 9H — Medium-Static Drive Data, 60 Hz — SI

UNIT 40RM

007

40RM

40RMQ

40RMS

008

40RMS

010

40RM

40RMQ

40RMS

012

40RM

40RMS

014

40RM

40RMQ

40RMS

016

40RM

40RMS

024

40RM

40RMS

028

40RM

40RMS

034

MOTOR DRIVE

Motor Pulley Pitch Diameter

(mm) 86.4-

111.8 86.4-

111.8 86.4-

111.8 86.4-

111.8 86.4-

111.8 94.0-

119.4 109.2-

134.6 109.2-

134.6 109.2-

134.6

Pulley Factory Setting

Full Turns Open 2.5 2.5 2.5 2.5 2.5 3.0 3.0 3.0 3.0

FAN DRIVE

Pulley Pitch Dia (mm) 224 203 203 203 208 218 239 239 239

Pulley Bore (mm) 25.4 25.4 25.4 25.4 36.5 36.5 36.5 49.2 49.2

Belt No. — Section 1—A 1—A 1—A 1—A 1—A 1—B 2—B 2—B* 2—B*

Belt Pitch (mm) 1074 1024 1024 1024 1049 1062 1062 (2) 986

(2) 1011 (2) 986

(2) 1011

FAN SPEEDS (r/s)

Factory Setting 12.7 14.0 14.0 14.0 13.7 14.0 14.7 14.7 14.7

Range 11.1-

14.4 12.2-

15.8 12.2-

15.8 12.2-

15.8 11.9-

15.4 12.4-

15.7 13.3-

16.4 13.3-

16.4 13.3-

16.4

Max Allowable Speed (r/s) 20.0 20.0 20.0 20.0 20.0 20.0 20.0 18.3 18.3

Change per

1

⁄

2

Turn of

Moveable Motor Pulley

Flange 0.328 0.360 0.360 0.360 0.352 0.278 0.255 0.255 0.255

MAX FULL TURNS FROM

CLOSED POSITION 555556666

SHAFTS CENTER DISTANCE

(mm) 265-313 265-313 265-313 265-313 265-313 265-313 232-279 169-240 169-240

*Four belts shipped with unit. Use correct set of 2 belts sized according to the pulley setting.

31

Table 9I — High-Static Drive Data, 60 Hz — SI

UNIT 40RM

007

40RM

40RMQ

40RMS

008

40RMS

010

40RM

40RMQ

40RMS

012

40RM

40RMS

014

40RM

40RMQ

40RMS

016

40RM

40RMS

024

40RM

40RMS

028

40RM

40RMS

034

MOTOR DRIVE

Motor Pulley Pitch Diameter

(mm) 86.4-

111.8 86.4-

111.8 86.4-

111.8 86.4-

111.8 94.0-

119.4 109.2

134.6 109.2-

134.6 109.2-

134.6 109.2-

134.6

Pulley Factory Setting

Full Turns Open 2.5 2.5 2.5 2.5 3.0 3.0 3.0 3.0 3.0

FAN DRIVE

Pulley Pitch Dia (mm) 178 152* 152 152 188 201 188 203 203

Pulley Bore (mm) 25.4 25.4 25.4 25.4 36.5 36.5 36.5 49.2 49.2

Belt No. — Section 1—A 1—A 1—A 1—A 1—B 1—B 2—B 2—B 2—B

Belt Pitch (mm) 1049 947 947 947 1011 1011 935 935 960

FAN SPEEDS (r/s)

Factory Setting 16.0 18.7 18.7 18.7 16.3 17.7 18.6 17.1 17.1

Range 14.0-

18.1 16.3-

20.0*† 16.3-

20.0† 16.3-

20.0† 14.4-

18.3 15.8-

19.5 16.9-

20.0† 14.6-

17.9 14.6-

17.9

Max Allowable Speed (r/s) 20.0 20.0 20.0 20.0 20.0 20.0 20.0 18.3 18.3

Change per

1

⁄

2

Turn of

Moveable Motor Pulley

Flange 0.410 0.478 0.478 0.478 0.323 0.307 0.323 0.278 0.278

MAX FULL TURNS FROM

CLOSED POSITION 5555 6 6666

SHAFTS CENTER DISTANCE

(mm) 265-313 265-313 265-313 265-313 265-313** 232-279 207-255 169-240 169-240

*Values for 3-phase motor shown. For single-phase motor, pulley pitch diameter is 178 mm and

resulting fan speed is 14.0-18.3 r/s.

†It is possible to adjust drive so that fan speed exceeds maximum allowable. DO NOT exceed

20 r/s.

**575-v unit has a center distance of 233-279.

Table 9J — Standard Drive Data, 50 Hz — SI

UNIT 40RM

007

40RM

40RMQ

40RMS

008

40RMS

010

40RM

40RMQ

40RMS

012

40RM

40RMS

014

40RM

40RMQ

40RMS

016

40RM

40RMS

024

40RM

40RMS

028

40RM

40RMS

034

MOTOR DRIVE

Motor Pulley Pitch Diameter

(mm) 61.0-

86.4 71.1-

96.5 71.1-

96.5 86.4-

111.8 86.4-

111.8 86.4-

111.8 109.2-

134.6 109.2-

134.6 109.2-

134.6

Pulley Factory Setting

Full Turns Open 2.5 2.5 2.5 2.5 2.5 2.5 3.0 3.0 3.0

FAN DRIVE

Pulley Pitch Dia (mm) 203 203 203 203 229 229 218 279 279

Pulley Bore (mm) 25.4 25.4 25.4 25.4 36.5 36.5 36.5 49.2 49.2

Belt No. — Section 1—A 1—A 1—A 1—A 1—A 1—A 1—B 2—B 2—B

Belt Pitch (mm) 998 998 998 1024 1074 1074 1062 1113 1113

FAN SPEEDS (r/s)

Factory Setting 8.6 9.8 9.8 11.6 10.3 10.3 13.3 10.4 10.4

Range 7.1-

10.1 8.3-

11.3 8.3-

11.3 10.1-

13.1 9.0-

11.6 9.0-

11.6 11.9-

14.6 9.3-

11.5 9.3-

11.5

Max Allowable Speed (r/s) 20.0 20.0 20.0 20.0 20.0 20.0 20.0 18.3 18.3

Change per

1

⁄

2

Turn of

Moveable Motor Pulley

Flange 0.297 0.297 0.297 0.297 0.265 0.265 0.230 0.180 0.180

MAX FULL TURNS FROM

CLOSED POSITION 555555666

SHAFTS CENTER DISTANCE

(mm) 265-313 265-313 265-313 265-313 265-313 265-313 232-279 169-240 169-240

32

Table 9K — Medium-Static Drive Data, 50 Hz — SI

UNIT 40RM

007

40RM

40RMQ

40RMS

008

40RMS

010

40RM

40RMQ

40RMS

012

40RM

40RMS

014

40RM

40RMQ

40RMS

016

40RM

40RMS

024

40RM

40RMS

028

40RM

40RMS

034

MOTOR DRIVE

Motor Pulley Pitch Diameter

(mm) 86.4-

111.8 86.4-

111.8 86.4-

111.8 86.4-

111.8 86.4-

111.8 94.0-

119.4 101.6-

127.0 109.2-

134.6 109.2-

134.6

Pulley Factory Setting

Full Turns Open 2.5 2.5 2.5 2.5 2.5 3.0 2.5 3.0 3.0

FAN DRIVE

Pulley Pitch Dia (mm) 203 178 178 152 191 201 178 239 239

Pulley Bore (mm) 25.4 25.4 25.4 25.4 36.5 36.5 36.5 49.2 49.2

Belt No. — Section 1—A 1—A 1—A 1—A 1—A 1—B 2—A 2—B 2—B

Belt Pitch (mm) 1024 1049 1049 947 998 1011 922 1011 1011

FAN SPEEDS (r/s)

Factory Setting 11.6 13.2 13.2 15.4 12.4 12.6 15.3 12.1 12.1

Range 10.1-

13.1 11.5-

14.9 11.5-

14.9 13.5-

17.4 10.8-

13.9 11.1-

14.1 13.6-

17.0 10.9-

13.4 10.9-

13.4

Max Allowable Speed (r/s) 20.0 20.0 20.0 20.0 20.0 20.0 20.0 18.3 18.3

Change per

1

⁄

2

Turn of

Moveable Motor Pulley

Flange 0.297 0.340 0.340 0.395 0.317 0.252 0.340 0.210 0.210

MAX FULL TURNS FROM

CLOSED POSITION 555556566

SHAFTS CENTER DISTANCE

(mm) 265-313 265-313 265-313 265-313 265-313 232-279 232-279 169-240 169-240

Table 9L — High-Static Drive Data, 50 Hz — SI

UNIT 40RM

007

40RM

40RMQ

40RMS

008

40RMS

010

40RM

40RMQ

40RMS

012

40RM

40RMS

014

40RM

40RMQ

40RMS

016

40RM

40RMS

024

40RM

40RMS

028

40RM

40RMS

034

MOTOR DRIVE

Motor Pulley Pitch Diameter

(mm) 86.4-

111.8 86.4-

111.8 86.4-

111.8 101.6-

127.0 86.4-

111.8 101.6-

127.0 101.6-

127.0 109.2-

134.6 109.2-

134.6

Pulley Factory Setting

Full Turns Open 2.5 2.5 2.5 3.0 2.5 3.0 3.0 3.0 3.0

FAN DRIVE

Pulley Pitch Dia (mm) 152 140 140 140 152 178 163 203 218

Pulley Bore (mm) 25.4 25.4 25.4 25.4 36.5 36.5 36.5 49.2 49.2

Belt No. — Section 1—A 1—A 1—A 1—A 2—A 2—A 2—A 2—B 2—B

Belt Pitch (mm) 947 947 947 922 922 998 871 935 960

FAN SPEEDS (r/s)

Factory Setting 15.4 16.8 16.8 19.4 15.4 15.3 16.7 14.3 13.3

Range 13.5-

17.4 14.7-

19.0 14.7-

19.0 17.3-

20.0* 13.5-

17.4 13.6-

17.0 14.9-

18.6 12.8-

15.7 11.9-

14.6

Max Allowable Speed (r/s) 20.0 20.0 20.0 20.0 20.0 20.0 20.0 18.3 18.3

Change per

1

⁄

2

Turn of

Moveable Motor Pulley

Flange 0.395 0.432 0.432 0.360 0.395 0.283 0.308 0.247 0.230

MAX FULL TURNS FROM

CLOSED POSITION 555656666

SHAFTS CENTER DISTANCE

(mm) 265-313 265-313 265-313 234-279 232-279 232-279 207-255 169-240 169-240

*It is possible to adjust drive so that fan speed exceeds maximum allowable. DO NOT

exceed 20 r/s.

33

Table 10A — Fan Performance Data — 0.0-1.2 in. wg ESP — English

UNIT AIRFLOW

(Cfm)

EXTERNAL STATIC PRESSURE (in. wg)

0.0 0.2 0.4 0.6 0.8 1.0 1.2

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

40RM

007

1,800 320 0.22 442 0.32 534 0.42 611 0.52 678 0.61 739 0.70 795 0.80

2,100 373 0.31 483 0.42 569 0.53 642 0.63 708 0.73 767 0.82 821 0.92

2,400 427 0.42 526 0.53 606 0.64 676 0.75 739 0.86 796 0.96 849 1.06

2,700 480 0.54 570 0.67 646 0.78 712 0.89 773 1.00 828 1.11 880 1.21

3,000 533 0.69 616 0.82 687 0.94 750 1.05 808 1.16 862 1.28 912 1.39

40RM

40RMQ

40RMS

008

2,250 359 0.32 472 0.44 560 0.55 634 0.65 700 0.75 759 0.86 814 0.96

2,600 415 0.45 516 0.57 599 0.68 669 0.79 732 0.90 790 1.01 843 1.11

3,000 478 0.62 569 0.75 645 0.86 712 0.98 773 1.09 828 1.20 879 1.32

3,400 542 0.82 624 0.95 695 1.08 758 1.20 815 1.31 869 1.43 918 1.55

3,750 598 1.03 673 1.17 740 1.29 800 1.42 855 1.60 906 1.66 954 1.78

40RMS

010

2,550 396 0.42 502 0.54 586 0.65 658 0.76 722 0.87 780 0.97 833 1.08

2,975 462 0.60 556 0.72 634 0.84 701 0.95 762 1.06 818 1.18 870 1.29

3,400 527 0.80 612 0.93 684 1.06 748 1.18 806 1.30 860 1.41 910 1.53

3,825 593 1.05 670 1.18 737 1.31 797 1.44 852 1.56 904 1.68 952 1.80

4,250 659 1.33 729 1.47 791 1.60 848 1.73 901 1.86 950 1.98 997 2.11

40RM

40RMS

012

3,000 444 0.58 541 0.71 621 0.83 691 0.94 753 1.05 809 1.17 862 1.28

3,500 518 0.82 604 0.95 677 1.08 742 1.20 801 1.32 855 1.44 906 1.56

4,000 592 1.11 669 1.25 736 1.38 797 1.51 853 1.63 904 1.75 953 1.88

4,500 666 1.44 735 1.59 797 1.72 854 1.86 907 1.99 956 2.12 1003 2.24

5,000 740 1.83 803 1.98 861 2.12 914 2.26 964 2.39 1010 2.53 1055 2.66

40RMQ

012

3,000 471 0.61 564 0.74 642 0.86 710 0.97 771 1.09 827 1.20 878 1.31

3,500 550 0.87 632 1.00 703 1.13 766 1.25 824 1.37 877 1.49 926 1.60

4,000 628 1.17 701 1.31 766 1.44 825 1.57 879 1.69 930 1.82 978 1.94

4,500 706 1.53 772 1.67 832 1.81 887 1.94 938 2.07 987 2.20 1032 2.33

5,000 785 1.93 845 2.08 900 2.22 952 2.36 1000 2.50 1045 2.63 1089 2.76

40RM

40RMS

014

3,750 363 0.37 475 0.58 566 0.80 645 1.02 715 1.24 779 1.47 839 1.69

4,300 416 0.53 517 0.78 601 1.02 676 1.26 743 1.50 805 1.74 862 1.99

5,000 484 0.81 573 1.08 650 1.35 719 1.62 782 1.89 841 2.16 896 2.44

5,700 552 1.17 631 1.47 702 1.76 766 2.06 826 2.36 881 2.66 934 2.96

6,250 605 1.51 678 1.83 744 2.15 805 2.47 862 2.79 915 3.11 966 3.43

40RM

40RMS

016

4,500 391 0.51 495 0.75 581 1.00 657 1.25 725 1.50 787 1.76 845 2.02

5,300 460 0.80 551 1.08 629 1.35 700 1.63 764 1.91 823 2.20 878 2.48

6,000 521 1.13 602 1.43 675 1.73 741 2.04 801 2.34 858 2.65 911 2.96

6,800 590 1.60 663 1.93 730 2.26 791 2.59 847 2.92 901 3.26 951 3.60

7,500 651 2.10 718 2.45 779 2.81 837 3.16 890 3.52 941 3.88 990 4.24

40RMQ

016

4,500 405 0.54 507 0.79 592 1.03 667 1.28 735 1.54 797 1.80 854 2.06

5,300 476 0.85 566 1.13 643 1.40 713 1.68 776 1.97 835 2.26 890 2.55

6,000 539 1.20 620 1.50 691 1.81 756 2.11 816 2.42 872 2.73 924 3.05

6,800 611 1.69 683 2.03 748 2.36 809 2.69 865 3.03 918 3.37 968 3.71

7,500 674 2.22 740 2.58 800 2.93 857 3.29 910 3.65 960 4.02 1008 4.38

40RM

40RMS

024

6,000 503 1.07 587 1.37 661 1.67 727 1.97 789 2.28 846 2.59 900 2.90

7,000 586 1.64 660 1.98 726 2.31 787 2.65 844 2.99 898 3.33 948 3.67

8,000 670 2.37 735 2.74 795 3.12 851 3.49 904 3.86 954 4.23 1001 4.61

9,000 754 3.28 812 3.69 867 4.09 918 4.50 967 4.90 1014 5.31 1059 5.72

10,000 838 4.39 891 4.83 941 5.27 988 5.70 1034 6.14 1077 6.85 1120 7.02

40RM

40RMS

028

7,500 412 1.15 492 1.53 568 2.00 640 2.56 710 3.22 776 3.98 840 4.83

8,750 481 1.76 550 2.17 616 2.66 680 3.22 742 3.86 802 4.58 860 5.38

10,000 549 2.55 610 2.99 669 3.50 726 4.07 782 4.70 836 5.40 889 6.17

11,250 618 3.52 672 4.00 725 4.53 777 5.12 827 5.76 876 6.45 925 7.21

12,500 687 4.71 735 5.22 783 5.78 830 6.38 876 7.04 922 7.74 966 8.49

40RM

40RMS

034

9,000 471 1.78 539 2.17 604 2.63 667 3.17 728 3.78 788 4.46 845 5.22

10,500 550 2.72 608 3.15 665 3.64 720 4.18 774 4.79 827 5.45 878 6.18

12,000 628 3.93 679 4.40 730 4.92 779 5.48 827 6.09 874 6.76 921 7.47

13,500 707 5.44 752 5.94 797 6.49 841 7.08 885 7.71 928 8.38 970 9.10

15,000 785 7.27 826 7.81 867 8.39 907 9.01 947 9.66 986 10.35 1024 11.07

See Legend and Notes on page 36.

34

Table 10B — Fan Performance Data — 1.4-2.4 in. wg ESP — English

UNIT AIRFLOW

(Cfm)

EXTERNAL STATIC PRESSURE (in. wg)

1.4 1.6 1.8 2.0 2.2 2.4

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

40RM

007

1,800 847 0.89 896 0.98 942 1.07 986 1.16 1027 1.25 — —

2,100 872 1.02 920 1.11 965 1.21 1008 1.30 1050 1.40 — —

2,400 899 1.16 946 1.26 990 1.36 1033 1.46 1073 1.55 — —

2,700 928 1.32 974 1.42 1018 1.52 1059 1.63 1099 1.73 — —

3,000 959 1.49 1004 1.60 1046 1.71 1087 1.81 1126 1.92 — —

40RM

40RMQ

40RMS

008

2,250 865 1.06 913 1.16 958 1.27 1001 1.37 1042 1.47 — —

2,600 893 1.22 940 1.33 984 1.43 1027 1.54 1067 1.65 — —

3,000 928 1.43 973 1.54 1017 1.65 1058 1.76 1098 1.87 — —

3,400 965 1.66 1010 1.78 1052 1.89 1092 2.00 1131 2.12 — —

3,750 1000 1.90 1043 2.02 1084 2.13 1124 2.25 1162 2.37 — —

40RMS

010

2,550 884 1.18 931 1.29 975 1.40 1018 1.50 1059 1.61 — —

2,975 919 1.40 965 1.51 1009 1.62 1050 1.73 1090 1.84 — —

3,400 957 1.64 1002 1.76 1044 1.87 1085 1.98 1124 2.10 — —

3,825 998 1.92 1041 2.04 1082 2.16 1122 2.27 1160 2.39 — —

4,250 1041 2.23 1083 2.35 1123 2.48 1161 2.60 1199 2.72 — —

40RM

40RMS

012

3,000 911 1.39 958 1.50 1002 1.61 1044 1.72 1084 1.83 1123 1.94

3,500 953 1.67 998 1.79 1041 1.90 1082 2.02 1122 2.13 1159 2.25

4,000 999 2.00 1042 2.12 1084 2.24 1124 2.36 1162 2.48 1199 2.60

4,500 1047 2.37 1089 2.50 1129 2.62 1168 2.74 — — — —

5,000 1097 2.79 1138 2.92 1177 3.05 — — — — — —

40RMQ

012

3,000 927 1.43 973 1.54 1017 1.65 1058 1.76 1098 1.87 1137 1.98

3,500 973 1.72 1018 1.84 1060 1.95 1101 2.07 1139 2.18 1177 2.30

4,000 1023 2.06 1066 2.19 1107 2.31 1146 2.43 1184 2.55 — —

4,500 1075 2.45 1116 2.58 1156 2.71 1194 2.83 — — — —

5,000 1130 2.90 1170 3.03 — — — — — — — —

40RM

40RMS

014

3,750 894 1.91 947 2.14 996 2.37 1044 2.60 1089 2.83 — —

4,300 916 2.23 967 2.48 1016 2.73 1062 2.98 1107 3.24 — —

5,000 948 2.71 997 2.98 1044 3.26 1089 3.53 1133 3.81 — —

5,700 984 3.25 1031 3.55 1076 3.86 1120 4.16 1162 4.46 — —

6,250 1014 3.75 1060 4.07 1104 4.39 1147 4.71 1188 5.03 — —

40RM

40RMS

016

4,500 899 2.29 951 2.56 999 2.84 1046 3.12 1091 3.41 1133 3.70

5,300 930 2.78 980 3.08 1027 3.38 1072 3.68 1116 3.99 1157 4.30

6,000 961 3.28 1009 3.60 1055 3.92 1098 4.24 1141 4.57 1181 4.91

6,800 999 3.94 1045 4.28 1089 4.63 1132 4.98 1173 5.33 — —

7,500 1036 4.60 1080 4.97 1123 5.34 1164 5.71 — — — —

40RMQ

016

4,500 908 2.33 959 2.61 1008 2.89 1054 3.17 1098 3.46 1141 3.75

5,300 941 2.84 991 3.14 1038 3.45 1082 3.75 1126 4.06 1167 4.38

6,000 974 3.36 1022 3.69 1067 4.01 1111 4.34 1153 4.67 1193 5.00

6,800 1015 4.05 1061 4.40 1104 4.75 1146 5.10 1187 5.46 — —

7,500 1054 4.75 1098 5.12 1140 5.49 1181 5.86 — — — —

40RM

40RMS

024

6,000 950 3.21 999 3.53 1045 3.85 1089 4.17 1131 4.50 1172 4.83

7,000 996 4.02 1042 4.37 1086 4.72 1129 5.07 1169 5.43 — —

8,000 1047 4.99 1091 5.37 1133 5.75 1173 6.13 — — — —

9,000 1102 6.13 1143 6.54 1183 6.96 — — — — — —

10,000 1160 7.46 1200 7.91 — — — — — — — —

40RM

40RMS

028

7,500 903 5.79 963 6.83 1021 7.98 1078 9.21 — — — —

8,750 917 6.26 972 7.22 1025 8.26 1078 9.38 — — — —

10,000 941 7.01 991 7.91 1040 8.89 1089 9.93 — — — —

11,250 972 8.02 1019 8.89 1064 9.83 — — — — — —

12,500 1010 9.29 1053 10.15 1095 11.05 — — — — — —

40RM

40RMS

034

9,000 901 6.07 955 6.98 1008 7.98 1060 9.05 — — — —

10,500 928 6.98 978 7.84 1026 8.76 1073 9.74 — — — —

12,000 966 8.24 1011 9.07 1055 9.95 1098 10.88 — — — —

13,500 1011 9.86 1052 10.67 1092 11.52 — — — — — —

15,000 1062 11.84 — — — — — — — — — —

See Legend and Notes on page 36.

35

Legend and Notes for Table 10A and 10B

LEGEND

Bhp — Brake Horsepower Input to Fan

ESP — External Static Pressure

NOTES:

1. Maximum allowable fan speed is 1100 rpm for unit sizes 028 and

034; 1200 rpm for all other sizes.

2. Fan performance is based on deductions for wet coil, clean 2-in.

filters, and unit casing. See right for factory-supplied filter pres-

sure drop.

3. Refer to fan motor and drive tables for additional data.

Factory-Supplied Filter Pressure Drop — English

UNIT AIRFLOW

(Cfm) PRESSURE DROP

(in. wg)

40RM

007

1,800

2,400

3,000

0.05

0.08

0.11

40RM

40RMQ

40RMS

008

2,250

3,000

3,750

0.07

0.11

0.15

40RMS

010

2,550

3,400

4,250

0.09

0.13

0.18

40RM

40RMQ

40RMS

012

3,000

4,000

5,000

0.11

0.17

0.23

40RM

40RMS

014

3,750

5,000

6,250

0.06

0.10

0.13

40RM

40RMQ

40RMS

016

4,500

6,000

7,500

0.08

0.12

0.17

40RM

40RMS

024

6,000

8,000

10,000

0.12

0.19

0.26

40RM

40RMS

028

7,500

10,000

12,500

0.15

0.22

0.30

40RM

40RMS

034

9,000

12,000

15,000

0.19

0.29

0.40

36

Table 10C — Fan Performance Data — 0-300 Pa ESP — SI

UNIT AIRFLOW

(L/s)

EXTERNAL STATIC PRESSURE (Pa)

0 50 100 150 200 250 300

r/s kW r/s kW r/s kW r/s kW r/s kW r/s kW r/s kW

40RM

007

850 5.34 0.17 7.38 0.25 8.91 0.32 10.20 0.39 11.30 0.46 12.30 0.53 13.30 0.60

1000 6.28 0.24 8.10 0.32 9.53 0.40 10.80 0.48 11.80 0.55 12.80 0.63 13.70 0.70

1150 7.22 0.33 8.86 0.41 10.20 0.50 11.40 0.58 12.40 0.66 13.40 0.73 14.20 0.81

1300 8.17 0.43 9.64 0.52 10.90 0.61 12.00 0.69 13.00 0.77 13.90 0.85 14.80 0.93

1450 9.11 0.55 10.50 0.64 11.60 0.73 12.70 0.82 13.60 0.91 14.50 0.99 15.40 1.07

40RM

40RMQ

40RMS

008

1000 5.63 0.22 7.61 0.30 9.11 0.38 10.40 0.45 11.50 0.53 12.50 0.61 13.40 0.68

1200 6.76 0.32 8.49 0.41 9.88 0.50 11.10 0.57 12.10 0.66 13.10 0.74 14.00 0.82

1400 7.89 0.46 9.42 0.55 10.70 0.64 11.80 0.72 12.80 0.81 13.80 0.89 14.60 0.97

1600 9.01 0.62 10.40 0.71 11.60 0.80 12.60 0.89 13.60 0.98 14.50 1.07 15.30 1.16

1800 10.10 0.80 11.40 0.90 12.50 0.10 13.50 1.09 14.40 1.18 15.20 1.27 16.00 1.36

40RMS

010

1200 6.58 0.31 8.35 0.40 9.76 0.49 11.00 0.57 12.00 0.65 13.00 0.73 13.90 0.81

1400 7.67 0.44 9.25 0.54 10.60 0.63 11.70 0.71 12.70 0.80 13.60 0.88 14.50 0.96

1600 8.77 0.60 10.20 0.70 11.40 0.79 12.50 0.88 13.40 0.97 14.30 1.05 15.20 1.14

1800 9.86 0.78 11.10 0.88 12.30 0.98 13.30 1.07 14.20 1.16 15.10 1.25 15.90 1.34

2000 11.0 0.99 12.10 1.09 13.20 1.19 14.10 1.29 15.00 3.38 15.80 1.48 16.60 1.57

40RM

40RMS

012

1450 7.58 0.46 9.18 0.56 10.50 0.65 11.60 0.73 12.70 0.82 13.60 0.90 14.50 0.99

1670 8.73 0.63 10.20 0.73 11.40 0.83 12.50 0.92 13.40 1.01 14.30 1.10 15.20 1.18

1900 9.93 0.84 11.20 0.95 12.30 1.05 13.30 1.14 14.30 1.24 15.10 1.33 15.90 1.42

2120 11.10 1.08 12.20 1.18 13.30 1.29 14.20 1.39 15.10 1.48 15.90 1.58 16.70 1.68

2350 12.30 1.36 13.30 1.17 14.30 1.57 15.20 1.68 16.00 1.78 16.80 1.88 17.60 1.98

40RMQ

012

1450 8.04 0.49 9.57 0.58 10.90 0.67 12.00 0.76 13.00 0.85 13.90 0.93 14.80 1.02

1670 9.26 0.67 10.60 0.77 11.80 0.86 12.90 0.95 13.80 1.04 14.70 1.13 15.50 1.22

1900 10.50 0.89 11.80 0.99 12.80 1.09 13.80 1.19 14.70 1.28 15.60 1.38 16.40 1.47

2120 11.80 1.14 12.90 1.24 13.90 1.35 14.80 1.45 15.60 1.55 16.40 1.64 17.20 1.74

2350 13.00 1.43 14.00 1.54 15.00 1.65 15.80 1.75 16.60 1.85 17.40 1.95 18.10 2.05

40RM

40RMS

014

1750 5.99 0.27 7.88 0.43 9.41 0.59 10.70 0.75 11.90 0.92 13.00 1.08 14.00 1.25

2050 7.01 0.41 8.68 0.60 10.10 0.78 11.30 0.96 12.40 1.14 13.50 1.33 14.40 1.51

2350 8.04 0.60 9.53 0.81 10.80 1.01 12.00 1.21 13.00 1.41 14.00 1.61 14.90 1.82

2650 9.07 0.84 10.40 1.06 11.60 1.28 12.70 1.50 13.70 1.72 14.60 1.94 15.50 2.16

2950 10.10 1.13 11.30 1.37 12.40 1.61 13.40 1.85 14.40 2.08 15.30 2.32 16.10 2.56

40RM

40RMS

016

2100 6.43 0.37 8.19 0.55 9.65 0.73 10.90 0.92 12.10 1.11 13.10 1.30 14.10 1.50

2450 7.51 0.57 9.06 0.77 10.40 0.97 11.60 1.18 12.70 1.39 13.70 1.60 14.60 1.81

2800 8.58 0.82 9.96 1.05 11.20 1.27 12.30 1.49 13.30 1.72 14.30 1.95 15.10 2.18

3150 9.65 1.14 10.90 1.38 12.00 1.63 13.10 1.87 14.00 2.12 14.90 2.36 15.80 2.61

3500 10.70 1.52 11.90 1.78 12.90 2.05 13.90 2.31 14.80 2.58 15.60 2.84 16.40 3.11

40RMQ

016

2100 6.65 0.39 8.39 0.58 9.83 0.76 11.10 0.95 12.20 1.13 13.30 1.31 14.20 1.50

2450 7.76 0.60 9.30 0.81 10.60 1.01 11.80 1.22 12.90 1.43 13.80 1.63 14.80 1.84

2800 8.87 0.86 10.20 1.09 11.50 1.32 12.50 1.55 13.60 1.78 14.50 2.01 15.40 2.24

3150 9.98 1.19 11.20 1.44 12.30 1.70 13.40 1.95 14.30 2.20 15.20 2.45 16.00 2.70

3500 11.10 1.59 12.20 1.86 13.20 2.14 14.20 2.41 15.10 2.68 15.90 2.95 16.70 3.22

40RM

40RMS

024

2900 8.58 0.86 9.96 1.09 11.20 1.32 12.30 1.55 13.30 1.78 14.20 2.01 15.10 2.25

3350 9.91 1.28 11.10 1.53 12.20 1.79 13.20 2.04 14.20 2.30 15.10 2.55 15.90 2.81

3800 11.30 1.81 12.30 2.09 13.30 2.37 14.30 2.64 15.10 2.93 16.00 3.21 16.80 3.49

4250 12.60 2.46 13.60 2.76 14.50 3.07 15.30 3.37 16.10 3.67 16.90 3.98 17.70 4.28

4700 13.90 3.24 14.80 3.57 15.60 3.90 16.40 4.22 17.20 4.55 17.90 4.88 18.60 5.21

40RM

40RMS

028

3500 6.79 0.84 8.14 1.12 9.42 1.47 10.70 1.89 11.80 2.39 12.90 2.96 14.00 3.61

4100 7.95 1.29 9.12 1.60 10.20 1.96 11.30 2.38 12.40 2.86 13.40 3.40 14.30 4.00

4700 9.12 1.88 10.10 2.21 11.10 2.59 12.10 3.02 13.00 3.49 13.90 4.02 14.80 4.60

5300 10.30 2.62 11.20 3.00 12.10 3.37 12.90 3.81 13.80 4.29 14.60 4.82 15.40 5.38

5900 11.40 3.52 12.30 3.90 13.10 4.32 13.90 4.77 14.60 5.26 15.40 5.79 16.10 6.35

40RM

40RMS

034

4250 7.86 1.33 8.99 1.63 10.10 1.97 11.10 2.37 12.20 2.83 13.20 3.34 14.10 3.92

4950 9.15 2.03 10.10 2.35 11.10 2.72 12.00 3.12 12.90 3.58 13.80 4.08 14.70 4.62

5650 10.40 2.92 11.30 3.27 12.20 3.66 13.00 4.08 13.80 4.54 14.60 5.04 15.40 5.57

6350 11.70 4.02 12.50 4.40 13.30 4.81 14.00 5.25 14.70 5.72 15.50 6.23 16.20 6.77

7050 13.00 5.37 13.70 5.77 14.40 6.21 15.10 6.66 15.70 7.15 16.40 7.67 17.10 8.21

See Legend and Notes on page 39.

37

Table 10D — Fan Performance Data — 350-600 Pa ESP — SI

UNIT AIRFLOW

(L/s)

EXTERNAL STATIC PRESSURE (Pa)

350 400 450 500 550 600

r/s kW r/s kW r/s kW r/s kW r/s kW r/s kW

40RM

007

850 14.10 0.67 15.00 0.74 15.70 0.81 16.50 0.87 17.20 0.94 — —

1000 14.60 0.77 15.40 0.84 16.10 0.91 16.90 0.98 17.60 1.06 — —

1150 15.10 0.88 15.90 0.96 16.60 1.03 17.30 1.11 18.00 1.18 — —

1300 15.60 1.01 16.40 1.09 17.10 1.17 17.80 1.25 18.40 1.32 — —

1450 16.10 1.15 16.90 1.24 17.60 1.32 18.30 1.40 18.90 1.48 — —

40RM

40RMQ

40RMS

008

1000 14.30 0.76 15.10 0.83 15.80 0.91 16.60 0.99 17.30 1.06 — —

1200 14.80 0.90 15.60 0.98 16.40 1.05 17.10 1.13 17.80 1.21 — —

1400 15.40 1.06 16.20 1.14 16.90 1.22 17.60 1.30 18.30 1.39 — —

1600 16.10 1.24 16.80 1.33 17.50 1.41 18.20 1.50 18.90 1.58 — —

1800 16.80 1.45 17.50 1.54 18.20 1.63 18.90 1.72 19.50 1.80 — —

40RMS

010

1200 14.70 0.89 15.50 0.97 16.30 1.05 17.00 1.12 17.70 1.20 — —

1400 15.30 1.05 16.10 1.13 16.80 1.21 17.50 1.29 18.20 1.37 — —

1600 16.00 1.23 16.70 1.31 17.40 1.40 18.10 1.48 18.80 1.57 — —

1800 16.60 1.43 17.40 1.52 18.10 1.61 18.70 1.70 19.40 1.79 — —

2000 17.30 1.66 18.00 1.76 18.70 1.85 19.40 1.94 — — — —

40RM

40RMS

012

1450 15.30 1.07 16.10 1.15 16.80 1.24 17.50 1.32 18.20 1.40 18.80 1.48

1670 16.00 1.27 16.70 1.36 17.40 1.44 18.10 1.53 18.80 1.62 19.40 1.70

1900 16.70 1.51 17.40 1.60 18.10 1.69 18.80 1.78 19.40 1.87 — —

2120 17.50 1.77 18.20 1.86 18.80 1.96 19.50 2.05 — — — —

2350 18.30 2.07 19.00 2.17 19.60 2.27 — — — — — —

40RMQ

012

1450 15.60 1.10 16.30 1.18 17.10 1.27 17.80 1.35 18.40 1.43 19.10 1.52

1670 16.30 1.31 17.00 1.40 17.80 1.48 18.40 1.57 19.10 1.66 19.70 1.74

1900 17.10 1.56 17.80 1.65 18.50 1.74 19.20 1.83 19.80 1.92 — —

2120 17.90 1.83 18.60 1.93 19.30 2.02 19.90 2.11 — — — —

2350 18.80 2.15 19.50 2.25 — — — — — — — —

40RM

40RMS

014

1750 14.90 1.42 15.80 1.58 16.60 1.75 17.40 1.93 18.20 2.10 — —

2050 15.30 1.70 16.20 1.88 17.00 2.07 17.80 2.26 18.50 2.45 — —

2350 15.80 2.02 16.60 2.22 17.40 2.43 18.20 2.64 18.90 2.84 — —

2650 16.30 2.39 17.10 2.61 17.90 2.83 18.60 3.06 19.30 3.28 — —

2950 16.90 2.80 17.70 3.04 18.40 3.28 19.10 3.53 19.80 3.77 — —

40RM

40RMS

016

2100 15.00 1.70 15.80 1.90 16.70 2.11 17.40 2.32 18.20 2.53 18.90 2.74

2450 15.50 2.03 16.30 2.25 17.10 2.47 17.80 2.70 18.60 2.93 19.30 3.16

2800 16.00 2.42 16.80 2.66 17.60 2.90 18.30 3.14 19.00 3.38 19.70 3.63

3150 16.60 2.87 17.40 3.12 18.10 3.38 18.80 3.64 19.50 3.90 — —

3500 17.20 3.38 18.00 3.65 18.70 3.93 19.40 4.20 — — — —

40RMQ

016

2100 15.10 1.68 16.00 1.87 16.80 2.06 17.50 2.24 18.30 2.43 19.00 2.62

2450 15.60 2.05 16.40 2.25 17.20 2.46 18.00 2.67 18.70 2.88 19.40 3.09

2800 16.20 2.47 17.00 2.69 17.80 2.92 18.50 3.15 19.20 3.38 19.80 3.61

3150 16.80 2.95 17.60 3.19 18.30 3.44 19.00 3.69 19.70 3.94 — —

3500 17.50 3.49 18.20 3.76 19.00 4.03 19.60 4.30 — — — —

40RM

40RMS

024

2900 16.00 2.49 16.80 2.73 17.50 2.97 18.30 3.22 19.00 3.47 19.70 3.72

3350 16.70 3.08 17.50 3.34 18.20 3.61 18.90 3.87 19.60 4.14 — —

3800 17.50 3.77 18.20 4.06 18.90 4.35 19.60 4.64 — — — —

4250 18.40 4.59 19.10 4.90 19.80 5.21 — — — — — —

4700 19.30 5.54 20.00 5.87 — — — — — — — —

40RM

40RMS

028

3500 15.10 4.33 16.10 5.12 17.10 5.98 18.00 6.92 — — — —

4100 15.30 4.67 16.20 5.39 17.10 6.18 18.00 7.02 — — — —

4700 15.70 5.23 16.50 5.91 17.40 6.64 18.20 7.43 — — — —

5300 16.20 5.99 17.00 6.65 17.80 7.35 — — — — — —

5900 16.90 6.95 17.60 7.59 18.30 8.27 — — — — — —

40RM

40RMS

034

4250 15.00 4.55 16.00 5.24 16.80 5.99 17.70 6.79 — — — —

4950 15.50 5.22 16.30 5.86 17.10 6.56 17.90 7.30 — — — —

5650 16.10 6.16 16.90 6.77 17.60 7.43 18.30 8.13 — — — —

6350 16.90 7.34 17.50 7.94 18.20 8.58 — — — — — —

7050 17.70 8.79 18.30 9.39 — — — — — — — —

See Legend and Notes on page 39.

38

Legend and Notes for Tables 10C and 10D

LEGEND

ESP — External Static Pressure

NOTES:

1. Maximum allowable fan speed is 18.3 r/s for unit sizes 028 and

034; 20 r/s for all other sizes.

2. Fan performance is based on deductions for wet coil, clean 51-mm

filters, and unit casing. See right for factory-supplied filter pres-

sure drop.

3. Refer to fan motor and drive tables for additional data.

Factory-Supplied Filter Pressure Drop — SI

UNIT AIRFLOW

(L/s) PRESSURE DROP

(Pa)

40RM

007

850

1150

1450

13

20

28

40RM

40RMQ

40RMS

008

1000

1400

1800

17

27

38

40RMS

010

1200

1600

2000

21

32

45

40RM

40RMQ

40RMS

012

1450

1900

2350

28

42

56

40RM

40RMS

014

1750

2350

2950

15

24

33

40RM

40RMQ

40RMS

016

2100

2800

3500

20

30

42

40RM

40RMS

024

2900

3800

4700

32

47

64

40RM

40RMS

028

3500

4700

5900

36

55

76

40RM

40RMS

034

4250

5650

7050

47

71

98

Replacing Filters — Filters can be removed and in-

stalled from either side of the unit. Install new filters in units

that have one fan as follows:

1. Remove the side access panel (retain screws).

2. Remove the filter retainer clip.

3. Remove old filters by tilting them and lifting them out of

the filter track. See Fig. 12 and 22.

4. Reverse the procedure to install new filters.

To install new filters in larger units that have 2 fans, fol-

low the preceding steps, but use the factory-supplied

filter hook to slide filters within reach for removal. The

filter hook is shipped inside the unit in the baserail.

Do not operate unit without air filters.

Fig. 22 — Filter Removal/Replacement

39

Copyright 1995 Carrier Corporation

Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.

Book 1 4

Tab 3c 2e

PC 111 Catalog No. 534-053 Printed in U.S.A. Form 40RM-9SI Pg 42 596 11-95 Replaces: 40RM-1SI

START-UP CHECKLIST

(SPLIT SYSTEMS WITH 40RM/RMQ/RMS UNITS)

A. Preliminary Information

OUTDOOR: MODEL NO. SERIAL NO.

INDOOR: MODEL NO. SERIAL NO.

ADDITIONAL ACCESSORIES

B. Pre-Start-Up

OUTDOOR UNIT

IS THERE ANY SHIPPING DAMAGE? (Y/N)

IF SO, WHERE:

WILL THIS DAMAGE PREVENT UNIT START-UP? (Y/N)

CHECK POWER SUPPLY. DOES IT AGREE WITH UNIT? (Y/N)

HAS THE GROUND WIRE BEEN CONNECTED? (Y/N)

HAS THE CIRCUIT PROTECTION BEEN SIZED AND INSTALLED PROPERLY? (Y/N)

ARE THE POWER WIRES TO THE UNIT SIZED AND INSTALLED PROPERLY? (Y/N)

HAVE COMPRESSOR HOLDDOWN BOLTS BEEN LOOSENED? (Y/N)

CONTROLS

ARE THERMOSTAT(S) AND INDOOR FAN CONTROL WIRING

CONNECTIONS MADE AND CHECKED? (Y/N)

ARE ALL WIRING TERMINALS (including main power supply) TIGHT? (Y/N)

HAVE OUTDOOR UNIT CRANKCASE HEATERS BEEN ENERGIZED FOR 24 HOURS? (Y/N)

INDOOR UNIT

HAS WATER BEEN PLACED IN DRAIN PAN TO CONFIRM PROPER DRAINAGE? (Y/N)

ARE PROPER AIR FILTERS IN PLACE? (Y/N)

HAVE FAN AND MOTOR PULLEYS BEEN CHECKED FOR PROPER ALIGNMENT? (Y/N)

DO THE FAN BELTS HAVE PROPER TENSION? (Y/N)

PIPING

40RM,RMQ

ARE LIQUID LINE SOLENOID VALVES LOCATED AT THE INDOOR UNIT COILS AS REQUIRED? (Y/N)

HAVE LEAK CHECKS BEEN MADE AT COMPRESSORS, CONDENSERS, INDOOR COILS,

TXVs (Thermostatic Expansion Valves) SOLENOID VALVES, FILTER DRIERS, AND FUSIBLE PLUGS

WITH A LEAK DETECTOR? (Y/N)

LOCATE, REPAIR, AND REPORT ANY LEAKS.

HAVE ALL COMPRESSOR SERVICE VALVES BEEN FULLY OPENED (BACKSEATED)? (Y/N)

ARE THE COMPRESSOR OIL SIGHT GLASSES SHOWING CORRECT LEVELS? (Y/N)

40RMS

HAS AIR BEEN BLED FROM SYSTEM? (Y/N)

HAVE LEAK CHECKS BEEN MADE AT COMPRESSORS, CHILLERS, VALVES, AND INDOOR COILS? (Y/N)

LOCATE, REPAIR, AND REPORT ANY LEAKS.

CUT ALONG DOTTED LINE CUT ALONG DOTTED LINE

----------------------------------------------------------------------------------------

Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.

Book 1 4

Tab 3c 2e

PC 111 Catalog No. 534-053 Printed in U.S.A. Form 40RM-9SI CL-1 11-95 Replaces: 40RM-1SI

CHECK VOLTAGE IMBALANCE

LINE-TO-LINE VOLTS: AB VAC VBC V

(AB + AC + BC)/3 = AVERAGE VOLTAGE = V

MAXIMUM DEVIATION FROM AVERAGE VOLTAGE = V

VOLTAGE IMBALANCE = 100 X (MAX DEVIATION)/(AVERAGE VOLTAGE) = %

IF OVER 2% VOLTAGE IMBALANCE, DO NOT ATTEMPT TO START SYSTEM!

CALL LOCAL POWER COMPANY FOR ASSISTANCE.

C. Start-Up

CHECK EVAPORATOR FAN SPEED AND RECORD.

AFTER AT LEAST 10 MINUTES RUNNING TIME, RECORD THE FOLLOWING MEASUREMENTS:

COMP A1 COMP B1

OIL PRESSURE

SUCTION PRESSURE

SUCTION LINE TEMP

DISCHARGE PRESSURE

DISCHARGE LINE TEMP

ENTERING OUTDOOR UNIT AIR TEMP

LEAVING OUTDOOR UNIT AIR TEMP

INDOOR UNIT ENTERING AIR DB TEMP

INDOOR UNIT ENTERING AIR WB TEMP

INDOOR UNIT LEAVING AIR DB TEMP

INDOOR UNIT LEAVING AIR WB TEMP

OUTDOOR UNIT ENTERING WATER TEMP

(40RMS ONLY)

OUTDOOR UNIT LEAVING WATER TEMP

(40RMS ONLY)

INDOOR UNIT ENTERING WATER TEMP

(40RMS ONLY)

INDOOR UNIT LEAVING WATER TEMP

(40RMS ONLY)

COMPRESSOR AMPS (L1/L2/L3) / / / /

CHECK THE COMPRESSOR OIL LEVEL SIGHT GLASSES; ARE THE SIGHT GLASSES SHOWING

OIL LEVEL AT

1

⁄

8

TO

1

⁄

3

FULL? (Y/N)

NOTES:

Copyright 1995 Carrier Corporation

Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.

Book 1 4

Tab 3c 2e

PC 111 Catalog No. 534-053 Printed in U.S.A. Form 40RM-9SI CL-2 596 11-95 Replaces: 40RM-1SI
