48HJ004---007

48HE003---006

Single---Package Rooftop Heating/Cooling

Standard and Low NOx Units

Installation Instructions

CONTENTS

Page

SAFETY CONSIDERATIONS 1........................

INSTALLATION 1..................................

Step 1--Provide Unit Support 2.......................

ROOF CURB 2................................

SLAB MOUNT 2..............................

ALTERNATE UNIT SUPPORT 2.................

Step 2--Field Fabricate Ductwork 2...................

Step 3--Install External Trap for Condensate Drain 2.......

Step 4--Rig and Place Unit 2.........................

POSITIONING 4..............................

Step5—InstallFlueHood 4........................

Step 6 — Install Gas Piping 4........................

Step 7 — Make Electrical Connections 8................

FIELD POWER SUPPLY 8......................

FIELD CONTROL WIRING 8....................

HEAT ANTICIPATOR SETTINGS 8...............

Step 8 — Adjust Factory-Installed Options 17...........

COBRAENERGY RECOVERY UNITS 17.......

HUMIDI-MIZERADAPTIVE

DEHUMIDIFICATION SYSTEM 17..............

MANUAL OUTDOOR-AIR DAMPER 17..........

CONVENIENCE OUTLET 17....................

NOVAR CONTROLS 17........................

PREMIERLINKCONTROL 19.................

OPTIONAL ECONOMI$ER IV AND

ECONOMI$ER2 22............................

ECONOMI$ER IV STANDARD SENSORS 23......

ECONOMI$ER IV CONTROL MODES 24.........

Step 9 — Adjust Evaporator-Fan Speed 29..............

PRE--START--UP 45..................................

START--UP 45.......................................

SERVICE 50........................................

TROUBLESHOOTING 58.............................

START--UP CHECKLIST 63...........................

SAFETY CONSIDERATIONS

Installation and servicing of air-conditioning equipment can be

hazardous due to system pressure and electrical components.

Only trained and qualified service personnel should install, repair,

or service air-conditioning equipment.

Untrained personnel can perform basic maintenance functions of

cleaning coils and filters and replacing filters. All other operations

should be performed by trained service personnel. When working

on air-conditioning equipment, observe precautions in the

literature, tags and labels attached to the unit, and other safety

precautions that may apply.

Follow all safety codes. Wear safety glasses and work gloves. Use

quenching cloth for unbrazing operations. Have fire extinguishers

available for all brazing operations.

Recognize safety information. This is the safety--alert symbol

. When you see this symbol on the furnace and in

instructions or manuals, be alert to the potential for personal

injury.

Understand the signal words DANGER, WARNING, and

CAUTION. These words are used with the safety--alert symbol.

DANGER identifies the most serious hazards which will result in

severe personal injury or death. WARNING signifies a hazard

which could result in personal injury or death. CAUTION is used

to identify unsafe practices which may result in minor personal

injury or product and property damage. NOTE is used to

highlight suggestions which will result in enhanced installation,

reliability, or operation.

ELECTRICAL SHOCK HAZARD

Failure to follow this warning could cause personal

injury or death.

Before performing service or maintenance operations

on unit, turn off main power switch to unit and install

lockout tag. Ensure electrical service to rooftop unit

agrees with voltage and amperage listed on the unit

rating plate.

!WARNING

FIRE, EXPLOSION HAZARD

Failure to follow this warning could death and/or

property damage.

Disconnect gas piping from unit when leak testing at

pressure greater than 1/2psig. Pressures greater than 1/2

psig will cause gas valve damage resulting in hazardous

condition. If gas valve is subjected to pressure greater than

1/2psig, it must be replaced before use. When pressure

testing field-supplied gas piping at pressures of 1/2psig or

less, a unit connected to such piping must be isolated by

manually closing the gas valve(s).

!WARNING

INSTALLATION

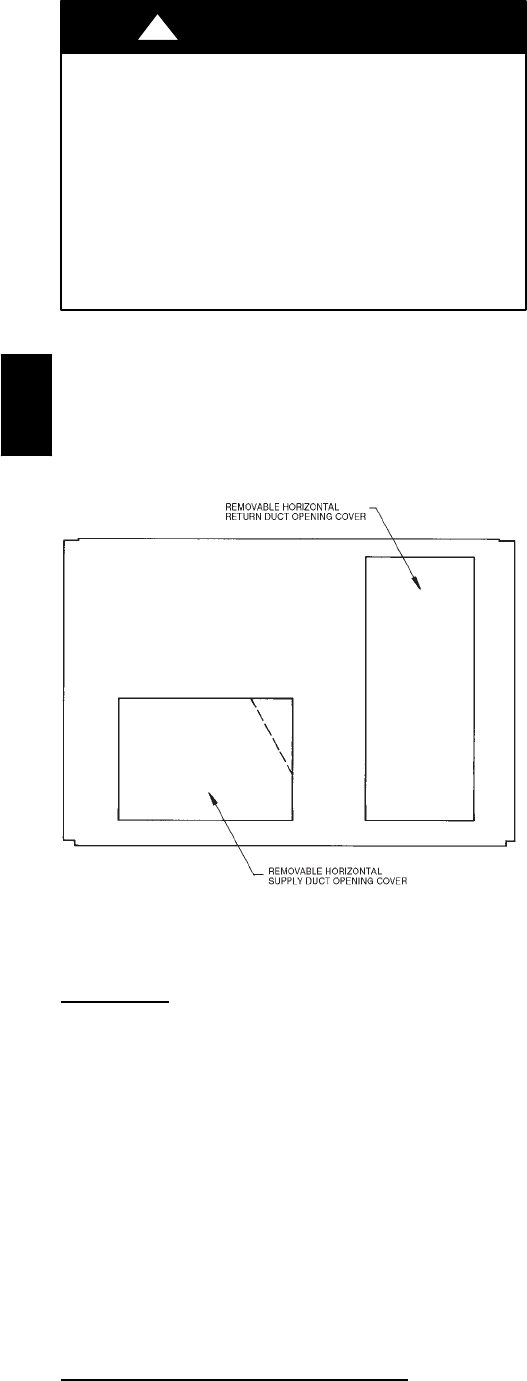

Unit is shipped in the vertical discharge configuration. To convert

to horizontal discharge application, remove duct opening covers.

Using the same screws, install covers on duct openings in

basepan of unit with insulation-side down. Seals around

openings must be tight. (See Fig. 1.)

C06108

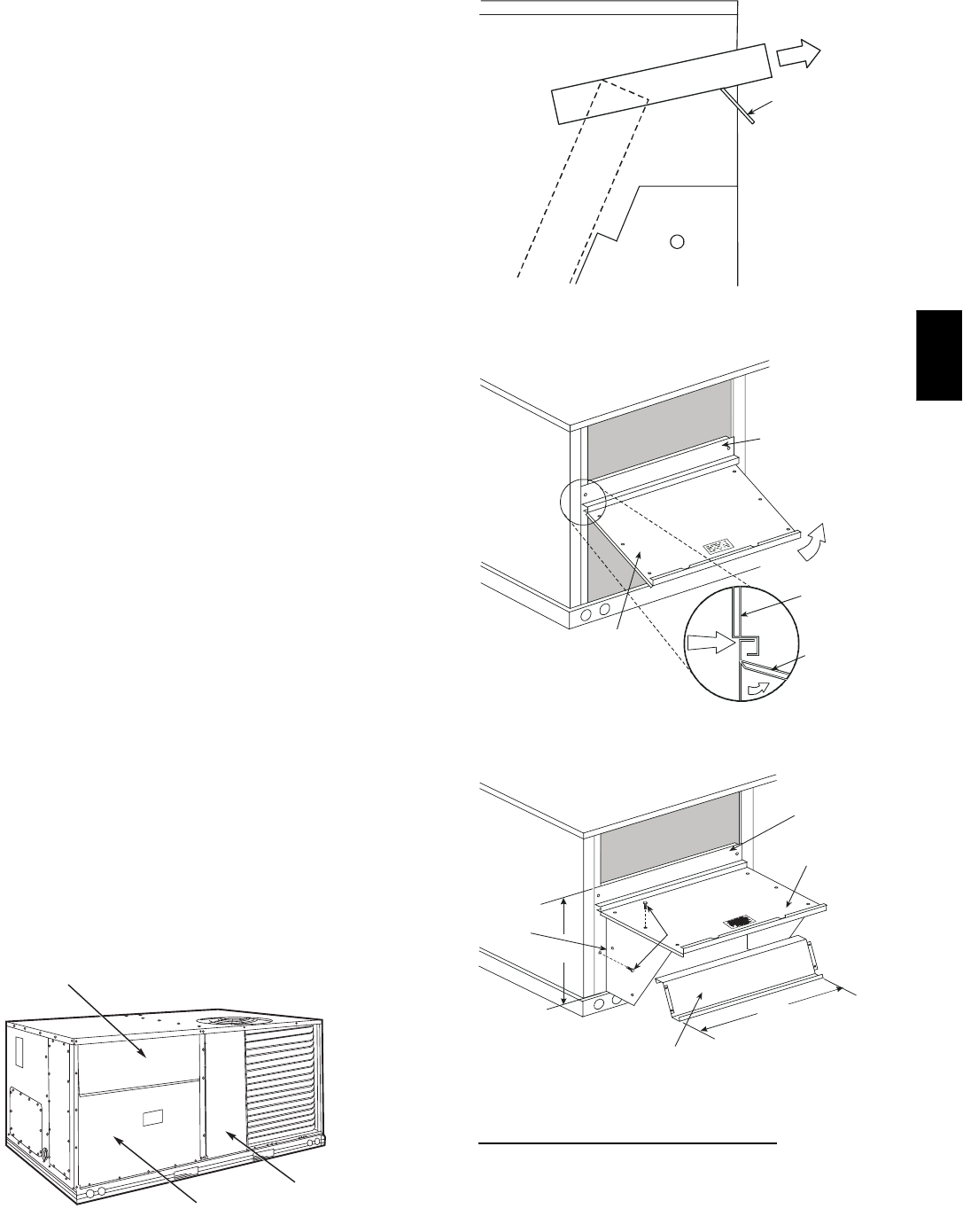

Fig. 1 --- Horizontal Conversion Panels

Step 1 —Provide Unit Support

ROOF CURB

Assemble and install accessory roof curb in accordance with

instructions shipped with curb. (See Fig. 2.) Install insulation,

cant strips, roofing felt, and counter flashing as shown. Ductwork

must be attached to curb, not to the unit. If electric control power

or gas service is to be routed through the basepan, attach the

accessory thru-the-bottom service connections to the basepan in

accordance with the accessory installation instructions.

Connections must be installed before unit is set on roof curb.

IMPORTANT: The gasketing of the unit to the roof curb is critical

for a watertight seal. Install gasket supplied with the roof curb as

shown in Fig. 2. Improperly applied gasket can result in air leaks and

poor unit performance.

Curb should be level. Unit leveling tolerances are shown in Fig.

3. This is necessary for unit drain to function properly. Refer to

Accessory Roof Curb Installation Instructions for additional

information as required.

SLAB MOUNT (Horizontal Units Only)

Provide a level concrete slab that extends a minimum of 6 in.

beyond unit cabinet. Install a gravel apron in front of

condenser-coil air inlet to prevent grass and foliage from

obstructing airflow.

NOTE: Horizontal units may be installed on a roof curb if

required.

ALTERNATE UNIT SUPPORT

When the curb or adapter cannot be used, support unit with

sleeper rails using unit curb or adapter support area. If sleeper

rails cannot be used, support the long sides of the unit with a

minimum of 3 equally spaced 4-in. x 4-in. pads on each side.

Step 2 —Field Fabricate Ductwork

Secure all ducts to roof curb and building structure on vertical

discharge units. Do not connect ductwork to unit. For horizontal

applications, field-supplied isolation flanges should be attached to

horizontal discharge openings and all ductwork should be secured

to the flanges. Insulate and weatherproof all external ductwork,

joints, and roof openings with counter flashing and mastic in

accordance with applicable codes.

Ducts passing through an unconditioned space must be insulated

and covered with a vapor barrier.

If a plenum return is used on a vertical unit, the return should be

ducted through the roof deck to comply with applicable fire

codes.

A minimum clearance is not required around ductwork. Cabinet

return-air static pressure (a negative condition) shall not exceed

0.35 in. wg with economizer or 0.45 in. wg without economizer.

These units are designed for a minimum continuous return-air

temperature in heating of 50_F (dry bulb), or an intermittent

operation down to 45_F (dry bulb), such as when used with a

night setback thermostat.

To operate at lower return-air temperatures, a field-supplied

outdoor air temperature control must be used to initiate both

stages of heat when the temperature is below 45_F. Indoor

comfort may be compromised when these lower air temperatures

are used with insufficient heating temperature rise.

Step 3 —Install External Trap for

Condensate Drain

The unit’s 3/4-in. condensate drain connections are located on the

bottom and side of the unit. Unit discharge connections do not

determine the use of drain connections; either drain connection

can be used with vertical or horizontal applications.

When using the standard side drain connection, ensure the plug

(Red) in the alternate bottom connection is tight before installing

the unit.

To use the bottom drain connection for a roof curb installation,

relocate the factory-installed plug (Red) from the bottom

connection to the side connection. The center drain plug looks

like a star connection, however it can be removed with a 1/2-in.

socket drive extension. (See Fig. 4.) The piping for the

condensate drain and external trap can be completed after the unit

is in place.

All units must have an external trap for condensate drainage.

Install a trap 4-in. deep and protect against freeze-up. If drain line

is installed downstream from the external trap, pitch the line away

from the unit at 1 in. per 10 ft of run. Do not use a pipe size

smaller than the unit connection (3/4in.). (See Fig. 5.)

Step 4 —Rig and Place Unit

Inspect unit for transportation damage, and file any claim with

transportation agency. Keep unit upright and do not drop.

Spreader bars are not required if top crating is left on unit, and

rollers may be used to move unit across a roof. Level by using

unit frame as a reference. See Table 1 and 2 and Fig. 6 for

additional information. Operating weight is shown in Table 1 and

2 and Fig. 6.

48HE,HJ

ROOF CURB

ACCESSORY AUNIT

SIZE

CRRFCURB001A01 1-2

[356]

CRRFCURB002A01 2-0

[610]

NOTES:

1. Roof curb accessory is shipped disassembled.

2. Insulated panels.

3. Dimensions in [ ] are in millimeters.

4. Roof curb: galvanized steel.

5. Attach ductwork to curb (flanges of duct rest

on curb).

6. Service clearance: 4 ft on each side.

7. Direction of airflow.

8. Connector packages CRBTMPWR001A01

and 002A01 are for thru-the-curb type gas.

Packages CRBTMPWR003A01 and 004A01

are for thru-the-bottom type gas connections.

CONNECTOR

PKG. ACCY. BC

DALT

DRAIN

HOLE

GAS POWER CONTROL ACCESSORY

POWER

CRBTMPWR001A01

1-9



[551] 1-4

[406] 1



[44.5]



[19] NPT

[19] NPT



[12.7]



[12.7]

CRBTMPWR002A01 1

[31.7]

CRBTMPWR003A01



[12.7] NPT

[19] NPT

CRBTMPWR004A01



[19] NPT 1

[31.7]

48HJ004-007

48HE003-006

C06109

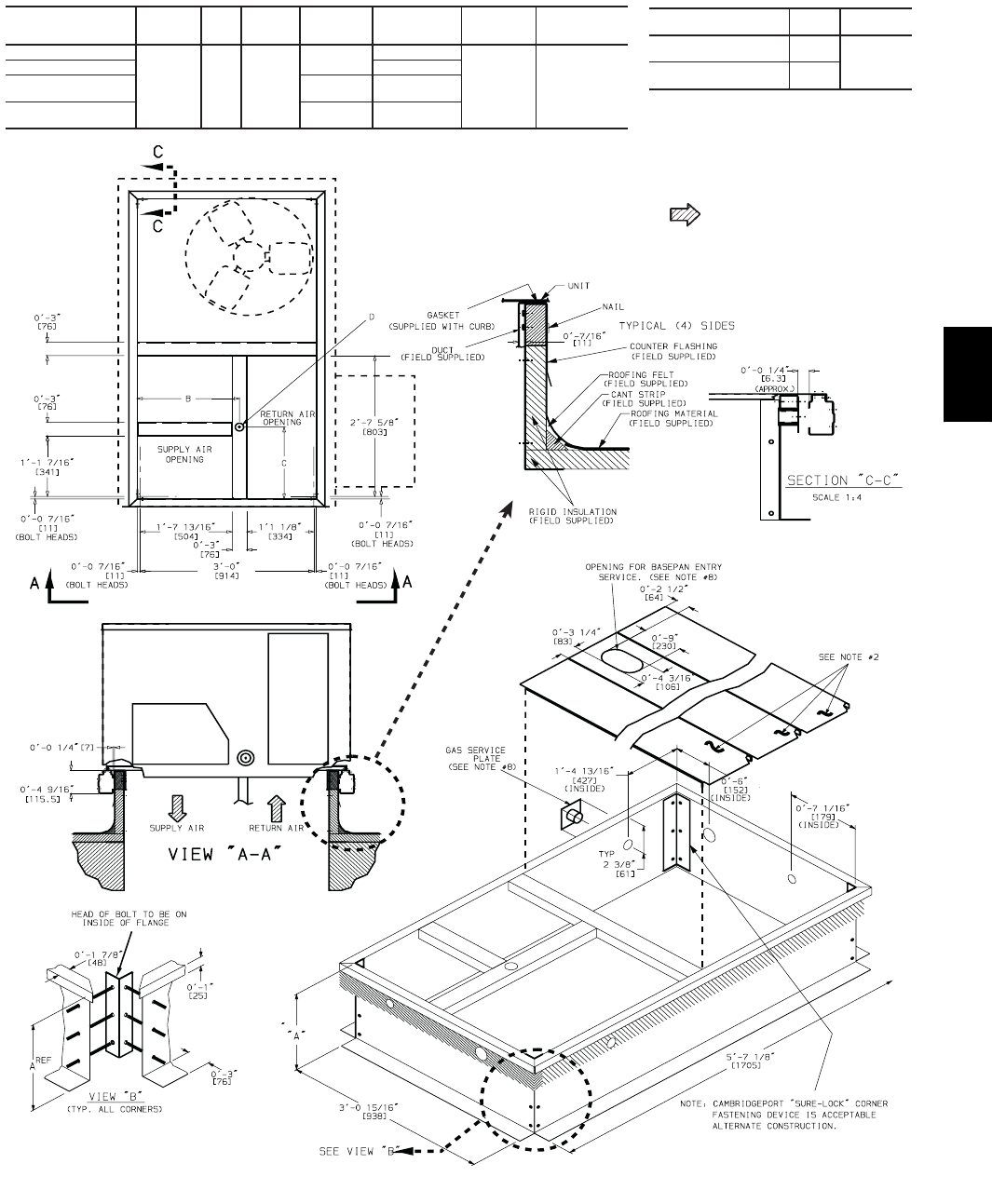

Fig. 2 --- Roof Curb Details

48HE,HJ

Lifting holes are provided in base rails as shown in Fig. 8 and 9.

Refer to rigging instructions on unit.

PROPERTY DAMAGE HAZARD

Failure to follow this warning could result in personal

injury, death and property damage.

All panels must be in place when rigging and lifting.

!WARNING

positioning

Maintain clearance around and above unit to provide minimum

distance from combustible materials, proper airflow, and service

access. (See Fig. 7, 8 and 9.)

Position unit on roof curb so that the following clearances are

maintained: 1/4in. clearance between the roof curb and the base

rail inside the front and rear, 0.0 in. clearance between the roof

curb and the base rail inside on the duct end of the unit. This will

result in the distance between the roof curb and the base rail

inside on the condenser end of the unit being approximately

equal to Fig. 2, section C-C.

Do not install unit in an indoor location. Do not locate unit air

inlets near exhaust vents or other sources of contaminated air.

MAXIMUM ALLOWABLE

DIFFERENCE (in.)

A-B B-C A-C

0.5 1.0 1.0

C06110

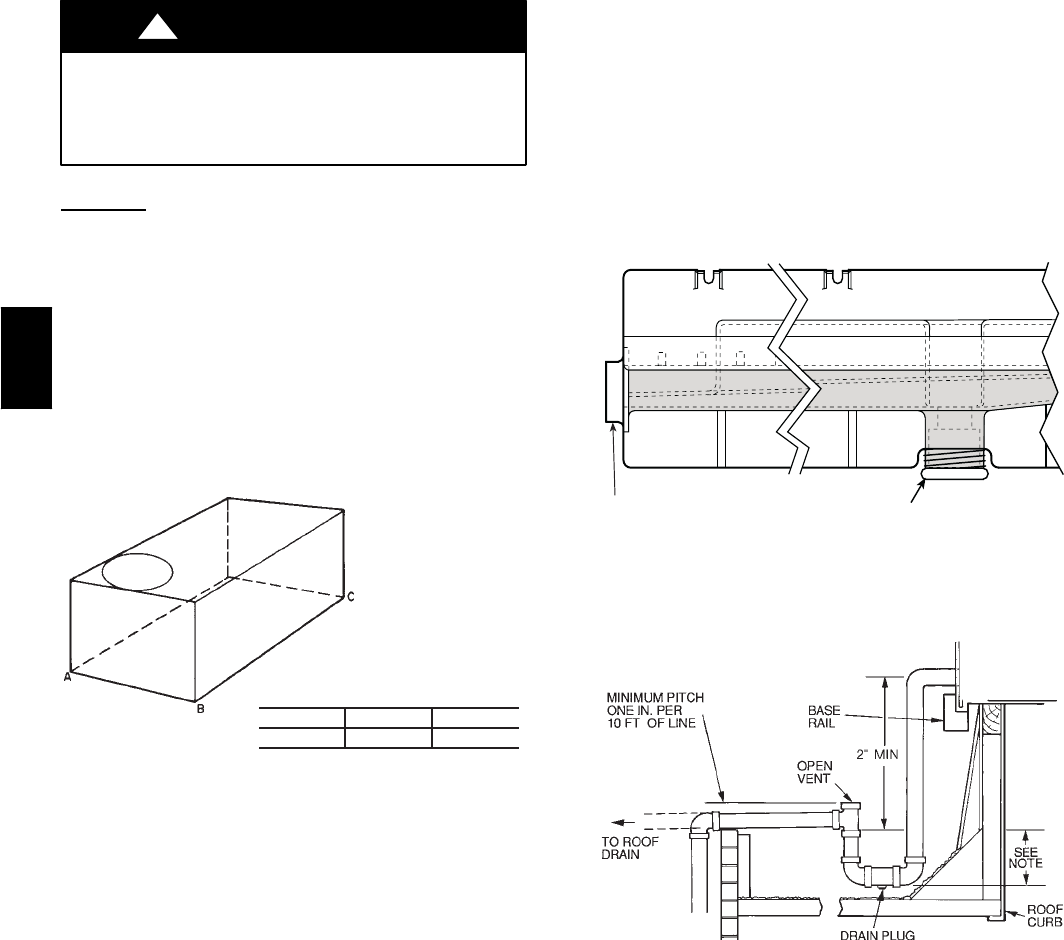

Fig. 3 --- Unit Leveling Tolerances

Be sure that unit is installed such that snow will not block the

combustion intake or flue outlet.

Unit may be installed directly on wood flooring or on Class A, B,

or C roof-covering material when roof curb is used.

Although unit is weatherproof, guard against water from higher

level runoff and overhangs.

Locate mechanical draft system flue assembly at least 48 in. from

an adjacent building or combustible material. When unit is

located adjacent to public walkways, flue assembly must be at

least 7 ft above grade.

NOTE: When unit is equipped with an accessory flue discharge

deflector, allowable clearance is 18 inches.

Flue gas can deteriorate building materials. Orient unit such that

flue gas will not affect building materials.

Adequate combustion-air space must be provided for proper

operation of this equipment. Be sure that installation complies

with all local codes and Section 5.3, Air for Combustion and

Ventilation, NFGC (National Fuel Gas Code), ANSI (American

National Standards Institute) Z223.1-1984 and addendum

Z223.1a-1987. In Canada, installation must be in accordance with

the CAN1.B149.1 and CAN1.B149.2 installation codes for gas

burning appliances.

Flue vent discharge must have a minimum horizontal clearance of

4 ft from electric and gas meters, gas regulators, and gas relief

equipment.

After unit is in position, remove shipping materials and rigging

skids.

Step 5 —Install Flue Hood

Flue hood is shipped screwed to the burner compartment access

panel. Remove from shipping location and, using screws

provided, install flue hood in location shown in Fig. 8 and 9.

For units being installed in California Air Quality Management

Districts which require NOx emissions of 40 nanograms/joule or

less, a low NOx unit must be installed.

NOTE: Low NOx units are available for 3 to 5 ton units.

DRAIN PLUG

CONDENSATE PAN (SIDE VIEW)

HORIZONTAL

DRAIN OUTLET

NOTE: Drain plug is shown in factory-installed position.

C06003

Fig. 4 --- Condensate Drain Pan

NOTE: Trap should be deep enough to offset maximum unit static

difference. A 4-in. trap is recommended.

C06004

Fig. 5 --- Condensate Drain Piping Details

Step 6 —Install Gas Piping

Unit is equipped for use with type of gas shown on nameplate.

Refer to local building codes, or in the absence of local codes,

to ANSI Z223.1-1984 and addendum Z223.1A-1987 entitled

National Fuel Gas Code. In Canada, installation must be in

accordance with the CAN1.B149.1 and CAN1.B149.2

installation codes for gas burning appliances.

For natural gas applications, gas pressure at unit gas connection

must not be less than 4 in. wg or greater than 13 in. wg while the

unit is operating. On 48HJ005-007 high-heat units, the gas

pressure at unit gas connection must not be less than 5 in. wg or

greater than 13 in. wg while the unit is operating. For propane

applications, the gas pressure must not be less than 5 in. wg or

greater than 13 in. wg at the unit connection.

Size gas supply piping for 0.5 in. wg maximum pressure drop.

Do not use supply pipe smaller than unit gas connection.

48HE,HJ

C06111

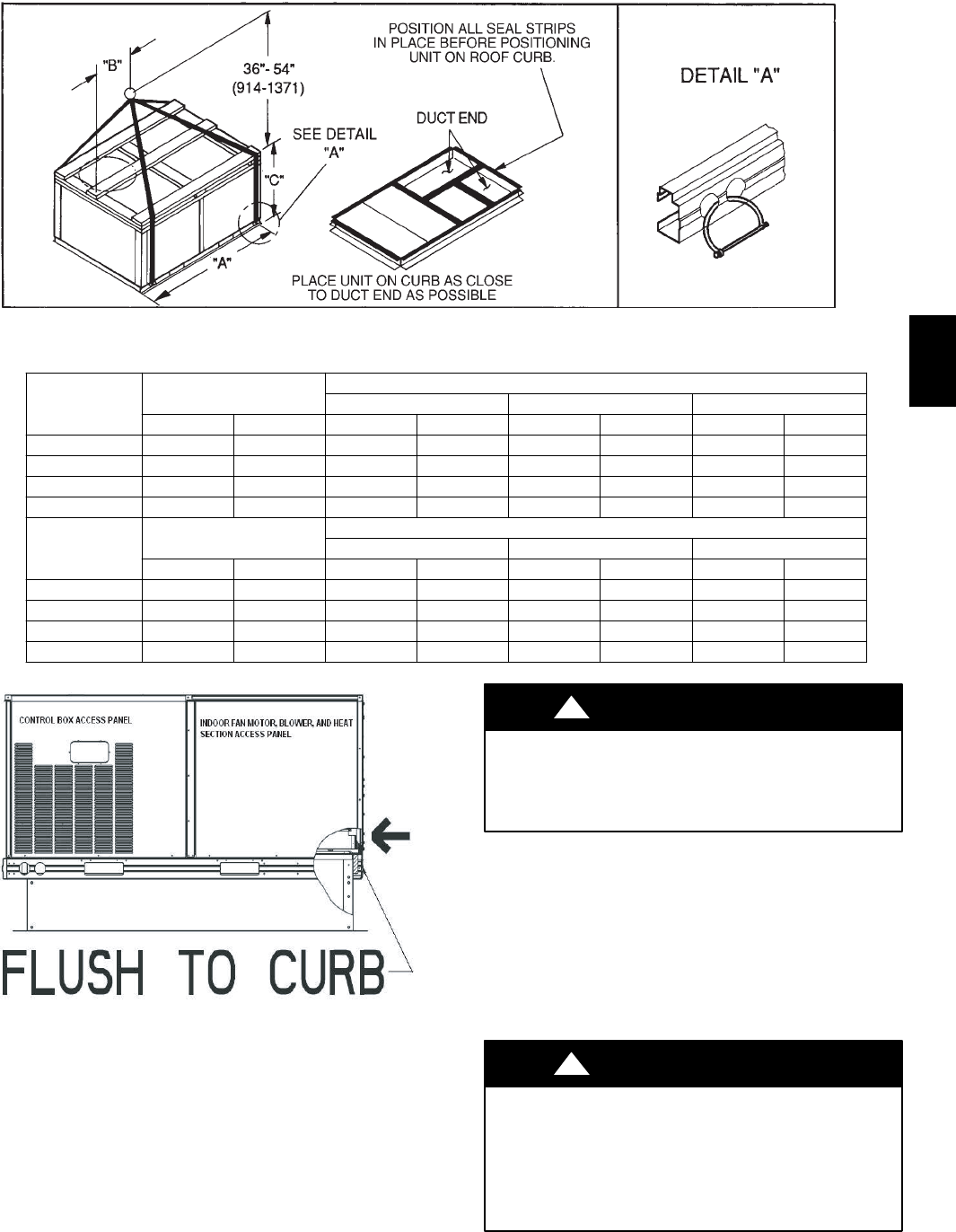

Fig. 6 --- Rigging Details

UNIT

48HE

OPERATING

WEIGHT

DIMENSIONS

“A” “B” “C”

lb kg in. mm in. mm in. mm

003 530 240 73.69 1872 35.50 902 33.31 847

004 540 245 73.69 1872 35.50 902 33.31 847

005 560 254 73.69 1872 35.50 902 33.31 847

006 635 288 73.69 1872 35.50 902 33.31 847

UNIT

48HJ

OPERATING

WEIGHT

DIMENSIONS

“A” “B” “C”

lb kg in. mm in. mm in. mm

004 530 240 73.69 1872 35.50 902 33.31 847

005 540 245 73.69 1872 35.50 902 33.31 847

006 560 254 73.69 1872 35.50 902 33.31 847

007 635 288 73.69 1872 35.50 902 33.31 847

C06208

Fig. 7 --- Roof Curb Alignment

Support gas piping as shown in the table in Fig. 11. For example,

a3/4-in. gas pipe must have one field-fabricated support beam

every 8 ft. Therefore, an 18-ft long gas pipe would have a

minimum of 3 support beams, and a 48-ft long pipe would have a

minimum of 6 support beams.

PROPERTY DAMAGE HAZARD

Failure to follow this warning could result in personal

injury, death and property damage.

All panels must be in place when rigging and lifting.

!WARNING

See Fig. 11 for typical pipe guide and locations of external

manual gas shutoff valve.

NOTE: If accessory thru-the-bottom connections and roof curb

are used, refer to the Thru-the-Bottom Accessory Installation

Instructions for information on power wiring and gas

connection piping. The power wiring, control wiring and gas

piping can be routed through field-drilled holes in the basepan.

The basepan is specially designed and dimpled for drilling the

access connection holes.

FIRE, EXPLOSION HAZARD

Failure to follow this warning could result in personal

injury, death and/or property damage.

When connecting the gas line to the unit gas valve, the

installer MUST use a backup wrench to prevent damage

to the valve.

!WARNING

48HE,HJ

C06112

Fig. 8 --- 48HJ004--007 Base Unit Dimensions

48HE,HJ

C06113

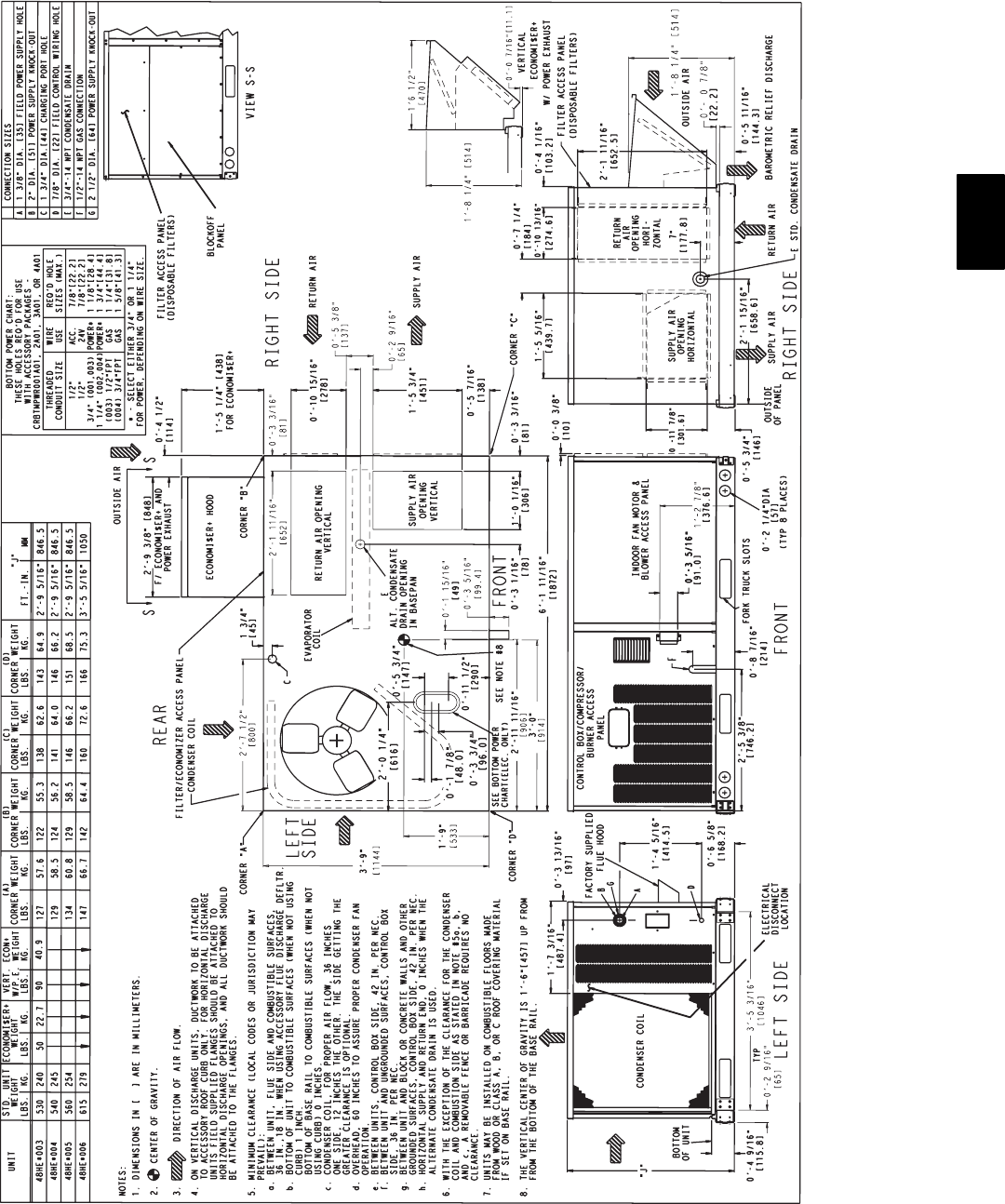

Fig. 9 --- 48HE003--006 Base Unit Dimensions

48HE,HJ

C06114

Fig. 10 --- Flue Hood Details

LEGEND

Field supplied.

NOTE: Follow all local codes.

SPACING OF SUPPORTS

NFGC — National Fuel Gas Code

STEEL PIPE

NOMINAL DIAMETER (in.)

SPACING OF SUPPORTS

X DIMENSION (ft)

or 1

or larger

C06115

Fig. 11 --- Gas Piping Guide (With Accessory

Thru--the--Curb Service Connections)

Step 7 —Make Electrical Connections

ELECTRICAL SHOCK HAZARD

Failure to follow this warning could result in personal

injury or death.

Unit cabinet must have an uninterrupted, unbroken

electrical ground to minimize the possibility of personal

injury if an electrical fault should occur. This ground may

consist of electrical wire connected to unit ground lug in

control compartment, or conduit approved for electrical

ground when installed in accordance with NEC (National

Electrical Code), ANSI/NFPA (National Fire Protection

Association), latest edition, and local electrical codes. Do

not use gas piping as an electrical ground.

!WARNING

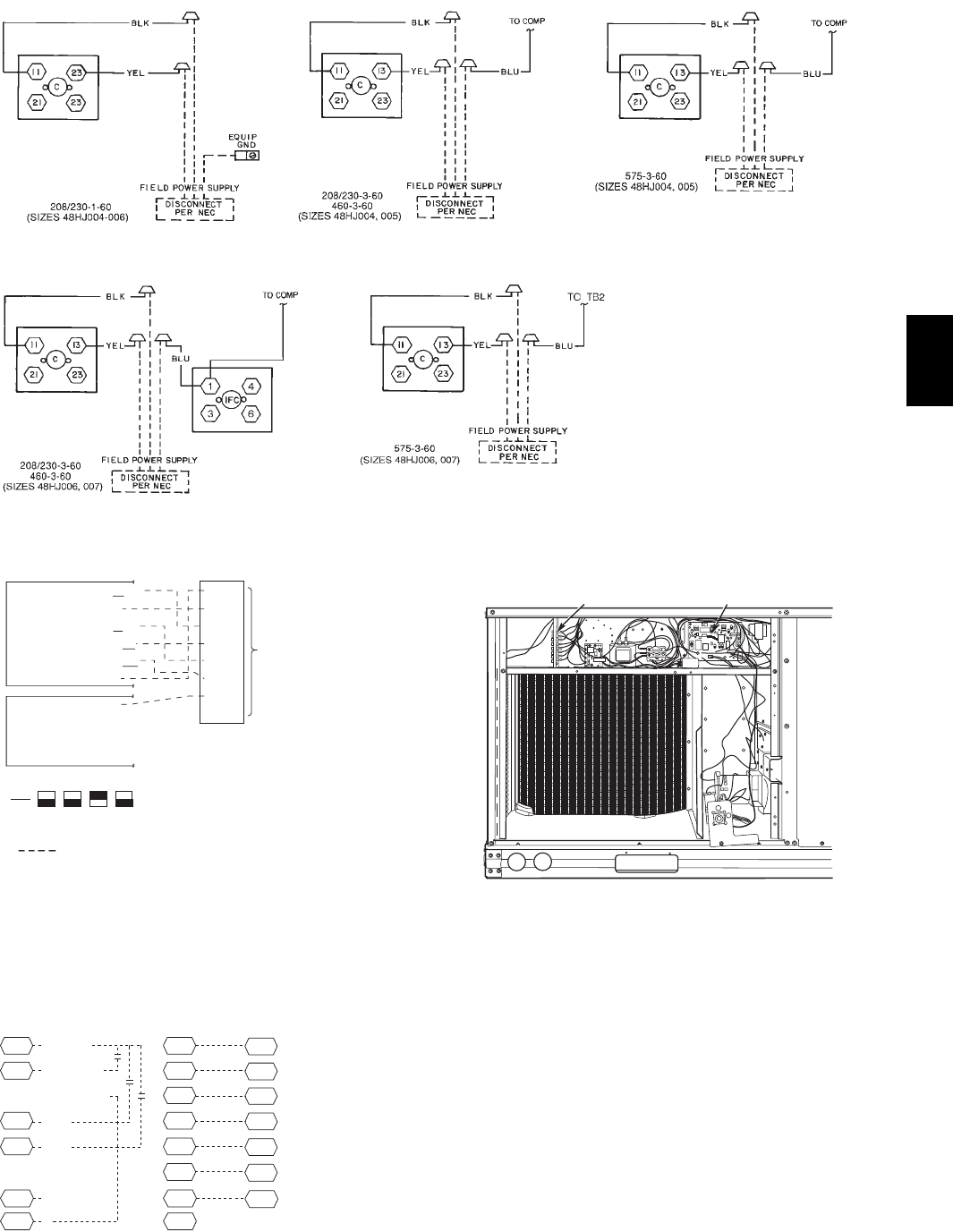

field power supply

All units except 208/230-v units are factory wired for the voltage

shown on the nameplate. If the 208/230-v unit is to be connected

to a 208-v power supply, the transformer must be rewired by

moving the black wire from the 230-v terminal on the

transformer and connecting it to the 200-v terminal from the

transformer.

Refer to unit label diagram for additional information. Pigtails

are provided for field service. Use factory-supplied splices or UL

(Underwriters’ Laboratories) approved copper connector.

When installing units, provide a disconnect per NEC.

All field wiring must comply with NEC and local

requirements.

Install conduit through side panel openings indicated in Fig. 8.

Route power lines through connector to terminal connections as

shown in Fig. 12.

Voltage to compressor terminals during operation must be within

voltage range indicated on unit nameplate (also see Tables 3 and

4). On 3-phase units, voltages between phases must be balanced

within 2% and the current within 10%. Use the formula shown in

Tables 3 and 4, Note 3 to determine the percent voltage

imbalance. Operation on improper line voltage or excessive phase

imbalance constitutes abuse and may cause damage to electrical

components. Such operation would invalidate any applicable

Carrier warranty.

NOTE: If accessory thru-the-bottom connections and roof curb

are used, refer to the Thru-the-Bottom Accessory Installation

Instructions for information on power wiring and gas connection

piping. The power wiring, control wiring and gas piping can be

routed through field-drilled holes in the basepan. The basepan is

specially designed and dimpled for drilling the access connection

holes.(SeeFig.2.)

field control wiring

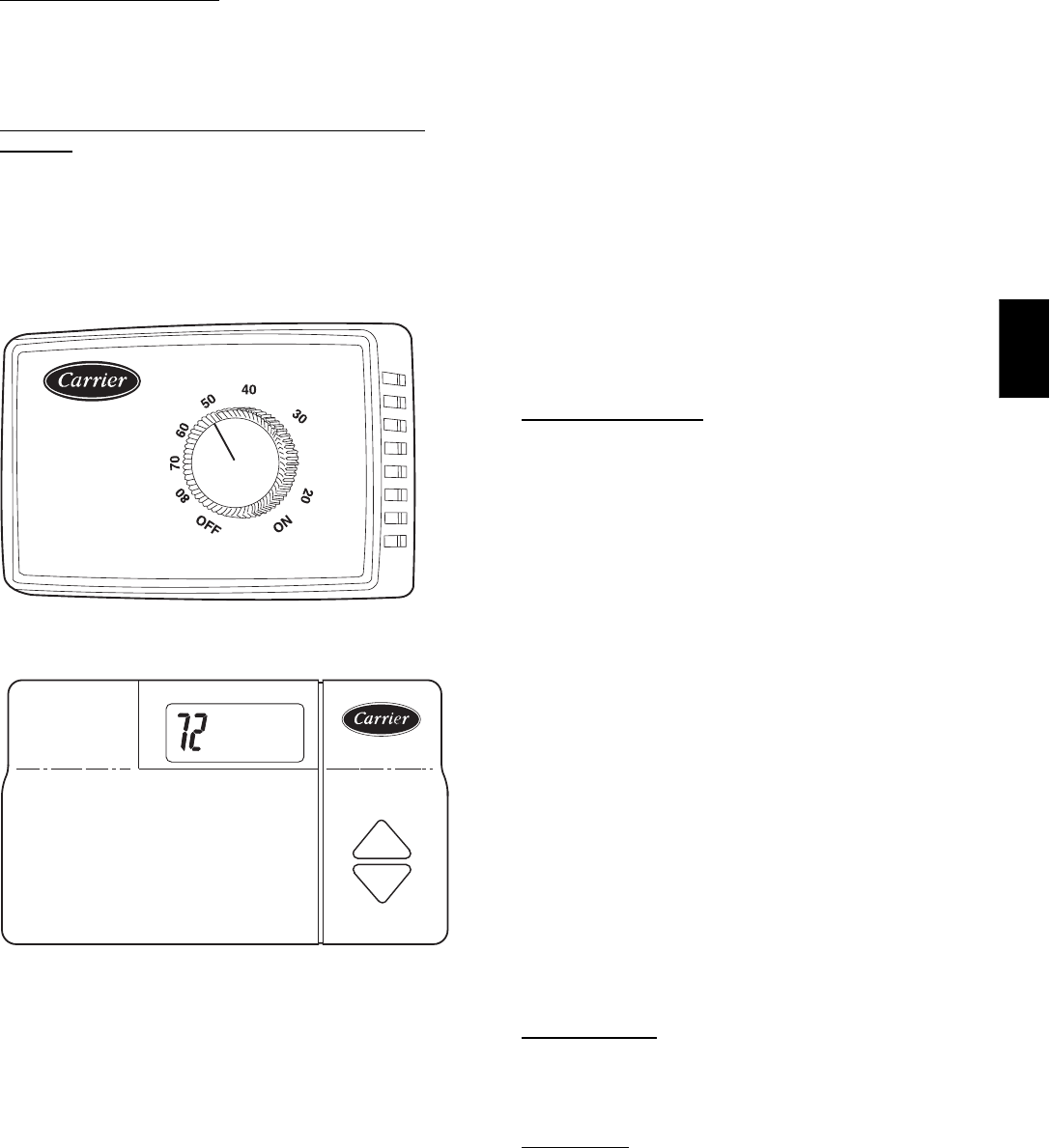

Install a Carrier-approved accessory thermostat assembly

according to installation instructions included with the accessory.

Locate thermostat assembly on a solid wall in the conditioned

space to sense average temperature in accordance with thermostat

installation instructions.

Route thermostat cable or equivalent single leads of colored wire

from subbase terminals through connector on unit to low-voltage

connections (shown in Fig. 13 and 14).

Connect thermostat wires to matching screw terminals of

low-voltage connection board. (See Fig. 13 and 14.)

NOTE: For wire runs up to 50 ft, use no. 18 AWG (American

Wire Gauge) insulated wire (35_Cminimum).For50to75ft,use

no. 16 AWG insulated wire (35_C minimum). For over 75 ft, use

no. 14 AWG insulated wire (35_C minimum). All wire larger

than no. 18 AWG cannot be directly connected to the thermostat

and will require a junction box and splice at the thermostat.

Pass the control wires through the hole provided in the corner

post; then feed wires through the raceway built into the corner

post to the 24-v barrier located on the left side of the control box.

(See Fig. 15). The raceway provides the UL required clearance

between high and low-voltage wiring.

heat anticipator settings

Set heat anticipator settings at 0.14 amp for first stage and 0.14

for second stage heating, when available.

48HE,HJ

Table 1—Physical Data 48HJ

BASE UNIT 48HJ HJE/F/H/K/M/N004 HJD/E/F/G/H/K/L/M/N005 HJD/E/F/G/H/K/L/M/N006 HJD/E/F007

NOMINAL CAPACITY 3 4 5 6

OPERATING WEIGHT (lb)

Unit 530 540 560 635

Humidi-MiZerAdaptive Dehumidification System 15 23 25 29

EconoMi$er IV 50 50 50 50

Roof Curb 115 115 115 115

COMPRESSOR Scroll

Quantity 1 1 1 1

Oil (oz) 42 53 50 60

REFRIGERANT TYPE R-22

Expansion Device AcutrolMetering Device

Operating Charge (lb-oz)

Standard Unit 5-8 10-2 10-0 12- 8

Unit With Humidi-Mizer Adaptive Dehumidification System 12-5 18-8 20-5 23-14

CONDENSER FAN Propeller

Quantity...Diameter (in.) 1...22 1...22 1...22 1...22

Nominal Cfm 3500 3500 4100 4100

Motor Hp...Rpm 1/4...825 1/4...825 1/4...1100 1/4...1100

Watts Input (Total) 180 180 320 320

CONDENSER COIL Enhanced Copper Tubes, Aluminum Lanced Fins

Rows...Fins/in. 1...17 2...17 2...17 2...17

Total Fa ce Ar ea (sq ft) 14.6 16.5 16.5 21.3

EVAPORATOR COIL Enhanced Copper Tubes, Aluminum Double-Wavy Fins

Standard Unit

Rows...Fins/in. 2...15 2...15 4...15 4...15

Total Fa ce Ar ea (sq ft) 5.5 5.5 5.5 7.3

Unit with Humidi-Mizer Adaptive Dehumidification System

Rows...Fins/in. 1...17 2...17 2...17 2...17

Total Fa ce Ar ea (sq ft) 3.9 3.9 3.9 5.2

EVAPORATOR FAN Centrifugal Type, Belt Drive

Quantity...Size (in.) 1...10 x 10 1...10 x 10 1...10 x 10 1...10 x 10

Nominal Cfm 1200 1600 2000 2400

Maximum Continuous Bhp Std 1.20 1.20 1.30/2.40* 2.40

Hi-Static 2.40 2.40 2.90 2.90

Motor RPM Std 1620 1620 1725 1725

Hi-Static 1725 1725 1725 1725

Motor Frame Size Std 48 48 48/56* 56

Hi-Static 56 56 56 56

Fan Rpm Range Std 680-1044 770-1185 1035-1460 1119-1585

Hi-Static 1075-1455 1075-1455 1300-1685 1300-1685

Motor Bearing Type Ball Ball Ball Ball

Maximum Fan Rpm 2100 2100 2100 2100

Motor Pulley Pitch Diameter A/B (in.) Std 1.9/2.9 1.9/2.0 2.4/3.4 2.4/3.4

Hi-Static 2.8/3.8 2.8/3.8 3.4/4.4 3.4/3.4

Nominal Motor Shaft Diameter (in.) Std 1/21/25/85/8

Hi-Static 5/85/85/87/8

Fan Pulley Pitch Diameter (in.) Std 4.5 4.0 4.0 4.0

Hi-Static 4.5 4.0 4.5 4.5

Belt — Type...Length (in.) Std 1...A...36 1...A...36 1....4...40 1...A...38

Hi-Static 1...A...39 1...A...39 1...A...40 1...A...40

Pulley Center Line Distance (in.) 10.0-12.4 10.0-12.4 14.7-15.5 14.7-15.5

Speed Change per Full Turn of

Movable Pulley Flange (rpm)

Std 65 70 75 95

Hi-Static 65 65 60 60

Movable Pulley Maximum Full

Turns from Closed Position

Std 55 6 5

Hi-Static 66 5 5

Factory Setting — Full Turns Open Std 33 3 3

Hi-Static 31/231/231/231/2

Factory Speed Setting (rpm) Std 826 936 1248 1305

Hi-Static 1233 1233 1396 1396

Fan Shaft Diameter at Pulley (in.) 5/85/85/85/8

LEGEND

Bhp — Brake Horsepower

*Single phase/three phase.

†Indicates automatic reset.

**60,000 and 72,000 Btuh heat input units have 2 burners. 90,000 and 120,000

Btuh heat input units have 3 burners. 115,000 Btuh heat input units and 150,000

Btuh Heat input units have 3 burners.

††An LP kit is available as an accessory. Kit may be used at elevations as high as 2000

ft. If an LP kit is used with Low NOx units, the Low NOx baffle must be removed and

the units will no longer be classified as Low NOx units.

ll Three-phase standard models have heating inputs as shown. Single-phase stan-

dard models have one-stage heating with heating input values as follows:

HJD005-006,HJE004 — 72,000 Btuh

HJE005-006,HJF004 — 115,000 Btuh

HJF005-006 — 150,000 Btuh

***California compliant three-phase models.

†††California SCAQMD compliant low NOxmodels have combustion products that are

controlled to 40 nanograms per joule or less.

48HE,HJ

TABLE 1 — PHYSICAL DATA 48HJ (cont)

BASE UNIT 48HJ HJE/F/H/K/M/N004 HJD/E/F/G/H/K/L/M/N005 HJD/E/F/G/H/K/L/M/N006 HJD/E/F007

FURNACE SECTION

Rollout Switch Cutout Temp (F)† 195 195 195 195

Burner Orifice Diameter (in. ...drill size)**

Natural Gas — Std HJE .113...33 HJD .113...33 HJD .113...33 HJD .113...33

HJF .113...33 HJE .113...33 HJE .113...33 HJE .113...33

—HJF .129...30 HJF .129...30 HJF .129...30

HJH .113...33 HJG .113...33 HJG .113...33 —

HJK .113...33 HJH .113...33 HJH .113...33 —

—HJK .129...30 HJK .129...30 —

HJM .102...38 HJL .102...38 HJL .102...38 —

HJN .102...38 HJM .102...38 HJM .102...38 —

—HJN .116...32 HJN .116...32 —

Liquid Propane — Alt†† HJE .089...43 HJD .089...43 HJD .089...43 HJD .089...43

HJF .089...43 HJE .089...43 HJE .089...43 HJE .089...43

—HJF .104...37 HJF .104...37 HJF .104...37

HJH .089...43 HJG .089...45 HJG .089...43 —

HJK .089...43 HJH .089...45 HJH .089...43 —

—HJK .102...38 HJK .104...37 —

HJM .082...45 HJL .082...45 HJL .082...45 —

HJN .082...45 HJM .082...45 HJM .082...45 —

—HJN .094...42 HJN .094...42 —

Thermostat Heat Anticipator Setting (amps)

208/230/460/575 v

First Stage .14 .14 .14 .14

Second Stage .14 .14 .14 .14

Gas Input (Btuh)

First Stage/Second Stage HJE||

50,000/ 72,000

HJD|| 50,000/ 72,000 HJD|| 50,000/ 72,000 HJD 50,000/ 72,000

HJF||

82,000/115,000

HJE|| 82,000/115,000 HJE|| 82,000/115,000 HJE 82,000/115,000

—HJF|| 120,000/150,000 HJF|| 120,000/150,000 HJF 120,000/150,000

HJH*** —/ 72,000 HJG*** —/ 72,000 HJG*** —/ 72,000 —

HJK***—/115,000 HJH*** —/115,000 HJH*** —/115,000 —

—HJK*** —/150,000 HJK*** —/150,000 —

HJM††† —/ 60,000 HJL††† —/ 60,000 HJL††† —/ 60,000 —

HJN††† —/ 90,000 HJM††† —/ 90,000 HJM†††—/ 90,000 —

—HJN††† —/120,000 HJN††† —/120,000 —

Efficiency (Steady State) (%) HJE 82.8 HJD 82.8 HJD 82.8 HJD 82

HJF 80 HJE 81 HJE 81 HJE 81

—HJF 80.4 HJF 80.4 HJF 80

HJH 82 HJG 82 HJG 82 —

HJK 80 HJH 81 HJH 81 —

—HJK 80 HJK 80 —

HJM 80.2 HJL 80.2 HJL 80.2 —

HJN 81 HJM 81 HJM 81 —

—HJN 80.7 HJN 80.7 —

TemperatureRiseRange HJE 25-55 HJD 25-25 HJD 25-55 HJD 25-55

HJF 55-85 HJE 35-65 HJE 35-65 HJE 35-65

—HJF 50-80 HJF 50-80 HJF 50-80

HJH 25-55 HJG 25-55 HJG 25-55 —

HJK 55-85 HJH 35-65 HJH 35-65 —

—HJK 50-80 HJK 50-80 —

HJM 20-50 HJL 20-50 HJL 20-50 —

HJN 30-60 HJM 30-60 HJM 30-60 —

—HJN 40-70 HJN 40-70 —

Manifold Pressure (in. wg)

Natural Gas — Std 3.5 3.5 3.5 3.5

Liquid Propane — Alt†† 3.5 3.5 3.5 3.5

Maximum Static Pressure (in. wg) 1.0 1.0 1.0 1.0

Field Gas Connection Size (in.) 1/21/21/21/2

HIGH-PRESSURE SWITCH (psig)

Standard Compressor Internal Relief 450 50

Cutout 428

Reset (Auto.) 320

LOSS-OF-CHARGE SWITCH/LOW-PRESSURE

(Liquid LIne) (psig)

Cutout 73

Reset (Auto.) 22 5

FREEZE PROTECTION THERMOSTAT

Opens (F) 30 5

Closes (F) 45 5

OUTDOOR-AIR INLET SCREENS Cleanable. Screen quantity and size varies with option selected.

RETURN-AIR FILTERS Throwaway

Quantity...Size (in.) 2...16 x 25 x 2 4...16 x 16 x 2

LEGEND

Bhp — Brake Horsepower

*Single phase/three phase.

†Indicates automatic reset.

**60,000 and 72,000 Btuh heat input units have 2 burners. 90,000 and 120,000

Btuh heat input units have 3 burners. 115,000 Btuh heat input units and 150,000

Btuh Heat input units have 3 burners.

††An LP kit is available as an accessory. Kit may be used at elevations as high as 2000

ft. If an LP kit is used with Low NOx units, the Low NOx baffle must be removed and

the units will no longer be classified as Low NOx units.

ll Three-phase standard models have heating inputs as shown. Single-phase stan-

dard models have one-stage heating with heating input values as follows:

HJD005-006,HJE004 — 72,000 Btuh

HJE005-006,HJF004 — 115,000 Btuh

HJF005-006 — 150,000 Btuh

***California compliant three-phase models.

†††California SCAQMD compliant low NOxmodels have combustion products that are

controlled to 40 nanograms per joule or less.

48HE,HJ

Table 2—PHYSICAL DATA 48HE

BASE UNIT 48HE HD/E/F003 HE/F/H/K/M/N004 H/E/F/G/H/K/L/M/N005 HD/E/F/G/H/K/L/M/N006

NOMINAL CAPACITY 2 3 4 5

OPERATING WEIGHT (lb)

Unit 530 540 560 635

Humidi-MiZerAdaptive Dehumidification System 13 15 23 25

EconoMi$er IV 50 50 50 50

Roof Curb 115 115 115 115

COMPRESSOR Scroll

Quantity 1 1 1 1

Oil (oz) 25 42 56 53

REFRIGERANT TYPE R-22

Expansion Device AcutrolMetering Device

Operating Charge (lb-oz)

Standard Unit 5 --- 3 7 --- 1 1 8 --- 8 12---11

Unit With Humidi-Mizer Adaptive Dehumidification System 1 0 --- 2 1 4 --- 0 14---13 2 1 --- 0

CONDENSER FAN Propeller

Quantity...Diameter (in.) 1...22 1...22 1...22 1...22

Nominal Cfm 3000 3500 3500 4100

Motor Hp...Rpm 1/8...825 1/8...825 1/8...825 1/4...1100

Watts Input (Total) 180 180 180 320

CONDENSER COIL Enhanced Copper Tubes, Aluminum Lanced Fins

Rows...Fins/in. 1...17 1...17 2...17 2...17

Total Fa ce Ar ea (sq ft) 14.6 14.6 16.5 16.5

EVAPORATOR COIL Enhanced Copper Tubes, Aluminum Double-Wavy Fins

Standard Unit

Rows...Fins/in. 2...15 2...15 2...15 4...15

Total Fa ce Ar ea (sq ft) 4.2 5.5 5.5 5.5

Unit with Humidi-Mizer Adaptive Dehumidification System

Rows...Fins/in. 1...17 1...17 2...17 2...17

Total Fa ce Ar ea (sq ft) 3.5 3.9 3.9 3.9

EVAPORATOR FAN Centrifugal Type, Belt Drive

Quantity...Size (in.) 1...10 x 10 1...10 x 10 1...10 x 10 1...10 x 10

Nominal Cfm 800 1200 1600 2000

Maximum Continuous Bhp Std 0.58 1.20 1.20 1.30/2.40*

Hi-Static 2.40 2.40 2.90

Motor Frame Size Std 48 48 48 48/56*

Hi-Static 56 56 56

Motor Rpm 1620 1620 1620 1725

Fan Rpm Range Std 400-1000 680-1044 770-1185 1035-1460

Hi-Static 1075-1455 1075-1455 1300-1685

Motor Bearing Type Ball Ball Ball Ball

Maximum Fan Rpm 1620 2100 2100 2100

Motor Pulley Pitch Diameter A/B (in.) Std 2.4/3.2 1.9/2.9 1.9/2.0 2.4/3.4

Hi-Static 2.8/3.8 2.8/3.8 3.4/4.4

Nominal Motor Shaft Diameter (in.) Std 5/81/21/25/8

Hi-Static 7/85/85/85/8

Fan Pulley Pitch Diameter (in.) Std 4.0 4.5 4.0 4.0

Hi-Static 4.5 4.5 4.0 4.5

Belt — Type...Length (in.) Std 1...A...36 1...A...36 1...A...36 1....4...40

Hi-Static 1...A...39 1...A...39 1...A...40

Pulley Center Line Distance (in.) 10.0---12.4 10.0-12.4 10.0-12.4 14.7-15.5

Speed Change per Full Turn of

Movable Pulley Flange (rpm)

Std 60 65 70 75

Hi-Static 65 65 60

Movable Pulley Maximum Full

Turns from Closed Position

Std 55 5 6

Hi-Static 6 6 5

Factory Setting — Full Turns Open Std 33 3 3

Hi-Static 31/231/231/2

Factory Speed Setting (rpm) Std 756 826 936 1248

Hi-Static 1233 1233 1396

Fan Shaft Diameter at Pulley (in.) 5/85/85/85/8

48HE,HJ

TABLE 2 — PHYSICAL DATA 48HE (cont)

BASE UNIT 48HE HD/E/F003 HE/F/H/K/M/N004 HD/E/F/G/H/K/L/M/N005 HD/E/F/G/H/K/L/M/N006

FURNACE SECTION

Rollout Switch Cutout Temp (F)† 195 195 195 195

Burner Orifice Diameter (in. ...drill size)**

Natural Gas — Std* HJE .113...33 HJD .113...33 HJD .113...33

HEE .089...43 HJF .113...33 HJE .113...33 HJE .113...33

—HJF .129...30 HJF .129...30

—HJH .113...33 HJG .113...33 HJG .113...33

—HJK .113...33 HJH .113...33 HJH .113...33

——HJK .129...30 HJK .129...30

HEM .089...43 HJM .102...38 HJL .102...38 HJL .102...38

—HJN .102...38 HJM .102...38 HJM .102...38

——HJN .116...32 HJN .116...32

Liquid Propane — Alt†† HEE .073...49 HJE .089...43 HJD .089...43 HJD .089...43

HJF .089...43 HJE .089...43 HJE .089...43

—HJF .104...37 HJF .104...37

—HJH .089...43 HJG .089...43 HJG .089...43

—HJK .089...43 HJH .089...43 HJH .089...43

——HJK .102...37 HJK .104...37

—

——

Thermostat Heat Anticipator Setting (amps)

208/230/460/575 v

First Stage .14 .14 .14 .14

Second Stage .14 .14 .14 .14

Gas Input (Btuh)

First Stage/Second Stage HEE 50,000/--- HEE||

50,000/ 72,000

HED|| 50,000/ 72,000 HED|| 50,000/ 72,000

HEF||

82,000/115,000

HEE|| 82,000/115,000 HEE|| 82,000/115,000

—HEF|| 120,000/150,000 HEF|| 120,000/150,000

—HEH*** —/ 72,000 HEG*** —/ 72,000 HEG*** —/ 72,000

—HJK***—/115,000 HEH*** —/115,000 HEH*** —/115,000

——HEK*** —/150,000 HEK*** —/150,000

—HEM††† —/ 60,000 HEL††† —/ 60,000 HEL††† —/ 60,000

—HEN††† —/ 90,000 HEM††† —/ 90,000 HEM†††—/ 90,000

——HEN††† —/120,000 HEN††† —/120,000

Efficiency (Steady State) (%) HEE 81 HEE 82.8 HED 82.8 HED 82.8

HEF 80 HEE 81 HEE 81

—HEF 80.4 HEF 80.4

—HEH 82 HEG 82 HEG 82

—HEK 80 HEH 81 HEH 81

——HEK 80 HEK 80

—HEM 80.2 HEL 80.2 HEL 80.2

HEM 81 HEN 81 HEM 81 HEM 81

——HEN 80.7 HEN 80.7

TemperatureRiseRange HEE 25-55 HED 25-25 HED 25-55

HEE 25-65 HEF 55-85 HEE 35-65 HEE 35-65

—HEF 50-80 HEF 50-80

—HEH 25-55 HEG 25-55 HEG 25-55

—HEK 55-85 HEH 35-65 HEH 35-65

——HEK 50-80 HEK 50-80

—HEM 20-50 HEL 20-50 HEL 20-50

—HEN 30-60 HEM 30-60 HEM 30-60

— — HEN 40-70 HEN 40-70

Manifold Pressure (in. wg)

Natural Gas — Std 3.5 3.5 3.5 3.5

Liquid Propane — Alt†† 3.5 3.5 3.5 3.5

Maximum Static Pressure (in. wg) 1.0 1.0 1.0 1.0

Field Gas Connection Size (in.) 1/21/21/21/2

HIGH-PRESSURE SWITCH (psig)

Standard Compressor Internal Relief 450 50

Cutout 428

Reset (Auto.) 320

LOSS-OF-CHARGE SWITCH (Liquid LIne) (psig)

Cutout 73

Reset (Auto.) 22 5

FREEZE PROTECTION THERMOSTAT

Opens (F) 30 5

Closes (F) 45 5

OUTDOOR-AIR INLET SCREENS Cleanable. Screen quantity and size varies with option selected.

RETURN-AIR FILTERS Throwaway

Quantity...Size (in.) 2...16 x 25 x 2

LEGEND

Bhp — Brake Horsepower

*Stainless steel models use same orifices as equivalent standard unit.

†Indicates automatic reset.

**≤72,000 Btuh heat input units have 2 burners. 90,000 and 120,000 Btuh heat

input units have 3 burners. 115,000 Btuh heat input units and 150,000 Btuh Heat

input units have 3 burners.

††AnLPkitisavailableasanaccessory. AnLPconversionkitshouldnotbeusedona

low NOx unit because then it can no longer be classified as a Low NOx unit. The

Low NOx requirement only applies to natural gas units.

Three-phase standard models have heating inputs as shown. Single-phase standard

models have one-stage heating with heating input values as shown in heatin capac-

ity tables.

***These units do NOT meet the California low NOx requirements.

†††California SCAQMD compliant low NOxmodels have combustion products that are

controlled to 40 nanograms per joule or less.

48HE,HJ

LEGEND

C—Contactor

COMP — Compressor

EQUIP — Equipment

GND — Ground

IFC — Indoor (Evaporator)

Fan Contactor

NEC — National Electrical Code

TB — Te r m in a l B l o c k

48HE003-006 48HE004,005

48HE004,005

48HE006

C06124

Fig. 12 --- Power Wiring Connections

WIRE

CONNECTIONS

LOW-VOLTAGE

SECTION

COOL STAGE 1

FAN

HEAT STAGE 1

COOL STAGE 2

HEAT STAGE 2

24 VAC HOT

24 VAC COM

N/A

OUTDOOR AIR

SENSOR

Y1/W2

W/W1

Y/Y2

O/W2

THERMOSTAT DIPSWITCH SETTINGS

IPD/X

OFF

ABCD

LEGEND

NOTE: Underlined letter indicates active thermostat output when

configured for A/C operation.

Field Wiring

C06008

Fig. 13 --- Low--Voltage connections With or

Without Economizer or Two--Position Damper

24 VAC

RMTOCC

CMPSAFE

FSD

NOT USED

SFS

THERMOSTAT CONTROL

CONNECTION

BOARD

CONNECTION

CONTROL

C06009

Fig. 14 --- Low--Voltage Connections

(Units with PremierLinktControls)

LOW VOLTAGE

CONNECTIONS INTEGRATED GAS UNIT

CONTROLLER (IGC)

C06125

Fig. 15 --- Field Control Wiring

48HE,HJ

Table 3—Electrical Data 48HE

48HE003---006 VOLTAGE

RANGE COMPRESSOR OFM COMBUSTION

FAN MOTOR IFM

FLA

CONV

OUTLET POWER SUPPLY *MINIMUM UNIT

DISCONNECT SIZE

UNIT SIZE NOMINAL

V --- P H --- H z IFM TYPE Min Max QTY RLA LRA QTY FLA FLA MCA MOCP** FLA LRA

003

(2 tons) 208/230---1--- 60 STD 187 254 110.9 63 10.7 0.6 2.0 NO 16.3 20 15.6 69

YES 22.3 25 21.2 73

004

(3 tons)

208/230---1--- 60 STD 187 254 116 88 10.7 0.6 4.9 NO 25.6 30 24.8 101

YES 31.6 35 30.4 106

208/230---3--- 60

STD

187 254 110.3 77 10.7 0.6

4.9 NO 18.5 25 18.3 90

YES 24.5 30 23.8 95

HS 5.8 NO 19.4 25 19.3 120

YES 25.4 30 24.9 124

4 6 0 --- 3 --- 6 0

STD

414 508 15.1 39 10.4 0.3

2.2 NO 9.0 15 8.9 46

YES 11.7 15 11.4 48

HS 2.6 NO 9.4 15 9.3 60

YES 12.1 15 11.8 63

5 7 5 --- 3 --- 6 0

STD

518 632 14.2 31

10.4

0.3†

1.9 NO 7.6 10 7.5 36

YES 9.7 15 9.5 38

HS 2.0 NO 7.7 10 7.6 43

YES 9.8 15 9.6 44

HumidiMi$er 10.4† 2.6† NO 7.7 10 8.0 48

YES 9.8 15 9.6 50

005

(4 tons)

208/230---1--- 60 STD 197 254 121 115 11.5 0.6 4.9 NO 32.7 40 31.5 130

YES 38.7 45 37.0 135

208/230---3--- 60

STD

187 254 114.1 95 11.5 0.6

4.9 NO 24.0 30 23.6 110

YES 30.0 35 29.1 115

HS 5.8 NO 24.9 30 24.6 140

YES 30.9 35 30.1 145

4 6 0 --- 3 --- 6 0

STD

414 508 17.1 45 10.8 0.3

2.2 NO 11.9 15 11.6 53

YES 14.6 20 14.1 55

HS 2.6 NO 12.3 15 12.1 67

YES 15.0 20 14.6 70

5 7 5 --- 3 --- 6 0

STD

518 632 16.1 38

10.6

0.3†

1.9 NO 10.1 15 9.9 44

YES 12.3 15 11.9 46

HS 2.0 NO 10.2 15 10.0 51

YES 12.4 15 12.0 52

HumidiMi$er 10.8† 2.6† NO 10.3 15 10.1 56

YES 12.5 15 12.1 58

006

(5 tons)

208/230---1--- 60 STD 187 254 125 150 11.5 0.6 6.6 NO 39.4 50 38.1 187

YES 45.4 60 43.6 191

208/230---3--- 60

STD

187 254 117.3 123 11.5 0.6

5.8 NO 28.9 35 28.3 168

YES 34.9 40 33.8 173

HS 7.5 NO 30.6 35 30.2 187

YES 36.6 40 35.8 192

4 6 0 --- 3 --- 6 0

STD

414 508 18.4 70 10.8 0.3†

2.6 NO 13.9 20 13.6 92

YES 16.6 20 16.1 95

HS 3.4 NO 14.7 20 14.5 102

YES 17.4 20 17.0 104

5 7 5 --- 3 --- 6 0

STD

518 632 17.1 53

10.6

0.3†

2.0 NO 11.5 15 11.2 66

YES 13.6 15 13.2 67

HS 2.8 NO 12.3 15 12.1 75

YES 14.4 20 14.1 76

HumidiMi$er 11.9† 3.4† NO 12.2 15 12.0 79

YES 14.4 20 14.0 80

FLA --- Full Load Amps

HACR --- Heating, Air Conditioning and Refrigeration

IFM --- Indoor (Evaporator) Fan Motor

LRA --- Locked Rotor Amps

MCA --- Minimum Circuit Amps

MOCP --- Maximum Overcurrent Protection

NEC --- National Electrical Code

OFM --- Outdoor (Condenser) Fan Motor

RLA --- Rated Load Amps

NOTES:

* The values listed in this table do not include power exhaust. See power exhaust table for power exhaust requirements.

** Fuse or HACR breaker

{460v motor

48HE,HJ

Table 4—Electrical Data 48HJ

48HJ004---014 VOLTAGE

RANGE COMPRESSOR (each) OFM (each) COMBUSTION

FAN MOTOR

IFM

FLA

CONV

OUTLET POWER SUPPLY *MINIMUM UNI

DISCONNECT SIZE

UNIT SIZE NOMINAL

V --- P H --- H z IFM TYPE Min Max QTY RLA LRA QTY FLA FLA MCA MOCP** FLA LRA

004 (3 Tons)

208/230---1--- 60 STD 187 254 116 88 10.7 0.6 4.9 NO 25.6 30 25 101

YES 31.6 35 30 106

208/230---3 60

STD

187 254 110.3 77 10.7 0.6

4.9 NO 18.5 25 18 90

YES 24.5 30 24 95

HS 5.2 NO 19.4 25 19 120

YES 25.4 30 25 124

4 6 0 --- 3 --- 6 0

STD

414 508 15.1 39 10.4 0.3

2.2 NO 9.0 15 946

YES 11.7 15 11 48

HS 2.6 NO 9.4 15 960

YES 12.1 15 12 63

5 7 5 --- 3 --- 6 0

STD

518 632 14.2 31

10.4 0.3†

1.9 NO 7.6 10 736

YES 9.7 15 938

HS 2.0 NO 7.7 10 843

YES 9.8 15 10 44

HumidiMi$er 10.4† 0.9† 2.6† NO 8.3 10 852

YES 10.4 15 10 54

005 (4 Tons)

208/230---1--- 60 STD 187 254 123.7 126 10.7 0.6 4.9 NO 35.2 45 34 139

YES 41.2 50 39 144

208/230---3--- 60

STD

187 254 113.5 93 10.7 0.6

4.9 NO 22.5 30 22 106

YES 28.5 35 27 111

HS 5.8 NO 23.4 30 23 136

YES 29.4 35 29 140

4 6 0 --- 3 --- 6 0

STD

414 508 16.4 46.5 10.4 0.3

2.2 NO 10.6 15 10 54

YES 13.3 15 13 56

HS 2.6 NO 11.0 15 11 68

YES 13.7 15 13 70

5 7 5 --- 3 --- 6 0

STD

518 632 16.4 40

10.4 0.3†

1.9 NO 10.3 15 10 45

YES 12.5 15 12 47

HS 2.0 NO 10.4 15 10 52

YES 12.6 15 12 53

HumidiMi$er 10.4 0.9† 2.6† NO 11.0 15 11 61

YES 13.2 15 13 63

006 (5 Tons)

208/230---1--- 60 STD 187 254 128.8 169 11.5 0.6 6.6 NO 44.1 60 42 206

YES 50.1 60 48 210

208/230---3--- 60

STD

187 254 117.3 123 11.5 0.6

5.8 NO 28.9 35 28 168

YES 34.9 40 34 173

HS 7.5 NO 30.6 35 30 187

YES 36.6 40 36 192

4 6 0 --- 3 --- 6 0

STD

414 508 1 9 62 10.8 0.3

2.6 NO 14.7 20 14 84

YES 17.4 20 17 87

HS 3.4 NO 15.5 20 15 94

YES 18.2 20 18 96

5 7 5 --- 3 --- 6 0

STD

518 632 17.1 50 1

0.6 0.3†

2.0 NO 11.5 15 11 63

YES 13.6 15 13 64

HS 2.8 NO 12.3 15 12 72

YES 14.4 20 14 73

HumidiMi$er 0.8† 0.3† 3.4† NO 12.2 15 12 76

YES 14.4 20 14 77

007 (6 Tons)

208/230---3--- 60

STD

187 254 120.5 156 11.4

0.6 5.8 NO 32.8 40 32 200

YES 38.8 45 37 205

HS 0.6 7.5 NO 34.5 40 34 219

YES 40.5 45 39 224

4 6 0 --- 3 --- 6 0

STD

414 508 19.6 75 10.6

0.3 2.6 NO 15.2 20 15 97

YES 17.9 20 17 99

HS 0.3 3.4 NO 16.0 20 16 107

YES 18.7 25 18 109

5 7 5 --- 3 --- 6 0

STD

518 632 17.7 56 1

0.8 0.3†

2.0 NO 12.4 15 12 69

YES 14.6 20 14 70

HS 2.8 NO 13.2 20 13 79

YES 15.4 20 15 80

HumidiMi$er 0.6† 0.3† 3.4† NO 12.8 15 13 81

YES 15.0 20 15 83

48HE,HJ

Table 4—Electrical Data 48HJ (cont)

008 (71/2 Tons)

208/230---3--- 60

STD

187 254 212.4 88 21.4 0.6

7.5 NO 38.2 45 40 242

YES 44.2 50 46 247

HS 10.6 NO 41.3 45 44 267

YES 47.3 50 49 271

4 6 0 --- 3 --- 6 0

STD

414 508 26.4 44 20.7 0.3

3.4 NO 19.2 25 20 121

YES 21.9 25 23 123

HS 4.8 NO 20.6 25 22 134

YES 23.3 25 24 136

5 7 5 --- 3 --- 6 0

STD

518 632 24.8 34 2

0.6 0.3†

2.8 NO 14.6 20 15 95

YES 16.8 20 17 95

HS 3.3 NO 15.3 20 17 104

YES 17.5 20 19 104

HumidiMi$er 0.7† 0.3† 4.8† NO 15.8 20 17 104

YES 17.9 20 19 104

009 (81/2 Tons)

208/230---3--- 60

STD

187 254 213.1 105 21.4 0.6

7.5 NO 40.2 45 42 276

YES 46.2 50 48 281

HS 10.6 NO 43.3 50 46 301

YES 49.3 60 51 305

4 6 0 --- 3 --- 6 0

STD

414 508 27.4 55 20.7 0.3

3.4 NO 21.5 25 23 143

YES 24.2 30 25 145

HS 4.8 NO 22.9 25 24 156

YES 25.6 30 27 158

5 7 5 --- 3 --- 6 0

STD

518 632 26.4 44 2

0.6 0.3†

2.8 NO 18.2 20 19 115

YES 20.4 25 21 116

HS 3.3 NO 18.9 25 20 124

YES 21.1 25 22 126

HumidiMi$er 0.7† 0.3† 4.8† NO 19.4 25 20 124

YES 21.5 25 22 126

012 (10 Tons)

208/230---3--- 60

STD

187 254 217.6 125 21.4 0.6

10.6 NO 53.0 60 56 341

YES 59.0 70 61 345

HS 15.0 NO 57.4 70 61 364

YES 63.4 70 66 369

4 6 0 --- 3 --- 6 0

STD

414 508 28.3 62.5

0.7 0.3

4.8 NO 24.9 30 26 171

YES 27.6 30 29 173

HS 7.4 NO 27.5 30 29 182

YES 30.2 35 32 184

5 7 5 --- 3 --- 6 0

STD

518 632 26.3 50 2

0.6

0.3†

3.3 NO 19.1 25 20 136

YES 21.3 25 22 138

HS 5.6 NO 21.0 25 23 146

YES 23.1 25 25 148

HumidiMi$er 0.7† 7.4† NO 21.2 25 23 146

YES 23.4 25 25 148

014 (121/2

Ton s )

208/230---3--- 60 STD 187 254 219 156 21.4 0.6 15.0 NO 60.6 70 64 426

YES 66.6 70 70 431

4 6 0 --- 3 --- 6 0 STD 414 508 2 9 75 20.7 0.3 7.4 NO 29.1 35 31 207

YES 31.8 35 33 209

5 7 5 --- 3 --- 6 0

STD

518 632 27.4 54

20.6

0.3†

5.6 NO 23.5 30 25 154

YES 25.6 30 27 156

HumidiMi$er 20.7† 7.4† NO 23.7 30 25 154

YES 25.9 30 27 156

FLA --- Full Load Amps

HACR --- Heating, Air Conditioning and Refrigeration

IFM --- Indoor (Evaporator) Fan Motor

LRA --- Locked Rotor Amps

MCA --- Minimum Circuit Amps

MOCP --- Maximum Overcurrent Protection

NEC --- National Electrical Code

OFM --- Outdoor (Condenser) Fan Motor

RLA --- Rated Load Amps

NOTES:

* The values listed in this table do not include power exhaust. See power exhaust table for power exhaust requirements.

** Fuse or HACR breaker

{460v motor

48HE,HJ

Step 8 —Adjust Factory-Installed Options

cobraenergy recovery units

Please refer to the supplement provided for information on

installing and operating the factory optional COBRA Energy

Recovery Units. These units are equipped with a factory--installed

energy recovery unit and have different installation and operation

procedures than the standard unit.

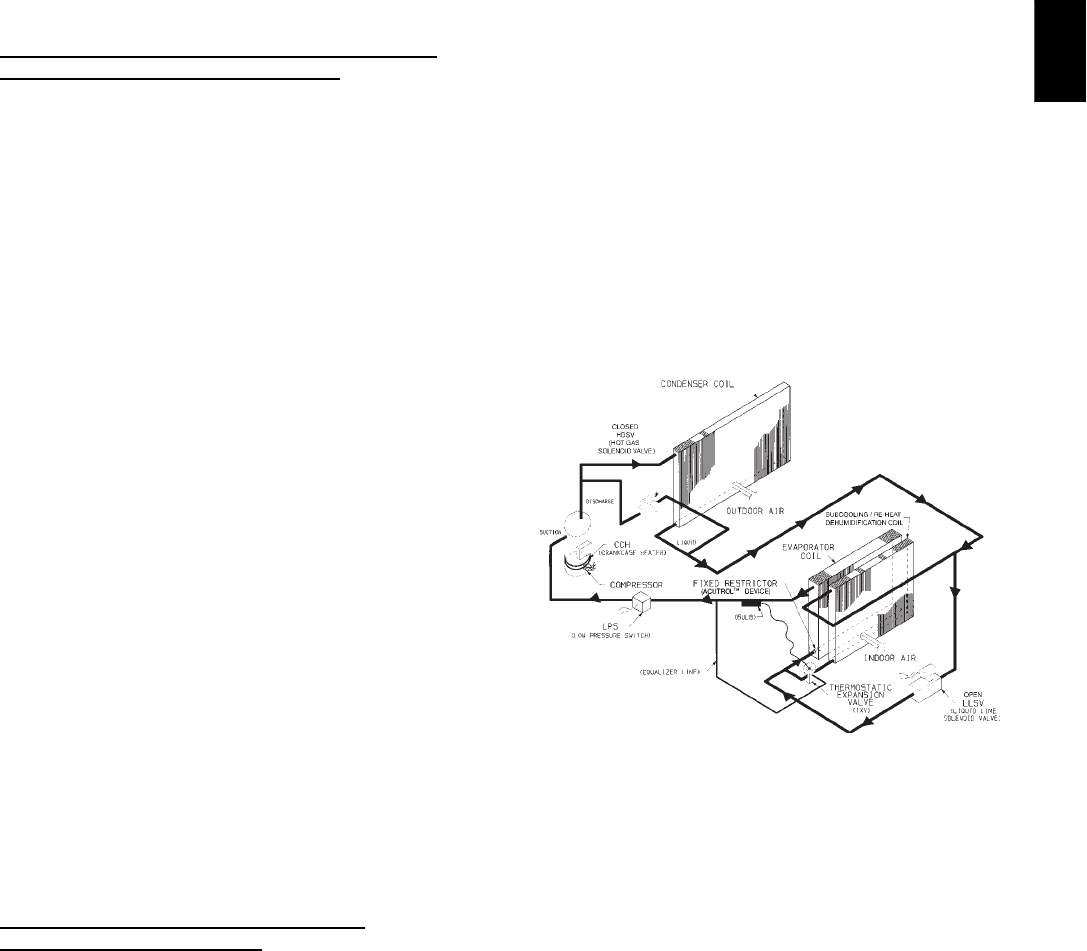

HUMIDI--MIZER ADAPTIVE DEHUMIDIFICATION

SYSTEM

Humidi--MiZer system operation can be controlled by field

installation of a Carrier--approved humidistat. (See Fig. 16.)

NOTE: A light commercial Thermidistatdevice (Fig. 17) can

be used instead of the humidistat if desired. The Thermidistat

device includes a thermostat and a humidistat. The humidistat is

normally used in applications where a temperature sensor is

already provided (units with PremierLinkcontrol).

% RELATIVE HUMIDITY

C06126

Fig. 16 --- Accessory Field--Installed Humidistat

C06127

Fig. 17 --- Light Commercial Thermidistat Device

To install the humidistat:

1. Route humidistat cable through hole provided in unit

control box.

2. Some models may be equipped with a raceway built into

the corner post located on the left side of control box (See

Fig. 15). This raceway provides the required clearance

between high--voltage and low voltage wiring. For models

without a raceway, ensure to provide the NEC required

clearance between the high--voltage and low--voltage

wiring.

3. Use a wire nut to connect humidistat cable into low-

voltage wiring as shown in Fig. 18.

To install Thermidistat device:

1. Route Thermidistat cable through hole provided in unit

control box.

2. Some models may be equipped with a raceway built into

the corner post located on the left side of control box (See

Fig. 15). This raceway provides the required clearance

between high--voltage and low voltage wiring. For models

without a raceway, ensure to provide the NEC required

clearance between the high--voltage and low--voltage

wiring.

3. A field-supplied relay must be installed between the

Thermidistat and the Humidi-Mizer circuit (recommended

relay: HN612KK324). (See Fig. 19.) The relay coil is

connected between the DEHUM output and C (common)

of the unit. The relay controls the Humidi-MiZer solenoid

valve and must be wired between the Humidi-MiZer fuse

and the low-pressure switch. Refer to the installation

instructions included with the Carrier Light Commercial

Thermidistat device for more information.

manual outdoor damper

The outdoor--air hood and screen are attached to the basepan at

the bottom of the unit for shipping.

Assembly:

1. Determine quantity of ventilation required for building.

Record amount for use in Step 8.

2. Remove and save outdoor air opening panel and screws.

(See Fig. 20.)

3. Remove evaporator coil access panel. Separate hood and

screen from basepan by removing the 4 screws securing

them. Save all screws.

4. Replace evaporator coil access panel.

5. Place hood on front of outdoor air opening panel. See

Fig. 21 for hood details. Secure top of hood with the

4screwsremovedinStep3.(SeeFig.22.)

6. Remove and save 6 screws (3 on each side) from sides of

the manual outdoor-air damper.

7. Align screw holes on hood with screw holes on side of

manual outdoor-air damper. (See Fig. 21 and 22.) Secure

hood with 6 screws from Step 6.

8. Adjust minimum position setting of the damper blade by

adjusting the manual outdoor-air adjustment screws on the

front of the damper blade. (See Fig. 20.) Slide blade

vertically until it is in the appropriate position determined

by Fig. 23. Tighten screws.

9. Remove and save screws currently on sides of hood.

Insert screen. Secure screen to hood using the screws. (See

Fig. 22.)

convenience outlet

An optional convenience outlet provides power for rooftop use.

For maintenance personnel safety, the convenience outlet power

is off when the unit disconnect is off. Adjacent unit outlets may

be used for service tools.

novar controls

Optional Novar controls (ETM 3051) are available for

replacement or new construction jobs.

48HE,HJ

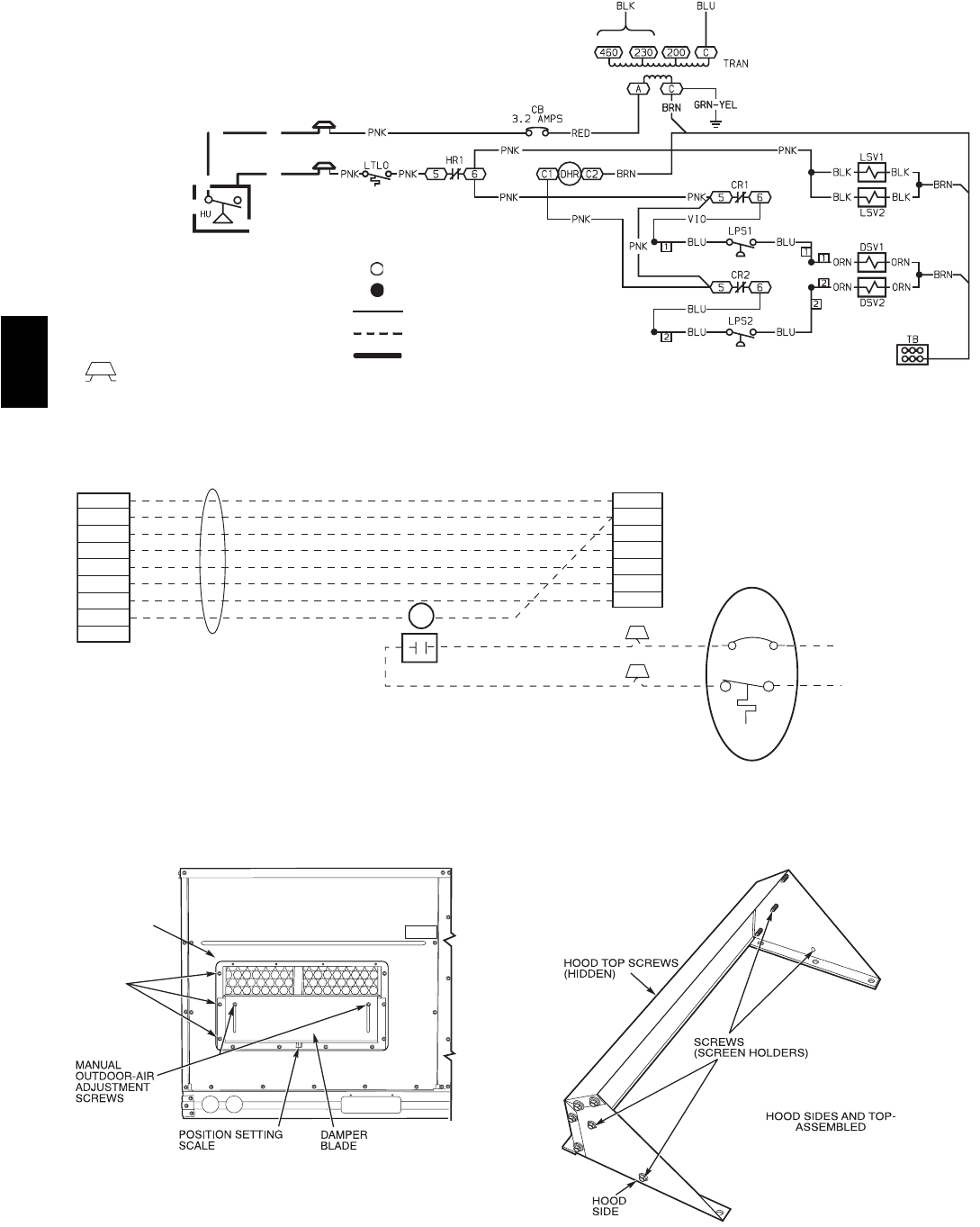

CB — Circuit Breaker

CR — Cooling Relay

DHR — Dehumidify Relay

DSV — Discharge Solenoid Valve

HR — Heater Relay

LPS — Low Pressure Switch

LSV — Liquid Solenoid Valve

LTLO — Low Temperature Lockout

Field Splice

Terminal (Unmarked)

Splice

Factory Wiring

Field Control Wiring

Field Power Wiring

LEGEND

C06128

Fig. 18 --- Typical Humidi--MiZertAdaptive Dehumidification System

Humidistat Wiring (208/230--V Unit Shown)

ROOF TOP UNIT

PINK

RED 24 V

FROM

HUMIDI-MIZER SYSTEM

LLSV

TSTAT WIRES

LCT

DEHUM

HUMIDI-MIZER SYSTEM

PINK

LTLO

3.2 AMPS

LEGEND

CB — Circuit Breaker

LCT — Light Commercial Thermidistat™ Device

LLSV — Liquid Line Solenoid Valve

LTLO — Low Temperature Lockout

C06129

Fig. 19 --- Typical Rooftop Unit with Humidi--Mizer

Adaptive Dehumidification System with Thermidistat Device

OUTDOOR

AIR OPENING

PANEL

3 SCREWS

(SIDE)

C06130

Fig. 20 --- Damper Panel with Manual Outdoor--Air

Damper Installed

C06013

Fig. 21 --- Outdoor--Air Hood Details

48HE,HJ

C06131

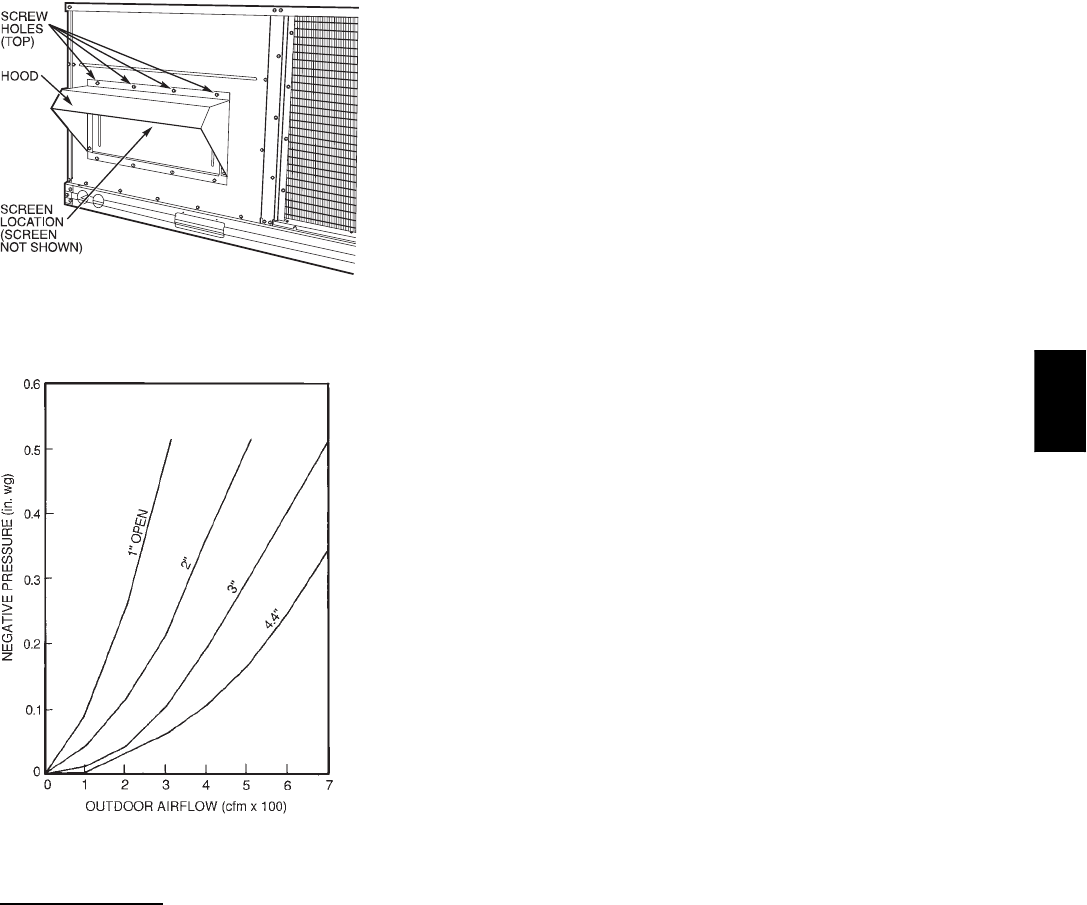

Fig. 22 --- Outdoor--Air Damper With

Hood Attached

C06132

Fig. 23 --- Outdoor--Air Damper Position Setting

premierlink control

The PremierLink controller is compatible with Carrier Comfort

NetworkR(CCN) devices. This control is designed to allow

users the access and ability to change factory--defined settings,

thus expanding the function of the standard unit control board.

Carrier’s diagnostic standard tier display tools such as

Navigatortor Scrolling Marquee can be used with the

PremierLink controller.

The PremierLink controller (see Fig. 24 and 25) requires the use

of a Carrier electronic thermostat or a CCN connection for time

broadcast to initiate its internal timeclock. This is necessary for

broadcast of time of day functions (occupied/unoccupied). No

sensors are supplied with the field--mounted PremierLink control.

The factory--installed PremierLink control includes only the

supply--air temperature (SAT) sensor and the outdoor air

temperature (OAT) sensor as standard. An indoor air quality

(CO2) sensor can be added as an option. Refer to Table 5 for

sensor usage. Refer to Fig. 26 for PremierLink controller wiring.

The PremierLink control may be mounted in the control panel or

an area below the control panel.

NOTE: PremierLink controller versions 1.3 and later are shipped

in Sensor mode. If used with a thermostat, the PremierLink

controller must be configured to Thermostat mode.

Install the Supply Air Temperature (SAT) Sensor

When the unit is supplied with a factory--mounted PremierLink

control, the supply--air temperature (SAT) sensor

(33ZCSENSAT) is factory--supplied and wired. The wiring is

routed from the PremierLink control over the control box,

through a grommet, into the fan section, down along the back

side of the fan, and along the fan deck over to the supply--air

opening.

The SAT probe is wire--tied to the supply--air opening (on the

horizontal opening end) in its shipping position. Remove the

sensor for installation. Re--position the sensor in the flange of the

supply--air opening or in the supply air duct (as required by local

codes). Drill or punch a 1/2--in. hole in the flange or duct. Use

two field--supplied, self--drilling screws to secure the sensor probe

in a horizontal orientation.

NOTE: The sensor must be mounted in the discharge airstream

downstream of the cooling coil and any heating devices. Be sure

the probe tip does not come in contact with any of the unit or heat

surfaces.

Outdoor Air Temperature Sensor (OAT)

When the unit is supplied with a factory-mounted PremierLink

control and economizer, the outdoor-air temperature sensor

(OAT) is factory-supplied and wired.

Install the Indoor Air Quality (CO2)Sensor

Mount the optional indoor air quality (CO2) sensor according to

manufacturer specifications.

A separate field-supplied transformer must be used to power the

CO2sensor.

Wire the CO2sensor to the COM and IAQI terminals of J5 on the

PremierLink controller. Refer to the PremierLink Installation,

Start-up, and Configuration Instructions for detailed wiring and

configuration information.

Enthalpy Sensors and Control

The enthalpy control (HH57AC077) is supplied as a

field-installed accessory to be used with the EconoMi$er2

damper control option. The outdoor air enthalpy sensor is part of

the enthalpy control. The separate field-installed accessory return

air enthalpy sensor (HH57AC078) is required for differential

enthalpy control.

NOTE: The enthalpy control must be set to the “D” setting for

differential enthalpy control to work properly.

The enthalpy control receives the indoor and return

enthalpy from the outdoor and return air enthalpy sensors and

provides a dry contact switch input to the PremierLink controller.

Locate the controller in place of an existing economizer controller

or near the actuator. The mounting plate may not be needed if

existing bracket is used.

A closed contact indicates that outside air is preferred to the

return air. An open contact indicates that the economizer should

remain at minimum position.

Outdoor Air Enthalphy Sensor/Enthalpy Controller

(HH57AC077)

To wire the outdoor air enthalpy sensor, perform the following (See

Fig. 27 and 28):

NOTE: The outdoor air sensor can be removed from the back of

the enthalpy controller and mounted remotely.

48HE,HJ

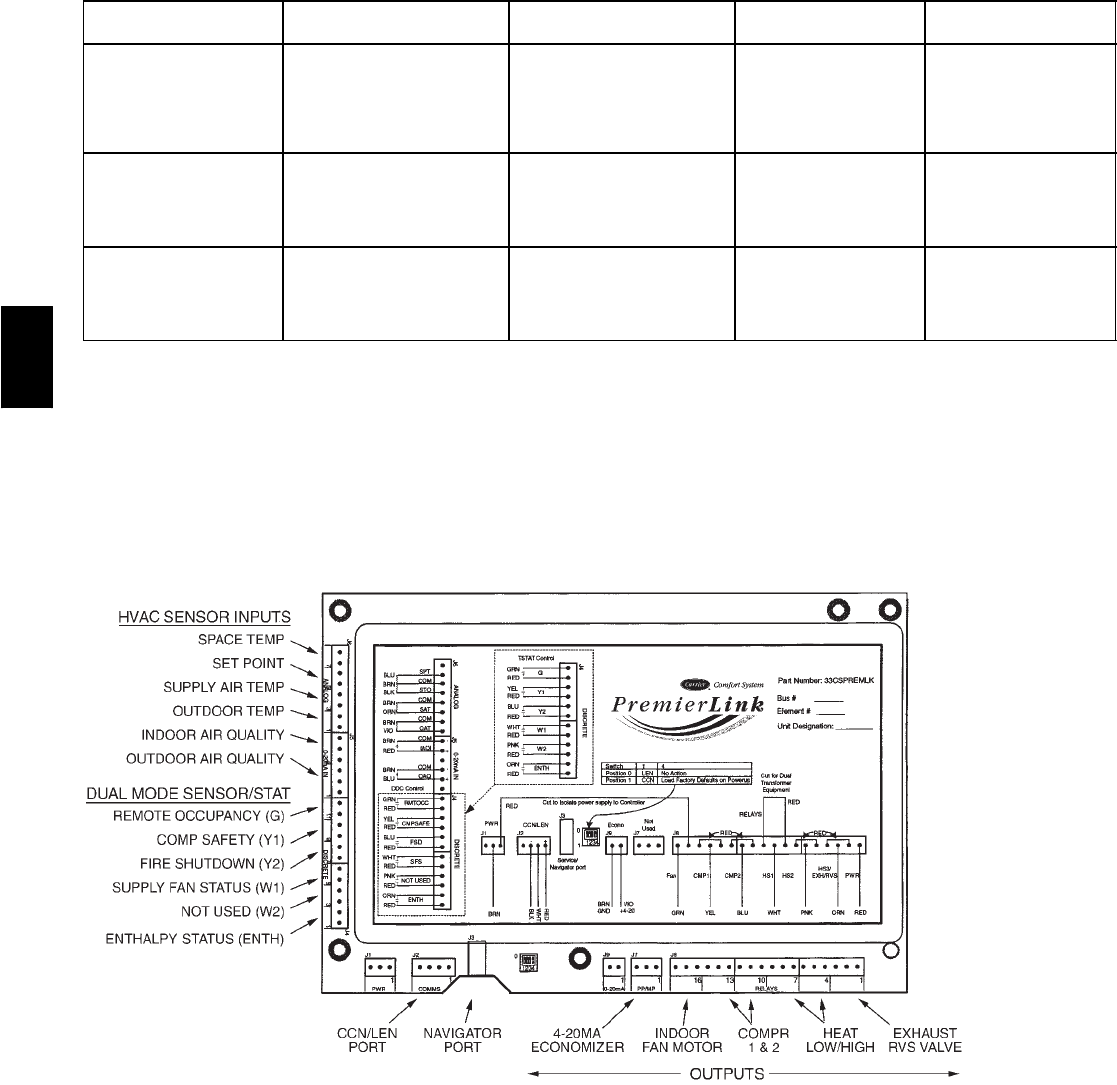

Table 5—PremierLinkSensor Usage

APPLICATION OUTDOOR AIR

TEMPERATURE SENSOR

RETURN AIR

TEMPERATURE SENSOR

OUTDOOR AIR

ENTHALPY SENSOR

RETURN AIR

ENTHALPY SENSOR

Differential Dry Bulb

Te m pe r a tu r e w it h

PremierLink*

(PremierLink

requires 4-20 mA

Actuator)

I n c l u d e d ---

CRTEMPSN001A00

R e q u i r e d ---

33ZCT55SPT

or Equivalent — —

Single Enthalpy with

PremierLink*

(PremierLink

requires 4-20 mA

Actuator)

I n c l u d e d ---

Not Used —

R e q u i r e d ---

HH57AC077

or Equivalent —

Differential Enthalpy

with PremierLink*

(PremierLink

requires 4-20 mA

Actuator)

I n c l u d e d ---

Not Used —

R e q u i r e d ---

HH57AC077

or Equivalent

R e q u i r e d ---

HH57AC078

or Equivalent

*PremierLink control requires Supply Air Temperature sensor 33ZCSENSAT and Outdoor Air Temperature sensor CRTEMPSN001A00

— Included with factory-installed PremierLink control; field-supplied and field-installed with field-installed PremierLink control.

NOTES:

1. CO2Sensors (Optional):

33ZCSENCO2 — Room sensor (adjustable). Aspirator box is required for duct mounting of the sensor.

33ZCASPCO2 — Aspirator box used for duct-mounted CO2room sensor.

33ZCT55CO2 — Space temperature and CO2room sensor with override.

33ZCT56CO2 — Space temperature and CO2room sensor with override and set point.

2. All units include the following Standard Sensors:

Outdoor-Air Sensor — 50HJ540569 — Opens at 67_F, c l o s e s a t 5 2 _F, not adjustable.

Mixed-Air Sensor — HH97AZ001 — (PremierLink control requires Supply Air Temperature sensor 33ZCSENSAT

and Outdoor Air Temperature Sensor CRTEMPSN001A00)

Compressor Lockout Sensor — 50HJ540570 — Opens at 35_F, c l o s e s a t 5 0 _F.

C06016

Fig. 24 --- PremierLink Controller

48HE,HJ

PREMIERLINK

CONTROL

HINGED

DOOR

PANEL

C06017

Fig. 25 --- PremierLinktController (Installed)

TB-1

TB-3

TB-2

ANAL OG

0-20mAIN

DISCRETE

PWR

COMMS

0-20 mA

Relays

HK50AA039

BRN

BRN WHT

WHT

RED

PNK

ORNORN

ORN

GRA

ORN

RED

PP/MP

WHT

BLK

RED

PNK

WHT

BLK

PNK

WHT

BLU

ORN

YEL

GRN

BRN

RED

BRN

BLK

BRN

BLU

PNK

VIO

GRA

ORN

PNK

GRA

SAT

BRN

ORN

BLK

RED

Space Temp./ Set

Point Adjustment

Indoor Air

Quality Sensor

OAT

PNK

VIO

YEL

BLU

Economi$er2

4 - 20mA

BLK

RED

WHT

PremierLink

GRN

YEL

BLU

Outdoor Air

Quality Sensor

Power Exhaust/Energy Recycler

CCN

Comm.

RMTOCC

SFS

CMPSAFE

FSD

RTU Terminal

Board

TR TR1

RED

BRN

BLK

RED

GRAY

OUTDOOR AIR

ENTHALPY SENSOR

RETURN AIR

ENTHALPY

SENSOR

LEGEND

COMMS — Communications

OAT — Outdoor Air Temperature Sensor

PWR — Power

RTU — Rooftop Unit

SAT — Supply Air Temperature Sensor

TB — Terminal Block

C06018

Fig. 26 --- Typical PremierLink Control Wiring

48HE,HJ

1. Use a 4-conductor, 18 or 20 AWG cable to connect the

enthalpy control to the PremierLinkcontroller and

power transformer.

2. Connect the following 4 wires from the wire harness

located in rooftop unit to the enthalpy controller:

a. Connect the BRN wire to the 24 vac terminal (TR1) on

enthalpy control and to pin 1 on 12-pin harness.

b. Connect the RED wire to the 24 vac GND terminal (TR)

on enthalpy sensor and to pin 4 on 12-pin harness.

c. Connect the GRAY/ORN wire to J4-2 on PremierLink

controller and to terminal (3) on enthalpy sensor.

d. Connect the GRAY/RED wire to J4-1 on PremierLink

controller and to terminal (2) on enthalpy sensor.

NOTE: If installing in a Carrier rooftop, use the two gray wires

provided from the control section to the economizer to connect

PremierLinkcontrollertoterminals2and3onenthalpysensor.

Return Air Enthalphy Sensor

Mount the return-air enthalpy sensor (HH57AC078) in the

return-air duct. The return air sensor is wired to the enthalpy

controller (HH57AC077). The outdoor enthalpy changeover set

point is set at the controller.

LED

ABC

TR TR1

BRN

RED

GRAY/ORN

GRAY/RED

WIRE HARNESS

IN UNIT

BLK

RED

(RETURN AIR

ENTHALPY

SENSOR)

(OUTDOOR

AIR

ENTHALPY

SENSOR)

ENTHALPY CONTROLLER

NOTES:

1. Remove factory-installed jumper across SR and + before connecting

wires from return air sensor.

2. Switches shown in high outdoor air enthalpy state. Terminals 2 and 3

close on low outdoor air enthalpy relative to indoor air enthalpy.

3. Remove sensor mounted on back of control and locate in outside air-

stream.

C06019

Fig. 27 --- Outdoor and Return Air Sensor Wiring

Connections for Differential Enthalpy Control

To wire the return air enthalpy sensor, perform the following (See

Fig. 27):

1. Use a 2--conductor, 18 or 20 AWG, twisted pair cable to

connect the return air enthalpy sensor to the enthalpy

controller.

2. At the enthalpy control remove the factory-installed

resistor from the (SR) and (+) terminals.

3. Connect the field-supplied RED wire to (+) spade

connector on the return air enthalpy sensor and the (SR+)

terminal on the enthalpy controller. Connect the BLK wire

to (S) spade connector on the return air enthalpy sensor

and the (SR) terminal on the enthalpy controller.

BRACKET

C7400A1004

HH57AC077

ENTHALPY

CONTROL AND

OUTDOOR AIR

ENTHALPY SENSOR

HH57AC078 ENTHALPY

SENSOR (USED WITH

ENTHALPY CONTROL

FOR DIFFERENTIAL

ENTHALPY OPERATION)

MOUNTING PLATE

C06020

Fig. 28 --- Differential Enthalpy Control,

Sensor and Mounting Plate (33AMKITENT006)

ECONOMI$ER IV

CONTROLLER

OUTSIDE AIR

TEMPERATURE SENSOR

LOW AMBIENT

SENSOR

CTUATOR

WIRING

HARNESS

C06021

Fig. 29 --- EconoMi$er IV Component Locations

ECONOMI$ER2

PLUG

BAROMETRIC

RELIEF

DAMPER

OUTDOOR

AIR HOOD

HOOD

SHIPPING

BRACKET

GEAR DRIVEN

DAMPER

C06022

Fig. 30 --- EconoMi$er2 Component Locations

optional economi$er IV and economi$er2

See Fig. 29 for EconoMi$er IV component locations. See Fig. 30 for

EconoMi$er2 component locations.

48HE,HJ

NOTE: These instructions are for installing the optional

EconoMi$er IV and EconoMi$er2 only. Refer to the accessory

EconoMi$er IV or EconoMi$er2 installation instructions when

field installing an EconoMi$er IV or EconoMi$er2 accessory.

1. To remove the existing unit filter access panel, raise the

panel and swing the bottom outward. The panel is now

disengaged from the track and can be removed. (See

Fig. 31.)

2. The box with the economizer hood components is shipped

in the compartment behind the economizer. The

EconoMi$er IV controller is mounted on top of the

EconoMi$er IV in the position shown in Fig. 26. The

optional EconoMi$er2 with 4 to 20 mA actuator signal

control does not include the EconoMi$er IV controller. To

remove the component box from its shipping position,

remove the screw holding the hood box bracket to the top

of the economizer. Slide the hood box out of the unit. (See

Fig. 32.)

IMPORTANT: If the power exhaust accessory is to be installed

on the unit, the hood shipped with the unit will not be used and

must be discarded. Save the aluminum filter for use in the power

exhaust hood assembly.

3. The indoor coil access panel will be used as the top of the

hood. Remove the screws along the sides and bottom of

the indoor coil access panel. (See Fig. 33.)

4. Swing out indoor coil access panel and insert the hood

sides under the panel (hood top). Use the screws provided

to attach the hood sides to the hood top. Use screws

provided to attach the hood sides to the unit. (See Fig. 34.)

5. Remove the shipping tape holding the economizer

barometric relief damper in place.

6. Insert the hood divider between the hood sides. (See

Fig. 34 and 35.) Secure hood divider with 2 screws on

each hood side. The hood divider is also used as the

bottom filter rack for the aluminum filter.

7. Open the filter clips which are located underneath the

hood top. Insert the aluminum filter into the bottom filter

rack (hood divider). Push the filter into position past the

open filter clips. Close the filter clips to lock the filter into

place. (See Fig. 35.)

8. Caulk the ends of the joint between the unit top panel and

the hood top. (See Fig. 33.)

9. Replace the filter access panel.

10. Install all EconoMi$er IV accessories. EconoMi$er IV

wiring is shown in Fig. 36. EconoMi$er2 wiring is shown

in Fig. 37.

Barometric flow capacity is shown in Fig. 38. Outdoor air

leakage is shown in Fig. 39. Return air pressure drop is shown in

Fig. 40.

FILTER ACCESS PANEL

OUTDOOR-AIR OPENING AND

INDOOR COIL ACCESS PANEL

COMPRESSOR

ACCESS PANEL

C06023

Fig. 31 --- Typical Access Panel Locations

HoodBox

HOOD BOX

BRACKET

C06024

Fig. 32 --- Hood Box Removal

SIDE

PANEL

INDOOR

COIL

ACCESS

PANEL

INDOOR

COIL

ACCESS

PANEL

CAULK

HERE

TOP

SIDE

PANEL

C06025

Fig. 33 --- Indoor Coil Access Panel Relocation

TOP

PANEL

INDOOR COIL

ACCESS PANEL

19 1/16”

SCREW

HOOD DIVIDER

LEFT

HOOD

SIDE

33 3/8”

C06026

Fig. 34 --- Outdoor--Air Hood Construction

ECONOMI$ER IV STANDARD SENSORS

Outdoor Air Temperature (OAT) Sensor

The outdoor air temperature sensor (HH57AC074) is a 10 to 20 mA

device used to measure the outdoor-air temperature. The outdoor-air

temperature is used to determine when the EconoMi$er IV can be

used for free cooling. The sensor is factory-installed on the

EconoMi$er IV in the outdoor airstream. (See Fig. 29.) The

operating range of temperature measurement is 40_to 100_F.

48HE,HJ

Supply Air Temperature (SAT) Sensor

The supply air temperature sensor is a 3 K thermistor located at

the inlet of the indoor fan. (See Fig. 41.) This sensor is factory

installed. The operating range of temperature measurement is 0

to 158_F. See Table 6 for sensor temperature/resistance values.

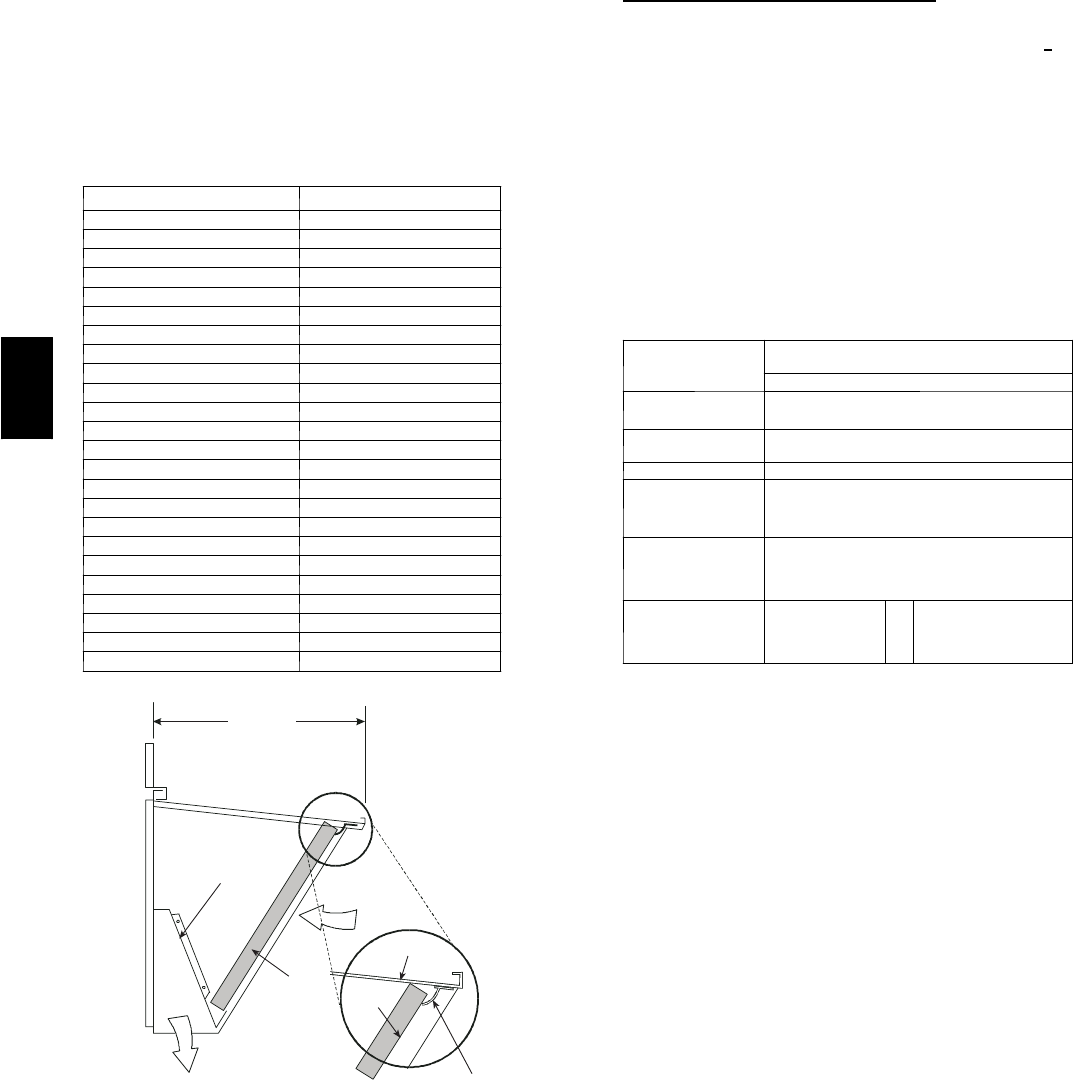

Table 6—Supply Air Sensor Temperature/

Resistance Values

TEMPERATURE (F) RESISTANCE (ohms)

–58 200,250

–40 100,680

–22 53,010

–4 29,091

14 16,590

32 9,795

50 5,970

68 3,747

77 3,000

86 2,416

104 1,597

122 1,080

140 746

158 525

176 376

185 321

194 274

212 203

230 153

248 116

257 102

266 89

284 70

302 55

17 1/4”

DIVIDER

BAROMETRIC

RELIEF

CLEANABLE

ALUMINUM

FILTER FILTER

HOOD

FILTE

CLIP

OUTSIDE

AIR

C06027

Fig. 35 --- Filter Installation

The temperature sensor looks like an eyelet terminal with wires

running to it. The sensor is located in the “crimp end” and is

sealed from moisture.

Outdoor Air Lockout Sensor

The Economi$er IV is equipped with an ambient temperature

lockout switch located in the outdoor air stream which is used to

lockout the compressors below a 42_F ambient temperature. (See

Fig. 29.)

ECONOMI$ER IV CONTROL MODES

IMPORTANT: The optional EconoMi$er2 does not include a

controller. The EconoMi$er2 is operated by a 4 to 20 mA signal

from an existing field-supplied controller (such as PremierLink

control). See Fig. 37 for wiring information.

Determine the EconoMi$er IV control mode before set up of the

control. Some modes of operation may require different

sensors. Refer to Table 7. The EconoMi$er IV is supplied from

the factory with a supply--air temperature sensor and an outdoor--

air temperature sensor. This allows for operation of the

EconoMi$er IV with outdoor air dry bulb changeover control.

Additional accessories can be added to allow for different types of

changeover control and operation of the EconoMi$er IV and unit.

Table7—Economi$erivsensorusage

APPLICATION

ECONOMI$ER IV WITH OUTDOOR AIR

DRY BULB SENSOR

Accessories Required

Outdoor Air

Dry Bulb

None. The outdoor air dry bulb sensor

is factory installed.

Differential

Dry Bulb CRTEMPSN002A00*

Single Enthalpy HH57AC078

Differential

Enthalpy

HH57AC078

and

CRENTDIF004A00*

CO2for DCV

Control using a

Wall-Mounted

CO2Sensor

33ZCSENCO2

CO2for DCV

Control using a

Duct-Mounted

CO2Sensor

33ZCSENCO2†

and

33ZCASPCO2**

RCRCBDIOX005A00††

*CRENTDIF004A00 and CRTEMPSN002A00 accessories are used on many

different base units. As such, these kits may contain parts that will not be

needed for installation.

† 33ZCSENCO2 is an accessory CO2sensor.

** 33ZCASPCO2 is an accessory aspirator box required for duct-mounted

applications.

†† CRCBDIOX005A00 is an accessory that contains both 33ZCSENCO2

and 33ZCASPCO2 accessories.

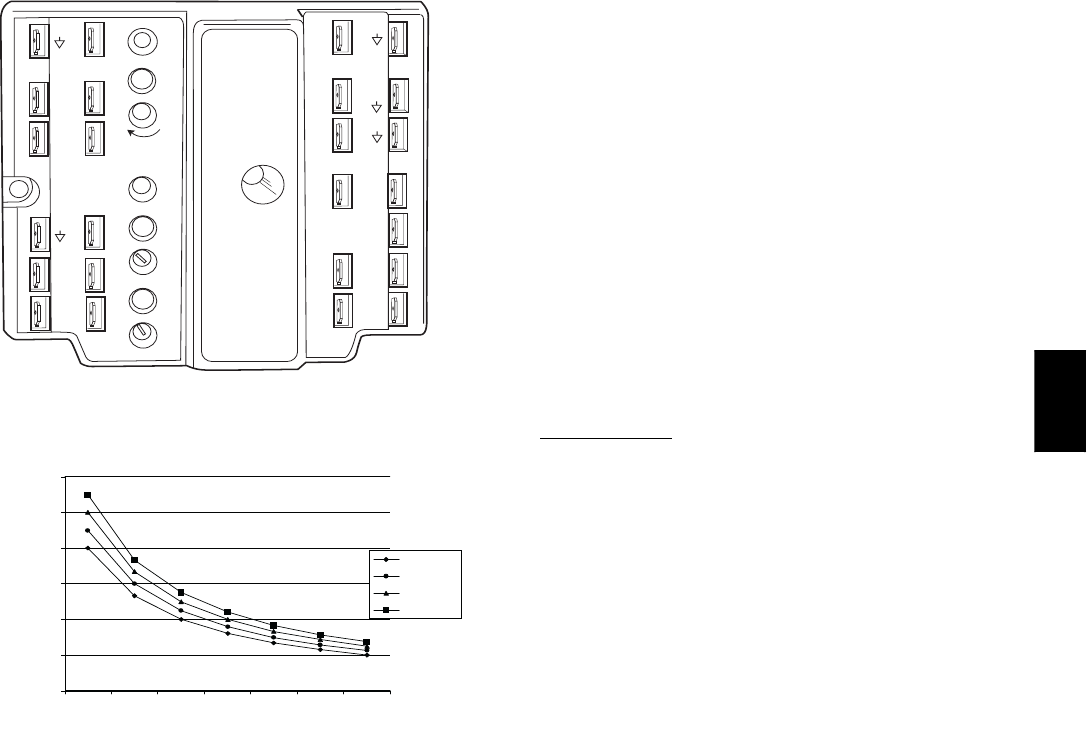

Outdoor Dry Bulb Changeover

The standard controller is shipped from the factory configured for

outdoor dry bulb changeover control. The outdoor--air and

supply--air temperature sensors are included as standard. For this

control mode, the outdoor temperature is compared to an

adjustable set point selected on the control. If the outdoor-air

temperature is above the set point, the EconoMi$er IV will adjust

the outdoor-air dampers to minimum position. If the outdoor air

temperature is below the set point, the position of the outdoor air

dampers will be controlled to provide free cooling using outdoor

air. When in this mode, the LED next to the free cooling set point

potentiometer will be on. The changeover temperature set point is

controlled by the free cooling set point potentiometer located on

the control. (See Fig. 42.) The scale on the potentiometer is A, B,

C, and D. See Fig. 43 for the corresponding temperature

changeover values.

Differential Dry Bulb Control

For differential dry bulb control the standard outdoor dry bulb

sensor is used in conjunction with an additional accessory dry

bulb sensor (part number CRTEMPSN002A00). The accessory

sensor must be mounted in the return airstream. (See Fig. 44.)

Wiring is provided in the EconoMi$er IV wiring harness. (See

Fig. 36.)

In this mode of operation, the outdoor-air temperature is

compared to the return-air temperature and the lower temperature

airstream is used for cooling. When using this mode of

changeover control, turn the enthalpy setpoint potentiometer fully

clockwise to the D setting. (See Fig. 42.)

48HE,HJ

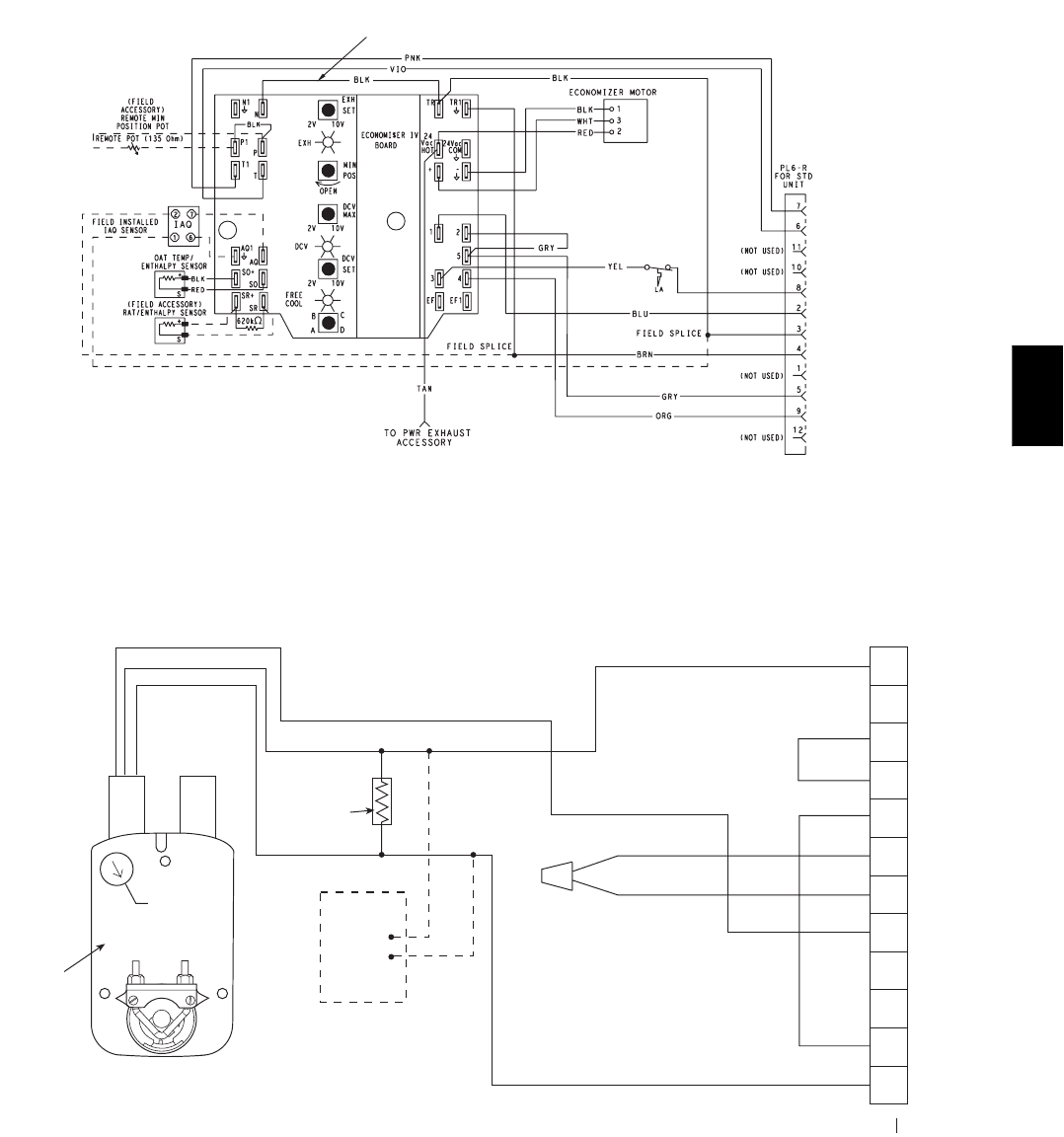

FOR OCCUPANCY CONTROL

REPLACE JUMPER WITH

FIELD-SUPPLIED TIME CLOCK

LEGEND

DCV— Demand Controlled Ventilation

IAQ — Indoor Air Quality

LA — Low Ambient Lockout Device

OAT — Outdoor-Air Temperature

POT — Potentiometer

RAT — Return-Air Temperature

Potentiometer Defaults Settings:

Power Exhaust Middle

Minimum Pos. Fully Closed

DCV Max. Middle

DCV Set Middle

Enthalpy C Setting

NOTES:

1. 620 ohm, 1 watt 5% resistor should be removed only when using differential

enthalpy or dry bulb.

2. If a separate field-supplied 24 v transformer is used for the IAQ sensor power

supply, it cannot have the secondary of the transformer grounded.

3. For field-installed remote minimum position POT, remove black wire jumper

between P and P1 and set control minimum position POT to the minimum

osition.

C06028

Fig. 36 --- EconoMi$er IV Wiring

PINK

VIOLET

BLACK

BLUE

YELLOW

NOTE 1

NOTE 3

RUN

500 OHM

RESISTOR

OPTIONAL CO

SENSOR4-20mA

OUTPUT

50HJ540573

ACTUATOR

ASSEMBLY

RED

WHITE

ECONOMISER2 PLUG

DIRECT DRIVE

ACTUATOR

NOTES:

1. Switch on actuator must be in run position for economizer to operate.

2. PremierLink™ control requires that the standard 50HJ540569 outside-air sensor be replaced by either the CROASENR001A00 dry bulb sensor or HH57A077

enthalpy sensor.

3. 50HJ540573 actuator consists of the 50HJ540567 actuator and a harness with 500-ohm resistor.

C06029

Fig. 37 --- EconoMi$er2 with 4 to 20 mA Control Wiring

Outdoor Enthalpy Changeover

For enthalpy control, accessory enthalpy sensor (part number

HH57AC078) is required. Replace the standard outdoor dry bulb

temperature sensor with the accessory enthalpy sensor in the same

mounting location. (See Fig. 29.) When the outdoor air enthalpy

rises above the outdoor enthalpy changeover set point, the

outdoor-air damper moves to its minimum position. The outdoor

enthalpy changeover set point is set with the outdoor enthalpy set

point potentiometer on the EconoMi$er IV controller. The set

points are A, B, C, and D. (See Fig. 45.) The factory-installed

620-ohm jumper must be in place across terminals SR and SR+

on the EconoMi$er IV controller. (See Fig. 29 and 46.)

48HE,HJ

Differential Enthalphy Control

For differential enthalpy control, the EconoMi$er IV controller

uses two enthalpy sensors (HH57AC078 and

CRENTDIF004A00), one in the outside air and one in the return

air duct. The EconoMi$er IV controller compares the outdoor

air enthalpy to the return air enthalpy to determine EconoMi$er

IV use. The controller selects the lower enthalpy air (return or

outdoor) for cooling. For example, when the outdoor air has a

lower enthalpy than the return air, the EconoMi$er IV opens to

bring in outdoor air for free cooling.

500

1000

1500

2000

2500

0.05 0.15 0.25

STATIC PRESSURE (in. wg)

FLOW IN CUBIC FEET PER MINUTE (cfm)

C06030

Fig. 38 --- Barometric Flow Capacity

0.13 0.20 0.22 0.25 0.30 0.35 0.40 0.45 0.50

STATIC PRESSURE (in. wg)

FLOW IN CUBIC FEET PER MINUTE (cfm)

C06031

Fig. 39 --- Outdoor--Air Damper Leakage

1000

2000

3000

4000

5000

6000

0.05 0.10 0.15 0.20 0.25 0.30 0.35

STATIC PRESSURE (in. wg)

FLOW IN CUBIC FEET PER MINUTE (cfm)

C06032

Fig. 40 --- Return--Air Pressure Drop

SUPPLY AIR

TEMPERATURE

SENSOR

MOUNTING

LOCATION

SUPPLY AIR

TEMPERATURE

SENSOR

C06033

Fig. 41 --- Supply Air Sensor Location

C06034

Fig. 42 --- EconoMi$er IV Controller Potentiometer

and LED Locations

Replace the standard outside air dry bulb temperature sensor with

the accessory enthalpy sensor in the same mounting location.

(See Fig. 29.) Mount the return air enthalpy sensor in the return

air duct. (See Fig. 44.) Wiring is provided in the EconoMi$er IV

wiring harness. (See Fig. 36.) The outdoor enthalpy changeover

set point is set with the outdoor enthalpy set point potentiometer

on the EconoMi$er IV controller. When using this mode of

changeover control, turn the enthalpy setpoint potentiometer fully

clockwise to the D setting.

Indoor Air Quality (IAQ) Sensor Input

The IAQ input can be used for demand control ventilation control

based on the level of CO2measured in the space or return air

duct.

Mount the accessory IAQ sensor according to manufacturer

specifications. The IAQ sensor should be wired to the AQ and

AQ1 terminals of the controller. Adjust the DCV potentiometers

to correspond to the DCV voltage output of the indoor air quality

sensor at the user-determined set point. (See Fig. 47.)

If a separate field-supplied transformer is used to power the IAQ

sensor, the sensor must not be grounded or the EconoMi$er IV

control board will be damaged.

Exhaust Set Point Adjustment

The exhaust set point will determine when the exhaust fan runs

based on damper position (if accessory power exhaust is

installed). The set point is modified with the Exhaust Fan Set

Point (EXH SET) potentiometer. (See Fig. 42.) The set point

represents the damper position above which the exhaust fans will

be turned on. When there is a call for exhaust, the EconoMi$er IV

controller provides a 45 15 second delay before exhaust fan

48HE,HJ

activation to allow the dampers to open. This delay allows the

damper to reach the appropriate position to avoid unnecessary fan

overload.

Minimum Position Control

There is a minimum damper position potentiometer on the

EconoMi$er IV controller. (See Fig. 42.) The minimum damper

position maintains the minimum airflow into the building during

the occupied period.

When using demand ventilation, the minimum damper position

represents the minimum ventilation position for VOC (volatile

organic compound) ventilation requirements. The maximum

demand ventilation position is used for fully occupied ventilation.

When demand ventilation control is not being used, the minimum

position potentiometer should be used to set the occupied

ventilation position. The maximum demand ventilation position

should be turned fully clockwise.

Adjust the minimum position potentiometer to allow the

minimum amount of outdoor air, as required by local codes, to

enter the building. Make minimum position adjustments with at

least 10_F temperature difference between the outdoor and

return-air temperatures.

To determine the minimum position setting, perform the

following procedure:

1. Calculate the appropriate mixed air temperature using the

following formula:

(TOx

OA )+(TRxRA )=T

100 100

TO= Outdoor-Air Temperature

OA = Percent of Outdoor Air

TR= Return-Air Temperature

RA = Percent of Return Air

TM= Mixed-Air Temperature

As an example, if local codes require 10% outdoor air during

occupied conditions, outdoor-air temperature is 60_F, and

return-air temperature is 75_F.

(60 x .10) + (75 x .90) = 73.5_F

2. Disconnect the supply air sensor from terminals T and T1.

3. Ensure that the factory-installed jumper is in place across

terminals P and P1. If remote damper positioning is being

used, make sure that the terminals are wired according to

Fig. 36 and that the minimum position potentiometer is

turned fully clockwise.

4. Connect 24 vac across terminals TR and TR1.

5. Carefully adjust the minimum position potentiometer

until the measured supply air temperature matches the

calculated value.

6. Reconnect the mixed air sensor to terminals T and T1.

Remote control of the EconoMi$er IV damper is desirable when

requiring additional temporary ventilation. If a

field-supplied remote potentiometer (Honeywell part number

S963B1128) is wired to the EconoMi$er IV controller, the

minimum position of the damper can be controlled from a remote

location.

To control the minimum damper position remotely, remove the

factory-installed jumper on the P and P1 terminals on the

EconoMi$er IV controller. Wire the field-supplied potentiometer

to the P and P1 terminals on the EconoMi$er IV controller. (See

Fig. 46.)

Damper Movement

Damper movement from full open to full closed (or vice versa)

takes 21/2minutes.

Thermostats

The EconoMi$er IV control works with conventional thermostats

that have a Y1 (cool stage 1), Y2 (cool stage 2), W1 (heat stage

1), W2 (heat stage 2), and G (fan). The EconoMi$er IV control

does not support space temperature sensors. Connections are

made at the thermostat terminal connection board located in the

main control box.

LED ON

LED OFF

40 45 50 55 60 65 70 75 80 85 90 95 100

DEGREES FAHRENHEIT

C06035

Fig. 43 --- Outside Air Temperature

Changeover Set Points

ECONOMI$ER IV

CONTROLLER

GROMMET

RETURN AIR

SENSOR

RETURN DUCT

(FIELD-PROVIDED)

C06036

Fig. 44 --- Return Air Temperature or Enthalpy

Sensor Mounting Location

Occupancy Control

The factory default configuration for the EconoMi$er IV control

is occupied mode. Occupied mode is provided by the black

jumper from terminal TR to terminal N. When unoccupied mode

is desired, install a field-supplied timeclock function in place of

the jumper between TR and N. (See Fig. 36.) When the timeclock

contacts are closed, the EconoMi$er IV control will be in

occupied mode. When the timeclock contacts are open (removing

the 24-v signal from terminal N), the EconoMi$er IV will be in

unoccupied mode.

48HE,HJ

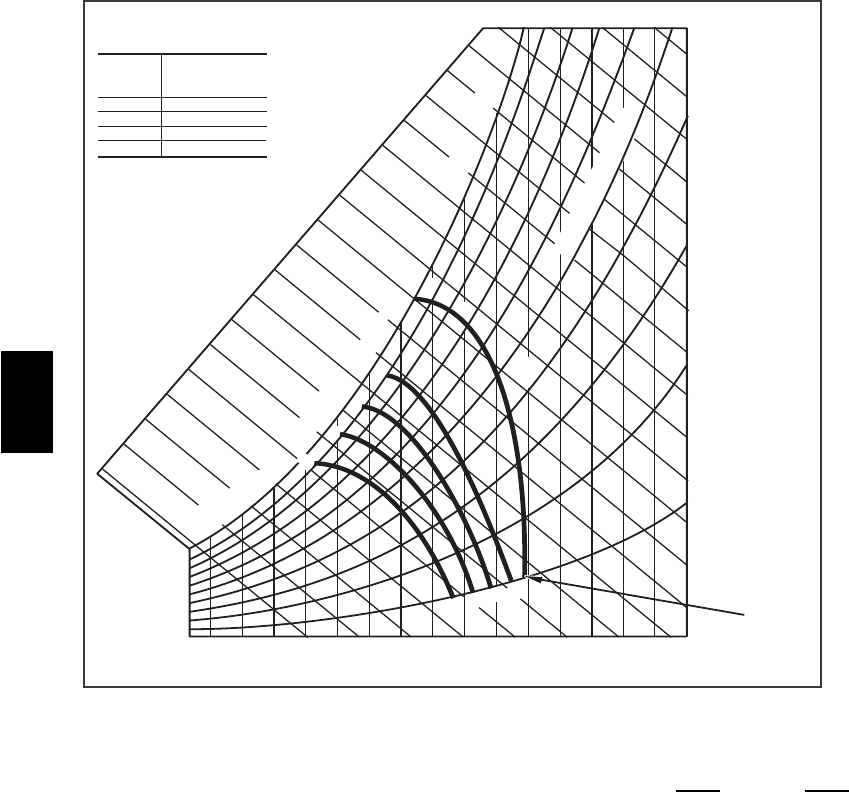

CONTROL

CURVE

CONTROL POINT

APPROX.

deg. F (deg. C)

AT 50% RH

73 (23)

70 (21)

67 (19)

63 (17)

12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46

100

ENTHALPY BTU PER POUND DRY AIR

(29) 90

(32) 95

(35) 100

(38) 105

(41) 110

(43)

(2)

(4)

105

(41) 110

(43)

(7)

(10)

(13)

(16)

(18)

(21)

(24)

(27)

(29) 90

(32) 95

(35) 100

(38)

RELATIVE HUMIDITY (%)

HIGH LIMIT

CURVE

APPROXIMATE DRY BULB TEMPERATURE--degrees F (degrees C)

C06037

Fig. 45 --- Enthalpy Changeover Set Points

Typically the maximum ventilation rate will be about 5 to 10%

more than the typical cfm required per person, using normal

outside air design criteria.

Demand Controlled Ventilation (DCV)

When using the EconoMi$er IV for demand controlled

ventilation, there are some equipment selection criteria which

should be considered. When selecting the heat capacity and cool

capacity of the equipment, the maximum ventilation rate must be

evaluated for design conditions. The maximum damper position

must be calculated to provide the desired fresh air.

A proportional anticipatory strategy should be taken with the

following conditions: a zone with a large area, varied occupancy,

and equipment that cannot exceed the required ventilation rate at

design conditions. Exceeding the required ventilation rate means

the equipment can condition air at a maximum ventilation rate

that is greater than the required ventilation rate for maximum

occupancy. A proportional-anticipatory strategy will cause the

fresh air supplied to increase as the room CO2level increases

even though the CO2set point has not been reached. By the time

the CO2level reaches the set point, the damper will be at

maximum ventilation and should maintain the set point.

In order to have the CO2sensor control the economizer damper in

this manner, first determine the damper voltage output for

minimum or base ventilation. Base ventilation is the ventilation

required to remove contaminants during unoccupied periods. The

following equation may be used to determine the percent of

outside-air entering the building for a given damper position. For

best results there should be at least a 10 degree difference in

outside and return-air temperatures.

(TOx

OA )+(TRxRA )=T

100 100

TO= Outdoor-Air Temperature

OA = Percent of Outdoor Air

TR= Return-Air Temperature

RA = Percent of Return Air

TM= Mixed-Air Temperature

Once base ventilation has been determined, set the minimum

damper position potentiometer to the correct position.

The same equation can be used to determine the occupied or

maximum ventilation rate to the building. For example, an output

of 3.6 volts to the actuator provides a base ventilation rate of 5%

and an output of 6.7 volts provides the maximum ventilation rate

of 20% (or base plus 15 cfm per person). Use Fig. 44 to

determine the maximum setting of the CO2sensor. For example,

a 1100 ppm set point relates to a 15 cfm per person design. Use

the 1100 ppm curve on Fig. 47 to find the point when the CO2

sensor output will be 6.7 volts. Line up the point on the graph

with the left side of the chart to determine that the range

configuration for the CO2sensor should be 1800 ppm. The

EconoMi$er IV controller will output the 6.7 volts from the CO2

sensor to the actuator when the CO2concentration in the space is

at 1100 ppm. The DCV set point may be left at 2 volts since the

CO2sensor voltage will be ignored by the EconoMi$er IV

controller until it rises above the 3.6 volt setting of the minimum

position potentiometer.

Once the fully occupied damper position has been determined, set

the maximum damper demand control ventilation potentiometer

to this position. Do not set to the maximum position as this can

result in over-ventilation to the space and potential high-humidity

levels.

48HE,HJ

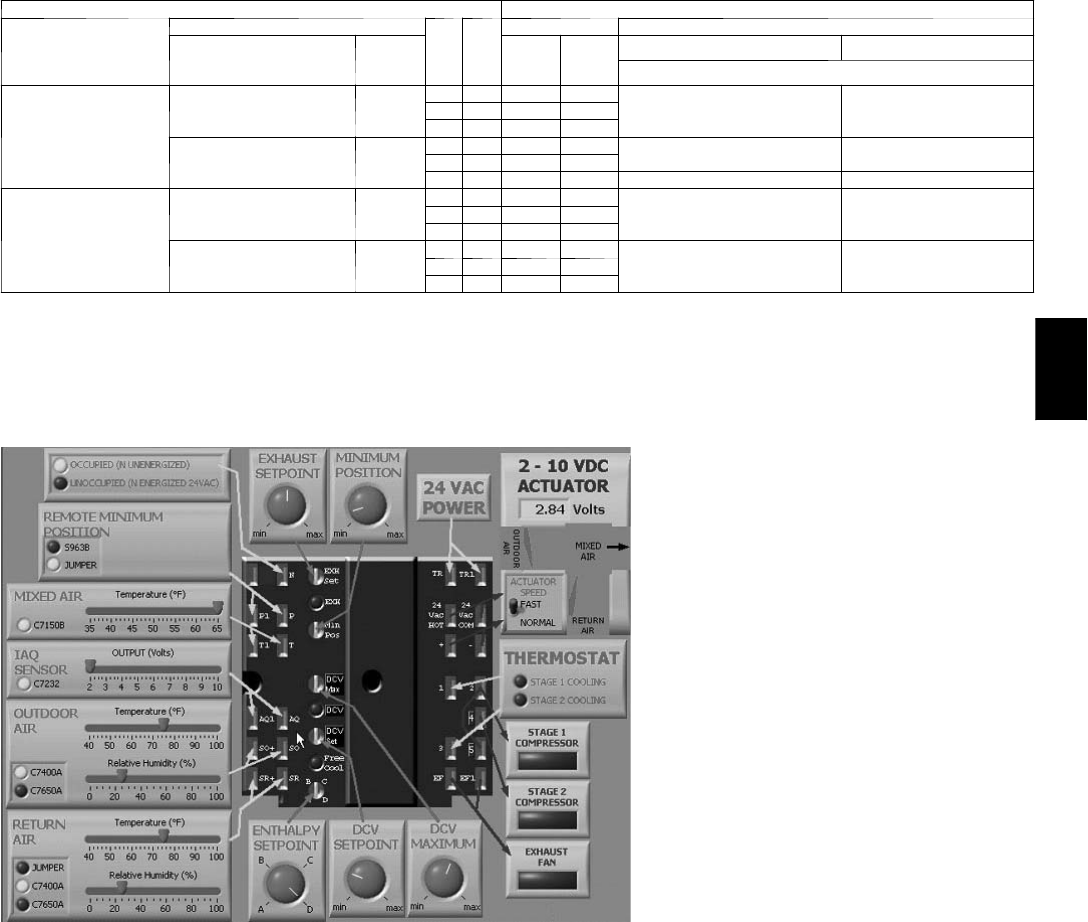

TR1

24 Vac

COM

Vac

HOT

EF EF1

EXH

2V 10V

EXH

Set

2V 10V

DCV

Free

Cool

SO+

SR+

AQ1

DCV

Min

Pos

Open

Max

C06038

Fig. 46 --- EconoMi$er IV Control

1000

2000

3000

4000

5000

6000

2345678

800 ppm

900 ppm

1000 ppm

1100 ppm

RANGE CONFIGURATION (ppm)

DAMPER VOLTAGE FOR MAX VENTILATION RATE

CO SENSOR MAX RANGE SETTING

C06039

Fig. 47 --- CO2Sensor Maximum Range Setting

CO2Sensor Configuration

The CO2sensor has preset standard voltage settings that can be

selected anytime after the sensor is powered up. (See Table 8.)

Use setting 1 or 2 for Carrier equipment. (See Table 8.)

1. Press Clear and Mode buttons. Hold at least 5 seconds

until the sensor enters the Edit mode.

2. Press Mode twice. The STDSET Menu will appear.

3. Use the Up/Down button to select the preset number. (See

Table 8.)

4. Press Enter to lock in the selection.

5. Press Mode to exit and resume normal operation.

The custom settings of the CO2sensor can be changed anytime

after the sensor is energized. Follow the steps below to change the

non-standard settings:

1. Press Clear and Mode buttons. Hold at least 5 seconds

until the sensor enters the Edit mode.

2. Press Mode twice. The STDSET Menu will appear.

3. Use the Up/Down button to toggle to the NONSTD menu

and press Enter.

4. Use the Up/Down button to toggle through each of the

nine variables, starting with Altitude, until the desired

setting is reached.

5. Press Mode to move through the variables.

6. Press Enter to lock in the selection, then press Mode to

continue to the next variable.

Dehumidification of Fresh Air with DCV Control

Information from ASHRAE indicates that the largest humidity

load on any zone is the fresh air introduced. For some

applications, a device such as a 62AQ energy recovery unit is

added to reduce the moisture content of the fresh air being

brought into the building when the enthalpy is high. In most

cases, the normal heating and cooling processes are more than

adequate to remove the humidity loads for most commercial

applications.

If normal rooftop heating and cooling operation is not adequate

for the outdoor humidity level, an energy recovery unit and/or a

dehumidification option should be considered.

Step 9 —Adjust Evaporator--Fan Speed

Adjust evaporator-fan speed to meet jobsite conditions.

Tables 9 and 10 show fan rpm at motor pulley settings. Tables 11

and 15 show maximum amp draw of belt-drive motor. Table 14

shows sound data. Refer to Tables 16-35 for performance data.

See Table 36 for accessory static pressure drop. See Fig. 48 for

the Humidi-MiZersystem static pressure drops.

Belt drive motors

Fan motor pulleys are factory set for speed shown in Table 1 or 2.

Check pulley alignment and belt tension prior to start-up.

To change fan speed:

1. Shut off the unit power supply and tag disconnect.

2. Loosen the belt by loosening the fan motor mounting nuts.

(See Fig. 49.)

3. Loosen movable pulley flange setscrew. (See Fig. 50.)

4. Screw movable flange toward fixed flange to increase

speed and away from fixed flange to decrease speed.

Increasing fan speed increases load on motor. Do not

exceed maximum speed specified in Table 1 or 2.

5. Set movable flange at nearest keyway of pulley hub and

tighten setscrew. (See Table 1 or 2 for speed change for

each full turn of pulley flange.)

6. Adjust belt tension and align gan and motor pulleys per

guidance below.

To align fan and motor pulleys, loosen fan pulley setscrews and

slide fan pulley along fan shaft. Make angular alignment by

loosening motor from mounting.

Additional motor and fan alignment, as well as angular alignment

can be made by loosening the four motor mounting bolts from

the mounting plate.

To adjust belt tension:

1. Loosen the two motor mounting nuts as shown in Fig. 49.

Some models may have a third mounting nut located on

the opposite side of the fan motor mounting plate.

2. Slide motor mounting plate away from fan scroll for

proper belt tension (1/2-in.deflectionwith8to10lbof

force) and tighten mounting nuts.

3. Adjust lock bolt and nut on mounting plate to secure

motor in fixed position.

48HE,HJ

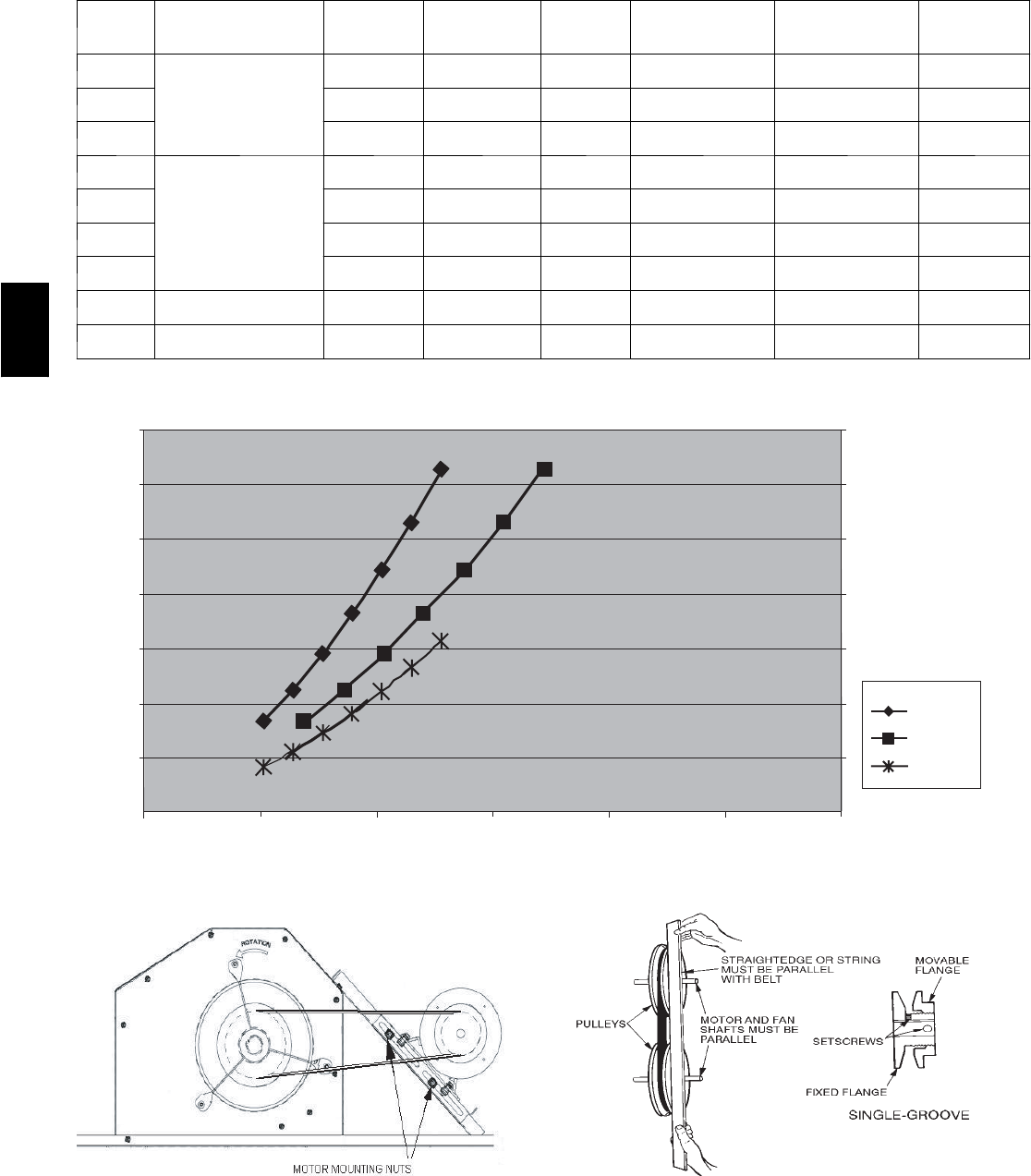

Table 8—CO2Sensor Standard Settings

SETTING EQUIPMENT OUTPUT

VENTILATION

RATE

(cfm/Person)

ANALOG

OUTPUT

CO2

CONTROL RANGE

(ppm)

OPTIONAL

RELAY SETPOINT

(ppm)

RELAY

HYSTERESIS

(ppm)

Interface w/Standard

Building Control System

Proportional Any 0-10V

4-20 mA 0-2000 1000 50

2Proportional Any 2-10V

7-20 mA 0-2000 1000 50

3Exponential Any 0-10V

4-20 mA 0-2000 1100 50

Economizer

Proportional 15 0-10V

4-20 mA 0-1100 1100 50

5Proportional 20 0-10V

4-20 mA 0- 900 900 50

6Exponential 15 0-10V

4-20 mA 0-1100 1100 50

7Exponential 20 0-10V

4-20 mA 0- 900 900 50

8Health & Safety Proportional —0-10V

4-20 mA 0-9999 5000 500

9Parking/Air Intakes/

Loading Docks Proportional —0-10V

4-20 mA 0-2000 700 50

LEGEND

ppm — Parts Per Million

6000

5000

4000

3000

2000

1000

0.05

0.1

0.15

0.2

0.25

0.3

0.35

DELTA P IN. WG

4&5ton

6 ton

3 ton

C06133

Fig. 48 --- Humidi--MiZertAdaptive Dehumidification System Static Pressure Drop (in. wg)

C06134

Fig. 49 --- Belt Drive Motor Mounting

C06041

Fig. 50 --- Indoor--Fan Pulley Adjustment

48HE,HJ

Table 9—48HJ and 48he Fan Rpm at Motor Pulley Setting With Standard Motor*

UNIT

48HJ

48HE

MOTOR PULLEY TURNS OPEN

01/21 11/22 21/23 31/24 41/25 51/26

003 936 906 876 846 816 786 756 726 696 666 639 — —

004 1044 1008 971 935 898 862 826 789 753 716 680 — —

005 1185 1144 1102 1061 1019 978 936 895 853 812 770 — —

006 1460 1425 1389 1354 1318 1283 1248 1212 1177 1141 1106 1070 1035

007 1585 1538 1492 1445 1399 1352 1305 1259 1212 1166 1119 — —

*Approximate fan rpm shown (standard motor/drive).

Table 10—48HJ Fan Rpm at Motor Pulley Setting With High-Static Motor*

UNIT

48HJ

MOTOR PULLEY TURNS OPEN

01/21 11/22 21/23 31/24 41/25 51/26

004 1455 1423 1392 1360 1328 1297 1265 1233 1202 1170 1138 1107 1075

005 1455 1423 1392 1360 1328 1297 1265 1233 1202 1170 1138 1107 1075

006 1685 1589 1557 1525 1493 1460 1428 1396 1364 1332 1300 — —

007 1685 1589 1557 1525 1493 1460 1428 1396 1364 1332 1300 — —

*Approximate fan rpm shown (high-static motor/drive).

Table 11—Evaporator-Fan Motor Data — Standard Motor

UNIT

48HJ

48HE

UNIT

PHASE

MAXIMUM

CONTINUOUS BHP*

MAXIMUM

OPERATING WATTS* UNIT VOLTAGE MAXIMUM

AMP DRAW

003 Single 0.58 580 208/230 2.0

004

Single 1.20 1000 208/230 4.9

Three 1.20 1000 208/230 4.9

460 2.2

575 2.2

005

Single 1.20 1000 208/230 4.9

Three 1.20 1000 208/230 4.9

460 2.2

575 2.2

006

Single 1.30 1650 208/230 9.2

Three 2.40 2120 208/230 6.7

460 3.0

575 3.0

007 Three 2.40 2120 208/230 6.7

460 3.0

575 3.0

LEGEND

Bhp — Brake Horsepower

*Extensive motor and electrical testing on these units ensures that the full horsepower and watts range of the motors can be utilized with confidence. Using the

fan motors up to the ratings shown in this table will not result in nuisance tripping or premature motor failure. Unit warranty will not be affected.

Table 12—Accessory static pressure

COMPONENT CFM

600 800 1000 1250 1500 1750 2000 2250 2500 2750 3000

Vertical EconoMi$er IV

and EconoMi$er2 0.010 0.020 0.035 0.045 0.065 0.080 0.120 0.145 0.175 0.220 0.255

Horizontal EconoMi$er

IV and EconoMi$er2 — — — — — 0.100 0.125 0.150 0.180 0.225 0.275

Table 13—Evaporator-Fan Motor Data — High-Static Motors

UNIT

48HJ

UNIT

PHASE

MAXIMUM

CONTINUOUS BHP*

MAXIMUM

OPERATING WATTS* UNIT VOLTAGE MAXIMUM

AMP DRAW

004 Three 2.40 2120 208/230 6.7

460 3.0

575 3.0

005 Three 2.40 2120 208/230 6.7

460 3.0

575 3.0

006 Three 2.90 2615 208/230 8.6

460 3.9

575 3.9

007 Three 2.90 2615 208/230 8.6

460 3.9

575 3.9

LEGEND

Bhp — Brake Horsepower

*Extensive motor and electrical testing on these units ensures that the full horsepower and watts range of the motors can be utilized with confidence. Using the

fan motors up to the ratings shown in this table will not result in nuisance tripping or premature motor failure. Unit warranty will not be affected.

48HE,HJ

Table 14—48HJ Outdoor Sound Power (Total Unit)

UNIT

48HJ

ARI

RATING

(decibels)

OCTAVE BANDS

63 125 250 500 1000 2000 4000 8000

004,005 76 55.9 66.0 64.0 66.2 68.4 64.5 61.7 57.3

006,007 80 59.1 68.9 68.7 71.9 74.0 68.9 65.7 59.0

LEGEND

ARI --- Air Conditioning and Refrigeration Institute

Table 15—48HE Outdoor Sound Power (Total Unit)

UNIT

48HE

ARI

RATING

(decibels)

A--

WEIGHTED

(db)

OCTAVEBANDS

63 125 250 500 1000 2000 4000 8000

003--005 76 76 55.9 66.0 64.0 66.2 68.4 64.5 61.7 57.3

006 80 80 59.1 68.9 68.7 71.9 74.0 68.9 65.7 59.0

GENERAL FAN PERFORMANCE NOTES

1. Values include losses for filters, unit casing, and wet coils. See Table 31 and Fig. 44 for accessory/FIOP static pressure information.

2. Extensive motor and electrical testing on these units ensures that the full range of the motor can be utilized with confidence. Using the

fan motors up to the ratings shown will not result in nuisance tripping or premature motor failure. Unit warranty will not be affected.

See Tables 9 and 10 on this page for additional information.

3. Use of a field-supplied motor may affect wire sizing. Contact your Carrier representative to verify.

4. Interpolation is permissible. Do not extrapolate.

Table 16—Fan Performance 40HE003 — Vertical Discharge Units; Standard Motor (Belt Drive)**

AIRFLOW

(Cfm)

EXTERNAL STATIC PRESSURE (in. wg)

0.1 0.2 0.4 0.6 0.8 1.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

600 500 0.08 531 0.08 607 0.14 713 0.21 788 0.29 878 0.37

700 529 0.09 567 0.09 633 0.16 739 0.24 816 0.32 902 0.41

800 547 0.1 592 0.12 660 0.19 761 0.27 845 0.37 937 0.47

900 570 0.13 620 0.14 691 0.22 793 0.32 870 0.42 957 0.53

1000 599 0.15 650 0.16 717 0.26 818 0.36 894 0.47 981 0.58

48HE,HJ

Table 17—Fan Performance 48HJ004, 48HE004 — Vertical Discharge Units; Standard Motor

(Belt Drive)*

AIRFLOW

CFM

EXTERNAL STATIC PRESSURE (in. wg)

0.2 0.4 0.6 0.8 1.0

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

900 567 0.15 145 688 0.22 222 786 0.30 296 871 0.37 368 947 0.44 437

1000 599 0.18 177 717 0.27 265 814 0.35 349 897 0.43 430 972 0.51 509

1100 632 0.22 215 747 0.31 313 842 0.41 407 925 0.50 498 999 0.59 587

1200 666 0.26 257 778 0.37 367 871 0.47 471 952 0.57 572 1025 0.67 670

1300 701 0.31 306 810 0.43 426 901 0.54 540 981 0.65 651 1053 0.76 760

1400 737 0.36 361 842 0.49 491 931 0.62 616 1010 0.74 738 1081 0.86 856

1500 773 0.42 422 875 0.57 564 963 0.70 699 1040 0.84 831 1110 0.96 960

AIRFLOW

CFM

EXTERNAL STATIC PRESSURE (in. wg)

1.2 1.4 1.6 1.8 2.0

Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts Rpm Bhp Watts

900 1016 0.51 505 1080 0.57 572 1139 0.64 637 1195 0.71 702 1249 0.77 765

1000 1041 0.59 587 1104 0.67 662 1163 0.74 737 1219 0.81 811 1272 0.89 883

1100 1066 0.68 674 1129 0.76 759 1188 0.85 843 1243 0.93 925 1296 1.01 1007

1200 1093 0.77 767 1155 0.87 861 1213 0.96 955 1268 1.05 1047 1321 1.14 1137

1300 1119 0.87 866 1181 0.98 970 1239 1.08 1073 1294 1.18 1175 — — —

1400 1147 0.98 972 1208 1.09 1086 —————————

1500 1175 1.09 1086 ————————————

NOTES:

1. Grey cells indicate field-supplied drive is required.

2. Maximum continuous bhp is 1.20.

3. See general fan performance notes.

LEGEND

Bhp — Brake Horsepower

Watts — Input Watts to Motor

*Motor drive range: 680 to 1044 rpm. All other rpms require field-supplied

drive.

Table 18—Fan Performance 48HJ004, 48HE004 — Vertical Discharge Units; High-Static Motor
