Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.

PC 111 Catalog No. 534-767 Printed in U.S.A. Form 48HJ-18SI Pg 1 9-00 Replaces: 48HJ-17SI

Book 1 4

Ta b 1 a 6 a

Installation, Start-Up and

Service Instructions

CONTENTS Page

SAFETY CONSIDERATIONS . . . . . . . . . . . . . . . . . . . . . . 1

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-28

Step 1 — Provide Unit Support . . . . . . . . . . . . . . . . . . . 1

•ROOF CURB

• SLAB MOUNT

Step 2 — Field Fabricate Ductwork . . . . . . . . . . . . . . . 3

Step 3 — Install External Trap for

Condensate Drain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Step 4 — Rig and Place Unit . . . . . . . . . . . . . . . . . . . . . 3

• POSITIONING

Step 5 — Install Flue Hood . . . . . . . . . . . . . . . . . . . . . . . 4

Step 6 — Install Gas Piping . . . . . . . . . . . . . . . . . . . . . . 4

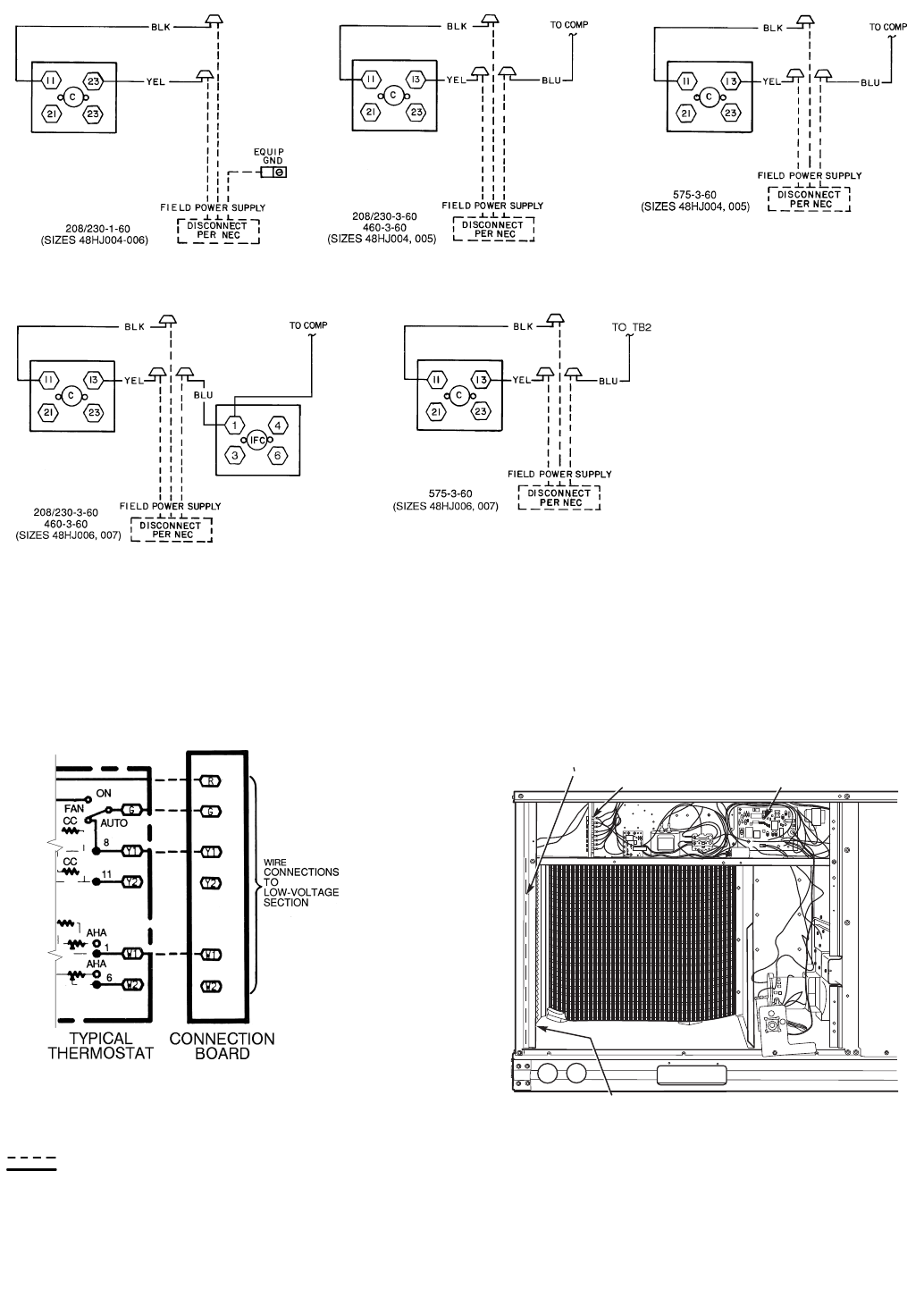

Step 7 — Make Electrical Connections . . . . . . . . . . . 4

• FIELD POWER SUPPLY

• FIELD CONTROL WIRING

• HEAT ANTICIPATOR SETTINGS

Step 8 — Adjust Factory-Installed Options . . . . . . . 8

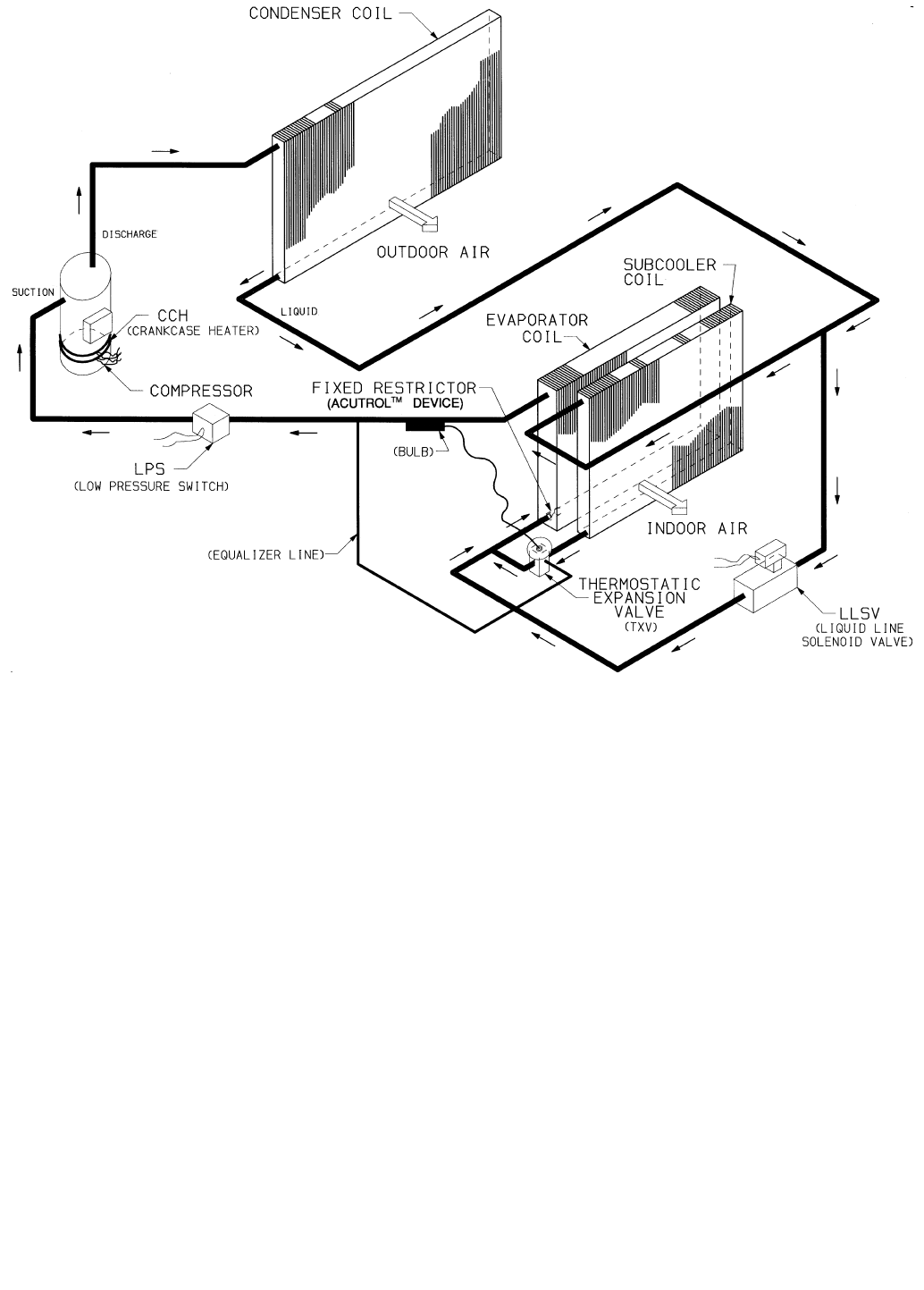

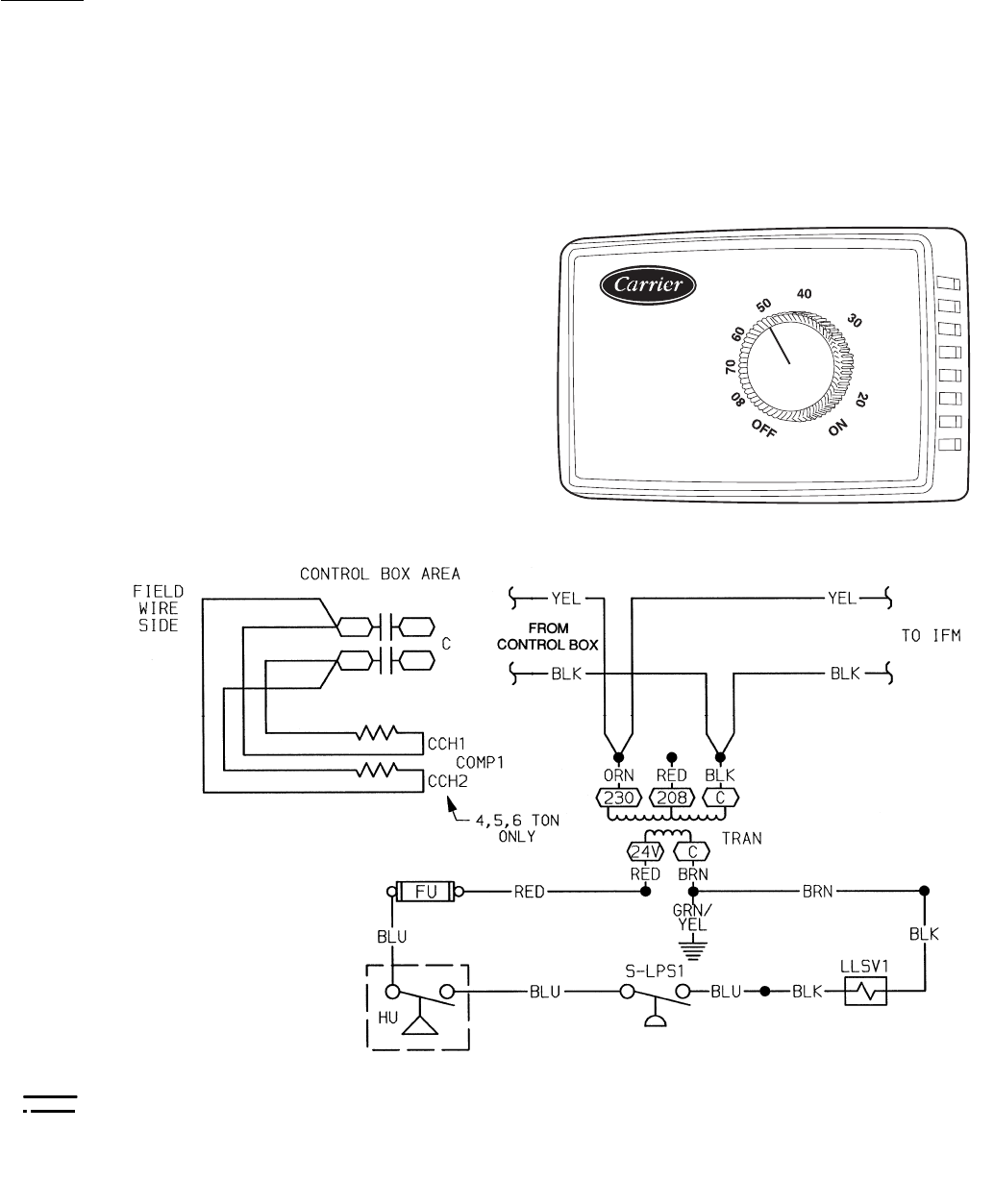

• MOISTUREMISER DEHUMIDIFCATION

PACKAGE

• APOLLO CONTROL

• DISCONNECT SWITCH

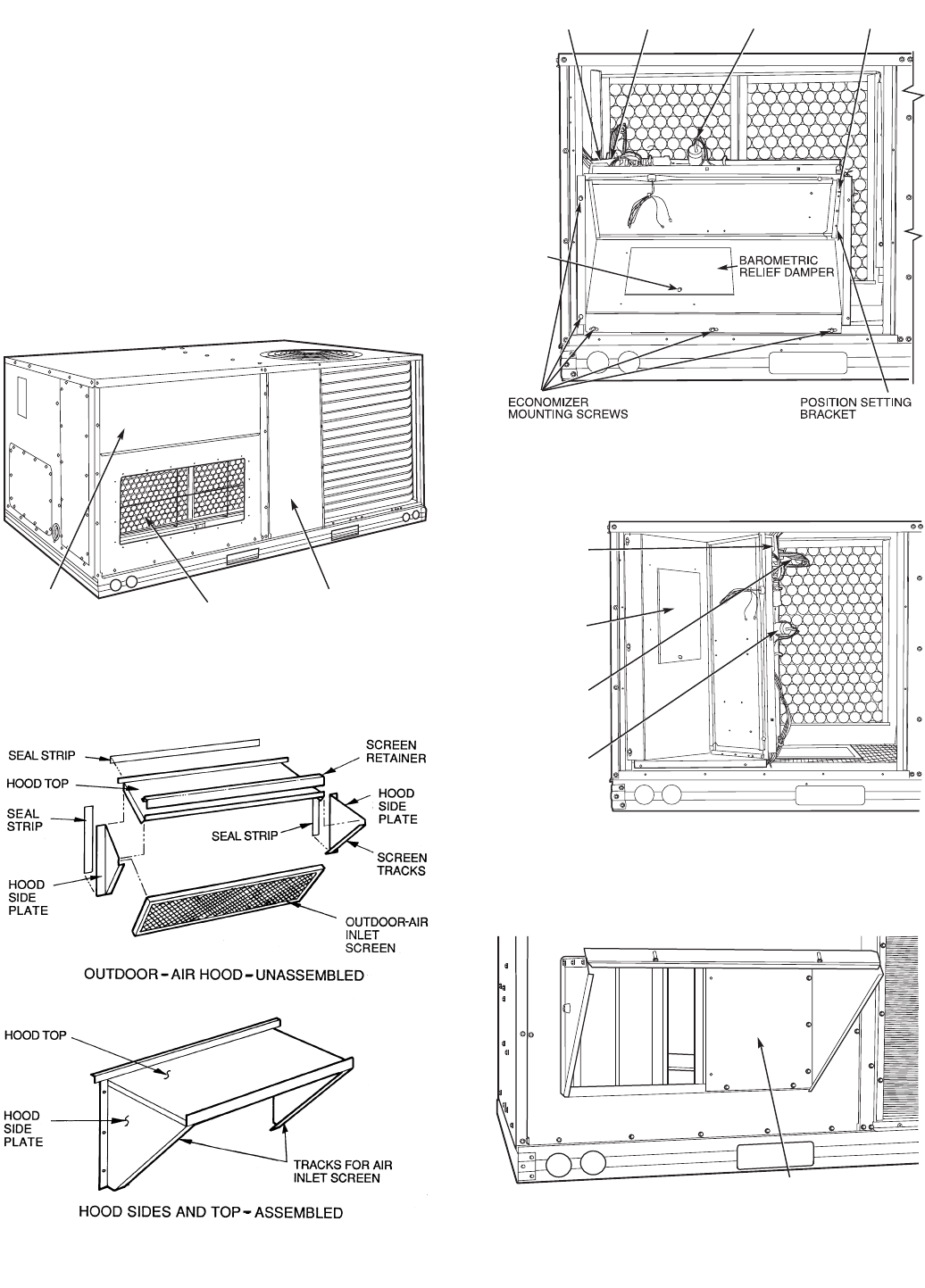

• OPTIONAL DURABLADE ECONOMIZER

• OPTIONAL ECONOMI$ER

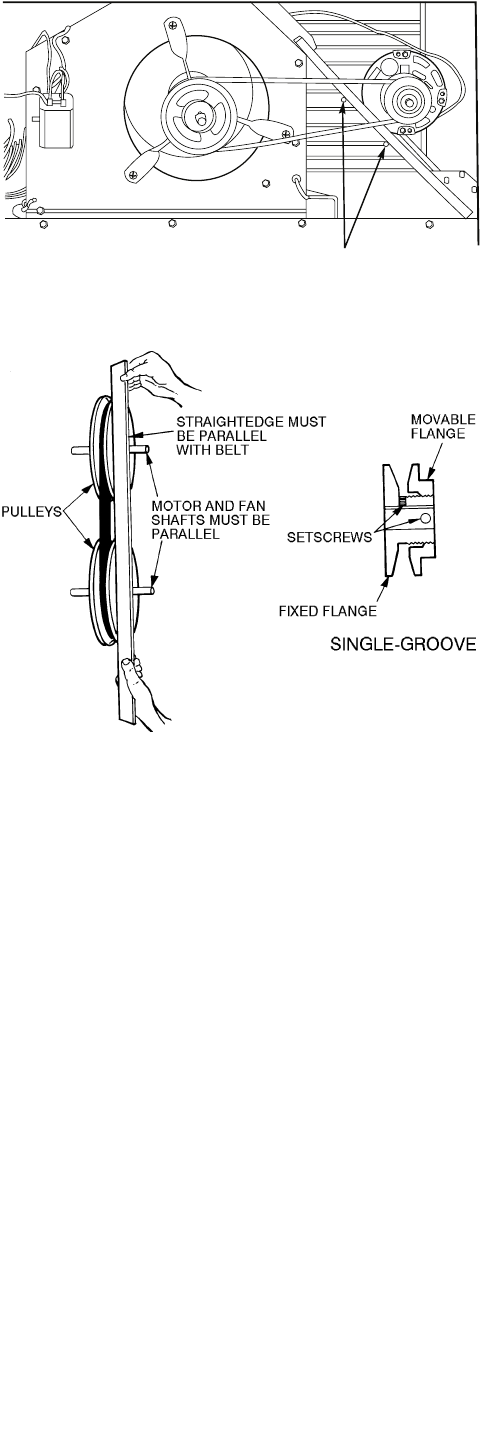

Step 9 — Adjust Evaporator-Fan Speed . . . . . . . . . 19

• BELT-DRIVE MOTORS

PRE-START-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

START-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-32

SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33-38

TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . 39-45

START-UP CHECKLIST . . . . . . . . . . . . . . . . . . . . . . . . CL-1

SAFETY CONSIDERATIONS

Installation and servicing of air-conditioning equipment can

be hazardous due to system pressure and electrical compo-

nents. Only trained and qualified service personnel should

install, repair, or service air-conditioning equipment.

Untrained personnel can perform basic maintenance func-

tions of cleaning coils and filters and replacing filters. All other

operations should be performed by trained service personnel.

When working on air-conditioning equipment, observe precau-

tions in the literature, tags and labels attached to the unit, and

other safety precautions that may apply.

Follow all safety codes. Wear safety glasses and work

gloves. Use quenching cloth for unbrazing operations. Have

fire extinguishers available for all brazing operations.

INSTALLATION

Unit is shipped in the vertical discharge configuration. To

convert to horizontal discharge application, remove duct open-

ing covers. Using the same screws, install covers on duct open-

ings in basepan of unit with insulation-side down. Seals around

openings must be tight.

NOTE: Any combination of supply and return ducting is per-

missible, i.e., vertical supply combined with horizontal return.

Step 1 — Provide Unit Support

ROOF CURB — Assemble and install accessory roof curb in

accordance with instructions shipped with curb. See Fig. 1. In-

stall insulation, cant strips, roofing felt, and counter flashing as

shown. Ductwork must be attached to curb, not to the unit.

If electric control power or gas service is to be routed through

the basepan, attach the accessory thru-the-bottom service con-

nections to the basepan in accordance with the accessory instal-

lation instructions. Connections must be installed before unit is

set on roof curb.

Curb should be level. Unit leveling tolerances are shown in

Fig. 2. This is necessary for unit drain to function properly. Re-

fer to Accessory Roof Curb Installation Instructions for addi-

tional information as required.

SLAB MOUNT (Horizontal Units Only) — Provide a level

concrete slab that extends a minimum of 6 in. beyond unit cab-

inet. Install a gravel apron in front of condenser-coil air inlet to

prevent grass and foliage from obstructing airflow.

NOTE: Horizontal units may be installed on a roof curb if

required.

Before performing service or maintenance operations on

unit, turn off main power switch to unit and install lockout

tag. Ensure electrical service to rooftop unit agrees with

voltage and amperage listed on the unit rating plate. Elec-

trical shock could cause personal injury.

Disconnect gas piping from unit when leak

testing at pressure greater than 1/2 psig. Pres-

sures greater than 1/2 psig will cause gas valve

damage resulting in hazardous condition. If

gas valve is subjected to pressure greater than

1/2 psig, it must be replaced before use. When

pressure testing field-supplied gas piping at

pressures of 1/2 psig or less, a unit connected

to such piping must be isolated by manually

closing the gas valve(s).

IMPORTANT: The gasketing of the unit to the roof curb

is critical for a watertight seal. Install gasket supplied

with the roof curb as shown in Fig. 1. Improperly

applied gasket can result in air leaks and poor unit

performance.

48HJD005-007, 48HJE/HJF004-007

48HJL/HJM/HJN/HJG/HJH/HJK004-006 (LOW NOx)

Single-Package Rooftop Heating/Cooling

ROOF CURB

ACCESSORY “A” UNIT SIZE

48/50HJ

CRRFCURB001A00 1′-2″ [356] 004-007

CRRFCURB002A00 2′-0″ [610]

NOTES:

1. Roof curb accessory is shipped

disassembled.

2. Insulated panels.

3. Dimensions in [ ] are in millimeters.

4. Roof curb: galvanized steel.

5. Attach ductwork to curb (flanges of duct

rest on curb).

UNIT SIZE B C D ALT

DRAIN HOLE

“E”

GAS

“F”

POWER

“G”

CONTROL

CONNECTOR

PKG. ACCY.

48HJD004-007

50HJF004-007

1′-911/16″

[551]

1′-4″

[406]

13/4″

[44.5]

3/4″

[19] NPT

3/4″ [19] NPT 1/2″

[12.7] NPT

CRBTMPWR001A00

11/4″ [31.7] CRBTMPWR002A00

1/2″

[12.7] NPT 3/4″ [19] NPT 1/2″

[12.7] NPT

CRBTMPWR003A00

3/4″

[19] NPT 11/4″ [31.7] CRBTMPWR004A00

6. Service clearance 4 ft on each side.

7. Direction of airflow.

8. Connector packages CRBTMPWR001A00

and 002A00 are for thru-the-curb connec-

tions. Packages CRBTMP003A00 and

004A00 are for thru-the-bottom connections.

Fig. 1 — Roof Curb Details

Step 2 — Field Fabricate Ductwork — Secure all

ducts to roof curb and building structure on vertical discharge

units. Do not connect ductwork to unit. For horizontal applica-

tions, field-supplied isolation flanges should be attached to hor-

izontal discharge openings and all ductwork should be secured

to the flanges. Insulate and weatherproof all external ductwork,

joints, and roof openings with counter flashing and mastic in

accordance with applicable codes.

Ducts passing through an unconditioned space must be in-

sulated and covered with a vapor barrier.

If a plenum return is used on a vertical unit, the return

should be ducted through the roof deck to comply with applica-

ble fire codes.

A minimum clearance is not required around ductwork.

Cabinet return-air static shall not exceed –.35 in. wg with

Durablade economizer, or –.30 in. wg with EconoMi$er, or

–.45 in. wg without economizer.

These units are designed for a minimum continuous return-

air temperature in heating of 50 F (dry bulb), or an intermittent

operation down to 45 F (dry bulb), such as when used with a

night setback thermostat.

Step 3 — Install External Trap for Condensate

Drain — The unit’s 3/4-in. condensate drain connections are

located on the bottom and side of the unit. Unit discharge

connections do not determine the use of drain connections;

either drain connection can be used with vertical or horizontal

applications.

When using the standard side drain connection, ensure the

plug (Red) in the alternate bottom connection is tight before in-

stalling the unit.

To use the bottom drain connection for a roof curb installa-

tion, relocate the factory-installed plug (Red) from the bottom

connection to the side connection. See Fig. 3. The piping for

the condensate drain and external trap can be completed after

the unit is in place.

All units must have an external trap for condensate drain-

age. Install a trap 4-in. deep and protect against freeze-up. If

drain line is installed downstream from the external trap, pitch

the line away from the unit at 1 in. per 10 ft of run. Do not use a

pipe size smaller than the unit connection (3/4 in.).

Step 4 — Rig and Place Unit — Inspect unit for

transportation damage, and file any claim with transportation

agency. Keep unit upright and do not drop. Spreader bars are

not required if top crating is left on unit, and rollers may be

used to move unit across a roof. Level by using unit frame as a

reference. See Table 1 and Fig. 4 for additional information.

Operating weight is shown in Table 1 and Fig. 4.

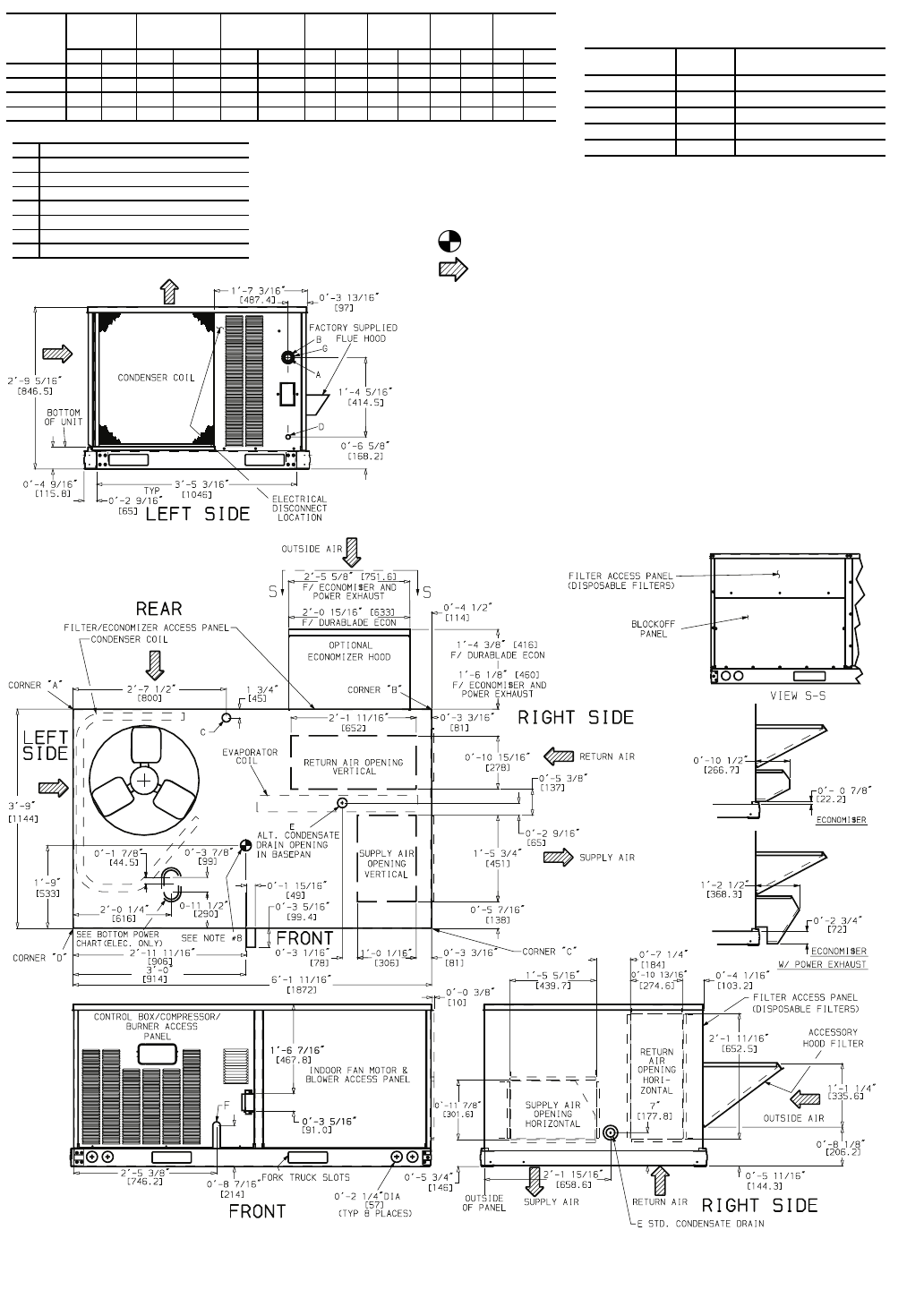

Lifting holes are provided in base rails as shown in Fig. 5.

Refer to rigging instructions on unit.

POSITIONING — Maintain clearance around and above unit

to provide minimum distance from combustible materials, prop-

er airflow, and service access. See Fig. 5. A properly positioned

unit will have the following clearances between unit and roof

curb; 1/4-in. clearance between roof curb and base rails on each

side and duct end of unit; 1/4 in. clearance between roof curb and

condenser coil end of unit. (See Fig. 1, section C-C.)

Do not install unit in an indoor location. Do not locate unit

air inlets near exhaust vents or other sources of contaminated

air.

Be sure that unit is installed such that snow will not block

the combustion intake or flue outlet.

Unit may be installed directly on wood flooring or on Class

A, B, or C roof-covering material when roof curb is used.

Although unit is weatherproof, guard against water from

higher level runoff and overhangs.

Locate mechanical draft system flue assembly at least 48 in.

from any opening through which combustion products could

enter the building, and at least 48 in. from an adjacent building.

When unit is located adjacent to public walkways, flue assem-

bly must be at least 7 ft above grade.

NOTE: When unit is equipped with an accessory flue dis-

charge deflector, allowable clearance is 18 inches.

Flue gas can deteriorate building materials. Orient unit such

that flue gas will not affect building materials.

Adequate combustion-air space must be provided for proper

operation of this equipment. Be sure that installation complies

with all local codes and Section 5.3, Air for Combustion and

Ventilation, NFGC (National Fuel Gas Code), ANSI (Ameri-

can National Standards Institute) Z223.1-1984 and addendum

Z223.1a-1987. In Canada, installation must be in accordance

with the CAN1.B149.1 and CAN1.B149.2 installation codes

for gas burning appliances.

Flue vent discharge must have a minimum horizontal clear-

ance of 4 ft from electric and gas meters, gas regulators, and

gas relief equipment.

After unit is in position, remove shipping materials and rig-

ging skids.

All panels must be in place when rigging and lifting.

MAXIMUM ALLOWABLE

DIFFERENCE (in.)

A-B B-C A-C

0.5 1.0 1.0

Fig. 2 — Unit Leveling Tolerances

DRAIN PLUG

CONDENSATE PAN (SIDE VIEW)

NOTE: Drain plug is shown in factory-installed position.

Fig. 3 — Condensate Drain Pan

Step 5 — Install Flue Hood — Flue hood is shipped

screwed to the burner compartment access panel. Remove

from shipping location and, using screws provided, install flue

hood in location shown in Fig. 5 and 6.

For units being installed in California Air Quality Manage-

ment Districts which require NOx emissions of 40 nanograms/

joule or less, kit CRLOWNOX001A00 must be installed.

Step 6 — Install Gas Piping — Unit is equipped for

use with type of gas shown on nameplate. Refer to local

building codes, or in the absence of local codes, to

ANSI Z223.1-1984 and addendum Z223.1A-1987 entitled

National Fuel Gas Code. In Canada, installation must be in

accordance with the CAN1.B149.1 and CAN1.B149.2 instal-

lation codes for gas burning appliances.

For natural gas applications, gas pressure at unit gas con-

nection must not be less than 4 in. wg or greater than 13 in. wg

while the unit is operating. On 48HJ005-007 high-heat units,

the gas pressure at unit gas connection must not be less than

5 in. wg or greater than 13 in. wg while the unit is operating.

For propane applications, the gas pressure must not be less than

5 in. wg or greater than 13 in. wg at the unit connection.

Size gas supply piping for 0.5 in. wg maximum pressure

drop. Do not use supply pipe smaller than unit gas connection.

Support gas piping as shown in the table in Fig. 7. For ex-

ample, a 3/4-in. gas pipe must have one field-fabricated support

beam every 8 ft. Therefore, an 18-ft long gas pipe would have a

minimum of 3 support beams, and a 48-ft long pipe would

have a minimum of 6 support beams.

See Fig. 7 for typical pipe guide and locations of external

manual gas shutoff valve.

Step 7 — Make Electrical Connections

FIELD POWER SUPPLY — All units except 208/230-v

units are factory wired for the voltage shown on the nameplate.

If the 208/230-v unit is to be connected to a 208-v power sup-

ply, the transformer must be rewired by moving the black wire

from the 230-v terminal on the transformer and connecting it to

the 200-v terminal from the transformer.

Refer to unit label diagram for additional information.

Pigtails are provided for field service. Use factory-supplied

splices or UL (Underwriters’ Laboratories) approved copper

connector.

When installing units, provide a disconnect per NEC.

All field wiring must comply with NEC and local

requirements.

Unit cabinet must have an uninterrupted, unbroken electri-

cal ground to minimize the possibility of personal injury if

an electrical fault should occur. This ground may consist of

electrical wire connected to unit ground lug in control com-

partment, or conduit approved for electrical ground when

installed in accordance with NEC (National Electrical

Code), ANSI/NFPA (National Fire Protection Associa-

tion), latest edition, and local electrical codes. Do not use

gas piping as an electrical ground. Failure to follow this

warning could result in the installer being liable for per-

sonal injury of others.

NOTES:

1. Place unit on curb as close as possible to the duct end.

2. Dimension in ( ) is in millimeters.

3. Hook rigging shackles through holes in base rail as shown in

detail ‘‘A.’’ Holes in base rails are centered around the unit cen-

ter of gravity. Use wooden top skid when rigging to prevent rig-

ging straps from damaging unit.

4. Weights include base unit without economizer. See Table 1 for

unit operating weights with accessory economizer.

All panels must be in place when rigging.

Fig. 4 — Rigging Details

UNIT

48HJ

MAX

WEIGHT “A” “B” “C”

lb kg in. mm in. mm in. mm

004 530 240 73.69 1872 35.50 902 33.31 847

005 540 245 73.69 1872 35.50 902 33.31 847

006 560 254 73.69 1872 35.50 902 33.31 847

007 615 279 73.69 1872 35.50 902 33.31 847

Table 1 — Physical Data

LEGEND *Single phase/three phase.

†Indicates automatic reset.

**48HJD005-007 and 48HJE004 (72,000 Btuh heat input) units have 2 burners.

48HJE005-007 and 48HJF004 (115,000 Btuh heat input) units and 48HJF005-

007 (150,000 Btuh Heat input) units have 3 burners.

††An LP kit is available as an accessory.

||Three-phase standard models have heating inputs as shown. Single-phase

standard models have one-stage heating with heating input values as follows:

48HJE004, 48HJD005,006 — 72,000 Btuh

48HJF004, 48HJE005,006 — 115,000 Btuh

48HJF005,006 — 150,000 Btuh

***California compliant three-phase models.

†††California SCAQMD compliant low NOx models have combustion products that

are controlled to 40 nanograms per joule or less.

BASE UNIT 48 HJE/F/H/K/M/N004 HJD/E/F/G/H/K/L/M/N005 HJD/E/F/G/H/K/L/M/N006 HJD/HJE/HJF007

NOMINAL CAPACITY 34 5 6

OPERATING WEIGHT (lb)

Unit 530 540 560 615

With Durablade Economizer 564 574 594 649

With EconoMi$er 577 587 607 662

With MoistureMiser Dehumidification Package 548 558 578 633

Roof Curb 115 115 115 115

COMPRESSOR Scroll

Quantity 11 1 1

Oil (oz) 42 53 50 60

REFRIGERANT TYPE R-22

Operating Charge (lb-oz)

Standard Unit 5- 8 8-6 10- 0 9-10

Unit With MoistureMizer Dehumidification Package 8-13 11-2 12-13 13- 6

CONDENSER FAN Propeller

Quantity...Diameter (in.) 1...22 1...22 1..22 1...22

Nominal Cfm 3500 3500 4100 4100

Motor Hp...Rpm 1/4...825 1/4...825 1/4...1100 1/4...1100

Watts Input (Total) 180 180 320 320

CONDENSER COIL Enhanced Copper Tubes, Aluminum Lanced Fins

Standard Unit

Rows...Fins/in. 1...17 2..17 2...17 2...17

Total Face Area (sq ft) 14.6 16.5 16.5 16.5

Unit with MoistureMiser Dehumidification Package

Rows...Fins/in. 1...17 1...17 1...17 1...17

Total Face Area (sq ft) 3.9 3.9 3.9 3.9

EVAPORATOR FAN Centrifugal Type, Belt Drive

Quantity...Size (in.) 1...10 x 10 1...10 x 10 1...10 x 10 1...10 x 10

Nominal Cfm 1200 1600 2000 2400

Maximum Continuous Bhp Std 1.20 1.20 1.30/2.40* 2.40

Hi-Static 2.40 2.40 2.90 2.90

Motor Frame Size Std 48 48 48/56* 56

Hi-Static 56 56 56 56

Fan Rpm Range Std 760-1090 840-1185 1020-1460/1120-1585* 1120-1585

Hi-Static 1075-1455 1075-1455 1300-1685 1300-1685

Motor Bearing Type Ball Ball Ball Ball

Maximum Fan Rpm 2100 2100 2100 2100

Motor Pulley Pitch Diameter

A/B (in.)

Std 1.9/2.9 1.9/2.0 2.4/3.4 2.4/3.4

Hi-Static 2.8/3.8 2.8/3.8 3.4/4.4 3.4/3.4

Nominal Motor Shaft Diameter (in.) Std 1/21/25/85/8

Hi-Static 5/85/85/85/8

Fan Pulley Pitch Diameter (in.) Std 4.5 4.0 4.0 4.0

Hi-Static 4.5 4.0 4.5 4.5

Belt — Type...Length (in.) Std 1...A...33 1...A...33 1....4...40 1...A...38

Hi-Static 1...A...39 1...A...39 1...A...40 1...A...40

Pulley Center Line Distance (in.) 10.0-12.4 10.0-12.4 14.7-15.5 14.7-15.5

Speed Change per Full Turn of

Movable Pulley Flange (rpm)

Std 65 70 75 95

Hi-Static 65 65 60 60

Movable Pulley Maximum Full

Turns from Closed Position

Std 55 6 5

Hi-Static 66 5 5

Factory Setting — Full Turns Open Std 33 3 3

Hi-Static 31/231/231/231/2

Factory Speed Setting (rpm) Std 890 980 1240 1304

Hi-Static 1233 1233 1396 1396

Fan Shaft Diameter at Pulley (in.) 5/85/85/85/8

EVAPORATOR COIL Enhanced Copper Tubes, Aluminum Double-Wavy Fins, Acutrol™ Metering Device

Rows...Fins/in. 2...15 2...15 4...15 4...15

Total Face Area (sq ft) 5.5 5.5 5.5 5.5

Bhp — Brake Horsepower

Table 1 — Physical Data (cont)

LEGEND *Single phase/three phase.

†Indicates automatic reset.

**48HJD005-007 and 48HJE004 (72,000 Btuh heat input) units have 2 burners.

48HJE005-007 and 48HJF004 (115,000 Btuh heat input) units and 48HJF005-

007 (150,000 Btuh Heat input) units have 3 burners.

††An LP kit is available as an accessory.

||Three-phase standard models have heating inputs as shown. Single-phase

standard models have one-stage heating with heating input values as follows:

48HJE004, 48HJD005,006 — 72,000 Btuh

48HJF004, 48HJE005,006 — 115,000 Btuh

48HJF005,006 — 150,000 Btuh

***California compliant three-phase models.

†††California SCAQMD compliant low NOx models have combustion products that

are controlled to 40 nanograms per joule or less.

BASE UNIT 48 HJE/F/H/K/M/N004 HJD/E/F/G/H/K/L/M/N005 HJD/E/F/G/H/K/L/M/N006 HJD/HJE/HJF007

FURNACE SECTION

Rollout Switch Cutout Temp (F)† 195 195 195 195

Burner Orifice Diameter (in. ...drill size)**

Natural Gas — Std HJE .113...33 HJD .113...33 HJD .113...33 HJD .113...33

HJF .113...33 HJE .113...33 HJE .113...33 HJE .113...33

—HJF .129...30 HJF .129...30 HJF .129...30

HJH .113...33 HJG .113...33 HJG .113...33 —

HJK .113...33 HJH .113...33 HJH .113...33 —

—HJK .129...30 HJK .129...30 —

HJM .102...38 HJL .102...38 HJL .102...38 —

HJN .102...38 HJM .102...38 HJM .102...38 —

—HJN .116...32 HJN .116...32 —

Liquid Propane — Alt†† HJE .089...43 HJD .089...43 HJD .089...43 HJD .089...43

HJF .089...43 HJE .089...43 HJE .089...43 HJE .089...43

—HJF .102...38 HJF .102...38 HJF .102...38

HJH .082...45 HJG .089...43 HJG .089...43 —

HJK .082...45 HJH .089...43 HJH .089...43 —

—HJK .102...38 HJK .102...38 —

HJM .082...45 HJL .082...45 HJL .082...45 —

HJN .082...45 HJM .082...45 HJM .082...45 —

—HJN .094...42 HJN .094...42 —

Thermostat Heat Anticipator Setting (amps) 208/230/460 v

First Stage .14 .14 .14 .14

Second Stage .14 .14 .14 .14

Gas Input (Btuh)

First Stage/Second Stage HJE|| 50,000/ 72,000 HJD|| 50,000/ 72,000 HJD|| 50,000/ 72,000 HJD|| 50,000/ 72,000

HJF|| 82,000/115,000 HJE|| 82,000/115,000 HJE|| 82,000/115,000 HJE|| 82,000/115,000

—HJF|| 120,000/150,000 HJF|| 120,000/150,000 HJF|| 120,000/150,000

HJH*** —/ 72,000 HJG*** —/ 72,000 HJG*** —/ 72,000 —

HJK***—/115,000 HJH*** —/115,000 HJH*** —/115,000 —

—HJK*** —/150,000 HJK*** —/150,000 —

HJM††† —/ 60,000 HJL††† —/ 60,000 HJL††† —/ 60,000 —

HJN††† —/ 90,000 HJM††† —/ 90,000 HJM†††—/ 90,000 —

—HJN††† —/120,000 HJN††† —/120,000 —

Efficiency (Steady State) (%) HJE 82 HJD 82 HJD 82 HJD 82

HJF 81 HJE 81 HJE 81 HJE 81

—HJF 80 HJF 80 HJF 80

HJH 82 HJG 82 HJG 82 —

HJK 81 HJH 81 HJH 81 —

—HJK 80 HJK 80 —

HJM 81 HJL 81 HJL 81 —

HJN 81 HJM 81 HJM 81 —

—HJN 82 HJN 82 —

Temperature Rise Range HJE 15-45 HJD 15-45 HJD 15-45 HJD 15-45

HJF 55-85 HJE 35-65 HJE 35-65 HJE 35-65

—HJF 50-80 HJF 50-80 HJF 50-80

HJH 15-45 HJG 15-45 HJG 15-45 —

HJK 55-85 HJH 35-65 HJH 35-65 —

—HJK 50-80 HJK 50-80 —

HJM 20-50 HJL 20-50 HJL 20-50 —

HJN 30-60 HJM 30-60 HJM 30-60 —

—HJN 40-70 HJN 40-70 —

Manifold Pressure (in. wg)

Natural Gas — Std 3.5 3.5 3.5 3.5

Liquid Propane — Alt†† 3.5 3.5 3.5 3.5

Maximum Static Pressure (in. wg) 1.0 1.0 1.0 1.0

Field Gas Connection Size (in.) 1/21/21/21/2

HIGH-PRESSURE SWITCH (psig)

Standard Compressor Internal Relief 450 ± 50

Cutout 428

Reset (Auto.) 320

LOSS-OF-CHARGE SWITCH/LOW-PRESSURE

SWITCH (Liquid LIne) (psig)

Cutout 7 ± 3

Reset (Auto.) 22 ± 5

FREEZE PROTECTION THERMOSTAT

Opens (F) 30 ± 5

Closes (F) 45 ± 5

OUTDOOR-AIR INLET SCREENS Cleanable

Quantity...Size (in.) 1...20 x 24 x 1

RETURN-AIR FILTERS Throwaway

Quantity...Size (in.) 2...16 x 25 x 2

Bhp — Brake Horsepower

UNIT

48HJ

STANDARD

UNIT

WEIGHT

DURABLADE

ECONOMIZER

WEIGHT

ECONOMI$ER

WEIGHT

CORNER

WEIGHT

(A)

CORNER

WEIGHT

(B)

CORNER

WEIGHT

(C)

CORNER

WEIGHT

(D)

Lb Kg Lb Kg Lb Kg Lb Kg Lb Kg Lb Kg Lb Kg

004 530 240 34 15.4 47 21.3 127 57.6 122 55.3 138 62.6 143 64.9

005 540 245 34 15.4 47 21.3 129 58.5 124 56.2 141 64.0 146 66.2

006 560 254 34 15.4 47 21.3 134 60.8 129 58.5 146 66.2 151 68.5

007 615 279 34 15.4 47 21.3 147 66.7 142 64.4 160 72.6 166 75.3

CONNECTION SIZES

A13/8″

″″

″ Dia [35] Field Power Supply Hole

B2″

″″

″ Dia [51] Power Supply Knockout

C13/4″

″″

″ Dia [44] Charging Port Hole

D7/8″

″″

″ Dia [22] Field Control Wiring Hole

E3/4″

″″

″-14 NPT Condensate Drain

F5/8″

″″

″-14 NPT Gas Connection

G21/2″

″″

″ Dia [64] Power Supply Knockout

NOTES:

1. Dimensions in [ ] are in millimeters.

2. Center of gravity.

3. Direction of airflow.

4. On vertical discharge units, ductwork to be attached to accessory roof curb only. For horizontal dis-

charge units, field-supplied flanges should be attached to horizontal discharge openings, and all

ductwork should be attached to the flanges.

5. Minimum clearance (local codes or jurisdiction may prevail):

a. Between unit, flue side and combustible surfaces, 48 inches. (18 in. when using accessory flue

discharge deflector.)

b. Bottom of unit to combustible surfaces (when not using curb), 1 inch.

Bottom of base rail to combustible surfaces (when not using curb) 0 inches.

c. Condenser coil, for proper airflow, 36 in. one side, 12 in. the other. The side getting the greater

clearance is optional.

d. Overhead, 60 in. to assure proper condenser fan operation.

e. Between units, control box side, 42 in. per NEC (National Electrical Code).

f. Between unit and ungrounded surfaces, control box side, 36 in. per NEC.

g. Between unit and block or concrete walls and other grounded surfaces, control box side, 42 in.

per NEC.

h. Horizontal supply and return end, 0 inches.

6. With the exception of the clearance for the condenser coil and combustion side as stated in notes

5a, b and c, a removable fence or barricade requires no clearance.

7. Units may be installed on combustible floors made from wood or Class A, B, or C roof covering

material if set on base rail.

8. The vertical center of gravity is 1′-6″ [457] up from the bottom of the base rail.

BOTTOM POWER CHART, THESE HOLES REQUIRED FOR

USE WITH ACCESSORY PACKAGES — CRBTMPWR001A00

THROUGH CRBTMPWR004A00

*Select either 3/4″ or 11/4″ for power, depending on wire size.

†Select either 1/2″ or 3/4″ for gas depending on gas connection.

THREADED

CONDUIT SIZE

WIRE

USE

REQURED

HOLE SIZES (MAX.)

1/2″

″″

″24 V 7/8″

″″

″ [22.2]

3/4″

″″

″Power* 11/8″

″″

″ [28.4]

11/4″

″″

″Power* 13/4″

″ ″

″ [44.4]

1/2″

″″

″ NPT Gas† 11/4″

″″

″ [31.8]

3/4″

″″

″ NPT Gas† 15/8″

″″

″ [41.3]

Fig. 5 — Base Unit Dimensions — 48HJ004-007

Install conduit through side panel openings indicated in

Fig. 5. Route power lines through connector to terminal con-

nections as shown in Fig. 8.

Voltage to compressor terminals during operation must be

within voltage range indicated on unit nameplate (also see

Tables 2A-2D). On 3-phase units, voltages between phases

must be balanced within 2% and the current within 10%. Use

the formula shown in Tables 2A-2D, Note 2 to determine the

percent voltage imbalance. Operation on improper line voltage

or excessive phase imbalance constitutes abuse and may cause

damage to electrical components. Such operation would invali-

date any applicable Carrier warranty.

NOTE: If accessory thru-the-bottom connections and roof curb

are used, refer to the Thru-the-Bottom Accessory Installation

Instructions for information on power wiring and gas connec-

tion piping. The power wiring, control wiring and gas piping

can be routed through field-drilled holes in the basepan. The

basepan is specially designed and dimpled for drilling the

access connection holes.

FIELD CONTROL WIRING — Install a Carrier-approved

accessory thermostat assembly according to installation in-

structions included with the accessory. Locate thermostat

assembly on a solid wall in the conditioned space to sense aver-

age temperature in accordance with thermostat installation

instructions.

Route thermostat cable or equivalent single leads of colored

wire from subbase terminals through connector on unit to low-

voltage connections (shown in Fig. 9).

Connect thermostat wires to matching screw terminals of

low-voltage connection board. See Fig. 9.

NOTE: For wire runs up to 50 ft, use no. 18 AWG (American

Wire Gage) insulated wire (35 C minimum). For 50 to 75 ft,

use no. 16 AWG insulated wire (35 C minimum). For over

75 ft, use no. 14 AWG insulated wire (35 C minimum). All

wire larger than no. 18 AWG cannot be directly connected to

the thermostat and will require a junction box and splice at the

thermostat.

Pass the control wires through the hole provided in the cor-

ner post; then feed wires through the raceway built into the cor-

ner post to the 24-v barrier located on the left side of the control

box. See Fig. 10. The raceway provides the UL required clear-

ance between high- and low-voltage wiring.

HEAT ANTICIPATOR SETTINGS — Set heat anticipator set-

tings at .14 amp for first stage and .14 for second stage heating,

when available.

Step 8 — Adjust Factory-Installed Options

MOISTUREMISER DEHUMIDIFICATION PACKAGE —

MoistureMiser package operation can be controlled by field

installation of a Carrier-approved humidistat (Fig. 11). To

install the humidistat:

1. Route humidistat cable through hole provided in unit cor-

ner post.

2. Feed wires through the raceway built into the corner post

to the 24-v barrier located on the left side of the control

box. See Fig. 10. The raceway provides the UL-required

clearance between high- and low-voltage wiring.

3. Use a wire nut to connect humidistat cable into low-

voltage wiring as shown in Fig. 12.

APOLLO CONTROL — The optional Apollo control is used

to actively monitor all modes of operation as well as indoor

(evaporator) fan status, filter status, and indoor-air quality. The

Apollo control is designed to work with Carrier TEMP and

VVT® systems.

The thermostat must be wired to the Apollo Control before

starting the unit. Refer to the Apollo Control installation

instructions for information on installing the thermostat.

DISCONNECT SWITCH — The optional disconnect switch

is non-fused. The switch has the capability of being locked in

place for safety purposes.

Fig. 7 — Gas Piping Guide (With Accessory

Thru-the-Curb Service Connections)

LEGEND

*Field supplied.

NOTE: Follow all local codes.

SPACING OF SUPPORTS

NFGC — National Fuel Gas Code

STEEL PIPE

NOMINAL DIAMETER

(in.)

SPACING OF SUPPORTS

X DIMENSION

(ft)

1/2

3/4 or 1

11/4 or larger

Fig. 6 — Flue Hood Details

RACEWAY LOW VOLTAGE

CONNECTIONS

INTEGRATED GAS UNIT

CONTROLLER (IGC)

HOLE IN END PANEL (HIDDEN)

Fig. 8 — Power Wiring Connections

LEGEND

C—

Contactor

COMPS — Compressors

EQUIP — Equipment

GND — Ground

IFC — Indoor (Evaporator)

Fan Contactor

NEC — National Electrical Code

TB — Terminal Block

Fig. 9 — Low-Voltage Connections With or

Without Economizer

LEGEND

NOTE: Connect Y2 when unit is equipped with an integrated

economizer.

AHA — Adjustable Heat Anticipator

CC — Cooling Compensator

TC — Thermostat-Cooling

TH — Thermostat-Heating

Field Wiring

Factory Wiring

Fig. 10 — Field Control Wiring Raceway

Table 2A — 48HJ Electrical Data Standard Motor (Units Without Electrical Convenience Outlet)

Table 2B — 48HJ Electrical Data Standard Motor (Units With Electrical Convenience Outlet)

LEGEND

*Used to determine minimum disconnect per NEC.

†Fuse or HACR circuit breaker.

NOTES:

1. In compliance with NEC requirements for multimotor and combi-

nation load equipment (refer to NEC Articles 430 and 440), the

overcurrent protective device for the unit shall be fuse or HACR

breaker. UL, Canada units may be fuse or circuit breaker.

2. Unbalanced 3-Phase Supply Voltage

Never operate a motor where a phase imbalance in supply volt-

age is greater than 2%. Use the following formula to determine

the percent of voltage imbalance.

Example: Supply voltage is 460-3-60.

AB = 452 v

BC = 464 v

AC = 455 v

= 457

Determine maximum deviation from average voltage.

(AB) 457 – 452 = 5 v

(BC) 464 – 457 = 7 v

(AC) 457 – 455 = 2 v

Maximum deviation is 7 v.

Determine percent of voltage imbalance.

% Voltage Imbalance= 100 x

= 1.53%

This amount of phase imbalance is satisfactory as it is below the

maximum allowable 2%.

UNIT

48HJ

NOMINAL

VOLTAGE

(V-Ph-Hz)

VOLTAGE

RANGE COMPRESSOR OFM IFM COMBUSTION

FAN MOTOR

POWER

SUPPLY

WITH OUTLET

MINIMUM UNIT

DISCONNECT

SIZE*

Min Max RLA LRA FLA FLA FLA MCA MOCP† FLA LRA

004

(3 Tons)

208/230-1-60 187 254 16.0 88.0 0.7 4.9 .57 25.6/25.6 35/35 25/25 101/101

208/230-3-60 187 254 10.3 77.0 0.7 4.9 .57 18.5/18.5 25/25 18/18 90/ 90

460-3-60 414 508 5.1 39.0 0.4 2.2 .30 9.0 15 9 46

575-3-60 518 632 4.2 31.0 0.4 2.2 .30 7.3 15 7 36

005

(4 Tons)

208/230-1-60 187 254 23.7 129.0 0.7 4.9 .57 35.2/35.2 45/45 34/34 142/142

208/230-3-60 187 254 13.5 99.0 0.7 4.9 .57 22.5/22.5 30/30 22/22 112/112

460-3-60 414 508 7.4 49.5 0.4 2.2 .30 11.9 15 12 56

575-3-60 518 632 5.8 40.0 0.4 2.2 .30 9.3 15 9 45

006

(5 Tons)

208/230-1-60 187 254 28.8 169.0 1.5 8.8 .57 46.3/46.3 60/60 45/45 216/216

208/230-3-60 187 254 17.3 123.0 1.5 5.8 .57 28.9/28.9 35/35 28/28 168/168

460-3-60 414 508 9.0 62.0 0.8 2.6 .30 14.7 20 14 84

575-3-60 518 632 7.1 50.0 0.8 2.6 .30 11.6 15 11 67

007

(6 Tons)

208/230-3-60 187 254 20.5 156.0 1.4 5.8 .57 32.8/32.8 40/40 32/32 200/200

460-3-60 414 508 9.6 70.0 0.6 2.6 .30 15.2 20 15 92

575-3-60 518 632 7.7 56.0 0.6 2.6 .30 12.2 15 13 78

UNIT

48HJ

NOMINAL

VOLTAGE

(V-Ph-Hz)

VOLTAGE

RANGE COMPRESSOR OFM IFM COMBUSTION

FAN MOTOR

POWER

SUPPLY

WITH OUTLET

MINIMUM UNIT

DISCONNECT

SIZE*

Min Max RLA LRA FLA FLA FLA MCA MOCP† FLA LRA

004

(3 Tons)

208/230-1-60 187 254 16.0 88.0 0.7 4.9 .57 31.6/31.6 40/40 30/30 106/106

208/230-3-60 187 254 10.3 77.0 0.7 4.9 .57 24.5/24.5 30/30 24/24 95/95

460-3-60 414 508 5.1 39.0 0.4 2.2 .30 11.7 15 11 48

575-3-60 518 632 4.2 31.0 0.4 2.2 .30 9.5 15 9 38

005

(4 Tons)

208/230-1-60 187 254 23.7 129.0 0.7 4.9 .57 41.2/41.2 50/50 39/39 147/147

208/230-3-60 187 254 13.5 99.0 0.7 4.9 .57 28.5/28.5 35/35 27/27 117/117

460-3-60 414 508 7.4 49.5 0.4 2.2 .30 14.6 20 14 58

575-3-60 518 632 5.8 40.0 0.4 2.2 .30 11.5 15 11 47

006

(5 Tons)

208/230-1-60 187 254 28.8 169.0 1.5 8.8 .57 52.3/52.3 60/60 50/50 221/221

208/230-3-60 187 254 17.3 123.0 1.5 5.8 .57 34.9/34.9 40/40 34/34 173/173

460-3-60 414 508 9.0 62.0 0.8 2.6 .30 17.4 20 17 86

575-3-60 518 632 7.1 50.0 0.8 2.6 .30 13.8 20 13 69

007

(6 Tons)

208/230-3-60 187 254 20.5 156.0 1.4 5.8 .57 38.8/38.8 45/45 37/37 205/205

460-3-60 414 508 9.6 70.0 0.6 2.6 .30 17.9 20 17 94

575-3-60 518 632 7.7 56.0 0.6 2.6 .30 14.3 20 15 79

FLA — Full Load Amps

HACR — Heating, Air Conditioning and Refrigeration

IFM — Indoor (Evaporator) Fan Motor

LRA — Locked Rotor Amps

MCA — Minimum Circuit Amps

MOCP— Maximum Overcurrent Protection

NEC — National Electrical Code

OFM — Outdoor (Condenser) Fan Motor

RLA — Rated Load Amps

UL — Underwriters’ Laboratories

= 100 x max voltage deviation from average voltage

average voltage

Average Voltage = 452 + 464 + 455

= 1371

IMPORTANT: If the supply voltage phase imbalance is

more than 2%, contact your local electric utility company

immediately.

457

Table 2C — 48HJ High-Static Motor Units Without Electrical Convenience Outlet

Table 2D — 48HJ High-Static Motor Units With Electrical Convenience Outlet

LEGEND

*Used to determine minimum disconnect per NEC.

†Fuse or HACR circuit breaker.

NOTES:

1. In compliance with NEC requirements for multimotor and combi-

nation load equipment (refer to NEC Articles 430 and 440), the

overcurrent protective device for the unit shall be fuse or HACR

breaker. UL, Canada units may be fuse or circuit breaker.

2. Unbalanced 3-Phase Supply Voltage

Never operate a motor where a phase imbalance in supply volt-

age is greater than 2%. Use the following formula to determine

the percent of voltage imbalance.

Example: Supply voltage is 460-3-60.

AB = 452 v

BC = 464 v

AC = 455 v

= 457

Determine maximum deviation from average voltage.

(AB) 457 – 452 = 5 v

(BC) 464 – 457 = 7 v

(AC) 457 – 455 = 2 v

Maximum deviation is 7 v.

Determine percent of voltage imbalance.

% Voltage Imbalance= 100 x

= 1.53%

This amount of phase imbalance is satisfactory as it is below the

maximum allowable 2%.

UNIT

48HJ

NOMINAL

VOLTAGE

(V-Ph-Hz)

VOLTAGE

RANGE

COMPRESSOR

(each) OFM IFM COMBUSTION

FAN MOTOR

POWER

SUPPLY

MINIMUM UNIT

DISCONNECT

SIZE*

Min Max RLA LRA FLA FLA RLA MCA MOCP† FLA LRA

004

208/230-3-60 187 254 10.3 77.0 0.7 5.8 0.6 19.4/19.4 25/25 19/19 120/120

460-3-60 414 508 5.1 39.0 0.4 2.6 0.3 9.4 15 9 60

575-3-60 518 632 4.2 31.0 0.4 2.6 0.3 7.7 15 8 48

005

208/230-3-60 187 254 13.5 99.0 0.7 5.8 0.6 23.4/23.4 30/30 23/23 142/142

460-3-60 414 508 7.4 49.5 0.4 2.6 0.3 12.3 15 12 71

575-3-60 518 632 5.8 40.0 0.4 2.6 0.3 9.7 15 9 57

006

208/230-3-60 187 254 17.3 123.0 1.5 7.5 0.6 30.6/30.6 35/35 30/30 187/187

460-3-60 414 508 9.0 62.0 0.8 3.4 0.3 15.5 20 15 94

575-3-60 518 632 7.1 50.0 0.8 3.4 0.3 12.2 15 12 76

007

208/230-3-60 187 254 20.5 156.0 1.4 7.5 0.6 30.6/30.6 35/35 30/30 187/187

460-3-60 414 508 9.6 70.0 0.6 3.4 0.3 15.5 20 15 94

575-3-60 518 632 7.7 56.0 0.6 3.4 0.3 12.2 15 12 76

UNIT

48HJ

NOMINAL

VOLTAGE

(V-Ph-Hz)

VOLTAGE

RANGE

COMPRESSOR

(each) OFM IFM COMBUSTION

FAN MOTOR

POWER

SUPPLY

MINIMUM UNIT

DISCONNECT

SIZE*

Min Max RLA LRA FLA FLA RLA MCA MOCP† FLA LRA

004

208/230-3-60 187 254 10.3 77.0 0.7 5.8 0.6 25.4/25.4 30/30 25 124/124

460-3-60 414 508 5.1 39.0 0.4 2.6 0.3 12.1 15 12 63

575-3-60 518 632 4.2 31.0 0.4 2.6 0.3 9.8 15 10 50

005

208/230-3-60 187 254 13.5 99.0 0.7 5.8 0.6 29.4/29.4 35/35 29 146/146

460-3-60 414 508 7.4 49.5 0.4 2.6 0.3 15.0 20 14 73

575-3-60 518 632 5.8 40.0 0.4 2.6 0.3 11.8 15 11 59

006

208/230-3-60 187 254 17.3 123.0 1.5 7.5 0.6 36.6/36.6 40/40 36 192/192

460-3-60 414 508 9.0 62.0 0.8 3.4 0.3 18.2 20 18 96

575-3-60 518 632 7.1 50.0 0.8 3.4 0.3 14.4 20 14 77

007

208/230-3-60 187 254 20.5 156.0 1.4 7.5 0.6 40.5/40.5 45/45 39 224/224

460-3-60 414 508 9.6 70.0 0.6 3.4 0.3 18.7 25 18 104

575-3-60 518 632 7.7 56.0 0.6 3.4 0.3 15.0 20 15 89

FLA — Full Load Amps

HACR — Heating, Air Conditioning and Refrigeration

IFM — Indoor (Evaporator) Fan Motor

LRA — Locked Rotor Amps

MCA — Minimum Circuit Amps

MOCP— Maximum Overcurrent Protection

NEC — National Electrical Code

OFM — Outdoor (Condenser) Fan Motor

RLA — Rated Load Amps

UL — Underwriters’ Laboratories

= 100 x max voltage deviation from average voltage

average voltage

Average Voltage = 452 + 464 + 455

= 1371

IMPORTANT: If the supply voltage phase imbalance is

more than 2%, contact your local electric utility company

immediately.

457

OPTIONAL DURABLADE ECONOMIZER — The option-

al economizer hood assembly is packaged and shipped in the

filter section. Damper blades and control boards are installed at

the factory and the economizer is shipped in the vertical dis-

charge position.

NOTE: Horizontal discharge block-off plate is shipped with

the air hood package. If unit is to be used for vertical discharge

application, discard this plate.

Assembly:

1. Determine if ventilation air is required in building. If so,

determine the minimum amount to be supplied by each

unit and record quantity of ventilation air needed for use

in Step 7.

2. Remove filter access panel by raising panel and swinging

panel outward. Panel is now disengaged from track and

can be removed. No tools are required to remove filter ac-

cess panel. Remove outdoor-air opening panel. Save pan-

els and screws. See Fig. 13. Remove economizer, and re-

move optional outdoor-air damper hood package from

filter section (located behind economizer).

3. Assemble outdoor-air hood top and side plates as shown

in Fig. 14. Install seal strips on hood top and sides. Put

aside screen retainer and retainer screw for later assem-

bly. Do not attach hood to unit at this time.

4. Slide economizer into unit and secure with screws. See

Fig. 15.

NOTE: Be sure to engage rear economizer flange under

tabs in vertical return-air opening.

5. To convert to horizontal discharge application:

a. Rotate economizer 90 degrees until the econo-

mizer motor faces the condenser section (see

Fig. 16).

b. Remove tape and shipping screw, rotate the baro-

metric relief damper cover 90 degrees.

c. Install horizontal discharge block-off plate over

the opening on the access panel. (Block-off plate

MUST be installed before installing hood assem-

bly.) See Fig. 17.

6. Remove 12-pin blue and yellow wire jumper plug from

factory wiring harness and store. Insert economizer plug

into 12-pin plug of factory wiring harness. Remove tape

and shipping screw from barometric relief damper. See

Fig.18.

7. If ventilation air is not required, proceed to Step 8. If ven-

tilation air is required, determine minimum position set-

ting for required airflow. See Fig. 19. Adjust minimum

position setting by adjusting the screws on the position

setting bracket. Slide bracket until the top screw is in the

position determined by Fig. 19. Tighten screws.

8. Remove tape from outdoor-air thermostat (OAT). Fasten

OAT to inside of hood using screws and speed clips pro-

vided. See Fig. 20. Make sure OAT terminals are posi-

tioned up.

MOISTUREMISER

% RELATIVE HUMIDITY

Fig. 11 — Accessory Field-Installed Humidistat

LEGEND

C—Contactor (Compressor)

CCH —Crankcase Heater

COMP —Compressor

FU —Fuse

HU —Humidistat

IFM —Indoor (Evaporator) Fan Motor

LLSV —Liquid Line Solenoid Valve

S-LPS —Low-Pressure Switch (Subcooler Only)

TRAN —Transformer

Factor y Wir ing

Accessory or Optional Wiring

Fig. 12 — Typical MoistureMiser Dehumidification Package Humidistat Wiring

(208/230-V Unit Shown)

9. Replace outdoor-air opening panel using screws from

Step 2. Replace filter access panel. Ensure the filter ac-

cess panel slides along the tracks and is securely engaged.

10. Fasten hood top and side plate assembly (Fig. 14) to

outdoor-air opening panel with screws provided.

11. Place knob supplied with economizer on OAT. See

Fig. 20. Set for 3° F below indoor room thermostat set-

ting. If accessory enthalpy control (EC) is used in place of

OAT, see instructions shipped with EC for installation

and adjustment. See Fig. 20.

12. Connect OAT per Fig. 21.

13. Slide outdoor-air inlet screen into screen track on hood

side plate. While holding screen in place, fasten screen re-

tainer to hood using screws provided.

NOTE: Refer to Fig. 22 for economizer barometric relief

damper characteristics.

ECONOMIZER

CONTROL BOARD

ECONOMIZER

PLUG

ECONOMIZER

MOTOR

TOP

SCREW

SHIPPING

SCREW

ECONOMIZER

CONTROL

BOARD

BAROMETRIC

RELIEF

DAMPER

ECONOMIZER

PLUG

ECONOMIZER

MOTOR

BLOCK-OFF PLATE

Fig. 15 — Durablade Economizer Installed in Unit

Fig. 16 — Horizontal Durablade Economizer

Installation

Fig. 17 — Horizontal Discharge Block-Off Plate

COMPRESSOR

ACCESS

PANEL

OUTDOOR-AIR

OPENING

FILTER

ACCESS

PANEL

Fig. 13 — Typical Access Panel Locations

Fig. 14 — Outdoor-Air Hood Details

U-SHAPED

HOLE

(NOT SHOWN)

ECONOMIZER

PLUG

WIRING

HARNESS

43210

UNIT

TOP

OAT

(TERMINALS ARE UP)

OUTSIDE AIR

SCREEN

MINIMUM

POSITION

OPEN

REV.B

198818A

DCBA

60 65 70

50 85

DAMPER

CLOSED

OPEN

OUTDOOR TEMP.°F

REV

97-3672

CW–SETPOINTS–CCW

CONTACTS SHOWN IN HIGH ENTHALPY

RUSHAT 24VAC

3 mA MIN. AT 11 VDC

CONTACT RATINGS: 1.5A RUN, 3.5A IN

OR UNPOWERED STATE

TR1

24V

ENTHALPY CONTROL

ENTHALPY

CONTROL

HOOD

Fig. 18 — Typical Durablade Economizer and

Wiring Harness

Example:

Given —

Negative Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . .0.1 in. wg

Outdoor Airflow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1100 cfm

Determine —

Setting = 6

Fig. 19A — Durablade Economizer Damper

Minimum Position Setting

Fig. 19B — Durablade Economizer Minimum

Position Damper Setting Fig. 21 — Wiring Connections for

Outdoor-Air Thermostat

Fig. 20 — Outdoor-Air Thermostat/

Enthalpy Control Installation

OPTIONAL ECONOMI$ER — See Fig. 23 for EconoMi$er

component locations.

1. To remove the existing unit filter access panel, raise the

panel and swing the bottom outward. The panel is now

disengaged from the track and can be removed. Remove

the indoor coil access panel and discard. See Fig. 24.

If installing an optional Power Exhaust Assembly, refer to

the EconoMi$er Power Exhaust Installation Instructions.

Controller should be mounted in vertical position as

shown in Fig. 23.

2. Assemble the hood assembly as follows:

Remove the EconoMi$er hood from its packaging. Re-

move shipping brackets holding hood package to

EconoMi$er. Locate the outdoor-air opening panel. See

Fig. 25. Remove hood assembly shipping brackets locat-

ed on the back (sloped) side of the EconoMi$er assembly.

These brackets are used to retain the hood assembly dur-

ing shipping only.

3. Install the 1/8 x 3/4-in. seal strip on the exhaust air hood

side panels and the bottom bracket. Assemble the exhaust

air hood to the outdoor-air opening panel as shown in

Fig. 25, using the screws provided. Do not attach hood

assembly to unit at this time.

4. Install the 1/8 x 3/4 in. seal strip on the outdoor-air hood

top and side panels. Assemble the outdoor-air hood to the

outdoor-air opening panel as shown in Fig. 26, using the

screws provided. Do not attach hood assembly to the unit

at this time.

5. Slide the outdoor-air inlet screens into the screen track on

the hood side panels. While holding the screens in place,

fasten the screen retainer to the hood using the screws

provided. Repeat the process for the barometric exhaust

air screen. Do not attach completed (Fig. 27) hood as-

sembly to unit at this time.

6. Install the EconoMi$er assembly into the rooftop unit.

See Fig. 28 and 29.

NOTE: Be sure to engage rear EconoMi$er flange under

tabs in return-air opening of the unit base. See Fig. 28.

7. Install the outdoor-air block-off plate, then secure the

EconoMi$er with the screws provided. See Fig. 29.

8. Remove and discard the 12-pin jumper plug from the unit

wiring harness located int he upper left corner and insert

the EconoMi$er plug into the unit wiring harness. Refer

to wiring diagram Fig. 30 and 31. Also refer to Fig. 32 if

installing an accessory power exhaust.

9. Install the complete hood assembly on the unit and secure

using the screws provided.

10. Remove the indoor fan motor access panel. See Fig. 33.

11. Mount the supply-air temperature sensor to the lower left

portion of the indoor blower housing with the two

(2) screws provided (see Fig. 34). Connect the violet and

pink wires to the corresponding connections on the

supply-air temperature sensor. Replace the indoor fan

motor access panel.

0.90

0.80

0.70

0.60

0.50

0.40

0.30

0.20

0.10

0.00 100 200 300 400 500 600 700 800

CFM

PRESSURE DROP (in. wg)

Fig. 22 — Durablade Economizer Barometric

Relief Damper Characteristics

BAROMETRIC RELIEF DAMPERS

CONTROLLER

ECONOMI$ER

PLUG GEAR-DRIVEN

DAMPER

OUTDOOR AIR

TEMPERATURE

SENSOR

ACTUATOR

OUTDOOR-AIR

OPENING PANEL

FILTER ACCESS

PANEL

OUTDOOR AIR

OPENING PANEL

SEAL STRIP

EXHAUST AIR SCREEN

EXHAUST AIR

HOOD TOP

SCREEN

RETAINER

EXHAUST AIR

HOOD SIDES

EXHAUST AIR

BOTTOM BRACKET

Fig. 23 — Economizer Component Locations

Fig. 24 — Typical Access Panel Locations

Fig. 25 — Exhaust Air Hood Assembly

SEAL STRIP

OUTDOOR AIR

HOOD TOP

SCREEN

RETAINER

OUTDOOR AIR

INLET

SCREENS

OUTDOOR AIR

HOOD SIDES

ASSEMBLED

EXHAUST HOOD

OUTDOOR AIR

OPENING

PANEL

ECONOMIZER

ECONOMIZER REAR

FLANGE

UNIT BASE

UNIT FILTER

RACK

ECONOMIZER CLIP

HVAC UNIT

WIRING

HARNESS

OUTDOOR

AIR

BLOCK-OFF

PLATE

Fig. 26 — Outdoor-Air Hood Assembly

Fig. 27 — Completed Hood Assembly

Fig. 28 — Rear EconoMi$er Flange Installation

Fig. 29 — EconoMi$er Installed

Fig. 30 — EconoMi$er Wiring

LEGEND

OAT —Outdoor-Air Thermostat

OUTDOOR

AIR

SENSOR

TEMP

COM

OUT

PWR

BROWN

VIOLET

WHITE

RED

BROWN TEMP

TEMP

COM

OUT

PWR

RETURN

AIR

SENSOR

VIOLET

WHITE

RED

OAT

COM

OAH

-15 V

RAT

COM

RAH

+15 V

ECONOMI$ER

CONTROLLER

PINK TEMP

TEMP

VIOLET

SUPPLY AIR

TEMPERATURE SENSOR

V+ 24

COM VAC

SENSOR

CO2

(+)

COM

DAT

COM

REM POT

COM

LED

COM

CO2

CONTROL BOX/BURNER

ACCESS PANEL

INDOOR FAN MOTOR

ACCESS PANEL AND BLOWER

4-PIN

CONNECTOR

PLUG

GREEN

GND

230 VAC

1 PHASE

GREEN/

YELLOW

69B

LT. BLUE

BLACK

BROWN

BLUE

GREEN/

YELLOW

69B

LT. BLUE

BLACK

BROWN

BLUE

FAN 2

FAN 1

BLACK

24 VAC

BLACK

BLUE

BROWN

ORANGE

3-PIN

CONNECTOR

PLUG

YELLOW

RED YEL

BLU GRAY

SECONDARY

230VAC

X4 X1

HT01AH850

(460 VAC)

RED

GRAY

SECONDARY

230VAC

X4 X1

HT01AH859

(575 VAC)

11 21 230VAC

BLACK L1

BLUE L2

COMPRESSOR 1

CONTACTOR

FIELD SUPPLIED

WIRING

GREEN GND

2 x 4 IN.

HANDY BOX

X2 X3

TO FUSED

DISCONNECT

Fig. 31 — EconoMi$er Sensor Wiring

Fig. 33 — Typical Access Panel Locations

(Standard Efficiency Unit Shown)

Fig. 32 — Wiring Diagram for Power Exhaust System

FAN 1 FAN 2

CAPACITOR 2

CAPACITOR 1

RELAY 2

RELAY 1

4-PIN

CONNECTOR PLUG

(HIGH VOLTAGE)

3-PIN

CONNECTOR PLUG

(LOW VOLTAGE)

POWER EXHAUST SYSTEM (HIGH VOLTAGE)

CO2 Control Setup — If a CO2 sensor is not being used, pro-

ceed to the next section. If a CO2 sensor is being used, perform

the following:

1. Determine the value at which you want the minimum po-

sition of the dampers to begin opening to allow a greater

amount of outdoor air to enter. The range is 800 to

1,400 ppm.

2. Locate the CO2 SP (PPM) potentiometer and adjust to the

desired set point. See Fig. 35.

Mechanical Cooling Lockout — Determine the outdoor-air

temperature at which you want the mechanical cooling (com-

pressors) to be disabled. Locate the mechanical cooling lockout

(MECH CLG LOCKOUT) potentiometer. To disable this fea-

ture, turn the potentiometer counterclockwise (CCW) to the

OFF position. Otherwise, set the value between 10 and 60 F.

Mechanical cooling will not operate when the outdoor air

temperature is below this value. See Fig. 35.

Dry Bulb Changeover Set Up — Determine the dry bulb

changeover set point from Table 3. The settings are A, B, C and

D. Locate the ECON SP potentiometer and set the dry bulb

changeover set point. See Fig. 35. When the OAT is above this

set point, the damper is limited to minimum position setting.

Table 3 — Changeover Set Points

*Field-installed accessory.

If a potentiometer fails, its setting will default to the values

in Table 4.

Table 4 — Default Potentiometer Settings

Ventilation Air (Minimum Position Set Up) — If ventilation

air is not required, proceed to Step 5. If ventilation air is re-

quired, perform the following:

1. The indoor fan must be on to set the ventilation air. Either

put the thermostat in the continuous fan mode or jumper

the R and G terminals at the rooftop unit connection

board.

2. Locate the minimum position (MIN POS) potentiometer.

Turn the potentiometer full CCW to fully close the out-

door air dampers. Turn the potentiometer gradually

clockwise (CW) to the desired position. See Fig. 35.

3. Replace the filter access panel. See Fig. 24. Ensure the fil-

ter access panel slides along the tracks and is securely

engaged.

4. Calculate the minimum airflow across the EconoMi$er.

a. Calculate % of outside air using the following

formula.

% Outdoor air through EconoMi$er

b. Divide total CFM by percentage outdoor air, this

gives outdoor air volume in CFM.

5. Turn on base unit power.

NOTE: The EconoMi$er begins operation three minutes after

power up.

6. See Fig. 36 for barometric relief damper characteristics.

SETTINGS ABCD

Dry Bulb (°F) 73 69 66 63

Single Enthalpy* (Btu/lb) 27 25 24 22

Differential Temperature* (°F, Not Adjustable) 2222

Differential Enthalpy* (Btu/lb, Not Adjustable) 1111

POTENTIOMETER DEFAULT SETTING

CO2 SP (PPM) 1,000

MECH CLG LOCKOUT 47°

ECON SP D

MIN POS (%) 20

% Outdoor air =

Mixture Temp –

Return Air Temp

Outdoor Temp –

Return Air Temp

Personal Injury Hazard. Avoid possible injury by keep-

ing fingers away from damper blades.

SUPPLY AIR

TEMPERATURE

SENSOR

MOUNTING

LOCATION

SUPPLY AIR

TEMPERATURE

SENSOR

Fig. 34 — Supply-Air Sensor Placement

0400 800 1200 1600 2000 2400

FLOW (CUBIC FEET/MINUTE)

0.5

0.4

0.3

0.2

0.1

STATIC PRESSURE (IN.WG)

Fig. 35 — EconoMi$er Control Adjustment

Potentiometers (Factory Settings)

Fig. 36 — Barometric Relief Capacity

Step 9 — Adjust Evaporator-Fan Speed — Ad-

just evaporator-fan speed to meet jobsite conditions.

Tables 5A and 5B show fan rpm at motor pulley settings.

Tables 6 and 7 show maximum amp draw of belt-drive motor.

Table 8 shows motor nominal horsepower for evaporator-fan

motors. Refer to Tables 8-25 for performance data. See Tables

26 and 27 for accessory and option static pressure drops.

BELT-DRIVE MOTORS — Fan motor pulleys are factory set

for speed shown in Table 1. Check pulley alignment and belt

tension prior to start-up.

NOTE: Before adjusting fan speed, make sure the new fan

speed will provide an air temperature rise range as shown in

Table 1.

To change fan speed:

1. Shut off unit power supply, tag disconnect.

2. Loosen belt by loosening fan motor mounting nuts. See

Fig. 37.

3. Loosen movable pulley flange setscrew (see Fig. 38).

4. Screw movable flange toward fixed flange to increase

speed and away from fixed flange to decrease speed. In-

creasing fan speed increases load on motor. Do not ex-

ceed maximum speed specified in Table 1.

5. Set movable flange at nearest keyway of pulley hub and

tighten setscrew. (See Table 1 for speed change for each

full turn of pulley flange.)

To align fan and motor pulleys, loosen fan pulley setscrews

and slide fan pulley along fan shaft. Make angular alignment

by loosening motor from mounting.

To adjust belt tension:

1. Loosen fan motor mounting nuts.

2. Slide motor mounting plate away from fan scroll for

proper belt tension (1/2-in. deflection with 8 to 10 lbs of

force) and tighten mounting nuts.

3. Adjust lock bolt and nut on mounting plate to secure mo-

tor in fixed position.

MOTOR MOUNTING

PLATE NUTS

Fig. 37 — Belt-Drive Motor Mounting

Fig. 38 — Evaporator-Fan Pulley Adjustment

Table 5A — 48HJ Fan Rpm at Motor Pulley Setting With Standard Motor

*Approximate fan rpm shown (standard motor/drive).

Table 5B — 48HJ Fan Rpm at Motor Pulley Setting With High Static Motor

Table 6 — Evaporator-Fan Motor Data — Standard Motor

LEGEND

Bhp — Brake Horsepower

*Extensive motor and electrical testing on these units ensures that

the full horsepower and watts range of the motors can be utilized

with confidence. Using your fan motors up to the ratings shown in

this table will not result in nuisance tripping or premature motor fail-

ure. Unit warranty will not be affected.

Table 7 — Evaporator-Fan Motor Data — High-Static Motors

LEGEND

Bhp — Brake Horsepower

*Extensive motor and electrical testing on these units ensures that

the full horsepower and watts range of the motors can be utilized

with confidence. Using your fan motors up to the ratings shown in

this table will not result in nuisance tripping or premature motor fail-

ure. Unit warranty will not be affected.

STANDARD MOTOR*

UNIT

48HJ

MOTOR PULLEY TURNS OPEN

01/211

1/222

1/233

1/244

1/255

1/26

004 1090 1055 1025 990 960 925 890 860 825 795 760 ——

005 1185 1150 1115 1080 1045 1015 980 945 910 875 840 ——

006

(single-phase) 1460 1425 1385 1350 1315 1275 1240 1205 1165 1130 1095 1055 1020

006 (3-phase)

and 007 1585 1540 1490 1445 1400 1350 1305 1260 1210 1165 1120 ——

HIGH-STATIC MOTOR

UNIT

48HJ

MOTOR PULLEY TURNS OPEN

01/211

1/222

1/233

1/244

1/255

1/26

004 1455 1423 1392 1360 1328 1297 1265 1233 1202 1170 1138 1107 1075

005 1455 1423 1392 1360 1328 1297 1265 1233 1202 1170 1138 1107 1075

006 1685 1589 1557 1525 1493 1460 1428 1396 1364 1332 1300 ——

007 1685 1589 1557 1525 1493 1460 1428 1396 1364 1332 1300 ——

UNIT

48HJ

UNIT

PHASE

MAXIMUM

CONTINUOUS BHP*

MAXIMUM

OPERATING WATTS* UNIT VOLTAGE MAXIMUM

AMP DRAW

004

Single 1.20 1000 208/230 5.4

Three 1.20 1000

208/230 5.4

460 2.4

575 2.4

005

Single 1.20 1000 208/230 5.4

Three 1.20 1000

208/230 5.4

460 2.4

575 2.4

006

Single 1.30 1650 208/230 9.7

Three 2.40 2120

208/230 6.4

460 2.9

575 2.9

007 Three 2.40 2120

208/230 6.4

460 2.9

575 2.9

UNIT

48HJ

UNIT

PHASE

MAXIMUM

CONTINUOUS BHP*

MAXIMUM

OPERATING WATTS* UNIT VOLTAGE MAXIMUM

AMP DRAW

004 Three 2.40 2120

208/230 6.4

460 2.9

575 2.9

005 Three 2.40 2120

208/230 6.4

460 2.9

575 2.9

006 Three 2.90 2615

208/230 7.9

460 3.6

575 3.6

007 Three 2.90 2615

208/230 6.4

460 3.6

575 3.6

Table 8 — Motor Nominal Horsepower

Table 9 — Outdoor Sound Power (Total Unit)

LEGEND

Table 10 — 48HJ004 Fan Performance — Vertical Discharge Units With Standard Motor

Table 11 — 48HJ004 Fan Performance — Vertical Discharge Units With High-Static Motor

LEGEND AND NOTES FOR TABLES 10 AND 11

LEGEND

NOTES:

1. Boldface indicates field-supplied drive required. (See Note 2.)

2. Motor drive range is 760 to 1090 rpm for standard motor; 1075 to 1455

rpm for high-static motor. All other rpms require a field-supplied drive.

3. Values include losses for filters, unit casing, and wet coils. See page 28

for accessory/FIOP static pressure information.

4. Maximum continuous bhp is 1.20 for standard motor, 2.40 for high-static

motor. Extensive motor and electrical testing on these units ensures that

the full range of the motor can be utilized with confidence. Using your

fan motors up to the ratings shown will not result in nuisance tripping

or premature motor failure. Unit warranty will not be affected. See

Evaporator-Fan Motor Data tables on page 20 for additional information.

5. Use of a field-supplied motor may affect wire sizing. Contact your Carrier

representative to verify.

6. Interpolation is permissible. Do not extrapolate.

UNIT 48HJ MOTOR NOMINAL HORSEPOWER

004 All 1.00

005 All 1.00

006 Single Phase 1.50

Three Phase 2.00

007 All 2.00

UNIT

48HJ

ARI

RATING

(Bels)

OCTAVE BANDS

63 125 250 500 1000 2000 4000 8000

004,005 7.6 55.9 66.0 64.0 66.2 68.4 64.5 61.7 57.3

006,007 8.0 59.1 68.9 68.7 71.9 74.0 68.9 65.7 59.0

ARI —Air Conditioning and Refrigeration Institute

Bels —Sound Levels (1 bel = 10 decibels)

AIRFLOW

(Cfm)

EXTERNAL STATIC PRESSURE (in. wg)

0.1 0.2 0.3 0.4 0.5 0.6

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

900 581 0.12 673 0.18 736 0.22 805 0.25 865 0.29 911 0.34

1000 644 0.19 709 0.22 782 0.28 835 0.30 900 0.35 937 0.38

1100 687 0.22 746 0.26 806 0.30 867 0.35 929 0.40 964 0.40

1200 733 0.26 785 0.32 843 0.35 903 0.41 960 0.47 994 0.50

1300 754 0.29 826 0.38 891 0.43 942 0.48 991 0.53 1047 0.60

1400 810 0.35 868 0.45 937 0.51 984 0.57 1032 0.62 1067 0.67

1500 841 0.42 911 0.53 985 0.61 1029 0.66 1073 0.72 1109 0.77

AIRFLOW

(Cfm)

EXTERNAL STATIC PRESSURE (in. wg)

0.7 0.8 0.9 1.0 1.1 1.2

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

900 957 0.39 988 0.43 1039 0.47 1061 0.51 1083 0.54 1105 0.58

1000 992 0.44 1039 0.49 1061 0.55 1088 0.60 1111 0.66 1136 0.72

1100 1013 0.49 1068 0.55 1091 0.61 1109 0.66 1127 0.73 1145 0.80

1200 1045 0.56 1090 0.64 1109 0.68 1156 0.73 1203 0.81 1250 0.86

1300 1075 0.64 1122 0.70 1152 0.76 1190 0.82 1228 0.87 1266 0.94

1400 1110 0.73 1160 0.78 1181 0.83 1237 0.88 1293 0.94 1349 0.99

1500 1150 0.78 1190 0.84 1225 0.89 1271 0.95 1371 1.00 1383 1.05

AIRFLOW

(Cfm)

EXTERNAL STATIC PRESSURE (in. wg)

0.2 0.4 0.6 0.8 1.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

900 673 0.18 805 0.25 911 0.34 988 0.43 1061 0.47

1000 709 0.22 835 0.30 937 0.38 1039 0.49 1086 0.55

1100 746 0.28 867 0.35 964 0.40 1068 0.55 1109 0.61

1200 785 0.32 903 0.41 994 0.50 1090 0.64 1156 0.68

1300 826 0.38 942 0.48 1047 0.60 1122 0.70 1190 0.76

1400 868 0.45 984 0.57 1087 0.67 1160 0.84 1237 0.85

1500 911 0.53 1029 0.66 1109 0.77 1190 1.00 1271 0.95

AIRFLOW

(Cfm)

EXTERNAL STATIC PRESSURE (in. wg)

1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

900 1105 0.57 1140 0.63 1170 0.68 1198 0.73 1224 0.77

1000 1136 0.63 1172 0.69 1203 0.75 1232 0.80 1258 0.86

1100 1145 0.67 1181 0.73 1213 0.80 1242 0.85 1268 0.91

1200 1210 0.74 1248 0.81 1282 0.88 1312 0.94 1340 1.01

1300 1266 0.84 1306 0.92 1341 1.00 1373 1.07 1402 1.14

1400 1349 0.93 1391 1.02 1429 1.11 1463 1.19 1494 1.26

1500 1363 1.05 1406 1.15 1465 1.25 1500 1.34 1532 1.43

Bhp —Brake Horsepower Input to Fan

FIOP —Factory-Installed Option

Table 12 — 48HJ005 Fan Performance — Vertical Discharge Units With Standard Motor

Table 13 — 48HJ005 Fan Performance — Vertical Discharge Units With High-Static Motor

LEGEND AND NOTES FOR TABLES 12 AND 13

LEGEND

NOTES:

1. Boldface indicates field-supplied drive required. (See Note 3.)

2. indicates field-supplied motor and drive required.

3. Motor drive range is 840 to 1185 rpm for standard motor; 1075 to

1455 rpm for high-static motor. All other rpms require a field-supplied

drive.

4. Values include losses for filters, unit casing, and wet coils. See page 28

for accessory/FIOP static pressure information.

5. Maximum continuous bhp is 1.2 for standard motor, 2.4 for high-static

motor. Extensive motor and electrical testing on these units ensures that

the full range of the motor can be utilized with confidence. Using your

fan motors up to the ratings shown will not result in nuisance tripping or

premature motor failure. Unit warranty will not be affected. See Evapora-

tor-Fan Motor Data tables on page 20 for additional information.

6. Use of a field-supplied motor may affect wire sizing. Contact your Carrier

representative to verify.

7. Interpolation is permissible. Do not extrapolate.

AIRFLOW

(Cfm)

EXTERNAL STATIC PRESSURE (in. wg)

0.1 0.2 0.3 0.4 0.6 0.7 0.8

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1200 596 0.20 665 0.25 722 0.31 779 0.36 872 0.48 915 0.54 957 0.60

1300 633 0.24 699 0.30 754 0.36 809 0.42 902 0.55 943 0.61 984 0.67

1400 672 0.30 735 0.36 788 0.42 840 0.48 933 0.62 972 0.69 1011 0.75

1500 711 0.35 770 0.42 822 0.49 873 0.55 963 0.69 1002 0.77 1041 0.84

1600 751 0.42 835 0.49 871 0.56 907 0.63 993 0.77 1033 0.85 1072 0.93

1700 791 0.49 873 0.57 907 0.65 941 0.72 1024 0.87 1064 0.96 1103 1.04

1800 831 0.58 881 0.66 929 0.74 976 0.81 1057 0.97 1095 1.06 1132 1.14

1900 872 0.67 919 0.75 965 0.84 1011 0.92 1091 1.08 1127 1.17 1162 1.25

2000 913 0.77 958 0.86 1002 0.95 1046 1.03 1125 1.21 1160 1.30 1195 1.38

AIRFLOW

(Cfm)

EXTERNAL STATIC PRESSURE (in. wg)

0.9 1.0 1.1 1.2 1.4 1.6 1.8

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1200 993 0.65 1028 0.69 1056 0.72 1083 0.74 1134 0.80 1185 0.88 1331 0.99

1300 1021 0.74 1058 0.80 1090 0.85 1121 0.89 1171 0.94 1219 1.00 1268 1.10

1400 10490.8210860.8911200.9611531.0012101.1212571.171307 1.25

1500 10770.9211130.9911471.0611801.131241 1.27 1295 1.37 1339 1.43

1600 11071.0011411.0911741.171207 1.25 1269 1.40 1326 1.54 1376 1.65

1700 11371.1211711.201203 1.29 1235 1.37 1296 1.53 1354 1.70 1407 1.84

1800 1167 1.23 1202 1.32 1233 1.41 1263 1.49 1323 1.67 1381 1.85 1436 2.02

1900 1197 1.35 1232 1.45 1263 1.54 1294 1.63 1351 1.81 1408 2.00 1463 2.19

2000 1229 1.48 1262 1.58 1294 1.68 1325 1.78 1362 1.97 1436 2.16 1489 2.36

AIRFLOW

(Cfm)

EXTERNAL STATIC PRESSURE (in. wg)

0.2 0.4 0.6 0.8 1.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1200 665 0.25 779 0.36 872 0.48 957 0.60 1028 0.69

1300 699 0.30 809 0.42 902 0.55 984 0.67 1058 0.80

1400 735 0.36 840 0.48 933 0.62 1011 0.75 1086 0.89

1500 770 0.42 873 0.55 963 0.69 1041 0.84 1113 0.99

1600 835 0.49 907 0.63 993 0.77 1072 0.93 1141 1.09

1700 873 0.57 941 0.72 1024 0.87 1103 1.04 1171 1.20

1800 881 0.66 976 0.81 1057 0.97 1132 1.14 1202 1.32

1900 919 0.75 1011 0.92 1091 1.08 1162 1.25 1232 1.45

2000 958 0.86 1046 1.03 1125 1.21 1195 1.38 1262 1.58

AIRFLOW

(Cfm)

EXTERNAL STATIC PRESSURE (in. wg)

1.2 1.4 1.6 1.8 2.0

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1200 1083 0.74 1134 0.80 1185 0.88 1331 0.99 1374 1.09

1300 1121 0.89 1171 0.94 1219 1.00 1268 1.10 1309 1.21

1400 1153 1.00 1210 1.12 1257 1.17 1307 1.25 1349 1.37

1500 1180 1.13 1241 1.27 1295 1.37 1339 1.43 1382 1.57

1600 1207 1.25 1269 1.40 1326 1.54 1376 1.65 1420 1.81

1700 1235 1.37 1296 1.53 1354 1.70 1407 1.84 1452 2.02

1800 1263 1.49 1323 1.67 1381 1.85 1436 2.02 1482 2.22

1900 1294 1.63 1351 1.81 1408 2.00 1463 2.19 ——

2000 1325 1.78 1362 1.97 1436 2.16 1489 2.36 ——

Bhp —Brake Horsepower Input to Fan

FIOP —Factory-Installed Option

Table 14 — 48HJ006 Fan Performance — Vertical Discharge Units With Standard Motor

Single-Phase Units

3-Phase Units

Table 15 — 48HJ006 Fan Performance — Vertical Discharge Units With High-Static Motor

LEGEND AND NOTES FOR TABLES 14 AND 15

LEGEND

NOTES:

1. Boldface indicates field-supplied drive required. (See Note 3.)

2. indicates field-supplied motor and drive required.

3. Motor drive range is 1020 to 1460 rpm for single-phase standard

motors, 1120 to 1585 for 3-phase standard motors, and 1300 to 1685 for

high-static motors. All other rpms require a field-supplied drive.

4. Values include losses for filters, unit casing, and wet coils. See page 28

for accessory/FIOP static pressure information.

5. Maximum continuous bhp is 1.30 for single-phase standard motors, 2.40

for 3-phase standard motors, and 2.90 for high-static motors. Extensive

motor and electrical testing on these units ensures that the full range of

the motor can be utilized with confidence. Using your fan motors up to

the ratings shown will not result in nuisance tripping or premature motor

failure. Unit warranty will not be affected. See Evaporator-Fan Motor

Data tables on page 20 for additional information.

6. Use of a field-supplied motor may affect wire sizing. Contact your Carrier

representative to verify.

7. Interpolation is permissible. Do not extrapolate.

AIRFLOW

(Cfm)

EXTERNAL STATIC PRESSURE (in. wg)

0.1 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6

Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp Rpm Bhp

1500 771 0.37 828 0.44 935 0.58 1027 0.73 1107 0.88 1185 1.04 1257 1.20 1330 1.38 1411 1.59

1600 816 0.45 869 0.51 968 0.66 1056 0.81 1127 0.97 1215 1.14 1286 1.31 1353 1.49 1421 1.68

1700 902 0.61 940 0.60 1007 0.75 1094 0.91 1175 1.09 1245 1.26 1315 1.44 1381 1.52 1443 1.69

1800 942 0.70 978 0.66 1063 0.82 1147 0.97 1248 1.20 1322 1.33 1395 1.46 1475 1.56 1542 1.71

1900 982 0.80 1023 0.78 1097 0.91 1175 1.11 1266 1.29 1356 1.47 1430 1.58 1504 1.69 1556 1.82

2000 1022 0.91 1068 0.90 1132 1.01 1218 1.23 1303 1.41 1397 1.52 1459 1.67 1532 1.82 1588 1.97

2100 1063 0.99 1115 1.00 1180 1.17 1261 1.35 1340 1.53 1428 1.66 1489 1.80 1567 1.99 1626 2.16

2200 1104 1.13 1159 1.15 1214 1.28 1310 1.52 1375 1.63 1459 1.80 1528 1.95 1603 2.17 1666 2.37

2300 1130 1.26 1202 1.29 1248 1.38 1358 1.69 1410 1.72 1488 1.93 1561 2.13 1637 2.35 1710 2.54

2400 1174 1.37 1237 1.41 1292 1.55 1392 1.81 1460 1.90 1532 2.14 1584 2.28 1671 2.55 1756 2.70

2500 1201 1.48 1272 1.53 1335 1.71 1427 1.94 1518 2.16 1575 2.35 1633 2.53 1698 2.72 ——
