50PG03−16

Single−Package Rooftop Units

Electric Heater and

Single Point Box Accessories

Installation Instructions

Heater Part Numbers: CRHEATER200A00 through CRHEATER263A00

Single Point Box Part Numbers: CSINGLE028A00 through CRSINGLE036A00

HEATER PACKAGE CONTENTS

ITEM QUANTITY

Heater Module 1

Wiring Label 1

SINGLE POINT BOX PACKAGE CONTENTS

ITEM QUANTITY

Single Point Box 1

Terminal Block *

Wiring Label 1

Fuse Block† *

* Quantity varies by kit.

† If single point box has fuses, contents will include a hinged cover,

rivets, and magnetic latch.

TABLE OF CONTENTS

SAFETY CONSIDERATIONS 1. . . . . . . . . . . . . . . . . . . . . . . .

GENERAL 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

INSTALLATION 1-31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Heater Installation 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Install Single Point Box 4. . . . . . . . . . . . . . . . . . . . . . . . . . .

Configuring ComfortLinkt Control 4. . . . . . . . . . . . . . . . .

SAFETY CONSIDERATIONS

Improper installation, adjustment, alteration, service,

maintenance, or use can cause explosion, fire, electrical shock, or

other conditions which may cause personal injury or property

damage. Consult a qualified installer, service agency, or your

distributor or branch for information or assistance. The qualified

installer or agency must use factory−authorized kits or accessories

when modifying this product. Refer to the individual instructions

packaged with kits or accessories when installing.

Follow all safety codes. Wear safety glasses and work gloves. Use

quenching cloth for brazing operations. Have fire extinguisher

available. Read these instructions thoroughly and follow all

warnings or cautions attached to the unit. Consult local building

codes and National Electrical Code (NEC) for special

requirements.

Recognize safety information. This is the safety−alert symbol

. When you see this symbol on the furnace and in

instructions or manuals, be alert to the potential for personal

injury.

Understand the signal words DANGER, WARNING, and

CAUTION. These words are used with the safety−alert symbol.

DANGER identifies the most serious hazards which will result in

severe personal injury or death. WARNING signifies a hazard

which could result in personal injury or death. CAUTION is used

to identify unsafe practices which may result in minor personal

injury or product and property damage. NOTE is used to

highlight suggestions which will result in enhanced installation,

reliability, or operation.

ELECTRICAL OPERATION HAZARD

Failure to follow this caution may cause personal injury and

damage to equipment.

Field modification of electric heat staging may result in the

overriding of electric heat safety switches and is prohibited.

CAUTION

PROPERTY DAMAGE HAZARD

Failure to follow this caution may result in property

damage.

When removing panels from the unit, be careful not to

damage the roof or other surfaces with the panels.

CAUTION

GENERAL

This installation instruction covers accessory heaters

CRHEATER200A00 through CRHEATER263A00. A single

point box may be required for some heaters. The single point box

must be ordered separately when required.

INSTALLATION

Heater Installation

Perform the following procedure to install the accessory electric

heaters:

1. Turn off power to the unit. Install “Lock−Out Tag−Out”

tag on unit disconnect or breaker.

2. Configure unit for horizontal duct configuration, if

desired.

NOTE: The 50PG16 size requires an accessory conversion kit

for converting from vertical to horizontal duct configuration.

3. Permanently mark the appropriate block on the unit

nameplate for the accessory heater installed.

4. Verify unit input power wire sizing and circuit protection

per requirements on the unit nameplate for the accessory

heater installed.

5. Open the electric heater section, compressor section, and

indoor fan section access doors. (See Fig. 1.)

6. Remove the block-off plate from electric heater

compartment and save screws. (See Fig. 2.)

7. Slide heater module into heater compartment by aligning

the heater frame with the heater opening. Do NOT handle

heater assembly by the heating coils. Handle by sheet

metal panel only. (See Fig. 3.)

NOTE: The 50PG16 heater bottom-rear flange will secure into a

slot on the internal cross rail when fully installed. Check that the

heater flange is straight and flat before installing.

8. Secure electric heater to unit using screws from item 6.

Heater will attach to the block off plate screw holes.

9. Route heater power wires to the left through the foam

bushing and to the single point power connection box in

the compressor section. (See Fig. 3 and 4.)

10. Install the single point box, if required. Refer to the Install

Single Point Box, Step 2, for details.

11. Route the control wires to the left through the foam

bushing. Connect to the mating plug (PL−3) in the wire

harness in the indoor fan section. Do not route 24 volt

low voltage wiring beside high voltage wiring. Maintain

at least a 1−2” separation.

12. Set the manual reset limit switch on the fan housing by

pressing the button located between the terminals on the

switch. (See Fig. 3.)

NOTE: This switch is added as a supplemental means to

de−energize the electric heat contactor in case of indoor airflow

failure. The switch should only open and require reset for a

switch temperature above 200_F.

13. Apply heater wiring label to inside of electric heater

section door. (See Fig. 5.)

14. Close all access doors.

15. Remove “Lock−Out Tag−Out” tag. Apply power to unit.

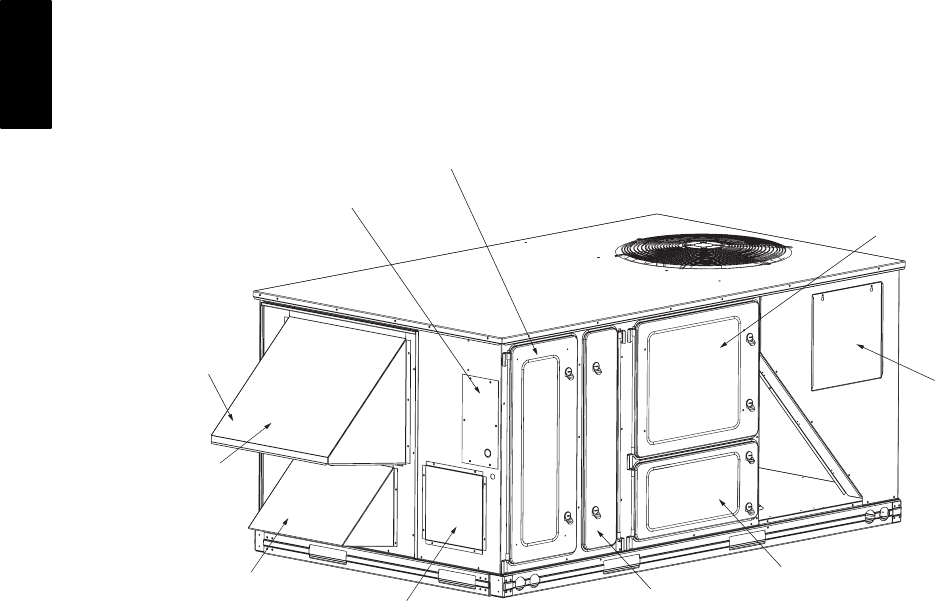

CONTROL BOX

AND COMPRESSOR

ACCESS DOOR

OUTDOOR AIR

SCREEN

(HIDDEN)

FILTER ACCESS DOOR

INDOOR MOTOR

ACCESS DOOR

ECONOMIZER

HOOD

BAROMETRIC

RELIEF DAMPER

HOOD

ELECTRICAL

OPTIONS PANEL

BASEPAN CONNECTIONS

ACCESS PANEL

CONDENSER COI

ACCESS PANEL

ELECTRIC HEAT

ACCESS DOOR

C06182

Fig. 1 − Panel Locations

50PG03−16

BLOCK-OFF

PLATE

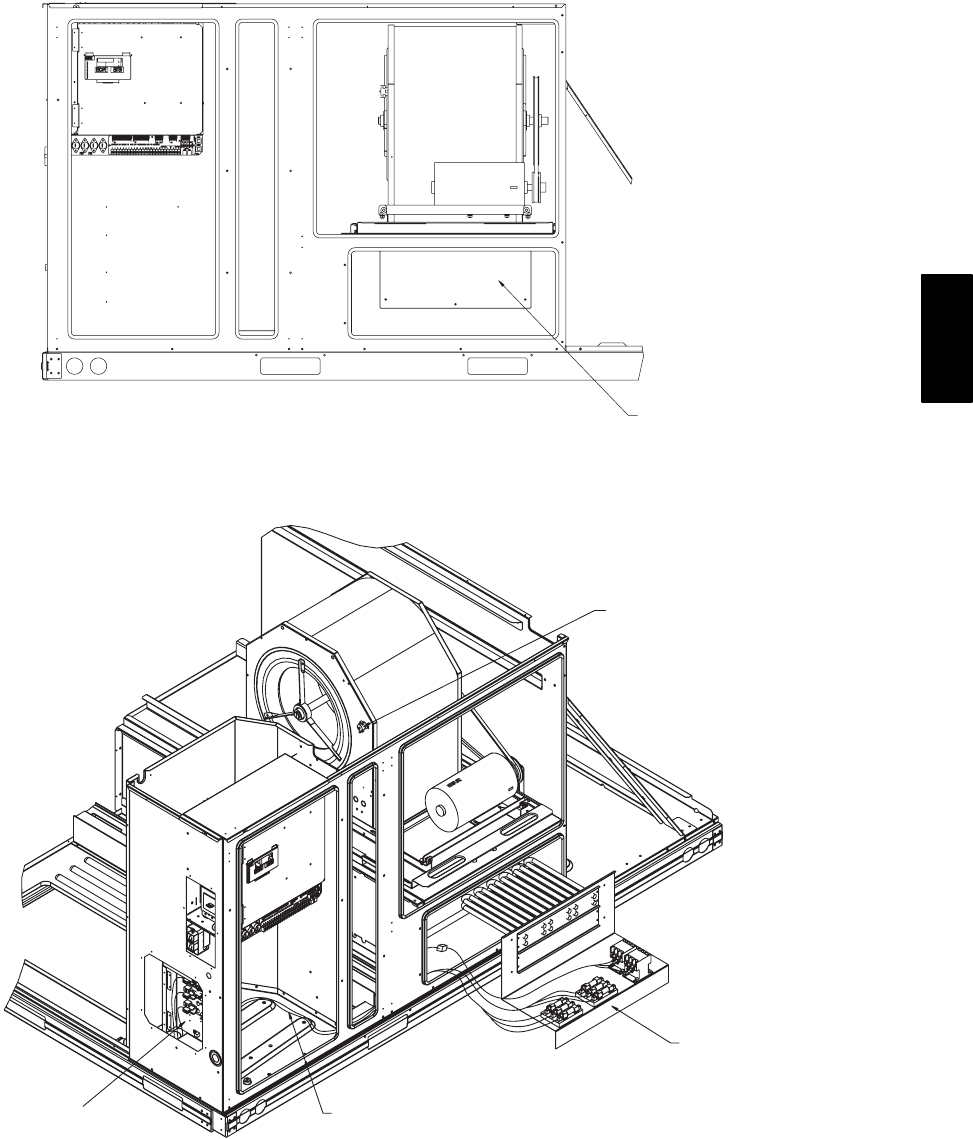

C06183

Fig. 2 − Block−Off Plate

ACCESSORY

ELECTRIC

HEATER

ASSEMBLY

SINGLE POINT BOX

ROUTE HEATER POWER WIRES BEHIND

COMPRESSORS AS SHOWN.

(COMPRESSORS REMOVED FOR CLARITY)

MANUAL RESET

LIMIT SWITCH

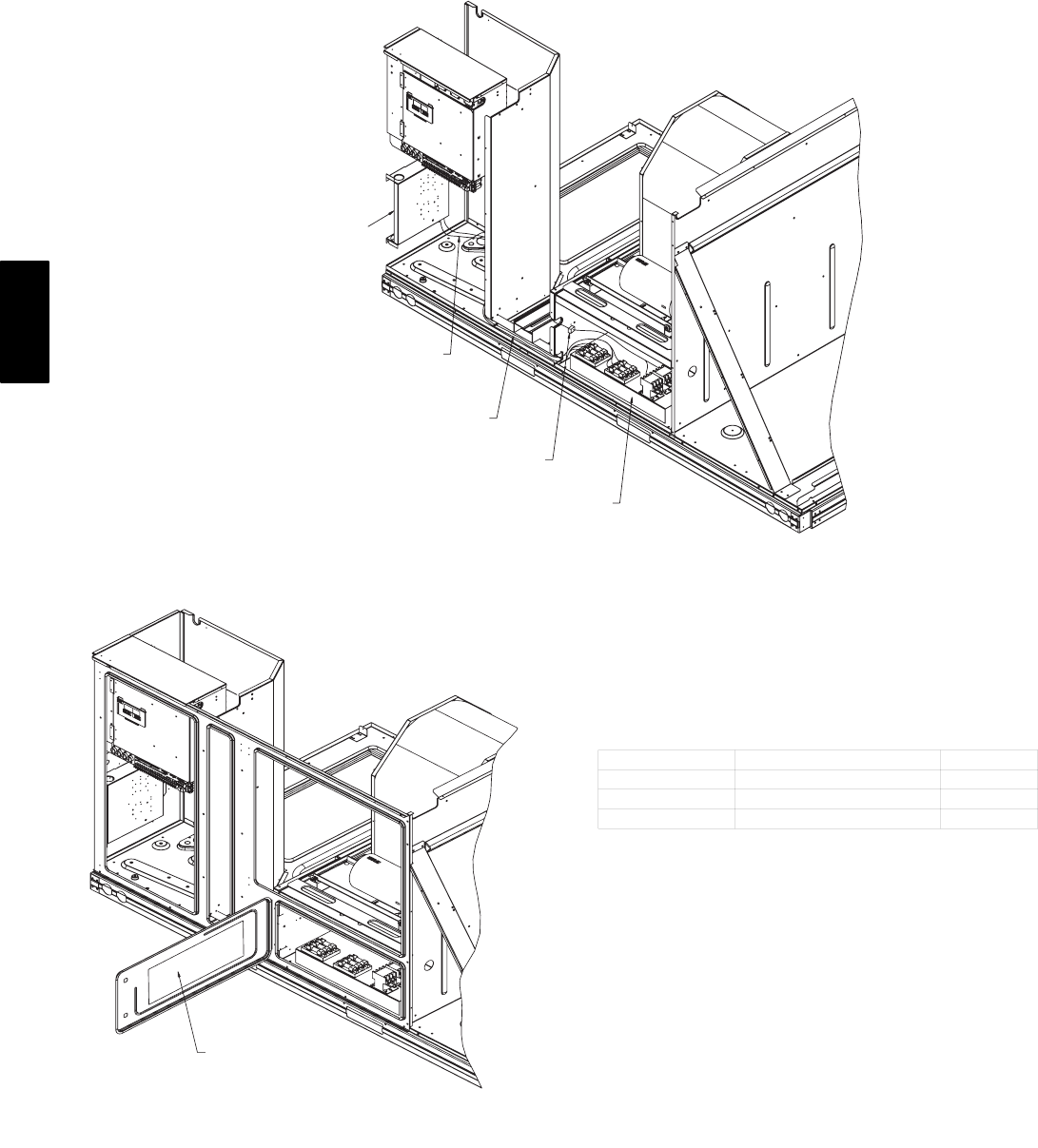

C06184

Fig. 3 − Electric Heater Installation

50PG03−16

HEATER ASSEMBLY

CONNECT PL3 PLUG

AND RECEPTACLE

ROUTE HEATER POWER WIRES

THROUGH RACEWAY AND BEHIND

COMPRESSORS (COMPRESSORS

REMOVED FOR CLARITY)

POWER WIRES ARE

ROUTED INTO BOTTOM

OF SINGLE POINT BOX

SINGLE

POINT

BOX

C06185

Fig. 4 − Electric Heater Wire Routing

AFFIX HEATER WIRING LABEL DIAGRAM

SUPPLIED WITH HEATERS ON

FOIL FACE INSULATION IN AREA SHOWN

C06186

Fig. 5 − Heater Label Location

Install Single Point Box

See Tables 1 and 2 to determine the correct single point box

accessory for the selected heater. The appropriate single point box

is determined by the MOCP (maximum overcurrent protection)

for the heater and unit combination. Refer to the correct figure for

correct installation of the single point box components.

Single point accessories CRSINGLE028A00 and

CRSINGLE030A00 are for use on units where the combined

MOCP rating is less than 60 amps. These accessories contain

only a terminal block; no fuses are provided. Fuses are not

required per the National Electrical Code in these single point

accessories since the circuit is below 60 amps. Field−supplied

pressure connectors (Kerneys) may be used in place of these

single point boxes.

All fuses provided in the single point boxes are rated at 60 amps.

UNIT VOLTAGE FUSE VOLTAGE RATING UL CLASS

208/230 250 RK5

460 600 T

575 600 T

To install single point box:

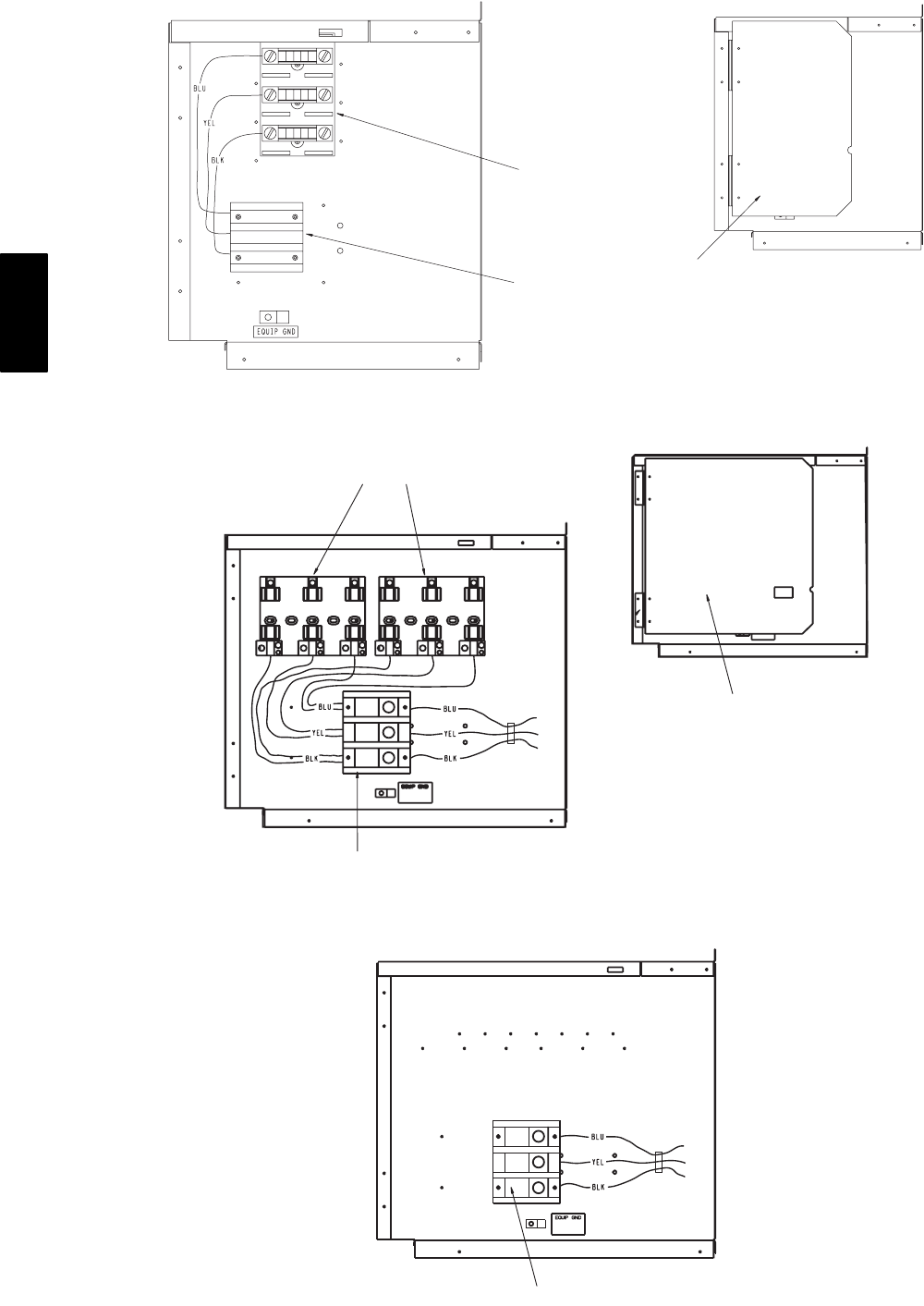

1. Remove single point box access panel located on the end

of the unit. Save panel and screws. (See Fig. 3.)

2. Using the screws provided, install the terminal blocks and

fuse blocks (if required). (See Fig. 6-12.)

3. If required, using the wires provided, connect the terminal

block to the fuse block. (See Fig. 13-22.)

4. Route power wires from the control box and electric

heaters into the single point box. Route power wires from

the disconnect into the single point box through power

entry hole located next to the access panel. Make all

wiring connections.

5. If single point box has fuses, install hinged cover using

rivets provided. Install magnetic latch in rectangular hole.

(See Fig. 7-10 and 12.)

6. Install wiring label on back of single point box access

panel or on hinged cover.

7. Replace single point box access panel removed in item 1.

Configuring the ComfortLinkt Control

The ComfortLink control must be configured for Electric Heat

(default is No Heat). In addition, if a single-stage electric heater

has been installed, it will be necessary to change the N.HTR

configuration (2 is the default setting). These configurations are

changed through the Scrolling Marquee Display or a Carrier

network device.

50PG03−16

NOTE: Consult the Controls and Troubleshooting Guide for in

depth instructions on using and configuring the ComfortLink

control. The following instructions are written for the Scrolling

Marquee Display or Navigator™ accessory.

1. The ComfortLink control must be configured to use the

electric heater accessory. A password may be required to

edit the configurations depending on the previous settings

configured in the unit. Default password is “1111.”

2. To configure the ComfortLink control, use the arrow keys

to scroll the red LED on the display to the “Configuration”

position and press ENTER.

3. Use the arrow keys to scroll down until the display shows

“HEAT.” This is the Heating Configuration Sub Mode.

Press ENTER.

4. The ComfortLink control will display the Type of Heat

(HT.TY) setting. Press ENTER once to select the HT.TY

setting for configuration. Press ENTER again. A “0” will

begin flashing.

5. Use the arrow keys to change the configuration from “0”

(No Heat) to “2” (Electric Heat) and press ENTER. Press

ESCAPE to save the setting.

6. For single-stage electric heaters only (10 kW or less), the

Number of Heat Stages must be changed from 2 to 1.

a. Use the arrow keys to scroll down to the Number of Heat

Stages setting (N.HTR). Press ENTER to select the

N.HTR setting for configuration.

b. Press ENTER again. Configuration value will flash.

c. Use the arrow keys to change the configuration from “2”

(2 stages of heat) to “1” (one stage of heat) and press

ENTER.

d. Press ESCAPE to save the configuration change.

7. Configuration of ComfortLink™ control is now complete.

Pressing ESCAPE multiple times will return the

display to the auto-scroll setting.

8. Close and secure all access doors.

THERMOSTAT CONTROL

For heat mode to operate, the accessory thermostat must be

connected to the corresponding W1 and W2 terminals on the field

connection terminal board located in the unit control box.

SPACE TEMPERATURE CONTROL

(Direct Wired or CCN)

For heat mode to operate, a jumper must be connected between R

and W1 on the field-connection terminal board located in the unit

control box.

TERMINAL

BLOCKS

(3-PHASE SHOWN)

C06187

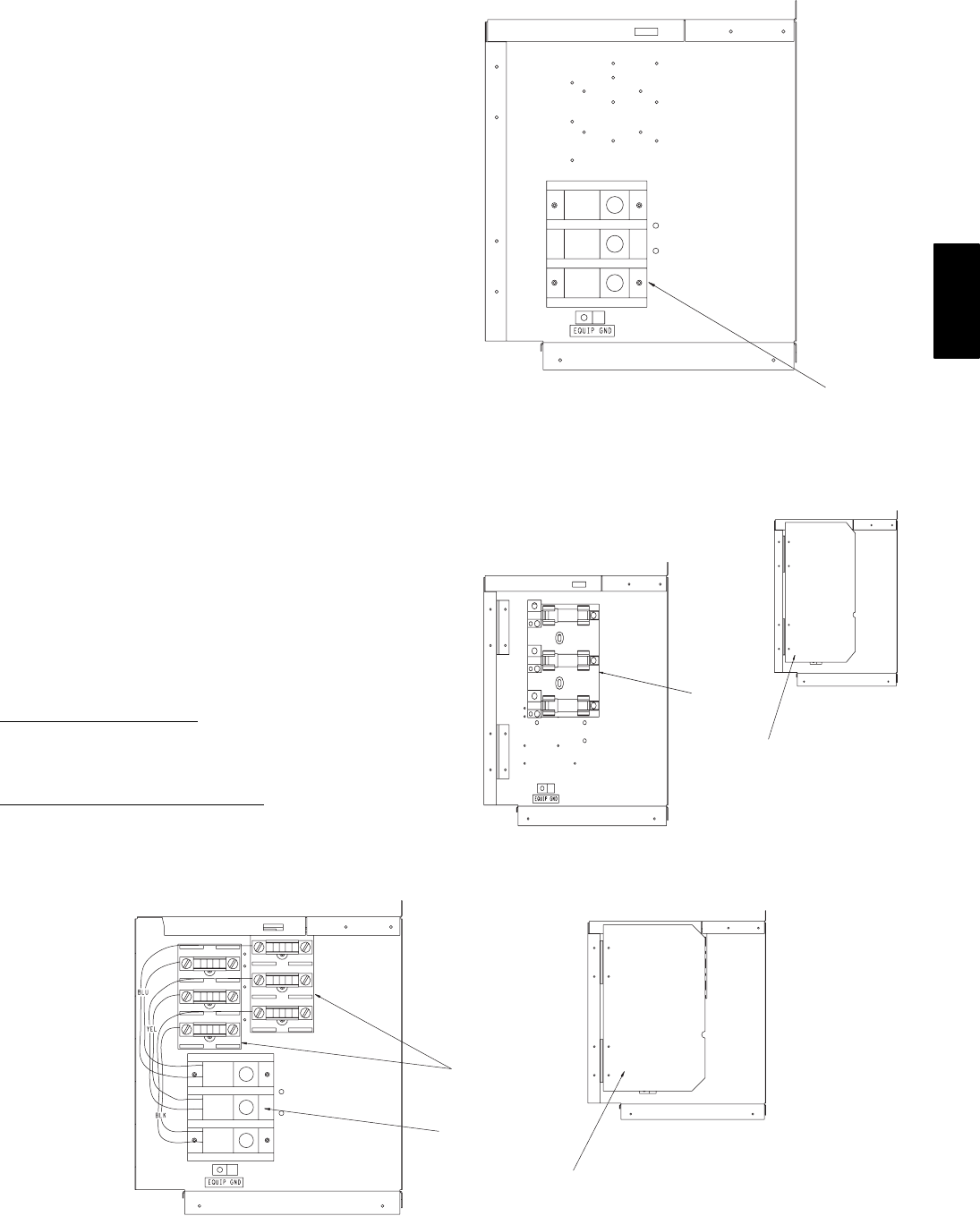

Fig. 6 − Single Point Box

CRSINGLE028A00, CRSINGLE030A00

FUSE BLOCK

(3-PHASE SHOWN)

HINGED COVER

C06188

Fig. 7 − Single Point Box

CRSINGLE029A00, CRSINGLE031A00

FUSE BLOCK

TERMINAL BLOCK

HINGED COVER

C06189

Fig. 8 − Single Point Box CRSINGLE032A00

50PG03−16

FUSE BLOCK

TERMINAL BLOCK

HINGED COVER

C06190

Fig. 9 − Single Point Box CRSINGLE033A00

FUSE BLOCK

TERMINAL BLOCK

HINGED

COVER

C06191

Fig. 10 − Single Point Box CRSINGLE034A00

TERMINAL BLOCK

C06192

Fig. 11 − Single Point Box CRSINGLE035A00

50PG03−16

TERMINAL BLOCK

HINGED

COVER

FUSE BLOCK

C06192

Fig. 12 − Single Point Box CRSINGLE036A00

FIELD

POWER

HEATERS

SINGLE POINT BOX

UNIT CONTROL BOX

UNIT POWER

PIGTAILS

HEATER WIRES

SUPPLIED WITH

HEATERS

FUSE BLOCK

C06194

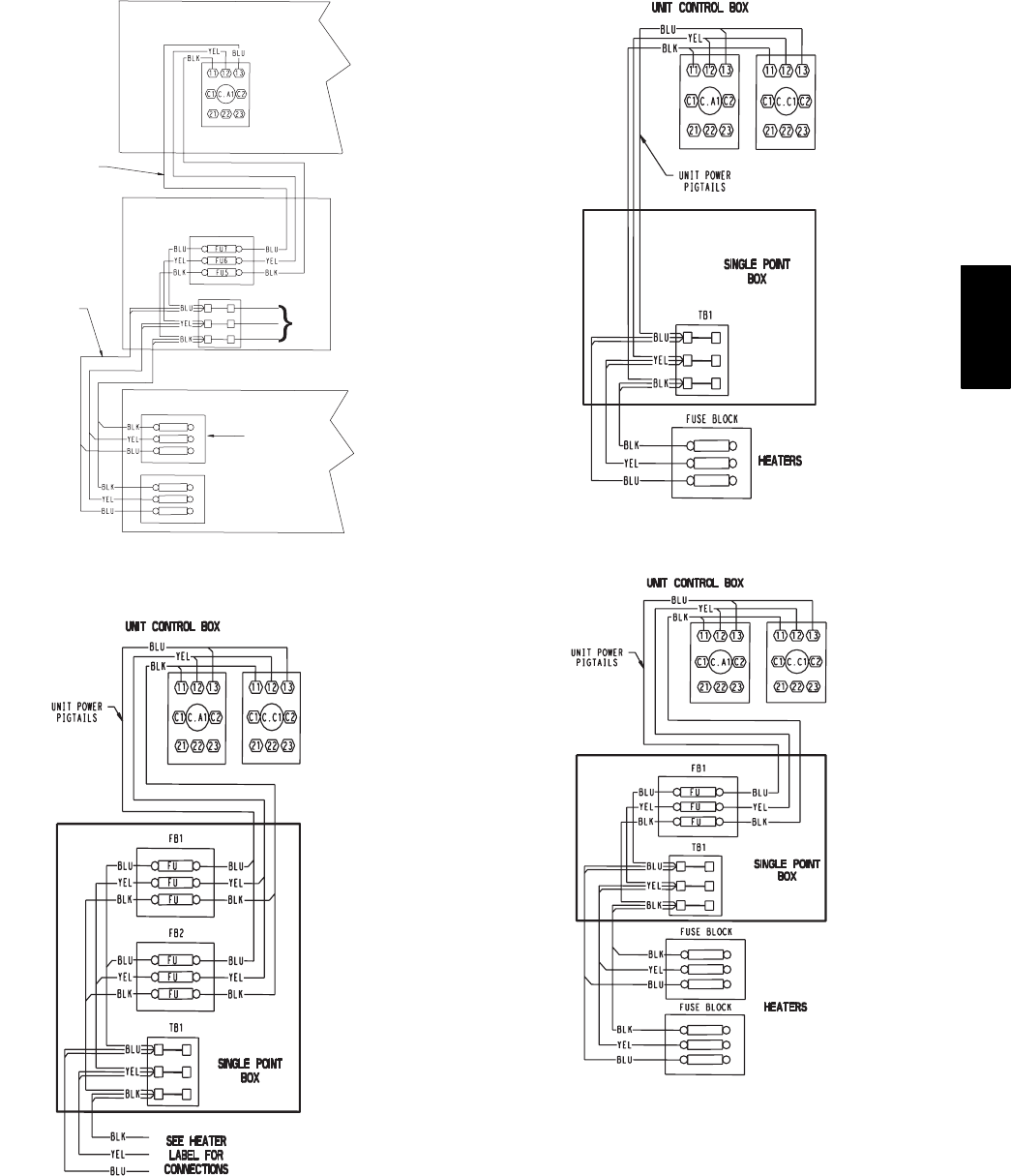

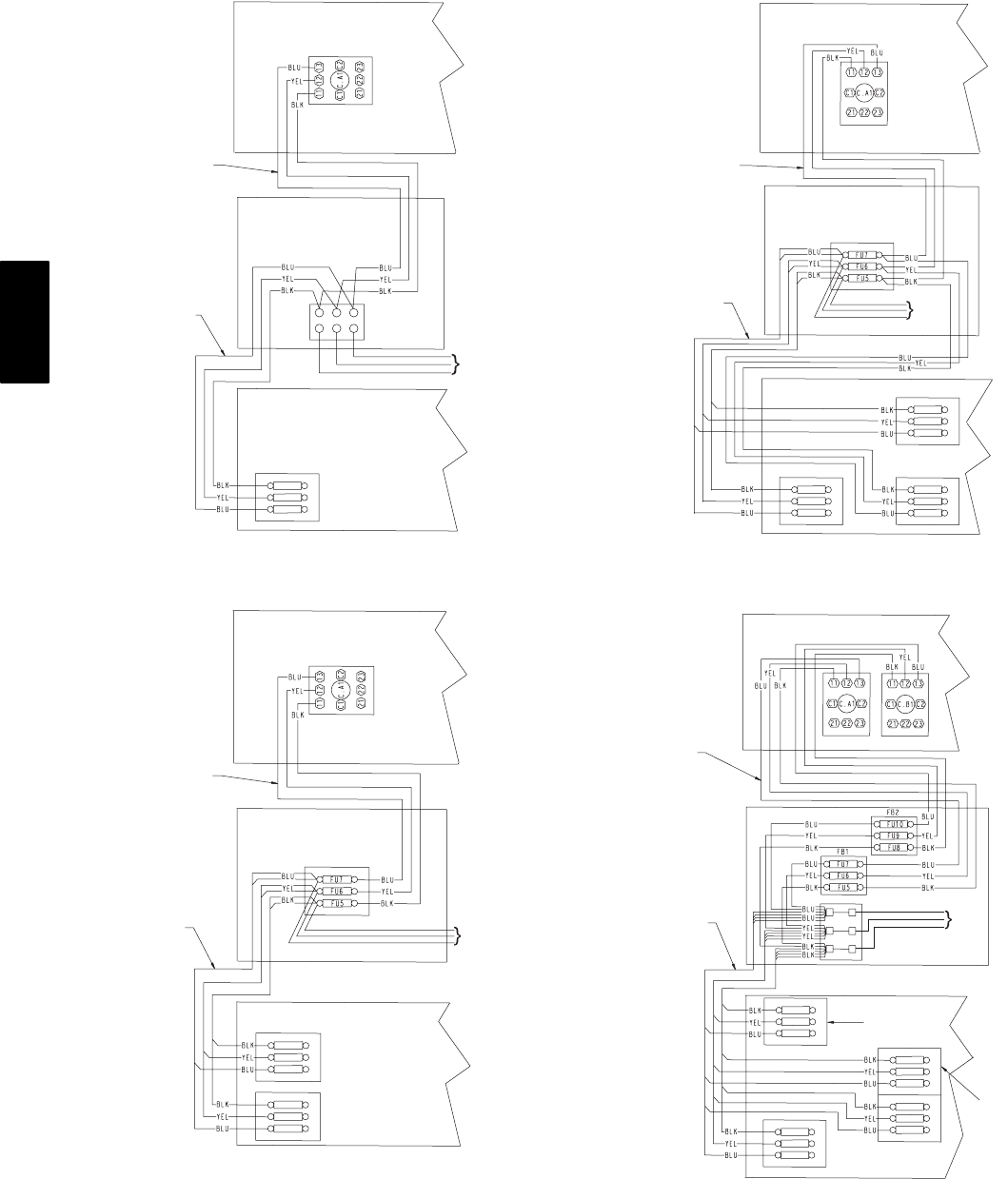

Fig. 13 − Heater Wiring CRSINGLE028A00

UNIT CONTROL BOX

SINGLE POINT BOX

HEATERS

UNIT POWER

PIGTAILS

HEATER WIRES

SUPPLIED WITH

HEATERS

12 GA WIRES

FIELD

POWER

15-25 kW ONLY

25 kW ONLY

FUSE BLOCK

FB1

C06195

Fig. 14 − Heater Wiring CRSINGLE029A00

50PG03−16

FIELD

POWER

HEATERS

SINGLE POINT BOX

UNIT CONTROL BOX

UNIT POWER

PIGTAILS

HEATER WIRES

SUPPLIED WITH

HEATERS

FUSE BLOCK

C06196

Fig. 15 − Heater Wiring CRSINGLE030A00

FIELD

POWER

HEATERS

SINGLE POINT BOX

UNIT CONTROL BOX

UNIT POWER

PIGTAILS

HEATER WIRES

SUPPLIED WITH

HEATERS

FB1

FUSE BLOCK

C06197

Fig. 16 − Heater Wiring CRSINGLE031A00

HEATERS

SINGLE POINT BOX

UNIT CONTROL BOX

UNIT POWER

PIGTAILS

HEATER WIRES

SUPPLIED WITH

HEATERS

FB1

FUSE BLOCK FUSE BLOCK

FUSE BLOCK

FIELD

POWER

C06198

Fig. 17 − Heater Wiring CRSINGLE031A00, 35−50 kW

HEATERS

SINGLE POINT BOX

UNIT CONTROL BOX

UNIT POWER

PIGTAILS

HEATER WIRES

SUPPLIED WITH

HEATERS

FIELD

POWER

TB1

60 kW

ONLY

35-60 kW ONLY

FUSE BLOCK

C06199

Fig. 18 − Heater Wiring CRSINGLE032A00

50PG03−16

FIELD

POWER

FB1

TB1

UNIT POWER

PIGTAILS

HEATER WIRES

SUPPLIED WITH

HEATERS

SINGLE POINT BOX

UNIT CONTROL BOX

40,50,60 kW ONLY

FUSE BLOCK

C06200

Fig. 19 − Heater Wiring CRSINGLE033A00

C06201

Fig. 20 − Heater Wiring CRSINGLE034A00

C06202

Fig. 21 − Heater Wiring CRSINGLE035A00

C06203

Fig. 22 − Heater Wiring CRSINGLE036A00

50PG03−16

Table 1 — Electrical Data — Units Without Optional Powered Convenience Outlet

UNIT

50PG

NOMINAL

POWER

SUPPLY

VOLTS−PH−HZ

VOLTAGE

RANGE

COMPRESSOR

(EA) OFM

FLA

IFM

FLA

POWER

EXHAUST

FLA

IFM

TYPE

ELECTRIC HEAT POWER SUPPLY CRSINGLE

PART NO.

(Note 3)

DISCONNECT

SIZE WIRING

FIG. NO.

MIN MAX RLA LRA CRHEATER

PART NO. FLA NOMINAL

KW* MCA MOCP{FLA LRA

03 208/230-1-60 187 253 12.8 60 0.9 4.9



Low

  / 21.8/21.8 30/30  21/21 73/73 

200A00 10.8/12.5 2.3/3.0 21.8/21.8 30/30 028A00 21/21 73/73 13

201A00 17.3/20.0 3.8/5.0 27.8/31.1 30/35 028A00 26/29 73/73 13

202A00 26.0/30.0 5.6/7.5 38.6/43.6 40/45 028A00 36/40 73/73 13

203A00 34.7/40.0 7.5/10.0 49.5/56.1 50/60 028A00 45/52 73/73 13

High

  / 21.8/21.8 30/30  21/21 73/73 

200A00 10.8/12.5 2.3/3.0 21.8/21.8 30/30 028A00 21/21 73/73 13

201A00 17.3/20.0 3.8/5.0 27.8/31.1 30/35 028A00 26/29 73/73 13

202A00 26.0/30.0 5.6/7.5 38.6/43.6 40/45 028A00 36/40 73/73 13

203A00 34.7/40.0 7.5/10.0 49.5/56.1 50/60 028A00 45/52 73/73 13

1.4

Low

  / 23.2/23.2 30/30  23/23 75/75 

200A00 10.8/12.5 2.3/3.0 23.2/23.5 30/30 028A00 23/23 75/75 13

201A00 17.3/20.0 3.8/5.0 29.5/32.9 30/35 028A00 27/30 75/75 13

202A00 26.0/30.0 5.6/7.5 40.4/45.4 45/50 028A00 37/42 75/75 13

203A00 34.7/40.0 7.5/10.0 51.2/57.9 60/60 028A00 47/53 75/75 13

High

  / 23.2/23.2 30/30  23/23 75/75 

200A00 10.8/12.5 2.3/3.0 23.2/23.5 30/30 028A00 23/23 75/75 13

201A00 17.3/20.0 3.8/5.0 29.5/32.9 30/35 028A00 27/30 75/75 13

202A00 26.0/30.0 5.6/7.5 40.4/45.4 45/50 028A00 37/42 75/75 13

203A00 34.7/40.0 7.5/10.0 51.2/57.9 60/60 028A00 47/53 75/75 13

208/230-1-60 187 253 15.4 83 0.9 4.9



Low

  / 25.0/25.0 30/30  24/24 96/96 

200A00 10.8/12.5 2.3/3.0 25.0/25.0 30/30 028A00 24/24 96/96 13

201A00 17.3/20.0 3.8/5.0 27.8/31.1 30/40 028A00 26/29 96/96 13

202A00 26.0/30.0 5.6/7.5 38.6/43.6 40/45 028A00 36/40 96/96 13

203A00 34.7/40.0 7.5/10.0 49.5/56.1 50/60 028A00 45/52 96/96 13

204A00 52.0/60.0 11.3/15.0 71.1/81.1 80/90 029A00 65/75 96/96 14

High

  / 25.0/25.0 30/30  24/24 96/96 

200A00 10.8/12.5 2.3/3.0 25.0/25.0 30/30 028A00 24/24 96/96 13

201A00 17.3/20.0 3.8/5.0 27.8/31.1 30/40 028A00 26/29 96/96 13

202A00 26.0/30.0 5.6/7.5 38.6/43.6 40/45 028A00 36/40 96/96 13

203A00 34.7/40.0 7.5/10.0 49.5/56.1 50/60 028A00 45/52 96/96 13

204A00 52.0/60.0 11.3/15.0 71.1/81.1 80/90 029A00 65/75 96/96 14

1.4

Low

  / 26.4/26.4 40/40  26/26 98/98 

200A00 10.8/12.5 2.3/3.0 26.4/26.4 40/40 028A00 26/26 98/98 13

201A00 17.3/20.0 3.8/5.0 29.5/32.9 40/40 028A00 27/30 98/98 13

202A00 26.0/30.0 5.6/7.5 40.4/45.4 45/50 028A00 37/42 98/98 13

203A00 34.7/40.0 7.5/10.0 51.2/57.9 60/60 028A00 47/53 98/98 13

204A00 52.0/60.0 11.3/15.0 72.9/82.9 80/90 029A00 67/76 98/98 14

High

  / 26.4/26.4 40/40  26/26 98/98 

200A00 10.8/12.5 2.3/3.0 26.4/26.4 40/40 028A00 26/26 98/98 13

201A00 17.3/20.0 3.8/5.0 29.5/32.9 40/40 028A00 27/30 98/98 13

202A00 26.0/30.0 5.6/7.5 40.4/45.4 45/50 028A00 37/42 98/98 13

203A00 34.7/40.0 7.5/10.0 51.2/57.9 60/60 028A00 47/53 98/98 13

204A00 52.0/60.0 11.3/15.0 72.9/82.9 80/90 029A00 67/76 98/98 14

208/230-3-60 187 253 11.5 77 0.9 4.9 

Low

  / 20.2/20.2 30/30  20/20 90/90 

207A00 6.3/7.2 2.3/3.0 20.2/20.2 30/30 030A00 20/20 90/90 15

208A00 10.0/11.5 3.8/5.0 20.2/20.6 30/30 030A00 20/20 90/90 15

209A00 15.0/17.3 5.6/7.5 24.9/27.8 30/30 030A00 23/26 90/90 15

210A00 20.0/23.1 7.5/10.0 31.1/35.0 35/40 030A00 29/32 90/90 15

211A00 30.0/34.6 11.3/15.0 43.6/49.4 45/50 030A00 40/45 90/90 15

High

  / 20.2/20.2 30/30  20/20 90/90 

207A00 6.3/7.2 2.3/3.0 20.2/20.2 30/30 030A00 20/20 90/90 15

208A00 10.0/11.5 3.8/5.0 20.2/20.6 30/30 030A00 20/20 90/90 15

209A00 15.0/17.3 5.6/7.5 24.9/27.8 30/30 030A00 23/26 90/90 15

210A00 20.0/23.1 7.5/10.0 31.1/35.0 35/40 030A00 29/32 90/90 15

211A00 30.0/34.6 11.3/15.0 43.6/49.4 45/50 030A00 40/45 90/90 15

LEGEND

FLA − Full Load Amps

HACR − Heating, Air Conditioning and Refrigeration

IFM − Indoor − Fan Motor

LRA − Locked Rotor Amps

MCA − Minimum Circuit Amps

MOCP − Maximum Overcurrent Protection

NEC − National Electrical Code

OFM − Outdoor−Fan Motor

RLA − Rated Load Amps

* Heater capacity (kW) is based on heater voltage of 208 v, 240 v, or 480 v. If power distribu-

tion voltage to unit varies from rated heater voltage, heater kW will vary accordingly.

† Fuse or HACR circuit breaker.

NOTES:

1. In compliance with NEC requirements for multimotor and combination load equip-

ment (refer to NEC Articles 430 and 440), the overcurrent protective device for the

unit shall be fuse or HACR breaker.

2. Unbalanced 3-Phase Supply Voltage

Never operate a motor where a phase imbalance in supply voltage is greater than

2%. Use the following formula to determine the percentage of voltage imbalance.

% Voltage Imbalance = 100 x

max voltage deviation from average voltage

average voltage

Example: Supply voltage is 460-3-60

AB = 224 v

BC = 231 v

AC = 226 v

Average Voltage = 224 + 231 + 226

681

227

Determine maximum deviation from average voltage.

(AB) 227 – 223 = 3 v

(BC) 231 – 227 = 4 v

(AC) 227 – 226 = 1 v

Maximum deviation is 4 v.

Determine percent of voltage imbalance.

% Voltage Imbalance = 100 x

227

= 1.76%

This amount of phase imbalance is satisfactory as it is below the maximum allowable 2%.

IMPORTANT: If the supply voltage phase imbalance is more than 2%, contact your local electric

utility company immediately.

3. Single point kits CRSINGLE028A00 and CRSINGLE030A00 are not required if

field−supplied pressure connectors are used.

50PG03−16

Table 1 — Electrical Data — Units Without Optional Powered Convenience Outlet (cont)

UNIT

50PG

NOMINAL

POWER SUPPLY

VOLTS−PH−HZ

VOLTAGE

RANGE

COMPRESSOR

(EA) OFM

FLA

IFM

FLA

POWER

EXHAUST

FLA

IFM

TYPE

ELECTRIC HEAT POWER SUPPLY CRSINGLE

PART NO.

(NOTE3)

DISCONNECT SIZE

WIRING

FIG. NO.

MIN MAX RLA LRA CPHEATER

PART NO. FLA NOMINAL

KW* MCA MOCP† FLA LRA

(cont)

208/230-3-60

(cont) 187 253 11.5 77 0.9 4.9 1.4

Low

  / 21.6/21.6 30/30  22/22 92/92 

207A00 6.3/7.2 2.3/3.0 21.6/21.6 30/30 030A00 22/22 92/92 15

208A00 10.0/11.5 3.8/5.0 21.6/22.3 30/30 030A00 22/22 92/92 15

209A00 15.0/17.3 5.6/7.5 26.6/29.5 30/30 030A00 25/27 92/92 15

210A00 20.0/23.1 7.5/10.0 32.9/36.7 35/40 030A00 30/34 92/92 15

211A00 30.0/34.6 11.3/15.0 45.4/51.2 50/60 030A00 42/47 92/92 15

High

  / 21.6/21.6 30/30  22/22 92/92 

207A00 6.3/7.2 2.3/3.0 21.6/21.6 30/30 030A00 22/22 92/92 15

208A00 10.0/11.5 3.8/5.0 21.6/22.3 30/30 030A00 22/22 92/92 15

209A00 15.0/17.3 5.6/7.5 26.6/29.5 30/30 030A00 25/27 92/92 15

210A00 20.0/23.1 7.5/10.0 32.9/36.7 35/40 030A00 30/34 92/92 15

211A00 30.0/34.6 11.3/15.0 45.4/51.2 50/60 030A00 42/47 92/92 15

460-3-60 414 506 5.1 35 0.5 2.1



Low

   9.0 15  9 42 

214A00 3.5 3.0 9.0 15 030A00 9 42 15

215A00 5.8 5.0 9.8 15 030A00 9 42 15

216A00 8.7 7.5 13.5 15 030A00 12 42 15

217A00 11.5 10.0 17.1 20 030A00 16 42 15

218A00 17.3 15.0 24.3 25 030A00 22 42 15

High

   9.0 15  9 42 

214A00 3.5 3.0 9.0 15 030A00 9 42 15

215A00 5.8 5.0 9.8 15 030A00 9 42 15

216A00 87 7.5 13.5 15 030A00 12 42 15

217A00 11.5 10.0 17.1 20 030A00 16 42 15

218A00 17.3 15.0 24.3 25 030A00 22 42 15

0.6

Low

   9.6 15  10 43 

214A00 3.5 3.0 9.6 15 030A00 10 43 15

215A00 5.8 5.0 10.6 15 030A00 10 43 15

216A00 8.7 7.5 14.2 15 030A00 13 43 15

217A00 11.5 10.0 17.8 20 030A00 16 43 15

218A00 17.3 15.0 25.0 30 030A00 23 43 15

High

   9.6 15  10 43 

214A00 3.5 3.0 9.6 15 030A00 10 43 15

215A00 5.8 5.0 10.6 15 030A00 10 43 15

216A00 8.7 7.5 14.2 15 030A00 13 43 15

217A00 11.5 10.0 17.8 20 030A00 16 43 15

218A00 17.3 15.0 25.0 30 030A00 23 43 15

575-3-60 518 632 4.3 31.0 0.4 2.2



Low

   8.0 15  8 37 

221A00 9.2 10.0 14.1 15 030A00 13 37 15

222A00 13.9 15.0 20.0 25 030A00 18 37 15

High

   8.0 15  8 37 

221A00 9.2 10.0 14.1 15 030A00 13 37 15

222A00 13.9 15.0 20.0 25 030A00 18 37 15

1.4

Low

   9.4 15  10 39 

221A00 9.2 10.0 15.9 20 030A00 15 39 15

222A00 13.9 15.0 21.8 25 030A00 20 39 15

High

   9.4 15  10 39 

221A00 9.2 10.0 15.9 20 030A00 15 39 15

222A00 13.9 15.0 21.8 25 030A00 20 39 15

208/230-1-60 187 253 20.5 109 0.9

4.9



Low

  / 31.4/31.4 50/50  30/30 122/122 

201A00 17.3/20.0 3.8/5.0 31.4/31.4 50/50 028A00 30/30 122/122 13

202A00 26.0/30.0 5.6/7.5 38.6/43.6 50/50 028A00 36/40 122/122 13

203A00 34.7/40.0 7.5/10.0 49.5/56.1 50/60 028A00 45/52 122/122 13

204A00 52.0/60.0 11.3/15.0 71.1/81.1 80/90 029A00 65/76 122/122 14

205A00 69.3/80.0 15.0/20.0 92.8/106.1 100/110 029A00 85/98 122/122 14

7.0 High

  / 33.5/33.5 50/50  33/33 148/148 

201A00 17.3/20.0 3.8/5.0 33.5/33.8 50/50 028A00 33/33 148/148 13

202A00 26.0/30.0 5.6/7.5 41.2/46.3 50/50 028A00 38/43 148/148 13

203A00 34.7/40.0 7.5/10.0 52.1/58.8 60/60 028A00 48/54 148/148 13

204A00 52.0/60.0 11.3/15.0 73.7/83.8 80/90 029A00 68/77 148/148 14

205A00 69.3/80.0 15.0/20.0 95.4/108.8 100/110 029A00 88/100 148/148 14

4.9

1.4

Low

  / 32.8/32.8 50/50  32/32 124/124 

201A00 17.3/20.0 3.8/5.0 32.8/32.9 50/50 028A00 32/32 124/124 13

202A00 26.0/30.0 5.6/7.5 40.4/45.4 50/50 028A00 37/42 124/124 13

203A00 34.7/40.0 7.5/10.0 51.2/57.9 60/60 028A00 47/53 124/124 13

204A00 52.0/60.0 11.3/15.0 72.9/82.9 80/90 029A00 67/76 124/124 14

205A00 69.3/80.0 15.0/20.0 94.5/107.9 100/110 029A00 87/99 124/124 14

7.0 High

  / 34.9/34.9 50/50  34/34 150/150 

201A00 17.3/20.0 3.8/5.0 34.9/35.5 50/50 028A00 34/34 150/150 13

202A00 26.0/30.0 5.6/7.5 43.0/48.0 50/50 028A00 40/44 150/150 13

203A00 34.7/40.0 7.5/10.0 53.8/60.5 60/70 028A00 50/56 150/150 13

204A00 52.0/60.0 11.3/15.0 75.5/85.5 80/90 029A00 69/79 150/150 14

205A00 69.3/80.0 15.0/20.0 97.2/110.5 100/125 029A00 89/102 150/150 14

208/230-3-60 187 253 14.6 91 0.9

4.9



Low

  / 24.0/24.0 30/30  23/23 104/104 

208A00 10.0/11.5 3.8/5.0 24.0/24.0 30/30 030A00 23/23 104/104 15

209A00 15.0/17.3 5.6/7.5 24.9/27.8 30/30 030A00 23/26 104/104 15

210A00 20.0/23.1 7.5/10.0 31.1/35.0 35/40 030A00 29/32 104/104 15

211A00 30.0/34.6 11.3/15.0 43.6/49.4 45/50 030A00 40/45 104/104 15

212A00 40.0/46.2 15.0/20.0 56.2/63.9 60/70 031A00 52/59 104/104 16

5.2 High

  / 24.3/24.3 30/30  24/24 123/123 

208A00 10.0/11.5 3.8/5.0 24.3/24.3 30/30 030A00 24/24 123/123 15

209A00 15.0/17.3 5.6/7.5 25.3/28.2 30/30 030A00 24/26 123/123 15

210A00 20.0/23.1 7.5/10.0 31.5/35.4 35/40 030A00 29/33 123/123 15

211A00 30.0/34.6 11.3/15.0 44.0/49.8 45/50 030A00 41/46 123/123 15

212A00 40.0/46.2 15.0/20.0 56.5/64.2 60/70 031A00 52/59 123/123 16

50PG03−16

Table 1 — Electrical Data — Units Without Optional Powered Convenience Outlet (cont)

UNIT

50PG

NOMINAL

POWER

SUPPLY

VOLTS−PH−HZ

VOLTAGE

RANGE

COMPRESSOR

(EA) OFM

FLA

IFM

FLA

POWER

EXHAUST

FLA

IFM

TYPE

ELECTRIC HEAT POWER SUPPLY CRSINGLE

PART NO.

(NOTE3)

DISCONNECT SIZE

WIRING

FIG. NO.

MIN MAX RLA LRA CRHEATER

PART NO. FLA NOMINAL

KW* MCA MOCP† FLA LRA

(cont)

208/230-3-60

(cont) 187 253 14.6 91 0.9

4.9

1.4

Low

  / 25.4/25.4 30/30  25/25 106/106 

208A00 10.0/11.5 3.8/5.0 25.4/25.4 30/30 030A00 25/25 106/106 15

209A00 15.0/17.3 5.6/7.5 26.6/29.5 30/30 030A00 25/27 106/106 15

210A00 20.0/23.1 7.5/10.0 32.9/36.7 40/40 030A00 30/34 106/106 15

211A00 30.0/34.6 11.3/15.0 45.4/51.2 50/60 030A00 42/47 106/106 15

212A00 40.0/46.2 15.0/20.0 57.9/65.6 60/70 031A00 53/60 106/106 16

5.2 High

  / 25.7/25.7 30/30  25/25 125/125 

208A00 10.0/11.5 3.8/5.0 25.7/25.7 30/30 030A00 25/25 125/125 15

209A00 15.0/17.3 5.6/7.5 27.0/29.9 30/30 030A00 25/28 125/125 15

210A00 20.0/23.1 7.5/10.0 33.3/37.1 40/40 030A00 31/34 125/125 15

211A00 30.0/34.6 11.3/15.0 45.8/51.6 50/60 030A00 42/47 125/125 15

212A00 40.0/46.2 15.0/20.0 58.3/66.0 60/70 031A00 54/61 125/125 16

460-3-60 414 506 7.1 46 0.5

2.1



Low

   11.4 15  11 53 

215A00 5.8 5.0 11.4 15 030A00 11 53 15

216A00 8.7 7.5 13.5 15 030A00 12 53 15

217A00 11.5 10.0 17.1 20 030A00 16 53 15

218A00 17.3 15.0 24.3 25 030A00 22 53 15

219A00 23.1 20.0 31.5 35 030A00 29 53 15

2.6 High

   11.9 15  12 62 

215A00 5.8 5.0 11.9 15 030A00 12 62 15

216A00 8.7 7.5 14.1 15 030A00 13 62 15

217A00 11.5 10.0 17.7 20 030A00 16 62 15

218A00 17.3 15.0 24.9 25 030A00 23 62 15

219A00 23.1 20.0 32.1 35 030A00 30 62 15

2.1

0.6

Low

   12.0 15  12 54 

215A00 5.8 5.0 12.0 15 030A00 12 54 15

216A00 8.7 7.5 14.2 15 030A00 13 54 15

217A00 11.5 10.0 17.8 20 030A00 16 54 15

218A00 17.3 15.0 25.0 30 030A00 23 54 15

219A00 23.1 20.0 32.2 35 030A00 30 54 15

2.6 High

   12.5 15  12 63 

215A00 5.8 5.0 12.5 15 030A00 12 63 15

216A00 8.7 7.5 14.8 15 030A00 14 63 15

217A00 11.5 10.0 18.4 20 030A00 17 63 15

218A00 17.3 15.0 25.7 30 030A00 24 63 15

219A00 23.1 20.0 32.9 35 030A00 30 63 15

575-3-60 518 632 5.0 34.0 0.4 2.0



Low

   9.0 15  9 40 

221A00 9.2 10.0 14.1 15 030A00 13 40 15

222A00 13.9 15.0 20.0 25 030A00 18 40 15

223A00 18.5 20.0 25.8 30 030A00 24 40 15

High

   8.9 15  9 46 

221A00 9.2 10.0 14.0 15 030A00 13 46 15

222A00 13.9 15.0 19.9 20 030A00 18 46 15

223A00 18.5 20.0 25.6 30 030A00 24 46 15

1.4

Low

   10.4 15  10 42 

221A00 9.2 10.0 15.9 20 030A00 15 42 15

222A00 13.9 15.0 21.8 25 030A00 20 42 15

223A00 18.5 20.0 27.5 30 030A00 25 42 15

High

   10.3 15  10 48 

221A00 9.2 10.0 15.8 20 030A00 14 48 15

222A00 13.9 15.0 21.6 25 030A00 20 48 15

223A00 18.5 20.0 27.4 30 030A00 25 48 15

LEGEND

FLA − Full Load Amps

HACR − Heating, Air Conditioning and Refrigeration

IFM − Indoor − Fan Motor

LRA − Locked Rotor Amps

MCA − Minimum Circuit Amps

MOCP − Maximum Overcurrent Protection

NEC − National Electrical Code

OFM − Outdoor−Fan Motor

RLA − Rated Load Amps

* Heater capacity (kW) is based on heater voltage of 208 v, 240 v, or 480 v. If power distribu-

tion voltage to unit varies from rated heater voltage, heater kW will vary accordingly.

† Fuse or HACR circuit breaker.

NOTES:

1. In compliance with NEC requirements for multimotor and combination load equip-

ment (refer to NEC Articles 430 and 440), the overcurrent protective device for the

unit shall be fuse or HACR breaker.

2. Unbalanced 3-Phase Supply Voltage

Never operate a motor where a phase imbalance in supply voltage is greater than

2%. Use the following formula to determine the percentage of voltage imbalance.

% Voltage Imbalance = 100 x

max voltage deviation from average voltage

average voltage

Example: Supply voltage is 460-3-60

AB = 224 v

BC = 231 v

AC = 226 v

Average Voltage = 224 + 231 + 226

681

227

Determine maximum deviation from average voltage.

(AB) 227 – 223 = 3 v

(BC) 231 – 227 = 4 v

(AC) 227 – 226 = 1 v

Maximum deviation is 4 v.

Determine percent of voltage imbalance.

% Voltage Imbalance = 100 x

227

= 1.76%

This amount of phase imbalance is satisfactory as it is below the maximum allowable 2%.

IMPORTANT: If the supply voltage phase imbalance is more than 2%, contact your local electric

utility company immediately.

3. Single point kits CRSINGLE028A00 and CRSINGLE030A00 are not required if

field−supplied pressure connectors are used.

50PG03−16

Table 1 — Electrical Data — Units Without Optional Powered Convenience Outlet (cont)

UNIT

50PG

NOMINAL

POWER SUPPLY

VOLTS-PH-HZ

VOLTAGE

RANGE

COMPRESSOR

(EA) OFM

FLA

IFM

FLA

POWER

EXHAUST

FLA

IFM

TYPE

ELECTRIC HEAT POWER SUPPLY PRSINGLE

PART N0.

(NOTE3)

DISCONNECT

SIZE WIRING

FIG. NO.

MIN MAX RLA LRA CPHEATER

PART NO. FLA NOMINAL

KW* MCA MOCP† FLA LRA

208/230-1-60 187 253 26.9 145 1.5

4.9



Low

  / 40.1/40.1 60/60  38/38 159/159 

201A00 17.3/20.0 3.8/5.0 40.1/40.1 60/60 028A00 38/38 159/159 13

202A00 26.0/30.0 5.6/7.5 40.1/43.6 60/60 028A00 38/40 159/159 13

203A00 34.7/40.0 7.5/10.0 49.5/56.1 50/60 028A00 45/52 159/159 13

204A00 52.0/60.0 11.3/15.0 71.1/81.1 80/90 029A00 65/75 159/159 14

205A00 69.3/80.0 15.0/20.0 92.8/106.1 100/110 029A00 85/98 159/159 14

206A00 86.7/100.0 18.8/25.0 114.4/131.1 125/150 029A00 105/121 159/159 14

7.0 High

  / 42.2/42.2 60/60  41/41 185/185 

201A00 17.3/20.0 3.8/5.0 42.2/42.2 60/60 028A00 41/41 185/185 13

202A00 26.0/30.0 5.6/7.5 42.2/46.3 60/60 028A00 41/43 185/185 13

203A00 34.7/40.0 7.5/10.0 52.1/58.8 60/60 028A00 48/54 185/185 13

204A00 52.0/60.0 11.3/15.0 73.7/83.8 80/90 029A00 68/77 185/185 14

205A00 69.3/80.0 15.0/20.0 95.4/108.8 100/110 029A00 88/100 185/185 14

206A00 86.7/100.0 18.8/25.0 117.1/133.8 125/150 029A00 108/123 185/185 14

4.9

1.4

Low

  / 41.5/41.5 60/60  40/40 161/161 

201A00 17.3/20.0 3.8/5.0 41.5/41.5 60/60 028A00 40/40 161/161 13

202A00 26.0/30.0 5.6/7.5 41.5/45.4 60/60 028A00 40/42 161/161 13

203A00 34.7/40.0 7.5/10.0 51.2/57.9 60/60 028A00 47/53 161/161 13

204A00 52.0/60.0 11.3/15.0 72.9/82.9 80/90 029A00 67/76 161/161 14

205A00 69.3/80.0 15.0/20.0 94.5/107.9 100/110 029A00 89/99 161/161 14

206A00 86.7/100.0 18.8/25.0 116.2/132.9 125/150 029A00 107/122 161/161 14

7.0 High

  / 43.6/43.6 60/60  42/42 187/187 

201A00 17.3/20.0 3.8/5.0 43.6/43.6 60/60 028A00 42/42 187/187 13

202A00 26.0/30.0 5.6/7.5 43.6/48.0 60/60 028A00 42/44 187/187 13

203A00 34.7/40.0 7.5/10.0 53.8/60.5 60/70 028A00 50/56 187/187 13

204A00 52.0/60.0 11.3/15.0 75.5/85.5 80/90 029A00 69/79 187/187 14

205A00 69.3/80.0 15.0/20.0 97.2/110.5 100/125 029A00 89/102 187/187 14

206A00 86.7/100.0 18.8/25.0 118.8/135.5 125/150 029A00 109/125 187/187 14

208/230-3-60 187 253 17.6 123 1.5 5.2



Low

  / 28.7/28.7 45/45  28/28 156/156 

208A00 10.0/11.5 3.8/5.0 28.7/28.7 45/45 030A00 28/28 156/156 15

209A00 15.0/17.3 5.6/7.5 28.7/28.7 45/45 030A00 28/28 156/156 15

210A00 20.0/23.1 7.5/10.0 31.5/35.4 45/45 030A00 29/33 156/156 15

211A00 30.0/34.6 11.3/15.0 44.0/49.8 45/50 030A00 41/46 156/156 15

212A00 40.0/46.2 15.0/20.0 56.5/64.2 60/70 031A00 52/59 156/156 16

213A00 50.0/57.7 18.8/25.0 69.0/78.7 70/80 031A00 64/72 156/156 16

High

  / 28.7/28.7 45/45  28/28 156/156 

208A00 10.0/11.5 3.8/5.0 28.7/28.7 45/45 030A00 28/28 156/156 15

209A00 15.0/17.3 5.6/7.5 28.7/28.7 45/45 030A00 28/28 156/156 15

210A00 20.0/23.1 7.5/10.0 31.5/35.4 45/45 030A00 29/33 156/156 15

211A00 30.0/34.6 11.3/15.0 44.0/49.8 45/50 030A00 41/46 156/156 15

212A00 40.0/46.2 15.0/20.0 56.5/64.2 60/70 031A00 52/59 156/156 16

213A00 50.0/57.7 18.8/25.0 69.0/78.7 70/80 031A00 64/72 156/156 16

1.4

Low

  / 30.1/30.1 45/45  30/30 158/158 

208A00 10.0/11.5 3.8/5.0 30.1/30.1 45/45 030A00 30/30 158/158 15

209A00 15.0/17.3 5.6/7.5 30.1/30.1 45/45 030A00 30/30 158/158 15

210A00 20.0/23.1 7.5/10.0 33.3/37.1 45/45 030A00 31/34 158/158 15

211A00 30.0/34.6 11.3/15.0 45.8/51.6 50/60 030A00 42/47 158/158 15

212A00 40.0/46.2 15.0/20.0 58.3/66.0 60/70 031A00 54/61 158/158 16

213A00 50.0/57.7 18.8/25.0 70.8/80.4 80/90 031A00 65/74 158/158 16

High

  / 30.1/30.1 45/45  30/30 158/158 

208A00 10.0/11.5 3.8/5.0 30.1/30.1 45/45 030A00 30/30 158/158 15

209A00 15.0/17.3 5.6/7.5 30.1/30.1 45/45 030A00 30/30 158/158 15

210A00 20.0/23.1 7.5/10.0 33.3/37.1 45/45 030A00 31/34 158/158 15

211A00 30.0/34.6 11.3/15.0 45.8/51.6 50/60 030A00 42/47 158/158 15

212A00 40.0/46.2 15.0/20.0 58.3/66.0 60/70 031A00 54/61 158/158 16

213A00 50.0/57.7 18.8/25.0 70.8/80.4 80/90 031A00 65/74 158/158 16

460-3-60 414 506 7.7 50 0.8 2.6



Low

   13.0 20  13 67 

215A00 5.8 5.0 13.0 20 030A00 13 67 15

216A00 8.7 7.5 14.1 20 030A00 13 67 15

217A00 11.5 10.0 17.7 20 030A00 16 67 15

218A00 17.3 15.0 24.9 25 030A00 23 67 15

219A00 23.1 20.0 32.1 35 030A00 30 67 15

220A00 28.9 25.0 39.3 40 030A00 36 67 15

High

   13.0 20  13 67 

215A00 5.8 5.0 13.0 20 030A00 13 67 15

216A00 8.7 7.5 14.1 20 030A00 13 67 15

217A00 11.5 10.0 17.7 20 030A00 16 67 15

218A00 17.3 15.0 24.9 25 030A00 23 67 15

219A00 23.1 20.0 32.1 35 030A00 30 67 15

220A00 28.9 25.0 39.3 40 030A00 36 67 15

0.6

Low

   13.6 20  13 68 

215A00 5.8 5.0 13.6 20 030A00 13 68 15

216A00 8.7 7.5 14.8 20 030A00 14 68 15

217A00 11.5 10.0 18.4 20 030A00 17 68 15

218A00 17.3 15.0 25.7 30 030A00 24 68 15

219A00 23.1 20.0 32.9 35 030A00 30 68 15

220A00 28.9 25.0 40.1 45 030A00 37 68 15

High

   13.6 20  13 68 

215A00 5.8 5.0 13.6 20 030A00 13 68 15

216A00 8.7 7.5 14.8 20 030A00 14 68 15

217A00 11.5 10.0 18.4 20 030A00 17 68 15

218A00 17.3 15.0 25.7 30 030A00 24 68 15

219A00 23.1 20.0 32.9 35 030A00 30 68 15

220A00 28.9 25.0 40.1 45 030A00 37 68 15

50PG03−16

Table 1 — Electrical Data — Units Without Optional Powered Convenience Outlet (cont)

UNIT

50PG

NOMINAL

POWER SUPPLY

VOLTS-PH-HZ

VOLTAGE

RANGE

COMPRESSOR

(EA) OFM

FLA

IFM

FLA

POWER

EXHAUST

FLA

IFM

TYPE

ELECTRIC HEAT POWER SUPPLY CRSINGLE

PART NO.

(NOTE3)

DISCONNECT

SIZE WIRING

FIG. NO.

MIN MAX RLA LRA CRHEATER

PART NO. FLA NOMINAL

KW* MCA MOCP† FLA LRA

(cont) 575-3-60 518 632 6.1 40 0.8 2.0



Low

and

High

   10.4 15  10 53 

221A00 9.2 10.0 14.0 15 030A00 13 53 15

222A00 13.9 15.0 20.1 20 030A00 18 53 15

223A00 18.5 20.0 25.6 30 030A00 24 53 15

254A00 23.1 25.0 31.4 30 030A00 29 53 15

1.4

Low

and

High

   11.7 15  12 54 

221A00 9.2 10.0 15.8 20 030A00 15 54 15

222A00 13.9 15.0 21.6 25 030A00 20 54 15

223A00 18.5 20.0 27.3 30 030A00 25 54 15

254A00 23.1 25.0 33.1 30 030A00 30 54 15

208/230-3-60 187 253 20.5 149 1.5

5.2  Low

  / 32.3/32.3 50/50  31/31 182/182 

208A00 10.0/11.5 3.8/5.0 32.3/32.3 50/50 030A00 31/31 182/182 15

209A00 15.0/17.3 5.6/7.5 32.3/32.3 50/50 030A00 31/31 182/182 15

210A00 20.0/23.1 7.5/10.0 32.3/35.4 50/50 030A00 31/33 182/182 15

211A00 30.0/34.6 11.3/15.0 44.0/49.8 50/50 030A00 41/46 182/182 15

212A00 40.0/46.2 15.0/20.0 56.5/64.2 60/70 031A00 52/59 182/182 16

213A00 50.0/57.7 18.8/25.0 69.0/78.7 70/80 031A00 64/72 182/182 16

7.5  High

  / 34.6/34.6 50/50  34/34 208/208 

208A00 10.0/11.5 3.8/5.0 34.6/34.6 50/50 030A00 34/34 208/208 15

209A00 15.0/17.3 5.6/7.5 34.6/34.6 50/50 030A00 34/34 208/208 15

210A00 20.0/23.1 7.5/10.0 34.6/38.2 50/50 030A00 34/35 208/208 15

211A00 30.0/34.6 11.3/15.0 46.9/52.7 50/60 030A00 43/48 208/208 15

212A00 40.0/46.2 15.0/20.0 59.4/67.1 60/70 031A00 55/62 208/208 16

213A00 50.0/57.7 18.8/25.0 71.9/81.5 80/90 031A00 66/75 208/208 16

5.2

1.4

Low

  / 33.7/33.7 50/50  33/33 184/184 

208A00 10.0/11.5 3.8/5.0 33.7/33.7 50/50 030A00 33/33 184/184 15

209A00 15.0/17.3 5.6/7.5 33.7/33.7 50/50 030A00 33/33 184/184 15

210A00 20.0/23.1 7.5/10.0 33.7/33.1 50/50 030A00 33/34 184/184 15

211A00 30.0/34.6 11.3/15.0 45.8/51.5 50/60 030A00 42/47 184/184 15

212A00 40.0/46.2 15.0/20.0 58.3/66.0 60/70 031A00 54/61 184/184 16

213A00 50.0/57.7 18.8/25.0 70.8/80.4 80/90 031A00 65/74 184/184 16

7.5 High

  / 36/36 50/50  36/36 210/210 

208A00 10.0/11.5 3.8/5.0 36.0/36.0 50/50 030A00 36/36 210/210 15

209A00 15.0/17.3 5.6/7.5 36.0/36.0 50/50 030A00 36/36 210/210 15

210A00 20.0/23.1 7.5/10.0 36.1/40.0 50/50 030A00 36/37 210/210 15

211A00 30.0/34.6 11.3/15.0 48.6/54.4 50/60 030A00 45/50 210/210 15

212A00 40.0/46.2 15.0/20.0 61.1/68.9 70/70 031A00 56/63 210/210 16

213A00 50.0/57.7 18.8/25.0 73.6/83.3 80/90 031A00 68/77 210/210 16

460-3-60 414 506 9.6 75 0.8

2.6



Low

   15.4 25  15 92 

215A00 5.8 5.0 15.4 25 030A00 15 92 15

216A00 8.7 7.5 15.4 25 030A00 15 92 15

217A00 11.5 10.0 17.7 25 030A00 16 92 15

218A00 17.3 15.0 24.9 25 030A00 23 92 15

219A00 23.1 20.0 32.1 35 030A00 30 92 15

220A00 28.9 25.0 39.3 40 030A00 36 92 15

3.4 High

   16.2 25  16 105 

215A00 5.8 5.0 16.2 25 030A00 16 105 15

216A00 8.7 7.5 16.2 25 030A00 16 105 15

217A00 11.5 10.0 18.7 25 030A00 17 105 15

218A00 17.3 15.0 25.9 30 030A00 24 105 15

219A00 23.1 20.0 33.1 35 030A00 30 105 15

220A00 28.9 25.0 40.3 45 030A00 37 105 15

2.6

0.6

Low

   16.0 25  16 93 

215A00 5.8 5.0 16.0 25 030A00 16 93 15

216A00 8.7 7.5 16.0 25 030A00 16 93 15

217A00 11.5 10.0 18.4 25 030A00 17 93 15

218A00 17.3 15.0 25.7 30 030A00 24 93 15

219A00 23.1 20.0 32.9 35 030A00 30 93 15

220A00 28.9 25.0 40.1 45 030A00 37 93 15

3.4 High

   16.8 25  17 106 

215A00 5.8 5.0 16.8 25 030A00 17 106 15

216A00 8.7 7.5 16.8 25 030A00 17 106 15

217A00 11.5 10.0 19.4 25 030A00 18 106 15

218A00 17.3 15.0 26.7 30 030A00 25 106 15

219A00 23.1 20.0 33.9 35 030A00 31 106 15

220A00 28.9 25.0 41.1 45 030A00 38 106 15

LEGEND

FLA − Full Load Amps

HACR − Heating, Air Conditioning and Refrigeration

IFM − Indoor − Fan Motor

LRA − Locked Rotor Amps

MCA − Minimum Circuit Amps

MOCP − Maximum Overcurrent Protection

NEC − National Electrical Code

OFM − Outdoor−Fan Motor

RLA − Rated Load Amps

* Heater capacity (kW) is based on heater voltage of 208 v, 240 v, or 480 v. If power distribu-

tion voltage to unit varies from rated heater voltage, heater kW will vary accordingly.

† Fuse or HACR circuit breaker.

NOTES:

1. In compliance with NEC requirements for multimotor and combination load equip-

ment (refer to NEC Articles 430 and 440), the overcurrent protective device for the

unit shall be fuse or HACR breaker.

2. Unbalanced 3-Phase Supply Voltage

Never operate a motor where a phase imbalance in supply voltage is greater than

2%. Use the following formula to determine the percentage of voltage imbalance.

% Voltage Imbalance = 100 x

max voltage deviation from average voltage

average voltage

Example: Supply voltage is 460-3-60

AB = 224 v

BC = 231 v

AC = 226 v

Average Voltage = 224 + 231 + 226

681

227

Determine maximum deviation from average voltage.

(AB) 227 – 223 = 3 v

(BC) 231 – 227 = 4 v

(AC) 227 – 226 = 1 v

Maximum deviation is 4 v.

Determine percent of voltage imbalance.

% Voltage Imbalance = 100 x

227

= 1.76%

This amount of phase imbalance is satisfactory as it is below the maximum allowable 2%.

IMPORTANT: If the supply voltage phase imbalance is more than 2%, contact your local electric

utility company immediately.

3. Single point kits CRSINGLE028A00 and CRSINGLE030A00 are not required if

field−supplied pressure connectors are used.

50PG03−16

Table 1 — Electrical Data — Units Without Optional Powered Convenience Outlet (cont)

UNIT

50PG

NOMINAL

POWER SUPPLY

VOLTS-PH-HZ

VOLTAGE

RANGE

COMPRESSOR

(EA.) OFM

FLA

IFMF

POWER

EXHAUST

FLA

IFM

TYPE

ELECTRIC HEAT POWER SUPPLY CRSINGLE

PART NO.

(NOTE3)

DISCONNECT SIZE

WIRING

FIG. NO.

MIN MAX RLA LRA CRHEATER

PART NO. FLA NOMINAL

KW* MCA MOCP† FLA LRA

(cont) 575-3-60 518 632 7.6 54.0 0.8

2.0



Low

   12.3 15  12 67 

221A00 9.2 10.0 14.0 15 030A00 13 67 15

222A00 13.9 15.0 20.1 20 030A00 18 67 15

223A00 18.5 20.0 25.6 30 030A00 24 67 15

254A00 23.1 25.0 31.4 30 030A00 29 67 15

224A00 27.7 30.0 37.1 40 030A00 34 67 15

2.8 High

   13.1 20  13 76 

221A00 9.2 10.0 15.0 20 030A00 14 76 15

222A00 13.9 15.0 20.8 25 030A00 19 76 15

223A00 18.5 20.0 26.6 30 030A00 24 76 15

254A00 23.1 25.0 32.4 30 030A00 30 76 15

224A00 27.7 30.0 38.1 40 030A00 35 76 15

2.0

1.4

Low

   13.6 20  13 68 

221A00 9.2 10.0 15.8 20 030A00 15 68 15

222A00 13.9 15.0 21.6 25 030A00 20 68 15

223A00 18.5 20.0 27.3 30 030A00 25 68 15

254A00 23.1 25.0 33.1 30 030A00 30 68 15

224A00 27.7 30.0 38.9 40 030A00 36 68 15

2.9 High

   14.4 20  14 80 

221A00 9.2 10.0 16.8 20 030A00 15 80 15

222A00 13.9 15.0 22.6 25 030A00 21 80 15

223A00 18.5 20.0 28.3 30 030A00 26 80 15

254A00 23.1 25.0 34.1 35 030A00 31 80 15

224A00 27.7 30.0 39.9 40 030A00 37 80 15

208/230-3-60 187 253 13.5 88 1.5

5.2



Low

  / 38.5/38.5 50/50  40/40 212/212 

225A00 20.0/23.1 7.5/10.0 38.5/38.5 50/50 030A00 40/40 212/212 15

226A00 30.0/34.6 11.3/15.0 44.0/49.8 50/50 030A00 41/46 212/212 15

227A00 50.0/57.7 18.8/25.0 69.0/78.7 70/80 031A00 64/72 212/212 16

228A00 70.0/80.8 26.3/35.0 94.1/107.5 100/110 031A00 87/99 212/212 17

229A00 80.0/92.4 30.0/40.0 106.6/122.0 110/125 031A00 98/112 212/212 17

7.5 High

  / 40.8/40.8 50/50  43/43 238/238 

225A00 20.0/23.1 7.5/10.0 40.8/40.8 50/50 030A00 43/43 238/238 15

226A00 30.0/34.6 11.3/15.0 46.9/52.7 50/60 030A00 43/48 238/238 15

227A00 50.0/57.7 18.8/25.0 71.9/81.5 80/90 031A00 66/75 238/238 16

228A00 70.0/80.8 26.3/35.0 96.9/110.4 100/125 031A00 89/102 238/238 17

229A00 80.0/92.4 30.0/40.0 109.4/124.8 110/125 031A00 101/115 238/238 17

5.2

3.0

Low

  / 41.5/41.5 50/50  44/44 216/216 

225A00 20.0/23.1 7.5/10.0 41.5/41.5 50/50 030A00 44/44 216/216 15

226A00 30.0/34.6 11.3/15.0 47.8/53.6 50/60 030A00 44/49 216/216 15

227A00 50.0/57.7 18.8/25.0 72.8/82.4 80/90 031A00 67/76 216/216 16

228A00 70.0/80.8 26.3/35.0 97.8/111.3 100/125 031A00 90/102 216/216 17

229A00 80.0/92.4 30.0/40.0 110.3/125.7 125/150 031A00 101/116 216/216 17

7.5 High

  / 43.8/43.8 50/50  46/46 242/242 

225A00 20.0/23.1 7.5/10.0 43.8/43.8 50/50 030A00 46/46 242/242 15

226A00 30.0/34.6 11.3/15.0 50.6/56.4 60/60 030A00 47/52 242/242 15

227A00 50.0/57.7 18.8/25.0 75.7/85.3 80/90 031A00 70/78 242/242 16

228A00 70.0/80.8 26.3/35.0 100.7/114.2 110/125 031A00 93/105 242/242 17

229A00 80.0/92.4 30.0/40.0 113.2/128.6 125/150 031A00 104/118 242/242 17

460-3-60 414 506 6.4 39 0.8

2.6



Low

   18.6 25  20 96 

232A00 11.5 10.0 18.6 25 030A00 20 96 15

233A00 17.3 15.0 24.9 25 030A00 23 96 15

234A00 28.9 25.0 39.3 40 030A00 36 96 15

235A00 40.4 35.0 53.8 60 030A00 49 96 15

236A00 46.2 40.0 61.0 70 033A00 56 96 19

3.4 High

   19.4 25  20 109 

232A00 11.5 10.0 19.4 25 030A00 20 109 15

233A00 17.3 15.0 25.9 30 030A00 24 109 15

234A00 28.9 25.0 40.3 45 030A00 37 109 15

235A00 40.4 35.0 54.8 60 030A00 50 109 15

236A00 46.2 40.0 62.0 70 033A00 57 109 19

2.6

1.2

Low

   19.8 25  21 99 

232A00 11.5 10.0 19.8 25 030A00 21 99 15

233A00 17.3 15.0 26.4 30 030A00 24 99 15

234A00 28.9 25.0 40.8 45 030A00 38 99 15

235A00 40.4 35.0 55.3 60 030A00 51 99 15

236A00 46.2 40.0 62.5 70 033A00 57 99 19

3.4 High

   20.6 25  22 112 

232A00 11.5 10.0 20.6 25 030A00 22 112 15

233A00 17.3 15.0 27.4 30 030A00 25 112 15

234A00 28.9 25.0 41.8 45 030A00 38 112 15

235A00 40.4 35.0 56.3 60 030A00 52 112 15

236A00 46.2 40.0 63.5 70 033A00 58 112 19

575-3-60 518 632 6.4 30.0 0.8 2.0 

Low

   18.0 20  19 84 

239A00 13.9 15.0 20.1 20 030A00 19 84 15

240A00 23.1 25.0 31.4 35 030A00 29 84 15

241A00 32.3 35.0 42.9 45 030A00 39 84 15

242A00 37.0 40.0 48.7 50 030A00 45 84 15

High

   18.8 20  20 102 

239A00 13.9 15.0 20.8 25 030A00 20 102 15

240A00 23.1 25.0 32.4 35 030A00 30 102 15

241A00 32.3 35.0 43.9 45 030A00 40 102 15

242A00 37.0 40.0 49.7 50 030A00 46 102 15

50PG03−16

Table 1 — Electrical Data — Units Without Optional Powered Convenience Outlet (cont)

UNIT

50PG

NOMINAL

POWER SUPPLY

VOLTS-PH-HZ

VOLTAGE

RANGE

COMPRESSOR

(EA.) OFM

FLA

IFM

FLA

POWER

EXHAUST

FLA

IFM

TYPE

ELECTRIC HEAT POWER SUPPLY CRSINGLE

PART NO.

(NOTE3)

DISCONNECT SIZE

WIRING

FIG. NO.

MIN MAX RLA LRA CRHEATER

PART NO. FLA NOMINAL

KW* MCA MOCP† FLA LRA

(cont)

575-3-60

(cont) 518 632 6.4 30.0 0.8 2.8 3.0

Low

   18.1 20  19 86 

239A00 13.9 15.0 23.6 25 030A00 22 86 15

240A00 23.1 25.0 35.1 40 030A00 32 86 15

241A00 32.3 35.0 46.7 50 030A00 43 86 15

242A00 37.0 40.0 52.4 60 030A00 48 86 15

High

   18.9 25  20 98 

239A00 13.9 15.0 24.6 25 030A00 23 98 15

240A00 23.1 25.0 36.1 40 030A00 33 98 15

241A00 32.3 35.0 47.7 50 030A00 44 98 15

242A00 37.0 40.0 53.4 60 030A00 49 98 15

208/230-3-60 187 253 16.0 91 1.5 5.2



Low

  / 44.3/44.3 60/60  46/46 218/218 

225A00 20.0/23.1 7.5/10.0 44.3/44.3 60/60 030A00 46/46 218/218 15

226A00 30.0/34.6 11.3/15.0 44.3/49.8 60/60 030A00 46/46 218/218 15

227A00 50.0/57.7 18.8/25.0 69.0/78.7 70/80 031A00 64/72 218/218 16

228A00 70.0/80.8 26.3/35.0 94.1/107.5 100/110 031A00 87/99 218/218 17

229A00 80.0/92.4 30.0/40.0 106.6/122.0 110/125 031A00 98/112 218/218 17

High

  / 49.3/49.3 60/60  52/52 261/261 

225A00 20.0/23.1 7.5/10.0 49.3/49.3 60/60 030A00 52/52 261/261 15

226A00 30.0/34.6 11.3/15.0 50.3/56.1 60/60 030A00 52/52 261/261 15

227A00 50.0/57.7 18.8/25.0 75.3/84.9 80/90 031A00 69/78 261/261 16

228A00 70.0/80.8 26.3/35.0 100.3/113.8 110/125 031A00 92/105 261/261 17

229A00 80.0/92.4 30.0/40.0 112.8/128.2 125/150 031A00 104/118 261/261 17

3.0

Low

  / 47.3/47.3 60/60  50/50 222/222 

225A00 20.0/23.1 7.5/10.0 47.3/47.3 60/60 030A00 50/50 222/222 15

226A00 30.0/34.6 11.3/15.0 47.8/53.6 60/60 030A00 50/50 222/222 15

227A00 50.0/57.7 18.8/25.0 72.8/82.4 80/90 031A00 67/76 222/222 16

228A00 70.0/80.8 26.3/35.0 97.8/111.3 100/125 031A00 90/102 222/222 17

229A00 80.0/92.4 30.0/40.0 110.3/125.7 125/150 031A00 101/116 222/222 17

High

  / 52.3/52.3 60/60  55/55 265/265 

225A00 20.0/23.1 7.5/10.0 52.3/52.3 60/60 030A00 55/55 265/265 15

226A00 30.0/34.6 11.3/15.0 54.0/59.8 60/60 030A00 55/55 265/265 15

227A00 50.0/57.7 18.8/25.0 79.0/88.7 80/90 031A00 73/82 265/265 16

228A00 70.0/80.8 26.3/35.0 104.1/117.5 110/125 031A00 96/108 265/265 17

229A00 80.0/92.4 30.0/40.0 116.6/132.0 125/150 031A00 107/121 265/265 17

460-3-60 414 506 7.1 46 0.8

2.6



Low

   20.1 25  21 110 

232A00 11.5 10.0 20.1 25 030A00 21 110 15

233A00 17.3 15.0 24.9 25 030A00 23 110 15

234A00 28.9 25.0 39.3 40 030A00 36 110 15

235A00 40.4 35.0 53.8 60 030A00 49 110 15

236A00 46.2 40.0 61.0 70 033A00 56 110 19

4.8 High

   22.3 25  24 132 

232A00 11.5 10.0 22.3 25 030A00 24 132 15

233A00 17.3 15.0 27.7 30 030A00 25 132 15

234A00 28.9 25.0 42.1 45 030A00 39 132 15

235A00 40.4 35.0 56.5 60 030A00 52 132 15

236A00 46.2 40.0 63.7 70 033A00 59 132 19

LEGEND

FLA − Full Load Amps

HACR − Heating, Air Conditioning and Refrigeration

IFM − Indoor − Fan Motor

LRA − Locked Rotor Amps

MCA − Minimum Circuit Amps

MOCP − Maximum Overcurrent Protection

NEC − National Electrical Code

OFM − Outdoor−Fan Motor

RLA − Rated Load Amps

* Heater capacity (kW) is based on heater voltage of 208 v, 240 v, or 480 v. If power distribu-

tion voltage to unit varies from rated heater voltage, heater kW will vary accordingly.

† Fuse or HACR circuit breaker.

NOTES:

1. In compliance with NEC requirements for multimotor and combination load equip-

ment (refer to NEC Articles 430 and 440), the overcurrent protective device for the

unit shall be fuse or HACR breaker.

2. Unbalanced 3-Phase Supply Voltage

Never operate a motor where a phase imbalance in supply voltage is greater than

2%. Use the following formula to determine the percentage of voltage imbalance.

% Voltage Imbalance = 100 x

max voltage deviation from average voltage

average voltage

Example: Supply voltage is 460-3-60

AB = 224 v

BC = 231 v

AC = 226 v

Average Voltage = 224 + 231 + 226

681

227

Determine maximum deviation from average voltage.

(AB) 227 – 223 = 3 v

(BC) 231 – 227 = 4 v

(AC) 227 – 226 = 1 v

Maximum deviation is 4 v.

Determine percent of voltage imbalance.

% Voltage Imbalance = 100 x

227

= 1.76%

This amount of phase imbalance is satisfactory as it is below the maximum allowable 2%.

IMPORTANT: If the supply voltage phase imbalance is more than 2%, contact your local electric

utility company immediately.

3. Single point kits CRSINGLE028A00 and CRSINGLE030A00 are not required if

field−supplied pressure connectors are used.

50PG03−16

Table 1 — Electrical Data — Units Without Optional Powered Convenience Outlet (cont)

UNIT

50PG

NOMINAL

POWER SUPPLY

VOLTS-PH-HZ

VOLTAGE

RANGE

COMPRESSOR

(EA.) OFM

FLA

IFM

FLA

POWER

EXHAUST

FLA

IFM

TYPE

ELECTRIC HEAT POWER SUPPLY CRSINGLE

PART NO.

(NOTES)

DISCONNECT SIZE

WIRING

FIG. NO.

MIN MAX RLA LRA CRHEATER

PART NO. FLA NOMINAL

KW* MCA MOCP† FLA LRA

(cont)

460-3-60

(cont) 414 506 7.1 46 0.8

2.6

1.2

Low

   21.3 25  22 113 

232A00 11.5 10.0 21.3 25 030A00 22 113 15

233A00 17.3 15.0 26.4 30 030A00 24 113 15

234A00 28.9 25.0 40.8 45 030A00 38 113 15

235A00 40.4 35.0 55.3 60 030A00 51 113 15

236A00 46.2 40.0 62.5 70 033A00 57 113 19

4.8 High

   23.5 30  25 134 

232A00 11.5 10.0 23.5 30 030A00 25 134 15

233A00 17.3 15.0 29.2 30 030A00 27 134 15

234A00 28.9 25.0 43.6 45 030A00 40 134 15

235A00 40.4 35.0 58.0 60 030A00 53 134 15

236A00 46.2 40.0 65.2 70 033A00 60 134 19

575-3-60 518 632 5.6 37.0 0.8

2.0



Low

   16.2 20  17 98 

239A00 13.9 15.0 20.1 20 030A00 18 98 15

240A00 23.1 25.0 31.4 35 030A00 29 98 15

241A00 32.3 35.0 42.9 45 030A00 39 98 15

242A00 37.0 40.0 48.7 50 030A00 45 98 15

3.3 High

   17.5 20  19 136 

239A00 13.9 15.0 21.4 25 030A00 20 136 15

240A00 23.1 25.0 33.0 35 030A00 30 136 15

241A00 32.3 35.0 45.1 45 030A00 41 136 15

242A00 37.0 40.0 50.3 50 030A00 46 136 15

2.0

3.0

Low

   19.1 25  20 92 

239A00 13.9 15.0 23.6 25 030A00 22 92 15

240A00 23.1 25.0 35.1 40 030A00 32 92 15

241A00 32.3 35.0 46.7 50 030A00 43 92 15

242A00 37.0 40.0 52.4 60 030A00 48 92 15

3.3 High

   19.9 25  21 104 

239A00 13.9 15.0 24.6 25 030A00 23 104 15

240A00 23.1 25.0 36.1 40 030A00 33 104 15

241A00 32.3 35.0 47.7 50 030A00 44 104 15

242A00 37.0 40.0 53.4 60 030A00 49 104 15

208/230-3-60 187 253 17.6 123 1.9

7.5



Low

  / 51.0/51.0 60/60  54/54 314/314 

225A00 20.0/23.1 7.5/10.0 51.0/51.0 60/60 030A00 54/54 314/314 15

226A00 30.0/34.6 11.3/15.0 51.0/52.7 60/60 030A00 54/54 314/314 15

227A00 50.0/57.7 18.8/25.0 71.9/81.5 80/90 031A00 66/75 314/314 16

228A00 70.0/80.8 26.3/35.0 96.9/110.4 100/125 031A00 89/102 314/314 17

229A00 80.0/92.4 30.0/40.0 109.4/124.8 110/125 031A00 101/115 314/314 17

230A00 100.1/115.5 37.6/50.0 134.5/124.8 150/150 031A00 124/141 314/314 17

10.2 High

  / 53.7/53.7 60/60  57/57 331/331 

225A00 20.0/23.1 7.5/10.0 53.7/53.7 60/60 030A00 57/57 331/331 15

226A00 30.0/34.6 11.3/15.0 53.7/56.1 60/60 030A00 57/57 331/331 15

227A00 50.0/57.7 18.8/25.0 75.3/84.9 80/90 031A00 69/78 331/331 16

228A00 70.0/80.8 26.3/35.0 100.3/113.8 110/125 031A00 92/105 331/331 17

229A00 80.0/92.4 30.0/40.0 112.8/128.2 125/150 031A00 104/118 331/331 17

230A00 100.1/115.5 37.6/50.0 137.8/128.2 150/150 031A00 127/145 331/331 17

7.5

3.0

Low

  / 54.0/54.0 60/60  57/57 318/318 

225A00 20.0/23.1 7.5/10.0 54.0/54.0 60/60 030A00 57/57 318/318 15

226A00 30.0/34.6 11.3/15.0 54.0/56.4 60/60 030A00 57/57 318/318 15

227A00 50.0/57.7 18.8/25.0 75.7/85.3 80/90 031A00 70/78 318/318 16

228A00 70.0/80.8 26.3/35.0 100.7/114.2 110/125 031A00 93/105 318/318 17

229A00 80.0/92.4 30.0/40.0 113.2/128.6 125/150 031A00 104/118 318/318 17

230A00 100.1/115.5 37.6/50.0 138.2/128.6 150/150 031A00 127/145 318/318 17

10.2 High

  / 56.7/56.7 70/70  60/60 335/335 

225A00 20.0/23.1 7.5/10.0 56.7/56.7 70/70 030A00 60/60 335/335 15

226A00 30.0/34.6 11.3/15.0 56.7/59.8 70/70 030A00 60/60 335/335 15

227A00 50.0/57.7 18.8/25.0 79.0/88.7 80/90 031A00 73/82 335/335 16

228A00 70.0/80.8 26.3/35.0 104.1/117.5 110/125 031A00 96/108 335/335 17

229A00 80.0/92.4 30.0/40.0 116.6/132.0 125/150 031A00 107/121 335/335 17

230A00 100.1/115.5 37.6/50.0 141.6/132.0 150/150 031A00 130/148 335/335 17

460-3-60 414 506 7.7 50 1.0

3.4



Low

   22.7 30  24 130 

232A00 11.5 10.0 22.7 30 030A00 24 130 15

233A00 17.3 15.0 25.9 30 030A00 24 130 15

234A00 28.9 25.0 40.3 45 030A00 37 130 15

235A00 40.4 35.0 54.8 60 030A00 50 130 15

236A00 46.2 40.0 62.0 70 033A00 57 130 19

237A00 57.7 50.0 62.0 70 033A00 70 130 19

4.8 High

   24.1 30  26 139 

232A00 11.5 10.0 24.1 30 030A00 26 139 15

233A00 17.3 15.0 27.7 30 030A00 26 139 15

234A00 28.9 25.0 42.1 45 030A00 39 139 15

235A00 40.4 35.0 56.5 60 030A00 52 139 15

236A00 46.2 40.0 63.7 70 033A00 59 139 19

237A00 57.7 50.0 63.7 70 033A00 72 139 19

3.4

1.2

Low

   23.9 30  25 133 

232A00 11.5 10.0 23.9 30 030A00 25 133 15

233A00 17.3 15.0 27.4 30 030A00 25 133 15

234A00 28.9 25.0 41.8 45 030A00 38 133 15

235A00 40.4 35.0 56.3 60 030A00 52 133 15

236A00 46.2 40.0 63.5 70 033A00 58 133 19

237A00 57.7 50.0 63.5 70 033A00 72 133 19

4.8 High

   25.3 30  27 141 

232A00 11.5 10.0 25.3 30 030A00 27 141 15

233A00 17.3 15.0 29.2 30 030A00 27 141 15

234A00 28.9 25.0 43.6 45 030A00 40 141 15

235A00 40.4 35.0 58.0 60 030A00 53 141 15

236A00 46.2 40.0 65.2 70 033A00 60 141 19

237A00 57.7 50.0 65.2 70 033A00 73 141 19

50PG03−16

Table 1 — Electrical Data — Units Without Optional Powered Convenience Outlet (cont)

UNIT

50PG

NOMINAL

POWER SUPPLY

VOLTS-PH-HZ

VOLTAGE

RANGE

COMPRESSOR

(EA.) OFM

FLA

IFM

FLA

POWER

EXHAUST

FLA

IFM

TYPE

ELECTRIC HEAT POWER SUPPLY CRSINGLE

PART

NO.(NOTE3)

DISCONNECT

SIZE WIRING

FIG. NO.

MIN MAX RLA LRA CRHEATER

PART NO. FLA NOMINAL

KW* MCA MOCP† FLA LRA

(cont) 575-3-60 518 632 6.1 40.0 0.8

2.8



Low

   20.1 20  21 124 

239A00 13.9 15.0 20.8 25 030A00 21 124 15

240A00 23.1 25.0 32.4 35 030A00 32 124 15

241A00 32.3 35.0 43.9 45 030A00 42 124 15

242A00 37.0 40.0 49.7 50 030A00 48 124 15

243A00 46.2 50.0 49.7 60 030A00 58 124 15

3.3 High

   18.6 20  20 142 

239A00 13.9 15.0 21.4 25 030A00 20 142 15

240A00 23.1 25.0 33.0 35 030A00 30 142 15

241A00 32.3 35.0 45.1 45 030A00 41 142 15

242A00 37.0 40.0 50.3 50 030A00 46 142 15

243A00 46.2 50.0 50.3 60 030A00 57 142 15

2.8

3.0

Low

   21.1 25  23 110 

239A00 13.9 15.0 24.6 25 030A00 23 110 15

240A00 23.1 25.0 36.1 40 030A00 33 110 15

241A00 32.3 35.0 47.7 50 030A00 44 110 15

242A00 37.0 40.0 53.4 60 030A00 49 110 15

243A00 46.2 50.0 53.4 60 030A00 60 110 15

3.3 High

   21.1 25  23 110 

239A00 13.9 15.0 24.6 25 030A00 23 110 15

240A00 23.1 25.0 36.1 40 030A00 33 110 15

241A00 32.3 35.0 47.7 50 030A00 44 110 15

242A00 37.0 40.0 53.4 60 030A00 49 110 15

243A00 46.2 50.0 53.4 60 030A00 60 110 15

LEGEND

FLA − Full Load Amps

HACR − Heating, Air Conditioning and Refrigeration

IFM − Indoor − Fan Motor

LRA − Locked Rotor Amps

MCA − Minimum Circuit Amps

MOCP − Maximum Overcurrent Protection

NEC − National Electrical Code

OFM − Outdoor−Fan Motor

RLA − Rated Load Amps

* Heater capacity (kW) is based on heater voltage of 208 v, 240 v, or 480 v. If power distribu-

tion voltage to unit varies from rated heater voltage, heater kW will vary accordingly.

† Fuse or HACR circuit breaker.

NOTES:

1. In compliance with NEC requirements for multimotor and combination load equip-

ment (refer to NEC Articles 430 and 440), the overcurrent protective device for the

unit shall be fuse or HACR breaker.

2. Unbalanced 3-Phase Supply Voltage

Never operate a motor where a phase imbalance in supply voltage is greater than

2%. Use the following formula to determine the percentage of voltage imbalance.

% Voltage Imbalance = 100 x

max voltage deviation from average voltage

average voltage

Example: Supply voltage is 460-3-60

AB = 224 v

BC = 231 v

AC = 226 v

Average Voltage = 224 + 231 + 226

681

227

Determine maximum deviation from average voltage.

(AB) 227 – 223 = 3 v

(BC) 231 – 227 = 4 v

(AC) 227 – 226 = 1 v

Maximum deviation is 4 v.

Determine percent of voltage imbalance.

% Voltage Imbalance = 100 x

227

= 1.76%

This amount of phase imbalance is satisfactory as it is below the maximum allowable 2%.

IMPORTANT: If the supply voltage phase imbalance is more than 2%, contact your local electric

utility company immediately.

3. Single point kits CRSINGLE028A00 and CRSINGLE030A00 are not required if

field−supplied pressure connectors are used.

50PG03−16

Table 1 — Electrical Data — Units Without Optional Powered Convenience Outlet (cont)

UNIT

50PG

NOMINAL

POWER SUPPLY

VOLTS-PH-HZ

VOLTAGE

RANGE

COMPRESSOR

(EA.) OFM

FLA

IFM

FLA

POWER

EXHAUST

FLA

IFM

TYPE

ELECTRIC HEAT POWER SUPPLY CRSINGLE

PART

NO.(NOTE3)

DISCONNECT

SIZE WIRING

FIG. NO.

MIN MAX RLA LRA CRHEATER

PART NO. FLA NOMINAL

KW* MCA MOCP† FLA LRA

208/230-3-60 187 253 22.4 149 1.9

10.2



Low

  / 64.5/64.5 80/80  68/68 383/383 

225A00 20.0/23.1 7.5/10.0 64.5/64.5 80/80 032A00 68/68 383/383 18

226A00 30.0/34.6 11.3/15.0 64.5/64.5 80/80 032A00 68/68 383/383 18

227A00 50.0/57.7 18.8/25.0 75.3/84.9 80/90 032A00 69/78 383/383 18

228A00 70.0/80.8 26.3/35.0 100.3/113.8 110/125 032A00 92/105 383/383 18

230A00 100.1/115.5 37.6/50.0 137.8/128.2 150/150 032A00 127/145 383/383 18

231A00 120.1/138.6 45.1/60.0 162.8/151.3 175/175 032A00 150/171 383/383 18

15.0 High

  / 69.3/69.3 90/90  73/73 391/391 

225A00 20.0/23.1 7.5/10.0 69.3/69.3 90/90 032A00 73/73 391/391 18

226A00 30.0/34.6 11.3/15.0 69.3/69.3 90/90 032A00 73/73 391/391 18

227A00 50.0/57.7 18.8/25.0 81.3/90.9 90/100 032A00 75/84 391/391 18

228A00 70.0/80.8 26.3/35.0 106.3/119.8 110/125 032A00 98/110 391/391 18

230A00 100.1/115.5 37.6/50.0 143.8/134.2 150/150 032A00 132/150 391/391 18

231A00 120.1/138.6 45.1/60.0 168.8/157.3 175/175 032A00 155/177 391/391 18

10.2

3.0

Low

  / 67.5/67.5 80/80  71/71 387/387 

225A00 20.0/23.1 7.5/10.0 67.5/67.5 80/80 032A00 71/71 387/387 18

226A00 30.0/34.6 11.3/15.0 67.5/67.5 80/80 032A00 71/71 387/387 18

227A00 50.0/57.7 18.8/25.0 79.0/88.7 80/90 032A00 73/82 387/387 18

228A00 70.0/80.8 26.3/35.0 104.1/117.5 110/125 032A00 96/108 387/387 18

230A00 100.1/115.5 37.6/50.0 141.6/132.0 150/150 032A00 130/148 387/387 18

231A00 120.1/138.6 45.1/60.0 166.6/155.1 175/175 032A00 153/175 387/387 18

15.0 High

  / 72.3/72.3 90/90  77/77 395/395 

225A00 20.0/23.1 7.5/10.0 72.3/72.3 90/90 032A00 77/77 395/395 18

226A00 30.0/34.6 11.3/15.0 72.3/72.3 90/90 032A00 77/77 395/395 18

227A00 50.0/57.7 18.8/25.0 85.0/94.7 90/100 032A00 78/87 395/395 18

228A00 70.0/80.8 26.3/35.0 110.1/123.5 125/125 032A00 101/114 395/395 18

230A00 100.1/115.5 37.6/50.0 147.6/138.0 150/150 032A00 136/153 395/395 18

231A00 120.1/138.6 45.1/60.0 172.6/161.1 175/175 032A00 159/180 395/395 18

460-3-60 414 506 10.6 75 1.0

4.8



Low

   30.6 40  32 190 

232A00 11.5 10.0 30.6 40 030A00 32 190 15

233A00 17.3 15.0 30.6 40 030A00 32 190 15

234A00 28.9 25.0 42.1 45 030A00 39 190 15

235A00 40.4 35.0 56.5 60 030A00 52 190 15

237A00 57.7 50.0 63.7 70 033A00 72 190 19

238A00 69.3 60.0 75.3 90 033A00 85 190 19

7.4 High

   33.2 40  35 194 

232A00 11.5 10.0 33.2 40 030A00 35 194 15

233A00 17.3 15.0 33.2 40 030A00 35 194 15

234A00 28.9 25.0 45.3 50 030A00 42 194 15

235A00 40.4 35.0 59.8 60 030A00 55 194 15

237A00 57.7 50.0 67.0 80 033A00 75 194 19

238A00 69.3 60.0 78.5 90 033A00 88 194 19

4.8

1.2

Low

   31.8 40  34 192 

232A00 11.5 10.0 31.8 40 030A00 34 192 15

233A00 17.3 15.0 31.8 40 030A00 34 192 15

234A00 28.9 25.0 43.6 45 030A00 40 192 15

235A00 40.4 35.0 58.0 60 030A00 53 192 15

237A00 57.7 50.0 65.2 70 033A00 73 192 19

238A00 69.3 60.0 76.8 90 033A00 87 192 19

7.4 High

   34.4 45  37 197 

232A00 11.5 10.0 34.4 45 030A00 37 197 15

233A00 17.3 15.0 34.4 45 030A00 37 197 15

234A00 28.9 25.0 46.8 50 030A00 43 197 15

235A00 40.4 35.0 61.3 70 033A00 56 197 15

237A00 57.7 50.0 68.5 80 033A00 76 197 19

238A00 69.3 60.0 80.0 90 033A00 90 197 19

575-3-60 518 632 10.6 59.0 0.8

3.3



Low

   28.7 25  30 180 

239A00 13.9 15.0 28.7 25 030A00 30 180 15

240A00 23.1 25.0 33.0 35 030A00 30 180 15

241A00 32.3 35.0 45.1 45 030A00 41 180 15

242A00 37.0 40.0 50.3 50 030A00 46 180 15

243A00 46.2 50.0 50.3 60 030A00 57 180 15

244A00 55.4 60.0 59.6 60 030A00 68 180 15

5.6 High

   31.0 30  33 191 

239A00 13.9 15.0 31.0 30 030A00 33 191 15

240A00 23.1 25.0 35.9 40 030A00 33 191 15

241A00 32.3 35.0 47.4 50 030A00 44 191 15

242A00 37.0 40.0 53.2 60 030A00 49 191 15

243A00 46.2 50.0 53.2 60 030A00 60 191 15

244A00 55.4 60.0 62.4 70 033A00 70 191 19

3.3

3.0

Low

   24.7 30  26 138 

239A00 13.9 15.0 24.7 30 030A00 26 138 15

240A00 23.1 25.0 36.1 40 030A00 33 138 15

241A00 32.3 35.0 47.7 50 030A00 44 138 15

242A00 37.0 40.0 53.4 60 030A00 49 138 15

243A00 46.2 50.0 53.4 60 030A00 60 138 15

244A00 55.4 60.0 62.7 70 033A00 70 138 19

5.6 High

   27.5 30  29 151 

239A00 13.9 13.9 28.1 30 030A00 29 151 15

240A00 23.1 23.1 39.6 40 030A00 36 151 15

241A00 32.3 32.3 51.2 60 030A00 47 151 15

242A00 37.0 37.0 56.9 60 030A00 52 151 15

243A00 46.2 46.2 56.9 60 030A00 63 151 15

244A00 55.4 55.4 66.2 70 033A00 74 151 19

50PG03−16

Table 1 — Electrical Data — Units Without Optional Powered Convenience Outlet (cont)

UNIT

50PG

NOMINAL

POWER

SUPPLY

(V-PH-HZ)

VOLTAGE

RANGE

COMPR

NO. 1

COMPR

NO. 2

COMPR

NO. 3OF

MFL

POWER

EXHAUST IFM

TYPE

IFM

FLA

ELECTRIC HEAT POWER SUPPLY CRSINGLE

PART NO.

(NOTE3)

DISCONNECT SIZE

WIRING

FIG. NO.

MIN MAX RLA LRA RLA LRA RLA LRA QTY FLA CRHEATER

PART NO. FLA NOMINAL

KW* MCA MOCP FLA LRA

208/230-3-60 187 253 18.1 137 18.1 137 17.6 123 1.9

 

Low 10.2

  / 74.2/74.2 90/90  80/80 482/482 

255A00 52.1/60.1 18.8/25.0 77.9/87.9 90/90 034 80/81 482/482 20

256A00 104.2/120.3 37.6/50.0 143.0/133.0 150/150 034 132/150 482/482 20

257A00 156.3/180.4 56.3/75.0 169.1/193.2 200/225 034 192/219 482/482 20

Mid-

Low 15.0

  / 79.0/79.0 90/90  86/86 491/491 

255A00 52.1/60.1 18.8/25.0 83.9/93.9 90/100 034 86/86 491/491 20

256A00 104.2/120.3 37.6/50.0 149.0/139.0 150/175 034 137/156 491/491 20

257A00 156.3/180.4 56.3/75.0 175.1/199.2 200/225 034 197/225 491/491 20

High 19.4

  / 83.4/83.4 100/100  91/91 529/529 

255A00 52.1/60.1 18.8/25.0 89.4/99.4 100/100 034 91/91 529/529 20

256A00 104.2/120.3 37.6/50.0 154.5/144.5 175/175 034 142/161 529/529 20

257A00 156.3/180.4 56.3/75.0 180.6/204.7 200/225 034 202/230 529/529 20

2 3.0

Low 10.2

  / 77.2/77.2 90/90  84/84 486/486 

255A00 52.1/60.1 18.8/25.0 81.6/91.7 90/100 034 84/84 486/486 20

256A00 104.2/120.3 37.6/50.0 146.8/136.8 150/150 034 135/154 486/486 20

257A00 156.3/180.4 56.3/75.0 172.8/196.9 200/225 034 195/223 486/486 20

Mid-

Low 15.0

  / 82.0/82.0 100/100  89/89 495/495 

255A00 52.1/60.1 18.8/25.0 87.6/97.7 100/100 034 89/90 495/495 20

256A00 104.2/120.3 37.6/50.0 152.8/142.8 175/175 034 141/159 495/495 20

257A00 156.3/180.4 56.3/75.0 178.8/202.9 200/225 034 200/228 495/495 20

High 19.4

  / 86.4/86.4 100/100  94/94 533/533 

255A00 52.1/60.1 18.8/25.0 93.1/103.2 100/110 034 94/95 533/533 20

256A00 104.2/120.3 37.6/50.0 158.3/148.3 175/175 034 146/164 533/533 20

257A00 156.3/180.4 56.3/75.0 184.3/208.4 200/250 034 206/233 533/533 20

460-3-60 414 506 9.0 62 9.0 62 7.7 50 1.0

 

Low 4.8

  / 35.8 40  39 215 

258A00 30.1 25.0 43.6 45 035 40 215 21

259A00 60.1 50.0 66.1 80 036 75 215 22

260A00 90.2 75.0 96.2 100 036 109 215 22

Mid-

Low 7.4

  / 38.4 45  42 219 

258A00 30.1 25.0 46.8 50 035 43 219 21

259A00 60.1 50.0 69.4 80 036 78 219 22

260A00 90.2 75.0 99.5 110 036 112 219 22

High 9.7

  / 40.7 50  44 238 

258A00 30.1 25.0 49.7 50 035 46 238 21

259A00 60.1 50.0 72.3 80 036 80 238 22

260A00 90.2 75.0 102.3 125 036 115 238 22

2 1.2

Low 4.8

  / 37.0 45  40 217 

258A00 30.1 25.0 45.1 50 035 41 217 21

259A00 60.1 50.0 67.6 80 036 76 217 22

260A00 90.2 75.0 97.7 100 036 111 217 22

Mid-

Low 7.4

  / 39.6 45  43 222 

258A00 30.1 25.0 48.3 50 035 44 222 21

259A00 60.1 50.0 70.9 80 036 79 222 22

260A00 90.2 75.0 101.0 110 036 114 222 22

High 9.7

  / 41.9 50  46 241 

258A00 30.1 25.0 51.2 60 036 47 241 21

259A00 60.1 50.0 73.8 80 036 82 241 22

260A00 90.2 75.0 103.8 125 036 116 241 22

575-3-60 518 633 6.8 50 6.8 50 6.1 40 0.8

 

Low 2.8

  / 26.6 30  29 167 

261A00 24.1 25.0 33.6 35 035 31 167 21

262A00 46.2 50.0 49.7 60 035 56 167 21

263A00 72.2 75.0 75.7 80 036 86 167 22

Mid-

Low 5.6

  / 29.4 35  32 181 

261A00 24.1 25.0 37.1 40 035 34 181 21

262A00 46.2 50.0 53.2 60 035 60 181 21

263A00 72.2 75.0 79.2 90 036 89 181 22

High 7.8

  / 31.6 35  34 196 

261A00 24.1 25.0 39.8 40 035 37 196 21

262A00 46.2 50.0 55.9 60 035 62 196 21

263A00 72.2 75.0 81.9 90 036 92 196 22

2 3.0

Low 2.8

  / 29.6 35  32 171 

261A00 24.1 25.0 37.3 40 035 34 171 21

262A00 46.2 50.0 53.4 60 035 60 171 21

263A00 72.2 75.0 79.4 90 036 90 171 22

Mid-

Low 5.6

  / 32.4 35  35 185 

261A00 24.1 25.0 40.8 45 035 38 185 21

262A00 46.2 50.0 56.9 60 035 63 185 21

263A00 72.2 75.0 82.9 90 036 93 185 22

High 7.8

  / 34.6 40  38 200 

261A00 24.1 25.0 43.6 45 035 40 200 21

262A00 46.2 50.0 59.7 70 035 66 200 21

263A00 72.2 75.0 85.7 100 036 95 200 22

50PG03−16

Table 2 — Electrical Data — Units With Optional Powered Convenience Outlet

UNIT

50PG

NOMINAL

POWER SUPPLY

VOLTS-PH-HZ

VOLTAGE

RANGE

COMPRESSOR

(EA) OFM

FLA

IFM

FLA

POWER

EXHAUST

FLA

IFM

TYPE

ELECTRIC HEAT POWER SUPPLY CRSINGLE

PART NO.

(NOTE3)

DISCONNECT SIZE

WIRING

FIG. NO.

MIN MA

XRLA LRA CRHEATER

PART NO. FLA NOMINAL

KW* MCA MOCP† FLA LRA

03 208/230-1-60 187 253 12.8 60 0.9 4.9



Low

  / 27.8/27.8 30/30  27/27 78/78 

200A00 10.8/12.5 2.3/3.0 27.8/27.8 30/30 028A00 27/27 78/78 13

201A00 17.3/20.0 3.8/5.0 32.8/36.1 35/40 028A00 31/34 78/78 13

202A00 26.0/30.0 5.6/7.5 43.6/48.6 45/50 028A00 41/46 78/78 13

203A00 34.7/40.0 7.5/10.0 54.5/61.1 60/70 028A00 51/57 78/78 13

High

  / 27.8/27.8 30/30  27/27 78/78 

200A00 10.8/12.5 2.3/3.0 27.8/27.8 30/30 028A00 27/27 78/78 13

201A00 17.3/20.0 3.8/5.0 32.8/36.1 35/40 028A00 31/34 78/78 13

202A00 26.0/30.0 5.6/7.5 43.6/48.6 45/50 028A00 41/46 78/78 13

203A00 34.7/40.0 7.5/10.0 54.5/61.1 60/70 028A00 51/57 78/78 13

1.4

Low

  / 29.2/29.2 40/40  29/29 80/80 

200A00 10.8/12.5 2.3/3.0 29.2/29.2 40/40 028A00 29/29 80/80 13

201A00 17.3/20.0 3.8/5.0 34.5/37.9 40/40 028A00 33/36 80/80 13

202A00 26.0/30.0 5.6/7.5 45.4/50.4 50/60 028A00 43/47 80/80 13

203A00 34.7/40.0 7.5/10.0 56.2/62.9 60/70 028A00 53/59 80/80 13

High

  / 29.2/29.2 40/40  29/29 80/80 

200A00 10.8/12.5 2.3/3.0 29.2/29.2 40/40 028A00 29/29 80/80 13

201A00 17.3/20.0 3.8/5.0 34.5/37.9 40/40 028A00 33/36 80/80 13

202A00 26.0/30.0 5.6/7.5 45.4/50.4 50/60 028A00 43/47 80/80 13

203A00 34.7/40.0 7.5/10.0 56.2/62.9 60/70 028A00 53/59 80/80 13

208/230-1-60 187 253 15.4 83 0.9 4.9



Low

  / 31.0/31.0 45/45  30/30 101/101 

200A00 10.8/12.5 2.3/3.0 31.0/31.0 45/45 028A00 30/30 101/101 13

201A00 17.3/20.0 3.8/5.0 32.8/36.1 45/45 028A00 31/34 101/101 13

202A00 26.0/30.0 5.6/7.5 43.6/48.6 45/50 028A00 41/46 101/101 13

203A00 34.7/40.0 7.5/10.0 54.5/61.1 60/70 028A00 51/57 101/101 13

204A00 52.0/60.0 11.3/15.0 76.1/86.1 80/90 029A00 71/80 101/101 14

High

  / 31.0/31.0 45/45  30/30 101/101 

200A00 10.8/12.5 2.3/3.0 31.0/31.0 45/45 028A00 30/30 101/101 13

201A00 17.3/20.0 3.8/5.0 32.8/36.1 45/45 028A00 31/34 101/101 13

202A00 26.0/30.0 5.6/7.5 43.6/48.6 45/50 028A00 41/46 101/101 13

203A00 34.7/40.0 7.5/10.0 54.5/61.1 60/70 028A00 51/57 101/101 13

204A00 52.0/60.0 11.3/15.0 76.1/86.1 80/90 029A00 71/80 101/101 14

1.4

Low

  / 32.4/32.4 45/45  32/32 103/103 

200A00 10.8/12.5 2.3/3.0 32.4/32.4 45/45 028A00 32/32 103/103 13

201A00 17.3/20.0 3.8/5.0 34.5/37.9 45/45 028A00 33/36 103/103 13

202A00 26.0/30.0 5.6/7.5 45.4/50.4 50/60 028A00 43/47 103/103 13

203A00 34.7/40.0 7.5/10.0 56.2/62.9 60/70 028A00 53/59 103/103 13

204A00 52.0/60.0 11.3/15.0 77.9/87.9 80/90 029A00 73/82 103/103 14

High

  / 32.4/32.4 45/45  32/32 103/103 

200A00 10.8/12.5 2.3/3.0 32.4/32.4 45/45 028A00 32/32 103/103 13

201A00 17.3/20.0 3.8/5.0 34.5/37.9 45/45 028A00 33/36 103/103 13

202A00 26.0/30.0 5.6/7.5 45.4/50.4 50/60 028A00 43/47 103/103 13

203A00 34.7/40.0 7.5/10.0 56.2/62.9 60/70 028A00 53/59 103/103 13

204A00 52.0/60.0 11.3/15.0 77.9/87.9 80/90 029A00 73/82 103/103 14

208/230-3-60 187 253 11.5 77 0.9 4.9 

Low

  / 25.0/25.0 30/30  25/25 95/95 

207A00 6.3/7.2 2.3/3.0 25.0/25.0 30/30 030A00 25/25 95/95 15

208A00 10.0/11.5 3.8/5.0 25.0/26.0 30/30 030A00 25/25 95/95 15

209A00 15.0/17.3 5.6/7.5 30.9/33.2 35/35 030A00 28/31 95/95 15

210A00 20.0/23.1 7.5/10.0 37.2/40.4 40/45 030A00 34/38 95/95 15

211A00 30.0/34.6 11.3/15.0 49.7/54.9 50/60 030A00 46/51 95/95 15

High

  / 25.0/25.0 30/30  25/25 95/95 

207A00 6.3/7.2 2.3/3.0 25.0/25.0 30/30 030A00 25/25 95/95 15

208A00 10.0/11.5 3.8/5.0 25.0/26.0 30/30 030A00 25/25 95/95 15

209A00 15.0/17.3 5.6/7.5 30.9/33.2 35/35 030A00 28/31 95/95 15

210A00 20.0/23.1 7.5/10.0 37.2/40.4 40/45 030A00 34/38 95/95 15

211A00 30.0/34.6 11.3/15.0 49.7/54.9 50/60 030A00 46/51 95/95 15

LEGEND

FLA − Full Load Amps

HACR − Heating, Air Conditioning and Refrigeration

IFM − Indoor − Fan Motor

LRA − Locked Rotor Amps

MCA − Minimum Circuit Amps

MOCP − Maximum Overcurrent Protection

NEC − National Electrical Code

OFM − Outdoor−Fan Motor

RLA − Rated Load Amps

* Heater capacity (kW) is based on heater voltage of 208 v, 240 v, or 480 v. If power distribu-

tion voltage to unit varies from rated heater voltage, heater kW will vary accordingly.

† Fuse or HACR circuit breaker.

NOTES:

1. In compliance with NEC requirements for multimotor and combination load equip-

ment (refer to NEC Articles 430 and 440), the overcurrent protective device for the

unit shall be fuse or HACR breaker.

2. Unbalanced 3-Phase Supply Voltage

Never operate a motor where a phase imbalance in supply voltage is greater than

2%. Use the following formula to determine the percentage of voltage imbalance.

% Voltage Imbalance = 100 x

max voltage deviation from average voltage

average voltage

Example: Supply voltage is 460-3-60

AB = 224 v

BC = 231 v

AC = 226 v

Average Voltage = 224 + 231 + 226

681

227

Determine maximum deviation from average voltage.

(AB) 227 – 223 = 3 v

(BC) 231 – 227 = 4 v

(AC) 227 – 226 = 1 v

Maximum deviation is 4 v.

Determine percent of voltage imbalance.

% Voltage Imbalance = 100 x

227

= 1.76%

This amount of phase imbalance is satisfactory as it is below the maximum allowable 2%.

IMPORTANT: If the supply voltage phase imbalance is more than 2%, contact your local electric

utility company immediately.

3. Single point kits CRSINGLE028A00 and CRSINGLE030A00 are not required if

field−supplied pressure connectors are used.

50PG03−16

Table 2 — Electrical Data — Units With Optional Powered Convenience Outlet (cont)

UNIT

50PG

NOMINAL

POWER

SUPPLY

VOLTS-PH-HZ

VOLTAGE

RANGE

COMPRESSOR

(EA) OFM

FLA

IFM

FLA

POWER

EXHAUST

FLA

IFM

TYPE

ELECTRIC HEATC POWER SUPPLY CRSINGLE

PART NO.

(NOTE3)

DISCONNECT SIZE

WIRING

FIG. NO.

MIN MAX RLA LRA CRHEATER

PART NO. FLA NOMINAL

KW* MCA MOCP† FLA LRA

208/230-3-60

(cont) 187 253 11.5 77 0.9 4.9 1.4

Low

  / 26.4/26.4 30/30  27/27 97/97 

207A00 6.3/7.2 2.3/3.0 26.4/26.4 30/30 030A00 27/27 97/97 15

208A00 10.0/11.5 3.8/5.0 26.4/27.7 30/30 030A00 27/27 97/97 15

209A00 15.0/17.3 5.6/7.5 32.6/35.0 35/40 030A00 30/33 97/97 15

210A00 20.0/23.1 7.5/10.0 38.9/42.2 40/45 030A00 36/39 97/97 15

211A00 30.0/34.6 11.3/15.0 51.4/56.6 60/60 030A00 47/53 97/97 15

High

  / 26.4/26.4 30/30  27/27 97/97 

207A00 6.3/7.2 2.3/3.0 26.4/26.4 30/30 030A00 27/27 97/97 15

208A00 10.0/11.5 3.8/5.0 26.4/27.7 30/30 030A00 27/27 97/97 15

209A00 15.0/17.3 5.6/7.5 32.6/35.0 35/40 030A00 30/33 97/97 15

210A00 20.0/23.1 7.5/10.0 38.9/42.2 40/45 030A00 36/39 97/97 15

211A00 30.0/34.6 11.3/15.0 51.4/56.6 60/60 030A00 47/53 97/97 15

460-3-60 414 506 5.1 35 0.5 2.1



Low

   11.2 15  11 44 

214A00 3.5 3.0 11.2 15 030A00 11 44 15

215A00 5.8 5.0 12.6 15 030A00 12 44 15

216A00 8.7 7.5 16.2 20 030A00 15 44 15

217A00 11.5 10.0 19.8 20 030A00 18 44 15

218A00 17.3 15.0 27.0 30 030A00 25 44 15

High

   11.2 15  11 44 

214A00 3.5 3.0 11.2 15 030A00 11 44 15

215A00 5.8 5.0 12.6 15 030A00 12 44 15

216A00 8.7 7.5 16.2 20 030A00 15 44 15

217A00 11.5 10.0 19.8 20 030A00 18 44 15

218A00 17.3 15.0 27.0 30 030A00 25 44 15

0.6

Low

   11.8 15  12 45 

214A00 3.5 3.0 11.8 15 030A00 12 45 15

215A00 5.8 5.0 13.3 15 030A00 12 45 15

216A00 8.7 7.5 16.9 20 030A00 16 45 15

217A00 11.5 10.0 20.5 25 030A00 19 45 15

218A00 17.3 15.0 27.7 30 030A00 26 45 15

High

   11.8 15  12 45 

214A00 3.5 3.0 11.8 15 030A00 12 45 15

215A00 5.8 5.0 13.3 15 030A00 12 45 15

216A00 8.7 7.5 16.9 20 030A00 16 45 15

217A00 11.5 10.0 20.5 25 030A00 19 45 15

218A00 17.3 15.0 27.7 30 030A00 26 45 15

575-3-60 518 632 4.3 31.0 0.4 2.2



Low

   9.7 15  10 39 

221A00 9.2 10.0 16.3 20 030A00 15 39 15

222A00 13.9 15.0 22.1 25 030A00 20 38 15

High

   9.7 15  10 39 

221A00 9.2 10.0 16.3 20 030A00 15 39 15

222A00 13.9 15.0 22.1 25 030A00 20 39 15

1.4

Low

   11.1 15  12 41 

221A00 9.2 10.0 18.0 20 030A00 17 41 15

222A00 13.9 15.0 23.9 25 030A00 22 41 15

High

   11.1 15  12 41 

221A00 9.2 10.0 18.0 20 030A00 17 41 15

222A00 13.9 15.0 23.9 25 030A00 22 41 15

208/230-1-60 187 253 20.5 109 0.9

4.9



Low

  / 37.4/37.4 50/50  36/36 127/127 

201A00 17.3/20.0 3.8/5.0 37.4/37.4 50/50 028A00 36/36 127/127 13

202A00 26.0/30.0 5.6/7.5 43.6/48.6 50/50 028A00 41/46 127/127 13

203A00 34.7/40.0 7.5/10.0 54.5/61.1 60/70 028A00 51/57 127/127 13

204A00 52.0/60.0 11.3/15.0 76.1/86.1 80/90 029A00 71/80 127/127 14

205A00 69.3/80.0 15.0/20.0 97.8/111.1 100/125 029A00 91/103 127/127 14

7.0 High

  / 39.5/39.5 50/50  38/38 153/153 

201A00 17.3/20.0 3.8/5.0 39.5/39.5 50/50 028A00 38/38 153/153 13

202A00 26.0/30.0 5.6/7.5 46.2/51.3 50/60 028A00 43/48 153/153 13

203A00 34.7/40.0 7.5/10.0 57.1/63.8 60/70 028A00 53/60 153/153 13

204A00 52.0/60.0 11.3/15.0 78.7/88.8 80/90 029A00 73/83 153/153 14

205A00 69.3/80.0 15.0/20.0 100.4/113.8 110/125 029A00 93/106 153/153 14

4.9

1.4

Low

  / 38.8/38.8 50/50  37/37 129/129 

201A00 17.3/20.0 3.8/5.0 38.8/38.8 50/50 028A00 37/37 129/129 13

202A00 26.0/30.0 5.6/7.5 45.4/50.4 50/60 028A00 43/47 129/129 13

203A00 34.7/40.0 7.5/10.0 56.2/62.9 60/70 028A00 53/59 129/129 13

204A00 52.0/60.0 11.3/15.0 77.9/87.9 80/90 029A00 73/82 129/129 14

205A00 69.3/80.0 15.0/20.0 99.5/112.9 110/125 029A00 92/105 129/129 14

7.0 High

  / 40.9/40.9 60/60  40/40 155/155 

201A00 17.3/20.0 3.8/5.0 40.9/40.9 60/60 028A00 40/40 155/155 13

202A00 26.0/30.0 5.6/7.5 48.0/53.0 60/60 028A00 45/50 155/155 13

203A00 34.7/40.0 7.5/10.0 58.8/65.5 60/70 028A00 55/61 155/155 13

204A00 52.0/60.0 11.3/15.0 80.5/90.5 90/100 029A00 75/84 155/155 14

205A00 69.3/80.0 15.0/20.0 102.2/115.5 110/125 029A00 95/107 155/155 14

208/230-3-60 187 253 14.6 91 0.9

4.9



Low

  / 28.8/28.8 40/40  29/29 109/109 

208A00 10.0/11.5 3.8/5.0 28.8/28.8 40/40 030A00 29/29 109/109 15

209A00 15.0/17.3 5.6/7.5 30.9/33.2 40/40 030A00 29/31 109/109 15

210A00 20.0/23.1 7.5/10.0 37.2/40.4 40/45 030A00 34/38 109/109 15

211A00 30.0/34.6 11.3/15.0 49.7/54.9 50/60 030A00 46/51 109/109 15

212A00 40.0/46.2 15.0/20.0 62.2/69.3 70/70 031A00 57/64 109/109 16

5.2 High

  / 29.1/29.1 40/40  29/29 128/128 

208A00 10.0/11.5 3.8/5.0 29.1/29.1 40/40 030A00 29/29 128/128 15

209A00 15.0/17.3 5.6/7.5 31.3/33.6 40/40 030A00 29/31 128/128 15

210A00 20.0/23.1 7.5/10.0 37.5/40.8 40/45 030A00 35/38 128/128 15

211A00 30.0/34.6 11.3/15.0 50.0/55.2 60/60 030A00 46/51 128/128 15

212A00 40.0/46.2 15.0/20.0 62.5/69.7 70/80 031A00 58/65 128/128 16

50PG03−16

Table 2 — Electrical Data — Units With Optional Powered Convenience Outlet (cont)

UNIT

50PG

NOMINAL

POWER

SUPPLY

VOLTS-PH-HZ

VOLTAGE

RANGE

COMPRESSOR

(EA) OFM

FLA

IFM

FLA

POWER

EXHAUST

FLA

IFM

TYPE

ELECTRIC HEAT POWER SUPPLY CRSINGLE

PART NO.

(NOTE3)

DISCONNECT SIZE WIRING

FIG. NO.

MIN MAX RLA LRA CRHEATER

PART NO. FLA NOMINAL

KW* MCA MOCP† FLA LRA

(cont)

208/230-3-60

(cont) 187 253 14.6 91 0.9

4.9

1.4

Low

  / 30.2/30.2 40/40  31/31 111/111 

208A00 10.0/11.5 3.8/5.0 30.2/30.2 40/40 030A00 31/31 111/111 15

209A00 15.0/17.3 5.6/7.5 32.6/35.0 40/40 030A00 31/33 111/111 15

210A00 20.0/23.1 7.5/10.0 38.9/42.2 40/45 030A00 36/39 111/111 15

211A00 30.0/34.6 11.3/15.0 51.4/56.6 60/60 030A00 47/53 111/111 15

212A00 40.0/46.2 15.0/20.0 63.9/71.0 70/80 031A00 59/66 111/111 16

5.2 High

  / 30.5/30.5 45/45  31/31 130/130 

208A00 10.0/11.5 3.8/5.0 30.5/30.5 45/45 030A00 31/31 130/130 15

209A00 15.0/17.3 5.6/7.5 33.0/35.3 45/45 030A00 31/33 130/130 15

210A00 20.0/23.1 7.5/10.0 39.3/42.6 45/45 030A00 36/40 130/130 15

211A00 30.0/34.6 11.3/15.0 51.8/57.0 60/60 030A00 48/53 130/130 15

212A00 40.0/46.2 15.0/20.0 64.3/71.4 70/80 031A00 59/66 130/130 16

460-3-60 414 506 7.1 46 0.5

2.1



Low

   13.6 20  14 55 

215A00 5.8 5.0 13.6 20 030A00 14 55 15

216A00 8.7 7.5 16.2 20 030A00 15 55 15

217A00 11.5 10.0 19.8 20 030A00 18 55 15

218A00 17.3 15.0 27.0 30 030A00 25 55 15

219A00 23.1 20.0 34.2 35 030A00 31 55 15

2.6 High

   14.1 20  14 64 

215A00 5.8 5.0 14.1 20 030A00 14 64 15

216A00 8.7 7.5 16.8 20 030A00 15 64 15

217A00 11.5 10.0 20.4 25 030A00 19 64 15

218A00 17.3 15.0 27.6 30 030A00 25 64 15

219A00 23.1 20.0 34.8 35 030A00 32 64 15

2.1

0.6

Low

   14.2 20  14 56 

215A00 5.8 5.0 14.2 20 030A00 14 56 15

216A00 8.7 7.5 16.9 20 030A00 16 56 15

217A00 11.5 10.0 20.5 25 030A00 19 56 15

218A00 17.3 15.0 27.7 30 030A00 26 56 15

219A00 23.1 20.0 35.0 40 030A00 32 56 15

2.6 High

   14.7 20  15 65 

215A00 5.8 5.0 14.7 20 030A00 15 65 15

216A00 8.7 7.5 17.5 20 030A00 16 65 15

217A00 11.5 10.0 21.2 25 030A00 19 65 15

218A00 17.3 15.0 28.4 30 030A00 26 65 15

219A00 23.1 20.0 35.6 40 030A00 33 65 15

575-3-60 518 632 5.0 34.0 0.4 2.0



Low

   10.7 15  11 42 

221A00 9.2 10.0 16.3 20 030A00 15 42 15

222A00 13.9 15.0 22.1 25 030A00 20 42 15

223A00 18.5 20.0 27.9 30 030A00 26 42 15

High

   10.6 15  11 48 

221A00 9.2 10.0 16.1 20 030A00 15 48 15

222A00 13.9 15.0 22.0 25 030A00 20 48 15

223A00 18.5 20.0 27.8 30 030A00 26 48 15

1.4

Low

   12.1 15  12 44 

221A00 9.2 10.0 18.0 20 030A00 17 44 15

222A00 13.9 15.0 23.9 25 030A00 22 44 15

223A00 18.5 20.0 29.6 30 030A00 27 44 15

High

   12.0 15  12 50 

221A00 9.2 10.0 17.9 20 030A00 16 50 15

222A00 13.9 15.0 23.8 25 030A00 22 50 15

223A00 18.5 20.0 29.5 30 030A00 27 50 15

06 208/230-1-60 187 253 26.9 145 1.5

4.9



Low

  / 46.1/46.1 60/60  44/44 164/164 

201A00 17.3/20.0 3.8/5.0 46.1/46.1 60/60 028A00 44/44 164/164 13

202A00 26.0/30.0 5.6/7.5 46.1/48.6 60/60 028A00 44/46 164/164 13

203A00 34.7/40.0 7.5/10.0 54.5/61.1 60/70 028A00 51/57 164/164 13

204A00 52.0/60.0 11.3/15.0 76.1/86.1 80/90 029A00 71/80 164/164 14

205A00 69.3/80.0 15.0/20.0 97.8/111.1 100/125 029A00 91/103 164/164 14

206A00 86.7/100.0 18.8/25.0 119.4/136.1 125/150 029A00 111/126 164/164 14

7.0 High

  / 48.2/48.2 60/60  46/46 190/190 

201A00 17.3/20.0 3.8/5.0 48.2/48.2 60/60 028A00 46/46 190/190 13

202A00 26.0/30.0 5.6/7.5 48.2/51.3 60/60 028A00 46/48 190/190 13

203A00 34.7/40.0 7.5/10.0 57.1/63.8 60/70 028A00 53/60 190/190 13

204A00 52.0/60.0 11.3/15.0 78.7/88.8 80/90 029A00 73/83 190/190 14

205A00 69.3/80.0 15.0/20.0 100.4/113.8 110/125 029A00 93/106 190/190 14

206A00 86.7/100.0 18.8/25.0 122.1/138.8 125/150 029A00 113/129 190/190 14

LEGEND

FLA − Full Load Amps

HACR − Heating, Air Conditioning and Refrigeration

IFM − Indoor − Fan Motor

LRA − Locked Rotor Amps

MCA − Minimum Circuit Amps

MOCP − Maximum Overcurrent Protection

NEC − National Electrical Code

OFM − Outdoor−Fan Motor

RLA − Rated Load Amps

* Heater capacity (kW) is based on heater voltage of 208 v, 240 v, or 480 v. If power distribu-

tion voltage to unit varies from rated heater voltage, heater kW will vary accordingly.

† Fuse or HACR circuit breaker.

NOTES:

1. In compliance with NEC requirements for multimotor and combination load equip-

ment (refer to NEC Articles 430 and 440), the overcurrent protective device for the

unit shall be fuse or HACR breaker.

2. Unbalanced 3-Phase Supply Voltage

Never operate a motor where a phase imbalance in supply voltage is greater than

2%. Use the following formula to determine the percentage of voltage imbalance.

% Voltage Imbalance = 100 x

max voltage deviation from average voltage

average voltage

Example: Supply voltage is 460-3-60

AB = 224 v

BC = 231 v

AC = 226 v

Average Voltage = 224 + 231 + 226

681

227

Determine maximum deviation from average voltage.

(AB) 227 – 223 = 3 v

(BC) 231 – 227 = 4 v

(AC) 227 – 226 = 1 v

Maximum deviation is 4 v.

Determine percent of voltage imbalance.

% Voltage Imbalance = 100 x

227

= 1.76%

This amount of phase imbalance is satisfactory as it is below the maximum allowable 2%.

IMPORTANT: If the supply voltage phase imbalance is more than 2%, contact your local electric

utility company immediately.

3. Single point kits CRSINGLE028A00 and CRSINGLE030A00 are not required if

field−supplied pressure connectors are used.

50PG03−16

Table 2 — Electrical Data — Units With Optional Powered Convenience Outlet (cont)

UNIT

50PG

NOMINAL

POWER SUPPLY

VOLTS-PH-HZ

VOLTAGE

RANGE COMPRESSOR

OFM

FLA

IFM

FLA

POWER

EXHAUST

FLA

IFM

TYPE

ELECTRIC HEAT POWER SUPPLY CRSINGLE

PART NO.

(NOTE3)

DISCONNECT SIZE

WIRING

FIG. NO.

MIN MAX RLA LRA CRHEATER

PART NO. FLA NOMINAL

KW* MCA MOCP† FLA LRA

(cont)

208/230-1-60

(cont) 187 253 26.9 145 1.5

4.9

1.4

Low

  / 46.2/46.2 60/60  45/45 166/166 

201A00 17.3/20.0 3.8/5.0 46.2/46.2 60/60 028A00 45/45 166/166 13

202A00 26.0/30.0 5.6/7.5 46.4/51.4 60/60 028A00 45/47 166/166 13

203A00 34.7/40.0 7.5/10.0 57.3/63.9 60/70 028A00 53/59 166/166 13

204A00 52.0/60.0 11.3/15.0 78.9/88.9 80/90 029A00 73/82 166/166 14

205A00 69.3/80.0 15.0/20.0 100.5/1139 110/125 029A00 92/105 166/166 14

206A00 86.7/100.0 18.8/25.0 122.3/138.9 125/150 029A00 112/128 166/166 14

7.0 High

  / 49.6/49.6 60/60  48/48 192/192 

201A00 17.3/20.0 3.8/5.0 49.6/49.6 60/60 028A00 48/48 192/192 13

202A00 26.0/30.0 5.6/7.5 49.6/53.0 60/60 028A00 48/50 192/192 13

203A00 34.7/40.0 7.5/10.0 58.8/65.5 60/70 028A00 55/61 192/192 13

204A00 52.0/60.0 11.3/15.0 80.5/90.5 90/100 029A00 75/84 192/192 14

205A00 69.3/80.0 15.0/20.0 102.2/115.5 110/125 029A00 95/107 192/192 14

206A00 86.7/100.0 18.8/25.0 123.8/140.5 125/150 029A00 115/130 192/192 14

208/230-3-60 187 253 17.6 123 1.5 5.2



Low

  / 33.5/33.5 50/50  34/34 161/161 

208A00 10.0/11.5 3.8/5.0 33.5/33.5 50/50 030A00 34/34 161/161 15

209A00 15.0/17.3 5.6/7.5 33.5/33.6 50/50 030A00 34/34 161/161 15

210A00 20.0/23.1 7.5/10.0 37.5/40.8 50/50 030A00 35/38 161/161 15

211A00 30.0/34.6 11.3/15.0 50.0/55.2 60/60 030A00 46/51 161/161 15

212A00 40.0/46.2 15.0/20.0 62.5/69.7 70/80 031A00 58/65 161/161 16

213A00 50.0/57.7 18.8/25.0 75.1/84.1 80/90 031A00 69/78 161/161 16

High

  / 33.5/33.5 50/50  34/34 161/161 

208A00 10.0/11.5 3.8/5.0 33.5/33.5 50/50 030A00 34/34 161/161 15

209A00 15.0/17.3 5.6/7.5 33.5/33.6 50/50 030A00 34/34 161/161 15

210A00 20.0/23.1 7.5/10.0 37.5/40.8 50/50 030A00 35/38 161/161 15

211A00 30.0/34.6 11.3/15.0 50.0/55.2 60/60 030A00 46/51 161/161 15

212A00 40.0/46.2 15.0/20.0 62.5/69.7 70/80 031A00 58/65 161/161 16

213A00 50.0/57.7 18.8/25.0 75.1/84.1 80/90 031A00 69/78 161/161 16

1.4

Low

  / 34.9/34.9 50/50  35/35 163/163 

208A00 10.0/11.5 3.8/5.0 34.9/34.9 50/50 030A00 35/35 163/163 15

209A00 15.0/17.3 5.6/7.5 34.9/35.3 50/50 030A00 35/35 163/163 15

210A00 20.0/23.1 7.5/10.0 39.3/42.6 50/50 030A00 36/40 163/163 15

211A00 30.0/34.6 11.3/15.0 51.8/57.0 60/60 030A00 48/53 163/163 15

212A00 40.0/46.2 15.0/20.0 64.3/71.4 70/80 031A00 59/66 163/163 16

213A00 50.0/57.7 18.8/25.0 76.8/85.9 80/90 031A00 71/80 163/163 16

High

  / 34.9/34.9 50/50  35/35 163/163 

208A00 10.0/11.5 3.8/5.0 34.9/34.9 50/50 030A00 35/35 163/163 15

209A00 15.0/17.3 5.6/7.5 34.9/35.3 50/50 030A00 35/35 163/163 15

210A00 20.0/23.1 7.5/10.0 39.3/42.6 50/50 030A00 36/40 163/163 15

211A00 30.0/34.6 11.3/15.0 51.8/57.0 60/60 030A00 48/53 163/163 15

212A00 40.0/46.2 15.0/20.0 64.3/71.4 70/80 031A00 59/66 163/163 16

213A00 50.0/57.7 18.8/25.0 76.8/85.9 80/90 031A00 71/80 163/163 16

460-3-60 414 506 7.7 50 0.8 2.6



Low

   15.2 20  15 69 

215A00 5.8 5.0 15.2 20 030A00 15 69 15

216A00 8.7 7.5 16.8 20 030A00 15 69 15

217A00 11.5 10.0 20.4 25 030A00 19 69 15

218A00 17.3 15.0 27.6 30 030A00 25 69 15

219A00 23.1 20.0 34.8 35 030A00 32 69 15

220A00 28.9 25.0 42.1 45 030A00 39 69 15

High

   15.2 20  15 69 

215A00 5.8 5.0 15.2 20 030A00 15 69 15

216A00 8.7 7.5 16.8 20 030A00 15 69 15

217A00 11.5 10.0 20.4 25 030A00 19 69 15

218A00 17.3 15.0 27.6 30 030A00 25 69 15

219A00 23.1 20.0 34.8 35 030A00 32 69 15

220A00 28.9 25.0 42.1 45 030A00 39 69 15

0.6

Low

   15.8 20  16 70 

215A00 5.8 5.0 15.8 20 030A00 16 70 15

216A00 8.7 7.5 17.5 20 030A00 16 70 15

217A00 11.5 10.0 21.2 25 030A00 19 70 15

218A00 17.3 15.0 28.4 30 030A00 26 70 15

219A00 23.1 20.0 35.6 40 030A00 33 70 15

220A00 28.9 25.0 42.8 45 030A00 39 70 15

High

   15.8 20  16 70 

215A00 5.8 5.0 15.8 20 030A00 16 70 15

216A00 8.7 7.5 17.5 20 030A00 16 70 15

217A00 11.5 10.0 21.2 25 030A00 19 70 15

218A00 17.3 15.0 28.4 30 030A00 26 70 15

219A00 23.1 20.0 35.6 40 030A00 33 70 15

220A00 28.9 25.0 42.8 45 030A00 39 70 15

575-3-60 518 632 6.1 40.0 0.8 2.0



Low

   12.1 15  12 54 

221A00 9.2 10.0 16.2 20 030A00 15 54 15

222A00 13.9 15.0 22.0 25 030A00 20 54 15

223A00 18.5 20.0 27.8 30 030A00 26 54 15

254A00 23.1 25.0 33.5 35 030A00 31 54 15

High

   13.5 15  14 56 

221A00 9.2 10.0 18.0 20 030A00 17 56 15

222A00 13.9 15.0 23.7 25 030A00 22 56 15

223A00 18.5 20.0 29.5 30 030A00 27 56 15

254A00 23.1 25.0 35.3 35 030A00 32 56 15

1.4

Low

   12.1 20  12 54 

221A00 9.2 10.0 16.2 20 030A00 15 54 15

222A00 13.9 15.0 22.0 25 030A00 20 54 15

223A00 18.5 20.0 27.8 30 030A00 26 54 15

254A00 23.1 25.0 33.5 40 030A00 31 54 15

High

   13.5 20  14 56 

221A00 9.2 10.0 18.0 20 030A00 17 56 15

222A00 13.9 15.0 23.7 25 030A00 22 56 15

223A00 18.5 20.0 29.5 30 030A00 27 56 15

254A00 23.1 25.0 35.3 40 030A00 32 56 15

50PG03−16

Table 2 — Electrical Data — Units With Optional Powered Convenience Outlet (cont)

UNIT

50PG

NOMINAL

POWER

SUPPLY

VOLTS-PH-HZ

VOLTAGE

RANGE COMPRESSOR

OFM

FLA

IFM

FLA

POWER

EXHAUST

FLA

IFM

TYPE

ELECTRIC HEAT POWER SUPPLY CRSINGLE

PART NO.

(NOTE3)

DISCONNECT SIZE

WIRING

FIG. NO.

MIN MAX RLA LRA CRHEATER

PART NO. FLA NOMINAL

KW* MCA MOCP† FLA LRA

208/230-3-60 187 253 20.5 149 1.5

5.2



Low

  / 37.2/37.2 50/50  37/37 187/187 

208A00 10.0/11.5 3.8/5.0 37.2/37.2 50/50 030A00 37/37 187/187 15

209A00 15.0/17.3 5.6/7.5 37.2/37.2 50/50 030A00 37/37 187/187 15

210A00 20.0/23.1 7.5/10.0 37.5/40.8 50/50 030A00 37/38 187/187 15

211A00 30.0/34.6 11.3/15.0 50.0/55.2 50/50 030A00 46/51 187/187 15

212A00 40.0/46.2 15.0/20.0 62.5/69.7 60/70 031A00 58/65 187/187 16

213A00 50.0/57.7 18.8/25.0 75.1/84.1 70/80 031A00 69/78 187/187 16

7.5 High

  / 39.5/39.5 50/50  39/39 213/213 

208A00 10.0/11.5 3.8/5.0 39.5/39.5 50/50 030A00 39/39 213/213 15

209A00 15.0/17.3 5.6/7.5 39.5/39.5 50/50 030A00 39/39 213/213 15

210A00 20.0/23.1 7.5/10.0 40.4/43.7 50/50 030A00 39/41 213/213 15

211A00 30.0/34.6 11.3/15.0 52.9/58.1 60/60 030A00 49/54 213/213 15

212A00 40.0/46.2 15.0/20.0 65.4/72.5 70/80 031A00 60/67 213/213 16

213A00 50.0/57.7 18.8/25.0 77.9/87.0 80/90 031A00 72/81 213/213 16

5.2

1.4

Low

  / 38.6/38.6 50/50  38/38 189/189 

208A00 10.0/11.5 3.8/5.0 38.6/38.6 50/50 030A00 38/38 189/189 15

209A00 15.0/17.3 5.6/7.5 38.6/38.6 50/50 030A00 38/38 189/189 15

210A00 20.0/23.1 7.5/10.0 39.3/42.6 50/50 030A00 38/40 189/189 15

211A00 30.0/34.6 11.3/15.0 51.8/57.0 60/60 030A00 48/53 189/189 15

212A00 40.0/46.2 15.0/20.0 64.3/71.4 70/80 031A00 59/66 189/189 16

213A00 50.0/57.7 18.8/25.0 76.8/85.9 80/90 031A00 71/80 189/189 16

7.5 High

  / 40.9/40.9 60/60  41/41 214/214 

208A00 10.0/11.5 3.8/5.0 40.9/40.9 60/60 030A00 41/41 214/214 15

209A00 15.0/17.3 5.6/7.5 40.9/40.9 60/60 030A00 41/41 214/214 15

210A00 20.0/23.1 7.5/10.0 42.2/45.4 60/60 030A00 41/42 214/214 15

211A00 30.0/34.6 11.3/15.0 54.7/59.9 60/70 031A00 50/56 214/214 15

212A00 40.0/46.2 15.0/20.0 67.2/74.3 70/80 031A00 62/69 214/214 16

213A00 50.0/57.7 18.8/25.0 79.7/88.7 80/90 031A00 73/82 214/214 16

460-3-60 414 506 9.6 75 0.8

2.6



Low

   17.6 25  17 94 

215A00 5.8 5.0 17.6 25 030A00 17 94 15

216A00 8.7 7.5 17.6 25 030A00 17 94 15

217A00 11.5 10.0 20.4 25 030A00 19 94 15

218A00 17.3 15.0 27.6 30 030A00 25 94 15

219A00 23.1 20.0 34.8 35 030A00 32 94 15

220A00 28.9 25.0 42.1 45 030A00 39 94 15

3.4 High

   18.4 25  18 107 

215A00 5.8 5.0 18.4 25 030A00 18 107 15

216A00 8.7 7.5 18.4 25 030A00 18 107 15

217A00 11.5 10.0 21.4 25 030A00 20 107 15

218A00 17.3 15.0 28.6 30 030A00 26 107 15

219A00 23.1 20.0 35.8 40 030A00 33 107 15

220A00 28.9 25.0 43.1 45 030A00 40 107 15

2.6

0.6

Low

   18.2 25  18 95 

215A00 5.8 5.0 18.2 25 030A00 18 95 15

216A00 8.7 7.5 18.2 25 030A00 18 95 15

217A00 11.5 10.0 21.2 25 030A00 19 95 15

218A00 17.3 15.0 28.4 30 030A00 26 95 15

219A00 23.1 20.0 35.6 40 030A00 33 95 15

220A00 28.9 25.0 42.8 45 030A00 39 95 15

3.4 High

   19.0 25  19 108 

215A00 5.8 5.0 19.0 25 030A00 19 108 15

216A00 8.7 7.5 19.0 25 030A00 19 108 15

217A00 11.5 10.0 22.2 25 030A00 20 108 15

218A00 17.3 15.0 29.4 30 030A00 27 108 15

219A00 23.1 20.0 36.6 40 030A00 34 108 15

220A00 28.9 25.0 43.8 45 030A00 40 108 15

LEGEND

FLA − Full Load Amps

HACR − Heating, Air Conditioning and Refrigeration

IFM − Indoor − Fan Motor

LRA − Locked Rotor Amps

MCA − Minimum Circuit Amps

MOCP − Maximum Overcurrent Protection

NEC − National Electrical Code

OFM − Outdoor−Fan Motor

RLA − Rated Load Amps

* Heater capacity (kW) is based on heater voltage of 208 v, 240 v, or 480 v. If power distribu-

tion voltage to unit varies from rated heater voltage, heater kW will vary accordingly.

† Fuse or HACR circuit breaker.

NOTES:

1. In compliance with NEC requirements for multimotor and combination load equip-

ment (refer to NEC Articles 430 and 440), the overcurrent protective device for the

unit shall be fuse or HACR breaker.

2. Unbalanced 3-Phase Supply Voltage

Never operate a motor where a phase imbalance in supply voltage is greater than

2%. Use the following formula to determine the percentage of voltage imbalance.

% Voltage Imbalance = 100 x

max voltage deviation from average voltage

average voltage

Example: Supply voltage is 460-3-60

AB = 224 v

BC = 231 v

AC = 226 v

Average Voltage = 224 + 231 + 226

681

227

Determine maximum deviation from average voltage.

(AB) 227 – 223 = 3 v

(BC) 231 – 227 = 4 v

(AC) 227 – 226 = 1 v

Maximum deviation is 4 v.

Determine percent of voltage imbalance.

% Voltage Imbalance = 100 x

227

= 1.76%

This amount of phase imbalance is satisfactory as it is below the maximum allowable 2%.

IMPORTANT: If the supply voltage phase imbalance is more than 2%, contact your local electric

utility company immediately.

3. Single point kits CRSINGLE028A00 and CRSINGLE030A00 are not required if

field−supplied pressure connectors are used.

50PG03−16

Table 2 — Electrical Data — Units With Optional Powered Convenience Outlet (cont)

UNIT

50PG

NOMINAL

POWER SUPPLY

VOLTS-PH-HZ

VOLTAGE

RANGE COMPRESSOR

OFM

FLA

IFM

FLA

POWER

EXHAUST

FLA

IFM

TYPE

ELECTRIC HEAT POWER SUPPLY CRSINGLE

PART NO.

(NOTE3)

DISCONNECT SIZE

WIRING

FIG. NO.

MIN MAX RLA LRA CRHEATER

PART NO. FLA NOMINAL

KW* MCA MOCP† FLA LRA

(cont) 575-3-60 518 632 7.6 54.0 0.8

2.0



Low

   14.1 20  14 68 

221A00 9.2 10.0 16.2 20 030A00 15 68 15

222A00 13.9 15.0 22.0 25 030A00 20 68 15

223A00 18.5 20.0 27.8 30 030A00 26 68 15

254A00 23.1 25.0 33.5 35 030A00 31 68 15

224A00 27.7 30.0 39.3 40 030A00 36 68 15

2.8 High

   15.1 20  15 77 

221A00 9.2 10.0 17.2 20 030A00 16 77 15

222A00 13.9 15.0 23.0 25 030A00 21 77 15

223A00 18.5 20.0 28.8 30 030A00 26 77 15

254A00 23.1 25.0 34.5 35 030A00 32 77 15

224A00 27.7 30.0 40.3 45 030A00 37 77 15

2.0

1.4

Low

   15.4 20  15 70 

221A00 9.2 10.0 18.0 20 030A00 17 70 15

222A00 13.9 15.0 23.7 25 030A00 22 70 15

223A00 18.5 20.0 29.5 30 030A00 27 70 15

254A00 23.1 25.0 35.3 40 030A00 32 70 15

224A00 27.7 30.0 41.1 45 030A00 38 70 15

2.8 High

   16.2 20  16 81 

221A00 9.2 10.0 19.0 20 030A00 17 81 15

222A00 13.9 15.0 24.7 25 030A00 23 81 15

223A00 18.5 20.0 30.5 35 030A00 28 81 15

254A00 23.1 25.0 36.3 40 030A00 33 81 15

224A00 27.7 30.0 42.1 45 030A00 39 81 15

208/230-3-60 187 253 13.5 88 1.5

5.2



Low

  / 43.3/43.3 50/50  46/46 217/217 

225A00 20.0/23.1 7.5/10.0 43.3/43.3 50/50 030A00 46/46 217/217 15

226A00 30.0/34.6 11.3/15.0 50.0/55.2 60/60 030A00 46/51 217/217 15

227A00 50.0/57.7 18.8/25.0 75.1/84.1 80/90 031A00 69/78 217/217 16

228A00 70.0/80.8 26.3/35.0 100.1/113.0 110/125 031A00 92/104 217/217 17

229A00 80.0/92.4 30.0/40.0 112.6/127.4 125/150 031A00 104/118 217/217 17

7.5 High

  / 45.6/45.6 50/50  49/49 243/243 

225A00 20.0/23.1 7.5/10.0 45.6/45.6 50/50 030A00 49/49 243/243 15

226A00 30.0/34.6 11.3/15.0 52.9/58.1 60/60 030A00 49/54 243/243 15

227A00 50.0/57.7 18.8/25.0 77.9/87.0 80/90 031A00 72/81 243/243 16

228A00 70.0/80.8 26.3/35.0 102.9/115.9 110/125 031A00 95/107 243/243 17

229A00 80.0/92.4 30.0/40.0 115.4/130.3 125/150 031A00 106/120 243/243 17

5.2

3.0

Low

  / 46.3/46.3 50/50  49/49 221/221 

225A00 20.0/23.1 7.5/10.0 46.3/46.3 50/50 030A00 49/49 221/221 15

226A00 30.0/34.6 11.3/15.0 53.8/59.0 60/60 030A00 49/55 221/221 15

227A00 50.0/57.7 18.8/25.0 78.8/87.9 80/90 031A00 72/81 221/221 16

228A00 70.0/80.8 26.3/35.0 103.8/116.7 110/125 031A00 96/108 221/221 17

229A00 80.0/92.4 30.0/40.0 116.3/131.2 125/150 031A00 107/121 221/221 17

7.5 High

  / 48.6/48.6 60/60  52/52 247/247 

225A00 20.0/23.1 7.5/10.0 48.6/48.6 60/60 030A00 52/52 247/247 15

226A00 30.0/34.6 11.3/15.0 56.7/61.9 60/70 031A00 52/57 247/247 15

227A00 50.0/57.7 18.8/25.0 81.7/90.7 90/100 031A00 75/84 247/247 16

228A00 70.0/80.8 26.3/35.0 106.7/119.6 110/125 031A00 98/111 247/247 17

229A00 80.0/92.4 30.0/40.0 119.2/134.0 125/150 031A00 110/124 247/247 17

460-3-60 414 506 6.4 39 0.8

2.6



Low

   20.8 25  22 98 

232A00 11.5 10.0 20.8 25 030A00 22 98 15

233A00 17.3 15.0 27.6 30 030A00 25 98 15

234A00 28.9 25.0 42.1 45 030A00 39 98 15

235A00 40.4 35.0 56.5 60 030A00 52 98 15

236A00 46.2 40.0 63.7 70 033A00 59 98 19

3.4 High

   21.6 25  23 111 

232A00 11.5 10.0 21.6 25 030A00 23 111 15

233A00 17.3 15.0 28.6 30 030A00 26 111 15

234A00 28.9 25.0 43.1 45 030A00 40 111 15

235A00 40.4 35.0 57.5 60 030A00 53 111 15

236A00 46.2 40.0 64.7 70 033A00 60 111 19

2.6

1.2

Low

   22.0 25  23 101 

232A00 11.5 10.0 22.0 25 030A00 23 101 15

233A00 17.3 15.0 29.1 30 030A00 27 101 15

234A00 28.9 25.0 43.6 45 030A00 40 101 15

235A00 40.4 35.0 58.0 60 030A00 53 101 15

236A00 46.2 40.0 65.2 70 033A00 60 101 19

3.4 High

   22.8 25  24 114 

232A00 11.5 10.0 22.9 25 030A00 24 114 15

233A00 17.3 15.0 30.1 35 030A00 28 114 15

234A00 28.9 25.0 44.6 45 030A00 41 114 15

235A00 40.4 35.0 59.0 60 030A00 54 114 15

236A00 46.2 40.0 66.2 70 033A00 61 114 19

50PG03−16

Table 2 — Electrical Data — Units With Optional Powered Convenience Outlet (cont)

UNIT

50PG

NOMINAL

POWER

SUPPLY

VOLTS-PH-HZ

VOLTAGE

RANGE COMPRESSOR

OFM

FLA

IFM

FLA

POWER

EXHAUST

FLA

IFM

TYPE

ELECTRIC HEAT POWER SUPPLY CRSINGLE

PART NO.

(NOTE3)

DISCONNECT SIZE

WIRING

FIG. NO.

MIN MAX RLA LRA CRHEATER

PART NO. FLA NOMINAL

KW* MCA MOCP† FLA LRA

(cont)

575-3-60 518 632 6.4 30.0 0.8 2.0 

Low

   20.1 20  21 86 

239A00 13.9 15.0 22.0 25 030A00 21 86 15

240A00 23.1 25.0 33.5 35 030A00 31 86 15

241A00 32.3 35.0 45.1 50 030A00 41 86 15

242A00 37.0 40.0 50.9 60 030A00 47 86 15

High

   20.6 20  22 104 

239A00 13.9 15.0 23.0 25 030A00 22 104 15

240A00 23.1 25.0 34.5 35 030A00 32 104 15

241A00 32.3 35.0 46.1 50 030A00 42 104 15

242A00 37.0 40.0 51.9 60 030A00 48 104 15

575-3-60 518 632 6.4 30.0 0.8 2.8 3.0

Low

   19.9 25  21 88 

239A00 13.9 15.0 25.7 30 030A00 24 88 15

240A00 23.1 25.0 37.3 40 030A00 34 88 15

241A00 32.3 35.0 48.8 50 030A00 45 88 15

242A00 37.0 40.0 54.6 60 030A00 50 88 15

High

   20.7 25  22 100 

239A00 13.9 15.0 26.7 30 030A00 25 100 15

240A00 23.1 25.0 38.3 40 030A00 35 100 15

241A00 32.3 35.0 49.8 50 030A00 46 100 15

242A00 37.0 40.0 55.6 60 030A00 51 100 15

208/230-3-60 187 253 16.0 91 1.5

5.2



Low

  / 49.1/49.1 60/60  52/52 223/223 

225A00 20.0/23.1 7.5/10.0 49.1/49.1 60/60 030A00 52/52 223/223 15

226A00 30.0/34.6 11.3/15.0 50.0/55.2 60/60 030A00 52/52 223/223 15

227A00 50.0/57.7 18.8/25.0 75.1/84.1 80/90 031A00 69/78 223/223 16

228A00 70.0/80.8 26.3/35.0 100.1/113.0 110/125 031A00 92/104 223/223 17

229A00 80.0/92.4 30.0/40.0 112.6/127.4 125/150 031A00 104/118 223/223 17

10.2 High

  / 54.1/54.1 60/60  58/58 266/266 

225A00 20.0/23.1 7.5/10.0 54.1/54.1 60/60 031A00 58/58 266/266 15

226A00 30.0/34.6 11.3/15.0 56.3/61.5 60/70 031A00 58/58 266/266 15

227A00 50.0/57.7 18.8/25.0 81.3/90.4 90/100 031A00 75/84 266/266 16

228A00 70.0/80.8 26.3/35.0 106.3/119.2 110/125 031A00 98/110 266/266 17

229A00 80.0/92.4 30.0/40.0 118.8/133.7 125/150 031A00 109/123 266/266 17

5.2

3.0

Low

  / 52.1/52.1 60/60  55/55 227/227 

225A00 20.0/23.1 7.5/10.0 52.1/52.1 60/60 031A00 55/55 227/227 15

226A00 30.0/34.6 11.3/15.0 53.8/59.0 60/60 031A00 55/55 227/227 15

227A00 50.0/57.7 18.8/25.0 78.8/87.9 80/90 031A00 72/81 227/227 16

228A00 70.0/80.8 26.3/35.0 103.8/116.7 110/125 031A00 96/108 227/227 17

229A00 80.0/92.4 30.0/40.0 116.3/131.2 125/150 031A00 107/121 227/227 17

10.2 High

  / 57.1/57.1 70/70  61/61 270/270 

225A00 20.0/23.1 7.5/10.0 57.1/57.1 70/70 030A00 61/61 270/270 15

226A00 30.0/34.6 11.3/15.0 60.0/65.2 70/70 030A00 61/61 270/270 15

227A00 50.0/57.7 18.8/25.0 85.1/94.1 90/100 031A00 78/87 270/270 16

228A00 70.0/80.8 26.3/35.0 110.1/123.0 125/125 031A00 101/114 270/270 17

229A00 80.0/92.4 30.0/40.0 122.6/137.4 125/150 031A00 113/127 270/270 17

460-3-60 414 506 7.1 46 0.8

2.6



Low

   22.2 25  24 112 

232A00 11.5 10.0 22.2 25 030A00 24 112 15

233A00 17.3 15.0 27.6 30 030A00 25 112 15

234A00 28.9 25.0 42.1 45 030A00 39 112 15

235A00 40.4 35.0 56.5 60 030A00 52 112 15

236A00 46.2 40.0 63.7 70 033A00 59 112 19

4.8 High

   24.4 30  26 134 

232A00 11.5 10.0 24.4 30 030A00 26 134 15

233A00 17.3 15.0 30.4 35 030A00 28 134 15

234A00 28.9 25.0 44.8 45 030A00 41 134 15

235A00 40.4 35.0 59.2 60 030A00 54 134 15

236A00 46.2 40.0 66.5 70 033A00 61 134 19

LEGEND

FLA − Full Load Amps

HACR − Heating, Air Conditioning and Refrigeration

IFM − Indoor − Fan Motor

LRA − Locked Rotor Amps

MCA − Minimum Circuit Amps

MOCP − Maximum Overcurrent Protection

NEC − National Electrical Code

OFM − Outdoor−Fan Motor

RLA − Rated Load Amps

* Heater capacity (kW) is based on heater voltage of 208 v, 240 v, or 480 v. If power distribu-

tion voltage to unit varies from rated heater voltage, heater kW will vary accordingly.

† Fuse or HACR circuit breaker.

NOTES:

1. In compliance with NEC requirements for multimotor and combination load equip-

ment (refer to NEC Articles 430 and 440), the overcurrent protective device for the

unit shall be fuse or HACR breaker.

2. Unbalanced 3-Phase Supply Voltage

Never operate a motor where a phase imbalance in supply voltage is greater than

2%. Use the following formula to determine the percentage of voltage imbalance.

% Voltage Imbalance = 100 x

max voltage deviation from average voltage

average voltage

Example: Supply voltage is 460-3-60

AB = 224 v

BC = 231 v

AC = 226 v

Average Voltage = 224 + 231 + 226

681

227

Determine maximum deviation from average voltage.

(AB) 227 – 223 = 3 v

(BC) 231 – 227 = 4 v

(AC) 227 – 226 = 1 v

Maximum deviation is 4 v.

Determine percent of voltage imbalance.

% Voltage Imbalance = 100 x

227

= 1.76%

This amount of phase imbalance is satisfactory as it is below the maximum allowable 2%.

IMPORTANT: If the supply voltage phase imbalance is more than 2%, contact your local electric

utility company immediately.

3. Single point kits CRSINGLE028A00 and CRSINGLE030A00 are not required if

field−supplied pressure connectors are used.

50PG03−16

Table 2 — Electrical Data — Units With Optional Powered Convenience Outlet (cont)

UNIT

50PG

NOMINAL

POWER

SUPPLY

VOLTS-PH-HZ

VOLTAGE

RANGE COMPRESSOR

OFM

FLA

IFM

FLA

POWER

EXHAUST

FLA

IFM

TYPE

ELECTRIC HEAT POWER SUPPLY CRSINGLE

PART NO.

(NOTE3)

DISCONNECT SIZE

WIRING

FIG. NO.

MIN MAX RLA LRA CRHEATER

PART NO. FLA NOMINAL

KW* MCA MOCP† FLA LRA

(cont)

460-3-60

(cont) 414 506 7.1 46 0.8

2.6

1.2

Low

   23.4 30  25 115 

232A00 11.5 10.0 23.4 30 030A00 25 115 15

233A00 17.3 15.0 29.1 30 030A00 27 115 15

234A00 28.9 25.0 43.6 45 030A00 40 115 15

235A00 40.4 35.0 58.0 60 030A00 53 115 15

236A00 46.2 40.0 65.2 70 033A00 60 115 19

4.8 High

   25.6 30  27 136 

232A00 11.5 10.0 25.6 30 030A00 27 136 15

233A00 17.3 15.0 31.9 35 030A00 29 136 15

234A00 28.9 25.0 46.3 50 030A00 43 136 15

235A00 40.4 35.0 60.7 70 033A00 56 136 15

236A00 46.2 40.0 68.0 70 033A00 63 136 19

575-3-60 518 632 5.6 37.0 0.8

2.0



Low

   17.9 20  19 100 

239A00 13.9 15.0 22.0 25 030A00 20 100 15

240A00 23.1 25.0 33.5 35 030A00 31 100 15

241A00 32.3 35.0 45.1 50 030A00 41 100 15

242A00 37.0 40.0 50.9 60 030A00 47 100 15

3.3 High

   19.2 25  21 138 

239A00 13.9 15.0 23.6 25 030A00 22 138 15

240A00 23.1 25.0 35.2 35 030A00 32 138 15

241A00 32.3 35.0 46.7 50 030A00 43 138 15

242A00 37.0 40.0 52.5 60 030A00 48 138 15

2.0

3.0

Low

   20.9 25  22 94 

239A00 13.9 15.0 25.7 30 030A00 24 94 15

240A00 23.1 25.0 37.3 40 030A00 34 94 15

241A00 32.3 35.0 48.8 50 030A00 45 94 15

242A00 37.0 40.0 54.6 60 030A00 50 94 15

3.3 High

   21.7 25  23 105 

239A00 13.9 15.0 26.7 30 030A00 25 105 15

240A00 23.1 25.0 38.3 40 030A00 35 105 15

241A00 32.3 35.0 49.8 50 030A00 46 105 15

242A00 37.0 40.0 55.6 60 030A00 51 105 15

208/230-3-60 187 253 17.6 123 1.9

7.5



Low

  / 55.8/55.8 70/70  59/59 318/318 

225A00 20.0/23.1 7.5/10.0 55.8/55.8 70/70 031A00 59/59 318/318 15

226A00 30.0/34.6 11.3/15.0 55.8/58.1 70/70 031A00 59/59 318/318 15

227A00 50.0/57.7 18.8/25.0 77.9/87.0 80/90 031A00 72/81 318/318 16

228A00 70.0/80.8 26.3/35.0 102.9/115.9 110/125 031A00 95/107 318/318 17

229A00 80.0/92.4 30.0/40.0 115.4/130.3 125/150 031A00 106/120 318/318 17

230A00 100.1/115.5 37.6/50.0 140.5/130.3 150/150 031A00 129/147 318/318 17

10.2 High

  / 58.5/58.5 70/70  62/62 335/335 

225A00 20.0/23.1 7.5/10.0 58.5/58.5 70/70 031A00 62/62 335/335 15

226A00 30.0/34.6 11.3/15.0 58.5/61.5 70/70 031A00 62/62 335/335 16

227A00 50.0/57.7 18.8/25.0 81.3/90.4 90/100 031A00 75/84 335/335 16

228A00 70.0/80.8 26.3/35.0 106.3/119.2 110/125 031A00 98/110 335/335 17

229A00 80.0/92.4 30.0/40.0 118.8/133.7 125/150 031A00 109/123 335/335 17

230A00 100.1/115.5 37.6/50.0 143.8/133.7 150/150 031A00 132/150 335/335 17

7.5

3.0

Low

  / 58.8/58.8 70/70  63/63 322/322 

225A00 20.0/23.1 7.5/10.0 58.8/58.8 70/70 031A00 63/63 322/322 15

226A00 30.0/34.6 11.3/15.0 58.8/61.9 70/70 031A00 63/63 322/322 16

227A00 50.0/57.7 18.8/25.0 81.7/90.7 90/100 031A00 75/84 322/322 16

228A00 70.0/80.8 26.3/35.0 106.7/119.6 110/125 031A00 98/111 322/322 17

229A00 80.0/92.4 30.0/40.0 119.2/134.0 125/150 031A00 110/124 322/322 17

230A00 100.1/115.5 37.6/50.0 144.2/134.0 150/150 031A00 133/150 322/322 17

10.2 High

  / 61.5/61.5 70/70  66/66 339/339 

225A00 20.0/23.1 7.5/10.0 61.5/61.5 70/70 031A00 66/66 339/339 15

226A00 30.0/34.6 11.3/15.0 61.5/65.2 70/70 031A00 66/66 339/339 16

227A00 50.0/57.7 18.8/25.0 85.1/94.1 90/100 031A00 78/87 339/339 16

228A00 70.0/80.8 26.3/35.0 110.1/123.0 125/125 031A00 101/114 339/339 17

229A00 80.0/92.4 30.0/40.0 122.6/137.4 125/150 031A00 113/127 339/339 17

230A00 100.1/115.5 37.6/50.0 147.6/137.4 150/150 031A00 136/154 339/339 17

460-3-60 414 506 7.7 50 1.0

3.4



Low

   24.9 30  26 132 

232A00 11.5 10.0 24.9 30 030A00 26 132 15

233A00 17.3 15.0 28.6 30 030A00 26 132 15

234A00 28.9 25.0 43.1 45 030A00 40 132 15

235A00 40.4 35.0 57.5 60 030A00 53 132 15

236A00 46.2 40.0 64.7 70 033A00 60 132 19

237A00 57.7 50.0 64.7 70 033A00 73 132 19

4.8 High

   26.3 30  28 141 

232A00 11.5 10.0 26.3 30 030A00 28 141 15

233A00 17.3 15.0 30.4 35 030A00 28 141 15

234A00 28.9 25.0 44.8 45 030A00 41 141 15

235A00 40.4 35.0 59.2 60 030A00 54 141 15

236A00 46.2 40.0 66.5 70 033A00 61 141 19

237A00 57.7 50.0 66.5 80 033A00 74 141 19

50PG03−16

Table 2 — Electrical Data — Units With Optional Powered Convenience Outlet (cont)

UNIT

50PG

NOMINAL

POWER

SUPPLY

VOLTS-PH-HZ

VOLTAGE

RANGE COMPRESSOR

OFM

FLA

IFM

FLA

POWER

EXHAUST

FLA

IFM

TYPE

ELECTRIC HEAT POWER SUPPLY CRSINGLE

PART NO.

(NOTE3)

DISCONNECT SIZE

WIRING

FIG. NO.

MIN MAX RLA LRA CRHEATER

PART NO. FLA NOMINAL

KW* MCA MOCP† FLA LRA

(cont)

460-3-60

(cont) 414 506 7.7 50 1.0

3.4

1.2

Low

   26.1 30  28 135 

232A00 11.5 10.0 26.1 30 030A00 28 135 15

233A00 17.3 15.0 30.1 35 030A00 28 135 15

234A00 28.9 25.0 44.6 45 030A00 41 135 15

235A00 40.4 35.0 59.0 60 030A00 54 135 15

236A00 46.2 40.0 66.2 70 033A00 61 135 19

237A00 57.7 50.0 66.2 70 033A00 74 135 19

4.8 High

   27.5 30  29 143 

232A00 11.5 10.0 27.5 30 030A00 29 143 15

233A00 17.3 15.0 31.9 35 030A00 29 143 15

234A00 28.9 25.0 46.3 50 030A00 43 143 15

235A00 40.4 35.0 60.7 70 033A00 56 143 15

236A00 46.2 40.0 68.0 70 033A00 63 143 19

237A00 57.7 50.0 68.0 80 033A00 76 143 19

575-3-60 518 632 6.1 40.0 0.8

2.8



Low

   20.1 25  21 124 

239A00 13.9 15.0 23.0 25 030A00 21 124 15

240A00 23.1 25.0 34.5 35 030A00 32 124 15

241A00 32.3 35.0 46.1 50 030A00 42 124 15

242A00 37.0 40.0 51.9 60 030A00 48 124 15

243A00 46.2 50.0 51.9 60 030A00 58 124 15

3.3 High

   20.4 25  22 144 

239A00 13.9 15.0 23.6 25 030A00 22 144 15

240A00 23.1 25.0 35.2 35 030A00 32 144 15

241A00 32.3 35.0 46.7 50 030A00 43 144 15

242A00 37.0 40.0 52.5 60 030A00 48 144 15

243A00 46.2 50.0 52.5 60 030A00 59 144 15

2.8

3.0

Low

   22.8 25  25 111 

239A00 13.9 15.0 26.7 30 030A00 25 111 15

240A00 23.1 25.0 38.3 40 030A00 35 111 15

241A00 32.3 35.0 49.8 50 030A00 46 111 15

242A00 37.0 40.0 55.6 60 030A00 51 111 15

243A00 46.2 50.0 55.6 60 030A00 62 111 15

3.3 High

   22.8 25  25 111 

239A00 13.9 15.0 26.7 30 030A00 25 111 15

240A00 23.1 25.0 38.3 40 030A00 35 111 15

241A00 32.3 35.0 49.8 50 030A00 46 111 15

242A00 37.0 40.0 55.6 60 030A00 51 111 15

243A00 46.2 50.0 55.6 60 030A00 62 111 15

14 208/230-3-60 187 253 22.4 149 1.9

10.2



Low

  / 69.3/69.3 90/90  73/73 387/387 

225A00 20.0/23.1 7.5/10.0 69.3/69.3 90/90 032A00 73/73 387/387 18

226A00 30.0/34.6 11.3/15.0 69.3/69.3 90/90 032A00 73/73 387/387 18

227A00 50.0/57.7 18.8/25.0 81.3/90.4 90/100 032A00 75/84 387/387 18

228A00 70.0/80.8 26.3/35.0 106.3/119.2 110/125 032A00 98/110 387/387 18

230A00 100.1/115.5 37.6/50.0 143.8/133.7 150/150 032A00 132/150 387/387 18

231A00 120.1/138.6 45.1/60.0 168.9/156.8 175/175 032A00 155/177 387/387 18

15.0 High

  / 74.1/74.1 90/90  79/79 396/396 

225A00 20.0/23.1 7.5/10.0 74.1/74.1 90/90 032A00 79/79 396/396 18

226A00 30.0/34.6 11.3/15.0 74.1/74.1 90/90 032A00 79/79 396/396 18

227A00 50.0/57.7 18.8/25.0 87.3/96.4 90/100 032A00 80/89 396/396 18

228A00 70.0/80.8 26.3/35.0 112.3/125.2 125/150 032A00 103/116 396/396 18

230A00 100.1/115.5 37.6/50.0 149.8/139.7 150/150 032A00 138/156 396/396 18

231A00 120.1/138.6 45.1/60.0 174.9/162.8 175/175 032A00 161/182 396/396 18

LEGEND

FLA − Full Load Amps

HACR − Heating, Air Conditioning and Refrigeration

IFM − Indoor − Fan Motor

LRA − Locked Rotor Amps

MCA − Minimum Circuit Amps

MOCP − Maximum Overcurrent Protection

NEC − National Electrical Code

OFM − Outdoor−Fan Motor

RLA − Rated Load Amps

* Heater capacity (kW) is based on heater voltage of 208 v, 240 v, or 480 v. If power distribu-

tion voltage to unit varies from rated heater voltage, heater kW will vary accordingly.

† Fuse or HACR circuit breaker.

NOTES:

1. In compliance with NEC requirements for multimotor and combination load equip-

ment (refer to NEC Articles 430 and 440), the overcurrent protective device for the

unit shall be fuse or HACR breaker.

2. Unbalanced 3-Phase Supply Voltage

Never operate a motor where a phase imbalance in supply voltage is greater than

2%. Use the following formula to determine the percentage of voltage imbalance.

% Voltage Imbalance = 100 x

max voltage deviation from average voltage

average voltage

Example: Supply voltage is 460-3-60

AB = 224 v

BC = 231 v

AC = 226 v

Average Voltage = 224 + 231 + 226

681

227

Determine maximum deviation from average voltage.

(AB) 227 – 223 = 3 v

(BC) 231 – 227 = 4 v

(AC) 227 – 226 = 1 v

Maximum deviation is 4 v.

Determine percent of voltage imbalance.

% Voltage Imbalance = 100 x

227

= 1.76%

This amount of phase imbalance is satisfactory as it is below the maximum allowable 2%.

IMPORTANT: If the supply voltage phase imbalance is more than 2%, contact your local electric

utility company immediately.

3. Single point kits CRSINGLE028A00 and CRSINGLE030A00 are not required if

field−supplied pressure connectors are used.

50PG03−16

Table 2 — Electrical Data — Units With Optional Powered Convenience Outlet (cont)

UNIT

50PG

NOMINAL

POWER

SUPPLY

VOLTS-PH-HZ

VOLTAGE

RANGE COMPRESSOR

OFM

FLA

IFM

FLA

POWER

EXHAUST

FLA

IFM

TYPE

ELECTRIC HEAT POWER SUPPLY CRSINGLE

PART NO.

(NOTE3)

DISCONNECT SIZE

WIRING

FIG. NO.

MIN MAX RLA LRA CRHEATER

PART NO. FLA NOMINAL

KW* MCA MOCP† FLA LRA

(cont)

208/230-3-60

(cont) 187 253 22.4 149 1.9

10.2

3.0

Low

  / 72.3/72.3 90/90  77/77 391/391 

225A00 20.0/23.1 7.5/10.0 72.3/72.3 90/90 032A00 77/77 391/391 18

226A00 30.0/34.6 11.3/15.0 72.3/72.3 90/90 032A00 77/77 391/391 18

227A00 50.0/57.7 18.8/25.0 85.1/94.1 90/100 032A00 78/87 391/391 18

228A00 70.0/80.8 26.3/35.0 110.1/123.0 125/125 032A00 101/114 391/391 18

230A00 100.1/115.5 37.6/50.0 147.6/137.4 150/150 032A00 136/154 391/391 18

231A00 120.1/138.6 45.1/60.0 172.6/160.5 175/175 032A00 159/180 391/391 18

15.0 High

  / 77.1/77.1 90/90  82/82 400/400 

225A00 20.0/23.1 7.5/10.0 77.1/77.1 90/90 032A00 82/82 400/400 18

226A00 30.0/34.6 11.3/15.0 77.1/77.1 90/90 032A00 82/82 400/400 18

227A00 50.0/57.7 18.8/25.0 91.1/100.1 100/110 032A00 84/93 400/400 18

228A00 70.0/80.8 26.3/35.0 116.1/129.0 125/150 032A00 107/119 400/400 18

230A00 100.1/115.5 37.6/50.0 153.6/143.4 175/150 032A00 141/159 400/400 18

231A00 120.1/138.6 45.1/60.0 178.6/166.5 200/175 032A00 164/186 400/400 18

460-3-60 414 506 10.6 75 1.0

4.8



Low

   32.8 40  35 192 

232A00 11.5 10.0 32.8 40 030A00 35 192 15

233A00 17.3 15.0 32.8 40 030A00 35 192 15

234A00 28.9 25.0 44.8 45 030A00 41 192 15

235A00 40.4 35.0 59.2 60 030A00 54 192 15

237A00 57.7 50.0 66.5 80 033A00 74 192 19

238A00 69.3 60.0 78.0 90 033A00 88 192 19

7.4 High

   35.4 45  38 196 

232A00 11.5 10.0 35.4 45 030A00 38 196 15

233A00 17.3 15.0 35.4 45 030A00 38 196 15

234A00 28.9 25.0 48.1 50 030A00 44 196 15

235A00 40.4 35.0 62.5 70 033A00 57 196 15

237A00 57.7 50.0 69.7 80 033A00 77 196 19

238A00 69.3 60.0 81.3 90 033A00 91 196 19

4.8

1.2

Low

   34.0 40  36 194 

232A00 11.5 10.0 34.0 40 030A00 36 194 15

233A00 17.3 15.0 34.0 40 030A00 36 194 15

234A00 28.9 25.0 46.3 50 030A00 43 194 15

235A00 40.4 35.0 60.7 70 033A00 56 194 15

237A00 57.7 50.0 68.0 80 033A00 76 194 19

238A00 69.3 60.0 79.5 90 033A00 89 194 19

7.4 High

   36.6 45  39 199 

232A00 11.5 10.0 36.6 45 030A00 39 199 15

233A00 17.3 15.0 36.6 45 030A00 39 199 15

234A00 28.9 25.0 49.6 50 030A00 46 199 15

235A00 40.4 35.0 64.0 70 033A00 59 199 19

237A00 57.7 50.0 71.2 80 033A00 79 199 19

238A00 69.3 60.0 82.8 90 033A00 92 199 19

575-3-60 518 632 10.6 59.0 0.8

3.3



Low

   30.4 30  32 182 

239A00 13.9 15.0 30.4 30 030A00 32 182 15

240A00 23.1 25.0 35.2 35 030A00 32 182 15

241A00 32.3 35.0 46.7 50 030A00 43 182 15

242A00 37.0 40.0 52.5 60 030A00 48 182 15

243A00 46.2 50.0 52.5 60 030A00 59 182 15

244A00 55.4 60.0 61.7 70 033A00 70 182 19

5.6 High

   32.7 30  35 193 

239A00 13.9 15.0 32.7 30 030A00 35 193 15

240A00 23.1 25.0 38.0 40 030A00 35 193 15

241A00 32.3 35.0 49.6 50 030A00 46 183 15

242A00 37.0 40.0 55.4 60 030A00 51 193 15

243A00 46.2 50.0 55.4 60 030A00 62 183 15

244A00 55.4 60.0 65.1 70 033A00 72 193 19

3.3

3.0

Low

   26.4 30  28 139 

239A00 13.9 15.0 26.7 30 030A00 28 139 15

240A00 23.1 25.0 38.3 40 030A00 35 139 15

241A00 32.3 35.0 49.8 50 030A00 46 139 15

242A00 37.0 40.0 55.6 60 030A00 51 139 15

243A00 46.2 50.0 55.6 60 030A00 62 139 15

244A00 55.4 60.0 64.9 70 033A00 72 139 19

5.6 High

   29.2 35  31 153 

239A00 13.9 15.0 30.2 35 030A00 31 153 15

240A00 23.1 25.0 41.8 45 030A00 38 153 15

241A00 32.3 35.0 53.3 60 030A00 49 153 15

242A00 37.0 40.0 59.1 60 030A00 54 153 15

243A00 46.2 50.0 59.1 60 030A00 65 153 15

244A00 55.4 60.0 68.4 70 033A00 76 153 19

See legend pg. 32.

50PG03−16

Table 2 — Electrical Data — Units With Optional Powered Convenience Outlet (cont)

UNIT

50PG

NOMINAL

POWER

SUPPLY

(V-PH-HZ)

VOLTAGE

RANGE

COMPR

NO. 1

COMPR

NO. 2

COMPR

NO. 3OFM POWER

EXHAUST IFM

TYPE

IFM ELECTRIC HEAT POWER SUPPLY CRSINGLE

PART NO.

(NOTE 3)

DISCONNECT SIZE WIRING

FIG.

NO.

MIN MAX RLA LRA RLA LRA RLA LRA FLA QTY FLA FLA CRHEATER

PART NO. FLA NOMINAL

KW* MCA MOCP FLA LRA

208/230-3-60 187 253 18.1 137 18.1 137 17.6 123 1.9

 

Low 10.2

  / 79.0/79.0 90/90  86/86 487/487 

255A00 52.1/60.1 18.8/25.0 83.9/93.4 90/100 034 86/86 487/487 20

256A00 104.2/120.3 37.6/50.0 149.1/138.5 150/150 034 137/156 487/487 20

257A00 156.3/180.4 56.3/75.0 175.1/198.6 200/225 034 197/225 487/487 20

Mid-

Low 15.0

  / 83.8/83.8 100/100  91/91 495/495 

255A00 52.1/60.1 18.8/25.0 89.9/99.4 100/100 034 91/92 495/495 20

256A00 104.2/120.3 37.6/50.0 155.1/144.5 175/175 034 143/161 495/495 20

257A00 156.3/180.4 56.3/75.0 181.1/204.6 200/225 034 203/230 495/495 20

High 19.4

  / 88.2/88.2 100/100  96/96 534/534 

255A00 52.1/60.1 18.8/25.0 95.4/104.9 100/110 034 96/97 534/534 20

256A00 104.2/120.3 37.6/50.0 160.6/150.0 175/175 034 148/166 534/534 20

257A00 156.3/180.4 56.3/75.0 186.6/210.1 200/250 034 208/235 534/534 20

2 3.0

Low 10.2

  / 82.0/82.0 100/100  89/89 491/491 

255A00 52.1/60.1 18.8/25.0 87.7/97.1 100/100 034 89/90 491/491 20

256A00 104.2/120.3 37.6/50.0 152.8/142.2 175/175 034 141/159 491/491 20

257A00 156.3/180.4 56.3/75.0 178.9/202.4 200/225 034 201/228 491/491 20

Mid-

Low 15.0

  / 86.8/86.8 100/100  95/95 499/499 

255A00 52.1/60.1 18.8/25.0 93.7/103.1 100/110 034 95/95 499/499 20

256A00 104.2/120.3 37.6/50.0 158.8/148.2 175/175 034 146/165 499/499 20

257A00 156.3/180.4 56.3/75.0 184.9/208.4 200/225 034 206/234 499/499 20

High 19.4

  / 91.2/91.2 100/100  100/100 538/538 

255A00 52.1/60.1 18.8/25.0 99.2/108.6 100/110 034 100/100 538/538 20

256A00 104.2/120.3 37.6/50.0 164.3/153.7 175/175 034 151/170 538/538 20

257A00 156.3/180.4 56.3/75.0 190.4/213.9 200/250 034 211/239 538/538 20

460-3-60 414 506 9.0 62 9.0 62 7.7 50 1.0

 

Low 4.8

  / 37.9 45  41 217 

258A00 30.1 25.0 46.3 50 035 43 217 21

259A00 60.1 50.0 68.9 80 036 77 217 22

260A00 90.2 75.0 98.9 100 036 112 217 22

Mid-

Low 7.4

  / 40.5 45  44 221 

258A00 30.1 25.0 49.6 50 035 46 221 21

259A00 60.1 50.0 72.1 80 036 80 221 22

260A00 90.2 75.0 102.2 110 036 115 221 22

High 9.7

  / 42.8 50  47 240 

258A00 30.1 25.0 52.4 60 035 48 240 21

259A00 60.1 50.0 75.0 80 036 83 240 22

260A00 90.2 75.0 105.1 125 036 117 240 22

2 1.2

Low 4.8

  / 39.1 45  42 220 

258A00 30.1 25.0 47.8 50 035 44 220 21

259A00 60.1 50.0 70.4 80 036 79 220 22

260A00 90.2 75.0 100.4 110 036 113 220 22

Mid−

Low 7.4

  / 41.7 50  45 224 

258A00 30.1 25.0 51.1 60 035 47 224 21

259A00 60.1 50.0 73.6 80 036 82 224 22

260A00 90.2 75.0 103.7 125 036 116 224 22

High 9.7

  / 44.0 50  48 243 

258A00 30.1 25.0 53.9 60 035 50 243 21

259A00 60.1 50.0 76.5 80 036 84 243 22

260A00 90.2 75.0 106.6 125 036 119 243 22

575-3-60 518 633 6.8 50 6.8 50 6.1 40 0.8

 

Low 2.8

  / 28.3 35  31 169 

261A00 24.1 25.0 35.7 40 035 33 169 21

262A00 46.2 50.0 51.9 60 035 58 169 21

263A00 72.2 75.0 77.8 90 036 88 169 22

Mid-

Low 5.6

  / 31.1 35  34 183 

261A00 24.1 25.0 39.2 40 035 36 183 21

262A00 46.2 50.0 55.4 60 035 62 183 21

263A00 72.2 75.0 81.3 90 036 91 183 22

High 7.8

  / 33.3 40  36 198 

261A00 24.1 25.0 42.0 45 035 39 198 21

262A00 46.2 50.0 58.1 60 035 64 198 21

263A00 72.2 75.0 84.1 100 036 94 198 22

2 3.0

Low 2.8

  / 31.3 35  34 173 

261A00 24.1 25.0 39.5 40 035 36 173 21

262A00 46.2 50.0 55.6 60 035 62 173 21

263A00 72.2 75.0 81.6 90 036 92 173 22

Mid−

Low 5.6

  / 34.1 40  37 187 

261A00 24.1 25.0 43.0 45 035 40 187 21

262A00 46.2 50.0 59.1 60 035 65 187 21

263A00 72.2 75.0 85.1 90 036 95 187 22

High 7.8

  / 36.3 40  40 202 

261A00 24.1 25.0 45.7 50 035 42 202 21

262A00 46.2 50.0 61.9 70 036 68 202 21

263A00 72.2 75.0 87.8 100 036 97 202 22

See legend pg. 32.

50PG03−16

LEGEND

FLA − Full Load Amps

HACR − Heating, Air Conditioning and Refrigeration

IFM − Indoor − Fan Motor

LRA − Locked Rotor Amps

MCA − Minimum Circuit Amps

MOCP − Maximum Overcurrent Protection

NEC − National Electrical Code

OFM − Outdoor−Fan Motor

RLA − Rated Load Amps

* Heater capacity (kW) is based on heater voltage of 208 v, 240 v, or 480 v. If power distribu-

tion voltage to unit varies from rated heater voltage, heater kW will vary accordingly.

† Fuse or HACR circuit breaker.

NOTES:

1. In compliance with NEC requirements for multimotor and combination load equip-

ment (refer to NEC Articles 430 and 440), the overcurrent protective device for the

unit shall be fuse or HACR breaker.

2. Unbalanced 3-Phase Supply Voltage

Never operate a motor where a phase imbalance in supply voltage is greater than

2%. Use the following formula to determine the percentage of voltage imbalance.

% Voltage Imbalance = 100 x

max voltage deviation from average voltage

average voltage

Example: Supply voltage is 460-3-60

AB = 224 v

BC = 231 v

AC = 226 v

Average Voltage = 224 + 231 + 226

681

227

Determine maximum deviation from average voltage.

(AB) 227 – 223 = 3 v

(BC) 231 – 227 = 4 v

(AC) 227 – 226 = 1 v

Maximum deviation is 4 v.

Determine percent of voltage imbalance.

% Voltage Imbalance = 100 x

227

= 1.76%

This amount of phase imbalance is satisfactory as it is below the maximum allowable 2%.

IMPORTANT: If the supply voltage phase imbalance is more than 2%, contact your local electric

utility company immediately.

3. Single point kits CRSINGLE028A00 and CRSINGLE030A00 are not required if

field−supplied pressure connectors are used.

Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.

Catalog No:50PG−16SI

Replaces: 50PG−13SI

Printed in U.S.A. Edition Date: 10/06

50PG03−16

Carrier 50Pg03 16 Users Manual 50PG 16SI

50PG03-16 to the manual 586599df-eb4a-426b-ab6c-ef4763916365

Navigation menu

Versions of this User Manual:

Views

Navigation
