T C --- N H P, T C --- N A C

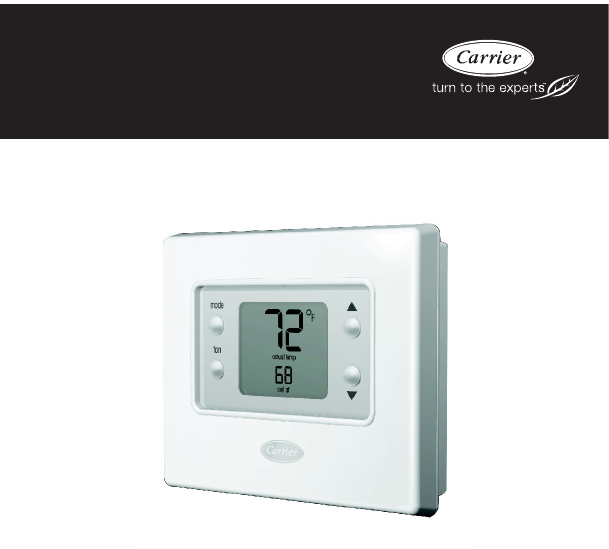

Comfort™ Series

Non---Programmable Thermostat

Owner’s Manual

YOU WILL LOVE THIS THERMOSTAT.

This Comforttnon--programmable thermostat is an easy to use model that provides

the most sought--after features for keeping your home comfortable. And with a slim

profile, it is designed to be as smart – and smart--looking – as any of the other

electronics in your home. Let this manual show you how easy it is to enjoy the

newest experience in home comfort.

Designed and Assembled in the U.S.A.

NOTE: Read the entire instruction manual before starting the installation.

TABLE OF CONTENTS

BUTTON IDENTIFICATION 4.................................

ON--SCREEN INDICATORS 6

.....................................

OPERATING THE THERMOSTAT

Setting the temperatures for heating and cooling 8

....................

Using the fan 9..................................................

Using emergency heat (heat pump systems only) 10..................

Installing or replacing the batteries 11...............................

Using the thermostat to turn the heating and cooling system off 14......

Auto changeover 14..............................................

ADVANCED OPTIONS

Advanced options display codes chart 15

............................

Changing from Fahrenheit to Celsius 16............................

Turning on the continuous backlighting 17..........................

Keypad lockout 18...............................................

Unlocking the keypad 19........................................

TABLE OF CONTENTS

WHATIF...

The battery icon is displayed 20

....................................

“Aux heat on” is displayed (heat pump systems only) 20..............

“Em heat” is displayed (heat pump systems only) 20..................

There is a power outage 21........................................

You get a system error message 21.................................

COMMON TERMS AND WHERE TO FIND THEM

Auto changeover 22

..............................................

Auxiliary heat (heat pump systems only) 22.........................

Backlighting 22.................................................

Emergency heat (heat pump systems only) 22........................

Mode 22........................................................

WARRANTY 23..................................................

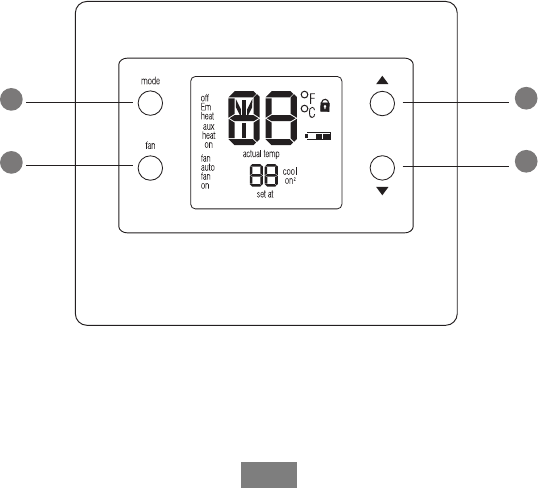

BUTTON IDENTIFICATION

a. FAN Selects whether the fan operates continuously (on) or only when

needed for heating or cooling (auto)

b. MODE Selects whether thermostat is set for heating, cooling, emergency

heat (heat pump system only), auto (heat and cool as needed), or off

c. UP Increases the temperature or adjusts the screen selection up when

setting advanced features

d. DOWN Decreases the temperature or adjusts the screen selection down

when setting advanced features

ON--SCREEN INDICATORS

actual temp

o

heat

aux

heat

fan

auto

fan

cool

set at

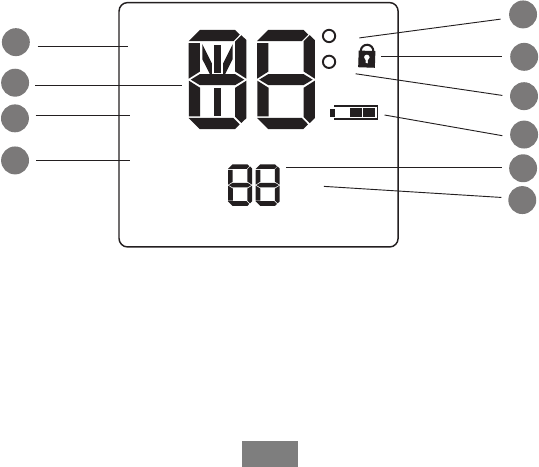

ON--SCREEN INDICATORS

1. Fan mode – on or auto

2. System is in auxiliary (supplemental) mode

3. Current temperature

4. Thermostat mode is either off or using emergency heat

5. Fahrenheit

6. Keypad is locked (no padlock means unlocked)

7. Celsius

8. Battery strength indicator

9. Selected cooling set point; “on” indicates system is in cooling mode

10. Second stage of cooling is active

OPERATING THE THERMOSTAT

Setting the temperatures for heating and cooling

Your thermostat is installed with the heating set at 68°F and the cooling set at 72°F.

You can use these or change them so your home is as warm or as cool as you would

like it to be. These steps will hold the temperature where you set it.

1. To change the heating temperature, press the mode but-

ton on the left until the screen says heat.

2. Press the up or down button located on the right side of

the display until you reach the desired temperature.

3. To change the cooling temperature, press the mode but-

ton on the left until the screen says cool.

4. Press the up or down button located on the right side of the display until

you reach the desired temperature.

OPERATING THE THERMOSTAT

Using the fan

When the fan is on, it helps distribute air throughout your home for a more even

temperature in all spaces. You can set the thermostat so that the fan runs only

during your heating and cooling cycles (auto mode) or to run continuously.

The thermostat is set at the factory to run automatically as needed. Here’s how to

change the setting so it runs continuously.

1. Press the fan button on the left. The display message will change from auto

fan to fan on.

2. To return the fan to auto mode, press the fan button

again. You will see fan auto on the display.

OPERATING THE THERMOSTAT

Using emergency heat (heat pump systems only)

Emergency heat is useful when the automatic auxiliary heat system can’t keep up

with demand. (Systems with heat pumps use “auxiliary heat” when it’s too cold

outside for the heat pump to heat the house without help. The display indicator for

this is aux heat on.)

If the heat pump compressor that works with auxiliary heat fails, or if the heat pump

isn’t working at all, you can turn on the emergency heat for that extra help. (You’ll

know there’s a problem if the house can’t seem to get warm when it’s very cold

outside.) You want to avoid using emergency heat, though, because it’s the most

expensive option. And, of course, if you suspect a problem with your heat pump,

call your heating and cooling dealer immediately.

Here’s how to set your thermostat to use emergency heat.

1. Press the mode button repeatedly until you see Em heat

in the upper left of the display.

2. To turn off emergency heat, press the mode button again

to select heat, cool or auto.

OPERATING THE THERMOSTAT

Installing or replacing the batteries

You can install batteries in your thermostat so that if the power goes out, the display

will still show the indoor temperature.

In some situations, batteries are also the power source. Then, two AA batteries

should last about one year. When the batteries have lost about one--third of their

power, a battery icon appears on the display. Two--thirds of it will be black. As the

batteries get weaker, the icon goes down to one black bar and then none. When the

icon is empty, you will begin to lose thermostat functions when it is battery

powered. When the batteries are completely dead, you won’t be able to use the

thermostat.

When using batteries for power, we recommend that you replace the batteries at the

one bar level with two AA alkaline batteries. They’re in the back of the thermostat,

so you’ll have to remove it from the wall.

Here’s how to both install and replace batteries.

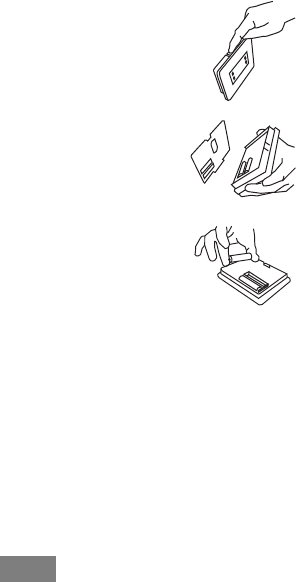

1. Locate the latch at the top of the thermostat. It’s at the

center of the top rim.

OPERATING THE THERMOSTAT

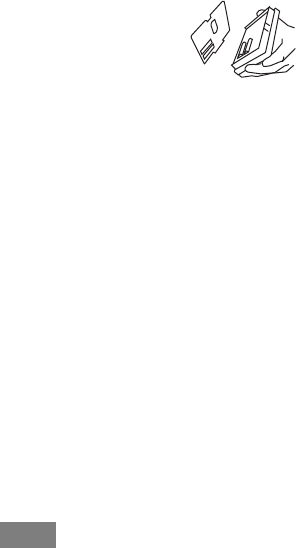

2. Press it down. This will disconnect the thermostat from the

top of the wall plate.

3. Remove the thermostat from the wall bracket com-

pletely by bringing it slightly toward you and lifting it up

and off the lip on the lower edge of the wall bracket.

4. Set the thermostat face down on a flat surface. You will

see the batteries in the lower right corner.

5. Remove and discard the old batteries.

6. Install new batteries by matching the “plus” and “minus”

ends of the batteries with the “plus” and “minus” indicat-

ors you’ll see outside the two white battery shapes in the

space where the batteries sit.

7. Snap the batteries into place.

8. Put the thermostat back on the wall bracket by lining up

the slot on the bottom edge of the back of the thermostat

with the lip on the wall bracket. You will feel the slot fit

over the lip.

OPERATING THE THERMOSTAT

9. With the bottom of the thermostat attached to the bottom

of the wall bracket, bring the thermostat back to the

wall. Line up the latch at the top of the thermostat with

the corresponding lip on the wall bracket.

10. Lightly push the thermostat toward the wall. When the

latch and lip are lined up properly, you will hear the

thermostat snap into place.

11. Close the door.

OPERATING THE THERMOSTAT

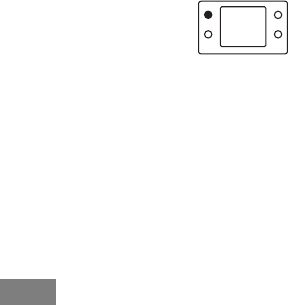

Using the thermostat to turn the heating and cooling system off

To use the thermostat to turn the heating and cooling system

off, press the mode button on the left repeatedly until the

display shows off in the upper left.

Auto changeover

The thermostat uses one of five modes: heat, cool, Em heat (heat pump version

only), auto, and off. When the mode selection is auto, the thermostat is in auto

changeover mode. This allows the system to switch from heating to cooling – or

from cooling to heating – to maintain the temperatures you’ve set. It does this

automatically.

ADVANCED OPTIONS

Advanced options display codes chart

You can customize a few features of your thermostat. This chart shows which

features you can change and the codes associated with them. The codes will be

shown on the display when you follow the instructions.

Feature Configuration Code Change Indication

Fahrenheit to Celsius U1 ForC

backlighting U2 On or Of

keypad lockout U3 Of, On, padlock

ADVANCED OPTIONS

Changing from Fahrenheit to Celsius

Your thermostat is preset to display the temperature in degrees

Fahrenheit. You can change this to Celsius.

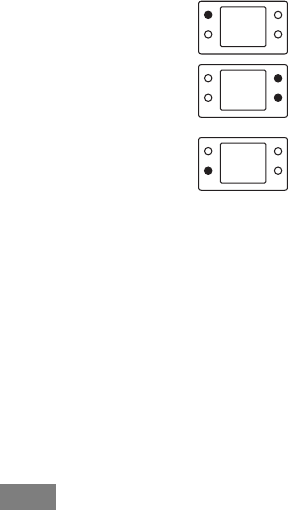

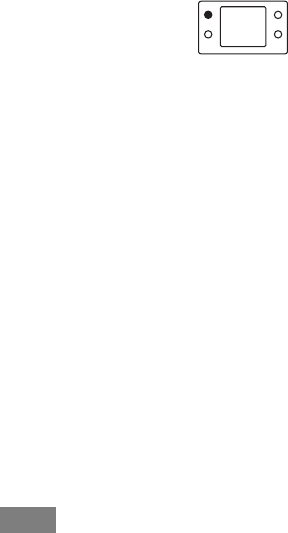

1. Press and hold the mode button for about three seconds.

The display will show U1 and the letter Fin the center.

2. Press the up or down button on the right to change it

from F(Fahrenheit) to C(Celsius).

3. Press the fan button on the left to exit this screen.

ADVANCED OPTIONS

Turning on the continuous backlighting

The thermostat display lights up for a few seconds after you press any button. This

is backlighting. It will go dark after a few seconds.

If the thermostat is powered by electricity, it is possible to have a constant low level

amount of backlighting until you press any button, which increases the lighting

temporarily. Here’s how to turn on the constant backlight when your thermostat is

poweredbyelectricity.

1. Press and hold the mode button for about three seconds.

The display will show U1 and the letter Fin the center.

2. Press the mode button twice. The display will show U2

and Off.

3. Press the up or down button on the right to change it

from Off to On.

4. Press the fan button on the left to exit this screen.

ADVANCED OPTIONS

Keypad lockout

The keypad lockout feature lets you “lock” the thermostat so nobody can change

the temperature – or make any other changes – by pressing buttons. Keypad

lockout is not activated when the thermostat is installed. Here’s how to activate it.

1. Press and hold the mode button for about three

seconds. The display will show U1 and the letter Fin

the center.

2. Press the mode button until the display shows U3 and

Of.

3. Press the up or down button on the right to change it

from Of to On. You will also see a padlock, which indic-

ates the keypad is locked.

4. Press the fan button on the left to exit this screen.

ADVANCED OPTIONS

Unlocking the keypad

Here’s how to temporarily unlock the keypad.

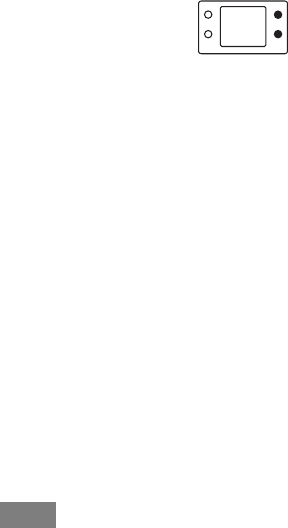

1. Press and hold the up and down buttons on the right

simultaneously for about five seconds.

2. The padlock icon will disappear. This means the keypad is unlocked and

can be used. The keypad will revert back to the locked state after you’ve

stopped pushing buttons for two minutes.

WHATIF...

The battery icon is displayed

The battery icon appears on the display only when the battery starts to lose power.

Replace it when one--third of the icon is black. If your thermostat is battery

powered and you wait until the icon is just a silhouette with no black bars, you will

slowly lose thermostat functions until it doesn’t work at all.

“Aux heat on” is displayed (heat pump systems only)

Aux heat on is auxiliary heat. It applies only to the heat pump version. If it

is on, you will see aux heat on. When it is displayed, it means the system

has determined that it’s too cold outside for your heat pump to heat the

house without help, so it’s getting help from the electric heaters. This hap-

pens automatically.

“Em heat” is displayed (heat pump systems only)

Em heat is the display term for emergency heat and applies only to the heat pump

version. You have to turn on emergency heat manually – it doesn’t happen

automatically – so if you see Em heat on the display, it means somebody has

turned it on.

WHATIF...

Thereisapoweroutage

If you lose electricity and have batteries installed, the thermostat will continue to

display the indoor temperature because it has a battery backup power source. This

means that even though your heating and cooling system doesn’t work, you will

still be able to monitor your home’s temperature.

You get a system error message

Here are the possible system error messages and what they mean:

---- The room air sensor reports that the room air temperature is above

150°or below --50°.

E4 The memory has failed and the thermostat will return to the default factory

settings. Call your heating and cooling dealer.

COMMON TERMS AND WHERE TO FIND THEM

Auto changeover page 14..........................................

This feature automatically switches your system from heating to cooling – or from

coolingtoheating–whenevernecessary.

Auxiliary heat (heat pump systems only) page 10....................

Most heat pump systems can’t heat a home sufficiently when it gets very cold

outside so they use a supplemental heating source called auxiliary heat. The system

knows when to use this help and does so automatically. If it’s using auxiliary heat,

the display will show aux heat on. You have no control over the auxiliary heat

function.

Backlighting page 17..............................................

Backlighting illuminates your display when you push a button.

Emergency heat (heat pump systems only) page 10..................

You can manually set the thermostat to use emergency heat but it is the most

expensive option. If it’s using emergency heat, the display will show Em heat.

Mode page 14....................................................

This term refers to the type of operation your system is performing. The options are

heat, cool, emergency heat, auto, and off.

THERMOSTAT LIMITED WARRANTY

CARRIER CORPORATION

Limited Warranty for Thermostats

FOR WARRANTY SERVICE OR REPAIR:

Contact the installer or a Carrier dealer. You may be able to find the installer’s name on the

equipment or in your Owner’s Packet. You can also find a Carrier dealer online at

www.carrier.com

For help, contact: Carrier Corporation, Consumer Relations, P.O. Box 4808, Syracuse, New

York 13221, Phone 1--800--227--7437

PRODUCT REGISTRATION: You can register your product online at www.carrier.com.

Model Number_______________________ Serial Number_______________________

Date of Installation____________________ Installed by_________________________

Name of Owner_______________________ Address of Installation_________________

Carrier Corporation (hereinafter “Company”) warrants this product against failure due to defect

in materials or workmanship under normal use and maintenance as follows. All warranty

periods begin on the date of original installation. If a part fails due to defect during the

applicable warranty period Company will provide a new or remanufactured part, at Company’s

option, to replace the failed defective part at no charge for the part. Alternatively, and at its

option, the Company will provide a credit in the amount of the then factory selling price for a

new equivalent part toward the retail purchase price of a new Company product. Except as

otherwise stated herein, those are Company’s exclusive obligations under this warranty for a

product failure. This limited warranty is subject to all provisions, conditions, limitations and

exclusions listed below and on the reverse (if any) of this document.

THERMOSTAT LIMITED WARRANTY

OWNER--OCCUPIED, RESIDENTIAL APPLICATIONS

This warranty is to the original purchasing owner and is transferable only to the extent and as

stated in the Warranty Conditions and below. The warranty period in years, depending on the

part and the claimant, is as shown in the chart below.

LimitedWarranty(Years)

Product Original Owner Subsequent Owner

TP, TC, TB Thermostats*** 10* (or 5) 5

* If properly registered within 90 days, otherwise 5 years (except in California and Quebec

and other jurisdictions that prohibit warranty benefits conditioned on registration, registra-

tion is not required to obtain longer warranty periods). See Warranty Conditions below.

***Applies only to Thermostats. Active electronic finished good accessories, such as the op-

tional ExP module, have different warranty terms. See product for details.

OTHER RESIDENTIAL APPLICATIONS (Apartments, Rental Properties, etc.)

The warranty period is five (5) years. The warranty is to the original owner only and is not

transferable.

OTHER APPLICATIONS

The warranty is one (1) year on all such applications. The warranty is to the original owner

only and is not transferable.

LEGAL REMEDIES: The owner must notify the Company in writing, by certified or

registered letter to Carrier Corporation, Warranty Claims, P.O. Box 4808, Syracuse, New York

13221, of any defect or complaint with the product, stating the defect or complaint and a

specific request for repair, replacement, or other correction of the product under warranty,

mailed at least thirty (30) days before pursuing any legal rights or remedies.

THERMOSTAT LIMITED WARRANTY

WARRANTY CONDITIONS:

1. To obtain the longer warranty periods as shown in the table under original owner, for

the original purchaser, the product must be properly registered at www.carrier.com

within ninety (90) days of original installation. In jurisdictions where warranty terms

conditioned on registration are prohibited by law, registration is not required and the

longer warranty period shown will be apply.

2. Where a product is installed in a newly constructed home, the date of installation is the

date the homeowner purchased the home from the builder.

3. If the date of original installation cannot be verified, then the warranty period begins

ninety (90) days from the date of product manufacture (as indicated by the model and

serial number). Proof of purchase may be required at time of service.

4. The remainder of the first five years of warranty is freely transferable without

registration.

5. Product must be installed properly and by a licensed HVAC technician.

6. The warranty applies only to products remaining in their original installation location.

7. Installation, use, care, and maintenance must be normal and in accordance with

instructions contained in the Installation Instructions, Owner’s Manual and Company’s

service information.

8. Defective parts must be returned to the distributor through a registered servicing

dealer for credit.

LIMITATIONS OF WARRANTIES: ALL IMPLIED WARRANTIES AND/OR

CONDITIONS (INCLUDING IMPLIED WARRANTIES OR CONDITIONS OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE OR PURPOSE) ARE

LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. SOME STATES OR

THERMOSTAT LIMITED WARRANTY

PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED

WARRANTY OR CONDITION LASTS, SO THE ABOVE MAY NOT APPLY TO YOU.

THE EXPRESS WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND

MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR,

DEALER, OR OTHER PERSON, WHATSOEVER.

THIS WARRANTY DOES NOT COVER:

1. Labor or other costs incurred for diagnosing, repairing, removing, installing, shipping,

servicing or handling of either defective parts, or replacement parts, or new units.

2. Any product purchased over the Internet.

3. Normal maintenance as outlined in the installation and servicing instructions or Owner’s

Manual, including filter cleaning and/or replacement and lubrication.

4. Failure, damage or repairs due to faulty installation, misapplication, abuse, improper

servicing, unauthorized alteration or improper operation.

5. Failure to start due to voltage conditions, blown fuses, open circuit breakers, or damages

due to the inadequacy or interruption of electrical service.

6. Failure or damage due to floods, winds, fires, lightning, accidents, corrosive environments

(rust, etc) or other conditions beyond the control of Company.

7. Parts not supplied or designated by Company, or damages resulting from their use.

8. Products installed outside the U.S.A. or its territories and Canada.

9. Electricity or fuel costs, or increases in electricity or fuel costs from any reason

whatsoever, including additional or unusual use of supplemental electric heat.

10. Any cost to replace, refill or dispose of refrigerant, including the cost of refrigerant.

11. ANY SPECIAL, INDIRECT OR CONSEQUENTIAL PROPERTY OR

COMMERCIAL DAMAGE OF ANY NATURE WHATSOEVER. Some states or

provinces do not allow the exclusion of incidental or consequential damages, so the above

limitation may not apply to you.

This Warranty gives you specific legal rights, and you may also have other rights which vary

from state to state or province to province.

49004DP133 08/2011

NOTES PAGE

Manufacturer reserves the right to change, at any time, specifications and designs without notice and

without obligations.

C a t a l o g N o : O M --- T C N H P --- 0 5 C A R e p l a c e s : O M --- T C N H P --- 0 4 C A

Edition Date: 05/12

Carrier Tc Nac01 Owners Manual OM TCNHP 05CA

Carrier-Tc-Nhp01-Owner-S-Manual carrier-tc-nhp01-owner-s-manual

Carrier-Tc-Nac01-Owner-S-Manual carrier-tc-nac01-owner-s-manual

ImageView 118330 OM-TCNHP-05CA

Navigation menu

Versions of this User Manual:

Views

Navigation
