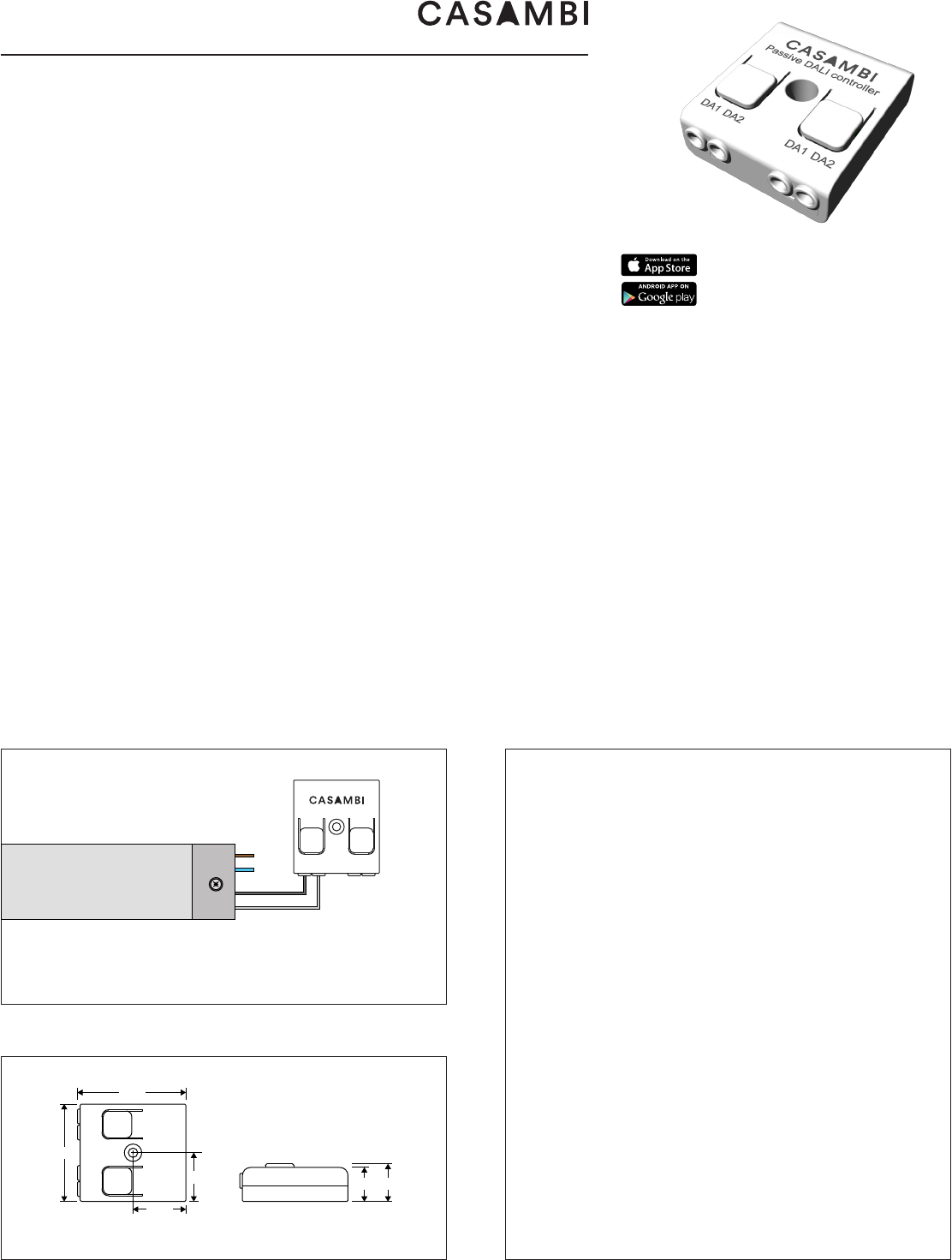

Casambi Technologies CBUDCS Bluetooth controllable 2ch 0-10v controller User Manual
Casambi Technologies Oy Bluetooth controllable 2ch 0-10v controller
User Manual
Description
CBU-DCS is a Bluetooth controllable, Casambi enabled LED driver controller. It is designed
to be used with ANSI C137.4 compatible products, such as Philips Advance Xitanium SR LED
drivers and OSRAM LED drivers with DEXAL™ technology. CBU-DCS does not have its own
power supply. Instead, it is powered directly from the LED driver’s control interface. CBU-DCS
is also DALI (Digital Addressable Lighting Interface) compatible.
CBU-DCS together with other Casambi enabled products can be used from a simple one lumi-
naire direct control to a complete and full featured light control system where up to 127 units
form automatically an intelligent mesh network. Casambi supports nearly unlimited number of
mesh networks in an installation site.
Casambi system can be controlled with Casambi app which can be downloaded free of charge
from Apple App Store and Google Play Store. Other controlling methods are, for example,
timers, Casambi enable sensors, such as PIR/occupancy and lux sensors, as well as Casambi
Xpress and EnOcean switches.
Input
Voltage range:
Max. input current when idle:
Standby power:
Radio transceiver
Operating frequencies:
Maximum output power:
Operating conditions
Ambient temperature, ta:
Max. case temperature, tc:
Storage temperature:
Max. relative humidity:
Connectors
Wire range, solid & stranded:
Wire strip length:
Mechanical data
Dimensions:
Weight:
FCC ID:
IC:
UL:
Technical dataWiring diagram
CBU-DCS
Bluetooth controllable LED driver controller www.casambi.com
Compatible devices:
iPhone 4S or later
iPad 3 or later
iPod Touch 5th gen or later
Android 4.4 or later devices produced
after 2013 with full BT 4.0 support
Dimensions
Philips Advance Xitanium SR LED driver,
OSRAM LED driver with DEXAL™ technology
or other ANSI C138.4 compatible device
9.5-22.5 VDC
ANSI C137.4 control bus
L
N
DA1 DA2 DA1 DA2
Passive DALI controller
Solid and stranded:
16-20 AWG/ 0,5-1,5 mm2
Strip length: .25”/6-8 mm
Wire info:
Tc*
* Tc point is on bottom side
40,4
36,3
18,15
20,2
12.7 14.0
Dimensions are in mm.
9.5-22.5 VDC, Class 2,
Current limited to max. 250 mA
5 mA
< 0,1 W
2.401-2.483 Ghz
typ. +0 dBm, +/-3dBm
-4...+131°F (-20...+55°C)
+149°F (+65°C)
-13...+167°F (-25...+75°C)
0...80%, non-cond.
0.5 - 1.5 mm2
16 - 20 AWG
.25” (6 - 8 mm)
1.59 x 1.43 x 0.55 inch
40.4 x 36.3 x 14.0 mm
0.5 oz (15 g)
2ALA3-CBUDCS
22496-CBUDCS
UL Listed
UL Plenum Rated (UL 2043)
Installation
CBU-DCS must be powered only from the control interface of an ANSI C137.4 compatible device. Do not use a regular DC power supply since it will cause
permanent damage to the CBU-DCS. The product can be installed outside of a junction box.
Use 16-20 AWG (0,5-1,5 mm2) solid or stranded conductor electrical wires. Strip the wire .25” (6-8 mm) from the end. Press the buttons on top of the
dimmer case and insert the wires into the corresponding holes. The polarity of DA1 and DA2 does not matter.
CBU-DCS has two sets of connectors. These connectors are internally connected in parallel with each other. This way the control bus can be routed
through the product for easy installation.
Up to four LED drivers can be connected in parallel to one CBU-DCS. Connecting more than four drivers may cause permanent damage to the device.
CBU-DCS, as any other Casambi product, should not be placed in a metal enclosure, such as metal junction boxes. Metal will attenuate radio signals
which are crucial to the operation of the product. If the product will have to be installed into a junction box, make sure to use a plastic junction box. Also
make sure to comply with National Electric Code in installation.
Warning!
Using regular DC power supply will cause
permanent damage to the product!
Range
The range between two CBU-DCS units or between a CBU-DCS and a smart phone can vary a lot depending on obstacles and surrounding material. In
open air the range between two CBU-DCSs can be in excess of 200 ft, but if the unit is encapsulated into a metal structure, the range can be only few
feet. Therefore, thorough testing is highly suggested.
Casambi uses mesh network technology so each CBU-DCS acts also as a repeater. When testing the network, it is important to test that each unit can
be controlled from any point of the network covered area.
Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Warning
Changes or modications not expressly approved by Casambi Technologies Oy could void the user’s authority to operate the equipment.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Radiation Exposure Statement for Canada
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
This equipment is exempt from the routine RF exposure evaluation requirements of RSS-102. This equipment should be installed and operated with a
minimum distance of 20 cm between the antenna and the user or bystanders.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
Ce matériel n’est pas sujet à l’évaluation habituelle d’exposition RF selon RSS102. Ce matériel devrait être installé et exploité en gardant une distance
minimale de 20 cm entre l’antenne et l’utilisateur ou les spectateurs.
Information in this document is subject to change.
CBU-DCS User Guide v1.0 USA and Canada
Copyright Casambi Technologies Oy 2018.
Casambi Technologies Oy
Bertel Jungin aukio 1 E, 02600 Espoo, Finland
Radiation Exposure Statement for FCC
This device complies with FCC radiation exposure limits for an uncontrolled environment. This device shall be installed and operated with a minimum
distance of 0.8” (2cm) between users or bystanders and the device.
