XLe, Keypads and Amplifier
Green: audio cables connect between
XLe chassis and amplifier.
Red: USB cable. One end plugs into PC
and other end plugs into Keypad Hub.
Blue: CAT5, 5e, 6 or higher cable. One per Keypad.
One end plugs into Keypad Hub and
other end plugs into Keypad.
Orange: HDMI cable from XLe card installed
In PC and external XLe chassis
Yellow: 3.5mm trigger cable from
XLe external chassis to amplifiers
PC with XLe interface card installed top (shown installed horizontally
in our low profile XLe Music Server) with XLe chassis below it

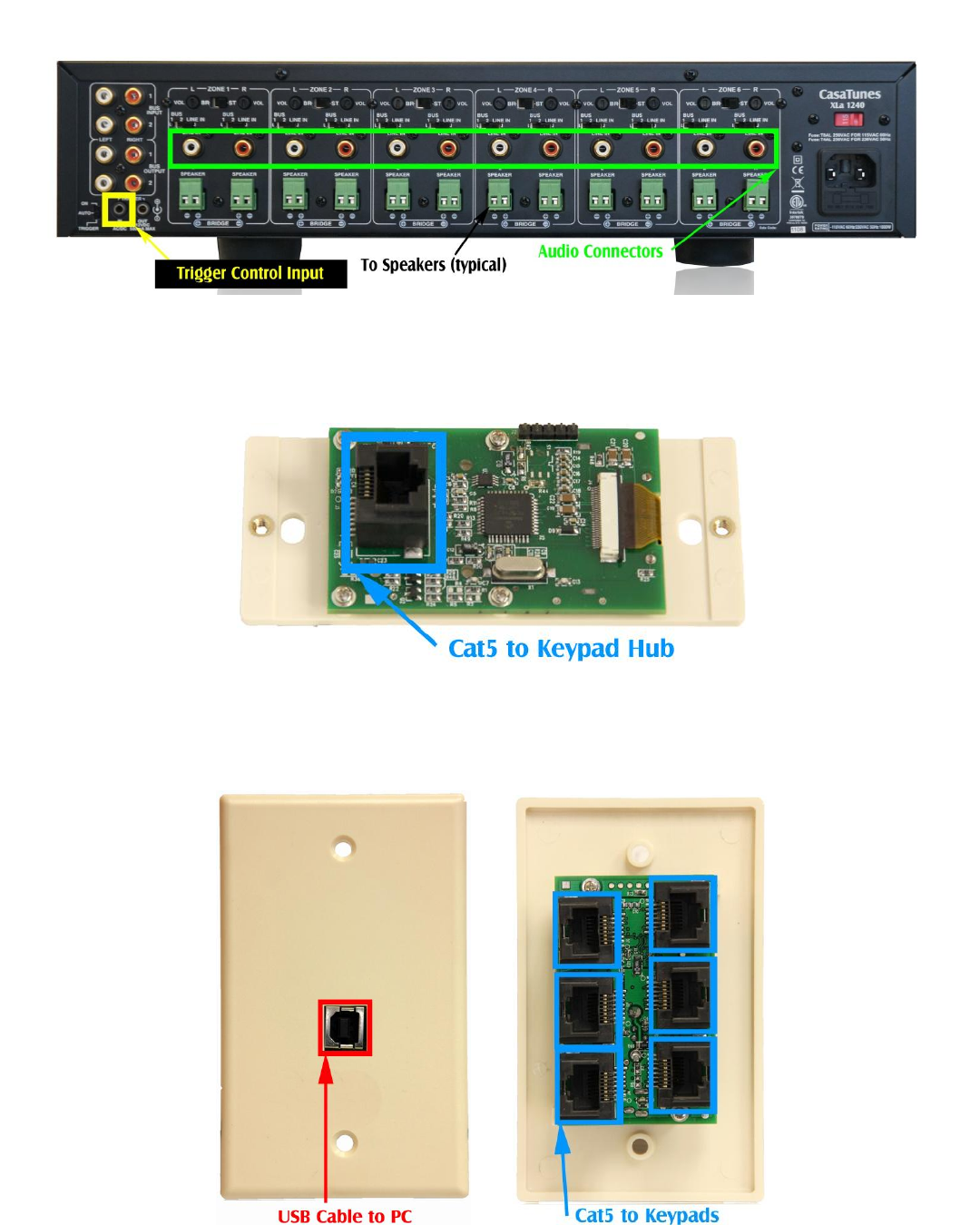

Amplifier (CasaTunes XLa shown)
Keypad - Back
Keypad Hub - Front and Back
