Quick Reference Manual
Manual de referencia rápida
Manual de Referência Rápida
E-1
ENGLISH
Congratulations upon your selection of this CASIO watch.
To ensure that this watch
provides you with the years
of service for which it is
designed, carefully read and
follow the instructions in
this manual, especially the
information under “Operating
Precautions” and “User
Maintenance”.
Be sure to keep all user
documentation handy for
future reference.
For a full Operation Guide
and Q&A information about
this product, go to the
website below.
http://world.casio.com/manual/wat/
E-2
Contents
Charging the Watch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-4
Solar Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-5
Charging with the Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-6
Using the Watch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-9
Selecting a Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-9
Adjusting the Time Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-11
GPS Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-13
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E-14
Operating Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-21
User Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E-32
E-3
Bluetooth® is a registered trademark or trademark of Bluetooth SIG, Inc. of the
United States.
Your watch has a Mobile Link function that allows it to communicate with a
Bluetooth® mobile phone and adjust its time settings to match those of the
mobile phone.
This product complies with or has received approval under radio laws in various
countries and geographic areas. Use of this product in an area where it does not
conform to or where it has not been approved under applicable radio laws may
be punishable under local laws. For details, visit http://world.casio.com/ce/BLE/.
Use of this product inside of an aircraft is restricted by the aviation laws of each
country. Be sure to obey instructions provided by flight personnel concerning
use of devices such as this product.
E-4
Charging the Watch
Your watch can be charged using solar charging or a charger.
Use the charger in the cases below.
− To charge quickly or to bring the watch to a full charge
before going out
− When the battery indicator shows only one or two bars, or
when the watch display is blank
If the watch will not charge because you left it with a blank
display for along period contact your original retailer.

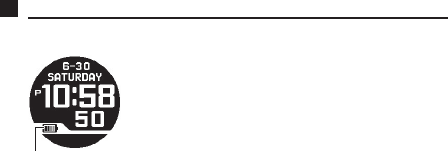

Battery indicator
E-5
Solar Charging
Remove the watch from your wrist and place it in a brightly lit area.
The watch may become hot when exposed to light for charging. Take care to avoid
burn injury.
Avoid charging in locations where it is very hot.
E-6
Charging with the Charger
When charging on a desk or other work surface, keep other articles away from the
charger and watch.
Use only the charger and USB cable that comes with the watch for charging.
2
1
3
USB
Charger
Computer, etc.
E-7

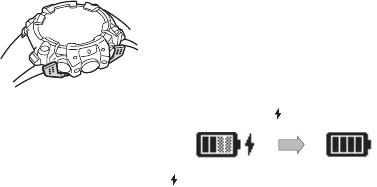

1. Mount the watch onto the charger.
Check to make sure that the watch is being
securely grasped by the charger’s hooks, and
contact with the charger.
2. Turn on the computer or other device to be used
for power, and connect the other end of the USB
cable to a USB port of the device.
3. Connect the USB cable to the charger.
This starts charging ( displayed).
disappears from the display when a full charge
is reached.
E-8
Important!
Should water ever get onto the charger and/or watch while charging, immediately
unplug the USB cable from the charger to stop charging.
If charging stops part way through for some reason, remove the watch from the
charger and unplug the USB cable from the charger. After confirming there are no
problems, try charging again.
E-9
Using the Watch

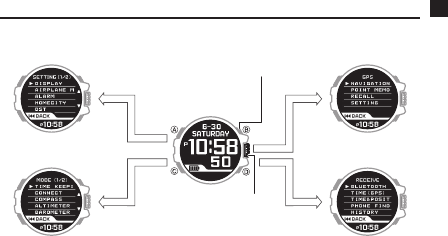

Selecting a Function
Selecting a
Setting
Timekeeping
Mode
Selecting
Navigation
Selecting Time
Calibration
(Receive)
Rotary switch
Selecting a
Mode
Illumination on
A
CD
E-10
In the Timekeeping Mode, press A, C, or D, or press the rotary switch and then
rotate the rotary switch to select the desired function.
Press the rotary switch again to start an operation.
To return to the Timekeeping Mode, hold down C for one second.
For details, refer to the Operation Guide at the CASIO website.
E-11
Adjusting the Time Setting
Immediately after purchasing the watch or moving to another time zone, perform a
GPS signal receive operation to acquire position info.
1. In the Timekeeping Mode, press D.
2. Rotate the rotary switch to select
“TIME&POSITION (GPS)”.
3. While outdoors in a location where the sky above is
clearly visible, point the watch’s face straight up.
4. Press the rotary switch.
This starts GPS signal reception. After location info
is acquired, “ADJUSTED” appears on the display
along with the current time in your current location.
Location info acquisition takes anywhere from
about 40 to 80seconds. In some cases it can take
as long as 13minutes.
Rotary switch
E-12
Configuring Time Settings
After acquiring location info, use the procedure below to configure time settings.
1. In the Timekeeping Mode, press D.
2. Rotate the rotary switch to select “TIME (GPS)”.
3. While outdoors in a location where the sky above is
clearly visible, point the watch’s face straight up.
4. Press the rotary switch.
This starts GPS signal reception. After time info is
acquired, “ADJUSTED” appears on the display
along with the current time.
Time adjustment takes anywhere from about 10
to 65seconds. In some cases it can take as long
as 13minutes.
Rotary switch
E-13
Using a Phone to Configure Time Settings
For details visit the website below.
http://world.casio.com/manual/wat/
GPS Navigation
You can get even more from the navigation functions of your watch by linking with
the phone app. For example, you could do the actions below.
Mountain climb using a route plan that you created with the app.
Track your jogging route with the watch and then transfer it to the phone for
viewing with the app.
For information about installing the application, refer to the Operation Guide at the
CASIO website.
E-14
Specifications
Accuracy: ±15 seconds a month (no adjustment by signal information)
Basic Functions: Hour, minute, second, month, day, day of the week
a.m./p.m.(P)/24-hour timekeeping
Full Auto Calendar (2000 to 2099)
Mobile Link:
Auto time adjustment
Auto Daylight Saving Time (summer time) switching
Phone finder
Communication Specifications:
Bluetooth®
Frequency band: 2400 to 2480MHz
Maximum transmission: 0dBm (1mW)
Range: Up to 2 meters (Depends on environment.)
E-15
GPS Navigation:
Track log acquisition
Measurement intervals: Intermittent (each minute, non-stop for approximately
24hours)/Continual (every few seconds, non-stop for
approximately four or five hours)
Elapsed time measurement
Log usage conditions
Display of straight-line distance to goal, start, waypoints*
Display of direction to goal, start, waypoints*
Goal specification (by recall from point memory)
Route navigation*
Backtrack
Point memory (time, year/month/day, latitude/longitude, altitude, barometric
pressure, temperature)
Point memory icon specification
Track display switching (zoom out, zoom in)
* Waypoints are enabled only when settings are configured with the app.
E-16
Digital Compass:
Measuring range: 0° to 359°
Compass calibration (3-point calibration, magnetic declination angle)
60-second continuous measurement, Bearing Memory
Barometer:
Measuring and display range: 260 to 1,100 hPa (or 7.65 to 32.45 inHg)
Measuring unit: 1 hPa (or 0.05 inHg)
Auto measurement interval: 2 hours
Calibration, Barometric pressure graph, Barometric pressure change indicator
Thermometer:
Measuring and display range: –10.0°C to 60.0°C (or 14.0°F to 140.0°F)
Measuring unit: 0.1°C (or 0.2°F)
Calibration
E-17
Altimeter:
Measuring range: –700 to 10,000 m (or –2,300 to 32,800 ft.)
Measuring unit: 1 m (or 5 ft.)
Display Range: –10,000 to 10,000 m (or –32,800 to 32,800 ft.)
Measuring interval: 2 minutes/5 seconds
Reference altitude setting
Altitude differential measurement: –3,000 to +3,000m (or –9,840 to 9,840 ft.)
Sensor Accuracy:
Direction
Measurement accuracy: Within ±10°
Assured accuracy temperature range: –10°C to 60°C (14°F to 140°F)
Temperature
Measurement accuracy: Within ±2°C (±3.6°F)
Assured accuracy temperature range: –10°C to 60°C (14°F to 140°F)
Pressure
Measurement accuracy: Within ±3 hPa (0.1 inHg)
(Altitude measurement accuracy: Within ±75 m (246 ft.))
Assured accuracy temperature range: –10°C to 40°C (14°F to 104°F)
E-18
Sunrise/Sunset: Sunrise/sunset time display, Day select
Tide/Moon:*
Tide level (Tide Graph), Moon phase, Moon age,
Day select, Time select (Tide Graph only)
* Requires configuration of app settings.
Stopwatch:
Measuring unit: 1 second
Measuring range: 999 hours 59 minutes 59 seconds (1000 hours)
Measurement accuracy: ±0.0006%
Split times
Countdown Timer:
Setting unit: 1 minute
Measuring unit: 1 second
Measuring range: 24 hours
E-19
World Time:
Displays current time in UTC +39 cities (39 time zones)*
Auto Daylight Saving Time (summer time) setting
* Time zone data may change when the watch connects with a phone.
Other: Power Saving, LED light, Selectable light duration, Full Auto Light, Charge
level indicator, Button confirmation tone enable/disable, Airplane Mode,
4alarms (with snooze)
Batteries: One chargeable battery
Battery Operating Time:
Using GPS
Intermittent Receive: Approximately 33 hours maximum
Continual Receive: Approximately 20 hours maximum
Other functions continue operating for about 2 months after the GPS limits
above.
Not Using GPS
Approximately 1.4 years
E-20
Charger: Operating temperature: 5°C to 35°C (41°F to 95°F)
Power Consumption: 5.0 VDC Approximately 0.9 W
Included Accessories: Charger, Micro USB cable
When unboxing, check to make sure that everything is included. If something is
missing, contact your original retailer.
For open source information, visit the CASIO website.
http://world.casio.com/manual/wat/
E-21
Operating Precautions
Water Resistance
The information below applies to watches with WATER RESIST or WATER
RESISTANT marked on the back cover.
Water
Resistance
Under Daily
Use
Enhanced Water Resistance Under
Daily Use
5
Atmospheres
10
Atmospheres
20
Atmospheres
Marking On watch front or on
back cover
No
BAR mark 5BAR 10BAR 20BAR
Example of
Daily Use
Hand washing, rain Yes Yes Yes Yes
Water-related work, swimming
No Yes Yes Yes
Windsurfing No No Yes Yes
Skin diving No No Yes Yes
Do not use your watch for scuba diving or other types of diving that requires air tanks.
OPUM-E
E-22
Watches that do not have WATER RESIST or WATER RESISTANT marked on the
back cover are not protected against the effects of sweat. Avoid using such a watch
under conditions where it will be exposed to large amounts of sweat or moisture, or
to direct splashing with water.
Even if a watch is water resistant, note the usage precautions described below.
Such types of use reduce water resistance performance and can cause fogging of
the glass.
− Do not operate the crown or buttons while your watch is submersed in water or
wet.
− Avoid wearing your watch while in the bath.
− Do not wear your watch while in a heated swimming pool, sauna, or any other high
temperature/high humidity environment.
− Do not wear your watch while washing your hands or face, while doing housework,
or while performing any other task that involves soaps or detergents.
After submersion in seawater, use plain water to rinse all salt and dirt from your
watch.
To maintain water resistance, have the gaskets of your watch replaced periodically
(about once every two or three years).
E-23
A trained technician will inspect your watch for proper water resistance whenever
you have its battery replaced. Battery replacement requires the use of special tools.
Always request battery replacement from your original retailer or from an authorized
CASIO service center.
Some water-resistant watches come with fashionable leather bands. Avoid
swimming, washing, or any other activity that causes direct exposure of a leather
band to water.
The inside surface of the watch glass may fog when the watch is exposed to
a sudden drop in temperature. No problem is indicated if the fogging clears up
relatively quickly. Sudden and extreme temperature changes (such as coming into
an air conditioned room in the summer and standing close to an air conditioner
outlet, or leaving a heated room in the winter and allowing your watch to come into
contact with snow) can cause it to take longer for glass fogging to clear up. If glass
fogging does not clear up or if you notice moisture inside of the glass, immediately
stop using your watch and take it to your original retailer or to an authorized CASIO
service center.
Your water-resistant watch has been tested in accordance with International
Organization for Standardization regulations.
E-24
Band
Tightening the band too tightly can cause you to sweat and make it difficult for air
to pass under the band, which can lead to skin irritation. Do not fasten the band too
tightly. There should be enough room between the band and your wrist so you can
insert your finger.
Deterioration, rust, and other conditions can cause the band to break or come off
of your watch, which in turn can cause band pins to fly out of position or to fall out.
This creates the risk of your watch falling from your wrist and becoming lost, and
also creates the risk of personal injury. Always take good care of your band and
keep it clean.
Immediately stop using a band if you even notice any of the following: loss of band
flexibility, band cracks, band discoloration, band looseness, band connecting pin
flying or falling out, or any other abnormality. Take your watch to your original
retailer or to a CASIO service center for inspection and repair (for which you will be
charged) or to have the band replaced (for which you will be charged).
E-25
Temperature
Never leave your watch on the dashboard of a car, near a heater, or in any other
location that is subject to very high temperatures. Do not leave your watch where it
will be exposed to very low temperatures. Temperature extremes can cause your
watch to lose or gain time, to stop, or otherwise malfunction.
Leaving your watch in an area hotter than +60°C (140°F) for long periods can lead
to problems with its LCD. The LCD may become difficult to read at temperatures
lower than 0°C (32°F) and greater than +40°C (104°F).
Impact
Your watch is designed to withstand impact incurred during normal daily use and
during light activity such as playing catch, tennis, etc. Dropping your watch or
otherwise subjecting it to strong impact, however, can lead to malfunction. Note that
watches with shock-resistant designs (G-SHOCK, BABY-G, G-MS) can be worn
while operating a chain saw or engaging in other activities that generate strong
vibration, or while engaging in strenuous sports activities (motocross, etc.)
E-26
Magnetism
Though operation of your watch normally is not affected by magnetism, its
accuracy may be affected if the watch itself becomes magnetized. Also, very strong
magnetism (from medical equipment, etc.) should be avoided because it can cause
malfunction of your watch and damage to electronic components.
Electrostatic Charge
Exposure to very strong electrostatic charge can cause your watch to display
the wrong time. Very strong electrostatic charge even can damage electronic
components.
Electrostatic charge can cause the display to go blank momentarily or cause a
rainbow effect on the display.
Chemicals
Do not allow your watch to come into contact with thinner, gasoline, solvents, oils,
or fats, or with any cleaners, adhesives, paints, medicines, or cosmetics that contain
such ingredients. Doing so can cause discoloration of or damage to the resin case,
resin band, leather, and other parts.
E-27
Storage
If you do not plan to use your watch for a long time, thoroughly wipe it free of all dirt,
sweat, and moisture, and store it in a cool, dry place.
Resin Components
Allowing your watch to remain in contact with other items or storing it together with
other items for long periods while it is wet can cause color on resin components
to transfer to the other items, or the color of the other items to transfer to the resin
components of your watch. Be sure to dry off your watch thoroughly before storing it
and make sure it is not in contact with other items.
Leaving your watch where it is exposed to direct sunlight (ultraviolet rays) for long
periods or failure to clean dirt from your watch for long periods can cause it to
become discolored.
Friction caused by certain conditions (strong external force, sustained rubbing,
impact, etc.) can cause discoloration of painted components.
If there are printed figures on the band, strong rubbing of the printed area can cause
discoloration.
E-28
Leaving your watch wet for long periods can cause fluorescent color to fade. Wipe
the watch dry as soon as possible after it becomes wet.
Semi-transparent resin parts can become discolored due to sweat and dirt, and if
exposed to high temperatures and humidity for long periods.
Daily use and long-term storage of your watch can lead to deterioration, breaking,
or bending of resin components. The extent of such damage depends on usage
conditions and storage conditions.
Leather Band
Allowing your watch to remain in contact with other items or storing it together with
other items for long periods while it is wet can cause the color of the leather band
to transfer to the other items or the color of the other items to transfer to the leather
band. Be sure to dry off your watch thoroughly with a soft cloth before storing it and
make sure it is not in contact with other items.
E-29
Leaving a leather band where it is exposed to direct sunlight (ultraviolet rays) for
long periods or failure to clean dirt from a leather band for long periods can cause it
to become discolored.
CAUTION: Exposing a leather band to rubbing or dirt can cause color transfer and
discoloration.
Metal Components
Failure to clean dirt from metal components can lead to formation of rust, even if
components are stainless steel or plated. If metal components exposed to sweat
or water, wipe thoroughly with a soft, absorbent cloth and then place the watch in a
well-ventilated location to dry.
Use a soft toothbrush or similar tool to scrub the metal with a weak solution of water
and a mild neutral detergent, or with soapy water. Next, rinse with water to remove
all remaining detergent and then wipe dry with a soft absorbent cloth. When washing
metal components, wrap the watch case with kitchen plastic wrap so it does not
come into contact with the detergent or soap.
E-30
Bacteria and Odor Resistant Band
The bacteria and odor resistant band protects against odor generated by the
formation of bacteria from sweat, which ensures comfort and hygiene. In order
to ensure maximum bacteria and odor resistance, keep the band clean. Use an
absorbent soft cloth to thoroughly wipe the band clean of dirt, sweat, and moisture.
A bacteria and odor resistant band suppresses the formation of organisms and
bacteria. It does not protect against rash due to allergic reaction, etc.
Liquid Crystal Display
Display figures may be difficult to read when viewed from an angle.
Watch with Data Memory
Allowing the battery to go dead, replacing the battery, or having your watch repaired
can cause all data in watch memory to be lost. Note that CASIO COMPUTER CO.,
LTD. assumes no responsibility for any damages or losses caused by data lost due
to malfunction or repair of your watch, replacement of the battery, etc. Be sure to
keep separate written copies of all important data.
E-31
Watch Sensors
A watch sensor is a precision instrument. Never try to take it apart. Never try to
insert any objects into the openings of a sensor, and take care to ensure that dirt,
dust, or other foreign matter does not get into it. After using your watch where it has
been immersed in saltwater, rinse it thoroughly with fresh water.
Note that CASIO COMPUTER CO., LTD. assumes no responsibility for any
damage or loss suffered by you or any third party arising through the use of your
watch or its malfunction.
E-32
User Maintenance
Caring for Your Watch
Remember that you wear your watch next to your skin, just like a piece of clothing.
To ensure your watch performs at the level for which it is designed, keep it clean by
frequently wiping with a soft cloth to keep your watch and band free of dirt, sweat,
water and other foreign matter.
Whenever your watch is exposed to sea water or mud, rinse it off with clean fresh
water.
For a metal band or a resin band with metal parts, use a soft toothbrush or similar
tool to scrub the band with a weak solution of water and a mild neutral detergent, or
with soapy water. Next, rinse with water to remove all remaining detergent and then
wipe dry with a soft absorbent cloth. When washing the band, wrap the watch case
with kitchen plastic wrap so it does not come into contact with the detergent or soap.
For a resin band, wash with water and then wipe dry with a soft cloth. Note that
sometimes a smudge like pattern may appear on the surface of a resin band. This
will not have any effect on your skin or clothing. Wipe with a cloth to remove the
smudge pattern.
E-33
Clean water and sweat from a leather band by wiping with a soft cloth.
Not operating a watch crown, buttons, or rotary bezel could lead to later problems
with their operation. Periodically rotate the crown and rotary bezel, and press
buttons to maintain proper operation.
Dangers of Poor Watch Care
Rust
Though the metal steel used for your watch is highly rust-resistant, rust can form if
your watch is not cleaned after it becomes dirty.
− Dirt on your watch can make it impossible for oxygen to come into contact with the
metal, which can lead to breakdown of the oxidization layer on the metal surface
and the formation of rust.
Rust can cause sharp areas on metal components and can cause band pins to fly
out of position or to fall out. If you ever notice any abnormality immediately stop
using your watch and take it to your original retailer or to an authorized CASIO
service center.
E-34
Even if the surface of the metal appears clean, sweat and rust in crevasses can
soil the sleeves of clothing, cause skin irritation, and even interfere with watch
performance.
Premature Wear
Leaving sweat or water on a resin band or bezel, or storing your watch an area
subject to high moisture can lead to premature wear, cuts, and breaks.
Skin Irritation
Individuals with sensitive skin or in poor physical condition may experience skin
irritation when wearing a watch. Such individuals should keep their leather band
or resin band particularly clean. Should you ever experience a rash or other skin
irritation, immediately remove your watch and contact a skin care professional.
E-35
Battery
The special rechargeable battery used by your watch is not intended to be removed
or replaced by you. Use of a rechargeable battery other than the special one
specified for your watch can damage your watch.
The rechargeable (secondary) battery is charged when the solar panel is exposed
to light and by charging with the charger, so it does not require regular replacement
as the primary battery requires. Note, however, that long use or operating conditions
can cause the capacity or charging efficiency of the rechargeable battery to
deteriorate. If you feel that the amount of operation provided by charging is too
short, contact your original retailer or CASIO service center.

Navigation menu
