Casio Computer EXFR100CT DIGITAL CAMERA User Manual EXFR100 M29 FA 150730 EN shinsei

Digital Camera

EN

Users Guide

Thank you for purchasing this CASIO product.

 Before using it, be sure to read the precautions contained in this Users Guide.

 Keep the Users Guide in a safe place for future reference.

 For the most up-to-date information about this product, visit the official EXILIM

Website at http://www.exilim.com/

2

As you unpack your camera, check to make sure that all accessories shown below

are included. If anything is missing, contact your original retailer.

*The shape of the power cord plug varies according to the country or geographic

area where the camera is sold.

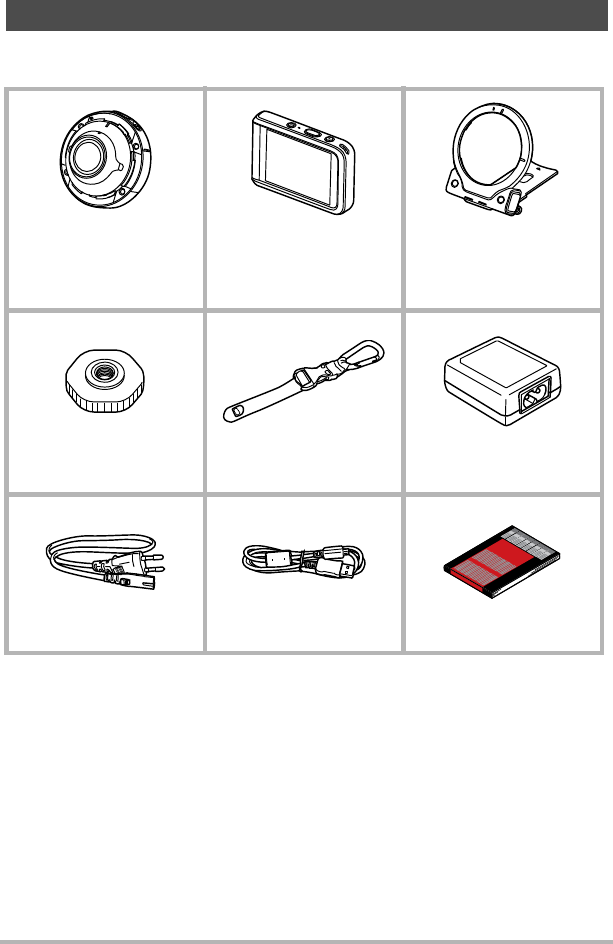

Accessories

Camera

(EX-FR100)

Controller

(EX-FR100CT)

Hinge Unit

 The hinge unit comes

pre-attached to the

camera.

Tripod nut Carabiner strap USB-AC adaptor

(AD-C53U)

Power cord*Micro USB cable Basic Reference

3

 The contents of this manual are subject to change without notice.

 The contents of this manual have been checked at each step of the production

process. Feel free to contact us if you notice anything that is questionable,

erroneous, etc.

 Any copying of the contents of this Users Guide, either in part or its entirety, is

forbidden. Except for your own personal use, any other use of the contents of this

manual without the permission of CASIO COMPUTER CO., LTD. is forbidden

under copyright laws.

 CASIO COMPUTER CO., LTD. shall not be held liable for any damages or lost

profits suffered by you or any third party due to the use or malfunction of this

product.

 CASIO COMPUTER CO., LTD. shall not be held liable for any damages, lost

profits, or claims by third parties arising out of the use of EXILIM Connect.

 CASIO COMPUTER CO., LTD. shall not be held liable for any damages or lost

profits caused by loss of memory contents due to malfunction, repair, or any other

reason.

 Note that the example screens and product illustrations shown in this Users Guide

may differ somewhat from the screens and configuration of the actual camera.

LCD Panel

The liquid crystal panel of the monitor screen uses high-precision technology that

provides a pixel yield in excess of 99.99%. This means that some very small number

of pixels may not light or may remain lit at all times. This is due to the characteristics

of the liquid crystal panel, and does not indicate malfunction.

Read this first!

Take test shots

Before shooting your final image, shoot a test shot to ensure that the camera is

recording correctly.

4Contents

Contents

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Read this first! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

General Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Monitor Screen Contents and How to Change Them . . . . . . . . . . . . . . . . . . . . 9

What you can do with your CASIO camera . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Using the Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Hinge Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Tripod nut . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Carabiner Strap. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Using the Touch Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

First, charge the battery prior to use.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Turning Power On and Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Configuring Basic Settings the First Time You Turn On the Camera. . . . . . . . 28

Preparing a Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Supported Memory Cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

To load a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

To format (initialize) a new memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

To Shoot a Snapshot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Selecting an Auto Recording Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

To shoot a snapshot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Viewing Snapshots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Deleting Snapshots and Movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Snapshot Shooting Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

To configure REC mode settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Selecting a Recording Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Shooting a Burst of Images . . . . . . . . . . . . . . . . . . . . . . . (High Speed CS). . . 40

Shooting with Triple Shot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Shooting with Artistic Effects . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Art Shot). . . 42

Shooting Scenes of an Activity at a Fixed Interval . . . . (Interval Shooting) . . 43

Shooting with Zoom. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

To record a movie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

5Contents

Using the REC Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Recording Beautiful Portraits . . . . . . . . . . . . . . . . . . . . . . . . . . . .(Make-up) . . . 51

Shooting by Touching the Monitor Screen . . . . . . . . . . . . (Touch Shooting) . . . 51

Reducing Blur Due to Camera Movement

During Movie Recording . . . . . . . . . . . . . . . . . . . . . . . .(Movie Anti Shake) . . . 52

Changing the Image Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(Image Size). . . 53

Movie Image Quality Settings . . . . . . . . . . . . . . . . . . . . . . .(Movie Quality) . . . 54

Correcting Image Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . (Brightness) . . . 54

Adjusting White Balance . . . . . . . . . . . . . . . . . . . . . . . . . . (White Balance) . . . 55

Specifying ISO Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(ISO). . . 56

Selecting a Focus Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(Focus). . . 57

Specifying the Number of CS Shots . . . . . . . . . . . . . . . . . . . . . . (CS Shots). . . 57

Self-shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Mirror). . . 58

Reducing Wind Noise during Movie Recording . . . . . . . . (Wind Noise Cut) . . . 58

Turning on Image Review . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(Review). . . 59

Displaying a Grid on the Monitor Screen . . . . . . . . . . . . . . . . . . . . . . (Grid) . . . 59

Viewing Snapshots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Viewing a Movie. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Viewing the Image Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Zooming an On-screen Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Creating a Time Lapse Movie . . . . . . . . . . . . . . . . . . . . . . . . (Time Lapse) . . 63

Creating a Collage of a Days Snapshots . . . . . . . . . . . . (Highlight Photo) . . 65

Creating a Movie of a Days Images . . . . . . . . . . . . . . . . (Highlight Movie) . . 67

Changing the Highlight Score of an Image . . . . . . . . . . . (Highlight Score) . . 69

Using the PLAY Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Rotating an Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Rotation). . . 71

6Contents

Controlling Your Camera with a Smartphone . . . . . . . . . . . . . . . . . . . . . . . . . 72

Using a Wireless Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Getting Ready to Establish a Connection between a Smartphone and Your

Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Installing the EXILIM Connect App on Your Smartphone . . . . . . . . . . . . . . . . . . 76

Establishing a Wireless Connection for the First Time . . . . . . . . . . . . . . . . . . . . 77

Using a Smartphone as a Camera Remote Controller (Shoot with phone) . . 80

Sending a Snapshot or Movie File from Camera Memory

to a Smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . (Send Selected Image) . . 80

Viewing Snapshots and Movies in Camera Memory

on a Smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (View on phone) . . 81

Configuring Wireless Connection Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Sending Images from the Camera

to a Smartphone as They are Recorded . . . . . . . . . . . . . . . . . (Auto Send). . . 83

Specifying Images to be Sent by Auto Send . . . . (Auto Send File Settings) . . . 84

Resizing Snapshots before Sending Them

to a Smartphone . . . . . . . . . . . . . . . . . . . . . . . . . . (Resize When Sending). . . 84

Changing the Camera Password

for Wireless LAN Connection . . . . . . . . . . . . . . . . . . . . . (WLAN password). . . 84

Unpairing the Camera from a Smartphone . . . . . . . . . . . . . . . . (Unpairing). . . 85

Printing with a Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Things you can do using a computer... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Using the Camera with a Windows Computer . . . . . . . . . . . . . . . . . . . . . . . . . 87

Viewing and Storing Images on a Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Playing Movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Using the Camera with a Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Connecting the Camera to Your Computer and Saving Files . . . . . . . . . . . . . . . 91

Playing a Movie. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Files and Folders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Memory Card Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

7Contents

Adjusting Monitor Screen Brightness . . . . . . . . . . . . . . . . . . . . . .(Screen) . . 96

Selecting Display Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Info) . . 96

Locking the Camera or Controller Screen Orientation . . . (Rotation Lock) . . 97

Configuring Camera Sound Settings . . . . . . . . . . . . . . . (Camera Sound) . . 97

Using the Vibration Function . . . . . . . . . . . . . . . . . . . . . . . . . . . (Vibration) . . 97

Setting the Cameras Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Adjust) . . 98

Specifying the Date Style . . . . . . . . . . . . . . . . . . . . . . . . . . . . (Date Style) . . 98

Specifying the Display Language . . . . . . . . . . . . . . . . . . . . . . (Language) . . 99

Specifying the Controller Sleep State Trigger Time . . . . . . . . . . . . (Sleep) . . 99

Formatting Built-in Memory or a Memory Card . . . . . . . . . . . . . . .(Format) . 100

Resetting the Camera to Factory Defaults . . . . . . . . . . . . . . . . . . .(Reset) . 100

Checking the Current Camera Firmware Version . . . . . . . . . . . . (Version) . 101

Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Shock resistant, Splashproof, Dustproof . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Precautions During Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Battery Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Using the Camera in another Country . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Disposing of the Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Using a Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Reset Initial Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

When things dont go right... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Display Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Number of Snapshots/Movie Recording Time . . . . . . . . . . . . . . . . . . . . . . . . 139

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

8

The numbers in parentheses indicate the pages where each item is explained.

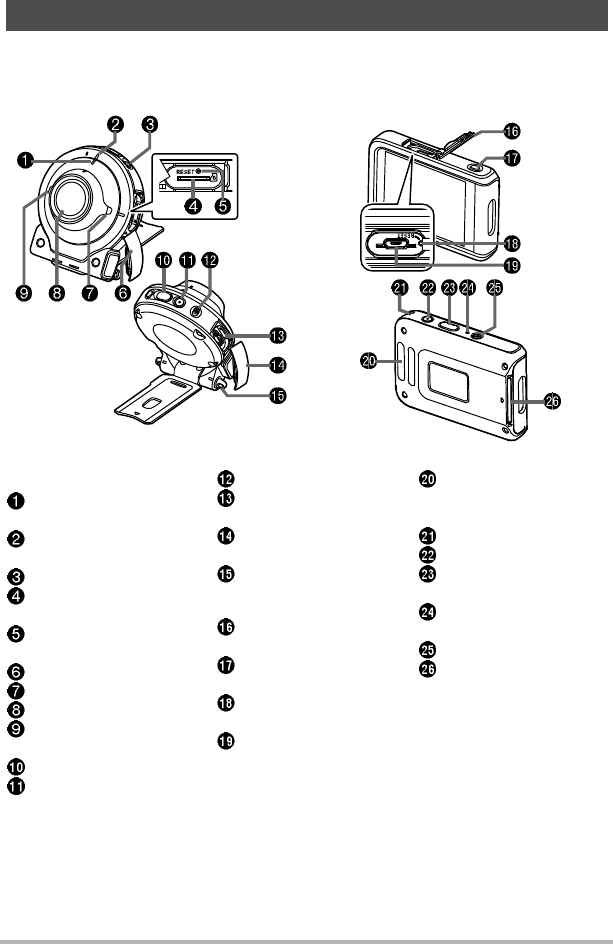

General Guide

Camera

Wireless LAN connection

lamp (page 78)

Operation lamp

(pages 20, 23)

[] (Power) (page 26)

Memory card slot

(page 31)

[RESET] button

(page 134)

[CARD] cover (page 31)

Speaker

Lens (page 17)

Microphone

(pages 17, 49)

Shutter button (page 34)

[] (Movie) (page 47)

[FREE] lever (page 15)

[USB] port

(pages 19, 22)

[USB] cover

(pages 19, 22)

Strap holes (page 17)

Controller

[USB] cover

(pages 19, 22)

[RELEASE] button

(page 14)

[RESET] button

(page 134)

[USB] port

(pages 19, 22)

Carabiner strap

attachment bar

(page 17)

Strap holes (page 17)

[

] (Movie) (page 47)

Shutter button

(page 34)

Operation lamp

(pages 20, 23)

[

] (Power) (page 26)

Hinge unit slot

(page 14)

Camera Controller

9

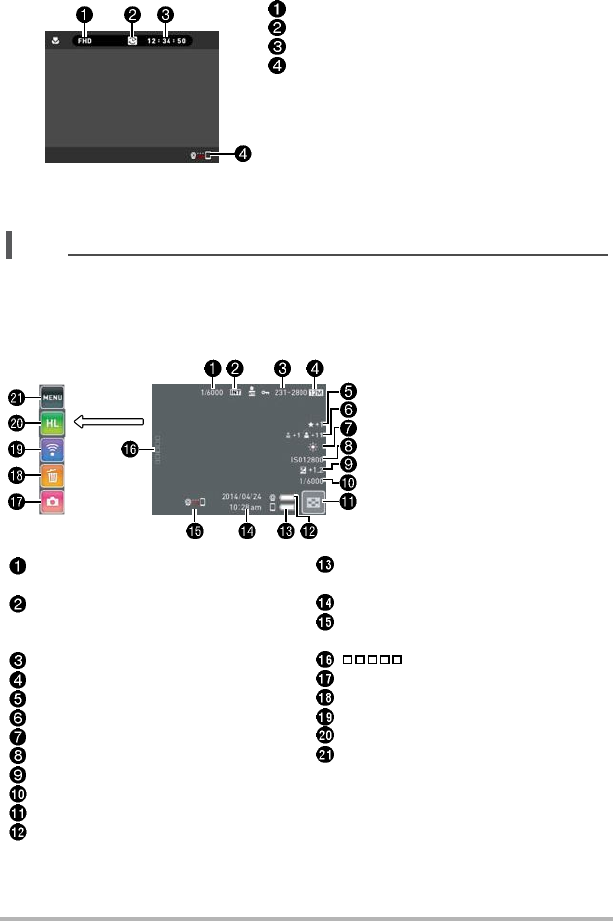

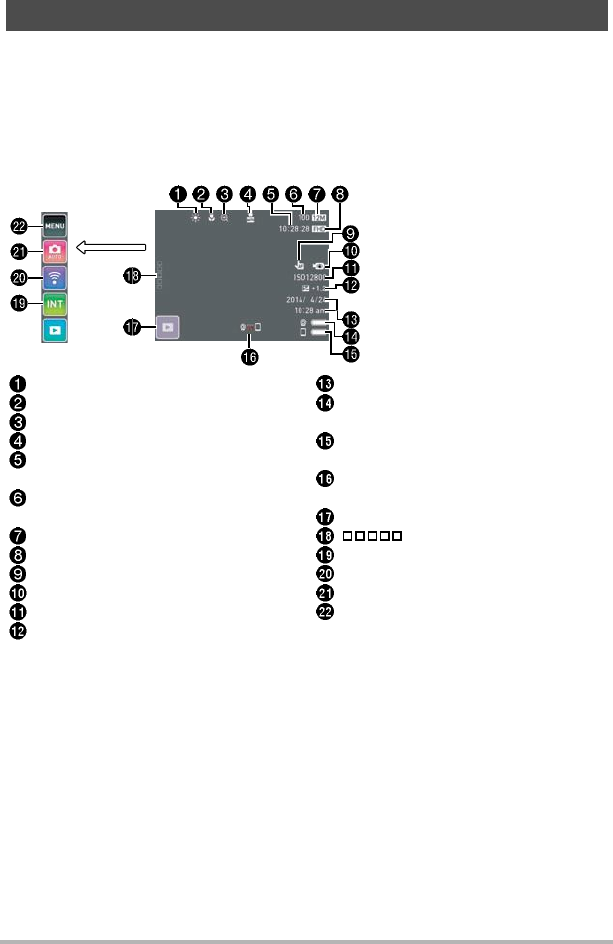

The monitor screen uses various indicators, icons, and values to keep you informed

of the cameras status.

 The sample screens in this section are intended to show you the locations of all the

indicators and figures that can appear on the monitor screen in various modes.

They do not represent screens that actually appear on the camera.

Snapshot Recording

Monitor Screen Contents and How to Change Them

White Balance (page 55)

Focus mode (page 57)

Digital zoom (page 46)

Auto Send (page 83)

Remaining movie memory capacity

(page 139)

Remaining snapshot memory

capacity (page 139)

Snapshot image size (page 53)

Movie quality (pages 47, 54)

ISO sensitivity (page 56)

Brightness (page 54)

Date/Time (pages 28, 98)

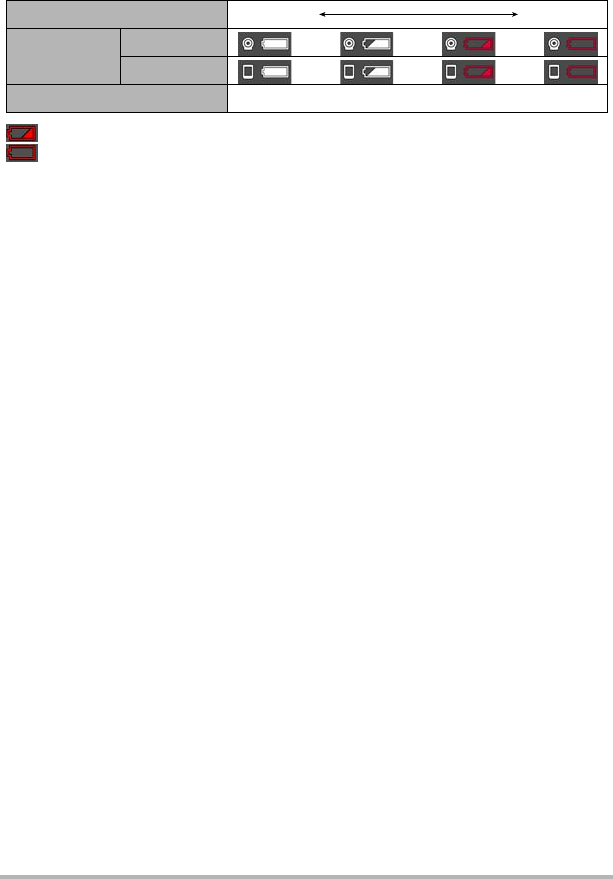

Camera battery level indicator

(page 25)

Controller battery level indicator

(page 25)

Communication status between

camera and controller (page 26)

PLAY mode icon (page 28)

  (Show Icons) icon

Interval Shooting icon (page 43)

Wireless mode icon (page 74)

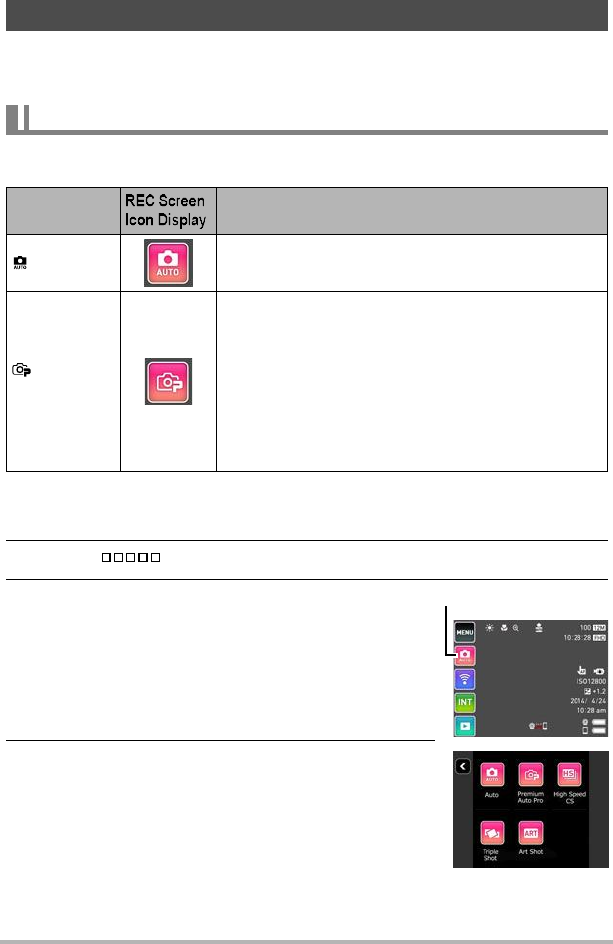

Recording mode icon (page 39)

Menu icon (page 50)

10

Movie Recording



 If you do not perform any operation for about three seconds during snapshot

recording or movie recording, icons will become transparent.

Snapshot Viewing

Movie quality (pages 47, 54)

Recording time icon

Movie recording time (pages 48, 139)

Close-range indicator (page 47)

Current image number/total number of

grouped images (pages 40, 43)

Group images

(High Speed CS (page 40),

Interval Shooting (page 43))

Folder name-file name (page 94)

Snapshot image size (page 53)

Highlight Score (page 69)

Make-up (page 51)

White Balance (page 55)

ISO sensitivity (page 56)

Brightness (page 54)

Shutter speed

Image menu icon (page 62)

Camera battery level indicator

(page 25)

Controller battery level indicator

(page 25)

Date/time (pages 28, 98)

Communication status between

camera and controller (page 26)

  (Show Icons) icon

REC mode icon (page 28)

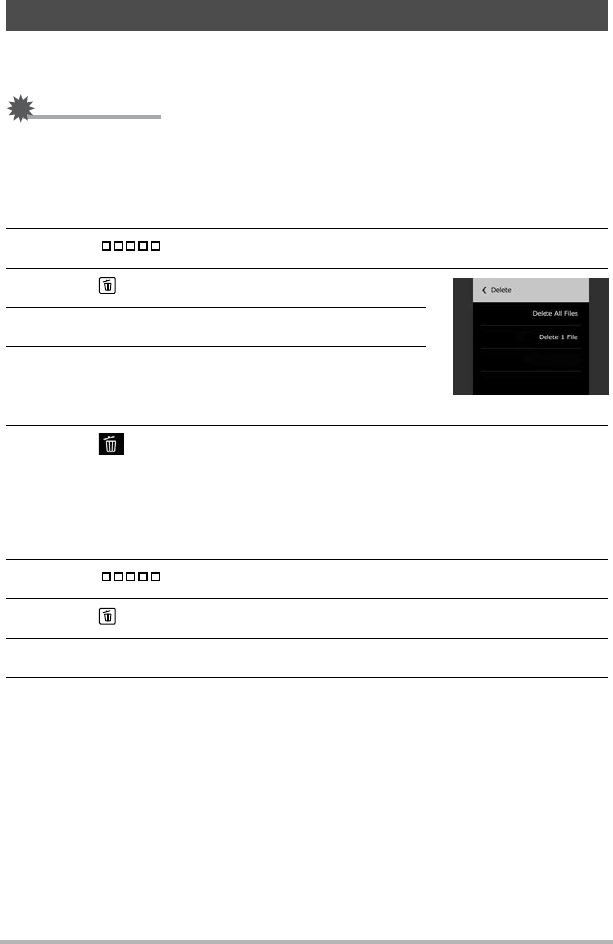

Delete icon (page 36)

Wireless mode icon (pages 74, 81)

Edit icon (pages 63, 65, 67, 69)

Menu icon (page 70)

11



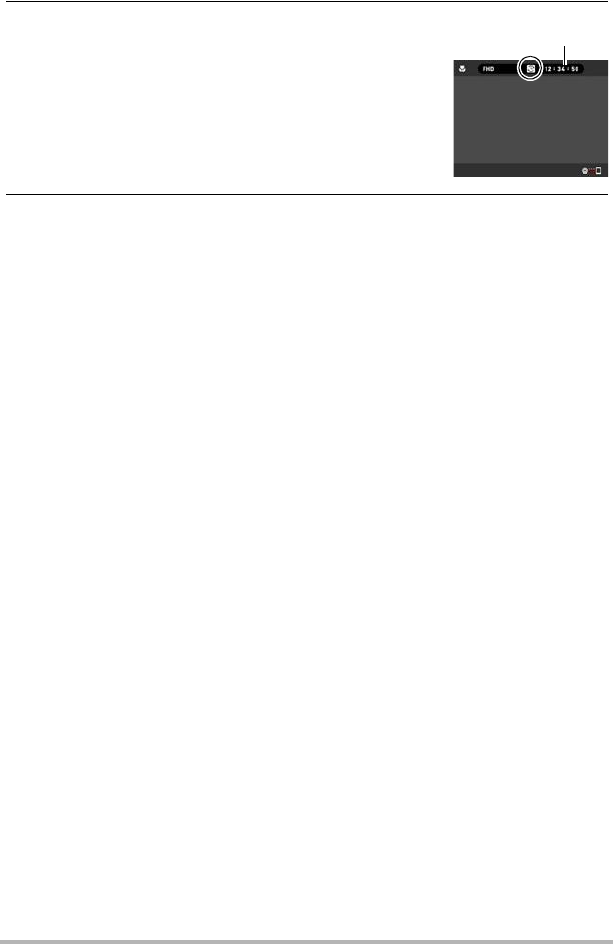

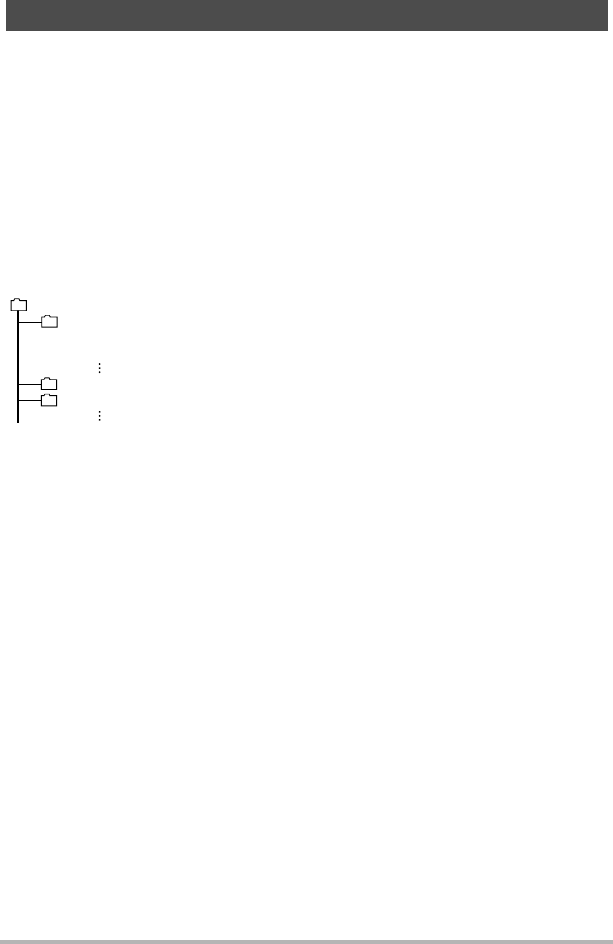

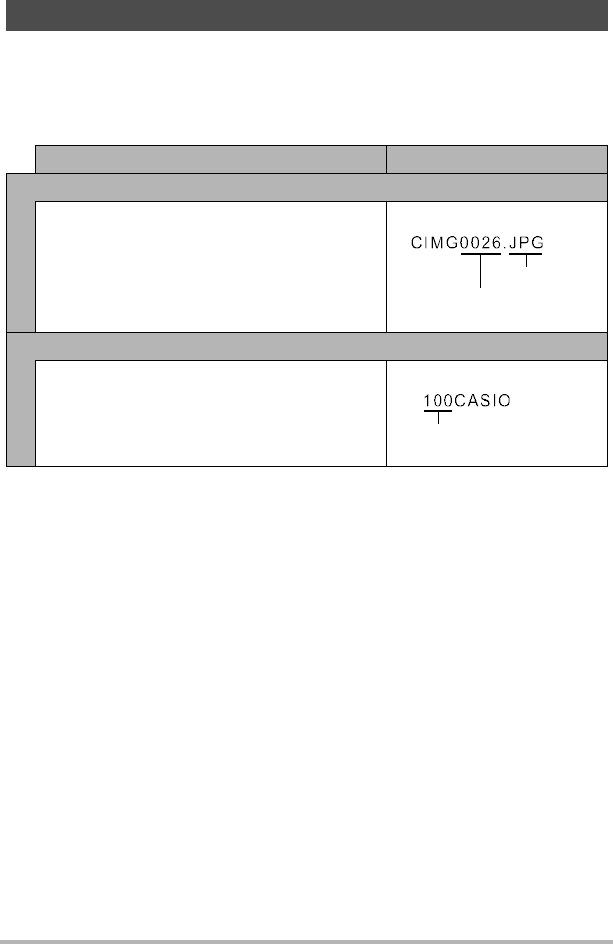

 The folder name and file name in the upper right corner of the monitor screen has

the meaning described below (page 94).

Example: 100-0023: 23rd image file in the folder named 100CASIO.

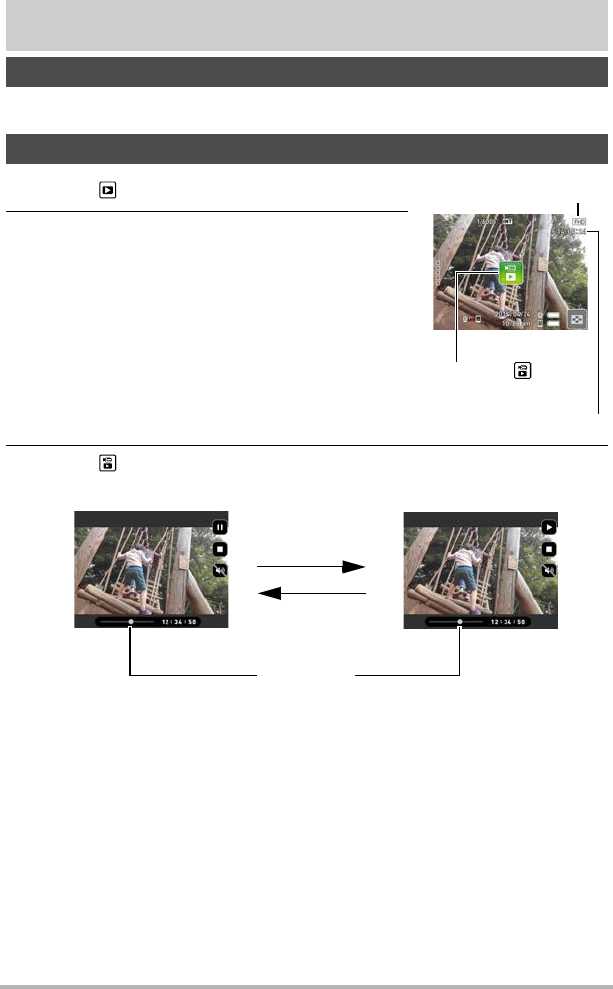

Movie Playback



 If you do not perform any operation for about three seconds during snapshot

viewing or movie playback, icons will become transparent.

Movie recording time (page 60)

Movie quality (pages 47, 54)

Highlight Score (page 69)

Image menu icon (page 62)

Date/time (pages 28, 98)

  Movie play icon (page 60)

  (Show Icons) icon

12 Quick Start Basics

Quick Start Basics

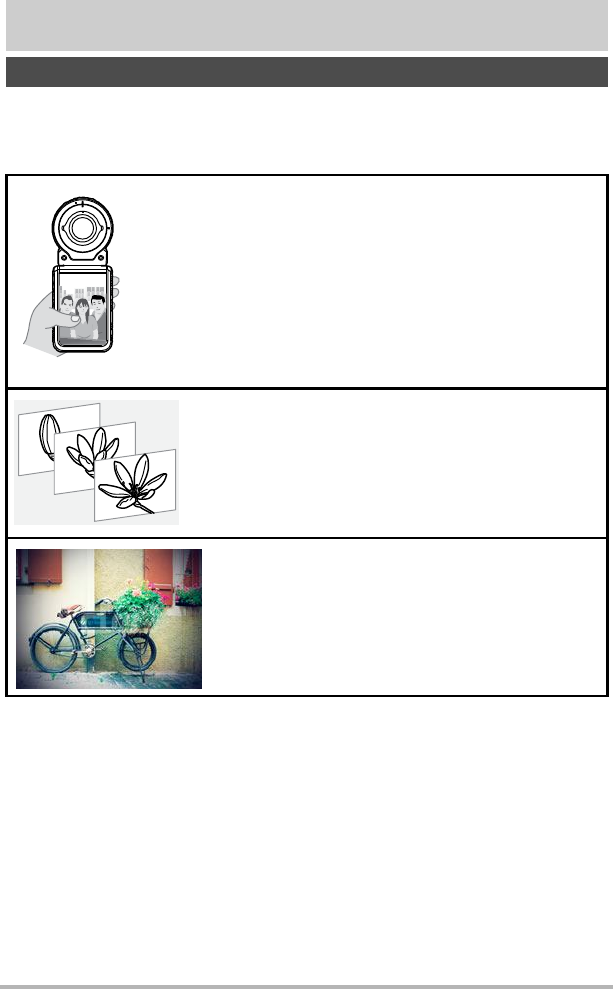

Your CASIO camera is packed with a powerful selection of features and functions to

make recording of digital images easier, including the following main functions.

Shooting

What you can do with your CASIO camera

A variety of shooting styles

The camera connects to the controller using Bluetooth®

wireless technology (Bluetooth).

You can hang it from your neck, mount it on a tripod, and select

the shooting style that suits current conditions. The camera can

also be rotated 90 degrees, which means you can change the

orientation of a snapshot with little repositioning the camera.

Interval Shooting

Shoot snapshots and/or movies at fixed intervals. Its a

great way to chronicle a days activities or changes

over time.

Art Shot

A variety of artistic effects help to make even common,

ordinary subjects become more novel and exciting.

See page 14

for more information.

See page 43

for more information.

See page 42

for more information.

13 Quick Start Basics

Viewing

Sharing

Highlight Photo

You can configure camera settings to automatically

select snapshot highlights and generate a collage of

them.

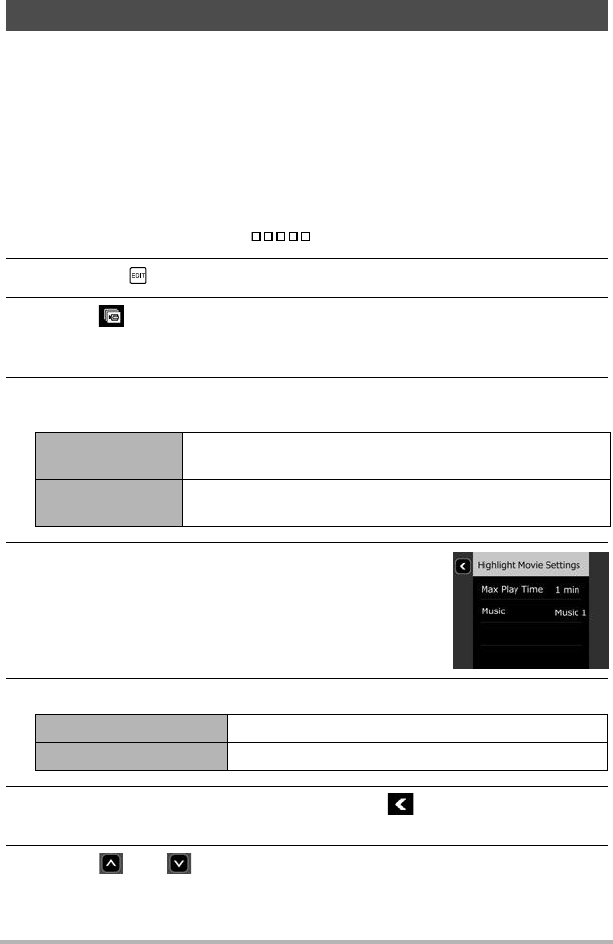

Highlight Movie

You can configure camera settings to automatically

select snapshot and movie highlights, and create a

movie of them.

Time Lapse

Creates a movies of images shot.

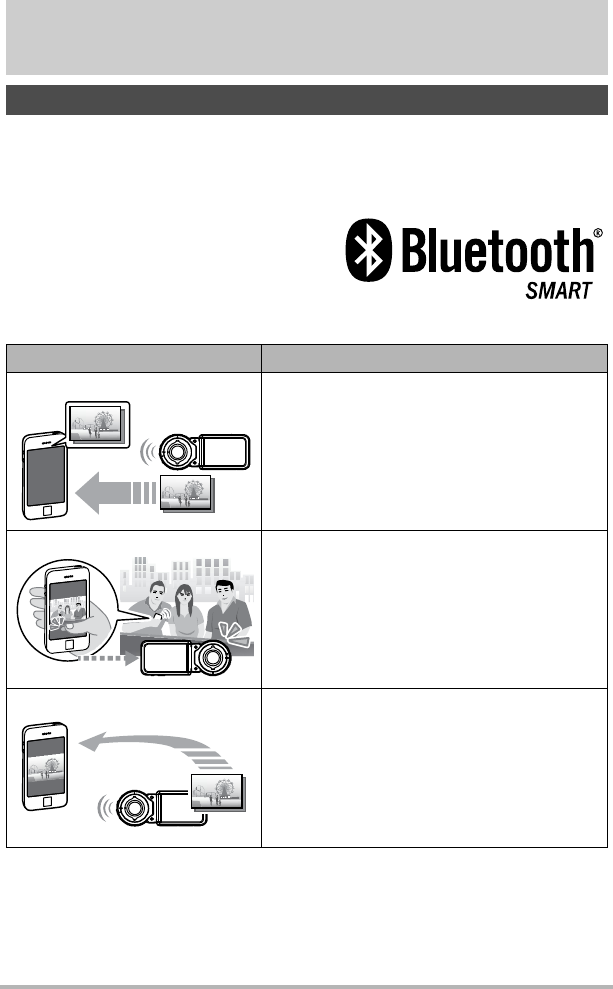

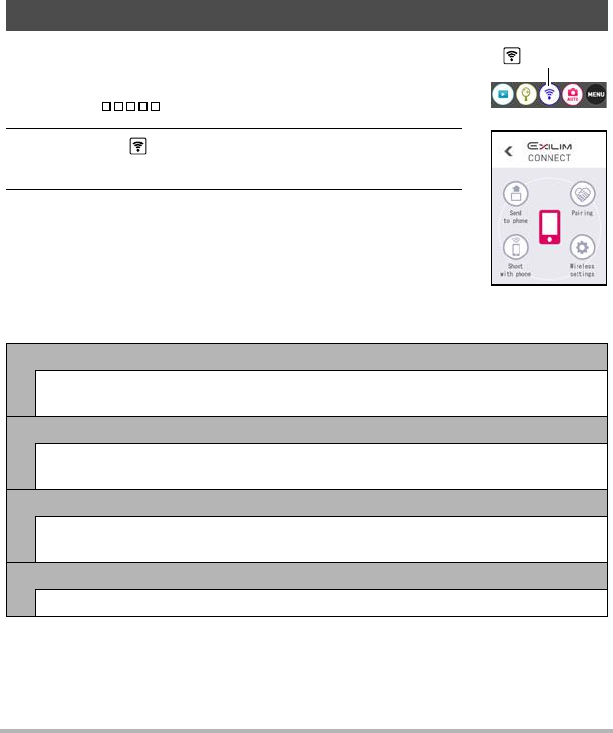

Wireless Connection

Turns your smartphone into a camera remote

controller and allows you to select one or more

snapshot and/or movie file in camera memory and

send a copy to a smartphone.

See page 65

for more information.

See page 67

for more information.

See page 63

for more information.

See page 72

for more information.

14 Quick Start Basics

You can configure the camera to suit your specific needs by attaching the hinge unit,

which enables attachment of the controller, and other included and optionally

available attachments. This way you can configure the camera to suit your specific

needs.



 Do not apply strong pressure to the surface of the monitor screen. Doing so can

damage it.

 Never touch the lens with your fingers. Finger smudges, dirt, and other foreign

matter on the lens can interfere with proper operation of the camera. Use a blower

or other means to keep the lens and flash window free of dirt and dust, and wipe

gently with a soft, dry cloth.

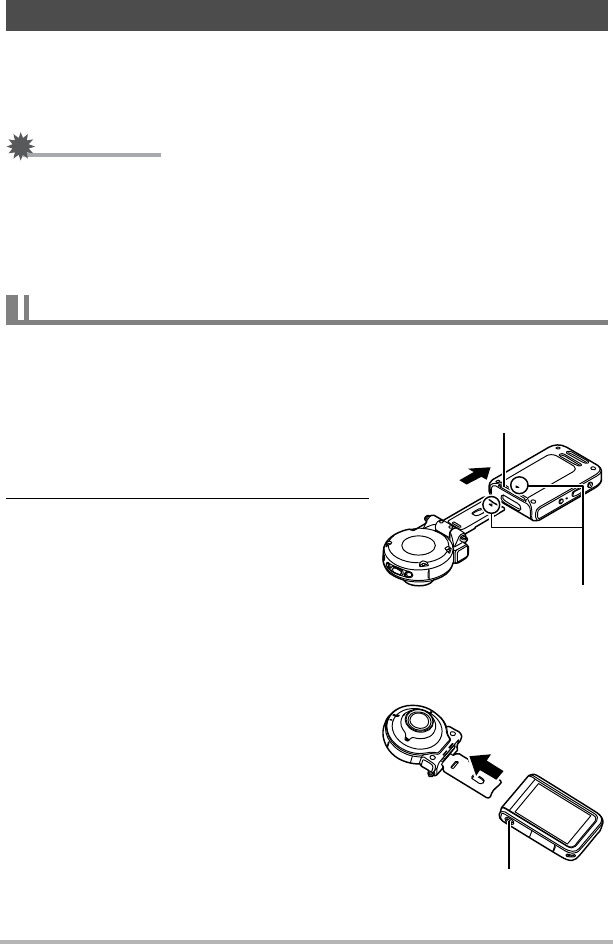

You can attach the controller to the camera and use the camera as a normal camera.

To attach the controller

1. With the camera lens pointed in the

same direction as the controllers

monitor screen, slide the hinge unit into

the controllers hinge unit slot.

2. Push the hinge unit in until you hear it

click into place.

To detach the controller

1. While holding down the controllers

[RELEASE] button, pull it out of the

camera.

Using the Attachment

Controller

Hinge unit slot

Align the 

mark on the end of

the hinge unit with the  mark

next to the hinge unit slot.

[RELEASE] button

15 Quick Start Basics

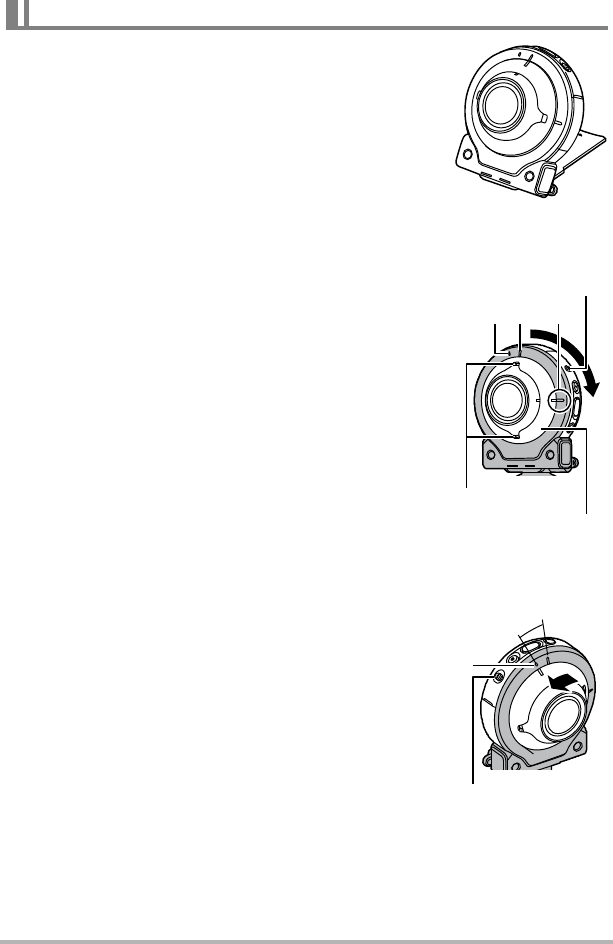

To use the hinge unit as a stand

To change the shooting direction by 90 degrees

1. While pulling down on the cameras [FREE]

lever, rotate the camera clockwise 90 degrees

until you hear a click.

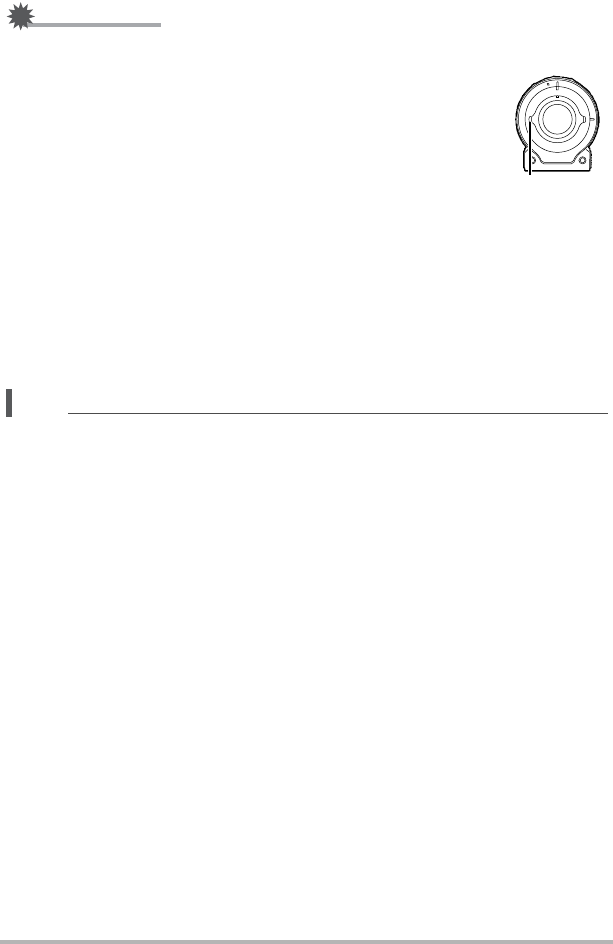

 Align the cameras operation lamp with the C

mark on the hinge unit.

 The indentations in the lens ring indicate the

orientation of the long dimension of the image

being shot.

To remove the hinge unit from the camera

1. While pulling down on the cameras [FREE]

lever, rotate the camera counterclockwise

about 15 degrees until its operation lamp is

aligned with the A mark on the hinge unit.

Hinge Unit

Lens ring

[FREE] lever

Indentations

A B C

A

[FREE] lever

16 Quick Start Basics

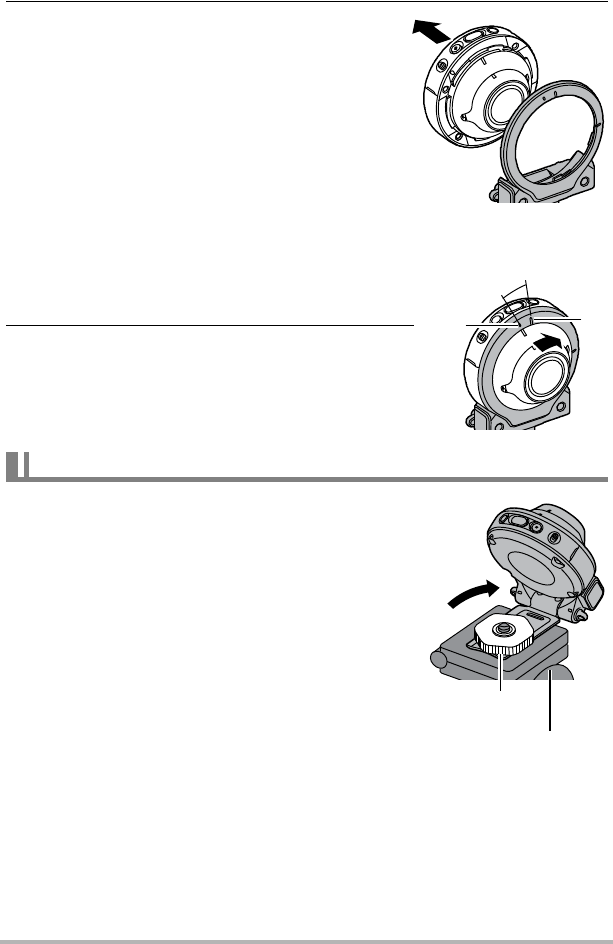

2. Remove the hinge unit from the camera.

To attach the hinge unit to the camera

1. Align the cameras operation lamp with

the A mark on the hinge unit.

2. Rotate the camera clockwise about

15 degrees until its operation lamp is aligned

with the B mark on the hinge unit.

1. Use the tripod nut to secure a tripod

(commercially available) to the hinge unit.

Tripod nut

A

B

Tripod (commercially

available)

Tripod nut

17 Quick Start Basics

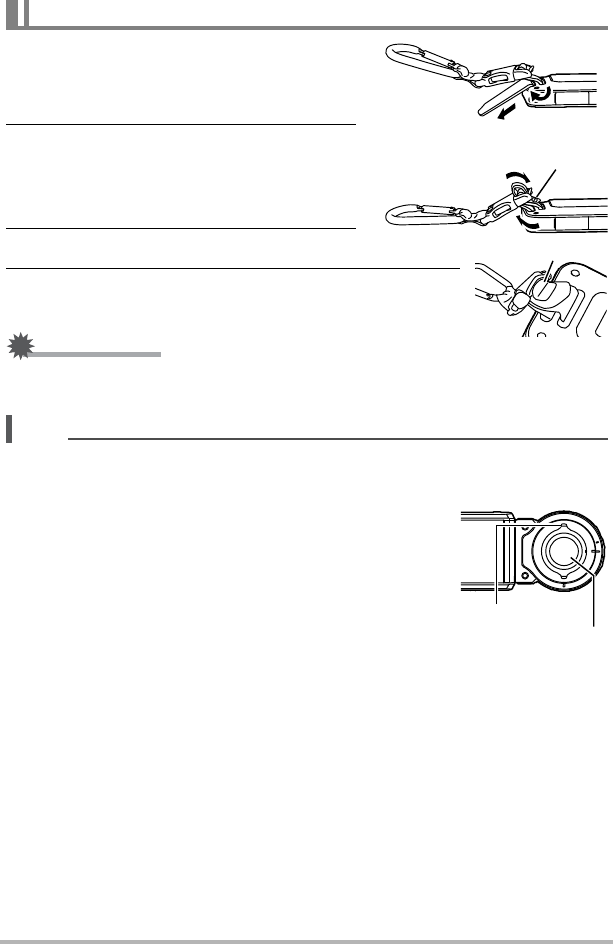

1. Pass the carabiner strap belt around

the controllers carabiner strap

attachment bar.

2. Pass the belt through the buckle to

secure it.

Pull on the belt until the belt flap is passed

all the way through the buckle.

3. Hook the flap on the buckle.

4. Pull on the carabiner and controller to confirm that

the flap is hooked on the buckle and is secure.



 The carabiner strap is not intended for mountain climbing use. It is designed only to

support the camera.



 When shooting hold the camera still. Carefully press the shutter button and take

care to avoid all movement as the shutter releases and for a few moments after it

releases.

 Take care that your fingers and the strap do not cover

any of the areas indicated in the illustration.

 Never swing the camera around by its strap.

 The supplied strap is intended for use with this

camera only. Never use it for any other purpose.

Carabiner Strap

flap

Microphone

Lens

18 Quick Start Basics

The monitor screen of the camera is a touch panel.

This means you can perform the following operations

by touching the screen with your fingers.

Touch

Momentarily touching the screen with your finger.

Touch the screen to select an icon or menu item, and

to configure settings.

Flick

Holding your finger against the screen as you flick it

up, down, left, or right.

Use flick to scroll forward through images.

Spread

Holding your thumb and forefinger against the screen

as you spread them out.

Use spread to enlarge the screen image.

Squeeze

Holding your thumb and forefinger against the screen

as you bring them together.

Use squeeze to reduce the size of the screen image,

and to display multiple images.



 Never use a pointed or hard object to perform screen operations. Doing so can

damage the screen.

Using the Touch Panel

Monitor Screen

19 Quick Start Basics



 Applying a commercially available LCD protective sheet will reduce the operation

sensitivity of the monitor screen.

 The camera will have a hard time interpreting a screen operation made using your

fingernails. Use the fleshy pad of your finger.

The camera and the controller each have a built-in rechargeable lithium ion battery.

The batteries are not charged when you purchase the camera, so you will need to

charge both the camera and controller before using them.

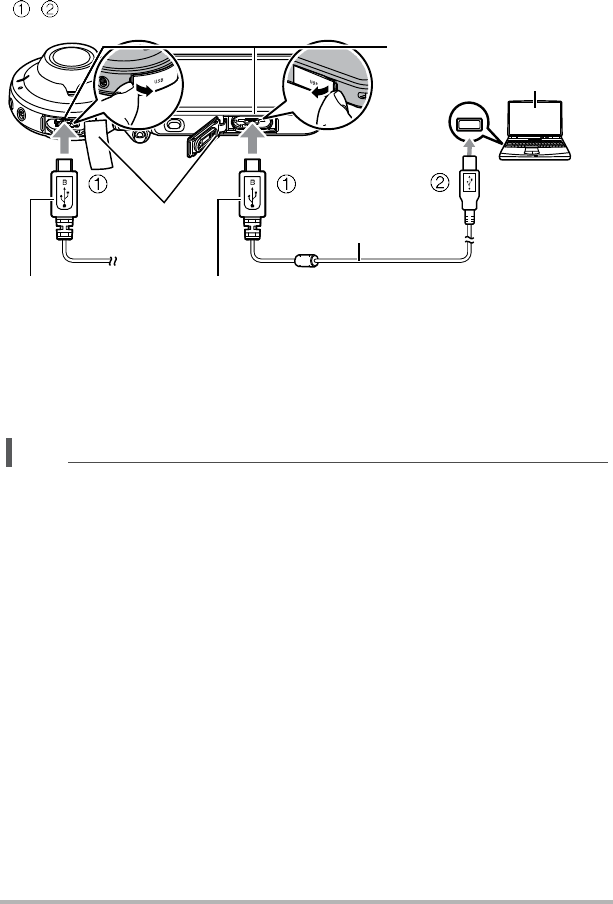

You can use either of the two following methods to charge the batteries.

 USB-AC adaptor

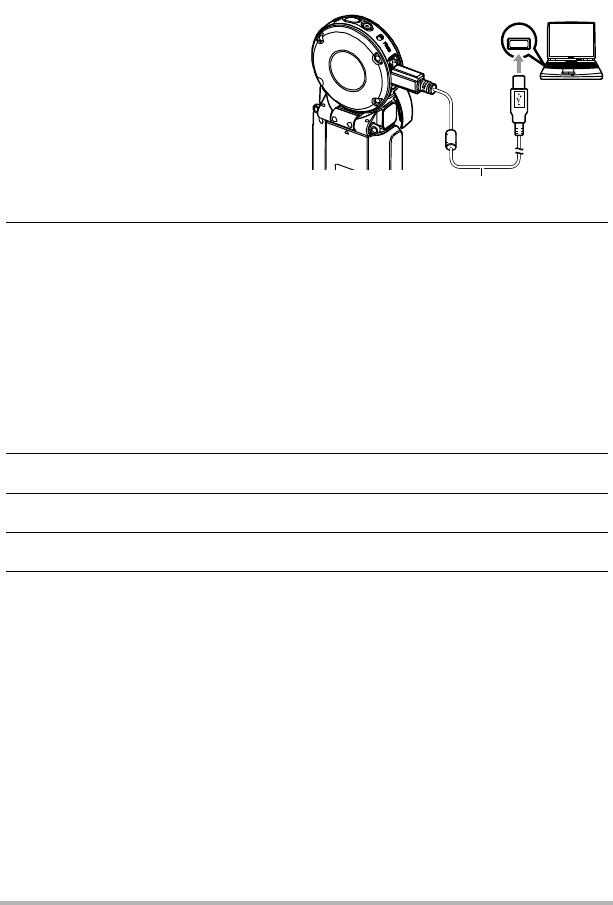

 USB connection to a computer (Using the included micro USB cable.)

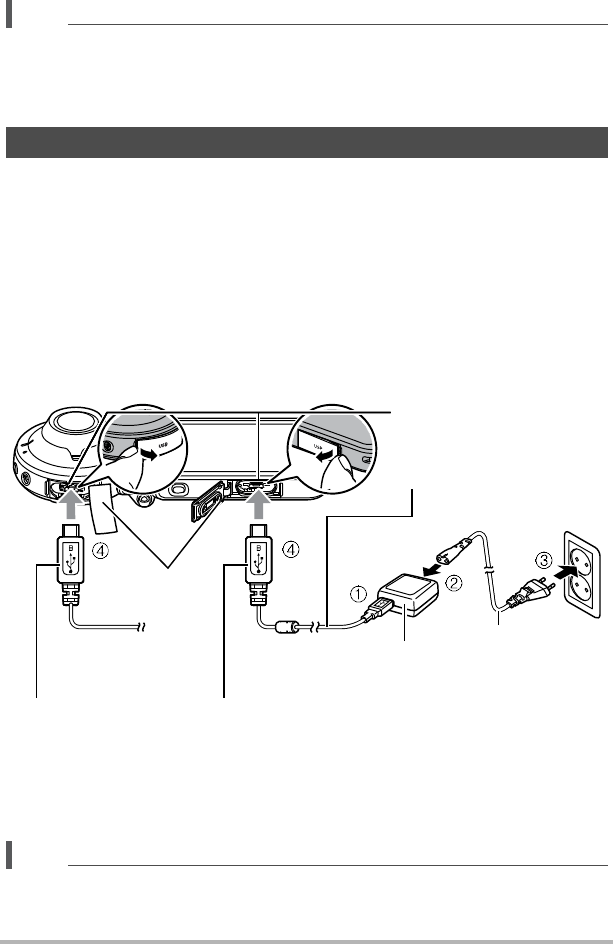

To charge with the USB-AC adaptor

While the camera and controller are turned off, connect in the sequence shown

below.

Charging time: Approximately X hours XX minutes

 When disconnecting the USB-AC adaptor from the camera, be sure to disconnect

from the camera first.



 If you turn on the camera or controller while charging with the USB-AC adaptor,

you will be able to perform normal recording operations. In this case, however,

charging of the camera will be stopped while it is turned on.

First, charge the battery prior to use.

USB-AC adaptor

(AD-C53U)

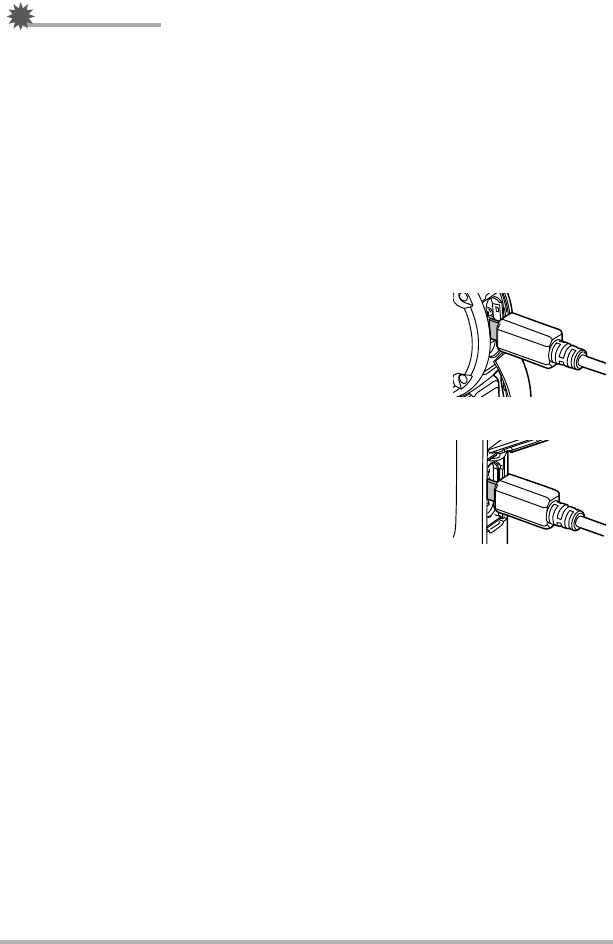

When plugging in the connectors, orient this marking as described below.

Camera : Towards the lens side

Controller: Towards the monitor screen side

[USB] port

Micro USB cable

(included with camera)

Power cord

[USB] cover

20 Quick Start Basics

Operation Lamp Indications

While power is off

While power is on

 Camera

 Controller

Operation Lamp Status Meaning

Lit red Charging

Flashing red

Charging stopped due to abnormal ambient

temperature, USB-AC adaptor problem, battery

problem (page 126), timer operation.

Unlit Charging complete

Operation Lamp

Status Meaning

Lit green Camera turned

on Charging stopped

Slow red-amber

flashing

In sleep state

Charging

High speed red-green

flashing

Charging stopped due to abnormal

ambient temperature, USB-AC adaptor

problem, battery problem (page 126),

timer operation.

Slow green flashing Charging complete

Operation Lamp Status Meaning

Lit red Charging

Slow red-amber flashing Charging (sleep state)

High-speed green-amber

flashing

Charging stopped due to abnormal ambient

temperature, USB-AC adaptor problem, battery

problem (page 126), timer operation.

High-speed red-green flashing Same as above (sleep state)

Lit green Charging complete

Slow green flashing Charging complete (sleep state)

21 Quick Start Basics



 A battery that has not been used for a long time and/or ambient temperature can

cause charging to take longer than normal. These conditions may also cause the

operation lamp to flash red. If this happens, refer to page 126.

 The USB-AC adaptor will become warm during charging. This is normal and does

not indicate malfunction.

 The shape of the power plug depends on each country or geographic area.

If the operation lamp is not lit or flashing during charging, check the orientation of the

USB cable connectors.

 Make sure that you insert the cable connector into the USB port until you feel it

click securely into place. Failure to insert the connector fully can result in poor

communication or malfunction.

 Note that even while the connector is fully inserted, you

still will be able to see the metal part of the connector

as shown in the illustration.

Camera

Controller

22 Quick Start Basics

To charge using a USB connection to a computer

While the camera and controller are turned off, connect in the sequence shown below

( , ).

 If the camera or controller is on, hold down [] (Power) to turn it off before

connecting it to your computer.

Charging time: Approximately X hours XX minutes



 If you turn on the camera while charging over a USB connection to a computer is in

progress, the camera will establish a USB connection with the computer. Charging

will continue. Charging will also continue if you turn on the controller. Note that

certain types of computers or connection environments may stop charging if supply

power is low.



Micro USB cable

(included with camera)

[USB] port

USB port

Computer

(power turned on)

When plugging in the connectors, orient this marking as described below.

Camera : Towards the lens side

Controller: Towards the monitor screen side

[USB] cover

23 Quick Start Basics

Operation Lamp Indications

While power is off

While power is on

 Camera

 Controller

Operation Lamp Status Meaning

Lit red Charging

Flashing red

Charging stopped due to abnormal ambient

temperature, USB-AC adaptor problem, battery

problem (page 126), timer operation.

Unlit Charging complete

Operation Lamp Status Meaning

Lit amber Charging

High speed red-green flashing

Charging stopped due to abnormal ambient

temperature, USB-AC adaptor problem, battery

problem (page 126), timer operation.

Lit green Charging complete

Operation Lamp Status Meaning

Lit amber Charging

Slow red-amber flashing Charging (sleep state)

High-speed green-amber

flashing

Charging stopped due to abnormal ambient

temperature, USB-AC adaptor problem, battery

problem (page 126), timer operation.

High-speed red-green flashing Same as above (sleep state)

Lit green Charging complete

Slow green flashing Charging complete (sleep state)

24 Quick Start Basics



 The first time you connect the camera or controller to your computer with the USB

cable, an error message may appear on your computer. If this happens, disconnect

and then reconnect the USB cable.

 A battery that has not been used for a long time, certain types of computers, and

connection conditions can cause charging to take longer than normal. These

conditions may also cause the operation lamp to flash red. If this happens, refer to

page 134.

 For faster charging, use of the supplied USB-AC adaptor is recommended.

 Charging is not performed while the connected computer is in the hibernate mode.

Other Charging Precautions

 With the two charging methods described above, you can charge the batteries.

Never use any other type of charger device. Attempting to use a different charger

can result in unexpected accident.

 This model can be charged only via from USB 2.0 specification USB port only.

 USB charging devices and power supply devices are subject to fixed standards.

Use of an inferior device or a device that is not up to standard can cause

malfunction and/or failure of your camera.

 Operation is not guaranteed in the case of a computer built or modified by you.

Even in the case of a commercially available computer, certain USB port

specifications may make it impossible to charge via the USB cable.

 A battery that is still warm immediately after normal use may not charge fully. Give

the battery time to cool before charging it.

 A battery discharges slightly while it is loaded in the camera or controller. Because

of this, it is recommended that you charge the battery immediately before you need

to use it.

 Charging the battery may cause interference with TV and radio reception. If this

happens, plug the USB-AC adaptor into an outlet that is further away from the TV

or radio.

 Actual charging time depends on current battery capacity and charging conditions.

 Do not use the USB-AC adaptor with any other device.

 Never use the power cord with another device.

 Use only the USB-AC adaptor and USB cable specified in this manual for charging.

Use of any other type of devices may result in improper charging.

25 Quick Start Basics

Checking the Current Battery Level

As battery power is consumed, a battery indicator on the monitor screen indicates its

current level as shown below.

indicates battery power is low. Charge the battery as soon as possible.

indicates that the battery is about to go dead. Charge the battery immediately.

 The level shown by the battery indicator may change when you switch between the

REC mode and PLAY mode.

 Leaving the camera for about 5 days with no power supplied while the battery is

dead will cause its date and time settings to be cleared. A message telling you to

configure time and date settings will appear the next time you turn on the camera

after restoring power. When this happens, configure date and time settings (page

98).

 See page 143 for information about battery life and number of shots.

Level High Low

Battery

Indicator

Camera   

Controller   

Indicator Color White White Red Red

26 Quick Start Basics

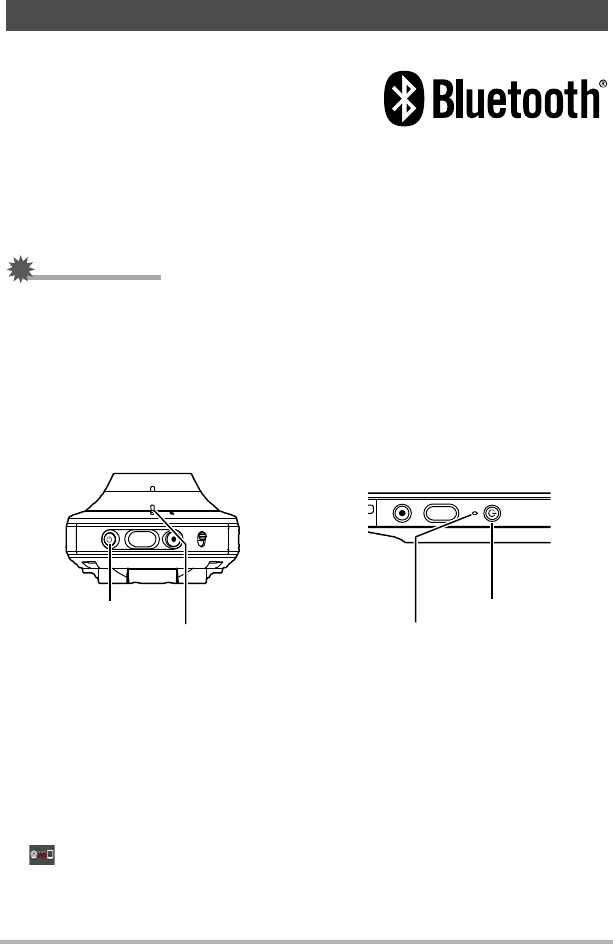

Camera-Controller Wireless Connection (Bluetooth)

The camera and controller communicate over a

Bluetooth wireless technology connection. Once

you perform the pairing operation required for

Bluetooth wireless technology connection, the

camera and controller will automatically connect to each other whenever you turn

them on. Note that the connection will be lost when the distance between the camera

and controller becomes too great. The controller will turn off after a preset amount of

time after the Bluetooth wireless technology connection is lost. The camera will

remain on, so you can shoot images by pressing its shutter button.



 Your camera has Bluetooth wireless technology communication functionality built

in. Avoid operating the camera (including camera standalone operations) inside of

aircraft or anywhere else where wireless data communication is restricted.

To turn on power

Both the camera and controller need to be turned on in order to use them.

 Turning on the camera causes the camera and controller operation lamps to light

green, and automatically starts an operation to establish a Bluetooth wireless

technology connection between the camera and controller. An image appears on

the controller and shooting is enabled.

 The connection between the camera and controller is affected by their orientation

and by the distance between them.

 The maximum range for shooting with the controllers shutter button is around

XX meters (XX.X'). The maximum range for viewing the image on the controllers

monitor screen is around XX meters (XX.X').

 If the connection is poor, the controller operation lamp will flash green and

  (Communication status between camera and controller) will appear on the

monitor screen. Camera response may be slow if you perform an operation on the

controller while communication conditions are bad. If this happens, try adjusting the

orientation and the distance between the camera and controller.

Turning Power On and Off

Camera

Press [] (Power).

Controller

Press [] (Power).

[] (Power)

Operation lamp

[] (Power)

Operation lamp

27 Quick Start Basics

Sleep Mode

If you press [] (Power) on the controller or if you do not perform any controller

operation for the time specified by the Sleep setting on the Setup menu (page 99)

while there is a Bluetooth wireless technology connection between the camera and

controller, the controller and camera will enter a sleep state. The operation lamp

slowly flashes green while the camera is in the sleep mode. To restore the controller

display, press any controller button. The Bluetooth wireless technology connection

between the camera and controller is maintained even while they are in the sleep

mode, so they can quickly recover when you press a button.

 If the distance between the camera and controller becomes to great or if

communication conditions become bad while the camera is in the sleep mode, the

connection may be dropped between them.

28 Quick Start Basics

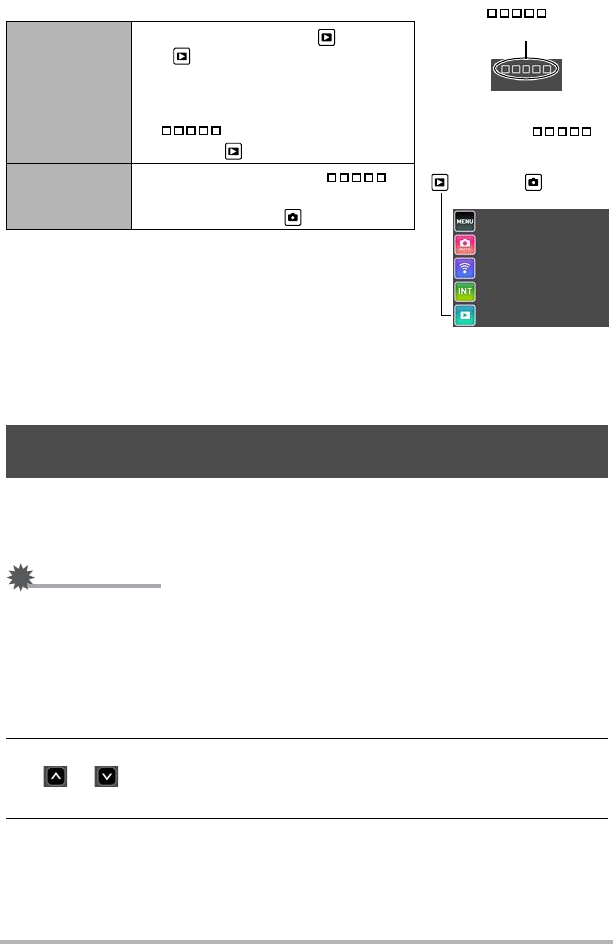

Toggling Between the REC Mode and PLAY Mode

To turn off power

On the camera or the controller, hold down [] (Power).

 Turning off the camera will cause the controller to turn off automatically.

The first time you turn on the camera, a screen appears for configuring the display

language, date, and time settings. Failure to set the date and time correctly will cause

the wrong date and time data to be recorded with images.



 Camera models sold in certain geographic areas may not support display language

selection.

1. Turn on the camera and controller (page 26).

 If this is the first time you are turning on power, a language selection screen will

appear. If the screen does not appear, check to make sure that the camera is

turned on.

2. Flick (page 18) the controller screen upwards and downwards or touch

 ,   until you find the language you want, and then touch to

select it.

3. Touch the date display format you want.

Example: July 10, 2016

YY/MM/DD  16/7/10

DD/MM/YY  10/7/16

MM/DD/YY  7/10/16

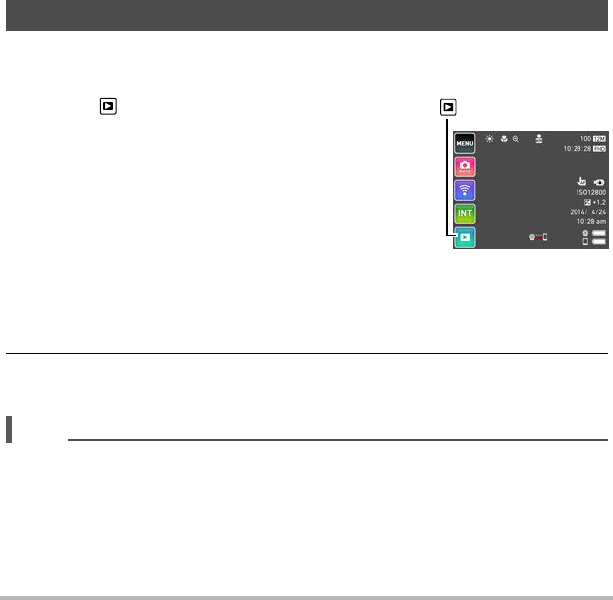

To enter the

PLAY mode

In the REC mode, touch   (PLAY).

 If   (PLAY) is not displayed on

the screen, you can touching the

Review image (page 59), or switch

to the PLAY mode by touching

  (Show Icons) and then

touching   (PLAY).

To enter the

REC mode

In the PLAY mode, touch  

(Show Icons). On the screen image

that appears, touch   (REC).

Configuring Basic Settings the First Time You Turn On the

Camera

 

(Show Icons)

Screen after  

(Show Icons) is touched

  (PLAY) /   (REC)

29 Quick Start Basics

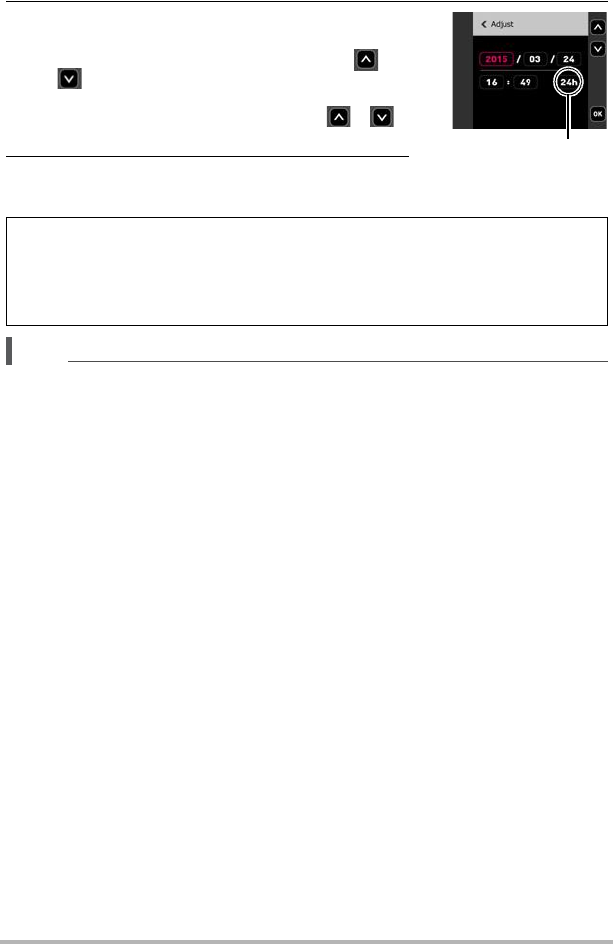

4. Set the date and the time.

 Touch the value you want to change (year,

month, day, hour, minute) and then touch  ,

  to change it.

 To switch between 12-hour and 24-hour format,

select am (pm)/24h and then touch  ,  

to change the setting.

5. When the date and time settings are the way

you want, touch Apply.



 Each country controls its local time offset and the use of summer time, and so they

are subject to change.

If you make a mistake configuring display language, date, or time settings with the

above procedure, refer to the following pages for information about how to correct

the settings.

 Display language: Page 99

 Date and time: Page 98

12/24 hour switch icon

30 Quick Start Basics

Though the camera has built-in memory that can be used to store images and

movies, you probably will want to purchase a commercially available memory card for

greater capacity. The camera does not come with a memory card. Images recorded

while a memory card is loaded are saved to the memory card. When no memory card

is loaded, images are saved to built-in memory.

 Snapshots and movies stored in built-in memory cannot be copied to a memory

card.

 For information about memory card capacities, see page 139.

 microSD Memory Card

 microSDHC Memory Card

 microSDXC Memory Card

 The above are supported memory card types as of July 2015.

 This camera supports use of microSD memory cards of the

following types and capacities: microSD memory cards up to 2GB; microSDHC

memory cards greater than 2GB, up to 32GB; microSDXC memory cards greater

than 32GB, up to 2TB. Note that the ability to use any particular card with this

camera, even if it satisfies the above capacity and type requirements, is not

guaranteed.

Memory Card Handling Precautions

Certain types of memory cards can slow down processing speeds. In particular, high-

quality movies may not be able to be stored correctly. A slow memory card can take

too much time to record data and result in breaks in the image and/or audio during

playback.

Preparing a Memory Card

Supported Memory Cards

Warning!

Memory cards are small and present a risk of accidentally being swallowed

by infants and young children. Keep memory cards out of the reach of

infants and young children. If a memory card is ever swallowed accidentally,

contact a physician immediately.





31 Quick Start Basics

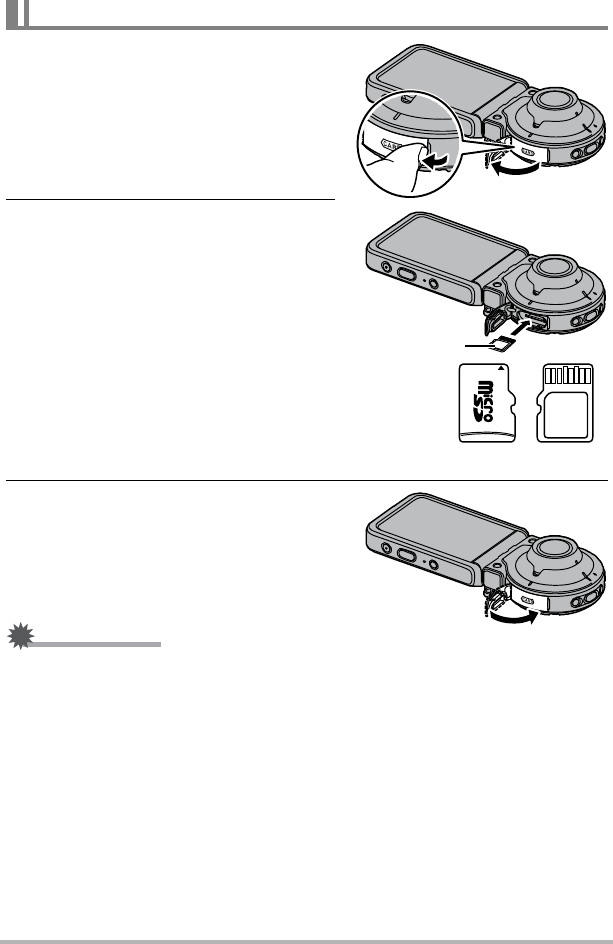

1. Holding down cameras []

(Power) to turn off the camera and

then open the [CARD] cover.

2. Load a memory card.

Positioning the memory card so its back

is facing upwards (towards the lens side

of the camera), slide it into the card slot

all the way in until you hear it click

securely into place.

3. Close the [CARD] cover.



 Never insert anything besides a supported memory card (page 30) into the memory

card slot.

 Should water or any foreign object ever get into the card slot, immediately turn off

the camera, and contact your retailer or nearest CASIO authorized service center.

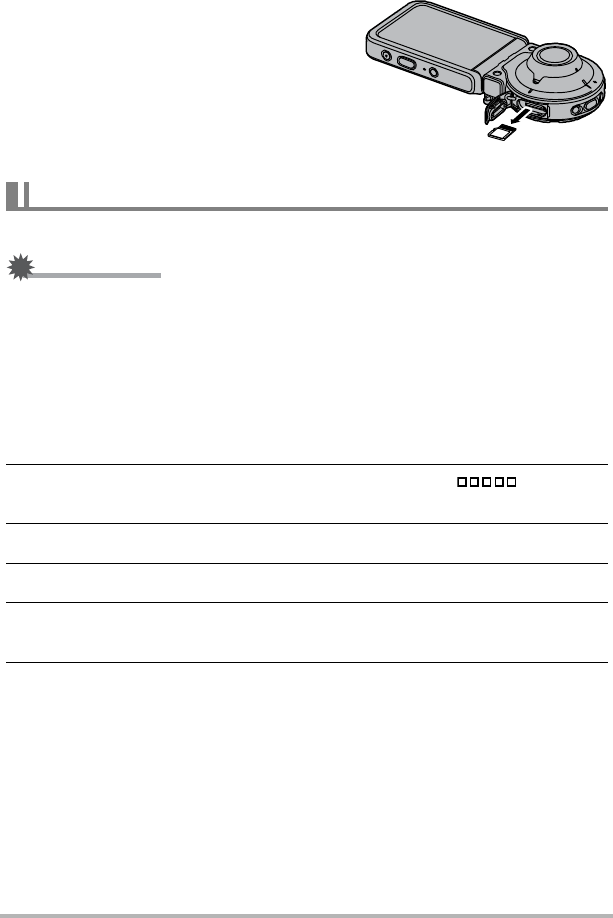

To load a memory card

Back

Front Back

32 Quick Start Basics

To replace the memory card

Press the memory card and then release it.

This will cause it to pop out of the memory

card slot slightly. Pull the card out the rest of

the way and then insert another one.

 Turn off the camera before replacing the

memory card. Replacing the card while

the camera is on can result in recorded

images not being saved and even damage

the memory card.

Format a memory card on the camera before using it for the first time.



 Formatting a memory card that already has snapshots or other files on it, will delete

its contents. Normally you do not need to format a memory card again. However, if

storing to a card has slowed down or if you notice any other abnormality, re-format

the card.

 Be sure to use the camera to format a memory card. Formatting a card on a

computer will result in a non-SD standard format, which can greatly slow down

processing time and cause compatibility, performance, and other problems.

1. Load a memory card (page 31).

2. Turn on the camera and controller, and then touch   (Show

Icons).

3. Touch MENU.

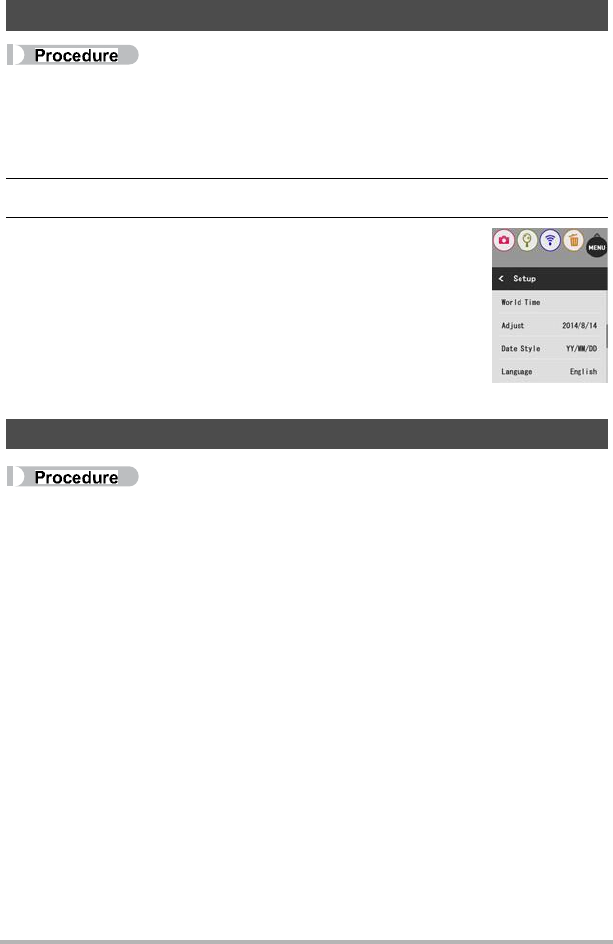

4. Touch the  Setup tab.

5. Flick upwards and downwards until you find Format, and then touch

it.

6. Touch Format and then touch Yes.

This starts the memory card format operation.

To format (initialize) a new memory card

33 Quick Start Basics

Your camera has a variety of different recording modes to suit various shooting

conditions and objectives (page 39). This section explains general shooting

procedures using the auto recording mode.

You can select one of two auto recording modes (Auto or Premium Auto Pro)

according to your digital imaging needs.

1. Turn on the camera and controller (page 26).

This causes the camera and controller to start up on the REC mode.

2. Touch   (Show Icons).

3. Touch the second icon from the top (second

icon from the right in the case of portrait display

orientation) (Recording mode).

4. Touch Auto or Premium Auto Pro to select

the auto recording mode you want.

To Shoot a Snapshot

Selecting an Auto Recording Mode

Setting Description

Auto This is the standard Auto recording mode.

Premium

Auto Pro

With Premium Auto Pro recording, the camera

automatically determines whether you are shooting a

subject or scenery, and other conditions. Premium

Auto Pro recording delivers higher image quality than

standard Auto recording.

 Some of the settings configured automatically by

Premium Auto Pro cannot be changed by you.

 It also requires more power (and runs down the

battery quicker) than Auto.

Recording mode icon

34 Quick Start Basics

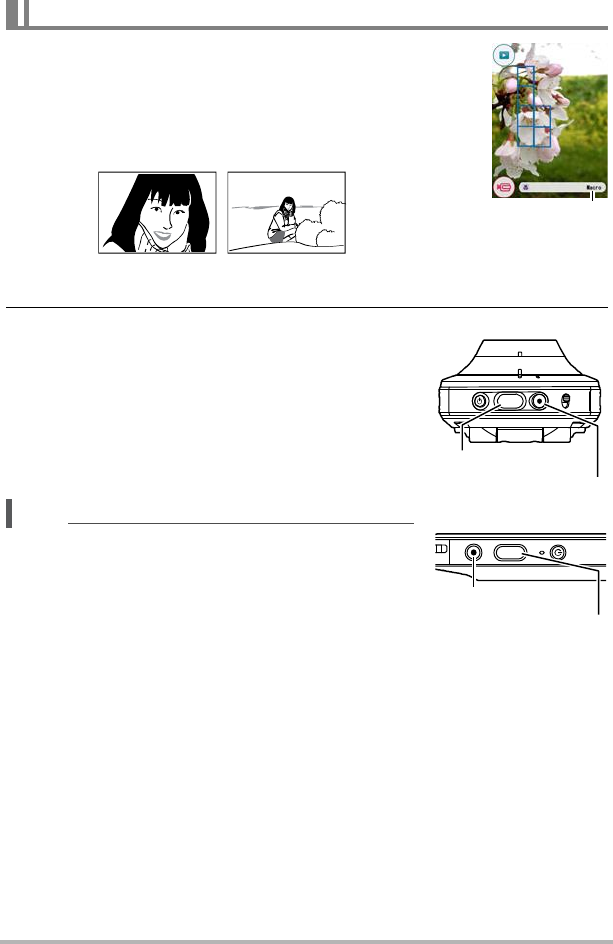

1. Point the camera at the subject.

If you are using Premium Auto Pro, an icon will appear on

the monitor screen describing the type of shot the camera

has detected.

 You can change the zoom factor by spreading your thumb

and forefinger on the display (page 46).

2. Press the camera or controller shutter button.

The camera will automatically adjust exposure and

focus, and then shoot the snapshot.

Shooting a Movie

Press [] (Movie) on the camera or controller to start

movie recording.

To stop movie recording, press [] (Movie) again.

See page 47 for details.



 You also touch a location on the screen to focus on it,

and then shoot the image (page 51).

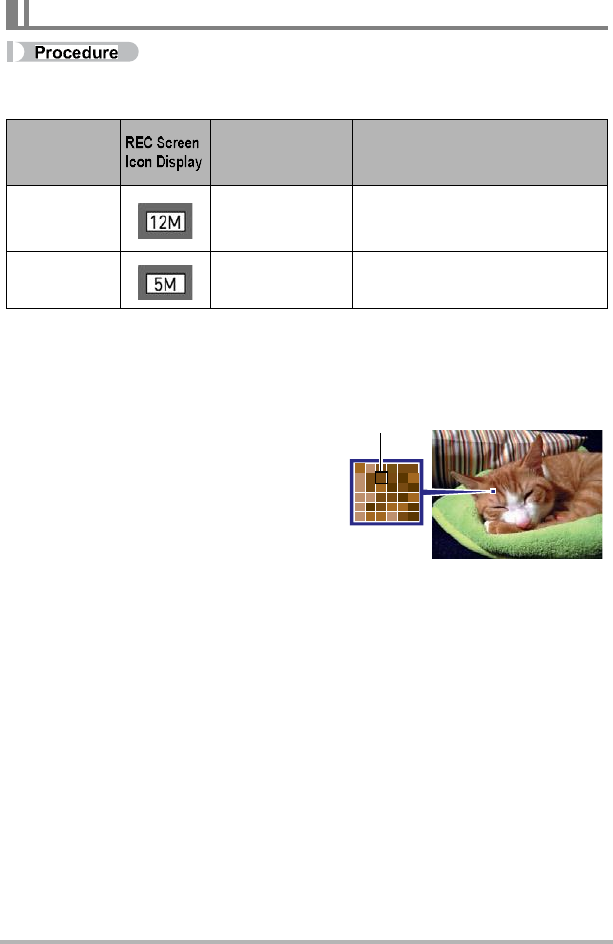

 You can specify the image size for snapshots. See

page 53 for more information.

Shooting with the Camera Alone

You can use the camera in a stand-alone configuration

without turning on the controller or otherwise establishing a connection between it

and the camera.

 If an Interval Shooting (page 43) operation or movie recording (page 47) is in

progress, it will continue to shoot images even when controller power is turned off.

To shoot a snapshot

Type of shot

+ (Telephoto)  (Wide Angle)

Shutter button

Camera

Controller

[] (Movie)

[

] (Movie)

Shutter button

35 Quick Start Basics

Shooting with Premium Auto Pro

 Some menu items are not available while Premium Auto Pro is in use (page 50).

 In addition to shutter speed and ISO sensitivity, the camera automatically executes

the following operation as required when shooting with Premium Auto Pro.

 Auto Focus is normally performed until you touch the monitor screen.

 The camera automatically determines the focus point on the screen and focuses

there.

 When shooting people, the face detection feature detects the faces of up to ten

individuals and adjusts focus and brightness accordingly.

 When shooting with Premium Auto Pro, the message Processing Premium Auto.

may appear on the monitor screen. If you feel the camera is taking too long to

process data, try shooting with standard Auto instead.

 In some cases, Premium Auto Pro may not be able to interpret the shooting

environment correctly. If this happens, shoot with standard Auto.

 If  is displayed, the camera will shoot a series of CS images and merge them

into a final image. Take care to avoid any camera and subject movement until

shooting of all of the CS images is complete.

Use the following procedure to view snapshots on the cameras monitor screen.

 For information about how to play back movies, see page 60.

1. Touch   (PLAY) to enter the PLAY mode.

This will display one of the snapshots currently stored

in memory.

 You can also enter the PLAY mode by touching the

review image screen (page 59).

 Information about the displayed snapshot also is

included (page 10).

 You also can clear the information to view only the

snapshot (page 96).

 You can zoom the screen image by touching the

monitor screen (page 62).

If you are recording a snapshot that is very important to you, it is recommended

that you zoom the image and check its details after recording it.

2. Flick left or right across the screen image to scroll through the

snapshots.



 Pressing the controller shutter button while in the PLAY mode or while a menu

screen is displayed will switch directly to the REC mode.

 A question mark (?) will be displayed for images that cannot be displayed for some

reason.

Viewing Snapshots

  (PLAY)

36 Quick Start Basics

If memory becomes full, you can delete snapshots and movies you no longer need in

order to free up storage and record more images.



 Remember that a file (image) delete operation cannot be undone.

To delete a single file

1. Enter the PLAY mode.

2. Touch   (Show Icons).

3. Touch  .

4. Touch Delete 1 File.

5. Flick the screen the left or right to scroll through

images until the one you want to delete is

displayed.

6. Touch   (Delete).

This will delete the selected image.

To delete all files

1. Enter the PLAY mode.

2. Touch   (Show Icons).

3. Touch  .

4. Touch Delete All Files.

5. Touch Delete.

This will cause the message There are no files. to appear.

Deleting Snapshots and Movies

37 Quick Start Basics

Operation

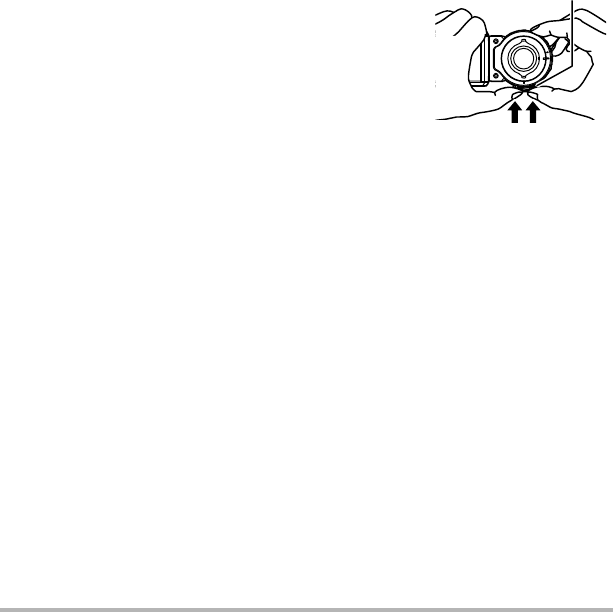

 If unwanted light is shining onto the lens, shade the lens with your hand when

shooting an image.

Monitor Screen when Shooting Snapshots

 Subject brightness conditions can cause monitor screen response to slow and can

cause digital noise in the monitor screen image.

 The image that appears on the monitor screen is for image composition. The actual

image will be recorded in accordance with the currently selected recording mode

(page 39).

Shooting Indoors under Fluorescent Lighting

 Minute flickering of fluorescent lighting can affect the brightness or color of an

image.

Other Precautions

 A noise reduction process is performed when ISO sensitivity is set to a high value.

This can cause the camera to take relatively longer to be ready to shoot again after

you press the shutter button. Do not perform any operation while the image

recording operation is in progress.

 Due to the characteristics of the imaging element used by the camera, very fast

moving objects in an image may appear distorted.

Auto Focus Restrictions

 Any of the following can make proper focus impossible.

 Solid color wall or other very low contrast subject

 Strongly back lit subject

 Very shiny subject

 Blinds or other subject with a repeating horizontal pattern

 Multiple subjects at varying distances from the camera

 Subject in a dark location

 Camera movement while shooting

 Fast-moving subject

 Subjects outside the focus range of the camera

 Focus lock can be used in some recording modes. If you cannot focus properly, try

using focus lock (page 52).

Snapshot Shooting Precautions

38 Recording Images

Recording Images

Touching the monitor screen in the REC mode will display a screen for configuring

REC mode settings.

1. Press [] (Power) to turn on the camera and enter the REC mode.

 If the camera is in the PLAY mode, touch   (REC) to enter the REC mode.

2. Touch   (Show Icons).

3. Touch the item whose setting you want to change.

To configure REC mode settings

Menu (page 50)*

Recording mode (page 39)

Wireless mode (page 74)

Interval Shooting mode (page 43)

PLAY mode (page 28)

*Depending on the recording mode, some of the items on the menu that

appears may not be usable.

[] (Power)

39 Recording Images

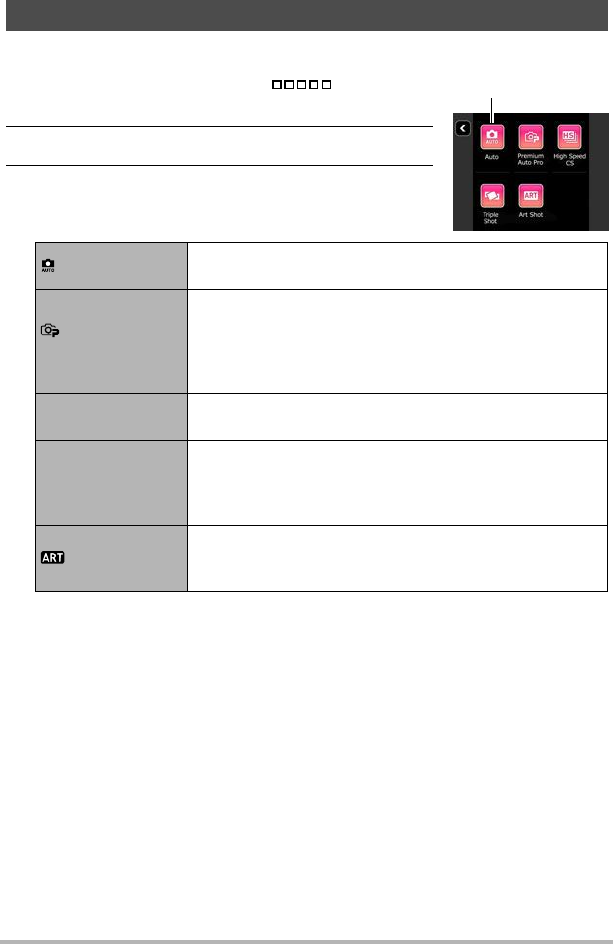

The camera has a variety of different recording modes.

1. In the REC mode, touch the   (Show

Icons).

2. Touch the recording mode icon.

3. Touch the icon of the recording mode you want

to use.

This enters the selected recording mode.

Selecting a Recording Mode

Auto Standard Auto recording mode. This is the mode normally

used for shooting (page 33).

Premium Auto

Pro

With Premium Auto Pro recording, the camera

automatically determines whether you are shooting a

subject or scenery, and other conditions. Premium Auto

Pro recording delivers higher image quality than standard

Auto recording mode (page 33).

 High Speed CS High Speed CS lets you shoot a burst of 30 images (page

40).

 Triple Shot

Triple Shot shoots a burst of three images and stores

them in memory. This feature is great for making sure you

dont miss those special moments when kids are around

(page 41).

Art Shot

A variety of artistic effects help to make even common,

ordinary subjects become more novel and exciting (page

42).

Recording mode icon

40 Recording Images

Use the procedure below to shoot a burst of images.

1. In the REC mode, touch   (Show Icons).

2. Touch the recording mode icon.

3. Touch  (High Speed CS).

4. Touch the scene that matches what you want to shoot.

 Touching < > on the screen and then touching a High Speed CS scene

displays detailed information about the scene.

5. Touch   (Show Icons).

6. Touch MENU.

7. Touch < > to exit the MENU screen.

 If you selected High Speed CS Prerecord in step 4, go to step 10.

 If you selected any other setting, go to step 11.

8. Touch Pre REC.

This will start pre-recording of a group of images that will be continually updated

until you press the shutter button.

 To stop the pre-record operation of images, touch .

9. Press the shutter button.

This will store the current group of pre-recorded images and start CS shooting of

new images until the number of images you specified is reached.



 If you are shooting with High Speed CS Prerecord, the number images in the pre-

recorded group will be half the number specified by the CS Shots setting. For

example, if you specify 30 for the CS Shots setting, pressing the shutter button

will store the newest 15 images from pre-recorded group and shoot 15 CS images.

Shooting a Burst of Images (High Speed CS)

Scene Description

High Speed CS 30 fps High-speed shooting of 30 images in one second.

High Speed CS

Prerecord

Pre-records images that are saved when the shutter

button is pressed along with real-time shot images for a

total of 30 images in one second.

41 Recording Images

Triple Shot shoots a burst of three images and stores them in memory. This feature is

great for making sure you dont miss those special moments when kids are around.

1. In the REC mode, touch the   (Show Icons).

2. Touch the recording mode icon.

3. Touch  (Triple Shot).

4. Point the camera at the subject and then touch Pre REC.

The camera will start pre-recording images at this time.

 If you touch  again before pressing the shutter button, all of the images

currently in the pre-record buffer will be deleted.

5. Press the shutter button to shoot.

This will shoot a burst of three images.



 Touch Shooting settings are disabled when shooting with this mode.

 Type 1 cannot be selected for the Review setting while shooting with this

function. If Type 1 is selected in another mode, selecting the Triple Shot scene

will cause the Review setting to change to Type 2.

Shooting with Triple Shot

42 Recording Images

A variety of artistic effects help to make even common, ordinary subjects become

more novel and exciting.

1. In the REC mode, touch the   (Show Icons).

2. Touch the recording mode icon.

3. Touch  (Art Shot).

4. Touch the Art Shot scene you want to use.

 Touch  ,   to display another scene.

 Touching   on the monitor screen and then touching an Art Shot scene will

display detailed information about the scene.

5. Press the shutter button to shoot.



 Make-up is disabled while shooting with this function.

 Movie recording is disabled while shooting with Art Shot.

 Sample images shown on Art Shot scene screens were not shot with this camera.

 An image shot with an Art Shot scene cannot be converted to a normal image

without the Art Shot effect.

Shooting with Artistic Effects (Art Shot)

Scene Description

Toy Camera Dark edges and altered hues make images look like they

were shot by a toy camera.

Soft Focus Overall blurring for a soft and romantic effect.

Light Tone Weakened contrast for a feeling of airy refinement.

Sepia Sepia tones create a decidedly retro look.

Monochrome All of the strong contrast and graininess of a black and white

print.

43 Recording Images

You can use Interval Shooting to shoot snapshots and movies automatically at a

specified interval. Interval Shooting shoots with Premium Auto Pro settings.

To start an Interval Shooting operation

1. In the REC mode, touch the   (Show Icons).

2. Touch the Interval Shooting mode icon.

3. Touch the Interval Shooting scene you want to

use.

 Touching < > on the monitor screen and then

touching an Interval Shooting scene will display

detailed information about the scene.

 To select a different scene, touch the < > (Scene) icon.

4. Touch < >

5. Touch an item and then change its setting.

6. Touch the   (Back) icon.

Shooting Scenes of an Activity at a Fixed Interval

(Interval Shooting)

Interval Specifies the shooting interval.

Shooting Style

Snapshot + Movie:

Shoots five snapshots followed by a five-second movie.

Movie Only:

Shoots a five-second movie. Audio is also recorded with

this setting.

Snapshot Only: Shoots a snapshot.

 When 5 sec is selected for the Interval setting, the

movie recording time is two seconds.

44 Recording Images

7. Touch Start.

This starts the operation.

 Starting Interval Shooting operation causes the camera and controller to enter

a sleep state and standby for recording of the images. This will be indicated by

the cameras operation lamp flashing green. Note that the camera will not enter

the sleep state if 5 sec is selected for the Interval setting.

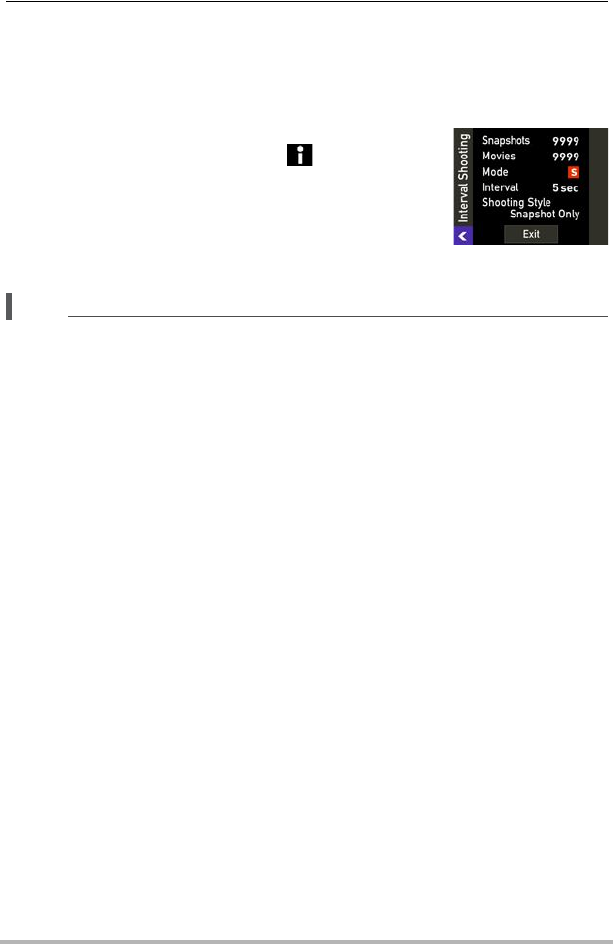

 To recover from the sleep state, press any

controller button. Next, touching   on the

monitor screen will display the number of recorded

images. Though the maximum displayed image

count is 9999 images, an Interval Shooting

operation can shoot more than 9999 images as

long as the camera is supplied with power using

the supplied USB-AC adaptor, etc.



 Anti-shake is applied during movie recording with this function. However, image

anti-shake is not applied.

 The current shooting setup, including zoom, cannot be changed while shooting

with this function.

 If the camera battery goes dead during an Interval Shooting operation, the

operation will terminate. The controller battery going dead does not affect an

ongoing operation. To stop the Interval Shooting operation in this case, hold down

[] (Power) on the camera.

 If you are performing manual camera operations or if the camera is out of the sleep

state when the Interval Shooting operation reaches a shooting interval, Interval

Shooting recording for that interval will be skipped.

 Pressing the controllers [] (Power) button while the camera is out of the sleep

state will return to the sleep state and restart the Interval Snapshot operation.

45 Recording Images

To stop an Interval Shooting operation

1. On the controller, press any button to recover from the sleep state.

2. Touch STOP icon.

3. Touch Yes.

This stops the Interval Shooting operation.

To shoot images manually during an Interval Shooting operation

You can shoot snapshots and movies manually even while an Interval Shooting

operation is in progress.

1. On the controller, press any button to recover from the sleep state.

2. Perform the required controller or camera operation to shoot the image

you want.



 You can also press the cameras shutter button or [] (Movie) button to shoot while

the camera is in the sleep state.

46 Recording Images

Your camera is equipped with digital zoom, that lets you zoom an image up to 4X.

Note that a digital process is used to enlarge the center of the image, so there is

deterioration of image quality.

1. Perform the required screen operation to change the zoom factor as

desired.

Zoom in: Touch +, or spread

Zoom out: Touch , or squeeze

2. Press the shutter button to shoot the image.



 Telephoto images are prone to blurring caused by camera movement when you

press the shutter button. Because of this, stabilizing the camera by placing it on a

level surface, etc. is recommended.

 Zoom operations are disabled while shooting with Interval Shooting.

 Zoom operations are disabled during high speed movie recording. Perform the

zoom operation before you start recording.

  is displayed on the monitor screen while digital zoom is being used.

Shooting with Zoom

Telephoto : Enlarges the subject and narrows the range.

Wide Angle : Reduces the size of the subject and broadens the range.

Telephoto Wide Angle

47 Recording Images

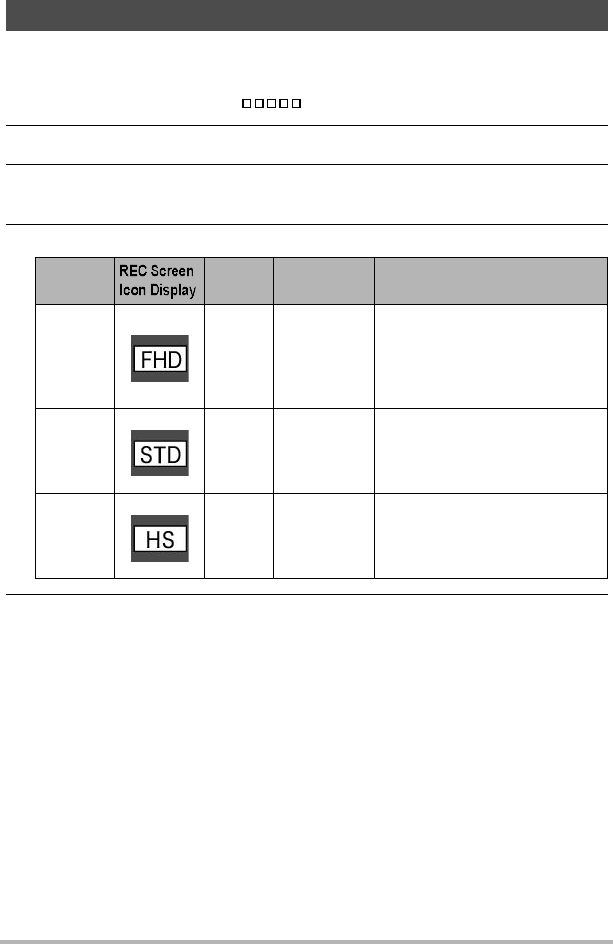

The following procedure explains how to record a movie. Movies are recorded with

Program Auto.

1. In the REC mode, touch   (Show Icons).

2. Touch MENU.

3. Touch < >, < > until you find Movie Quality, and then touch to

select it.

4. Touch the item whose setting you want to change.

5. To close the menu screen, touch < > or press the shutter button.

To record a movie

Movie

Quality

Frame

Rate

Image Size

(Pixels) Description

Full HD 30fps 19201080

Select this setting to record full

high-definition (Full HD)

movies. The aspect ratio of

movies recorded with this

setting is 16:9.

STD 30fps 640480

Use this setting for standard

movie recording. Shooting is

performed using an aspect

ratio of 4:3.

HS240 240fps 512384

Select this setting to record

high speed movies at a speed

of 240 fps.

 Audio is not recorded.

48 Recording Images

6. Press [] (Movie).

This will start recording.

 Monaural audio is also recorded during movie

recording while Full HD or STD is selected

for the movie quality setting.

 When Full HD or STD is selected for the

movie quality setting, you can touch a point on

the controller screen while movie recording is in

progress to focus on that point.

7. Press [] (Movie) to stop recording.

 Each movie can be up to 29 minutes long. Movie recording stops automatically

after 29 minutes of recording. Movie recording also will stop automatically if

memory becomes full before you stop movie recording.

Minimizing the Effects of Camera Movement during Movie Recording

While the image quality setting is Full HD or STD, you can reduce blur due to

camera movement during movie recording by selecting the Standard or Strong

setting for Movie Anti Shake. (page 52). Note, however, that image stabilization

does not prevent image blur due to subject movement during movie recording. Also,

image stabilization results in a narrower angle of view during movie recording.

High Speed Movie Recording Precautions

 When shooting a high speed movie, shoot in a well-lit environment.

 When recording a high speed movie, light source flicker can cause horizontal

bands to appear in the image. This does not indicate malfunction of the camera.

Recording time/

Remaining recording time

49 Recording Images



 Spending a long time using movie recording will cause the camera to become

slightly warm to the touch. This is normal and does not indicate malfunction.

 The camera also records audio along with Full HD and STD

movies. Note the following points when shooting a movie.

 Take care that the microphone is not blocked by your

fingers, etc.

 Good audio recording results are not possible when the

camera is too far away from what you are trying to

record.

 Shooting movies for long periods in areas where

temperature is relatively high can cause digital noise (dots of light) to appear in the

movie image. A rise in the cameras internal temperature also may force movie

recording to stop automatically. If this happens, stop recording and allow the

camera to cool down, which should cause normal operation to resume.

 Use of the cameras built-in memory or certain types of memory cards can slow

down processing speeds. In particular, high-quality movies may not be able to be

stored correctly. A slow memory card can take too much time to record data and

result in breaks in the image and/or audio during playback.



 Zoom operations are disabled during movie recording. To use zoom, perform the

zoom operation before you press [] (Movie) to start recording.

 During High Speed Movie recording, focus is fixed at the position where it was

when recording started. To focus an image, half-press the shutter button for Auto

Focus before you touch the controllers monitor screen to start recording.

 The Make-up function cannot be used during movie recording.

Microphone

50 Advanced Recording Settings

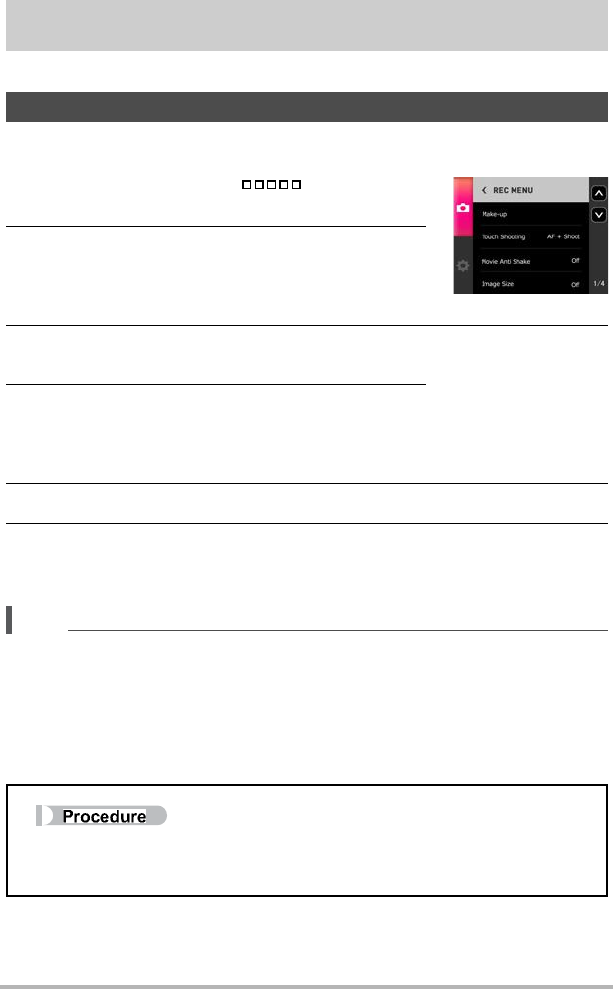

Advanced Recording Settings

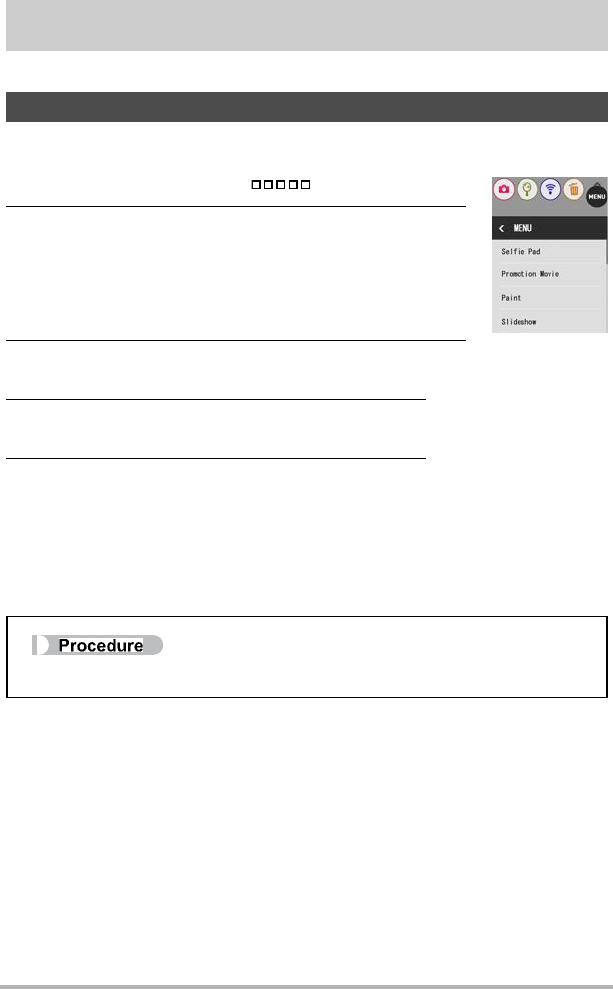

The following are menu operations you can use to configure various camera settings.

Example Menu Screen Operation

1. In the REC mode, touch   (Show

Icons).

2. Touch MENU.

This will display the menu screen.

 Menu contents are different in the REC mode and

PLAY mode.

3. Touch the tab where the menu item you want to

configure is located.

4. Flick upwards and downwards until you find the

item whose setting you want to change.

 To cancel and exit the menu, touch < > or press the

controllers shutter button.

5. Touch the item.

6. Configure the setting of the item in accordance with the screen

contents.

 To navigate back to the previous menu level, touch < >.



 Depending on the recording mode, some of the items on the menu that appears

may not be usable. While Premium Auto Pro is in use, only the menu items whose

settings can be configured will be displayed on the menus.

Menu Operations in This Manual

Menu operations are represented in this manual as shown below. Touch the indicated

icons and items, and perform operations as they are indicated, from left to right.

Using the REC Menu

Enter the REC Mode  MENU  REC MENU Tab 

Touch Shooting

51 Advanced Recording Settings

Enter the REC mode  MENU  REC MENU Tab  Make-up

Make-up enables adjustment of human skin tone hues and texture, and softening of

facial shadows caused by harsh sunlight for better looking portraits.



 Make-up is disabled while shooting with the following feature.

CS, Art Shot

Enter the REC mode  MENU  REC MENU Tab 

Touch Shooting

When you touch a location on the screen, the camera focuses on that location and

shoots.



 When using Touch Shooting to focus, select AF or Macro as the focus mode

(page 57).

Recording Beautiful Portraits (Make-up)

Skin Tone Tan +6 to 0 (Off) to Light +6

Smooth Skin 0 (Off) to +12 (Max.)

Shooting by Touching the Monitor Screen (Touch Shooting)

AF + Shoot The camera performs Auto Focus at the spot you touch and

then shoots.

AF Only The camera performs Auto Focus at the spot you touch and

locks focus (Focus Lock).

Off Touch Shooting disabled.

52 Advanced Recording Settings

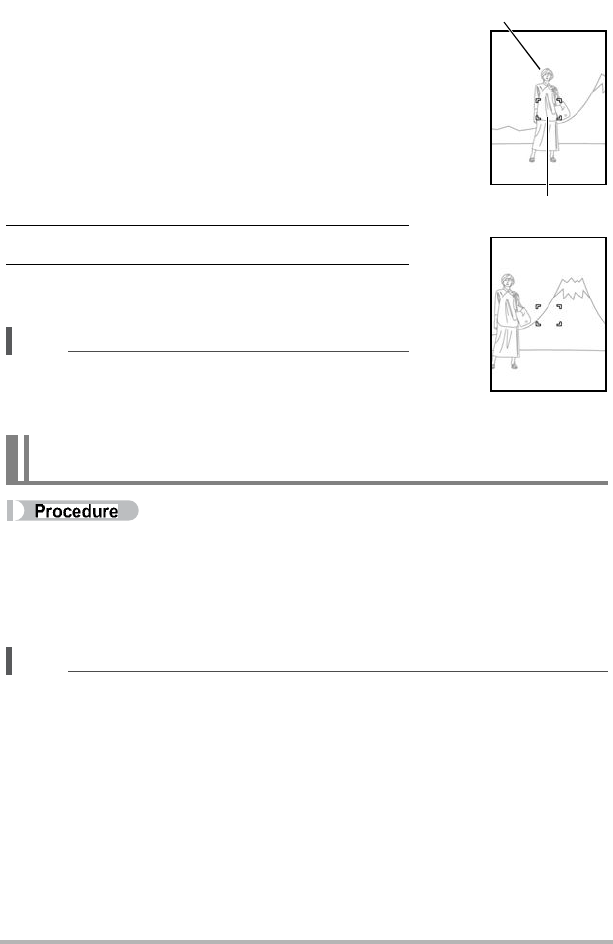

Using Focus Lock

Focus lock is a technique you can use when you want

to compose an image in which the subject you want to

focus on is not within the focus frame in the center of

the screen. To use focus lock, configure the camera

settings below.

Touch Shooting: AF Only

Focus Mode: AF or Macro

1. Touch the subject you want to focus on.

2. Move the camera to compose the image.

3. When you are ready to shoot the image,

press the shutter button.



 Focus lock also locks exposure (AE).

Enter the REC mode  MENU  REC MENU Tab 

Movie Anti Shake.

You can reduce blur due to camera movement during movie recording by selecting

the Standard or Strong setting. However, image anti-shake is not used. Also, Anti

Shake results in a narrower angle of view during movie recording.



 Movie Anti Shake is not supported during High Speed Movie recording.

Reducing Blur Due to Camera Movement During Movie

Recording (Movie Anti Shake)

Focus frame

Subject to be focused on

53 Advanced Recording Settings

Enter the REC Mode  MENU  REC MENU Tab  Image Size

This setting can be used to configure snapshot image size.

 The initial factory default image size setting is 12M (12 million pixels).

 Selecting 3:2 records images with an aspect ratio of 3:2, which matches the

standard aspect ratio of print paper.

Pixels and image size

A digital camera image is a collection of small

dots called pixels. The more pixels there are

in an image, the more detail there will be.

However, you generally can do with fewer

pixels when printing an image (L size)

through a print service, attaching an image to

e-mail, when viewing the image on a

computer, etc.

The size of an image indicates how many

pixels it contains, and is expressed as horizontal pixelsvertical pixels.

 Note that larger images have more pixels, so they take up more memory space.

 For information about image size and number of images that can be stored, see

page 139.

 For information about movie image size, see page 139.

Changing the Image Size (Image Size)

Image Size

(Pixels)

Suggested Print

Size and

Application

Description

12M

(40003000) Poster Print

Good detail for better clarity even

for images cropped from the

original on a computer, etc.

5M

(25601920) A4 Print Good detail

Pixel

54 Advanced Recording Settings

Enter the REC Mode  MENU  REC MENU Tab  Movie Quality

This setting can be used to configure movie image quality settings and to select either

normal movie recording or High Speed Movie recording. For information about movie

image quality settings, see page 47.

Enter the REC Mode  MENU  REC MENU Tab  Brightness

You can manually adjust an images exposure value (EV value) before shooting it.

The exposure compensation value you set remains in effect until you change it or turn

off the camera (which causes it to revert to 0.0).

 Exposure Compensation Range: 2.0 EV to +2.0 EV

 Unit: 1/3 EV

 To cancel exposure compensation, change the EV value to 0.0.



 When shooting under very dark or very bright conditions, you may not be able to

obtain satisfactory results even after performing exposure compensation.

Movie Image Quality Settings (Movie Quality)

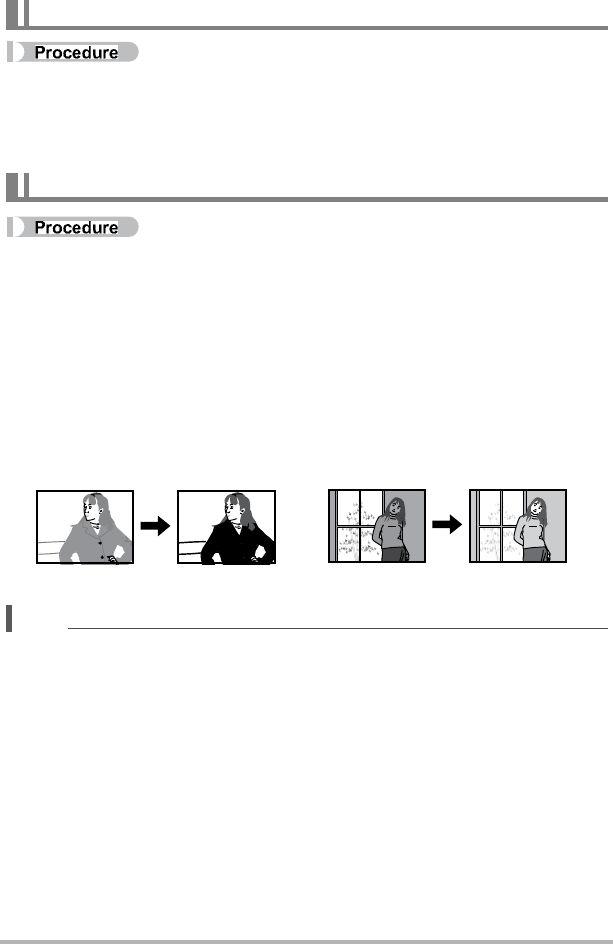

Correcting Image Brightness (Brightness)

Decreases the EV value. A lower EV

value is best for dark-color subjects and

for shooting outdoors on a clear day.

Increases the EV value. A higher EV

value is best for light-colored subjects

and backlit subjects.

55 Advanced Recording Settings

Enter the REC Mode  MENU  REC MENU Tab 

White Balance

You can adjust white balance to match the source of light available where you are

shooting and avoid the blue cast that results when shooting outdoors when it is

cloudy, and the green cast that results when shooting under fluorescent lighting.

1. Touch the type of white balance you want to select.

You can see the affect of the white balance setting you select on the monitor

screen.

 When Auto WB is selected for the white balance setting, the camera

automatically determines the white point of the subject. Certain subject colors

and light source conditions can cause problems when the camera tries to

determine the white point, which makes proper white balance adjustment

impossible. If this happens, select the white balance setting that matches your

shooting conditions (Daylight, Overcast, etc.).

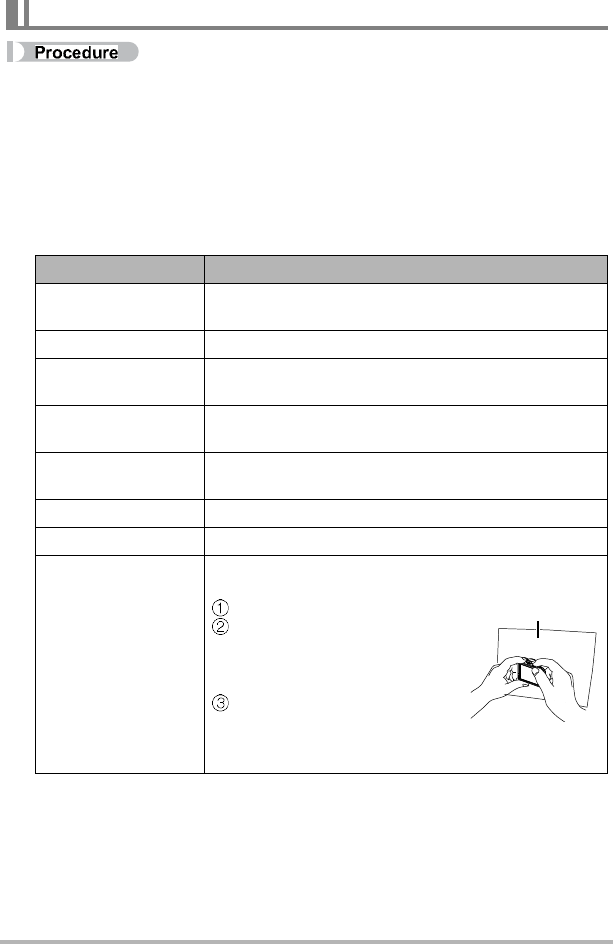

Adjusting White Balance (White Balance)

Setting Description

Auto WB Configures the camera to adjust white balance

automatically

Daylight For shooting outdoors on a clear day

Overcast For shooting outdoors on an overcast rainy day, in the

shade, etc.

Shade For shooting on a clear day in the shade of trees or

buildings

Day White Fl. For shooting under white or day white fluorescent

lighting

Daylight Fluor For shooting under daylight fluorescent lighting

Tungsten For shooting under light bulb lighting

Manual WB

For configuring the camera manually to suit a particular

light source.

Touch Manual WB.

In the location where you plan to

shoot, point the camera at a

blank white piece of paper so it

fills the entire monitor screen.

Touch an area of the screen

where no icon is located.

The white balance setting is retained even if you turn

off the camera.

















Blank white paper

56 Advanced Recording Settings

2. Touch OK.

Enter the REC Mode  MENU  REC MENU Tab  ISO

ISO sensitivity is a measure of sensitivity to light.

 Since higher ISO sensitivity values tend to result in digital noise in images, the

camera performs a noise filtering process. Because of this, it may take relatively

longer for the camera to finish recording an image after it is shot. You will not be

able to perform any operation while image recording is in progress.

Specifying ISO Sensitivity (ISO)

Setting Description

Auto Adjusts sensitivity automatically according to conditions

ISO 80 Lower

sensitivity

Higher

sensitivity

Slow shutter speed

Fast shutter speed (Set

for shooting in dimly lit

areas.)

Less noise

Some coarseness

(increased digital noise)

ISO 100

ISO 200

ISO 400

ISO 800

ISO 1600

ISO 3200

57 Advanced Recording Settings

Enter the REC Mode  MENU  REC MENU Tab  Focus

Changing to a different focus mode can help to achieve better focus.

*1 The focus range is the distance from the lens surface.

*2 Focus remains fixed at the position where it was when recording started. To focus

an image, half-press the shutter button to focus before fully pressing the shutter

button to start recording.

Enter the REC Mode  MENU  REC MENU Tab  CS Shots

When shooting with High Speed CS, this setting specifies the number of images that

will be in the resulting CS group. See page 40 for details.

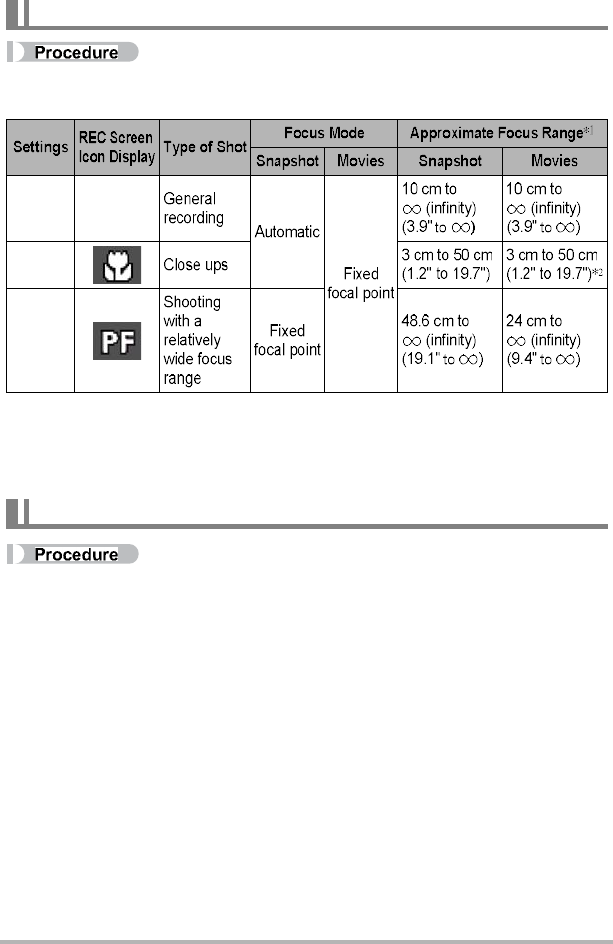

Selecting a Focus Mode (Focus)

AF

(Auto

Focus)

None

Macro

PF (Pan

Focus)

Specifying the Number of CS Shots (CS Shots)

58 Advanced Recording Settings

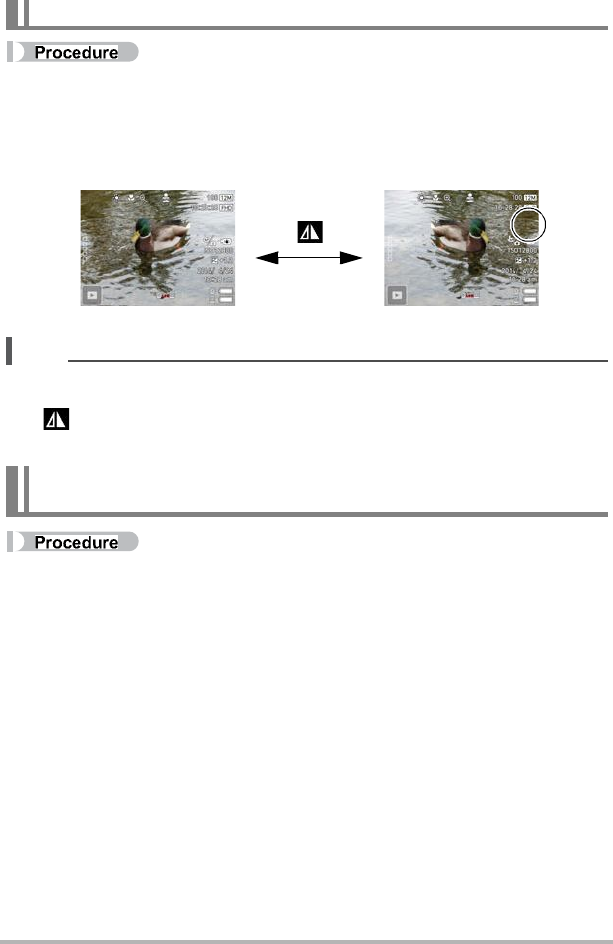

Enter the REC Mode  MENU  REC MENU Tab  Mirror Image

Turning on this function displays the controller monitor image as a mirror image. This

comes in handy when using the controller to compose self-shot images. The image is

recorded in normal orientation (not mirror imaged).



 You can change an image displayed on the screen to a mirror image by flicking the

image.

 A   indicator on the main screen indicates that the displayed image is a mirror

image.

Enter the REC Mode  MENU  REC MENU Tab 

Wind Noise Cut

Select On to reduce wind noise during movie recording. Note, however, that this will

also cause the sound quality to change.

Self-shooting (Mirror)

Reducing Wind Noise during Movie Recording

(Wind Noise Cut)

Normal image Mirrored image

 

59 Advanced Recording Settings

Enter the REC Mode  MENU  REC MENU Tab  Review

While Review is turned on, the camera will display an image immediately after it is

recorded.

 When Type 1 is selected, the aperture, shutter speed, and ISO sensitivity, will be

red if the Auto Exposure is not correct.

Enter the REC Mode  MENU  REC MENU Tab  Grid

Selecting On displays grid lines on the monitor screen. The grid lines provide

references that help you keep the camera vertically and horizontally straight.

Turning on Image Review (Review)

Type 1 Displays a full-screen view of the image for about one second.

Type 2

Displays a Review image in the upper left corner (in the case of a

portrait orientation image) or the lower left corner (in the case of a

landscape orientation image) of the monitor screen. Touching the

Review image will enter the PLAY mode and display a full-screen view

of the image.

Off Turns off review image display

Displaying a Grid on the Monitor Screen (Grid)

60 Viewing Snapshots and Movies

Viewing Snapshots and Movies

See page 35 for the procedure for viewing snapshots.

1. Touch   (PLAY) to enter the PLAY mode.

2. Flick left or right across the screen image to

scroll through the movies until the one you

want is displayed.

3. Touch   (Movie) to start playback.

Viewing Snapshots

Viewing a Movie

Movie icon:

Movie recording time

Image quality

Playback in progress Playback paused

Touch .

Touch .

Progress bar

61 Viewing Snapshots and Movies

Movie Playback Controls

 Playback may not be possible for movies not recorded with this camera.

 When a movie is played back on the camera, the audio output from the camera

speaker will be out of sync with the video image. This does not indicate any

problem with the movie file. Also, playback on the camera uses a low frame rate.

Send the movie to a smartphone for better movie playback results.

Pause/Play Touch  (pause) or  (play).

Fast forward/

Fast reverse

During playback, touch  (fast reverse) or  (fast

forward).

 To return to normal playback speed, touch .

Stop playback During playback, touch .

Mute During playback, touch .

1 frame forward/

back While playback is paused, touch  or .

Full-screen view

switching Touch the screen.

62 Viewing Snapshots and Movies

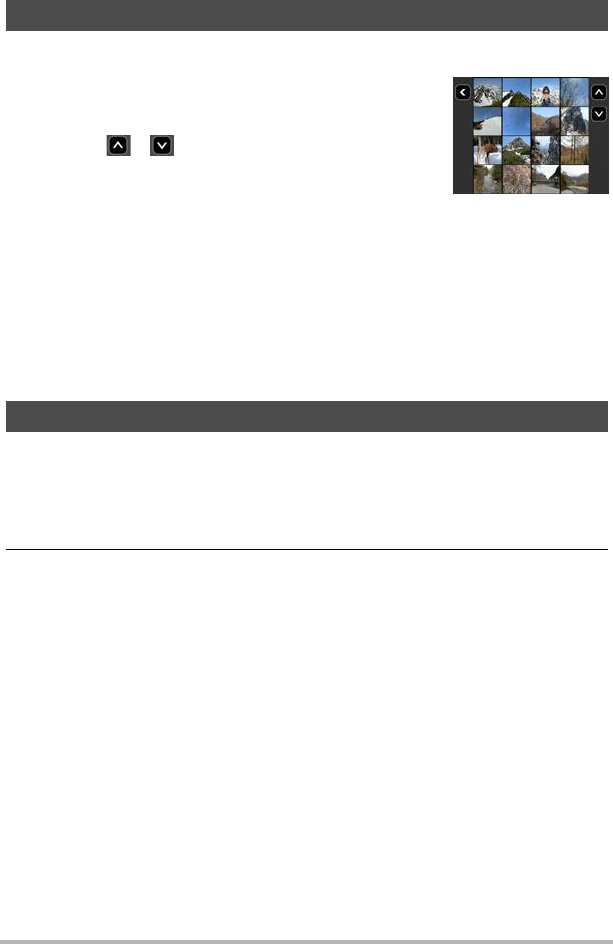

The image menu shows multiple images on a single screen.

1. In the PLAY mode, touch  or squeeze your

fingers on the screen.

This displays the image menu.

 Touch  ,  , or flick upwards or downwards

to scroll to the next page of images.

 To view the normal (single image) display mode,

touch the image your want to view.

 In the case of a movie, the first image in the movie

is displayed.

 CS images and images shot with Interval Shooting are displayed as grouped

images.

 A question mark (?) will be displayed for images that cannot be displayed for

some reason.

 You can also perform the operations below using the image menu. Touch the

icon of the function you want to use, touch an image, and then touch OK.

 Delete an image

Snapshots can be zoomed on the monitor screen up to 2X.

 The actual available zoom factors depend on the size of the original image.

1. In the PLAY mode, flick left or right to display the image you want to

view.

2. Touch the center of the screen or spread your thumb and forefinger

(page 18) on the displayed image to enlarge it.

 Dragging an enlarged screen image will change the part of the image that is

displayed.

 Squeezing your thumb and forefinger (page 18) on the displayed image will

reduce it in size.

 When monitor screen contents are turned on, a graphic on the monitor

screen shows what part of the zoomed image is currently displayed.

Viewing the Image Menu

Zooming an On-screen Image

63 Viewing Snapshots and Movies

This function creates a Time Lapse Movie up to 10 minutes long by combining

snapshots shot with the camera on a particular date, in the order they were shot.

1. In the PLAY mode, touch   (Show Icons).

2. Touch the   (Edit) icon.

3. Touch the   (Time Lapse) icon.

 Touching < > on the monitor screen and then touching TL will display

detailed information about the Time Lapse.

4. Select how images should be chosen for conversion to a Time Lapse

Movie.

5. Touch .

6. Touch an item and then change its setting.

7. After settings are the way you want, touch   (Back) to return to the

screen in step 5.

8. Use (touch) the up and down arrows ( ,  ) to display the

recording date or Interval Shooting of the images you want to use to

create a Time Lapse Movie.

9. Touch Yes.

This creates and displays the Time Lapse Movie.

 Touching Cancel while creation of a Time Lapse Movie is in progress will

cancel the creation process.

Creating a Time Lapse Movie (Time Lapse)

Date Create a Time Lapse Movie for a specific date.

Interval Create a Time Lapse Movie for group of Interval Shooting

images (page 43).

Playback Speed

Specify the playback time of each image. Selecting Slow

specifies a longer playback time for each image, while

Fast specifies a shorter playback time.

Music Select the background music you want to use.

64 Viewing Snapshots and Movies



 A Time Lapse Movie is Full HD movie quality, with an aspect ratio of 16:9. If an

image with an aspect ratio that is not 16:9 is incorporated into a Time Lapse Movie,

the top and bottom of the image will be cropped as required.

 If a portrait orientation image is incorporated in to a Time Lapse Movie, there will be

black bands on the left and right of the image.

 When there is a large number of images, this function will stop processing when

the Time Lapse Movie reaches a length of 10 minutes. Subsequent images will not

be converted to a Time Lapse Movie.

 When an Interval Shooting operation spans different days, only the images on the

specified recording date are included in the Time Lapse Movie.

 Highlight Photos and Highlight Movies are not included in Time Lapse Movies.

 The Time Lapse Movie operation may not be possible while battery power is low.

 Time Lapse Movie generation may not be possible while battery power is low. Also,

a failed operation may result in work files remaining in camera memory. Such files

are those that have a file name extension other than JPG or MOV, and a data size

of 0 bytes. To delete the work files, connect the camera to a computer (page 87).

 Depending on the number of files and other factors when a Time Lapse Movie is

being created, the creation operation may take some time.

65 Viewing Snapshots and Movies

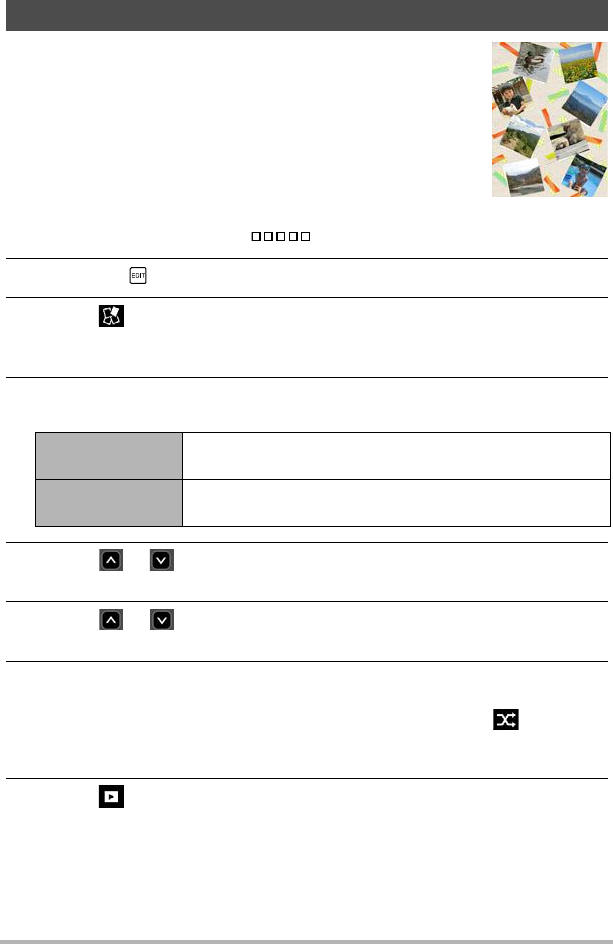

You can configure camera settings to automatically select

snapshot highlights and generate a collage of them. The

snapshots included in a Highlight Photo are selected

automatically based on their high light scores and shooting

condition information recorded along with the snapshots.

 You can use the Highlight Score function (page 69) to

change the highlight score of a snapshot.

1. In the PLAY mode, touch   (Show Icons).

2. Touch the   (Edit) icon.

3. Touch  .

 Touching < > on the monitor screen and then touching < > will display

detailed information about the Highlight Photo.

4. Select how images should be chosen for conversion to a Highlight

Photo.

5. Touch  ,   to select the date or Interval Shooting for which you

want to create a Highlight Photo.

6. Touch  ,   to display the layout you want to use, and then

touch it.

7. Touch Apply.

This displays the Highlight Photo and saves it in camera memory.

 The screen that appears after the images is saved includes a   (Shuffle)

icon. Touch this icon to have the camera re-select snapshots, and generate

and save another Highlight Photo.

8. Touch   (PLAY) to exit Highlight Photo.

Creating a Collage of a Days Snapshots (Highlight Photo)

Date Images are selected from among those shot on a specific

date.

Interval Group Images are selected from among those in a group of

Interval Shooting images (page 43).

66 Viewing Snapshots and Movies



 An image whose highlight score is 0 is never included in a Highlight Photo.

 A Highlight Movie generation operation cannot be stopped part way through once it

is started.

 When there are more than 9,999 snapshots shot on the same date stored on the

memory card, Highlight Photo will select photos from those numbered 1 to 9999.

 The Highlight Photo operation may not be possible while battery power is low.

67 Viewing Snapshots and Movies

You can configure camera settings to automatically select snapshot and movie

highlights, and create a movie of them. Images included in a Highlight Movie are

selected based on their high light scores and shooting condition information recorded

along with the images.

 You can use the Highlight Score function (page 69) to change the highlight score of

a snapshot.

 The playback time and effects applied to the Highlight Movie are automatically

determined based on the shooting condition information recorded along with the

images included in the movie and their highlight score (+1 or 0).

1. In the PLAY mode, touch   (Show Icons).

2. Touch the   (Edit) icon.

3. Touch   (Highlight Movie) icon.

 Touching < > on the monitor screen and then touching < > will display

detailed information about the Highlight Movie.

4. Select how images should be chosen for conversion to a Highlight

Movie.

5. Touch .

6. Touch an item and then change its setting.

7. After settings are the way you want, touch   (Back) to return to the

screen in step 5.

8. Touch   or   to select the date or Interval Shooting for which

you want to create a Highlight Movie, and then touch it.

Creating a Movie of a Days Images (Highlight Movie)

Date Images are selected from among those shot on a specific

date.

Interval Group Images are selected from among those in a group of

Interval Shooting images (page 43).

Max Play Time Specify the playback time of the Highlight Movie.

Music Select the background music you want to use.

68 Viewing Snapshots and Movies

9. Touch Yes.

This creates and save the Highlight Movie, and displays it on the monitor screen.

 Touching Cancel while creation of a Highlight Movie is in progress will cancel

the creation process and saves any part of the movie that was created up to

that point.



 An image whose highlight score is 0 is never included in a Highlight Movie.

 A Highlight Movie is Full HD movie quality, with an aspect ratio of 16:9. If an image

with an aspect ratio that is not 16:9 is incorporated into a Highlight Move, the top

and bottom of the image will be cropped as required.

 If a portrait orientation image is incorporated in to a Highlight Movie, there will be

black bands on the left and right of the image.

 When there is a total of more than 9,999 snapshot and movie files shot on the

same date, Highlight Movie will select photos and movies from the files numbered

1 to 9999.

 The Highlight Movie operation may not be possible while battery power is low.

 Highlight Movie generation may not be possible while battery power is low. Also, a

failed operation may result in work files remaining in camera memory. Such files

are those that have a file name extension other than JPG or MOV, and a data size

of 0 bytes. To delete the work files, connect the camera to a computer (page 87).

 Depending on the number of files and other factors when a Highlight Movie is being

created, the creation operation may take some time.

 Only movies that have been shot with this camera are eligible for use in a Highlight

Movie.

 Depending on the images that are automatically selected by the camera, the

resulting Highlight Movie may be somewhat shorter or longer than the specified

maximum playback time.

69 Viewing Snapshots and Movies

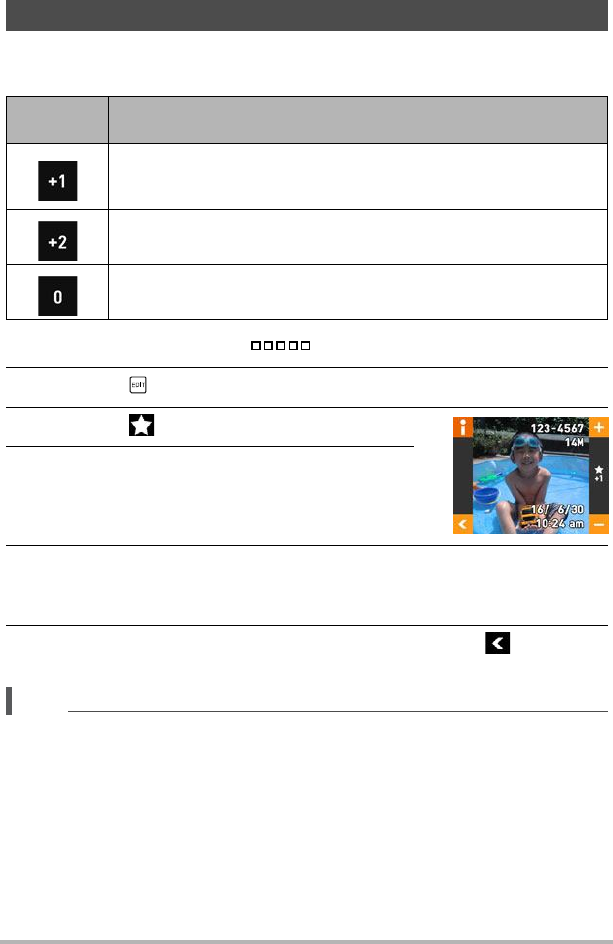

You can use the procedure below to change the highlight score of a snapshot or

movie.

1. In the PLAY mode, touch   (Show Icons).

2. Touch the   (Edit) icon.

3. Touch the   (Highlight Score) icon.

4. Flick the screen upwards or downwards to

scroll through highlight scores until the one

you want to delete is displayed, and then

touch to select it.

5. Touch the score you want to assign to the selected image.

 You can flick the screen left or right to scroll to another image and change its

score as well.

6. After changing the highlight score of the image, touch   to return

to the main screen.



 The highlight score function can be used only with snapshots and movies recorded

with this camera.

Changing the Highlight Score of an Image (Highlight Score)

Highlight

Score Description

No score assigned (default)

An image with this score may be selected for a Highlight Snapshot or

Highlight Movie.

An image with this score is given priority for Highlight Snapshot or

Highlight Movie selection.

An image with this score is never selected for a Highlight Snapshot or

Highlight Movie.

70 Other Playback Functions (PLAY)

Other Playback Functions (PLAY)

The following are menu operations you can use to configure various camera settings.

Example Menu Screen Operation

1. In the PLAY mode, touch   (Show Icons).

2. Touch MENU.

This will display the menu screen.

 Menu contents are different in the REC mode and PLAY

mode.

3. Touch the tab where the menu item you want

to configure is located.

4. Touch the item whose setting you want to

change.

5. Configure the setting of the item in accordance

with the screen contents.

 To navigate back to the previous menu level, touch < >.

Menu Operations in This Manual

Menu operations are represented in this manual as shown below. Touch the indicated

icons and items, and perform operations as they are indicated, from left to right.

Using the PLAY Menu

Enter the PLAY Mode  MENU  Rotation

71 Other Playback Functions (PLAY)

Enter the PLAY Mode  MENU  Rotation

1. Flick left or right to display the image you want to rotate.

2. Touch  .

This will rotate the image 90 degrees to the left.

3. When the image is in the orientation you want, touch  .



 Note that this procedure does not actually change the image data. It simply alters

how the image is displayed on the cameras monitor screen.

Rotating an Image (Rotation)

72 Connecting the Camera with a Smartphone

(Wireless Connection)

Connecting the Camera with a Smartphone

(Wireless Connection)

Your camera has both Bluetooth wireless technology and wireless LAN capabilities

built in. After establishing a wireless connection with a smartphone, you can perform

the operations described in the table below. Requires installation of the EXILIM

Connect app on your smartphone.

 Your camera is a Bluetooth® Smart

device.

 Your camera can connect using

Bluetooth wireless technology with a

smartphone that supports Bluetooth

Smart.

Controlling Your Camera with a Smartphone

With this function: You can do this:

Auto Send

Images can be automatically sent as they are

shot to a smartphone that has been Bluetooth

paired with the camera.

Shoot with phone

Remotely control and shoot with the camera

using a smartphone (page 80).

Send to phone

Send snapshots and movies recorded with your

camera to your smartphone. After sending an

image to a smartphone, you can then upload it

from the smartphone to a social networking

service (page 80).

73 Connecting the Camera with a Smartphone

(Wireless Connection)



 Inside an aircraft or anywhere else where use of wireless communication is

restricted or prohibited, do not use this camera.

 Some smartphone models may not be able to play back movie files from your

camera.

 Depending on your smartphone model, its operating system version, and/or its

remaining storage capacity can cause failure of a movie or snapshot save

operation. Receiving a camera file, perform the required operation on your

smartphone to check if the file was stored properly.

 A movie received on an Android terminal:

 Movies are not displayed by Gallery app. Movies are stored in a folder named

EXILIM Connect.

 A separate movie player is required to playback movies (whose files have the file

name extension MOV).

 Depending on your movie player, you may not be able to playback movies and/

or audio.

 Images recorded on another manufacturers camera cannot be sent using this

function.

 Attempting to use a memory card that includes a wireless function with this camera

can cause abnormal operation.



 Note that using wireless functions requires more battery power usage than normal.

Make sure that the camera battery is sufficiently charged before starting a wireless

LAN operation.

 The operating range depends on the local communication environment and on the

type of smartphone you are connected to.

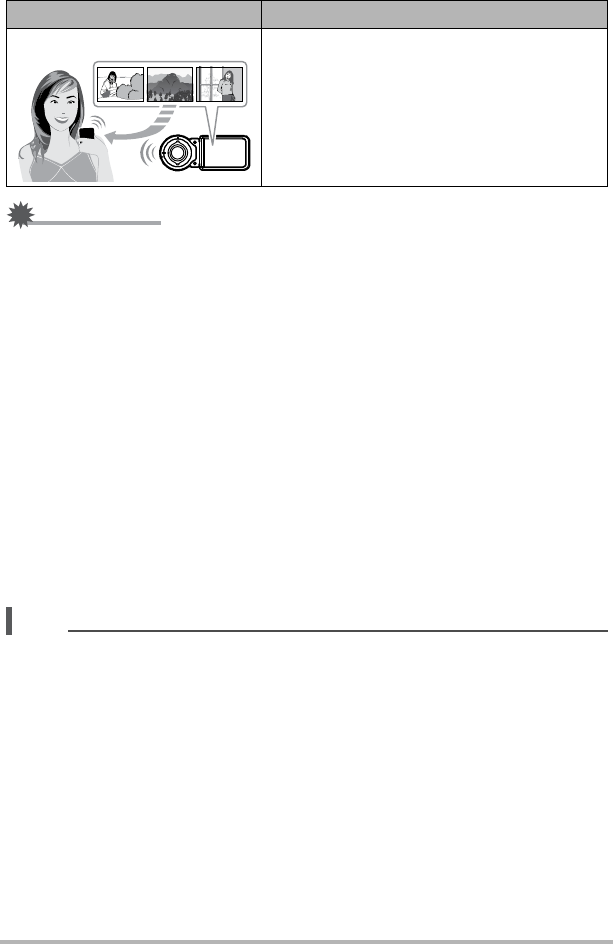

View on phone

View snapshots stored in camera memory on a

smartphone, and copy snapshots and movies

to a smartphone for viewing. You can also view

snapshots and movies in camera memory on a

computer, and copy them to a computer (page

81).

With this function: You can do this:

74 Connecting the Camera with a Smartphone

(Wireless Connection)

About EXILIM Connect

For detailed information about EXILIM Connect, refer to the EXILIM Connect Users

Guide (which you can download at the website below).

http://www.exilim.com/manual/

 Note that to view the EXILIM Connect Users Guide, you will have to install Adobe

Reader. Consult CASIO authorized service center if you are unable to open to

display the PDF format Users Guide.

 Note that EXILIM Connect Users Guides may not be available in all languages. If

you cannot find a EXILIM Connect Users Guide in your native language, please

use a version in another language.

Your camera has a variety of different wireless modes. Select

the wireless mode that suits your specific requirements.

1. Touch   (Show Icons).

2. Touch the   (Wireless) icon.

This will display the wireless mode screen.

3. Touch the wireless mode you want.

 To exit the wireless mode, touch .

Using a Wireless Mode

Send to phone

Select to view images you shoot with the camera on a smartphone (pages 80,

81).

Pairing

Select this mode to establish a Bluetooth wireless technology connection

between the camera and a smartphone (page 77).

Shoot with phone

Select this mode for remote control of image recording from a smartphone

(page 80).

Wireless settings

Select this mode to configure wireless settings (page 82).

  (Wireless)

75 Connecting the Camera with a Smartphone

(Wireless Connection)

Wireless Connection Icons

After you configure camera and smartphone connection settings, the icons below will

appear on the camera screen to indicate the current communication status.

Installing the EXILIM Connect Smartphone app on your smartphone makes it

possible to remotely control the camera from your smartphone and to send images

recorded with the camera to your smartphone. Search the EXILIM Connect app on

Google Play or App Store and install it on your smartphone.

App operation guarantees

No guarantees are made concerning the ability to operate the EXILIM Connect app

on any particular smartphone or tablet.



 For information about operating system version supported by the app, check the

information on Google Play or the App Store.

 App functions and the required operating environment are subject to change

without notice.

Semi-

transparent

Pairing is complete, but there is no Bluetooth wireless

technology connection.

Opaque Pairing is complete, and there is a Bluetooth wireless

technology connection.

Semi-

transparent Wireless LAN is enabled, but there is no connection.

Opaque Wireless LAN connected.

Opaque Wireless LAN connected, and image data is being sent.

Getting Ready to Establish a Connection between a

Smartphone and Your Camera

76 Connecting the Camera with a Smartphone

(Wireless Connection)

Android terminal

1. Open Google Play.

2. In the search field, type EXILIM Connect.

3. Install EXILIM Connect.

iPhone (iOS)

1. Open App Store.

2. In the search field, type EXILIM Connect.

3. Install EXILIM Connect.

Installing the EXILIM Connect App on Your Smartphone

77 Connecting the Camera with a Smartphone

(Wireless Connection)

The first time you establish a wireless connection between the camera and a

smartphone, you need to use the procedure below to configure wireless connection

settings. This operation is required for the first connection only.

Smartphone that supports Bluetooth Smart

Connecting the camera to a smartphone using Bluetooth wireless technology

(pairing) makes it simple to configure wireless connection settings.



 Performing this operation automatically configures your smartphones wireless

LAN connection settings (page 78).

 Some smartphone models may not be compatible with this camera.

 If you want to re-pair the camera with the smartphone it is already paired with, first

unpair them and then pair again. Re-pairing the camera and smartphone will result

in all pending unsent images to remain unsent.

Camera (Controller) Operation

1. Touch the   (Wireless) icon.

This will display the wireless mode screen.

2. Touch Pairing.

3. Touch Start.

 You can start pairing by performing an operation on the camera, without using

the controller.

Turn off the camera.

On the camera, hold down [] (Power) for about six seconds.

Smartphone Operation

4. Start up the EXILIM Connect app.

5. Tap Pairing.

6. Perform the required connection operation as instructed by the app

and your smartphone.

This establishes a Bluetooth wireless technology connection between the camera

and smartphone.

 For information about how to configure wireless connection settings, refer to

the EXILIM Connect manual (page 74).

Establishing a Wireless Connection for the First Time

78 Connecting the Camera with a Smartphone

(Wireless Connection)



 Auto Send (page 83) will be turned on after you configure wireless connection

settings on the camera and smartphone.

 After the camera is paired, Bluetooth wireless technology operation will consume

battery power even when the camera it turned off. Because of this, it is

recommended that you charge the cameras battery before you plan to use it.

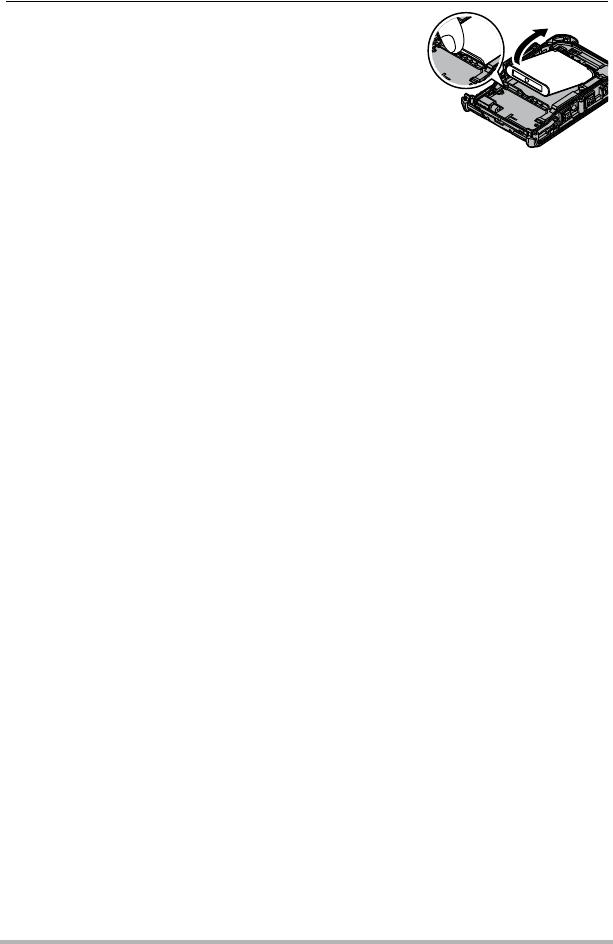

 Removing the cameras battery will terminate the Bluetooth wireless technology

connection. However, the connection will be re-established when you load a

battery into the camera and turn on the power again.

Smartphone that does not support Bluetooth Smart

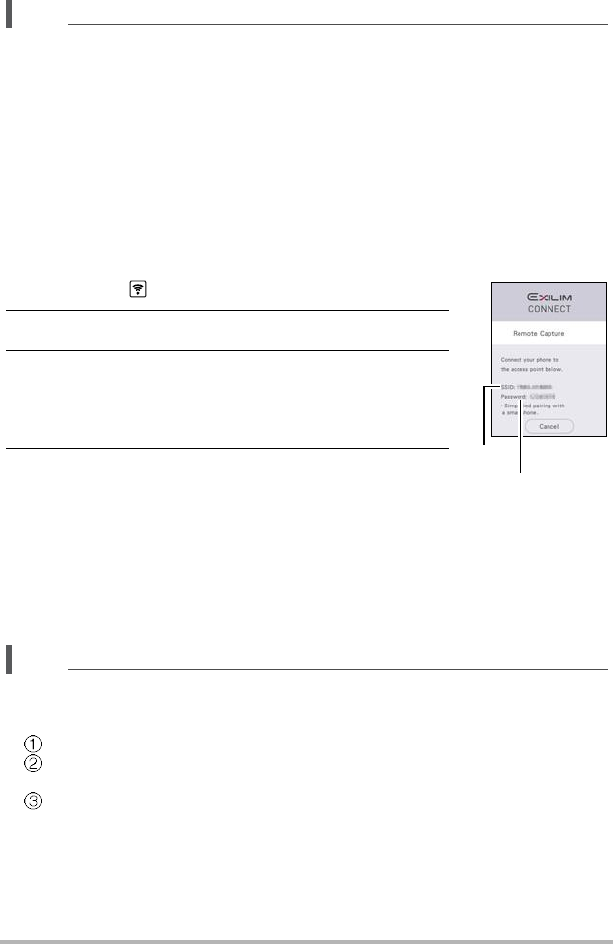

Configure smartphone wireless LAN connection settings (input the camera SSID and

password).

1. Touch the   (Wireless) icon.

2. Touch Shoot with phone.

3. Touch Start.

This will enable connection with a smartphone and the

camera will display a screen for input of an SSID and

password.

4. For the smartphone Wi-Fi setting, input the

camera SSID: and Password:.

When the message Start up the phone app. appears on

the cameras monitor screen, it means that the

smartphone has established a wireless connection with the camera. Starting up

EXILIM Connect will cause the cameras Wireless LAN connection lamp to light.

 What you need to do to establish a wireless LAN connection depends on the

type of smartphone you are using. For details about how to establish a wireless

LAN connection see the user documentation that comes with your smartphone.



 After you finish configuring camera and smartphone connection settings, you can

use the procedure below to establish a wireless LAN connection between the

camera and smartphone.

Turn off the camera.

On the camera, while holding down [] (Movie), hold down [] (Power) for

about one second.

On the smartphone, select the cameras SSID.

SSID

Password

79 Connecting the Camera with a Smartphone

(Wireless Connection)

What to do if you are unable to establish a wireless LAN connection

between the camera and a smartphone.

This problem may be caused when the smartphone is already wirelessly connected to

one of the networks or devices below. Go to your smartphones Wi-Fi settings and

select this cameras SSID.

 Household wireless LAN

 Public wireless LAN

 Portable wireless LAN device

80 Connecting the Camera with a Smartphone

(Wireless Connection)

This function lets you remotely shoot a snapshot or movie with the camera using a

smartphone. You also can perform remote zoom, self-timer, and other operations as

well.

1. Touch the   (Wireless) icon.

2. Touch Shoot with phone.

3. Touch Start.

For information about how to use Shoot with phone, refer to the EXILIM

Connect manual (page 74).

 The quality of a movie shot using remote control is STD (Standard).

You can select one more snapshot and/or movie file in camera memory and send it to

a smartphone. You can select up to 100 files, totaling no more than 500MB for a

single send. After sending an image to a smartphone, you can then upload it to a

social networking service.

1. Touch the   (Wireless) icon.

2. Touch Send to phone.

3. Touch Send Selected Image.

4. Touch the image you want to send to the smartphone.

Selecting the image of a file causes its check box to become selected.

 To exit the send image to smartphone operation, touch Cancel.

5. After selecting the images of all of the files you want to send to the

smartphone, touch OK.

For information about how to use Send Selected Image, refer to the EXILIM

Connect manual (page 74).

Using a Smartphone as a Camera Remote Controller

(Shoot with phone)

Sending a Snapshot or Movie File from Camera Memory to a

Smartphone (Send Selected Image)

81 Connecting the Camera with a Smartphone

(Wireless Connection)

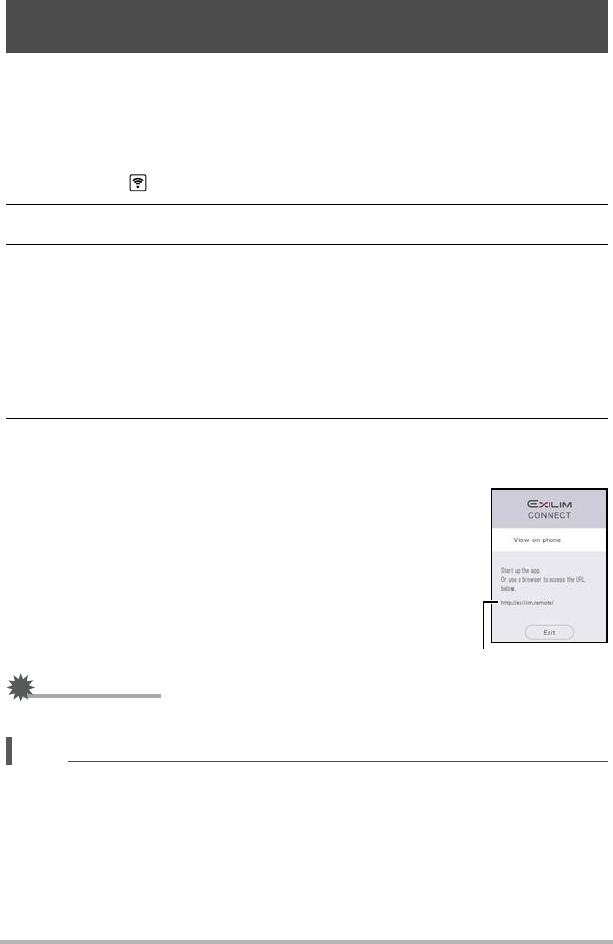

You can connect the camera to a smartphone over wireless LAN to view and

download snapshots and movies in camera memory on up to eight connected

smartphones. You can also view snapshots and movies in camera memory on a

computer, and copy them to a computer. A smartphone does not need to have the

EXILIM Connect app installed in order to access camera images using this function.

1. Touch the   (Wireless) icon.

2. Touch Send to phone.

3. Touch View on phone.

This establishes a connection between the smartphone and camera, and displays

a URL.

 If the message Connect your phone to the access point below. remains on

the cameras monitor screen, change the smartphones Wi-Fi settings so your

camera is selected for connection (page 77).

 After about 60 seconds, the cameras monitor screen will go blank. Touching

the monitor screen will cause its image to reappear.

4. On the smartphone, start up its browser app.

 The browser will automatically access the URL displayed by the camera in

step 3 of this procedure, and then display an image stored in camera memory.

 If no camera image appears automatically, manually

input the URL into the browser.

 To exit the wireless LAN function, touch Exit on the

cameras monitor screen.



 Some smartphone models may not be able to play back movie files.



 You can also view image in camera memory on a computers browser by

establishing a wireless LAN connection with the computer.

 For information about how to start up EXILIM Connect and view images, refer to

the EXILIM Connect manual (page 74).

Viewing Snapshots and Movies in Camera Memory on a

Smartphone (View on phone)

URL

82 Connecting the Camera with a Smartphone

(Wireless Connection)

This section explains wireless mode operations and setting items.

1. Touch the   (Wireless) icon.

This will display the wireless mode screen.

 Pressing the shutter button will return to the screen that was displayed before

the wireless mode screen.

2. Touch Wireless settings.

This will display the wireless setting screen.

3. Touch the item you want to configure.

4. Change the setting of the selected item.

5. When the settings are the way you want, touch OK.

 Touching  cancels the currently displayed settings and returns to the

wireless mode screen.

Configuring Wireless Connection Settings

83 Connecting the Camera with a Smartphone

(Wireless Connection)

  (Wireless)  Wireless settings  Auto Send

While On is selected for this setting, images are sent to the paired smartphone

automatically. Images are sent to the smartphone while the camera is in the sleep

mode. If there is no wireless connection between the camera and smartphone, the

images will be sent as soon as a connection is established.



 Auto Send cannot be enabled unless the camera is paired with a smartphone

(page 77).



 Auto Send can be used only with a smartphone that supports Bluetooth Smart.

Both a Bluetooth and wireless LAN connection are required between the camera

and smartphone to auto send camera images.

 The icons below are displayed on the camera screen while the camera and

smartphone are connected.

 Wireless LAN connection: 

 Bluetooth wireless technology connection: 

 You can specify the size of the image sent to the smartphone using Resize When

Sending (page 84).

 You can use the smartphone apps below to view snapshots after sending them.

 iPhone: Camera Roll

 Android terminal: Gallery, Photo, or another photo browser app

 Images shot while the Auto Send setting is On will be sent to the smartphone,

even if the Auto Send setting is changed to Off before they are sent.

 When On is selected for Auto Send, a message will appear whenever you try to

delete a file or turn off the camera.

 If you try to turn off the camera while there are unsent images in memory, a

message will appear to alert you. If you want the images to be sent, leave the

camera on until the send operation is complete. Pressing [] (Power) again will

turn off the camera.

 Note that if the connection between the camera and smartphone is lost while there

are unsent images in memory, the camera will turn off after about three minutes. In

this case, the camera will try to send the images again after it is turned back on.

Sending Images from the Camera to a Smartphone as They are

Recorded (Auto Send)

84 Connecting the Camera with a Smartphone

(Wireless Connection)

  (Wireless)  Wireless settings  Auto Send File Settings

Specifies the files to be sent to a smartphone by Auto Send.



 The maximum size movie file that can be sent by Auto Send is 100 MB.

  (Wireless)  Wireless settings  Resize When Sending

This feature can be use to resize snapshots before they are sent to a smartphone

using Shoot with phone or Send to phone.

  (Wireless)  Wireless settings  WLAN password

Use procedure to change the password you used when establishing a wireless LAN

connection between the camera and a smartphone.



 Before changing the wireless LAN password, unpair the camera from its paired

smartphone (page 85).

1. Touch the password digit you want to change.

2. Touch   or   to change the currently selected digit.

Specifying Images to be Sent by Auto Send

(Auto Send File Settings)

 Snapshots and movies are sent.

 Only Only snapshots are sent.

Resizing Snapshots before Sending Them to a Smartphone

(Resize When Sending)

3M

Images are converted to 3M size before being sent.

 If an original image is 3M size or smaller, it is sent without

resizing.

Off Images are sent in the size they were originally recorded.

Changing the Camera Password for Wireless LAN Connection

(WLAN password)

85 Connecting the Camera with a Smartphone

(Wireless Connection)

3. When the password is the way you want, touch OK.



 Changing the wireless LAN password will terminate the connection with the

smartphone. To reconnect with the smartphone, configure wireless connection

settings (page 77). If your smartphone does not support Bluetooth Smart, perform

the operations below to change your smartphones Wi-Fi settings.

 iPhone:

Tap the right arrow of the field where the SSID of the camera is displayed in the

Wi-Fi settings to delete network settings. After deleting, select the camera SSID

again and input the new password.

 Android terminal:

Tap the field where the SSID of the camera is displayed in the Wi-Fi settings and

select Forget. Select the camera SSID again and input the new password.

  (Wireless)  Wireless settings  Unpairing

Unpairs the camera from a smartphone.

To use the camera with a different smartphone, first unpair it from the current

smartphone.



 When unpairing, be sure also to perform the unpairing operation on the

smartphone as well. For details, refer to the EXILIM Connect Users Guide (page

74).

 Unpairing the camera from a smartphone will result in all pending unsent images to

remain unsent.

Unpairing the Camera from a Smartphone (Unpairing)

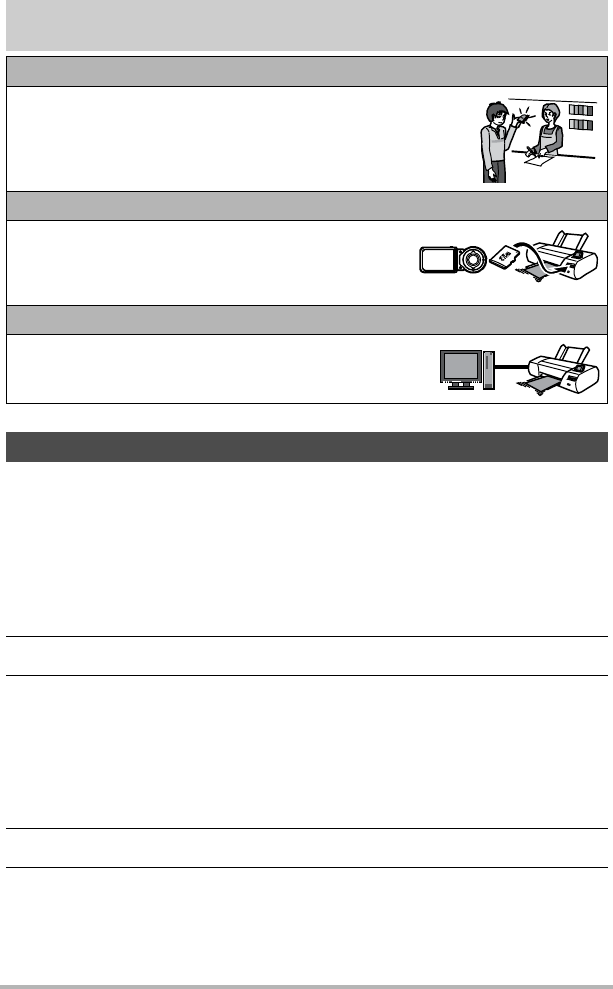

86 Printing

Printing

There are a variety of different ways to print images stored on a computer. This

section shows one standard printing example.

Printing on a Windows Computer

1. Use the procedure under Viewing and Storing Images on a Computer

(page 88) to store the image you want to print, and then display the

image on your computer screen.

2. Click Print and then Print.

3. Configure the desired print settings and then click Print.

Printing on a Macintosh

1. Use the procedure under Connecting the Camera to Your Computer

and Saving Files (page 91) to store the image you want to print, and

then display the image on your Macintosh screen.

2. Click File and then Print.

3. Configure print settings and then click Print.

This will print the selected image.

Professional Print Service

You can take a memory card that contains the images you want

to print to a professional print service and have them printed.

Printing on a Home Printer

You can use a printer equipped with a memory card slot

to print images directly from a memory card. For details,

see the user documentation that comes with your

printer.

Printing with a Computer

After transferring the images to your computer, use

commercially available software to print.

Printing with a Computer

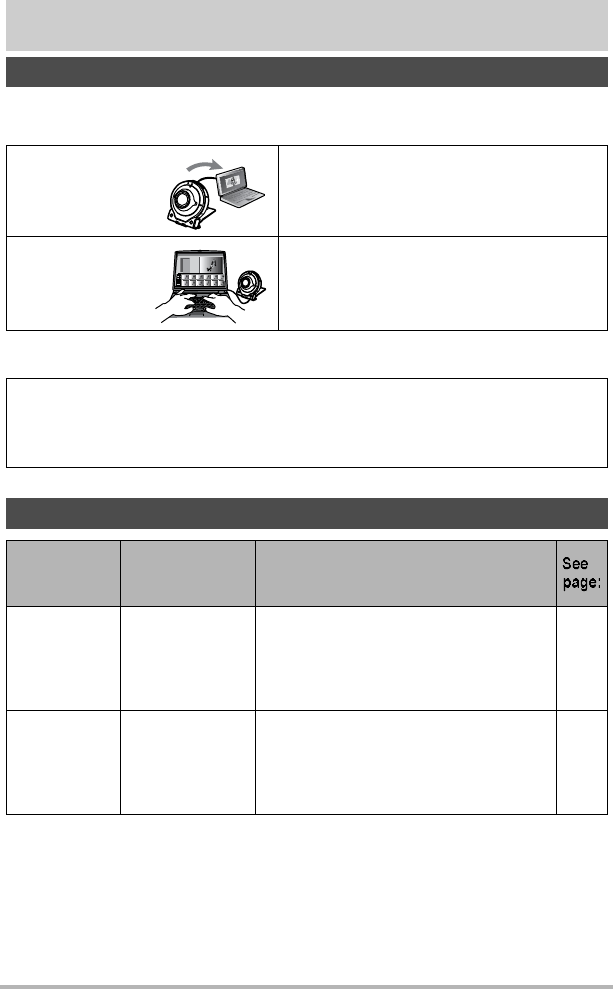

87 Using the Camera with a Computer

Using the Camera with a Computer

You can perform the operations described below while the camera is connected to a

computer.

The procedures you need to perform are different for Windows and the Macintosh.

Things you can do using a computer...

Save images to a

computer and

view them there

 Save images and view them manually

(USB connection) (pages 88, 91).

Play back and

edit movies

 You can play back movies (pages 90, 93).

 To edit movies, use commercially

available software as required.

 Windows users should refer to Using the Camera with a Windows Computer

on page 87.

 Macintosh users should refer to Using the Camera with a Macintosh on page

91.

Using the Camera with a Windows Computer

When you

want to do

this:

Operating

System Version Required Software

Save images

to a computer

and view them

there manually

Windows 10,

Windows 8.1,

Windows 8,

Windows 7,

Windows Vista

Installation not required. 88

Play movies

Windows 10,

Windows 8.1,

Windows 8,

Windows 7,

Windows Vista

QuickTime 7 or higher

 You need to download QuickTime 7 on

the Web if you want to use it.

90

88 Using the Camera with a Computer

You can connect the camera to your computer in order to view and store images

(snapshot and movie files).



 Never unplug the USB cable, or operate the camera while viewing or storing

images. Doing so can cause data to become corrupted.



 You also can use your computers card slot (if it has one) or a commercially

available card reader to access image files directly from the cameras memory

card. For details, see the user documentation that comes with your computer.

To connect the camera to your computer and save files

1. Turn off the camera and then

use the micro USB cable that

comes with the camera to

connect it to your computer.

 For details about connecting to

the camera and precautions

when connecting, see page 23.

2. Press [] (Power) to turn on the camera.

When you turn on the camera, check to make sure that the color of its operation

lamp changes from red to green or amber (page 23). Note that in this case the

monitor screen will remain blank.

 The first time you connect the camera to your computer with the USB cable, an

error message may appear on your computer. If this happens, disconnect and

then reconnect the USB cable.

3. Windows 10 users: Click Desktop and then Explorer. Next, in the

sidebar, click PC.

Windows 8.1, Windows 8 users: Click Desktop and then Explorer.

Windows 7, Windows Vista users: Click Start and then Computer.

Viewing and Storing Images on a Computer

Never use your computer to modify, delete, move, or rename any image files

that are in the cameras built-in memory or on its memory card.

Doing so can cause problems with the cameras image management data, which

will make it impossible to play back images on the camera and can drastically alter

remaining memory capacity. Whenever you want to modify, delete, move, or

rename an image, do so only on images that are stored on your computer.



Micro USB cable

(included with camera)

[USB] port

89 Using the Camera with a Computer

4. Double-click Removable Disk.

 Your computer recognizes the memory card loaded in the camera (or built-in

memory if there is no card) as a removable disk.

5. Right-click the DCIM folder.

6. On the shortcut menu that appears, click Copy.

7. Windows 10, Windows 8.1, Windows 8 users: Click Documents.

Windows 7, Windows Vista users: Click Start and then Documents.

 If you already have a DCIM folder in Documents, the next step will overwrite

it. If you want to keep the existing DCIM folder, you need to change its name

or move it to a different location before performing the next step.

8. Windows 10, Windows 8.1, Windows 8 users: On the Documents

menus, click Home and then Paste.

Windows 7, Windows Vista users: On the Documents menu, click

Organize or Edit, and then Paste.

This will paste the DCIM folder (and all the image files it contains) into your

Documents folder. You now have a copy of the files that are in camera memory

on your computer.

 After copying images, it is recommended that you right-click the DCIM folder

and change its name to something else.

9. After you finish copying images, disconnect the camera from the

computer.

After the copy or read progress dialog on the computers screen indicates that the

process is complete, close the displayed image and then disconnect the USB

cable.

To view images you copied to your computer

1. Double-click the copied DCIM folder to open it.

2. Double-click the folder that contains the images you want to view.

3. Double-click the image file you want to view.

 For information about file names, see Memory Folder Structure on page 95.

 An image that was rotated on the camera will be displayed on your computer

screen in its original (unrotated) orientation.

 Viewing CS and interval shot images on a computer will individually display the

component images in the group. CS and interval shooting images cannot be

viewed as a group on a computer.

90 Using the Camera with a Computer

To play back a movie, first copy it to your computer and then double-click the movie

file. Some operating systems may not be able to play back movies. If this happens,

you need to install separately available software.

 With Windows 10, Windows 8.1, Windows 8 and Windows 7, playback is supported

by Windows Media Player 12.

 If you are unable to play back movies, go to the URL below to download

QuickTime 7 or higher and install it on your computer.

https://www.apple.com/quicktime/

Minimum Computer System Requirements for Movie Playback

The minimum system requirements described below are necessary to play back

movies recorded with this camera on a computer.

 The above are recommended system environments. Configuring one of these

environments does not guarantee proper operation.

 Certain settings and other installed software may interfere with proper playback of

movies.

Movie Playback Precautions

 Be sure to move the movie data to the hard disk of your computer before trying to

play it. Proper movie playback may not be possible for data accessed over a

network, from a memory card, etc.

 Proper movie playback may not be possible on some computers. If you experience

problems, try the following.

 Quit any other applications you have running, and stop resident applications.

Playing Movies

Operating System : Windows 10, Windows 8.1, Windows 8, Windows 7, Windows

Vista

CPU : Image Quality Full HD, STD: Core 2 Duo 3.0GHz or higher

Image Quality HS240: Pentium 4 3.2GHz or higher

Required Software: QuickTime 7 or higher (Not required with Windows 10,

Windows 8.1, Windows 8 and Windows 7.)

91 Using the Camera with a Computer



 Never unplug the USB cable, or operate the camera while viewing or storing

images. Doing so can cause data to become corrupted.

 The camera does not support operation with Mac OS X 10.0 to 10.5. Operation is

supported with Mac OS 10.6 to 10.10 (using the OS standard USB driver) only.



 You also can use your computers card slot (if it has one) or a commercially

available card reader to access image files directly from the cameras memory

card. For details, see the user documentation that comes with your computer.

Using the Camera with a Macintosh

When you want to

do this: Required Software

Save images to your

Macintosh and view

them there manually

OS X Installation not required. 91

Save images to your

Macintosh

automatically/

Manage images

OS X iPhoto, which comes bundled

with some Macintosh products. 

Play movies OS X 10.6 or

higher

QuickTime Player

(installed on computer) 93

Connecting the Camera to Your Computer and Saving Files

Never use your computer to modify, delete, move, or rename any image files

that are in the cameras built-in memory or on its memory card.

Doing so can cause problems with the cameras image management data, which

will make it impossible to play back images on the camera and can drastically alter

remaining memory capacity. Whenever you want to modify, delete, move, or

rename an image, do so only on images that are stored on your computer.

92 Using the Camera with a Computer

To connect the camera to your computer and save files

1. Turn off the camera and then

use the micro USB cable that

comes with the camera to

connect it to your Macintosh.

 For details about connecting to

the camera and precautions

when connecting, see page 23.

2. Press [] (Power) to turn on the camera.

When you turn on the camera, check to make sure that the color of its operation

lamp changes from red to green or amber (page 23). Note that in this case the

monitor screen will remain blank.

In this mode, your Macintosh recognizes the memory card loaded in the camera

(or the cameras built-in memory if it does not have a memory card loaded) as a

drive. The appearance of the drive icon depends on the Mac OS version you are

using.

 The first time you connect the camera to your Macintosh with the USB cable,

an error message may appear on your computer. If this happens, disconnect

and then reconnect the USB cable.

3. Double-click the cameras drive icon.

4. Drag the DCIM folder to the folder to which you want to copy it.

5. After the copy operation is complete, drag the drive icon to Trash.

6. Disconnect the camera from the computer.

After the copy or read progress dialog on the computers screen indicates that the

process is complete, close the displayed image and then disconnect the USB

cable.



Micro USB cable

(included with camera)

[USB] port

93 Using the Camera with a Computer

To view copied images

1. Double-click the cameras drive icon.

2. Double-click the DCIM folder to open it.

3. Double-click the folder that contains the images you want to view.

4. Double-click the image file you want to view.

 For information about file names, see Memory Folder Structure on page 95.

 An image that was rotated on the camera will be displayed on your Macintosh

screen in its original (unrotated) orientation.

To play back a movie, first copy it to your Macintosh and then double-click the movie

file.

Minimum Computer System Requirements for Movie Playback

The minimum system requirements described below are necessary to play back

movies recorded with this camera on a computer.

 The above are recommended system environments. Configuring one of these

environments does not guarantee proper operation.

 Certain settings and other installed software may interfere with proper playback of

movies.

Movie Playback Precautions

Proper movie playback may not be possible on some Macintosh models. If you

experience problems, try the following.

 Shut down other applications that are running.



 Be sure to move the movie data to the hard disk of your Macintosh before trying to

play it. Proper movie playback may not be possible for data accessed over a

network, from a memory card, etc.

Playing a Movie

Operating System : Mac OS X 10.6 or higher

Required Software: QuickTime Player (installed on computer)

94 Using the Camera with a Computer

The camera creates a file each time you shoot a snapshot, record a movie, or

perform any other operation that stores data. Files are grouped by storing them in

folders. Each file and folder has its own unique name.

 For details about how folders are organized in memory, see Memory Folder

Structure (page 95).

 You can view folder and file names on your computer. For details about how file

names are displayed on the cameras monitor screen, see page 10.

 The total number of folders and files allowed depends on the image size and

quality, and capacity of the memory card being used for storage.

Files and Folders

Name and Maximum Number Allowed Example

File

Each folder can contain up to 9999 files named

CIMG0001 through CIMG9999. The extension

on the file name depends on the file type.

26th file name:

Folders

Folders are named from 100CASIO to

999CASIO.

There can be up to 900 folders in memory.

100th folder name:

Extension

Serial number (4 digits)

Serial number (3 digits)

95 Using the Camera with a Computer

The camera stores images you shoot in accordance with the Design Rule for Camera

File System (DCF).

About DCF

The following operations are supported for DCF-compliant images. Note, however,

that CASIO makes no performance guarantees concerning these operations.

 Transferring this cameras DCF-compliant images to another manufacturers

camera and view them.

 Printing this cameras DCF-compliant images on another manufacturers printer.

 Transferring another cameras DCF-compliant images to this camera and view

them.

Memory Folder Structure

DCIM Folder

Recording Folder

Image File

Movie File

Recording Folder

Supported Image Files

 Image files shot with this camera

 DCF-compliant image files

This camera may not be able to display an image, even if it is DCF-compliant. When

displaying an image recorded on another camera, it may take a long time for the

image to appear on this cameras monitor screen.

Built-in Memory and Memory Card Data Handling Precautions

 Whenever copying memory contents to your computer, you should copy the DCIM

folder and all of its contents. A good way to keep track of multiple DCIM folders it to

change their names to dates or something similar after you copy them to your

computer. If you later decided to return a DCIM folder to the camera, however, be

sure to change its name back to DCIM. The camera is designed to recognize only a

root file with the name DCIM. Note the camera also will not be able to recognize the

folders inside the DCIM folder unless they have the names they originally had

when you copied them from the camera to your computer.

 Folders and files must be stored in accordance with the Memory Folder Structure

shown on page 95 in order for the camera to be able to recognize them correctly.

Memory Card Data













96 Other Settings (Set Up)

Other Settings (Set Up)

This section explains menu items that you can use to configure settings and perform

other operations in both the REC mode and PLAY mode.

MENU   Setup Tab  Screen

You can use the following procedure to change the brightness of the monitor screen.

MENU   Setup Tab  Info

Selecting On displays setup status and other information.

For information about menu operations, see page 50.

Adjusting Monitor Screen Brightness (Screen)

Auto With this setting, the camera detects available light levels and

automatically adjusts the brightness of the monitor screen accordingly.

+2 Brightness that is greater than +1, which makes the screen easier to view.

This setting consumes more power.

+1 Bright setting for outdoor use, etc. Brightness that is greater than 0.

0Normal monitor screen brightness for indoor use, etc.

1 Screen brightness for viewing in a dark environment without disturbing

others around you.

Selecting Display Information (Info)

97 Other Settings (Set Up)

MENU   Setup Tab  Rotation Lock

You can use this setting to fix the orientation of the camera or controller screen

image, or allow the orientation to be detected and automatically rotated as required.

MENU   Setup Tab  Simple Playback

You can adjust the volume of the sound emitted when the camera is turned on, when

an image is shot, when an error occurs, etc.

 Regardless of this setting, no recording sound is emitted during an Interval

Shooting operation.

MENU   Setup Tab  Vibration

While On is selected for this function, the controller will vibrate whenever any one of

the events described below occurs.

 When a preview of an image that what just shot appears on the controller screen

 When communication between the camera and controller is lost

 When an error occurs

Locking the Camera or Controller Screen Orientation

(Rotation Lock)

Camera Off

When shooting, camera orientation is detected,

and the image will be stored in the same

orientation that the camera was in when it was

shot.

On Stored images are always landscape orientation.

Controller Off Display image is rotated according to the controller

orientation.

On Display image orientation is fixed.

Configuring Camera Sound Settings (Camera Sound)

HIGH High volume

LOW Low volume

Using the Vibration Function (Vibration)

98 Other Settings (Set Up)

MENU   Setup Tab  Adjust

1. Touch the value you want to change (year, month,

day, hour, minute).

2. Touch   or   to change the currently

selected value.

 You can specify a date from 2001 to 2049.

 To switch between 12-hour and 24-hour format, touch

the 12/24 hour switch icon.

 Touching and holding   or   scrolls at high speed.

3. Touch OK.

MENU   Setup Tab  Date Style

You can select from among three different styles for the date.

Example: July 10, 2016

Setting the Cameras Clock (Adjust)

Specifying the Date Style (Date Style)

YY/MM/DD 16/7/10

DD/MM/YY 10/7/16

MM/DD/YY 7/10/16

12/24 hour

switch icon

99 Other Settings (Set Up)

MENU   Setup Tab  Language

Specify the display language you want.

1. On the menu screen, touch Setup.

2. Touch Language.

3. Flick upwards and downwards until you find the

language you want, and then touch to select it.

 Camera models sold in certain geographic areas may not

support display language selection.

MENU   Setup Tab  Sleep

Use this function to specify how much time should be allowed to laps until the

controller display goes blank and the controller enters the sleep state. You can

specify either 30 seconds (30 sec) or 10 minutes (10 min).

Specifying the Display Language (Language)

Specifying the Controller Sleep State Trigger Time (Sleep)

100 Other Settings (Set Up)

MENU   Setup Tab  Format

If a memory card is loaded in the camera, this operation will format the memory card.

It will format built-in memory if no memory card is loaded.

 The format operation will delete all contents on the memory card or in built-in

memory. It cannot be undone. Make sure you do not need any data currently on

the card or in built-in memory before you format it.

 Formatting built-in memory or a memory card will delete all protected images

stored there.

 Check the battery level before starting a format operation and make sure it is not

too low. Formatting may not be performed correctly and the camera may stop

operating normally if the camera powers down while formatting is in progress.

MENU   Setup Tab  Reset

See page 132 for details about the cameras factory default settings.

The settings below are not reset.

World Time settings, clock settings, date style, screen language, WLAN password



 Resetting the camera does not unpair it from a smartphone (page 77).

Formatting Built-in Memory or a Memory Card (Format)

Resetting the Camera to Factory Defaults (Reset)

101 Other Settings (Set Up)

MENU   Setup Tab  Version

Selecting this menu item displays the camera model name, the version of firmware

installed on the camera, and the cameras MAC address.

 Note that the MAC address is fixed number that functions as the cameras network

device identifier.

 Check this screen after updating the cameras firmware to confirm that updating

was actually performed.

Checking the Current Camera Firmware Version (Version)

102 Appendix

Appendix

DANGER

This symbol indicates information that, if ignored or applied incorrectly, creates the

danger of death or serious personal injury.

WARNING

This indication stipulates matters that have the risk of causing death or serious injury

if the product is operated incorrectly while ignoring this indication.

CAUTION

This indication stipulates matters that have the risk of causing injury as well as

matters for which there is the likelihood of occurrence of physical damage only if the

product is operated incorrectly while ignoring this indication.

Symbol Examples

Safety Precautions

This circle with a line through it () means that the indicated action must not

be performed. Indications within or nearby this symbol are specifically

prohibited. (The example at left indicates that disassembly is prohibited.)



The black dot () means that the indicated action must be performed.

Indications within this symbol are actions that are specifically instructed to be

performed. (The example at left indicates that the power plug must be

unplugged from the electrical socket.)

DANGER

Built-in Rechargeable Battery

 To charge the battery, use only the method specifically described in this

manual. Attempting to charge the battery by an unauthorized means

creates the risk of battery overheating, fire, and explosion.

 Do not expose or immerse the battery in fresh water or salt water. Doing

so can damage the battery, and cause deterioration of its performance

and loss of service life.

 The battery is intended for use with a CASIO Digital Camera only. Use

with any other device creates the risk of the battery damage, or

deterioration of battery performance and service life.







103 Appendix

 Failure to observe any of the following precautions creates the risk of battery

overheating, fire, and explosion.

 Never use or leave the battery near open flame.

 Do not expose the battery to heat or fire.

 Make sure the battery is oriented correctly when charging it.

 Never carry or store the battery together with items that can conduct electricity

(necklaces, pencil lead, etc.).

 Never disassemble the battery, pierce it with a needle, or expose it to strong

impact (hit it with a hammer, step on it, etc.), and never apply solder to it.

Never place the battery into a microwave oven, dehumidifier, high-pressure

generating device, etc.

 Never remove the outer sticker from the battery.

 Do not use or leave the battery under direct sunlight, in an automobile

parked in the sun, or in any other area subject to high temperatures.

Doing so can damage the battery, and cause deterioration of its

performance and loss of service life. Also, these conditions can cause the

battery to swell to the point that you may not be able to remove it.

 Battery fluid can damage your eyes. Should battery fluid get into your

eyes accidentally, immediately rinse them with clean tap water and then

consult a physician.

DANGER





104 Appendix

WARNING

Smoke, abnormal odor, overheating, and other abnormalities

 Continued use of the camera while it is emitting smoke or strange odor,

or while it is overheating creates the risk of fire and electric shock.

Immediately perform the following steps whenever any of the above

symptoms are present.

1. Turn off the camera.

*If the camera will not turn off for some reason, press the [RESET] button

(page 8).

2. If you are using the USB-AC adapter to power the camera, unplug the power

plug from the power outlet.

3. Contact your retailer or nearest CASIO authorized service center.

Keep Away From Fire

 Never expose the camera to fire, which can cause it to explode and

creates the risk of fire and personal injury.

Avoid Use While In Motion

 Never use the camera to record or play back images while operating an

automobile or other vehicle, or while walking. Looking at the monitor

while in motion creates the risk of serious accident.

USB-AC Adapter

 Misuse of USB-AC adapter creates the risk of fire and electric shock. Be sure to

observe the following precautions.

 Use only the specified USB-AC adapter.

 Never use the USB-AC adapter with another device.

 Use a power outlet that matches the power supply specified for the

USB-AC adapter.

 Never plug the USB-AC adapter or power cord into a wall outlet that is shared

by other devices, or into a shared extension cord.

 Never locate the USB-AC adapter near a stove or other heating device.

 Misuse of the USB-AC adapter can cause them to become damaged, creating

the risk of fire and electric shock. Be sure to observe the following precautions.

 Never place heavy objects on the USB-AC adapter or subject it to

direct heat.

 Do not modify the USB-AC adapter, allow it to become damaged, or

forcibly bend it.

 Do not twist or pull on the power cord.

 When in use, locate the cord where it will not be tripped over.





105 Appendix

 Never touch the power plug while your hands are wet. Doing so creates

the risk of electric shock.

 Should the power cord or power plug become damage, contact your

retailer or nearest CASIO authorized service center.

 Do not use the USB-AC adapter in areas where liquids* might spill on

them. Liquids create the risk of fire and electric shock.

*Liquids: Water, sports drinks, seawater, animal or pet urine, etc.

 Do not place a flower vase or any other liquid container on top of the

USB-AC adapter. Water creates the risk of fire and electric shock.

 Do not touch the camera or USB-AC adapter during lightning storms.

If a power cord was included with your camera

 The power cord that comes with the camera is designed for use in the

country where the camera was purchased. If you use the camera in

another country, be sure to use a power cord that conforms to that

countrys ratings and power supply voltage. Use of an improper power cord

creates the risk of fire and electric shock.

 Before going out, be sure to unplug the USB-AC adapter from the power

outlet and put in a place away from objects used by animals and pets.

An animal or pet chewing on the power cord can cause it short, leading

to the risk of fire.

Water and Foreign Matter

 Water, other liquids, or foreign matter (especially metal) getting inside

the camera creates the risk of fire and electric shock. Immediately

perform the following steps whenever any of the above symptoms are

present. Particular care is required when using the camera where it is raining or

snowing, near the ocean or other body of water, or in a bathroom.

1. Turn off the camera.

*If the camera will not turn off for some reason, press the [RESET] button

(page 8).

2. If you are using the USB-AC adapter to power the camera, unplug the power

plug from the power outlet.

3. Contact your retailer or nearest CASIO authorized service center.

Disassembly and Modification

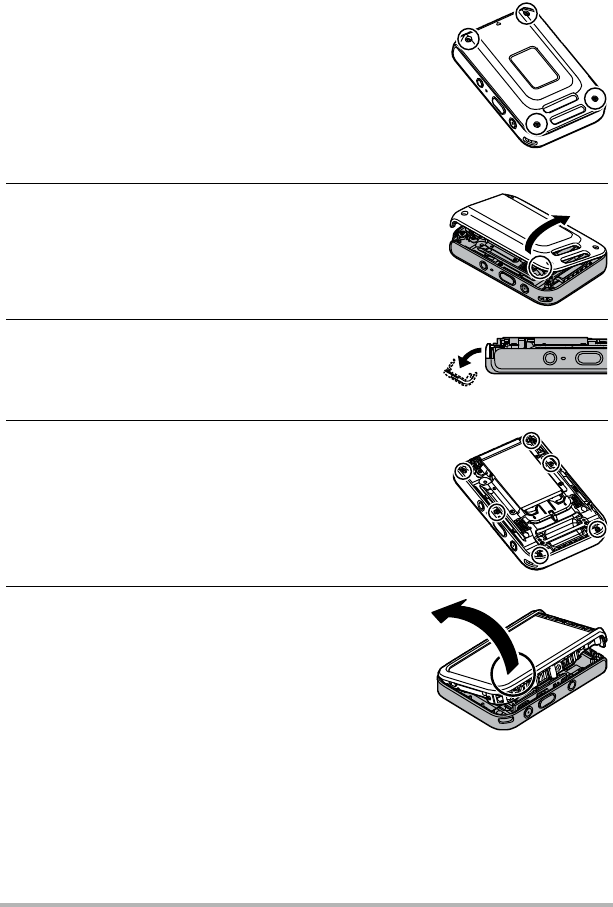

 Except when disposing of the camera, never try to take it apart or modify

it in any way. Doing so creates the risk of electric shock, burn injury, and

other personal injury. Be sure to leave all internal inspection,

maintenance, and repair up to your retailer or nearest CASIO authorized service

center.

WARNING

















106 Appendix

Dropping and Rough Treatment

 Continued use of the camera after it is damaged by dropping or other

rough treatment creates the risk of fire and electric shock. Immediately

perform the following steps whenever any of the above symptoms are

present.

1. Turn off the camera.

*If the camera will not turn off for some reason, press the [RESET] button

(page 8).

2. If you are using the USB-AC adapter to power the camera, unplug the power

plug from the power outlet.

3. Contact your retailer or nearest CASIO authorized service center.

Memory Cards

 Memory cards are small and present a risk of accidentally being

swallowed by infants and young children. Keep memory cards out of the

reach of infants and young children. If a memory card is ever swallowed

accidentally, contact a physician immediately.

Precaution when Camera is On

 Do not touch the camera for long periods while it is on. The camera

becomes warm when on, and long term contact creates the risk of low-

temperature burns.

Interference with other digital devices

 Should you notice radio interference or other problems on other devices

is being caused while using this product, do not use the wireless

functions of this product. Use of wireless functions creates the risk of

radio interference and abnormal operation of other devices.

 When in a medical facility or aircraft, comply with instructions of

personnel in charge. Electromagnetic waves and other signals emitted

by the cameras wireless function create the risk of accident.

 Do not use the cameras wireless function while in the vicinity of high

precision digital devices or digital devices that use weak signals. Doing

so can interfere with proper operation of such digital devices and create

the risk of accident.

 When using the cameras wireless function, keep it away from any

person wearing a pacemaker. Magnetism emitted by the camera may

affect cardiac pacemakers and other medical devices. Should you ever

notice any abnormality, immediately move away from the product and contact a

physician.

 On a crowded train or any other crowded location where there is the

possibility of being in the vicinity of a person wearing a cardiac

pacemaker, turn off the camera. Radio waves emitted by the cameras

wireless function may affect pacemaker operation.

WARNING













107 Appendix

CAUTION

USB-AC Adapter

 Misuse of the USB-AC adapter creates the risk of fire and electric shock. Make

sure you observe the following precautions.

 Never cover the USB-AC adapter or power cord with a quilt, blanket,

or other cover while it is in use, and do not use it near a heater. Doing

so can interfere with heat radiation and cause the area around them

to become hot.

 Do not use detergent when cleaning the power cord, the USB-AC adapter, or

the USB cable (especially the plugs and jacks).

 Insert the power plug into the wall outlet as far as it will go.

 Unplug the power plug from the wall outlet before leaving the camera

unattended for long periods, such as when leaving on a trip, etc.

 At least once a year, use a cloth or vacuum cleaner to clean any dust build up

on the prongs of the power plug and in the area around them.

 (Power cord included with your camera) When unplugging from the wall outlet,

never pull on the power cord. Grasp the power plug and pull.

Built-in Rechargeable Battery

 If battery charging does not end normally within the specified charging

time, stop charging anyway and contact your local CASIO authorized

service center. Continued charging creates the risk of battery

overheating, fire, and explosion.

 Be sure to read the user documentation that comes with the camera

before using or charging the battery.

 Store batteries in a location that cannot be reached by infants and young

children. When using a battery where infants and young children are

present, be on guard to ensure that they do not have the chance to

remove the battery from the camera.

 Do not leave batteries near areas used by pets. A pet chewing on a

battery can lead to accidents caused by the battery leaking, overheating,

or exploding.

 Should fluid from a battery accidentally get onto clothing or your skin,

immediately rinse it off with clean tap water. Prolonged contact with

battery fluid can cause skin irritation.

Connections

 Never plug any devices that are not specified for use with this camera

into connectors. Connecting a non-specified device creates the risk of

fire and electric shock.

Unstable Locations

 Never place the camera on an unstable surface, on a high shelf, etc.

Doing so can cause the camera to fall, creating the risk of personal

injury.











108 Appendix

Locations To Be Avoided

 Never leave the camera in any of the following types of locations. Doing so

creates the risk of fire and electric shock.

 Areas subject to large amounts of humidity or dust

 Food preparation areas or other locations where oil smoke is present

 Near heaters, on a heated carpet, in areas exposed to direct sunlight,

in a closed vehicle parked in the sun, or other areas subject to very high

temperatures

Monitor Screen

 Do not apply strong pressure to the LCD panel surface or subject it to

strong impact. Doing so can cause the display panel glass to crack and

lead to personal injury.

 Should the monitor screen ever become cracked, never touch any of the

liquid inside the monitor screen. Doing so creates the risk of skin

inflammation.

 Should monitor screen liquid ever get into your mouth, immediately rinse

your mouth out and contact your physician.

 Should monitor screen liquid ever get into your eyes or onto your skin,

immediately rinse with clean water for at least 15 minutes and contact

your physician.

Backing Up Important Data

 Always keep backup copies of important data in camera memory by

transferring it to a computer or other storage device. Note that data can

be deleted in the case of camera malfunction, repair, etc.

CAUTION







109 Appendix

This camera is designed to be shock resistant, splashproof, and dustproof as

described below.

Shock resistant:

Passes testing based on CASIO independent standards*1 formulated according to

MIL-Standard 810F Method 516.5-Shock.*2

*1 Drop testing from a height of 2 meters (6.56 feet) onto plywood (lauan),

10 directions (6 faces, 4 corners)

*2 Though the camera is designed to withstand the effects of impact occurring

during normal daily use, very strong impact due to very rough handling such as

throwing the camera or dropping it from excessive heights can result in serious

damage. Even if a drop does not result in functional problems, it can cause

scratching and other cosmetic damage to the camera.

Splashproof:

Splashproof equivalent to IEC/JIS Class 8 (IPX8)*3 and Class 6 (IPX6). Allows

continuous use during immersion in water to a depth up to 1.5 meters (4.92 feet)

for 60 minutes*4 and protection against jet spray from all directions.*5

*3 Signifies underwater use when immersed for a duration and at a pressure

specified by CASIO. Touch panel operation is not supported under water.

*4 Test conditions defined by CASIO.

*5 Use during high-speed travel on water during motor sports, while riding a

personal watercraft, etc. is not supported.

Dustproof:

Corresponds to IEC/JIS Protection Class 6 (IP6X) dustproofing.



 The shock resistance, splashproofing, and dustproofing of this product are based

on CASIO test results, and do not constitute any guarantee that the product will

perform, will not be damaged, or will not malfunction under such conditions.

Precautions before Underwater Use

This camera can be used to shoot images underwater up to a depth of 1.5 meters

(4.92 feet). However, the following precautions should be kept in mind before using

the camera underwater.

 Check the contact surfaces of the [CARD] cover and [USB] cover gaskets for dirt,

sand, and any other foreign matter. Clean contact surfaces by wiping them with a

soft, clean, dry cloth. Note that a single strand of hair or a single grain of sand can

allow water to leak into the camera.

 Check the [CARD] cover and [USB] cover splashproofing gaskets are free of

cracks, scratches, and other damage.

 Close the [CARD] cover and [USB] cover securely into place.

 Never open or close the [CARD] cover or [USB] cover while near water or in an

area exposed to sea breezes. Also avoid opening or closing the covers while your

hands are wet.

Shock resistant, Splashproof, Dustproof

110 Appendix

 This camera will sink if dropped underwater. Use the strap or some other means to

avoid dropping.

 The splashproofing of this camera protects it against salt water and fresh water

only. Protection is not provided against hot spring water.

 Never leave the camera for long periods in a location subjected to very low

temperatures or very high temperatures in excess of 40°C (104°F). In particular,

avoid leaving the camera in areas exposed to strong direct sunlight, in a motor

vehicle on a hot day, etc. Any of these conditions can result in a deterioration of

splashproofing.

 Wireless communication with wireless LAN or Bluetooth wireless technology is not

supported under water. Connection between a submerged camera and a controller

or smartphone is not supported.

 Use of the controllers touch panel is not supported while the controller is

submerged.

Precautions during Underwater Use

 The camera is designed for use at depths no greater than 1.5 meters (4.92 feet)

and at water temperatures within the range of 0°C to 40°C (32°F to 104°F).

 Do not leave the camera submerged for more than 60 minutes.

 When repeatedly immersing the camera for underwater user, allow at least

15 minutes to elapse between immersions.

 Never open the [CARD] cover or [USB] cover while the camera is submerged.

 Do not dive into water while holding the camera. Also, do not use the camera in

rapids, under a waterfall, or in any other rough water condition. Exposing the

camera to strong water pressure can cause leaking and malfunction.

 Take care that you do not drop the camera into water or allow it to strike the

surface of the water. Doing so can cause leaking.

Precautions after Underwater Use

 Before opening the [CARD] cover and [USB] cover, use a clean, dry, soft cloth to

wipe the camera free of all moisture and dirt.

 If you open the [CARD] cover and [USB] cover while the camera is wet, be sure to

wipe its inside surfaces free of all moisture before closing it.

111 Appendix

Cleaning Your Camera after Use

Perform the following steps to clean the camera after using it under water or after it

becomes soiled with sand, dirt, or mud. Note that the [CARD] cover and [USB] cover

must be closed securely when performing these steps.

1. Immerse the camera in fresh water.

 Fill a bucket or other container with tap water or other fresh

water, and immerse the camera for about 10 minutes.

Gently wipe dust, dirt, sand, and other matter from the

camera with your fingers.

 Do not rub the lens surface or monitor screen while dirty.

2. Wipe the camera dry.

 Use a clean, dry, soft cloth to wipe off the camera, and leave it in a shady place

to dry.



 The temperature of the water used to wash the camera should be no greater than

30°C (86°F). Never use detergent, hot water, or strongly running water to clean the

camera. Doing so creates the risk of leaking and malfunction.

 Never swing the camera around to remove water, and never use a dryer or other

intense heat to dry it.

 Never place the camera in a washing machine to wash it.

Precautions after Use

 Do not leave the camera in an area exposed to extreme heat (40°C (104°F) or

greater) or cold (10°C (14°F) or lower). Doing so can cause loss of

splashproofing.

 Never use chemical agents for the purpose of cleaning, rust proofing, moisture

proofing, etc. Doing so can cause loss of splashproofing.

 Use fresh water to clean the camera within 60 minutes after using it underwater.

Failure to do so can cause deterioration of the exterior finish and splashproofing

properties.

 In order to maintain splashproofing, replacement of the cameras gaskets is

recommended once each year. Note that you will be charged for gasket

replacement. Contact a CASIO authorized service center or your original retailer

for gasket replacement.

112 Appendix

Other Precautions

 The accessories that come with the camera are not splashproof.

 Subjecting the camera to extreme impact can cause loss of splashproofing.

 Moisture on the camera can freeze in very cold environments. Ice left on the

camera can lead to malfunction. Do not allow moisture to remain on the camera

under cold conditions.

 Should water ever leak into the camera and cause malfunction due to improper

use, CASIO COMPUTER CO., LTD. will not be held liable for any damage to

internal components (battery, recording media, etc.), loss of recorded data, or any

expenses incurred to shoot lost images.

 CASIO COMPUTER CO., LTD. shall not be held liable for any accident that may

occur while the camera is being used underwater.

 CASIO COMPUTER CO., LTD. shall not be held liable for any damages or for any

accident (personal injury, etc.) that occurs while using the camera underwater.

113 Appendix

Data Error Precautions

Your digital camera is manufactured using precision digital components. Any of the

following creates the risk of corruption of data in camera memory.

 Removing the memory card while the camera is performing some operation

 Removing the memory card while the operation lamp is flashing green after turning

off the camera

 Disconnecting the USB cable while communication is in progress

 Other abnormal operations

Any of the above conditions can cause an error message to appear on the monitor

screen (page 138). Perform the action indicated by the message that appears.

Operating Environment

 Operating Temperature Requirements: 0 to 40°C (32 to 104°F)

 Operating Humidity: 10 to 85% (non condensation)

 Do not place the camera in any of the following locations.

 In an area exposed to direct sunlight, or large amounts of moisture, dust, or sand

 Near heating or cooling devices, or in other areas subjected to extreme changes

in temperature or humidity

 Inside of a motor vehicle on a hot day, or in an area subjected to strong vibration

Condensation

Sudden and extreme temperature changes, such as when the camera is moved from

the outdoors on a cold winter day into a warm room, can cause water droplets called

condensation to form on the interior and the exterior of the camera, which creates

the risk of malfunction. To prevent condensation from forming seal the camera in a

plastic bag before changing locations. Then leave the bag sealed to allow the air

inside to naturally change to the same temperature as the air in the new location.

After that, remove the camera from the bag and open the battery cover for a few

hours.

Precautions During Use

114 Appendix

Lens

 Never apply too much force when cleaning the surface of the lens. Doing so can

scratch the lens surface and cause malfunction.

 You may sometimes notice some distortion in certain types of images, such as a

slight bend in lines that should be straight. This is due to the characteristics of

lenses, and does not indicate malfunction of the camera.

Caring for your camera

 Never touch the lens with your fingers. Finger smudges, dirt, and other foreign

matter on the lens can interfere with proper operation of the camera. Use a blower

or other means to keep the lens and flash window free of dirt and dust, and wipe

gently with a soft, dry cloth.

 To clean the camera, wipe it with a soft, dry cloth.

Closing the cameras [CARD] cover or [USB] cover

When closing a cover, press down with your thumbs on

the left and right, applying equal force. Pressing down on

either end with one hand only may not close the cover

completely and leave one end out of position.

[CARD] cover or

[USB] cover

115 Appendix

Precautions During Wireless Function (Wireless LAN, Bluetooth

Wireless Technology) Use

Operation of this product may affect or may be affected by nearby devices that use

wireless functionality.

Radio transmission interception

The radio waves that are used to send and receive data can be intercepted by third

parties.

Unauthorized access

CASIO COMPUTER CO., LTD. shall be held in no way liable for any unauthorized

access and/or use of the access point equipped on this product if the product is ever

lost or stolen.

Use as a wireless device

Use the wireless function of this product only as specifically described in this manual.

Any other use is unintended use, and CASIO COMPUTER CO., LTD. shall be held in

no way liable for any damages arising out of unintended use.

Magnetism, electrostatic charge, and radio interference

Do not use this product near a microwave oven or any other area where magnetism,

electrostatic charge, or radio interference is generated. Radio wave reception may be

poor in certain environments.

Also note that other devices using the same 2.4GHz band used by this product may

cause reduced processing speeds in both devices.

Connection to a public LAN

This product does not support wireless LAN connection over a public wireless LAN

environment.

Intended Areas of Use

1)The wireless functions of this camera are provided for use in the countries and

geographic areas below.

Hong Kong, Singapore, Thailand, The United Arab Emirates (UAE), Paraguay,

Venezuela, Panama, Germany, Austria, France, The Netherlands, Spain, Italy, Sweden,

Denmark, Slovakia, Poland, and Norway

Use of this camera in an area that is not included in the above countries/areas runs the

risk of being in violation of local radio laws and other laws. Note that CASIO COMPUTER

CO., LTD. shall not be held in any way liable for any such violations.

2)Approval for use under radio regulations in the countries and geographic areas below is

granted only when the camera is purchased within that particular country or geographic

area.

Taiwan, Indonesia, Malaysia, and South Korea

Other Precautions

The camera becomes slightly warm during use. This is normal and does not indicate

malfunction.

116 Appendix

Copyrights

Except for your own personal enjoyment, unauthorized use of snapshots or movies of

images whose rights belong to others, without the permission of the right holder, is

forbidden by copyright laws. In some cases, shooting of public performances, shows,

exhibitions, etc. may be restricted entirely, even if it is for your own personal

enjoyment. Regardless of whether such files are purchased by you or obtained for

free, posting them on a website, a file sharing site, or any other Internet site, or

otherwise distributing them to third parties without the permission of the copyright

holder is strictly prohibited by copyright laws and international treaties. For example,

uploading or distributing on the Internet images of TV programs, live concerts, music

videos, etc. that were photographed or recorded by you may infringe upon the rights

of others. Note that CASIO COMPUTER CO., LTD. shall not be held liable for use of

this product in any way that infringes on the copyrights of others or that violates

copyright laws.

Note that trademark  and registered trademark ® are not used within the text of this

manual.

 microSDXC Logo is a trademark of SD-3C, LLC.

 Windows, Windows Vista, Windows 7, Windows 8, Windows 8.1, and Windows 10

are registered trademarks or trademarks of Microsoft Corporation in the United

States and other countries.

 Macintosh, Mac OS, QuickTime, iPhoto, and iPhone are trademarks of Apple Inc.

 Adobe and Reader are either registered trademarks or trademarks of Adobe

Systems Incorporated in the United States and/or other countries.

 Android and Google Play are trademarks or registered trademarks of Google Inc.

 iOS is a trademark or registered trademark of Cisco Systems, Inc. of the United

States.

 App Store is a service mark of Apple Inc.

 Wi-Fi is a registered trademark of the Wi-Fi Alliance.

 The Bluetooth® word mark and logos are registered trademarks owned by

Bluetooth SIG, Inc. and any use of such marks by CASIO COMPUTER CO., LTD.

is under license. Other trademarks and trade names are those of their respective

owners.

 EXILIM and EXILIM Connect are registered trademarks or trademarks of CASIO

COMPUTER CO., LTD.

 All other company or product names mentioned herein are registered trademarks

or trademarks of their respective companies.

Any and all unauthorized copying, distribution, and transfer for commercial purposes

of the software provided by CASIO for this product are prohibited.

The following terms, which are used in this manual, are registered trademarks or

trademarks of their respective owners.

117 Appendix

Open Source Software

This product includes software that is licensed under the license conditions below.





























































 

 

 






