Casio Computer IT300 Handheld Terminal User Manual IT 300
Casio Computer Co Ltd Handheld Terminal IT 300
User manual
Important Note E

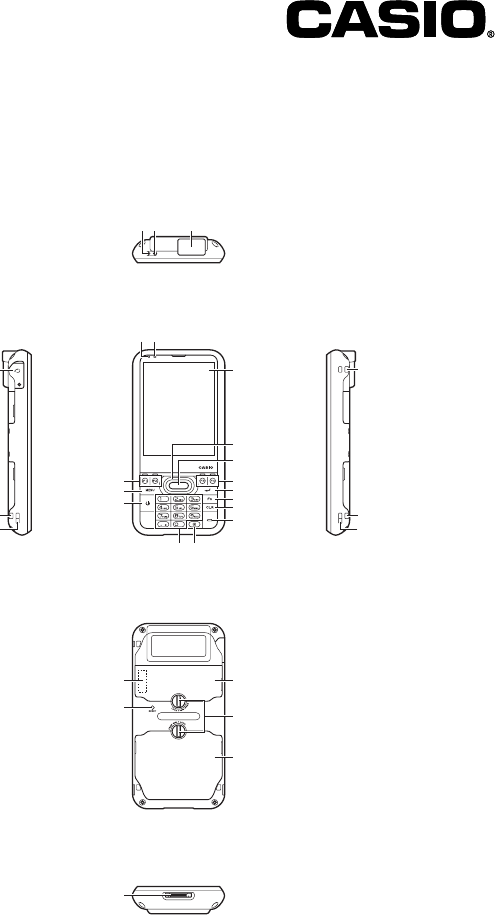

The shape of your purchased model (IT-300-35E) differs partly from the
product illustrated in the User's Guide.
Please substitute the information provided below in the illustrations on the
pages indicated.
[E-14]
12 18
17
16
16
15
16
17
19
Top
Front
Back
Bottom
RightLeft
13
14
12
3
6
4
5
8
7
9
1112
10
6
23
24
22
20
21
IT-300_Nagekomi_Maru2_E.indd 2IT-300_Nagekomi_Maru2_E.indd 2 2011/03/24 9:55:322011/03/24 9:55:32
[E-31]
PN410460-001
IT-300_Nagekomi_Maru2_E.indd 3IT-300_Nagekomi_Maru2_E.indd 3 2011/03/24 9:55:332011/03/24 9:55:33
Handheld Terminal
User’s Guide
Series
Be sure to read “Safety
Precautions” inside this
guide before trying to use
your Handheld Terminal.
E
Information in this document is subject to change without advance notice. CASIO Computer Co.,
Ltd. makes no representations or warranties with respect to the contents or use of this manual
and speci¿ cally disclaims any express or implied warranties of merchantability or ¿ tness for any
particular purpose.
BLUETOOTH is a registered trademark owned by Bluetooth SIG, Inc. and licensed to
CASIO COMPUTER CO., LTD.
Microsoft and Windows are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
x
x
E-1
Contents
Safety Precautions .........................................................................................E-3
Operating Precautions ...................................................................................E-8
Important ......................................................................................................E-10
Regulatory Information ................................................................................E-11

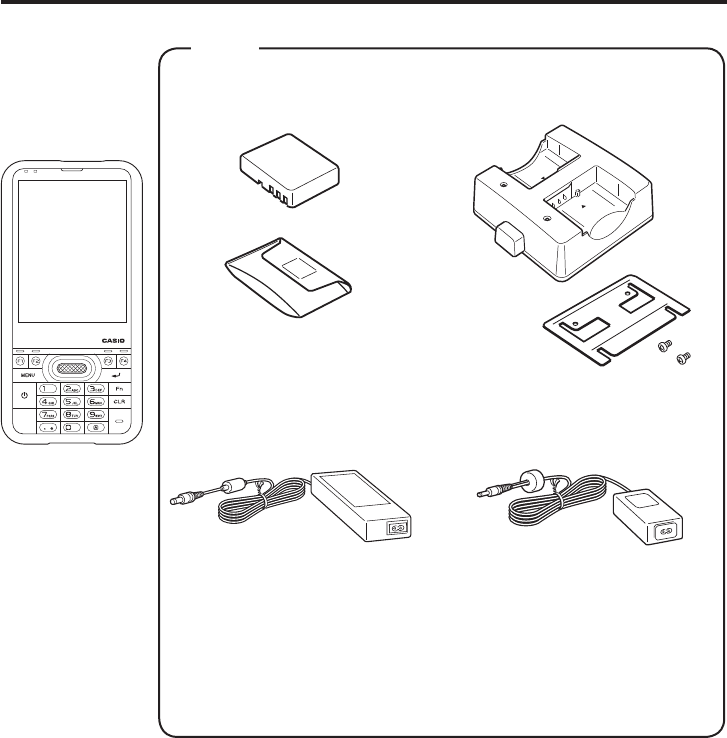

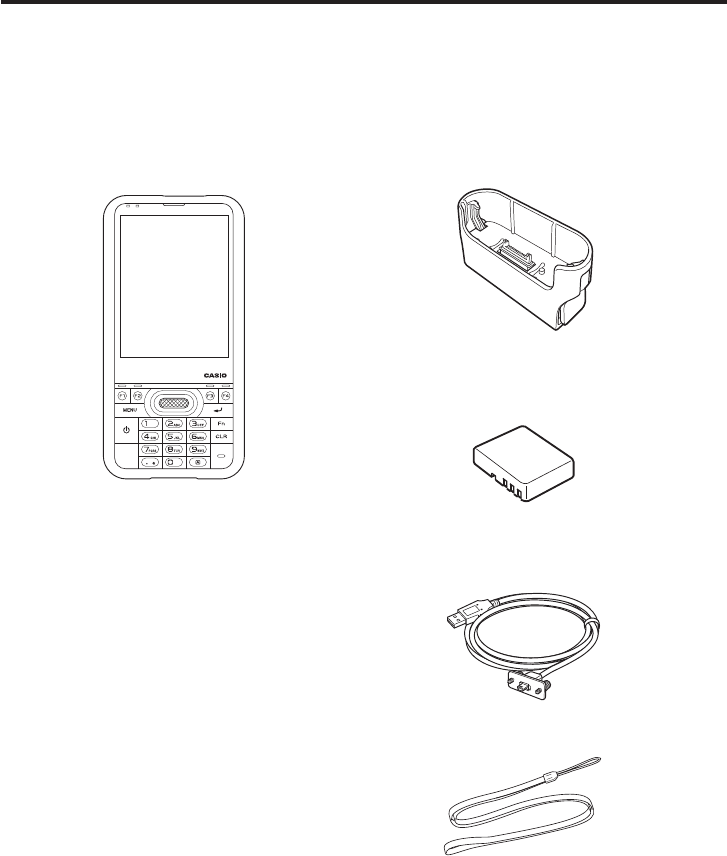

Checking in the Box .....................................................................................E-13
Handheld Terminal System Confi guration .................................................E-14

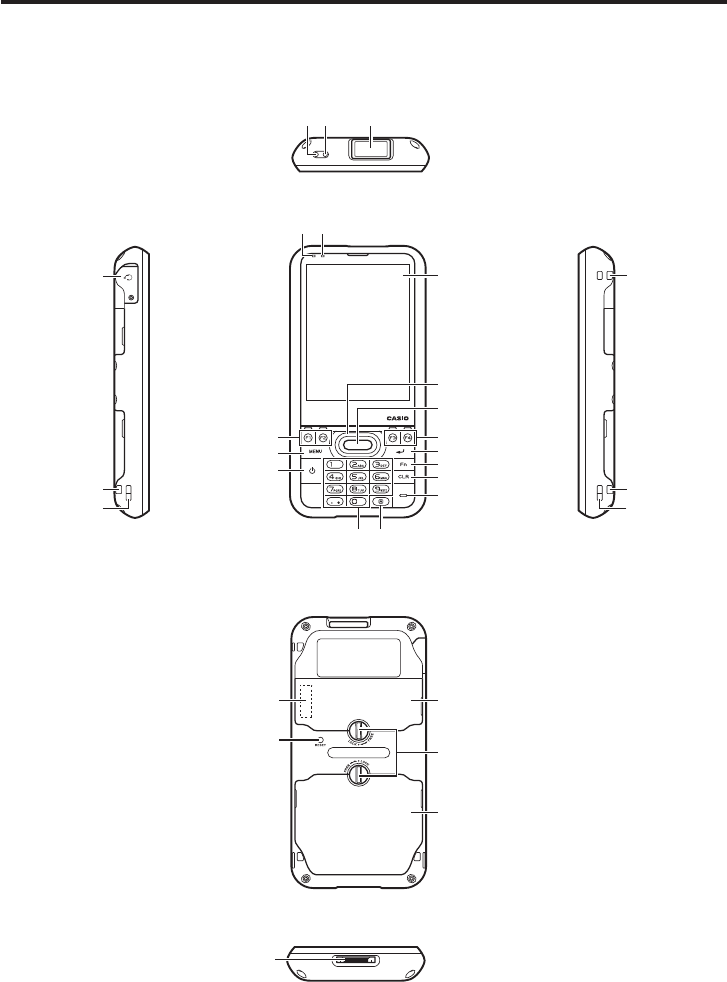

General Guide ...............................................................................................E-16
IT-300 ................................................................................................................. E-16

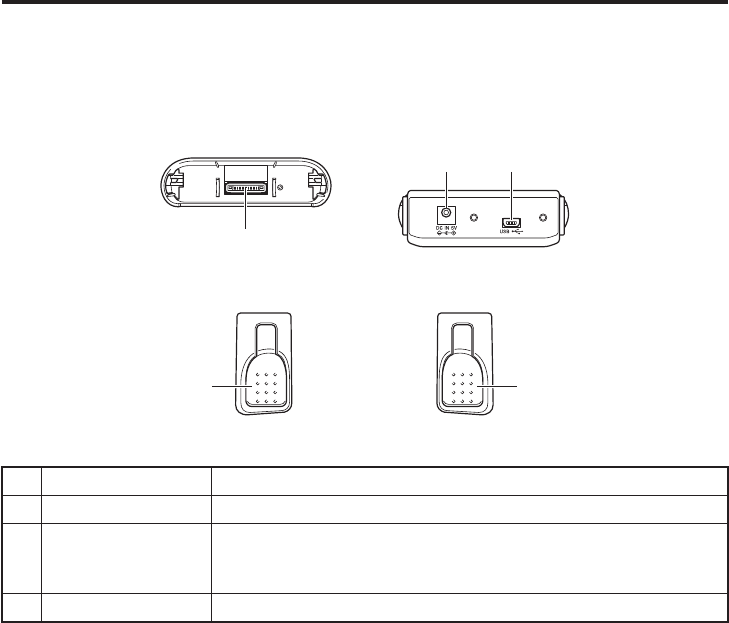

USB and Charging Unit .....................................................................................E-19

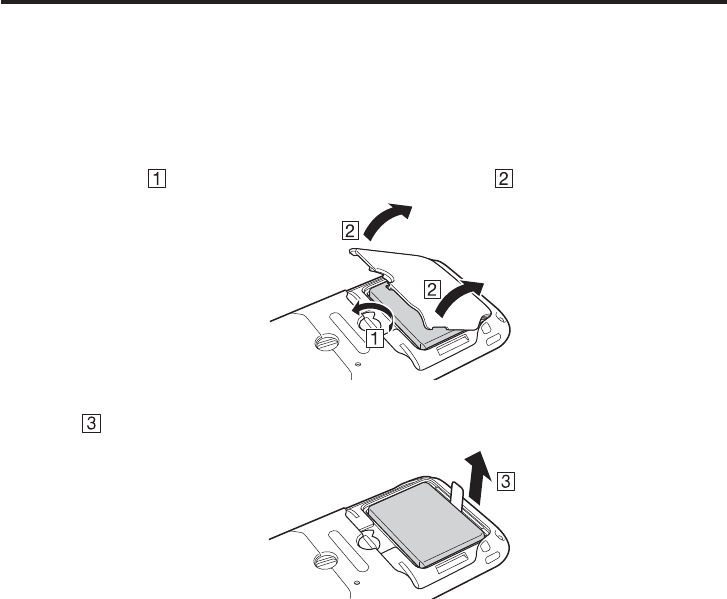

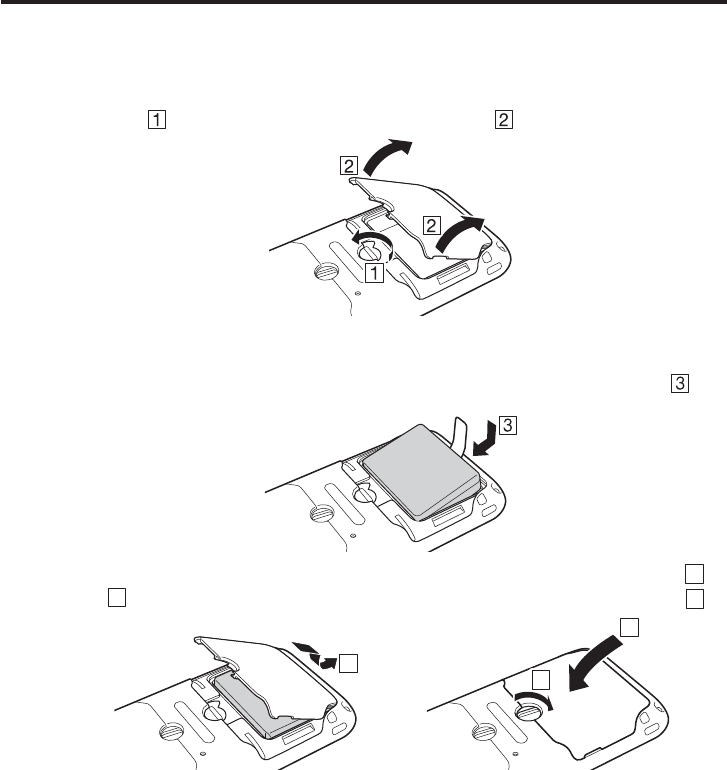

Loading and Removing the Battery Pack ...................................................E-20
Loading ..............................................................................................................E-21
Removing ........................................................................................................... E-22
Handling the USB and Charging Unit (HA-J65US).....................................E-23

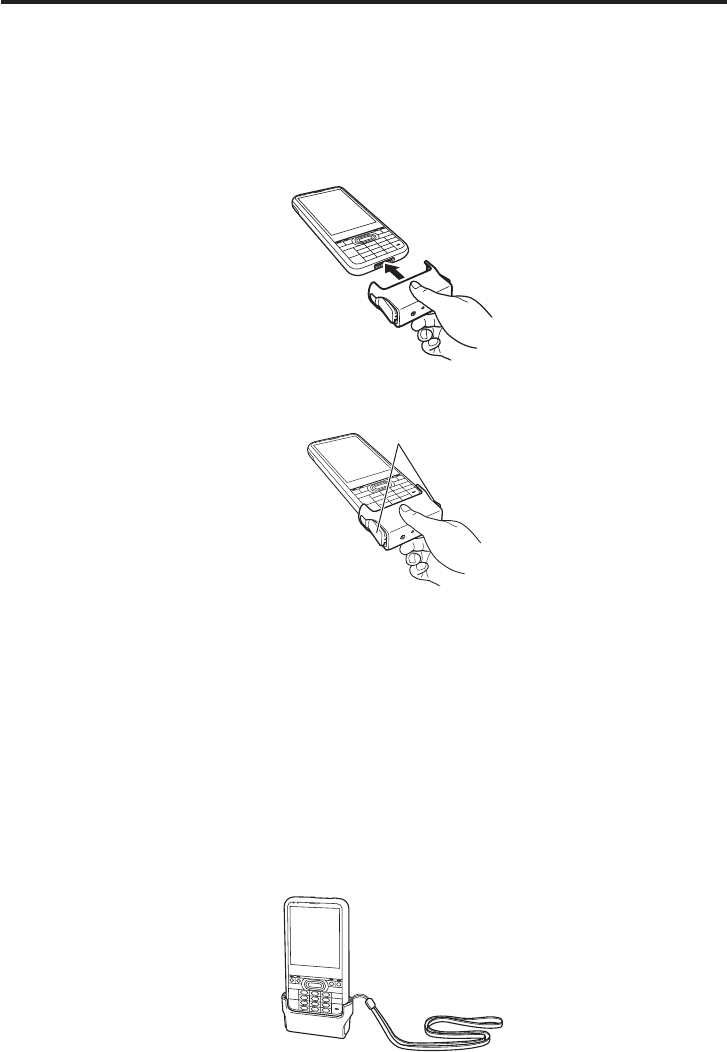

Mounting the USB and Charging Unit ..............................................................E-23
Removing the USB and Charging Unit ..............................................................E-24
Using the optional cable (HA-J81USBH) ..........................................................E-24

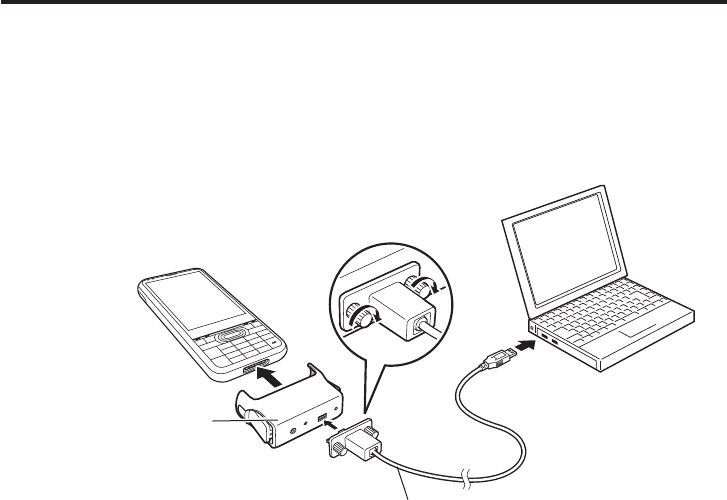

Connecting to a Computer .................................................................................E-25

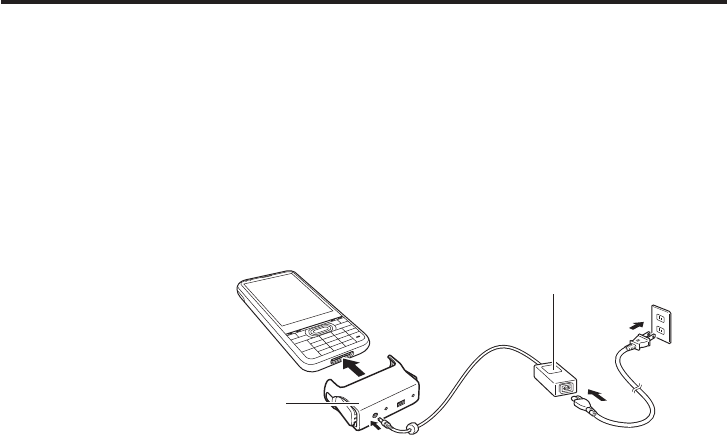

Charging the Battery Pack ..........................................................................E-26
AC Adaptor (optional) ....................................................................................... E-26
Dual Battery Charger (optional).........................................................................E-27
Attaching the Neck Strap.............................................................................E-28

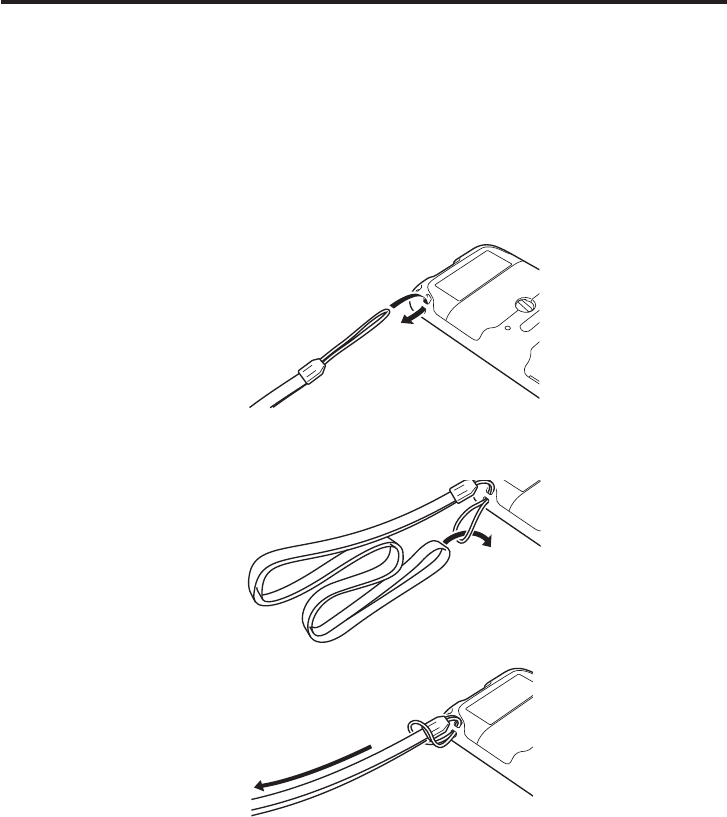

To attach the neck strap ......................................................................................E-28
Using the Touch Panel .................................................................................E-29
Setting the Display Brightness ....................................................................E-30
Adjusting Display Brightness ............................................................................E-30
Display Auto Dimmer ........................................................................................E-30
Using the Laser Scanner..............................................................................E-31

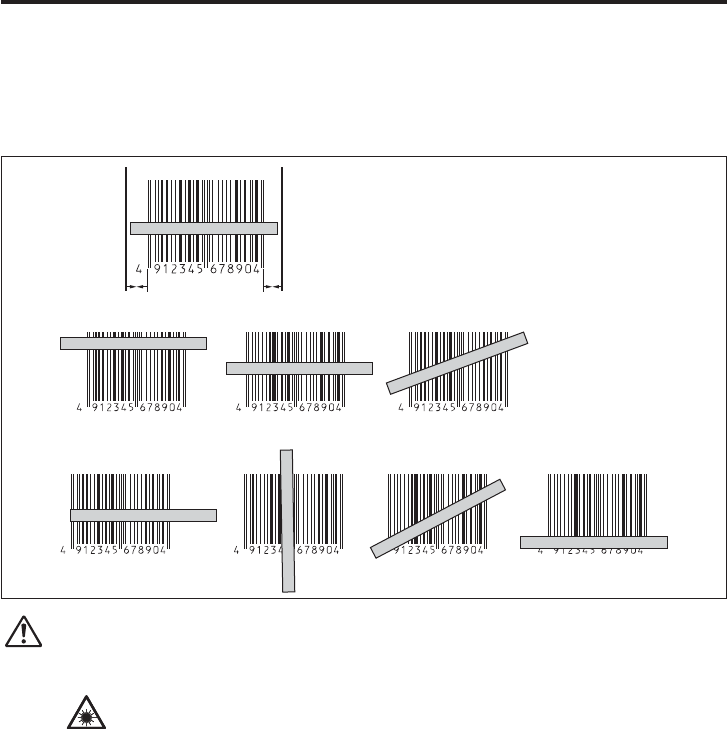

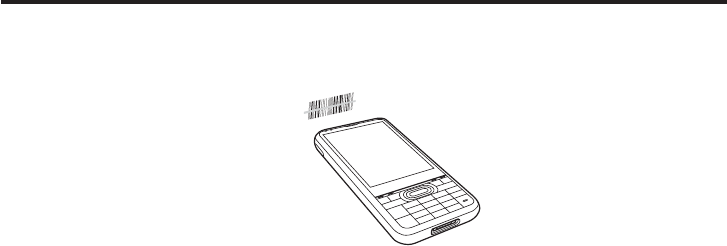

Bar Code Scanning Position ..............................................................................E-32

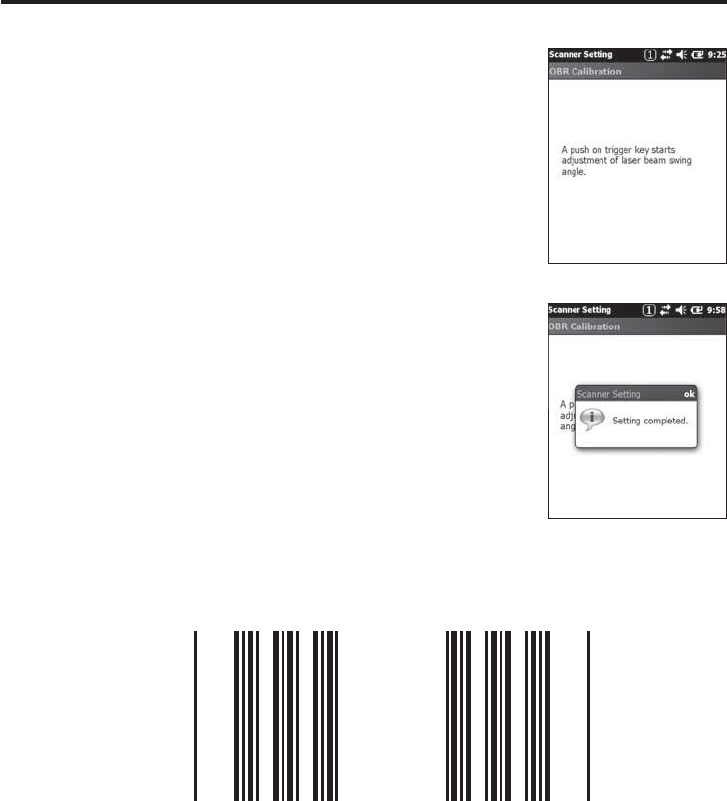

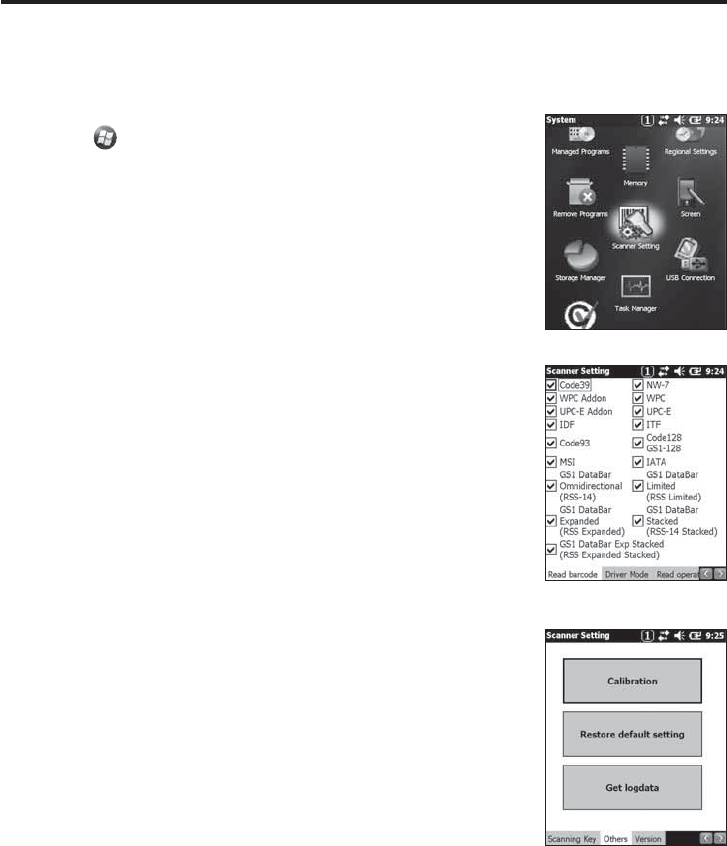

Adjusting the Laser Light Emission Width .................................................E-33
Handling microSD Cards .............................................................................E-35

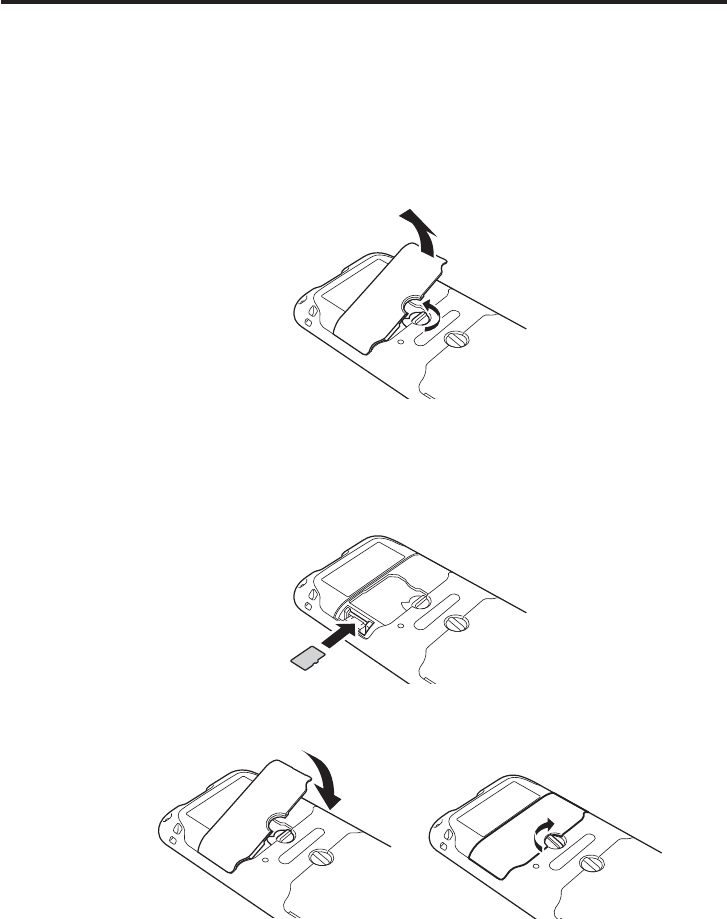

Installing.............................................................................................................E-35

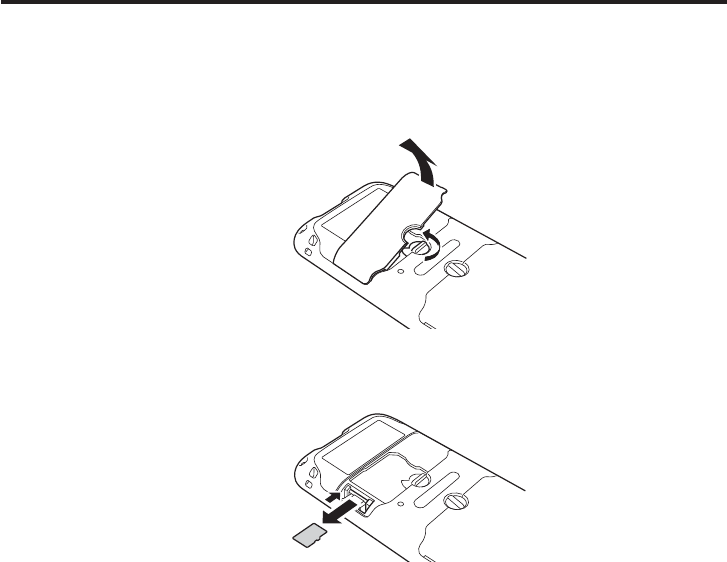

Removing ........................................................................................................... E-36
E-2
Performing Bluetooth® Communication .....................................................E-37
Resetting the Handheld Terminal ................................................................E-38

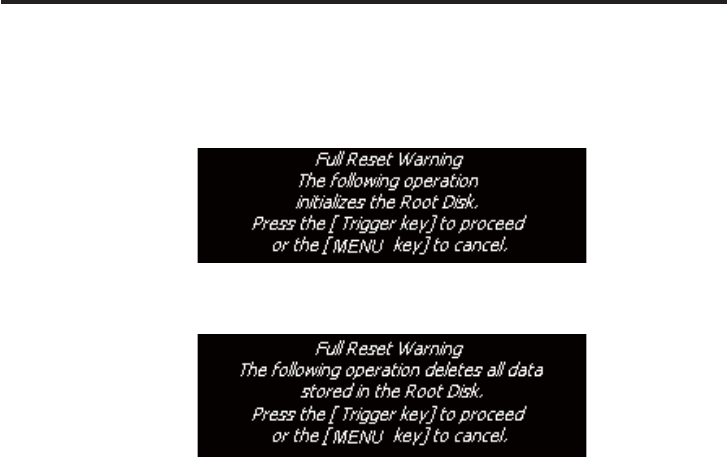

Performing a Full Reset (Initialization) ............................................................ E-38

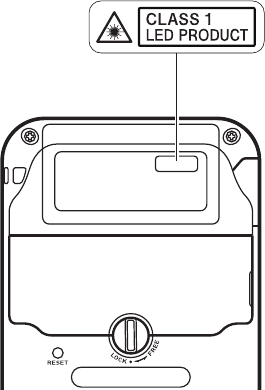

Warning Label ...............................................................................................E-40

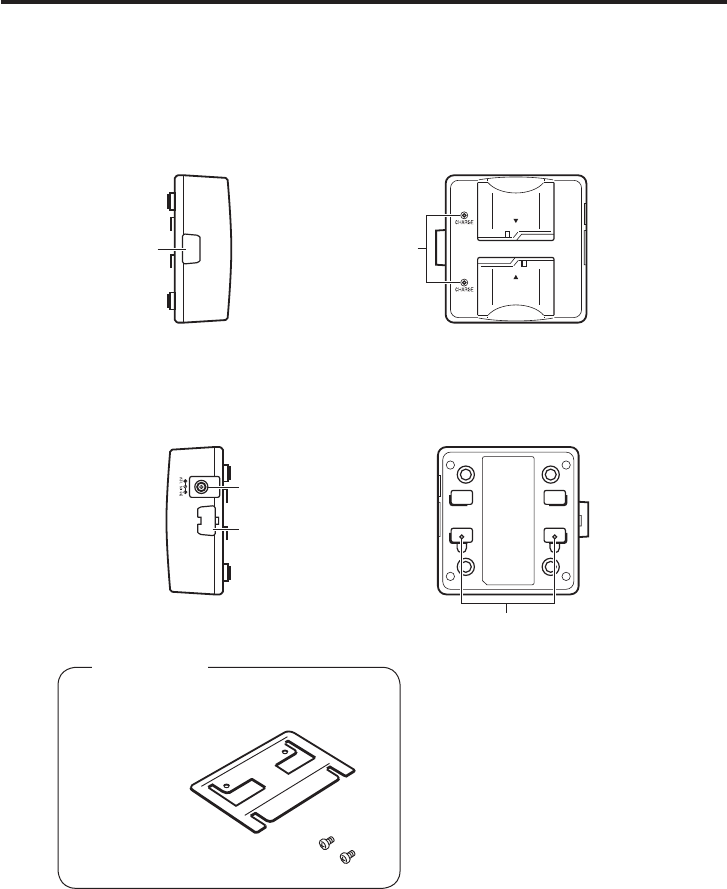

Using the Dual Battery Charger (HA-D32DCHG) .......................................E-41
General Guide .................................................................................................... E-41

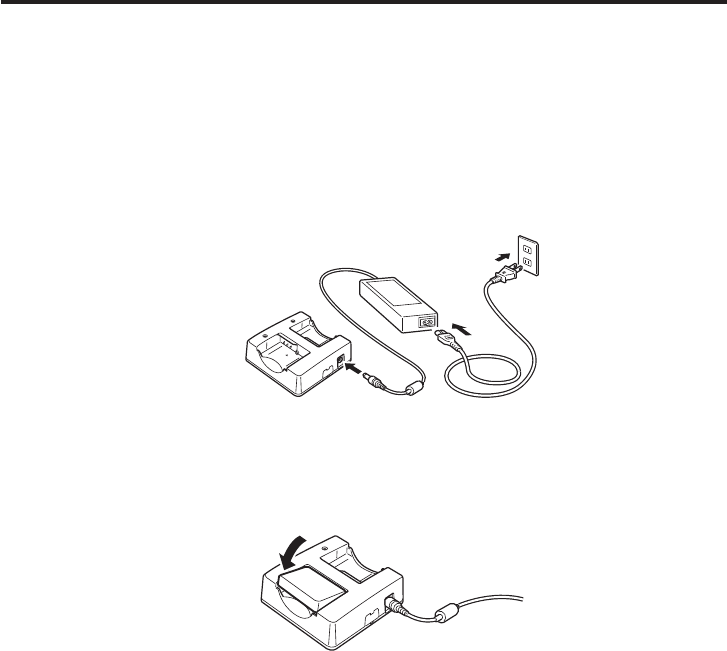

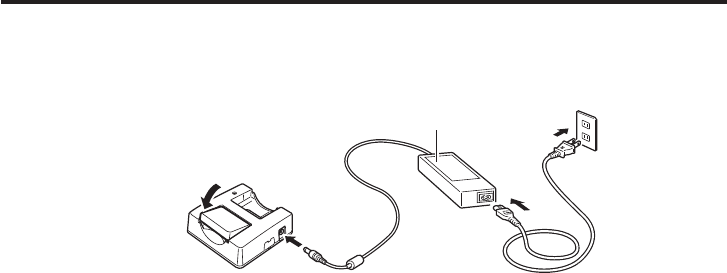

Charging a Battery Pack.....................................................................................E-43

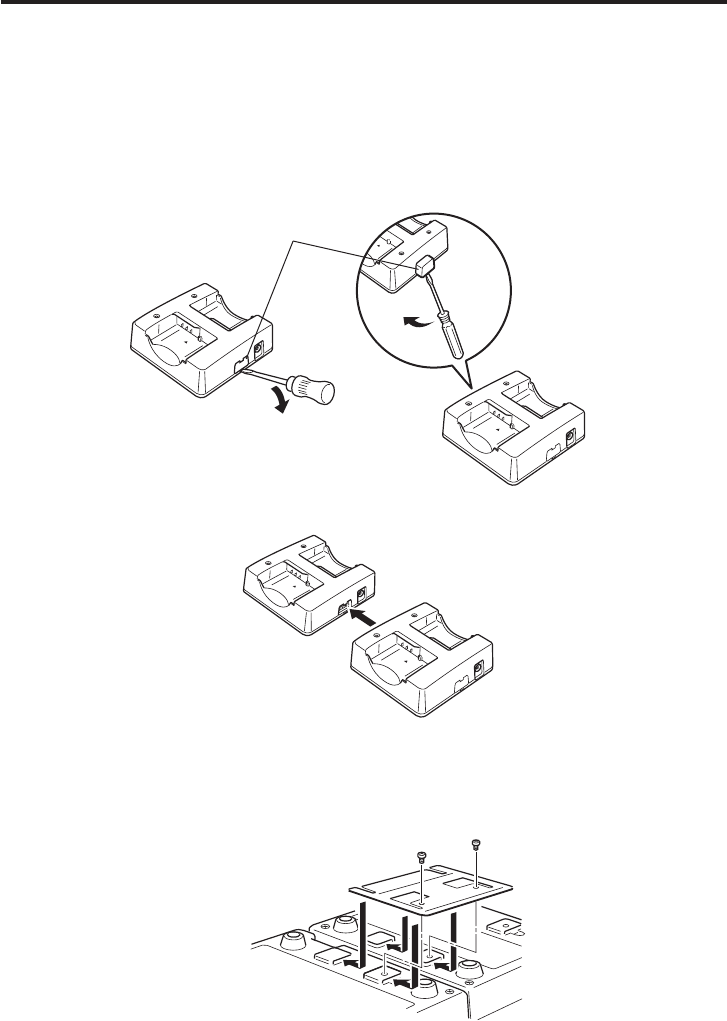

Connecting Multiple Dual Battery Chargers......................................................E-44
Speci¿ cations .....................................................................................................E-45
Using Rechargeable Battery Pack ..............................................................E-46
Battery Pack Speci¿ cations ................................................................................E-46

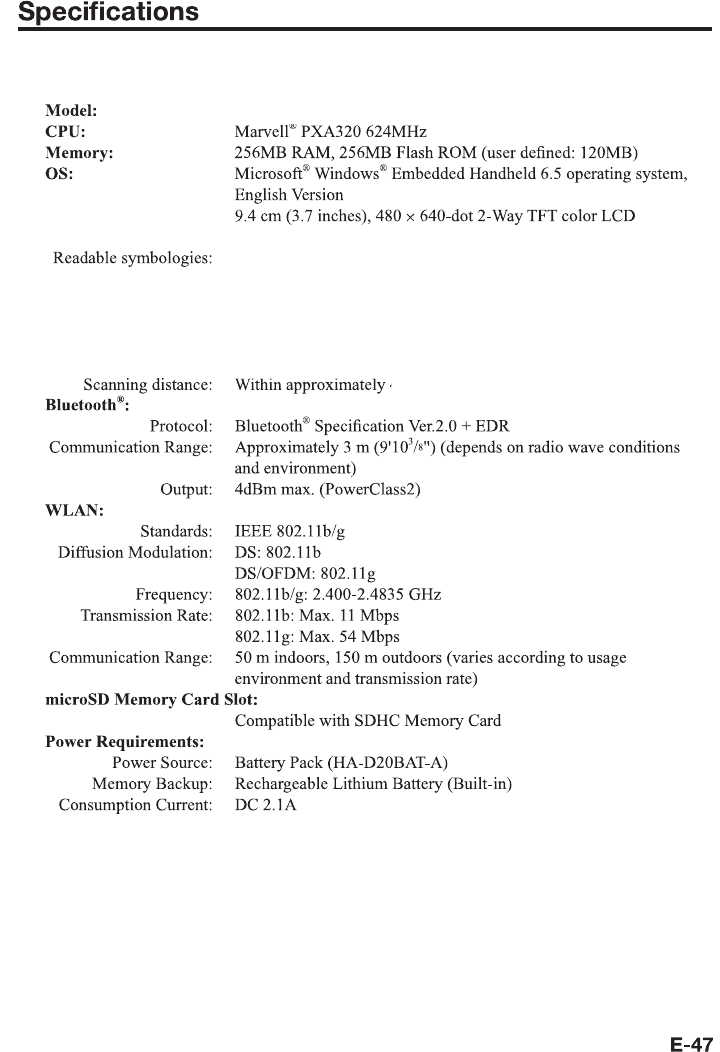

Specifi cations ..............................................................................................E-47
IT-300 ................................................................................................................. E-47
USB and Charging Unit .....................................................................................E-49
E-3
Safety Precautions
Congratulations upon your selection of this CASIO product. Be sure to read the
following Safety Precautions before trying to use it for the ¿ rst time.
Your neglect or avoidance of the warning and caution statements in the
subsequent pages causes the danger of ¿ re, electric shock, malfunction and
damage on the goods as well as personal injury.
Markings and Symbols
The following are the meanings of the markings and symbols used in these Safety
Precautions.
Danger This symbol indicates information that, if ignored or applied
incorrectly, creates the danger of death or serious personal injury.
Warning
This symbol indicates information that, if ignored or applied
incorrectly, creates the possibility of death or serious personal
injury.
Caution
This symbol indicates information that, if ignored or applied
incorrectly, creates the possibility of personal injury or property
damage.
A diagonal line indicates something you should not do. The symbol shown
here indicates you should not try to take the unit apart.
A black circle indicates something you should do. The symbol shown here
indicates you should unplug the unit from the wall outlet.
Warning
Disassembly and Modifi cation
Never try to disassemble or modify the Handheld Terminal and its options
including battery pack and battery in any way.
Abnormal Conditions
Should the Handheld Terminal and/or its options including battery pack and
battery become hot or start to emit smoke or a strange odor, immediately turn
off the power and contact your dealer or distributor whom you purchased the
product from, or an authorized CASIO service provider.
x
x
x
x
E-4
Warning
Dust and Moisture
Though the Handheld Terminal is dust and water splash resistant, its options
including the battery pack are not. Keep loose metal objects and containers
¿ lled with liquid away from your Handheld Terminal and the options. Also,
never handle the Handheld Terminal and the options while your hands are
wet.

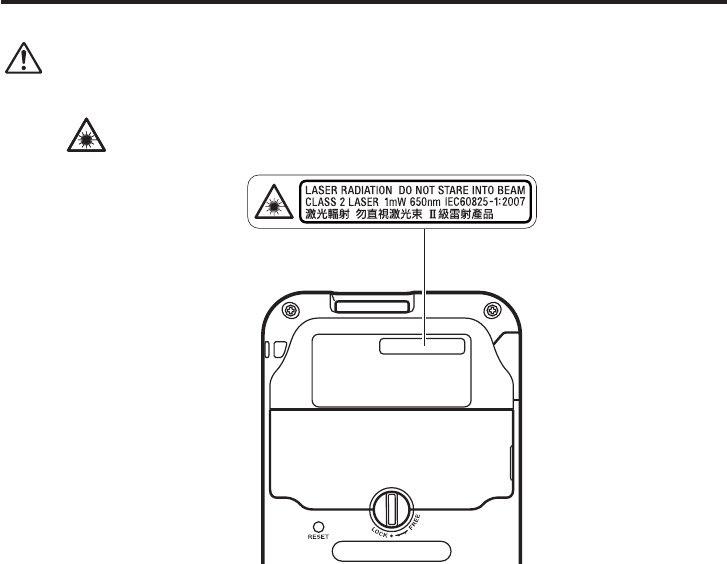

Laser Light
The laser scanner models (model dependant) with the integrated laser
scanning module scan bar codes using laser light. Never look directly into
the laser light or shine the laser light into the eyes.
x
x
Warning
Interference with the Operation of Other Equipment
(Using Wireless Data Communication)
Keep your Handheld Terminal at least 22 centimeters (811/16") away from
anyone wearing a pacemaker. Radio waves emitted by the Handheld
Terminal can affect the operation of a pacemaker.
Before the use in aircraft, be sure to consult with cabin crew for interference
the Handheld Terminal emits.
Before the use in medical facility, be sure to consult with the facility
management or the manufacture of a speci¿ c medical equipment that the
Handheld Terminal may interfere with.
Do not use the Handheld Terminal nearby gas pump or chemical tank or any
other places À ammable or explosive.
To comply with the relevant European RF exposure compliance
requirements, a separation distance of at least 3.8cm in wireless operation
must be maintained between the terminal and all persons around. This
terminal must not be co-located or operating in conjunction with other
transmitter.
x
x
x
x
x
E-5
Caution
Foreign Objects
Take care to ensure that metals or combustible objects are not inserted into
the openings of the Handheld Terminal or its options, and not to allow
moisture to get inside of them.
Location
Install the cradle properly on a À at and stable surface so that it cannot fall
down onto À oor.
LCD Screen
Never apply strong pressure to the screen or subject it to strong impact.
Doing so can crack the LCD Screen.
x
x
x
E-6
Optional Lithium-ion Battery Pack
Danger
Never use the Handheld Terminal and its option including the battery pack
and battery next to open À ame, near a stove, or any other area exposed to
high heat, or leave them for a long period of time in a vehicle parked in
direct sunlight.
Never use the battery pack with any device other than the Handheld
Terminal.
Never dispose of the battery pack by incinerating it or otherwise expose it
to heat.
Never transport or store the battery pack together with metal objects that
may result in shorting positive (+) and negative (–) terminals of the battery

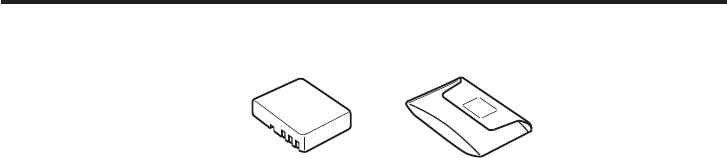

pack. Be sure to place the battery pack in its case whenever transporting or
storing it.
Never throw the battery pack or otherwise subject it to strong impact.
Never pierce the battery pack with nails, hit it with a hammer, or step on it.
Use only the speci¿ ed battery charger to charge the battery pack.
x
x
x
x
x
x
x
Warning
Never place the battery pack in a microwave oven or any other high-voltage
device.
If the amount of time period the battery pack can serve becomes
considerably short even after it has been fully charged for the speci¿ ed time
period, stop using it.
Should the battery pack start to leak or emit a strange odor, immediately
move it away from any À ame nearby. Leaking battery À uid is combustible.
Should À uid from the battery pack accidentally get into your eyes or on the
skin, do not rub it. Immediately rinse it off with clean tap water and then
consult a physician.
x
x
x
x
Caution
Replace only with the same type of battery pack recommended by CASIO.
Dispose of used battery packs according to the local regulation.
Keep the battery pack out of the reach of small children.
x
x
E-7
Power Supply / AC Adaptor
Warning
Do not use the Handheld Terminal at a voltage other than the speci¿ ed
voltage. Also, do not connect the Handheld Terminal to a multi-plug power
strip.
Never modify, sharply bend, twist, or pull on the power cord.
Never use a detergent to clean AC adaptor and its power cable, especially
on the plug and the jack.
When using the battery chargers and the cradles, be sure to use the
respective AC adaptors.
x
x
x
x
Caution
Never pull on the power cord when unplugging it. Always hold the plug
when unplugging it from the wall outlet.
Never touch the plug while your hands are wet.
Be sure to unplug the power cord from the wall outlet before cleaning the
battery chargers and the cradles.
Unplug the power cord from the wall outlet whenever leaving the battery
chargers and the cradles unattended for a long period.
The housing of the AC adaptor can become warm during normal use.
At least once a year, unplug the AC adaptor from the wall outlet and clean
any dust that builds up between the prongs of the plug.
Dust built up between the prongs can lead to the danger of ¿ re.
x
x
x
x
x
x
Backup of All Important Data
Caution
Note that CASIO Computer Co., Ltd. shall not be held liable to you or any
third party for any damages or loss caused by deletion or corruption of data
due to use of the Handheld Terminal, malfunction or repair of the Handheld
Terminal or its peripherals, or due to the batteries going dead.
The Handheld Terminal employs electronic memory to store data, which
means that memory contents can be corrupted or deleted if power is
interrupted due to the batteries going dead or incorrect battery replacement
procedures. Data cannot be recovered once it is lost or corrupted. Be sure
to make backup of all important data. One way to do this is to use the
separately sold cradles to transfer data to a computer.
x
x
E-8
Operating Precautions
Your Handheld Terminal and its options are precision. Improper operation or rough
handling can cause problems with data storage and other problems. Note and observe
the following precautions to ensure proper operation.
Do not leave dead battery pack in the Handheld Terminal for a long period.
Dead battery pack can leak, leading to malfunction and damage to the Handheld
Terminal.
Stop or avoid using the Handheld Terminal and its options in areas and
conditions subject to the following.
— Large amounts of static electricity
— Extreme heat or cold or humidity
— Sudden temperature change
— Large amount of dust
— After large amount of rain or water falls on the Handheld Terminal
— Pressing the screen or keys with excessive force when using in the rain
Use the touch panel by touching it lightly with your ¿ nger.
Do not press down hard on the touch panel or press it with pointed objects (ballpoint
pens, ¿ ngernails, etc.) as this could scratch or damage the touch panel and lead to
malfunctions.
The touch panel may not operate correctly in the following situations:
— When a foreign object is stuck to or touching the panel
— When a sticker or protective sheet other than the special sheet provided is stuck to
the touch panel
— When your ¿ nger or the touch panel is wet
— When you use it while wearing gloves
Dead Pixels
The LCD panel employed in this product uses high precision and substantial number
of components which commonly cause a small number of the pixels not to light or
to remain lit all the time. This is due to the characteristics of LCD panel yield in
accuracy over 99.99% and permissible.
x
x
x
x
x
E-9
Lithium-ion Battery Pack
Each lithium-ion battery pack has its life. The life span heavily depends on how the
battery pack is charged or stored which may cause deterioration of the battery pack
to shorten the life span if it is handled improperly. Note the tips below to make the
battery pack last long.
— Be sure to charge the battery pack before using it if the battery pack is used for the
¿ rst time or if it has not been used for a long period of time.
— If the battery pack is repeatedly charged, the life span becomes short. To avoid the
repetition of charging the battery pack, be sure that the remaining capacity is low
before you start charging.
— Be sure to charge the battery pack in recommended temperature range. The
temperature range is dependant on device you use to charge including battery
chargers and handheld terminals. Refer to the respective user guides. Charging
the battery pack in a temperature outside of the recommended range causes
deterioration.
— When used at low temperatures, the battery pack has a reduced capacity and will
supply power for shorter time.
The life span of the battery pack is also shortened.
— Charging the battery pack while the battery pack itself is freeze including inside
causes deterioration. Be sure to resume an ordinary room temperature on the
battery pack and then leave it unattended for approximately one hour before
charging.
— After charging the battery pack, if the performance of the battery pack does not
show any recovery, it is a sign of ending the life. Replace it with a new battery
pack.
— Avoid the battery pack with a full of the capacity to store for a long period of
time. If you need to store it for a long period, be sure that the remaining capacity
is 30 to 50 percent and to store in a moderate low temperature. This can reduce
deterioration.
— The battery pack gradually deteriorates over time. In particular, storing (or using)
the fully charged battery pack at high temperatures tends to accelerate battery pack
deterioration.
x
E-10
Important
This guide does not include any information about programming and download
procedures. See the applicable separate documentation for information about the
procedures.
After Service
Should this product ever malfunction, contact your original retailer providing
information about the product name, the date you purchased it, and details about the
problem.
This mark applies to EU countries and Turkey only.
x
x
E-11
Regulatory Information
The USA and Canada
GUIDELINES LAID DOWN BY FCC RULES FOR USE OF THIS UNIT IN THE U.S.A. (not
applicable to other areas).
NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING
Changes or modi¿ cations not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
Proper connectors must be used for connection to host computer and/or peripherals in order to meet FCC
emission limits.
Caution Exposure to radio frequency radiation (below is for portable device)
To comply with FCC RF exposure compliance requirements, this device must not be co-located or
operating in conjunction with any other antenna or transmitter.
•
•
•
•
Declaration of Conformity
Model Number: HA-J65US
Trade Name: CASIO
Responsible party: Industrial Handheld Division
Casio America, Inc.
Address: 570 Mt. Pleasant Avenue, Dover, New Jersey 07801, USA
Telephone number: 973-361-5400
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
For Users in Canada
These Class B digital apparatuses comply with Canadian ICES-003.
Cet appareil numériqué de la classes B est conformé à la norme NMB-003 du Canada.
These devices comply with RSS 210 of Industry Canada (IC).
Operation is subject to the following two conditions:
(1) These devices may not cause interference, and
(2) These devices must accept any interference, including interference that may cause undesired opera-
tion of this device.
E-12
L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes :
(1) il ne doit pas produire de brouillage et
(2) l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce
brouillage est susceptible de compromettre le fonctionnement du dispositif.
Exposure to radio frequency radiation
The installer of this radio equipment must ensure that the antenna is located or pointed such that it does
not emit RF ¿ eld in excess of Health Canada limits for the general population;
consult Safety Code 6, obtainable from Health Canada's website at
http://www.hc-sc.gc.ca/ewh-semt/pubs/radiation/99ehd-dhm237/index_e.html
Europe
Products are for distribution within
all member states of the EU.
France limited to 2446.5-2483.5 MHz Indoor use.
Belgium limited to 2400-2483.5 MHz Indoor, 2460-2483.5 MHz Outdoor use.
0984
0984
Optional models HA-J65US, HA-D32DCHG and HA-D20BAT-A are in conformity with the
Council Directive 2004/108/EC.
Manufacturer:
CASIO COMPUTER CO., LTD.
6-2, Hon-machi 1-chome, Shibuya-ku, Tokyo 151-8543, Japan
Representative within the European Union:
CASIO EUROPE GmbH
Casio-Platz 1, 22848 Norderstedt, Germany
Caution Exposure to radio frequency radiation
To comply with FCC/IC RF exposure compliance requirements, this device must not
be co-located or operating in conjunction with any other antenna or transmitter
except in accordance with the FCC/IC multi-transmitter product procedures or as
described in the filing.
E-13
Checking in the Box
Please check the contents of the box before using the Handheld Terminal for the ¿ rst
time.
Open the box and make sure that all the items shown here are included.
USB and Charging Unit
(HA-J65US)
Cable
(HA-J80USBM)
Battery Pack
(HA-D20BAT-A)
A USB Power Adaptor is provided with models to be sold in China.
User's Guide (this manual)
Handheld Terminal
Neck Strap
E-14
Handheld Terminal System Confi guration
Options
HA-D20BAT-A
Dual Battery Charger Battery Pack
HA-D32DCHG
AC Adaptor for
Dual Battery Charger
AD-S42120B-N
AC Adaptor for
USB and Charging Unit
AD-S15050B-N
Power Cord for Europe AC-CORD-EU
Power Cord for North America AC-CORD-US
Power Cord for Taiwan AC-CORD-TW
Power Cord for Korea AC-CORD-KR
Power Cord for Australia AC-CORD-AU
For the latest options list, refer to the ON-LINE manual available at
http://world.casio.com/system/pa/UsersGuide/sup85_e.html
IT-300 Series
E-15

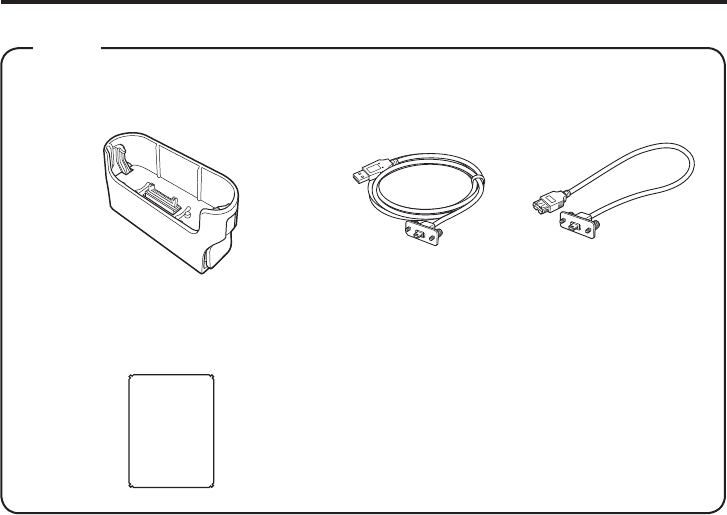

Options
USB and Charging Unit
HA-J65US
Screen Protect Sheet
HA-J90PS5
Cables
HA-J80USBM HA-J81USBH
E-16
General Guide
IT-300
Left
13
14
12
3
6
4
5
8
7
9
1112
10
6
Front Right
17
16
16
Top
Bottom
19
15
16
17
23
24
22
20
21
Back
12 18
E-17
1 Indicator 1 Orange: Charging
Green: Charging complete
Red Flashing: Battery pack error or the surrounding temperature
is out of the charging temperature range
2 Indicator 2 Blue Flashing: BT in use
Orange Flashing: WLAN in use
Magenta Flashing: Ready to communicate (when USB-
connected)
Red: Barcode read error
Green: Successful read
Lights red for alarm functions.
3 Touch Panel Displays texts, operations, indicators and so forth. Also used to
operate the IT-300 and enter data by tapping the screen with a
¿ ngertip.
4 Cursor Key Perform the same functions as the up, down, left and right arrow
keys on a PC keyboard.
5 Trigger Key Used to perform bar code reading.
Can be assigned an arbitrary function.
6 Function Keys Used when starting a pre-registered application.
7 Enter Key Press when ¿ nishing entering numerical values or when moving
to the next step.
8 Fn Key Used to make various settings in combination with the numeric
keys or when starting a pre-registered application.
9 CLR Key Press to clear all the information entered by pressing keys.
10 Microphone Used for audio input (including voice).
11 Mode Key The key switches the character input mode, either characters in
lowercase letter or characters in uppercase letter.
12 Numeric Keys Press to enter numbers and text.
13 Power Key Turns the power on and off.
14 MENU Key Displays menus for applications.
15 Headset Jack Used to connect an earphone-microphone headset.
16 Strap Holes Used to attach neck strap.
17 USB and Charging
Unit Mount Holes
Used to attach the USB and Charging Unit.
18
Barcode Reader
Laser light or LED light is emitted from this window that reads
bar codes.
19 Power Supply/Data
Communication
Terminals
Used to connect the USB and Charging Unit for USB
communication or power supply.
E-18
20 microSD Card Slot
Cover
Slot a microSD card into here.
21 Lock Switches Used to lock the covers and to release.
22 Battery Pack Cover Used to cover the battery compartment that holds the battery
pack inside.

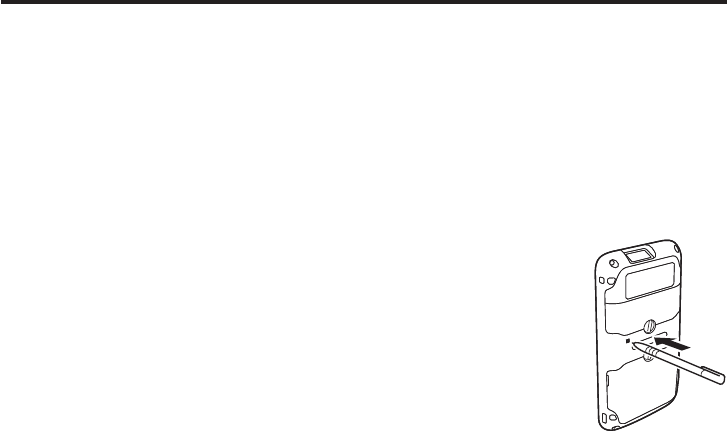

23 Reset Switch Used to reset the Handheld Terminal.
24 microSD Card Slot microSD card slot.
E-19
USB and Charging Unit
21
3
Top Bottom
4
Left
4
Right
1 AC Adaptor Jack Connect the AC adaptor here.
2 USB Port Connect the cable (HA-J80USBM) here.
3
Power Supply/Data
Communication
Connector
Used to connect to the IT-300 for USB communication or
power supply.
4 Stoppers Press when removing the IT-300.
E-20
Loading and Removing the Battery Pack
Your Handheld Terminal uses two types of battery: a battery pack and a memory
backup battery.
The battery pack is used to power normal operations and to store data, while the
memory backup battery provides the power required to maintain memory contents
when the battery pack power is unable to supply power for some reason.
Use the battery pack (HA-D20BAT-A) as the main power source.
The backup battery is installed inside of the Handheld Terminal.
This guide uses the following terms to refer to the batteries.
Battery Pack:
Rechargeable battery pack (HA-D20BAT-A) for normal operations and
data storage
Backup Battery: Built-in battery for memory backup
When the battery pack power goes low, immediately charge it or replace it with a
charged battery pack.
You can use the AC adaptor or the Dual Battery Charger to charge a battery pack
installed in the terminal. See the relevant sections in this guide for the respective
options about how to use.
Important!
Always keep backup of all important data!
The battery pack powers normal operation and also provides power required to
maintain memory contents, while the backup battery provides backup power to
maintain memory contents. Because of this, you should not remove the battery
pack if the backup battery is dead. Removing the battery pack while the backup
battery is dead causes data in the memory to be corrupted or lost. Note that
once data is lost it cannot be recovered. Always keep backup of all important
data.
The charge of a battery pack when you purchase it may be depleted due to
testing at the factory or natural discharge during shipment and storage. Be sure
to charge the battery pack before you use it.
The life of a battery pack is limited, and charging a battery pack causes it to
gradually lose its ability to maintain the charge. If your battery pack seems to
require charging very frequently, it probably means it is time to purchase a new one.
If a battery pack is used past the end of its service life, it may swell up in size. In
such a case, replace the battery pack with a new one.
If the backup battery is fully charged, it will maintain the contents of the
terminal’s memory (RAM) for approximately 10 minutes when the main battery
pack is removed.
It takes 4 days with the main battery pack installed in the terminal for the
backup battery to be charged fully.
x
x
x
x
x
x
E-21
Loading
1. Turn the terminal over, turn the lock switch for the battery pack cover to the “FREE”
position ( ), and then remove the battery pack cover ( ).
2. Load a battery pack (HA-D20BAT-A). Take care that the battery pack is oriented
correctly when you load it. In addition, load the battery pack while making sure that
the end of the battery pack removal tape is protruding above the battery pack ( ).
3. Put back the battery pack cover in the compartment as instructed by the arrows, 4
and 5 in the illustration and then turn the lock switch to the “LOCK” position ( 6).
4
5
6
E-22
Removing
1. Make sure that the Handheld Terminal is turned off.
If the power is on, press the power key to turn it off.
2. Turn the terminal over, turn the lock switch for the battery pack cover to the “FREE”
position ( ), and then remove the battery pack cover ( ).
3. Remove the battery pack by pulling up the removal tape as shown in the illustration
().
Important!
When removing the battery pack, make sure you do not leave the Handheld
Terminal without a battery pack for more than about 10 minutes. Doing so can
cause data in the memory to be deleted.
When removing the battery pack, be sure you carefully follow the proper
procedure as explained in this guide.
Never try to use other type of battery than the ones that are speci¿ ed for this
product.
When removing the battery pack, pull the removal tape straight up and remove
the battery pack. Removing with excessive force can damage the battery pack.
Before starting to use the Handheld Terminal, ensure that the battery pack cover
is properly closed. If not, the power is not turned on or is turned off abruptly
while it is in use.
x
x
x
x
x
E-23
Handling the USB and Charging Unit (HA-J65US)
Mount the USB and Charging Unit on the terminal when using the unit to charge the
battery pack in the terminal or when connecting the terminal to another USB device
using the optional cable (HA-J81USBH).
Mounting the USB and Charging Unit
1.
Fit the USB and Charging Unit onto the bottom of the terminal as shown in the illustration.
2. After mounting the unit onto the terminal, check that it is ¿ rmly locked in place using
the stoppers.
Stoppers
Important!
The USB and Charging Unit can only be mounted on the terminal in one direction. Do not use
excessive force to attempt to push the terminal into the unit when it is facing the wrong way.
Water or other liquids on the power supply/data communication terminals on
the USB and Charging Unit or terminal can lead to an electric shock or ¿ re. Note
also that soiling on the terminals will impair the connection, leading to reduced
charging functionality. As a safety precaution, disconnect the AC adaptor and USB
cable before cleaning the power supply terminals with a dry cloth or cotton bud.
Never short-circuit the power supply/data communication terminals on the USB
and Charging Unit or terminal as this could cause a fault.
If the neck strap is attached to the terminal, take care not to trap it when mounting
the USB and Charging Unit. If you are having dif¿ culties mounting the USB and
Charging Unit, attach the neck strap using the strap hole on the top of the terminal.
x
x
x
x
E-24
Removing the USB and Charging Unit
1. Unlock the stoppers on the left and right sides of the USB and Charging Unit by
pressing them inwards, as shown in the illustration.
2. Keeping the stoppers pressed in, pull the USB and Charging Unit off the terminal.
Using the optional cable (HA-J81USBH)
Plug the cable into the USB and Charging Unit and use it to connect a USB device.
Cable (HA-J81USBH)
USB and Charging Unit
USB cable
USB device
E-25
Connecting to a Computer
You can use the USB and Charging Unit together with the cable (HA-J80USBM) to
connect the IT-300 to a computer and exchange data via USB. This combination can
also be used to charge the battery pack installed in the IT-300 using power supplied
from the computer.
Cable (HA-J80USBM)
USB and Charging Unit
PC
Status of Indicator 1 on IT-300:
Orange: Charging
Red Flashing: Standby due to battery pack error or the surrounding temperature is out
of the charging temperature range
(charging begins when the temperature is within the charging temperature
range)
Green: Charging complete
E-26
Charging the Battery Pack
The battery pack installed in the IT-300 can be charged using the optional AC adaptor
(AD-S15050B). An indicator on the IT-300 shows the level of charge.
You can also charge the battery pack using the optional Dual Battery Charger (HA-
D32DCHG).
Note that you can charge the battery pack while the terminal is connected to a computer
and transferring data. (Refer to “Connecting to a Computer” on page 25.)
AC Adaptor (optional)
Use the USB and Charging Unit provided.
AC Adaptor (AD-S15050B)
USB and Charging Unit
Status of Indicator 1 on IT-300:
Orange: Charging
Red Flashing: Standby due to battery pack error or the surrounding temperature is out
of the charging temperature range
(charging begins when the temperature is within the charging temperature
range)
Green: Charging complete
E-27
Dual Battery Charger (optional)
Use the optional AC Adaptor for Dual Battery Charger (AD-S42120B).
AC Adaptor (AD-S42120B)
You can connect up to three Dual Battery Chargers.
Status of Charge Indicator LED
Off: Not charging
Red: Charging
Red Flashing: Battery pack problem
Green: Charging complete
Green Flashing: Standby due to the surrounding temperature being beyond the
speci¿ ed temperature range (Approximately 0°- 40°C) (charging
resumes when the temperature reaches the range.)
E-28
Attaching the Neck Strap
The neck strap can be used to prevent the Handheld Terminal from fall. Since there
are three strap holes where the neck strap can be attached, use the hole that affords the
greatest ease of use. Attach the neck strap according to the procedure described below.
To attach the neck strap
1. Pass the thin cord of the neck strap through the strap hole on the back of the
Handheld Terminal.
2. Pass the other end of the strap (the part you put around your neck) through the loop
formed by the thin cord.
Important!
Do not swing the Handheld Terminal around holding the neck strap.
E-29
Using the Touch Panel
Use the touch panel by touching it lightly with your ¿ nger. Do not use objects other
than your ¿ nger.
You can use the touch panel in the following ways:
Tap: Lightly tap the screen with your ¿ nger.
Touch: Hold your ¿ nger against the screen.
Flick: Move your ¿ nger across the screen in a swiping motion.
Drag: Touch the screen and then move your ¿ nger without lifting it from the screen.
x
x
x
x
E-30
Setting the Display Brightness
Adjusting Display Brightness
You can use the following procedures to adjust display brightness to make it easier to
read under different lighting conditions.
Press the “Fn” key and then press the “5” key or “6” key after con¿ rming that “F” is
displayed on the screen. Pressing the “5” key adjusts brightness for a darker display,
while pressing the “6” key adjusts brightness for a lighter display.
In order to continue to make adjustments, press the “5” key or “6” key again after
¿ rst pressing the “Fn” key.
You can set the brightness by tapping “Backlight” in the Control Panel.
Display Auto Dimmer
The display auto dimmer automatically lowers display brightness if you do not
perform any operation for a speci¿ c period of time. This helps the battery power to be
conserved.
Tap “Backlight” in the Control Panel to set the time delay until the display dims.
x
E-31
Using the Laser Scanner
1. After turning on the power, position the laser scanner close to a bar code and then
press the trigger key.
2. The laser emits light and scans the bar code. If scanning is completed normally,
Indicator 2 displays a green light.
Important!
If you are unable to scan a bar code, try changing the angle at which the scanner
is held or distance from the scanner to the bar code, and then try scanning
again.
This Handheld Terminal is capable of scanning bar codes at a distance of
about 40-400 mm (19/16"-153/4"). Furthermore, the distance at which
scanning is possible may vary according to the bar code symbology.
x
x
E-32
Bar Code Scanning Position
Position the laser scanner close to the bar code when scanning small bar codes.
Position the laser scanner at a distance from the bar code so that the bars enter the light
when scanning large bar codes.
Margin Margin
Good Good Good
Bad Bad Bad Bad
Warning!
■ Never look directly into the laser light.
The products with the integrated Laser Scanner module scan bar codes using
laser light. Never look directly into the laser light or shine the laser light
into the eyes.
x
E-33
Adjusting the Laser Light Emission Width
The emission width of the laser light emitted by the Handheld Terminal (model
dependant) can be adjusted. Adjust the emission width when it is improper.
1. Navigate to the menus in the following sequence:
Settings System
The Control Panel appears as shown in the screen.
2. Tap the [Scanner Setting] icon. The Setting screen
appears as shown in the screen.
3. Tap the [Others] tab in the Scanner Setting screen.
E-34
4. Tap the [Calibration] button. The display appears as
shown at right.
5. Press the trigger key to emit laser light, and align the
light with the barcode for adjusting emission width.
Align the laser light with the narrow bars on both sides.
The message appears as shown at right when adjustment
is completed.
Repeat the setting if “Setting failed” message appears.
Emission Width Adjustment Bar code
x
x
x
E-35
Handling microSD Cards
The Handheld Terminal supports microSD card.
Install (or remove) a microSD card according to the procedure described below.
Installing
1. Turn the terminal over, turn the lock switch for the microSD card slot cover to the
“FREE” position, and then remove the microSD card slot cover.
2. Insert microSD card with the description side face up.
Insert the card ¿ rmly all the way into the slot.
Avoid inserting the card diagonally.
3. Put back the microSD card slot cover and turn the lock switch to the “LOCK”
position, as shown in the illustration.
x
x
E-36
Removing
1. Turn the terminal over, turn the lock switch for the microSD card slot cover to the
“FREE” position, and then remove the microSD card slot cover.
2. BrieÀ y push the microSD card in to release, and then remove, as shown in the
illustration.
3. Put back the microSD card slot cover and turn the lock switch to the “LOCK”
position.
Important!
A microSD card must be inserted with the top and bottom properly aligned
and in the proper direction. Attempt in inserting it with an excessive force in
incorrect orientation can risk damage to the connectors and slot.
Never turn off the power or remove a microSD card from the slot while the card
is being accessed. Doing so can damage the microSD card or data in the card.
Do not drop the card or lose it.
x
x
x
E-37
Performing Bluetooth® Communication
Bluetooth® interface can also be used to transfer data between two Handheld Terminals.
With Bluetooth® the two Handheld Terminals should be located within about three meters
(9'10e") from each other, as long as there is nothing blocking the path between them.
Important!
Observe the following precautions to help ensure that Bluetooth communication is
successful.
Make sure two Handheld Terminals face each other within three meters (9'10e").
Surroundings (obstacles) between the Handheld Terminals may cause a shorter
distance.
Make sure there is at least two meters (6'7") between the Handheld Terminal and
other equipment (electrical appliances, audio-visual equipment, OA equipment,
and digital cordless telephones, facsimile machines, etc.). Take special care with
microwave ovens. Allow at least three meters (9'10e) between the Handheld
Terminals in wireless operation and a microwave oven. When operating the
terminal in Bluetooth nearby these devices and electrical appliances with their
powers being turned on, communication may be interrupted or TV and radio
receptions may be interfered (images on the screen produced by certain channels
of UHF and broadcast satellite may become blurry).
Normal communication may not be possible in an area near a broadcast trans-
mitter or wireless transmitter. If this happens, move the Handheld Terminal to a
different location. Normal communication may not be possible in areas exposed
to strong radio waves.
Interference by WLAN
Because Bluetooth® and WLAN use the same frequency band (2.4GHz), radio
interference can occur if there is a WLAN device nearby. This can result in lower
communication speed, or even make it impossible to establish a connection. If
this happens, try the following countermeasures.
Move at least 10 meters (32'10e") away from the WLAN device.
If you cannot keep the distance at least 10 meters (32'10e") or more between the
Handheld Terminal and a WLAN device, turn off the power of either the Handheld
Terminal or the WLAN device.
Although the Handheld Terminal enables WLAN and Bluetooth® communication
to be used simultaneously as a result of being equipped with Bluetooth® Ver.2.0,
communication may not be possible depending on the surrounding radio wave
environment.
x
x
x
x
x
x
x
E-38
Resetting the Handheld Terminal
Resetting the terminal is the same as resetting a PC. Performing a reset causes all
unsaved RAM data to be lost that are in mid-course of inputting and editing, but data
and settings that are already stored in the FlashROM should be unaffected.
Perform a reset to restore normal operation whenever the Handheld Terminal operates
abnormally due to misoperation or some other reason.
Use a pointed implement such as a mechanical pencil (with the lead retracted) to
press the reset switch on the back of the terminal.
This starts the reset operation.
Do not use a toothpick or pencil or other sharp
object whose tip may break off the reset switch.
Performing a Full Reset (Initialization)
Performing a full reset deletes all data and resets various settings to their defaults.
*Data stored in the Flashdisk folder remain unaffected.
Perform a full reset whenever any one of the following conditions exists.
When you want to delete installed programs and settings, and resume the terminal to
the initial condition.
When you are no longer able to use the Handheld Terminal because you forgot your
password.
When the Handheld Terminal does not operate normally due to a memory problem.
Important!
Performing a full reset resets all data to their defaults except stored in the
Flashdisk folder. If possible, backup data of the terminal to a PC or to the
Flashdisk folder. The reset procedure and display message appeared on
performing the reset is according to the model you operate.
*
x
x
x
E-39
1. While holding down the Fn key and CLR key, push down the reset switch for about
3 seconds with the tip of a pointed implement such as a mechanical pencil until the
message shown below appears on the display.
To cancel the full reset operation, press the MENU key.
2. Press the Trigger key. This causes the message shown below to appear.
To cancel the full reset operation, press the MENU key.
3. Press the Trigger key again to perform the full reset.
The full reset starts and all data in the memory are erased, and the start-up screen
appears.
Data stored in the Flashdisk folder remain unaffected.
x
x
x
E-40
Warning Label
Warning!
■ Never look directly into the laser light.
These products scan using laser light. Never look directly into the laser light
or shine the laser light into the eyes.
This label is a warning and caution label for Class 2 laser products that comply
with IEC60825-1:2007.
Although Class 2 laser light is only emitted momentarily, never look directly into
the beam light.
The laser light emitted by this laser scanner has a maximum output of less than
1 mW and a wavelength of 650 nm.
Use of controls or adjustments or performance of procedures other than those
speci¿ ed herein may result in hazardous radiation exposure.
x
x
x
x
x
E-41
Using the Dual Battery Charger (HA-D32DCHG)
The optionally available dual battery charger (HA-D32DCHG) can be used to
simultaneously charge two battery packs.
General Guide
Left
3
Top
1
Right
2
3
4
Bottom
Bundled Items
Connection Bracket
2 screws
E-42
1 Charge Indicator
Lamp
This lamp indicates the charge status of the battery pack(s).
Off: Not charging
Red: Charging
Red Flashing: Battery pack problem
Green Flashing: Standby
Green: Charging complete
2 AC Adaptor Jack This is used to supply power by connecting the AC adaptor (sold
separately).
3 Dual Battery
Charger Connection
Port
Use this port to connect multiple Dual Battery Chargers to each
other.
4 Connection Bracket
Attachment Holes
The connection bracket attaches here when you connect multiple
Dual Battery Chargers to each other.
Important!
Allowing the power contacts become wet can cause an electric shock or ¿ re. In
addition, if the contacts become soiled, contact may be impaired resulting in
poor charging. For reasons of safety and maintaining charging battery pack(s)
in optimum condition, clean the power contacts by wiping with a dry cloth or
cotton swab after disconnecting the AC adaptor.
Although the battery may become warm during charging, this is normal and
does not indicate a malfunction.
Do not place objects such as a cover over the battery charger while charging.
Do not remove the battery pack or disconnect the AC adaptor during charging.
Repeated “Mounting and Removing” of battery pack in excess of times may
cause the quality deterioration of the battery pack.
Each Dual Battery Charger comes with one connection bracket.
Since only one connection bracket is required when you connect two Dual
Battery Chargers, you will always have one left over.
Simply keep the other connection bracket on hand as an extra, in case you ever
need it.
x
x
x
x
x
x
x
x
E-43
Charging a Battery Pack
Use the optionally available AC adaptor (AD-S42120B) for the power supply of the
Dual Battery Charger.
1. Plug the cord from the AC adaptor into the AC adaptor jack of the Dual Battery
Charger.
2. Plug one end of power cord into the AC adaptor and the other end to a wall outlet.
3.Taking care that the battery pack is oriented correctly, insert it into the Dual Battery
Charger.
This causes the Charge Indicator Lamp to light in red, indicating that charging has
started.
Charge Indicator Lamp
Off: Not charging
Red: Charging
Red Flashing: Battery pack problem
Green: Charging complete
Green Flashing: Standby due to the surrounding temperature being beyond the
speci¿ ed temperature range (Approximately 0°- 40°C) (charging
resumes when the temperature reaches the range.)
E-44
Connecting Multiple Dual Battery Chargers
You can connect up to three Dual Battery Chargers. Doing so makes it possible to
supply power to all the Dual Battery Chargers using one dedicated AC adaptor.
1. As shown in the illustrations below, remove the connector covers of the Dual Battery
Chargers you want to connect to each other.
Connector cover
2. Connect the two Dual Battery Chargers as shown below.
3. Turn over the connected Dual Battery Chargers and attach a connection bracket,
securing it in place with screws.
You can repeat the above steps to connect up to 3 Dual Battery Chargers.
E-45
Specifi cations
1. Model:
HA-D32DCHG
2. Charging:
Charging Method: Constant voltage (with current limiter)
(when one Handheld Terminal has been mounted)
Charge Period: Approx. 2 hours (1 battery pack, normal temperature)
When charging two battery packs:
Approx. 3.5 hours (2 battery packs, normal temperature)
3. Power Supply:
Power Source: AD-S42120B
Consumption Current: Approximately 450mA
4. AC Adaptor:
Model: AD-S42120B
Input: 100V to 240V AC 50/60Hz 1.2A
Output: 12V DC 3.5A
Consumption Current: Approximately 450mA
5. Operating Environment:
Temperature: Approximately 0°C to 40°C (32°F to 104°F)
Humidity: 30% to 80% RH (non-condensation)
6. Dimensions and Weight:
Dimensions: Approximately 110(W)
u
104(D)
u
46(H) mm
(
4
e
"W
u
4
e
"D
u
1
e
"H)
Weight: Approximately 195g (6.9oz)
The AD-S42120 series comes available in the following models depending on area or region
where you are in.
Model no. of AC Adaptor Area/Region Compliance
AD-S42120BE
AD-S42120B-N
All except China Compliant with CE,
UL, FCC, and Energy
Ef¿ ciency Standards.
AD-S42120BE-CN China only Compliant with Energy
Ef¿ ciency Standards and
CCC.
E-46
Using Rechargeable Battery Pack
HA-D20BAT-A
Important!
Store a battery pack in its special soft case whenever you are not using it.
If the battery pack has been left over unused for a long period of time, the
capacity remained decreases due to spontaneous discharge or chemical
decomposition by the battery pack itself. If the battery pack fails to hold its
operating duration after it has been fully charged, replace it with a new one. The
battery pack may reach the end of its service life.
Battery Pack Specifi cations
Model: HA-D20BAT-A
Rated Capacity: 1850mAh (6.84 Wh)
Rated Voltage: 3.7V
Dimensions: Approximately 52.5(W) × 40(D) × 13.5(H) mm
(
2
e
"W ×
1
e
"D ×
e
"H)
Weight: Approximately 46g (1.6oz)
Bundled Item: Soft case
x
x
IT-300-35E
IT-300-35E
Display：
Linear Imager：
60～300mm
Powerclass2

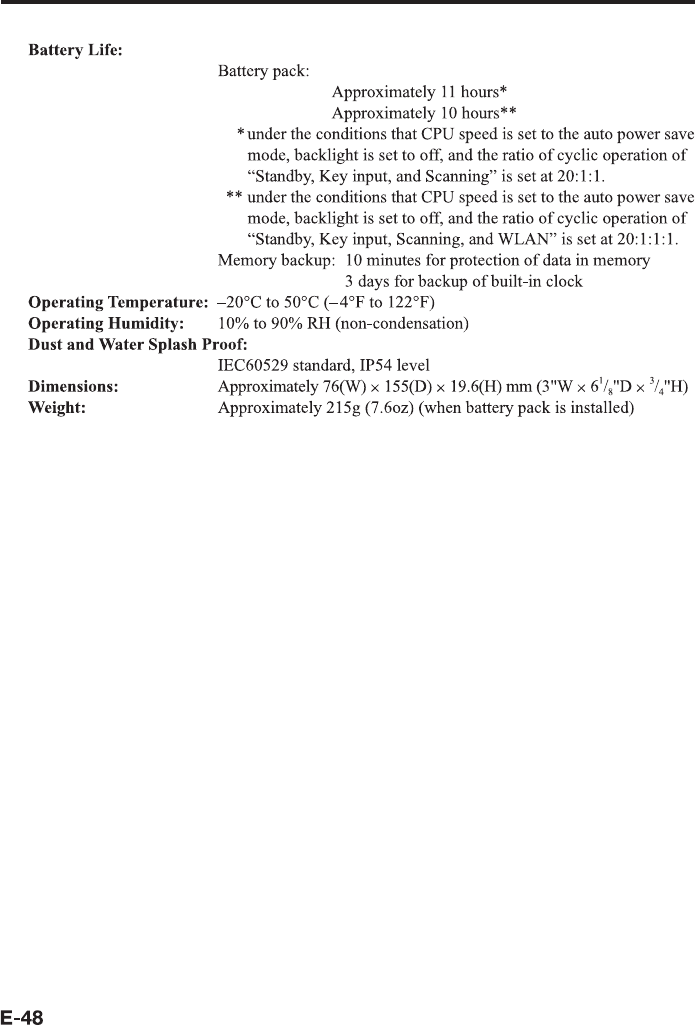

E-49
USB and Charging Unit
Charging:
Charging Method: Constant current/voltage
Charge Period: Approximately 4 hours (AD-S15050B)
Power Supply:
Power Source: AC Adaptor (AD-S15050B)
Consumption Current: 5V DC approximately 2.1A
Output to
Handheld Terminal: 5V DC 2.1A (max.)
AC Adaptor
Model: AD-S15050B
Input: 100V to 240V AC 50/60Hz 0.36 to 0.2A
Output: 5V DC 3.0A
Dimensions and Weight
Dimensions: Approximately 86(W) u 47(D) u 26(H) mm
(3e"W u 1e"D u 1"H)
Weight: Approximately 42g (1.5oz)
Operating Environment
Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10% to 90% RH (non-condensation)
CASIO COMPUTER CO., LTD.
6-2, Hon-machi 1-chome
Shibuya-ku, Tokyo 151-8543, Japan
