Users manual
Handheld Printer Terminal
User’s Guide
Series
Be sure to read “Safety
Precautions” inside this
guide before trying to use
your Handheld Printer
Terminal. After reading this
guide, keep it in a safe
place for future reference.
E
PN410385-006
IT-3000_E_Hyo_1_4.p65 07.7.3, 8:21 PM3
•This Product is equipped with the Brycen B-RAPPORE Stack and My Wirefree
Network Bluetooth User Interface Application, the use of which is governed by a license
granted by Brycen Co., Ltd.
•BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CASIO
COMPUTER CO., LTD.
•Microsoft and Windows are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
•Datalight is a registered trademark of Datalight, Inc.
•FlashFXTM is a trademark of Datalight, Inc.
Copyright 1993-2000 Datalight, Inc., All Rights Reserved.
U.S. Patent Office 5,860,082
•Other company names and product names used in this guide are trademarks or registered
trademarks of their respective owners.
Information in this document is subject to change without advance notice. CASIO Computer Co.,
Ltd. makes no representations or warranties with respect to the contents or use of this manual and
specifically disclaims any express or implied warranties of merchantability or fitness for any
particular purpose.
IT-3000_E_P00.p65 07.7.4, 16:092
E-1
Warning
Caution
Danger
Congratulations upon your selection of this CASIO product. Be sure to read the
following Safety Precautions before trying to use it for the first time.
Markings and Symbols
The following are the meanings of the markings and symbols used in these Safety
Precautions.
This symbol indicates information that, if ignored or applied
incorrectly, creates the danger of death or serious personal injury.
This symbol indicates information that, if ignored or applied
incorrectly, creates the possibility of death or serious personal
injury.
This symbol indicates information that, if ignored or applied
incorrectly, creates the possibility of personal injury or property
damage.
•A diagonal line indicates something you should not do. The symbol shown
here indicates you should not try to take the unit apart.
•A black circle indicates something you should do. The symbol shown here
indicates you should unplug the unit from the wall outlet.
Precautions During Use
Warning
Disassembly and Modification
•Never try to disassemble or modify the Handheld Printer Terminal and its
options in any way. High voltage inside creates the danger of electric shock.
Abnormal Conditions
•Should the Handheld Printer Terminal and its options become hot or start to
emit smoke or a strange odor, immediately turn off the power, and contact
your original vendor or an authorized CASIO service provider. Continued
use creates the danger of fire and electric shock.
Safety Precautions
IT-3000_E_P01_08.p65 07.6.29, 10:10 AM1
E-2
Safety Precautions
Warning
Foreign Objects
•Should any foreign matter get into the Handheld Printer Terminal and its
options, immediately turn off the power and contact your original vendor or
an authorized CASIO service provider. Continued use creates the danger of
fire and electric shock.
Dropping and Damage
•Should you drop the Handheld Printer Terminal and its options and damage
them, immediately turn off the power and contact your original vendor or an
authorized CASIO service provider. Continued use creates the danger of fire
and electric shock.
Moisture
•Though your Handheld Printer Terminal is water splash-resistant, its Bridge
Satellite Cradle and other optional peripherals are not. Keep loose metal
objects and containers filled with liquids away from your Handheld Printer
Terminal and the optional peripherals.
Also, never connect or disconnect peripherals to the Handheld Printer
Terminal while they are wet. Water getting into the Handheld Printer
Terminal or its peripherals creates the danger of fire and electric shock.
IT-3000_E_P01_08.p65 07.6.29, 10:10 AM2
E-3
Operation of Wireless Data Communication Function
Warning
Interference with the Operation of Other Equipment
(Using Wireless Data Communication Function)
•Please follow the instructions provided by health care facilities when using
your Handheld Printer Terminal in hospitals or other locations where
medical equipment is in use. In particular, either switch off the wireless data
communication function of the Handheld Printer Terminal or turn off the
power in locations such as operating rooms, intensive care units, coronary
artery disease monitoring units and other locations where use of the
Handheld Printer Terminal is prohibited by the health care facility. Radio
waves emitted by the Handheld Printer Terminal can affect the operation of
medical equipment.
•Keep your Handheld Printer Terminal at least 22 centimeters (85/8") away
from anyone wearing a pacemaker. Radio waves emitted by the Handheld
Printer Terminal can affect the operation of a pacemaker.
•The use of wireless communication devices and electronic devices in aircraft
is recommended to consult first with flight attendant prior to the use.
Caution
Interference with the Operation of Other Equipment
(Using Wireless Data Communication Function)
The Handheld Printer Terminal contains a built-in wireless communication device of
a low-power data communication system. The frequency band that is used is also used
by microwave ovens and other industrial, scientific and medical devices, as well as
other wireless stations of the same type, local wireless stations for identifying moving
objects requiring licensing used on factory production lines and so forth, specified
low-power wireless stations not requiring licensing, and amateur wireless stations (to
be referred to as “other wireless stations”).
•Confirm that other wireless stations are not in use nearby before using the
Handheld Printer Terminal.
•
In the case radio wave interference has been generated between the Handheld Printer
Terminal and other wireless stations, either promptly change the location where the
Handheld Printer Terminal is used or discontinue operation of the equipment causing
the interference.
•
If other problems should occur as a result of the generation of radio wave interference,
please contact the location indicated in the section on product consultations.
IT-3000_E_P01_08.p65 07.6.29, 10:10 AM3
E-4
Safety Precautions
Caution
Foreign Objects
•Take care to ensure that metals or combustible objects are not inserted into
the openings of the Handheld Printer Terminal and its options. Such objects
inside of the Handheld Printer Terminal and its options create the danger of
fire and electric shock.
Location
•Do not locate the Handheld Printer Terminal and its options on a surface that
is unstable or uneven. Doing so creates the danger of the Handheld Printer
Terminal falling, which can cause personal injury.
•Do not locate the Handheld Printer Terminal and its options in an area
subject to large amounts of humidity or dust. Doing so creates the danger of
fire and electric shock.
•Do not leave the Handheld Printer Terminal and its options for a long period
in a car parked in direct sunlight.
Heavy Objects
•Never place heavy objects on top of the Handheld Printer Terminal and its
options. Doing so creates the danger of loss of balance and the objects
falling, which can cause personal injury.
LCD Screen
•Never apply strong pressure to the screen or subject it to strong impact.
Doing so can crack the screen or LCD panel glass, which can cause the
danger of personal injury.
•Should the LCD panel glass break, never touch the liquid inside. Doing so
can cause skin inflammation.
– Should liquid from the LCD panel accidentally get into your mouth,
immediately wash your mouth with water and then consult a physician.
– Should liquid from the LCD panel accidentally get into your eyes or onto
your skin, immediately rinse for at least 15 minutes with clean tap water
and then consult a physician.
Do Not Touch Internal Components
•Never touch any high-voltage components. This can cause an electric shock.
Printer
•Do not touch the areas around the printer motor or head since they can
become very hot. Doing so can cause burns.
•Touching any of the gears while they are turning with unprotected hands can
cause personal injury. Be careful not to come in contact with turning gears.
•Contact with the blade installed in the paper outlet can cause personal injury.
Be careful not to touch the blade.
IT-3000_E_P01_08.p65 07.6.29, 10:10 AM4
E-5
Lithium-ion Battery Pack
Danger
•Never allow the battery pack to become wet. Water can create the danger of
battery pack heat emission, explosion, and fire.
•Never use or leave the battery pack next to open flame, near a stove, or any
other area exposed to high heat. Doing so creates the danger of battery pack
heat emission, explosion, and fire.
•Never use the battery pack with any device other than the Handheld Printer
Terminal. Doing so can create the danger of battery pack heat emission,
explosion, and fire.
•Note that the battery pack’s positive (+) and negative (–) polarities must be
oriented correctly when it is loaded into battery charger or the Handheld
Printer Terminal. Connecting the battery pack with its polarities reversed
creates the danger of battery pack fluid leakage, heat emission, explosion,
and fire.
•Never dispose of the battery pack by incinerating it or otherwise expose it to
heat. Doing so creates the danger of battery pack heat emission, explosion,
and fire.
•Never allow the positive (+) and negative (–) terminals of the battery pack to
become connected (shorted) by metal. Doing so creates the danger of battery
pack heat emission, explosion, and fire.
•Never transport or store the battery pack together with a necklace, hair pins
or other metal objects. Doing so can short battery pack terminals, creating
the danger of battery pack heat emission, explosion, and fire. Be sure to
place the battery pack in its case whenever transporting or storing it.
•Never throw the battery pack or otherwise subject it to strong impact. Doing
so creates the danger of battery pack heat emission, explosion, and fire.
•Never pierce the battery pack with nails, hit it with a hammer, or step on it.
Doing so can create the danger of battery pack heat emission, explosion, and
fire.
•Never try to take apart the battery pack or modify it in any way. Doing so
creates the danger of battery pack heat emission, explosion, and fire.
•Use only the specified battery charger to charge the battery pack. Use of
other type of battery charger creates the danger of battery pack heat
emission, explosion, and fire.
IT-3000_E_P01_08.p65 07.6.29, 10:10 AM5
E-6
Safety Precautions
Warning
•Never place the battery pack in a microwave oven or any other high-voltage
device. Doing so creates the danger of battery pack heat emission,
explosion, and fire.
•Should the battery pack emit a strange odor or heat, change color or shape,
or exhibit any other abnormal behavior, immediately stop using it.
Continued use creates the danger of battery pack heat emission, explosion,
and fire.
•If the amount of time period the battery pack can serve becomes
considerably short, stop using it. It may indicate the possibility of a
malfunction in the battery pack. Continued charging the battery pack
creates the danger of heat emission, explosion, and fire.
•If the battery pack does not achieve full charge after the normal charging
time has passed, stop charging it. Continued charging creates the danger of
battery pack heat emission, explosion, and fire.
•Should the battery pack start to leak or emit a strange odor, immediately
move it away from any nearby flame. Leaking battery fluid is combustible,
and exposure to flame creates the danger of explosion and fire.
•Should fluid from the battery pack accidentally get into your eyes, do not
rub them. Immediately rinse your eyes with clean tap water and then
consult a physician immediately.
Caution
•Never use or leave the battery pack in an area exposed to direct sunlight, in
a car parked in direct sunlight, or any other very hot area. Doing so creates
the danger of heat emission and fire, as well as deterioration of battery pack
performance and shortening of its service life.
•Do not use the battery pack in areas where static electricity is being
generated. Doing so creates the danger of battery pack heat emission,
explosion, and fire.
•Danger of explosion if the battery pack is incorrectly replaced.
Replace only with same or equivalent type recommended by CASIO.
Dispose of used batteries according to the CASIO instruction.
•Should fluid from the battery pack accidentally get onto clothing or your
skin, immediately rinse it off with clean tap water. Prolonged contact with
battery pack fluid can cause skin irritation.
•Keep the battery pack out of the reach of small children. Do not let small
children remove the battery pack from battery charger or the Handheld
Printer Terminal.
IT-3000_E_P01_08.p65 07.6.29, 10:11 AM6
E-7
AC Power Supply
Warning
•
Do not use the Handheld Printer Terminal at a voltage other than the
specified voltage. Also, do not connect the Handheld Printer Terminal to a
multi-plug power strip. Doing so creates the danger of fire and electric shock.
•Avoid conditions that can cause damage or breaks in the power cord. Do not
place heavy objects on the power cord and keep it away from sources of
heat. Any of these conditions can damage the power cord, creating the
danger of fire and electric shock.
•Never modify, sharply bend, twist, or pull on the power cord. Doing so
creates the danger of fire and electric shock.

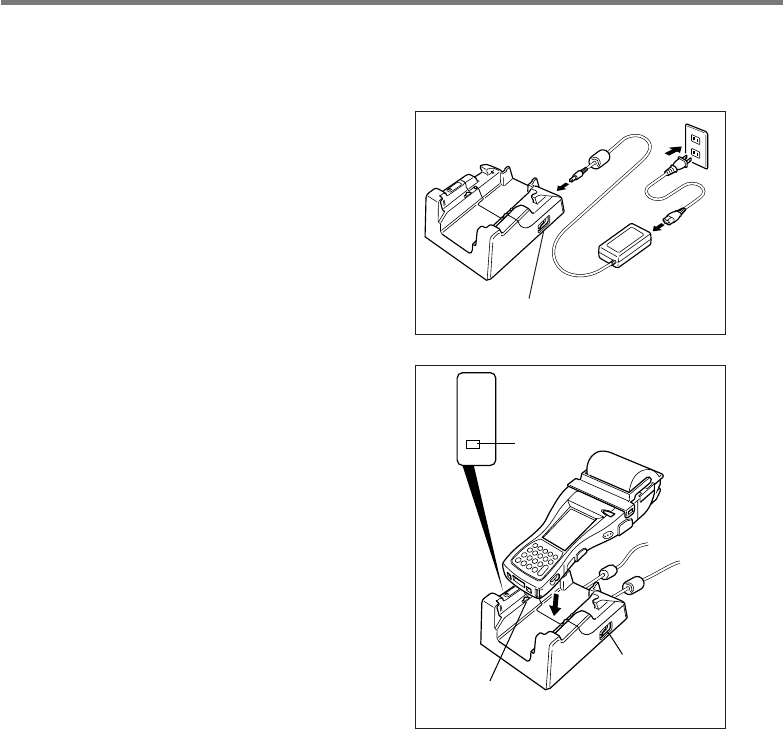

•When using the battery charger and Bridge Satellite Cradle, be sure to use
the respective AC adaptors. Use of other AC adaptor model creates the
danger of fire and electric shock.
•Should the power cord become severely damaged (to the point that wires are
exposed or broken), contact your original vendor or an authorized CASIO
service provider about repair or replacement. Use of a damaged electrical
cord creates the danger of fire and electric shock.
Caution
•Keep the power cord away from stoves and other sources of extreme heat.
Heat can melt the covering of the power cord and create the danger of fire
and electric shock.
•Never pull on the power cord when unplugging it. Doing so can damage the
cord and create the danger of fire and electric shock. (Always hold the plug
when unplugging it from the wall outlet.)
•Never touch the plug while your hands are wet. Doing so can create the
danger of electric shock.
•Be sure to unplug the power cord from the wall outlet before moving.
Failure to do so can result in damage to the power cord caused by pulling on
it, which creates the danger of fire and electric shock.
•Be sure to unplug the power cord from the wall outlet before cleaning the
battery charger and Bridge Satellite Cradle.
•Be sure to turn the power off and unplug the power cord after use.
•For safety reasons, unplug the power cord from the wall outlet when not
using for a long period of time.
IT-3000_E_P01_08.p65 07.6.29, 10:11 AM7
E-8

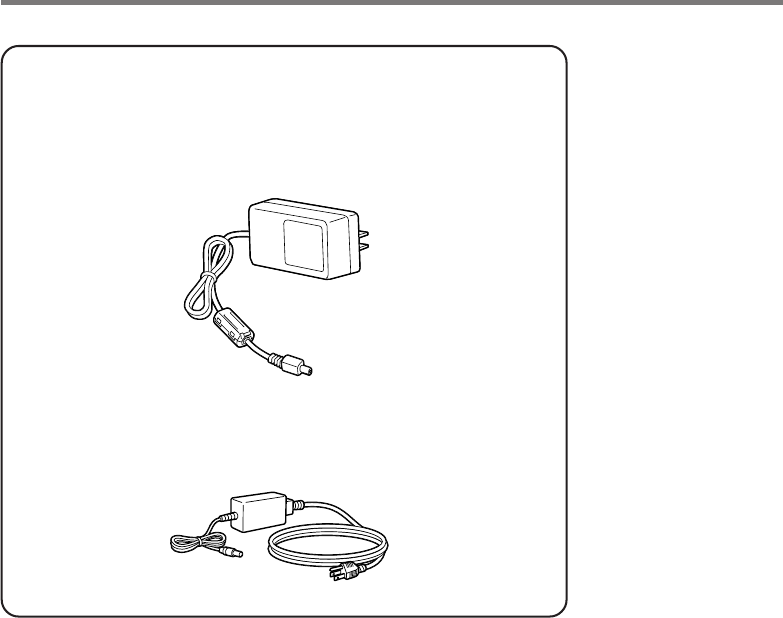

AC Adaptor
Caution
•The housing of the AC adaptor can become warm during normal use.
•Take normal precautions against electric shock.
•At least once a year, unplug the AC adaptor from the wall outlet and clean
any dust that builds up between the prongs of the plug.
Dust built up between the prongs can lead to the danger of fire.
Backup Copies of All Important Data
Caution
•Note that CASIO Computer Co., Ltd. shall not be held liable to you or any
third party for any damages or loss caused by deletion or corruption of data
due to use of the Handheld Printer Terminal, malfunction or repair of the
Handheld Printer Terminal or its peripherals, or due to the batteries going
dead.
•The Handheld Printer Terminal employs electronic memory to store data,
which means that memory contents can be corrupted or deleted if power is
interrupted due to the batteries going dead or incorrect battery replacement
procedures. Data cannot be recovered once it is lost or corrupted. Be sure to
make backup copies of all important data.
Safety Precautions
IT-3000_E_P01_08.p65 07.6.29, 10:11 AM8
E-9
Your Handheld Printer Terminal and its options are precision digital instruments.
Improper operation or rough handling can cause problems with data storage and other
problems. Note and observe the following precautions to ensure proper operation.
•Do not continue operating the Handheld Printer Terminal when battery power
is low.
Doing so can cause data to be lost. When the battery goes low, charge it as soon as
possible.
•Do not leave dead batteries in the Handheld Printer Terminal for a long period.
Dead batteries can leak, leading to malfunction and damage to the Handheld Printer
Terminal.
•Use the Handheld Printer Terminal and its options only within the specified
temperature range.
Use outside of the specified temperature range creates the risk of malfunction.
•Avoid using the Handheld Printer Terminal and its options in areas subject to
the following conditions.
The following conditions create the risk of damage to the Handheld Printer Terminal.
— Large amounts of static electricity
— Extreme heat or extreme cold
— High humidity
— Sudden temperature extremes
— Large amounts of dust
•Use only the special stylus that comes with the Handheld Printer Terminal to
operate its touch screen and reset button.
•Do not use any tool other than the special stylus to operate the touch screen.
Other tools can scratch the touch screen and lead to malfunction.
•Never use thinner, benzene, cosmetic cleaning fluids, or other volatile agents to
clean the Handheld Printer Terminal.
To clean the Handheld Printer Terminal, wipe it with a dry cloth, or a cloth
moistened in a weak solution of water and a mild neutral detergent. Wring all
excess moisture from the cloth before wiping.
Operating Precautions
IT-3000_E_P09_12.p65 07.6.29, 10:11 AM9
E-10
•The contents of this guide are subject to change without notice.
•Note that CASIO COMPUTER CO., LTD. shall not be held liable to you or any third
parties for any losses or damages arising from the use of this guide.
•Although the utmost care has been taken in preparing this manual, please contact the
manufacturer if you should happen to notice any inconsistencies or errors.
•This guide does not include any information about programming and download
procedures. See the applicable separate documentation for information about the
procedures.
Warranty and After Service
•Should this product ever malfunction, contact your original retailer providing
information about the product name, the date you purchased it, and details about the
problem.
This mark applies in EU countries only.
Important
IT-3000_E_P09_12.p65 07.6.29, 10:11 AM10
E-11
GUIDELINES LAID DOWN BY FCC RULES FOR USE OF THIS UNIT IN THE U.S.A. (not
applicable to other areas).
NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Proper connectors must be used for connection to host computer and/or peripherals in order to meet FCC
emission limits.
Peripherals and Cables
Battery Pack (DT-9723LI)
AC Adaptor (AD-S42120A, AD-S42120B, DT-9020ADP-U)
Cables (DT-882RSC, DT-883RSC, DT-887AXA, DT-888RSC, DT-380USB, HA-B80AX)
Declaration of Conformity
Model Numbers: IT-3000M53E, IT-3000M54E2, IT-3000M55U, IT-3000M56U, HA-B61IO,
HA-B30CHG
Trade Name: CASIO
Responsible party: CASIO, INC. Industrial Handheld Division
Address: 2700 Augustine Drive Suite 155, Santa Clara, California 95054
Telephone number: 408-737-6300
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
We, the undersigned.
Company CASIO Europe GmbH
Address, City Bornbarch 10, D-22848 Norderstedt
Country Germany
Phone number +49(0)40-528-65-0
Fax number +49(0)40-528-65-424
IT-3000_E_P09_12.p65 07.7.3, 8:22 PM11
The antennas must not be co-located or operating in conjunction with any other antenna or transmitter.
E-12
Important
certify and declare under our sole responsibility that the following equipments:
Product description / Intended use
EU/EFTA member states intended for use EU: Austria, Belgium, Denmark, Finland, France,
Germany, Greece, Ireland, Italy, Luxembourg, The
Netherlands, Portugal, Spain, Sweden, United
Kingdom, Czech Republic, Hungary, Poland,
Slovenia, Slovakia, Estonia, Latvia, Lithuania,
Cyprus, Malta, Bulgaria, Romania
EFTA: Switzerland, Iceland, Lichtenstein, Norway
Member states with restrictive use NONE
Manufacturer CASIO COMPUTER CO., LTD.
Brand CASIO
Type IT-3000M53E, IT-3000M54E2, IT-3000M55E,
IT-3000M56E
are tested and found to conform with the essential requirements for protection of health and the safety of
the user and any other persons and Electromagnetic Compatibility, as included in following standards:
Standard lssue date
EN60950 1992
A1, 1993
A2, 1993
A3, 1995
A4, 1997
A11, 1997
EN301 489-17 V1. 2.1 2002-08
and are tested and found to conform with the essential radio test suites so that they effectively use the
frequency spectrum allocated to terrestrial/space radio communication and orbital resources so to as to
avoid harmful interference, as included in following standards:
Standard lssue date
EN300 328V 1.4.1 2003-04
and therefore comply with the essential requirements and provisions of the Directive 1999/5/EC of the
European Parliament and of the council of March 9, 1999 on Radio equipment and Telecommunications
Terminal Equipment and the mutual recognition of their conformity and with the provisions of Annex III
(Conformity Assessment procedure referred to in article 10).
The technical documentation as required by the Conformity Assessment procedure is kept at the following
address:
Company CASIO Europe GmbH
Address, City Bornbarch 10, D-22848 Norderstedt
Country Germany
Phone number +49(0)40-528-65-0
Fax number +49(0)40-528-65-424
The information described above dates from January 2004 and may be subjected to future
changes.
IT-3000_E_P09_12.p65 07.7.3, 8:22 PM12
E-13
Contents
Safety Precautions .........................................................................................E-1
Operating Precautions ................................................................................... E-9
Important ....................................................................................................... E-10
Warranty and After Service .............................................................................. E-10
Before Getting Started .................................................................................E-15

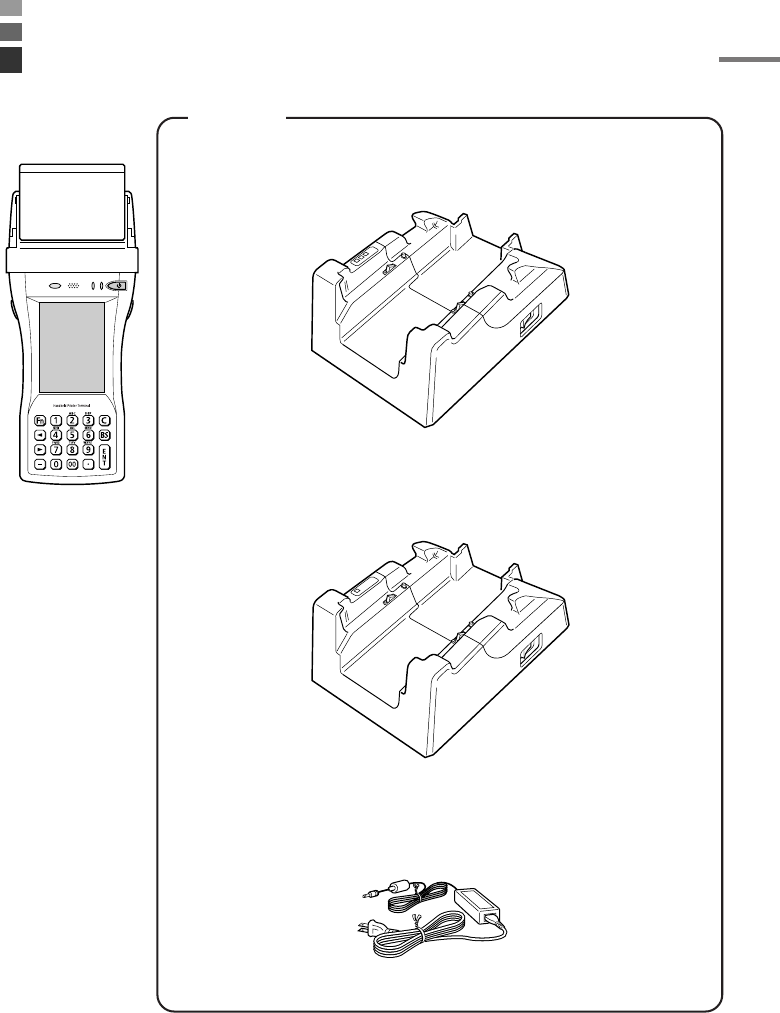

Handheld Printer Terminal System Configuration .................................... E-18
Options ............................................................................................................. E-18

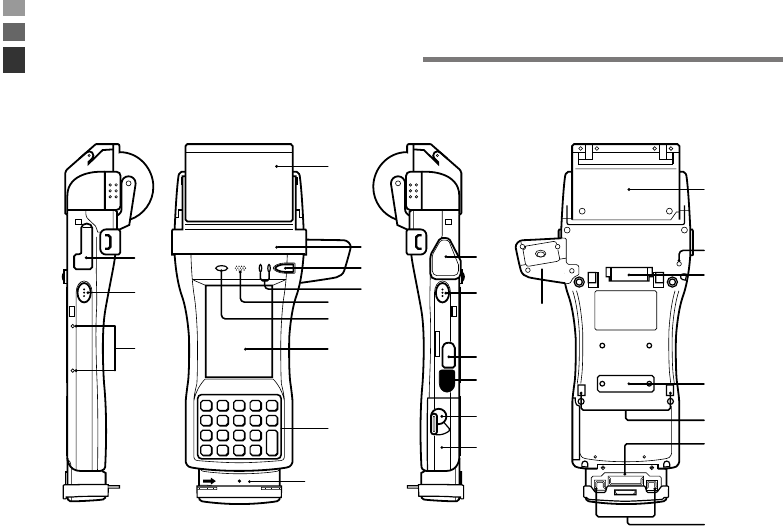

General Guide ............................................................................................... E-22
IT-3000M53E/M54E2/M55E/M55U/M56E/M56U ......................................... E-22
Key Functions ................................................................................................... E-25
Replacing the Battery .................................................................................. E-26
Replacing the Battery Pack............................................................................... E-26
Attaching the Hand Strap ............................................................................E-29

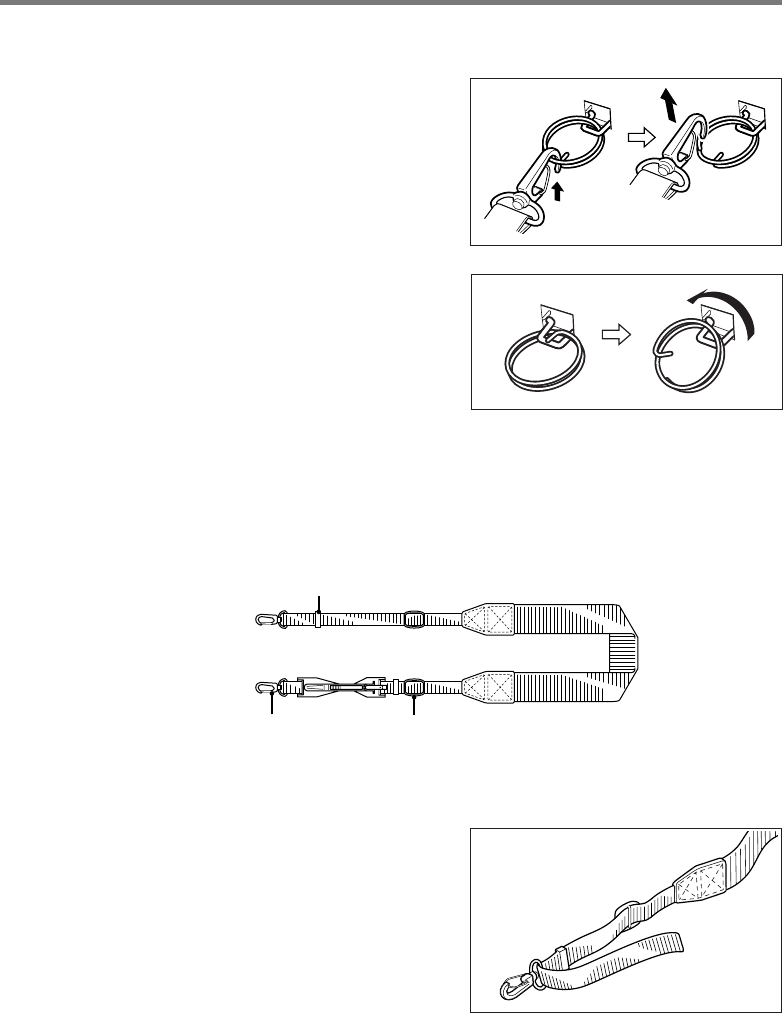

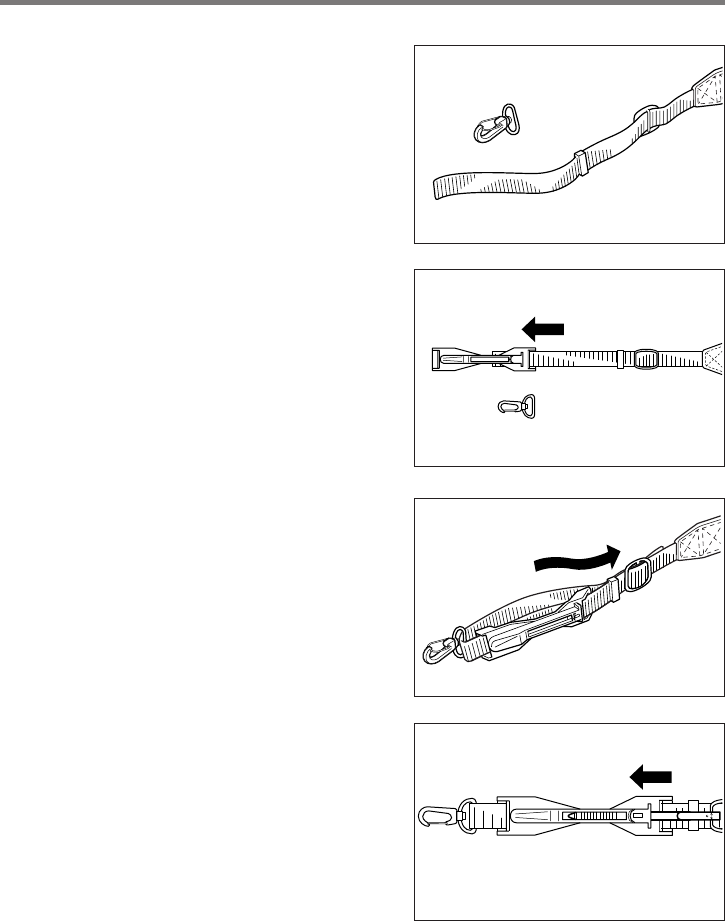

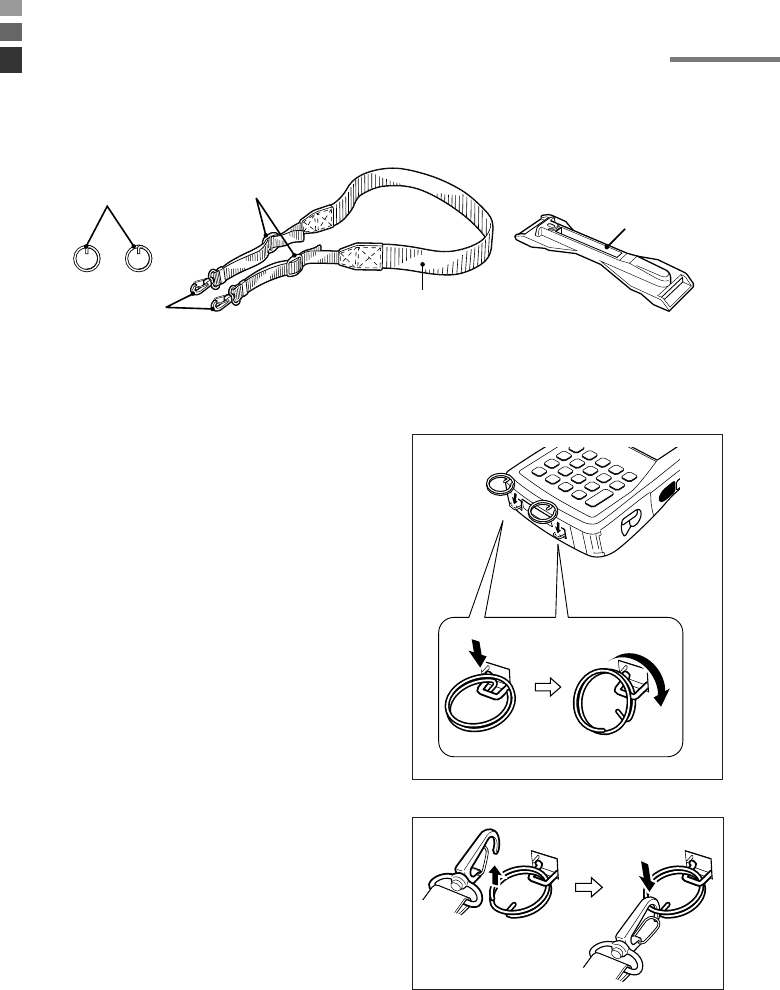

Attaching the Neck Strap ............................................................................E-30
Attaching the Stylus Holder ............................................................................. E-31
Configuring Handheld Printer Terminal Settings ......................................E-33

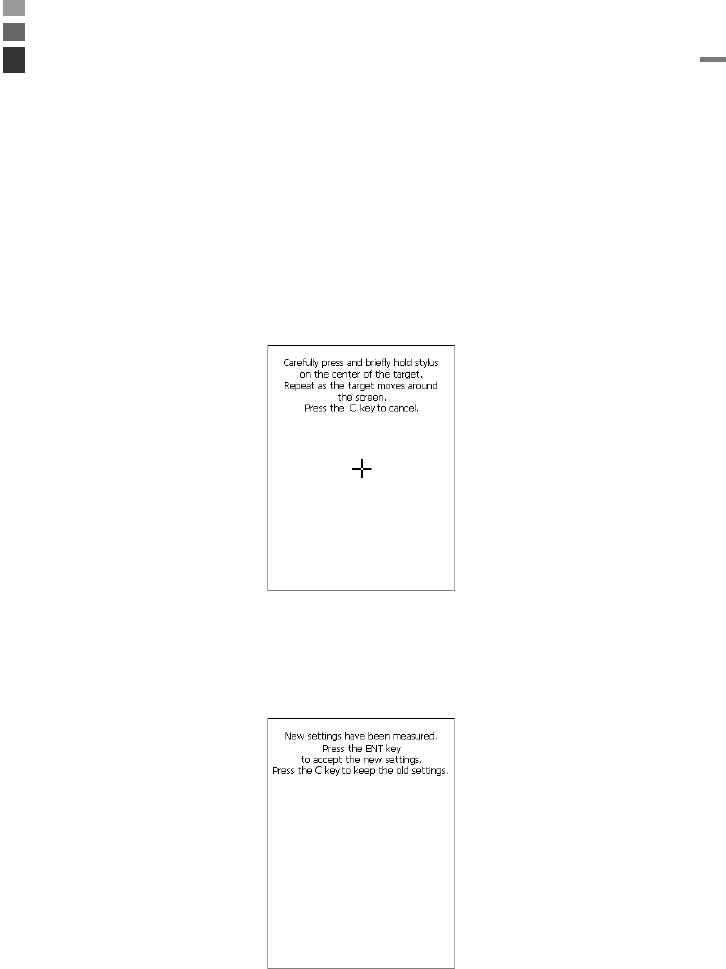

Calibrating Touch Screen Alignment................................................................ E-33
Adjusting Display Contrast .............................................................................. E-34
Adjusting Display Brightness ........................................................................... E-34
Display Auto Dimmer ....................................................................................... E-34
Using the Printer .......................................................................................... E-35

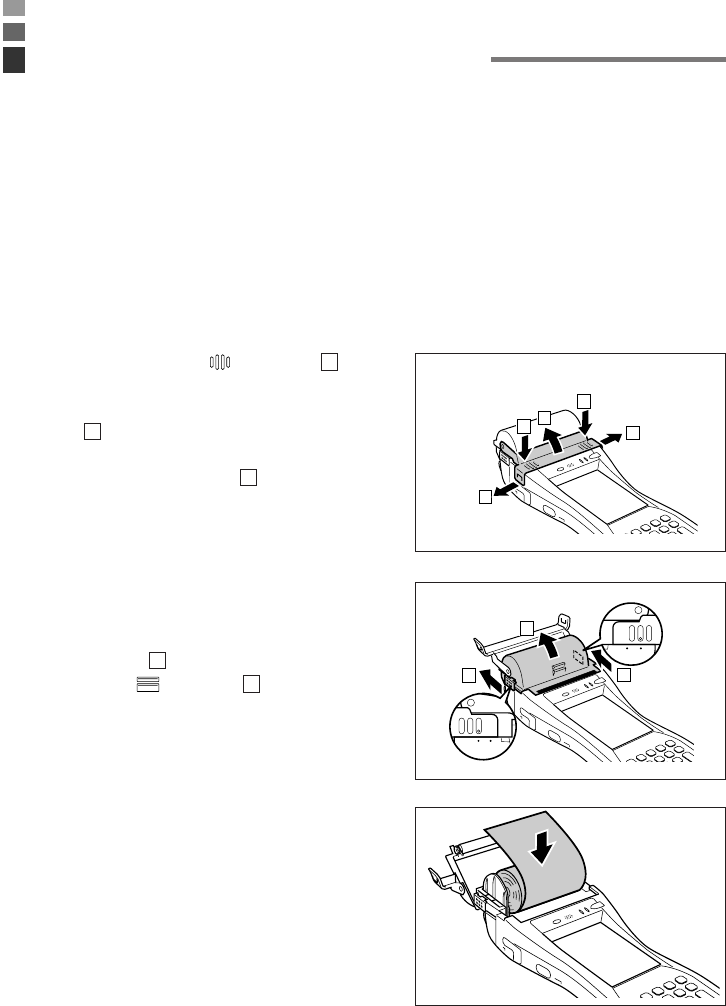

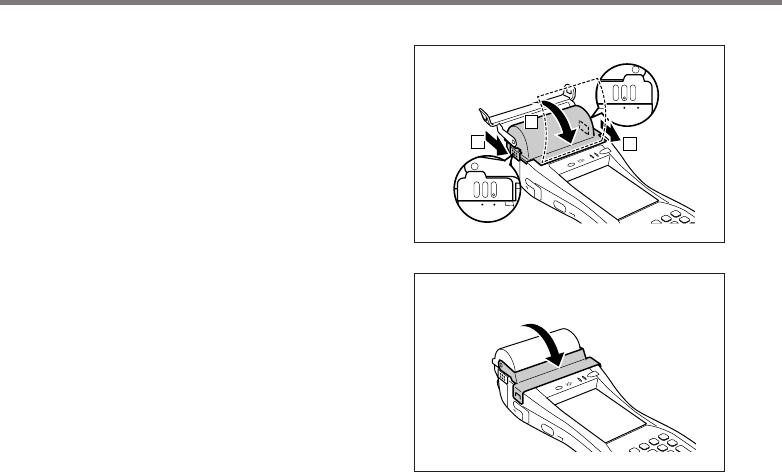

When Using Roll Paper .................................................................................... E-35

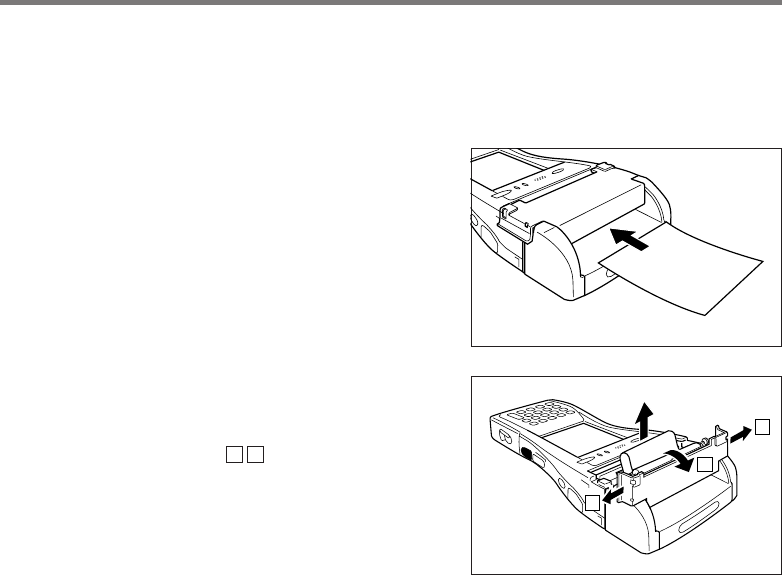

When Using Formed Sheet Paper ..................................................................... E-38
Precautions When Using Printer ....................................................................... E-42
Using the C-MOS Imager .............................................................................E-44
Warning Label .................................................................................................. E-45
Magnetic Card Reader ................................................................................. E-46
Performing Data Communication ...............................................................E-47

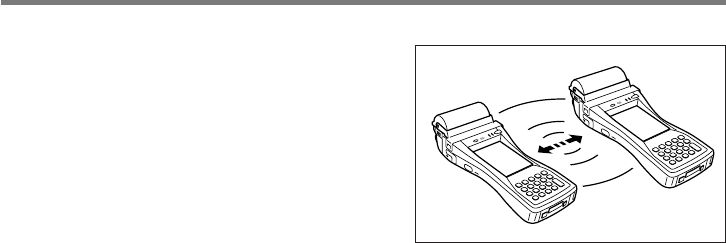

IR Communication ........................................................................................... E-47
RS-232C Communication ................................................................................ E-47
BluetoothTM Communication ............................................................................ E-48
Resetting the Handheld Printer Terminal ...................................................E-49

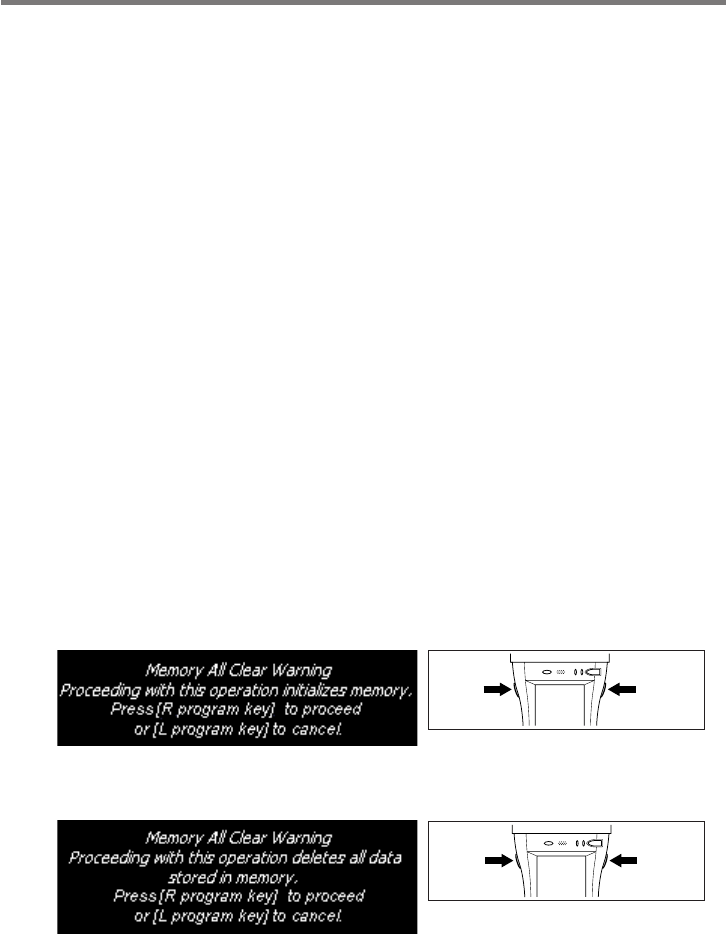

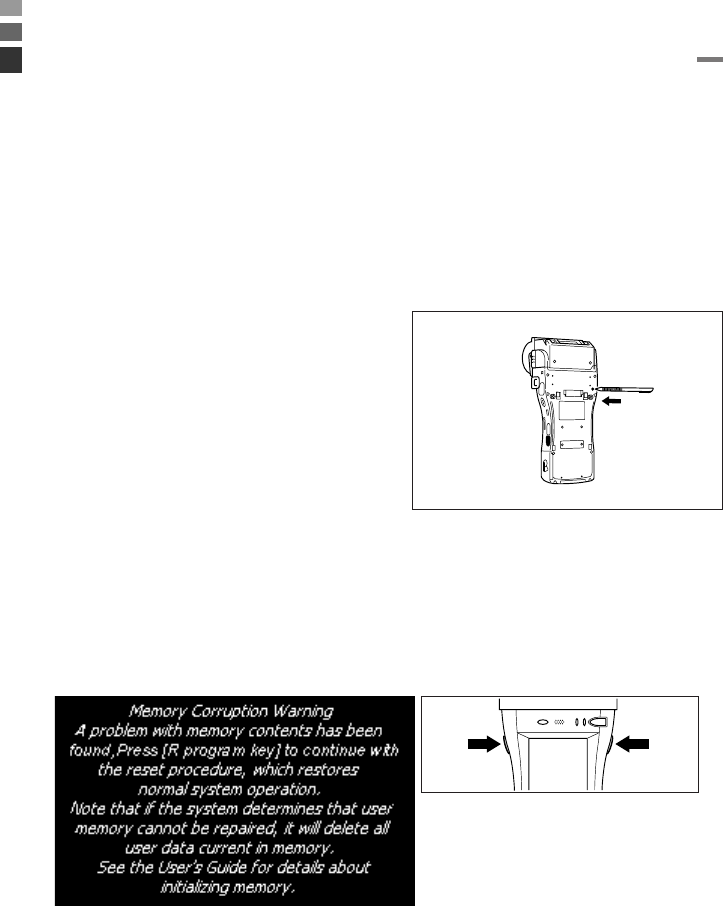

Performing a Full Reset (Initialization) ............................................................ E-50
IT-3000 Specifications ..................................................................................E-51
Using the Bridge Satellite Cradle (HA-B61IO) ........................................... E-53
IT-3000_E_P13_14.p65 07.6.29, 10:11 AM13
E-14
Contents

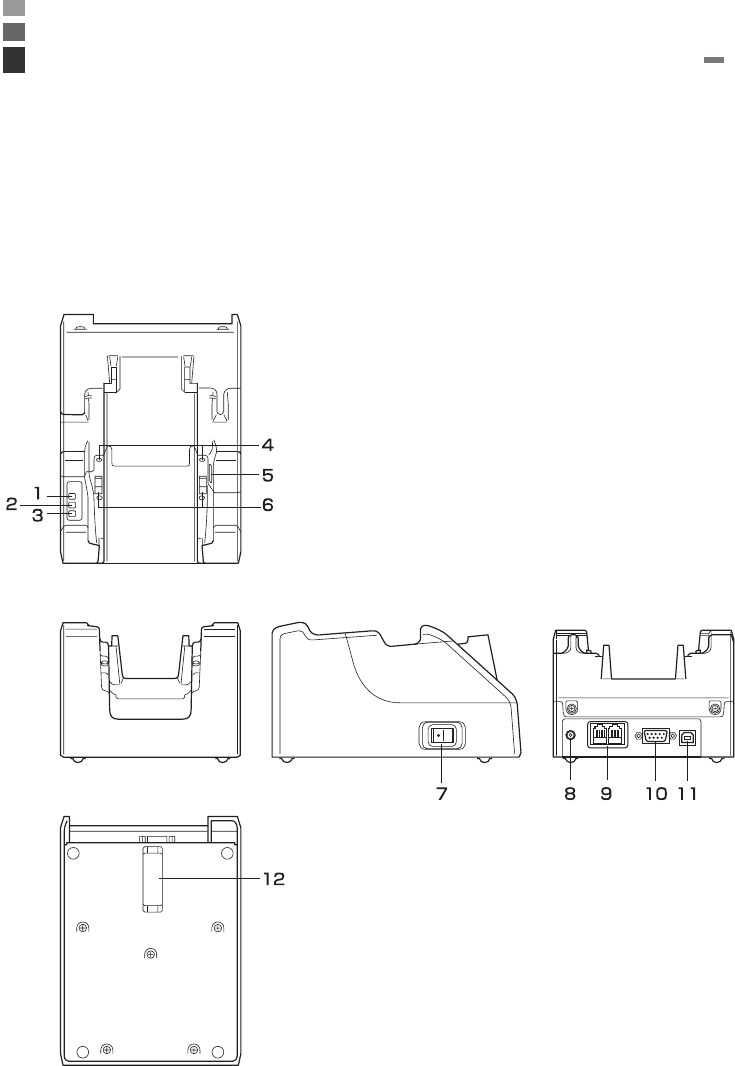

General Guide ................................................................................................... E-53
Connecting the AC Adaptor and Connecting to a Computer ............................ E-55

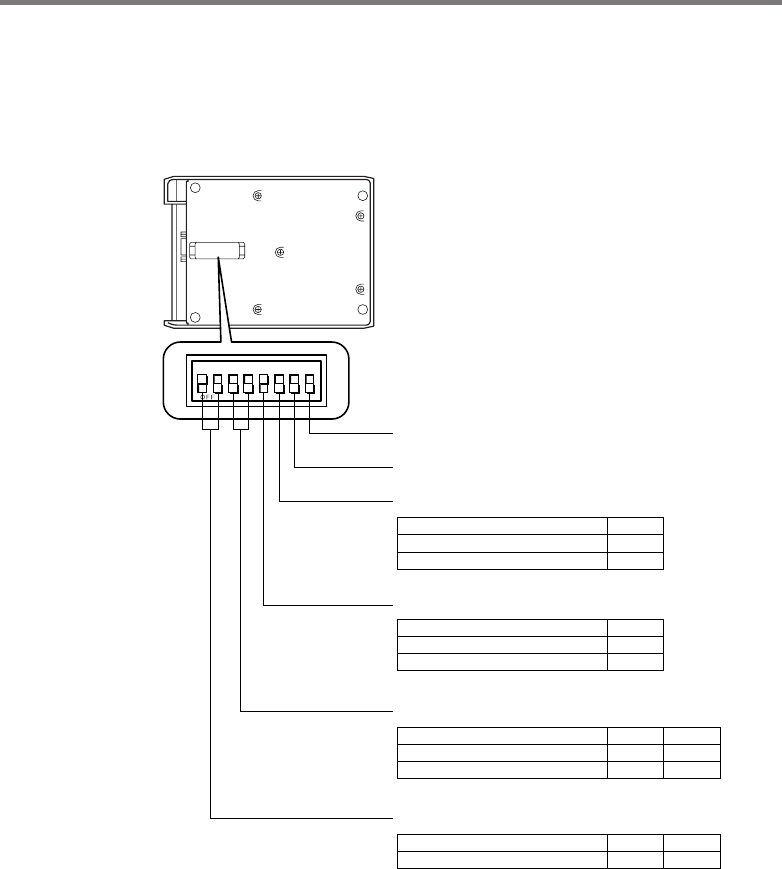

Configuring DIP Switch Settings ..................................................................... E-57

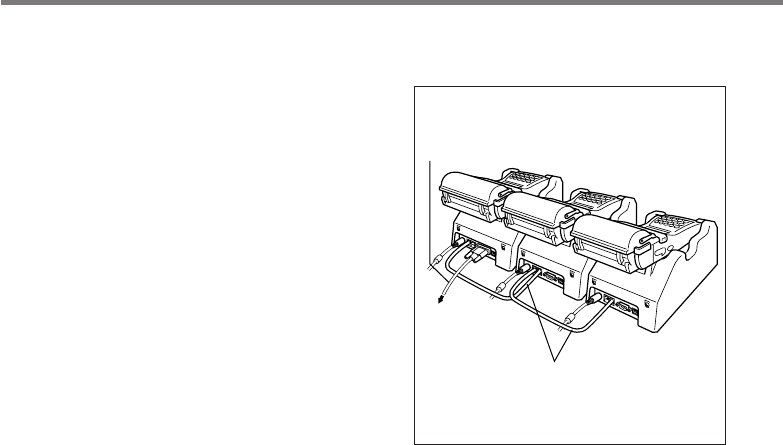

Connecting Multiple Bridge Satellite Cradles (HA-B61IO) ............................ E-58
Bridge Satellite Cradle (HA-B61IO) Specifications ........................................ E-59
Using the Cradle-type Battery Charger (HA-B30CHG) .............................E-60

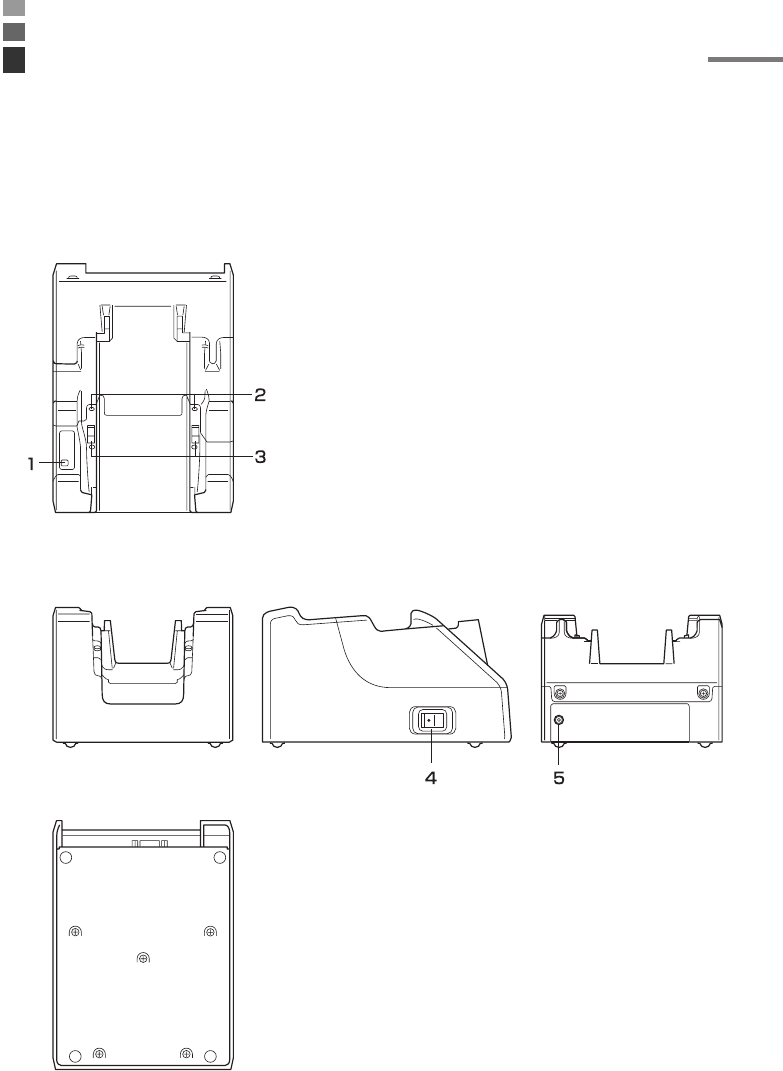

General Guide ................................................................................................... E-60

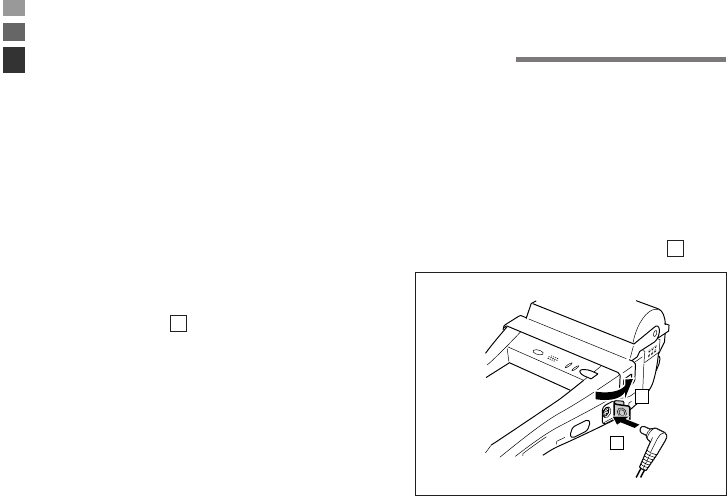

Connecting the AC Adaptor for the Cradle-type Battery Charger .................... E-62
Cradle-type Battery Charger (HA-B30CHG) Specifications ........................... E-63
Using the AC Adaptor (DT-9020ADP/GT-21089-0909-T3/AD-S10095A) ....E-64
AC Adaptor (DT-9020ADP) Specifications ..................................................... E-64
AC Adoptor (GT-21089-0909-T3) Specifications (for China only) ................. E-64
Using PC Cards ............................................................................................E-65

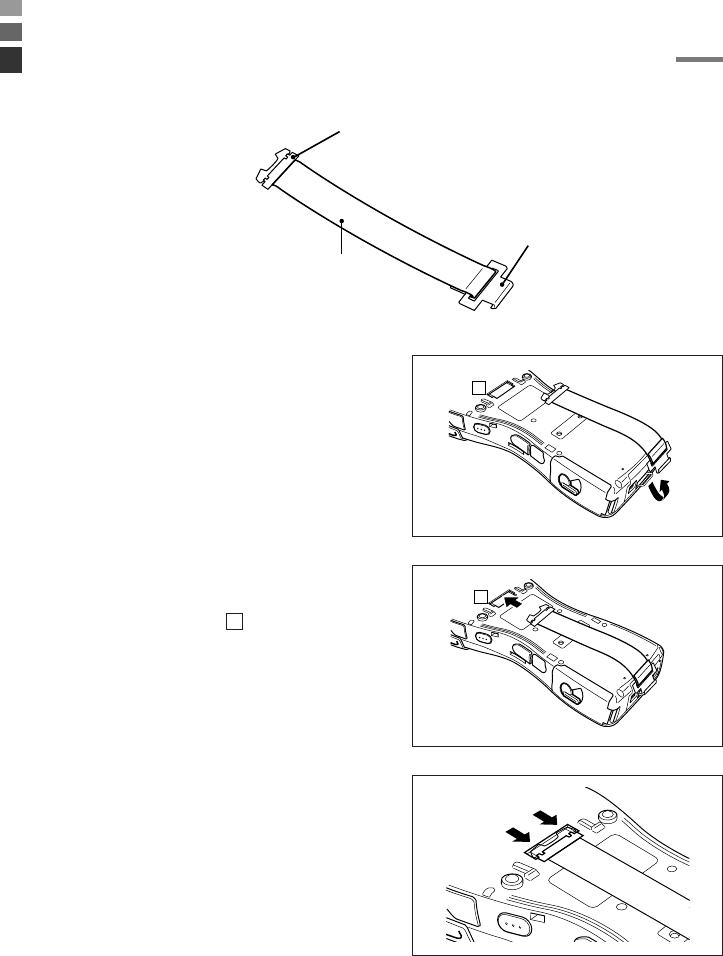

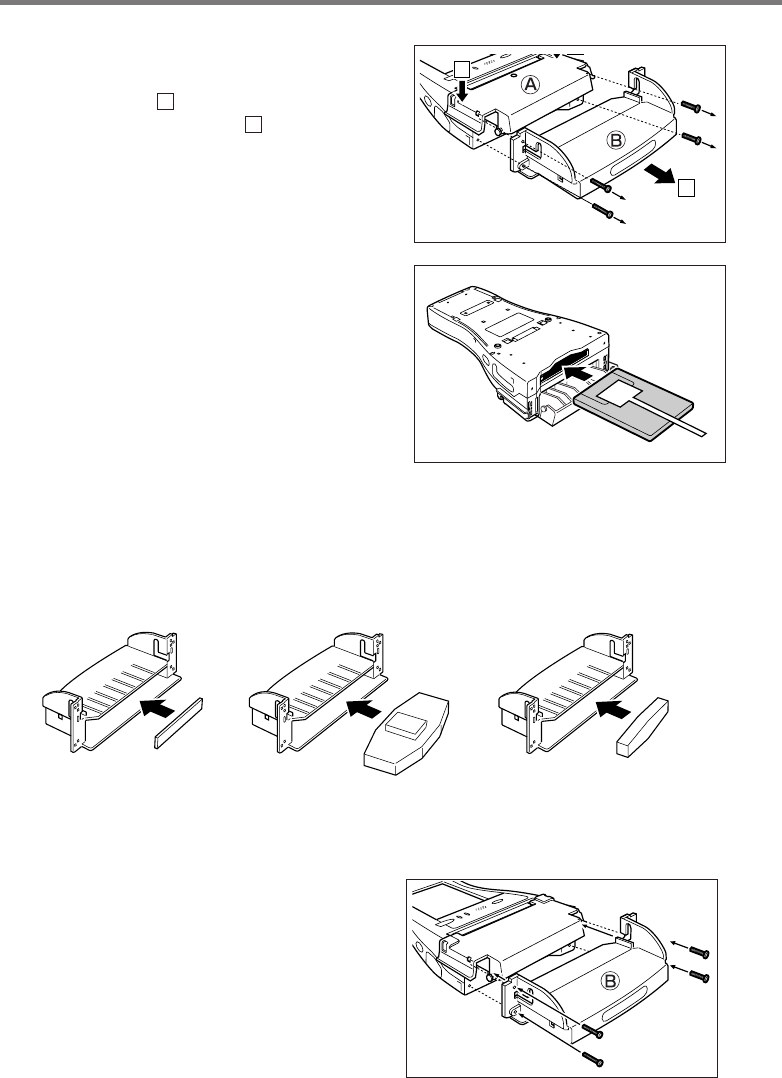

Attachment of PC Card Removal Tape to a PC Card ....................................... E-65
Inserting a PC Card (When Using the Roll Paper Holder) ............................... E-65

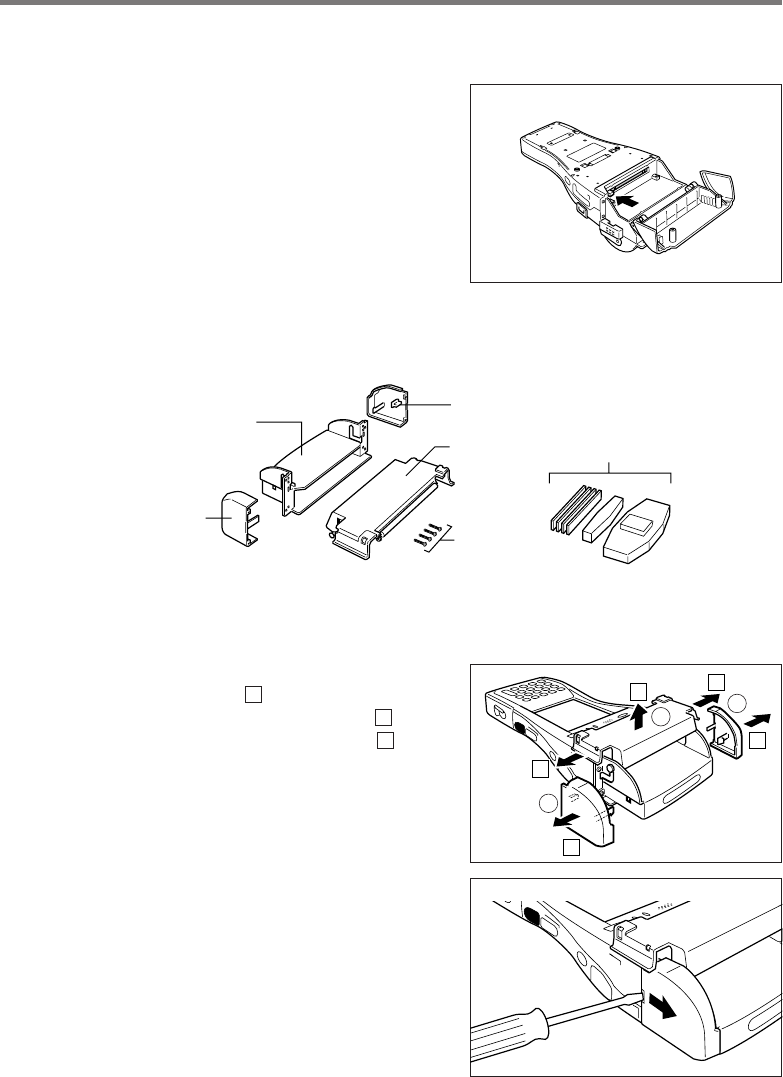

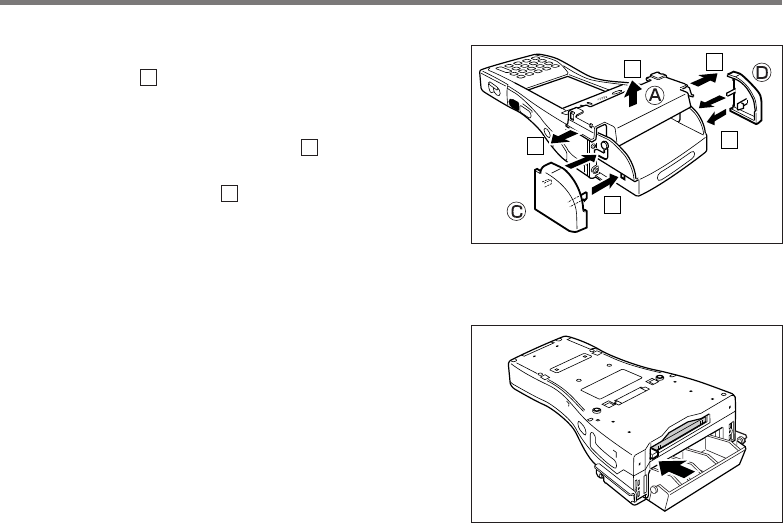

Inserting a PC Card (When Using the Paper Holder) ....................................... E-67

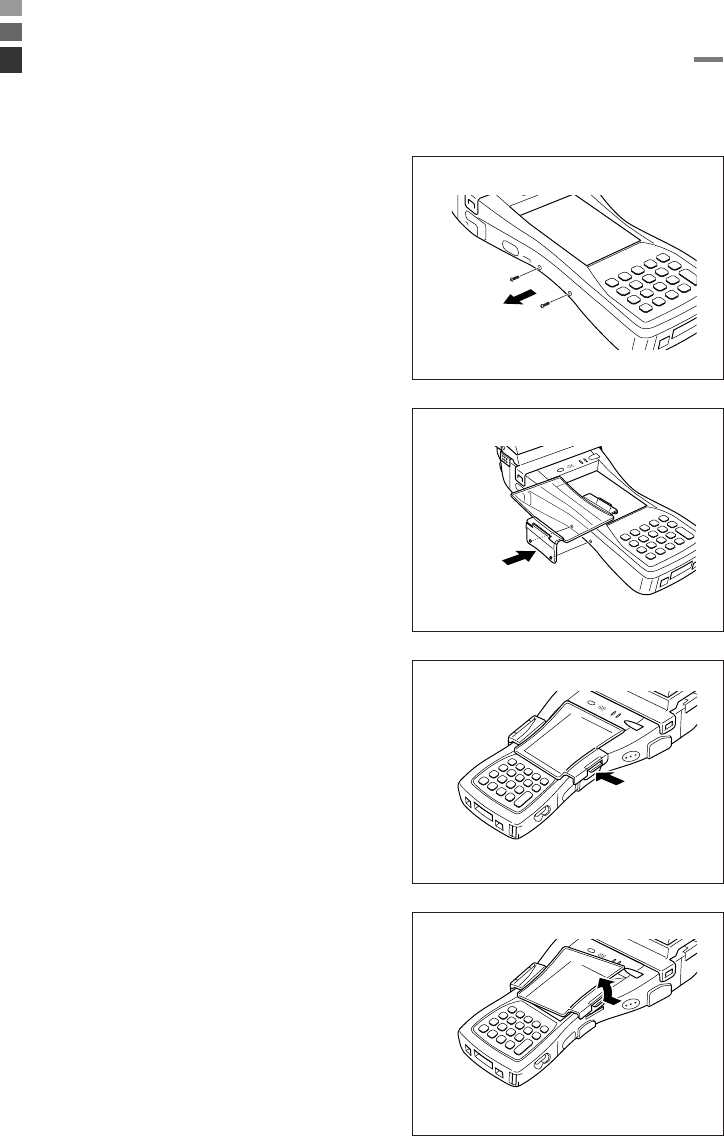

Using SD Memory Cards ............................................................................. E-70

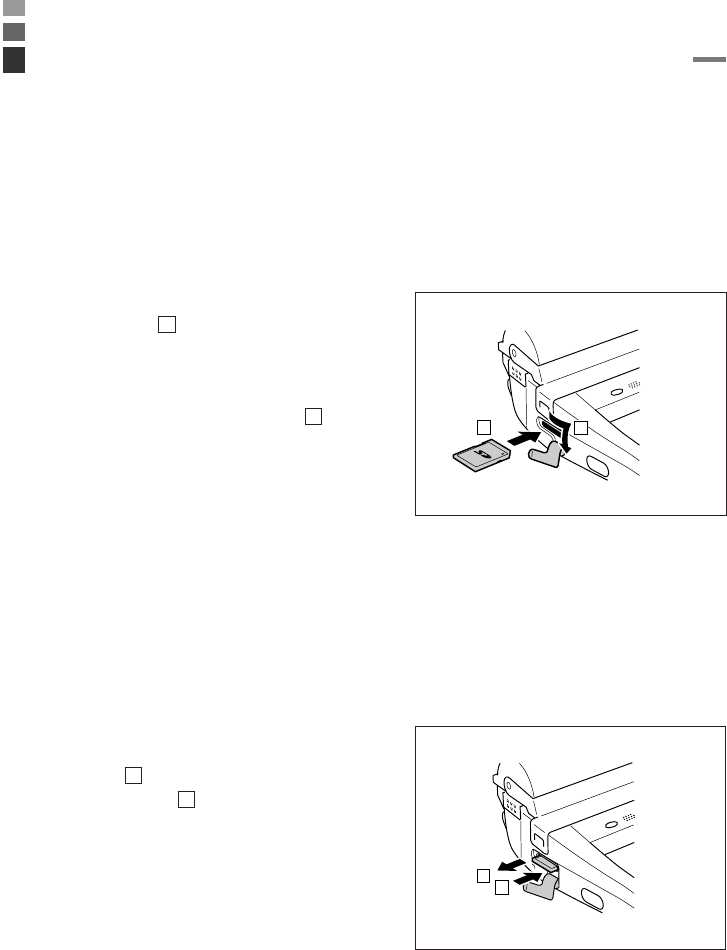

Inserting an SD Memory Card .......................................................................... E-70
Removing an SD Memory Card ....................................................................... E-70
Connecting a Bar Code Reader .................................................................. E-71
Connecting the bar code reader ........................................................................ E-71
Attaching the Screen Protect Cover ...........................................................E-72

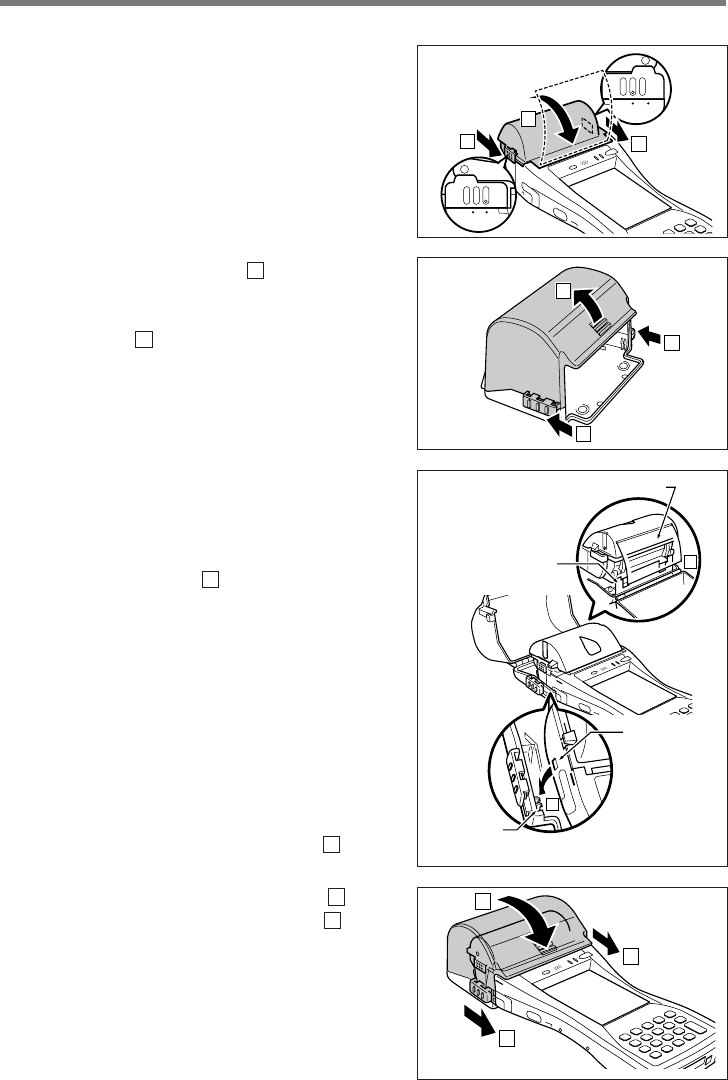

Attaching the Splash Protect Cover ...........................................................E-73
Using the Battery Pack ................................................................................E-75
Battery Pack Specifications .............................................................................. E-75
IT-3000_E_P13_14.p65 07.7.3, 8:23 PM14
E-15
Be sure to perform the following steps before trying to use the Handheld Printer
Terminal for the first time.
1. When unpacking, make sure that everything is included.
Open the box and make sure that all the items shown here are included.
2. Charge the battery pack.

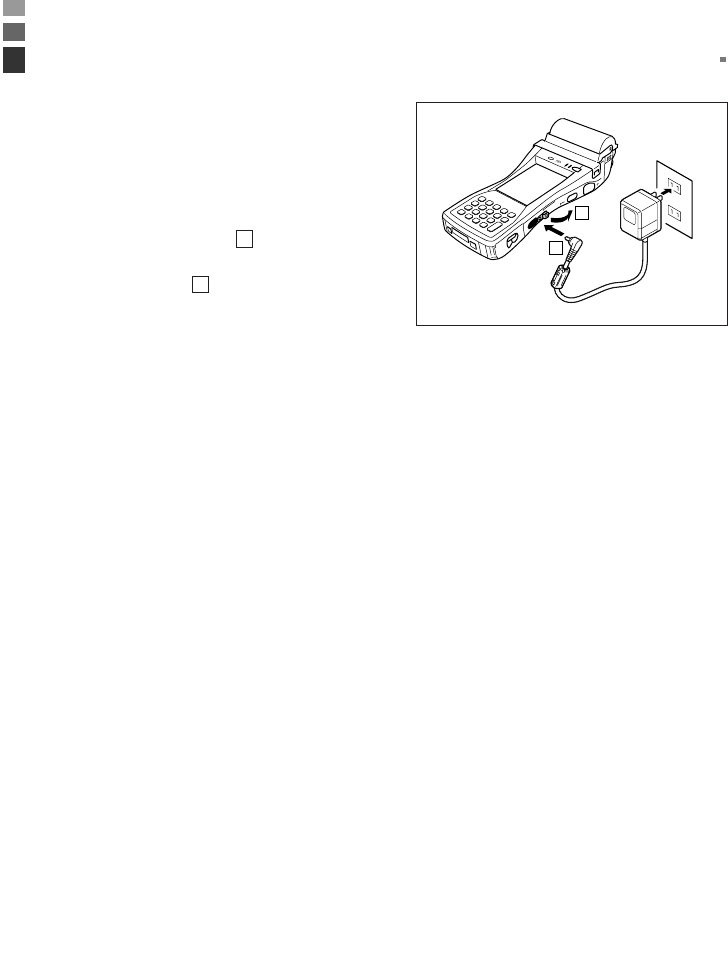

Use the AC Adaptor (DT-9020ADP/GT-21089-0909-T3/AD-S10095A), Cradle-type
Battery Charger or Bridge Satellite Cradle to charge the battery pack. When charging
the battery pack with these options, first install the battery pack in the Handheld
Printer Terminal. For information about use of the options, see pages 53, 60 and 64.
Handheld Printer Terminal
n
Handheld Printer Terminal
Stylus
Hand strap
Battery pack
Roll paper
Neck strap and stylus holder
PC card fixers
User's Guide (this manual)

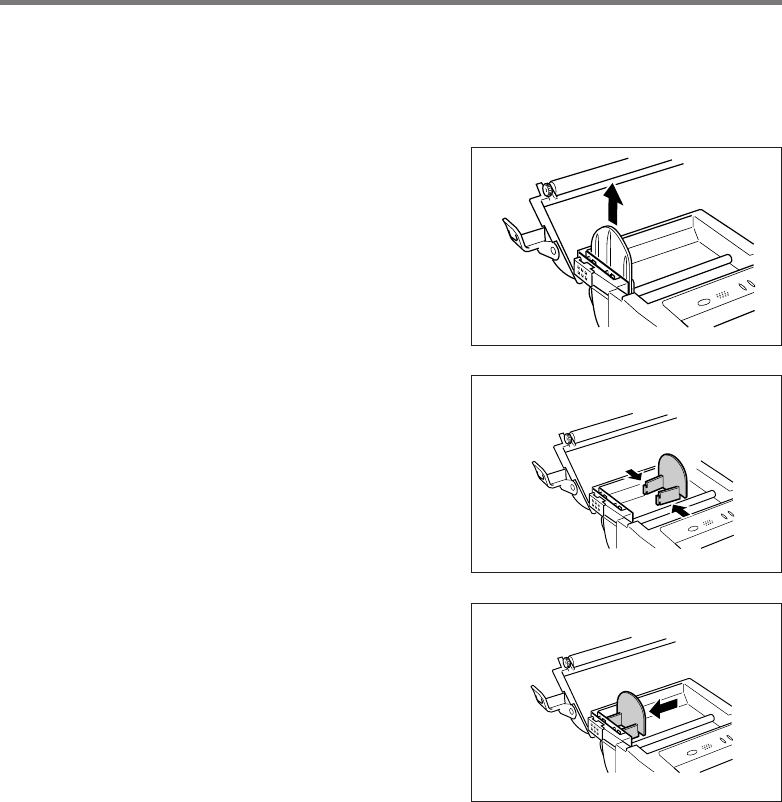

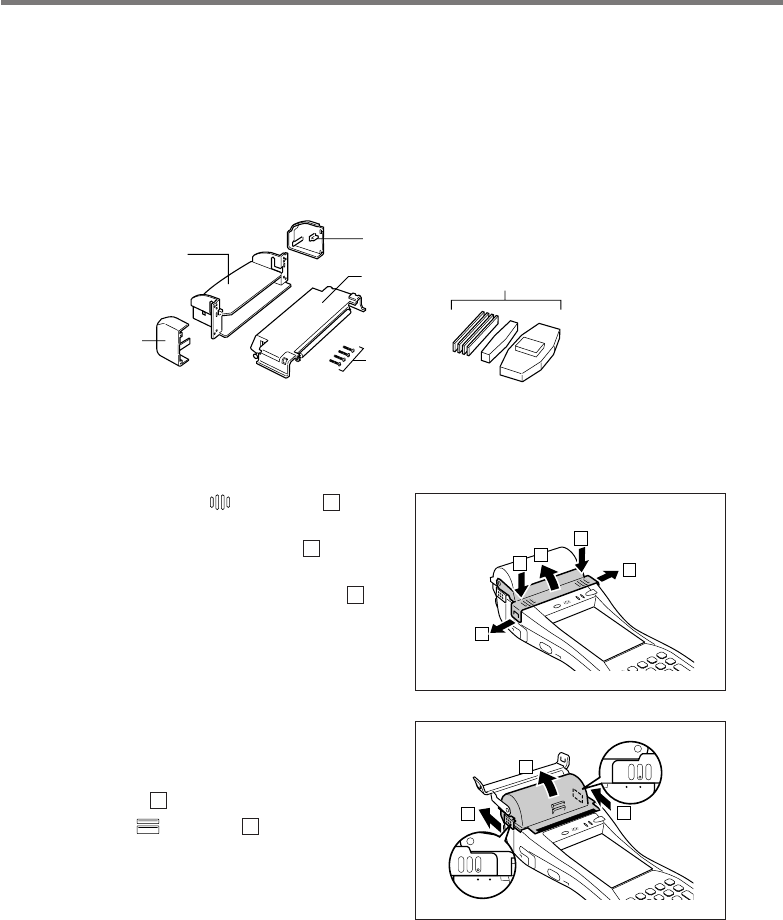

58mm Paper Width Adjuster
PC Card Remover (2 pcs)
Before Getting Started
Neck strap rings
IT-3000_E_P15_31.p65 07.6.29, 10:11 AM15
E-16

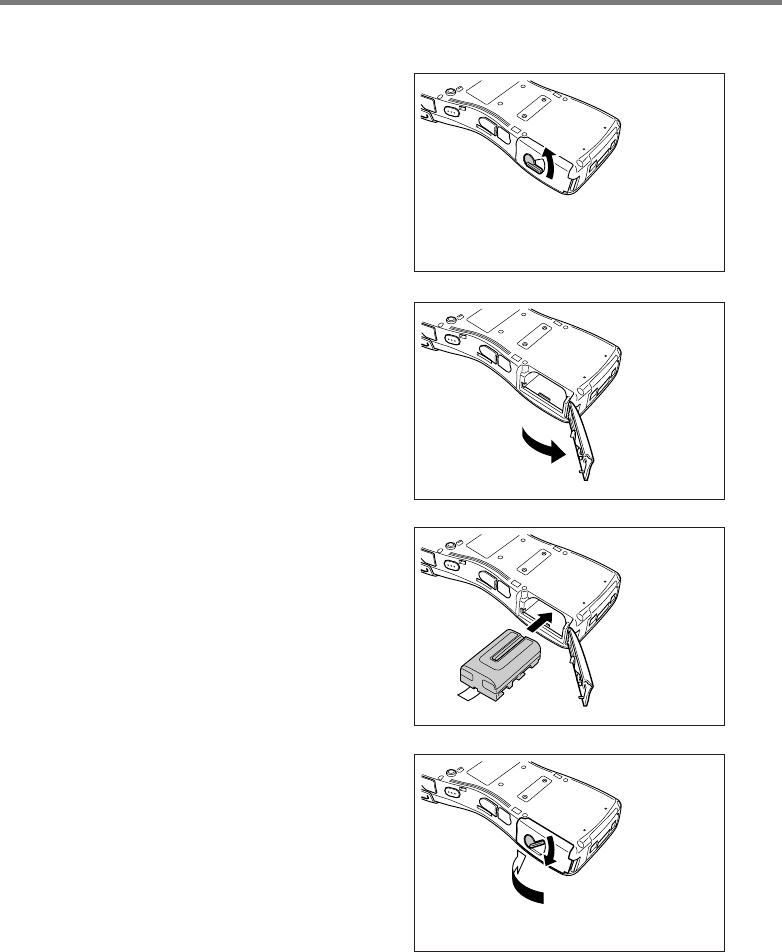

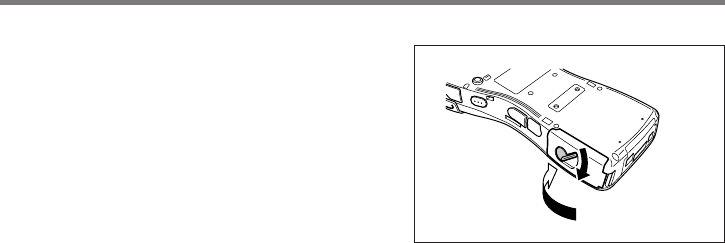

3. Load the battery pack into the Handheld Printer Terminal.
1Turn the battery pack cover lock
switch on the side of the Handheld
Printer Terminal to the “FREE”
position.
2
Open the battery pack cover.
3Install the battery pack(DT-9723LIC).
Push it all way to the end inside the
compartment until the eject button at
the front of the battery compartment
comes up (and sounds).
Make sure the battery pack is aligned
correctly when you install it.
4Return the battery pack cover to its
original position as shown in the
illustration, and then turn the battery
pack cover lock switch to the
“LOCK” position.
Before Getting Started
IT-3000_E_P15_31.p65 07.6.29, 10:11 AM16
E-17

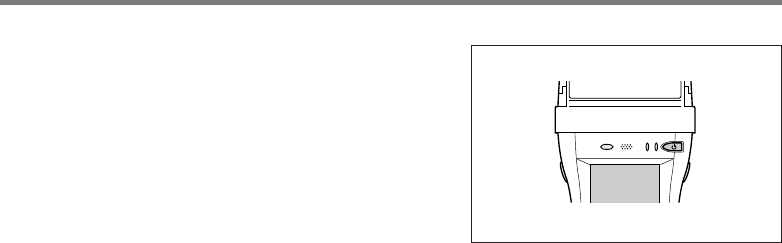

4. Hold down the power key for about one
second to turn on the power. Start up
the application you want to run.
IT-3000_E_P15_31.p65 07.6.29, 10:11 AM17
E-18
Options
IT-3000 Series
Required AC Adaptor for Bridge Satellite Cradle /
Cradle-type Battery Charger
AD-S42120A/AD-S42120B
Cradle-type Battery Charger
HA-B30CHG
HA-B61IO
Bridge Satellite Cradle
Handheld Printer Terminal System Configuration
IT-3000_E_P15_31.p65 07.6.29, 10:11 AM18
E-19

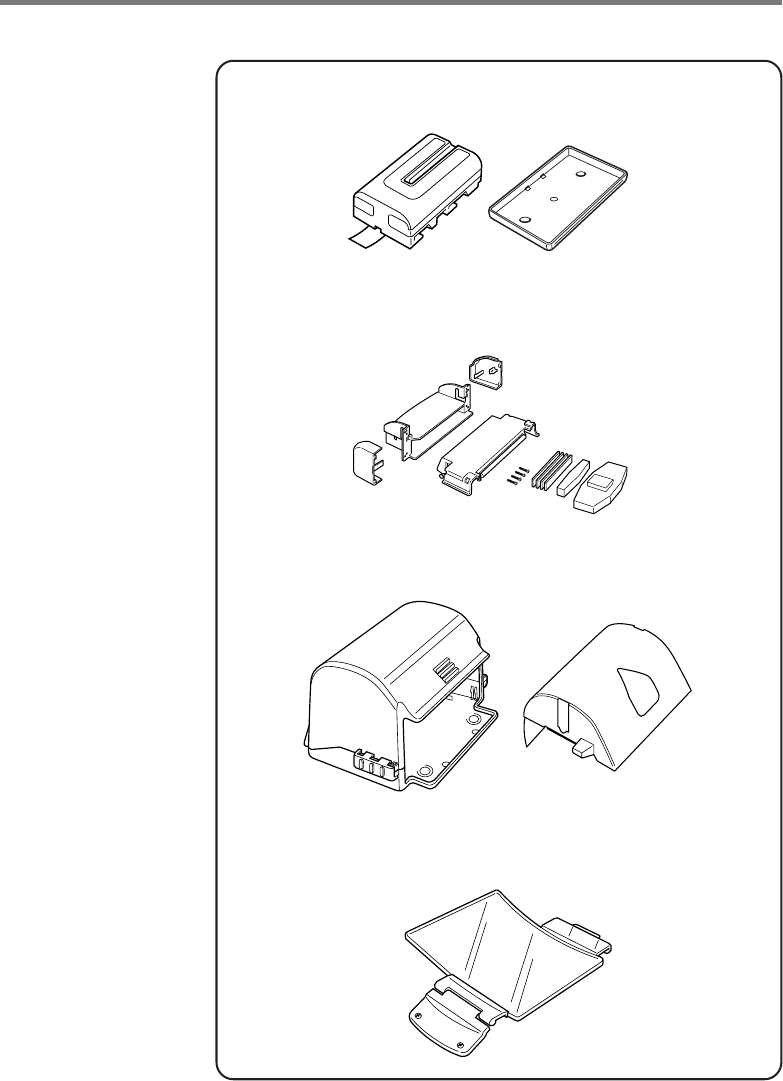

Battery Pack
DT-9723LIC
Formed Sheet Paper Holder
HA-B93PH
Splash Protect Cover
HA-B92PCV
Screen Protect Cover
HA-B90DCV
IT-3000_E_P15_31.p65 07.6.29, 10:11 AM19
E-20
AC Adaptor
DT-9020ADP-G
(The AC adaptor can be used in several countries other than the US.)
DT-9020ADP-U
(The AC adaptor can be used in several countries including the US.)
Handheld Priter Terminal System Configuration
GT-21089-0909-T3 (for China only)
AD-S10095A
IT-3000_E_P15_31.p65 07.7.3, 8:25 PM20
E-21
Cables
DT-882RSC RS-232C Cross Cable for connecting Bridge Satellite
Cradle and PC
DT-883RSC RS-232C Cross Cable for connecting Bridge Satellite
Cradle and PC
DT-887AXA Dsub 9-Pin (Female) RS-232C Cross Cable for Bridge
Satellite Cradle
DT-888RSC RS-422 Modular Cable for connecting Bridge Satellite
Cradle
DT-380USB USB Cable for connecting Bridge Satellite Cradle and
PC
HA-B80AX RS-232C Cross Cable for connecting Handheld Printer
Terminal and PC
IT-3000_E_P15_31.p65 07.6.29, 10:11 AM21
E-22
General Guide
25
3
4
5
6
7
8
9
10
1
2
24
11
12
13
14
15
16
17
18
23
19
20
18
21
22
IT-3000M53E/M54E2/M55E/M55U/M56E/M56U
* The C-MOS Imager is only installed on the IT-3000M55E/
M55U/M56E/M56U
* Magnetic Card Reader is only installed on the IT-3000M54E2/
M55E/M55U
IT-3000_E_P15_31.p65 07.7.3, 8:24 PM22
E-23
1
SD Memory Card Slot
2 Program Key (L)
3 Roll Paper Holder
4 Splash Protect
Cover and Paper
Cutter
5 Power Key
6 Indicator 1
(Left Side)
Indicator 2
(Right Side)
7 Speaker
8 Brightness Sensor
9 LCD Panel/Touch
Screen
10 Stroke Keys
11 RS-232C Interface
Connector
(IT-3000M53E/
M54E2)
12 Program Key (R)
13 Power Jack
14 IR Port
Slot for inserting SD memory card.
This key can be assigned any function available.
IT-3000M55E/IT-3000M55U/IT-3000M56E/IT-3000M56U
The default settings are as follows.
This key is used to read bar codes and 2D code.
Roll paper is placed in this holder. Use the optional Paper
Holder when using a formed sheet paper.
Printed roll paper is torn off here. The paper cutter is provided
with a splash protect cover. Open the cover when printing. The
paper cutter is revealed when the cover is opened.
Press this key to turn the power on or off.
This indicator is green when charging the battery pack is
completed and red during charging.
This indicator flashes or lights according to the settings of the
application software.
Generates audio and buzzer tones.
This sensor detects the brightness of the surroundings. The
display backlight and key backlight can be controlled
automatically according to programmed settings. Be careful not
to inadvertently block this sensor.
Displays text, operations, indicators and so forth. In addition,
operations can be performed and data can be input using the
stylus provided.
There are a total of 19 keys including function keys and numeric
keys. Refer to "Key Functions" on page 25 for further details.
Each numeral and symbol on the key buttons in the table above
is backlit.
For connection of a bar code reader and so forth. Connect by
opening the connector cover.
This key can be assigned any function available.
IT-3000M55E/IT-3000M55U/IT-3000M56E/IT-3000M56U
The default settings are as follows.
This key is used to read bar codes and 2D codes.
The AC adaptor is connected to this jack when charging the lithium
ion battery pack. Open the jack cover to connect the AC adaptor.
This is used for IR data communication with another Handheld
Printer Terminal or with the Bridge Satellite Cradle.
IT-3000_E_P15_31.p65 07.6.29, 10:11 AM23
E-24
15 Battery Pack
Cover Lock Switch
16 Battery Pack
Cover
17 PC Card Slot
18 Hand Strap Hook
19 14-pin Serial
Interface
Connector
20 Power Terminals
21 Neck Strap Hooks
22
Magnetic Card Reader
(IT-3000M54E2/
M55E/M55U)
23 Reset Switch
24 Screen Protect
Cover Mounting
25 C-MOS Imager
(IT-3000M55E/
M55U/M56E/
M56U only)
Turn this switch when opening and closing the battery pack
cover.
Houses the battery pack inside.
For connection of a separately sold PC card. Remove the cover
to install a PC card.
Hook the hand strap here.
Provided for future use.
Terminals for supplying power from the Bridge Satellite Cradle
and Cradle-type Battery Charger.
Hook the neck strap here.
Magnetic cards are read by passing through this magnetic card
reader.
Remove the cover to use.
Press to reset the Handheld Printer Terminal. Be careful not to
press by mistake.
Remove the screws when attaching the Screen Protect Cover.
Reads 1D bar code symbologies and stacked 2D code
symbologies.
General Guide
IT-3000_E_P15_31.p65 07.6.29, 10:11 AM24
E-25

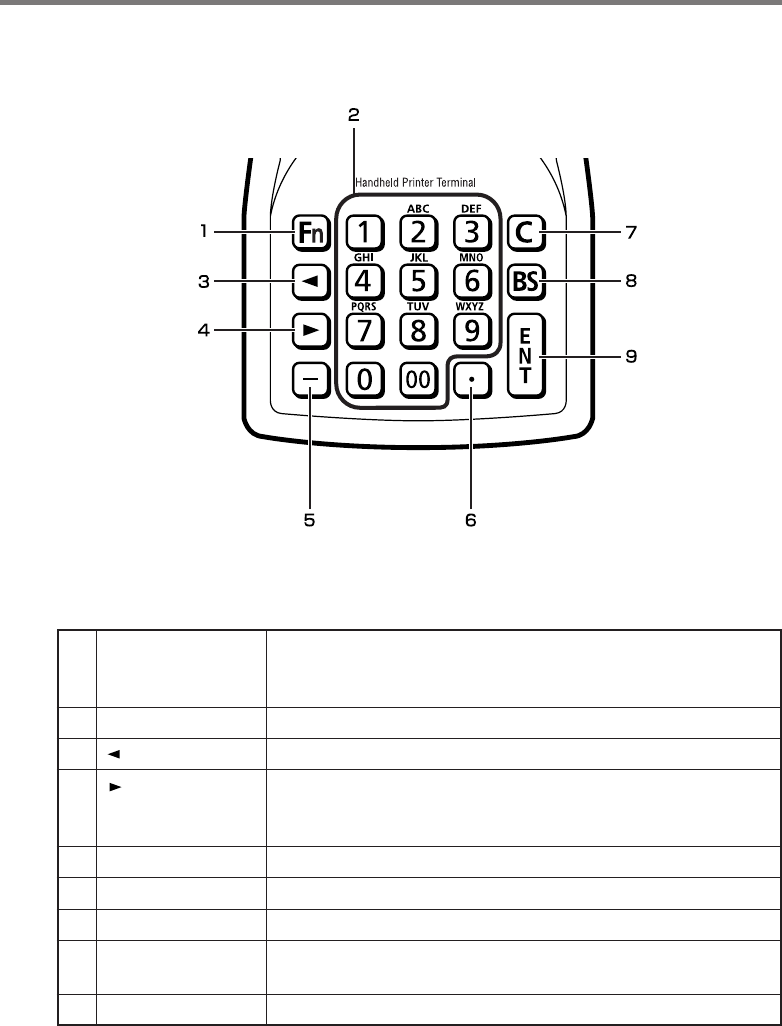

1 Fn Key
2 Numeric Keys
3 (Cursor Key)
4 (Cursor Key)
5-
6.
7C
8BS
9 ENT
This key is used to switch the character input mode or make
various settings in combination with other keys, or start up a
pre-registered application.
These keys are used to input numbers and letters.
Moves the cursor to the left.
Moves the cursor to the right. This is also used to feed paper
when pressed after pressing the Fn key when printing paper is
loaded.
This key is pressed when inputting a hyphen or bar.
This key is pressed when inputting a period.
This key is pressed when canceling an operation and input.
This key is pressed when deleting the character to the left of the
cursor.
This key is pressed when entering an input.
Key Functions
* Each numeral and symbol on the key buttons in the table above is backlit.
IT-3000_E_P15_31.p65 07.6.29, 10:11 AM25
E-26
Your Handheld Printer Terminal uses two types of battery: a battery pack and a memory
backup battery.
A battery pack (DT-9723LIC) is used for the main battery. A backup battery is housed
inside the Handheld Printer Terminal.
This guide uses the following terms to refer to the batteries.
Battery Pack: Rechargeable battery pack for normal operations and data storage
Backup Battery: Built-in battery for memory backup
When the battery pack power goes low, immediately charge it or replace it with a
charged battery pack.
You can use the AC Adaptor, Cradle -type Battery Charger or Bridge Satellite Cradle to
charge the battery pack. When charging the battery pack with these options, first install
the battery pack in the Handheld Printer Terminal. For information about use of the
options, see pages 53, 60 and 64.
Replacing the Battery Pack
Important!
Always keep backup copies of all important data!
•The main battery powers normal operation and also provides power required to
maintain memory contents, while the backup battery provides backup power to
maintain memory contents. Because of this, you should not remove the main
battery while the backup battery is dead. Removing the battery pack while the
backup battery is dead causes data in the memory to be corrupted or lost. Note
that once data is lost it cannot be recovered. Always keep separate backup
copies of all important data.
•The charge of a battery pack when you purchase it may be depleted due to
testing at the factory or natural discharge during shipment and storage. Be sure
to charge the battery pack before you use it.
•The life of a battery pack is limited, and charging a battery pack causes it to
gradually lose its ability to maintain the charge. If your battery pack seems to
require charging very frequently, it probably means it is time to purchase a new one.
•A fully charged backup battery can maintain memory (RAM) contents for about
10 minutes, even when the main battery is removed.
•The backup battery achieves a full charge in about four days when the battery
pack is loaded.
Replacing the Battery
IT-3000_E_P15_31.p65 07.6.29, 10:12 AM26
E-27
To replace the battery pack
1. Make sure that the Handheld Printer Terminal is turned off.
If the power is on, press the power key to turn it off.
2. Turn the battery pack cover lock switch
on the side of the Handheld Printer
Terminal to the “FREE” position.
3. Open the battery pack cover.
4. Remove the battery pack.
Press down the battery pack eject button
(see the arrow).
Remove the battery pack by pulling on
the tape.
5. Install a charged battery pack in the
Handheld Printer Terminal. Make sure
the battery pack is aligned correctly
when you install it.
IT-3000_E_P15_31.p65 07.6.29, 10:12 AM27
E-28
Important!
•When replacing the battery pack, make sure you do not leave the Handheld
Printer Terminal without a battery pack for more than about 10 minutes. Doing
so can cause data in the memory to be deleted.
•Never try to use other type of battery than the one that is specified for this
product.
6. Return the battery pack cover to its
original position as shown in the
illustration, and then turn the battery
pack cover lock switch to the “LOCK”
position.
Replacing the Battery
IT-3000_E_P15_31.p65 07.7.3, 8:24 PM28
E-29
A flexible hand strap can be attached to the Handheld Printer Terminal.
Hook A
Hand Strap
Hook B
Attach the hand strap following the procedure described below.
1. Attach Hook B of the hand strap to the
hand strap hook located on the bottom of
the Handheld Printer Terminal.
2. Pull on the hand strap in the direction
shown in the illustration, and then fasten
Hook A onto hook ( ) on the back of
the Handheld Printer Terminal.
3. Fasten the wire of Hook A by inserting
into the indentation in the Handheld
Printer Terminal.
•Pull up on the center of the wire when
unfastening.
Attaching the Hand Strap
1
1
1
* The illustration shows the IT-3000M53E
IT-3000_E_P15_31.p65 07.6.29, 10:12 AM29
E-30
A neck strap can be attached to the Handheld Printer Terminal to keep it from being
dropped while being carried. The stylus holder provided can also be attached.
Attach the neck strap following the
procedure described below.
Attachment Procedure
1. Pull out the neck strap mounting hooks
out of each silo on the bottom of the
Handheld Printer Terminal using the tip
of stylus. Hook the protrusive part (**)
of the ring on the neck strap mounting
hook as shown in the illustration. While
slightly pushing the ring, turn the ring
until all part of it is fully hooked.
** The ring is very stiff for the first time. A
small flat screw driver is helpful by
inserting it into overlapped part of the
ring to make a room when hooking the
protrusive part.
2. Pull back the locking bar of the neck
strap mounting hook and then hook the
mounting hook onto the ring as shown in
the illustration.
Neck strap
Adjust length here
Mounting
hooks
Stylus holder
Attaching the Neck Strap
The illustration shows the IT-3000M53E
* ; The rings give an extra mechanical strength for
the Neck Strap. The metallic hooks of the Neck
Strap can, in rare case, be worn by abrasion
induced by swinging the IT-3000 terminal
specifically when it is hung from the operator's
neck with the Neck Strap. For those who often
use the IT-3000 terminal in a hanging position, it
is recommended to use the rings to secure the
Neck Strap.
Neck strap rings*
IT-3000_E_P15_31.p65 07.7.3, 8:24 PM30
E-31
Removal Procedure
1. Pull back the locking bar of the neck
strap mounting hook and then release
the hook from each ring as shown in the
illustration.
2. Following the attachment procedure in
reverse way, remove the neck strap rings
from each neck strap mounting hook on
the Handheld Printer Terminal and then
push back the neck strap mounting
hooks into each silo.
Attaching the Stylus Holder
The stylus holder provided can be attached to the neck strap as necessary. When
attaching the stylus holder, first remove the neck strap from the Handheld Printer
Terminal. In addition, remove the stylus from the stylus holder.
Bracket AMounting Hook C
Bracket B
Attach the stylus holder following the
procedure described below.
1. Remove the end of the strap from
Bracket A and Bracket B.
IT-3000_E_P15_31.p65 07.7.3, 8:24 PM31
E-32
2. Remove Mounting Hook C.
3. Pass the stylus holder through the strap
as shown in the illustration.
4. Fold back the strap after passing through
Bracket C, and then fasten in the same
way it was originally fastened with
Bracket A and Bracket B.
•Do not pass the strap through the stylus
holder when folding it back.
•Place the stylus in the stylus holder after
first re-attaching the neck strap to the
Handheld Printer Terminal.
Important!
•Do not swing the Handheld Printer Terminal with the neck strap.
Attaching the Neck Strap
IT-3000_E_P32_52.p65 07.6.29, 10:12 AM32
E-33
Calibrating Touch Screen Alignment
Whenever you feel that touch screen response is poor or that the operations being
executed do not match the location you are tapping on the touch screen, perform the
following operations to calibrate the alignment of the touch screen.
•Press the “Fn” key and then press the “4” key after confirming that “F” is displayed
in the lower right corner of the screen.
* The following screen can also be displayed by consecutively tapping the stylus on the
control panel.
•Press the stylus against the center of the target mark (+ mark) as indicated on the
screen. The screen shown below appears after you press stylus against the target at
five different locations.
Configuring Handheld Printer Terminal Settings
•Press the ENTER key or tap anywhere on the touch screen.
IT-3000_E_P32_52.p65 07.6.29, 10:12 AM33
E-34
Adjusting Display Contrast
Perform the following steps to adjust display contrast to make display colors more
vivid and easier to see.
•Press the “Fn” key and then press the “2” key or “3” key after confirming that “F” is
displayed in the lower right corner of the screen. Pressing the “2” key adjusts for
more contrast, while pressing the “3” key adjusts for less contrast.
* In order to continue to make adjustments, press the “2” key or “3” key after again
first pressing the “Fn” key.
* Contrast settings can also be made by consecutively tapping “Brightness” on the
control panel.
Adjusting Display Brightness
You can use the following procedure to adjust screen brightness to make it easier to
read under different lighting conditions.
•Press the “Fn” key and then press the “5” key or “6” key after confirming that “F” is
displayed in the lower right corner of the screen. Pressing the “5” key adjusts
brightness for a darker display, while pressing the “6” key adjusts brightness for a
brighter display.
* In order to continue to make adjustments, press the “5” key or “6” key after again
first pressing the “Fn” key.
* Brightness settings can also be made by consecutively tapping “Brightness” on the
control panel.
Important!
•If you use your Handheld Printer Terminal in a location where it is hot, it
automatically dims the screen to protect against damage.
Display Auto Dimmer
The display auto dimmer automatically lowers display brightness if you do not perform
any operation for a specific amount of time. This saves the battery power to be drawn.
You can use the following procedure to specify the amount of time should be allowed
to pass before auto dimming is performed.
•Select “Control Panel” on the “Settings” menu after tapping the “Start” button in the
lower left corner of the screen. Next, consecutively tap the “Brightness” icon and
then tap “Backlight” to set the displayed parameters.
* Double tap: This refers to lightly tapping the touch-screen twice in succession.
** Tap: This refers to lightly tapping the touch-screen once.
Configuring Handheld Printer Terminal Settings
IT-3000_E_P32_52.p65 07.6.29, 10:12 AM34
E-35
The printer can print on roll paper (80 mm or 58 mm wide) or 80 mm wide formed
sheet paper. When printing on formed sheet paper, use the paper holder (HA-B93PH)
sold separately.

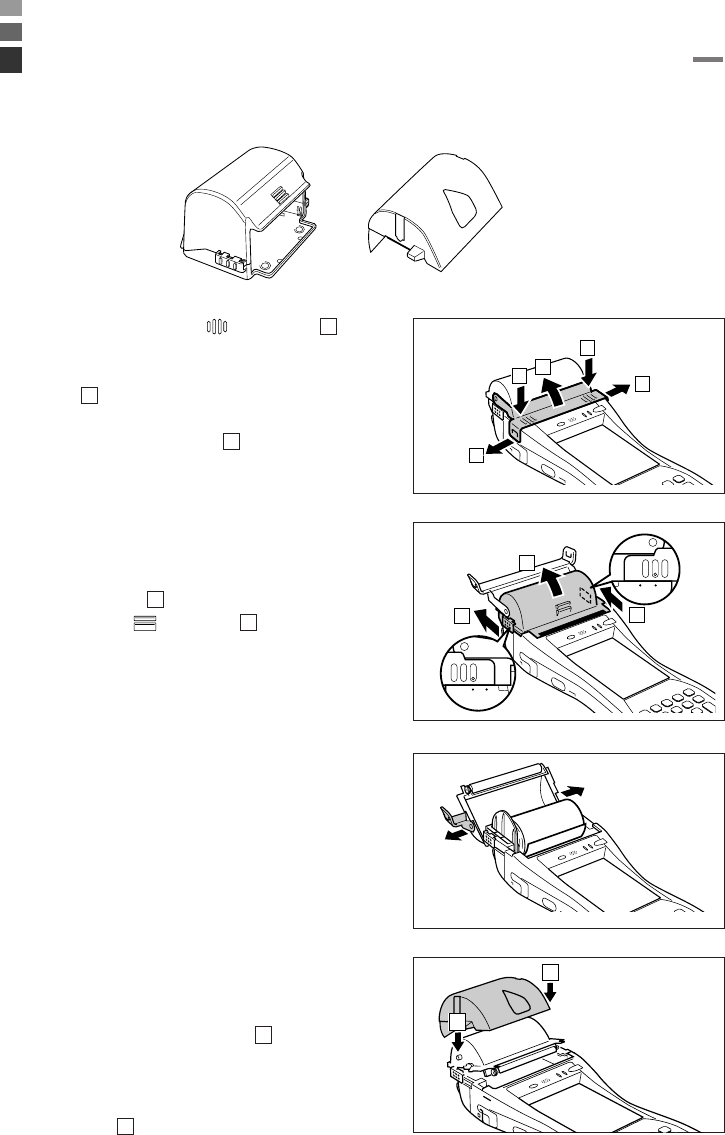

When Using Roll Paper
Installing the Roll Paper
1. Check that the power is off. If the power is on, always make sure to turn it off by
pressing the power key.
2. Press the ridged ( ) portions ( ) of
the splash protect cover while spreading
apart the locks on the left and right sides
( ) to disengage them as shown in the
illustration followed by opening the
splash protect cover ( ).
3. Slide the lock knobs on the left and right
sides of the roll paper holder as shown
in the illustration to align at the FREE
position ( ), and then push up the
ridged ( ) portion ( ) to open.
•Please note that the positions of the
lock knobs on the left and right sides
are different.
4. Peel off the seal from the roll paper and
install as shown in the illustration.
1
2
3
1
2
Using the Printer
1
3
2
2
1
1
2
1
LOCK FREE
LOCKFREE
IT-3000_E_P32_52.p65 07.6.29, 10:12 AM35
E-36
5. Close the roll paper holder, slide the
lock knobs on the left and right sides as
shown in the illustration to align at the
“LOCK” position to lock the roll paper
holder in position, and then tear off the
protruding roll paper.
•Please note that the positions of the
lock knobs on the left and right sides
are different.
6. Close the splash protect cover as
necessary.
•Open the splash protect cover when
printing with the printer.
•Close the splash protect cover when
using outdoors in the rain and so forth.
Important!
•Always print with the roll paper properly installed. Printing without properly
installing roll paper can damage the printer.
•If the roll paper should happen to become jammed in the printer, open the roll
paper holder by following the procedure described in steps 1 and 3 of the
procedure for “Installing the Roll Paper”, and then remove the jammed paper.
Be careful not to touch the printer at this time since it may have become hot
during the course of printing.
•The printer is not protected against splashing water when the splash protect
cover is closed with roll paper present outside the roll paper holder.
•Remove the splash protect cover when not in use. Protection against splashing
water is not guaranteed when the splash protect cover has been removed. Store
the splash protect cover in a safe location after it has been removed.
•If the end of the roll paper has become curled making it difficult to install the
paper, first flatten out the paper by bending it back in the opposite direction
before installing.
Using the Printer
LOCK FREE
2
1
2
LOCKFREE
IT-3000_E_P32_52.p65 07.6.29, 10:12 AM36
E-37
Attaching the 58 mm Paper Width Adjuster
Attach the 58 mm Paper Width Adjuster inside the roll paper holder when using 58 mm
wide roll paper. Refer to the procedure described in “Installing the Roll Paper” for
information on opening and closing the roll paper holder.
1. Remove the 80 mm Paper Width
Adjuster as shown in the illustration.
•Store the 80 mm Paper Width Adjuster
in a safe place after it has been
removed.
2. Press the attachments of the 58 mm
Paper Width Adjuster from the left and
right sides as shown in the illustration.
3. Insert the attachment of the 58 mm
Paper Width Adjuster into the mounting
holes inside the left side of the roll paper
holder to lock in position.
Important!
•Always make sure to attach the 58 mm Paper Width Adjuster when using 58
mm wide roll paper. Failure to attach the 58 mm Paper Width Adjuster may
cause the paper to jam or the printer to malfunction.
•58 mm wide roll paper can only be used when the installed application is for use
with 58 mm wide paper only.
IT-3000_E_P32_52.p65 07.6.29, 10:12 AM37
E-38
When Using Formed Sheet Paper
Attaching the Paper Holder
Attach the separately sold Paper Holder (HA-B93PH) when printing on formed sheet
paper. The Paper Holder is composed of four parts and four screws.
In addition, a PC card cushion is enclosed to prevent the PC card from being dislodged
by an impact and so forth. Use this card as necessary.
1. Check that the power is off. If the power is on, always make sure to turn it off by
pressing the power key.
2. Press the ridged ( ) portions ( ) of
the splash protect cover while spreading
apart the left and right locks ( ) to
disengage as shown in the illustration, and
then open the splash protect cover ( ).
3. Slide the lock knobs on the left and right
sides of the roll paper holder as shown
in the illustration to align at the FREE
position ( ), and then push up the
ridged ( ) portion ( ) to open.
•Please note that the positions of the
lock knobs on the left and right sides
are different.
4. Turn over the Handheld Printer Terminal.
1
2
3
2
Using the Printer
1
3
2
2
1
1
2
1
LOCK FREE
LOCKFREE
2
Part B
Part D
Part C
Part A
Screws (4)
PC card cushion
IT-3000_E_P32_52.p65 07.6.29, 10:12 AM38
E-39

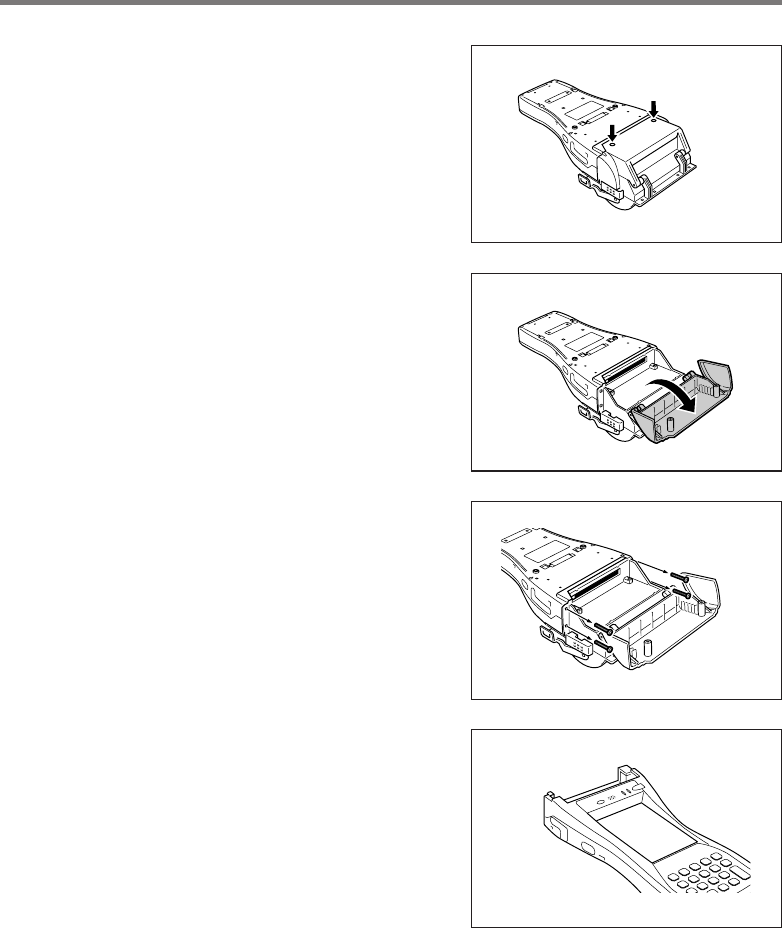

5. Loosen the two screws shown in the
illustration (the screws cannot be
removed).
6. Open the cover (PC card slot cover) as
shown in the illustration.
7. Loosen and remove the four screws
shown in the illustration. Store the
removed screws in a safe place so that
they do not become lost.
8. Turn the Handheld Printer Terminal
back over.
9. Remove the entire roll paper holder.
IT-3000_E_P32_52.p65 07.6.29, 10:12 AM39
E-40
10. Fasten Part A of the Paper Holder to
the Handheld Printer Terminal.
Press both ends of Part A to fasten to
the Handheld Printer Terminal.
11. Insert the projections on both sides of
Part into the grooves of Part B and
fasten to the Handheld Printer
Terminal with the four screws for the
Paper Holder.
12. While spreading apart both ends of
Part A ( ), remove Part A from the
Handheld Printer Terminal by lifting
up Part A until the projections reach
the upper edges of the grooves of
Part B ( ), and then press on Part C
and Part D from the left and right
sides ( ). Next, push on both ends
of Part A to fasten to the Handheld
Printer Terminal.
Remove the Holder
1. Check that the power is off. If the
power is on, always make sure to turn it
off by pressing the power key.
2. Remove the Paper Holder by following
the reverse procedure for "Attaching the
Paper Holder", and then attach the Roll
Paper Holder.
•Remove Part C and Part D using an
ordinary screwdriver as shown in the
illustration.
Using the Printer
2
1
3
C
D
1
1
2
3
3
IT-3000_E_P32_52.p65 07.6.29, 10:12 AM40
E-41
Loading Formed Sheet Paper
Enable the Auto Loading function by selecting Start, Settings, Control Panel and then
“Printing Control” of Printer Settings in that order before loading the formed sheet
paper.
1. Insert the formed sheet paper all the way
into the printer until it stops with the
side to be printed facing downward.
The paper will be fed into the printer
automatically and be positioned at the
printing position.
•If the formed sheet paper becomes
jammed, open the top cover (Part A) of
the Paper Holder as shown in the
illustration ( ) and remove the
jammed paper.
Important!
•Always make sure to load formed sheet paper in the printer before printing.
Printing without loading paper can cause the printer to malfunction.
•Do not touch the printer since it can become very hot.
1
1
2
1 2
IT-3000_E_P32_52.p65 07.6.29, 10:12 AM41
E-42
Precautions When Using Printer
Printing Accuracy
1. During high-duty printing such as printing horizontal lines or printing while the
battery remaining capacity is low, the printing speed may slow down to prevent
excess current consumption that may cause unaligned printing for one dot or
more.
2. Line change errors may occur if the printing interval between lines is about one
second or more. In the case of using formed sheet paper, either use a large frame
with free spaces available or set the printer to continuously print to prevent the
line change errors.
3. Because printing may pause if the battery remaining capacity is low, line
alignment error or printing with uneven space between characters may occur
when printing resumes later.
4. Printing may be illegible right after the roll paper cover has been opened for
reloading roll paper. This can be prevented by feeding the roll paper before
starting printing again.
5. The printer will not print unless the paper is loaded properly. Always make
sure to properly load the paper before starting printing.
6. Only use the recommended printer paper. Use of paper other than the
recommended printer paper can reduce printing quality, shorten printer service
life or cause other detrimental effects that have the risk of impairing printer
characteristics.
7. Observe the following when storing printer paper.
•Do not store paper in locations subject to high temperature and high humidity since
spontaneous coloring of the paper occurs at temperatures of 60°C (140°F) and
above.
•Store paper in a cool, dark location while avoiding excessive exposure to direct
sunlight.
•Plastic films containing plasticizers, ester-based erasers, tape and glue can cause
discoloration, while contact with organic solvents, diazo copy paper or scratching
with the fingernail, etc. can cause the paper to become colored.
Using the Printer
IT-3000_E_P32_52.p65 07.6.29, 10:12 AM42
E-43
Others
1. The temperature range for printing with 2-ply paper and label paper is 5 to
35°C.
2. Once the end mark of the paper appears, promptly replace with new paper.
3. Recommended paper: Use only specified papers by CASIO.
4. Paper scraps may accumulate and printing quality may decrease when the
printer has been used for a long period of time. The thermal head must be
cleaned when this happens. Contact your nearest CASIO distributor or an
authorized CASIO service provider to have cleaning performed.
5. Printing quality may decrease when the surrounding temperature becomes
excessively low.
6. If once the printer is set for 58 mm width paper, it cannot be changed again for
80mm width paper.
7. Load paper in the printer when not using for a long period of time to prevent
damage to printer components.
Important!
•Do not touch the thermal head during or immediately after printing.
IT-3000_E_P32_52.p65 07.6.29, 10:12 AM43
E-44
Using the C-MOS Imager
(IT-3000M55E/IT-3000M55U/IT-3000M56E/IT-3000M56U only)
1. Turn on the Handheld Printer Terminal, position its C-MOS Imager reader port near
the bar code or 2D code, and then press the Trigger Key (R or L).
2. The Handheld Printer Terminal reads the code by emitting laser and red lights.
Indicator 2 (read operation indicator lamp) lights in green when the reading is successful.
Bar code and stacked 2D code Reading Guide
When you press the Trigger key (R or L), LEDs in the Handheld Printer Terminal
emit laser and red lights. Align the laser frame with the center of the bar code or 2D
code you are trying to read. Take particular care aligning the light when there are
other bar codes nearby.
When reading a large code, adjust the position of the Handheld Printer Terminal so
that the entire code is enclosed within the laser frame.
Important!
•If you have problem not properly reading a code, change the angle and/or the
distance between the code and the Handheld Printer Terminal and try reading it
again.
•A bar code can be read from a distance of 40mm to 410mm (19/16" to 161/8"), and a
stacked 2D code can be read from a distance of 50mm to 250mm (11515
1515
15⁄⁄⁄⁄⁄1616
1616
16" to 91313
1313
13⁄⁄⁄⁄⁄1616
1616
16")
and matrix 2D code can be read from a distance of 60mm to 150mm (233
33
3⁄⁄⁄⁄⁄88
88
8" to
51515
1515
15⁄⁄⁄⁄⁄1616
1616
16"). The actual reading distance depends on the symbology and the resolution.
•For smaller codes, move the Handheld Printer Terminal closer to the code.
•To read a large code, move the Handheld Printer Terminal further away from
the code.
•
Note that a special reader application is required to read bar codes and 2D codes.
•The IT-3000M55E/M55U/M56E/M56U support reading of 2D code symbologies.
•Fingerprints, dust, dirt, or other foreign matter on the C-MOS Imager reader
port can cause abnormal reading. Should the reader port become dirty, wipe it
clean with a soft and dry cloth.
IT-3000_E_P32_52.p65 07.6.29, 10:13 AM44
E-45

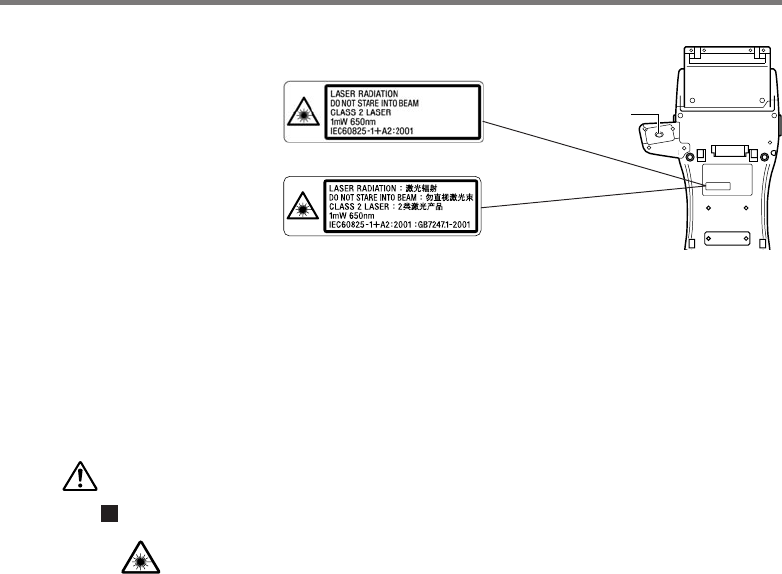

Warning Label
•This label is a warning label for Class 2 laser products that comply with
IEC60825-1+A2:2001
CAUTION
•Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
•The laser light emitted by the C-MOS Imager has a maximum output of less
than 1 mW and a wavelength of 650 nm.
Warning!
Never look directly into the laser light.
•This product scans using laser light. Never look directly into the laser light
or shine the laser light into the eyes.
Laser light is emitted
from this port
IT-3000M55U/M56U
IT-3000M55E/M56E
IT-3000_E_P32_52.p65 07.6.29, 10:13 AM45
E-46
The Magnetic Card Reader comes as standard with IT-3000M55E/M55U/M54E2.
Only use cards that are compatible with the ISO standards. The procedure for reading
cards is described below.

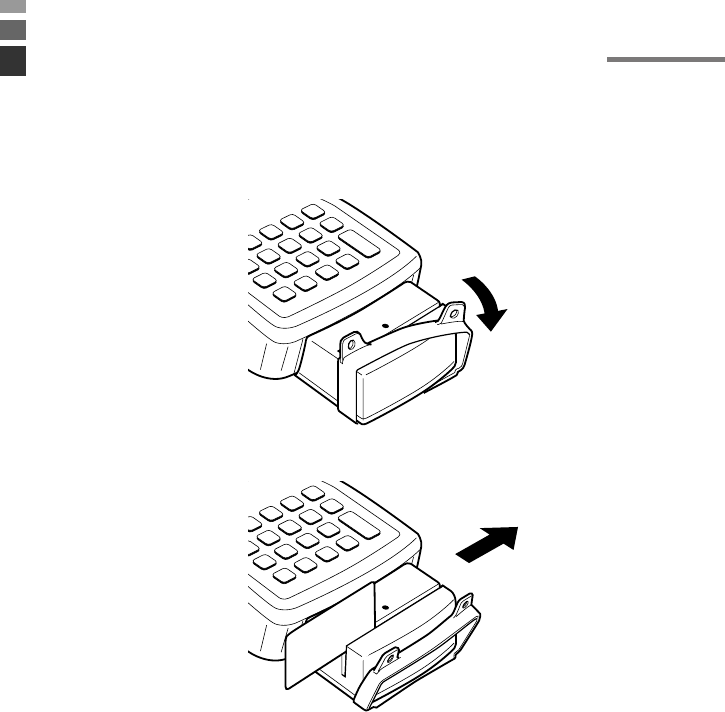

1. Remove the cover as shown in the illustration.
2. Insert the card all the way into the reader as shown in the illustration, and steadily
pass the card through the reader in the direction of the arrow.
Precautions During Use
•Cards may not be able to be read if they are passed through the reader too
rapidly.
•A reading error may occur if the speed at which the card is passed through the
reader changes suddenly.
•Do not allow magnets to come in close proximity to the magnetic card since this
can prevent data on the card from being read. In addition, do not stack
magnetic cards on top of each other.
•Cards that have been excessively misshaped or bent may not be able to be read.
•Soiling of the magnetic strip may make it difficult to read the card. If a card has
become soiled, wipe with a clean, soft cloth.
•Regularly clean the magnetic card reader by passing a cleaning card through
the reader to prevent excessive friction with cards. When using in a location
where there are low levels of dust, clean once a week and about once every 500
passes through the card reader.
•Install the cover when not using the magnetic card reader. The drip-proof
function of the magnetic card reader is not guaranteed if the cover is not installed.
Magnetic Card Reader
IT-3000_E_P32_52.p65 07.6.29, 10:13 AM46
E-47

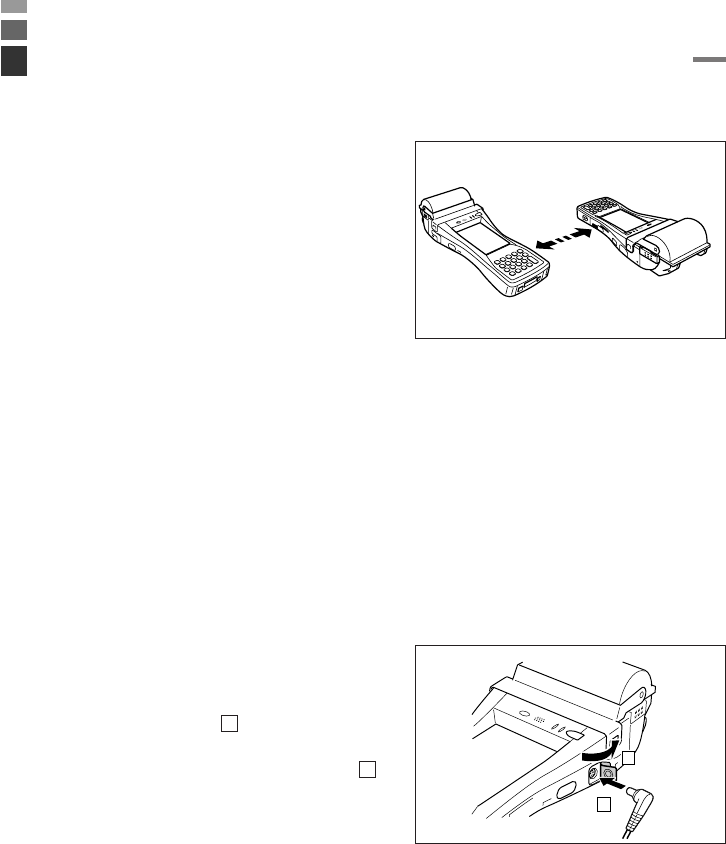

IR Communication
IR communication can be used to transfer
data between two Handheld Printer
Terminals.
When performing IR communication,
orient the IR ports of both Handheld
Printer Terminals so they are pointing
directly at each other.
Data communication is possible within a
distance of 0 (in direct contact) to 1 m
(max. 20 cm at 4 Mbps).
Important!
•A high-sensitivity communication element is used during IR communication.
•In order to ensure successful communication, avoid using cellular phones or
other devices that emit radio wave in the area where you are performing IR
communication.
•If you need to use such a device, move away from the communicating Handheld
Printer Terminals. In case of a cellular phone, keep it at least 30cm (1177
77
7⁄⁄⁄⁄⁄88
88
8") away.
RS-232C Communication (IT-3000M53E/IT-3000M54E2 only)
You can also transfer data directly between
the Handheld Printer Terminal and your
computer. With the power turned off, open
the connector cover ( ) and connect the
RS-232C interface connector on the right
side of the Handheld Printer Terminal ( )
with your computer using the RS-232C
Cross Cable (HA-B80AX).
1
2
Performing Data Communication
1
2
IT-3000_E_P32_52.p65 07.6.29, 10:13 AM47
E-48
BluetoothTM Communication
BluetoothTM protocol can also be used to
transfer data between two Handheld
Printer Terminals.
The two Handheld Printer Terminals
should be no more than five meters apart
(as long as there is nothing blocking the
path in between).
Important!
Observe the following precautions to help ensure that data communication is
successful.
•Make sure that the Handheld Printer Terminal are located within about five
meters (16'41313
1313
13⁄⁄⁄⁄⁄1616
1616
16") of each other. Surroundings (obstacles) may require a shorter
distance between the two terminals.
•Make sure there is at least two meters (6' 7") between this device and other
devices (electrical appliances, audio-visual equipment, office automation
equipment, and digital cordless telephones, facsimile machines, etc. Take special
care with microwave ovens. Allow at least three meters (9' 1033
33
3⁄⁄⁄⁄⁄88
88
8") between
communicating devices and a microwave oven.) When approaching such a
device with its power is turned on, proper data communication may prove
impossible while this may also cause interference with TV and radio reception
(images produced by certain UHF and broadcast satellite channels may become
blurry).
•Normal data communication may not be possible in an area near a broadcast
transmitter or wireless transmitter. If this happens, move to a different location.
Normal data communication may not be possible in areas exposed to strong
radio waves.
•Wireless LAN Interference
Because BluetoothTM and Wireless LAN use the same frequency band (2.4GHz),
radio interference can occur if there is a Wireless LAN device nearby. This can
result in lower data communication speeds, or even make it impossible to
establish a connection. If this happens, try the following countermeasures.
•Move at least 10 meters (32'103⁄4") away from the Wireless LAN device.
•If you cannot keep the distance at least 10 meters (32'103⁄4") or more between the
Handheld Printer Terminal and a Wireless LAN device, turn off the power of the
Wireless LAN device.
Performing Data Communication
IT-3000_E_P32_52.p65 07.6.29, 10:13 AM48
E-49
Resetting the Handheld Printer Terminal is the same as restarting a computer.
Performing a reset causes all unsaved inputs and edits to be lost, but data that is already
stored in the memory as well as all settings should be unaffected.
Use reset to restore normal operation whenever the Handheld Printer Terminal operates
abnormally due to misoperation or some other reason.
Use the stylus to press the reset switch
on the back of the Handheld Printer
Terminal.
This starts the reset operation.
If reset does not find a memory problem
The Handheld Printer Terminal restarts, and normal operation is restored.
If reset finds a memory problem
A message like the one shown below appears on the display when the reset operation
discovers a memory problem.
When this message appears, press the program key (R) to continue with the reset
operation. Note, however, that reset may not be successful depending on the condition
of the memory. In this case, perform the full reset operation described on the next
page.
the program
key (R)
the program
key (L)
Resetting the Handheld Printer Terminal
IT-3000_E_P32_52.p65 07.6.29, 10:13 AM49
E-50
Performing a Full Reset (Initialization)
Performing a full reset initializes memory. This means that all data stored in the
memory (RAM) is deleted and all the settings are returned to their initial factory
settings.
Perform a full reset whenever any one of the following conditions exists.
•When you want to delete all memory contents and return the settings to their initial
factory settings.
•When you are no longer able to use the Handheld Printer Terminal because you
forgot your password.
•When the Handheld Printer Terminal does not operate normally due to a memory
problem.
•When the message “A problem with memory contents has been found. ...” appears.
To perform a full reset
Important!
Performing a full reset deletes all data currently stored in the memory (RAM). If
possible, backup data of the Handheld Printer Terminal to a computer, Flash
Memory, a memory card, or some other medium before performing a full reset.
1. The message shown below appears on the display when the reset switch is pressed
for about 1 second with the stylus while simultaneously pressing the power key and
cancel key.
•
To cancel the full reset operation, press the program key (L) instead of the program key (R).
2. Press the program key
(R)
. This causes the message shown below to appear.
•
To cancel the full reset operation, press the program key (L) instead of the program key (R).
3. Press the program key (R) again.
•Full reset is performed, all data in the memory (RAM) are erased and the start-up
screen is displayed.
the program
key (R)
the program
key (L)
the program
key (R)
the program
key (L)
Resetting the Handheld Printer Terminal
IT-3000_E_P32_52.p65 07.6.29, 10:13 AM50
E-51
1. Terminal
Model: IT-3000M53E, IT-3000M55E, IT-3000M55U, IT-3000M54E2,
IT-3000M56E, IT-3000M56U
CPU: Intel® PXA255 Application Processor (400 MHz max.)
Memory: 64MB RAM, 64MB ROM (user defined: Approx. 30MB)
OS: Microsoft® Windows® CE .NET operating system (English Version)
Display: 3.5-inch, 240 × 320 dots, 2-Way TFT Color LCD
2. C-MOS Imager (IT-3000M55E/IT-3000M55U/IT-3000M56E/IT-3000M56U)
Reading 1D Code symbologies:
EAN8/JAN8, EAN13/JAN13, UPCA, UPCE, Code39, Codabar (NW7),
Interleaved2of5 (ITF), Code93, Code128, MSI (Plessey), IATA, Code11,
RSS-14, RSS Limited, RSS Expanded, ISBT
Reading distance: Within approximately 40 mm~410 mm (19/16" to 161/8")
Reading stacked 2D Code symbologies:
Code49, PDF417, MicroPDF, Codablock F, EAN8/13 Composite, RSS
Composite, UCC/EAN128 Composite, TLC39, RSS-14 (Stacked type),
RSS Expanded (Stacked type)
Reading distance: Within approximately 50 mm to 250 mm (115/16" to 913/16")
Reading Matrix 2D Code symbologies:
Data Matrix, Maxicode, QR Code, Aztec
Reading distance: Within approximately 60 mm to 150 mm (23/8" to 515/16")
3. IR Communication
Interface: Compatible with IrDA Ver. 1.1
Synchronization: Start/stop synchronous, frame synchronization
Transfer Rate: Up to 4 Mbps (max.)
4. Serial Interface (IT-3000M53E/M54E2)
Interface: 8-pin
Synchronization: Start/stop synchronous
Transfer Rate: 300 bps to 115.2 Kbps
5. 14-pin Serial Interface
Interface: 14-pin
Synchronization: Start/stop synchronous
Transfer Rate: 300 bps to 115.2 Kbps
* Wake on function available
6. Bluetooth Communication
Protocol: Bluetooth Specification Ver. 1.1
Range: Approximately 5 m (depends on radio wave conditions and environment)
Output: 3 dBm max. (PowerClass2)
* Wake on function available
7. Printer
Type: Drop-in thermal line dot printer
Effective Printing Width:
72 mm (80mm wide paper)/48 mm (58 mm wide paper)
Printing Speed: 28 lines/second
Printable Characters:
ANK, symbologies (JAN/UPC-E/ NW-7/Code-39/ITF/Code-128), OCR-
B, 128 non-standard characters
Character Fonts: Kanji 12-dot 48/32 columns, 16-dot 36/24 columns, 24-dot 24/16
columns (columns shown for 80 mm wide paper and 58 mm wide paper,
respectively)
IT-3000 Specifications
IT-3000_E_P32_52.p65 07.6.29, 10:13 AM51
E-52
IT-3000 Specifications
Character Size: Free double-width characters
Generating Method
: Black/white inversion, mixed character font printing
8. Card Slot
PC Card Slot: PC Card Type I/Type II (3.3 V/5.0 V specifications)
* Wake on function available
SD Memory Card Slot:
SD Memory Card
9. Magnetic Card Reader : ISO#1.2.3 (IT-3000M54E2/M55E/M55U)
10. Power Requirements
Main Power: Lithium ion battery pack (DT-9723LIC)
Backup Power: Lithium battery (installed inside the terminal)
Battery Life: Main battery - Approx. 12.6 hours*,
* Backlight off, When the keys are pressed 20 times (30seconds) and
continuous printing of 20 lines (font height 2mm Alphabet and
Numeric/30% of total digits) is carried out at four minute intervals.
Backup battery- Data retention (RAM) - 10 minutes (without main
battery)
Clock - 2 weeks (without main battery)
Power Consumption: DC 4.5 A/7.4-10 V
11. Operating Environment
Temperature: -20 to 50°C (5-35°C when printing on 2-ply paper or labels)
Humidity: 10-80% RH (no condensation)
12. Dimensions and Weight
Dimensions: IT-3000M53E Approx.
80*/108** (W) × 265 (D) × 28*/68** (H) mm
(31/8'' / 41/4''W × 107/16''D × 11/8 / 211/16''H)
IT-3000M54E2
Approx.
80*/108** (W) × 295 (D) × 28*/68** (H) mm
(31/8'' / 41/4''W × 115/8''D × 11/8 / 211/16''H)
IT-3000M55E/M55U
Approx.
80*/145** (W) × 295 (D) × 28*/70** (H) mm
(31/8'' / 511/16''W × 115/8''D × 11/8 / 23/4''H)
IT-3000M56E/M56U
Approx.
80*/145** (W) × 265 (D) × 28*/70** (H) mm
(31/8'' / 511/16''W × 107/16''D × 11/8 / 23/4''H)
*; display part, **; printer part (All sizes exclude extruding parts.)
Weight: IT-3000M53E Approx. 635g (22.4 oz)
IT-3000M54E2
Approx. 680g (23.99 oz)
IT-3000M55E/M55U
Approx. 700g (24.69 oz)
IT-3000M56E/M56U
Approx. 655g (23.10 oz)
13. Environment
Drop Durability: 1.2 m
Dust and Water Resistance:
Complies with IEC60529, level IP54
Clock Function: Year, month, date, day, hour, minute; fully automated calendar
IT-3000_E_P32_52.p65 07.6.29, 10:13 AM52
E-53
Back
Bottom
Right
To p
Front
The optionally available Bridge Satellite Cradle (HA-B61IO) makes it possible to
transfer system data and file data between the Handheld Printer Terminal and a
computer using an RS-232C interface or USB interface. You can also use the Bridge
Satellite Cradle to charge the battery pack installed on the Handheld Printer
Terminal.
General Guide
Using the Bridge Satellite Cradle (HA-B61IO)
IT-3000_E_P53_81.p65 07.6.29, 10:13 AM53
E-54
Using the Bridge Satellite Cradle (HA-B61IO)
1 System Status
Indicator Lamp
2 Communication
Indicator Lamp
3 Power Indicator
Lamp
4 Terminal Detect
Switches
5 IR Port
6 Power Contacts
7 Power Switch
8 AC Adaptor Jack
9 RS-422 Port
10 RS-232C Port
11 USB Port
12 DIP Switches
This lamp indicates whether the system is operating normally.
This lamp indicates the system status and whether or not
communication with the system can be performed regardless of
whether or not a Handheld Printer Terminal is mounted.
Off: System is not operating.
Green: System is operating.
This lamp shows when the Handheld Printer Terminal is
performing data communication.
Off: No data communication being performed
Green flashing: Data communication in progress
Red: Problem with a connection between Bridge Satellite Cradle
This lamp indicates the Power Status and the mounting status of
the Handheld Printer Terminal.
Off: Power off
Green: Power on, Handheld Printer Terminal mounted correctly
Red: Power on, Handheld Printer Terminal not mounted
These switches detect when the Handheld Printer Terminal is
seated correctly on the Bridge Satellite Cradle.
This port transfers data with the Handheld Printer Terminal IR
port by non-contact data communication.
Power is supplied to the Handheld Printer Terminal via these
contacts.
Turns the power on and off.
Connect the AC adaptor here to supply power.
This port is used when connecting to another Bridge Satellite
Cradle.
This port accepts connection of an RS-232C cable for
connection to a computer for transfer of system data and file
data. Use of the RS-232C port requires installation of a special
driver on the PC.
This port accepts connection of a USB cable for connection to a
computer for transfer of system data and file data. Use of the
USB port requires installation of a special driver on the PC.
Use these switches to configure the Bridge Satellite Cradle as
required.
IT-3000_E_P53_81.p65 07.6.29, 10:13 AM54
E-55
Connecting the AC Adaptor and Connecting to a Computer
Use the AC adaptor available as an option for the Bridge Satellite Cradle to supply the
power to it. Always make sure that the power is being supplied to the Bridge Satellite
Cradle by the AC adaptor before performing any type of data communication operation
with the Handheld Printer Terminal. The Handheld Printer Terminal draws the power
via the Bridge Satellite Cradle during data communication.
1. After making sure that the Bridge
Satellite Cradle power switch is turned
off, plug the AC adaptor into the AC
adaptor jack on the back.
2. Next, after connecting the power cable
to the AC Adaptor, plug the AC adaptor
into a power outlet.
3. After making sure that the Bridge
Satellite Cradle and your computer are
both turned off, connect the RS-232C
interface or USB interface (after
removing the respective cap) on the back
of the Bridge Satellite Cradle to your
computer with an RS-232C Cross Cable
(DT-887AXA/882RSC/883RSC) or
USB Cable (DT-380USB).
Attach the cap when not using an RS-
232C Cable (DT-887AXA/882RSC/
883RSC) or USB Cable (DT-380USB).
When using the RS-232C port
Power switch (OFF)
POWER
DATA
LINE
System Status Indicator Lamp
Power indicator Lamp
Communication Indicator Lamp
Power contacts
Power switch (ON)
IT-3000_E_P53_81.p65 07.6.29, 10:13 AM55
E-56
4. Turn on the power. This causes the Bridge Satellite Cradle power indicator lamp to
light red.
5. Place the Handheld Printer Terminal so that the infrared communication unit on the
right side is faced firmly with the infrared communication unit of the Bridge Satellite
Cradle.
•If the system is operating normally and data communication is enabled, the system
status indicator lamp lights green.
•The communication indicator lamp flashes green when data communication starts.
When charging is initiated, Indicator 1 (left side) on the Handheld Printer Terminal
lights red. When charging has been completed, it changes the color from red to green.
* The indicator may light even if the battery pack is not installed. Make sure that the
battery pack is installed when charging.
Important!
•A high-sensitivity communication element is used during IR data
communication.
In order to ensure successful communication, avoid using cellular phones or
other devices that emit radio waves in the area where you are performing IR
data communication.
If you need to use such a device, move it away from the communicating
Handheld Printer Terminals. In case of a cellular phone, keep it at least 30cm
(1177
77
7⁄⁄⁄⁄⁄88
88
8") away.
•Take care to avoid allowing the Bridge Satellite Cradle power contacts to make
contact with each other since this can cause.
Shorting the power contacts can damage the Bridge Satellite Cradle.
•If you print while charging, the battery will wear down since the amount of
power discharged is greater than the amount of power supplied. Consequently,
you may not be able to print if the battery power is excessively low.
Using the Bridge Satellite Cradle (HA-B61IO)
IT-3000_E_P53_81.p65 07.6.29, 10:13 AM56
E-57
Configuring DIP Switch Settings
Removing the bottom cover of the Bridge Satellite Cradle exposes the DIP switches.
You can change the ON/OFF settings of the DIP switches to set the configuration. Only
set the DIP switches after first switching OFF the power.
12345678
Not used (Always off)
Not used (Always off)
Host Computer Interface
Setting
RS-232C
USB
6
OFF
ON
Setting
Intermediate Unit
Daisy Chain Disabled/Termination
5
OFF
ON
Setting
Host Computer
Daisy Chain
3
OFF
ON
4
OFF
OFF
Daisy Chain
Connection Type
Setting
115,200bps
*Initial factory setting
1
ON
2
OFF
Bridge Satellite Cradle Data Rate
*
*
*
*
Important!
Note that other DIP settings are used for testing and inspection purposes. Because
of this, you should never use any DIP settings other than those described above.
IT-3000_E_P53_81.p65 07.6.29, 10:13 AM57
E-58
Connecting Multiple Bridge Satellite Cradles (HA-B61IO)
Connect “C-OUT” of the Bridge Satellite
Cradle connected to the host computer to
“C-IN” of the next Bridge Satellite Cradle
you want to connect.
Important!
You can use the optional RS-422 modular cables (DT-888RSC) to link up to eight
Bridge Satellite Cradles.
Using the Bridge Satellite Cradle (HA-B61IO)
RS-422 modular cables
(DT-888RSC)
RS-232C
cable or
USB cable
To host
computer
IT-3000_E_P53_81.p65 07.6.29, 10:13 AM58
E-59
Bridge Satellite Cradle (HA-B61IO) Specifications
1. IR Data Communication
Interface: IR interface
Protocol: IrDA Ver. 1.1 Standard
Synchronization: Start/stop synchronous, frame synchronization
Transfer Rate: 9,600/115,200bps/4Mbps
(4Mbps is possible during a USB connection with the host
computer only.)
2. USB
Protocol: USB Ver1.1 Standard
Transfer Rate: 12Mbps (max.)
3. RS-232C
Protocol: Full duplex
Synchronization: Start/stop synchronous
Transfer Rate: 115,200bps
4. RS-422
Protocol: Full duplex
Synchronization: Start/stop synchronous
Transfer Rate: 115,200bps
5. Charging
Charging System: Fixed-voltage (with current limiter)
Charge Time: Approximately 8.0 hours
6. Power Supply
Power Requirement: AC adaptor (AD-S42120A/AD-S42120B)
Power Consumption: DC12V approximately 2,200mA
Output to Handheld Printer
Terminal: DC10V 1,800mA (max.)
* The printer cannot be operated with this power supply alone.
7. AC Adaptor
Model: AD-S42120A/AD-S42120B*
Input: 100V to 240V AC 50/60Hz
Output: 12V DC 3,500mA
AD-S42120B: In compliance with the energy efficiency standards
8. Dimensions and Weight
Dimensions: Approximately 130(W) × 206(D) × 104(H) mm
(51⁄8"W × 81⁄8"D × 41⁄8"H)
Weight: Approximately 660g (23.28oz)
9. Operating Environment
Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 30% to 80% RH (non-condensation)
IT-3000_E_P53_81.p65 07.6.29, 10:14 AM59
*The rating plate on the AC adaptor indicates “AD-S42120A,AD-S42120B” as its
model number.
However, it is referred to as “AD-S42120AE,AD-S42120BE” in this user’s guide and
on the carton box indicating the AC adaptor is destined only for overseas market. Two
types of power cord,
Europe and USA, are accompanied in each carton box.
E-60
The optionally available Cradle-type Battery Charger (HA-B30CHG) lets you charge
the Handheld Printer Terminal’s battery simply by placing the Handheld Printer
Terminal onto the charger.
General Guide
To p
Front
Bottom
Right Back
Using the Cradle-type Battery Charger (HA-B30CHG)
IT-3000_E_P53_81.p65 07.6.29, 10:14 AM60
E-61
1 Power Indicator
Lamp
2 Terminal Detect
Switches
3 Power Contacts
4 Power Switch
5 AC Adaptor Jack
This lamp indicates the power status and the mounting status of
the Handheld Printer Terminal.
Off: Power off
Red: Power on, Handheld Printer Terminal not mounted
Green: Power on, Handheld Printer Terminal mounted correctly
These switches detect when the Handled Printer Terminal is
seated correctly on the Cradle.
Power is supplied to the Handheld Printer Terminal via these
contacts.
Turns the power on and off.
Connect the AC adaptor here.
IT-3000_E_P53_81.p65 07.6.29, 10:14 AM61
E-62
Connecting the AC Adaptor for the Cradle-type Battery Charger
Use the dedicated AC adaptor for the Cradle-type Battery Charger to connect to a wall outlet.
1. After making sure that the Cradle-type
Battery Charger power switch is turned
off, plug the AC adaptor into the AC
adaptor jack on the back of the charger.
2. Next, after connecting the power cable
to the AC adaptor, plug the AC adaptor
into a power outlet.
3. Turn on the power. This causes the
Cradle-type Battery Charger power
indicator lamp to light red.
4. Making sure that their power contacts come into contact with each other, place the
Handheld Printer Terminal onto the Cradle-type Battery Charger. This causes the
Cradle-type Battery Charger power indicator lamp to light green.
When charging is initiated, Indicator 1 (left side) on the Handheld Printer Terminal
lights red. When charging has been completed, it changes the color from red to green.
* The indicator may light even if the battery pack is not installed. Make sure that the
battery pack is installed in the Handheld Printer Terminal when charging.
Important !
•Take care to avoid allowing the Cradle-type Battery Charger power contacts to
make contact with each other since this can cause a short.
Shorting the power contacts can damage the Cradle-type Battery Charger.
•If you print while charging, the battery will wear down since the amount of
power discharged is greater than the amount of power supplied. Consequently,
you may not be able to print if the battery power is excessively low.
Power Indicator Lamp
Power switch (ON)
Power contacts
Using the Cradle-type Battery Charger (HA-B30CHG)
Power switch (OFF)
POWER
IT-3000_E_P53_81.p65 07.6.29, 10:14 AM62
E-63
Cradle-type Battery Charger (HA-B30CHG) Specifications
1. Charging
Charging System: Fixed-voltage (with current limiter)
Charge Time: Approximately 8.0 hours
2. Power Supply
Power Requirement: AC adaptor (AD-S42120AE/AD-S42120BE)
Power Consumption: 12V DC, approximately 2,100mA
Output to Handheld Printer
Terminal: 10V DC 1,800mA (max.)
3. AC Adaptor
Model: AD-S42120A/AD-S42120B*
Input: 100V to 240V AC 50/60Hz
Output: 12V DC 3,500mA
AD-S42120B: In compliance with the energy efficiency standards
4. Dimensions and Weight
Dimensions: Desktop: Approximately
130(W) X 206(D) X 104(H) mm
(5
1⁄8
"W × 8
1⁄8
"D × 4
1
⁄
8
"H)
Weight: Approximately 630g (22.22oz)
5. Operating Environment
Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 30% to 80% RH (non-condensation)
IT-3000_E_P53_81.p65 07.6.29, 10:14 AM63
*The rating plate on the AC adaptor indicates “AD-S42120A,AD-S42120B” as its
model number.
However, it is referred to as “AD-S42120AE,AD-S42120BE” in this user’s guide and
on the carton box indicating the AC adaptor is destined only for overseas market. Two
types of power cord,
Europe and USA, are accompanied in each carton box.
E-64
When Using DT-9020ADP
1. Turn off the power of the Handheld
Printer Terminal by pressing the power
key.
2. Plug the AC Adaptor into a wall outlet,
open the jack cover ( ), and then insert
the plug of the AC Adapter into the
charging jack ( ).
3. Charging begins and Indicator 1 on the Handheld Printer Terminal lights red.
Charging is completed when Indicator 1 changes to green. (Charging time is about 8
hours with the power off.)
* The indicator may light even if the battery pack is not installed. Make sure that the
battery pack is installed when charging.
Important!
•Securely install the battery pack.
•Charge in a location free of vibrations.
• Use only the dedicated AC Adaptor (DT-9020ADP/GT-21089-0909-T3/
AD-S10095A) to chargethe battery pack.
•Turn off the power of the Handheld Printer Terminal when connecting the AC
Adaptor.
•When the battery pack has been reinstalled with the battery charger still
plugged into the Handheld Printer Terminal, always make sure to first unplug
the battery charger and then plug it in again.
AC Adaptor (DT-9020ADP) Specifications
1. Charging Specifications
Charging Method: Constant-voltage, constant-current charging (internal charging
circuit)
Charging Time: Approximately 8 hours (with the power off)
2. Dimensions and Weight
- DT-9020ADP
External Dimensions: Approx. 77(W) × 53(D) × 42(H) mm
(31⁄16"W × 21⁄16"D × 15⁄8"H)
Weight: Approx. 400 g (14.11oz)
Using the AC Adaptor (DT-9020ADP/GT-21089-0909-T3/AD-S10095A)
1
2
1
2
IT-3000_E_P53_81.p65 07.6.29, 10:14 AM64
- GT-21089-0909-T3
External Dimensions: Approx. 86.5(W) × 47(D) × 32(H) mm
(3 3⁄8"W × 1 7/8"D × 1 1/4"H)
Weight:Approx. 162 g (5.71oz)
- AD-S10095A
External Dimensions: Approx. 78(W) × 50(D) × 30(H) mm
(3 1⁄16"W × 1 15⁄16"D × 1 3⁄16"H)
Weight:Approx. 118 g (4.16oz)
E-65
PC card compatible with the PCMIA(Type I/II) standard can be installed in the PC
Card slot on the Handheld Printer Terminal. Insert a PC card according to the
procedure described below.
Attachment of PC Card Removal Tape to a PC Card
There are some PC cards that may be
difficult to remove from the PC card slot
once they have been inserted. In the case
of such PC cards, attach the PC card
removal tape provided before inserting the
PC card.
Important!
When inserting a CF card and so forth using the PC Card Adapter, always make
sure to attach the PC card removal tape to the PC Card Adapter. If the PC card
removal tape is mistakenly attached to the CF card and so forth, only the CF card
will come out when the PC Card Adapter is attempted to be removed, preventing
the PC Card Adapter from being able to be removed.
Inserting a PC Card (When Using the Roll Paper Holder)
1. Check that the power is off. If the power is on, always make sure to turn it off by
pressing the power key.
2. Turn over the Handheld Printer Terminal.
3. Loosen the two screws shown in the
illustration (the screws cannot be
removed).
Using PC Cards
Direction of insertion
PC card removal tape
IT-3000_E_P53_81.p65 07.6.29, 10:14 AM65
E-66
4. Open the cover (PC card slot cover) as
shown in the illustration.
5. Insert a PC card having PC card removal
tape attached. Insert the PC card all the
way in with the top of the card facing
towards the top of the Handheld Printer
Terminal.
Fold up the end of the PC card removal
tape so that it does not get caught in the
way when closing the cover.
6. Attach the PC Card Holder to lock the
end of the PC card and prevent it from
coming out due to impacts and so forth.
Decide on the type of PC Card Holder
Fixer (three types are available) and the
orientation and attachment position of
the holder according to the location of
the end of the PC card.
7. Close the cover (PC card slot cover) and
fasten with the two screws.
Using PC Cards
IT-3000_E_P53_81.p65 07.6.29, 10:14 AM66
E-67
Removing a PC Card
Press the eject button on the left side of PC
card slot with the stylus as shown by the
arrow, and pull out the PC card while
holding onto the end of the PC card
removal tape.
Inserting a PC Card (When Using the Paper Holder)
Check the names of the parts of the Paper Holder before beginning work.
1. Check that the power is off. If the power is on, always make sure to turn it off by
pressing the power key.
2. Spread apart both ends of Part A of the
Paper Holder ( ) and remove it from
the Handheld Printer Terminal ( ), and
then remove Part C and Part D ( ).
•Remove Part C and Part D using an
ordinary screwdriver as shown in the
illustration.
Part B
Part D
Part C
Part A
Screws (4)
PC card cushion
C
D
A
1
1
2
3
3
1
2
3
IT-3000_E_P53_81.p65 07.6.29, 10:14 AM67
E-68
3. After pushing on both ends of Part A and
reattaching to the Handheld Printer
Terminal ( ), remove Part B by
removing the screws ( ).
4.
Insert a PC card to which PC card
removal tape has been attached. Insert the
PC card all the way in so that the top of
the PC card faces the top of the Handheld
Printer Terminal. (The illustration shows
the Handheld Printer Terminal turned
over.) Fold the portion of the PC card
removal tape extending from the PC card
that is grabbed when removing the PC
card so that it does not get in the way
when reattaching the Paper Holder.
5.
Attach the PC card cushion to Part B of the Paper Holder to immobilize the end of the
PC card and prevent it from being dislodged by an impact and so forth. Select the type
of cushion (three types are provided) according to the location of the end of the PC card.
•Position the cushion as shown in the illustration.
•Insert all the way in to the center of Part B.
•Cushion A and Cushion C can be used in combination.
6. Align the grooves of Part B with the
projections on both sides of Part A, and
then fasten the Paper Holder to the
Handheld Printer Terminal using the
Paper Holder screws.
1
2
1
2
Cushion A Cushion B Cushion C
Using PC Cards
IT-3000_E_P53_81.p65 07.6.29, 10:14 AM68
E-69
7. While spreading apart both ends of Part A
( ), remove Part A from the Handheld
Printer Terminal by lifting up Part A until
the projections reach the upper edges of
the grooves of Part B ( ), and then press
on Part C and Part D from the left and
right sides ( ). Next, push on both ends
of Part A to fasten to the Handheld
Printer Terminal.
When Removing the PC card
Press the eject button on the left side of the
PC card slot with the stylus, and then pull
out the PC card while grabbing onto the
end of the PC card removal tape. (The
illustration shows the Handheld Printer
Terminal turned over.)
1
1
2
3
3
1
2
3
IT-3000_E_P53_81.p65 07.6.29, 10:14 AM69
E-70
1
2
SD memory card can be installed in the SD Memory Card slot on the Handheld Printer
Terminal. Insert (or remove) an SD memory card according to the procedure described
below.
Inserting an SD Memory Card
1. Check that the power is off. If the power is on, always make sure to turn it off by
pressing the power key.
2.Open the cover of the SD memory
card slot ( ) and insert an SD
memory card all the way in until the
top of the SD memory card aligns
with the entrance of the slot of the
Handheld Printer Terminal ( ).
3. Close the cover of the SD memory card slot.
Removing an SD Memory Card
1. Check that the power is off. If the power is on, always make sure to turn it off by
pressing the power key.
2. Open the cover of the SD memory
card slot and press on the SD memory
card ( ). The SD memory card is
pushed out ( ).
3. Pull out the SD memory card and close the cover of the SD memory card slot.
1
2
Using SD Memory Cards
21
1
2
IT-3000_E_P53_81.p65 07.6.29, 10:14 AM70
E-71
Connect the bar code reader to the RS-232C interface connector (8-Pin) on the
Handheld Printer Terminal.
Connecting the bar code reader
1. Check that the power is off. If the power is on, always make sure to turn it off by
pressing the power key. Open the cover of the RS-232C interface connector. ( )
2. Insert the plug of the bar code reader
into the connector as shown in the
illustration.( )
Disconnecting bar code reader
Turn off the power of the Handheld Printer Terminal. Unplug the bar code reader.
1
2
Connecting a Bar Code Reader
(IT-3000M53E/IT-3000M54E2 only)
1
2
IT-3000_E_P53_81.p65 07.7.3, 8:25 PM71
E-72
Attaching the Screen Protect Cover to the Handheld Printer Terminal prevents the
screen from being cracked or damaged when carrying.
1. Remove the two screws on the right side
of the Handheld Printer Terminal. Store
the screws in a safe place after they have
been removed.
2. Fasten the Screen Protect Cover with the
two screws provided with the Screen
Protect Cover.
3. Close the Screen Protect Cover and
fasten by pressing on the cover hook at
the right side.
4. Lift up on the cover hook when opening
the cover.
Attaching the Screen Protect Cover
IT-3000_E_P53_81.p65 07.7.3, 8:25 PM72
E-73
Attaching the Splash Protect Cover to the Handheld Printer Terminal lets you use it
even during inclement weather.
Attach the Splash Protect Cover by following the procedure described below.
1. Press the ridged ( ) portions ( ) of
the paper outlet cover while spreading
apart the locks on the left and right sides
( ) to disengage them as shown in the
illustration followed by opening the
paper outlet cover ( ).
2. Slide the lock knobs on the left and right
sides of the roll paper holder as shown
in the illustration to align at the FREE
position ( ), and then push up the
ridged ( ) portion ( ) to open.
•Please note that the positions of the
lock knobs on the left and right sides
are different.
3. Spread apart the bearing supports of the
paper outlet cover towards the left and
right directions and remove.
4. Attach the inner cover as shown in the
illustration. First, insert a tab on one side
of the roll paper holder into one of the
slits of the inner cover ( ). Next, push
down on the opposite side of the inner
cover, and insert the tab on that side of
the roll paper holder into the slit on that
side ( ).
Attaching the Splash Protect Cover
inner cover
1
2
3
1
2
1
2
1
3
2
2
1
1
2
1
LOCK FREE
LOCKFREE
1
2
IT-3000_E_P53_81.p65 07.7.3, 8:25 PM73
E-74
5. Close the roll paper holder, slide the
lock knobs on the left and right sides as
shown in the illustration to align at the
“LOCK” position to lock the roll paper
holder in position, and then tear off the
protruding roll paper.
•Please note that the positions of the
lock knobs on the left and right sides
are different.
6. Slide the lock knobs ( ) on the left and
right sides of the Splash Protect Cover
as shown in the illustration and open the
cover ( ).
7. Attach the Splash Protect Cover as
shown in the illustration.
•Check that the transparent film of the
inner cover is at the position shown in
the illustration ( ).
•Furthermore, the transparent film may
shift from the position shown in the
illustration when the roll paper is torn
off. Check the position of the
transparent film after roll paper has been
torn off.
•Check that the tabs on the inside of the
Splash Protect Cover (located on the left
and right sides) have entered the
indentations on the left and right sides of
the Handheld Printer Terminal ( ).
8. Close the Splash Protect Cover ( ),
and fasten with the lock knobs ( ) on
the left and right sides.
LOCK FREE
2
1
2
LOCKFREE
1
2
1
2
1
2
Transparent film
Ta b
Indentation
Splash Protect
Cover bottom plate
Attaching the Splash Protect Cover
1
1
2
2
2
1
2
1
IT-3000_E_P53_81.p65 07.7.3, 8:25 PM74
E-75
Important!
•Make sure to attach the contact cover provided when removing the Battery Pack
from the Handheld Printer Terminal and storing.
•If the battery pack has been left over unused for a long period of time, the
capacity remained decreases due to spontaneous discharge or chemical
decomposition by the battery pack itself. If the battery pack fails to hold its
operating duration after it has been fully charged, replace it with a new one. The
battery pack may reach the end of its service life.
Battery Pack Specifications
Model: DT-9723LIC
Nominal Capacity: 2200mAh
Nominal Voltage: 7.4V
Dimensions: 39 (W) × 71 (D) × 21 (H) mm
(19⁄16"W × 213⁄16"D × 5⁄16"H)
Weight: Approximately 110 g (3.88oz)
Accessories: Contact cover
Using the Battery Pack
IT-3000_E_P53_81.p65 07.7.3, 8:25 PM75
E-76
Memo
IT-3000_E_P53_81.p65 07.7.3, 8:25 PM76
E-77
IT-3000_E_P53_81.p65 07.7.3, 8:25 PM77
