DT-X11 Series

Hardware Manual

(Version 1.01)

CASIO Computer Co., Ltd.

August 2006

Table of Contents

Editorial Record 4

Preface 5

Chapter 1. Overview of the Products 6

1.1. Features 6

1.2. Available Models 8

1.2.1. Options and Interfaces 9

1.3. General Guide 10

1.3.1. DT-X11 10

1.3.2. DT-167CHGE Car Mounted Battery Charger 12

1.3.3. DT-160IOE Bridge Satellite Cradle 13

1.3.4. DT-169CHGE Cradle-type Battery Charger 15

1.3.5. DT-5022CHG Dual Battery Charger 16

Chapter 2. Hardware Specifications 17

2.1. DT-X11 17

2.2. DT-160IOE Bridge Satellite Cradle 20

2.3. DT-167CHGE Car Mounted Battery Charger 22

2.4. DT-169CHGE Cradle-type Battery Charger 23

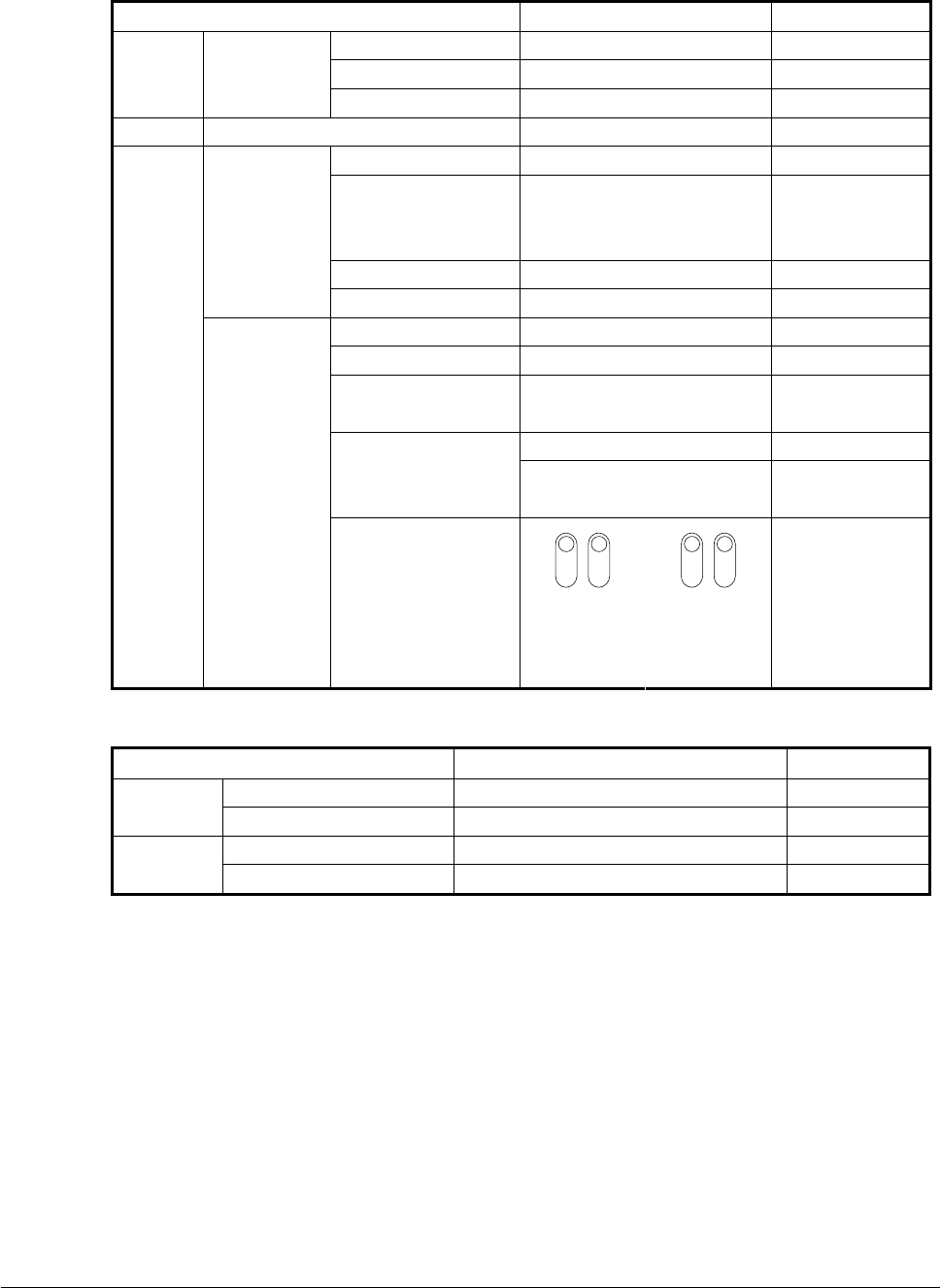

2.5. DIP Switch Setting for DT-160IOE 24

2.6. Status Indication with LEDs 25

2.7. DT-5022CHG Dual Battery Charger 26

2.8. HA-A20BAT/DT-5025LBAT 29

2.9. DT-894CFU CF Card Extension Unit 30

Chapter 3. Interfaces 31

3.1. DT-X11 31

Chapter 4. Product Identification and Reference Numbers 34

Chapter 5. Quality References 35

5.1. Environmental Performances 35

5.1.1. DT-X11 35

5.1.2. DT-160IOE/DT-169CHGE 35

5.1.3. DT-167CHGE 36

5.1.4. DT-5022CHG 36

5.1.5. HA-A20BAT/DT-5025LBAT 37

5.1.6. DT-894CFU 38

5.2. Electrical Performances 39

5.2.1. DT-X11 39

5.2.2. DT-160IOE/DT-169CHGE 39

5.2.3. DT-167CHGE 39

5.2.4. DT-5022CHG 40

5.2.5. HA-A20BAT/DT-5025LBAT 40

5.2.6. DT-894CFU CF Card Extension Unit 40

5.3. Mechanical Performances 41

5.3.1. DT-X11 41

5.3.2. DT-160IOE/DT-169CHGE 41

5.3.3. DT-5022CHG 41

5.3.4. HA-A20BAT/DT-5025LBAT 42

5.3.5. DT-894CFU CF Card Extension Unit 42

5.4. Reliability 43

5.4.1. DT-X11 43

5.4.2. DT-160IOE/DT-169CHGE 43

5.4.3. DT-5022CHG 44

5.5. Compliance 45

5.5.1. DT-X11 45

5.5.2. DT-160IOE/DT-169CHGE 45

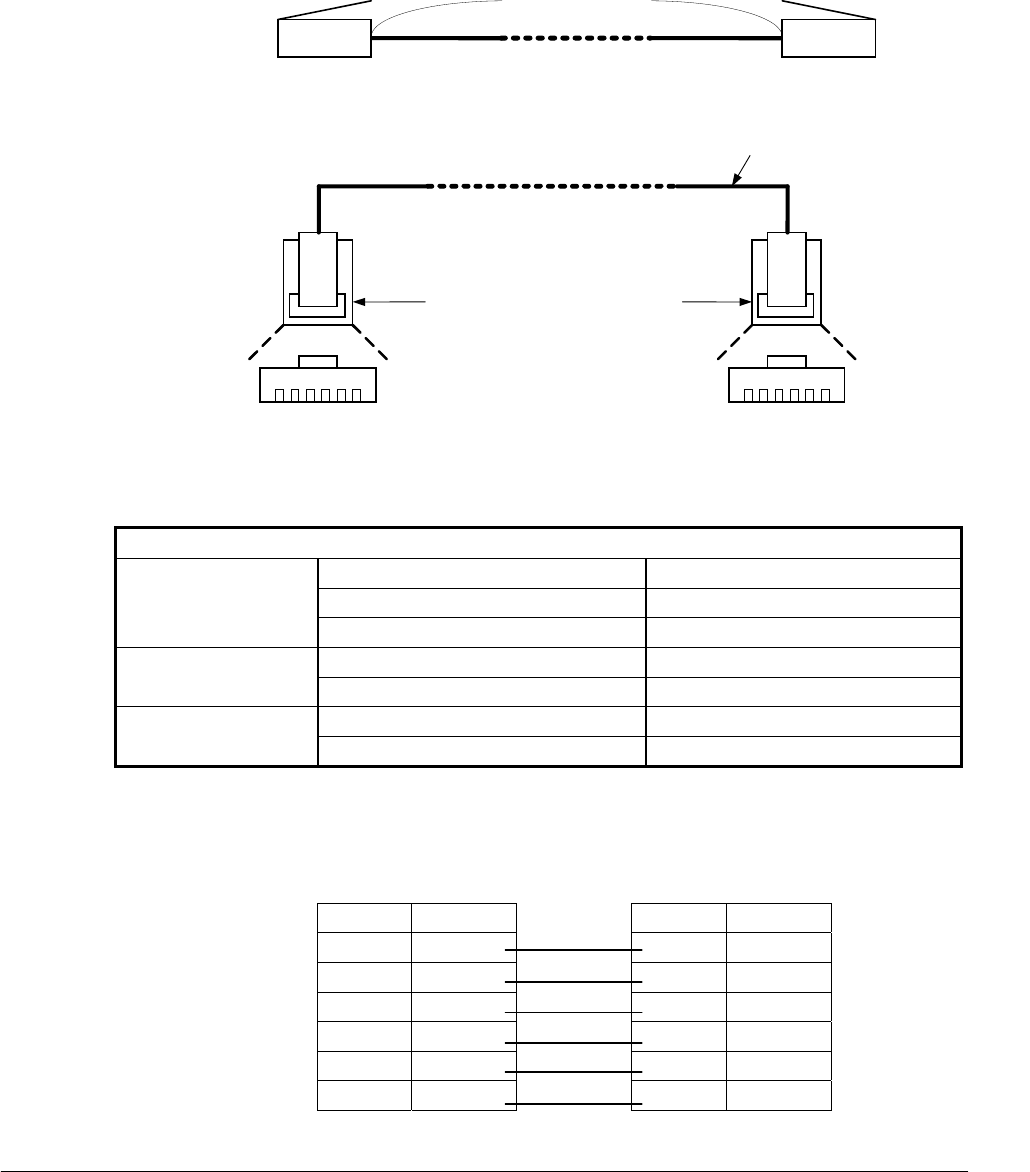

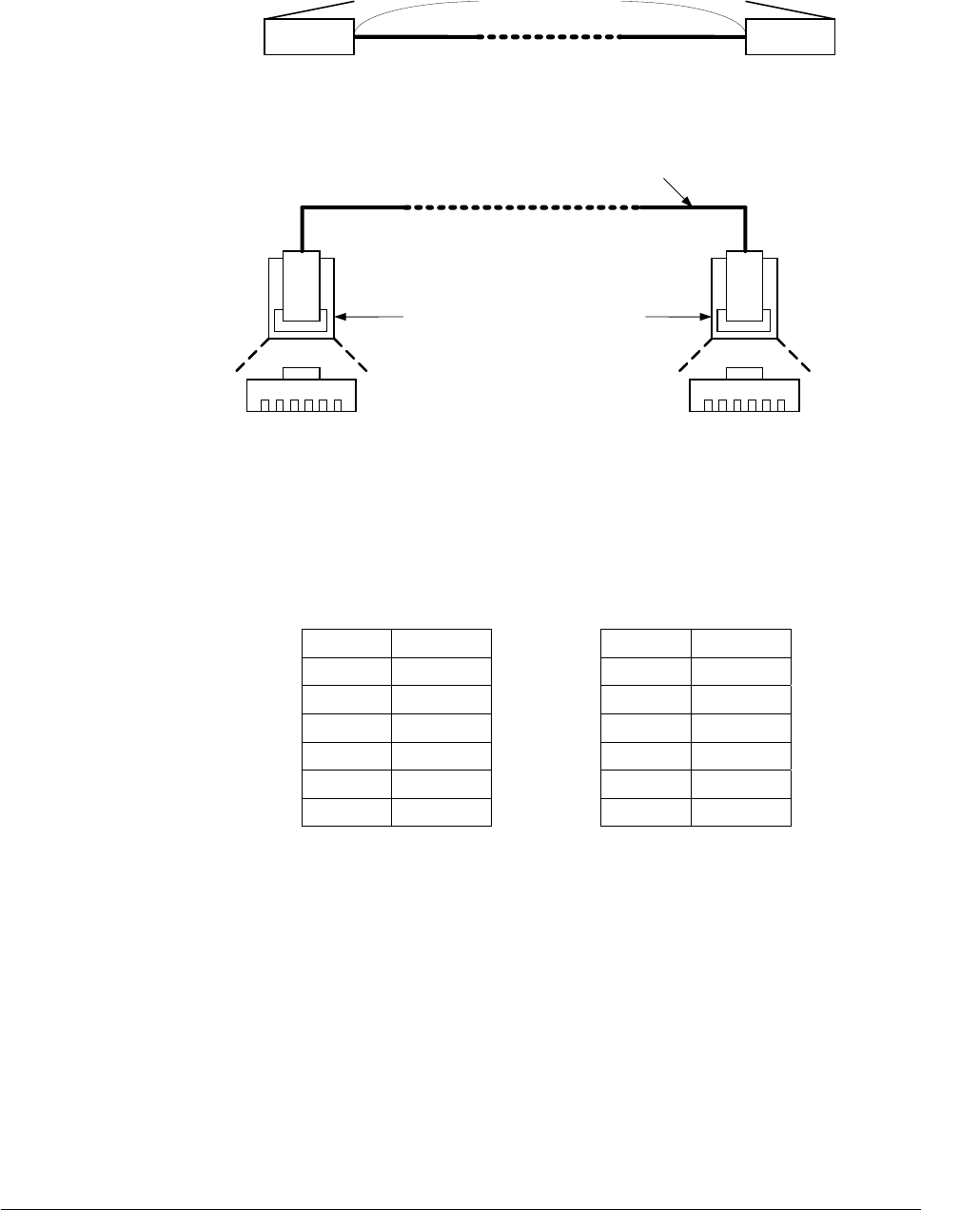

Chapter 6. Cable Specifications 46

6.1. For Chain Connection and Short Length 46

6.2. For Chain Connection and Long Length 47

Chapter 7. Precautions 48

7.1. Handling 48

7.2. Safety 49

7.2.1. Battery Pack/Memory Backup Battery 49

7.2.2. General 51

No part of this document may be produced or transmitted in any form or by any means, electronic or

mechanical, for any purpose, without the express written permission of CASIO Computer Co., Ltd.

in Tokyo Japan. Information in this document is subject to change without advance notice. CASIO

Computer Co., Ltd. makes no representations or warranties with respect to the contents or use of this

manual and specifically disclaims any express or implied warranties of merchantability or fitness for

any particular purpose.

Editorial Record

Manual

Version no. Date edited Page Content

0.90 February 2006 Tentative version

1.00 March 2006 Original version

8 The content in Table 1.2 of Chapter 1.2 is corrected. 1.01 August

26 The content in Table 2.9 of Chapter 2.7 is corrected.

Preface

This reference manual describes about the CASIO DT-X11 series handheld terminals with C-MOS

imager or Laser Scanner integrated.

A new generation of handheld terminal has been developed. CASIO introduces the revolutionary

DT-X11 series of handheld terminal with built-in Intel® PXA255 Application Processor, C-MOS

imager or 1D bar code scan engine and diverse wireless LAN communications via Bluetooth,

IEEE802.11b WLAN and WAN card.

Running under Microsoft® Windows® CE 5.0 operating system, the rugged DT-X11 is designed

specifically with the transportation/delivery and logistics in mind.

In this reference manual, the DT-X11 series is described as “DT-X11” or “the terminal” or

“handheld terminal”.

1. Overview of the Products

1.1 Features

Incorporates .NET technology

• Uses WindowsCE 5.0 operating system.

• Makes effective use of .NET resources developed by other corporations.

• Employment of eMbedded OS makes it possible to build a flexible WindowsCE system.

Enhanced communicating functions

• Covers GPRS/WLAN, etc. by using various communication cards.

• Built with Bluetooth® Ver1.2 module.

• The transfer rate of the WLAN is 5 Mbps, which is the maximum rate of communication for

peer-to-peer connection with PC via IEEE802.11b.

• The following protocol stacks are available for Bluetooth® interface: GAP (Generic Access),

SDP (Service Discovery), SPS (Serial Port), Dialup Network, File Transfer.

• Security function (PEAP EAP-MS-CHAP V2, EAP-TLS, MD5+WEP128)

Superb scanning capability (DT-X11M10E/DT-X11M10RC)

• With the installed bar code scan engine it is possible to read industrial standard bar code

symbologies.

• Scanning performance is comparable to the CASIO IT-500 series handheld terminal.

• Multi-step bar code read function.

Superb scanning capability (DT-X11M30E/DT-X11M30U/DT-X11M30RC)

• With the installed C-MOS imager it is possible to read 2D symbologies/1D symbologies/OCR

fonts and to capture images.

• Image capturing function (2 to 256 monochromatic tones).

• Scanning performance on 1D bar code symbology is comparable to the CASIO DT-800 series

handheld terminal.

• Multi-step bar code read function.

Support of outstanding development environment

Ample Microsoft development tools provided for easy application development and an advanced

debug environment.

• Visual Studio 2005

• Visual Studio.NET 2003 (WindowsCE .NET Utilities v 1.1 for Visual Studio .NET 2003)

• eMbedded Visual C++ 4.0

High expandability

The standard PCMCIA slot makes it possible to use various standard peripheral cards.

Aiming to a full compliance with the “Restriction of the use of certain Hazardous

Substances in electronic equipment (RoHS)” set mandatory on July 1 2006

The following products have been assembled with devices, components and parts manufactured

using Lead (Pb) free solder.

- DT-X11M10E

- DT-X11M10RC

- DT-X11M30E

- DT-X11M30U

- DT-X11M30RC

1.2 Available Models

Table 1.1 List of models

Wireless Communication Memory

Model Scan Engine

Bluetooth IEE802.11b

PC Card

slot RAM FROM

DT-X11M10E Laser Scanner Yes Yes Yes 64MB 128MB

DT-X11M10RC Laser Scanner Yes No No 64MB 128MB

DT-X11M30E C-MOS Imager Yes Yes Yes 64MB 128MB

DT-X11M30U C-MOS Imager Yes Yes Yes 64MB 128MB

DT-X11M30RC C-MOS Imager Yes No No 64MB 128MB

Table 1.2 Options

Model Product Remark

DT-160IOE Bridge Satellite Cradle

DT-169CHGE Cradle-type battery charger

DT-891WH Wall-mount Unit

DT-167CHGE Car Mounted Battery Charger

DT-827CAC Car Power Cable Not marketable in the USA/Canada

DT-5022CHG Dual battery charger

AD-S45150AU AC input 100 to 230VAC. With US power cord. For

DT-5022CHG

AD-S45150AE AC input 100 to 230VAC. With European power

cord. For DT-5022CHG

AD-S42120AE

AC adaptor

AC input 100 to 230VAC. For

DT-160IOE/DT-169CHGE

HA-A20BAT Battery pack (Standard) Lithium-ion rechargeable battery 1,700 mAh

DT-5025LBAT Large-capacity battery pack Lithium-ion rechargeable battery 3,400 mAh

DT-894CFU CF Card Extension Unit CF Type I/ Type II. The large-size card cover

comes as standard

DT-892TCV For standard-size card

DT-893LTCV

Communication Card Cover

For large-size card

DT-882RSC 25-pin male

DT-883RSC 25-pin female

DT-887AXA

RS-232C Cable

Length; 1.5 m, 9-pin female

DT-888RSC RS-422 Cable Length; 1.0 m

DT-380USB USB Cable Length; 2.0 m

Table 1.3 Accessories

Name Q’ty Remark

User’s guide 1 In English and Chinese (in simplified Chinese

characters)

Stylus 1

Large-capacity battery pack cover 1 Required when DT-5025LBAT is installed.

Wrist strap 1

PC Card Remover 2

1.2.1 Options and Interfaces

Fig. 1.1

USB Por

(Ver

1 . 1 Function

)

IrDA Por

(IrDA 1. 1)

Bridge Satellite Cradle

DT-160IOE

Power Supply

Terminals

(Built- in Charge

Circuit )

Car Mounted Battery

Charge

-167

CHGE

Dual Battery

Charge

- 5022

CHG

USB

-232C

DoPA

ｶｰﾄ

ﾞ

GPRS

ｶｰﾄﾞ

Battery Pack

- A 20 BAT

Large - capacity

Battery Pack

DT- 5025

LBAT

Memory Card

WLAN Card,

etc

Memory Card

WLAN Card , etc.

IrDA Printe

, etc.

PCMCI

Bluetooth Module

(Ver

1 . 2

Class

2) Pocket Printer,

etc

Communication Card Cover

DT -892TCV

-893LTCV

-X 11

CF Card Extension

Unit

DT-894CFU

AC Adapto

AD-S42120A - E

Car Power Cable

- 827

CAC

Cradle

-type Battery

Charge

DT-169CHGE

AC Adapto

AD-S42120A - E

Dual Battery

Charge

-5022

CHG AC Adapto

AD -S45150AU

-S45150

Battery Pack

-A20BAT

Large-capacit

Battery Pack

-5025

LBAT

Bridge Satellite Cradle

DT -160IOE

-422 RS

-422

AC Adapto

AD-S42120A-E

without

WLAN

models

WLAN

integrated

Models .

IEEE

802.11b,g

WLAN Module

CF Card Extension I

1.3 General Guide

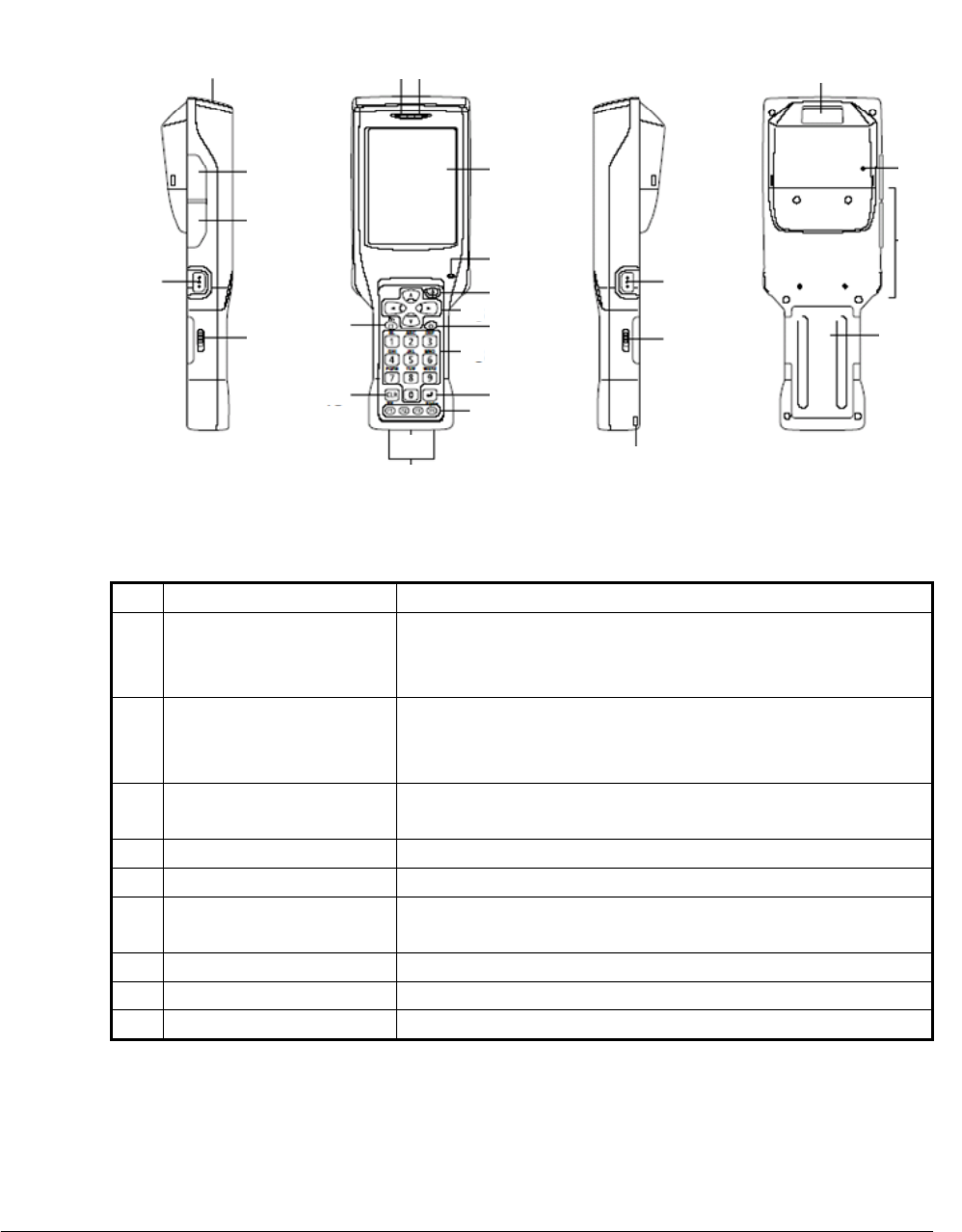

1.3.1 DT-X11

Left Front Right Back

1 2

Fig. 1.2

Table 1.4 Names of parts

No. Name Description

Indicates the result of a bar code reading or other read operation. 1 Indicator 1

Red

Green

: Read error

: Read successful

This lamp indicates the charge status of the battery pack. 2 Indicator 2

Red

Green

: Charging

: Charging complete

3 LCD Panel/Touch Screen Shows text, operation indicators, etc. Also, operations can be performed

and text can be input using the supplied stylus.

4 Buzzer Sounds a buzzer.

5 Power Key Hold down for about one second to turn the power on or off.

6 Cursor Keys These keys operate much like a computer’s cursor keys. They can be

used to select items, scroll screen contents, etc.

7 Programmable Key This key can be assigned with any function available.

8 Numeric Keys Use these keys to input numbers and letters.

9 Execute Key Press to register an input value and advance to the next step.

Continue.

These keys can be assigned any function other than barcode reading.

The following are the initial default settings.

10 Function Keys

: Deletes one character to the left.

: Inputs a hyphen (-).

: Inputs a period (.).

: Toggles to switch between numbers and alphabets.

11 IR Port This port is used for IR communication with another Handheld

Terminal or Bridge Satellite Cradle.

12 Power Contacts Contact point for supplying power from Bridge Satellite Cradle and

Cradle-type Battery Charger.

13 CLR Key Press to clear all key inputs.

14 Fn Key Press this key and then a function key or number key to configure

settings or to run previously registered applications.

15 PC Card Slot For insertion of a separately available PC card.

16 USB Port For connection to a computer or other device using a USB cable.

17 Headset Jack For connection of a commercially available headset (2.5mm).

18 Battery Pack Cover Lock

Switches

Slide these switches to lock and release the battery pack cover.

19 R Trigger Key Press to perform a code read operation. This is also pressed to perform a

full reset.

20 L Trigger Key Press to perform a code read operation. This is also pressed to cancel a

full reset.

21 Wrist Strap Hole Connect the wrist strap here.

C-MOS Imager (C-MOS

Imager models only)

Reads 1D bar codes and 2D codes. 22

Reader Port (Laser Scanner

models only)

Reads 1D bar codes.

23 Reset Switch Press to reset the Handheld Terminal.

24 CF Card Slot Unit Terminal For connection of a separately available CF Card Extension Unit.

25 Battery Pack Cover Covers the compartment that holds the battery pack.

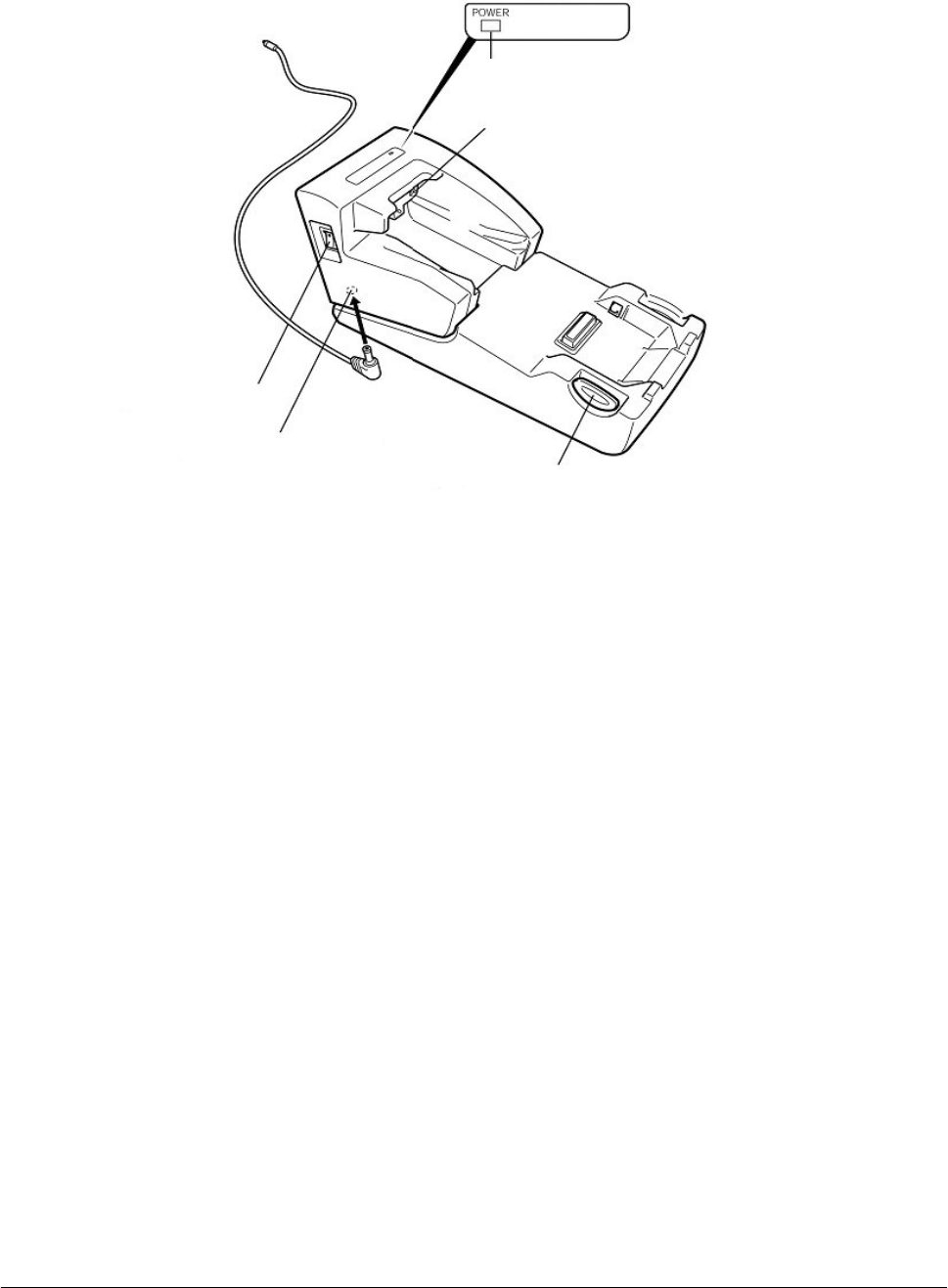

1.3.2 DT-167CHGE Car Mounted Battery Charger

Views

Power Indicator Lamp

Power Contacts

Remove button

Car plug code jack

Power Switch

Fig. 1.3

1.3.3 DT-160IOE Bridge Satellite Cradle

The following external views show the DT-160IOE Bridge Satellite Cradle. Refer to Table 1.5 for

each referenced part on the DT-160IOE.

Views

1 2 43

119

Back

Top

Front

Right Bottom

Fig 1.1

Table 1.5 Names of parts

No. Name Description

1 USB Port This port accepts connection of a USB cable for connection to a computer for

transfer of system data and file data. Use of the USB port requires installation of a

special driver on the PC.

2 RS-232C Port This port accepts connection of an RS-232C cable for connection to a computer

for transfer of system data and file data. Use of the RS-232C port requires

installation of a special driver on the PC.

3 RS-422C Port This port is used when connecting to another Bridge Satellite Cradle.

4 AC Adaptor

Jack

Connect the AC adaptor here.

Continue.

No. Name Description

5 Wall Mount

Unit Fastening

Plate

The holes in this plate accept screws that secure the wall mount unit in place.

6 Terminal Detect

Switch

This switch detects when the Handheld Terminal is not seated correctly on the

Bridge Satellite Cradle.

7 IR Port This port transfers data to the Handheld Terminal via IR port.

8 Power Contacts Power is supplied to the Handheld Terminal via these contacts.

This lamp indicates the power status and the mounting status of the Handheld

Terminal.

9 Power Indicator

Lamp

Off

Green

Red

: Power off

: Power on, Handheld Terminal mounted correctly

: Power on, Handheld Terminal not mounted

This lamp shows when the Handheld Terminal is performing data

communication.

10 Communication

Indicator Lamp

Off

Green flashing

Red

: No data communication being performed.

: Data communication in progress.

: Problem with a connection between two Bridge Satellite

Cradles.

This lamp indicates whether the system is operating normally. Regardless of

whether or not a Handheld Terminal is mounted this lamp indicates the system

status and whether or not a communication operation with the system can be

performed.

Off : System is not operating.

11 System Status

Indicator Lamp

Green : System is operating.

12 Power Switch Turns the power on and off.

13 Desktop Unit This is the base when using the Bridge Satellite Cradle in a desktop configuration.

Remove the desktop unit in the case of a wall-mount configuration.

14 DIP Switches Use these switches to configure the Bridge Satellite Cradle as required.

1.3.4 DT-169CHGE Cradle-type Battery Charger

The following external views show the DT-169CHGE (Cradle-type Battery Charger). Refer to Table

1.6 for each referenced part on the DT-169CHGE.

Views

Back

Top

Front

Right Bottom

Fig 1.2

Table 1.6 Names of parts

No. Name Description

1 AC Adaptor Jack Connects the AC adaptor here.

2 Wall Mount Unit

Fastening Plate

The holes in this plate accept screws that secure the wall mount unit in place.

3 Terminal Detect

Switch

This switch detects when the Handled Terminal is not seated correctly on the

Cradle.

4 Power Contact Power is supplied to the Handheld Terminal via these contacts.

This lamp indicates the power status and the mounting status of the Handheld

Terminal.

Off : Power off

Red : Power on, Handheld Terminal not mounted

5 Power Indicator

Lamp

Green : Power on, Handheld Terminal mounted correctly

6 Power Switch Turns the power on and off.

7 Desktop Unit This is the base when using the Cradle in a desktop configuration. Remove the

desktop unit in the case of a wall mount configuration.

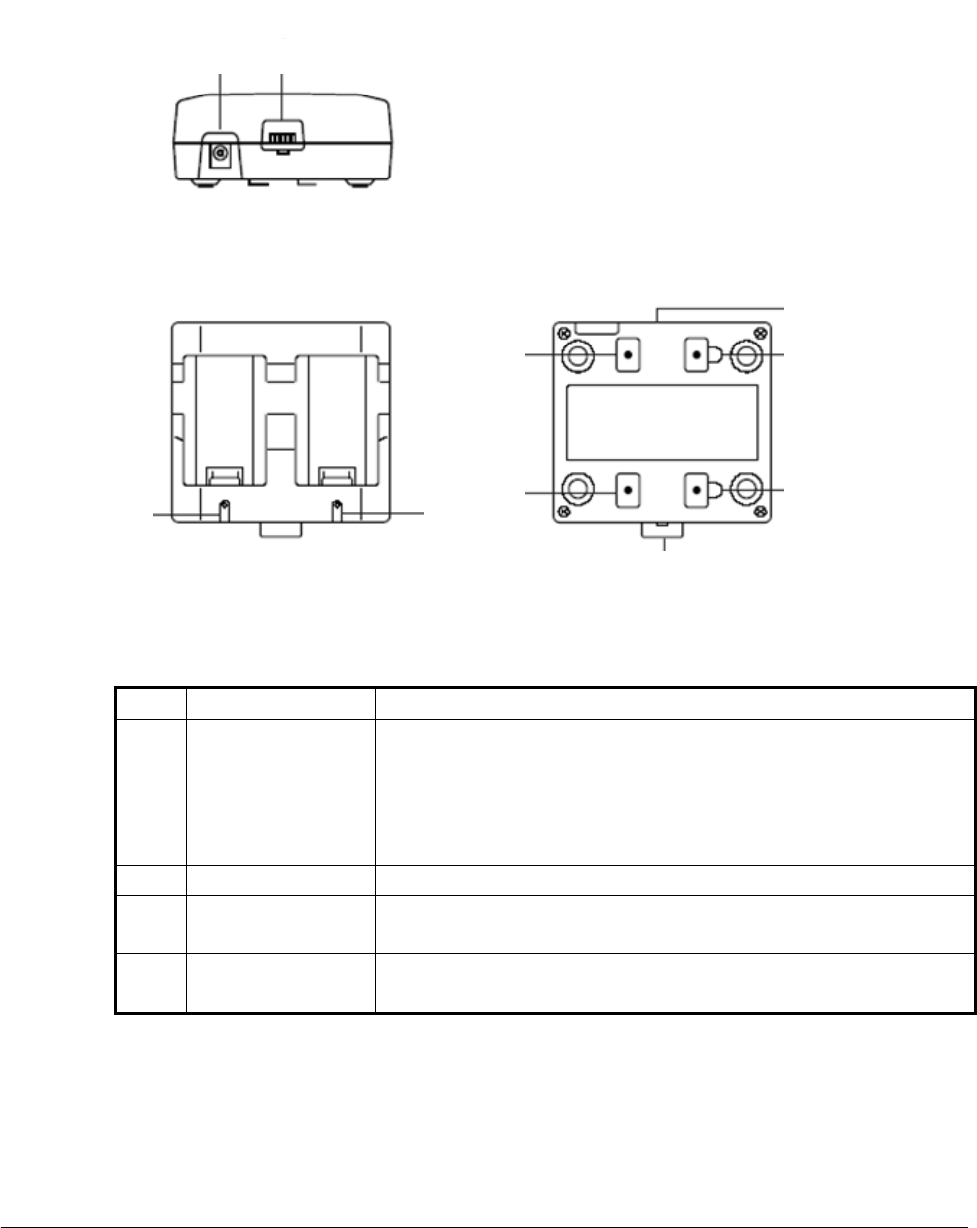

1.3.5 DT-5022CHG Dual Battery Charger

The following external views show the DT-5022CHG (Dual Battery Charger). Refer to Table 1.7 for

each referenced part on the DT-5022CHG.

Views

Back

Top

Front

4 4

Fig 1.3

Table 1.7 Names of parts

No. Name Description

This lamp indicates the charge status of the battery pack(s). 1 Charge Indicator

Lamp Off

Red

Red Flashing

Green

: Not charging

: Charging

: Battery pack problem

: Charging complete

2 AC Adaptor Jack Connects the AC adaptor here.

3 Dual Battery Charger

Connection Port

Use this port to connect multiple Dual Battery Chargers to each other.

4 Connection Bracket

Attachment Holes

The connection bracket attaches here when you connect multiple Dual

Battery Chargers to each other.

Notes:

Each Dual Battery Charger comes with one connection bracket. Since only one connection bracket is

required when you connect two Dual Battery Chargers, you will always have one left over. Simply

keep the other connection bracket on hand as an extra, in case you ever need it.

2. Hardware Specifications

2.1 DT-X11

Table 2.1

Item Specification Remark

CPU, Memory

CPU Intel® PXA255 Application Processor Operating clock; max 400 MHz

RAM 64 MB

FROM 128 MB (user area; approx. 115 MB) FlashFX built in.

OS Microsoft® Windows® CE 5.0 operating system

C-MOS Imager (DT-X11M30E, DT-X11M30U, and DT-X11M30RC)

Method C-MOS Imager, 752 x 480 (Wide VGA),

monochrome

Emitting angle Redirected downward at 45 degree

Resolution 1D

2D Stacked

2D Matrix

Composite

: 0.15mm

: 0.169mm

: 0.33mm

PCS 1D : 0.45 (minimum)

2D : 0.45 (minimum)

Print contrast signal

Readable distance

(Resolution = 1.0mm)

2D Stacked

2D Matrix

: Approx. 40 to 410 mm

: Approx. 50 to 250 mm

: Approx. 60 to 130 mm

Max. 29 mm When the distance is at 40 mm. Readable width

Max. 265 mm When the distance is at 365 mm.

Focal distance 4.5inch

Readable 1D

symbologies

EAN8/JAN8, EAN13/JAN12, UPC-A,

UPC-E, Code39, Codabar (NW7),

Interleaved 2of5(ITF), Code93,

Code128(EAN128), MSI(Plessey), IATA,

Code11, RSS-14, RSS Limited, RSS

Expanded, ISBT

Readable 2D stacked

code symbologies

Code49, PDF417, Micro PDF, Codablock F,

EAN8/13 Composite, TLC39,UCC/EAN128

Composite, RSS-14(Stacked type), RSS

Expanded(Stacked type), RSS Composite

Readable 2D Matrix

code symbologies

Aztec, DataMatrix, Maxicode, QR Code

Continue.

Laser Scanner (DT-X11M10E and DT-X11M10RC)

Method Semi-conductor laser light

Laser emitting angle Straight

Wave length 650±10 nm

Optical output <1 mW

No. of scannings 100±20 times per second

Resolution 0.127 mm (minimum)

PCS 0.45 (minimum) Print contrast signal

Readable distance Approximately 40 to 300 mm

Max. 40 mm When the distance is at 40 mm.Readable width

Max. 238 mm When the distance is at 300

mm.

Daylight for scanning 50,000 Lux or less

Readable 1D bar code

symbologies

EAN8/JAN8, EAN13/JAN13, UPCA,

UPCE, Code39, Codabar(NW7), Interleaved

2of5(ITF), Code93, Code128(EAN128),

MSI(Plessey), IATA, Industrial 2of5(IDF),

RSS-14, RSS Limited,

RSS Expanded

Display

Display device 3.5-inch 2-Way TFT color LCD

No. of dots 240 (h) x 320 (w)

Dot pitch 0.22 (h) x 0.22 (w) mm

Display font Scalable font See note 1

Backlight LED

Indicator

Confirmation /Status LED x 2 pcs in red/green Left: Programmable

Right: Battery charge status

Input

Keyboard Numeric (Alphabet) keys, CLR key, Execute

key, Fn key, Text key, Cursor key

Control keys Power ON/OFF key, Reset switch

Trigger keys 2 keys ( on the left and right sides)

Touch panel Plastic panel (Resolution 240 x 320)

Possible to display character input pad

IrDA interface

Standard IrDA ver.1.1 compatible

Communication

process

Half duplex

Synchronization Start/Stop bits

Baud rate (in bps) 9,600/115,200/4M

Communication range 0 (contact) to 1m Max. 0.25m at 4Mbps

Continue.

Bluetooth®

Standard Bluetooth® Specification Ver.1.2

Comm. range Approx. 3 m Depending on the surrounding

conditions

Output power Maximum. 3dBm ( PowerClass 2)

Serial interface

Standard USB Slave Mini B 5 Pin.

Baud rate Full speed (12 Mbps)

Audio Earphone jack φ2.5mm 3-pole Supports headset.

PC Card (applicable to DT-X11M10E, DT-X11M30E, and DT-X11M30U)

Standard PC Card Type I / Type II 3.3V/5.5V

Supply current 450mA(5V), 500mA(3.3V) Constant supply current values

WLAN (applicable to DT-X11M10RC and DT-X11M30RC)

Frequency category ISM

Standard IEEE802.11b See note 2

Modulation Direct Sequence Spread Spectrum

Frequency band 2.400 to 2.4835 GHz

Baud rate 11 Mbps (maximum)

Comm. range 50 m (indoor) to 150 m (outdoor) The range may vary depending

on the environment.

Number of channels 13 Three channels are available at

the same time.

Other feature Roaming between Access-Points

WLAN card (applicable to DT-X11M10E, DT-X11M30E and DT-X11M30U)

Card type CF card Types I/II (3.3V) CF Card Extension Unit

(option)

Supply current 300 mA (3.3V) maximum

Power

Operation Lithium-ion battery pack HA-A20BAT or DT-5025LBAT

Memory backup Lithium battery (rechargeable) on board Built-in, not replaceable 50mAH

DT-X11M10E/M30E/M30U DT-X11M10RC/30RC Operating period

(hours) Approx. 8 (with HA-A20BAT)*3

Approx. 18 (with DT-5025LBAT)*3

Approx. 4 (with HA-A20BAT)*4

Approx. 10 (with DT-5025LBAT)*4

Memory back up

period

RAM : Approx. 10 minutes

Clock : Approx. 2 weeks

- Lithium battery pack is fully

charged.

- At room temperature.

Memory backup

battery charge period

Approximately 4 days - Time period until when the battery

is fully charged.

- Battery pack is being installed.

- At room temperature.

Buzzer Sound pressure 70dB (minimum)

Notes:

1. A font that can be used to print characters in any size.

2. Concurrent use of WLAN communication with Bluetooth communication is not recommended.

3. Based on the operating cyclic ratio of “standby:calculation:scan” at 20:1:1

4. Based on the operating cyclic ratio of “standby:scan:wireless” at 6.5:1.5:2.

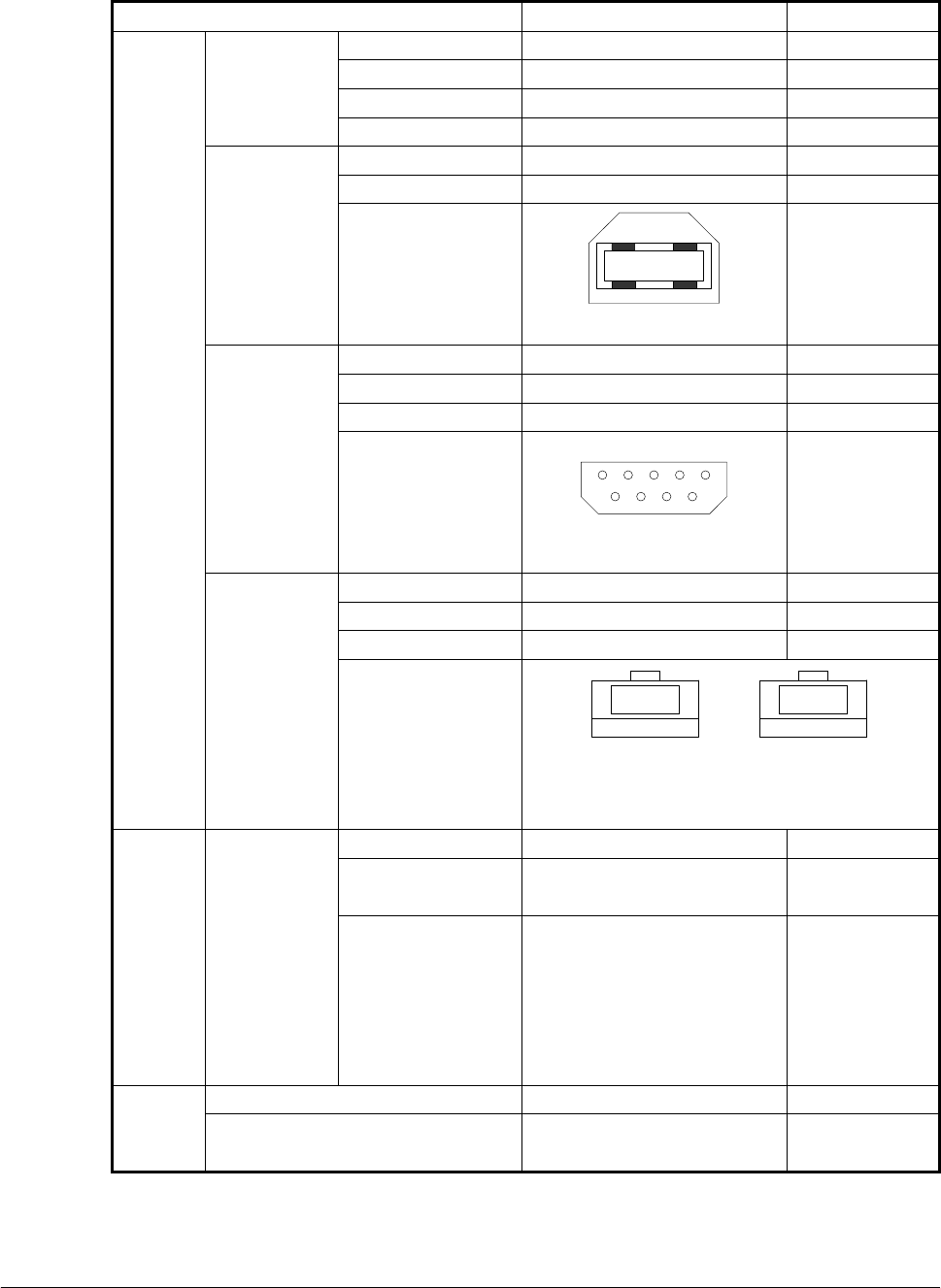

2.2 DT-160IOE Bridge Satellite Cradle

Table 2.2

Item Specification Remark

Standard IrDA Ver. 1.1 compatible

Comm. method Half duplex

Synchronization Start/stop method

IrDA

Comm. speed 4 Mbps (maximum)

Standard USB Ver.1.1 compatible

Baud rate 12 Mbps (maximum)

USB

Connector

USB connector B type

1 VBus

2 – Data (D -)

3 + Data (D+)

4 GND

Comm. method Full duplex

Synchronization Start/stop method

Comm. speed 115.2 Kbps

RS-232C

Connector

SG ER SD RD CD

CI CS RS D

D-Sub 9-pin(Male)

1 VBus

2 – Data (D -)

3 + Data (D+)

4 GND

Comm. method Full duplex

Synchronization Start/stop method

Comm. speed 115.2 Kbps

Interface

RS-422

Connector

OUT

RDI-

RDI+

SDO-

SDO+

RSO-

RSO+

RDO-

RDO+

SDI-

SDI+

RSI-

RSI+

RDO-

RDO+

SDI-

SDI+

RSI-

RSI+

RJ-45 compatible (6 pins)

No. of LEDs 3

No. of display

colors

2 Red, green

Display Status LED

Display content System operation status

(“LINE”)

Communication status

(“DATA”)

Power status

(“POWER”)

Refer to Chapter

2.6 “Status

Indication with

LEDs”.

Dip switch 8 switches See page 24. Input

Detection switch for DT-X11

terminal

Push switch

Continue.

Input voltage DC 12V ±5%

Consumption

current

Approx. 1,600 mA When supplying

power or

transmitting

data.

Plug EIAJ RC-5320A type 4 Center; Plus

Input from

AC adaptor

AC adaptor AD-S42120AE

Output voltage DC 5V ±10%

Output current 2,500mA(maximum)

Charge method Constant voltage With curb

function on

current

Approx. 2.5 hours For

HA-A20BAT

Charge time

Approx. 5.0 hours For

DT-5025LBAT

Power

Charge/

supply power

Power supply

terminals

Power supply

terminals

GND

The illustration

of the power

supply terminals

on the left is

viewed at the

front of the

cradle.

Table 2.3 Weight / Dimensions

Specification Remark

In desktop configuration Approx. 490 g Weight

In wall-mount configuration Approx. 650 g

In desktop configuration Approx. 110 (W) x 139 (D) x 129 (H) mm Dimensions

In wall-mount configuration Approx. 110 (W) x 148 (D) x 153 (H) mm

2.3 DT-167CHGE Car Mounted Battery Charger

Table 2.4

Item Specification Remark

No. of LEDs 1

No. of display colors 2 In red and green

Display content Power status (“POWER”)

Indicates the status of terminal being mounted on the charger.

Display Status LED

OFF

Flashing in green

Flashing in red

: Power is OFF.

: Power is ON and the terminal is mounted on the

charger.

: Power is ON but the terminal is not mounted on the

charger.

Input Detection switch for DT-X11 terminal Push switch

Input voltage DC 12V/24V±5%

DC 12V: Approx. 1,400 mA Consumption current

DC 24V: Approx. 700 mA

While supplying

power.

Plug EIAJ RC-5320A Class 4 Center: plus

Input from

power

adaptor

Power cord DT-827CAC

Output voltage DC 5V±10%

Output current 2,500 mA (maximum)

Charge method Constant voltage With curb

function on

current

Approx. 2.5 hours For HA-A20BATCharge time

Approx. 5.0 hours For

DT-5025LBAT

Power

Charge/suppl

y power

Power supply

terminals

Power

supply

terminals

GND

The illustration of

the power supply

terminals on the

left is viewed at

the front of the

charger.

Table 2.5 Weight/Dimensions

Specification Remark

Weight Approx. 755 g

Dimensions Approx. 119 (W) x 267 (D) x 123 (H) mm

2.4 DT-169CHGE Cradle-type Battery Charger

Table 2.6

Item Specification Remark

No. of LEDs 1

No. of display colors 2 In red and green

Display Status LED

Display content Power status (“POWER”)

Input Detection switch for DT-X11 terminal Push switch

Input voltage DC 12V±5%

Consumption current Approx. 1,400 mA While supplying

power or

transmitting data.

Plug EIAJ RC-5320A Class 4 Center: plus

Input from

AC adaptor

AC adaptor AD-S42120AE

Output voltage DC5V±10%

Output current 2,500 mA (maximum)

Charge method Constant voltage With current curb

function

Approx. 2.5 hours For HA-A20BATCharge time

Approx. 5.0 hours For

DT-5025LBAT

Power

Charge/Power

supply

Power supply terminal

Power supply

terminals

GND

The illustration of

the power supply

terminals on the

left is viewed at

the front of the

charger.

Table 2.7 Weight/Dimensions

Specification Remark

In desktop configuration Approx. 470 g Weight

In wall-mount configuration Approx. 630 g

In desktop configuration Approx. 110 (W) x 139 (D) x 129 (H) mm Dimensions

In wall-mount configuration Approx. 110 (W) x 148 (D) x 153 (H) mm

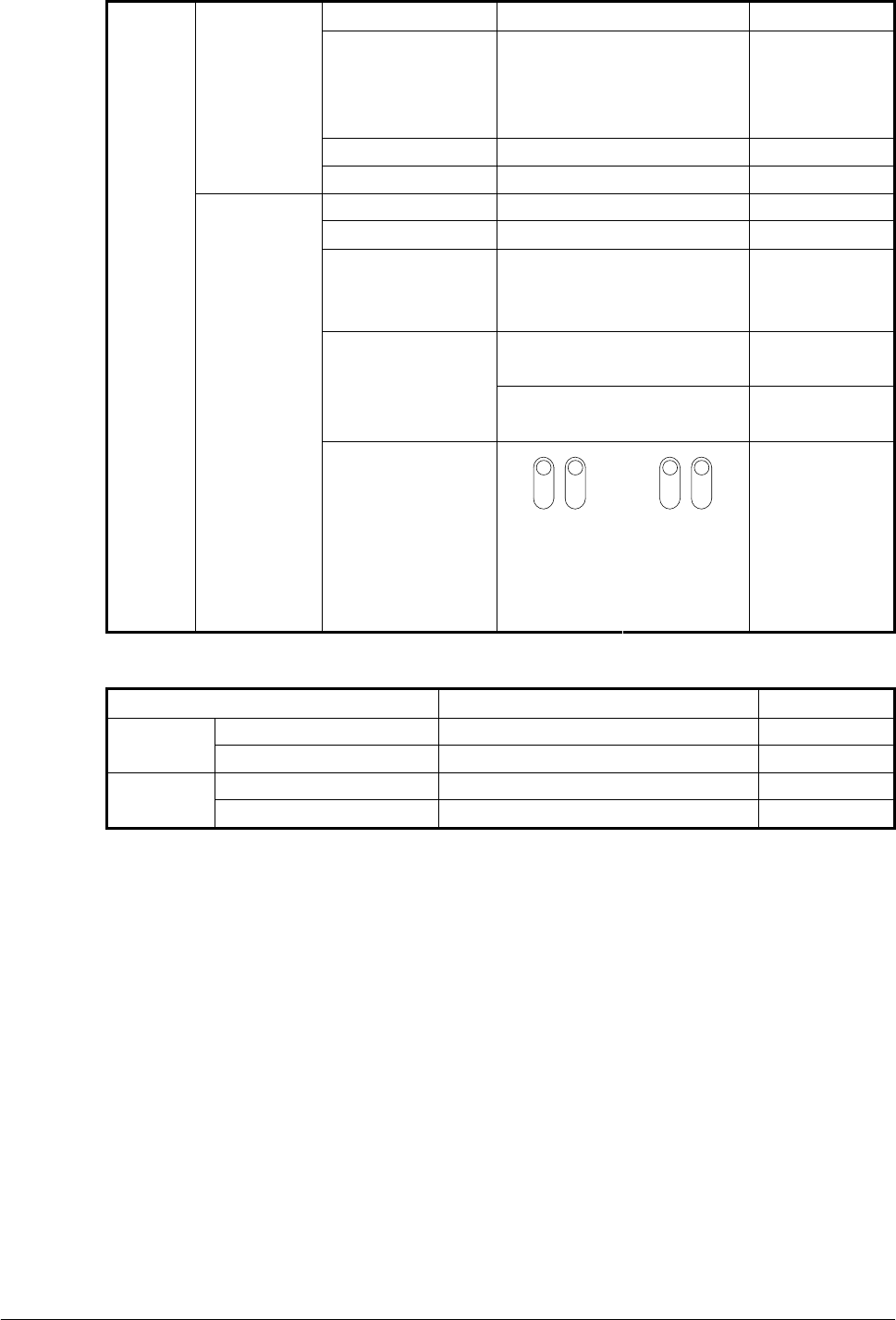

2.5 DIP Switch Setting for DT-160IOE

The DIP switch is located on the rear side of Bridge Satellite Cradle. Change the ON/OFF settings

according to your required system configuration. The new settings do not go into effect until the

power switch is turned off and then back on.

Fig. 2.1

Note:

Other DIP switch settings are used for testing and inspection purposes Because of this, you must not

use any DIP settings other than those described above.

2.6 Status Indication with LEDs

Various operational statuses on the DT-160IOE can be displayed using the LEDs. The following

table describes LED modes and their meanings.

Table 2.8

Item Specification Remark

LED

DT-X11 terminal is not mounted LED ON in red

DT-X11 terminal is mounted LED ON in green

Power status indicator

(“POWER”)

Power OFF LED OFF

2-color LED

Break of communication LED OFF

Communication is in progress LED flash in green

Comm. status

indicator

(“DATA”) Connection between cradle and PC is

not valid.

LED ON in red

2-color LED

No communication with DT-X11 or

abnormality of the system

LED OFF

Line status indicator

(“LINE”)

Communication with DT-X11 is in

progress.

LED ON in green

2-color LED

2.7 DT-5022CHG Dual Battery Charger

Basic Block

Table 2.9

Item Specification Remark

Basic function

Rechargeable battery pack

HA-A20BAT Battery pack

DT-5025LBAT Large-capacity battery pack

Dedicated batteries only.

AC adaptor

AD-S45150AU Input 100 to 230VAC (W/US power cord)

AD-S45150AE Input 100 to 230VAC (W/European power

cord)

Dedicated AC adaptors

for the charger

Interface Block

Table 2.10

Item Specification Remark

Input terminals for joint block

1: VIN2 Rated DC16V Input voltage 8 to 20

2: VIN3 Rated DC16V Input voltage 8 to 20

3: NC NC

4: GND GND

Output terminals for joint block

1: VOUT1 DC16V Output terminal from 1st unit when

AC adaptor is used.

2: VOUT2 DC16V Output terminal from 2nd unit

3: NC NC

4: GND GND

No. of joint-able units 3 units (x DT-5022CHG)

Power Supply Block

Table 2.11

Item Specification Remark

Input

Rated voltage DC 16V

Input voltage DC 8.0 to 20V

Rated output

Rated output voltage DC 4.22V

Rated output current DC 1,600 mA

Input consumption current

Input consumption current 0.65 A When input voltage is at 16V.

Continue.

Charge output terminal CH1

PIN1: + 4.22V±30mV

PIN2: - GND

Charge output terminal CH2

PIN1: + 4.22V±30mV

PIN2: - GND

Input terminal

DC jack Rated DC16V, input voltage DC 8.0 to 20.0V

Battery Charge Block

Table 2.12

Item Specification Remark

Charge control

Output voltage DC 4.22V±30mV

Charge current (standard mode) DC 1,600mA±10%

Charge current (standby mode) DC 160±40mA

Full charge detection current DC 120±30mA

Full charge detection

voltage

4.1V Voltage

control

Re-charge detection voltage 4.0V

Re-charge detection voltage DC 4.0±0.1V

Input voltage DC 8.0 to 20V

Timer

Charge timer (standby mode) 90 minutes

Charge timer (standard mode) 720 minutes

Trickle charge timer 120 minutes

Charge hour

HA-A20BAT Approx. 2.5 hours (for 1 pack)

Approx. 5 hours (for 2 packs at same time)

At 0 to 40 ºC

DT-5025LBAT Approx. 5 hours (for 1 pack)

Approx. 10 hours (for 2 packs at same time)

At 0 to 40 ºC

Temperature control Not available

No. of charge output 1

Operation mode

Battery pack mount detection

Battery pack not mounted LED OFF, charge output OFF

Battery pack mounted LED ON in red, charge output OFF

Check on battery pack LED ON in red, charge output OFF

Battery charge (standby mode) LED ON in red, charge output ON

Battery charge (standard mode) LED ON in red, charge output ON

Wait mode in trickle charge LED ON in green, charge output OFF

Charge in trickle mode LED ON in green, charge output ON

Charge completed LED ON in green, charge output OFF

Charge abnormal end LED flash in red, charge output OFF

Other

Priority order of battery charging Order in mounted order

Table 2.13 Weight/Dimensions

Item Specification Remark

Weight Approx. 154 g

Dimensions 100 (L) x 110 (W) x 49 (H) mm

2.8 HA-A20BAT/DT-5025LBAT

Table 2.14

Specification

Item HA-A20BAT DT-5025LBAT Remark

Rated capacity 1,700 mAh 3,400 mAh 0.2C discharge

Rated voltage 3.7 V 3.7 V 0.2C discharge

Discharge end voltage 2.75V 2.75V

Standard charge current 1.0 CA (=1.55A) 0 to 40 ºC 1.6A 0 to 50 ºC

Charge voltage 4.2±0.05V 4.2±0.05V

Charge hour

(standard mode)

2.5 5.0 Charge with

DT-5022CHG

Weight Approx. 45 g Approx. 87 g

Dimensions Approx. 37(W) x 57(L) x

13(H) mm

Approx. 37 (W) x 57 (L) x

24 (H) mm

2.9 DT-894CFU CF Card Extension Unit

Fig. 2.2

Table 2.15 Dimensions/Weight

Item Specification Remark

Approx. 70 (W) x 87 (D) x 13 (D) mm With standard size cover Dimensions

Approx. 85 (W) x 78 (D) x 13 (D) mm With large size cover

Approx. 40 g With standard size cover Weight

Approx. 45 g With large size cover

3. Interfaces

3.1 DT-X11

CF Extension Slot

Table 3.1

Specification Remark

Interface CFA Rev.1.3 compatible CF Type I/II 3.3V only

Power voltage 3.3V±5%

Supply current 300 mA (maximum)

Pin Assignment

Table 3.2

Memory Mode I/O Mode Memory Mode I/O Mode

Name I/O Name I/O Pin no. Pin no. Name I/O Name I/O

GND P GND P 1 26 -CD1 I -CD1 I

D03 I/O D03 I/O 2 27 D11 I/O D11 I/O

D04 I/O D04 I/O 3 28 D12 I/O D12 I/O

D05 I/O D05 I/O 4 29 D13 I/O D13 I/O

D06 I/O D06 I/O 5 30 D14 I/O D14 I/O

D07 I/O D07 I/O 6 31 D15 I/O D15 I/O

-CE1 O -CE1 O 7 32 -CE2 O -CE2 O

A10 O A10 O 8 33 -VS1 I -VS1 I

-OE O -OE O 9 34 -IORD O -IORD O

A09 O A09 O 10 35 -IOWR O -IOWR O

A08 O A08 O 11 36 -WE O -WE O

A07 O A07 O 12 37 RDY/BSY I IOREQ I

VCC P VCC P 13 38 VCC P VCC P

A06 O A06 O 14 39 -CSEL O -CSEL O

A05 O A05 O 15 40 -VS2 I -VS2 I

A04 O A04 O 16 41 RESET O RESET O

A03 O A03 O 17 42 -WAIT I -WAIT I

A02 O A02 O 18 43 -INPACK I -INPACK I

A01 O A01 O 19 44 -REG O -REG O

A00 O A00 O 20 45 BVD2 I/O -SPKR I/O

D00 I/O D00 I/O 21 46 BVD1 I/O -STSCHG I/O

D01 I/O D01 I/O 22 47 D08 I/O D08 I/O

D02 I/O D02 I/O 23 48 D09 I/O D09 I/O

WP - -IOIS16 - 24 49 D10 I/O D10 I/O

-CD I -CD2 I 25 50 GND P GND P

Directions of data flow;

I : DT-X11 ← CF card

O : DT-X11 → CF card

I/O : DT-X11 ⇔ CF card

P : Power, GND

Table 3.3 IrDA interface

Item Specification Remark

Communication speed, modulation

Standard IrDA Ver. 1.1 compatible

FIR 4 Mbps 4-value PPM modulation

MIR 1.152 M, 576 Kbps NRZ modulation

SIR 2.4 K to 115.2 Kbps NRZ modulation

Emission unit

Peak wave length 880 to 900 nm

Emission strength Type 75 mW/sr

Emission angle ±15°

Reception unit

Reception wave length 850 to 900 nm

Incident illuminant SIR: 0.75 mW/cm2 or less

FIR: 200 to 0.75, 0.33 to 0.12 mW/cm2

Communication range 0 to 1m (Maximum 25 cm at 4 Mbps)

Connectable devices

HT-to-HT comm. Between DT-X11 and DT-X11

Communication via cradle Bridge Satellite Cradle (DT-160IOE)

Table 3.4 Earphone

Item Specification Remark

Method Monaural

Connectable device Earphone

Table 3.5 Power supply

Item Specification Remark/Condition

HA-A20BAT/DT-5025LBAT

Rated voltage 3.7 V

Rated capacity 1,700 mAh (HA-A20BAT)

3,400 mAh (DT-5025LBAT)

Approx. 8 (w/HA-A20BAT)

Approx. 18 (w/DT-5025LBAT)

- In case of

Wait:Calculation:Scanning 20:1:1

Approx. 4 (w/HA-A20BAT)

Operating hours

Approx. 10 (w/DT-5025LBAT)

- For DT-X11M10RC/M30RC

- In case of Wait: Scanning:Wireless

6.5:1.5:2.

10 minutes for data in RAM Memory backup

period 2 weeks for built-in Real Time

Clock

- At moderate temperature

- Memory backup battery is fully

charged.

Recharge memory

backup battery

4 days - Period required for the sub-battery

to be fully charged when the

battery pack is installed in the

terminal

Continue.

Memory backup battery

Battery type Button-shape Lithium

rechargeable battery

(CR-2032)

Rated voltage 3.0 V

Battery low warning

Low main battery voltage VDET1: 3.4 V Warning display, but still operable.

Forcible OFF VDET2: 3.0 V Forcible OFF.

Low sub-battery voltage VDETS: 2.3 V Data cannot be retained.

4. Product Identification and Reference Numbers

On the back of the DT-X11 and its options, there is a bar code and numbers printed on label as

shown in Fig 4.1. This bar code is represented by 15 digits of Code128 symbology and by

alphanumeric characters beneath the bar code. The numbers from 1 to 9 in the figure represent

identification and references of each terminal. The numbers from 10 to 15 represent a manufacturing

reference which is reserved by the manufacturer. See the figure below for each meaning.

12345 6 7 8 9 101112131415

Production month of the year (1 to 9, A,B,C)

Production year (last digit only. Ex. 1 repres ents the year 2001.)

Model number

(

two di

its in al

hanumeric

)

Serial number of the terminal

in 5 d igits

Manufacturing references

(reserved by the manufacturer)

Check digit

5B:

5C:

5D:

5E:

5F:

DT-X11M10E

DT-X11M10RC

DT-X11M30E

DT-X11M30U

DT-X11M30RC

Fig 4.1

5. Quality References

This chapter will describe about references of the DT-X11 and its dedicated options concerned with

environmental performance, compliance, mechanical and electric durability, etc.

5.1 Environmental Performances

5.1.1 DT-X11

Table 5.1

Item Specification Condition

Temperature

Operation -20 ºC to 50 ºC 0 to 40 ºC for charging

battery pack

DT-X11M30RC

DT-X11M30E

DT-X11M30U Non-operation -20 ºC to 70 ºC

Operation -10 ºC to 50 ºC 0 to 40 ºC for charging

battery pack

DT-X11M10RC

DT-X11M10E

Non-operation -20 ºC to 60 ºC

Humidity

Operation 10 % to 80 %RH

Non-operation 5 % to 90 %RH

No condensation

Dust and water-splash proof

IP54 level, compliant with IEC60529 standard

Storage in carton box

Temperature -10 ºC to 50 ºC

Humidity 90 %RH (Maximum)

5.1.2 DT-160IOE/DT-169CHGE

Table 5.2

Item Specification Condition

Temperature

Operation 0 ºC to 40 ºC

Storage -10 ºC to 50 ºC

Humidity

Operation 30 % to 80 %RH

Storage 30 % to 90 %RH

No condensation

Storage in carton box

Temperature -10 ºC to 50 ºC

Humidity 30 % to 90 %RH No condensation

5.1.3 DT-167CHGE

Table 5.3

Item Specification Condition

Temperature

Operation 0 ºC to 40 ºC

Storage -40 ºC to 85 ºC

Humidity

Operation 30 % to 80 %RH

Storage 30 % to 95 %RH

No condensation

Storage in carton box

Temperature -10 ºC to 50 ºC

Humidity 30 % to 90 %RH No condensation

5.1.4 DT-5022CHG

Table 5.4

Item Specification Condition

Temperature

Operation 0 ºC to 40 ºC

Non-operation -10 ºC to 50 ºC When battery is not

charged.

Storage -10 ºC to 55 ºC

Humidity

Operation 20 % to 90 %RH

Storage 20 % to 90 %RH

No condensation

Storage in carton box

Temperature -10 ºC to 55 ºC

Humidity 20 % to 90 %RH No condensation

5.1.5 HA-A20BAT/DT-5025LBAT

Table 5.5

Item Specification Condition

Temperature

Operation 0 ºC to 40 ºC

Non-operation -5 ºC to 50 ºC When battery is not

charged.

Storage -10 ºC to 55 ºC

Humidity

Operation 20 % to 90 %RH

Storage 20 % to 90 %RH

No condensation

Storage in carton box

Temperature -10 ºC to 55 ºC

Humidity 90 %RH or less No condensation

5.1.6 DT-894CFU

Table 5.6

Item Specification Condition

Temperature

Operation -20 ºC to 50 ºC

Non-operation -20 ºC to 70 ºC

Humidity

Operation 10 % to 80 %RH

Storage 5 % to 90 %RH

No condensation

Storage in carton box

Temperature -10 ºC to 55 ºC

Humidity 90 %RH or less No condensation

Dust and water-splash proof

IP64 level (compliant with

IEC60529)

All connectors are covered.

5.2 Electrical Performances

5.2.1 DT-X11

Table 5.7

Item Specification Remark

Power consumption DC2.5A/3.7 to 5.0V

Anti-static strength

Malfunction ±6 KV

Destruction ±12 KV

150 pF, 330ohm

5.2.2 DT-160IOE/DT-169CHGE

Table 5.8

Item Specification Remark

Approx. 0.1 A When DT-X11 is not mounted on. Current

consumption Approx. 1.6 A While supplying power or transmitting

data.

Vo l t a g e DC12V±5%

Anti-static strength

Malfunction ±6 KV

Destruction ±12 KV

150 pF, 330 ohm

Power interruption 10 millisec. or less

Line noise strength

(Malfunction)

1,000 V - Pulse frequency: 5KHz

- Burst cycle: 300 millisec.

- Number of pulses: 75

- Burst interval: 15 millisec.

5.2.3 DT-167CHGE

Table 5.9

Item Specification Remark

DC 12V :Approx. 1,400mA Current

consumption DC 24V : Approx. 700 mA

While supplying power.

Vo l t a g e DC12V/24V±5%

Anti-static strength

Malfunction ±6 KV

Destruction ±12 KV

150 pF, 330 ohm

5.2.4 DT-5022CHG

Table 5.10

Item Specification Remark

Anti-static strength

Malfunction ±5 KV

Destruction ±10 KV

- ESD method: 250 pF, 100 ohm

- Probe: Finger type

- Polarity: ±

5.2.5 HA-A20BAT/DT-5025LBAT

Table 5.11

Item Specification Remark

Anti-static strength

Malfunction ±5 KV

Destruction ±10 KV

- ESD method: 250 pF, 100 ohm

- Probe: Finger type

- Polarity: ±

5.2.6 DT-894CFU CF Card Extension Unit

Table 5.12

Item Specification Remark

Power consumption DC 0.65A / 3.0 to 5.0V

Anti-static strength

Malfunction ±5 KV

Destruction ±10 KV

150 pF, 330 ohm

5.3 Mechanical Performances

5.3.1 DT-X11

Table 5.13

Item Specification Condition

Resistance to drop impact(height)

In bare condition 120 cm Onto concrete, three times on each of

the 6 sides and 4 corners.

In individual carton box 70 cm or less

In master carton box 50 cm or less

Onto concrete, one time on each of

the 6 sides, 1 corner, 3 edges.

Resistance to vibration 0.15G or less 10 to 55 Hz, In X,Y, and Z directions

Reciprocally for 30 minutes

5.3.2 DT-160IOE/DT-169CHGE

Table 5.14

Item Specification Condition

Resistance to vibration 0.15 G or less - 10 to 55 Hz, In X,Y, and Z directions

- Reciprocally for 30 minutes

Resistance to vibration

(in package)

1.5 G or less - 10 to 55 Hz, In X,Y, and Z directions

- Reciprocally for 30 minutes

Resistance to impact

In bare condition 70 cm One time for 6 faces onto concrete surface

In individual carton box 70 cm or less

In master carton box 50 cm or less

One time for 6 faces, 1 corner and 3 edges

5.3.3 DT-5022CHG

Table 5.15

Item Specification Condition

Resistance to vibration 1 G or less - 10 to 55 Hz, In X,Y, and Z directions

- Reciprocally for 30 minutes

Resistance to vibration (in

package)

2 G or less - 10 to 55 Hz, In X,Y, and Z directions

- Reciprocally for 30 minutes

Resistance to impact

In bare condition 75 cm 6 faces, 1 corner and 3 edges

In individual carton box 75 cm or less 6 faces, 1 corner and 3 edges

5.3.4 HA-A20BAT/DT-5025LBAT

Table 5.16

Item Specification Condition

Resistance to vibration 1 G - 10 to 55 Hz, In X,Y, and Z directions

- Reciprocally for 15 minutes

- While the power is being turned off.

Resistance to vibration

(in carton box)

2 G - 10 to 55 Hz, In X,Y, and Z directions

- Reciprocally for 15 minutes

Resistance to impact

In bare condition 75 cm

In individual carton 75 cm or less

- 6 faces, 1 corner and 3 edges onto P tile.

5.3.5 DT-894CFU CF Card Extension Unit

Table 5.17

Item Specification Condition

Resistance to vibration 0.15 G or less - 10 to 55 Hz,

- In X,Y, and Z directions

- Reciprocally for 30

minutes

- The unit is installed on

DT-X11.

With the extension unit

installed on the terminal

Resistance to impact

120 cm - 3 times of each faces

(6faces) and corner

(4corners) onto concrete

surface

With the standard size

card cover installed on

the terminal.

In bare condition

40 cm - 1 time of each faces

(6faces) and corner

(4corners) onto lauan

wood surface

With the large-sized

card cover installed on

the terminal.

In individual carton

box

70 cm or less

In master carton 50 cm or less

- 1 time of each face (6 faces), corner (1 corner)

and edge (3 edges)

5.4 Reliability

5.4.1 DT-X11

Table 5.18

Item Specification Remark/Condition

Backlight 5,000 hours At half-life period

Scanner module 10,000 hours

C-MOS Imager 300,000 hours

USB connector 5,000 times

PC Card slot cover 100 times

Trigger keys 1,000,000 times Each trigger key

Other keys 500,000 times

Mounting/removing of

DT-X11 to/from the Cradle

10,000 times

Key input 800,000 times With 0.8R polyester stylus with load of 250g

applied

Touch panel

Writing 100,000 with

Katakana

characters

MTBF 64,685 hours Electronic parts only

MTBF (WLAN module) 27,000 hours

Charging and discharging

cycle of battery pack

300 times or more Applicable to HA-A20BAT / DT-5025LBAT

5.4.2 DT-160IOE/DT-169CHGE

Table 5.19

Item Specification Remark/Condition

MTBF for electronics parts 50,000 hours

Mounting/removing DT-X11 to/from Cradle 20,000 times

Power switch 5,000 times Switch

DIP switch 10 times

USB 500 times

RS-232C 500 times

No. of ON/OFF times of the

connector

RS-422 100 times

No. of ON/OFF times of the power jack 1,500 times

5.4.3 DT-5022CHG

Table 5.20

Item Specification Remark

MTBF 210,000 hours or more MIL-HDBK217F

Protection from short Internal circuit is protected from a short

between the charge terminals

5.5 Compliance

5.5.1 DT-X11

Table 5.21

Category Standard

DT-X11M30

DT-X11M10E

DT-X11M30E

DT-X11M10RC

DT-X11M30RC Remarks

UL1950 3rd Edition Yes No No US

EN60950-1 No Yes Yes EU

Safety

GB4943 No Yes Yes CCC

FCC part 15C,

OET-65(SAR)

Yes No No US

EN300328-2 V1.21 No Yes Yes EU

WLAN Type

Approval

Bluetooth

Type

Approval

SR R C N o Yes Ye s Ch i na

EN60825-1:1996 N/A Yes Yes EU Laser Beam

IEC60825 N/A Yes Yes China

FCC part 15B Yes No No US

EN301489-17

V1.1.1(09-2000)

No Yes Ye s EU

GB9245

GB17625.1

No Yes Ye s CC C

EMI

C- Ti ck No Yes Yes Au st ra l ia

New

Zealand

EMS EN55024:1998

+A1:2001 +A2:2003

No Yes Ye s EU

Bluetooth

Logo

Yes Yes Yes

5.5.2 DT-160IOE/DT-169CHGE

Table 5.22

Standard

Europe USA

EN55022:1998+A1:2000 Class B EMC

EN55024:1998+A1:2001 Class B

FCC Part 15B Class B

Safety EN60950 UL1950 3rd Edition

6. Cable Specifications

6.1 For Chain Connection and Short Length

Length; 1 meter or less

Fig. 6.1

Table 6.1 Specifications of the cable

Cable

Conductor 20/0.1A

Insulator Semi-hard material P.V.C.

Core wire

Finish of external shape 20/0.1A

Insulator P.V.C. Sheath

Finish of external shape φ4.3±0.1mm

Conductance resistance 0.12Ω/m or less Characteristics

Insulation resistance 50MΩ or more

Pin layout diagram of cable for chain connection and short distance (pin-to-pin straight connection)

Wiring

Fig. 6.2

Pin no. Signal

1 ORS+

2 ORS-

3 OSD+

4 OSD-

5 IRD+

6 IRD

Pin no. Signal

1 IRS+

2 IRS-

3 ISD+

4 ISD-

5 ORD+

6 ORD-

Max. 1m

1 2 3 4 5 6 1 2 3 4 5 6

Modular plug compatible

with 6/6-6 FR SYK

Sanyo Industrial Co

Cable.(see Table 6 . 1 )

Cradle at lower

position under the

chain connection

Cradle at higher

position under the

chain connection

6.2 For Chain Connection and Long Length

Length; 1 meter or longer

Fig. 6.3

Pin layout diagram of cable for chain connection and long distance (pin-to-pin straight/twist-pair

connection)

Wiring

Fig. 6.4

Pin no. Signal

1 ORS+

2 ORS-

3 OSD+

4 OSD-

5 IRD+

6 IRD

Pin no. Signal

1 IRS+

2 IRS-

3 ISD+

4 ISD-

5 ORD+

6 ORD-

Max. 1,000m

1 2 3 4 5 6 1 2 3 4 5 6

Modular plug compatible

with 6/6-6 FR SYK

Sanyo Industrial Co.

Cable compatible with SK

-UTP

100M3P by Sanyo Industrial Co

Cradle at lower

position under the

chain connection

Cradle at higher

position under the

chain connection

XXXXXXX

7. Precautions

7.1 Handling

Precautions for short-term storage (1 to 2 days period)

• If the DT-X11 is to be stored over holidays (including Saturday and Sunday), replace the

HA-A20BAT (or DT-5025LBAT) battery pack with fully charged one before it is stored. This

will conserve the memory backup battery and ensure retention of data on the DT-X11.

• If there is a possibility of the above or operator error (e.g., a fully charged battery pack has not

been installed), practice system operation so that a backup to avoid loss of data due to low

battery voltage is carried out periodically.

Precautions for long-term storage (over one week period)

• Prior to long-term storage (over one week period), always back-up data. In addition, remove

the battery pack and memory backup battery before storage. This can minimize overly

discharging the battery pack and the memory backup battery.

• Do not store the removed battery pack and memory backup battery at high temperature.

Otherwise, they will discharge at an accelerated rate. Note that the capacity of the battery if it is

not used for 10 days and is kept at 60°C will be 65%, and that for 20 days and is kept at 60°C

will be 55%.

7.2 Safety

7.2.1 Battery Pack/Memory Backup Battery

Battery Pack

• Never disassemble or retrofit the battery pack. The battery pack has safety mechanism and

protection means incorporated to avoid hazards. Should they be damaged, the battery pack

could become hot, generate smoke, explode, or ignite.

• Never contact the “+” and “-“ terminals with a metal object such as wire. Also, do not carry or

store the battery with a metal case. Otherwise, the battery pack may be short-circuited resulting

in an excessive current and causing the battery pack to become hot, smoke, explode, or catch

fire.

• Neither dispose of the battery pack into a fire nor heat it. The insulation may be burnt, the gas

exhaust valve or safety mechanism may be damaged, or the internal electrolyte may ignite,

causing the battery pack to become hot, smoke, explode, or ignite.

• Neither leave nor use the battery pack in a place with a high temperature (over 80°C) or close

to a fire or hot stove. Should the resin separator be damaged due to excessive heat, the battery

pack may be short-circuited causing it to become heated, smoke, explode, or ignite.

• Do not soak the battery pack in fresh water or sea water. If the protection means incorporated in

the battery pack are damaged, the battery pack may become hot, smoke, explode, or ignite.

• Do not attempt to charge the battery pack close to a fire, in direct sunlight, or in a car parked in

the sun. A heated battery pack will trigger the internal hazard protection means to stop the

charging function. Or, the protection means may be damaged and the battery may be charged

with an excessive current or voltage, or have abnormal chemical reactions induced to cause it to

become hot, smoke, explode, or ignite.

• Do not stick a pin or nail in the battery pack. Neither hit it with a hammer nor stamp on it. If

this is done, the battery pack may be broken or deformed resulting in a short circuit and causing

it to become hot, smoke, explode, or ignite.

• Do not hit or throw the battery pack. If the protection means incorporated in the battery pack

are damaged, the battery pack may be charged with an excessive current or voltage, or have

abnormal chemical reactions induced to cause it to become hot, smoke, explode, or ignite.

• Never use a battery pack that is significantly damaged or deformed. It may become hot, smoke,

explosion, or ignite.

• Do not attempt to solder anything directly on the battery pack surface. The insulation may be

damaged or the gas exhaust valve or safety mechanism may be damaged, causing the battery

pack to become hot, smoke, explode, or ignite.

• Do not use the battery pack in other devices than the specified products by CASIO. The

performance or service life of it may be reduced or abnormal current may flow to cause it to

become hot, smoke, explode, or ignite.

• When charging the battery pack with battery charger or cradle use only the dedicated AC

adaptor supplied from CASIO, at a temperature between 0°C and 40°C. If the battery pack is

charged with chargers or cradles other than those specified by CASIO, it may be over-charged,

or charged with an excessive current, or have abnormal chemical reactions induced, causing it

to become hot, smoke, explode, or ignite.

• The battery pack has a specific polarity. Do not force it into the DT-X11 when installing.

Check the polarity. If the battery pack is connected backwards, it can be incorrectly charged

and have an abnormal chemical reaction induced, causing it to become hot, smoke, explode, or

ignite.

• If the internal electrolyte of the battery pack leaks and gets in your eye, do not rub the eye.

Rinse the eye with a sufficient amount of clean water, such as tap water, then immediately

consult with a medical doctor. The electrolyte can cause eye damage.

Memory Backup Battery

• Do not attempt to disassemble or solder the memory backup battery. Also, do not heat or throw

it into a fire.

• When the button-type battery used in this terminal is removed, exercise care so as not to

accidentally swallow it. Remain aware of the danger to infants. Store it in an infant-safe

location. Should it be swallowed, immediately consult a medical doctor.

• If the battery is improperly used, the electrolyte may leak and soil other objects, resulting in fire

and personal injury.

Be sure to observe the following precautions:

- Make sure of the polarity (+, or -) of the battery when installing it.

- Do not leave the terminal unused for an extended period of time with the battery installed.

- Only use the battery specified for the DT-X11.

7.2.2 General

• Avoid exposing it to water and foreign matter. Should foreign matter (metal chips, water, liquid

chemicals) enter inside the DT-X11, immediately turn off it, remove the batteries, unplug the

AC adaptor, then contact a CASIO distributor.

• Be aware of abnormal conditions. If the DT-X11 is continuously used in an abnormal condition,

a fire or electric shock may occur. If there is an abnormality on the terminal, immediately turn

off the Power switch, and be sure to remove the batteries and unplug the AC adaptor from the

wall outlet, then contact a CASIO distributor for repair.

• Do not use the AC adaptor with a line voltage other than that indicated on its rating plate. Also,

avoid drawing power from an outlet used by multiple devices. This may cause fire or an

electric shock.

• AC adaptor

- Always use the dedicated AC adaptors only. If an AC adaptor that is not specified is used,

the battery pack may explode, causing a fire or personal injury.

- Do not touch the AC adaptor with wet hands. This may result in an electric shock. Also,

place the AC adaptor in a place where it is not subject to dust, moisture and water. Dust and

dirt may cause fire and smoke, and moisture and water may cause an electric shock.

- When this terminal is not used for an extended period of time, e.g. during absences, unplug

the AC adaptor from the wall outlet.

• Power cable of AC adaptor

- Do not damage, break, retrofit, bend, twist, or stretch the power cable. Also, do not place a

heavy object on it or heat it. If this is done, the power cable may be broken and cause a

fire or electric shock.

- Do not bring the power cable close to heating equipment such as stove. The cable coating

may burn or melt, resulting in fire or electric shock.

- Do not bring the power cable close to a container filled with liquid. If the cable becomes

wet or should the container be tipped over, a fire or electric shock may result.

- Do not unplug the AC adaptor by pulling its cable by hand. The cable may be damaged

causing a fire or electric shock. Always hold the AC adaptor itself.

• Memory protection

- Contents of the DT-X11 should always be backed up in personal computer to make a

separate record from that in the terminal. The contents of the memory may accidentally be

lost due to battery power consumption, etc. This also occurs when the terminal

malfunctions or is repaired.

- When replacing the battery, always consult the operation manual. Improper battery

replacement may lead to unexpected loss or alteration of data.

• Places for installing DT-X11

- Do not place the DT-X11 in an environment with a significant amount of moisture or dust.

Otherwise, a fire or electric shock may occur.

- Do not use the DT-X11 in the vicinity of a cooking table, humidifier, etc., where it will be

subjected to oily smoke or vapor. Otherwise, a fire or electric shock may occur.

- Do not place the DT-X11 in an unstable situation, such as on a wobbling platform or shelf.

It may fall and cause personal injury.

- Do not throw the DT-X11 into a fire. This may cause a fire or personal injury due to

explosion of the terminal.

Casio Computer Hardware Dt X11 Series Users Manual

DT-X11 Series to the manual 1d0f17f6-b0a8-4f54-aa7b-53839addaf7d

Navigation menu

Versions of this User Manual:

Views

Navigation
